Search Results (32)

This study presents a systematic investigation into the influence of pulse frequency on the micro-arc oxidation (MAO) coating of AZ31B magnesium alloy following electron-beam remelting (EBR). The morphology, thickness, and corrosion resistance of the EBR-MAO composite coating were meticulously analyzed across various pulse frequencies (100 Hz, 200 Hz, 300 Hz, 400 Hz) employing scanning electron microscopy (SEM), X-ray diffraction (XRD), and electrochemical measurement techniques. The results show that as the pulse frequency escalates from 100 Hz to 400 Hz, the average thickness of the EBR-MAO composite coating diminishes from 41.1 μm to 38.5 μm, reduced by 6.7% compared to 10.4% in the MAO coating. Concurrently, the porosity exhibits a reduction from 1.93% to 1.35%, accompanied by a densification of the coating’s structure. High pulse frequencies yield coatings with enhanced smoothness and fewer defects. Notably, the corrosion resistance of the coatings demonstrates significant improvement at higher frequencies (400 Hz) compared to their lower-frequency (100 Hz) counterparts, as evidenced by a tenfold increase in corrosion current density. This research underscores the pivotal role of pulse frequency in optimizing the protective qualities of MAO coatings on magnesium alloys. Full article

Polycarbonate (PC) is a highly recyclable thermoplastic with high impact strength that bodes well to re-melting extrusion and shredding for positive environmental impact. For the goal of improving impact strength further, layered carbon fiber (CF) reinforcement has been added between PC sheets by hot pressing at 6.0 MPa and 537 K for 8 min. An addition of cross-weave CF layer reinforcement to PC increased Charpy impact value, a_uc of the untreated [PC]₄[CF]₃ composite over that of untreated PC resin reported at all accumulative probabilities, P_f. At medial-P_f of 0.50, a_uc was increased 3.13 times (213%), while statistically lowest impact value a_s at P_f = 0 calculated by 3-parameter Weibull equation was boosted 2.64 times (164%). To optimize a_uc, effect of homogeneous electron beam irradiation (HLEBI) treatment of 43.2, 129, 216, 302, or 432 kGy at 170 kV acceleration voltage to the CF plies before assembly with PC then hot press was also investigated. The 216 kGy HLEBI dose appears to be optimum, raising a_s at P_f = 0 about 6.5% over that of untreated [PC]₄[CF]₃ and agrees with a previous study that showed 216 kGy to be optimum for static 3-point bending strength, when quality can be controlled. Electron spin resonance (ESR) data confirms 216 kGy HLEBI generates strong peaks in CF and PC indicating dangling bond (DB) generation. Bending strength increase was higher than that of impact due to lower test velocity and higher deformation area spreading along specimen length, allowing more DBs to take on the load. X-ray photoelectron spectroscopy (XPS) data of CF top ~10 nm surface layer in the sizing confirms C–O–H, C–H, and C–O peak height from 216 kGy exhibited little or no change compared with untreated. However, 432 kGy increased the peak heights indicating enhanced adhesion to PC. However, 432 kGy degraded a_s at P_f = 0 of the [PC]₄[CF]₃, and is reported to decrease impact strength of PC itself by excess dangling bond formation. Thus, the 432 kGy created increased PC/CF adhesion, but degraded the PC resin. Therefore, 216 kGy of 170 kV-HLEBI appeared to be a well-balanced condition between the PC-cohesive force and PC/CF interface adhesive force when fabricating [PC]₄[CF]₃. Full article

The performance of the selective electron beam melting (SEBM) products depends on the SEBM-induced temperature and stress. Here, the thermomechanical finite element simulations are conducted to investigate the dynamic evolution of temperature and the thermal stress of melt pool during the SEBM process of Ti6Al4V alloys under various processing parameters and scanning strategies. The results show that the melt pool undergoes three stages of preheating, melting, and remelting under the influence of adjacent scanning tracks. This complex thermal history drives significant changes in thermal stress within the melt pool. After adjusting the processing parameters, it is found that a low scanning speed and high electron beam energy result in a high temperature gradient and stress in the molten pool. Compared to the electron beam energy, the scanning speed has a more significant impact on temperature and residual stress. For the dual-electron-beam scanning strategy, the coupling thermal effect between electron beams can reduce the temperature gradient of the melt pool, thereby suppressing the formation of columnar crystals. The electron beam energy of 300 W and the scanning speed of 1.5 m/s can be selected under various scanning strategies, which are expected to suppress the formation of coarse and columnar β grains and achieve relatively low residual stress. These results contribute to providing a theoretical basis for selecting optimized process parameters and scanning strategies. Full article

This paper explores the enhancement of cavitation and corrosion resistance in cast stainless steel through laser beam surface remelting. The influence of laser treatment on material properties was assessed by analyzing the microstructure using optical microscopy, electron microscopy, and X-ray diffraction. Cavitation erosion was evaluated in tap water using an ultrasonic vibration setup, following ASTM G32—2016 standards. Results show that local remelting of the surface with a laser beam causes a reduction in material loss and cavitation erosion rate. Potentiodynamic polarization tests revealed a significant improvement in corrosion resistance, indicated by a reduced corrosion current density in the laser-treated surface. The observed improvements in cavitation and corrosion resistance are attributed to microstructural hardening, characterized by grain refinement and a uniform, homogeneous structure with finely dispersed, small precipitate particles. Full article

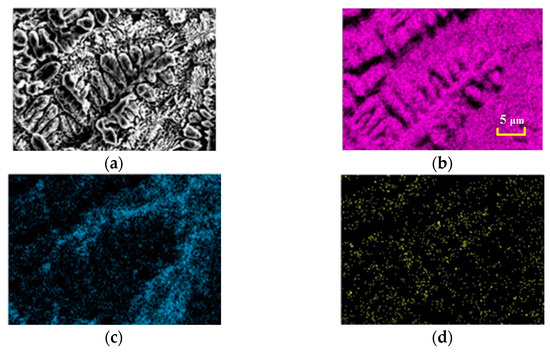

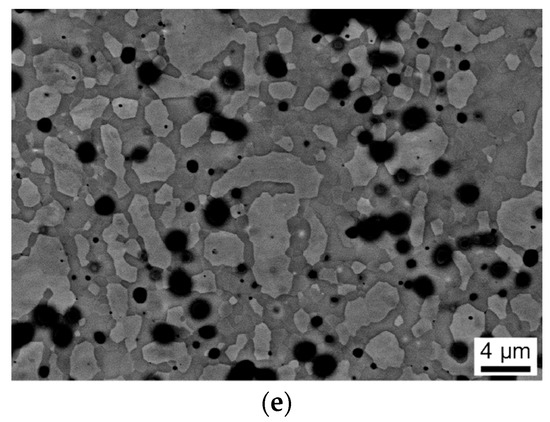

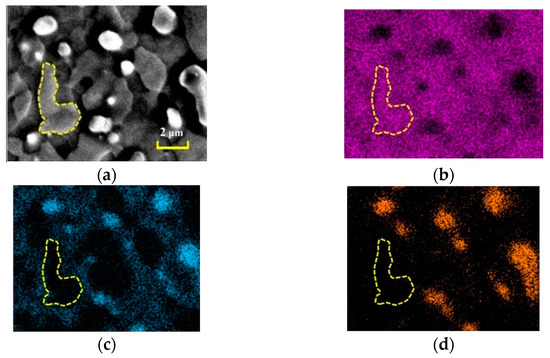

This paper investigates the enhancement of the microstructure and properties of Ag-10La_0.7Sr_0.3CoO₃ composites, prepared by powder metallurgy, through the application of high-current pulsed electron beam (HCPEB) irradiation. The X-ray diffraction results showed that the irradiated samples exhibited selective orientations on the surface of their (200) and (311) crystal planes. Microstructural observations revealed a dense remelted layer on the samples’ surface after HCPEB irradiation. The surface hardness of the samples increased after 15 treatments, showing an improvement of 36.76%. This is primarily attributed to fine-grain strengthening, surface remelting, and recrystallization. Further, the electrical conductivity of the samples treated 15 times increased by 74.8% compared to that of the original samples. Electrochemical test results showed that the samples treated 15 times showed the lowest corrosion current density in a 3.5 wt.% NaCl solution. This improved corrosion resistance is attributable to the refinement of the surface’s microstructure and the introduction of residual compressive stress. This study demonstrates the significant impact of HCPEB irradiation on the regulation of the properties of Ag-10La_0.7Sr_0.3CoO₃ composites. Full article

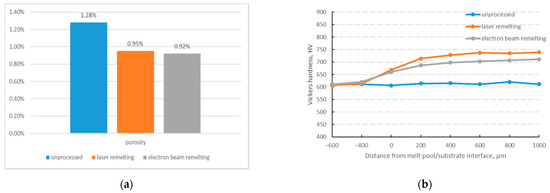

Laser beam remelting is a relatively simple and highly effective technique for the physical modification of surfaces to improve resistance to cavitation erosion. In this study, we investigated the effect of laser remelting on the surface of cast stainless steel with 0.40% C, 25% Cr, 20% Ni, and 1.5% Si on cavitation erosion behavior in tap water. The investigation was conducted using a piezoceramic crystal vibrator apparatus. Base laser beam parameters were carefully selected to result in a defect-free surface (no porosity, material burn, cracks) with hardness capable of generating better resistance to cavitation erosion. The experimental results were compared with those of the reference material. Surface morphology and microstructure evolution after cavitation tests were analyzed using an optical metallographic microscope (OM), scanning electron microscope (SEM), and hardness tests to explore the mechanism of improving surface degradation resistance. The conducted research demonstrated that surfaces modified by laser remelting exhibit a 4.8–5.1 times greater increase in cavitation erosion resistance due to the homogenization of chemical composition and refinement of the microstructure, while maintaining the properties of the base material. Full article

The aim of this article is to provide an analysis of the influence of the type of hard anti-wear coatings on the friction behaviour of DC01 deep-drawing steel sheets. DC01 steel sheets exhibit high formability, and they are widely used in sheet metal forming operations. The tribological properties of the tool surface, especially the coating used, determine the friction conditions in sheet metal forming. In order to carry out the research, this study developed and manufactured a special bending-under-tension (BUT) friction tribometer that models the friction phenomenon on the rounded edges of tools in the deep-drawing process. The rationale for building the tribotester was that there are no commercial tribotesters available that can be used to model the phenomenon of friction on the rounded edges of tools in sheet forming processes. The influence of the type of coating and sheet deformation on the coefficient of friction (CoF) and the change in the topography of the sheet surface were analysed. Countersamples with surfaces prepared using titanium + nitrogen ion implantation, nitrogen ion implantation and electron beam remelting were tested. The tests were carried out in conditions of dry friction and lubrication with oils with different kinematic viscosities. Under dry friction conditions, a clear increase in the CoF value, with the elongation of the samples for all analysed types of countersamples, was observed. Under lubricated conditions, the uncoated countersample showed the most favourable friction conditions. Furthermore, oil with a lower viscosity provided more favourable conditions for reducing the coefficient of friction. Within the entire range of sample elongation, the most favourable conditions for reducing the CoF were provided by uncoated samples and lubrication with S100+ oil. During the friction process, the average roughness decreased as a result of flattening the phenomenon. Under dry friction conditions, the value of the Sa parameter during the BUT test decreased by 20.3–30.2%, depending on the type of countersample. As a result of the friction process, the kurtosis and skewness increased and decreased, respectively, compared to as-received sheet metal. Full article

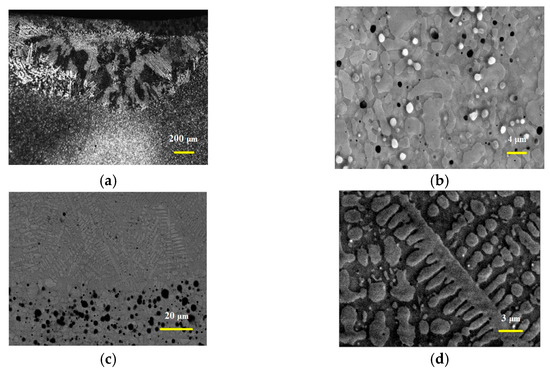

In this study, the possibilities for modification and improvement of the surface structure and properties of titanium substrates by a formation of composite Ti/TiC layers are presented. The layers were fabricated by a two-step electron-beam surface modification technique. The first step consists of injection of C powder within the pure Ti substrates by electron-beam alloying technology. The second step is the refinement and homogenization of the microstructure by the electron-beam remelting procedure. During the remelting, the speed of the motion of the samples was varied, and two (most representative) velocities were chosen: 5 and 15 mm/s. Considering both speeds of the motion of the specimens, a composite structure in the form of fine TiC particles distributed within the base titanium matrix was formed. The remelting speed of 5 mm/s led to the formation of a much thicker composite layer, where the TiC particles were significantly more homogeneously distributed. The results obtained for the Vickers microhardness exhibit a significant increase in the value in the mentioned mechanical characteristic in comparison with the base Ti substrate. In the case of the lower speed of the motion of the specimen during the remelting procedure, the microhardness is 510 HV, or about 2.5 times higher than that of the titanium substrate. The application of a higher speed of the specimen motion leads to a decrease in the microhardness in comparison with the case of lower velocity. However, it is still much higher than that of the base Ti material. The mean microhardness of the sample obtained by the remelting speed of motion of 15 mm/s is 360 HV, or it is 1.8 times higher than that of the base material. Full article

Unalloyed cast iron materials exhibit low tribological and corrosive resistance. In this respect, nitriding has a wide range of applications for steels. In the case of cast iron, the advantageous properties of nitrided layers are impaired by the presence of graphite. Electron beam remelting of cast iron surfaces prior to nitriding removes graphite. The homogeneous ledeburitic microstructure within the approx. 1 mm-thick remelted layer enables the formation of a dense compound layer during subsequent nitriding. The main objective of this study is to investigate the nitriding mechanism of unalloyed ledeburitic microstructures. Due to the complex relationships, investigations were carried out on both conventional ferritic and pearlitic cast irons and Fe-based model alloys containing one to four additional alloying elements, i.e., C, Si, Mn and Cu. The iron (carbo-)nitride composition (γ’, ε) of this compound layer depends on the gas nitriding conditions, the chemical composition of the substrates and the microstructural constituents. As a result, a schematic model of the nitriding mechanism is developed that includes the effects of the nitriding parameters and alloy composition on the phase composition of the nitriding layer. These findings enable targeted parameter selection and a further optimization of both the process and the properties. Full article

A fully transient discrete-source 3D Additive Manufacturing (AM) process model was coupled with a 3D stochastic solidification structure model to simulate the grain structure evolution quickly and efficiently in metallic alloys processed through Electron Beam Powder Bed Fusion (EBPBF) and Laser Powder Bed Fusion (LPBF) processes. The stochastic model was adapted to rapid solidification conditions of multicomponent alloys processed via multi-layer multi-track AM processes. The capabilities of the coupled model include studying the effects of process parameters (power input, speed, beam shape) and part geometry on solidification conditions and their impact on the resulting solidification structure and on the formation of inter layer/track voids. The multi-scale model assumes that the complex combination of the crystallographic requirements, isomorphism, epitaxy, changing direction of the melt pool motion and thermal gradient direction will produce the observed texture and grain morphology. Thus, grain size, morphology, and crystallographic orientation can be assessed, and the model can assist in achieving better control of the solidification microstructures and to establish trends in the solidification behavior in AM components. The coupled model was previously validated against single-layer laser remelting IN625 experiments performed and analyzed at National Institute of Standards and Technology (NIST) using LPBF systems. In this study, the model was applied to predict the solidification structure and inter layer/track voids formation in IN718 alloys processed by LPBF processes. This 3D modeling approach can also be used to predict the solidification structure of Ti-based alloys processes by EBPBF. Full article

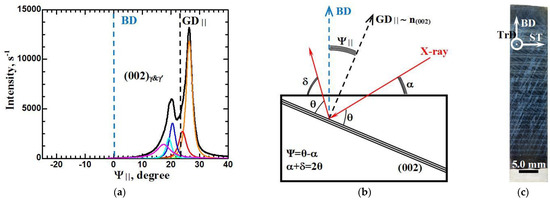

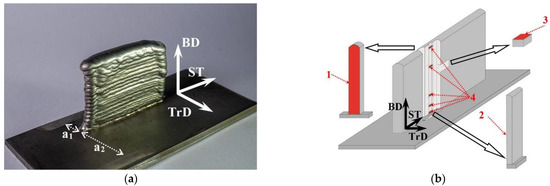

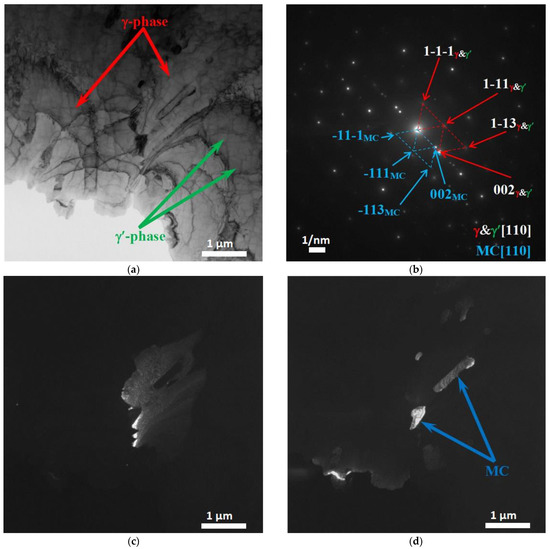

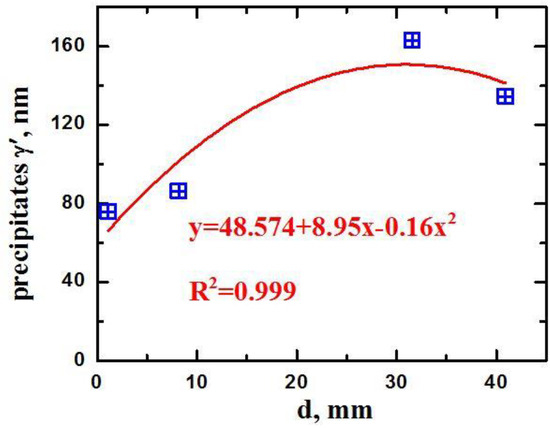

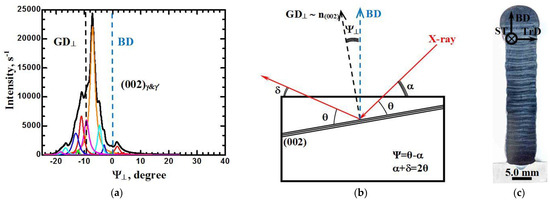

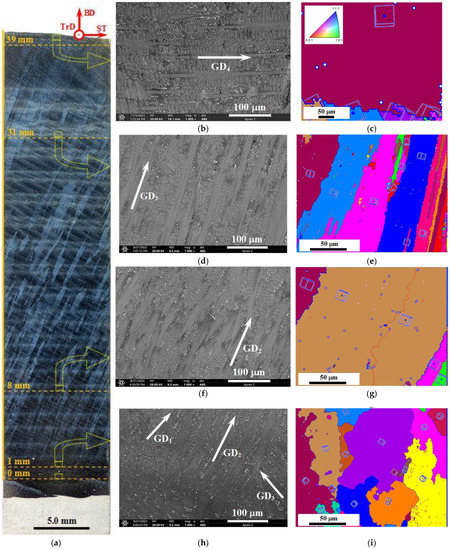

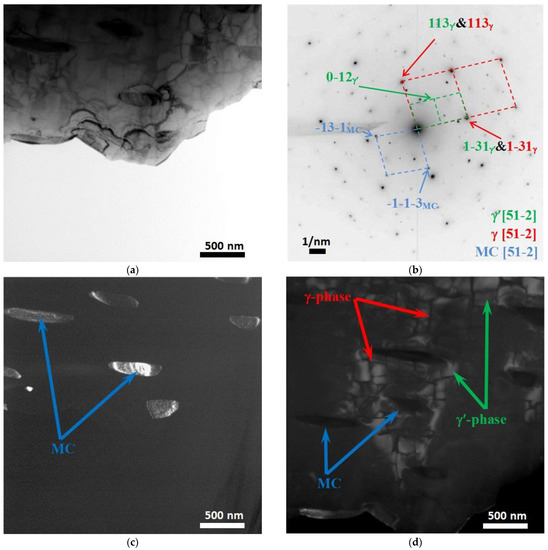

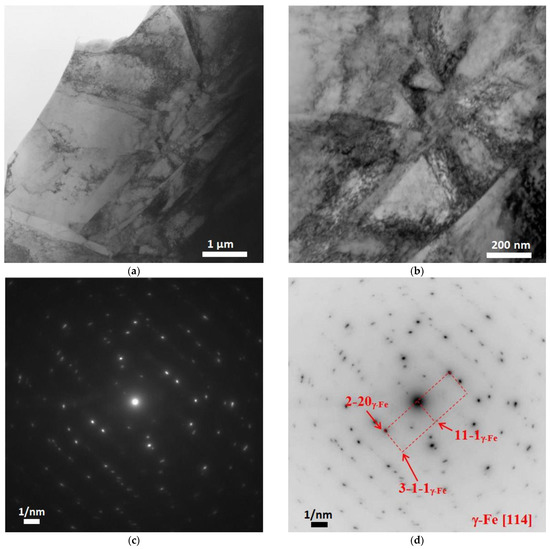

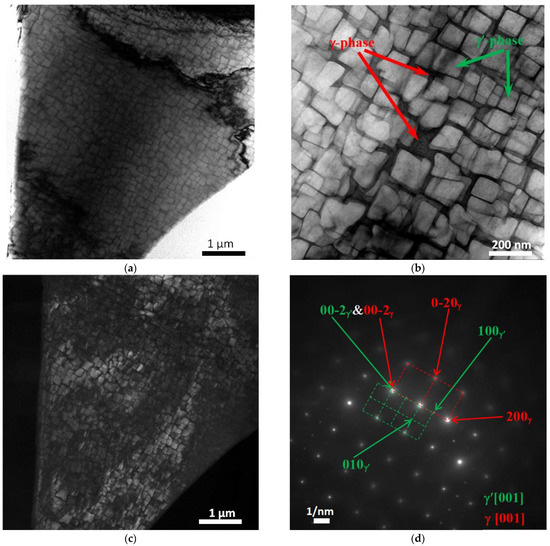

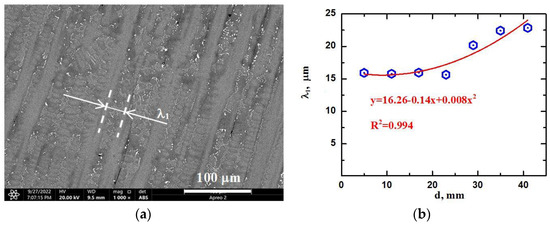

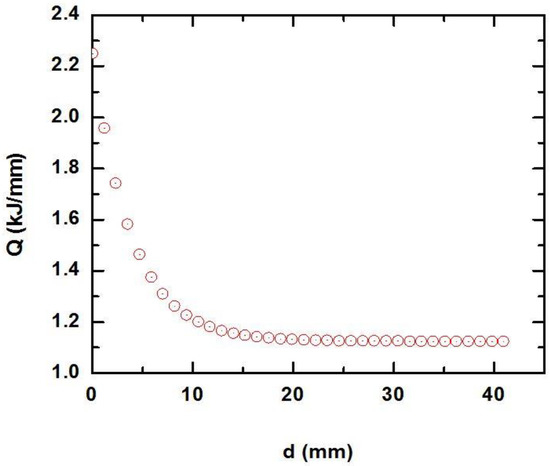

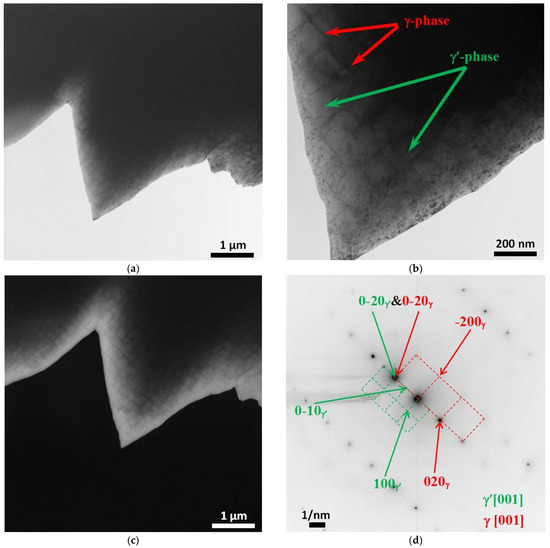

In the present work, the products in the form of vertical walls were made of heat-resistant nickel-based superalloy ZhS32 via the method of electron beam additive technology. Unidirectional printing strategy was applied. The effect of heat input and 3D printing strategy on the macrostructure, dimensions, and morphology of microstructure elements was established. It was shown that the additive product material has a directed macrostructure. The only exclusion was the final layer with a thickness of no more than 3.5 mm. The directed macrostructure consisted of dendrites oriented predominantly along the crystallographic direction {001} of the primary dendrite arms. The misorientation of the dendrite axes did not exceed 9 degrees. The angle between the predominant dendrite growth direction and the normal to the substrate was 23 degrees. The average primary dendrite arms’ spacing increased monotonically from 16 µm at 5 mm from the substrate to 23 µm in the final layers of the product material (the overall height was 41 mm). It was found that the average size of γ’ (Ni₃Al)-phase precipitations in the form of nanoscale and submicrocrystalline cuboids varied in the range of 76 to 163 nm depending on the distance from the substrate. The size of γ’-phase precipitations reached a maximum at about 30 mm from the substrate, while in the final layers of the product material, the average cuboid size did not exceed 135 nm. Extreme dependence of the size of γ’-phase precipitations on the height of the product followed from a combination of a given monotonic decrease in heat input and heat accumulation in the product material as it formed, as did additional heat removal by means of radiation during formation of the final layer of the product without re-melting. Chemical elements of the austenitic steel substrate material were not detected in the product material more than 8 mm from the substrate. There were no macrodefects, such as voids, in the entire volume of the product material. Full article

In the present experimental study, the transverse oscillating laser beam technique was applied for the post-melting of metal matrix composite coatings, thermally sprayed with nickel-based self-fluxing NiCrCoFeCBSi alloy and 40 wt.% WC, to improve their hardness and wear resistance. The study was conducted using the single module optical fiber laser at 300 W power, >9554 W/cm² power density, 250–1000 mm/min laser speed, 1 mm and 2 mm transverse oscillation amplitude. Scanning electron microscopy, energy dispersive spectroscopy, Knop hardness measurements, and “Ball-on-disc” dry sliding tests were conducted to study the effect of the processing parameters on the molten pool geometry and microstructure, hardness, and tribology of the processed layers. Oscillating laser processing with an amplitude of 1 mm, 250–750 mm/min laser operating speed, and sample preheating to 400 °C gave a satisfactory result: wide and shallow molten pools of ~200–350 μm in depth, hardness between ~1100 and 1200 HV0.2 and minimum cracks obtained. The coatings obtained with laser beam oscillation and preheating, and ~1150 HV0.2 hardness showed an improvement in the wear resistance and friction coefficient (~0.33) of ~2.9 times and ~20%, respectively, compared with the respective values of the coatings remelted in furnace. Full article

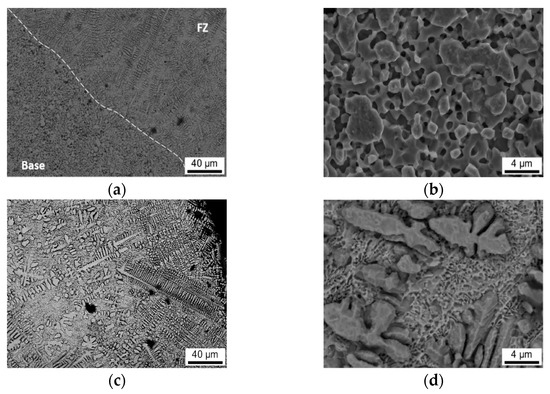

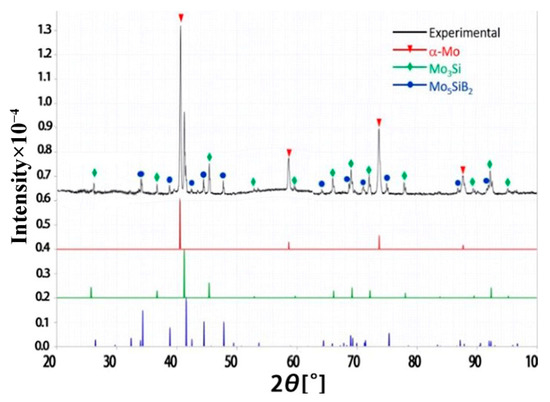

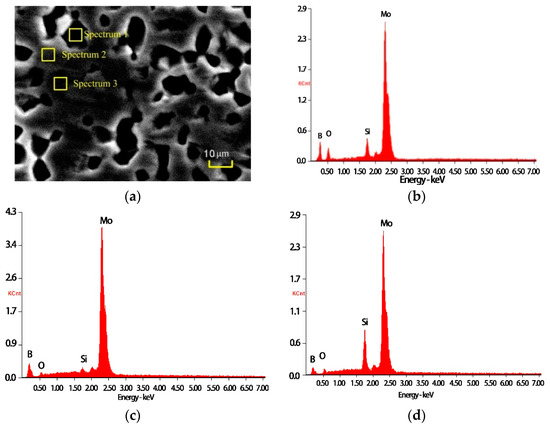

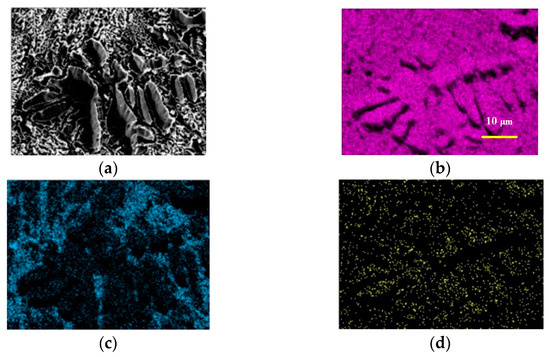

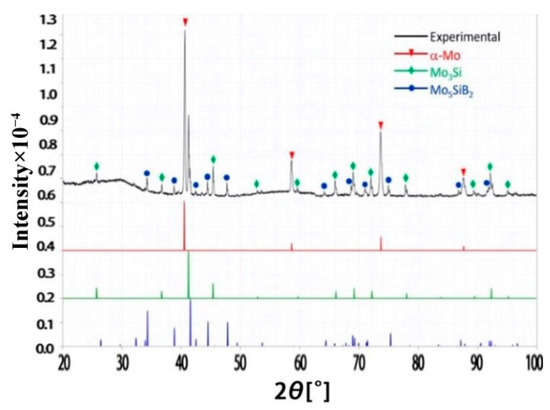

The Mo-12Si-8.5B alloy was surface-remelted by laser and electron beam, and the microstructure of its melt pool and substrate regions were analyzed by scanning electron microscopy (SEM), X-ray diffraction (XRD), and energy spectrometry (EDS) techniques. It was found that the composition of the surface phases in the Mo-12Si-8.5B alloy did not change by the high-energy beam surface remelting process, but the microstructure of the molten pool region was significantly different from that of the substrate region, and its phase distribution was more uniform. Dendrites appeared on the surface of the material under the action of both processes, and the Si- and B-rich phases were mainly gathered in the interdendritic region. In the melt pool of the laser-remelted specimens, the α-Mo phase was continuously distributed with an average dendrite length of 70 µm, while the α-Mo phase distribution in the melt pool of the electron beam remelted specimens were relatively concentrated, with a larger dendrite size and an average dendrite length of 120 µm. The dendrite size in the melt pool of the laser remelted material was smaller, and the distribution of the elements was relatively uniform. Using a laser beam as the heat source was more favorable for the next step of the additive manufacturing of the core parts of hypersonic vehicles. Full article

High-speed steel (HSS) is primarily used to manufacture cutting tools and roll materials for various machine tools. Improving the hardness, wear resistance, and corrosion resistance of HSS is of great significance to the development of the manufacturing and tool industries. The high-energy beams, consisting of laser, plasma beam, and electron beam processing (e.g., surface remelting, cladding, and alloying), have the advantageous characteristics of high heat source energy and good surface processing effect. The research status and perspective of the above three processing techniques on the surface properties (in particular, hardness, wear resistance, and corrosion resistance) of HSS is reviewed, and the principles, advantages, and disadvantages of the three strengthening methods are discussed. High-energy beam surface alloying appears to be the most cost-effective of HSS surface strengthening methods and is promising to receive increasing research attentions in the future. Full article

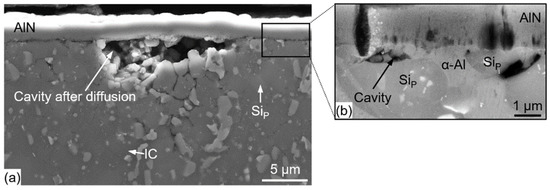

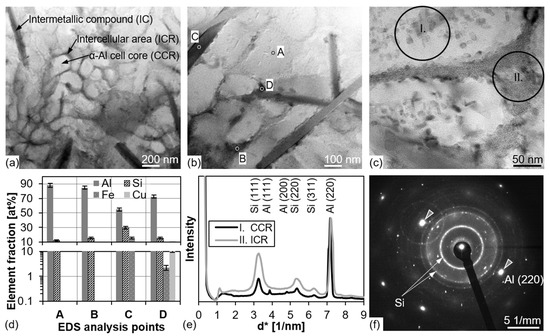

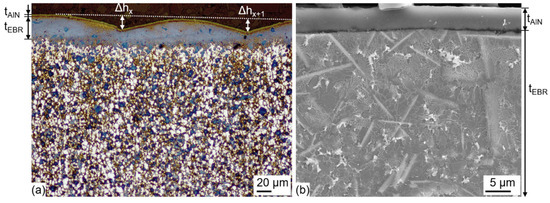

Nitriding of Al alloys leads to the formation of a thin, hard nitride layer (AlN) on the surface. A subsequent EBR can both eliminate the nitriding-related cavities under the nitride layer and increase the hardness of the substrate without melting or destroying the nitride layer. This paper deals with investigations regarding the influence of the energy/heat input on the microstructure within both the AlN layer and the remelted Al substrate. Of particular interest was the interface between the AlN and the Al substrate, which changed to a transition zone with a depth of approximately 80 µm. A range of high-resolution imaging and analytical tools for both scanning and transmission electron microscopy were used for these investigations. Based on the findings from the microstructural investigations, a schematic model was developed of the processes occurring within the nitride layer and at the interface as a result of remelting. Full article
