Search Results (1,132)

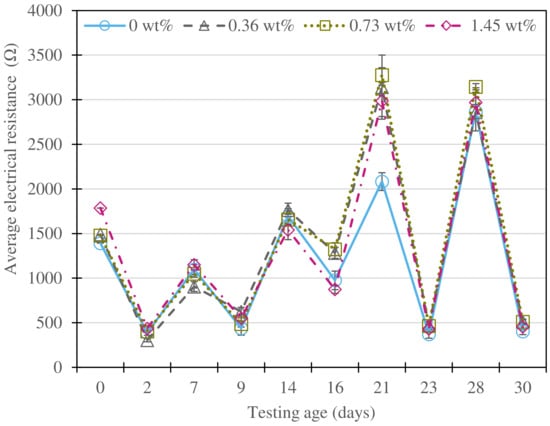

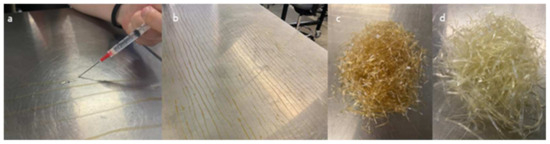

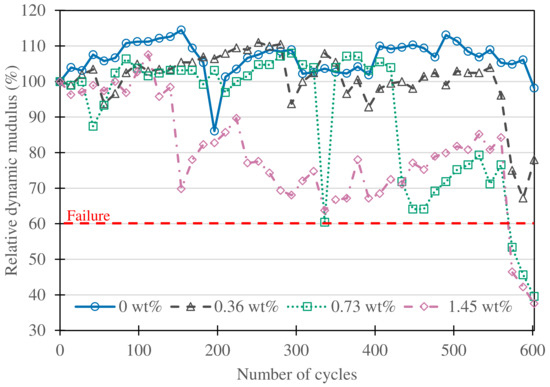

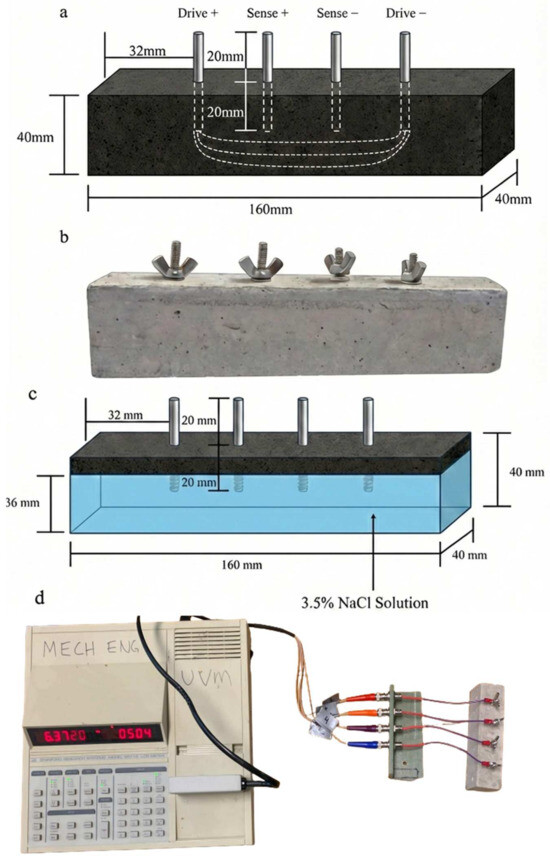

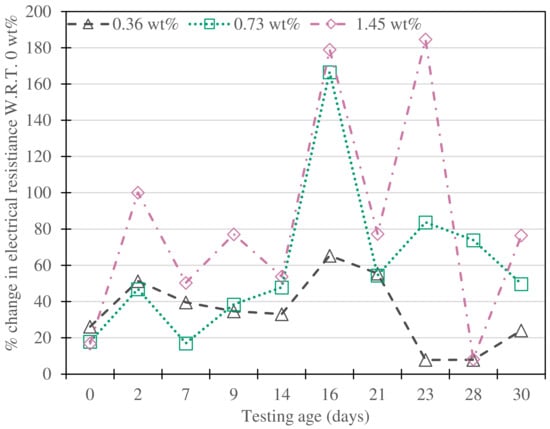

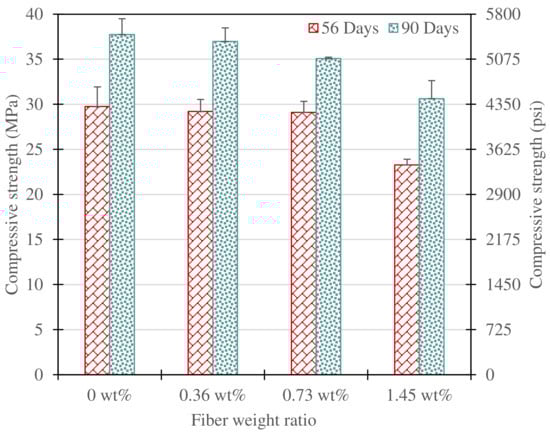

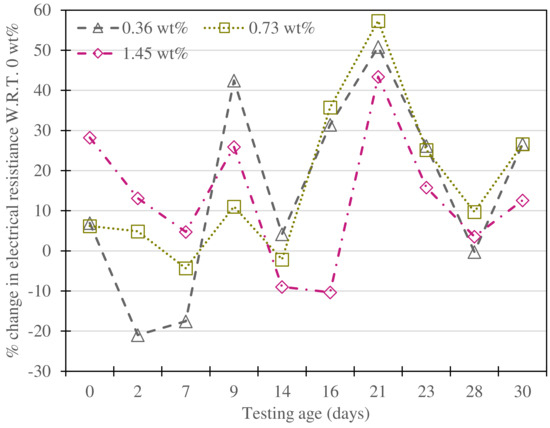

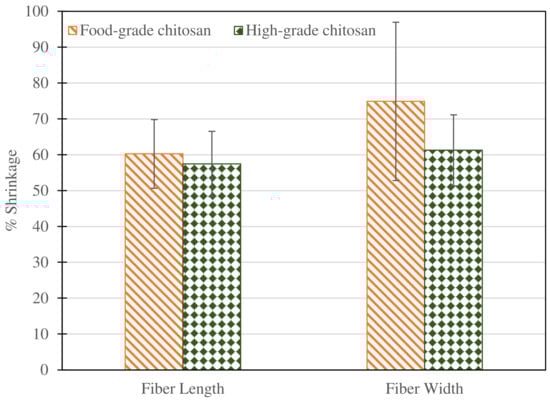

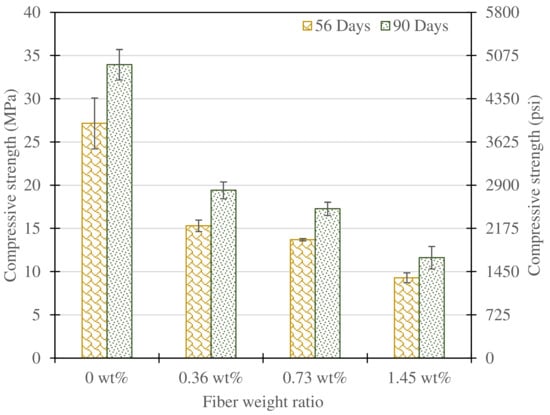

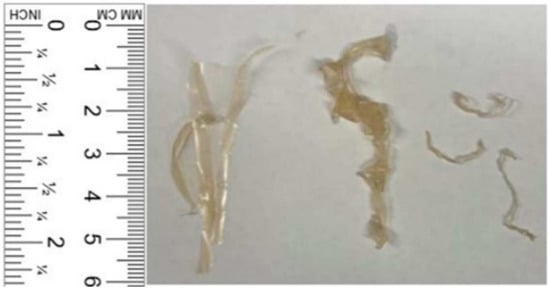

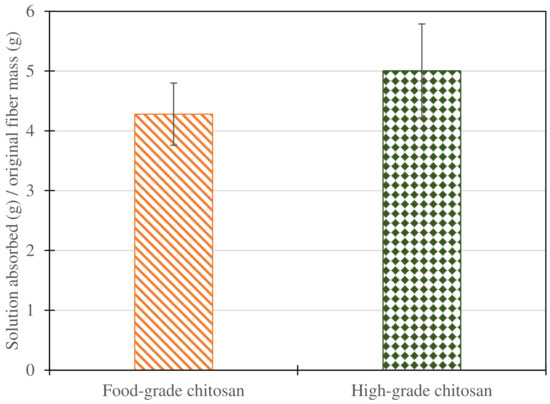

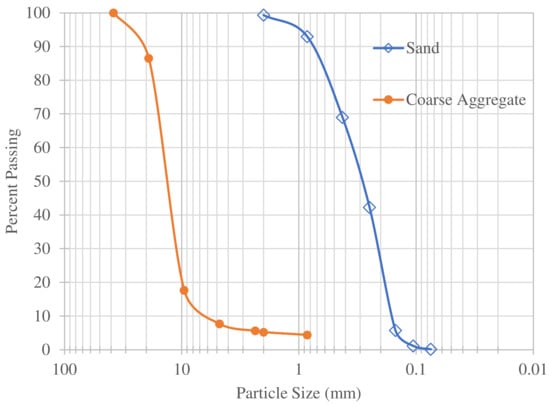

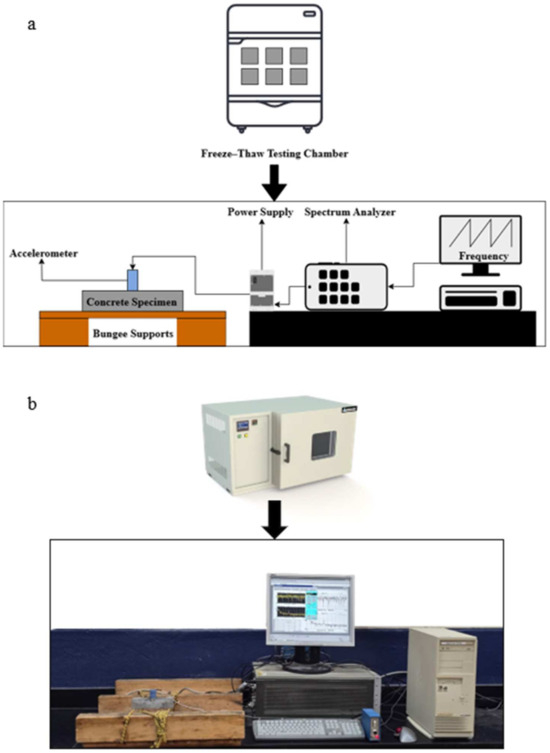

This study evaluates the mechanical properties and durability of novel self-shrinking chitosan fibers incorporated into a High-Performance Concrete (HPC) matrix. The cementitious system comprised a 75–25% blend of Portland Limestone Cement (PLC) and Ground Glass Pozzolan (GGP). Two variants of chitosan—food-grade and high-grade—were processed into fibers and integrated at dosages of 0.36%, 0.73%, and 1.45% by weight of binder, alongside a 0% control group. The experimental program assessed eight distinct mixtures through extended freeze–thaw testing (up to 602 cycles), electrical resistance monitoring, and compressive strength evaluation at 56 and 90 days. Results indicated that food-grade chitosan fibers caused a substantial reduction in compressive strength, ranging from 40% to 70% depending on the dosage. Despite this mechanical loss, these mixtures showed localized improvements in freeze–thaw resistance and electrical resistivity. Conversely, the high-grade chitosan fibers exhibited severe performance degradation under freeze–thaw cycling; all reinforced groups fell below 80% relative dynamic modulus, with two mixtures dropping below the 60% failure threshold. In comparison, the control mixture retained 98% of its dynamic modulus after 602 cycles. Ultimately, the findings suggest that, in their current formulation, self-shrinking chitosan fibers do not provide consistent or reliable enhancements to the structural integrity or durability of high-performance concrete. Full article

Cemented granular materials (CGMs) represent a transitional class of geomaterials where mechanical behavior is governed by the interplay between a discrete granular skeleton and a continuous cementitious matrix. While previous studies have focused on idealized spherical particles, this study aims to quantify the influence of the cement filling ratio (ranging from 10% to 100%) on the mechanical constitutive behavior of CGMs fabricated with large, irregular granitic aggregates (14–20 mm). Unconfined compressive tests and splitting tensile tests were conducted to evaluate the evolution of strength, stiffness, and failure modes. The results reveal a distinct mechanical transition governed by the cement filling ratio (${\rho }_m$). The elastic modulus and splitting tensile strength exhibited a linear increase with ${\rho }_m$ (R2 > 0.95), indicating a direct dependence on the volume fraction of the binding phase. In contrast, the unconfined compressive strength (UCS) and peak strain displayed a bilinear growth pattern with a critical inflection point at ${\rho }_m$ = 80%. For the specific irregular granitic aggregate skeleton investigated, this threshold marks the transition from contact-dominated stability to matrix-dominated continuum behavior. Below this threshold, strength gain is limited by the stability of discrete particle contacts; above 80%, the material behaves as a continuum, with UCS increasing rapidly to a maximum of 41.78 MPa at 100% filling. Furthermore, the dispersion of stress–strain responses significantly decreased as ${\rho }_m$ exceeded 50%, attributed to the homogenization of stress distribution within the specimen. These findings provide a quantitative basis for optimizing cement usage in ground reinforcement applications, identifying 80% as a critical design threshold. Full article

This paper presents an experimental framework that allows damage identification and retrofitting assessment in reinforced concrete (RC) beam with implemented piezoelectric lead zirconate titanate (PZT) sensors embedded into the concrete matrix. The study was conducted with concrete prepared from 30% refuse-derived fuel (RDF) fly ash and 70% cement as part of research on sustainable materials for structural health monitoring (SHM). Electromechanical impedance (EMI) was employed for detecting structural degradation, with progressive damage and evaluation of recovery effects made using root-mean-square deviation (RMSD) and conductance changes. Concrete beam specimens with dimensions of 700 mm × 150 mm × 150 mm and embedded with 10 mm × 10 mm × 0.2 mm PZT sensors were cast and later subjected to three damage stages: concrete chipping (Damage I), 50% steel bar cutting (Damage II), and 100% steel bar cutting (Damage III). Three retrofitting stages were adopted: reinforcement welding (Retrofitting I and II), and concrete patching (Retrofitting III). The results demonstrated that the embedded PZT sensors with EMI and RMSD analytics represent a powerful technique for early damage diagnosis, reserved retrofitting assessment, and proactive infrastructure maintenance. The combination of SHM systems and sustainable retrofitting strategies can be a promising path toward resilient and smart civil infrastructure. Full article

To facilitate the large-scale recycling of phosphogypsum (PG) as a construction material and mitigate the environmental safety concerns associated with its stockpiling or discharge, this study proposes an innovative approach. The method employs modified (acid-treated) basalt fibers (MBF) synergistically combined with microbially induced carbonate precipitation (MICP) technology for PG solidification. This synergistic MBF–MICP treatment not only enhances the strength and further improves the toughness of the solidified PG but also effectively immobilizes heavy metals within the PG matrix. Bacterial attachment tests conducted on fibers subjected to various pretreatment conditions revealed that the maximum bacterial adhesion occurred on fibers treated with a 1 mol/L acid concentration for 2 h at 40 °C. However, MICP mineralization experiments performed on these pretreated fibers determined the optimal pretreatment conditions for mineralization efficiency to be an acid concentration of 0.93 mol/L, a treatment duration of 0.96 h, and a temperature of 30 °C. Unconfined compressive strength (UCS) tests and calcium carbonate content measurements identified the optimal reinforcement parameters for MBF–MICP-solidified PG as a fiber length of 9 mm and a fiber dosage of 0.4%. Furthermore, comparative analysis demonstrated that the UCS and toughness of MBF–MICP-solidified PG were superior to those of bio-cemented PG specimens treated with unmodified fibers or without any fiber reinforcement. It was found by scanning electron microscopy that there was an obvious phosphogypsum particle-fiber-calcium carbonate precipitation interface in the sample, and the fiber had a bridging effect. Finally, heavy metal leaching tests conducted on the solidified PG confirmed that the leached heavy metal concentrations were below the detection limit, complying with national discharge standards. Full article

In the present study, the effects of trans-cinnamaldehyde (TCA) addition on selected properties of lime–cement plaster were investigated. The algicidal effect of TCA on natural biofilm isolated from lime–cement plaster was investigated in the first experiment. Concentrations of 200 mg/L or higher caused complete inhibition of algal growth. Two TCA solutions (0.02% and 1.5% w/w relative to binders) were then used for the preparation of plaster according to the results of biological testing and previous research. The results did not indicate any practically relevant statistically significant effect of TCA on compressive and bending strength, while the total porosity increased with higher aldehyde concentration in the matrix and the matrix and bulk density decreased. Samples with 1.5% TCA showed reduced moisture uptake, indicating improved moisture-related behavior under high-humidity conditions. The occurrence of micropores in the structure compared to the reference was revealed by scanning electron microscopy. The main conclusions of the study are that TCA can be considered for the improvement of algicidal formulations in the form of protective coatings and as an additive influencing the moisture-related behavior of plaster, with beneficial effects observed at a TCA content of 1.5% w/w. Full article

This study presents an innovative approach by combining magnetized water (MW) with Bacillus megaterium to improve the sustainability of concrete under various curing conditions. These enhancements contribute directly to reduced cement use and improved durability, both essential factors in sustainable construction. An experimental program with 27 distinct mixes analyzed variables such as the type of water (tap water/TW and two magnetization sequences/MW1 and MW2), bacterial dosage (0%, 2.5%, and 5% relative to cement weight), and curing methods (traditional water curing/C1, thermal shock/C2, freeze–thaw/C3). The primary discovery is a synergistic relationship between MW and bacteria: the MW1 treatment (1.5 T followed by 0.9 T) paired with a 2.5% bacterial dosage significantly improved the mechanical and self-healing properties of the concrete. This combination led to significant improvements in workability and compressive strength, achieving an increase of as much as 46.5% compared to the control. There was also an impressive recovery of strength in pre-cracked specimens, particularly under thermal shock curing (C2), where some healed cubes exceeded the strength of the uncracked ones. On the other hand, a 5% bacterial dosage was less effective, often resulting in reduced returns due to variations in microstructure. SEM and XRD analyses confirmed a more compact matrix and increased calcite precipitation with 2.5% bacteria, illustrating the combined effects of microbial activity and microwave treatment for sustainable concrete. Full article

This study evaluates the potential of 3D-printed acrylonitrile butadiene styrene (ABS) and carbon fiber (CF) as sustainable alternatives to steel reinforcement in cement-based materials. The experimental program analyzed the compressive strength of cement pastes and concrete cylinders incorporating 3D-printed ABS and CF elements. Unreinforced cement pastes exhibited higher compressive strength than reinforced pastes, indicating limited reinforcement–matrix interaction. In concrete cylinders, ABS reinforcement increased compressive strength by approximately 3 to 7 MPa compared to steel, whereas CF reinforcement showed variable performance and did not consistently surpass the control specimens. ANOVA and Tukey tests confirmed the statistical significance of the results. The anisotropic response of ABS and CF, inherent to layer-by-layer deposition, was identified as a major factor influencing structural performance, particularly with respect to reinforcement orientation. The results indicate that ABS presents potential as an environmentally favourable alternative to steel in selected applications, while CF requires further optimization for compression-oriented use. Continued research is recommended to evaluate long-term durability, environmental resistance, and reinforcement–matrix compatibility in order to advance the implementation of polymer-based, additively manufactured reinforcements in construction materials. Full article

Mine waste remains a persistent challenge for the minerals industry, posing significant environmental concerns if not properly managed. The 1996 Marcopper Mining Disaster in Marinduque, Philippines, left a legacy of mine tailings that continue to threaten local ecosystems and communities. This study investigates the valorization and stabilization of Marcopper river sediments laden with mine tailings using a combined geopolymerization and cement hydration approach. Hybrid mortar samples were prepared with 7.5%, 15%, 22.5%, and 30% mine tailings by weight, utilizing potassium hydroxide (KOH) as an alkaline activator at concentrations of 1 M and 3 M, combined with Ordinary Portland Cement (OPC). The mechanical properties of the hybrid geopolymer cement mortars were assessed via unconfined compression tests, and their crystalline structure, phase composition, surface morphology, and chemical bonding were also analyzed. Static leaching tests were performed to evaluate heavy metal mobility in the geopolymer matrix. The compression tests yielded strength values ranging from 24.22 MPa to 53.99 MPa, meeting ASTM C150 strength requirements. In addition, leaching tests confirmed the effective encapsulation and immobilization of heavy metals, demonstrating the potential of this method for mitigating the environmental risks associated with mine tailings. Full article

This in vitro study evaluated the shear bond strength (SBS) of four CAD/CAM (Computer aided design/Computer aided manufacturing) polymer-based indirect composites bonded to dentin and microhybrid composite substrates using two resin cements. Gradia Plus (GP), Ceramage (Ce), Tescera ATL (TA), and Lava Ultimate (LA) were fabricated into cylindrical specimens (3 × 3 mm). Dentin substrates were obtained from extracted molars, while composite substrates were prepared from Filtek Z250 (4 mm × 2 mm). Bonding was performed using either a self-adhesive resin cement (RelyX U200; RU200) or a dual-cure adhesive resin cement (RelyX Ultimate; RU), resulting in 16 experimental groups (n = 12 per group). SBS was measured using a universal testing machine (1 mm/min), and failure modes were assessed under stereomicroscopy. Bond strength was significantly higher on composite substrates than on dentin (p < 0.001), primarily due to favorable polymer–polymer compatibility and matrix interdiffusion, which improved stress accommodation at the adhesive interface. TA and Ce showed superior adhesion when combined with RU, while LA exhibited the lowest values, particularly on dentin bonded with RU200. Overall, the dual-cure adhesive system provided stronger bonding than the self-adhesive system (p < 0.05). These findings highlight the influence of substrate type, composite architecture, and cement chemistry on interfacial performance in indirect polymer-based restorations. Full article

This study investigated the effects of incorporating rice husk ash (RHA) as a partial replacement for cement on the properties of concrete. To determine the optimal replacement level, RHA was used to replace cement in varying proportions, ranging from 0% to 25% in 5% increments. The mix with 0% RHA served as the control. The properties evaluated included setting time, density, and compressive strength. The results revealed that blending RHA with cement increased the initial setting time. This was attributed to the lower calcium oxide (CaO₂) content of RHA, which slows early-age hydration reactions. Conversely, the final setting time was reduced due to the pozzolanic activity of RHA, which enhances later-stage reactions. Additionally, the inclusion of RHA resulted in a decrease in concrete density, owing to its lower specific gravity and bulk density compared to Portland cement. Despite this, RHA-modified specimens exhibited higher compressive strengths than the control specimens. This strength enhancement was linked to the formation of additional calcium–silicate–hydrate (C-S-H) gel due to the pozzolanic reaction between amorphous silica in RHA and calcium hydroxide (CaOH) from hydration reaction. The gel fills concrete voids at the microstructural level, producing a denser and more compact concrete matrix. Based on the balance between strength and durability, the optimal RHA replacement level was identified as 10%. Full article

To promote the sustainable utilization of agricultural solid waste, this study proposes a novel approach for reinforcing soft clay using a peanut ash (PA)–cement composite stabilizer. The unconfined compressive strength (UCS) of pure cement and PA–cement composite systems was tested at curing ages of 3, 7, and 28 days, while the durability of the stabilized clay was evaluated through dry–wet cycling. Given that PA is rich in pozzolanic components, its addition may influence the hydration process of cement. Therefore, hydration heat analysis was conducted to examine the early hydration behavior, and XRD and TG analyses were employed to identify the composition and quantity of hydration products. SEM observations were further used to characterize the microstructural evolution of the stabilized matrix. By integrating mechanical and microstructural analyses, the solidification mechanism of the PA–cement stabilizer was elucidated. Mechanical test results indicate that the reinforcing effect increases with the stabilizer dosage. Pure cement exhibited superior strength at 3 days; however, after 7 days, specimens incorporating 5% PA showed higher strength than those stabilized solely with cement. At 28 days, the UCS of the 15% cement + 5% PA specimen reached 3.12 MPa, 11.03% higher than that of the 20% cement specimen and comparable to the 25% cement specimen (3.15 MPa). After five dry–wet cycles, the strength reduction of the 15% cement + 5% PA specimen was 22.76%, compared to 31.31% for the 20% cement specimen, indicating improved durability. Microscopic analyses reveal that PA reduces hydration heat and does not participate in early hydration, leading to lower early strength. However, its pozzolanic reactivity contributes to secondary hydration at later stages, promoting the formation of additional C-S-H gel and ettringite. These hydration products fill the inter-lamellar pores of the clay and increase matrix density. Conversely, excessive PA content (≥10%) exerts a dilution effect, reducing the amount of hydration products and weakening the mechanical performance. Overall, the use of an appropriate PA dosage in combination with cement enhances both strength and durability while reducing cement consumption, providing an effective pathway for the high-value utilization of agricultural solid waste resources. Full article

Wellbore integrity maintenance constitutes a fundamental safety and technological challenge throughout the entire lifecycle of oil and gas wells (including production, injection, and CO₂ sequestration operations). As a critical completion phase, perforation generates a high-temperature, high-pressure shaped charge jet that impacts and compromises wellbore structural integrity. This process may induce failure in both the cement sheath body and its interfacial zones, potentially creating fluid migration pathways along the cement-casing interface through perforation tunnels. Current research remains insufficient in quantitatively evaluating cement sheath damage resulting from perforation operations. Addressing this gap, this study incorporates dynamic jet effects during perforation and establishes a numerical model simulating high-velocity jet penetration through casing–cement target–formation composites using a rock dynamics-based constitutive model. The investigation analyzes failure mechanisms within the cement sheath matrix and its boundaries during perforation penetration, while examining the influence of mechanical parameters (compressive strength and shear modulus) of both cement sheath and formation on damage characteristics. Results demonstrate that post-perforation cement sheath aperture exhibits convergent–divergent profiles along the tunnel axis, containing exclusively radial fractures. Primary fractures predominantly initiate at the inner cement wall, whereas microcracks mainly develop at the outer boundary. Enhanced cement compressive strength significantly suppresses fracture initiation at both boundaries: when increasing from 55 MPa to 75 MPa, the undamaged area ratio rises by 16.6% at the inner wall versus 11.2% at the outer interface. Meanwhile, increasing the formation shear modulus from 10 GPa to 15 GPa reduces cement target failure radius by 0.4 cm. Cement systems featuring high compressive strength and low shear modulus demonstrate superior performance in mitigating perforation-induced debonding. Full article

Coal gangue, as a predominant solid byproduct of the global coal industry, poses severe environmental challenges because of its massive accumulation and low utilization rate. This review systematically synthesizes and analyzes published experimental and analytical studies on the dual-pathway utilization of coal gangue in concrete, including Pathway 1 (aggregate substitution) and Pathway 2 (cementitious activity activation). While the application of coal gangue aggregates is traditionally limited by their inherent high porosity and lower mechanical strength than those of natural aggregates, this review demonstrates that performance barriers can be effectively overcome. Through multiscale modification strategies—including surface densification, biological mineralization (MICP), and matrix synergy—the interfacial defects are significantly mitigated, allowing for feasible substitution in structural concrete. Conversely, for the mineral admixture pathway, controlled thermal activation is identified as a key process to optimize the phase transformation of kaolinite, thereby significantly enhancing pozzolanic reactivity and long-term durability. According to reported studies, the partial replacement of natural aggregates or cement with coal gangue can reduce CO₂ emissions by approximately tens to several hundreds of kilograms per ton of coal gangue utilized, depending on the substitution level and activation strategy, highlighting its considerable potential for carbon reduction in the construction sector. Nevertheless, challenges related to energy-intensive activation processes and variability in raw gangue composition remain. These limitations indicate the need for future research focusing on low-carbon activation technologies, standardized classification of coal gangue resources, and long-term performance validation under realistic service environments. Based on the synthesized literature, this review discusses hierarchical utilization concepts and low-carbon activation approaches as promising directions for promoting the sustainable transformation of coal gangue from an environmental liability into a carbon-reduction asset in the construction industry. Full article

Portland cement (PC) is widely regarded as a cost-effective and reliable binding material for the stabilization and solidification of municipal solid waste incineration fly ash (MSWI FA). However, the soluble salts and heavy metals present in MSWI FA retard PC hydration, thereby limiting the amount of fly ash that can be incorporated. The present study investigates the feasibility of normalizing the hydration of PC-based mixtures containing MSWI FA by applying a fly ash pre-granulation step with 25% PC, followed by coating the resulting granules with a geopolymer layer to reduce the release of harmful ions during the early stages of hydration. Isothermal calorimetry, TG/DTA, XRD, SEM, and mechanical testing were used to investigate the hydration characteristics of composites containing such granules and to assess their properties at 7, 28, and 90 days. It was found that a 20% substitution of PC with the studied FA disrupted PC hydration within the first 48 h. In contrast, both types of granules exhibited the main exothermic peak within the first 10–12 h, with hydration heat release (about 300 J/g) comparable to that of sand-containing references. Uncoated granules exhibited more active behavior with hydration kinetics similar to pure cement paste, whereas the effect of geopolymer-coated granules was close to sand. TG/DTA revealed reduced calcite content in mixtures containing granules, whereas uncoated granules promoted greater portlandite formation than the sand-based system. Hardening the samples under wet conditions resulted in the development of a dense cement matrix, firm integration of the granules, redistribution of chlorine and sulfur ions, and mechanical properties that reached at least 93% of those of the sand-containing reference, despite a lower density of ~4.5%. Full article

The strength of cement paste backfill (CPB) is crucial for ensuring the safe and efficient operation of the horizontal layered approach backfill mining method. To effectively improve CPB strength, a series of experiments were carried out to systematically examine the effects of nano-SiO₂ (NS) on the mechanical properties, hydration process, setting time, and microstructure of CPB. The results show that at a content of 1.5%, NS fully utilizes its pozzolanic, filling, and nucleation effects, accelerating cement hydration, filling internal pores, and thereby increasing matrix density and CPB strength. Conversely, at 2.5%, severe agglomeration of NS into large-sized aggregates weakens these three effects of NS, increases specimen porosity, reduces matrix density, and consequently impairs the mechanical properties of CPB. This study clarifies the mechanism by which an appropriate amount of NS improves CPB mechanical properties, as well as the intrinsic reasons for the performance degradation caused by NS overdosage. The findings provide a theoretical basis and experimental support for the rational application of NS in mine backfill. Full article
