Search Results (405)

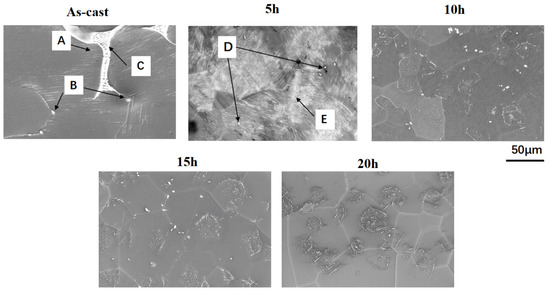

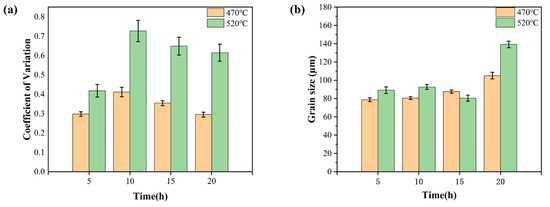

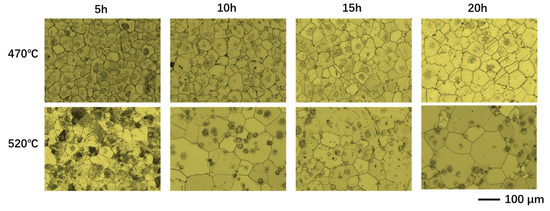

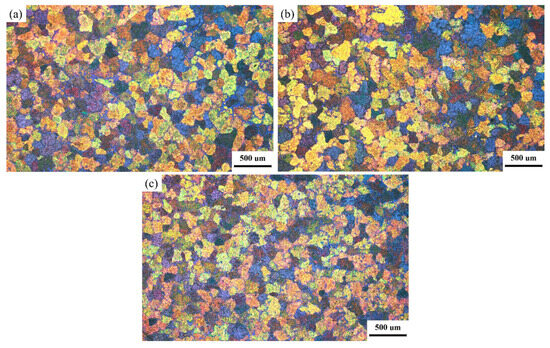

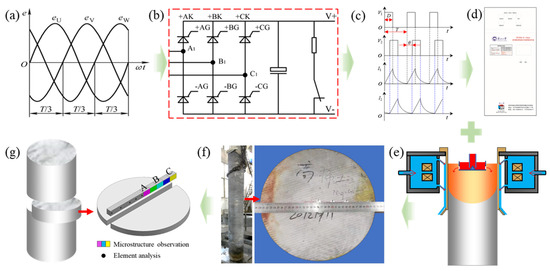

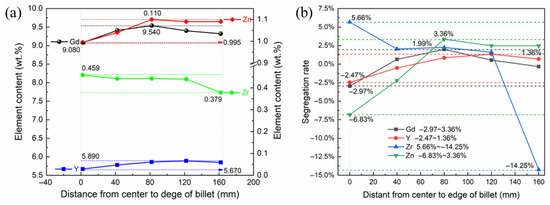

Based on a novel semi-continuous casting mold with independent primary cooling regulation, a large-size Mg-9.4Gd-5.8Y-1Zn-0.5Zr alloy billet (Ø330 mm) was successfully fabricated via differential phase electromagnetic vibration casting. This process significantly improved microstructural homogeneity, with grain sizes ranging from 117 µm to 130 µm across the billet and elemental segregation of Gd and Y below 3%. Homogenization at 520 °C for 5 h effectively dissolved grain boundary eutectic phases; promoted diffusion of Gd, Y, and Zn into the α-Mg matrix; and stimulated the precipitation of fine LPSO lamellae. These microstructural improvements resulted in an excellent tensile strength of 208.4 MPa and elongation of 24.4%, demonstrating an optimal strength–ductility balance achieved through precise thermal processing. Full article

The Late Cretaceous to Paleocene magmatic evolution along the southern margin of the Lhasa Terrane records a critical transition from oceanic subduction to continental collision, yet its western segment remains underexplored. This study presents integrated petrographic, zircon U–Pb geochronological, zircon Hf isotopic, whole-rock geochemical, and Sr–Nd isotopic data for three distinct phases of intermediate to felsic intrusions from the Qiuwo area in the western segment of the southern Lhasa terrane. The results reveal three distinct magmatic pulses: an early granodiorite emplaced at 89.9 ± 0.75 Ma, followed by a diorite crystallizing at 68.6 ± 0.56 Ma, and a late-stage granodiorite forming at 56.75 ± 0.43 Ma. All three rock units are metaluminous to weakly peraluminous (A/CNK < 1.1), sodic (Na₂O > 3.2 wt.%), and dominated by amphibole, with zircon saturation temperatures of 737–786 °C, consistent with I-type granitoid affinity. All units are metaluminous (A/CNK = 0.92–1.00), calc-alkaline to high-K calc-alkaline, and enriched in LILE (K, Th, Rb) while depleted in HFSE (Nb, Ta, P, Ti), with moderate ΣREE (81–130 ppm), elevated (La/Yb)_N (9.3–15.8), and negative Eu anomalies (δEu = 0.70–0.89). The early granodiorite is Na-rich (Na₂O/K₂O = 1.6), whereas the Paleocene granodiorite shows elevated K₂O (3.2 wt.%) and reduced Na₂O/K₂O (~1.0), reflecting progressive crustal thickening and increasing magmatic differentiation. Zr and Hf are relatively enriched, and Sr/Y ratios decrease from 39 to 21, consistent with evolving magmatic conditions from deeper crustal melting in the Late Cretaceous to shallower, more evolved sources in the Paleocene. Zircon Hf isotopes reveal consistently positive εHf(t) values (+10.4 to +4.9), indicating derivation from juvenile basaltic lower crust. Sr–Nd isotopic data further demonstrate a systematic evolution: εNd(t) decreases from +2.7 to −0.1, while (⁸⁷Sr/⁸⁶Sr)_i increases from 0.7044 to 0.7055, reflecting progressive incorporation of ancient crustal components into the magma source from the early Late Cretaceous to the Paleocene. These findings indicate that the Qiuwo intrusions formed by partial melting of a juvenile basaltic lower crust, with increasing crustal contamination during ascent and emplacement. The temporal progression of magmatism—spanning the waning stages of Neo-Tethyan subduction to the initial India–Eurasia collision (~55 Ma)—supports a model in which slab breakoff and lithospheric delamination triggered decompression melting of the lower crust, while assimilation of older crustal materials intensified as the continental collision progressed. This work provides key geochemical evidence for the transition from arc to post-collisional magmatism in the western Gangdese belt and refines the timing and mechanism of crustal growth in southern Tibet. Full article

The Baoshan Terrane, as a passive continental margin during the subduction of the Paleo-Tethys Ocean and the lower plate during collision, exhibits a poorly understood magmatic history. This region is characterized by limited magmatic activity and scarce field outcrops, which has hindered a comprehensive understanding of its petrogenesis and geological evolution. This paper presents a chronological and geochemical study of two different types of syn-collisional granites identified in the Mengnuo and Muchang areas in the southern Baoshan Terrane. Our results show that the two types of granites are high-fractionated S-type granites in Bangdong pluton from Mengnuo (zircon U-Pb ages of 230.3 ± 1.4 Ma, 228.7 ± 1.6 Ma and 230.2 ± 1.1 Ma) and A-type granites in Muchang (zircon U-Pb ages of 232.3 ± 1.8 Ma), respectively. Their formation ages are close to the timing of collision, belonging to syn-collisional granites. The Mengnuo high-fractionated S-type granites have SiO₂ contents ranging from 75.15 to 77.78 wt.% with A/CNK of 1.14 to 5.09, and are strongly peraluminous, high-K calc-alkaline granites. They display negative zircon εHf(t) values (−7.72 to −12.32), indicating derivation from partial melting of ancient crustal materials followed by extensive fractional crystallization. In contrast, the Muchang A-type granites contain 73.26 to 76.41 wt.% SiO₂, exhibit low A/CNK ratios (0.92–1.46, average = 1.07), and high Zr + Nb + Ce + Y abundances (313.7 to 3000.3 ppm), characterizing them as weakly peraluminous A-type granites. Further classification reveals that the Muchang granites belong to A1-type granites with positive εHf(t) values (+4.01 to +8.46), indicating the involvement of mantle-derived materials in their magma sources. In this case, combined with results from relevant studies in the Changming-Menglian suture zone, we propose that the Late Triassic magmatism in the Baoshan Terrane was likely triggered by slab break-off during syn-collisional stage. Slab break-off might cause mantle upwelling, resulting in large-scale Lincang batholith and associated volcanic rocks in the upper plate as well as various magmatism activities (S-type and A-type felsic rocks and intraplate basalts) in the Baoshan Terrane. Full article

Ferroelectricity in hafnium oxide (HfO₂)-based thin films has emerged as a scalable pathway toward CMOS-compatible non-volatile memories and logic devices. This study examines how dopant chemistry and film thickness influence the stabilization of the ferroelectric phase in ALD-grown HfO₂ thin films doped with Zr, Al, and Y. Structural, morphological, and electrical characterizations were carried out using AFM, GIXRD, P–E, in-plane I/W–E, and C–V measurements on films with thicknesses of 7 nm and 100 nm. AFM revealed atomically smooth and dense surfaces (R_q < 0.5 nm), while GIXRD confirmed the stabilization of the orthorhombic Pca2₁ phase in doped 7 nm films and its relaxation toward the monoclinic phase at 100 nm. The 7 nm HfZrO and HfYO films exhibited robust ferroelectric hysteresis with remanent polarization values up to 60 μC·cm⁻², whereas HfAlO showed a narrower but still distinct switching response. In-plane I/W–E characteristics indicated a combination of Poole–Frenkel and injection-limited conduction, consistent with defect-assisted polarization reversal and asymmetric contact barriers. At 100 nm, all films showed reduced polarization and partially dielectric behavior, as corroborated by the C–V data. These results demonstrate that nanoscale confinement, dopant-induced strain, and oxygen vacancy related defect chemistry collectively stabilize the orthorhombic ferroelectric phase, with Zr doping providing the most favorable balance between polarization strength and leakage control. Full article

Ions of Gd³⁺ and Yb³⁺ have radii similar to those of Zr⁴⁺, enabling them to form limited solid solutions in the ZrO₂ lattice through substitution. After solid solution formation, oxygen vacancy defects and complex defect aggregates are generated, which are crucial for stabilizing the high-temperature phase structure and reducing thermal conductivity. Therefore, in this study, 8 wt% Y₂O₃ and 5 wt% Yb₂O₃ were doped with 5 wt%, 10 wt%, and 15 wt% Gd₂O₃, respectively, to stabilize zirconia powders. GYYZO thermal barrier coatings (TBCs) were fabricated via atmospheric plasma spraying (APS). Subsequently, the GYYZO coatings with different Gd₂O₃ addition amounts were subjected to continuous thermal shock cycling at 1100 °C for 10, 30, 60, 90, and 150 cycles. The results indicate that the incorporation of Gd₂O₃, Yb₂O₃, and Y₂O₃ leads to the formation of stable tetragonal ZrO₂ phase in the GYYZO coatings. Although increasing the Gd₂O₃ addition amount reduces the thermal conductivity of the coatings, excessive Gd₂O₃ addition causes coating spallation. The GYYZO coating with 10 wt% Gd₂O₃ exhibits the lowest thermal conductivity of 0.59 W/(m·K). Additionally, the GYYZO coating with 10 wt% Gd₂O₃ can withstand thermal cycling for 150 cycles, while the one with 5 wt% Gd₂O₃ can endure 90 of thermal cycles. In contrast, the 8YSZ coating cracks and spalls after 60 thermal cycles. These findings demonstrate that doping ZrO₂ with Gd₂O₃, Yb₂O₃, and Y₂O₃ can enhance the thermal cycling resistance of the coatings and effectively reduce their thermal conductivity, but excessive Gd₂O₃ addition will decrease the coating adhesion strength. Full article

For supported catalysts, the synergistic effect of physicochemical properties (including oxygen storage capacity (OSC), metal–support interaction, dispersion, and reducibility) is crucial for methane partial oxidation (POM). This study aims to prepare Ni-based nanofibrous catalysts using traditional metal oxides (Al₂O₃, ZrO₂, CeO₂, Zr_0.92(Y₂O₃)_0.08O_2−δ, and Ce_0.9Gd_0.1O_2−δ) as supports via electrospinning, and thoroughly investigates the synergistic effect of the catalyst’s physicochemical properties on catalytic performance. For the Ni/Zr_0.92(Y₂O₃)_0.08O_2−δ and Ni/Ce_0.9Gd_0.1O_2−δ catalysts, doping significantly enhances Ni dispersion, reducibility, and OSC, thereby improving catalytic performance. The results demonstrate that the catalytic activity follows the following order: Ni/Ce_0.9Gd_0.1O_2−δ > Ni/CeO₂ > Ni/Zr_0.92(Y₂O₃)_0.08O_2−δ > Ni/ZrO₂ > Ni/Al₂O₃, which is closely associated with the synergistic effect of their physicochemical properties. In addition, this study focuses on elucidating the underlying mechanism by which the Gd³⁺ doping level influences the catalytic performance of the Ni/Ce_0.9Gd_xO_2−δ (x = 0.1, 0.2, 0.3) catalysts. The Ni/Ce_0.9Gd_0.1O_2−δ catalyst exhibits the optimal Ni dispersion, reducibility, and OSC, corresponding to the highest catalytic performance. This re-emphasizes the crucial role of the synergistic effect of the catalyst’s physicochemical properties in determining catalytic performance. Therefore, investigating this synergistic effect is essential for achieving superior catalytic performance. Full article

Thermal barrier coatings (TBCs) are critical for protecting hot-section components in gas turbines and aero-engines. Traditional yttria-stabilized zirconia (YSZ) coatings are prone to phase transformation and sintering-induced failure at elevated temperatures. This study fabricated CeScYSZ (4 mol% CeO₂ and 6 mol% Sc₂O₃ co-doped YSZ)/NiCrAlY TBCs using atmospheric plasma spraying (APS). A five-factor, four-level orthogonal experimental design was employed to optimize spraying parameters, investigating the influence of powder feed rate, spray distance, current, hydrogen flow rate and primary gas flow rate on the coating’s microstructure and mechanical properties. The resistance to calcium–magnesium–alumino–silicate (CMAS) corrosion was compared between CeScYSZ and YSZ coatings. The results indicate that the optimal parameters are a spray distance of 100 mm, current of 500 A, argon flow rate of 30 L/min, hydrogen flow rate of 6 L/min, and powder feed rate of 45 g/min. Coatings produced under these conditions exhibited moderate porosity and excellent bonding strength. After exposure to CMAS corrosion at 1300 °C for 2 h, the CeScYSZ coating demonstrated significantly superior corrosion resistance compared to YSZ. This enhancement is attributed to the formation of a CaZrO₃ physical barrier and the synergistic effect of Ce and Sc in suppressing deleterious phase transformations. This study provides an experimental basis for the preparation and application of high-performance TBCs. Full article

Crystal grain size control in steel is critical for achieving mechanical properties. This study investigates the effectiveness of microalloying with titanium, niobium, zirconium, and yttrium to inhibit grain growth with the pinning effect. The comparison of selected microalloying elements in the exact same conditions is crucial for understanding their effect and is novel. Hot-rolled samples were annealed across a wide range of temperatures (1050 to 1200 °C) for up to eight hours. Microstructural analysis confirmed the presence of stable precipitates and non-metallic inclusions such as Nb(C,N), Ti(C,N), ZrO₂, and Y₂O₃ acting as obstacles to grain boundary migration. All microalloying elements significantly outperformed the reference steel, but their effectiveness was highly dependent on the annealing temperature. Titanium was the most effective inhibitor at lower temperatures (1050 °C), while zirconium maintained control up to 1150 °C. Critically, at the highest temperature of 1200 °C, only the yttrium-alloyed steel retained a fine-grain structure, demonstrating superior thermal stability. Niobium, conversely, only showed a minimal effect at 1050 °C, though this grade also exhibited the highest hardness (up to 165 HB) due to precipitation hardening. The kinetics of grain growth were successfully modeled using the Arrhenius-type Sellars–Whiteman equation, accurately describing the behavior for up to four hours of annealing. The findings provide critical insight for selecting optimal microalloying strategies based on maximum operating temperature. Full article

Over more than half a century of using zirconia in technology and industry, researchers have faced several challenges related to the performance of this material. It is believed that some issues regarding the low performance of the zirconia ceramics can be solved by using a multidoping strategy. In this study, nanoparticles with the composition (1 − x)⸱ZrO₂ − x⸱MD (where MD—multi-dopant Y:Ce:Mg:Ca with cation relationship 1:1:1:1 and x = 0.05–0.25 mol. %) were synthesized using a hydrothermal method followed by annealing. XRD and Raman spectroscopy analyses demonstrated that in the concentration range of x = 0.10–0.25 mol.%, the only detectable phase in the synthesized samples was the tetragonal phase of zirconia. SEM analysis revealed that the size of the final particles ranged from 20 to 50 nm. It was demonstrated that using obtained nanoparticles as precursors for sintering leads to the formation of multiphase ceramics. The microhardness and biaxial flexural strength of the ceramic samples vary depending on the dopant concentration in the range of 600–1400 HV and 25–200 MPa respectively. Mechanical properties mostly depend on porosity and grain size in the sintered material. The study shows that the multidoping strategy has high potential to obtain new constructional ceramics and components for solid oxide fuel cells. Full article

Citrus creasing is a physiological rind disorder. Satsuma mandarin (Citrus unshiu Marc.) is the most widely cultivated mandarin variety worldwide and exhibits a high susceptibility to creasing. To investigate the physiological mechanisms underlying creasing, satsuma mandarin trees were treated with different drought stress during fruit expansion, then the relationship between the soil water content and creasing incidence was analyzed, while also examining the rind morphology, oil gland distribution in the flavedo, antioxidant enzyme activities, hormone concentrations, cell wall components, mineral content of creasing fruit, and the impact of creasing on fruit quality. Results showed that severe water stress (35% SRWC) increased the creasing incidence rate by 28% compared to well-irrigated treatments (80% SRWC). The creasing fruit oil gland diameter reduced by 35.7% and the density increased by 149.7% compared to healthy fruits. Simultaneously, the content of H₂O₂ and proline elevated by 47.1% and 8.3% respectively, and the activities of SOD, POD, and CAT of the creasing rind were enhanced significantly. Additionally, the content of IAA, ZR, and MeJA decreased by 17.2%, 7.8%, and 50.2%, respectively. Cell wall components such as cellulose, hemicellulose, and protopectin content reduced by 44.6%, 31.7%, and 33.1%, while soluble pectin increased by 36.3%. Significant alterations were observed in several minerals (Al, Fe, Na, Ni, V, Ga, Zn, Ba, Sn, Hg, Sc, Y, and La). However, fruit quality remained unaffected by creasing. These results demonstrate that drought is a key factor inducing creasing. Increased oil gland density, the degradation of cell wall components, elevated oxidative stress, reductions in phytohormones, and altered mineral element content work together to contribute to rind cells’ structural instability and lead to creasing in the satsuma mandarin. Full article

To meet gas turbines’ growing demand for high-performance thermal barrier coatings (TBCs), this study addresses the limitations of traditional single-layer 8% Y₂O₃-stabilized ZrO₂ (YSZ) coatings in high-temperature corrosive environments. Atmospheric plasma spraying (APS) was used to fabricate the double-ceramic TBCs with (Sm_0.2Gd_0.2Dy_0.2Er_0.2Yb_0.2)₂(Zr_0.7Hf_0.3)₂O₇ (RHZ) as the outer layer and YSZ as the inner layer; thermal cycling corrosion tests (1000 °C, Na₂SO₄ + V₂O₅ molten salt) were conducted to compare its performance with traditional single-layer YSZ. The results showed that the YSZ corrosion products were m-ZrO₂ and YVO₄, while RHZ/YSZ produced rare-earth vanadates, m-(Zr,Hf)O₂, and t′-(Zr,Hf)O₂, and corrosion degree was positively correlated with salt concentration (which was more impactful) and the number of cycles. Both coatings failed via molten salt penetration, thermochemical reaction, and crack-induced spallation. The corrosion mechanism between the RHZ/YSZ coating and the mixed salt can be explained based on the Lewis acid–base theory and the optical basicity. The RHZ layer on the surface of RHZ/YSZ coatings indeed hinders the penetration of corrosive molten salts into the underlying YSZ layer to some extent. Full article

Investigating the relationship between coating structure and thermal stress is crucial for improving the service performance of double-ceramic-layer (DCL) thermal barrier coatings (TBCs). This study systematically examines a DCL TBC comprising a Gd₂O₃-Yb₂O₃-Y₂O₃ co-doped ZrO₂ (GYYZ) top layer and Y₂O₃-stabilized ZrO₂ (YSZ) intermediate layer. Using combined finite element analysis and experimental validation, the influence of top-layer structural parameters (porosity, pore size, thickness) on thermal stress distribution under thermal shock conditions and resultant coating performance was investigated. Results indicate that coating interfaces, particularly GYYZ/YSZ and YSZ/bond coat (BC) interfaces, exhibit high sensitivity to top-layer structural parameters. Optimal GYYZ top-layer parameters were identified as: 10–15 vol.% porosity, 10–20 μm pore diameter, and ~0.15 mm thickness. Reducing the top-layer porosity from 20 vol.% to 15 vol.% increased microhardness by 12.8% and extended thermal cycling life by 87.5%. The coating failure mode shifted from the YSZ/BC interface to the GYYZ/YSZ interface, aligning with simulated thermal stress distributions. Full article

We report here, for the first time on the Nubian Shield, the western half of the Arabian–Nubian Shield (ANS), pegmatite-hosted pockets with a unique mineralogy, including pyroxmangite. It represents the second discovery on the ANS, where the first one was at Jabal Aja on the Arabian Shield, the eastern half of the ANS. One of the most remarkable aspects of pyroxmangite is its rarity and the potential economic value of its use in jewelry and decorative applications. Pegmatites are associated with A-type granites of the Gabal El-Bakriya intrusion (GEBI), Eastern Desert, Egypt. Mineralized pegmatites occur at the margin of the alkali-feldspar granite and exhibit gradational contacts with the host rocks. The pegmatites were emplaced as plugs and dikes within the intrusion and along its periphery. Pyroxmangite appears as coarse-grained, massive black aggregates or as disseminated crystals. The pegmatites are composed of K-feldspars and quartz, with subordinate amounts of albite, micas, and mafic minerals. Accessory phases include monazite-(Ce), zircon, fergusonite, xenotime, fluorite, pyrochlore, allanite, thorite, bastnäsite, samarskite, cassiterite, beryl, and pyrochlore. Pyroxmangite-bearing assemblages consist essentially of pyroxmangite and garnet, with accessory pyrochroite, quartz, zircon, magnetite, and fluorite. Geochemically, the pegmatites are highly evolved, with elevated SiO₂ content (76.51–80.69 wt.%) and variable concentrations of trace elements. They show significant enrichment in Nb (Nb > Ta), Y, REE, Zr, Th, U, and F, consistent with NYF-type pegmatites. REE contents range from 173.94 to 518.21 ppm, reflecting diverse accessory mineral assemblages. Tectonically, the pegmatites crystallized in a post-collisional setting, representing a late-stage differentiate of the A-type GEBI magma. Mineralization is concentrated in the apical and marginal zones of the granitic cupola and is dominated by barite, fluorite, Nb-Ta oxides, REE minerals, and uranium-bearing phases. The highly evolved granites, greisens, pegmatites, and quartz-fluorite veins of the GEBI have a high economic potential, deserving further exploration. Full article

Objective: Yttria-stabilized tetragonal zirconia polycrystal (Y-TZP), a variant of zirconia (ZrO₂), has attracted interest as a substitute for titanium in dental and orthopedic implants, valued for its biocompatibility and aesthetics that resemble natural teeth. However, its bioinert surface limits osseointegration, making surface modifications such as calcium phosphate (CaP) coatings highly relevant. Materials and methods: The review process adhered to the PRISMA guidelines. Electronic searches of PubMed, Scopus, Web of Science, Embase, and Cochrane Library (July 2025) identified studies evaluating CaP-coated zirconia implants. Eligible studies included in vitro, in vivo, and preclinical investigations with a control group. Data on coating type, deposition method, and biological outcomes were extracted and analyzed. Results: A total of 27 studies were analyzed, featuring different calcium phosphate (CaP) coatings including β-tricalcium phosphate (β-TCP), hydroxyapatite (HA), octacalcium phosphate (OCP), and various composites. These coatings were applied using diverse techniques such as RF magnetron sputtering, sol–gel processing, biomimetic methods, and laser-based approaches. In multiple investigations, calcium phosphate coatings enhanced osteoblast attachment, proliferation, alkaline phosphatase (ALP) expression, and bone-to-implant contact (BIC) relative to unmodified zirconia surfaces. Multifunctional coatings incorporating growth factors, antibiotics, or nanoparticles showed additional benefits. Conclusion: CaP coatings enhance the bioactivity of zirconia implants and represent a promising strategy to overcome their inertness. Further standardized approaches and long-term studies are essential to verify their translational relevance. Full article

The Hugushan banded iron formation (BIF) is one of the most representative iron ore deposits in the central part of the North China Craton, and its ore formation mechanism remains highly controversial. This study presents whole-rock and Fe–Si–O isotope geochemical evidence, offering a new perspective on the ore formation mechanism of the Hugushan BIFs. The samples from the upper and lower parts of the Hugushan BIFs are characterized by slight enrichment of heavy and light Fe isotopes, respectively. Additionally, the samples from the upper part of the Hugushan BIFs show characteristics of slightly positive Ce anomalies and negative La anomalies, suggesting that the shallow ancient seawater was in a partially oxidized state, whereas the deep seawater remained in a reductive environment during the depositional period. The low Al₂O₃ and TiO₂ concentrations, as well as the depletion of Zr and Hf in the Hugushan BIFs, suggest that the contribution of terrestrial detrital materials to deposition is extremely limited. The BIFs all exhibit positive Eu anomalies, and the quartz in the BIFs is depleted in ³⁰Si, a characteristic similar to that observed in siliceous rocks formed in hydrothermal vent environments and during hydrothermal plume activity. Additionally, the δ¹⁸O values of quartz in Hugushan BIFs are similar to the O isotope compositions of hydrothermal sedimentary siliceous rocks, further suggesting that the silicon in BIFs originates primarily from seafloor hydrothermal activity. The combination of Eu/Sm, Sm/Yb, and Y/Ho ratios indicates that the major components (iron and silica) of the Hugushan Iron Ore Deposit originated from the mixing of high-temperature hydrothermal fluids with seawater, with the hydrothermal fluid contributing slightly less than 0.1%. The magnetite and quartz bands in the BIFs exhibit inhomogeneous and covariant δ⁵⁶Fe and δ³⁰Si isotope characteristics, suggesting that the alternating siliceous and ferruginous layers are products of original chemical deposition in the ocean. Periodic hydrothermal activity and ocean transgression caused the recurring deposition of siliceous and ferruginous layers, resulting in the characteristic banded structure of the Hugushan Iron Ore Deposit. Full article
