Search Results (55)

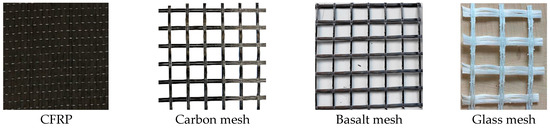

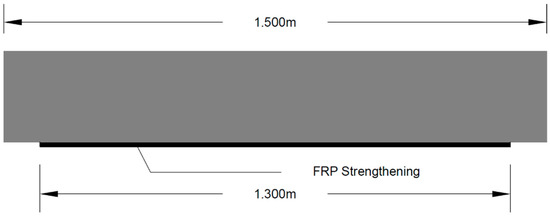

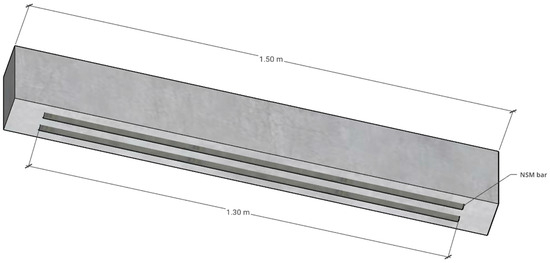

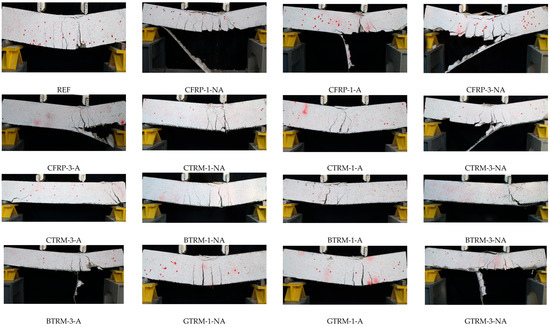

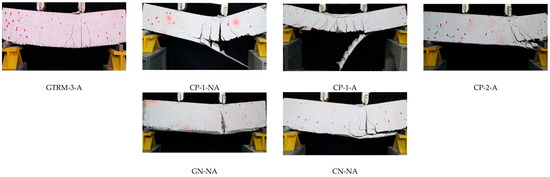

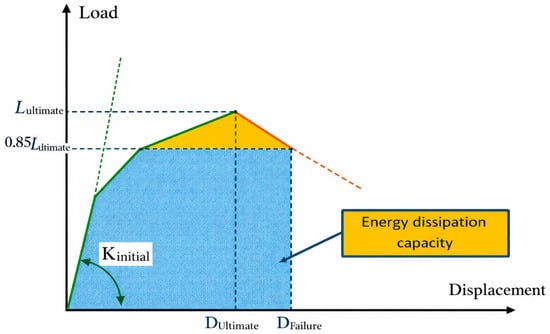

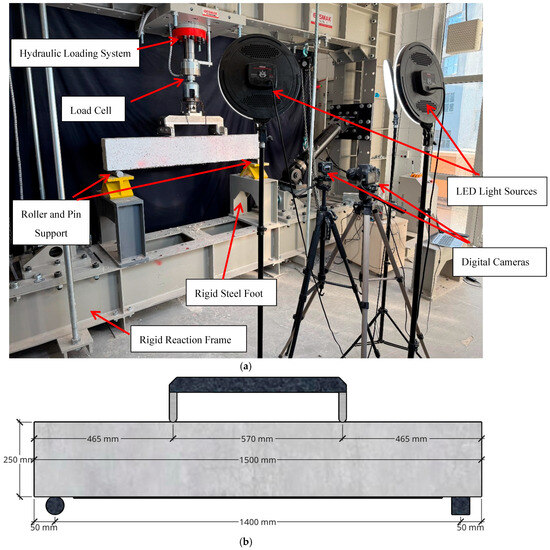

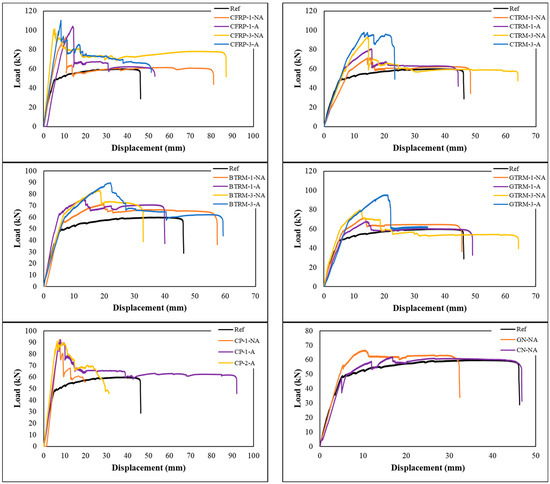

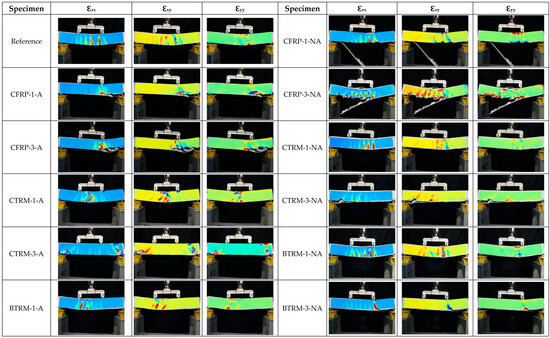

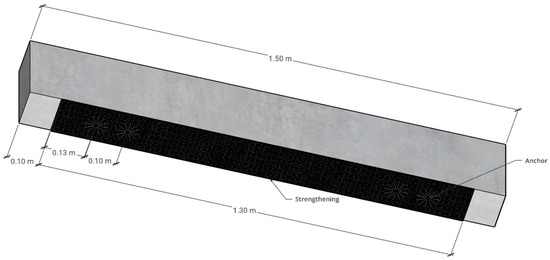

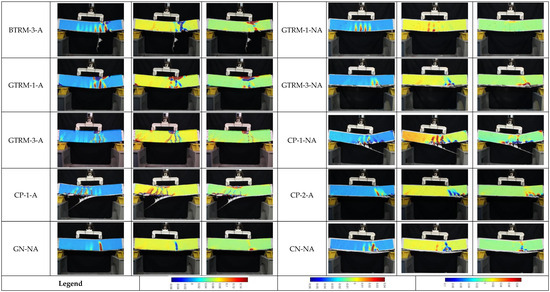

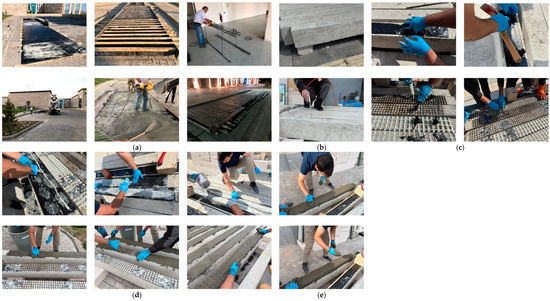

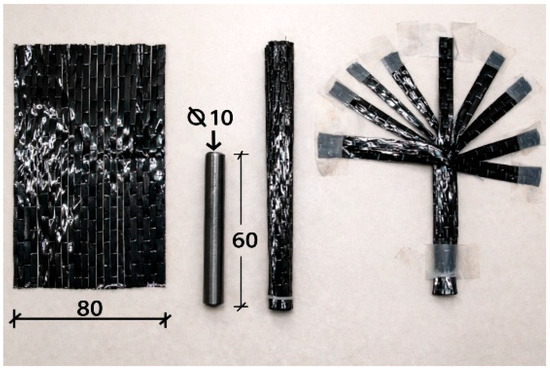

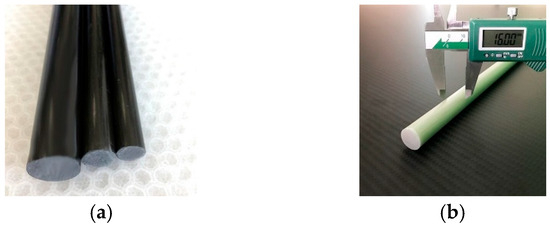

This study conducted an experimental investigation of the flexural behavior of reinforced concrete beams strengthened using externally bonded and near-surface-mounted techniques. The strengthening materials consisted of carbon fiber-reinforced polymer (CFRP) sheets, carbon fiber plates, and textile-reinforced mortar (TRM) with carbon, basalt, and glass textiles, as well as near-surface-mounted (NSM) glass and carbon bars. Twenty-two reinforced concrete beams were tested, comprising one reference specimen and 21 strengthened specimens with different strengthening techniques, numbers of layers, and anchorage conditions. The results showed a marked improvement in the flexural performance of the strengthened specimens compared with the reference specimen, which had an ultimate load capacity of 60.01 kN. CFRP strengthening achieved the highest increase in ultimate load capacity and stiffness, with the best specimen recording 110.44 kN and a stiffness value of 18.83 kN/mm. Carbon fiber plates also exhibited a significant improvement in strength. In contrast, TRM and NSM systems produced comparatively lower strength gains but offered superior ductility and more gradual failure behavior. In terms of TRM strengthening, carbon textiles demonstrated the highest ultimate load capacity, whereas basalt and glass textiles enhanced deformation capacity. The use of fan-type anchors further enhanced the efficiency of externally bonded strengthening systems by delaying premature debonding. Within the scope of the present experimental program, the findings provide a direct comparison of the investigated carbon fiber-reinforced polymer (CFRP), carbon-plate (CP), textile-reinforced mortar (TRM), and near-surface-mounted (NSM) strengthening configurations under identical testing conditions and demonstrate their relative effects on strength, stiffness, ductility, energy dissipation, and failure behavior. These results provide comparative experimental evidence that may assist in selecting strengthening strategies for RC beams with comparable characteristics; however, broader generalization requires consideration of additional member geometries, material properties, reinforcement configurations, and loading conditions. Full article

Existing analytical models for Fiber-Reinforced Polymer (FRP)-strengthened timber beams are generally limited to individual strengthening techniques and cannot readily accommodate hybrid reinforcement systems. This study develops a generalized analytical model to predict the flexural capacity of timber beams strengthened with near-surface-mounted (NSM) FRP bars, externally bonded FRP sheets, or their hybrid combination within a unified theoretical framework. The model is formulated based on internal force equilibrium and strain compatibility, incorporating a constitutive model for timber with linear elastic tensile behavior and a bilinear compressive stress–strain relationship including post-peak softening. The generalized formulation can be readily adapted to different strengthening configurations through appropriate simplifications. The proposed model was validated against experimental results obtained from four-point bending tests on small-scale timber beams strengthened with NSM GFRP bars and externally bonded GFRP sheets. The analytical predictions showed good agreement with the experimental results, with differences generally ranging from 2% to 23%, demonstrating satisfactory predictive accuracy. The experimental results further showed that the hybrid strengthening system increased the flexural capacity of the timber beams by up to 84% compared with the unstrengthened control beams, while also improving stiffness, ductility, and overall structural response. Failure was primarily due to timber tensile rupture and longitudinal splitting, whereas the GFRP reinforcement remained effective without rupture, indicating efficient utilization of the strengthening system. The proposed generalized analytical model provides a practical and reliable design tool for predicting the flexural strength of timber beams strengthened with various FRP reinforcement configurations, thereby supporting the structural rehabilitation and sustainable retrofitting of timber structures. Full article

This paper presents research on reinforced concrete beams strengthened with non-pretensioned and pretensioned near-surface-mounted (NSM) carbon fibre-reinforced polymer (CFRP) strips under self-weight and external preloading. The first part of this paper briefly describes and discusses the results of experimental tests performed on six beams with different reinforcing steel ratios, preloading levels, and strengthening-system configurations. Next, three-dimensional (3D) numerical models of the tested specimens were developed. The models consider the nonlinear behavior of concrete (both in tension and compression), steel bars, and the interface between concrete and CFRP laminates. For these models, the material parameters were established based on experiments and recommendations from the literature. Furthermore, a sensitivity analysis was conducted with respect to the material parameters of the model that were not directly obtained from experimental measurements. The analyses validated the applicability of the numerical model in predicting the flexural behavior of reinforced concrete (RC) members strengthened with near-surface-mounted (NSM) CFRP materials over the full loading range. Furthermore, the developed models were employed to assess the effectiveness of active strengthening relative to passive strengthening methods (i.e., without pretensioning of the laminate). A comparison study of actively and passively strengthened elements indicates that prestressing does not affect the ultimate limit state but enhances serviceability limit states. The presented computational model, together with the adopted computational strategy, demonstrates its effectiveness for analyzing realistic scenarios involving RC beams that are damaged and subjected to loading during the strengthening process. Full article

The near-surface mounted (NSM) technique with carbon fibre-reinforced polymer (CFRP) composites has been proven to be one of the most effective alternatives for the flexural strengthening of existing reinforced concrete (RC) members. However, several issues remain unresolved, including the effects of elevated temperatures on the performance of these strengthened RC elements. This study experimentally investigates the mechanical performance of RC slabs strengthened with NSM-CFRP systems under elevated temperatures, using both (i) steady-state and (ii) transient heating under applied loads. The steady-state tests were conducted at 20, 40, 50, 70, and 80 °C, while the transient tests were performed at 20 and 80 °C. Deflections, strains, temperatures and loads were registered during the heating phase and during the flexural tests up to failure. These measurements were used to analyse the system response in terms of load–deflection curves, evolution of concrete and CFRP strains, and bond stresses between the epoxy adhesive and CFRP. At 80 °C, the NSM-CFRP-strengthened RC slabs exhibited an average reduction of 12.1% (steady-state) and 2.3% (transient) in ultimate strength. Moreover, the concrete crushing failure mode governed up to 70 °C, despite passing the epoxy’s glass transition temperature (54 °C), while cohesive failure of the adhesive governed the failure at 80 °C. Full article

This study investigates the shear performance of reinforced concrete (RC) beams strengthened with near-surface-mounted (NSM) carbon fiber-reinforced polymer (CFRP) ropes under ambient and elevated temperature conditions. An experimental program comprising twelve RC beams was conducted, including both normal- and high-strength concrete specimens. The beams were strengthened using CFRP ropes installed at two orientations (45° and 90°) and two spacing configurations (150 mm and 200 mm). Ten specimens were exposed to a temperature of 600 °C prior to shear testing. The experimental results were evaluated against finite element (FE) simulations and shear strength predictions obtained from ACI 440.2R provisions. The FE models demonstrated close agreement with the observed experimental response, whereas ACI 440.2R consistently yielded conservative shear strength estimates, particularly for high-strength concrete beams. The results confirm that inclined CFRP configurations and reduced rope spacing significantly enhance shear capacity, even after severe thermal exposure, with measured strength gains reaching approximately 75% relative to unheated control beams and up to 135% compared to heated control specimen. The findings emphasize the sensitivity of NSM CFRP in terms of strengthening effectiveness to elevated temperature and highlight the limitations of existing design provisions when applied to fire-damaged RC members. Full article

The strengthening of reinforced concrete (RC) beams requires repair systems that can enhance strength, stiffness, and energy dissipation without significantly increasing self-weight or compromising durability. This study explores the structural response of RC beams strengthened using an integrated shear–flexure system combining near-surface-mounted carbon fiber-reinforced polymer (NSM-CFRP) ropes and steel-reinforced geopolymer overlays in the compression zone. Monotonic three-point bending tests were performed on two RC beam specimens, one unstrengthened control and one strengthened beam, to obtain preliminary observations of load–deflection behavior, stiffness, ductility, and energy absorption. The strengthened specimen exhibited increases in ultimate load (28.6%), stiffness (13.6%), and energy absorption (7.65%) relative to the control beam, suggesting the potential for effective composite action between the CFRP ropes and geopolymer material. A three-dimensional nonlinear finite element model was developed using ATENA to support interpretation of the experimental response, incorporating detailed constitutive models for concrete, steel reinforcement, and CFRP ropes. The numerical predictions showed reasonable agreement with the experimental results. Within the limitations of the test matrix, the results indicate that the proposed dual strengthening system may offer a viable and sustainable approach for enhancing the shear–flexural performance of RC beams. Full article

The utilisation of carbon fibre–reinforced polymers (CFRPs) has emerged as a promising method for enhancing the flexural performance of reinforced-concrete (RC) bridges. While extensive research has been conducted on CFRP systems implemented on flat soffit RC beams, further work is required to assess their effectiveness when applied to concavely curved soffit RC members. This paper uses finite element simulations to extend an experimental database on RC beams with curved soffits ranging from 5, 10, 15 and 20 mm/m strengthened using externally bonded FRP. Parametric studies into four different concrete strengths ranging from 25, 35, 48, 57 MPa and additional degrees of soffit curvature up to 50 mm/m were used to generate a total of 88 data points. Further, gene expression programming (GEP) was used to develop an empirical model correlating a capacity reduction factor applied to the maximum FRP strain required to produce intermediate-span crack-induced (IC) debonding for concavely curved soffit RC beams externally strengthened with CFRP. The results of the GEP model demonstrated that the model can be employed as an efficient tool for the prediction of the reduction in the flexural capacity of concavely curved soffit RC beams strengthened externally with NSM CFRP. Full article

This study proposes a hybrid flexural strengthening technique for reinforced concrete (RC) beams by combining the near-surface mounted (NSM) and externally bonded reinforcement (EBR) methods. In this technique, iron-based shape memory alloy (Fe-SMA) strips are used for the NSM component, while either a carbon fiber reinforced polymer (CFRP) sheet or an Fe-SMA sheet is applied as the EBR component. The proposed hybrid-strengthening method aims to enhance the flexural load capacity and ductility of existing RC beams. To evaluate the effectiveness of the proposed method, numerical models were developed using ABAQUS software and validated against experimental results. A comprehensive numerical investigation was carried out on 52 RC beams, categorized into six groups with various hybrid-strengthening configurations. In addition, the effect of the prestressing of NSM Fe-SMA strips and the prestressing of EBR CFRP or EBR Fe-SMA sheet on the flexural performance of the beams was also examined. The results indicated that the hybrid-strengthening method significantly improved the cracking, yielding, and ultimate load capacities of the beams; however, in most cases, it reduced their deflection. Notably, prestressing the EBR Fe-SMA sheet in beams with higher reinforcement ratios produced a pronounced improvement in ductility. Full article

This study presented a comprehensive finite element (FE) investigation into the flexural behavior of RC T-beams strengthened in the negative moment region using near-surface mounted (NSM) carbon-fiber-reinforced polymers (CFRP) rods. A three-dimensional nonlinear FE model was developed and validated against experimental data, achieving close agreement with normalized mean square error values as low as 0.006 and experimental-to-numerical ratios ranging from 0.95 to 1.04. The validated model was then employed to conduct a systematic parametric analysis considering CFRP rod diameter, concrete compressive strength, longitudinal reinforcement ratio, and FRP material type. The results showed that increasing CFRP diameter from 6 to 10 mm enhanced ultimate load by up to 47.51% and improved stiffness by 1.48 times. Higher concrete compressive strength contributed to stiffness gains exceeding 50.00%, although this improvement was accompanied by reductions in ductility. Beams with reinforcement ratios up to 2.90% achieved peak loads of 309.61 kN, but ductility declined. Comparison among FRP materials indicated that CFRP and AFRP offered superior strength and stiffness, whereas BFRP provided a more balanced combination of strength and deformation capacity. Full article

Prestressed concrete structures are facing serviceability challenges due to rising live loads, material degradation, and seismic demands. Retrofitting with carbon fiber-reinforced polymer (CFRP) offers a cost-effective alternative to full replacement. This study presents a finite element (FE) modeling framework to simulate the seismic performance of prestressed concrete T-beams retrofitted in the negative moment region using near-surface-mounted (NSM) CFRP rods and sheets. The model incorporates nonlinear material behavior and cohesive interaction at the CFRP–concrete interface and is validated against experimental benchmarks, with ultimate load prediction errors of 4.41% for RC T-beams, 0.49% for prestressed I-beams, and 1.30% for prestressed slabs. A parametric investigation was conducted to examine the influence of CFRP embedment depth and initial prestressing level under three seismic conditions. The results showed that fully embedded CFRP rods consistently improved the beams’ ultimate load capacity, with gains of up to 10.84%, 16.84%, and 14.91% under cyclic loading, near-fault ground motion, and far-field ground motion, respectively. Half-embedded CFRP rods also prove effective and offer comparable improvements where full-depth installation is impractical. The cyclic load–displacement histories, the time–load histories under near-fault and far-field excitations, stiffness degradation, and damage contour analysis further confirm that the synergy between full-depth CFRP retrofitting and optimized prestressing enhances structural resilience and energy dissipation under seismic excitation. Full article

This study examines the prestress transmission behavior in near-surface-mounted (NSM) carbon fiber-reinforced polymer (CFRP)-strengthened reinforced concrete structures, with particular emphasis on the effects of temperature. Experimental tests were conducted to evaluate the tensile and shear properties of epoxy adhesives under a range of curing temperatures (20–100 °C) and ambient service temperatures (0–80 °C). The results reveal an inverse exponential relationship between curing time and temperature. Notably, adhesive strength declines significantly above 60 °C and the adhesive loses functionality at 80 °C. Building on these findings, an analytical model was developed to predict prestress transfer length, CFRP strain distribution, and interfacial shear stress. The model incorporates effective bond stiffness and a prestress reduction coefficient to account for varying prestress levels (10–50%). Parametric analyses identify the CFRP elastic modulus, cross-sectional geometry, adhesive thickness, and degree of curing as critical factors influencing prestress transmission. The model’s predictions were validated against experimental data, demonstrating its reliability. Overall, this work provides a theoretical foundation for optimizing the design of NSM CFRP-strengthened structures under complex thermal conditions. Full article

This study presents a high-performance external strengthening strategy for reinforced concrete (RC) beam–column joints, integrating near-surface mounted (NSM) Carbon Fiber Reinforced Polymer (C-FRP) ropes with externally bonded C-FRP sheets. The X-shaped ropes, anchored diagonally on both principal joint faces and complemented by vertical ropes at column corners, provide enhanced core confinement and shear reinforcement. C-FRP sheets applied to the beam’s plastic hinge region further increase flexural strength and delay localized failure. Three full-scale, shear-deficient RC joints were subjected to cyclic lateral loading. The unstrengthened specimen (JB0V) exhibited rapid stiffness deterioration, premature joint shear cracking, and unstable hysteretic behavior. In contrast, the specimen strengthened solely with X-shaped C-FRP ropes (JB0VF2X2c) displayed a markedly slower rate of stiffness degradation, delayed crack development, and improved energy dissipation stability. The fully retrofitted specimen (JB0VF2X2c + C-FRP) demonstrated the most pronounced gains, with peak load capacity increased by 65%, equivalent viscous damping enhanced by 55%, and joint shear deformations reduced by more than 40%. Even at 4% drift, it retained over 90% of its peak strength, while localizing damage away from the joint core—a performance unattainable by the unstrengthened configuration. These results clearly establish that the combined C-FRP rope–sheet system transforms the seismic response of deficient RC joints, offering a lightweight, non-invasive, and rapidly deployable retrofit solution. By simultaneously boosting shear resistance, ductility, and energy dissipation while controlling damage localization, the technique provides a robust pathway to extend service life and significantly enhance post-earthquake functionality in critical structural connections. Full article

The effectiveness of an innovative retrofit scheme using near-surface-mounted (NSM) X-shaped CFRP ropes for the strengthening of substandard RC beam–column joints was investigated experimentally. Three large-scale beam–column joint subassemblages were constructed with poor reinforcement details. One specimen was subjected to cyclic lateral loading, exhibited shear failure of the joint region and was used as the control specimen. The other specimens were retrofitted and subsequently subjected to the same history of incremental lateral displacement amplitudes with the control subassemblage. The retrofitting was characterized by low labor demands and included wrapping of NSM CFPR-ropes in the two diagonal directions on both lateral sides of the joint as shear reinforcement. Single or double wrapping of the joint was performed, while weights were suspended to prevent the loose placement of the ropes in the grooves. A significant improvement in the seismic performance of the retrofitted specimens was observed with respect to the control specimen, regarding strength and ductility. The proposed innovative scheme effectively prevented shear failure of the joint by shifting the damage in the beam, and the retrofitted specimens showed a more dissipating hysteresis behavior without significant loss of lateral strength and axial load-bearing capacity. The cumulative energy dissipation capacity of the strengthened specimens increased by 105.38% and 122.23% with respect to the control specimen. Full article

The work presents and examines a fiber anchoring system of NSM CFRP strips proposed for strengthening RC beams. The study included 11 beams: 3 unstrengthened beams, 3 beams strengthened with NSM CFRP strip without anchorage, and 5 beams strengthened with NSM CFRP strips with additional anchorage in two variants (the fiber anchor wrapped around the CFRP strip end and fan-folded on the beam surface; the fiber anchor connected with a 20 cm overlap to the strip). All beams were loaded until failure with two concentrated forces (four-point loading test). The measurements were carried out using digital image correlation (DIC). The obtained ultimate load values reached an average of 43.5 kN for unstrengthened beams, while for strengthened beams, they ranged between 56.6 kN and 60.2 kN. The strengthening efficiency was comparable for all beams regardless of the anchorage used and ranged from 29% to 37%. All strengthened beams failed due to strip debonding. The obtained results did not allow confirmation of the effectiveness of the proposed anchoring system. Detailed analysis showed that the lack of anchoring effectiveness was related to the debonding initiating factor, i.e., vertical crack opening displacement, which has not been described in proper detail by the researchers. Full article

The aim of this experimental study was to develop and evaluate the effectiveness of a new strengthening system for reinforced concrete slabs employing external jackets consisting of ultra-high-performance fiber-reinforced-concrete (UHPFRC) and mechanical anchor systems. The issue of debonding between old and fresh concrete layers, as well as the efficiency of utilizing CFRP rods, is the primary challenge of applying the UHPFRC jackets with embedded CFRP rods. In this study, we propose a novel retrofitting technique for implementing a mechanical anchor system to improve the binding of fresh UHPFRC jackets with old RC slabs. An experimental test was conducted by subjecting three slabs to cyclic loads by utilizing a dynamic actuator: a reference slab, a retrofitted slab with an external UHPFRC layer, and a retrofitted slab with an external UHPFRC layer incorporating CFRP bars. Furthermore, finite element models (FEMs) were utilized to investigate the responses of the retrofitted slabs and compare the novel method with traditional strengthening techniques, including near-surface-mounted (NSM) CFRP rods, externally bonded CFRP strips, and epoxy-bonded UHPFRC jackets, as well as two models that were the same as the experimental strengthened slab specimens except for the fact that they did not have a mechanical anchor system. Additionally, analytical mechanistic models were employed to determine the flexural moment capacity of the RC slabs. The experimental findings demonstrated that the proposed strengthening strategy considerably prevented premature debonding and enhanced the maximum load of retrofitted RC slabs by over 82%. Also, the FEM and analytical results are significantly consistent with the experimental outcomes. In conclusion, the newly suggested strengthening technique is a reliable system for enhancing the efficacy of slabs, effectively preventing early debonding between existing and new components. Full article
