rUnit—A Framework for Test Analysis of C Programs

Abstract

Asserting program correctness is a longstanding challenge in software development that consumes lots of resources and manpower. It is often accomplished through software testing at various levels. One such level is unit testing, where the behaviour of individual components is tested. In this paper, we introduce the concept of test analysis, which instead of executing unit tests, analyses them to establish their outcome. This is line with previous approaches towards using formal methods for program verification; however, we introduce a middle layer called the test analysis framework, which allows for the introduction of new capabilities. We (briefly) formalize ordinary testing and test analysis to define the relation between the two. We introduce the notion of rich tests with a syntax and semantic instantiated for C. A prototype framework is implemented and extended to handle property-based stubbing and non-deterministic string variables. A few select examples are presented to demonstrate the capabilities of the framework.

1. Introduction

Asserting program correctness is an important part of software development, and by far the most common strategy is using software testing, i.e., executing a program with certain inputs and asserting that the actual reached state is what is expected [1]. It is well known that the software testing part takes major resources in development processes [2]. The testing can occur at different levels, e.g., component testing, integration testing and unit testing. The latter refers to the verification of small, isolated units of a larger program [3]. The purpose of unit testing is to verify the components on a low level such that when a test fails it is clear where the fault lies (i.e., the fault is in the test component and not due to an interaction with another part of the program). Traditionally, unit testing is accomplished by writing unit tests in the same language as the source code and, with a unit testing framework, executing the system under test (SUT) and observing that the resulting state is as the test requires. Writing such tests can be a tedious task, while guaranteeing isolation of the unit can require lots of effort. In discussion with industrial partners, it was established that major time was spent stubbing code to achieve this. Therefore, it is interesting to find methods to assist in this task.

On the other hand, there are formal approaches that attempt to prove a program correct via translation to a formal model and an automated reasoning tool. Such methods can also be applied to a unit level, thus verifying the behaviour of a smaller component. These approaches are powerful in the sense that (in the words of Dijkstra) “program testing can be a very effective way to show the presence of bugs, but is hopelessly inadequate for showing their absence” [4]. Applying formal tools (e.g., model checkers and theorem provers) to verify software is an active research area with annual conferences and competitions [5]. Recent work highlights how model checking can be used to address data races via the introduction of shadow memory [6], which can help in resolving data races, a hard-to-track and costly bug [7].

However, these approaches have barriers to adoption, e.g., requiring expert education in formal methods or great tool integration [8]. Therefore, it is worthwhile to find means of making formal approaches more accessible to non-experts. While recently there have been several successful applications of formal approaches on a unit level, e.g., Amazon Web Services [9] and the Linux kernel [10], they still require knowledge about the underlying technology and the relationship to ordinary software testing is informal. These aspects lead us to a research inquiry as follows:

Research question: How can formal methods be leveraged for unit testing in a manner that is clearly defined and more accessible to non-experts?

We attempt to address this in this paper by outlining the concept of test analysis, which is an approach towards program verification that combines (normal) testing and formal methods. Ordinarily, a software test is (compiled and) executed to determine its outcome (pass or fail). We propose an alternative approach, test analysis, where instead a formal analysis is applied to determine if the test passes or fails (We wish to emphasize that this is not test analysis in the sense that tests are analysed to assess quality, e.g., coverage.). In this work, we do not apply formal tools to establish full formal verification of software, but instead partial verification of units. While earlier works have used formal tools directly, we propose the introduction of a (middle-layer) framework—a test analysis framework—with the goal of making the underlying formal techniques more accessible to non-expert users (e.g., software testers without experience of formal tools) through the introduction of rich testing templates. Furthermore, by using syntactic restrictions of tests to our template rich tests, we can enable novel extensions (enrichments) to the framework, which in this paper is exemplified by property-based stubbing and non-deterministic string values. In sum, we present the following contributions:

• The introduction and formalization of test analysis and rich tests;
• A prototype implementation working with rich tests for C code using CBMC;
• Two enrichments:

  -

  Enrichment 1: introduction of property-based stubs;

  -

  Enrichment 2: regular expression specification of non-deterministic string values;

• A few select examples demonstrating the capabilities of the approach.
• An evaluation of the framework on two small use cases.

The paper is organized as follows: Section 2 gives background information before the formalization of test analysis and rich tests in Section 3. After this, we introduce our framework rUnit in Section 4, followed by a presentation of two enrichments: property-based stubbing in Section 5 and non-deterministic string values in Section 6. We consider related work in Section 7 and present a few selected examples in Section 8. In Section 9 we evaluate the approach on two small use cases and discuss our findings in Section 10. Finally, we conclude in Section 11 with conclusions and future work.

2. Background

Before presenting test analysis we introduce some preliminary background material on software testing and formal methods.

2.1. Software Testing

Software testing is the process of asserting program correctness by the means of executing it under certain conditions and observing the outcome (see, e.g., [11]). Testing can be performed on various levels, e.g., integration level testing, component testing or unit testing. Unit testing refers to testing individual units of the software in isolation [3]. Unit tests are often considered to consist of phases [12]: arrange, act and assert. During arrange, an initial state is established for the test, to which the act phase then performs the execution of the inspected part. The assert phase finally checks if the test passes or fails. There is sometimes also a clean-up (a.k.a. tear-down) phase, which restores the program state.

Example 1.

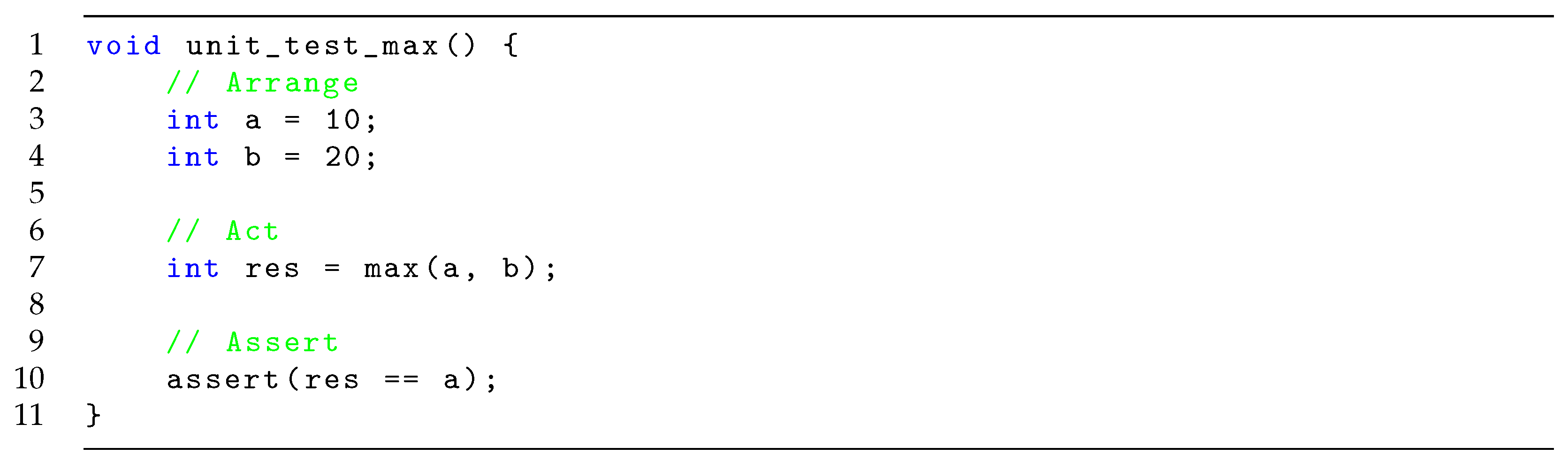

In Figure 1, a simple unit test is provided, testing the max function (which returns the greater of its arguments). The arrange phase initializes the values of a and b, the act phase calls the tested function max, and the assert phase ensures that the res is equal to b (as that is the greater of the two values).

When performing unit testing, the goal is to test the unit in isolation. Thus, it is desirable to remove external dependencies. There are two main schools of unit testing on how to achieve this: London and Detroit (also known as Chicago or Classical). The schools’ differences can be highlighted through their definition of a unit. In the Detroit school, a unit is a unit of behaviour, which might include code from different modules interacting with each other. On the other hand, in the London school, a unit is a piece of code (e.g., a class or a function). In the London school, the focus lies in asserting that the unit of code is interacting in the correct manner with the code around it, and there is a heavy reliance on stubbing and mocking. The former refers to replacing a dependency with a constant or simplified value (e.g., a function retrieving the current time could always return 12:34), while the latter also focuses on tracking function calls made by the replaced function.

When employing unit testing, a unit testing framework is often used, e.g., JUnit [13] or the Google Test framework [14]. The role of such a framework is to provide support for writing and checking tests. This includes both the software that will run the unit under test (UUT) as well as programming libraries enabling it, e.g., different kinds of assertions, error handling, stubbing and mocking, etc. We will refer to such frameworks as test execution frameworks, as their main purpose is to execute the UUT.

2.2. AI Usage in This Work

In this work, AI has been used for two purposes. First, for code-assistance in the development of the framework, by the means of the Copilot (bizchat.20251216.44.1) plugin in VSCode, suggesting edits and completions of written code. Furthermore, Copilot was used to generate Latex figures and tables for the paper. All text has been written by humans.

2.3. Formal Methods

Using formal methods to identify software faults is a mature research area with various approaches. One approach gaining more popularity in recent years is to apply model checking to find software faults via unit proofs or test harnesses [9]. Each such component tries to verify a small piece of a software system (akin to unit testing). These approaches work by creating a context that corresponds to a desired testing set-up and then executing the unit testing, followed by one or more assertions to establish the desired outcome, very much like an ordinary software test. However, instead of actually executing the code, it is passed to a verification engine that analyses whether the assertions hold under all possible contexts (constrained by the set-up).

Bounded Model Checking

A technology for verifying assertions in code is bounded model checking. Model checking means that a (mathematical) model of the program is constructed in such a way that if an error (i.e., an assertion fails) exists in the original program, it will manifest in the model. Then, verification algorithms can check the model and provide counter-examples (traces where an assertion fails) or confirm that the model is correct (and thus also the original program). It is common that the verification is performed by trying to find an execution that makes the assertion false, and if no such execution exists, the assertion is guaranteed to hold. Thus, the absence of a counter-example guarantees the correctness of the code. A tool that supports the model checking of C code is CBMC [15], which works by utilizing special statements, __CPROVER_assume and __CPROVER_assert, to constrain and check the state space.

Example 2.

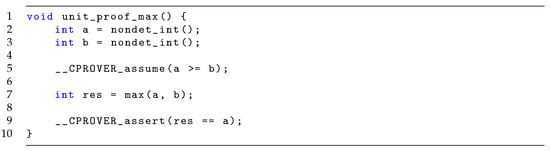

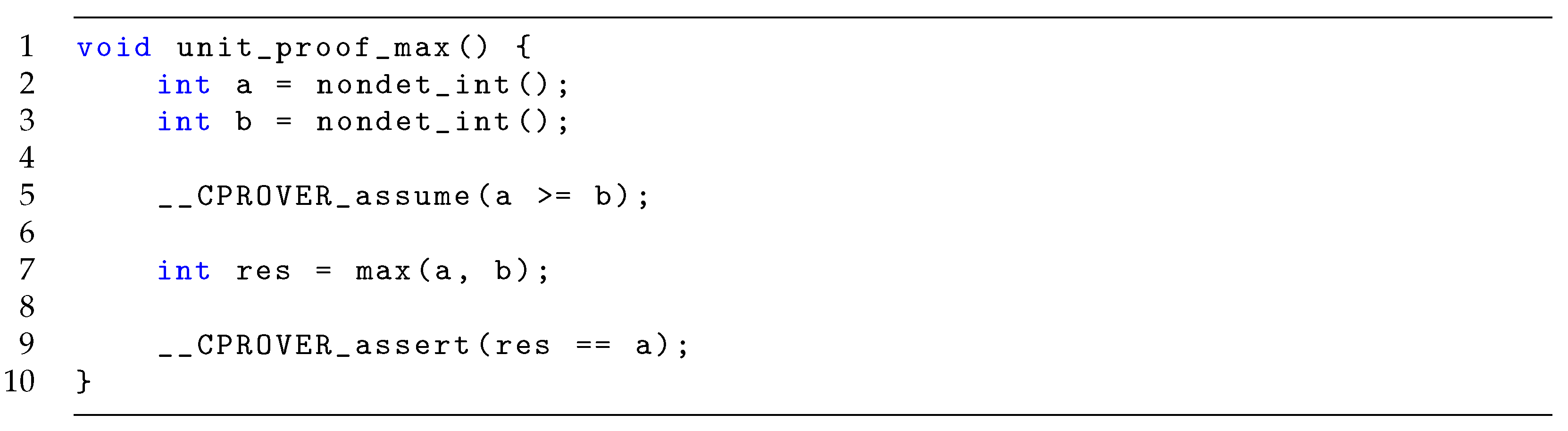

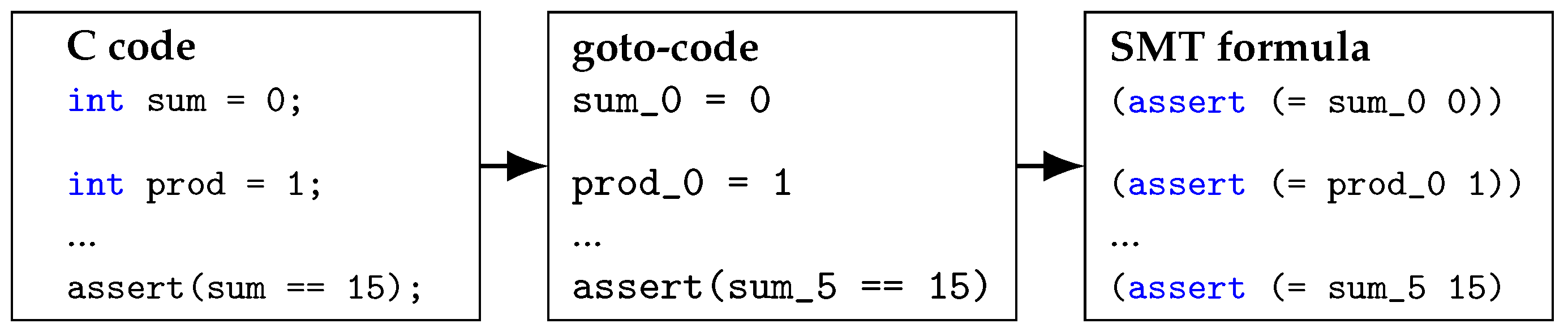

Consider the code in Figure 2 (for more realistic example see, e.g., [9]). It establishes that a,b are unconstrained integers s.t. a >= b. At the end, it asserts that res (the result of max(a, b)) should be equal to a (which is correct as a is the larger integer). Running CBMC on this code (assuming a correct implementation of max is referenced) will yield that no values of a and b can be found such that the assertion fails, and thus the functionality is verified.

The bounded part of bounded model checking means that the model is made finite, to ensure model checking will terminate. Loop unrolling is a common technique to turn a program with loops, which has an unbounded number of states, into a program without loops. In principle, loop unrolling takes a loop, converts it to an if statement, and then copies it x times. This leads to a program that is semantically equivalent to the original one, as long as the loop would not be taken more than x times. To guarantee that the chosen x is not too small, unwinding assertions can be added, i.e., after the last copy of the loop the condition is checked one more time, and if it holds an error is raised. Unwinding is illustrated in Figure 3, with the original loop, and Figure 4, with an unwinding of $x=3$ and including an unwinding assertion.

3. Test Analysis

In this section, we outline the formalization of our proposed approach named test analysis. The general idea is to analyse tests (using formal tools) instead of executing them and observing the resulting state.

3.1. Traditional Testing

We begin with a formalization of traditional software testing, i.e., where assertions are checked by execution, to be able to relate it with the concept of test analysis. Given a system-under-test (SUT) $\mathit{SUT}$ and a test t, the purpose of test execution is to observe the final state after executing t on $\mathit{SUT}$ (for simplicity, we assume that the checking of a test outcome is conducted after the whole test finishes executing). Let ${\mathcal{V}}_{\mathit{SUT}}$ be the variables of the SUT and ${\mathcal{V}}_t$ be the variables of the test. Then, we define an (integer) state as follows:

Definition 1.

A state $s\in \mathcal{S}$ is a mapping ${\mathcal{V}}_{\mathit{SUT}}\cup {\mathcal{V}}_t\to \mathbb{Z}$. Let $s\left[x\right]$ be the value of x in state s, and $s[x\to c]$ is the state $s^{\prime }$ identical to s except the value of x is assigned to c.

Thus, a particular state s will assign one value to each variable in the SUT and the test. For this paper, we consider only integer states, i.e., mappings of variables to integer values. In principle, it should also represent the contents of the registers, the value of the program counter and the memory on the stack/heap, as well as different types, e.g., strings. However, the general approach remains unmodified. To test a system $\mathit{SUT}$, we use software tests $\mathcal{T}=\{t_1,\dots ,t_n\}$ and consider them to consist of three phases (see Section 2.1). We formalize the notion as follows:

Definition 2.

We define a test as a tuple $t=(P_{\mathit{arrange}},P_{\mathit{act}},P_{\mathit{assert}})$, such that

• $P_{\mathit{arrange}}:\mathcal{S}\to \mathcal{S}$ yields the state after arrangement.
• $P_{\mathit{act}}:\mathcal{S}\to \mathcal{S}$ yields the state after act.
• $P_{\mathit{assert}}:\mathcal{S}\to \mathbb{B}$ is true if and only if the assert holds in the given state ($\mathbb{B}=\{\top ,\perp \}$ representing true and false, respectively).

• We say that a test passes (or fails) in a state s if $P_{\mathit{assert}}\left(P_{\mathit{act}}\left(P_{\mathit{arrange}}\left(s\right)\right)\right)=\top$ (or ⊥).

For simplicity, we do not care about the tear-down phase, i.e., how to restore the system to the initial state to ensure isolation between tests. We call the process of evaluating the expression $P_{\mathit{assert}}\left(P_{\mathit{act}}\left(P_{\mathit{arrange}}\left(s\right)\right)\right)$ to check the test (where s should be some initial state).

Example 3.

Consider a test $t=(P_{\mathit{arrange}},P_{\mathit{act}},P_{\mathit{assert}})$, such that

• $P_{\mathit{arrange}}\left(s\right):=s[x\to 10][y\to 20]$;
• $P_{\mathit{act}}\left(s\right):=s[res\to \mathit{max}(s\left[x\right],s\left[y\right])]$;
• $P_{\mathit{assert}}\left(s\right):=s\left[res\right]=y$.

The $\mathit{max}$ function, the unit under test, is defined elsewhere. This test ensures that when $\mathit{max}$ is applied with 10 and 20, the result $\mathit{res}$ should be equal to 20.

In practice, tests are not described as mathematical functions but in source code (e.g., in C). Given semantics for a programming language, there is a natural translation function from source code to mathematical functions that maps each phase to a function corresponding to its effect. We do not go into detail about that here, since it is beyond the scope of this paper, but assume the existence of the translation (in practice this is provided by a back-end). To ensure that source code adheres to the format of arrange, act and assert in Definition 2, we restrict tests in source code to follow a strict template. We will here present the template in C, but it could be defined for a different language as well.

Definition 3.

A function in C is a test if it follows the following rules:

• It has no parameters.
• It is separated into three phases: arrange, act and assert.

  -

  The arrange phase contains only variable initializations, variable assignments and function calls.

  -

  The act phase contains only a single function call, with the return value possibly assigned to a single variable.

  -

  The assert phase contains only a single call to assert.

The restriction to the act/arrange/assert pattern is intentional, as many tests do adhere to this pattern [16]. The stronger restriction of a single assert is for simplicity and can be easily changed (for example, assert(A) and assert(B) can be replaced by assert(A && B) as long as the assert phase is monolithic. The restriction on a single act is done to enable enrichments (see below) and adheres to the principle that a unit test should “test a single thing”.

After creating one or more test cases (forming a test suite), the next step is to evaluate if each individual test passes or not. We denote this process test evaluation. The process of test evaluation refers to checking if a test results in pass or fail. If a test suite is evaluated, it passes if each individual test is evaluated to pass. Traditionally, test evaluation is performed by test execution. As an alternative approach towards evaluating a test, instead of using a test execution function, we propose to use formal methods to establish this. Given an $\mathit{SUT}$, its state s and test t, we let test analysis refer to the process of analysing the $\mathit{SUT}$ and the test and decide whether executing and observing the assertions would indicate pass or fail. It is important to note that in test analysis, there are cases where termination is not guaranteed (due to the halting problem [17]). Therefore, we must allow for an additional output $\mathit{unknown}$ when dealing with test analysis. Using test analysis, the outlook is that from a users (i.e., testers) point of view the testing process looks a lot the same, with only the test evaluation part being replaced, see Figure 5. This requires an translation from the source code to a formal model, analysis of the model, and parsing of the output back (e.g., if formal analysis finds a failing test, which test is it in source code). We do not go into detail here, but one can use, for example, CBMC [15], where the translation would look similar to that in Figure 6.

3.2. Rich Tests

With the formalization of testing and definition of test analysis in place, we can now introduce the key concept of this paper. In this section, we introduce the notion of rich tests, which are enabled when we are using test analysis. The main difference between ordinary tests and rich tests are that the latter can handle abstract states.

Definition 4.

An abstract state $s_a\in (2^{\mathcal{S}}\setminus \varnothing )={\mathcal{S}}_a$ is a non-empty set of (concrete) states.

Intuitively, an abstract state represents a set of possible concrete states. A rich test is defined as an ordinary test, but the arrange phase yields an abstract state and the act phase maps abstract states to abstract states. The assert phase still considers concrete states:

Definition 5.

We define a rich test as a tuple $t=(P_{\mathit{arrange}},P_{\mathit{act}},P_{\mathit{assert}})$, such that

• $P_{\mathit{arrange}}\left(s\right):\mathcal{S}\to {\mathcal{S}}_a$ yields the abstract state after arrangement.
• $P_{\mathit{act}}\left(s_a\right):{\mathcal{S}}_a\to {\mathcal{S}}_a$ yields the abstract state after act.
• $P_{\mathit{assert}}\left(s\right):\mathcal{S}\to \mathbb{B}$ is true if a concrete state would pass the test.

We say that a test passes (or fails) in a state $s_a$ if $\forall s^{\prime }\in s_a{P}_{\mathit{assert}}\left(P_{\mathit{act}}\left(P_{\mathit{arrange}}\left(s^{\prime }\right)\right)\right)=\top$ or, equivalently, $\exists s^{\prime }\in s_a{P}_{\mathit{assert}}\left(P_{\mathit{act}}\left(P_{\mathit{arrange}}\left(s^{\prime }\right)\right)\right)=\perp$.

Since the arrange and act functions of a rich test return an abstract state, a rich test works over sets of states and checks that the assert holds for all these states. Intuitively, the phases can be thought of as the arrange phase setting up a set of possible arranged states. The act phase will return all possible reachable states from the set of arranged states. Finally, the assert phase checks if any one of the reachable states violates the assertion, and in that case returns ⊥, otherwise ⊤.

Example 4.

Consider a rich test $t=(P_{\mathit{arrange}},P_{\mathit{act}},P_{\mathit{assert}})$, such that

• $P_{\mathit{arrange}}\left(s\right):=\{s[x\to x^{\prime }][y\to y^{\prime }]\mid x^{\prime }\in \mathbb{Z},y^{\prime }\in \mathbb{Z},x\le y\}$;
• $P_{\mathit{act}}\left(s_a\right):=\{s^{\prime }[res\to \mathit{max}(s\left[x\right],s\left[y\right])]\mid \forall s^{\prime }\in s_a\}$;
• $P_{\mathit{assert}}\left(s\right):=s\left[res\right]=y$.

While the test in Example 3 defined the arrange phase to set x and y to constant values, in this rich test, $P_{\mathit{arrange}}$ instead returns the abstract state containing all states where x is less or equal to y. The act phase merely sets $\mathit{res}$ to the result of $\mathit{max}$ in each concrete state, and the assert is identical (as it works over concrete and not abstract states). The test checks that if $\mathit{max}$ is applied with $x\le y$, the result is always equal to y.

In a traditional execution environment, it would be very hard to evaluate a rich test, as a computer is (generally) only in a single state during execution. However, when translating to a formal model, it is possible to reason over a large amount of states in parallel. Of course, we would like to express rich tests as source code, and we describe again a template in C code (differences between this definition of ordinary tests are emphasized):

Definition 6.

A function in C is a rich test if it follows the following rules:

• It has no parameters.
• It is separated into three phases: arrange, act and assert.

  -

  The arrange phase contains only variable initializations, with possible non-deterministic assignment, function calls and assumptions.

  -

  The act phase contains only a single function call, with the return value possibly assigned to a single variable.

  -

  The assert phase contains only a single call to assert.

The key difference between ordinary tests and rich tests is the use of non-deterministic assignments. A rich test allows for assignment to a non-deterministic value, i.e., a variable can be assigned a special value indicating that it can have a set of values. Assumptions in the arrange phase of a rich test can restrict the possible states of non-deterministic variables. In general, this set can be any possible collection of values, but to be more easy to reason about it is reasonable to use intervals or easy-to-understand properties, e.g., odd values. With these capabilities, it is possible for a rich test to arrange and act over abstract states, with an assert stating what the desired outcome of the test should be. Since a rich test works over abstract states, it is not only interesting to check for the precise state, but also the properties of the state (e.g., the value should always be positive). In the next section, a syntax for supporting these things is introduced.

4. rUnit-Rich Testing with CBMC

A rich test cannot be compiled and executed but is only possible to evaluate using test analysis. Analogously to test execution, we can create a test analysis framework supporting the automatic analysis of (rich) tests and present the outcomes. In our work, we use the state-of-the-art formal verification tool CBMC ([15]) and rely on the correctness and soundness of it (which have been reviewed and tested in the scientific community). In this section, we present our implementation of test analysis and show how to translate the template introduced in the previous section, with some extra syntactic shortcuts, into C-code, which can handle the semantics introduced in the test analysis section. Our framework is named rUnit (rich unit testing framework) and is implemented in Python working over C code. The test framework has been designed such that no annotations are required in the source code that is tested. For many formal verification approaches, it is common that the source code itself is marked with invariants or pre- and post-conditions. We have chosen carefully to ensure that whether a test analysis framework or a test execution framework is applied should not be visible in the source code, but only in the test code.

4.1. Syntax

We begin by introducing the syntax of a test. It is a C function that returns void and accepts no parameters. It is prefaced by the #BEGINTEST statement to mark the function as a rich test. A test can contain ordinary C code with the addition of the #ASSUME, #ACT and #ASSERT statements as well as non-deterministic assignment. In general, all assumes will come before the (single) act, which is followed by a (single) assert. A test should be interpreted as follows: All code coming before the act is the arrange phase of the test. Assignments may include assigning of _ (an underscore) signifying a non-deterministic assignment. #ASSUME expr states that expr is assumed to hold from this line onwards, meaning that any non-deterministic variables are restricted to those fulfilling the expression. If no such assignments exist, the test is aborted (but not failing). The act line has no special semantics but is used to identify the line of the test’s act phase. Finally, the #ASSERT expr checks that the expression does indeed hold; if it does not, the test fails.

4.2. Back-End

The back-end of rUnit is the C Bounded Model Checker (CBMC) [15]. The strength of bounded model checking is that it turns any verification problem into a finite one and is thus guaranteed to terminate (although it can take a very long time). Moreover, since it works by unrolling loops, there is no need to work with invariants or a termination condition. The downside is that one must decide how many times loops must be unrolled, and this is a non-trivial process. There is a possibility of using a different back-end, but this is currently not in the scope of this project. The rich tests are converted to a syntax meaningful for the back-end. We present the translation for the different statements.

• #ASSUME
• The assumption of a condition exp is replaced by the CBMC command __CPROVER_assume(exp).

• #ASSERT
• The assertion of a condition exp is replaced by the CBMC command __CPROVER_assert(exp, "exp"), where the second argument is the string representation of the expression.

• x = _
• Assignment by non-deterministic values are replaced by an assignment to a corresponding function defined by CBMC, e.g., int i = _ is replaced by int i = nondet_int().

• x = [l,b]
• Interval assignment is replaced by a non-deterministic assignment followed by assumptions restricting the interval. For example, i = [0, 10] is replaced by i = nondet_int(); #ASSUME 0 <= i && i <= 10.

Example 5.

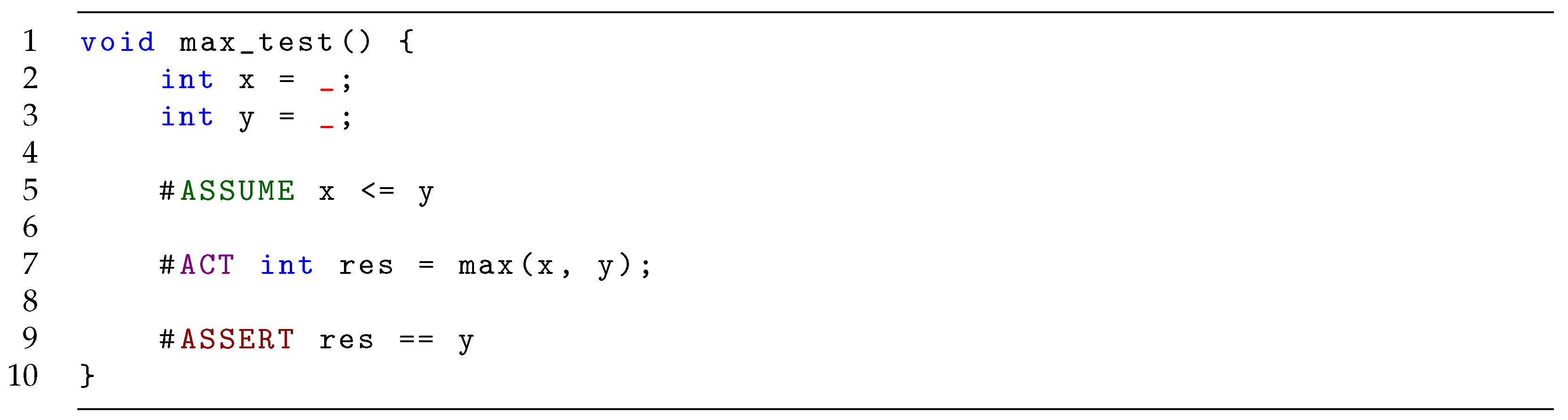

Consider the source code in Figure 7. It is a rich test of the max function. Lines 2 and 3 have non-deterministic assignment to variables x and y, while line 5 uses an assumption to restrict the values to obey the inequality x <= y. The assertion states that the returned value should be equal to y, which is correct as it will be the larger of the two variables.

4.3. Analysing Rich Tests

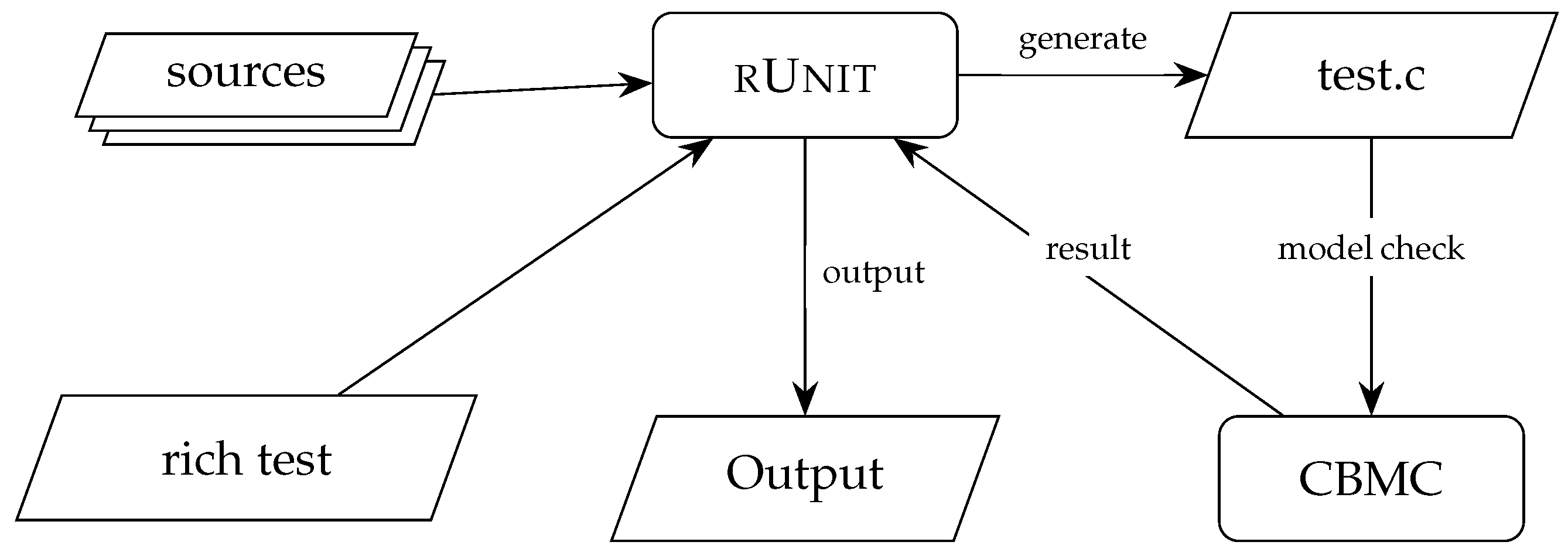

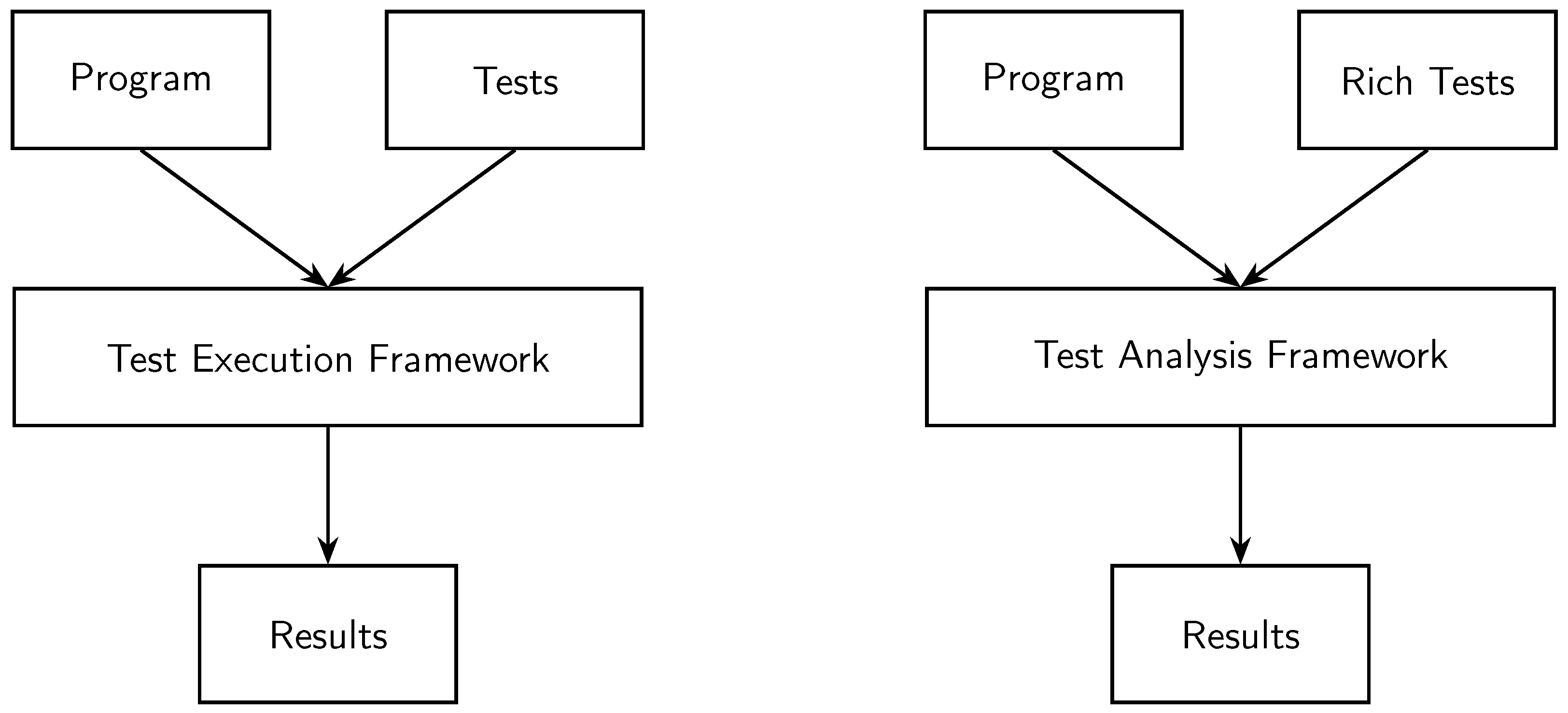

The frameworks workflow is outlined in Figure 8. rUnit is fed a set of sources and a rich test and uses them to generate a file test.c, which contains the rich test converted to a format supported by CBMC. Next, the test.c is model-checked by CBMC and the result is fed back to rUnit. This, in turn, parses the output from CBMC and presents the relevant information to the user (multiple loops can occur for the same test if counter examples are required). When running the framework to analyse rich tests, one factor that can greatly affect performance is the choice of how many unwindings should be performed (see Section Bounded Model Checking). It is set to a default value of 3, which is only sufficient for small examples. If a too small value is set, the user will be notified that the amount of unwindings is too small and they can manually increase the value.

Example 6.

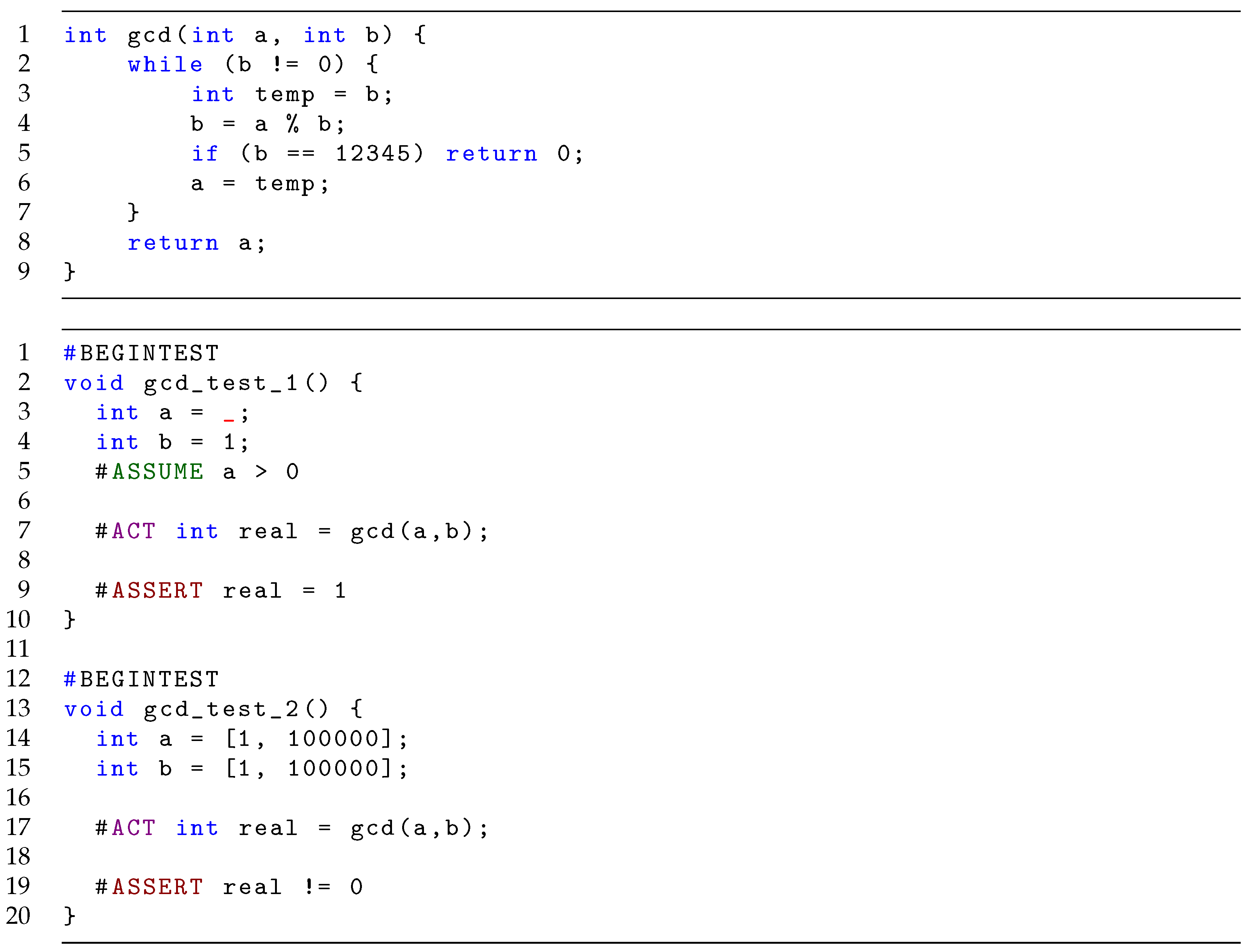

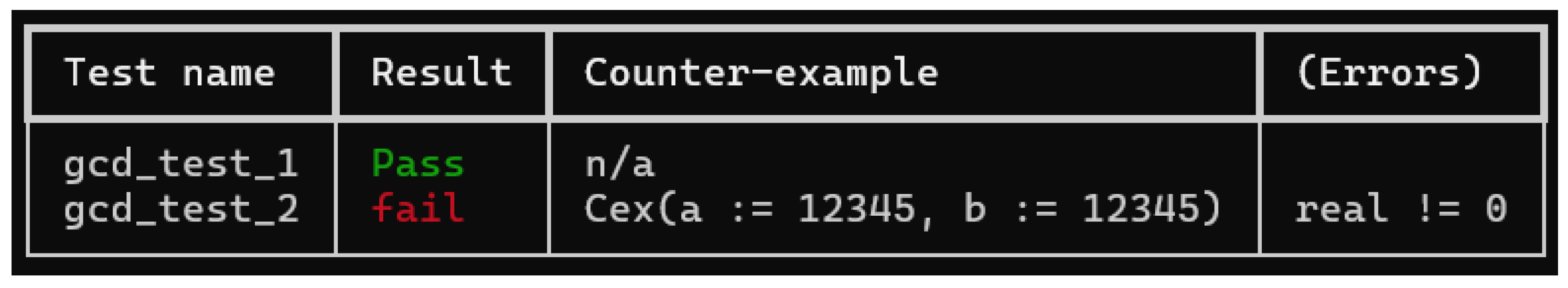

Consider Figure 9. The top of the figure contains the source code of a faulty implementation to compute the greatest common denominator (the fault in this case is a constructed bug when b is equal to 12345). The bottom contains two rich tests testing the function gcd. An ordinary unit test would test gcd for two particular values of a and b. In contrast, a rich test can allow a set of values to be tested. The first test checks that if the first argument is any positive value and the second argument is one, then the GCD should be one. The second test does not check that the computed value is the GCD of the two arguments, but it checks a property of the result. In this particular case, we check that if the two arguments are in the interval $[1,1000000]$, the output should be greater than zero. This test will discover the introduced bug and provide a counter example (i.e., values for a and b) that yields a return value failing the assertion. The output is shown in Figure 10.

In the following sections, we present two enrichments to the framework that extend the capabilities in various directions.

5. Enrichment 1: Property-Based Stubbing

In this section, we discuss how the template presented above can be utilized to extract specifications of tests and how to translate these into a (smart) stubbing table, enabling the automatic extraction of mocks from rich tests. We show how to use these (smart) stubs in our introduced framework. A testing stub is a piece of code intended to replace real code to isolate a test case from its surrounding environment. A stub can be at various levels of complexity, but it is usually as simple possible, e.g., returning a constant value. While in traditional testing a stub must return a concrete value when executed, when using test analysis this restriction does not apply. We can leverage this by allowing a stub to specify a property of the return value instead of specifying a concrete value. We will call such stubs property-based stubs. It is similar to property-based testing, but properties are not only specified for inputs but also for outputs. We illustrate this with an example.

Example 7.

Consider the max function. A stub could, for example, always return a constant value of 42 or the value of the first argument. This would be easy to automatically generate. Using a property-based stub, we could instead have two cases: if the first argument is greater than the second, return the first argument; if the second argument is greater or equal to the first, return the second argument.

In the example of max, it happens to be that the two cases cover the entire input space. Since this is not always the case, it can be useful have a catch-all with the input property of true and a constant return value to handle unspecified cases. The core component of property-based stubbing is the stub table:

Definition 7.

A stub table is a table with each row consisting of an input property and an output property.

Each row of the stub table corresponds to a case, interpreted as if the input property holds, the output property will hold after executing the stubbed function. In this way, it is possible to specify different properties that can be utilized when stubbing the function.

Example 8.

Consider the property-based stub in Example 7. It could be summarized in a stub table:

Input Property	Output Property
$x>y$	$\mathcal{R}==x$
$x\le y$	$\mathcal{R}==y$

where $\mathcal{R}$ corresponds to the value of the returned value.

A stub is often implemented as a function in traditional testing that returns a constant value or a return value based on some simple computation. A property-based stub could be implemented by a sequence of if statements, matching the input property and then returning a value satisfying the output property.

Example 9.

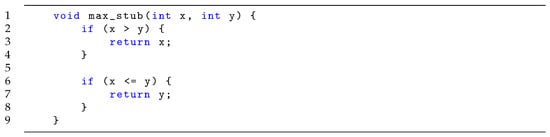

Consider the stub table from Example 8. It could be implemented with two if statements, as shown in Figure 11. In this particular scenario, the stub replicates the functionality of the original function, but in general this is not the case.

When a stub has been created, all function calls to the original function are replaced by calls to the stub (or the original function is replaced by the stub), ensuring that the test is not dependent on the original implementation.

Example 10.

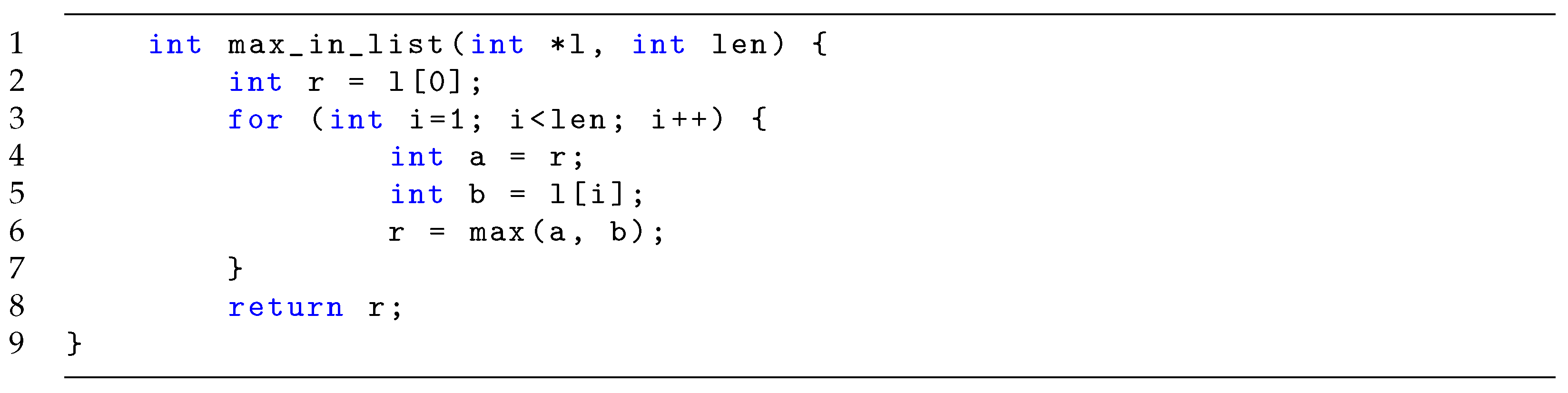

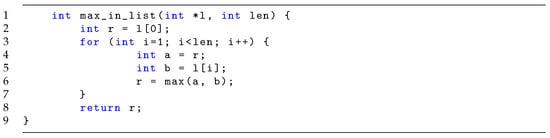

Consider the function max_in_list shown in Figure 12, which returns the maximum element of a list (implemented as an array). It works by calling max repeatedly, keeping the result for the next iteration. The row r = max(a,b) could be replaced by a property-based stud (i.e., r = max_stub(a, b) and the functionality would remain the same.

Automatic Stubs

Since we require rich tests to be written in accordance to a strict template, we can extract information from them. Assuming they are correct, one can consider a rich test as a partial specification of a unit: we take what is before the #ACT-section as a pre-condition $\mathit{Pre}$, whatever comes after the it as a post-condition $\mathit{Post}$, and the #ACT-section itself as an operation $\mathit{Op}$. With this in mind, if we assume a test is correctly written we can automatically extract a rule:

$$\forall s\in \mathcal{S}.\mathit{Pre}\left(s\right)\Rightarrow \mathit{Post}\left(\mathit{Op}\right(s\left)\right)$$

This means that for all states that satisfy the pre-condition, the post-condition will satisfy the states reachable by applying the operation. Note that the states satisfying the post-condition are an over-approximation of the actually reachable states—the condition expresses something that holds for all reachable states, not that all states satisfying the condition are reachable. For our purpose of automatic stubbing, this over-approximation can be problematic in the sense that we might not be able to find a proof when there is one, but it will not cause unsoundness.

Example 11.

Consider the rich test in Figure 7. It can be seen as a specification with $\mathit{Pre}\left(s\right):=s\left[x\right]\le s\left[y\right]$ and $\mathit{Post}\left(s\right):=s\left[\mathit{res}\right]=y$. The operation is $\mathit{Op}\left(s\right):=s[\mathit{res}\to \mathit{max}(x,y\left)\right]$.

Note the relation between a stubbing table and an extracted rule from a specification. The pre-condition is the same as the input property and the post-condition is the output property, and we create one stubbing table for each operation. We will treat the rows of a stubbing table and the specifications they are obtained from interchangeably. We can automate the process of creating a property-based stub. The idea is that whenever an operation for which we have a stubbing table is encountered, if the pre-condition can be known to hold, the operation can be replaced with the post-condition. In regular testing we would have to select a single rule to apply, but when dealing with test analysis we can allow multiple rules to be active at the same time. We utilize a construction that we denote stubbing choice:

Definition 8.

Given a set of specifications $\mathbb{S}=\{s_1,\dots ,s_n\}$, a stubbing choice is constructed by the following components:

• For each specification $s_i$, we introduce a choice variable $c_i$ indicating whether the pre-condition is met or not.
• We introduce a covering assertion that ensures that at least one of the specifications apply by asserting the disjunction of the pre-conditions:
  #ASSERT Pre(s_1) || ... || Pre(s_n).
• For each specification $s_i$, we introduce a pre-condition choice of the following form
  #ASSUME (s_i == 0 || Pre(s_i)) && (s_i != 0 || !Pre(s_i)).
• For each specification $s_i$, we introduce a post-condition assumption of the following form
  #ASSUME s_i == 0 || Post(s_i).

Finally, an assignment of the form target = op(s) can be replaced by a stubbing choice through the following steps:

• The target line is removed and replaced by a non-deterministic assignment to target.
• Before the target line, each $c_i$ is declared (but with no value).
• Before the target line, after declaration of $c_i$, each pre-condition choice is introduced.
• After the target line, the post-condition assumptions are introduced.

Intuitively, a stubbing choice allows the search to select one (or more) pre-conditions to hold; it then requires the corresponding post-condition to be assumed. The non-deterministic assignment to the target variable allows for the post-conditions to hold. We illustrate with an example.

Example 12.

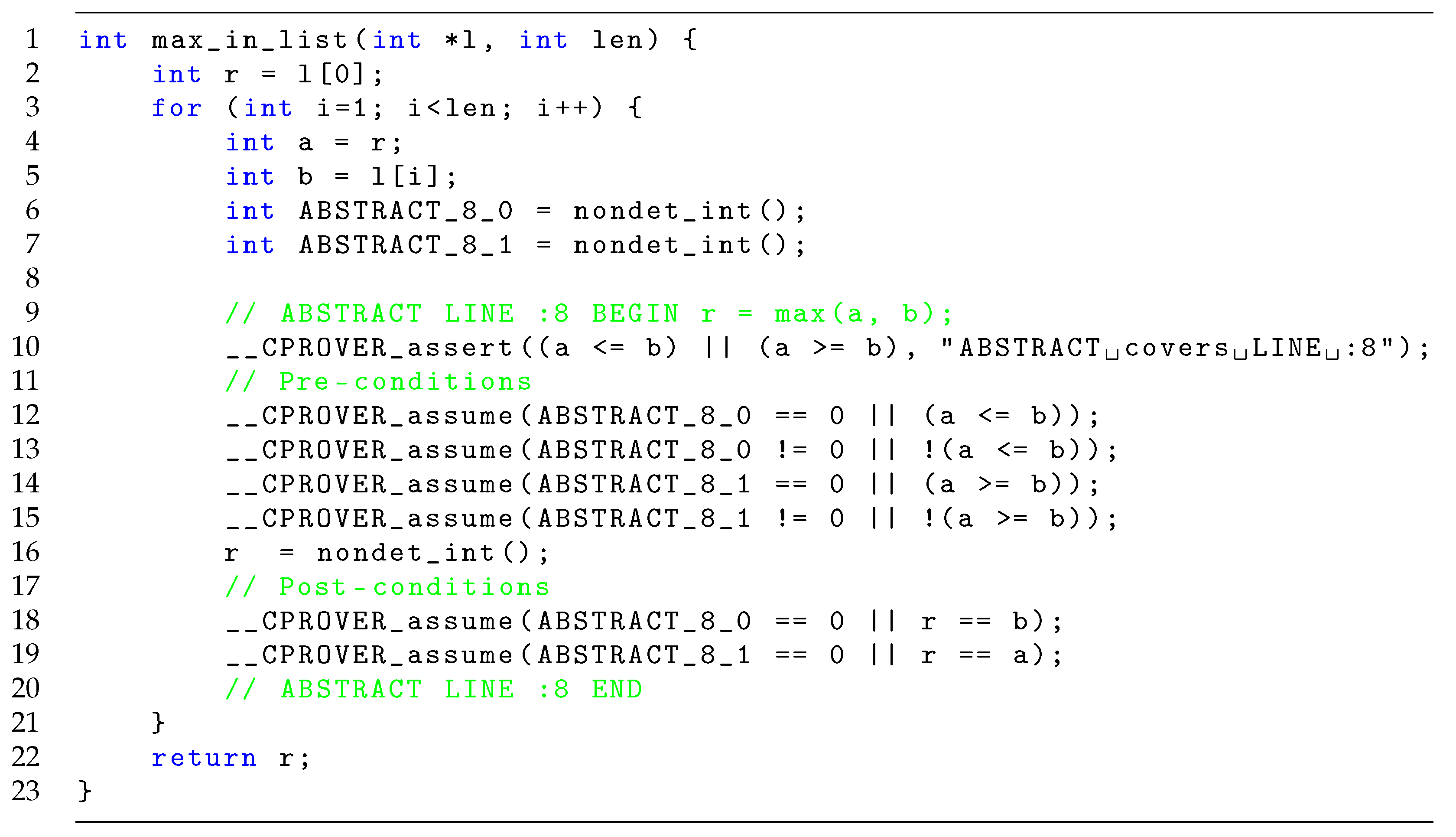

Once again we consider the function max_in_list shown in Figure 12. We present in Figure 13 the automatically stubbed version obtained from running   rUnit. On lines 6–7, the choice variables are introduced, and on line 10, it is checked that at least one of the cases always applies. On lines 12–15, the two cases are enforced, i.e., ABSTRACT_8_0 is set to zero if and only if a is not less or equal to b (and respectively for ABSTRACT_8_1). Line 16 sets r (which is from the original program) to a non-deterministic value such that it is unconstrained. Finally, lines 18 and 19 ensure the post-conditions, i.e., if ABSTRACT_8_0 is set to non-zero (first case applies), then the r is equal to b (and, respectively, for ABSTRACT_8_1). This modified code can be used in test analysis without relying on a specific implementation of max.

6. Enrichment 2: Non-Deterministic Strings

As shown above, rich tests have the capability of handling non-deterministic values of integer variables, constraining them using interval boundaries or assumption constraints. Extending this support to variables of other types poses different challenges. To the best of the author’s knowledge, there is no support for specifying string constraints (i.e., char arrays in C) using regular expressions. In this section, we show how we can extend the framework to support non-deterministic assignment of string by utilizing generated implementations of NFA (non-deterministic finite automatons).

(Simple) Regular Expressions

We begin by describing the regular expressions currently supported by our framework. For simplicity, we only allow recognition of string consisting of regular characters and three special symbols: ., \w and *. The dot (.) is, as usual, the representation of any symbol, \w is an alphanumeric character, and the star (*) allows for zero or more repetition of the previous symbol. Since we do not have parenthesis, star only follows one specific character.

Table 1. Example regular expressions.

Regular Expression	Description	Examples
constant	The exact string “constant”	“constant”
a*	One or more a	“”, “a”, “aaa”, …
.*	All strings	“”, “a”, “abcdef”, …
.*/sys.log	All paths for a file sys.log	“/sys.log”, “/var/log/sys.log”, …

has a list of example regular expressions. Next, we provide a formal definition of an NFA to aid in our presentation of an automatic translation to C code.

Definition 9.

A non-deterministic finite automaton (NFA) is defined as a tuple $N=(Q,\mathrm{\Sigma },\delta ,q_0,F)$, where

• $Q=\{q_1,q_2,\dots ,q_n\}$ is a set of states;
• Σ is the input alphabet;
• $\delta :Q\times \mathrm{\Sigma }\to 2^Q$ is the transition function;
• $q_0\in Q$ is the initial state;
• $F\subseteq Q$ is the set of accepting states.

We define the recognition of words and languages as usual. Moreover, given a regular expression, it is straightforward to construct an NFA recognizing it. For more details, see a standard text, e.g., [18]. It should be noted that from our restricted form of regular expressions, all states in a constructed NFA will have zero, one or two outgoing edges. If it is the final state, it will have zero outgoing edges. If it is a symbol not followed by a star, it will have one outgoing edge marked with the symbol. If it is a symbol followed by a star, it will have one self-loop and one outgoing edge, both marked with the symbol.

Example 13.

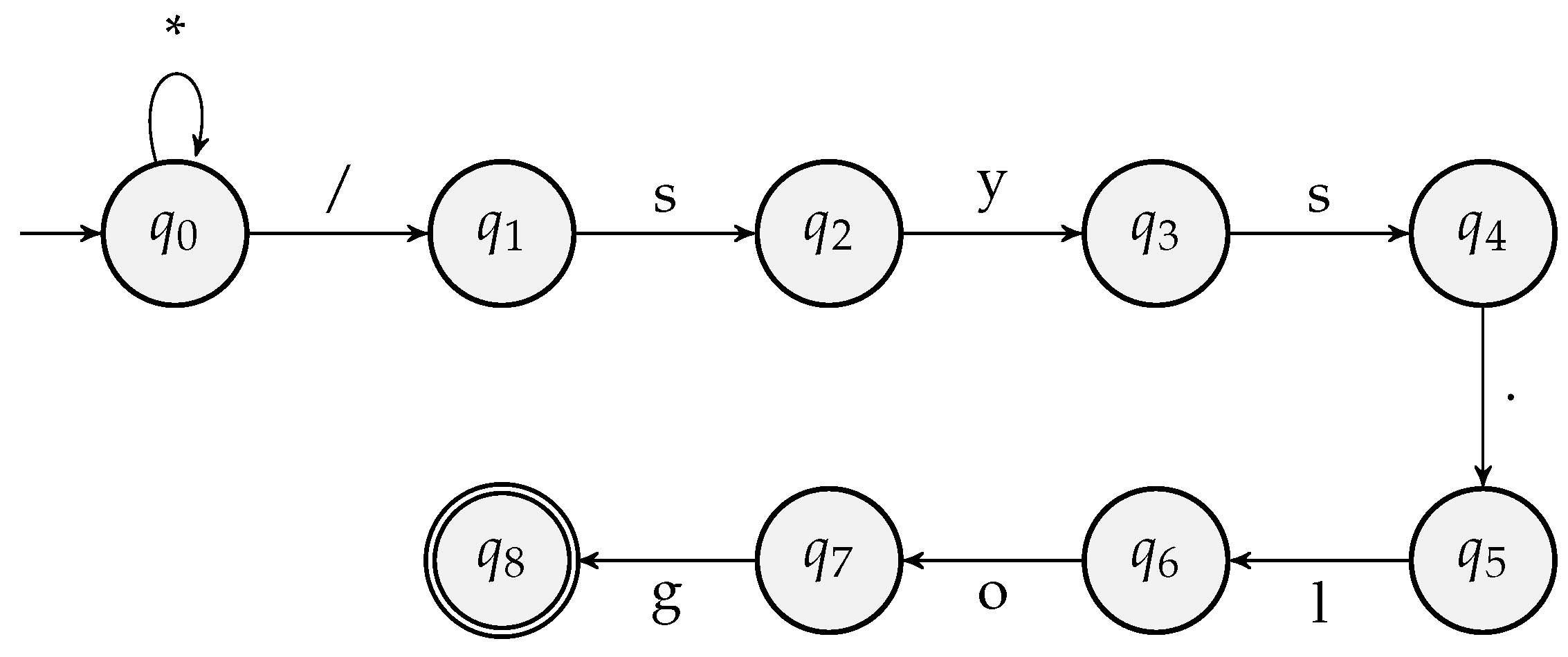

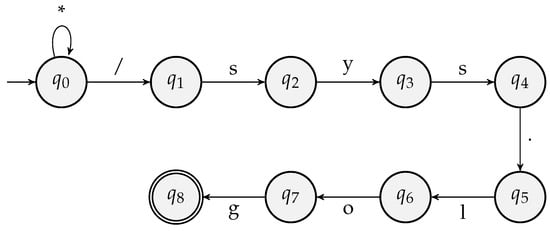

An NFA for recognizing the regular expression .*.sys.log is shown in Figure 14.

The next step is to create C code that implements the NFA. One approach is to utilize a generic algorithm, which takes a regular expression and a target string as inputs and checks if the target string belongs to the language of the regular expression. However, since the C code will be analysed rather than executed, it is desirable to keep it as simple as possible. Therefore, we propose for a given regular expression to generate an implementation that recognizes only the language of the expression and no others. This trade-off means that for every regular expression in the code, we need to generate a new set of matching functions. We next begin to describe how the code is generated. Given an NFA $N=(Q,\mathrm{\Sigma },\delta ,q_0,F)$, we introduce for each state $q\in Q$ a function state_q. The body of the function is defined for the three cases of zero, one or two outgoing edges. We begin in the case of zero outgoing edges:

In this case, we just want to ensure that the end of the string has been reached. Next, we consider one outgoing edge to state $q_j$ with label s:

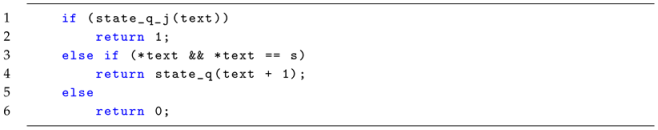

The first line checks that the next symbol of the string is indeed s. If the symbol to check is ., the condition is changed to if (*text), and if the symbol is \w, it is changed to if (*text && ((*text >= ’a’&& *text <= ’z’) || (*text >= ’A’&& *text <= ’Z’) || (*text >= ’0’&& *text <= ’9’)), ensuring the character is alphanumeric. If the if statement is true, the function for the next state is called with the argument moved forward one step. If it is the false symbol, the function ends with a zero, as there is no potential match from this point. Finally, we consider the case of two outgoing edges:

The first case corresponds to ignoring the star symbol completely and proceeding to the next state (observe text is not advanced); second case is to consume one symbol and then repeat the current state (state_q, i.e., the same state function is called). Finally, if we are at the end of the string we must return zero. Thus, given an NFA N, we can introduce the functions state_q_i for each $q_i\in Q$ and create a final function that returns one if the provided string is accepted by N and one otherwise:

Given the above construction, we can utilize it to replace a regular expression with a corresponding NFA N with a call to the function match_N in an appropiate manner. We implement this in our framework in variable assignments with the following syntax:

#REGEX target length regex

This means that that variable target should be non-deterministically assigned every null-terminated string up to length length that is generated by regex. The requirement of length stems from the fact that we need to know the size of the target character array to ensure null-termination at the end of it.

Example 14.

Consider the following statement: #REGEX url 30 https://.* It states that url should be all strings up to length 30 beginning with "https://" and followed by an arbitrary suffix.

To enable an analysis of a rich test containing a regular expression, we replace the #REGEX-statement with the following:

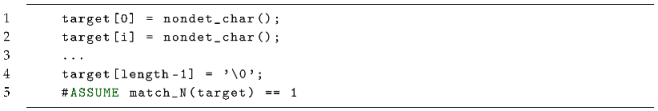

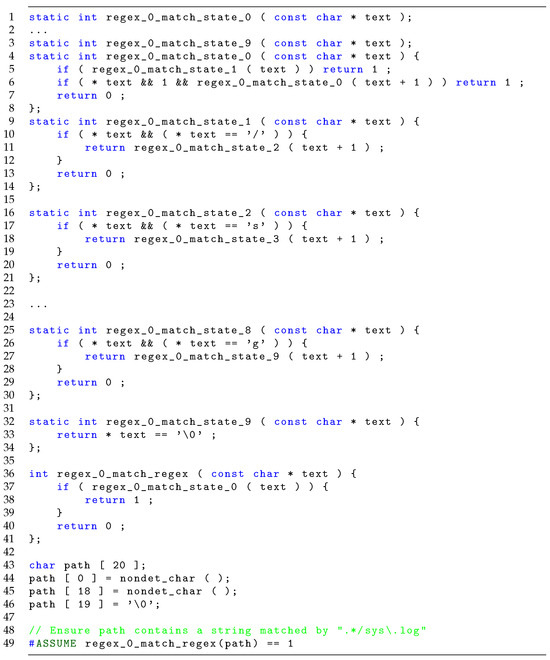

The first assignment to target non-deterministically assigns characters to the whole string (up to length length). The final assignment ensures the string is null-terminated (a future extension could allow regular expressions to also express non-terminated strings). Finally, we have an #ASSUME statement ensuring that target is indeed of the form of the regular expression.

Example 15.

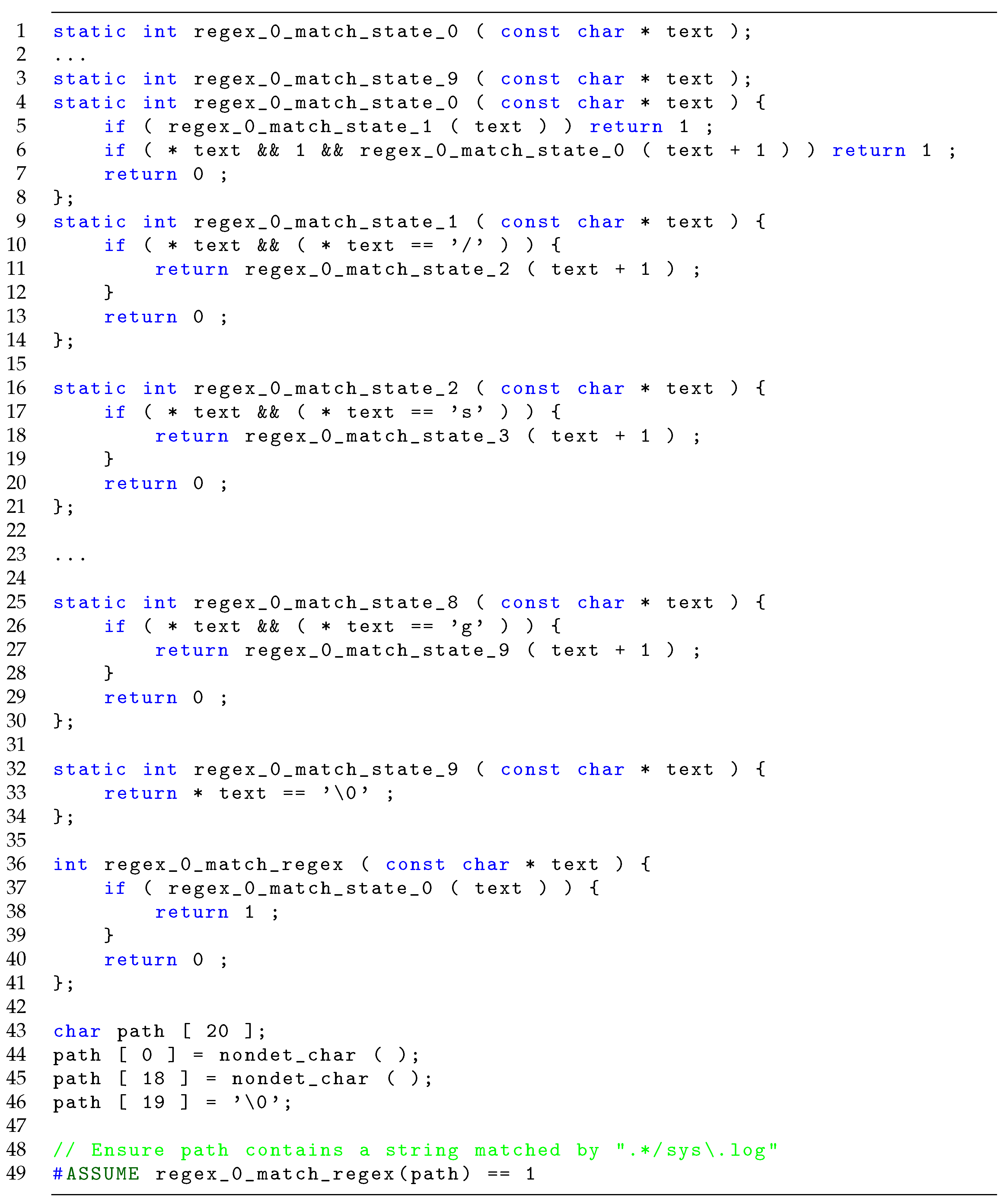

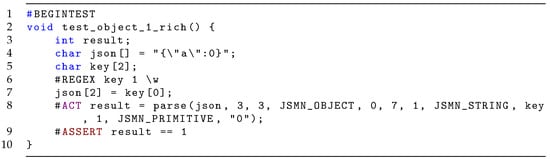

Consider the regex statement #REGEX name 7 .*/sys\.log ; it will be transformed into code, as shown in Figure 15. The #ASSUME on line 56 ensures that afterwards the variable path contains a string that adheres to the regular expression.

7. Related Work

The idea of unit proofing, i.e., replacing unit testing with formal verification of units, is not new and has been applied in avionics [19,20], in model checking boot code [21], in verification of the Linux kernel [10], as well as in a general approach [9,22]. The efficacy of unit proofing is being investigated by Amusuo et al. [23,24]. Through investigating real code with earlier vulnerabilities, the authors find that a structured approach towards writing unit proofs is cost-effective. In their work, the authors use CBMC as their model checking tool and follow the guidelines from CBMC to develop the unit proofs. In our work, we introduce a middle-layer to enable the use of different syntax and, more importantly, to introduce new capabilities, such as string handling and automatic stubbing. However, we see no reason to expect the usability of rich tests to diminish due to a change of syntax.

Gunter et al. presented an approach for using model checking to verify units of code [22]. They allow the user to specify properties in Linear Temporal Logic (LTL). While rUnit works at the C-code level using test cases that are syntactically very similar to traditional tests, Gunter et al. provide a graphical tool that visualises execution paths in the program, where the user can specify LTL formulas or select nodes to indicate the target of the search. Similar to our work, they also consider how to handle missing code using specifications instead of the original code. In contrast to our solution, they do not consider how to derive these specifications automatically.

A report on a successful use of model checking is from Cook et al., who present the approach applied to boot code from data centres [21]. The authors describe, in detail, the challenges of handling boot code and their specific issues. The work is not concerned with testing in general but solving this problem in particular; thus, the authors only have one test harness (i.e., test case). Their work demonstrates that the approach is scalable and applicable to industrial cases, but does not concern itself with how to make the approach more accessible to non-expert users.

The concept of a parameterized unit test (PUT) is closely related, allowing a test to contain abstract variables [25]. Thus, a test can specify a certain behaviour independent of the exact initial state (e.g., the number of elements in a list). Tillmann et al. also introduce the idea of using tests as specification to leverage the symbolic execution that is performed during the analysis of a PUT. However, the goal of this process is not to establish the correctness of the property but to generate test cases that trigger all relevant behaviours, which can then be executed and checked. In rUnit, we wish to leverage the specifications to help assist in the verification of the unit behaviour directly, where there is no execution of the target code at all.

8. Examples

In this section, we present some examples to demonstrate the capabilities of the framework. All examples in this section execute in a few seconds on a regular laptop.

8.1. Valid Username

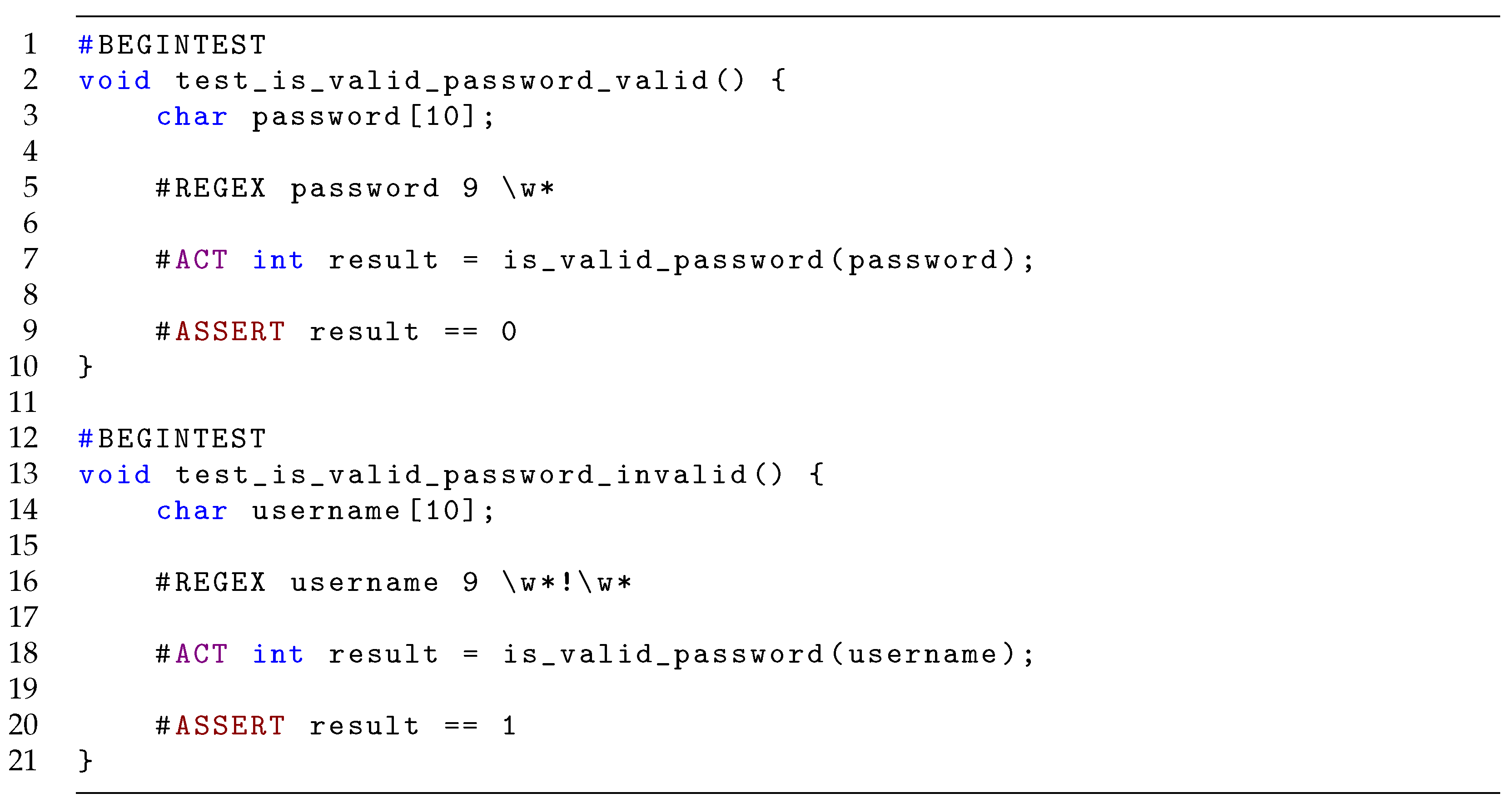

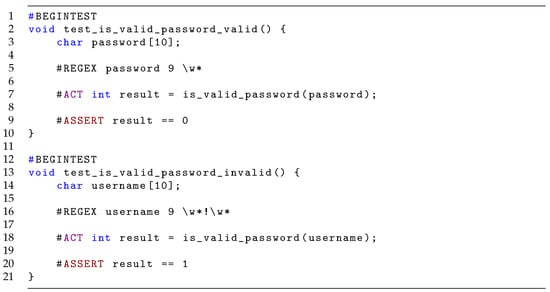

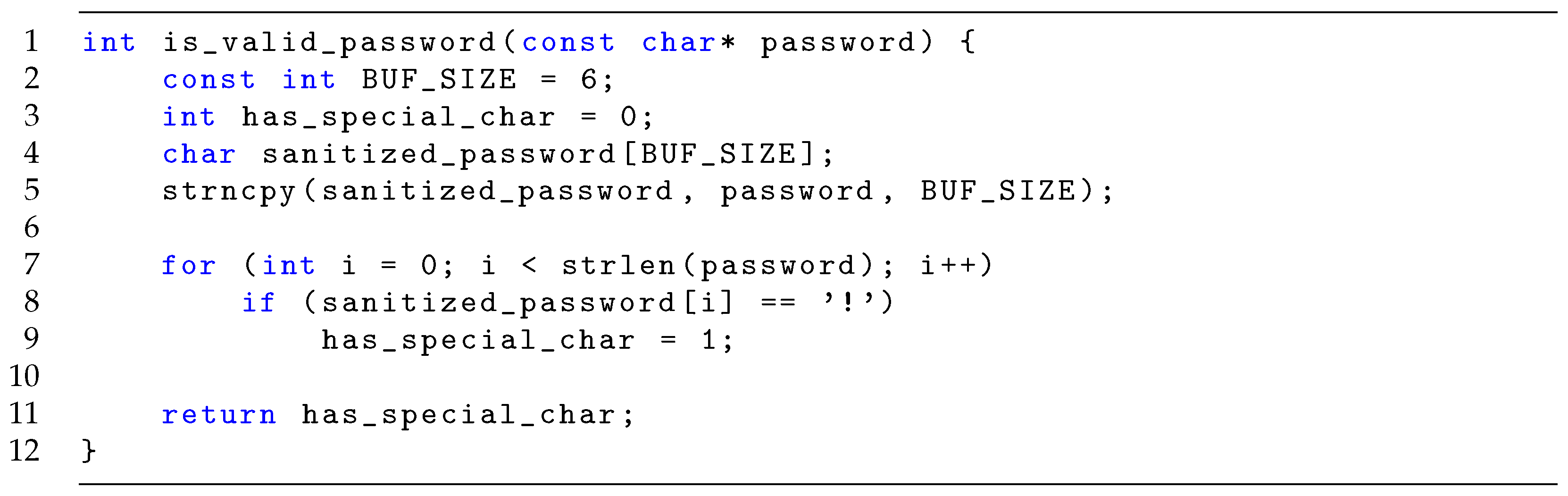

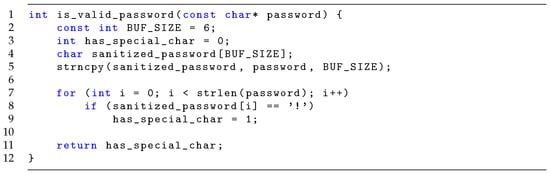

Consider the simple function is_valid_username in Figure 16, which recognizes that a valid password must contain at least one special character, here simplified as in containing an exclamation mark (!). It uses a buffer where it copies the password before checking it. There is a software bug on line 1 where BUF_SIZE is set to 6 instead of the length of password. To test such a function, we wish to check the two cases, a valid password and an invalid password. To check the invalid case, we provide a regex that contains only alphanumeric characters, shown in the top half of Figure 17. The valid case is checked by a password containing a single exclamation mark, shown in the bottom half of Figure 17.

Both errors fail, and inspection of the result shows that in the former case, if the provided password is longer than six characters, there might be an exclamation mark after sanitized_password erroneously making the password valid. The second case fails if the exclamation mark is placed after the first six characters and the memory after sanitized_password does not contain one, meaning the password is incorrectly marked as invalid. The bug in the first case would have been identified by any invalid string longer than six characters, while in the second case it requires a string where the exclamation mark is placed after the sixth position. With the use of regular expressions, the user does not need to specify specific strings but a general format, increasing the odds that these conditions are fulfilled. For example, if inputs has been chosen as "abcdef" and "!!!password" for the invalid and valid case respectively, the tests would not have found the bug.

8.2. Identifying Filename

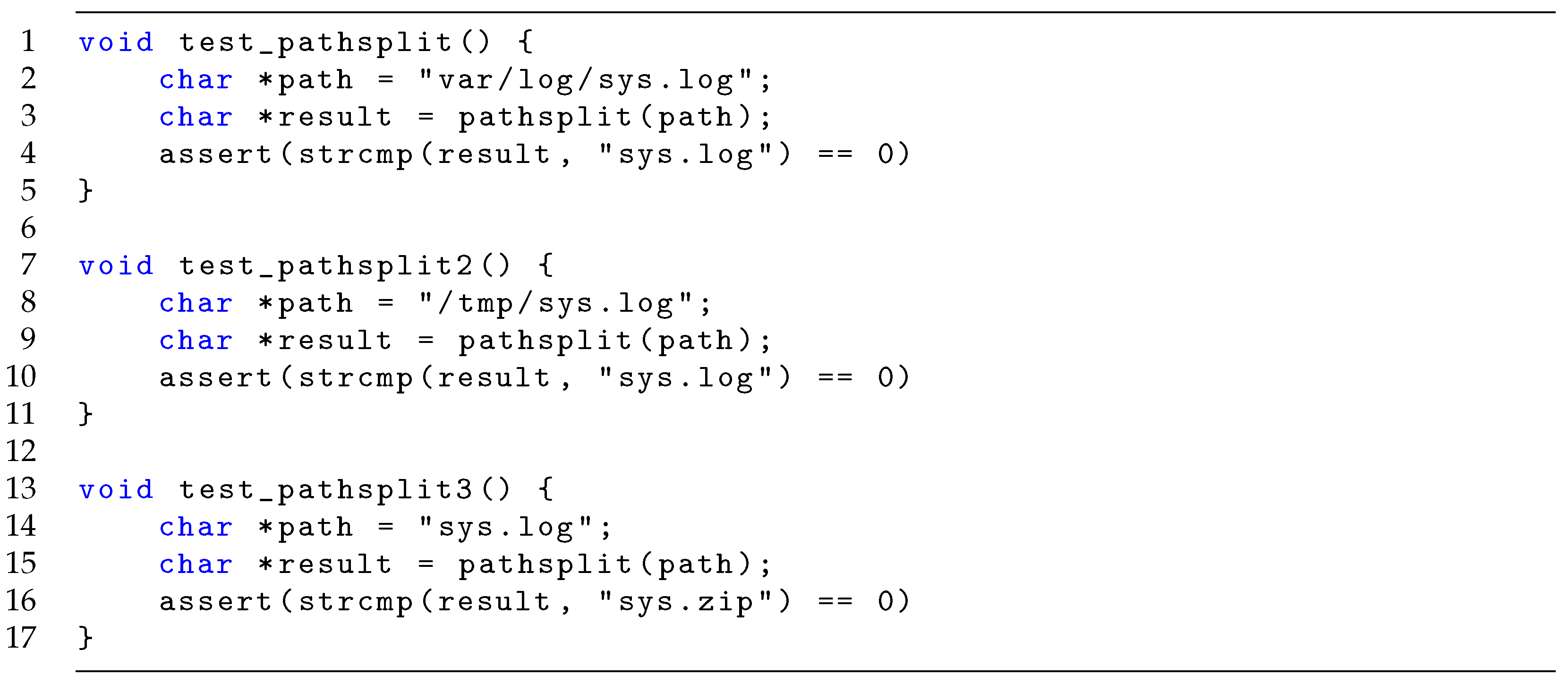

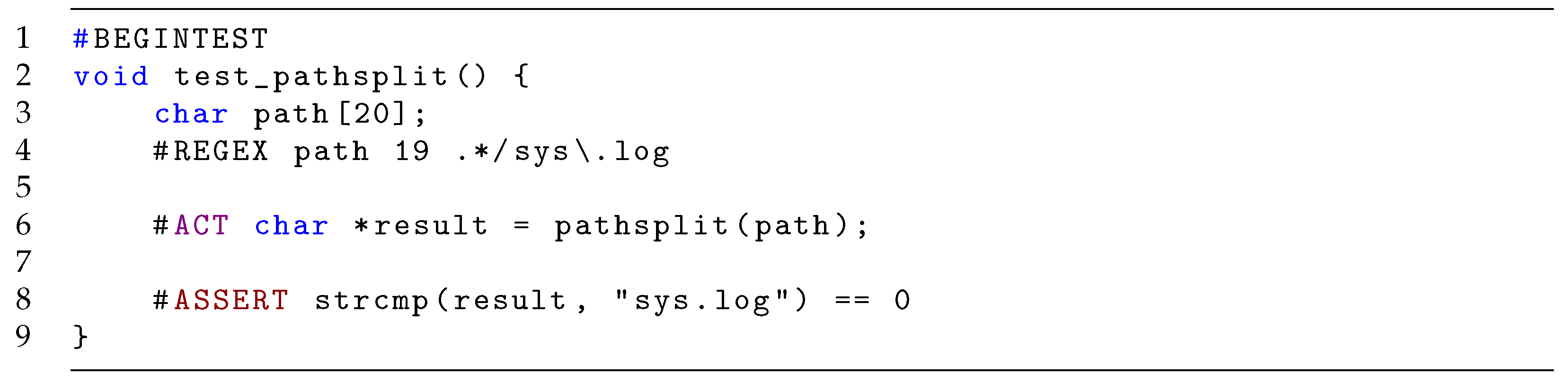

The next example concerns extracting the filename from a path. The function under test is pathsplit, which accepts a file path and returns the name of the file referenced. We do not show the function; however, in Figure 18, we show what three ordinary test cases might look like to unit test pathsplit. Note that the three cases correspond to the file being located in an absolute file path, relative file path and directly referenced. If we instead apply a rich test, we can formulate a single test that can cover all these three cases (and more) in a single test, as shown in Figure 19. This demonstrates how a rich test can succinctly represent many ordinary test cases with the use of regular expressions.

8.3. Count Files

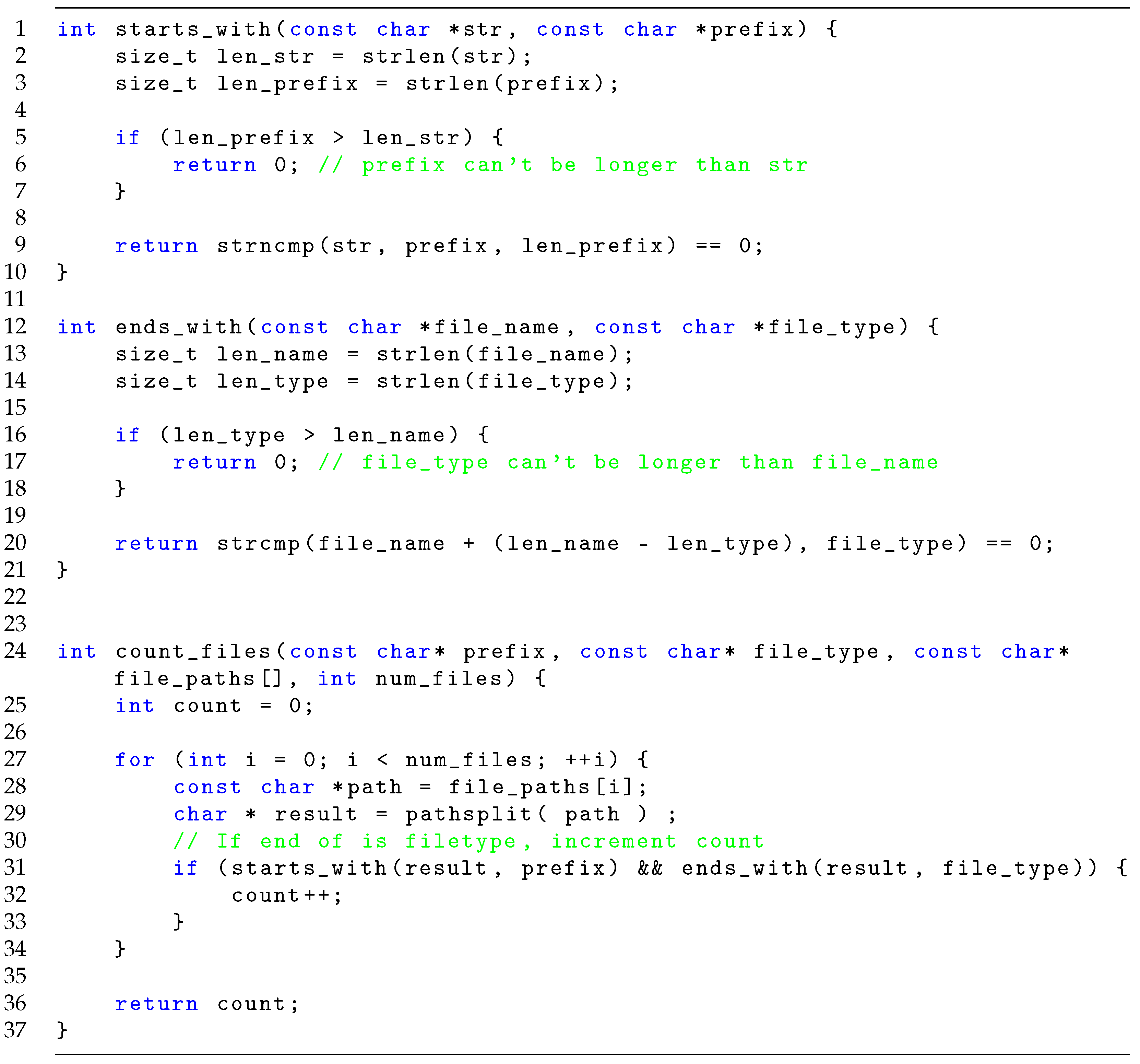

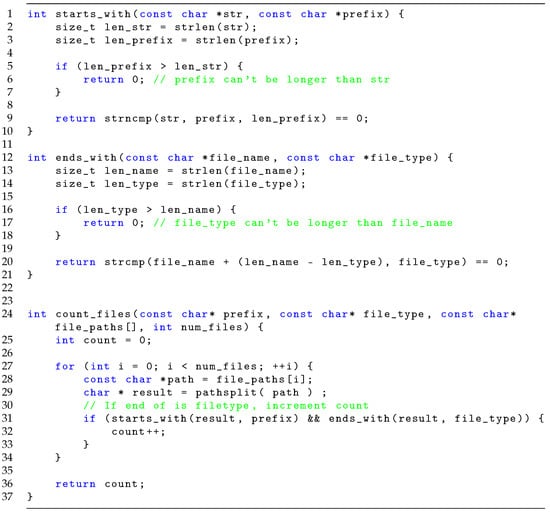

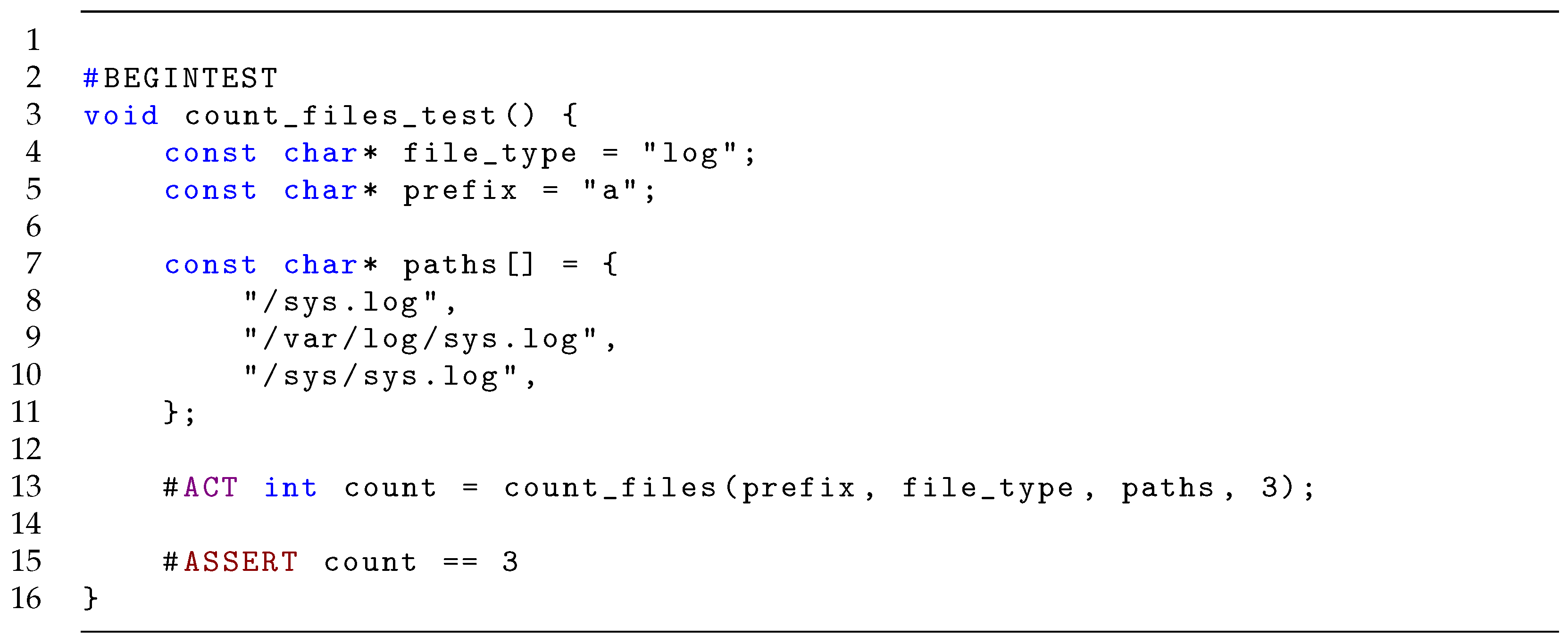

Our final example demonstrates how property-based stubs can be used in conjunction with regular expressions. Consider the source code in Figure 20. It contains a function count_files that accepts a list of paths and counts the number of files that start with the given prefix and end with the given suffix. To extract the file name, it calls the function from the previous example pathsplit. To test the function, we use the rich test shown in Figure 21. Note that since all file paths in the test refer to a file sys.log, the call to the function pathsplit will be covered by the rich test case in Figure 19. Thus, we can enable automatic property-based stubbing and achieve isolated testing of the count_files function without having to construct a stub manually. To allow for a greater variety in the file paths one would need to create more test cases for the pathsplit function. This example demonstrates how property-based stubbing can be enabled by existing rich test cases.

9. Use Cases

In this section, we present two larger use cases where we demonstrate the rich testing approach. This includes two separate use cases: the first unit test is of a linked list data structure in FreeRTOS and the second test is of a JSON parser written in c. All experiments were executed on a virtual machine on an Intel i5 2.40 GHz CPU with 16.0 GB of RAM.

9.1. Linked List in FreeRTOS

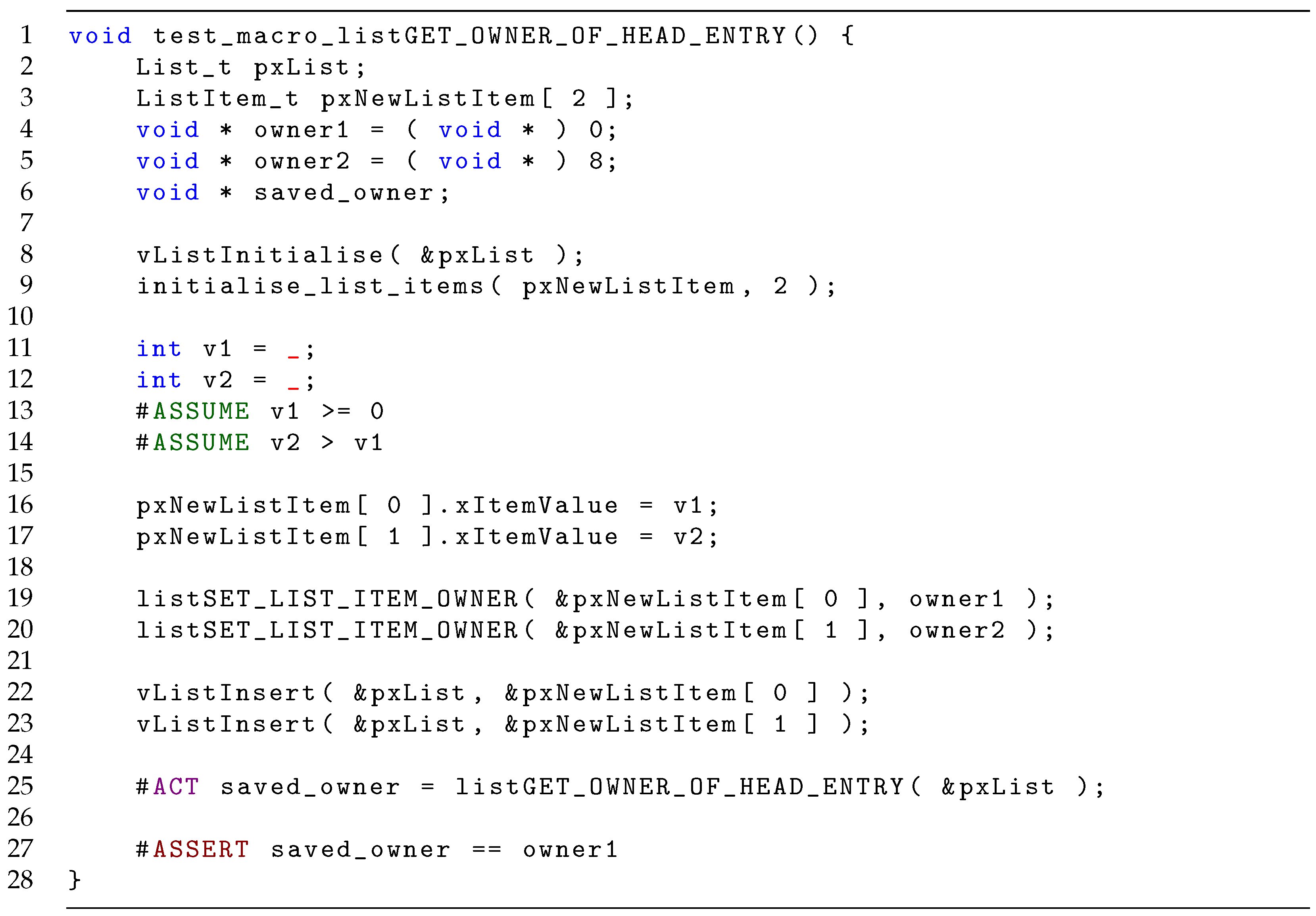

FreeRTOS includes a linked list data structure with unit tests (https://github.com/FreeRTOS/FreeRTOS/blob/main/FreeRTOS/Test/CMock/list/list_utest.c (accessed on 5 December 2025)). We have converted these tests to rich tests (a few were omitted where translation was impossible due to technical limitations). A typical test is shown in Figure 22, where a macro returning owner of the head entry in the list is checked. We have chosen to present this test as it illustrates an important point of clarity. Note lines 11–14 where the values to be inserted into the list are assigned. In the original test, these values were set to v1 = 0 and v2 = 1, respectively. With the constant values, it is not obvious if they have a special meaning or if any values can be chosen. In the rich variant, it is highlighted that the important property is that the second value is larger (as well as the numbers being non-negative). Compare this with the assignment of owner1 and owner2 at lines 4 and 5, whose values are completely arbitrary (if they are equal, it is impossible to distinguish the owners), and could also be changed to be non-deterministically assigned. With a rich syntax we not only achieve the testing of more values (the rich test could find bugs for specific combination of values) but also enhance the clarity in the test, clearly stating the important relationship between the two variables.

In total, we obtained 25 rich tests from the FreeRTOS list suite; a couple were eliminated due to containing assertions for loops (requiring multiple #ACT) and one for working on a very large list (5000 elements). FreeRTOS uses the Unity testing framework (https://github.com/ThrowTheSwitch/Unity (accessed on 5 December 2025)) for unit tests. The total run times of running these tests (with a unwinding factor of 10) compared with running the Unity tests are shown in

Table 2. Comparison between rUnit and Unity on the FreeRTOS List suite.

Tool	Run Time (s)
rUnit	2.556
Unity	0.363

.

9.2. jsmn JSON Parser

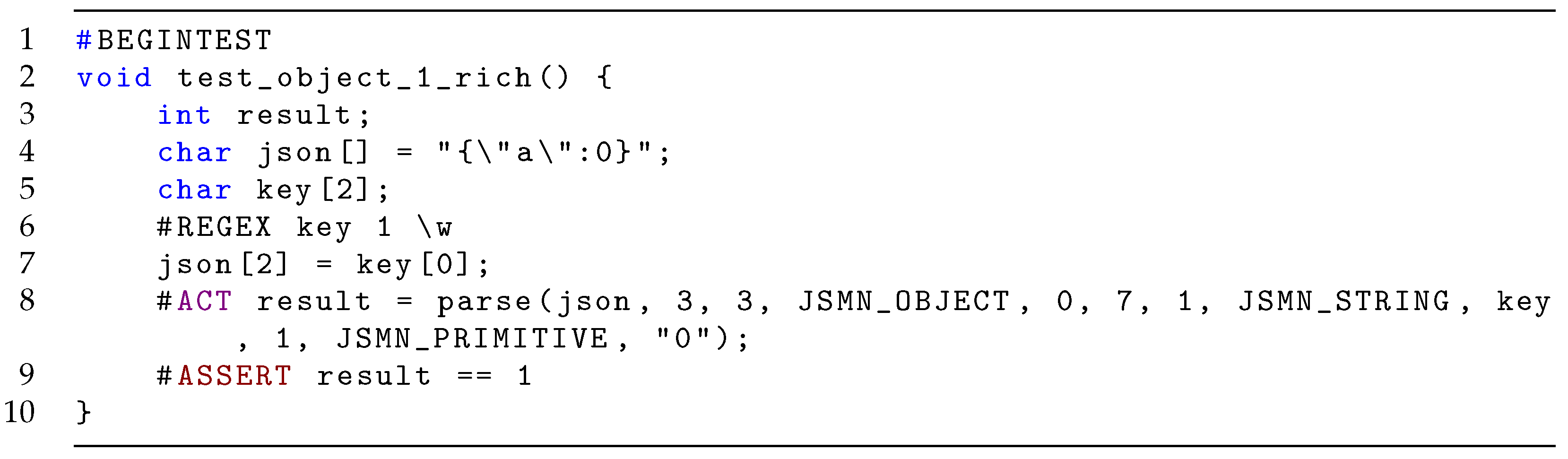

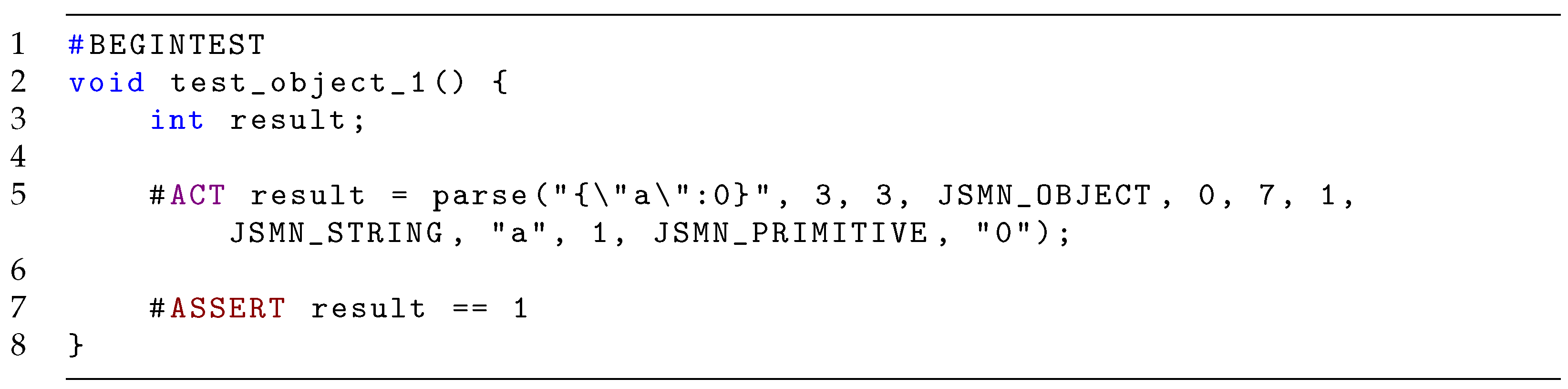

In this section, we present the application of rUnit to the jsmn JSON parser (https://github.com/zserge/jsmn/ (accessed on 5 December 2025)). It is a lightweight parsing library written in C representing a widely used piece of code (over 800 forks on GitHub) onto which we apply rich test analysis (commit 25647e692c7906b96ffd2b05ca54c097948e879c). jsmn includes a set of tests in different categories, reported in

Table 3. jsmn test categories and number of tests.

Test Category	Number of Tests
Array	2
Count	9
Empty	3
Input length	1
Nonstrict	3
Object	5
Object key	1
Primitive	5
String	10
Unmatched brackets	6
Unquoted keys	1

, as well as a typical test (Figure 23), checking that the JSON {a :0} is parsed correctly.

For each test case, an unwinding factor must be selected. In this test suite a natural limit was the length of the parsed JSON. Thus, for each test case we set the unwinding factor to this value, and for no case was this value too low (e.g., no insufficient unwinding assertion was triggered). It could be the case that the number is too high, but when we checked a few random cases, even decreasing by one would trigger it. We report the run time for each test case using rich testing. The total time for the suite using traditional testing is around 0.1 s. As a next step, we considered using non-deterministic strings to see the additional cost. In selected test cases (where the base case did not time-out), we replaced certain parts of the string with non-deterministic values, which can significantly increase the input space covered. An example is shown in Figure 24. The results are summarized in

Table 4. jsmn test results.

Name	Unwind	Result	Time	Result	Time	Comment
array_1	5	ok	1.272	ok	4.485	Change digits
array_2	9	ok	27.29	ok	55.754	Change key letter
count_1	3	ok	0.223
count_2	3	ok	0.235
count_3	5	ok	0.252
count_4	9	ok	0.277
count_5	21	ok	0.274
count_6	16	ok	0.222
count_7	23	ok	0.193
count_8	10	ok	0.188
count_9	23	ok	0.225
empty_1	3	ok	0.185
empty_2	3	ok	0.195
empty_3	8	ok	0.216
input_length	16	t/o	600.0
nonstrict_1	12	ok	21.12	ok	219.832	Change garbage string
nonstrict_2	31	t/o	600.0
nonstrict_3	15	ok	59.049	t/o	600.0	Change key string
object_1	9	ok	30.776	ok	54.09	Change key string
object_2	9	ok	29.102	ok	57.61	Change key string
object_3	16	t/o	600.0
object_4	42	t/o	600.0
object_5	19	t/o	600.0
object_key	11	ok	87.543	ok	136.55	Change digit
primitive_1	19	t/o	600.0
primitive_2	20	t/o	600.0
primitive_3	19	t/o	600.0
primitive_4	16	t/o	600.0
primitive_5	22	t/o	600.0
string_1	27	t/o	600.0
string_2	41	t/o	600.0
string_3	15	ok	510.683
string_4	15	ok	502.683
string_5	18	t/o	600.0
string_6	18	t/o	600.0
string_7	17	t/o	600.0
string_8	21	t/o	600.0
string_9	18	t/o	600.0
string_10	17	t/o	600.0
unmatched_brackets_1	15	ok	56.433	t/o	600.0	Change digits
unmatched_brackets_2	15	ok	526.856
unmatched_brackets_3	17	t/o	600.0
unmatched_brackets_4	17	ok	310.974	t/o	600.0	Change digits
unmatched_brackets_5	17	t/o	600.0
unmatched_brackets_6	25	t/o	600.0
unquoted_keys	25	t/o	600.0

.

10. Discussion

In the smaller examples, we can see the potential benefits of the proposed approach. The rUnit framework provides an environment for enrichments that can help extend the power of testing in an opaque manner, such that testers are shielded from the complexity of underlying formal methods. The two introduced enrichments show, as proof-of-concept, how property-based stubbing and non-deterministic strings can be introduced in a simple manner.

From the FreeRTOS list use case, it is clear that the traditional approach is faster (the reported run time also includes compilation, which is not needed for the rich testing analysis), but for such small files the rich testing is not excessively long. Even though the coverage is unchanged, it shows an example of how clarity can be improved by allowing values to be constrained instead of given exact values. It is not clear what a reasonable trade-off is here between extra verification effort versus more clarity, but it is an interesting direction to investigate further.

On the other hand, the overhead of the jsmn use case is significant, and clearly not worth it if no additional gains are given. One such gain could be searching over non-deterministic strings, as this could increase input space coverage exponentially. Our results clearly shows that when introducing regular expression the run time increases significantly, even though unwinding factor remains the same, and a strategy needs to be found to handle this increased search space.

Overall, the results indicate that there are significant challenges for scalability. We emphasize that the computer to run the tests in this paper is simple and that when running nightly tests in a developer environment more powerful hardware is usually available. However, for a usable approach in industrial use-cases, there is a need for optimization to handle more than small unit tests at the current stage.

11. Conclusions

In this paper, we have formalized the concept of traditional testing and our proposed approach, test analysis, to compare the two. We introduce the concept of rich tests and provide both semantic and syntactic interpretations. Furthermore, we present our simple prototype rUnit, which can perform test analysis on C code. We present two enrichments. First, we introduce property-based stubbing and show how it can be (partially) automated within rUnit and rich tests. Secondly, we extend rUnit with support for simple regular expression assignment to C string variables. Finally, we demonstrate, with a few examples, how the prorotype works in practice. The research question posed in the beginning of this paper was

How can formal methods be leveraged for unit testing in a manner that is clearly defined and more accessible to non-experts?

In this paper, we have shown how (bounded) model checking can be applied for test analysis, clearly relating it to ordinary testing, with an added middle layer to allow for simpler syntax through enrichments. Property-based stubbing can assist in automatically generating stubs based on tests to achieve the isolation of units without excessive manual work. The result from the two studied use cases shows that small unit tests are within reach of the current implementation, but for slightly larger examples, strategies of how to improve scalability need to be investigated. The framework enrichment currently works as a proof of concept, paving a direction for future work.

Future Work

The next step in this work is to apply the framework to larger code bases and to develop the framework to become even more user friendly. For example, the number of unwindings is currently set test-wise, while it could be useful to unwind specific loops further. However, how this can be achieved in a simple manner has not been evaluated. When using bounded model checking, the number of loops is an important choice; moreover, there are studies on strategies that could be implemented [26].

Both enrichments are only initial sketches and are currently quite limited in their potential. For property-based stubbing, we plan on implementing it on an industrial use case to analyse its usefulness in practice. Here, we illustrate the general idea, but it remains to be seen if the stubbing is effective in actual code. We believe that it can at least save time if developers need only write tests instead of tests and stubs. However, it might be the case that the number of tests written for an effective stubbing is quite high. Regular expressions are also introduced with a very limited language. It is not too complicated to enrich the language, and we will investigate how the size of the language affects the verification overhead. We already see that the cost is high for the JSON parser use case and will also look into techniques on how to speed up this verification.

Furthermore, it is interesting to consider more possible enrichments enabled by the rich tests. Two directions that we are investigating are the testing of non-functional constraints and proof-based coverage. The first direction is verification of the non-functional constraints (e.g., memory consumption) of a rich test. One direction is to use an approach such as COSTA [27], where resource usage is pessimistically calculated and provided to the user. The challenge lies in finding a good and general method, as well as integrating it into the rich testing syntax and test analysis framework to ensure it is intuitive and easy to use. The second direction is proof-based coverage, a method of measuring how coverage between a rich test and a ordinary test relates to each other. With the presence of non-deterministic values, one analysis of a rich test can correspond to multiple paths in the tested code. Since an ordinary test can only cover one path, it is interesting to investigate how these notions relate to each other, if there is a meaningful comparison in coverage (e.g., line coverage) and what software faults they can identify.
