Divergence in the Relativistic Mean Field Formalism: A Case Study of the Ground State Properties of the Decay Chain of ^{214,216,218}U Isotopes

^{1}

^{2}

^{3}

^{4}

^{*}

^{†}

## Abstract

**:**

^{214}U has been recently observed experimentally. This opens the window to theoretically investigate the ground-state properties of the lightest known even–even neutron deficient

^{214,216,218}U isotopes and to examine $\alpha $-particle clustering around the shell closure. The decay half-lives are calculated within the preformed cluster-decay model (PCM). To obtain the $\alpha $-daughter interaction potential, the RMF densities are folded with the newly developed R3Y and the well-known M3Y NN potentials for comparison. The alpha preformation probability $\left({P}_{\alpha}\right)$ is calculated from the analytic formula of Deng and Zhang. The WKB approximation is employed for the calculation of the transmission probability. The individual binding energies (BE) for the participating nuclei are estimated from the relativistic mean-field (RMF) formalism and those from the finite range droplet model (FRDM) as well as WS3 mass tables. In addition to $Z=84$, the so-called abnormal enhancement region, i.e., $84\le Z\le 90$ and $N<126$, is normalised by an appropriately fitted neck-parameter $\Delta R$. On the other hand, the discrepancy sets in due to the shell effect at (and around) the proton magic number $Z=82$ and 84, and thus a higher scaling factor ranging from ${10}^{-8}$–${10}^{-5}$ is required. Additionally, in contrast with the experimental binding energy data, large deviations of about 5–10 MeV are evident in the RMF formalism despite the use of different parameter sets. An accurate prediction of $\alpha $-decay half-lives requires a Q-value that is in proximity with the experimental data. In addition, other microscopic frameworks besides RMF could be more reliable for the mass region under study. $\alpha $-particle clustering is largely influenced by the shell effect.

## 1. Introduction

## 2. Theoretical Framework

#### Preformed Cluster-Decay Model (PCM)

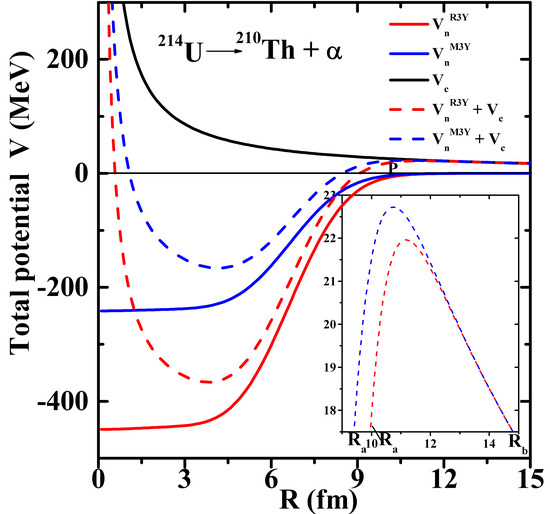

**Figure 1.**The total nucleus-nucleus interaction potential V (MeV) and its components, namely, nuclear and Coulomb potentials as a function of radial separation R (fm) for R3Y (NL${3}^{*}$) and M3Y NN potentials as a representative case of ${}^{214}$U →${}^{210}$Th + $\alpha $. The inset shows a magnified view of the barrier height and position.

## 3. Calculations and Discussions

## 4. Summary and Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

CSF | Common Scaling Factor |

PCM | Preformed Cluster-decay Model |

WKB | Wentzel–Kramers–Brillouin |

FRDM | Finite-Range-Droplet Model |

RMF | Relativistic Mean-Field |

M3Y | Michigan-3-Yukawa |

R3Y | Relativistic (Mean-Field)-3-Yukawa |

OPEP | One-Pion Exchange Potential |

NN | Nucleon–Nucleon |

## References

- Geiger, H.; Nuttall, J.M. The ranges of the α particles from various radioactive substances and a relation between range and period of transformation. Philos. Mag.
**1911**, 22, 613. [Google Scholar] [CrossRef] [Green Version] - Geiger, H. Reichweitemessungen an α-Strahlen. Z. Phys.
**1922**, 8, 45. [Google Scholar] [CrossRef] - Van Duppen, P.; Andreyev, A.N. Alpha decay and beta-delayed fission: Tools for nuclear physics studies. In The Euroschool on Exotic Beams; Scheidenberger, C., Pfutzner, M., Eds.; Springer International Publishing: Cham, Switzerland, 2018; Volume 5, pp. 65–116. [Google Scholar]
- Qi, C.; Liotta, R.; Wyss, R. The single-particle unit for alpha decay. Prog. Part. Nucl. Phys.
**2019**, 105, 214. [Google Scholar] [CrossRef] [Green Version] - Gupta, M.; Heinz, S.; Munzenberg, G. Half lives and Q values of nuclei appearing in the α-decay chains of recently reported new isotopes. Rom. J. Phys.
**2018**, 63, 304. [Google Scholar] - Bhuyan, M.; Patra, S.K.; Gupta, R.K. Relativistic mean-field study of the properties of Z = 117 nuclei and the decay chains of the
^{293,294}117 isotopes. Phys. Rev. C**2011**, 84, 014317. [Google Scholar] [CrossRef] [Green Version] - Fynbo, H.O.; Diget, C.A.; Bergmann, U.C.; Borge, M.J.; Cederkäll, J.; Dendooven, P.; Fraile, L.M.; Franchoo, S.; Fedosseev, V.N.; Fulton, B.R.; et al. Revised rates for the stellar triple-α process from measurement of
^{12}C nuclear resonances. Nat. Lond.**2005**, 433, 136. [Google Scholar] [CrossRef] - Delion, D.S.; Sandulescu, A.; Greiner, W. Evidence for α clustering in heavy and superheavy nuclei. Phys. Rev. C
**2004**, 69, 044318. [Google Scholar] [CrossRef] - Lovas, R.G.; Liotta, R.J.; Insolia, A.; Varga, K.; Delion, D.S. Microscopic theory of cluster radioactivity. Phys. Rep.
**1998**, 294, 265. [Google Scholar] [CrossRef] - Seweryniak, D.; Starosta, K.; Davids, C.N.; Gros, S.; Hecht, A.A.; Hoteling, N.; Khoo, T.L.; Lagergren, K.; Lotay, G.; Peterson, D.; et al. α decay of
^{105}Te. Phys. Rev. C**2006**, 73, 061301(R). [Google Scholar] [CrossRef] - Andreyev, A.N.; Huyse, M.; Van Duppen, P.; Weissman, L.; Ackermann, D.; Gerl, J.; Hessberger, F.P.; Hofmann, S.; Kleinböhl, A.; Münzenberg, G.; et al. A triplet of differently shaped spin-zero states in the atomic nucleus
^{186}Pb. Nat. Lond.**2000**, 405, 430. [Google Scholar] [CrossRef] - Andreyev, A.N.; Huyse, M.; Van Duppen, P.; Qi, C.; Liotta, R.J.; Antalic, S.; Ackermann, D.; Franchoo, S.; Hessberger, F.P.; Hofmann, S.; et al. Signatures of the Z = 82 shell closure in α-decay process. Phys. Rev. Lett.
**2013**, 110, 242502. [Google Scholar] [CrossRef] - Auranen, K.; Seweryniak, D.; Albers, M.; Ayangeakaa, A.D.; Bottoni, S.; Carpenter, M.P.; Chiara, C.J.; Copp, P.; David, H.M.; Doherty, D.T.; et al. Superallowed α Decay to Doubly Magic
^{100}Sn. Phys. Rev. Lett.**2018**, 121, 182501. [Google Scholar] [CrossRef] [Green Version] - Wauters, J.; Bijnens, N.; Dendooven, P.; Huyse, M.; Hwang, H.Y.; Reusen, G.; von Schwarzenberg, J.; Van Duppen, P.; Kirchner, R.; Roeckl, E. Fine structure in the alpha decay of even-even nuclei as an experimental proof for the stability of the Z = 82 magic shell at the very neutron-deficient side. Phys. Rev. Lett.
**1994**, 72, 1329. [Google Scholar] [CrossRef] [Green Version] - Zhang, Z.Y.; Yang, H.B.; Huang, M.H.; Gan, Z.G.; Yuan, C.X.; Qi, C.; Andreyev, A.N.; Liu, M.L.; Ma, L.; Zhang, M.M.; et al. New α-Emitting Isotope
^{214}U and Abnormal Enhancement of α-Particle Clustering in Lightest Uranium Isotopes. Phys. Rev. Lett.**2021**, 126, 152502. [Google Scholar] [CrossRef] - Sorlin, O.; Porquet, M.G. Nuclear magic numbers: New features far from stability. Prog. Part. Nucl. Phys.
**2008**, 61, 602. [Google Scholar] [CrossRef] [Green Version] - Zong-Qiang, S.; Jian-You, G. Study of the Alpha-Decay Chain for
^{194}Rn with Relativistic Mean-Field Theory. Commun. Theor. Phys.**2008**, 49, 1583. [Google Scholar] [CrossRef] - Santhosh, K.P.; Sukumaran, I. Alpha decay studies on Po isotopes using different versions of nuclear potentials. Eur. Phys. J. A
**2017**, 53, 1. [Google Scholar] [CrossRef] - Poenaru, D.N.; Ivascu, M.; Greiner, W. Half lives for spontaneous emission of heavy ions from atomic nuclei. International Journal of Radiation Applications and Instrumentation. Part D Nucl. Tracks Radiat. Meas.
**1986**, 12, 313. [Google Scholar] [CrossRef] - Cui, J.P.; Xiao, Y.; Gao, Y.H.; Wang, Y.Z. α-decay half-lives of neutron-deficient nuclei. Nucl. Phys. A
**2019**, 987, 99–111. [Google Scholar] [CrossRef] - Adel, A.; Abdulghany, A.R. Proton radioactivity and α-decay of neutron-deficient nuclei. Phys. Scr.
**2021**, 96, 125314. [Google Scholar] [CrossRef] - Phookan, C.K. α-particle preformation of heavy nuclei using proximity potential. Chin. J. Phys.
**2017**, 55, 176. [Google Scholar] [CrossRef] - He, Y.; Yu, X.; Zhang, H.F. Improved empirical formula for α particle preformation factor. Chin. Phys. C
**2021**, 45, 014110. [Google Scholar] [CrossRef] - Seif, W.M. The α decay spectroscopic factor of heavy and superheavy nuclei. J. Phys. G Nucl. Part. Phys.
**2013**, 40, 105102. [Google Scholar] [CrossRef] - Seif, W.M.; Botros, M.M.; Refaie, A.I. Preformation probability inside α emitters having different ground state spin-parity than their daughters. Phys. Rev. C
**2015**, 92, 044302. [Google Scholar] [CrossRef] [Green Version] - Gamow, G. Zur quantentheorie des atomkernes. Z. Phys.
**1928**, 51, 204. [Google Scholar] [CrossRef] - Gurney, R.W.; Condon, E.U. Wave mechanics and radioactive disintegration. Nature
**1928**, 122, 439. [Google Scholar] [CrossRef] - Niyti, G.; Sawhney, M.K.; Sharma, R.K. Gupta, α-decay chains of recoiled superheavy nuclei: A theoretical study. Phys. Rev. C
**2015**, 91, 054606. [Google Scholar] [CrossRef] - Quentin, P.; Flocard, H. Self-consistent calculations of nuclear properties with phenomenological effective forces. Annu. Rev. Nucl. Part. Sci.
**1978**, 28, 523. [Google Scholar] [CrossRef] - Hornyak, W. Nuclear Structure; Elsevier: Amsterdam, The Netherlands, 2012. [Google Scholar]
- Schunck, N.; Robledo, L.M. Microscopic theory of nuclear fission: A review. Rep. Prog. Phys.
**2016**, 79, 116301. [Google Scholar] [CrossRef] [Green Version] - Vautherin, D.; Brink, D.T. Hartree-Fock calculations with Skyrme’s interaction. I. Spherical nuclei. Phys. Rev. C
**1972**, 5, 626. [Google Scholar] [CrossRef] - Epelbaum, E.; Hammer, H.W.; Meiner, U.G. Modern theory of nuclear forces. Rev. Mod. Phys.
**2009**, 81, 1773. [Google Scholar] [CrossRef] - Ekström, A.; Baardsen, G.; Forssén, C.; Hagen, G.; Hjorth-Jensen, M.; Jansen, G.R.; Machleidt, R.; Nazarewicz, W.; Papenbrock, T.; Sarich, J.; et al. Optimized chiral nucleon-nucleon interaction at next-to-next-to-leading order. Phys. Rev. Lett.
**2013**, 110, 192502. [Google Scholar] [CrossRef] [Green Version] - Singh, B.; Bhuyan, M.; Patra, S.K.; Gupta, R.K. Optical potential obtained from relativistic-mean-field theory-based microscopic nucleon–nucleon interaction: Applied to cluster radioactive decays. J. Phys. G Nucl. Part. Phys.
**2012**, 39, 069501. [Google Scholar] [CrossRef] [Green Version] - Singh, B.; Bhuyan, M.; Patra, S.K.; Gupta, R.K. A new microscopic nucleon-nucleon interaction derived from relativistic mean field theory. arXiv
**2010**, arXiv:1011.5732. [Google Scholar] - Satchler, G.R.; Love, W.G. Folding model potentials from realistic interactions for heavy-ion scattering. Phys. Rep.
**1979**, 55, 183. [Google Scholar] [CrossRef] [Green Version] - Biswal, S.K.; El Sheikh, M.A.; Biswal, N.; Yusof, N.; Kassim, H.A.; Patra, S.K.; Bhuyan, M. Nuclear matter properties of finite nuclei using relativistic mean field formalism. Nucl. Phys. A
**2020**, 1004, 122042. [Google Scholar] [CrossRef] - Itagaki, N.; Afanasjev, A.V.; Ray, D. Possibility of
^{14}C cluster as a building block of medium-mass nuclei. Phys. Rev. C**2020**, 101, 034304. [Google Scholar] [CrossRef] [Green Version] - Taninah, A.; Agbemava, S.E.; Afanasjev, A.V. Covariant density functional theory: An estimation of systematic uncertainties. Bull. Am. Phys. Soc.
**2020**, 65, 19. [Google Scholar] - Horowitz, C.J.; Serot, B.D. Self-consistent hartree description of finite nuclei in a relativistic quantum field theory. Nucl. Phys. A
**1981**, 368, 503. [Google Scholar] [CrossRef] - Serot, B.D.; Walecka, J.D. Relativistic nuclear many-body theory. Recent Prog. Many-Body Theor.
**1992**, 49, 49–92. [Google Scholar] - Reinhard, P.G. The relativistic mean-field description of nuclei and nuclear dynamics. Rep. Prog. Phys.
**1989**, 52, 439. [Google Scholar] [CrossRef] - Ebran, J.P.; Khan, E.; Lasseri, R.; Marevic, P.; Niksic, T.; Sandulescu, N.; Vretenar, D. Investigation of nuclear cluster phenomenology with the relativistic EDF approach. II Nuovo C. C-Colloq. Phys.
**2019**, 42, 2–3. [Google Scholar] - Kumar, R.; Sandhu, K.; Sharma, M.K.; Gupta, R.K. Fusion-evaporation residues and α-decay chains of the superheavy element Z = 115 formed in the
^{243}Am+^{48}Ca reaction using the dynamical cluster-decay model. Phys. Rev. C**2013**, 87, 054610. [Google Scholar] [CrossRef] - Sharma, K.; Sawhney, G.; Sharma, M.K.; Gupta, R.K. Decay of Plutonium isotopes via spontaneous and heavy-ion induced fission paths. Nucl. Phys. A
**2018**, 972, 1. [Google Scholar] [CrossRef] - Deng, J.G.; Zhang, H.F. Analytic formula for estimating the α-particle preformation factor. Phys. Rev. C
**2020**, 102, 044314. [Google Scholar] [CrossRef] - Deng, J.G.; Zhang, H.F. Systematic study of α decay half-lives within the Generalized Liquid Drop Model with various versions of proximity energies. Chin. Phys. C
**2021**, 45, 024104. [Google Scholar] [CrossRef] - Wentzel, G. Eine verallgemeinerung der quantenbedingungen für die zwecke der wellenmechanik. Z. Physik
**1926**, 38, 518. [Google Scholar] [CrossRef] - Kramers, H.A. Wellenmechanik und halbzahlige Quantisierung. Z. Physik
**1926**, 39, 828. [Google Scholar] [CrossRef] - Brillouin, L. Schr "o dinger’s undulatory method; a general method of r ’e solution by successive approximations. C. R. Acad. Sci.
**1926**, 183, 24. [Google Scholar] - Möller, P.; Sierk, A.J.; Ichikawa, T.; Sagawa, H. Nuclear ground-state masses and deformations: FRDM. At. Data Nucl. Data Tables
**2016**, 109, 1. [Google Scholar] [CrossRef] [Green Version] - Liu, M.; Wang, N.; Deng, Y.; Wu, X. Further improvements on a global nuclear mass model. Phys. Rev. C
**2011**, 84, 014333. [Google Scholar] [CrossRef] [Green Version] - Singh, B.; Patra, S.K.; Gupta, R.K. Cluster radioactive decay within the preformed cluster model using relativistic mean-field theory densities. Phys. Rev. C
**2010**, 82, 014607. [Google Scholar] [CrossRef] - Sahu, B.B.; Singh, S.K.; Bhuyan, M.; Biswal, S.K.; Patra, S.K. Importance of nonlinearity in the NN potential. Phys. Rev. C
**2014**, 89, 034614. [Google Scholar] [CrossRef] - Bhuyan, M.; Patra, S.K.; Arumugam, P.; Gupta, R.K. Nuclear sub-structure in
^{112–122}Ba nuclei within relativistic mean field theory. Int. J. Mod. Phys. E**2011**, 20, 1227. [Google Scholar] [CrossRef] [Green Version] - Ring, P. Relativistic mean field theory in finite nuclei. Prog. Part. Nucl. Phys.
**1996**, 37, 193. [Google Scholar] [CrossRef] - Bhuyan, M. Structural evolution in transitional nuclei of mass 82 ≤ A ≤ 132. Phys. Rev. C
**2015**, 92, 034323. [Google Scholar] [CrossRef] [Green Version] - Lalazissis, G.A.; Karatzikos, S.; Fossion, R.; Arteaga, D.P.; Afanasjev, A.V.; Ring, P. The effective force NL3 revisited. Phys. Lett. B
**2009**, 671, 36. [Google Scholar] [CrossRef] [Green Version] - Gupta, R.K. Collective clusterization in nuclei and excited compound systems: The dynamical cluster-decay model. In Clusters in Nuclei; Springer: Berlin/Heidelberg, Germany, 2010; pp. 223–265. [Google Scholar]
- Basu, D.N. Folding model analysis of alpha radioactivity. J. Phys. G Nucl. Part. Phys.
**2003**, 29, 2079. [Google Scholar] [CrossRef] [Green Version] - Malik, S.S.; Gupta, R.K. Theory of cluster radioactive decay and of cluster formation in nuclei. Phys. Rev. C
**1989**, 39, 1992. [Google Scholar] [CrossRef] - Gupta, R.K.; Greiner, W. Cluster radioactivity. Int. J. Mod. Phys. E
**1994**, 3, 335. [Google Scholar] [CrossRef] - Matsuse, T.; Beck, C.; Nouicer, R.; Mahboub, D. Extended Hauser-Feshbach method for statistical binary decay of light-mass systems. Phys. Rev. C
**1997**, 55, 1380. [Google Scholar] [CrossRef] [Green Version] - Sanders, S.J.; Kovar, D.G.; Back, B.B.; Beck, C.; Henderson, D.J.; Janssens, R.V.F.; Wang, T.F.; Wilkins, B.D. Binary decay of
^{56}Ni formed in the^{32+24}Mg reaction. Phys. Rev. C**1989**, 40, 2091. [Google Scholar] [CrossRef] - Sanders, S.J. Fusion-fission in nuclear systems with 40 ≤ A
_{CN}≤ 80. Phys. Rev. C**1991**, 44, 2676. [Google Scholar] [CrossRef] - Royer, G.; Normand, C.; Druet, E. Analytic description of the fusion and fission processes through compact quasi-molecular shapes. Nucl. Phys. A
**1998**, 634, 267. [Google Scholar] [CrossRef] [Green Version] - Gao, J.; Bao, X.; Zhang, H.; Li, J.; Zhang, H. New numerical method for fission half-lives of heavy and superheavy nuclei at ground and excited states. Nucl. Phys. A
**2014**, 929, 246. [Google Scholar] [CrossRef] - Poenaru, D.N. Particle Emission From Nuclei: Volume I: Nuclear Deformation Energy; CRC Press: Boca Raton, FL, USA, 2018. [Google Scholar]
- Greiner, M.; Scheid, W. Radioactive decay into excited states via heavy ion emission. J. Phys. G Nucl. Part. Phys.
**1986**, 12, L229. [Google Scholar] [CrossRef] - Khoa, D.T.; Von Oertzen, W. Refractive alpha-nucleus scattering: A probe for the incompressibility of cold nuclear matter. Phys. Lett. B
**1995**, 342, 6. [Google Scholar] [CrossRef] - De Vries, H.; De Jager, C.W.; De Vries, C. Nuclear charge-density-distribution parameters from elastic electron scattering. At. Data Nucl. Data Tables
**1987**, 36, 495. [Google Scholar] [CrossRef] - Sahoo, T.; Patra, S.K. Search for the stable isotopes for Z = 119 and 121 superheavy elements using relativistic mean field model. Phys. Scr.
**2020**, 95, 085302. [Google Scholar] [CrossRef] - Pattnaik, J.A.; Panda, R.N.; Bhuyan, M.; Patra, S.K. Isotopic shift and search of magic number in the superheavy region. Phys. Scr.
**2021**, 96, 125319. [Google Scholar] - Hong-Fei, Z.; Jun-Qing, L.; Wei, Z.; Xiao-Hong, Z.; Zai-Guo, G. Systematic study on alpha decay half-lives of superheavy nuclei. Commun. Theor. Phys.
**2007**, 48, 545. [Google Scholar] [CrossRef] - Patyk, Z.; Baran, A.; Berger, J.F.; Dechargé, J.; Dobaczewski, J.; Ring, P.; Sobiczewski, A. Masses and radii of spherical nuclei calculated in various microscopic approaches. Phys. Rev. C
**1999**, 59, 704. [Google Scholar] [CrossRef] [Green Version] - Ma, L.; Zhang, Z.Y.; Gan, Z.G.; Yang, H.B.; Yu, L.; Jiang, J.; Wang, J.G.; Tian, Y.L.; Wang, Y.S.; Guo, S.; et al. α-decay properties of the new isotope
^{216}U. Phys. Rev. C**2015**, 91, 051302. [Google Scholar] [CrossRef] - NNDC. National Nuclear Data Center, Chart of Nuclides; Brookhaven National Lab. (BNL): Upton, NY, USA, 2020.
- Niu, Z.M.; Zhu, Z.L.; Niu, Y.F.; Sun, B.H.; Heng, T.H.; Guo, J.Y. Radial basis function approach in nuclear mass predictions. Phys. Rev. C
**2013**, 88, 024325. [Google Scholar] [CrossRef] [Green Version] - Leppänen, A.P.; Uusitalo, J.; Leino, M.; Eeckhaudt, S.; Grahn, T.; Greenlees, P.T.; Jones, P.; Julin, R.; Juutinen, S.; Kettunen, H.; et al. α decay studies of the nuclides
^{218}U and^{219}U. Phys. Rev. C**2007**, 75, 054307. [Google Scholar] - Kumar, S.; Balasubramaniam, M.; Gupta, R.K.; Münzenberg, G.; Scheid, W. The formation and decay of superheavy nuclei produced in
^{48}Ca-induced reactions. J. Phys. G Nucl. Part. Phys.**2003**, 29, 625. [Google Scholar] [CrossRef] [Green Version] - Kumar, S.; Thakur, S.; Kumar, R. Decay studies of
^{288}-287115 alpha-decay chains. J. Phys. G Nucl. Part. Phys.**2009**, 36, 105104. [Google Scholar] [CrossRef] [Green Version] - Kumar, S. α decay chains study for the recently observed superheavy element Z = 117 within the isospin cluster model. Phys. Rev. C
**2012**, 85, 024320. [Google Scholar] [CrossRef] [Green Version] - Manjunatha, H.C.; Sowmya, N. Competition between spontaneous fission ternary fission cluster decay and alpha decay in the super heavy nuclei of Z = 126. Nucl. Phys. A
**2018**, 969, 68. [Google Scholar] [CrossRef] - Van de Vel, K. Shape Coexistence in Neutron-Deficient Polonium and Lead Nuclei. Ph.D. Thesis, Katholieke Universiteit Leuven, Leuven, Belgium, 2003. [Google Scholar]
- Bender, M.; Cornelius, T.; Lalazissis, G.A.; Maruhn, J.A.; Nazarewicz, W.; Reinhard, P.G. The Z = 82 shell closure in neutron-deficient Pb isotopes. Eur. Phys. J. A-Hadron. Nucl.
**2002**, 14, 23. [Google Scholar] [CrossRef] [Green Version] - Sun, X.D.; Zhang, H.F. α decay preformation probabilities across the N = 126 shell closure based on the single particle energy spectra. J. Phys. G Nucl. Part. Phys.
**2018**, 45, 075106. [Google Scholar] [CrossRef] - Van Duppen, P.; Huyse, M. Shape coexistence around the Z = 82 closed shell probed by α-decay. Hyperfine Interact.
**2000**, 129, 149. [Google Scholar] [CrossRef] - Swain, R.; Patra, S.K.; Sahu, B.B. Nuclear structure and decay modes of Ra isotopes within an axially deformed relativistic mean field model. Chin. Phys. C
**2018**, 42, 084102. [Google Scholar] [CrossRef] - Julin, R.; Helariutta, K.; Muikku, M. Intruder states in very neutron-deficient Hg, Pb and Po nuclei. J. Phys. G Nucl. Part. Phys.
**2001**, 27, R109. [Google Scholar] [CrossRef] - Sahu, B.; Agarwalla, S.K.; Patra, S.K. Half-lives of proton emitters using relativistic mean field theory. Phys. Rev. C
**2011**, 84, 054604. [Google Scholar] [CrossRef] - Leino, M.; Uusitalo, J.; Allatt, R.G.; Armbruster, P.; Enqvist, T.; Eskola, K.; Hofmann, S.; Hurskanen, S.; Jokinen, A.; Ninov, V.; et al. Alpha decay studies of neutron-deficient radium isotopes. Phys. A Hadron. Nucl.
**1996**, 355, 157. [Google Scholar] [CrossRef]

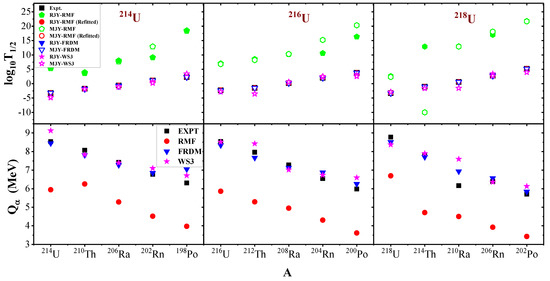

**Figure 5.**The logarithmic half-lives (upper panel) and the ${Q}_{\alpha}$ for the $\alpha $-decay chain of ${}^{214}$U, ${}^{216}$U and ${}^{218}$U, obtained of from the RMF formalism (NL${3}^{*}$) in contrast with those from the FRDM [52], WS3 [53] and the recent experimental measurement of Zhang et al. [15].

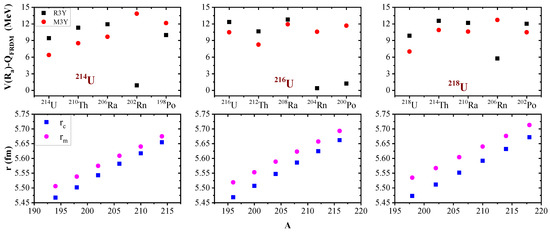

**Figure 8.**Upper panel: The driving potential ($V\left({R}_{a}\right)-{Q}_{FRDM}$) for the decay chains of ${}^{214,216,218}\mathrm{U}$ isotopes for R3Y (in black squares) and M3Y (in red circles) NN potentials as a function of the parent nuclei A. The lower panel illustrates the rms radii for matter distribution ${r}_{m}$ and charge distribution ${r}_{c}$ for the ${}^{214,216,218}\mathrm{U}$ isotopes using the relativistic mean-field formalism RMF (NL${3}^{*}$).

**Table 1.**The RMF (NL${3}^{*}$) predictions for the binding energy (BE), pairing energy ${E}_{pair}$, deformation ${\beta}_{2}$, root-mean-square radii (rms), charge radii ${r}_{c}$, proton radii ${r}_{p}$ and neutron radii ${r}_{n}$ in comparison with their results from FRDM [52] and WS3 [53]. The energy is in MeV and radii in fm.

Nuclei | RMF | FRDM | WS3 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

${\mathit{E}}_{\mathit{p}\mathit{a}\mathit{i}\mathit{r}}$ | ${\mathit{E}}_{\mathbf{c}.\mathbf{m}.}$ | B.E | B.E/A | ${\mathit{r}}_{\mathit{c}}$ | ${\mathit{r}}_{\mathit{n}}$ | ${\mathit{r}}_{\mathit{p}}$ | rms | ${\mathit{\beta}}_{2}$ | B.E | B.E/A | ${\mathit{\beta}}_{2}$ | B.E | B.E/A | ${\mathit{\beta}}_{2}$ | |

${}^{214}\mathrm{U}$ | 16.49 | −5.141 | 1640.51 | 7.67 | 5.66 | 5.73 | 5.60 | 5.68 | 0.001 | 1630.22 | 7.62 | −0.115 | 1629.70 | 7.62 | −0.106 |

${}^{210}\mathrm{Th}$ | 16.59 | −5.173 | 1618.15 | 7.71 | 5.62 | 5.70 | 5.56 | 5.64 | 0.045 | 1610.37 | 7.67 | −0.135 | 1610.53 | 7.67 | −0.124 |

${}^{206}\mathrm{Ra}$ | 16.36 | −5.207 | 1596.11 | 7.75 | 5.58 | 5.67 | 5.52 | 5.61 | 0.095 | 1589.89 | 7.72 | −0.125 | 1590.06 | 7.72 | −0.123 |

${}^{202}\mathrm{Rn}$ | 16.35 | −5.241 | 1573.09 | 7.79 | 5.54 | 5.64 | 5.49 | 5.58 | 0.109 | 1568.87 | 7.77 | −0.115 | 1569.16 | 7.77 | 0.096 |

${}^{198}\mathrm{Po}$ | 16.40 | −5.276 | 1549.31 | 7.83 | 5.50 | 5.61 | 5.44 | 5.54 | 0.111 | 1547.43 | 7.82 | 0.075 | 1547.97 | 7.82 | 0.074 |

${}^{194}\mathrm{Pb}$ | 16.31 | −5.312 | 1524.98 | 7.86 | 5.47 | 5.58 | 5.41 | 5.51 | 0.124 | 1526.18 | 7.87 | 0.000 | 1526.38 | 7.87 | 0.083 |

${}^{216}\mathrm{U}$ | 15.81 | −5.125 | 1659.59 | 7.68 | 5.66 | 5.76 | 5.61 | 5.69 | 0.000 | 1648.69 | 7.63 | −0.073 | 1648.16 | 7.63 | −0.084 |

${}^{212}\mathrm{Th}$ | 16.00 | −5.157 | 1637.16 | 7.72 | 5.62 | 5.72 | 5.57 | 5.66 | 0.003 | 1628.74 | 7.68 | −0.094 | 1628.38 | 7.68 | −0.101 |

${}^{208}\mathrm{Ra}$ | 15.89 | −5.190 | 1614.15 | 7.76 | 5.59 | 5.69 | 5.53 | 5.62 | 0.059 | 1608.11 | 7.73 | −0.125 | 1608.51 | 7.73 | −0.116 |

${}^{204}\mathrm{Rn}$ | 15.84 | −5.224 | 1590.80 | 7.80 | 5.55 | 5.66 | 5.489 | 5.59 | 0.083 | 1586.94 | 7.78 | −0.115 | 1587.23 | 7.78 | −0.101 |

${}^{200}\mathrm{Po}$ | 15.73 | −5.258 | 1566.81 | 7.83 | 5.51 | 5.63 | 5.45 | 5.55 | 0.089 | 1565.52 | 7.83 | −0.063 | 1565.66 | 7.83 | −0.065 |

${}^{196}\mathrm{Pb}$ | 15.43 | −5.294 | 1542.13 | 7.87 | 5.47 | 5.60 | 5.41 | 5.52 | 0.096 | 1543.48 | 7.88 | 0.000 | 1543.96 | 7.88 | 0.008 |

${}^{218}\mathrm{U}$ | 15.10 | −5.109 | 1677.21 | 7.69 | 5.67 | 5.78 | 5.62 | 5.71 | 0.001 | 1666.17 | 7.64 | 0.000 | 1665.89 | 7.64 | −0.004 |

${}^{214}\mathrm{Th}$ | 15.29 | −5.141 | 1655.61 | 7.74 | 5.63 | 5.75 | 5.58 | 5.68 | 0.000 | 1646.39 | 7.69 | −0.063 | 1645.97 | 7.69 | −0.072 |

${}^{210}\mathrm{Ra}$ | 15.46 | −5.173 | 1632.02 | 7.77 | 5.59 | 5.71 | 5.56 | 5.64 | 0.019 | 1625.80 | 7.74 | −0.084 | 1625.57 | 7.74 | −0.096 |

${}^{206}\mathrm{Rn}$ | 15.38 | −5.207 | 1608.23 | 7.81 | 5.55 | 5.68 | 5.49 | 5.60 | 0.047 | 1604.44 | 7.79 | −0.094 | 1604.86 | 7.79 | −0.097 |

${}^{202}\mathrm{Po}$ | 15.22 | −5.241 | 1583.85 | 7.84 | 5.51 | 5.65 | 5.45 | 5.57 | 0.056 | 1582.71 | 7.84 | −0.063 | 1582.92 | 7.84 | −0.070 |

${}^{198}\mathrm{Pb}$ | 14.66 | −5.276 | 1558.98 | 7.87 | 5.47 | 5.62 | 5.42 | 5.54 | 0.075 | 1560.26 | 7.88 | 0.000 | 1560.75 | 7.88 | 0.022 |

**Table 2.**The R3Y and M3Y predictions of the $\alpha $-decay half-lives ${T}_{1/2}$ within the PCM ($T=0$) and the calculation details for the decay chains of the neutron-deficient even–even ${}^{214,216,218}\mathrm{U}$ isotopes from RMF (NL${3}^{*}$) in comparison with the experimental data [15,77,78]. The Q-values also are calculated using the binding energies from FRDM [52] and WS3 [53] for comparison.

R3Y | M3Y | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

$\mathbf{\alpha}$-Transition | Experiment | Q Values (MeV) | $\Delta \mathit{R}$ | Scaling Factor | ${log}_{\mathbf{10}}{\mathbf{T}}_{\mathbf{1}/\mathbf{2}}$ | $\Delta \mathit{R}$ | Scaling Factor | ${log}_{\mathbf{10}}{\mathit{T}}_{\mathbf{1}/\mathbf{2}}$ | ||||||||

Parent | Daughter | ${\mathbf{Q}}_{\mathbf{\alpha}}^{\mathit{expt}}$ | ${log}_{\mathbf{10}}{\mathit{T}}_{\mathbf{1}/\mathbf{2}}$ | RMF | FRDM | WS3 | RMF | FRDM | WS3 | RMF | FRDM | WS3 | ||||

${}^{214}\mathrm{U}$ | ${}^{210}\mathrm{Th}$ | 8.533 | −3.284 | 5.942 | 8.446 | 9.126 | 1.270 | ${10}^{-4}$ | 5.672 | −3.285 | −4.950 | 0.540 | ${10}^{-4}$ | 5.291 | −3.197 | −4.721 |

${}^{210}\mathrm{Th}$ | ${}^{206}\mathrm{Ra}$ | 8.069 | −1.790 | 6.247 | 7.816 | 7.831 | 1.537 | ${10}^{-4}$ | 3.913 | −1.789 | −1.835 | 0.590 | ${10}^{-4}$ | 3.654 | −1.846 | −1.889 |

${}^{206}\mathrm{Ra}$ | ${}^{202}\mathrm{Rn}$ | 7.415 | −0.620 | 5.280 | 7.276 | 7.394 | 1.737 | ${10}^{-4}$ | 8.001 | −0.633 | −1.020 | 0.836 | ${10}^{-4}$ | 7.622 | −0.833 | −1.209 |

${}^{202}\mathrm{Rn}$ | ${}^{198}\mathrm{Po}$ | 6.774 | 1.093 | 4.518 | 6.856 | 7.099 | 0.728 | ${10}^{-4}$ | 9.098 | 1.094 | 0.717 | 1.487 | ${10}^{-4}$ | 12.858 | 1.088 | 0.230 |

${}^{198}\mathrm{Po}$ | ${}^{194}\mathrm{Pb}$ | 6.309 | 2.270 | 3.966 | 7.046 | 6.710 | 1.469 | ${10}^{-8}$${}^{a}$ | 18.299 | 2.269 | 3.404 | 1.302 | ${10}^{-7}$${}^{a}$ | 18.525 | 2.271 | 3.433 |

${}^{216}\mathrm{U}$ | ${}^{212}\mathrm{Th}$ | 8.384 | −2.326 | 5.863 | 8.346 | 8.513 | 1.810 | ${10}^{-4}$ | 7.004 | −2.319 | −2.779 | 0.914 | ${10}^{-4}$ | 6.796 | −2.387 | −2.837 |

${}^{212}\mathrm{Th}$ | ${}^{208}\mathrm{Ra}$ | 7.958 | −1.499 | 5.287 | 7.666 | 8.424 | 1.393 | ${10}^{-4}$ | 8.513 | −1.496 | −3.643 | 0.610 | ${10}^{-4}$ | 8.219 | −1.505 | −3.553 |

${}^{208}\mathrm{Ra}$ | ${}^{204}\mathrm{Rn}$ | 7.273 | 0.137 | 4.951 | 7.126 | 7.019 | 1.913 | ${10}^{-4}$ | 10.236 | 0.119 | 0.492 | 1.110 | ${10}^{-4}$ | 10.291 | 0.214 | 0.584 |

${}^{204}\mathrm{Rn}$ | ${}^{200}\mathrm{Po}$ | 6.546 | 2.013 | 4.303 | 6.876 | 6.727 | 0.700 | ${10}^{-4}$ | 10.568 | 2.014 | 2.205 | 0.956 | ${10}^{-6}$${}^{a}$ | 15.236 | 2.014 | 2.543 |

${}^{200}\mathrm{Po}$ | ${}^{196}\mathrm{Pb}$ | 5.981 | 3.794 | 3.614 | 6.256 | 6.589 | 0.797 | ${10}^{-6}$${}^{a}$ | 16.290 | 3.795 | 3.123 | 1.103 | ${10}^{-6}$${}^{a}$ | 20.254 | 3.794 | 2.513 |

${}^{218}\mathrm{U}$ | ${}^{214}\mathrm{Th}$ | 8.775 | −3.292 | 6.692 | 8.516 | 8.366 | 1.318 | ${10}^{-4}$ | 2.609 | −3.293 | −2.896 | 0.592 | ${10}^{-4}$ | 2.316 | −3.293 | −2.920 |

${}^{214}\mathrm{Th}$ | ${}^{210}\mathrm{Ra}$ | 7.827 | −1.060 | 4.708 | 7.706 | 7.896 | 1.812 | ${10}^{-4}$ | 12.896 | −1.060 | −1.641 | 0.872 | ${10}^{-4}$ | −9.977 | −1.060 | −1.631 |

${}^{210}\mathrm{Ra}$ | ${}^{206}\mathrm{Rn}$ | 7.151 | 0.585 | 4.500 | 6.936 | 7.591 | 1.622 | ${10}^{-4}$ | 13.039 | 0.585 | −1.599 | 0.828 | ${10}^{-4}$ | 12.905 | 0.585 | −1.558 |

${}^{206}\mathrm{Rn}$ | ${}^{202}\mathrm{Po}$ | 6.384 | 2.740 | 3.924 | 6.566 | 6.353 | 0.964 | ${10}^{-7}$${}^{a}$ | 16.978 | 2.741 | 3.486 | 1.188 | ${10}^{-5}$${}^{a}$ | 18.083 | 2.740 | 2.735 |

${}^{202}\mathrm{Po}$ | ${}^{198}\mathrm{Pb}$ | 5.701 | 5.143 | 3.422 | 5.846 | 6.130 | 1.655 | ${10}^{-6}$${}^{a}$ | 21.800 | 5.142 | 3.913 | 0.840 | ${10}^{-6}$${}^{a}$ | 21.656 | 5.144 | 3.934 |

^{a}A higher scaling factor between the range 10

^{−8}–10

^{−5}is required to calculate the a-decay half-lives with daughter nuclei near (and at) proton shell closure Z = 82.

**Table 3.**Details of the random fitting of the neck-length $\Delta $R and scaling factor due to the deviations found in RMF (only).

Parent Nuclei | Expt. | R3Y | M3Y | ||||
---|---|---|---|---|---|---|---|

${log}_{10}{\mathit{T}}_{1/2}$ | $\mathbf{\Delta}$R (fm) | Scaling Factor | ${log}_{10}{\mathit{T}}_{1/2}$ | $\mathbf{\Delta}$R (fm) | Scaling Factor | ${log}_{10}{\mathit{T}}_{1/2}$ | |

${}^{214}\mathrm{U}$ | −3.284 | 1.249 | ${10}^{5}$ | −3.285 | 0.544 | ${10}^{5}$ | −3.200 |

${}^{210}\mathrm{Th}$ | −1.790 | 1.208 | ${10}^{1}$ | −1.791 | 1.390 | ${10}^{3}$ | −1.850 |

${}^{206}\mathrm{Ra}$ | −0.620 | 1.070 | ${10}^{3}$ | −0.636 | 0.560 | ${10}^{4}$ | −0.833 |

${}^{202}\mathrm{Rn}$ | 1.093 | 0.728 | ${10}^{4}$ | 1.098 | 1.010 | ${10}^{7}$ | 1.104 |

${}^{198}\mathrm{Po}$ | 2.270 | 1.480 | ${10}^{8}$${}^{b}$ | 2.276 | 1.050 | ${10}^{9}$${}^{b}$ | 2.267 |

${}^{216}\mathrm{U}$ | −2.326 | 1.156 | ${10}^{4}$ | −2.319 | 0.492 | ${10}^{4}$ | −2.326 |

${}^{212}\mathrm{Th}$ | −1.499 | 1.399 | ${10}^{6}$ | −1.499 | 0.730 | ${10}^{6}$ | −1.501 |

${}^{208}\mathrm{Ra}$ | 0.137 | 1.911 | ${10}^{6}$ | 0.189 | 0.980 | ${10}^{6}$ | 0.127 |

${}^{204}\mathrm{Rn}$ | 2.013 | 1.030 | ${10}^{5}$ | 2.008 | 0.961 | ${10}^{7}$ | 2.225 |

${}^{200}\mathrm{Po}$ | 3.794 | 1.710 | ${10}^{10}$${}^{b}$ | 3.816 | 1.400 | ${10}^{11}$${}^{b}$ | 3.796 |

${}^{218}\mathrm{U}$ | −3.292 | 0.793 | ${10}^{1}$ | −3.280 | 0.625 | ${10}^{2}$ | −3.296 |

${}^{214}\mathrm{Th}$ | −1.060 | 0.591 | ${10}^{9}$ | −1.061 | 1.020 | ${10}^{5}$ | −1.129 |

${}^{210}\mathrm{Ra}$ | 0.585 | 1.090 | ${10}^{7}$ | 0.549 | 0.730 | ${10}^{8}$ | 0.581 |

${}^{206}\mathrm{Rn}$ | 2.740 | 1.364 | ${10}^{9}$ | 2.734 | 1.200 | ${10}^{8}$ | 2.742 |

${}^{202}\mathrm{Po}$ | 5.143 | 0.690 | ${10}^{7}$ | 5.144 | 0.780 | ${10}^{10}$${}^{b}$ | 5.194 |

^{b}The need for a higher ‘random’ scaling factor is evident to estimate the a-decay half-lives with daughter nuclei near (and at) proton shell closure Z = 82.

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Joshua, T.M.; Jain, N.; Kumar, R.; Anwar, K.; Abdullah, N.; Bhuyan, M.
Divergence in the Relativistic Mean Field Formalism: A Case Study of the Ground State Properties of the Decay Chain of ^{214,216,218}U Isotopes. *Foundations* **2022**, *2*, 85-104.
https://doi.org/10.3390/foundations2010004

**AMA Style**

Joshua TM, Jain N, Kumar R, Anwar K, Abdullah N, Bhuyan M.
Divergence in the Relativistic Mean Field Formalism: A Case Study of the Ground State Properties of the Decay Chain of ^{214,216,218}U Isotopes. *Foundations*. 2022; 2(1):85-104.
https://doi.org/10.3390/foundations2010004

**Chicago/Turabian Style**

Joshua, Tolulope Majekodunmi, Nishu Jain, Raj Kumar, Khairul Anwar, Nooraihan Abdullah, and Mrutunjaya Bhuyan.
2022. "Divergence in the Relativistic Mean Field Formalism: A Case Study of the Ground State Properties of the Decay Chain of ^{214,216,218}U Isotopes" *Foundations* 2, no. 1: 85-104.
https://doi.org/10.3390/foundations2010004
