You are currently viewing a new version of our website. To view the old version click .
Construction Materials
  • Article
  • Open Access

6 January 2026

Hydrophobic Modification of Concrete Using a Hydrophobizing Admixture

,
,
and
1
Department of Technology of Industrial and Civil Engineering, L.N. Gumilyov Eurasian National University, Astana 010008, Kazakhstan
2
Department of Civil Engineering, University North, 42000 Varazdin, Croatia
3
Department of Civil Engineering, L.N. Gumilyov Eurasian National University, Astana 010008, Kazakhstan
*
Author to whom correspondence should be addressed.

Abstract

The construction industry relies on building materials that provide not only high physical and mechanical performance but also adequate thermal and durability properties. However, several factors still limit the quality and service life of concrete products. The development of the construction industry provides new opportunities for designing efficient construction facilities. To obtain enhanced design capabilities, it is very important to relieve the load on the structure, this can be achieved by reducing the mass of materials without losing strength. This study investigates the enhancement of foam concrete through the combined incorporation of mineral fibers recycled from basalt insulation waste and complex polymer modifiers. The aim was to improve the material’s mechanical performance, durability, and pore structure stability while promoting the sustainable use of industrial by-products. The experimental program included tests on density, compressive strength, water absorption, and thermal conductivity for mixtures of different densities (400–1100 kg/m3). The results demonstrated that the inclusion of mineral fibers and polymer modifiers significantly enhanced structural uniformity and pore wall integrity. Compressive strength increased by up to 35%, water absorption decreased by 25%, and thermal conductivity was reduced by 18% compared with the control mixture.

1. Introduction

Modern construction imposes increasingly stringent requirements on the quality, serviceability, and durability of reinforced concrete structures, such as piles, which are a common solution for foundation systems of various buildings and infrastructure [1]. One of the key factors determining the service life of reinforced concrete piles in aggressive environments is their water absorption. Increased porosity and capillary permeability of the concrete matrix facilitate moisture ingress, leading to a reduction in mechanical strength, leaching of cement paste components, and accelerated corrosion of reinforcing steel.
To mitigate these negative effects, there has been growing interest in recent years in the development and application of modified concrete compositions with hydrophobic properties [2]. The integration of modern chemical admixtures, nanomodifiers, and technological treatments (such as vacuum processing and heat curing) enables the formation of a dense, water-repellent concrete structure, reducing both capillary and hygroscopic water absorption without compromising strength performance [3,4,5].
The relevance of this research lies in the need to improve the durability of reinforced concrete piles under conditions of periodic wetting, freezing, and exposure to aggressive groundwater [1,6,7]. In the context of a construction market focused on resource efficiency and structural reliability, the development of effective methods for modifying concrete mixes to impart hydrophobic properties has become a priority in the field of construction materials technology.
In contrast to previous studies that primarily examine hydrophobic admixtures in conventional cement systems, the present research introduces a combined modification strategy that integrates an organosilicon hydrophobic agent with recycled basalt mineral fibers obtained from waste basalt insulation materials. These fibers differ from commercial basalt fibers in morphology and chemical stability and represent an underexplored secondary raw material with significant potential for sustainable concrete production. Furthermore, the proposed modification is investigated in structural concrete intended for reinforced concrete piles, a material class in which hydrophobic technologies have been scarcely evaluated. The study also incorporates a steam-curing regime at 80 °C, reflecting industrial manufacturing conditions and enabling assessment of how hydrophobic agents and recycled fibers behave under accelerated hydration. This combination of recycled fiber reinforcement, hydrophobic modification, and steam-cured pile-grade concrete constitutes a novel research direction that has not been comprehensively analyzed in the existing literature.
The combined incorporation of an organosilicon hydrophobic admixture and recycled basalt mineral fibers derived from insulation waste will simultaneously (i) reduce capillary water absorption, (ii) refine the pore structure of the cement matrix, and (iii) maintain or enhance mechanical strength in steam-cured pile-grade concrete compared with the use of a hydrophobic agent alone.
The aim of this study is to develop and scientifically substantiate an effective composition of modified concrete with enhanced hydrophobic properties that ensures reduced water absorption and increased durability of reinforced concrete piles under various service conditions.
Reducing water absorption and permeability in concrete has traditionally been achieved by decreasing the quantity and size of pores within the cement paste. This is commonly done by lowering the water-to-cement (W/C) ratio using high-performance superplasticizers, which reduce excess mixing water and the resulting porosity during curing. Additionally, active mineral additives—such as silica fume, fly ash, and metakaolin—are employed to fill micropores and densify the cement matrix through pozzolanic reactions. The incorporation of fine fillers also contributes to increased matrix density. These strategies effectively reduce the capillary suction capacity of concrete.
However, even in an optimally dense structure, it is difficult to completely eliminate water ingress if the surface energy of the pores remains high—that is, if the material remains hydrophilic [8,9]. Moreover, technological treatments such as vacuum processing or steam curing can further reduce open porosity but do not impart intrinsic water-repellent (hydrophobic) properties to the material. Therefore, structural densification alone is insufficient to ensure long-term hydrophobicity of concrete.
An alternative approach to reducing concrete’s water absorption is the use of specialized hydrophobic admixtures introduced directly into the mix [10,11]. These admixtures impart water-repellent properties to concrete by forming a hydrophobic layer on the pore walls or by sealing pores with water-insoluble compounds [12,13]. Hydrophobic admixtures are conventionally classified as either organic or inorganic.
Organic compounds—such as organosilicon materials (siloxanes, silanes, silicone emulsions), as well as hydrophobic fatty acids and their salts—interact effectively with the cement matrix, creating a hydrophobic coating on the capillary surfaces that reduces water wetting [14,15]. However, many organic admixtures are sensitive to the alkaline environment of fresh concrete and may undergo partial degradation or leaching. Therefore, it is essential to select alkali-resistant formulations and determine optimal dosages.
Inorganic hydrophobizing agents—such as complex silicon-containing additives, modified aluminosilicates, and nanostructured compositions—exhibit high thermal and chemical stability [8,16]. These substances can also participate in additional crystallization reactions within the cement paste, thereby densifying the matrix while simultaneously reducing its permeability. As a result, inorganic admixtures combine both densification and hydrophobization effects, although they are often more expensive.
In parallel with advances in hydrophobic modification technologies, recent research has paid considerable attention to the reuse of industrial mineral fibers, particularly those obtained from recycled basalt insulation waste. Such fibers are formed during the mechanical processing of discarded basalt thermal insulation and possess high tensile strength, thermal stability, and chemical resistance. When incorporated into cementitious composites, recycled basalt fibers can improve crack resistance, restrain shrinkage-induced microcracks, and contribute to a more stable pore structure. These characteristics make mineral fibers derived from basalt insulation waste a promising ecological reinforcement component, enabling both resource-efficient utilization of industrial residues and improved material performance.
A critical examination of the current literature reveals several unresolved issues. The combined effect of hydrophobic admixtures and recycled basalt mineral fibers on the moisture resistance, capillary activity, and long-term durability of concrete has not been thoroughly evaluated, and the influence of these recycled fibers on the pore structure of hydrophobic concrete, including their impact on sorptivity, permeability, and freeze–thaw stability, remains insufficiently studied. Moreover, existing research provides almost no microstructural analysis of such systems, including the chemical interaction of hydrophobic agents with cement hydration products and the resulting modifications of the pore network, especially when mineral fibers are incorporated into the matrix. In addition, there is a noticeable lack of studies specifically focused on reinforced concrete piles, even though their service life depends on moisture resistance and effective protection of reinforcement in aggressive subsurface environments, while most available works address coatings, surface treatments, or small-scale mortar composites rather than structural concrete intended for pile applications. These gaps indicate that the synergy between hydrophobic agents and recycled basalt insulation fibers has not yet been comprehensively explored, although such an integrated approach may offer significant advantages for improving the long-term durability of reinforced concrete piles [1].
One of the most promising directions is the use of multifunctional hydrophobic admixtures that combine water-repellent effects with the ability to interact with cement hydration products [17]. These admixtures can simultaneously reduce the number of capillary pores and lower their wettability, while also enhancing the strength and durability of concrete due to an additional cementing effect.
Nevertheless, each approach—whether structural densification or the introduction of hydrophobic agents—has its limitations. Excessive reduction in the water-to-cement ratio without maintaining adequate workability complicates concrete placement, while overdosing hydrophobic admixtures may adversely affect cement hydration and mechanical strength. Furthermore, compatibility between hydrophobizing agents and other concrete components—as well as with manufacturing technologies such as vibro-compaction and steam curing—remains a critical concern.
Given these limitations, there is a clear need for a comprehensive approach to concrete mix modification that ensures significant reduction in water absorption without compromising strength. This approach should place particular emphasis on the careful selection of mix components—from the type of cement and mineral additives to the optimal dosage of the hydrophobic agent—tailored to the specific production conditions of reinforced concrete piles.
Currently, there is a sustained interest in the application of hydrophobic technologies in concrete and cement-based materials, particularly under conditions of aggressive moisture exposure, fluctuating climates, and the presence of corrosive agents. The development of hydrophobic concrete compositions is aimed at enhancing water repellency, reducing capillary suction, and, consequently, improving the overall durability of construction materials [18].
Modern research increasingly emphasizes integral modification of concrete, whereby hydrophobic properties are developed not only through surface treatments but also by incorporating active components directly into the concrete mix [19]. For example, the study explores methods for achieving a superhydrophobic concrete surface that provides self-cleaning properties and long-term moisture resistance, even under extended service conditions [20].
Several researchers have systematized approaches to modifying cement-based composites. These include chemical coatings, the use of templated structures, and the incorporation of nanoparticles. It has been confirmed that internal admixtures—particularly those containing nanostructured components—offer more stable and durable effects compared to external coatings [21,22].
The particular interest is the impact of hydrophobic admixtures on the long-term durability of concrete. The study demonstrated that properly selected hydrophobic compositions can protect concrete from water ingress and aggressive agents for many years, reducing internal moisture content and minimizing the formation of microcracks [23,24]. Similar conclusions are presented in other studies, which reports a significant reduction in water absorption and permeability following the incorporation of nanoscale hydrophobizing agents [25,26].
As part of research into the secondary use of materials it has been established that hydrophobic treatments can also enhance the performance characteristics of concrete made with recycled aggregates. This opens up new possibilities for sustainable construction and broadens the application scope of hydrophobic technologies [25,27].
From a practical standpoint, some review summarizes the mechanisms underlying hydrophobic effects, the substances employed (e.g., siloxane- and organosilicon-based compounds), and the methods of their incorporation into concrete mixtures [16,28]. A critical factor discussed is the interaction of hydrophobic agents with the pore system of concrete, which determines both their efficiency and long-term effectiveness.
Thus, modern approaches to hydrophobic modification of concrete establish a strong scientific and practical foundation for the widespread implementation of such solutions in infrastructure and civil engineering projects—especially under conditions of high humidity, freeze–thaw cycles, and aggressive environments. Numerous scientific publications indexed in Scopus and ScienceDirect confirm the effectiveness and promise of hydrophobic systems as a means to enhance the durability of concrete and reinforced concrete structures.

2. Materials and Methods

Achieving hydrophobic and superhydrophobic properties in cement-based materials typically involves three main strategies: surface coating, internal mixing, and templating. Surface coating applies a water-repellent layer, which improves resistance but can be prone to damage. Internal mixing integrates hydrophobic agents throughout the material, offering resilience even if the surface wears, though it might impact mechanical strength. Templating creates micro- or nano-structures that mimic natural hydrophobic surfaces, like lotus leaves, trapping air to achieve superhydrophobicity.
In this study, the internal mixing method was selected to impart hydrophobic properties to cement-based materials. This approach involves incorporating hydrophobic agents directly into the cement mix during the preparation phase, ensuring a uniform distribution throughout the material.
For the experimental study, laboratory concrete samples were prepared with varying contents of a hydrophobic admixture. Sulfate-resistant Portland cement (strength class ≥ 42.5) was used as the binder, and multi-fractional quartz sand was used as the fine aggregate, with a total mass of 1350 g per 450 g of cement. In all mixtures, the water-to-cement ratio (W/C) was maintained at 0.3. The binder used in this study was a sulfate-resistant Portland cement CEM I 42.5 SR, commercially supplied by Heidelberg Materials Kazakhstan and widely used in construction practice in Astana, Kazakhstan. According to manufacturer specifications and standard technical documentation, the cement is characterized by a typical oxide composition (wt.%) of approximately 60–65% CaO, 19–22% SiO2, 4–6% Al2O3, 2–4% Fe2O3, 1–3% MgO, with a sulfate content (SO3) in the range of 2–3%. The clinker phase composition, estimated using Bogue calculations, consists predominantly of tricalcium silicate (C3S, 50–60%), dicalcium silicate (C2S, 15–25%), tricalcium aluminate (C3A, ≤3% for sulfate resistance), and tetracalcium aluminoferrite (C4AF, 8–12%). These mineralogical characteristics play a key role in governing hydration kinetics, strength development, and durability of the cementitious system.
To ensure the required workability at a low W/C ratio, a polycarboxylate-based superplasticizer was added. The dosage was determined experimentally to achieve a flowability equivalent to consistency class P5. The hydrophobic admixture, based on an organosilicon compound, was introduced into the mix in the form of a water-based emulsion at dosages of 0%, 0.2%, 0.4%, and 0.6% by cement mass.
To ensure reproducibility, the characteristics of the organosilicon hydrophobic admixture used in this study are specified in greater detail. The admixture is a water-based silane–siloxane emulsion containing 20–25% active organosilicon compounds, with a density of approximately 1.00–1.05 g/cm3, pH in the range of 7–8, and viscosity below 30 mPa·s. According to the manufacturer’s technical data sheet, the emulsion consists of methylsiloxane oligomers stabilized with non-ionic surfactants, which form hydrophobic films on pore surfaces through hydrolysis and condensation reactions in an alkaline cement environment. The admixture is stable under steam-curing temperatures up to 90 °C and is compatible with polycarboxylate superplasticizers.
The concrete mix compositions for each series are shown in Table 1.
Table 1. Concrete mix composition with varying hydrophobic admixture content (per 1 kg of cement).
Control specimens were molded from the prepared concrete mixes for testing purposes. To determine compressive strength, cubes measuring 100 × 100 × 100 mm3 were cast for each mix series. Flexural strength was measured using prismatic specimens with a cross-section of 40 × 40 mm2 and a length of 160 mm (Figure 1). The specimens were cast in steel molds and compacted using a vibrating table. After an initial 24 h curing period at room temperature, the specimens underwent steam curing to simulate plant conditions. The steam treatment was carried out in a chamber at approximately 80 °C for 6 h, followed by slow cooling, which ensured the development of early-age strength. After curing, the specimens were stored in a moist curing chamber (temperature ≈ 20 °C, relative humidity > 95%) until testing at the age of 28 days. To ensure methodological transparency, all testing procedures were carried out in accordance with the relevant standards. Compressive strength was determined following relevant standards [29,30]. Flexural strength was measured following standardized procedures [31,32]. Water absorption and water impermeability tests were conducted in accordance with established testing methods [33,34]. These references have been added to allow for full reproducibility of the experimental program.

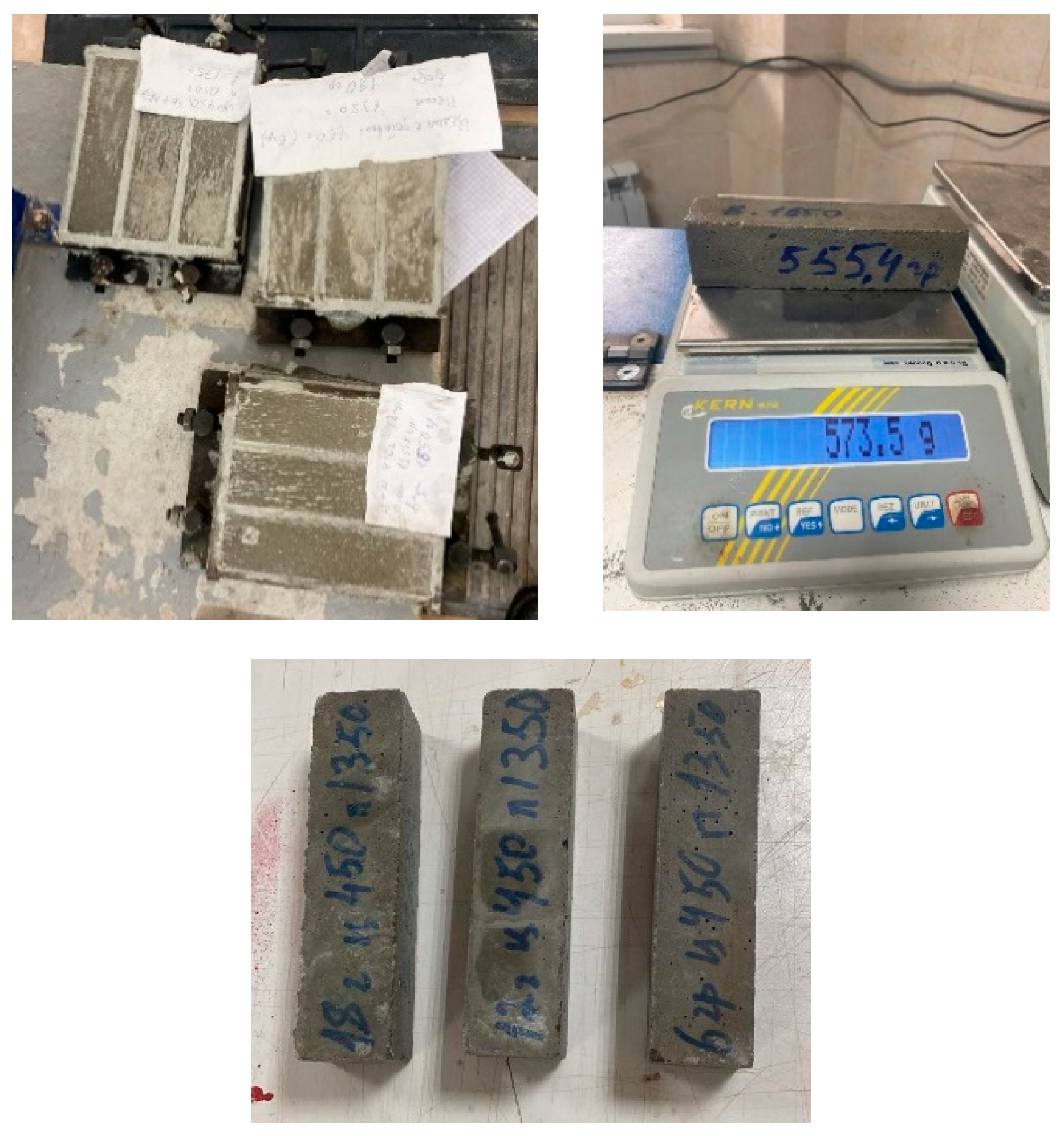

Figure 1. Preparation of Samples for Testing.
Compressive strength was determined according to the standard method—by crushing cubes on a hydraulic press, with the average value calculated in MPa (Figure 2). Flexural strength was determined by three-point bending of prismatic samples (three samples per series, and the result was averaged). Water absorption was determined by mass: the samples, dried to a constant weight, were saturated with water for 48 h, after which the increase in mass was calculated as a percentage. Water impermeability was assessed using the normative “wet spot” method, determining the maximum water pressure at which no moisture passes through the sample. The result was expressed as a grade for water impermeability, W (e.g., W4, W6, W8, etc., where the number corresponds to the maximum pressure of 0.1 MPa). For each series, the grade for the water impermeability of the experimental samples was determined.

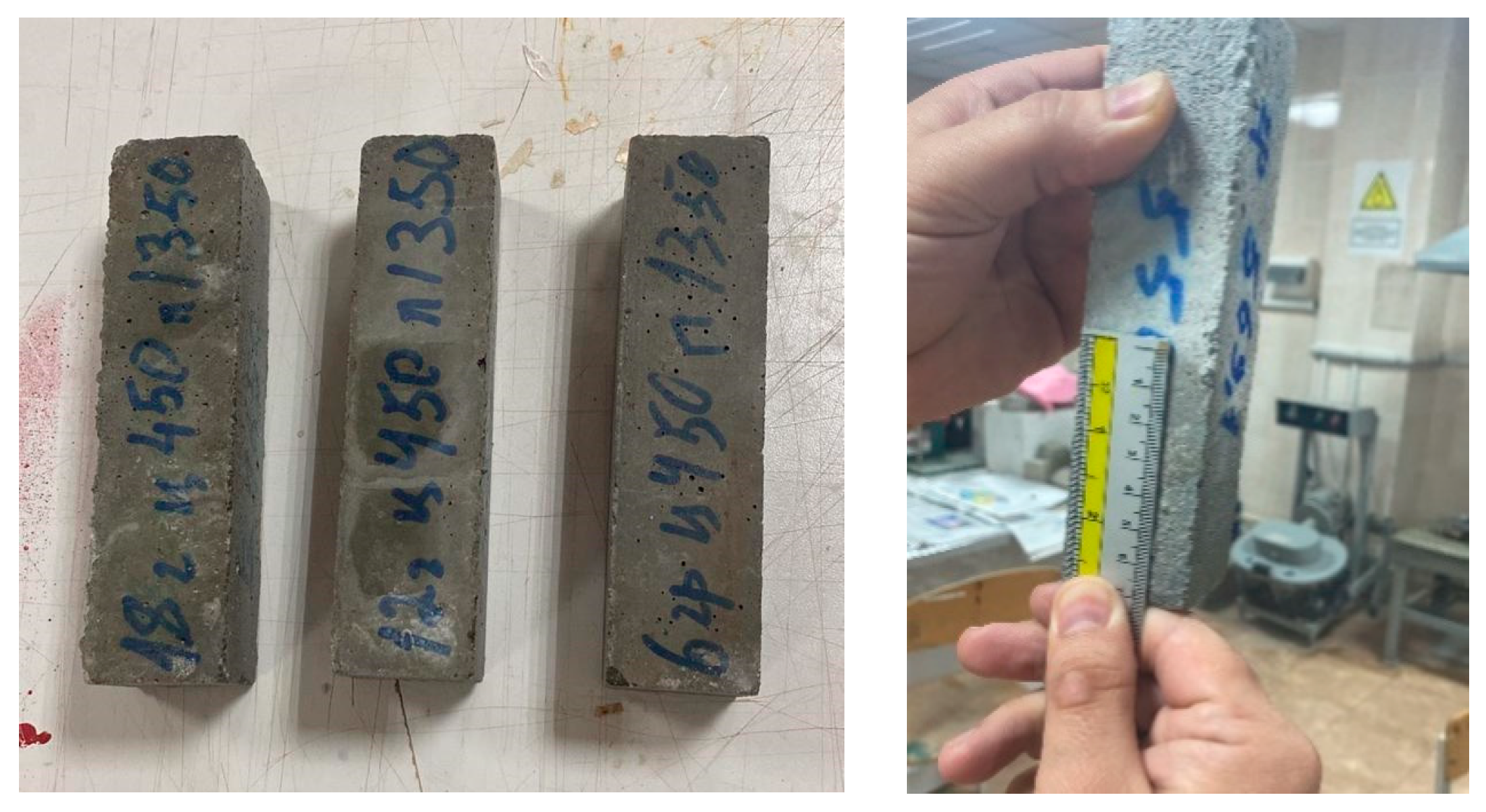

Figure 2. Concrete specimens used for strength and hydrophobicity testing.

3. Results

3.1. Physical and Mechanical Properties

The key properties of the obtained concrete samples with varying amounts of hydrophobic additive are summarized in Table 2. This includes the results of tests for water absorption, water impermeability, and compressive and flexural strength. The introduction of the hydrophobizing additive significantly reduced the water absorption of the concrete and increased its water impermeability. At the same time, the effect of the additive on strength characteristics was noted—at low dosages, the strength increased, while excess additive led to a slight decrease in strength compared to the optimal amount. Detailed data and analysis are presented below.
Table 2. Properties of Concrete Depending on the Content of the Hydrophobic Additive.
As shown in Figure 3, the introduction of a small amount of hydrophobizing agent (0.2%) leads to a noticeable increase in compressive strength compared to the control mixture without the additive. The strength increases from 39 MPa (at 0%) to 48 MPa at a dosage of 0.2%, which represents a gain of approximately 23%. This increase in strength can be explained by the densification of the cement paste structure at the optimal dosage of the additive. It is likely that the hydrophobizing agent, in small quantities, helps to distribute water evenly and form a more compact matrix. As the dosage increases to 0.4%, the strength slightly decreases (to 45 MPa), and at 0.6%, it returns to a level around 40 MPa. The reduction in strength at higher doses is likely due to the excessive amount of hydrophobic substance, which disrupts the material’s structure or prevents complete cement hydration. Thus, there is an optimal dosage of the hydrophobizing additive, exceeding which leads to a loss of its positive effect on strength properties.

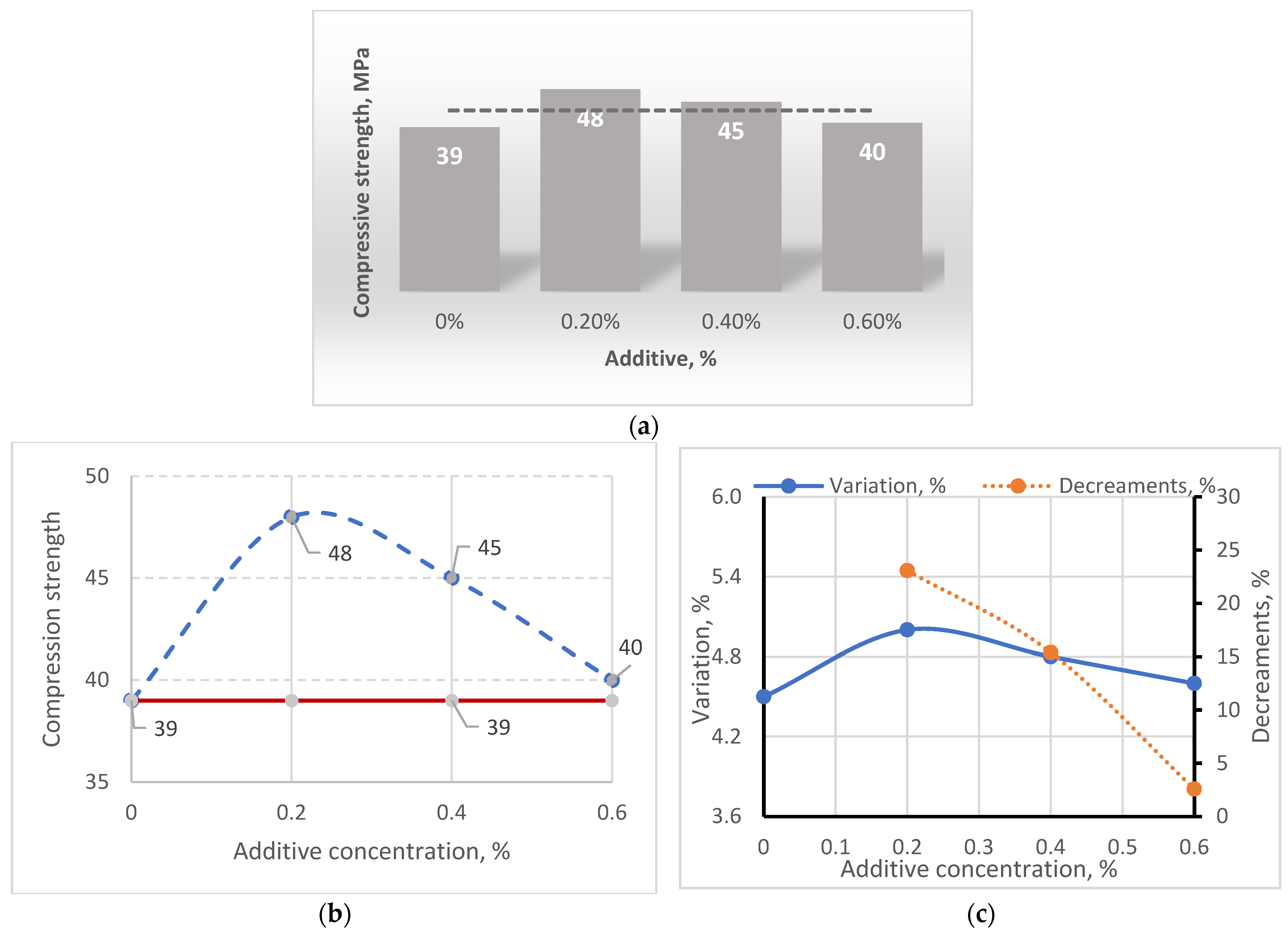

Figure 3. Influence of Hydrophobic Additive Content on the Compressive Strength of Concrete: (a) Average compressive strength values obtained at different additive dosages (the dashed horizontal line indicates the compressive strength of the reference (control) concrete without additive); (b) variation of compressive strength with increasing additive concentration, where the dashed blue line represents experimental compressive strength values and the solid red line corresponds to the reference strength (0% additive); (c) relative variation (%) and decrement (%) of compressive strength compared to the control mix as a function of additive concentration.
The trend in the change in flexural strength is similar to the dynamics of compressive strength (Figure 4). The maximum value of flexural strength is observed at an additive dosage of 0.2%, around 5.8 MPa compared to 4.5 MPa for the non-filled concrete. A moderate amount of hydrophobizing agent likely improves the bond between the cement paste and the aggregate, which positively affects the flexural resistance. As the additive content increases to 0.4%, the flexural strength slightly decreases (to 5.1 MPa), and at 0.6%, it almost returns to the original level (4.6 MPa). Although these changes are not as pronounced as those observed for compressive strength, they confirm that an excess of the hydrophobic additive can neutralize its positive effect. Even at the maximum dosage of 0.6%, the flexural strength is slightly higher than the initial value, but the gain is minimal, whereas the optimum of 0.2% results in the greatest strength increase.

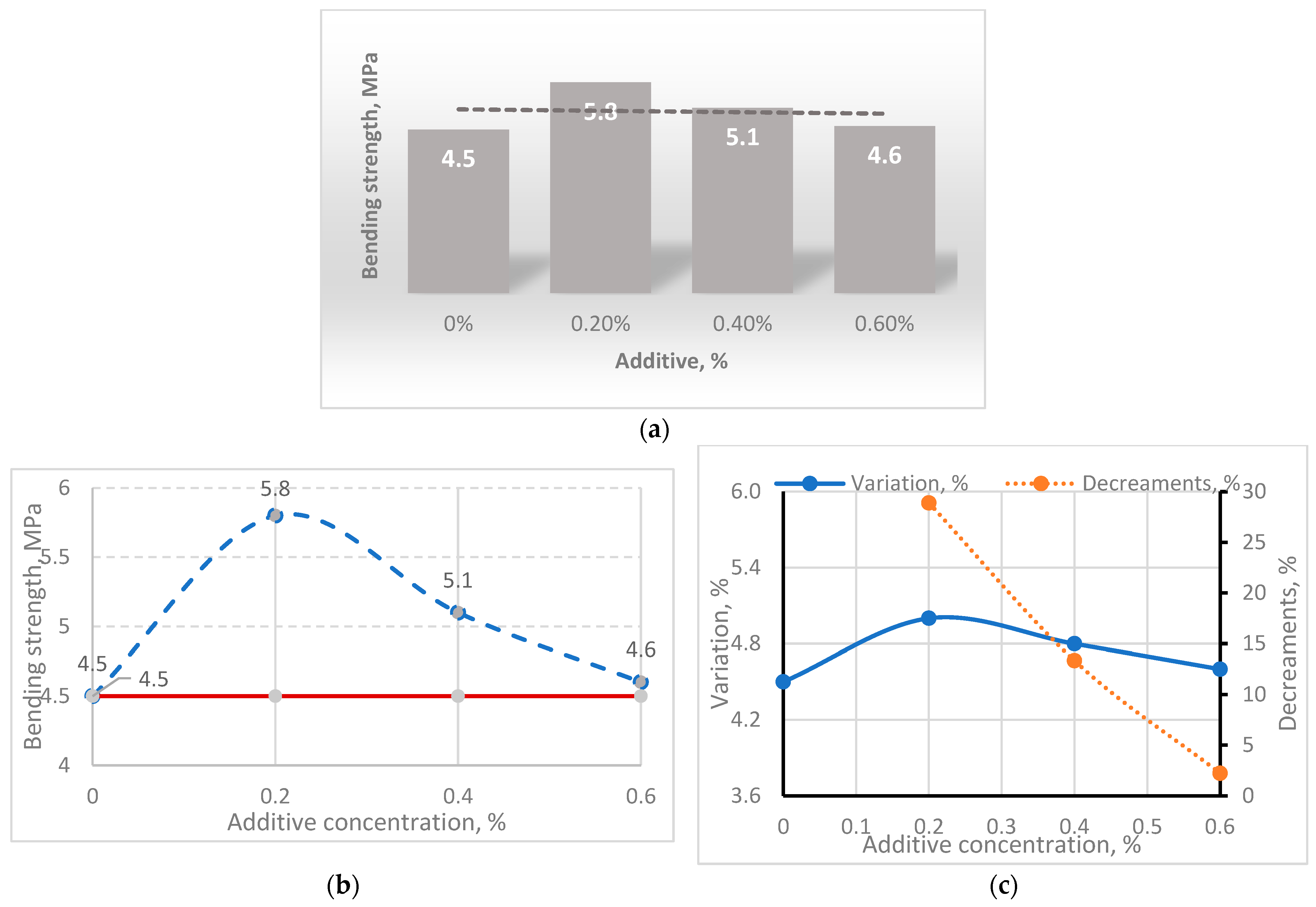

Figure 4. Influence of Hydrophobic Additive Content on the Tensile Strength of Concrete: (a) Average bending strength values measured at different additive dosages; the dashed horizontal line indicates the bending strength of the reference (control) concrete without additive; (b) variation of bending strength with increasing additive concentration, where the dashed blue line represents experimental bending strength values and the solid red line corresponds to the reference strength (0% additive); (c) relative variation (%) and decrement (%) of bending strength compared to the control mix as a function of additive concentration.
The hydrophobizing additive had the most significant impact on the water absorption of concrete (Figure 5). An additive of just 0.2% by weight of cement reduced the water absorption almost by half—from 5.6% to 3.3%. At a dosage of 0.4%, water absorption decreases even further, to 2.7%, indicating a pronounced hydrophobic effect in the material structure. Further increasing the dosage to 0.6% does not provide a noticeable additional effect (water absorption is 2.8%, almost at the same level). The obtained results indicate the existence of a saturation limit in the structure of the hydrophobic agent: when the concentration exceeds a certain threshold, the capillaries of the concrete are already completely covered with a water-repellent layer, and additional additives do not reduce water absorption further.

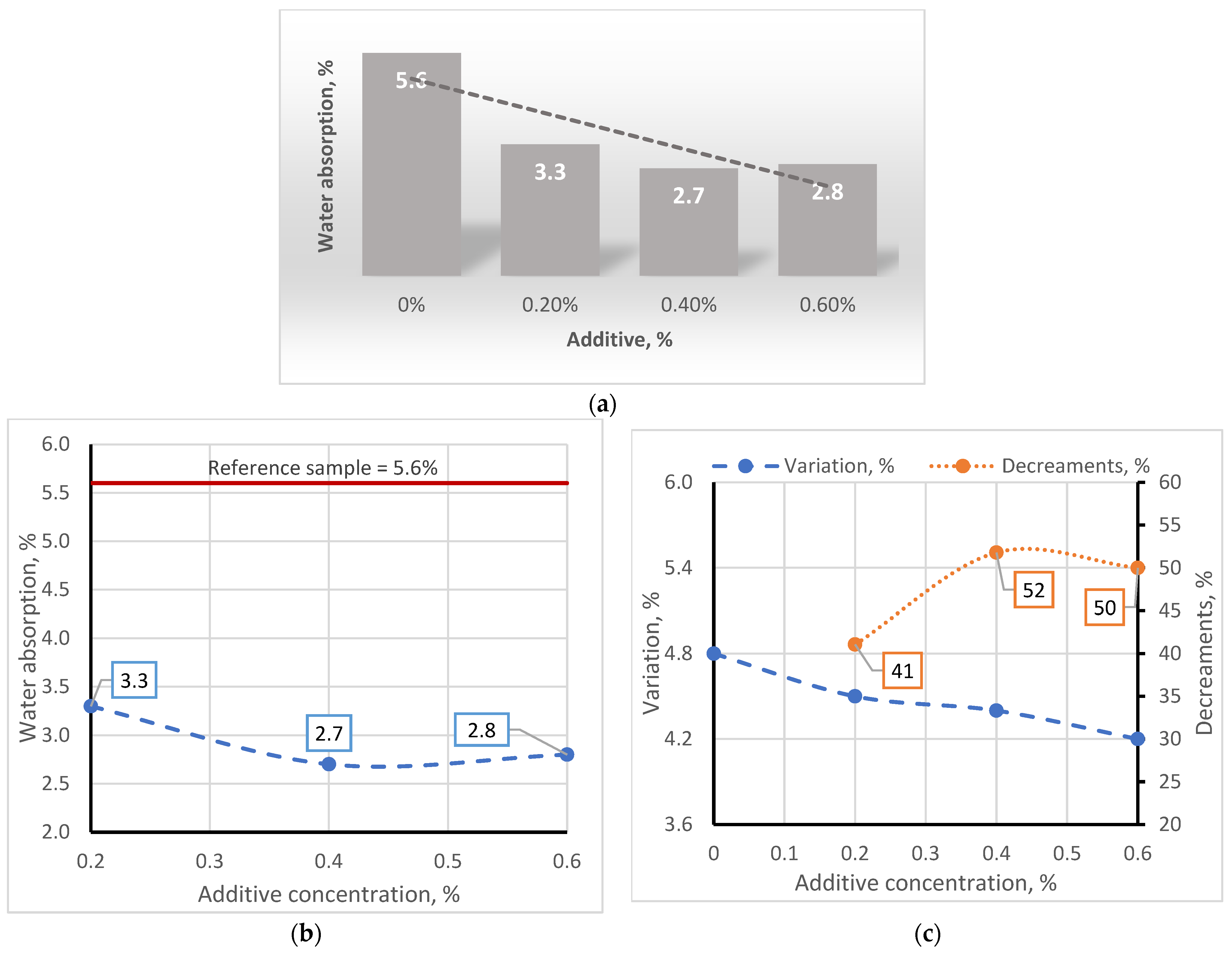

Figure 5. Influence of Hydrophobic Additive Content on the Water Absorption of Concrete: (a) Average water absorption values measured at different additive dosages, the dashed line indicates the general trend of water absorption reduction with increasing additive content; (b) variation of water absorption as a function of additive concentration, where the dashed blue line represents experimental water absorption values and the solid red horizontal line corresponds to the reference concrete (0% additive); (c) relative variation (%) and decrement (%) of water absorption compared to the control mix as a function of additive concentration.
The reduction in water absorption is directly related to the increase in water impermeability of the concrete. The original concrete had a water impermeability grade of W4 (which corresponds to withstanding water pressure of approximately 0.4 MPa), but with the addition of 0.2% additive, the water impermeability increased to W8. At 0.4% and 0.6%, the samples reached a W10 grade, meaning they were able to withstand a pressure of around 1.0 MPa without water penetration. The increase in water impermeability class from W4 to W10 indicates a significant improvement in the concrete structure’s resistance to water filtration under pressure. It is likely that the hydrophobizing additive forms a thin film on the pore walls, which prevents water penetration, and may also contribute to additional filling of the pores with reaction products (in the case of silica-containing compositions). As a result of this combined effect—matrix densification and reduced wettability—concrete acquires a stable hydrophobic barrier. This is especially important for piles used in moist soils: reduced water absorption and increased impermeability will prevent the leaching of the cement paste and protect the reinforcement from corrosion, thereby extending the service life of the structure.

3.2. SEM and Microstructure

The chemical composition and microstructural features of the concrete modified with different dosages of the hydrophobic admixture are investigated to clarify the mechanisms responsible for the observed changes in water absorption, impermeability, and strength. SEM analyses of fractured surfaces (Figure 6, Figure 7 and Figure 8) provide insight into the evolution of hydration products, the distribution of organosilicon compounds, and the modification of the pore structure.

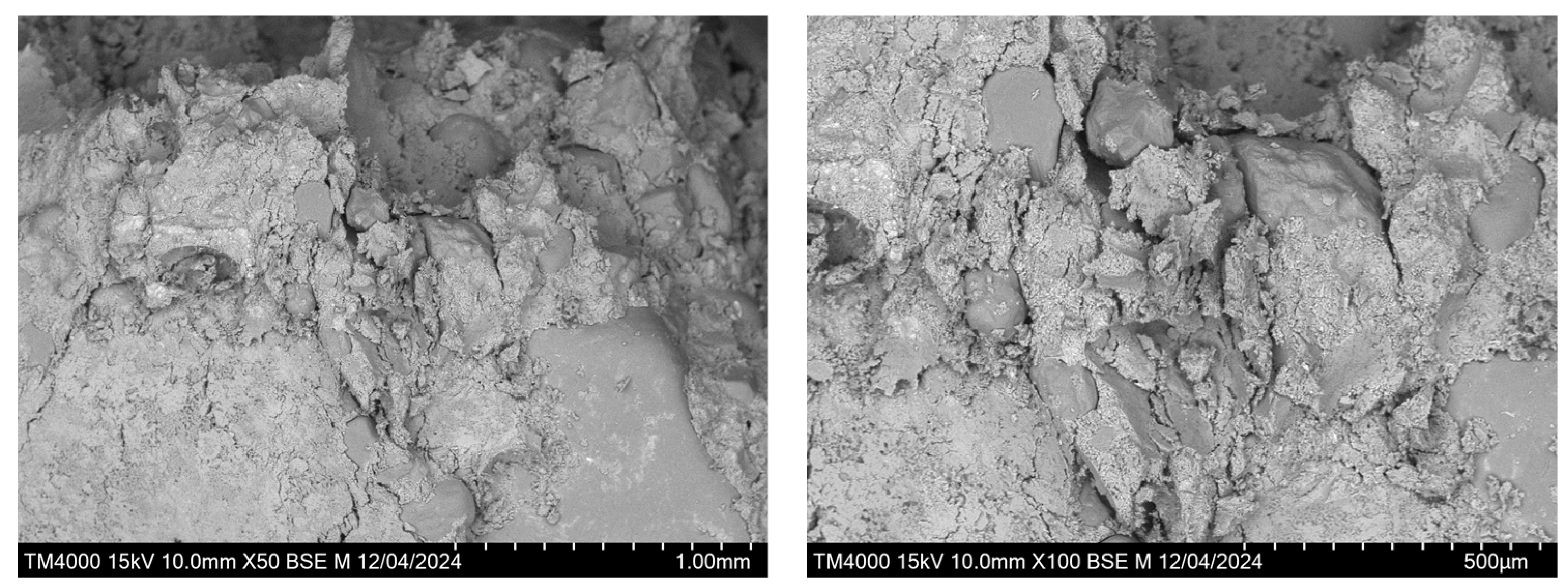

Figure 6. SEM of concrete sample with 0.20% additive.

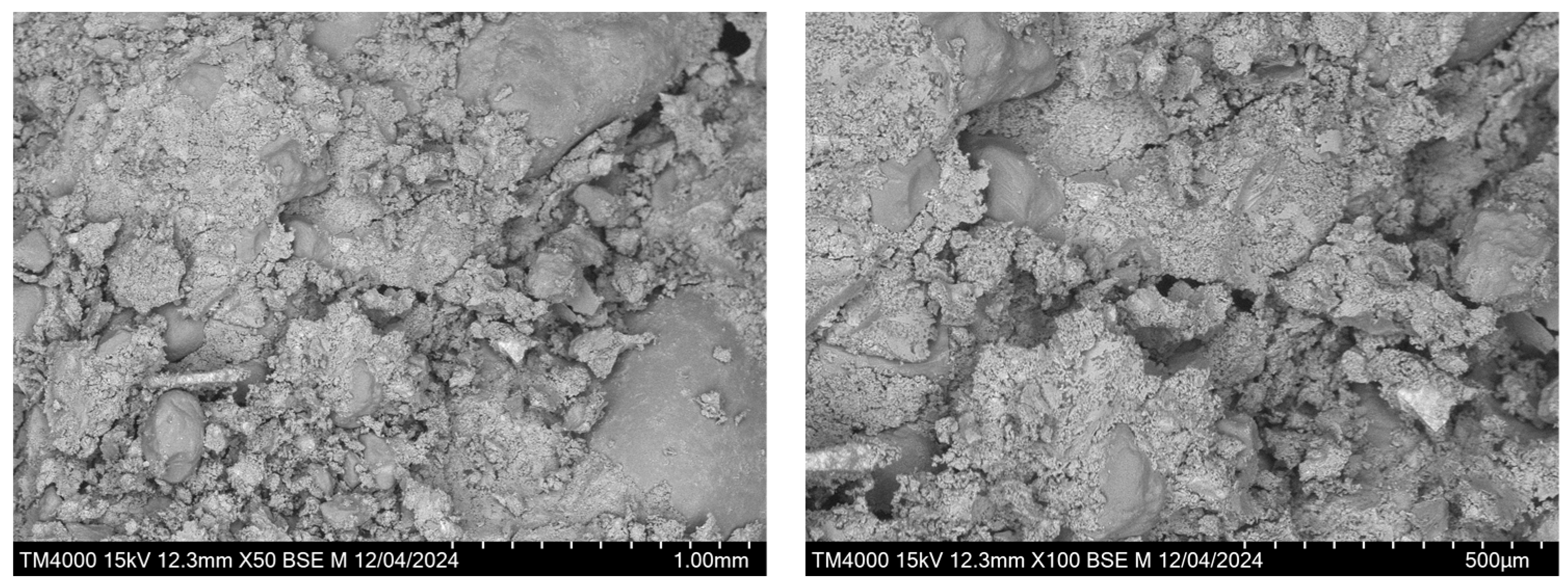

Figure 7. SEM of concrete sample with 0.40% additive.

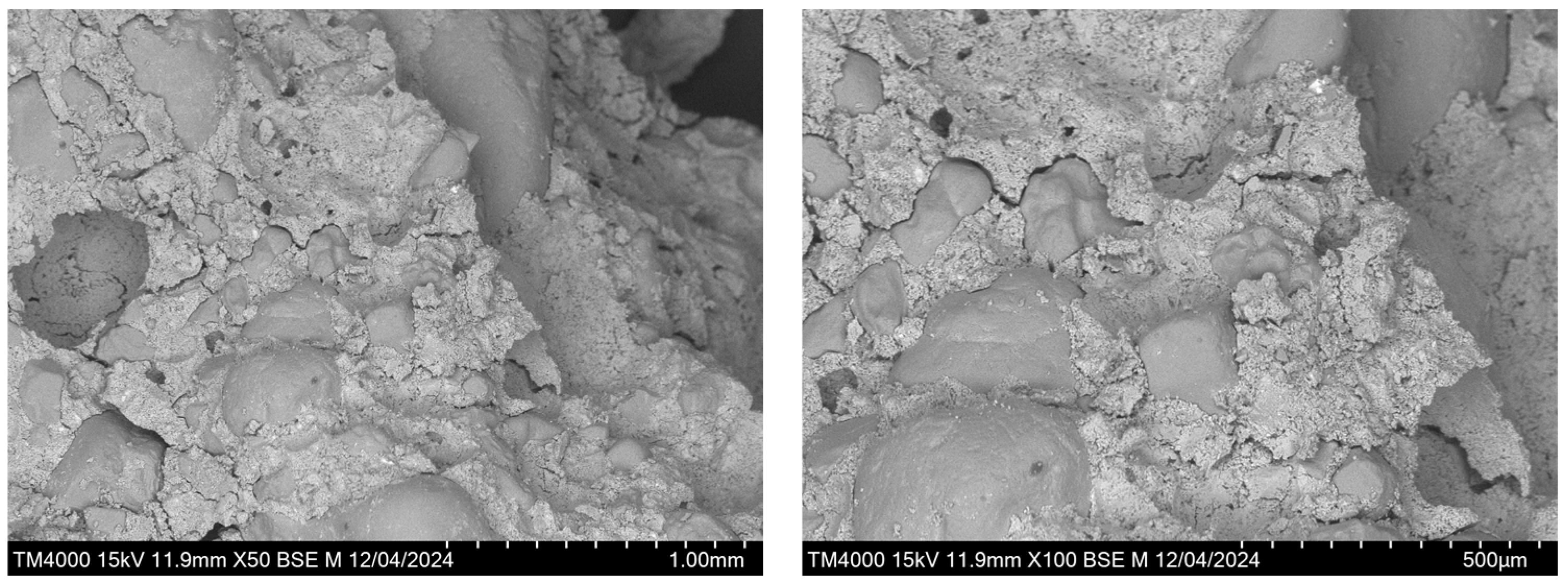

Figure 8. SEM of concrete sample with 0.60% additive.
At the optimal dosage of 0.20% in Figure 6, the cement matrix shows a dense and uniform microstructure with compact C–S–H regions and fewer large capillary pores. Hydration products form a continuous phase with smoother pore walls, indicating that the hydrophobic agent participates in early surface reactions. Through hydrolysis and polycondensation, silanol groups form siloxane bonds on Ca(OH)2 and C–S–H surfaces, creating thin hydrophobic films that lower surface energy and reduce water affinity. Reduced microcracking and improved cohesion at this dosage correspond well with the observed increase in compressive and flexural strength.
At 0.40% additive content, as shown in Figure 7, the matrix remains dense, but localized accumulations of hydrophobic compounds become more noticeable. These clusters partially block fine pores, contributing to the sharp decrease in water absorption and the high impermeability (W10). Although the C–S–H phase is still continuous, some heterogeneity suggests a slight disturbance of hydration near hydrophobic-rich zones, explaining the moderate strength reduction compared with the 0.20% mixture.
At the highest dosage of 0.60%, as shown in Figure 8, the microstructure becomes more heterogeneous. Excess hydrophobic agent forms larger domains within the matrix, interrupting the continuity of hydration products and limiting the formation of a cohesive C–S–H network. These discontinuities and newly formed isolated voids account for the further decrease in strength. Nevertheless, hydrophobic films still effectively modify pore surfaces, maintaining low water absorption and high impermeability.
These findings indicate that the optimal hydrophobic additive content lies between 0.20% and 0.40%, where the balance between matrix densification, pore modification, and hydration processes yields the best combination of mechanical strength and hydrophobic performance. The microstructural evidence aligns with the macroscopic properties presented in Section 3.1, confirming the chemical and morphological basis for the improved water resistance and mechanical behavior of the modified concrete.

4. Discussion

The results obtained in this study clearly show that adding a small amount of a hydrophobic additive based on organosilicon compounds significantly improves the waterproofing properties of concrete without compromising its mechanical characteristics. The observed decrease in water absorption from 5.6% to approximately 2.7% and the simultaneous increase in water resistance from W4 to W10 confirm the formation of a stable hydrophobic barrier in the cement matrix. This improvement can be explained by the dual mechanism of action of the additive—both physical blocking of capillary pores and chemical modification of the pore surface by adsorption of hydrophobic compounds. There is research which reports that silane- and stearic acid-based water-repellent agents effectively reduce water permeability by changing the surface energy of the pores while maintaining the overall integrity of the matrix [35].
The enhancement in compressive and flexural strength at the optimal dosage (0.2% by cement mass) indicates that the hydrophobic admixture not only limits capillary water ingress but also contributes to microstructural densification. This phenomenon aligns with the findings of related research, who demonstrated that composite hydrophobic agents can act as secondary cementitious materials, filling microvoids and promoting additional hydration products that strengthen the interfacial transition zone.
At higher dosages (≥0.4%), however, the decrease in strength observed in this work may result from incomplete cement hydration or weak interfacial bonding due to the excessive accumulation of hydrophobic films. Therefore, the dosage of the hydrophobizing admixture must be optimized to balance its beneficial and adverse effects.
The optimal dosage range (0.2–0.4%) established in this study provides a practical guideline for industrial applications, balancing the desired hydrophobicity and mechanical integrity. The obtained compressive strength of 45–48 MPa and water impermeability grade W10 exceed the minimum durability requirements specified for piles subjected to groundwater exposure in cold regions.
The macroscopic improvements observed in this study can be explained by chemical and microstructural processes occurring within the cement matrix in the presence of the hydrophobic admixture. Organosilicon compounds interact with hydration products through adsorption and polycondensation reactions. During hydration, silanol groups of the additive are adsorbed on the surfaces of calcium hydroxide and C–S–H phases, where they undergo condensation to form stable siloxane linkages. These linkages create thin, water-insoluble films on pore walls and significantly reduce their surface energy, thereby limiting wetting and decreasing capillary suction.
In addition, the admixture alters the pore structure of the cement paste. The polymerization of organosilicon molecules within the pore network leads to the partial blocking of fine capillary pores and a reduction in their connectivity. This results in a microstructure characterized by a higher proportion of closed and poorly connected pores, which reduces sorptivity and permeability. The interaction of hydrophobic agents with calcium hydroxide also contributes to chemical stabilization, as the partial consumption of Ca(OH)2 reduces the susceptibility of the matrix to leaching and carbonation. The formation of additional silica-rich phases further densifies the C–S–H gel and strengthens the matrix.
The observed increases in compressive and flexural strength are consistent with these microstructural modifications. By limiting microcracking associated with moisture transport and shrinkage, and by stabilizing the pore walls, the hydrophobic admixture enhances the structural cohesion of the cement paste. Consequently, the improved water resistance and strength can be attributed to the combined effects of surface-energy reduction, pore-network modification, and stabilization of hydration products.
Future research should focus on evaluating the long-term performance of the developed hydrophobic concrete under cyclic wetting–drying, freeze–thaw exposure, and chloride penetration tests. It is also important to investigate the compatibility of different hydrophobic agents with supplementary cementitious materials such as fly ash, metakaolin, and silica fume, which may further enhance the synergy between densification and water repellency. Although the present study provides clear evidence of the beneficial effects of the hydrophobic admixture and recycled basalt fibers, it is limited by the use of a single cement type, one fixed water-to-cement ratio, and a restricted range of admixture dosages. These controlled conditions were selected to isolate the effect of the combined modification system under parameters representative of precast pile production. Nevertheless, future research should broaden the experimental program by incorporating different cement types, varying W/C ratios, and expanding the dosage range of the hydrophobic and fiber additives in order to establish more generalizable relationships and improve the applicability of the findings to a wider class of concretes. Additionally, advanced microstructural analyses using SEM, XRD, and contact-angle measurements can clarify the mechanism of hydrophobic film formation and its stability over time.

5. Conclusions

In this study, a composition of modified concrete with enhanced hydrophobic properties for use in reinforced concrete piles has been developed. By introducing the optimal amount of hydrophobizing additive into the concrete mix, it was possible to significantly reduce its water absorption (from 5.6% to ~2.7–3.3%) and increase its water impermeability (up to W10 grade) without compromising its strength. The best combination of properties was achieved with an additive content of approximately 0.2–0.4% by weight of cement: at these dosages, the concrete exhibited maximum compressive strength (~45–48 MPa) and minimal water absorption. The implemented approach significantly improves the durability of piles in conditions of periodic moisture exposure and aggressive water impact, as hydrophobic concrete better resists moisture penetration and retains its strength properties.
This study is limited by the use of a single cement type, one fixed W/C ratio, and a narrow dosage range. Future work should investigate additional cement systems, varying W/C ratios, and broader admixture contents to improve the generality and applicability of the results.
The prospects for further research are related to the assessment of the long-term effectiveness of the developed concrete under real operating conditions. It is necessary to study the resistance of hydrophobic concrete to cycles of freezing and thawing, exposure to aggressive ions in groundwater, and the impact of time on the preservation of the hydrophobic effect. Additional directions may include testing other types of hydrophobizing additives and nanomodifiers, as well as optimizing the technological process for the production of piles using the developed composition. The use of the developed hydrophobic concrete in the industrial production of reinforced concrete piles appears promising for enhancing their reliability and durability.

Author Contributions

Conceptualization, D.A. and Z.S.; writing—original draft preparation, Z.S.; data curation, A.A.; formal analysis, R.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research has been/was/is funded by the Science Committee of the Ministry of Education and Science of the Republic of Kazakhstan (Grant No. AP22683302).

Data Availability Statement

The data supporting the findings of this study were generated in-house through laboratory experiments. The datasets are not publicly available due to internal research storage policy, but they are available from the corresponding author upon reasonable request.

Acknowledgments

The authors would like to express thanks of gratitude to the research and production centre “ENU-Lab” of L.N. Gumilyov Eurasian National University for providing base of the experimental section.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Awwad, T.; Shakhmov, Z.A.; Lukpanov, R.E.; Yenkebayev, S.B. Experimental Study on the Behavior of Pile and Soil at the Frost Condition. In Sustainable Civil Infrastructures; Springer: Cham, Switzerland, 2019; pp. 69–76. [Google Scholar] [CrossRef]
  2. Jahandari, S.; Tao, Z.; Alim, A. Effects of Different Integral Hydrophobic Admixtures on the Properties of Concrete. In Proceedings of the 30th Biennial National Conference of the Concrete Institute of Australia, Perth, Australia, 10–13 September 2023. [Google Scholar]
  3. Hamzah, N.; Mohd Saman, H.; Baghban, M.H.; Mohd Sam, A.R.; Faridmehr, I.; Muhd Sidek, M.N.; Benjeddou, O.; Huseien, G.F. A Review on the Use of Self-Curing Agents and Its Mechanism in High-Performance Cementitious Materials. Buildings 2022, 12, 152. [Google Scholar] [CrossRef]
  4. Jahandari, S.; Tao, Z.; Alim, M.A.; Li, W. Integral Waterproof Concrete: A Comprehensive Review. J. Build. Eng. 2023, 78, 107718. [Google Scholar] [CrossRef]
  5. She, W.; Zheng, Z.; Zhang, Q.; Zuo, W.; Yang, J.; Zhang, Y.; Zheng, L.; Hong, J.; Miao, C. Predesigning Matrix-Directed Super-Hydrophobization and Hierarchical Strengthening of Cement Foam. Cem. Concr. Res. 2020, 131, 106029. [Google Scholar] [CrossRef]
  6. Shakhmov, Z.; Lukpanov, R.; Tleulenova, G.; Mineev, N.; Tulebekova, A. Comparison of Experimental Data of Model Piles in Normal and Seasonally Freezing Soil. In Proceedings of the 11th International Conference on Geosynthetics, Seoul, Republic of Korea, 16–21 September 2018; Volume 1, pp. 399–402. [Google Scholar]
  7. Zhussupbekov, A.Z.; Utepov, Y.B.; Shakhmov, Z.A.; Ling, H.I. Model Testing of Piles in a Centrifuge for Prediction of Their In-Situ Performance. Soil Mech. Found. Eng. 2013, 50, 92–96. [Google Scholar] [CrossRef]
  8. Song, Z.; Huang, Z.; Jia, Z.; Jiang, L.; Chu, H.; Zhang, Y. Design of a Hydrophobic Nano-SiO2-Modified ER@EC Microcapsule: Improving Rheology, Regulating Hydration While Preserving Self-Healing in Cementitious Materials. Cem. Concr. Compos. 2024, 151, 105604. [Google Scholar] [CrossRef]
  9. Zhao, Z.; Qi, S.; Suo, Z.; Hu, T.; Hu, J.; Liu, T.; Gong, M. Development of a Superhydrophobic Protection Mechanism and Coating Materials for Cement Concrete Surfaces. Materials 2024, 17, 4390. [Google Scholar] [CrossRef]
  10. Wang, X.; Zhang, W.; Wang, Y.; Wu, H.; Danzeng, D.; Meng, Y. Assessment of the Wettability and Mechanical Properties of Stearic-Acid-Modified Hydrophobic Cementitious Materials. Coatings 2025, 15, 100. [Google Scholar] [CrossRef]
  11. Zhao, J.; Gao, X.; Chen, S.; Lin, H.; Li, Z.; Lin, X. Hydrophobic or Superhydrophobic Modification of Cement-Based Materials: A Systematic Review. Compos. Part B Eng. 2022, 243, 110104. [Google Scholar] [CrossRef]
  12. Lv, Y.; Song, C.; Xiang, T.; Dang, J.; Dong, B.; Jin, W.; Zhang, K. Effect of Hydrophobic Modification and Dosage of Long Afterglow Phosphors on the Properties of Self-Luminescent Cement-Based Materials. Dev. Built Environ. 2024, 19, 100505. [Google Scholar] [CrossRef]
  13. Zhou, P.; Zhu, Z.; She, W. A Superhydrophobic Mortar with Ultra-Robustness for Self-Cleaning, Anti-Icing, and Anti-Corrosion. Chem. Eng. J. 2024, 495, 153488. [Google Scholar] [CrossRef]
  14. Han, K.; Yin, B.; Jia, X.; Xu, H.; Li, T.; Wang, P.; Hou, D. One-Step Hybridization of Silane Hydrolysis and Silica Mineralization for Enhanced Superhydrophobic Coating on Cement-Based Materials. J. Build. Eng. 2024, 94, 109824. [Google Scholar] [CrossRef]
  15. Quan, X.; Zhou, F.; Zhang, C.; Ma, S. The Effect of Hydroxy Silicone Oil Emulsion on the Waterproof Performance of Cement. Materials 2024, 17, 2797. [Google Scholar] [CrossRef] [PubMed]
  16. Luo, J.; Xu, Y.; Chu, H.; Yang, L.; Song, Z.; Jin, W.; Wang, X.; Xue, Y. Research on the Performance of Superhydrophobic Cement-Based Materials Based on Composite Hydrophobic Agents. Materials 2023, 16, 6592. [Google Scholar] [CrossRef]
  17. Pang, Y.; Tang, Q.; Yang, L.; Wang, Q.; Li, H.; Lv, W.; Wang, R. Development of a Hydrophobic Cement Mortar with Controllable Strength: Preparation and Micro-Mechanism Analysis. Constr. Build. Mater. 2023, 403, 133216. [Google Scholar] [CrossRef]
  18. Utepov, Y.; Tulebekova, A.; Aldungarova, A.; Mkilima, T.; Zharassov, S.; Shakhmov, Z.; Bazarbayev, D.; Tolkynbayev, T.; Kaliyeva, Z. Investigating the Influence of Initial Water pH on Concrete Strength Gain Using a Sensors and Sclerometric Test Combination. Infrastructures 2022, 7, 159. [Google Scholar] [CrossRef]
  19. Zhang, R.; Wang, H.; Ji, J.; Suo, Z.; Ou, Z. Influences of Different Modification Methods on Surface Activation of Waste Tire Rubber Powder Applied in Cement-Based Materials. Constr. Build. Mater. 2022, 314, 125191. [Google Scholar] [CrossRef]
  20. Gnanaraj, J.; Vasugi, K. A Comprehensive Review of Hydrophobic Concrete: Surface and Bulk Modifications for Enhancing Corrosion Resistance. Eng. Res. Express 2024, 6, 032101. [Google Scholar] [CrossRef]
  21. Upadhye, S.; Bagde, P.; Sange, S.R.; Rokade, A.; Chandak, M.A.; Patil, T.R.; Kakade, N.T.; Shelke, N. Optimization and Multi-Functional Predictive Performance of Advanced Superhydrophobic Cementitious Materials for Water-Resistant Infrastructure. Asian J. Civ. Eng. 2025, 26, 2023–2036. [Google Scholar] [CrossRef]
  22. Yu, S.; Li, L.; Zhou, C.; Lan, S. Superhydrophobic Property of Cement Mortar with Polydimethylsiloxane Modifier and a Rough Surface. Case Stud. Constr. Mater. 2025, 22, e04333. [Google Scholar] [CrossRef]
  23. Lu, Z.; Qi, X.; Zhang, Y.; Li, Y. Research Status and Analysis of Cement and Geopolymer Hydrophobic Composites. Fuhe Cailiao Xuebao/Acta Mater. Compos. Sin. 2025, 42, 2462–2478. [Google Scholar] [CrossRef]
  24. Raupach, M.; Wolff, L. Long-Term Durability of Hydrophobic Treatment on Concrete. Surf. Coat. Int. Part B Coat. Trans. 2005, 88, 127–133. [Google Scholar] [CrossRef]
  25. Abdalla, J.A.; Hawileh, R.A.; Bahurudeen, A.; Jittin, V.; Syed Ahmed Kabeer, K.I.; Thomas, B.S. Influence of Synthesized Nanomaterials in the Strength and Durability of Cementitious Composites. Case Stud. Constr. Mater. 2023, 18, e02197. [Google Scholar] [CrossRef]
  26. Cai, J.; Ran, Q.; Ma, Q.; Zhang, H.; Liu, K.; Zhou, Y.; Mu, S. Influence of a Nano-Hydrophobic Admixture on Concrete Durability and Steel Corrosion. Materials 2022, 15, 6842. [Google Scholar] [CrossRef]
  27. Al-Dulaimi, S.D.S.; Bazhenova, S.I.; Stepina, I.V.; Erofeeva, I.V.; Afonin, V. Development of Efficient Compositions of Hydrophobic Materials Resistant to Chemical and Biological Environments. J. Infrastruct. Preserv. Resil. 2024, 5, 18. [Google Scholar] [CrossRef]
  28. Yao, H.; Xie, Z.; Huang, C.; Yuan, Q.; Yu, Z. Recent Progress of Hydrophobic Cement-Based Materials: Preparation, Characterization and Properties. Constr. Build. Mater. 2021, 299, 124255. [Google Scholar] [CrossRef]
  29. GOST 10180-2012; Concretes. Methods for Determination of Strength. Interstate Standard. Federal Agency for Technical Regulation and Metrology: Moscow, Russia, 2012.
  30. EN 12390-3; Testing Hardened Concrete—Part 3: Compressive Strength of Test Specimens. CEN—European Committee for Standardization: Brussels, Belgium, 2019.
  31. GOST 310.4-81; Cements. Methods for Determination of Flexural and Compressive Strength. Interstate Standard. Izdatel’stvo Standartov: Moscow, Russia, 1981.
  32. EN 12390-5; Testing Hardened Concrete—Part 5: Flexural Strength of Test Specimens. CEN—European Committee for Standardization: Brussels, Belgium, 2019.
  33. GOST 12730.3-2020; Concretes. Method for Determination of Water Absorption. Interstate Standard. Standartinform: Moscow, Russia, 2021.
  34. GOST 12730.5-2018; Concretes. Method for Determination of Water Impermeability. Interstate Standard. Standartinform: Moscow, Russia, 2019.
  35. Wang, Q.; Li, Y.; Zheng, X.; Zhang, R.; Wang, N. Strategies for Developing Superhydrophobic Surfaces on Cement-Based Materials Using Stearic Acid: A Review. Eng. Rep. 2025, 7, e70260. [Google Scholar] [CrossRef]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Article Metrics

Citations

Article Access Statistics

Multiple requests from the same IP address are counted as one view.
