Next Article in Journal
Acknowledgment to Reviewers of Ceramics in 2020
Next Article in Special Issue
Effect of the Heating Rate on the Spark-Plasma-Sintering (SPS) of Transparent Y2O3 Ceramics: Microstructural Evolution, Mechanical and Optical Properties
Previous Article in Journal / Special Issue
Unconventional Materials Processing Using Spark Plasma Sintering
Open AccessArticle

Micro/Nano Indentation Testing of Spark Plasma Sintered Al2O3 + ZrO2 + cBN Ceramics

1
Institute of Materials Research, Slovak Academy of Sciences, Watsonova 47, 040 01 Košice, Slovakia
2
Faculty of Materials, Metallurgy and Recycling, Technical University of Košice, Letná 9, 040 01 Košice, Slovakia
3
Łukasiewicz Research Network–Krakow Institute of Technology, Zakopianska 73, 30-418 Krakow, Poland
*
Author to whom correspondence should be addressed.
Ceramics 2021, 4(1), 40-53; https://doi.org/10.3390/ceramics4010004
Received: 30 November 2020 / Revised: 9 January 2021 / Accepted: 11 January 2021 / Published: 22 January 2021
(This article belongs to the Special Issue Spark Plasma Sintering Technology)

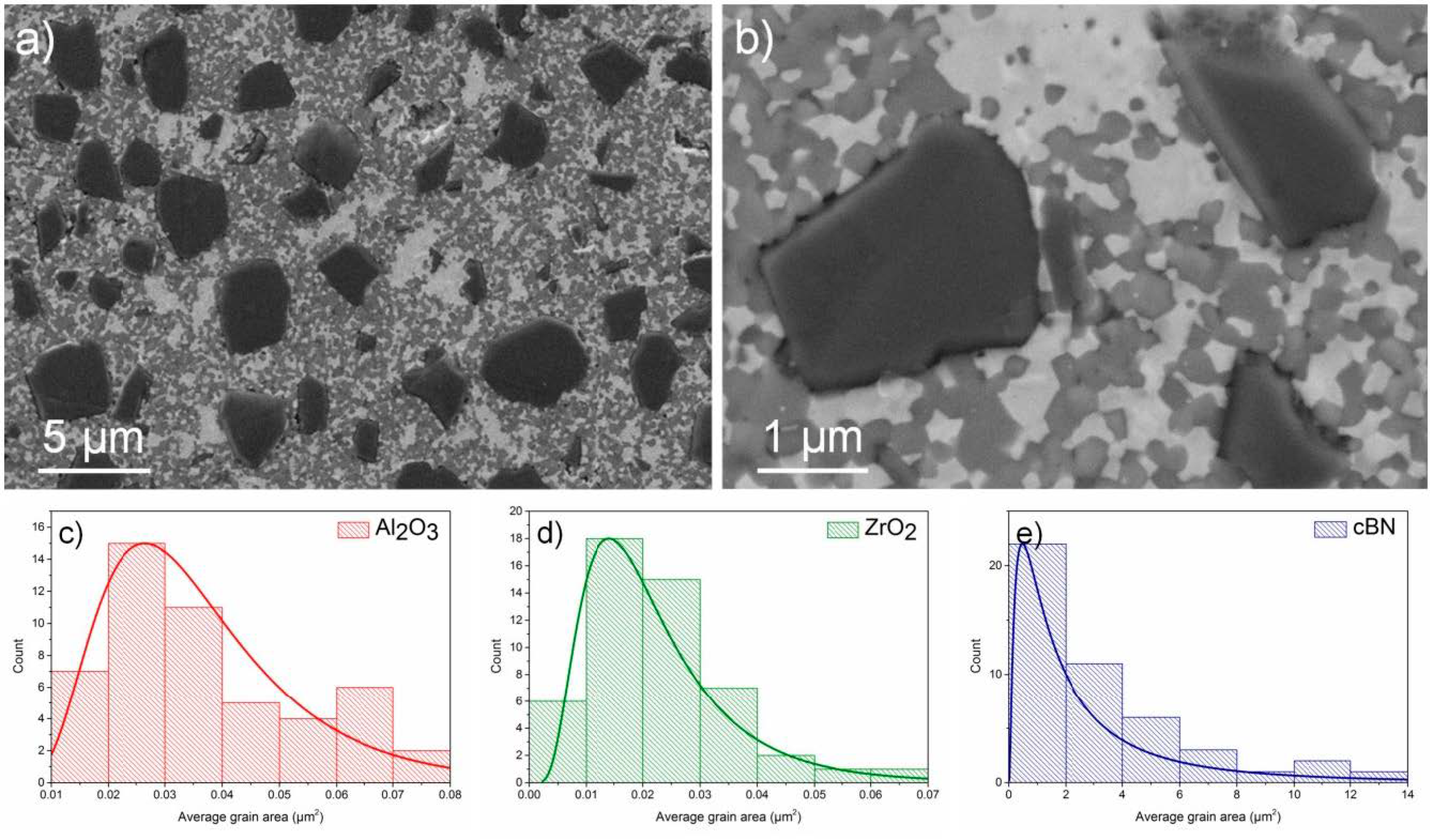

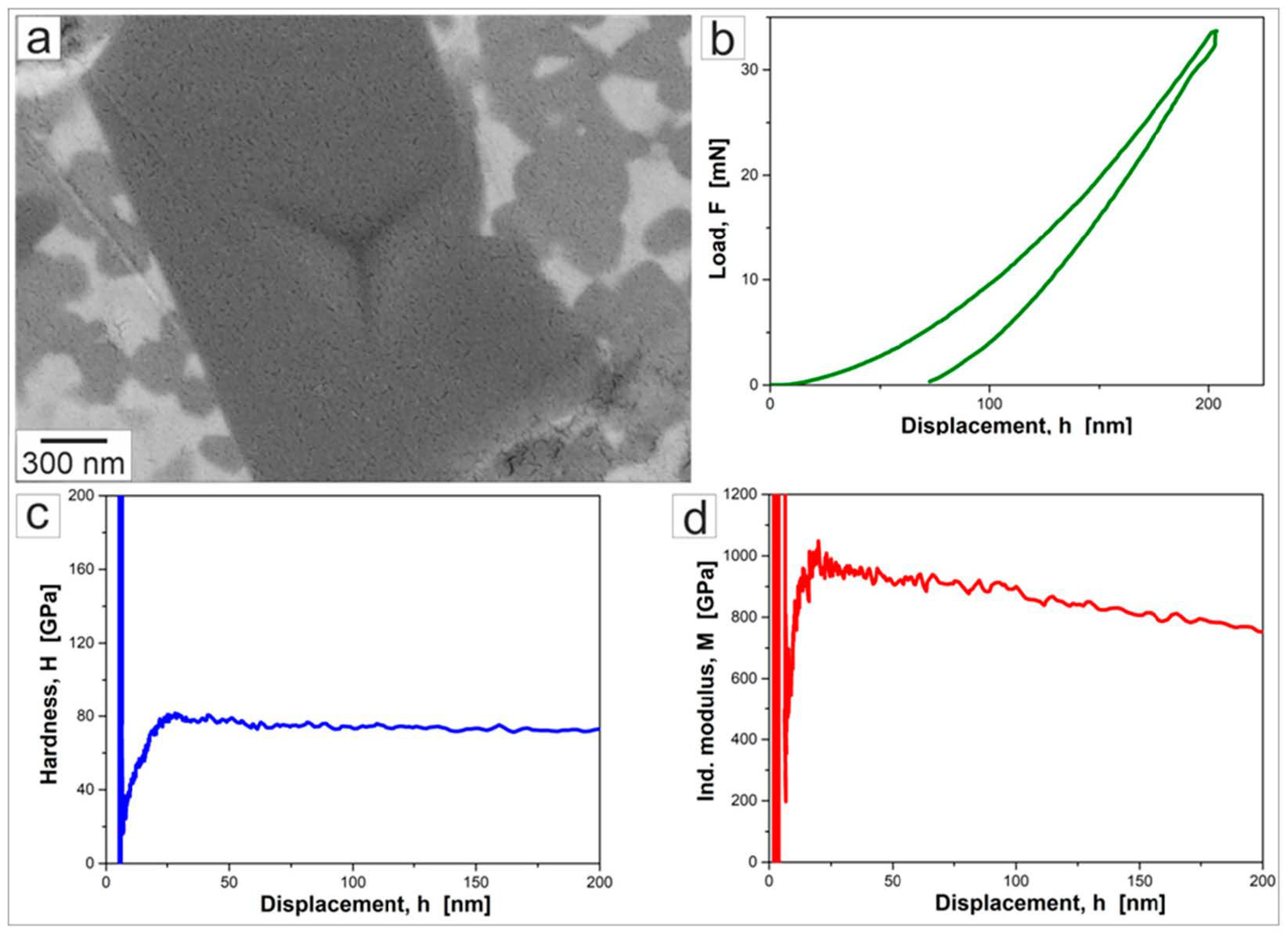

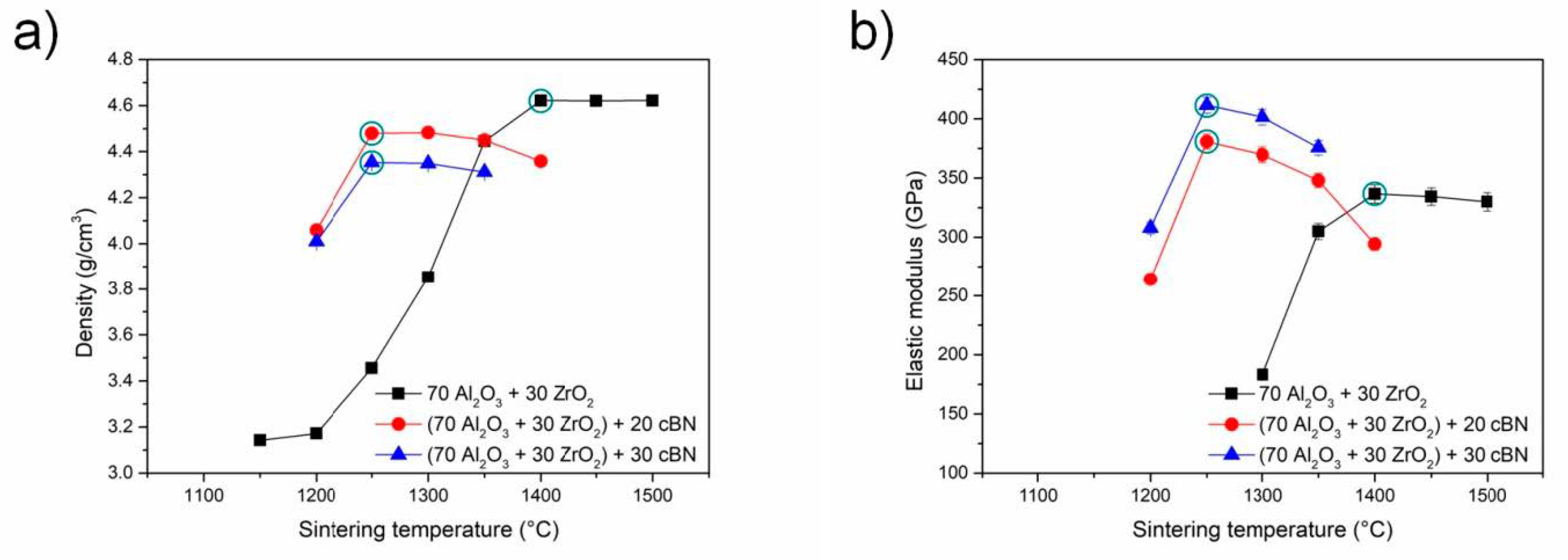

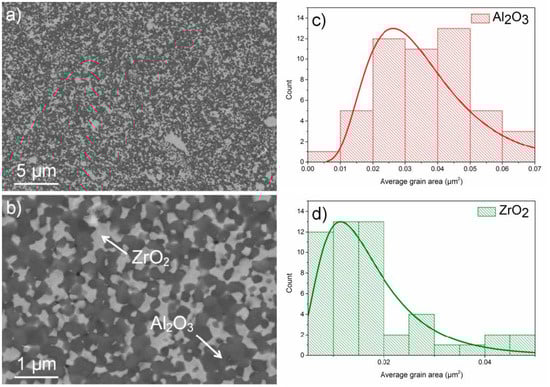

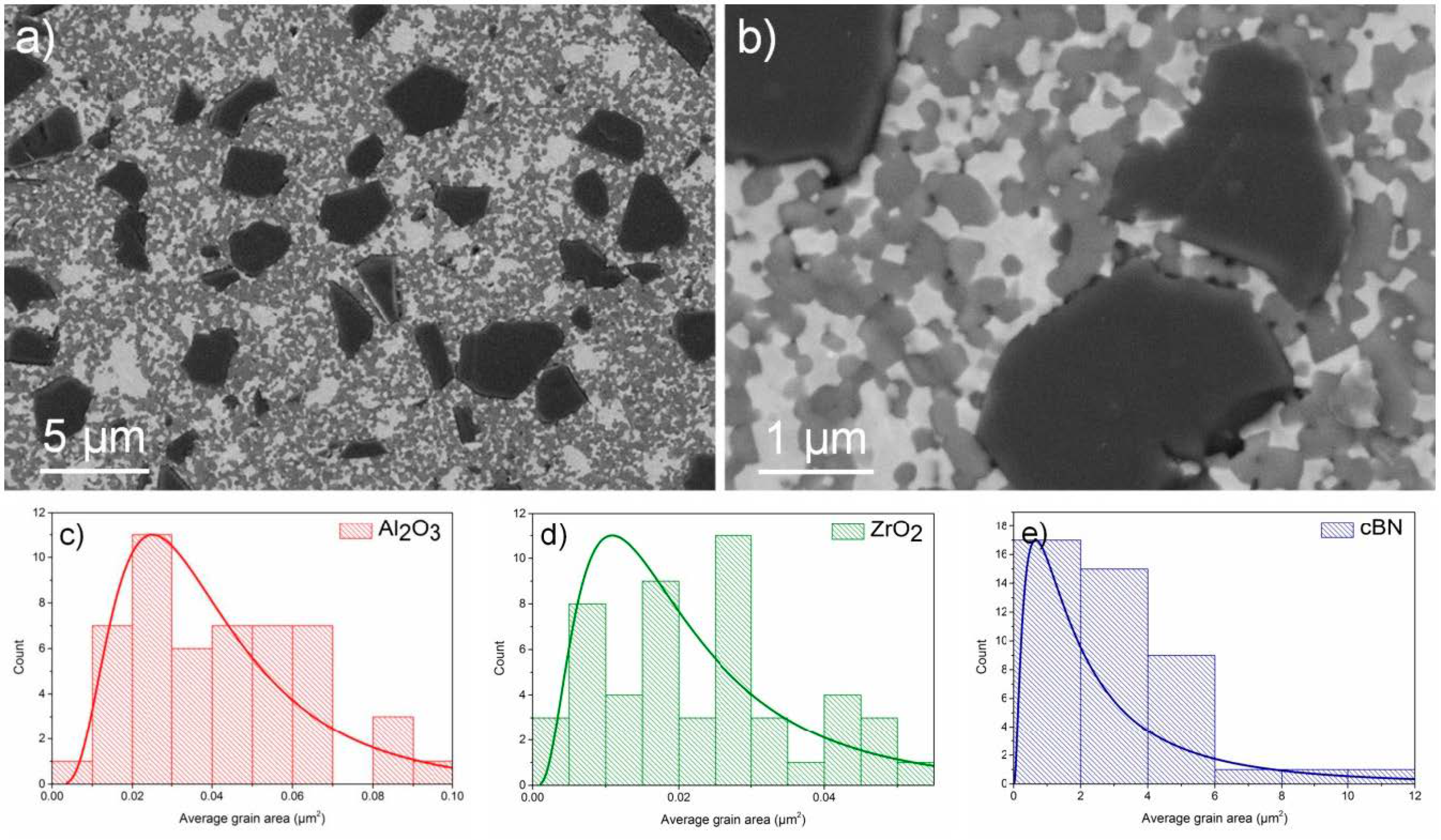

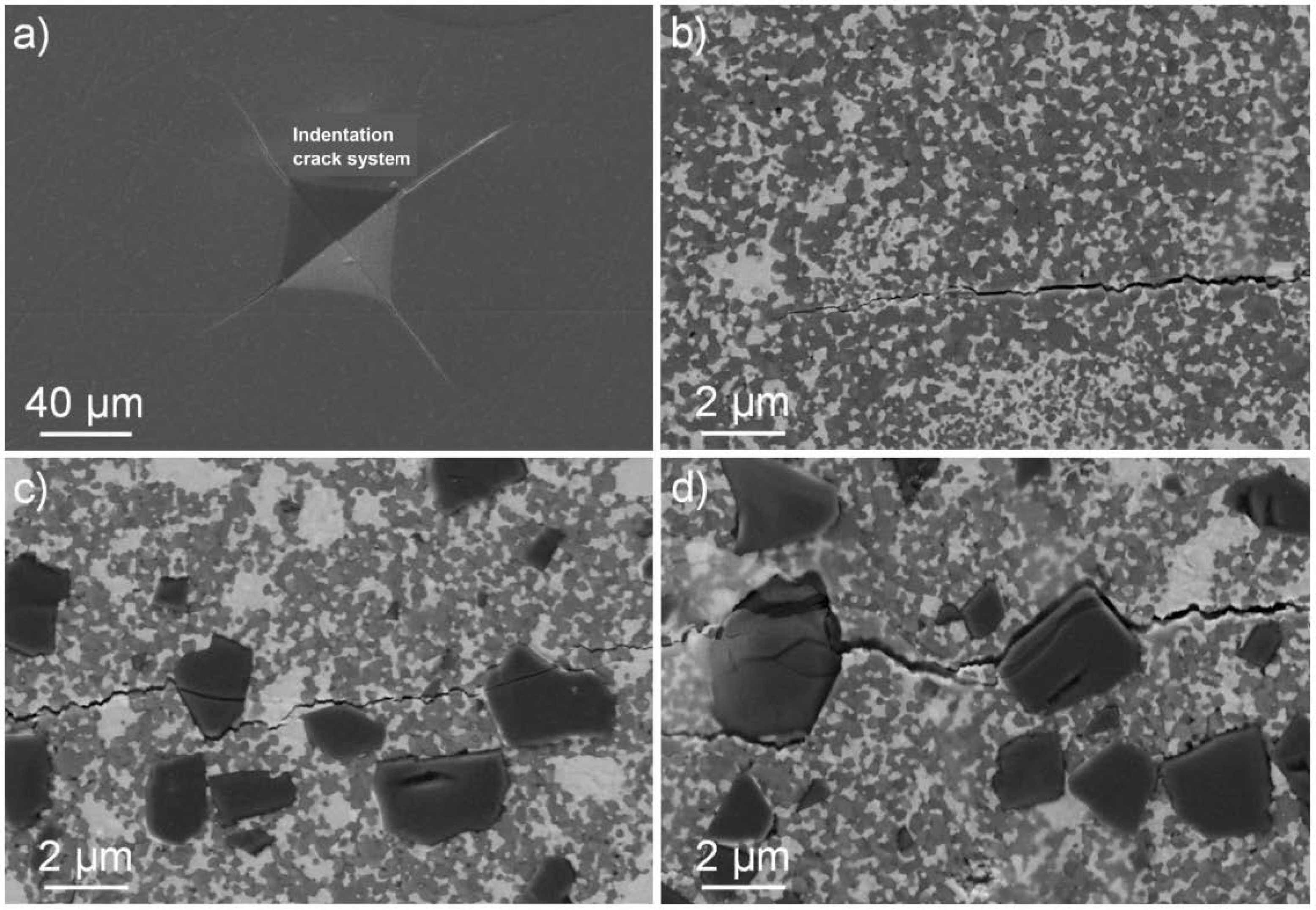

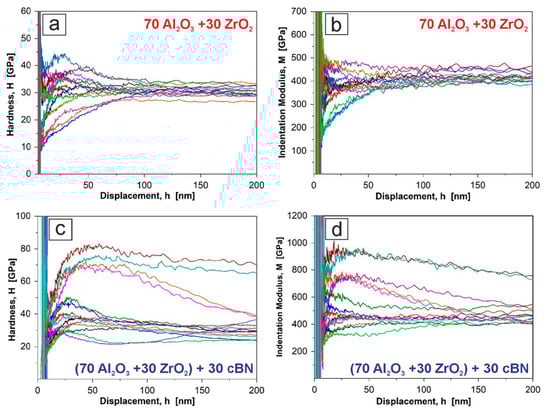

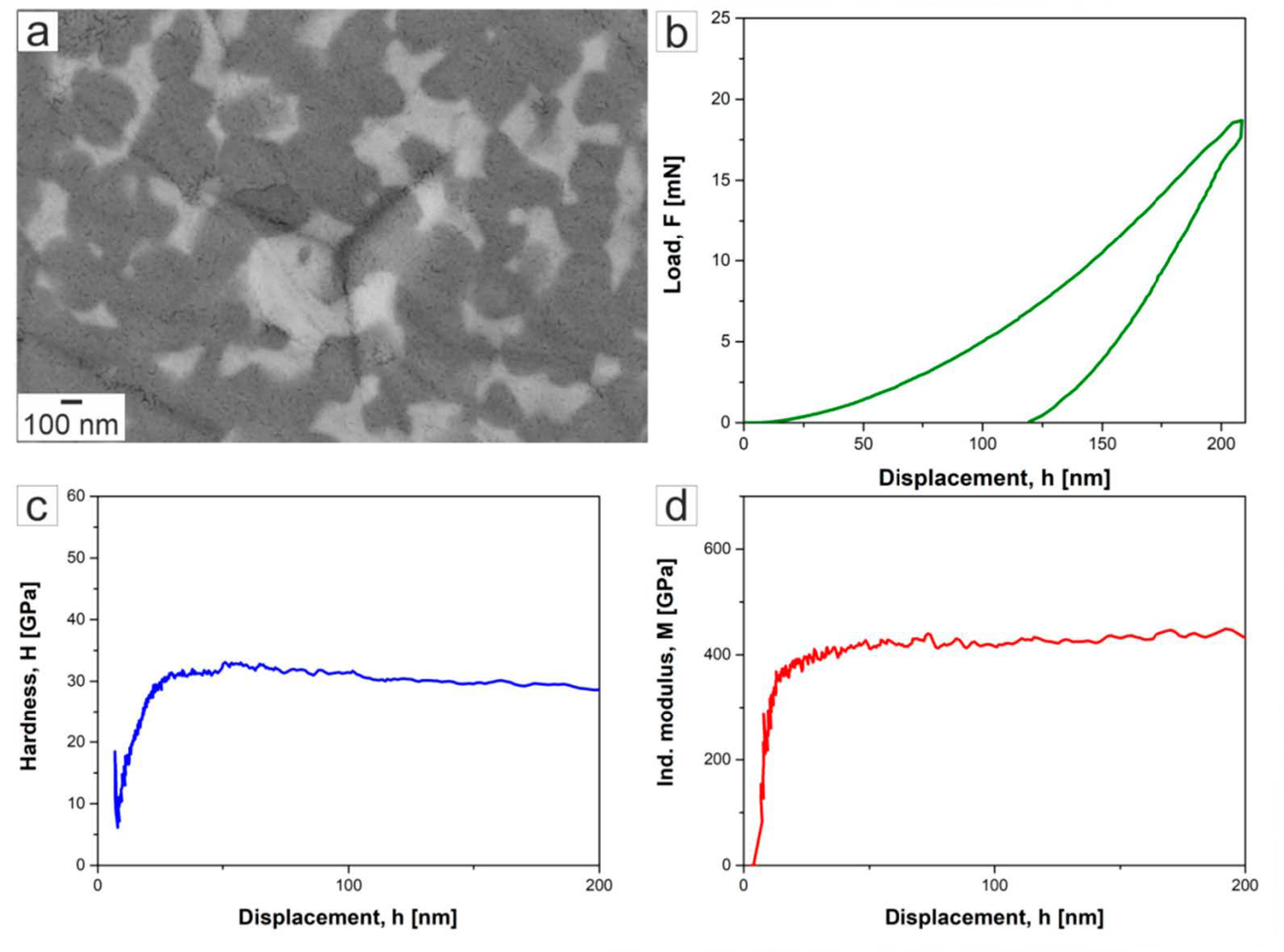

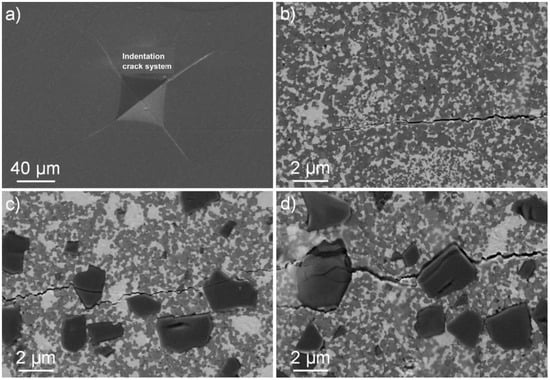

Al2O3 + 30 vol% ZrO2 matrix composites with 20 and 30 vol% cBN have been prepared with the optimized processing route, using spark plasma sintering (SPS) at temperatures of 1400 °C and 1250 °C. The influence of cBN addition on the microstructure characteristics, micro/nanohardness, elastic modulus, and crack-extension resistance of the composites and their constitutions have been investigated using scanning electron microscopy (SEM), statistical analyses of the individual grain size and micro/nanoindentation methods. The matrix consists of alumina and zirconia grains with grain sizes/diameter of approximately 220 and 160 nm with approximately 1.9 μm cBN grains in the Al2O3 + ZrO2 + cBN composites. The microhardness is slightly increasing with cBN addition from 16.2 to 17.1 GPa and the crack-extension resistance from 3.72 to 4.29 MPa.m1/2. The toughening mechanisms are in the form of crack deflection, crack branching, and crack bridging. The nanohardness and indentation modulus of the matrix are approximately 30 and 420 GPa, and the cBN grains 70 and 777 GPa, respectively. View Full-Text
Keywords: Al2O3 + ZrO2 + cBN; micro/nano indentation; micro/nano hardness; crack-extension resistance Al2O3 + ZrO2 + cBN; micro/nano indentation; micro/nano hardness; crack-extension resistance
Show Figures

Figure 1

MDPI and ACS Style

Sedlák, R.; Ivor, M.; Klimczyk, P.; Wyzga, P.; Podsiadlo, M.; Vojtko, M.; Dusza, J. Micro/Nano Indentation Testing of Spark Plasma Sintered Al2O3 + ZrO2 + cBN Ceramics. Ceramics 2021, 4, 40-53. https://doi.org/10.3390/ceramics4010004

AMA Style

Sedlák R, Ivor M, Klimczyk P, Wyzga P, Podsiadlo M, Vojtko M, Dusza J. Micro/Nano Indentation Testing of Spark Plasma Sintered Al2O3 + ZrO2 + cBN Ceramics. Ceramics. 2021; 4(1):40-53. https://doi.org/10.3390/ceramics4010004

Chicago/Turabian Style

Sedlák, Richard; Ivor, Michal; Klimczyk, Piotr; Wyzga, Piotr; Podsiadlo, Marcin; Vojtko, Marek; Dusza, Ján. 2021. "Micro/Nano Indentation Testing of Spark Plasma Sintered Al2O3 + ZrO2 + cBN Ceramics" Ceramics 4, no. 1: 40-53. https://doi.org/10.3390/ceramics4010004

Find Other Styles

Article Access Map by Country/Region

1
Back to TopTop
