MoS₂ Decorated Carbon Nanofibers as Efficient and Durable Electrocatalyst for Hydrogen Evolution Reaction

Abstract

Hydrogen is an efficient fuel which can be generated via water splitting, however hydrogen evolution occurs at high overpotential, and efficient hydrogen evolution catalysts are desired to replace state-of-the-art catalysts such as platinum. Here, we report an advanced electrocatalyst that has low overpotential, efficient charge transfers kinetics, low Tafel slope and durable. Carbon nanofibers (CNFs), obtained by carbonizing electrospun fibers, were decorated with MoS₂ using a facile hydrothermal method. The imaging of catalyst reveals a flower like morphology that allows for exposure of edge sulfur sites to maximize the HER process. HER activity of MoS₂ decorated over CNFs was compared with MoS₂ without CNFs and with commercial MoS₂. MoS₂ grown over CNFs and MoS₂-synthesized produced about 374 and 98 times higher current density at −0.30 V (vs. Reversible Hydrogen Electrode, RHE) compared with the MoS₂-commercial sample, respectively. MoS₂-commercial, MoS₂-synthesized and MoS₂ grown over CNFs showed a Tafel slope of 165, 79 and 60 mV/decade, capacitance of 0.99, 5.87 and 15.66 mF/cm², and turnover frequency of 0.013, 0.025 and 0.54 s⁻¹, respectively. The enhanced performance of MoS₂-CNFs is due to large electroactive surface area, more exposure of edge sulfur to the electrolyte, and easy charge transfer from MoS₂ to the electrode through conducting CNFs.

1. Introduction

Hydrogen, due to its high energy density of 141.86 MJ/kg and clean combustion, has a potential to be one of the most effective clean energy sources [1,2]. However, the majority of hydrogen is produced via steam reforming, which consumes fossil fuels and negates the goal of a cleaner and sustainable energy future. In this context, hydrogen production via electrochemical water splitting using a catalyst is attracting considerable attention due to its inherent higher efficiency and lower cost compared to steam reforming [3]. An ideal electro-catalyst for hydrogen evolution reaction (HER) should provide high current density at a lower overpotential [4]. The current state-of-the-art catalyst, platinum, is one of the most efficient electro-catalyst for HER, however, its high cost and limited availability has curtailed its use for hydrogen production. This prompted scientists to look for alternative cost-effective materials which have high stability and efficiency comparable to that of platinum [3,5,6]. Thus, the development of efficient electro-catalyst for HER using earth-abundant materials is crucial [5,7,8,9,10]. Several nanostructured materials have been synthesized and used for energy applications [11,12,13,14,15]. Segev-Bar and Haick have written a very informative review article on sensors for various applications using nanoparticles [16]. Earth-abundant NiO nanoparticles have been used for various energy related applications [17]. A highly active and stable carbon-shell-coated FeP nanoparticles as a non-Pt electrocatalyst for hydrogen production has been synthesized using iron oxide nanoparticles as a precursor [18]. Carbon-shell-coated FeP nanoparticles showed a low overpotential of 71 mV at 10 mA/cm², which is comparable to that of a commercial Pt catalyst. Multicomponent nanoparticles such as Ni-Co-Se have been used for hydrogen evolution reaction [19]. The electrocatalytic properties of these nanoparticles were improved by growing them on reduced graphene oxide nanoflakes. Phuruangrat et al. have synthesized molybdenum trioxide (MoO₃) nanowire having high aspect ratios (>200) and good crystallinity for hydrogen evolution reaction by decomposing (NH₄)₆Mo₇O₂₄·4H₂O [20].

Other materials such as transition metal chalcogenides (TMCs), for example molybdenum disulfide (MoS₂), are potential candidates for HER; however, it is still challenging to get catalytic performance close to platinum [21,22]. It is reported that the catalytic activities of MoS₂ are mainly due to edge sulfur groups [23,24]. The lower catalytic properties of these materials are due to poor charge transport, low reactivity of active sites and less exposure of edge sulfur groups to the electrolyte [23,25,26]. Improving the charge transport properties and exposing large number of edge sulfur are the crucial steps to enhance the catalytic activities of MoS₂ [5].

Several strategies such as exfoliation of TMC sheets, controlling the morphologies, and improving the charge transport by making composites and decorating them over conducting substrate/materials have been reported to improve the performance of TMCs towards HER [27,28,29,30,31,32]. Among various transition metal chalcogenides, MoS₂, MoSe₂, CoS₂, CoSe₂, FeS₂, and NiS₂ have shown high catalytic activities for HER applications [3,33,34,35,36,37]. Gopalakrishnan et al. have used liquid exfoliation method to synthesize nanostructured MoS₂ quantum dots for hydrogen evolution from the water [27]. These nanostructured MoS₂ quantum dots showed high electrocatalytic activity with low overpotential. They reported a current density of 120 mA/cm² (at −0.4 V vs. SHE) with a Tafel slope of ~74 mV/decade. In another study, You et al. have studied the effect of morphology on the electrocatalytic performance of CoS [32]. CoS having various morphology such as hollow prisms, broken prisms and nanoparticles were synthesized using two-step microwave-assisted anion-exchange method and effect of morphology on HER activity was studied. Li et al. have improved the HER activity of MoS₂ by decorating it over CNTs [31]. A Tafel slope of 40 and 60 mV/decade was reported for MoS₂ and MoS₂ decorated over CNT, respectively.

In this work, we report an improved performance of MoS₂ by decorating it over carbon nanofibers (CNFs). Carbon nanofibers were prepared using electrospinning method followed by carbonization. MoS₂ decorated over CNFs (MoS₂-CNFs) was synthesized using a facile hydrothermal method. MoS₂-CNFs offers several advantages: (1) high conductivity; (2) high electroactive surface area; (3) vertically grown over conducting CNFs exposing high density of edge sulfur; (4) high current density and low Tafel slope; (5) low charge transfer resistance; and (6) high turnover frequency, compared with commercial MoS₂ as well as MoS₂ synthesized using similar method. The detailed results are presented and discussed in the following sections.

2. Results and Discussion

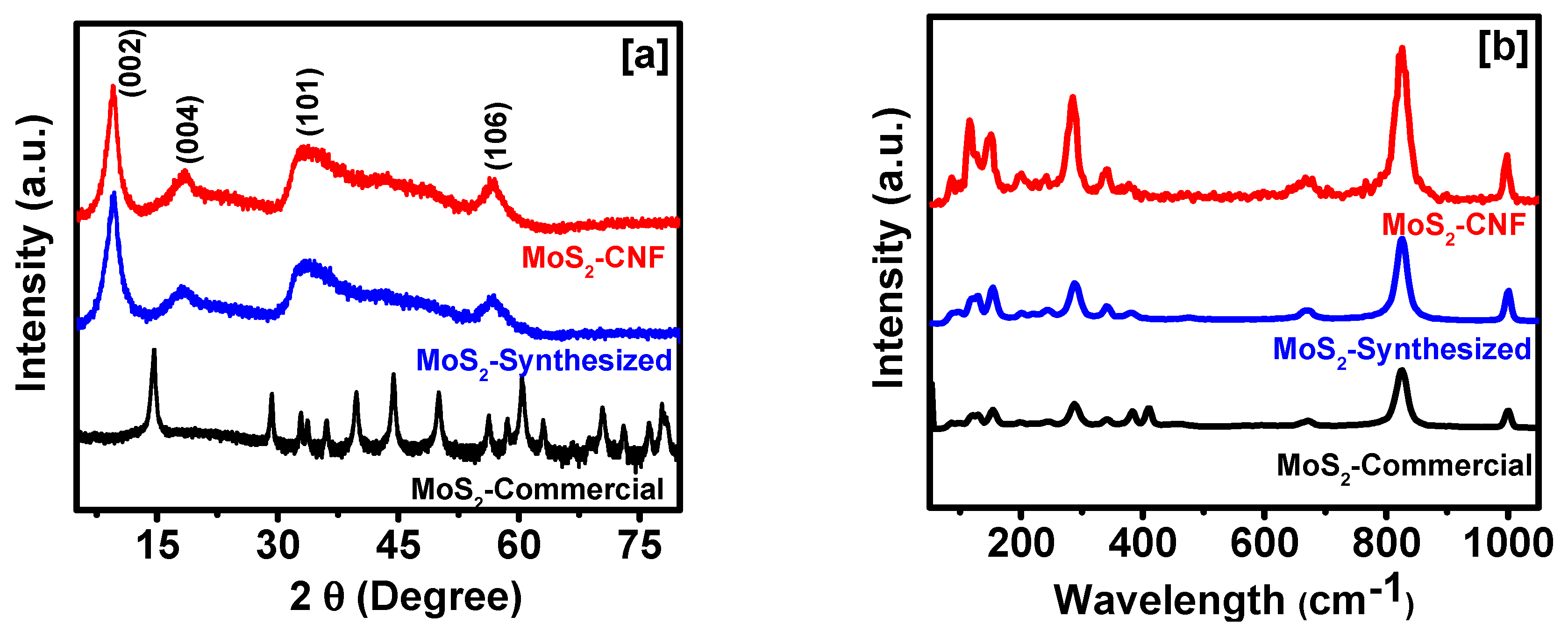

The crystalline structure of MoS₂-commercial, MoS₂-synthesized and MoS₂ decorated on CNFs were studied using X-ray diffraction (Figure 1a). The X-ray diffraction (XRD) patterns of MoS₂-commercial well matches with diffraction patterns of hexagonal MoS₂ phase with lattice parameters of a = 3.160 Å, b = 3.160 Å, and c = 12.295 Å, which are in good agreement with Joint Committee on Powder Diffraction Standards (JCPDS) file No. 00-006-0097. The (002) peak of MoS₂-commercial sample was observed at 14.68°. However, for the MoS₂-synthesized sample, the characteristic hexagonal basal plane peak associated with (002) plane was observed to shift to 9.58°, indicative of the increased d-spacing between these planes. A second order diffraction peak associated with (004) plane was observed around 18.3°. The MoS₂ grown on CNFs shows similar patterns as the MoS₂-synthesized with (002) and (004) peaks at 9.46° and 18.5°, respectively, demonstrating the reproducibility of the synthesis approach on different supports. The d spacing of all the samples was calculated using the Bragg’s law. A d spacing of 6.03, 9.23 and 9.35 Å was calculated for MoS₂-commercial, MoS₂-synthesized and MoS₂ decorated on CNFs, respectively. Raman spectra of all the samples show similar nature, however, the intensity of the peaks was observed to be improved for synthesized MoS₂ and MoS₂ grown over CNFs (Figure 1b).

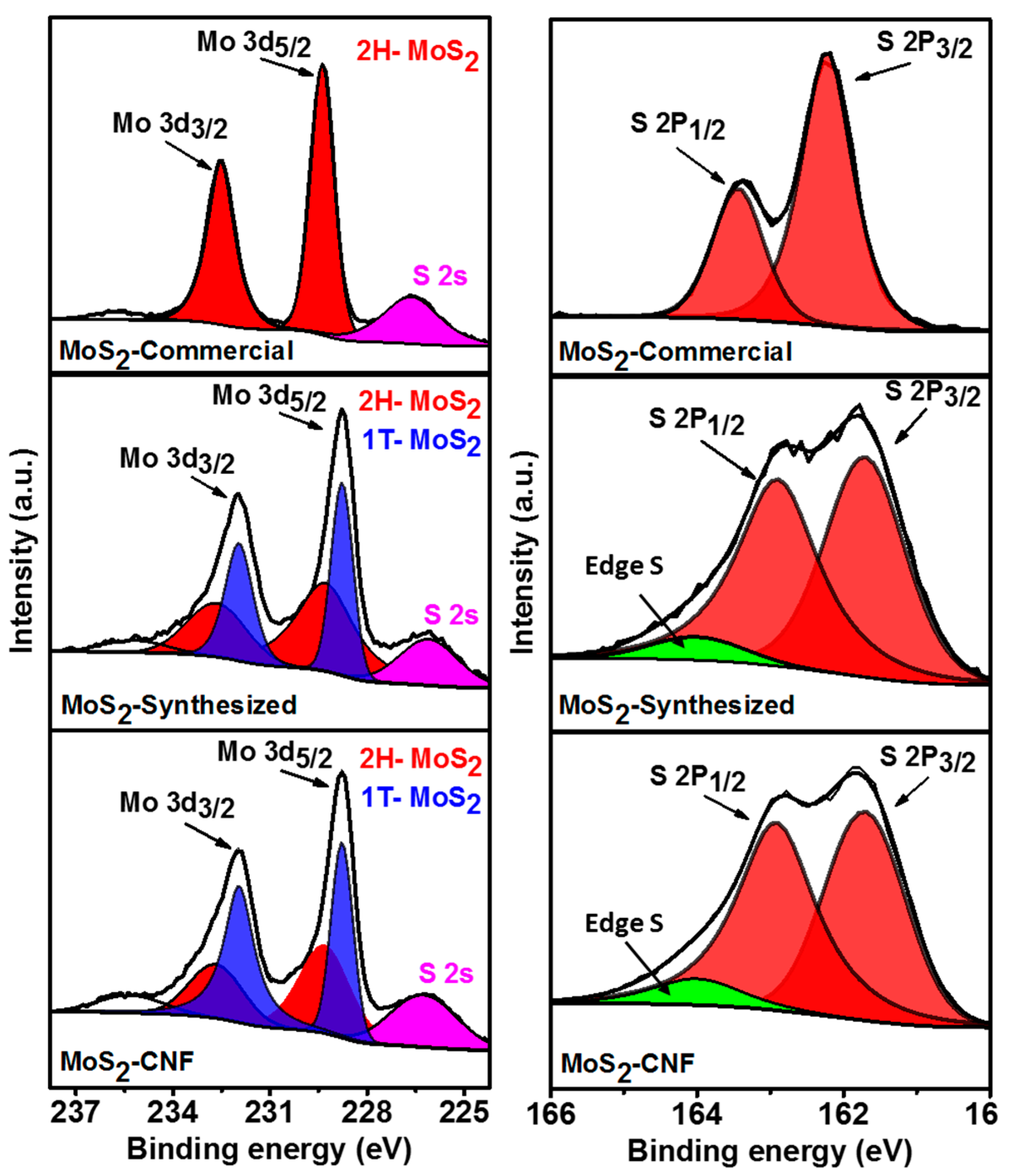

X-ray photoelectron spectroscopy was used to study the chemical nature of the prepared samples. The co-existence of 2H and 1T phase was confirmed by X-ray photoelectron spectroscopy (XPS) analysis. Figure 2 shows the XPS spectra of Mo 3d and S 2p regions of MoS₂-commercial, MoS₂-synthesized, and MoS₂-CNFs. Two characteristics peaks around 229.4 and 232.5 eV were observed in the XPS spectrum of MoS₂-commercial sample, indicating existence of the 2H phase of MoS₂ [38]. However, the synthesized MoS₂ and MoS₂ grown over carbon nanofibers showed a shift of about 1 eV towards lower binding energy compared to that of MoS₂-commercial sample, indicating presence of 1T phase in the synthesized MoS₂ samples [38,39]. XPS spectra of S 2p region also showed the similar behavior, i.e., shift of the peaks of S 2p in MoS₂-commercial sample towards lower binding energies for MoS₂-synthesized samples, further confirming the existence of 1T phase in the synthesized samples [38]. Observation of new peak in the synthesized MoS₂ samples indicated the presence of edge sulfur [40]. As evident from the XPS analysis, this facile synthesis results in a larger portion of the 1T phase of MoS₂, without any additional exfoliation steps, which should be beneficial for its catalytic activities towards HER.

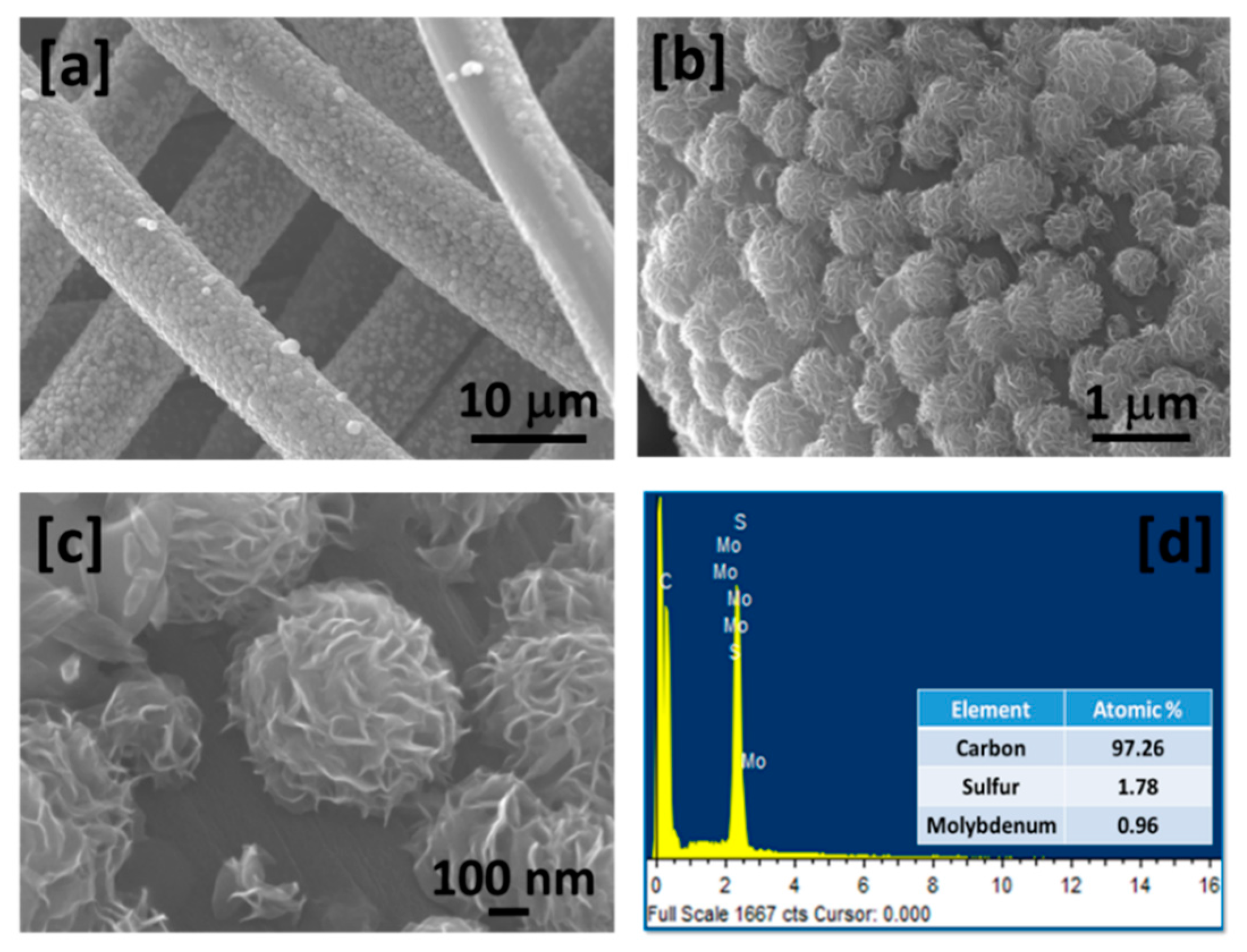

The scanning electron microscopy images of MoS₂ grown over CNFs at various magnifications show well-defined flower-like morphology (Figure 3a–c). The diameter of the flowers is in the range of 200–600 nm with well-organized nano-sheets. Inherently, MoS₂ grows in sheets due to its intrinsic lamellar structure and these sheets aggregate to form flower-like structures composed of several vertically aligned nano-sheets. It is further seen that the MoS₂ grows very uniformly over CNFs. A high magnification scanning electron microscopy (SEM) image confirms that the flower-like structure is made of many nano-sheet which is vertical on the surface of CNFs. Vertical growth of MoS₂ is very beneficial for hydrogen evolution reaction as it is reported that the catalytic activity of MoS₂ is due to edge sulfur [23]. Growing MoS₂ vertically in nano-sheet form with direct contact with conducting CNFs and highly porous nature will provide high electro-catalytic activity, reduced resistance (facilitated electron transfer from MoS₂ to CNFs) and minimal structural damage for a long-term run. Figure 3d shows the EDS spectrum of MoS₂ grown over CNFs confirming the presence of carbon, molybdenum, and sulfur with molybdenum to sulfur ratio of approximately 1 to 2.

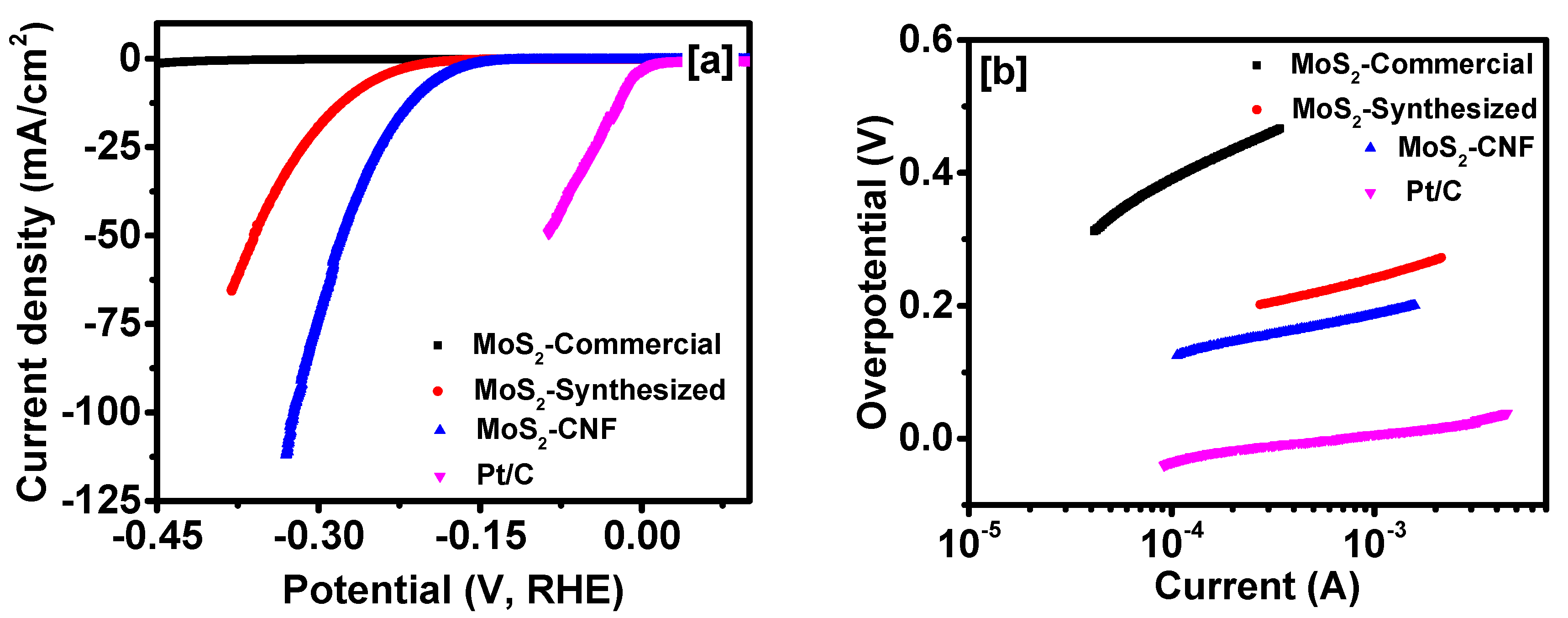

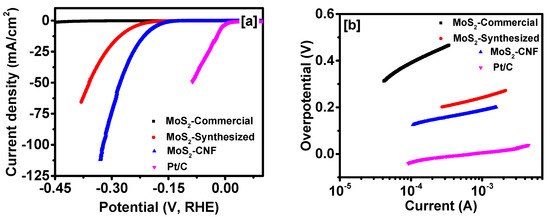

The electro-catalytic activity of the synthesized materials was performed by depositing the materials on glassy carbon electrode (details in experimental section). As a reference, we also carried out the measurements of commercial Pt/C (20% Pt) electrocatalyst. The IR corrected polarization curves of all the samples are shown in Figure 4a. As seen in Figure 4a, MoS₂-commercial produces lower current densities (0.196 mA/cm² at −0.3 V) compared to the MoS₂-synthesized (19.1 mA/cm² at −0.3 V) and MoS₂ grown over CNFs (73.2 mA/cm² at −0.3 V). The onset potential (defined at 1 mA/cm²) for MoS₂-commercial, MoS₂-synthesized, and MoS₂ grown over CNFs was observed to be −435, −193 and −145 mV, respectively, vs. RHE. In addition, MoS₂-synthesized and MoS₂-CNFs offer an overpotential of 268 mV and 207 mV to generate a current density of 10 mA/cm², respectively. The polarization study confirms that MoS₂ grown over CNFs showed superior catalytic-activity for hydrogen evolution reaction compared to MoS₂-commercial and MoS₂-synthesized samples. MoS₂ grown over CNFs and MoS₂-synthesized produced about 374 and 98 times higher current density at −0.30 V (vs. RHE) compared with the MoS₂-commercial sample, respectively. Youn et al. have reported an overpotential of 255 mV for MoS₂ synthesized on carbon nanotube -graphene hybrid support at 10 mA/cm² [41].

The electrocatalytic activity was further analyzed using Tafel plots. Tafel plots of all the samples are given in Figure 4b. Commercial Pt/C electrocatalyst showed a Tafel slope of 39 mV/decade, whereas MoS₂-commercial, MoS₂-synthesized and MoS₂ grown over CNFs showed a Tafel slope of 165, 79 and 60 mV/decade, respectively. The observed Tafel slope is among the best-reported slope for MoS₂. For example, Tafel slopes of 87, 82 and 77 mV/decade were reported for defect-free MoS₂ nanosheets, nanosized bulk MoS₂ and MoS₂ nanoparticles, respectively [42,43,44]. Lithium intercalated MoS₂ showed a Tafel slope of 62 mV/decade [22]. Ren et al. have synthesized monolayer of MoS₂ quantum dots and observed a Tafel slope of 59 mV/decade [45]. MoS₂ grown on Toray paper, MWCNT, and CNT/graphene showed a Tafel slope of 120, 109 and 100 mV/decade, respectively [41,46,47]. Some important parameters for MoS₂ based HER catalysts are given in Table S1 for comparison.

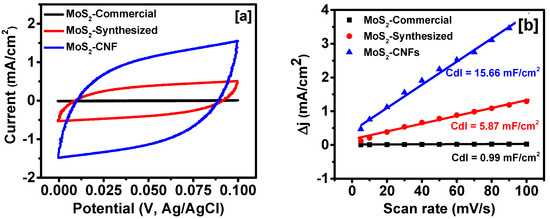

To further understand the origin of superior performance in the electro-catalytic activities of MoS₂-synthesized and MoS₂ grown over CNFs, cyclic voltammogram (CV) were performed. All the CV measurements were performed in a potential range where no faradic processes were observed [48]. The CV was recorded for all the samples at various scan rates to determine the electrochemical double layer capacitance (C_dl) which is directly proportional to the electrochemical effective surface area of the samples [21]. Figure 5a shows the CV curves of MoS₂-commercial, MoS₂-synthesized, and MoS₂ grown over CNFs at a scan rate of 50 mV/s. As seen in Figure 5a, the area under the CV curves is highest for MoS₂-CNFs and lowest for MoS₂-commercial samples, indicating improvement in the electrochemical effective surface area. The effect of scan rate on the CV curves of all the samples is shown in Figure S1. The CV curves were observed to be similar in shape even at higher scan rates indicating high electrochemical rate performance. Since electrochemical double layer capacitance is directly proportional to effective electrochemical surface area, C_dl was calculated by plotting difference in positive and negative current densities at 0.05 V (vs. Ag/AgCl) versus the scan rates (Figure 5b). The C_dl values of the samples were half of the slopes of Δj vs. scan rate plots [21]. The C_dl values of the MoS₂-commercial, MoS₂-synthesized, and MoS₂ grown over CNFs were calculated to be 0.99, 5.87 and 15.66 mF/cm², respectively. The effective electrochemical surface area of the MoS₂-CNFs is ~16 times higher than that of MoS₂-commercial and six times higher than that of MoS₂-synthesized samples. The highest effective electrochemical surface area and vertical structure of MoS₂ sheets over CNFs provide the best HER activity among the studied materials.

From the CV analysis, one can calculate turnover frequency (TOF) per site for these materials to estimate the intrinsic activity of the catalyst [49]. The TOF for MoS₂-commercial, MoS₂-synthesized and MoS₂-CNFs at −200 mV was estimated to be 0.013, 0.025 and 0.54 s⁻¹, respectively (Figure S2). The improved TOF for MoS₂-CNFs could be due to better charge transfer from MoS₂ to the electrode through conducting CNFs. Yan et al. have also observed an improvement in TOF by incorporating conducting CNTs in MoS₂ [5]. The TOF varies from 0.9 to ~10⁻⁹ s⁻¹ for platinum to transition metal catalysts, respectively [23].

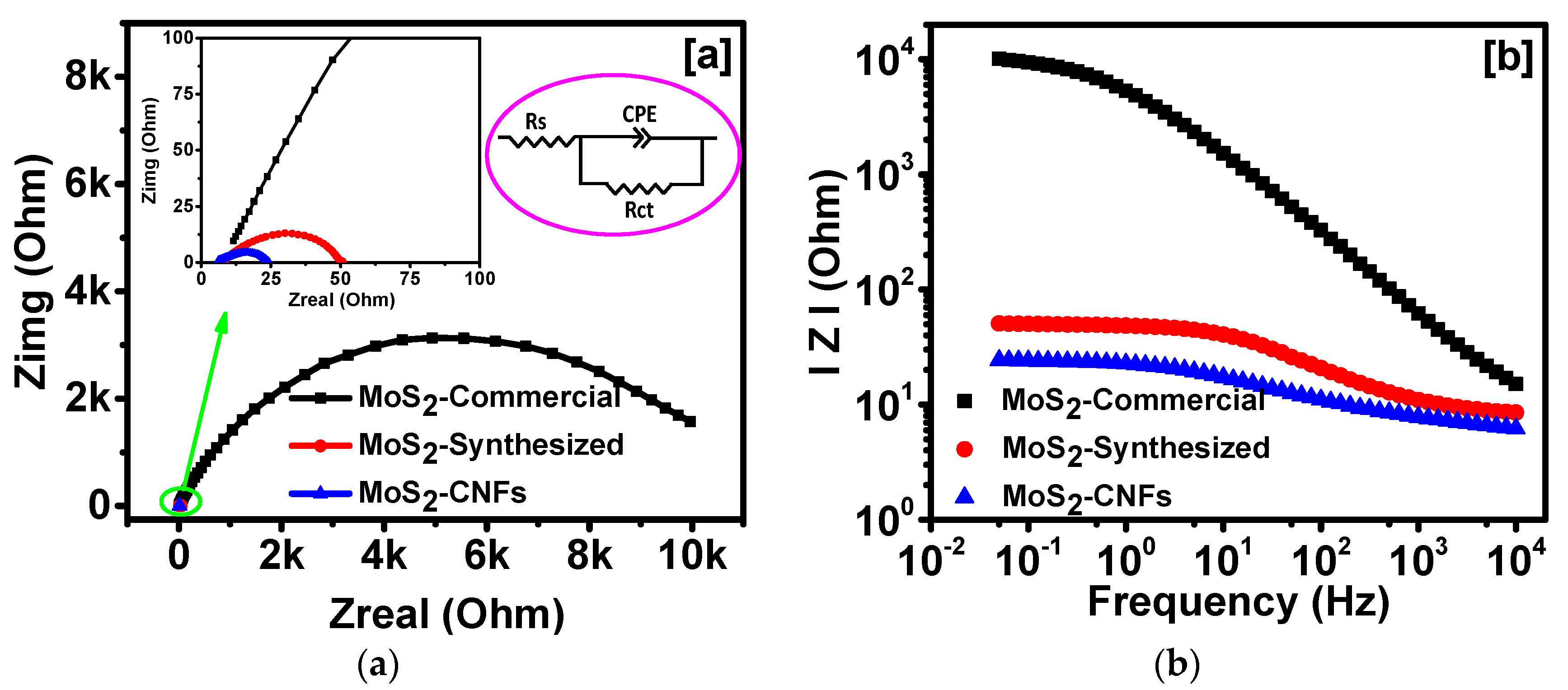

In addition to the high effective electrochemical surface area and vertical structure of MoS₂, the conductivity of the samples could play a major role in deciding the performance of these materials. Effective electron transfers and thus better electrical conductivity is required for improved HER performance. High electrical conductivity will facilitate electron transfer from MoS₂ to the electrode. Electrochemical impedance spectroscopy was used to study this behavior. Nyquist plots of various MoS₂ samples are shown in Figure 6a, with magnified Nyquist plots in low-frequency region. All the measured data were fitted using Randles circuit. The measured and simulated Nyquist plots for all the samples are shown in Figure S3 and the resulting fitting parameters are given in Table S2. The presence of semicircles in Nyquist plots indicates charge transfer process at the interface (electro-catalyst and electrolyte). Such charge transfer is associated with charge transfer resistance (Rct) and capacitance. In addition to Rct, such process also contains small series resistance (Rs) as shown in the inset of Figure 6a. Charge transfer resistance for MoS₂-CNFs (19.6 Ω) was much lower than MoS₂-synthesized (43.2 Ω) and MoS₂-commercial (10.3 kΩ) samples. Lower charge transfer resistance would provide higher electro-catalytic activity due to reduced resistance at the interface. The capacitance estimated after fitting the data is proportional to the electroactive surface area of the catalyst [41]. The capacitance value for MoS₂-commercial, MoS₂-synthesized, and MoS₂-CNFs was estimated to be 31.4, 806 and 5160 μF, respectively. Figure 6b shows the variation of impedance as a function of frequency for all the samples. As seen in Figure 6b, MoS₂-CNF displayed the lowest impedance. The high electro-catalytic activity of MoS₂-CNFs sample is due to lower charge transfer resistance and higher capacitance among other studied samples.

In addition to high HER catalytic activities, durable performance of a catalyst is required for practical applications. The long-term stability of the MoS₂-CNFs was studied using chronoamperometry and cyclic voltammetry measurements. Figure 7 shows a variation of current density as a function of time. As seen in Figure 7, the performance of MoS₂-CNFs is very stable up to about 18 hours of measurement. In fact, a small improvement in current density was observed during this study. The inset of Figure 7 clearly shows the evolution of hydrogen during measurement. Figure 8a shows the polarization curves of MoS₂-CNFs before and after 9000 cycles. As seen, the current density of the catalyst improved after the cyclic performance. For example, at an overpotential of 200 mV, the current density increased from 7.9 to 14.7 mA/cm², although there was no significant change in the Tafel slope (Figure 8b), suggesting that kinetics is almost same before and after the long-term testing. The stability performance of the MoS₂-CNFs was further investigated using electrochemical impedance spectroscopy (EIS). The Nyquist plots and variation of impedance as a function of frequency before and after stability test is shown are Figure 8c,d. The charge transfer resistance and impedance of the MoS₂-CNFs decreased significantly. Our study indicates that MoS₂ grown over conducting substrate could be a potential candidate for electro-catalyst.

3. Experimental Details

3.1. Synthesis

Carbon nanofibers were prepared using a simple electrospinning method followed by a heat treatment process. Briefly, a solution for electrospinning was prepared by dissolving 0.5 g of polyacrylonitrile (PAN) in 5 mL of N,N-dimethylformamide (DMF). The solution was transferred to 5 mL syringe with a stainless-steel needle (21 gauge). A high-voltage power supply (Gamma High Voltage Research, Product HV power Supply) was used as a high voltage source. The positive terminal of the source was connected to the stainless needle and negative terminal to collector plate made of aluminum foil. A voltage of 15 kV, volume feed rate of 0.6 mL/h and needle tip-to-aluminum foils distance of 12 cm was maintained during the electrospun process. The collected fibers were stabilized at 400 °C for 2 h (5 °C/min) and carbonized at 800 °C for 1 h (5 °C/min) under N₂ atmosphere.

MoS₂ decorated CNFs were prepared using a facile hydrothermal method. In a typical synthesis, 20 mg of CNFs were dispersed in 15 mL DMF using bath sonication for 1 h. In this, 75 mg of ammonium tetrathiomolybdate was added and dissolved using bath sonication for another 30 min. Then, the mixture was transferred into an autoclave and maintained at 210 °C for 18 h. The reactor was cooled down to room temperature and the black precipitate was filtered. The precipitate was washed subsequently with DI-water and anhydrous ethanol and finally dried at 60 °C for 24 h. MoS₂ without CNFs was synthesized using the above method except having CNFs in the solution.

3.2. Characterization

MoS₂-commercial, MoS₂-synthesized, and MoS₂ decorated on CNFs were structurally and electrochemically characterized. X-ray diffraction (XRD), Raman spectroscopy and scanning electron microscopy (SEM) were used for structural characterization. The XRD spectra of all the samples were taken using Shimadzu X-ray diffractometer. CuK_α1 was used as a source to produce X-ray. Raman measurements were performed using an Ar⁺ laser at a wavelength of 514.5 nm as the excitation source (Model Innova 70, Coherent). X-ray photoelectron spectroscopy (XPS) was used to detect the nitrogen and oxygen doping and chemical bonding in carbon nanofibers. A Thermo Scientific K_α XPS system was used to record XPS spectra. The X-ray power of 75 W at 12 kV was used for the experiment with a spot size of 400 mm². The XPS data acquisition was performed using the “Advantage v5.932” software provided with the instrument. Scanning electron microscope imaging was carried out using a JEOL 7000 FE SEM equipped with electron backscatter diffraction (EBSD), secondary electron (SE), backscattered electron (BE) and transmission electron (TE) detectors.

3.3. Electrochemical Measurements

All electrochemical measurements were performed using a VersaSTAT 4-500 electrochemical workstation (Princeton Applied Research, Oak Ridge, TN, USA). Three-electrode measurement method was used for the electrochemical testing. A graphite rod as a counter electrode, Ag/AgCl as a reference electrode and samples on glassy carbon electrode as a working electrode was used. Ten milligrams of sample was dispersed using bath sonicator in 1 mL water–ethanol (1:1 v/v) solution containing 25 μL Nafion solution (5 wt %). Ten microliters of the solution was drop cast over glassy carbon electrode (diameter 5 mm) and dried before electrochemical testing. HER performance of commercial platinum/carbon (20% Pt over graphitic carbon, from Sigma, St. Louis, MO, USA) was also performed under a similar condition for comparison. All the electrochemical measurements were conducted in an N₂ saturated 0.5 M H₂SO₄ electrolyte at room temperature. Electrochemical impedance spectroscopy (EIS) studies were performed in a frequency range of 0.05 Hz to 10 kHz with an applied 10 mV of AC amplitude for all measurements. The electrochemical surface area was determined by cyclic voltammetry at different scan rates in the non-faradic region.

4. Conclusions

MoS₂ and MoS₂ decorated carbon nanofibers were synthesized using a facile method. The structural characterizations confirm the formation of MoS₂ with flower-like structure, and the vertical attachment of MoS₂ sheets on CNFs. The electrochemical characterizations revealed the excellent electroactivity of MoS₂-CNFs, which is due to its high conductivity, high electroactive surface area, and the vertical structure of MoS₂ exposing high density of edge sulfur to the electrolyte. They provided a high current density, low Tafel slope, low charge transfer resistance and high turnover frequency compared with commercial MoS₂ as well as MoS₂ synthesized using a similar method. MoS₂-commercial, MoS₂-synthesized, and MoS₂ grown over CNFs showed a Tafel slope of 165, 79 and 60 mV per decade, respectively. MoS₂-CNFs showed outstanding stability for the long run. Thus, MoS₂-CNFs could be a promising cheap electrocatalyst for hydrogen evolution reaction due to its high electroactivity and durability.
