N-Alkylhydantoins as New Organogelators and Their Ability to Create Thixotropic Mixed Molecular Organogels

by
Yutaka Ohsedo
Division of Engineering, Faculty of Engineering, Nara Women’s University, Kitauoyahigashi-machi, Nara 630-8506, Japan
Gels 2022, 8(10), 638; https://doi.org/10.3390/gels8100638
Submission received: 20 September 2022 / Revised: 2 October 2022 / Accepted: 4 October 2022 / Published: 8 October 2022
(This article belongs to the Collection Recent Advances and Future Perspectives in Organogels and Organogelators Research)
Browse Figures
Versions Notes

Abstract

:
The author reported molecular organogels using N-alkylhydantoins as new low-molecular-weight gelators for the first time, and thixotropic mixed molecular organogels using a set of N-alkylhydantoin gelators with different alkyl chain lengths. These homologous compounds with different alkyl chains are found to form macroscopic crystals or solution states in polar solvents, but form homogeneous organogels in non-polar solvents, such as n-octane and squalane. Although there is no significant increase in the minimum gelation concentration of the mixed molecular gels using squalane as a solvent, these mixed molecular organogels show improved mechanical properties, especially in their thixotropic behavior, which is not observed in the single N-alkylhydantoin gels. Furthermore, they exhibit reversible thixotropic behavior with quick recovery of the gel state in a minute by quantitatively measuring dynamic viscoelasticity measurements of rheometry of mixed molecular gels. Based on the morphological observations of the xerogels, the self-assembling fibers of the gelators become finer, indicating an increase in the density of the mesh structure inside the gel, which could explain its thixotropic behavior. These thixotropic mixed molecular gels may be applicable to ointment base materials, because they are gelled with squalane oil.

1. Introduction

As principal bioactive compounds, hydantoins, which contain an imidazolidine-2,4-dione known as glycolylurea, are important in medicinal chemistry [1,2]. The biochemical and biological activities of hydantoins on living things may originate from their cyclic urea and cyclic amide chemical structures. Owing to their variety of chemical structures, hydantoin derivatives have found many uses as an anticonvulsant, known as phenytoin [3]; as a pyrethroid pesticide, known as imiprothrin [4]; and as a preservative, known as MDM or DMDM hydantoin (1,2-dimethylol-5,6-dimethylhydantoine) for cosmetics [5]. In order to develop new hydantoins with high biological activities, several efforts were made to create an efficient synthetic route to obtain a variety of hydantoins [6]. In various derivatives of hydantoins, N-alkylhydantoins, which have been alkylated in one of the two N-positions of hydantoin, are used as additives in polymer materials for antimicrobial activity [7,8]. Initially, Baeyer first investigated the chemistry of hydantoins starting in 1861 [9]. Therefore, the chemistry of hydantoins consists of old and new positions in organic synthetic chemistry and medicinal chemistry.
On the other hand, in terms of materials chemistry, the chemical component units of N-alkylhydantoins, such as an alkyl chain, urea, and amide, may exhibit different inter-molecular interactions, resulting in anisotropic molecular self-assembly in its crystal formation, as shown in low-molecular-weight gelators (LMWGs) [10,11,12], which generally consist of the same types of chemical components as N-alkylhydantoins. Generally, LMWGs and a solvent produce molecular gels consisting of a network of self-assembled LMWG fibers with orders ranging from nanometers to micrometers and received significant attention as a new type of soft matter because of their unique multi-stimuli responses from the environment [13,14,15,16,17,18,19,20] and thixotropy, which undergo mechanically induced reversible gel-to-sol and sol-to-gel transitions [21,22,23,24,25,26,27,28]. Since thixotropy is an essential property of materials used as base materials for ointments, research on molecular gels has been actively conducted to obtain thixotropic molecular gels [29,30]. Therefore, creating new molecular gels with improved properties, especially in thixotropic behavior, is required to extend the usage of gels, such as in health care and medicinal fields [31,32]. However, although it is thought that N-alkylhydantoins function as LMWGs, such as alkylhydrazides [33], alkylureas [34], and alkylamides [35], there is no example of N-alkylhydantoins being used as LMWGs.
Here, the author reports a new creation of thixotropic molecular organogels using mixed N-alkylhydantoins with different alkyl chain lengths as LMWGs (Figure 1). Although creations of molecular gels with mixed gelators are reported [22,27,28,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47], this is the first study to describe N-alkylhydantoins as LMWGs. This mixing of LMWGs with different alkyl chain lengths is shown as a new method for improving the mechanical properties of molecular gels, especially in thixotropy, which is probably due to the improved quality of the network of gels.

2. Results and Discussion

Commercially available N-alkylhydantoins (CnH), 1-N-butylhydantoin (C4H), 1-N-dodecylhydantoin (C12H), and 1-N-hexadecylhydantoin (C16H) were used, and their critical gel concentrations (CGC) for various organic solvents were examined (Table 1). From the results, n-octane, olive oil, and squalane are suitable solvents for CnH gels (all gels are opaque), and CnH with a longer alkyl chain seems better for forming gels in terms of CGC. These compounds are organogelators that function in non-polar solvents, such as olive oil and squalane. For C12H and C4H, with short alkyl chain lengths, except for hydrophobic solvents, the samples remain in solution after the gelation test, while for C16H, with longer alkyl chain lengths, crystals are formed, although no gel is formed, indicating a higher capacity for macroscopic crystal formation. In hydrophobic solvents, C16H has a lower CGC than C14H, which has a shorter alkyl chain length, suggesting that the longer the alkyl chain length, the better the ability to form gels. It is also discovered that longer alkyl chains are more favorable for gelation, probably because the magnitude of inter-molecular forces between alkyl group chains is more favorable for fiber formation [33]. Hereafter, the CnH/squalane system is the focus for studying the mixed gel system, owing to its better gel-forming properties. The mixed gel systems were performed only with mixed CnH in squalane (Table 2). Examinations of binary and tertiary systems of CnH/squalane systems prove that mixed gels in some compositions show improved CGC, such as the C16H/C4H 1/1 system (CGC 1.0 wt.%), despite C4H lacking gelation ability, and the C16H/C12H/C4H 1/1/1 system (CGC 1.0 wt.%). These mixed gels all show clear gels that retain their gel state for at least 6 months without crystallization. The results indicate that mixing CnHs for mixed molecular gels improves gel-forming properties.
In addition to the improvement in gel formation, the mixed molecular gel system demonstrates improved thixotropic behavior compared with the single system (Figure 2). As shown in Table 2, the tendency to recover from sol to gel is faster in mixed gels than in single gels. Although thixotropic behavior is not confirmed even at 3 wt.% in the single C16H and C14H squalane gels (no recovery to gel is observed after 1 day of standing), good thixotropic behavior is observed in some compositions in the two-component system and all compositions, except C16H/C12H/C4H 5/1/1, in the three-component system, with recovery from sol to gel occurring within 1 min. In the multicomponent system, there is no clear trend in the correlation between the mixing ratio and thixotropic behavior, and much remains unclear. However, the improvement in gel-forming ability and thixotropic behavior from a single-component system to a multicomponent mixture may be due to the difference in the network structure within the gel, which is discussed later.
Dynamic viscoelasticity measurements were performed on the resulting gels to obtain a more detailed quantitative view of the abovementioned results. The results of strain dispersion measurements indicate that increasing the strain causes a clear transition from the gel state (G′ > G″) to the sol state (G′ < G″) in the two- and three-component systems, as demonstrated in general molecular gels [48]. The results reveal that the elastic modulus decreases and softens with mixing in the two- and three-component molecular gels. The strain increases during the gel-to-sol transition depending on the combination of components. These results indicate a match–mismatch combination of CnH mixing in the gel strength (Figure 3). Rheometry of the single and mixed molecular gels reveals that G′ > G″ over a wide range of frequency variation, confirming that these are in a gel state [49] in the same range of softness (Figure 4).
The quantitative evaluation of thixotropy was also performed with rheometry by applying high and low shear (Figure 5). The results show a trend of repeated recovery from the sol state (G′ < G″) to the gel state (G′ > G″). However, a sharp decrease in the elastic modulus is observed after the initial application of external force. Compared with the two-component system, the three-component system has a more significant decrease in elastic modulus, and the plot values are less stable. Only the 16HDT/4HDT gel shows a clear, repeated recovery, indicating that it is a gel with good thixotropic properties (two plotted values of G″ at the same time can be attributed to the vibration of the gel). The C16H/C12H and tertiary systems show lower recovery than single gel systems, while binary mixed molecular gel systems show better recovery of gel state with larger G′ > G″ than single systems, especially in 16HDT/4HDT. Thixotropic behavior is observed in both the two- and three-component molecular gels in the vial test evaluation, but the step-shear test results do not show a clear recovery behavior from the sol state to the gel state. However, the rheometer test examined thixotropic behavior in a small space between flat plates, which does not correspond exactly to the vial test, but shows a tendency for G′ > G″ after large deformation in each system. C16H/C4H gel only shows stable behavior.
To investigate the inside structures of organogels, polarized optical microscopy (POM) and scanning electron microscopy (SEM) were conducted. From the results, gels consist of a network of crystalline fiber with tens of micrometers in width and 100 μm in length (Figure 6). Although these network structures and morphologies are observed in other kinds of gel systems [12], the mixed systems have a finer network than the single system, as seen in SEM images (Figure 7), which show a tape-shaped fiber with micrometer width in mixed systems, and a sheet-shaped fiber with dozens of micrometer width in a single system, a similar tendency shown in mixed molecular gel systems [28]. This change in the components of the gel mesh structure, i.e., the miniaturization of the components, may result in the densification of the mesh structure and, thus, the development of thixotropic properties. However, while there are examples of gelator fibers being changed by the introduction of a second component (surfactant) [50], it is still unclear how the structure of the constituent elements was changed by mixing.
To further obtain information on the internal network structure of the molecular gels in the single and mixed systems, the thermal change behavior of the network structure was investigated by performing thermal analysis of the molecular gels by DSC measurements. In this thermal analysis, the gel sample dissolves to a sol state during the heating process and forms a gel state during cooling process. From the thermal analysis of the molecular gels in Figure 8 and Table 3, (1) an endothermic peak corresponding to the transition from gel to sol is observed during the temperature increase process of each sample, and an exothermic peak corresponding to the transition from sol to gel is observed during the high-temperature process, and (2) a temperature decrease in the peak of each transition is observed in the mixed gel compared to the single gel. Result (1) and corresponding ΔH values indicate that these transitions are reversible because the thermal energies (ΔH) of those processes are comparable. The DSC results also show that the three-component system has multiple to single exothermic and endothermic peaks in lower temperature regions compared to the two-component system, suggesting that the mesh structure is more uniform depending on the number of components. Also, result (2) shows a change in the internal network structure of the gel, which is thought to be due to the change of the network fibers into finer components, as the gel becomes more thermally changeable when mixed, which is consistent with the SEM observations. However, thixotropy evaluation results do not necessarily indicate that the microscopic homogeneity of the gel obtained by thermal analysis is advantageous for thixotropy, as the three-component system is advantageous for recovery in the vial test, and the two-component system results (C16H/C4H) are more stable plots in the rheometer test. To apply this squalane thixotropic gel to ointment base materials for health care, further study of the correlation between the internal structure of the gel and thixotropic properties is required.
Finally, by comparing the attenuated total reflectance Fourier-transform infrared (ATR–FTIR) spectroscopy absorption spectra in the gel, solution, and xerogel states among the gelators, the author observes how the hydrogen bonds function in each state. Figure 9 shows the ATR–FTIR spectrum of the absorption region of the carbonyl group involved in hydrogen bonding. In the single system (Figure 9a,b), the intermolecular hydrogen-bond-derived absorption peak in the xerogel decreases (near 1620~1660 cm−1), whereas the absorption peak of the hydrogen-bond-free species increases in the longer wavelength region in the gel and solution states (near 1680~1720 cm−1). In contrast, in the two-component and three-component gels (Figure 9c,d), only the hydrogen-bonding-derived absorption bands observed in the single system are observed in the xerogel and gel states (near 1710~1730 cm−1). Simultaneously, hydrogen-bonding and hydrogen-bond-free-derived absorption bands are observed in the solution state (near 1670~1710 cm−1 and 1710~1730 cm−1, respectively), indicating that the fiber formation by hydrogen bonding may be more robust in the mixed system than in the single system. This could be due to the difference in thixotropic behavior between the single system (without thixotropy) and the mixed system (with thixotropy), or the ease of fiber recovery from the sol state to the gel state after the gel network is broken by external mechanical force. The results and trends obtained in this study are observed in other mixed-system molecular gels [33,34,35].

3. Conclusions

In conclusion, the author demonstrates the gel properties of N-alkylhydantoins as LMWGs for molecular organogels for the first time, and the mixing strategy to enhance the gel-forming and mechanical properties compared to single gels. It is shown that N-alkylhydantoins become new LMWGs that exhibit the ability to gel hydrophobic organic solvents. Furthermore, improved thixotropic behavior is observed in mixed organogel systems, particularly in mechanical properties, even though each single molecular organogel exhibits poor thixotropic behavior, as evidenced by the rheometric results. The results in this study enable the commercial additives, N-alkylhydantoins, to be a new set of mixed molecular organogels and candidates for base materials of drug-release ointments. These new mixed molecular organogels with thixotropic behavior may be applied to ointment base materials in the health care and cosmetic fields, since they are obtained by gelling squalane oil, which is used as a base material for health care and cosmetic products. However, further research into the correlation between the homogeneity of the gel interior and thixotropic properties is required for future applications.

4. Materials and Methods

N-alkylhydantoins, 1-N-butylhydantoin (98%), 1-N-dodecylhydantoin (98%), and 1-N-hexadecylhydantoin (98%) were purchased from Tokyo Chemical Industry Co., Ltd., Tokyo, Japan. All other chemicals were purchased from Wako Pure Chemical Industries, Ltd., Tokyo, Japan, and used without further purification.
Gelation of N-alkylhydantoins was performed as follows. N-alkylhydantoins crystals were placed in a vial with a set concentration (wt.%) of solvent and capped. The vial was heated in a dry bath at 100 °C to dissolve the N-alkylhydantoins crystals. The solution was allowed to dissolve. The N-alkylhydantoins solution was allowed to stand at room temperature for 30 min to check for gelation. The mixed molecular gels of N-alkylhydantoins were tested by mixing N-alkylhydantoins homologues in integer molar ratios, as described in the main text.
Gelation ability and thixotropic behavior were evaluated by the vial inversion method (a method in which a vial containing gel is inverted and judged to be in a gel state if it does not drip). Thixotropic behavior is evaluated through examining if it recovered from a sol to a gel when it was broken with a vortex gene to form a sol and inverted after standing for a certain time (if it is not recovered and sol, it will drip).
POM observations of the organogels were carried out with a Leica DM2500 (Leica Microsystems GmbH, Wetzlar, Germany) polarized optical microscope under crossed nicols.
SEM image measurements were carried out using a SU-8000 scanning electron microscope (Hitachi High-Technologies Corporation, Tokyo, Japan) at 1.0 kV. The vacuum-dried organogels with octane as solvent (xerogels) for one day at 25 °C and then one day at 80 °C were measured on a conductive tape on the brass SEM stage. In addition, the samples were coated with a spattering of Pt (10 nm-thick) to add electrical conductivity.
Rheological measurements were performed using an MCR-301 rheometer (Anton Paar Japan K.K., Tokyo, Japan) with a parallel plate (8 mm diameter) at a gap of 0.50 mm at 25 °C. The frequency sweeps were carried out with γ of 0.01 %. The strain sweeps were carried out with a constant angular frequency of 1 rad s−1. The repeated step-shear measurements were carried out with a normal strain with an amplitude of 0.01% and frequency of 1 Hz, and a large strain with a shear rate of 3000 s−1 for 0.1 s.
Thermal analysis of organogels was carried out with an EXSTAR6220 differential scanning calorimeter DSC (Hitachi High-Tech Corporation, Tokyo, Japan) using an Ag-made closable sample pan.
ATR–FTIR spectra were recorded with a Cary 670 FTIR (Agilent Technologies Japan, Ltd., Tokyo, Japan) using a single bounce diamond ATR accessory.

Funding

This research was partly funded by JSPS KEKENHI, grant numbers 15K05610 and 19K05634.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The SEM measurement was performed at the Research Center for Materials and Energy Devices of the Fukuoka Institute of Technology (FIT-ME).

Conflicts of Interest

The author declares no conflict of interest.

References

  1. López, C.A.; Trigo, G.G. The Chemistry of Hydantoins. Adv. Heterocycl. Chem. 1985, 38, 177–228. [Google Scholar] [CrossRef]
  2. Cho, S.H.; Kim, S.H.; Shin, D. Recent Applications of Hydantoin and Thiohydantoin in Medicinal Chemistry. Eur. J. Med. Chem. 2019, 164, 517–545. [Google Scholar] [CrossRef] [PubMed]
  3. Thenmozhiyal, J.C.; Wong, P.T.H.; Chui, W.K. Anticonvulsant Activity of Phenylmethylenehydantoins: A Structure-Activity Relationship Study. J. Med. Chem. 2004, 47, 1527–1535. [Google Scholar] [CrossRef] [PubMed]
  4. Matsuo, N.; Suzuki, K. Discovery and Development of Pyrethroid Insecticides. Proc. Jpn. Acad. Ser. B 2019, 95, 378–400. [Google Scholar] [CrossRef] [Green Version]
  5. Won, H.; Lee, J.H.; Seok, J.H.; Jung, K.; Yang, J.Y.; Jeong, J.; Lee, J.K. Single- and Repeated-Dose 28-Day Oral Toxicity Study of MDM Hydantoin in Sprague–Dawley Rats. Toxicol. Res. 2021, 37, 59. [Google Scholar] [CrossRef]
  6. Konnert, L.; Lamaty, F.; Martinez, J.; Colacino, E. Recent Advances in the Synthesis of Hydantoins: The State of the Art of a Valuable Scaffold. Chem. Rev. 2017, 117, 13757–13809. [Google Scholar] [CrossRef]
  7. Chen, Z.; Sun, Y. N-Halamine-Based Antimicrobial Additives for Polymers: Preparation, Characterization, and Antimicrobial Activity. Ind. Eng. Chem. Res. 2006, 45, 2634–2640. [Google Scholar] [CrossRef] [Green Version]
  8. Chang, J.; Yang, X.; Ma, Y.; Shao, J.; Yang, X.; Chen, Z. Alkyl Substituted Hydantoin-Based N-Halamine: Preparation, Characterization, and Structure-Antibacterial Efficacy Relationship. Ind. Eng. Chem. Res. 2016, 55, 9344–9351. [Google Scholar] [CrossRef]
  9. Ware, E. The Chemistry of the Hydantoins. Chem. Rev. 1950, 46, 403–470. [Google Scholar] [CrossRef]
  10. Weiss, R.G.; Terech, P. Molecular Gels: Materials with Self-Assembled Fibrillar Networks; Springer: Dordrecht, The Netherlands, 2006. [Google Scholar]
  11. Guenet, J.-M. Organogels Thermodynamics, Structure, Solvent Role, and Properties; Springer International Publishing AG: Cham, Switzerland, 2016. [Google Scholar]
  12. Weiss, R.G. Molecular Gels, Structure and Dynamics; The Royal Society of Chemistry: London, UK, 2018. [Google Scholar]
  13. Wojtecki, R.J.; Meador, M.A.; Rowan, S.J. Using the Dynamic Bond to Access Macroscopically Responsive Structurally Dynamic Polymers. Nat. Mater. 2011, 10, 14–27. [Google Scholar] [CrossRef]
  14. Yamanaka, M. Development of C 3-Symmetric Tris-Urea Low-Molecular-Weight Gelators. Chem. Rec. 2016, 16, 768–782. [Google Scholar] [CrossRef] [PubMed]
  15. Amabilino, D.B.; Smith, D.K.; Steed, J.W. Supramolecular Materials. Chem. Soc. Rev. 2017, 46, 2404–2420. [Google Scholar] [CrossRef] [PubMed]
  16. Miao, R.; Peng, J.; Fang, Y. Molecular Gels as Intermediates in the Synthesis of Porous Materials and Fluorescent Films: Concepts and Applications. Langmuir 2017, 33, 10419–10428. [Google Scholar] [CrossRef]
  17. Weiss, R.G. Controlling Variables in Molecular Gel Science: How Can We Improve the State of the Art? Gels 2018, 4, 25. [Google Scholar] [CrossRef] [Green Version]
  18. Mayr, J.; Saldías, C.; Díaz Díaz, D. Release of Small Bioactive Molecules from Physical Gels. Chem. Soc. Rev. 2018, 47, 1484–1515. [Google Scholar] [CrossRef]
  19. Chivers, P.R.A.; Smith, D.K. Shaping and Structuring Supramolecular Gels. Nat. Rev. Mater. 2019, 4, 463–478. [Google Scholar] [CrossRef] [Green Version]
  20. Panja, S.; Adams, D.J. Stimuli Responsive Dynamic Transformations in Supramolecular Gels. Chem. Soc. Rev. 2021, 50, 5165–5200. [Google Scholar] [CrossRef]
  21. Goodwin, J.; Hughes, R. Rheology for Chemists: An Introduction, 2nd ed.; Royal Society of Chemistry: Cambridge, UK, 2008. [Google Scholar]
  22. Cornwell, D.J.; Smith, D.K. Expanding the scope of gels—Combining polymers with low-molecular-weight gelators to yield modified self-assembling smart materials with high-tech applications. Mater. Horiz. 2015, 2, 279–293. [Google Scholar] [CrossRef] [Green Version]
  23. Dawn, A.; Shiraki, T.; Haraguchi, S.; Tamaru, S.; Shinkai, S. What Kind of “Soft Materials” Can We Design from Molecular Gels? Chem. Asian J. 2011, 6, 266–282. [Google Scholar] [CrossRef]
  24. Weiss, R.G. The Past, Present, and Future of Molecular Gels. What Is the Status of the Field, and Where Is It Going? J. Am. Chem. Soc. 2014, 136, 7519–7530. [Google Scholar] [CrossRef]
  25. Babu, S.S.; Praveen, V.K.; Ajayaghosh, A. Functional π-Gelators and Their Applications. Chem. Rev. 2014, 114, 1973–2129. [Google Scholar] [CrossRef] [PubMed]
  26. Rogers, M.A.; Weiss, R.G. Systematic Modifications of Alkane-Based Molecular Gelators and the Consequences to the Struc-tures and Properties of Their Gels. New J. Chem. 2015, 39, 785–799. [Google Scholar] [CrossRef]
  27. Ohsedo, Y. Low-Molecular-Weight Organogelators as Functional Materials for Oil Spill Remediation. Polym. Adv. Technol. 2016, 27, 704–711. [Google Scholar] [CrossRef]
  28. Ohsedo, Y. Low-Molecular-Weight Gelators as Base Materials for Ointments. Gels 2016, 2, 13. [Google Scholar] [CrossRef] [Green Version]
  29. Dayan, N. Delivery System Design in Topically Applied Formulations: An Overview. In Delivery System Handbook for Personal Care and Cosmetic Products, Technology, Applications, and Formulations; Rosen, M.R., Ed.; William Andrew, Inc.: New York, NY, USA, 2005; pp. 101–118. [Google Scholar]
  30. Sugibayashi, K.; Morimoto, Y. Transdermal Patches. In Gels Handbook, The Fundamentals; Osada, Y., Kajiwara, K., Fushimi, T., Irasa, O., Hirokawa, Y., Matsunaga, T., Shimomura, T., Wang, L., Ishida, H., Eds.; Section 6; Elsevier Inc.: Amsterdam, The Netherlands, 2001; Volume 3, pp. 201–210. [Google Scholar]
  31. Boekhoven, J.; Stupp, S.I. 25th Anniversary Article: Supramolecular Materials for Regenerative Medicine. Adv. Mater. 2014, 26, 1642–1659. [Google Scholar] [CrossRef] [Green Version]
  32. Zhou, J.; Li, J.; Du, X.; Xu, B. Supramolecular Biofunctional Materials. Biomaterials 2017, 129, 1–27. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Ohsedo, Y.; Watanabe, H.; Oono, M.; Tanaka, A. Mixing Enhancement Effect of Low-Molecular-Weight Organogelators for Thixotropic Organogel Creation. Chem. Lett. 2013, 42, 363–365. [Google Scholar] [CrossRef]
  34. Ohsedo, Y.; Oono, M.; Tanaka, A.; Watanabe, H. Mixing Induced Thixotropy of a Two-Component System of Alkylurea Or-ganogelators Having Different Alkyl Chains. New J. Chem. 2013, 37, 2250–2253. [Google Scholar] [CrossRef]
  35. Ohsedo, Y.; Taniguchi, M.; Oono, M.; Saruhashi, K.; Watanabe, H. Creation of Thixotropic Multicomponent Alkylamide Organogels Containing Non-Volatile Oil as Potential Drug Release Host Materials. RSC Adv. 2014, 4, 35484–35488. [Google Scholar] [CrossRef]
  36. Hirst, A.R.; Smith, D.K. Two-Component Gel-Phase Materials—Highly Tunable Self-Assembling Systems. Chem.-A Eur. J. 2005, 11, 5496–5508. [Google Scholar] [CrossRef] [PubMed]
  37. Buerkle, L.E.; Rowan, S.J. Supramolecular Gels Formed from Multi-Component Low Molecular Weight Species. Chem. Soc. Rev. 2012, 41, 6089–6102. [Google Scholar] [CrossRef] [PubMed]
  38. Draper, E.R.; Wallace, M.; Schweins, R.; Poole, R.J.; Adams, D.J. Nonlinear Effects in Multicomponent Supramolecular Hydrogels. Langmuir 2017, 33, 2387–2395. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Draper, E.R.; Adams, D.J. How Should Multicomponent Supramolecular Gels Be Characterised? Chem. Soc. Rev. 2018, 47, 3395–3405. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Cross, E.R.; Sproules, S.; Schweins, R.; Draper, E.R.; Adams, D.J. Controlled Tuning of the Properties in Optoelectronic Self-Sorted Gels. J. Am. Chem. Soc. 2018, 140, 8667–8670. [Google Scholar] [CrossRef] [Green Version]
  41. Tanaka, W.; Shigemitsu, H.; Fujisaku, T.; Kubota, R.; Minami, S.; Urayama, K.; Hamachi, I. Post-Assembly Fabrication of a Functional Multicomponent Supramolecular Hydrogel Based on a Self-Sorting Double Network. J. Am. Chem. Soc. 2019, 141, 4997–5004. [Google Scholar] [CrossRef]
  42. Cornwell, D.J.; Smith, D.K. Photo-Patterned Multi-Domain Multi-Component Hybrid Hydrogels. Chem. Commun. 2020, 56, 7029–7032. [Google Scholar] [CrossRef] [PubMed]
  43. Vasilyev, G.; Koifman, N.; Shuster, M.; Gishvoliner, M.; Cohen, Y.; Zussman, E. Synergistic Effect of Two Organogelators for the Creation of Bio-Based, Shape-Stable Phase-Change Materials. Langmuir 2020, 36, 15572–15582. [Google Scholar] [CrossRef] [PubMed]
  44. Dasgupta, D.; Srinivasan, S.; Rochas, C.; Ajayaghosh, A.; Guenet, J.M. Hybrid Thermoreversible Gels from Covalent Polymers and Organogels. Langmuir 2009, 25, 8593–8598. [Google Scholar] [CrossRef]
  45. Nyrkova, I.; Moulin, E.; Armao, I.J.J.; Maaloum, M.; Heinrich, B.; Rawiso, M.; Niess, F.; Cid, J.-J.; Jouault, N.; Buhler, E.; et al. Supramolecular Self-Assembly and Radical Kinetics in Conducting Self-Replicating Nanowires. ACS Nano 2014, 8, 10111–10124. [Google Scholar] [CrossRef] [PubMed]
  46. Zoukal, Z.; Elhasri, S.; Carvalho, A.; Schmutz, M.; Collin, D.; Vakayil, P.K.; Ajayaghosh, A.; Guenet, J.M. Hybrid Materials from Poly(Vinyl Chloride) and Organogels. ACS Appl. Polym. Mater. 2019, 1, 1203–1208. [Google Scholar] [CrossRef]
  47. Talebpour, P.; Heinrich, B.; Gavat, O.; Carvalho, A.; Moulin, E.; Giuseppone, N.; Guenet, J.M. Modulation of the Molecular Structure of Tri-Aryl Amine Fibrils in Hybrid Poly[Vinyl Chloride] Gel/Organogel Systems. Macromolecules 2021, 54, 8104–8111. [Google Scholar] [CrossRef]
  48. Dawn, A.; Kumari, H. Low Molecular Weight Supramolecular Gels Under Shear: Rheology as the Tool for Elucidating Structure–Function Correlation. Chem.–A Eur. J. 2018, 24, 762–776. [Google Scholar] [CrossRef]
  49. Kavanagh, G.M.; Ross-Murphy, S.B. Rheological Characterisation of Polymer Gels. Prog. Polym. Sci. 1998, 23, 533–562. [Google Scholar] [CrossRef]
  50. Castelletto, V.; Hamley, I.W.; Adamcik, J.; Mezzenga, R.; Gummel, J. Modulating Self-Assembly of a Nanotape-Forming Peptide Amphiphile with an Oppositely Charged Surfactant. Soft Matter 2011, 8, 217–226. [Google Scholar] [CrossRef]
Gels 08 00638 g001 550

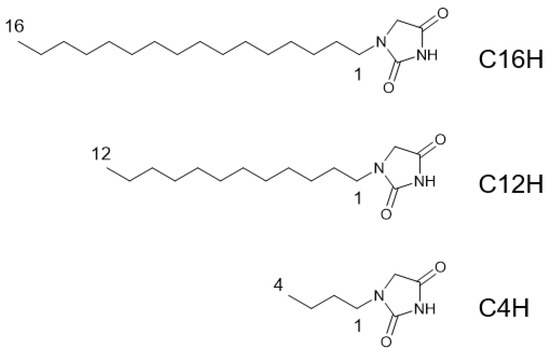

Figure 1. Chemical structures of N-alkylhydantoins in this study.
Figure 1. Chemical structures of N-alkylhydantoins in this study.
Gels 08 00638 g001
Gels 08 00638 g002 550
Figure 2. Thixotropic behavior of the organogel formed with C16H/C12H/C4H 1/1/1 (2 wt.%) squalane organogel: (a) organogel before shaking, (b) organosol after shaking, and (c) recovered organogel after 1 min rest of organosol.
Figure 2. Thixotropic behavior of the organogel formed with C16H/C12H/C4H 1/1/1 (2 wt.%) squalane organogel: (a) organogel before shaking, (b) organosol after shaking, and (c) recovered organogel after 1 min rest of organosol.
Gels 08 00638 g002
Gels 08 00638 g003 550

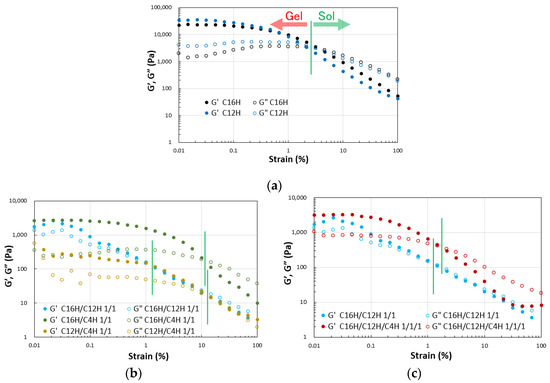

Figure 3. Dynamic rheological properties of the mixed molecular squalane organogels (3.0 wt.%) on strain sweep; (a) single gels, (b) binary gels, and (c) tertiary gels with C16H/C12H 1/1 gel as a reference.
Figure 3. Dynamic rheological properties of the mixed molecular squalane organogels (3.0 wt.%) on strain sweep; (a) single gels, (b) binary gels, and (c) tertiary gels with C16H/C12H 1/1 gel as a reference.
Gels 08 00638 g003
Gels 08 00638 g004 550

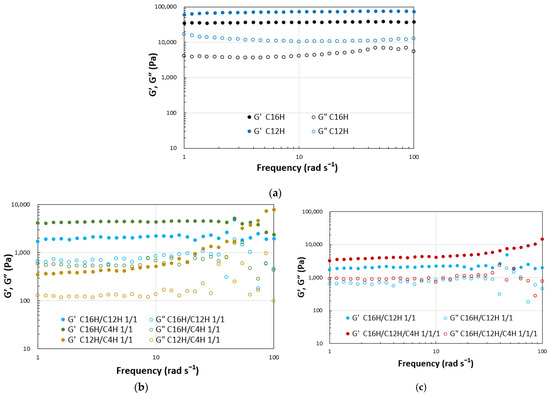

Figure 4. Dynamic rheological properties of the mixed molecular squalane organogels (3.0 wt.%) on frequency sweep; (a) single gels, (b) binary gels, and (c) tertiary gels with C16H/C12H 1/1 gel as a reference.
Figure 4. Dynamic rheological properties of the mixed molecular squalane organogels (3.0 wt.%) on frequency sweep; (a) single gels, (b) binary gels, and (c) tertiary gels with C16H/C12H 1/1 gel as a reference.
Gels 08 00638 g004
Gels 08 00638 g005 550

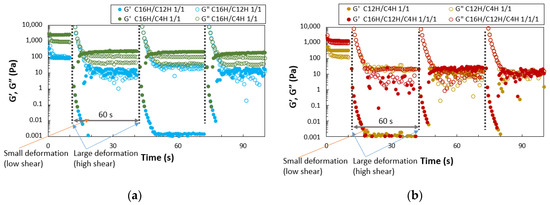

Figure 5. Periodic step-shear test results for the mixed molecular squalane organogels (3.0 wt.%); (a) C16H/C12H 1/1 gel and C16H/C4H 1/1 gel, (b) C12H/C4H 1/1 gel and C16H/C12H/C4H 1/1/1 gel.
Figure 5. Periodic step-shear test results for the mixed molecular squalane organogels (3.0 wt.%); (a) C16H/C12H 1/1 gel and C16H/C4H 1/1 gel, (b) C12H/C4H 1/1 gel and C16H/C12H/C4H 1/1/1 gel.
Gels 08 00638 g005
Gels 08 00638 g006 550
Figure 6. POM photos of the single and mixed molecular gels (solvent: squalane) under the crossed nicols.
Figure 6. POM photos of the single and mixed molecular gels (solvent: squalane) under the crossed nicols.
Gels 08 00638 g006
Gels 08 00638 g007 550
Figure 7. SEM images of the single and mixed xerogels obtained from molecular gels with n-octane as the solvent.
Figure 7. SEM images of the single and mixed xerogels obtained from molecular gels with n-octane as the solvent.
Gels 08 00638 g007
Gels 08 00638 g008 550

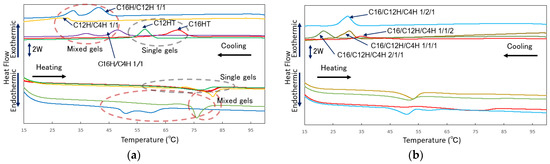

Figure 8. DSC curves of the mixed N-alkylhydantoin organogels. All samples are 3 wt.% squalane gels and mixed in a molar ratio (heating and cooling rate is 10 °C/min): (a) single and binary systems, (b) tertiary systems.
Figure 8. DSC curves of the mixed N-alkylhydantoin organogels. All samples are 3 wt.% squalane gels and mixed in a molar ratio (heating and cooling rate is 10 °C/min): (a) single and binary systems, (b) tertiary systems.
Gels 08 00638 g008
Gels 08 00638 g009 550
Figure 9. ATR–FTIR spectra of the N-alkylhydantoins in different states (a gel, aqueous solution, and xerogel) in the region of carbonyl stretching region: (a) single system C16H, (b) single system C12H, (c) binary system C16H/C12H 1/1, (d) tertiary system C16H/C12H/C4H 1/1/1.
Figure 9. ATR–FTIR spectra of the N-alkylhydantoins in different states (a gel, aqueous solution, and xerogel) in the region of carbonyl stretching region: (a) single system C16H, (b) single system C12H, (c) binary system C16H/C12H 1/1, (d) tertiary system C16H/C12H/C4H 1/1/1.
Gels 08 00638 g009
Table
Table 1. Critical gel concentrations (CGC, wt.%) of N-alkylhydantoins in organic solvents.
Table 1. Critical gel concentrations (CGC, wt.%) of N-alkylhydantoins in organic solvents.
SolventC16HC12HC4H
Propylene carbonateK*,1PG 4S
N,N-Dimethyl formamideK 2SS
MethanolKSS
EthanolKSS
1-ButanolKSS
DichloroethaneKSS
TetrahydrofuranS 3SS
Ethyl acetateKSS
TolueneKSS
n-Octane26PG
Olive oil355
Squalane12S
1 K*: crystallization at 5 wt.%, 2 K: crystallization at 10 wt.%, 3 S: solution at 10 wt.%, 4 PG: partial gel at 10 wt.%.
Table
Table 2. Critical gel concentrations (CGC, wt.%) of mixed N-alkylhydantoin systems in squalane.
Table 2. Critical gel concentrations (CGC, wt.%) of mixed N-alkylhydantoin systems in squalane.
Mixed Molar RatioC16H/C12HC16H/C4HC12H/C4HC16H/C12H/C4H
5/13S 1S
2/122S
1/1213
1/2211
1/5211
5/1/1 3
1/5/1 2
1/1/5 1
2/1/1 3
1/2/1 3
1/1/2 1
1/1/1 2
1 S: solution at 3 wt.%.
Table
Table 3. Transition temperatures of mixed N-alkylhydantoin organogels obtained by DSC measurements (heating and cooling rate is 10 °C/min).
Table 3. Transition temperatures of mixed N-alkylhydantoin organogels obtained by DSC measurements (heating and cooling rate is 10 °C/min).
Samples 1Tgel to sol on Heating/°C
(ΔH/mJ mg−1)		Tsol to gel on Cooling/°C
(ΔH/mJ mg−1)
C16H69.5 (6.4)74.2 (6.4)
C12H65.1 (5.0)60.8 (5.0)
C16H/12H 1/147.1 (4.5) pt 2: 50.5, 59.745.6 (4.4) pt: 32.8, 41.7
C16H/4H 1/158.2 (5.8) pt: 66.8, 81.551.5 (5.1) pt: 36.8, 47.7
C12H/4H 1/156.9 (0.9) 73.7 (2.9)31.7 (2.0)
C16H/12H/4H 1/1/147.0 (2.3)30.5 (2.8)
C16H/12H/4H 2/1/144.2 (3.1)25.7 (3.2)
C16H/12H/4H 1/2/143.9 (2.6)33.4 (2.6)
C16H/12H/4H 1/1/245.3, 61.8 (3.6)39.4 (3.3)
1 All samples are 3 wt.% squalane gels and mixed in molar ratio. 2 pt: temperature at peak top. Transition temperatures are defined as the onset temperature of the peaks of DSC curves.
