MHD Williamson Nanofluid Fluid Flow and Heat Transfer Past a Non-Linear Stretching Sheet Implanted in a Porous Medium: Effects of Heat Generation and Viscous Dissipation

Abstract

The present study is carried out to examine the behavior of magnetohydrodynamic Williamson nanofluid flow and heat transfer over a non-linear stretching sheet embedded in a porous medium. In the current work, the influence of heat generation and viscous dissipation has been taken into account. The considered phenomenon in the form of partial differential equations is transformed into ordinary differential equations by utilizing an appropriate similarity transformation. The reduced form is solved by using rigorous MATLAB built-in solver bvp4c. The numerical solutions for the velocity field, temperature field, and mass concentration along with the skin friction coefficient, Nusselt number, and Sherwood number are computed. The obtained solutions are shown in graphs and are discussed with physical reasoning. It is noted that by increasing Williamson fluid parameter W, the velocity decreases and concentration profile increases. It is deduced that increasing Eckert number Ec leads to a rise in temperature and mass concentration. It has been viewed that with the increment in heat generation parameter Q, the temperature field increases and concentration decreases. The results show that an increasing magnetic field parameter M leaves a decreasing trend in the velocity field and an increasing trend in the temperature field and concentration profile. The present results are compared with the existing solution which shows good agreement and endorses the validation of current solutions.

1. Introduction

Efficient ultrahigh cooling systems are an indispensable need for technologies of industries. There are so many limitations of low thermal conductivity when we use ordinary fluids that do not give ultrahigh cooling. Using modern nanotechnology, nanoparticles of metal and nonmetals of the size of a nanometer can be produced and they have versatile thermal, electric, mechanical, magnetic, and fiber characteristics. Nanofluids are made by suspending the nanosized particles in traditional fluids like water, ethylene, and oil. Carbides, carbon nanotubes, oxides, and metals are used to make nanoparticles. The major aim of the development of nanofluids is to obtain the maximum thermal conductivity of a small concentration of nanoparticles through the uniform distribution and stable suspension of nanoparticles in the base fluids. The earliest investigations concerning the variation of thermal conductivity were performed by Masuda et al. [1]. They used ultrafine particles, $A{l}_2{O}_3$, $Si{O}_2$, and $Ti{O}_2$, in water that was used as a base fluid to observe the thermal performance of the fluid. Choi [2], for the first time, introduced the term nanofluid to explain this new type of nanotechnology-based heat transfer fluids, which have higher thermal conductivities than usual fluids. Experimental investigations in Ref. [3] have been conducted on nanofluids that need only a five-percent volumetric fraction of the nanoparticles for effective heat transfer enhancements, and they used nanofluids as coolants for nuclear powerplants. Buongiorno [4] developed an analytical model for convective transport in nanofluids in which Brownian motion and the thermophoresis effect are taken into account. By this model, the effective heat transfer performance of the fluid can be analyzed theoretically. Sheikholeshlami and Sadoughi [5] addressed the nanofluid flow and heat transfer numerically under the melting heat transfer impact with magnetic field influence by using $CuO$ as nanoparticles and water as the base fluid. Abo-Dahab et al. [6] put the light onto the magnetohydrodynamic Casson fluid flow past the non-linear stretching surface that was fixed in a porous medium along with suction/injection effects. They took into account the heat generation and viscous dissipation effects. Shafiq et al. [7] gave an analysis on the stratification effects of Walter’s B fluid flow over a Riga surface with radiation impact. Rasool et al. [8] revealed the discussion on the numerical study of magnetohydrodynamic viscoelastic nanofluid flow along the non-linear stretching sheet embedded in a porous medium. They analyzed the influence of Darcy–Forchheimer relation, convective boundary condition, and thermal radiation. Entropy generation magnetohydrodynamic nanofluid flow in squared geometry with Darcy–Forchheimer relation effects was discussed by Fares et al. [9]. Shamshuddin and Mohammad [10] proposed the study of nanofluid flow over a convective elongated surface under the nth order chemical reaction and Joule heating effects.

Non-Newtonian fluid dynamics are one of the most popular research centers of modern machinery due to its promising use in the chemical and food processing industries. Liquids that change the viscosity or flow behavior under pressure are called non-Newtonian fluids. Ramesh et al. [11] studied Williamson fluid over moving and stationary surfaces with convective boundary conditions. The analysis of Williamson fluid flow over a stretching surface has been conducted by Nadeem et al. [12]. The effects of heat transfer on Williamson fluid flow along the porous surface of an exponentially stretching sheet have been explored by Nadeem and Hussain [13]. The peristaltic flow of Williamson fluid under the accomplishment of induced magnetic field through a curved path was explored by Rashid et al. [14]. A non-Newtonian Williamson boundary layer flow was numerically tackled by using a homotopy analysis method by Khan and Khan [15]. The magnetohydrodynamic flow of Williamson fluid with a generalized heat transfer law over a stretching sheet that has variable thickness is dealt numerically by Salahuddin [16]. A non-Newtonian fluid flow model with different flow characteristics and diverse molded conditions has been presented in Refs. [17,18,19,20].

Fluid flow in porous media finds significant use in a variety of areas, such as material processing, thermal energy, oil detection, fuel cell technology, flow bed chromatography, etc. The combined effect of heat transfer and temperature across the boundary layer of nanofluid flows through the porous space in the presence of an external magnetic field is considered an effective means of improving thermal performance. A number of research scholars have been engaged in the fluid dynamics of porous media with deferent problems. Vafai and Tien [21] considered the study of solid boundary and inertial forces on fluid flow and heat transfer in a porous medium. Jiang and Ren [22] revealed the study of forced convection in a porous medium employing thermal non-equilibrium model; they included viscous dissipation, variable properties, particles diameter, and thermal dispersion effects. Kothandapani and Srinivas [23] presented magnetohydrodynamic peristaltic transportation and heat transfer under properties of walls action through a porous medium. A discussion on nanofluid flow and convective heat transfer saturated with the porous medium was investigated by Mahdi et al. [24]. Gireesha et al. [25] focused their attention on the magnetohydrodynamic boundary layer flow and heat transmission past stretching sheets inserted in a porous medium. Oldroyed-B fluid flow equipped with the Cattaneo–Christov heat flux model under the action of non-linear convection, Darcy–Forchheimer relation, and variable thermal conductivity was proposed by Shehzad et al. [26]. The investigations concentrating on fluid flows and heat transportation in porous medium are given in Refs. [27,28,29,30].

Due to its wide range of applications in various fields of science and industry, fluid flow problems have become one of the most important areas of research today. Other useful uses for this type of investigation include the manufacture of plastic and rubber sheets, the production of glass-fiber, melting spinning, cooling metal plates, etc. Magnetohydrodynamic effects on the three-dimensional flow of nanofluid over a non-linear stretching sheet with non-linear thermal radiation and convective boundary conditions are analyzed numerically by Mahanthesh et al. [31]. Seth et al. [32] carried out the investigations on an unsteady magnetohydrodynamic boundary layer flow of optically dense gray and electrically conducting nanofluid over a non-linear stretching sheet inserted in a porous medium; they encountered the effects of non-linear radiation, convective boundary conditions and entropy generation, and slip velocity. Fluid flows of Newtonian and non-Newtonian fluids and heat transportation processes over a non-linear stretching sheet are presented in Refs. [33,34,35,36]. Gorla and Sidawi [37] proposed the mechanism of natural convection along the vertical stretching sheet with the effects of suction and blowing. Megahed [38] gave the numerical analysis of Williamson fluid flow and heat transfer over a non-linear stretching sheet under the action of viscous dissipation and thermal radiation. In Refs. [39,40,41,42,43,44,45], the thermo-hydraulic performance of nanofluids theoretically and experimentally through different geometries with diverse flow conditions has been addressed. Avramenko et al. [46] discussed the symmetry of the properties of boundary layer flows by using the Lie group theory technique. Avramenko and Shevchuk [47] pro-posed the modeling for convective heat and mass transfer in nanofluids with and without boiling and condensation.

In the existing literature, a lot of work on Williamson fluid and nanofluid—separately—was done along the different geometries by taking different fluid characteristics that have been documented due to the physical significance in different areas of sciences. After getting inspiration from the aforementioned fruitful and significant examinations, the present aim is to expose the features of Williamson nanofluid flow over a non-linearly stretching sheet embedded in a porous medium. In the present research work, the external applied magnetic field, heat generation, and viscous dissipation effects on electrically conducting fluid have been incorporated. A thorough review of earlier published works disclose that no such effort has been made before, although the richness of views and the phenomena explained in the present work can be expected to lead to extremely dynamic interactions across disciplines. In the next section, the mathematical procedure, solution procedure, and presentation of results are given.

2. Flow Regime

Consider the steady, viscous, incompressible, and two-dimensional Williamson fluid flow in the region $\left(y>0\right)$ past non-linear stretching sheet with a varying velocity distribution $u_w=a{x}^n$ and wall temperature distribution $T_w=T_{\infty }+A{x}^r$ is considered where $A>0$, $T_{\infty }$ is the free stream fluid temperature and $C_{\infty }$ is the free nanoparticles concentration. The transverse magnetic field with the magnetic field strength $B\left(x\right)=B_0{x}^{\frac{n-1}{2}}$, wherein the electrical field is absent and induced magnetic field is ignored. The coordinates $x,y$ are in the flow direction and normal to the flow direction, respectively. The applied magnetic field, heat generation, and viscous dissipation effects are encountered. The schematic diagram of flow is given in Figure 1. By following Refs. [6,38,46], the governing equations are given below:

$$\frac{\partial u}{\partial x}+\frac{\partial v}{\partial y}=0$$

(1)

$$u\frac{\partial u}{\partial x}+v\frac{\partial u}{\partial y}=\nu \frac{{\partial }^{2}u}{\partial y^2}+\sqrt{2}\mu \mathrm{\Gamma }\frac{\partial u}{\partial y}\frac{{\partial }^{2}u}{\partial y^2}+g{\beta }_T\left(T-T_{\infty }\right)+g{\beta }_C\left(C-C_{\infty }\right)-\frac{\sigma }{{\rho }_f}{B}^2\left(x\right)u-\frac{\nu u}{K^{*}}$$

(2)

$$\begin{array}{c}u\frac{\partial T}{\partial x}+v\frac{\partial T}{\partial y}=\alpha \frac{{\partial }^{2}T}{\partial y^2}+\frac{\nu }{C_P}\left(1+\frac{\mathrm{\Gamma }}{\sqrt{2}}\frac{\partial u}{\partial y}\right){\left(\frac{\partial u}{\partial y}\right)}^2+\frac{Q_0}{\rho C_P}\left(T-T_{\infty }\right)\\ +\tau \left[D_B\left(\frac{\partial T}{\partial y}\frac{\partial C}{\partial y}\right)+\frac{D_T}{T_{\infty }}{\left(\frac{\partial T}{\partial y}\right)}^2\right]\end{array}$$

(3)

$$u\frac{\partial C}{\partial x}+v\frac{\partial C}{\partial y}=D_B\frac{{\partial }^{2}C}{\partial y^2}+\frac{D_T}{T_{\infty }}\left(\frac{{\partial }^{2}T}{\partial y^2}\right)$$

(4)

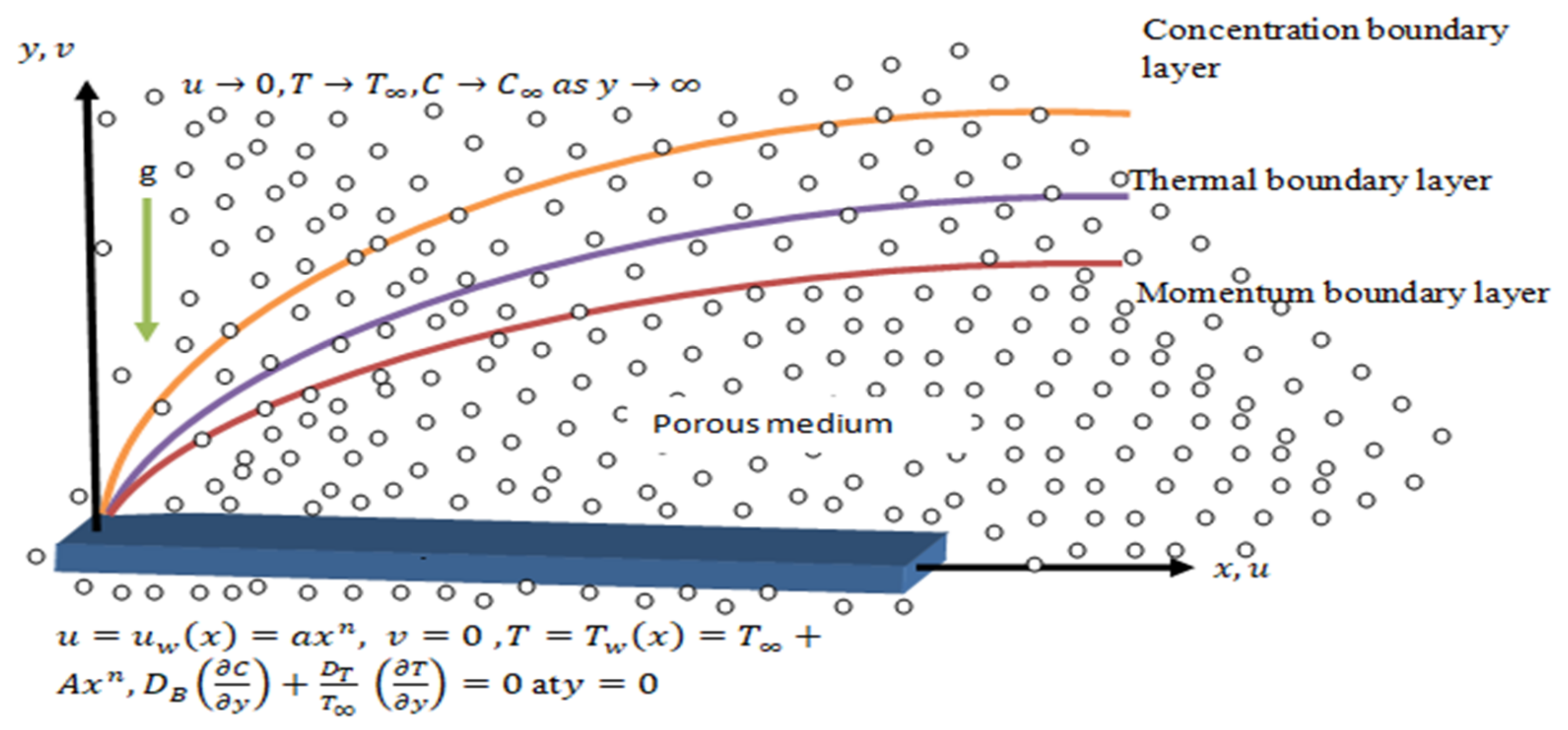

Figure 1. Flow configuration.

Flow conditions are,

$$\begin{array}{c}u=u_w\left(x\right)=a{x}^n, v=0 , T=T_w\left(x\right)=T_{\infty }+A{x}^r, D_B\left(\frac{\partial C}{\partial y}\right)+\frac{D_T}{T_{\infty }} \frac{\partial T}{\partial y}=0 \mathrm{at} y=0\\ u\to 0 T\to T_{\infty }, C\to C_{\infty } as y\to \infty .\end{array}$$

(5)

where $u$ and $v$ are the velocity components in $x$ and $y$ direction, ${\rho }_f$ is the density of the fluid, $\nu$ is the kinematic viscosity, ${\beta }_T$ is the thermal expansion coefficient, $\alpha$ is the thermal diffusivity, $C_P$ is the specific heat, $D_T$ is the thermophoresis coefficient, ${\beta }_C$ is the concentration expansion coefficient, $Q_o$ is the dimensional volumetric heat generation, $D_B$ is the Brownian diffusion coefficient, $K^{*}$ is the porous medium permeability, and $\tau =\frac{{\left(\rho C\right)}_P}{{\left(\rho C\right)}_f}$ is the effective heat capacity ratio of the nanoparticle material to the effective heat capacity of the fluid. The symbol $T_w$ is wall temperature, $T_{\infty }$ is ambient temperature, $C_w$ is wall concentration, $C_{\infty }$ is ambient concentration, $n$ is non-linear stretching sheet index, $\sigma$ is electrical conductivity, and $B\left(x\right)=B_o{x}^{\frac{n-1}{2}}$ is the variable magnetic field of strength.

Equations (1)–(5) are transformed into ordinary differential equations by employing the following transformation variables:

$$\begin{array}{c}u=a{x}^n{f}^{\prime }\left(\eta \right), v=-a{x}^{n-1} \sqrt{\frac{\nu }{a}}\left(\frac{n+1}{2}f\left(\eta \right)+\frac{n-1}{2}\eta f^{\prime }\left(\eta \right)\right), \eta =\sqrt{\frac{\nu }{a}}{x}^{\frac{n-1}{2}} \mathrm{y},\\ \theta =\frac{T-T_{\infty }}{T_{\infty }-Tw}, \varphi =\frac{C-C_{\infty }}{C-Cw}\end{array}$$

(6)

By utilizing Equation (6) in Equations (1)–(5), we have the following transformed equations:

$$f^{‴}+\frac{n+1}{2}f{f}^{″}-n{f^{\prime }}^2+W{f}^{‴}{f}^{″}-M{f}^{\prime }-K{f}^{\prime }+{\lambda }_T\theta +{\lambda }_C\varphi$$

(7)

$$\frac{1}{Pr}{\theta }^{″}+\frac{n+1}{2}f{\theta }^{\prime }-n{f}^{\prime }\theta +Q\theta +Nb{\theta }^{\prime }{\varphi }^{\prime }+Nt{{\theta }^{\prime }}^2+Ec\left(1+\frac{W}{2}{f}^{″}\right)f^{″}{}^2$$

(8)

$$\frac{1}{Sc}{\varphi }^{″}+\frac{n+1}{2}f{\varphi }^{\prime }+\frac{Nb}{Nt}{\theta }^{″}=0$$

(9)

Subjected boundary conditions

$$\begin{array}{c}f=0,f^{\prime }=1, \theta =1, Nb{\varphi }^{\prime }+Nt{\theta }^{\prime }=0 \mathrm{at} \eta =0\\ f^{\prime }\to 0,\theta \to 0, \varphi \to 0 \mathrm{as} \eta \to \infty \end{array}$$

(10)

The parameters appearing in Equations (7)–(10) are defined as the Prandtl number $Pr=\frac{\nu }{\alpha }$, Schmidt number $Sc=\frac{\nu }{D_B}$, thermophoresis parameter $Nt=\frac{{\left(\rho C\right)}_P{D}_T\left(T_w-T_{\infty }\right)}{{\left(\rho C\right)}_f{T}_{\infty }\nu }$, mixed convection parameter ${\lambda }_T=\frac{G{r}_T}{R{e}^2}$, magnetic field parameter $M=\frac{\sigma B_o^2}{{\rho }_{f}a}$, porous medium parameter $K=\frac{\nu }{a{K}^{*}}$, Eckert number $Ec=\frac{u_w^2}{C_P(T_w-T_{\infty )}}=\frac{a^2{x}^{2n-r}}{A{C}_P}$, Williamson parameter $W=\sqrt{2}\frac{x^{\frac{3n-1}{2}}{a}^{\frac{3}{2}}\mathrm{\Gamma }}{{\mathsf{\nu }}^{1/2}}$, a non-linear stretching index $n$, and $r$ is a constant. Also, there is the Brownian motion parameter $Nb=\frac{{\left(\rho C\right)}_P{D}_B\left(C_w-C_{\infty }\right)}{{\left(\rho C\right)}_f\nu }$, heat generation parameter $Q=\frac{Q_o}{u_w\rho C_P}$, and modified mixed convection parameter ${\lambda }_C=\frac{G{r}_C}{R{e}^2}$. After analyzing, we observed that both the $W$ and Ec parameters are functions of $x$. To overcome this situation that gives a non-similar solution for our present problem, we should take $r=2n=2/3$. Given this, these parameters take the form $W=\frac{\sqrt{2}{a}^{\frac{3}{2}}}{\sqrt{\nu }}\mathrm{\Gamma }$, which is the Williamson fluid parameter, and $Ec=\frac{u_w}{C_P\left(T_w-T_{\infty }\right)}=\frac{a^2}{A{C}_P}$, which is the Eckert number. This assumption ensures a similar solution to the current problem.

The quantities of practical interest in this study are the skin friction coefficient $C_f$ and the Nusselt number $Nu$ and Sherwood number $Sh$ which are defined as:

$$\begin{array}{c}{C}_f=\frac{{\tau }_w}{\rho u_w^2}, Nu=\frac{x{q}_w}{k\left(T_w-T_{\infty }\right)}, Sh=\frac{x{q}_m}{D_B\left(C_w-C_{\infty }\right)}.\\ \mathrm{where} {\tau }_w={\left.\mu \left(\left(\frac{\partial u}{\partial y}\right)+\frac{\Gamma }{\sqrt{2}}\frac{\partial u}{\partial y}\right)\right|}_{y=0}, q_w={\left.-k\left(\frac{\partial T}{\partial y}\right)\right|}_{y=0}, q_m=-{\left.D_B\left(\frac{\partial C}{\partial y}\right)\right|}_{y=0}\end{array}$$

(11)

By using variables defined in Equation (6), we have the following:

$$R{e}^{1/2}{C}_f=f^{″}\left(0\right)+\frac{W}{2}{f}^{″}\left(0\right), R{e}^{-1/2}Nu=-{\theta }^{\prime }\left(0\right),R{e}^{-1/2}Sh=-{\varphi }^{\prime }\left(0\right),$$

(12)

3. Solution Methodology

The determination of the solution for Equations (7)–(10) is analytically cumbersome, so the numerical evaluation is done for several parameter values, namely the Prandtl number $Pr$, Schmidt number $Sc$, thermophoresis parameter $Nt$, mixed convection parameter ${\lambda }_T$, Magnetic field parameter $M$, porous medium parameter $K$, Eckert number $Ec$, Williamson parameter $W$, a non-linear stretching index $n$, Brownian motion parameter $Nb$, heat generation parameter $Q$, and modified mixed convection parameter ${\lambda }_C$. A set of solutions for the flow model is computed by employing bvp4c, a MATLAB built-in function. An algorithm for this solver utilizes a three-stage Labato formula and has the basis of a finite difference code called the collocation formula. A collocation polynomial is $C^1$-continuous and has fourth-order accuracy. To substitute Equations (7)–(10) into this solver’s algorithm, first we have to convert them into first-order ordinary differential equations. The current results for $f^{\prime }, \theta$, and $\varphi$ at $\eta =3$ (say) are given with boundary conditions $f^{\prime }\left(3\right)=1, \theta \left(3\right)=1,$ and $Nb{\varphi }^{\prime }\left(3\right)+Nt{\theta }^{\prime }\left(3\right)=0$, then we apply the MATLAB built-in numerical solver bp4c with step size $\mathsf{\Delta }\eta =0.1$. By adjusting the ${\eta }_{max}$ and $\mathsf{\Delta }\eta$, we obtain the converged results within a tolerance limit of ${10}^{-6}$. The computed results satisfy the given boundary conditions asymptotically, which indicates the accuracy of the obtained solutions.

4. Results and Discussion

The current section reveals the physics that occurred in the flow regime for computations of the velocity field $f^{\prime }\left(\eta \right)$, temperature field $\theta \left(\eta \right)$, and mass concentration $\varphi \left(\eta \right)$ for numerous values of flow parameters, which specify the flow features. The skin friction coefficient $R{e}^{1/2}{C}_f$, Nusselt number $R{e}^{-1/2}Nu$, and Sherwood number $R{e}^{-1/2}Sh$ are also calculated. All of the results are graphed under the flow parameters: Prandtl number $Pr$, Schmidt number $Sc$, thermophoresis parameter $Nt$, mixed convection parameter ${\lambda }_T$, magnetic field parameter $M$, porous medium parameter $K$, Eckert number $Ec$, Williamson parameter $W$, a non-linear stretching index $n$, Brownian motion parameter $Nb$, heat generation parameter $Q$, and modified mixed convection parameter ${\lambda }_C$.

4.1. Influence of Regulatory Flow Parameters on Velocity Field $f^{\prime }\left(\eta \right)$, Temperature Field $\theta \left(\eta \right)$, and Mass Concentration $\varphi \left(\eta \right)$

Figure 2, Figure 3 and Figure 4 are sketched for velocity field $f^{\prime }\left(\eta \right)$, temperature field $\theta \left(\eta \right)$, and mass concentration $\varphi \left(\eta \right),$ respectively, against numerous values of ${\lambda }_T$ while other parameters values are preset. Graphs reveal that intensification in ${\lambda }_T$ lead to increase in $f^{\prime }\left(\eta \right)$ in Figure 2, and decrease in $\theta \left(\eta \right)$ and $\varphi \left(\eta \right)$ in Figure 3 and Figure 4, respectively. The impact of non-linear stretching sheet index $n$ on $f^{\prime }\left(\eta \right)$, $\theta \left(\eta \right)$, and $\varphi \left(\eta \right)$ is displayed in Figure 5, Figure 6 and Figure 7. Graphical attitude fleshes out that augmentation in $n$ causes to decline $f^{\prime }\left(\eta \right)$, $\theta \left(\eta \right)$, and $\varphi \left(\eta \right)$. An effect of Williamson fluid parameter $W$ on velocity and concentration profiles is shown in Figure 8 and Figure 9. From sketches, $W$ enhancement in $f^{\prime }\left(\eta \right)$ gives a decline in $\varphi \left(\eta \right)$ and rise to $\varphi \left(\eta \right).$ As $W$ increases, the viscosity of the fluid is recued so that the nanoparticles move freely and the mass concentration increases rapidly. Influence of porous medium parameter $K$ on already mentioned properties is reported in Figure 10, Figure 11 and Figure 12. It is viewed that increasing $K$ leaves the decreasing trend in $f^{\prime }\left(\eta \right)$, and increasing trend in $\theta \left(\eta \right)$, and increasing trend in $\varphi \left(\eta \right)$ and in Figure 10, Figure 11 and Figure 12. As $K$ is increased porosity of the medium decreased and viscous forces are enhanced, due to which temperature and concentration are enhanced. Figure 13 and Figure 14, is due to $Pr$ the cation of $f^{\prime }\left(\eta \right)$ on $\theta \left(\eta \right),$ and graphs indicate that increasing $Pr$ reductes the velocity and temperature. This trend, as seen in Figure 13 and Figure 14, is due to fact that an augmentation in $Pr$ is because of an increase in the viscosity and a decrease in thermal conductance, due to which the velocity of the fluid—but not the temperature of the fluid—decline remarkably. The momentum and thermal boundary layer thickness is thickened. Control of thermophoresis parameter $Nt$ on $f^{\prime }\left(\eta \right)$, $\theta \left(\eta \right)$, and $\varphi \left(\eta \right)$ is demonstrated in Figure 15, Figure 16 and Figure 17, respectively. We can note that rising $Nt$ causes to reduce $f^{\prime }\left(\eta \right)$, $\theta \left(\eta \right)$, and $\varphi \left(\eta \right)$. An action of Brownian motion parameter $Nb$ on fields of velocity, temperature, and concentration is portrayed in Figure 18, Figure 19 and Figure 20, respectively. Sketches show that as $Nb$ is raised, all $f^{\prime }\left(\eta \right)$, $\theta \left(\eta \right)$, and $\varphi \left(\eta \right)$ get stronger rapidly. The parameter $M$ on $f^{\prime }\left(\eta \right)$, $\theta \left(\eta \right)$, and $\varphi \left(\eta \right)$ are shown in Figure 21, Figure 22 and Figure 23, respectively. It is noted that for increasing $M$, a decreasing trend in $f^{\prime }\left(\eta \right)$, and enhancing trend in $\theta \left(\eta \right)$, and $\varphi \left(\eta \right)$ is observed. It is due to the fact that $\theta$ is enhanced that a strong Lorentz force is generated that compels the fluid flow to slow down due to the generation of resistance temperature, which is augmented. Physical behavior of $\theta$ and $\varphi$ against $Ec$ is portrayed in Figure 24 and Figure 25, respectively. Increasing $Ec$ is leaving the increasing behavior for $\theta \left(\eta \right)$, and $\varphi \left(\eta \right)$. For viscous dissipation thermal energy is converted to mechanical energy. By increasing $Ec$ more forces act to dissipate the viscosity so more work has to be done by the fluid on them due to which temperature of the fluid rise and consequently more mass concentration is noted. Heat generation parameter $Q$ effect on $\theta \left(\eta \right)$ and $\varphi \left(\eta \right)$ is given in Figure 26 and Figure 27, respectively. It is noted that as $Q$ is enhanced $\theta \left(\eta \right)$ increase and $\varphi \left(\eta \right)$ decreases with reasonable difference.

Figure 2. Influence of ${\lambda }_T$ on $f^{\prime }\left(\eta \right)$.

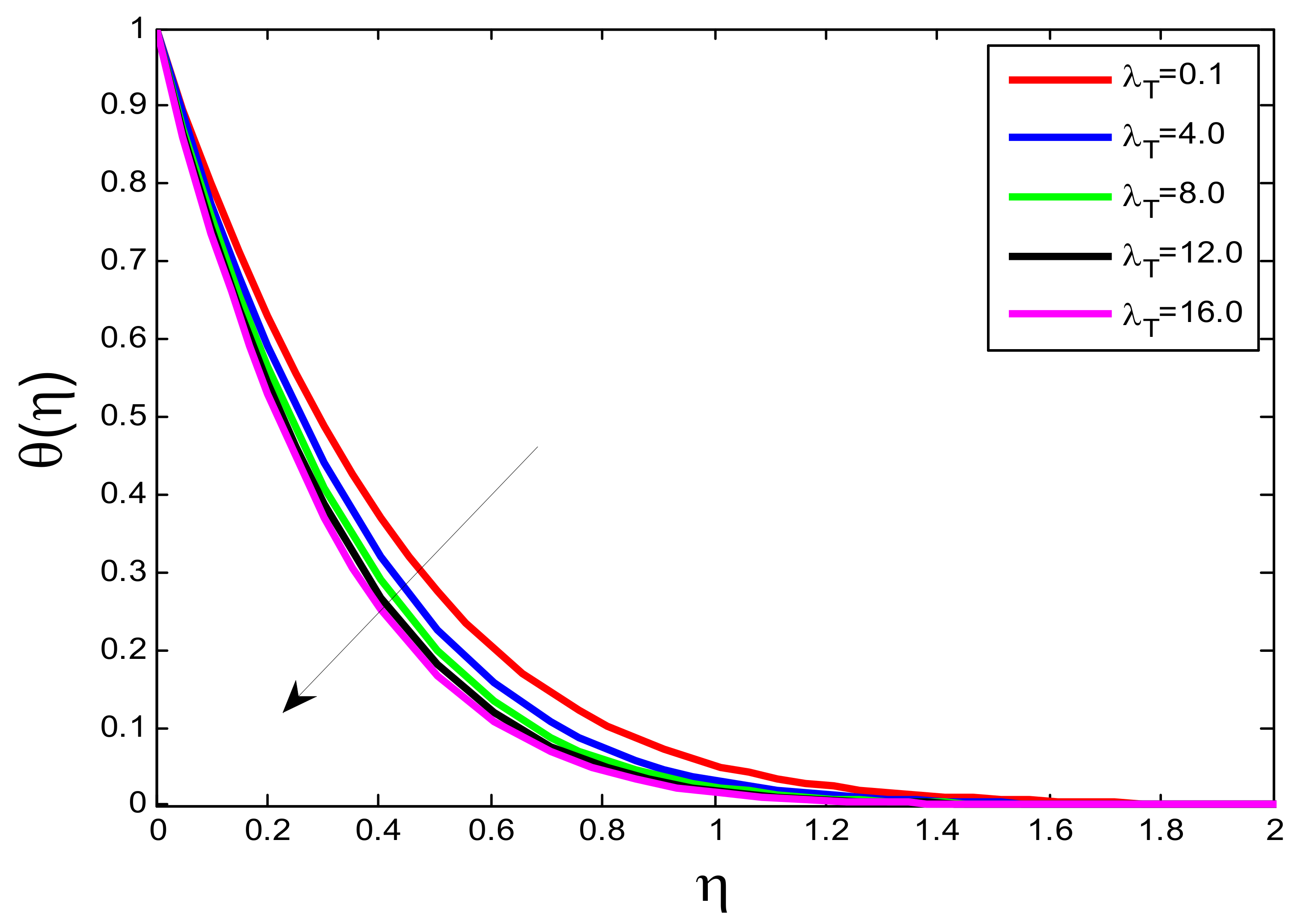

Figure 3. Influence of ${\lambda }_T$ on $\theta \left(\eta \right)$.

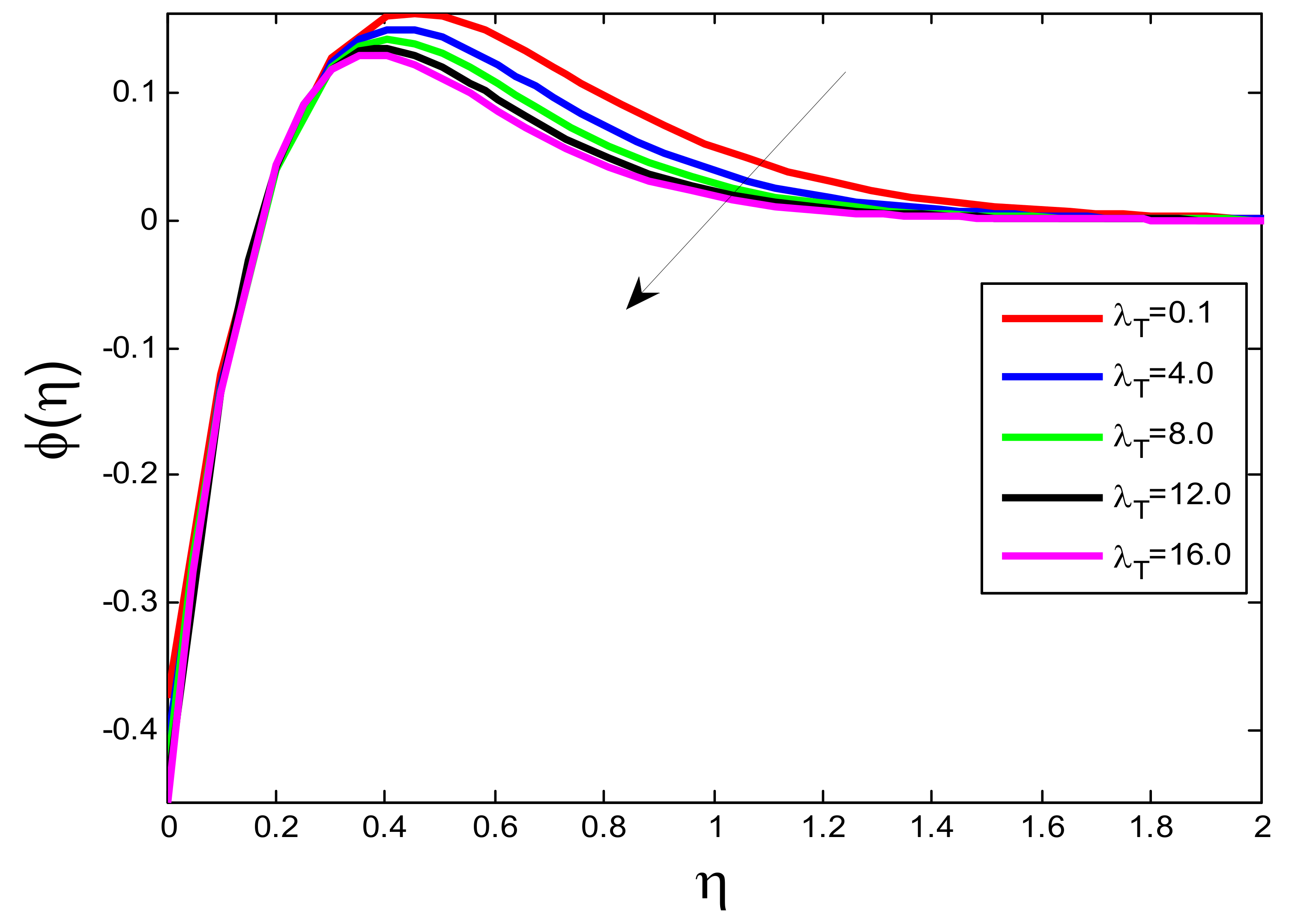

Figure 4. Influence of ${\lambda }_T$ on $\varphi \left(\eta \right)$.

Figure 5. Influence of $n$ on $f^{\prime }\left(\eta \right)$.

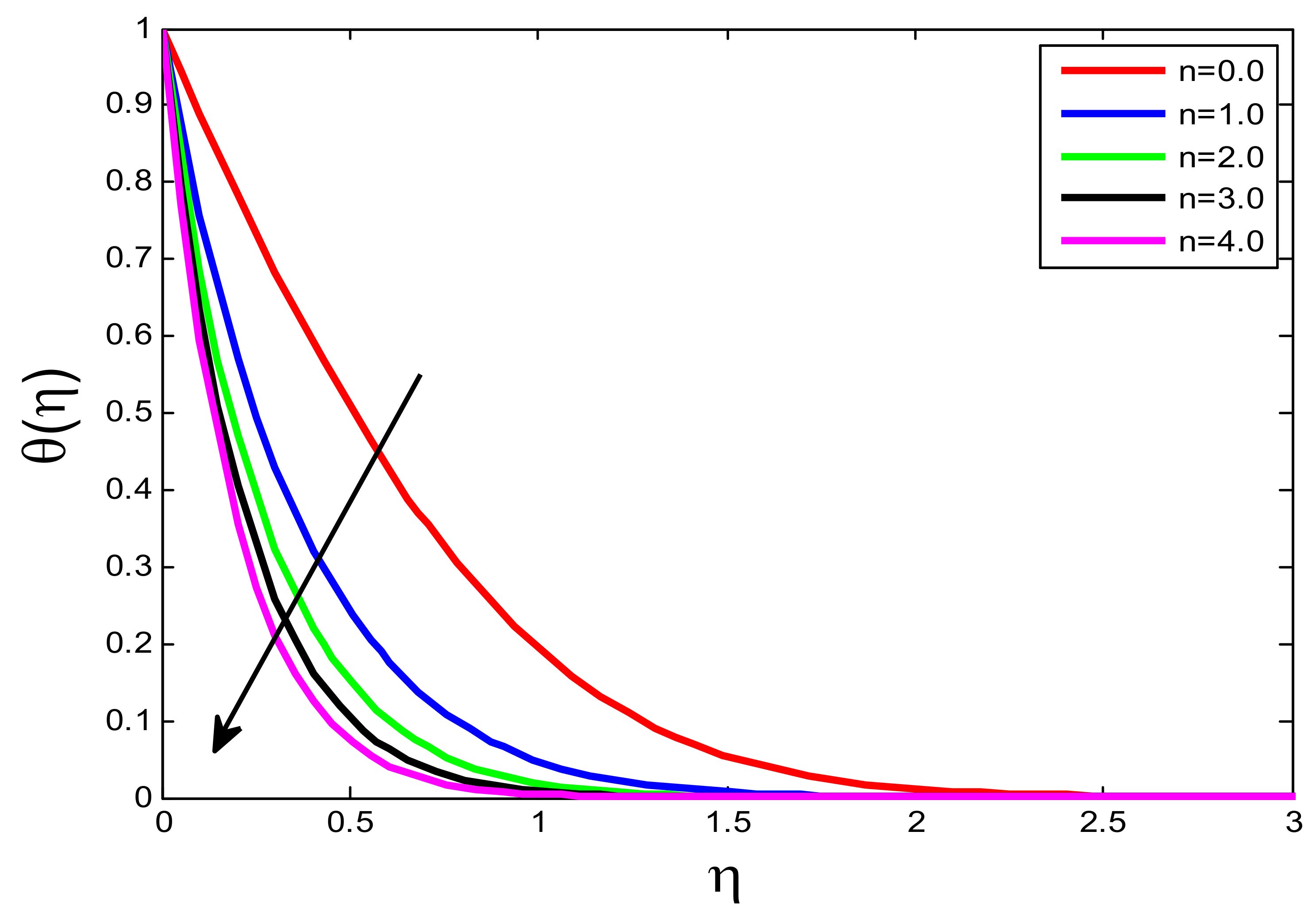

Figure 6. Influence of $n$ on $\theta \left(\eta \right)$.

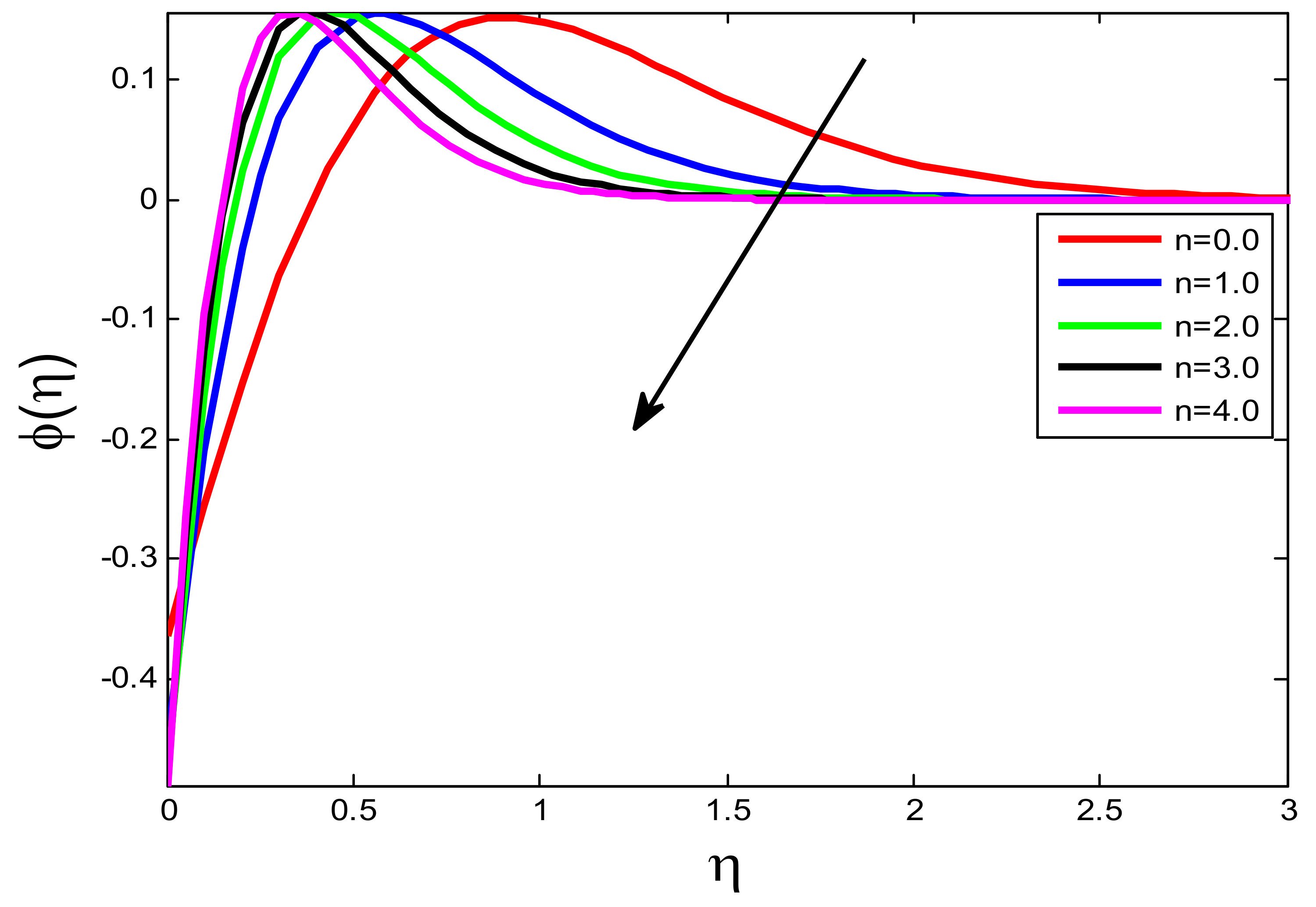

Figure 7. Influence of $n$ on $\varphi \left(\eta \right)$.

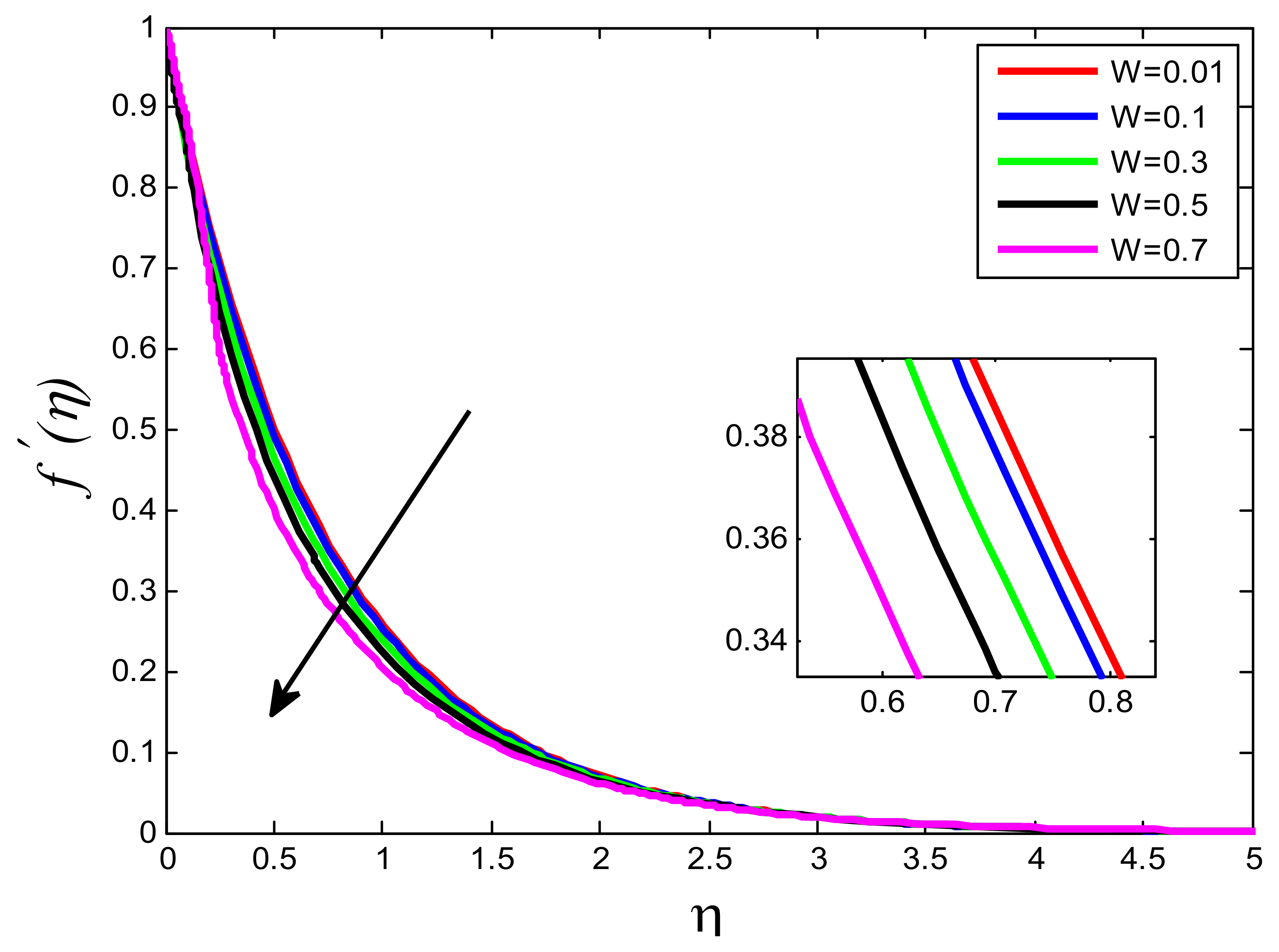

Figure 8. Influence of $W$ on $f^{\prime }\left(\eta \right)$.

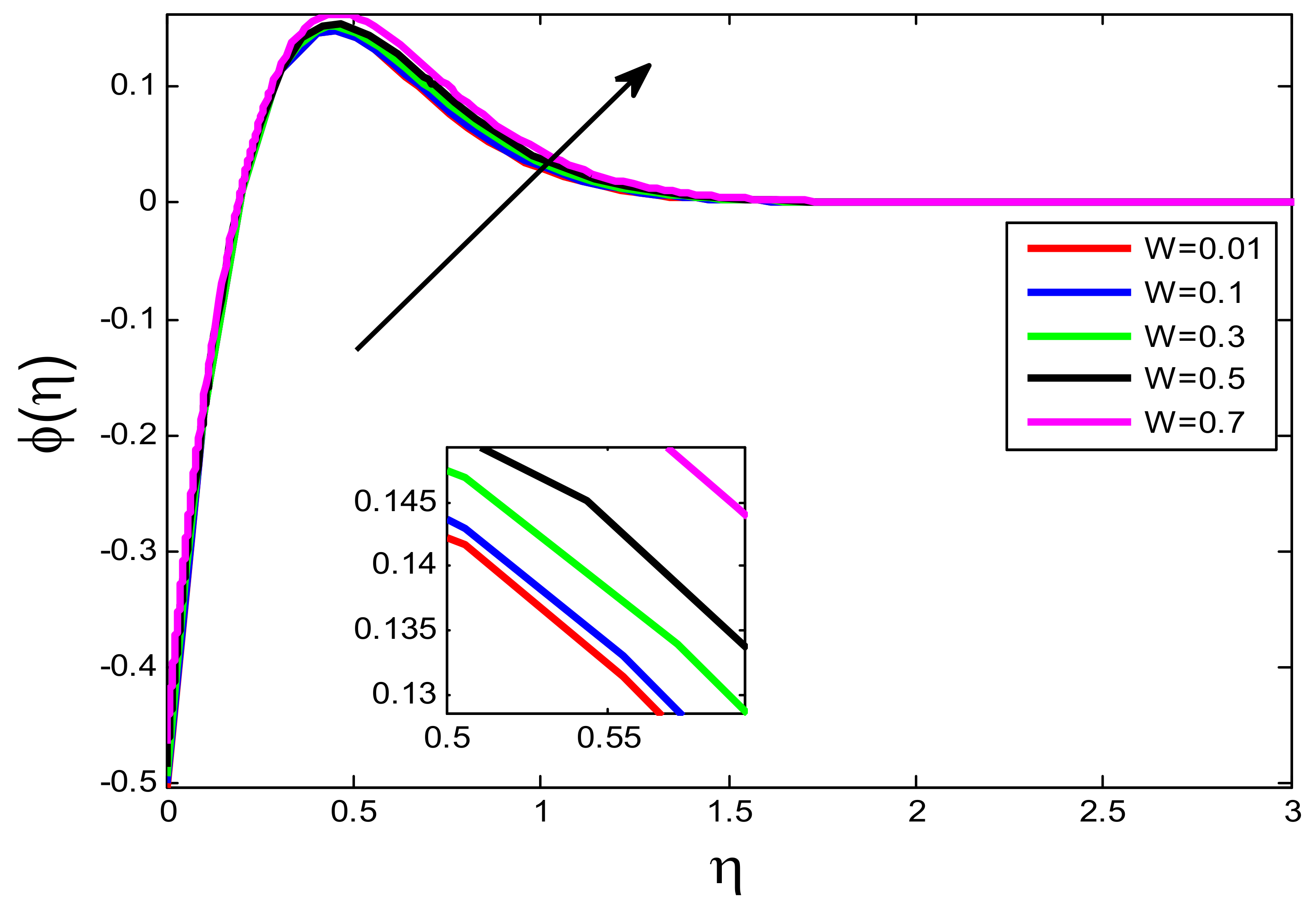

Figure 9. Influence of $W$ on $\varphi \left(\eta \right)$.

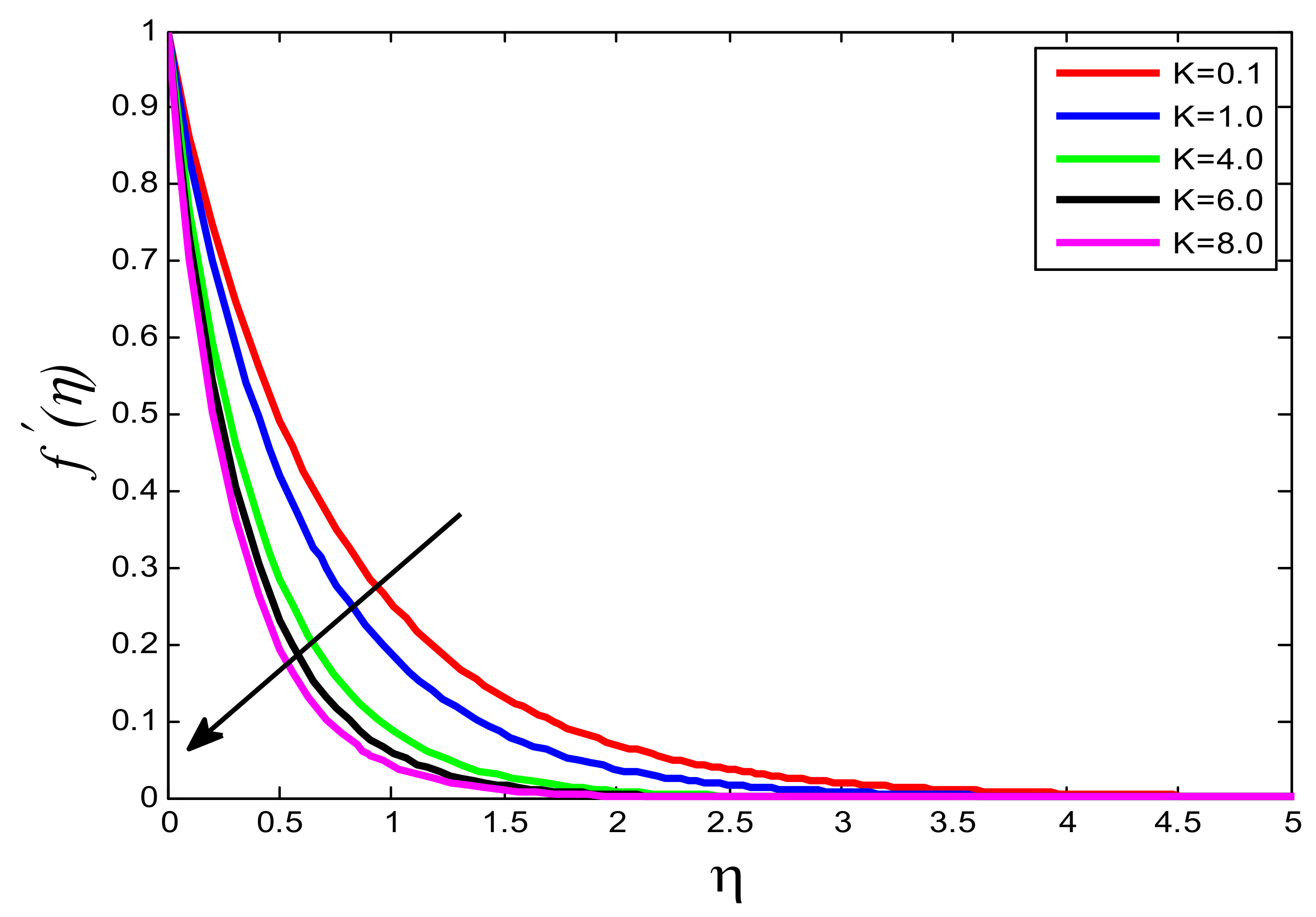

Figure 10. Influence of $K$ on $f^{\prime }\left(\eta \right)$.

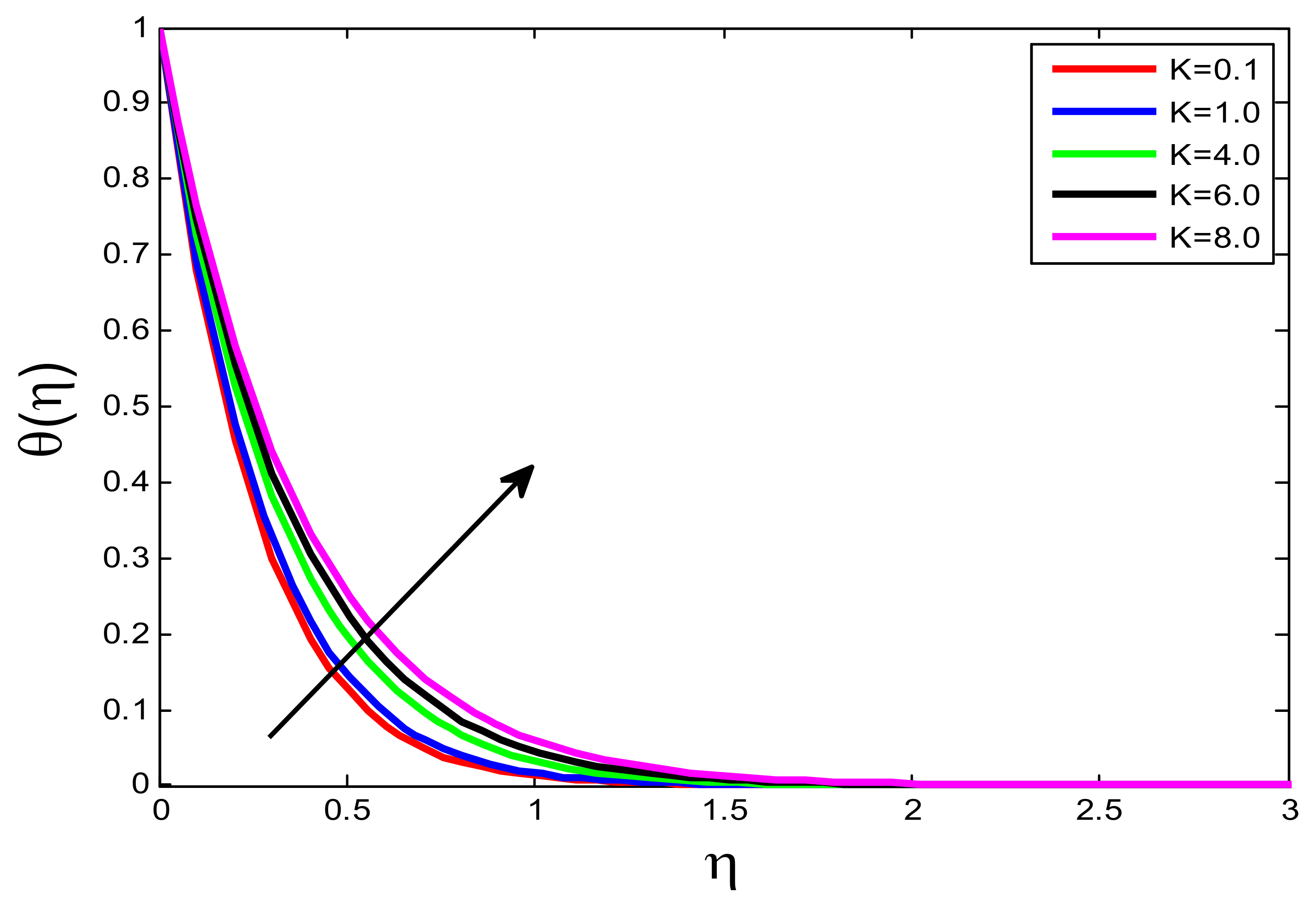

Figure 11. Influence of $K$ on $\theta \left(\eta \right)$.

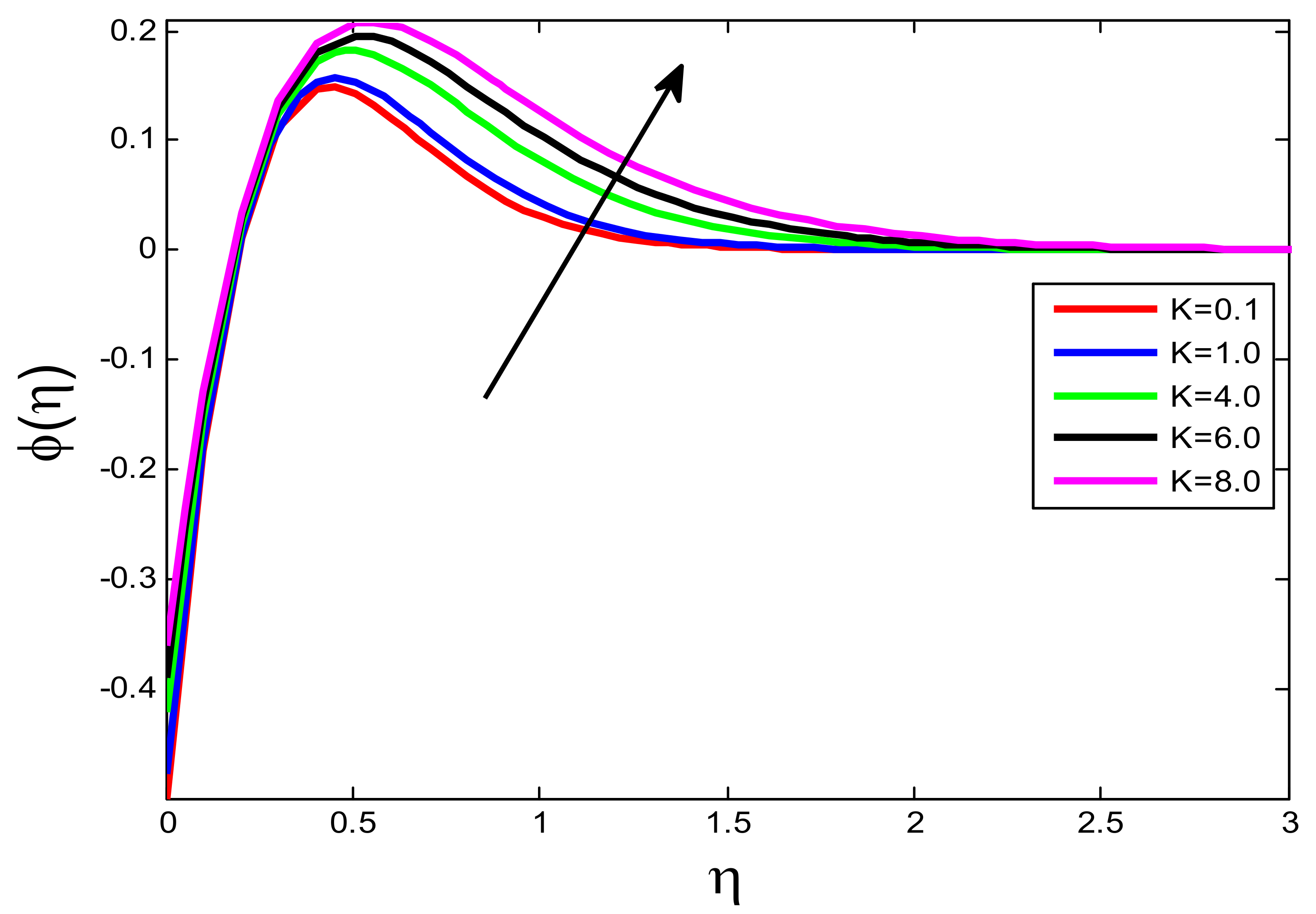

Figure 12. Influence of $K$ on $\varphi \left(\eta \right)$.

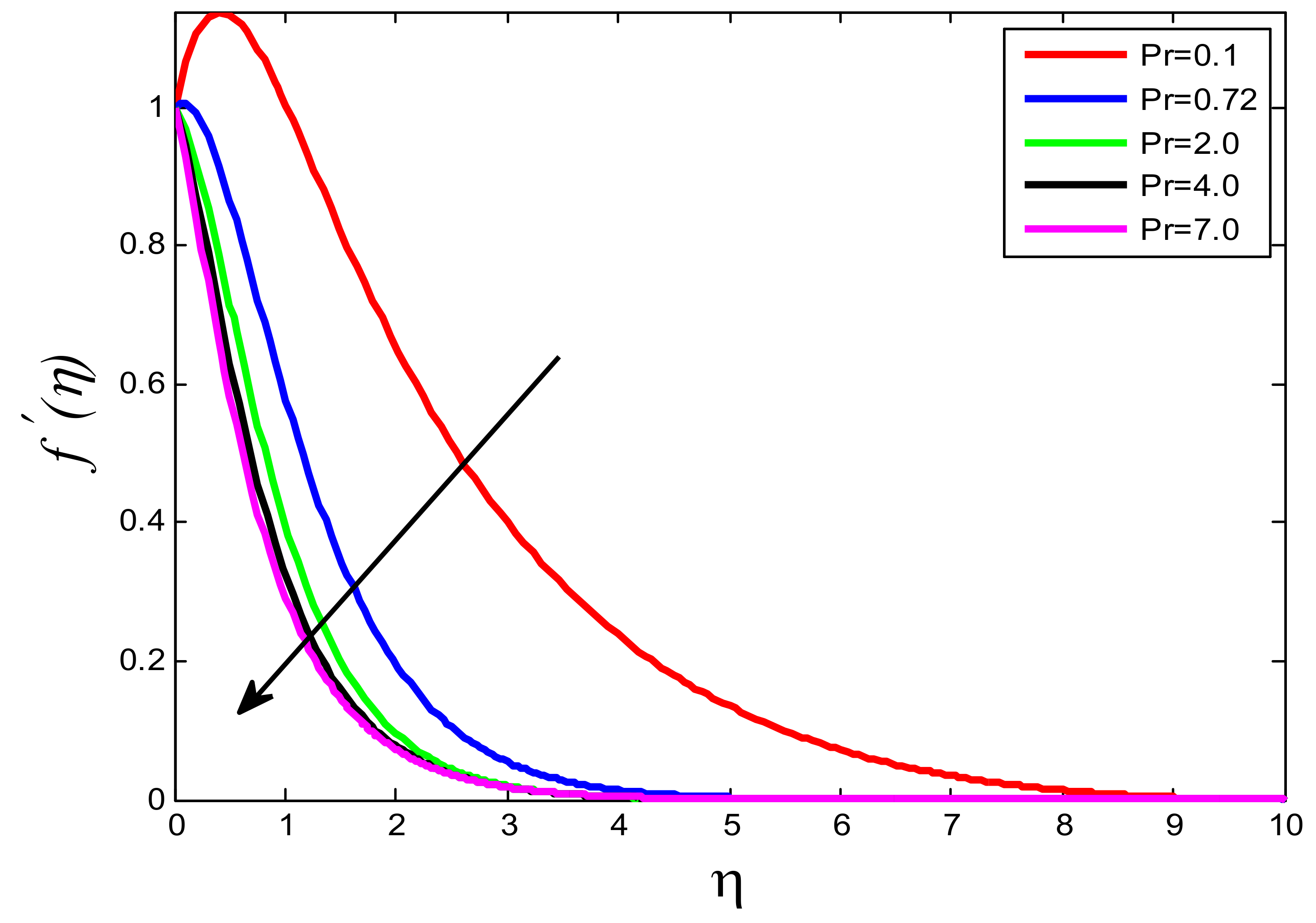

Figure 13. Influence of $Pr$ on $f^{\prime }\left(\eta \right)$.

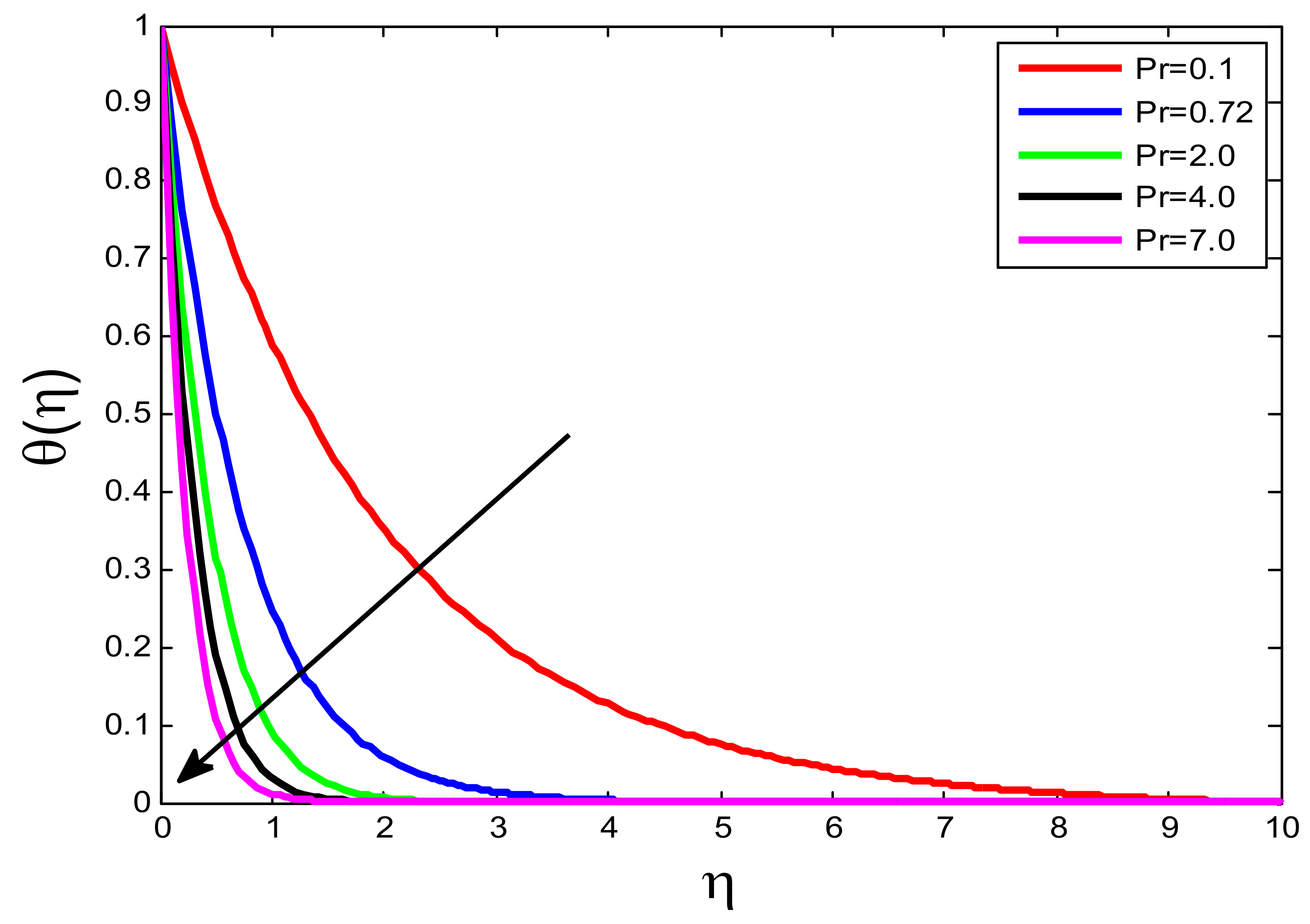

Figure 14. Influence of $Pr$ on $\theta \left(\eta \right)$.

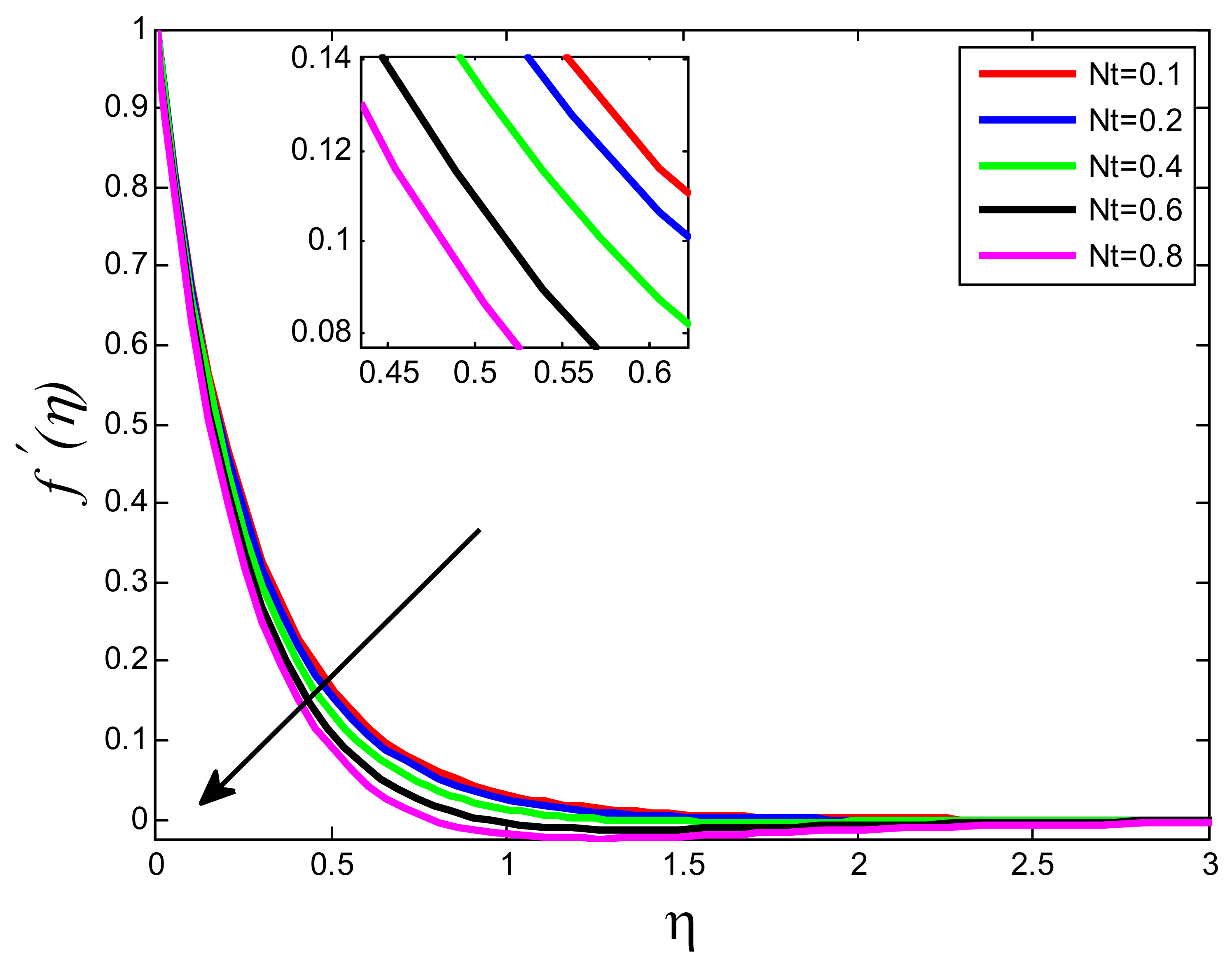

Figure 15. Influence of $Nt$ on $f^{\prime }\left(\eta \right)$.

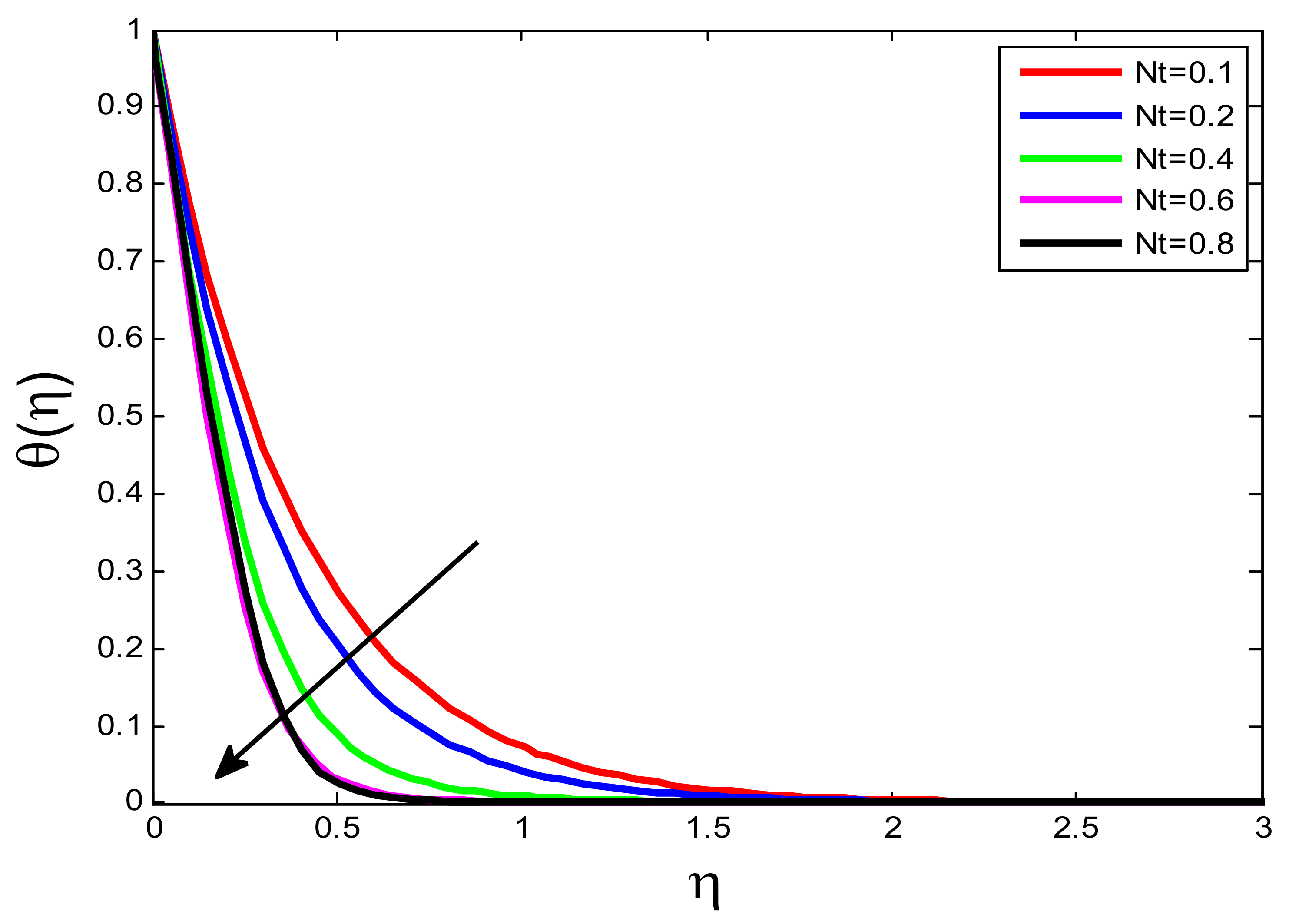

Figure 16. Influence of $Nt$ on $\theta \left(\eta \right)$.

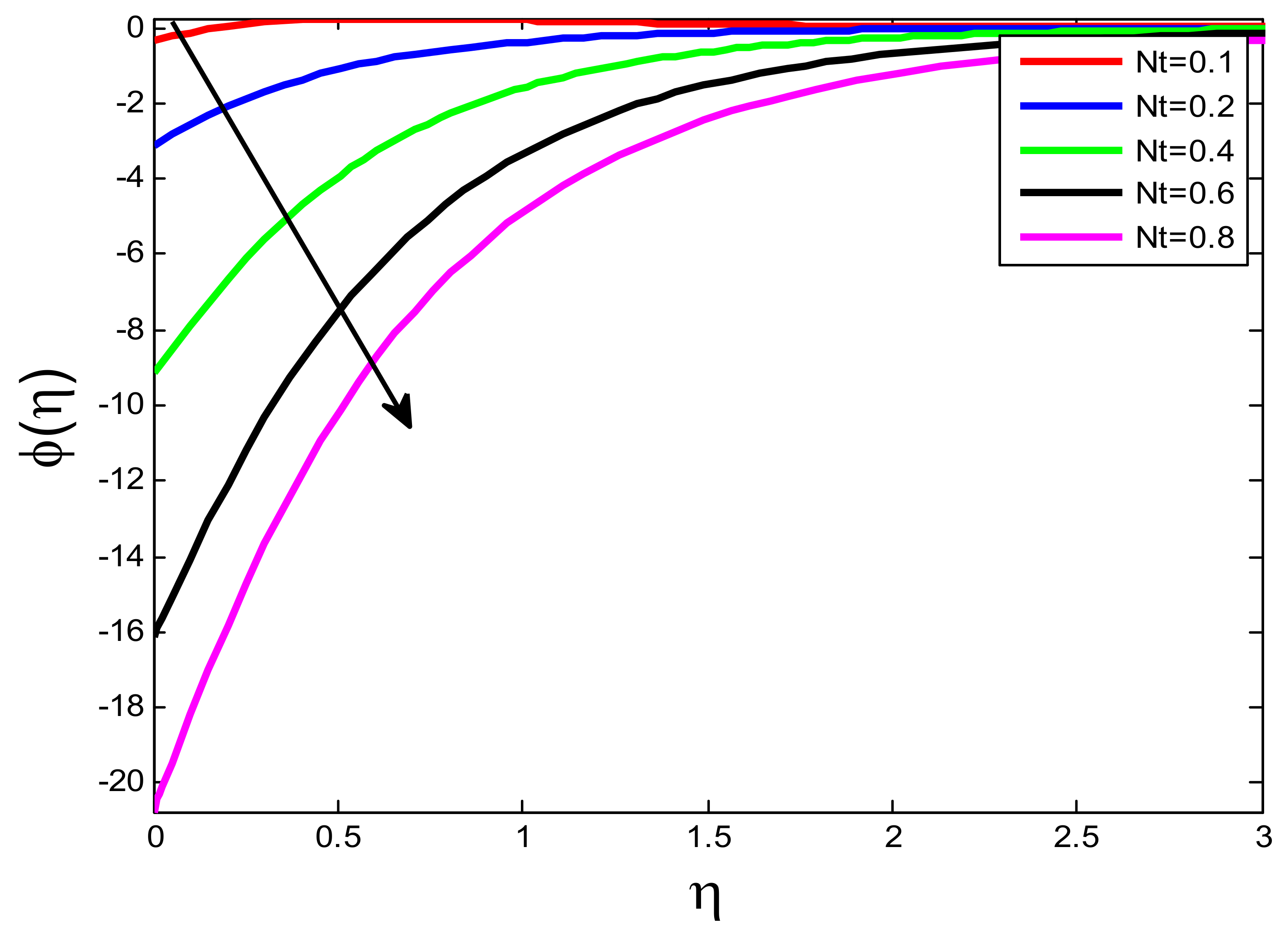

Figure 17. Influence of $Nt$ on $\varphi \left(\eta \right)$.

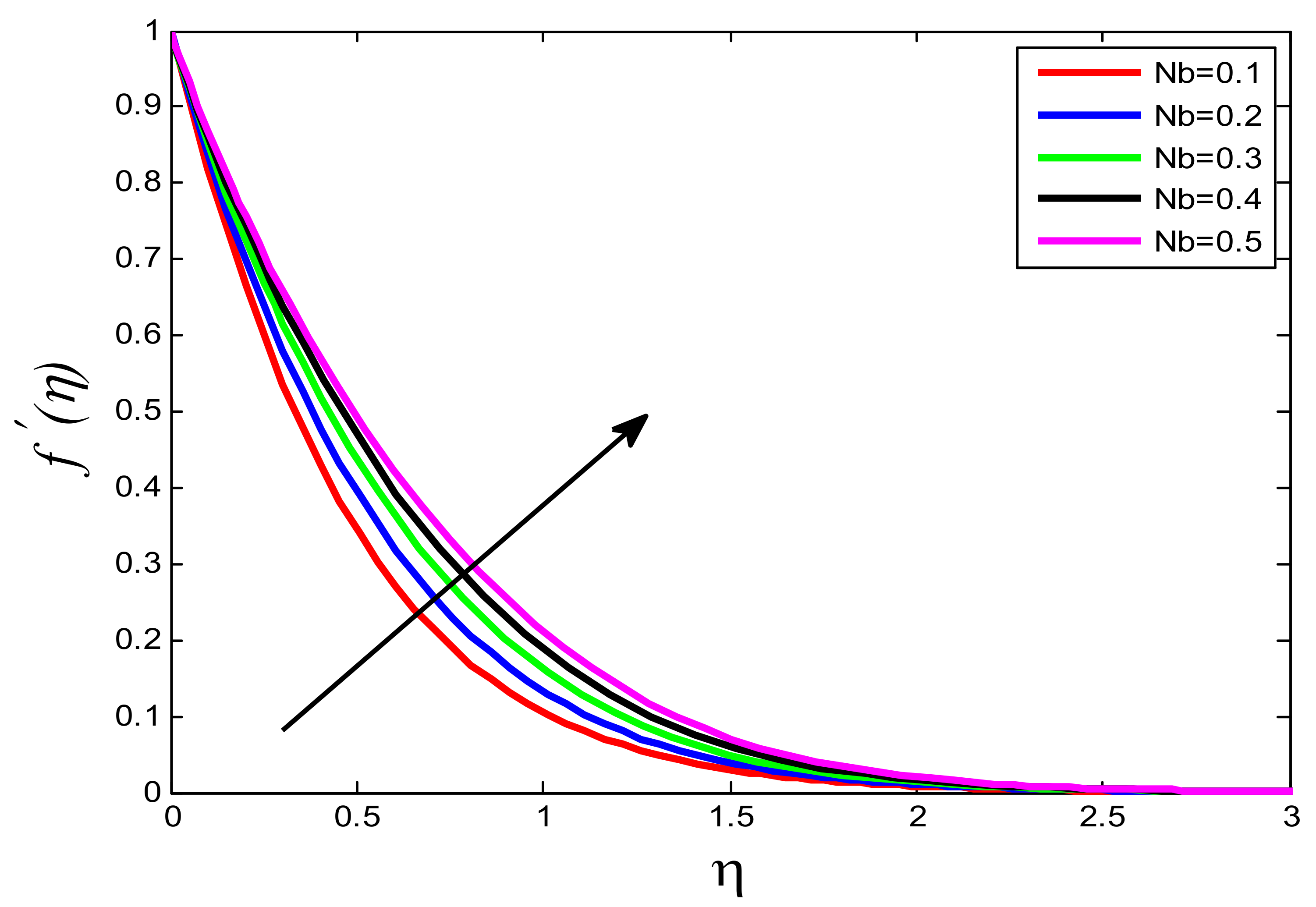

Figure 18. Influence of $Nb$ on $f^{\prime }\left(\eta \right)$.

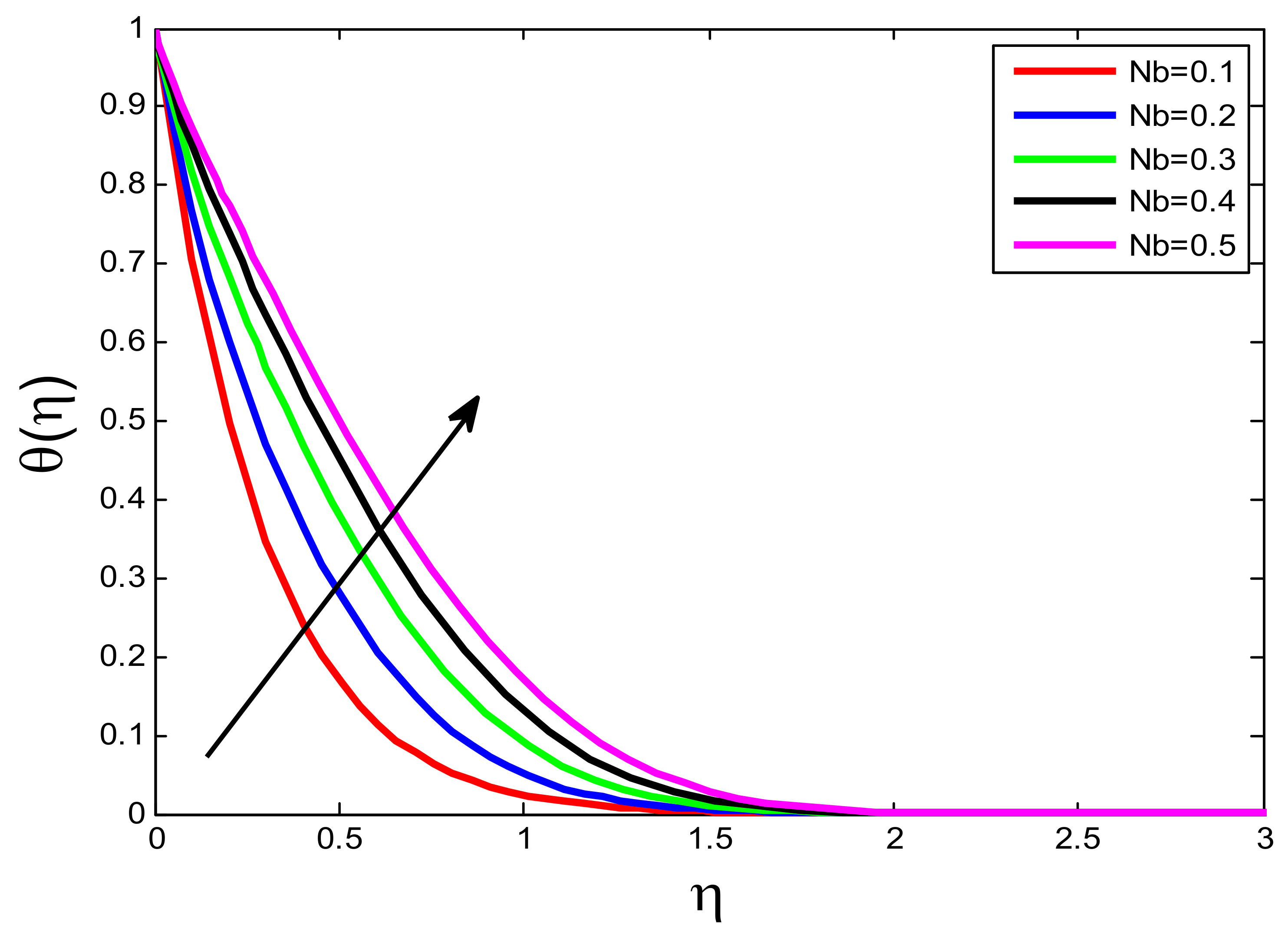

Figure 19. Influence of $Nb$ on $\theta \left(\eta \right)$.

Figure 20. Influence of $Nb$ on $\varphi \left(\eta \right)$.

Figure 21. Influence of $M$ on $f^{\prime }\left(\eta \right)$.

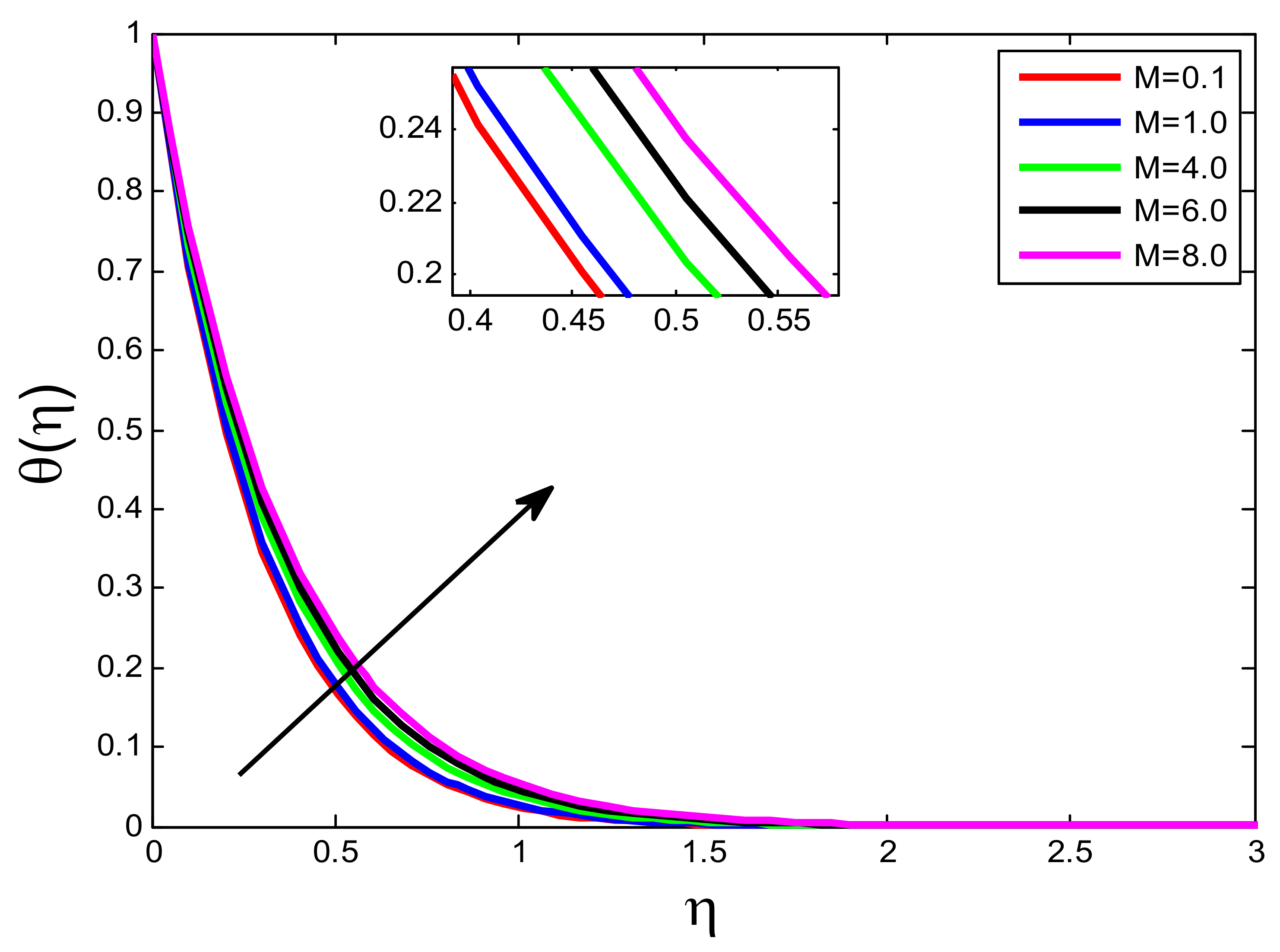

Figure 22. Influence of $M$ on $\theta \left(\eta \right)$.

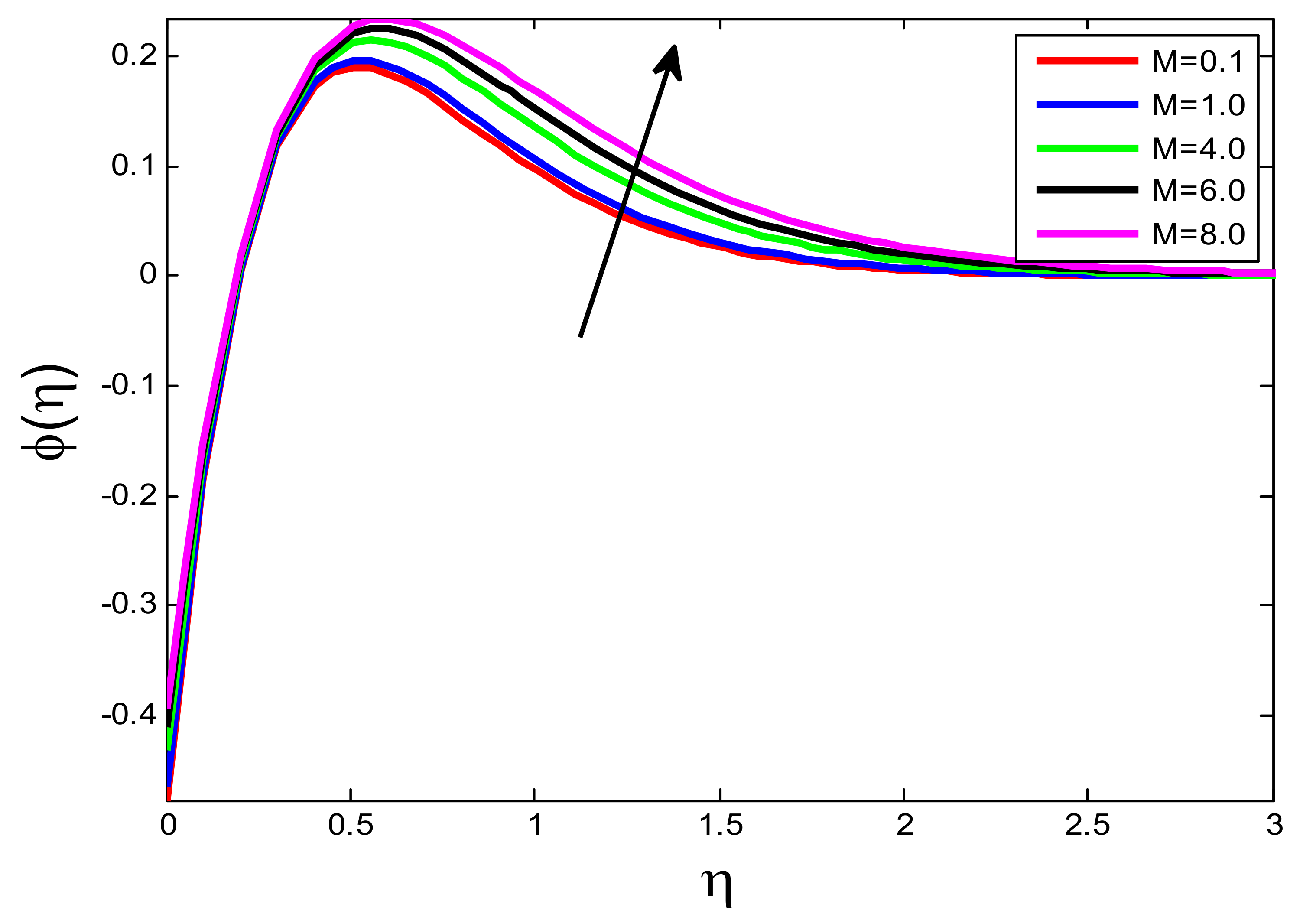

Figure 23. Influence of $M$ on $\varphi \left(\eta \right)$.

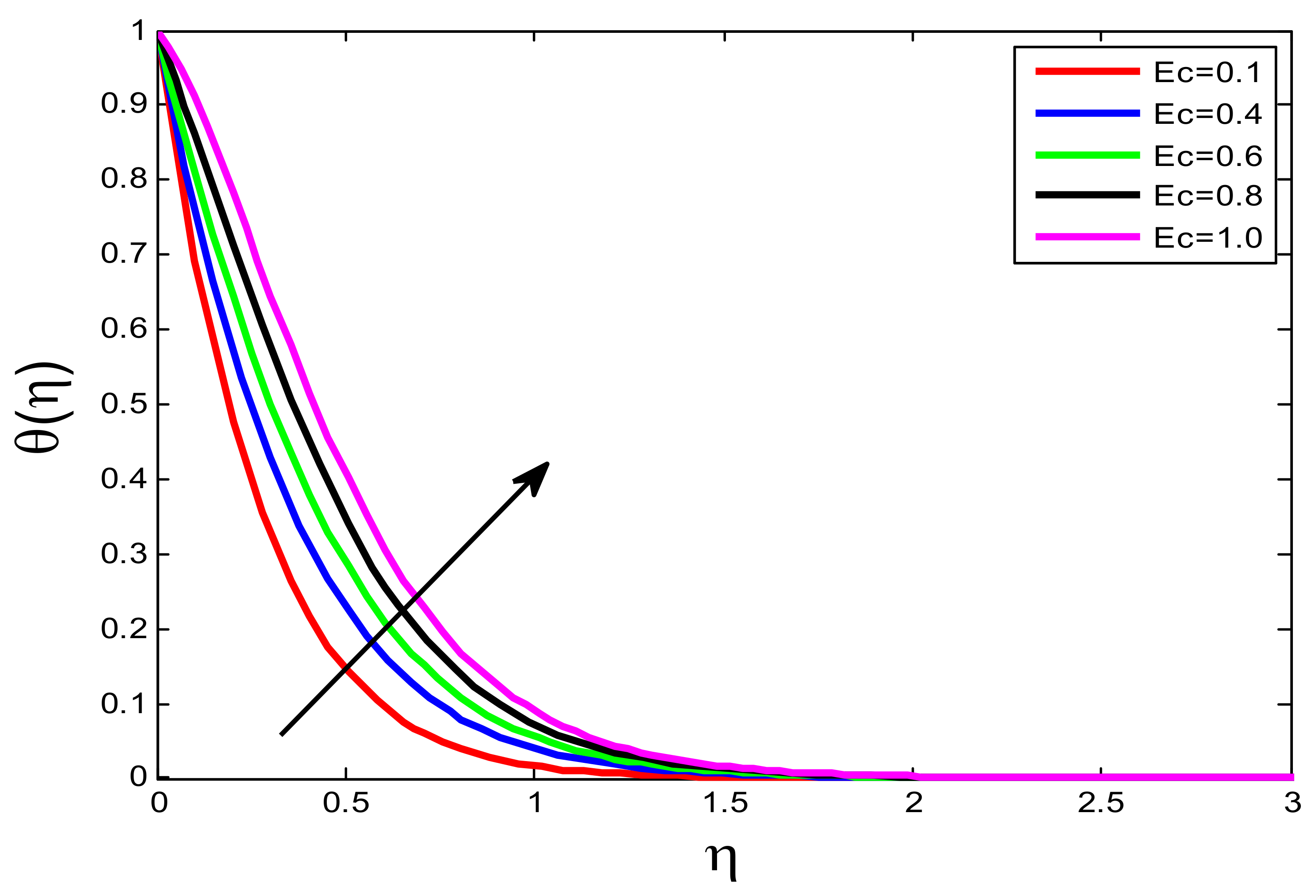

Figure 24. Influence of $Ec$ on $\theta \left(\eta \right)$.

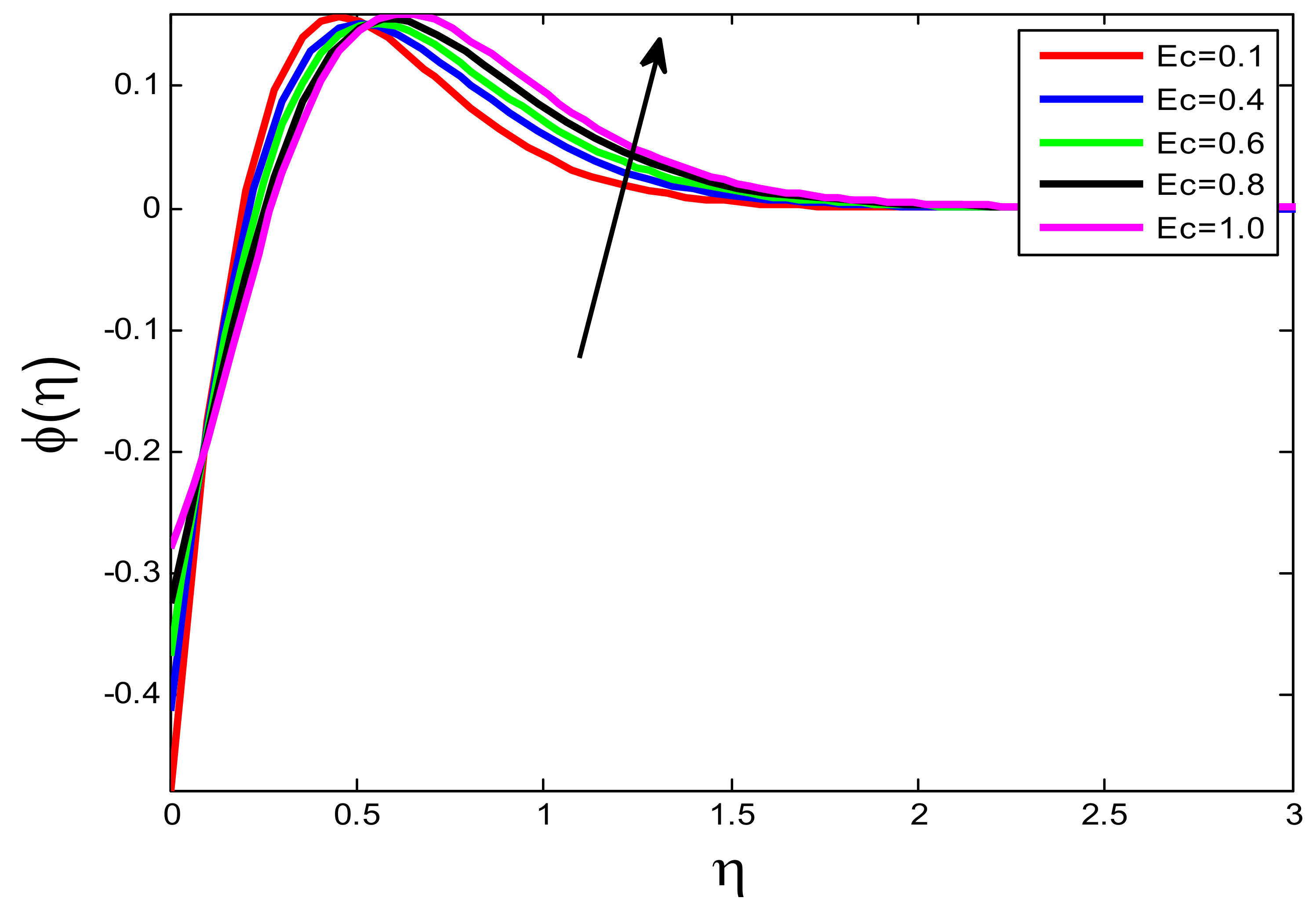

Figure 25. Influence of $Ec$ on $\varphi \left(\eta \right)$.

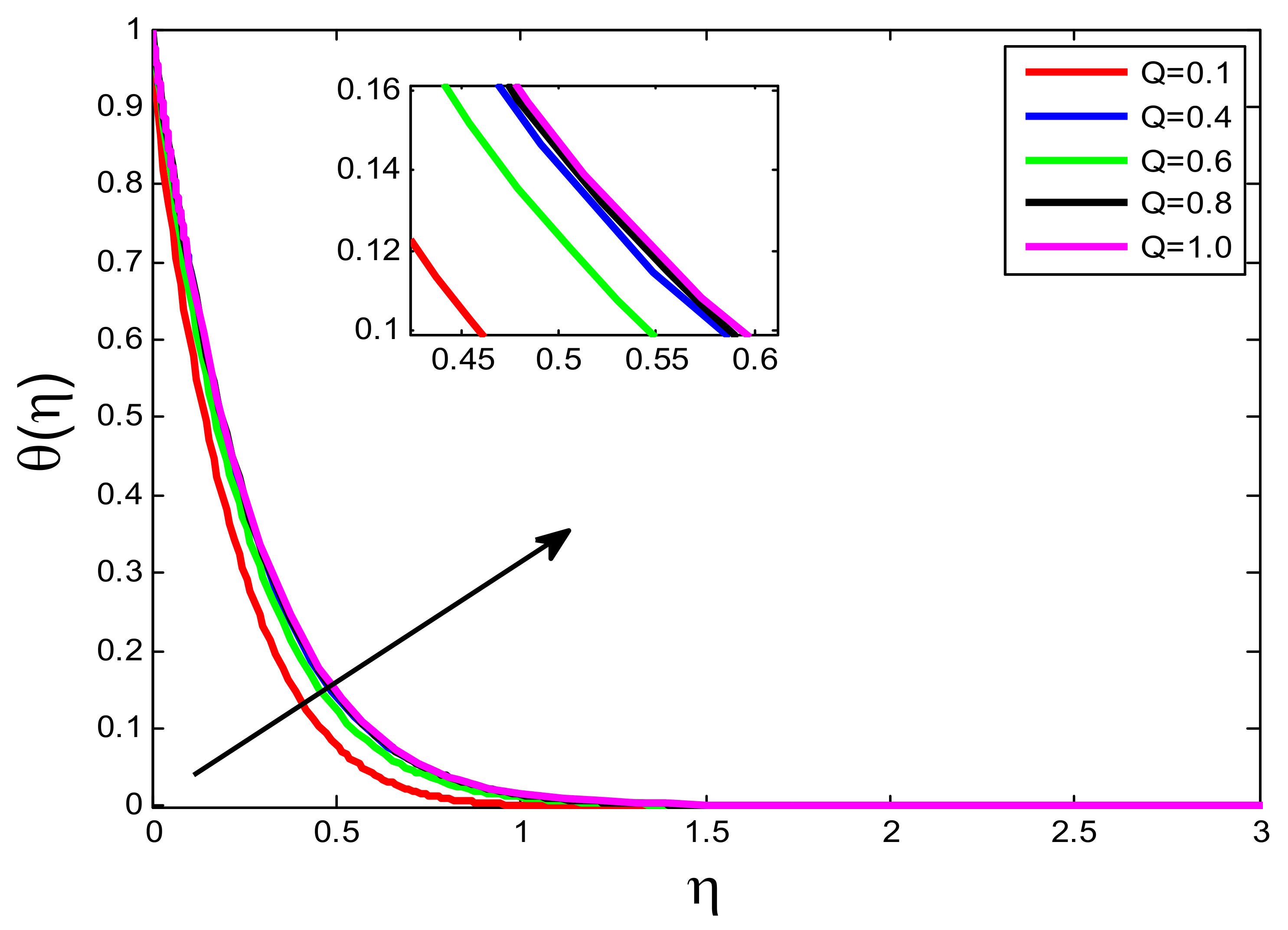

Figure 26. Influence of $Q$ on $\theta \left(\eta \right)$.

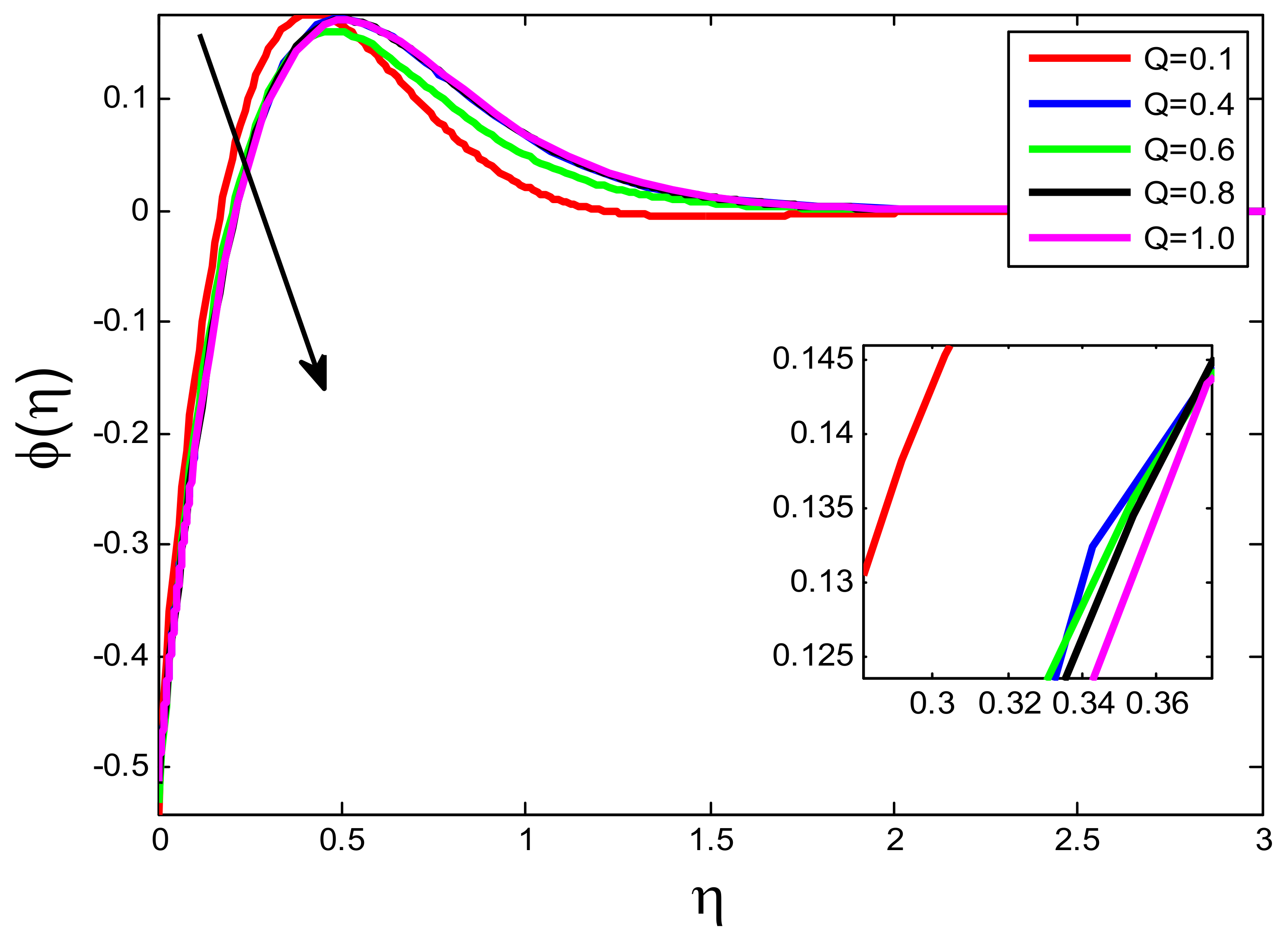

Figure 27. Influence of $Q$ on $\varphi \left(\eta \right)$.

4.2. Influence of Regulatory Flow Parameters on Skin Friction Coefficient $R{e}^{1/2}{C}_f$, Nusselt Number $R{e}^{-1/2}Nu$, and Sherwood Number $R{e}^{-1/2}Sh$

Figure 28, Figure 29 and Figure 30 depict the action of Williamson fluid parameter $W$ on the skin friction coefficient $R{e}^{1/2}{C}_f$, Nusselt number $R{e}^{-1/2}Nu$, and Sherwood number $R{e}^{-1/2}Sh$, respectively. The results indicate that with increasing increments of $W$ $R{e}^{1/2}{C}_f$ and $R{e}^{-1/2}Sh$ increases but $R{e}^{-1/2}Nu$ is attenuated. The influence of Schmidt number $Sc$ on skin friction coefficient $R{e}^{1/2}{C}_f$, Nusselt number $R{e}^{-1/2}Nu$, and Sherwood number $R{e}^{-1/2}Sh$ is illustrated in Figure 31, Figure 32 and Figure 33. Graphs show that increasing $Sc$ leads to decrease $R{e}^{1/2}{C}_f$, and $R{e}^{-1/2}Nu$ and increases $R{e}^{-1/2}Sh$. In Table 1, the present study is compared with the already published results for the validation of the current numerical solution. It is noted that there is good agreement between the current and existing results. Due to this strong agreement between the results, the validation of the current results is ensured.

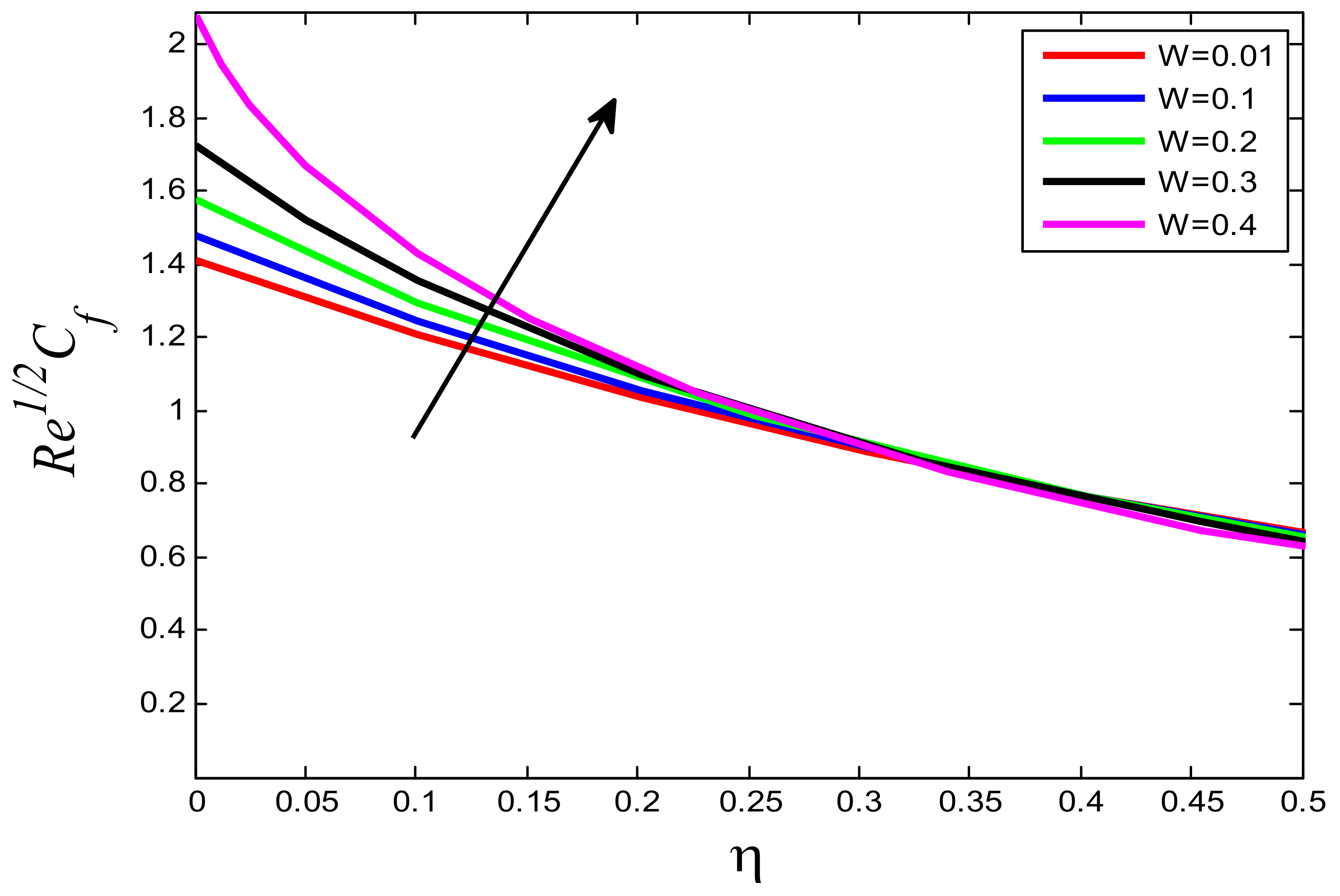

Figure 28. Influence of $W$ on $R{e}^{1/2}{C}_f$.

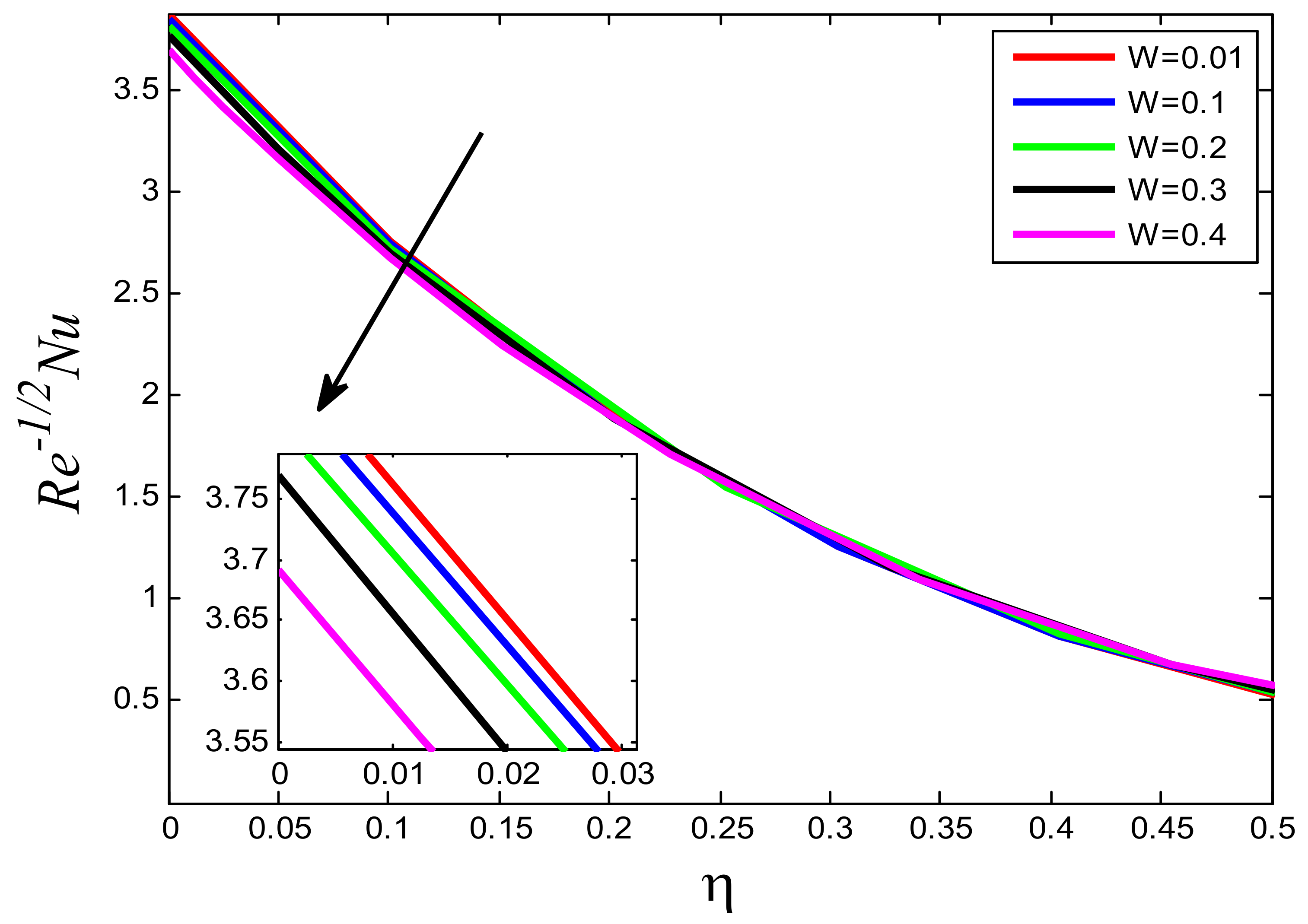

Figure 29. Influence of $W$ on $R{e}^{-1/2}Nu$.

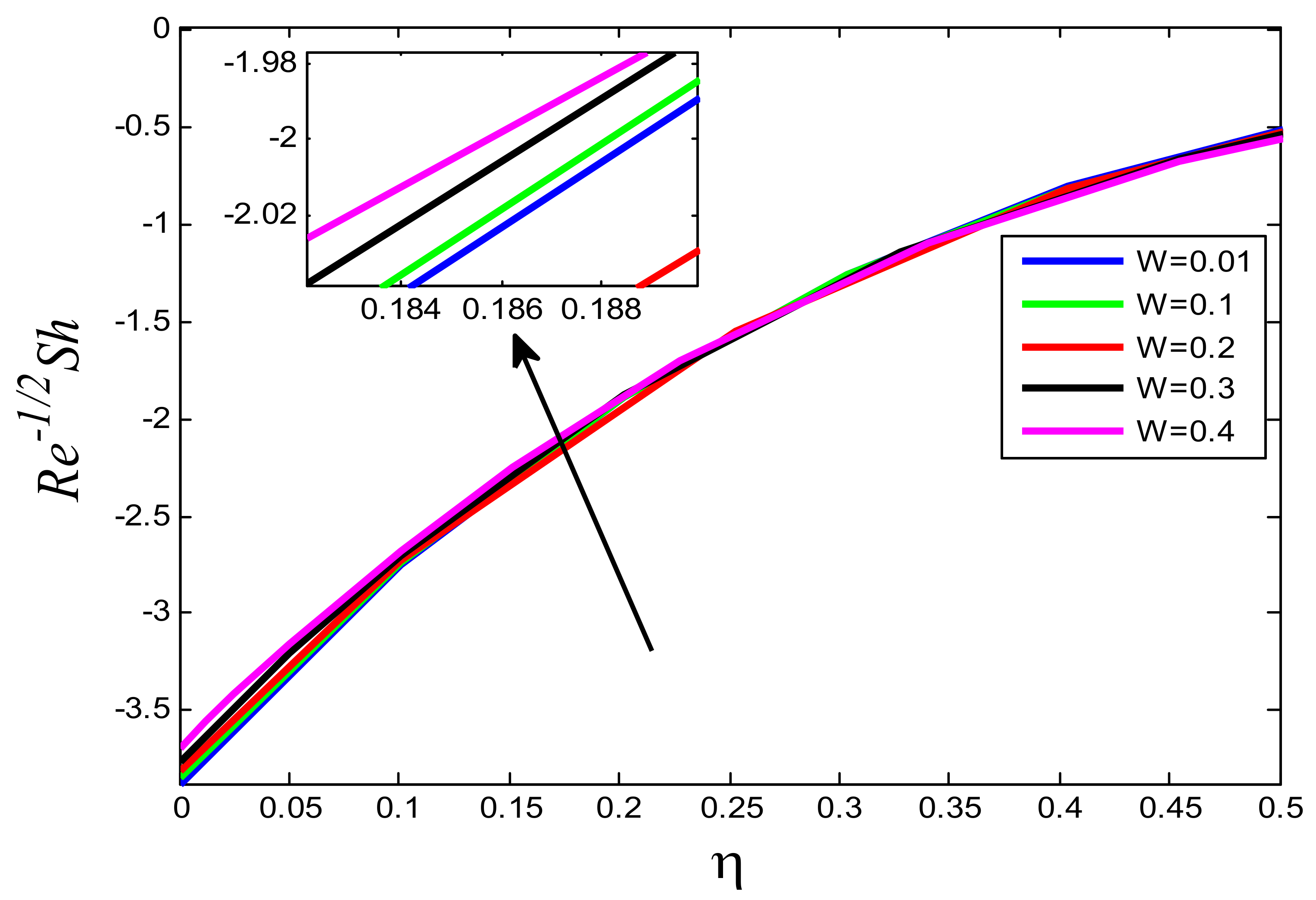

Figure 30. Influence of $W$ on $R{e}^{-1/2}Sh$.

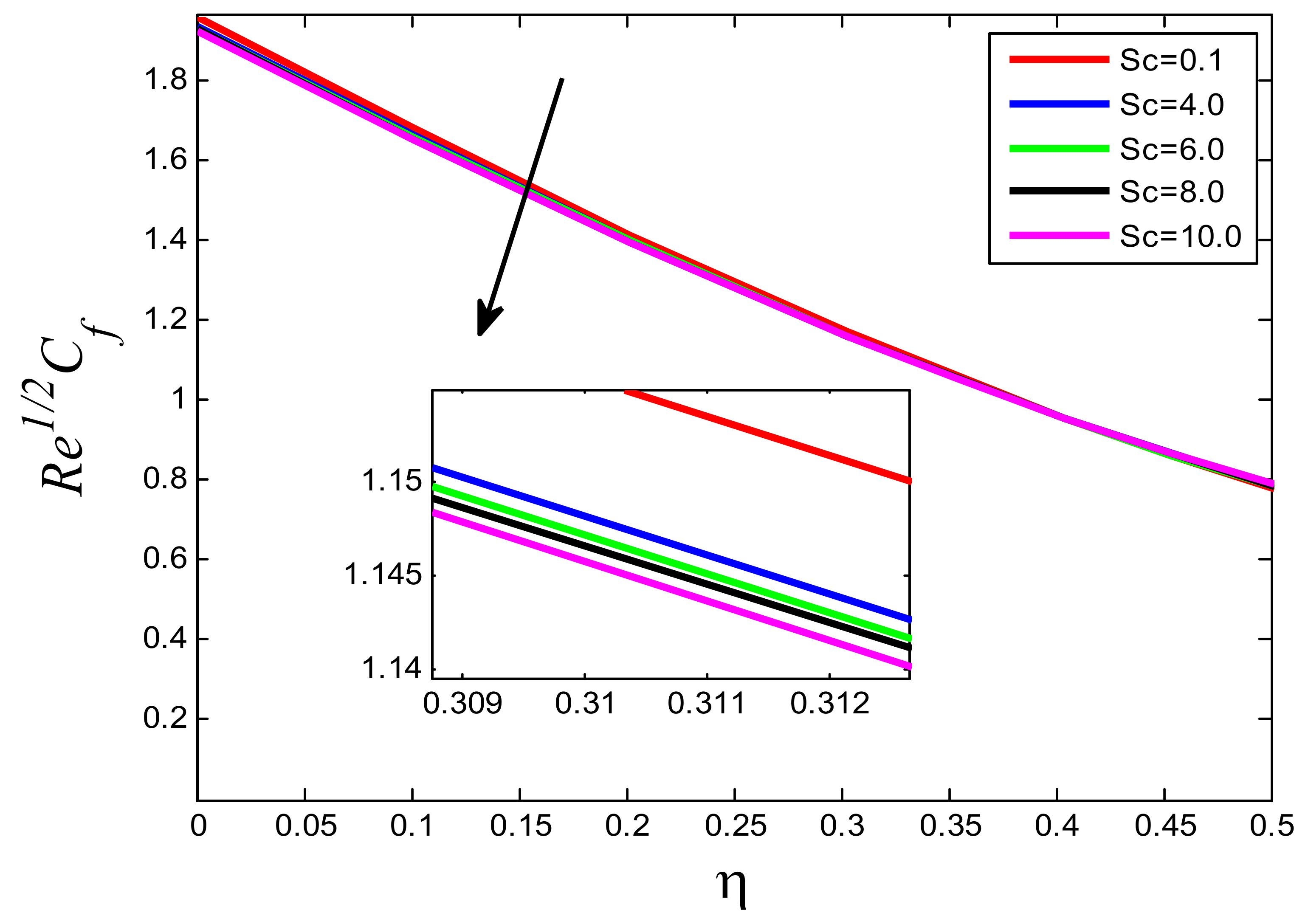

Figure 31. Influence of $Sc$ on $R{e}^{1/2}{C}_f$.

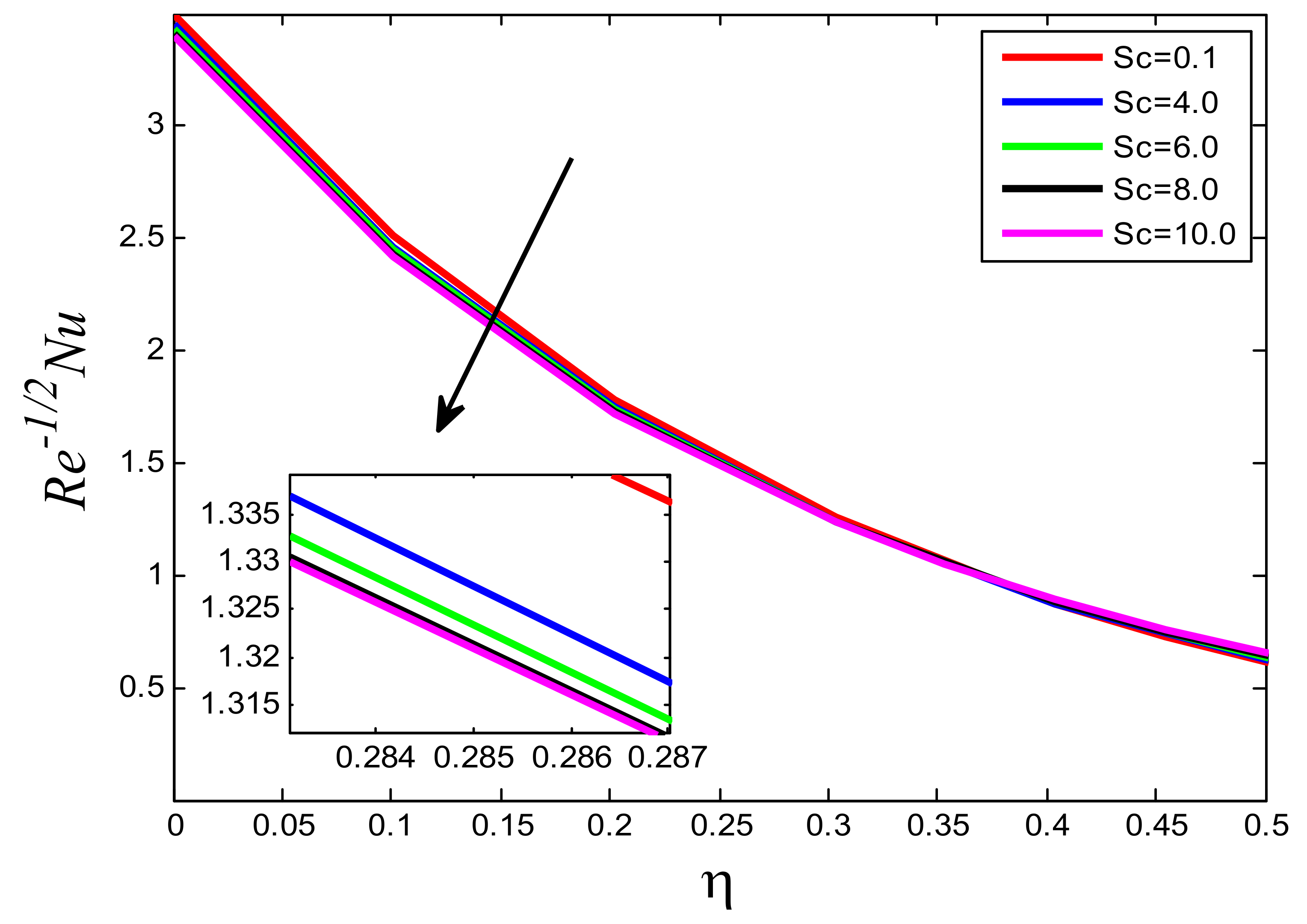

Figure 32. Influence of $Sc$ on $R{e}^{-1/2}Nu$.

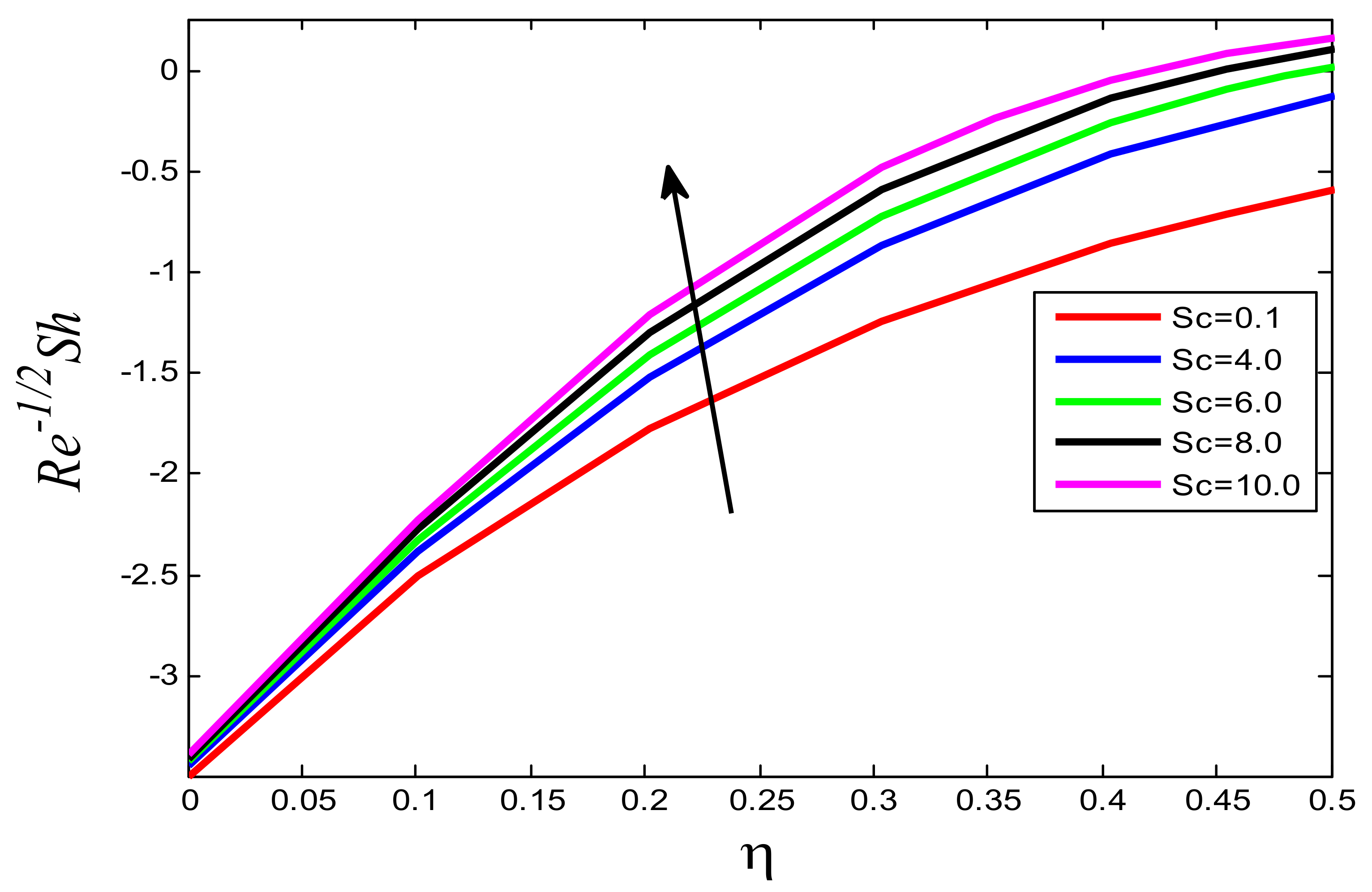

Figure 33. Influence of $Sc$ on $R{e}^{-1/2}Sh$.

Table 1. Comparison of Nusselt number $\left(NuR{e}^{-1/2}\right)$ for various values of $Pr$ when ${\lambda }_T={\lambda }_C=W=M=Nt=Nb=Ec=Q=$ Sc = 0 and $n=1$.

$$\mathit{P}\mathit{r}$$	Gorla and Sidawi [37]	Megahed [38]	Present
0.07	0.06562	0.065531	0.065542
0.20	0.16912	0.169117	0.169128
2.0	0.91142	0.911358	0.911368
7.0	1.89546	1.895453	1.895462
20.0	3.35391	3.353902	3.353911

5. Conclusions

The current study deals with magnetohydrodynamic Williamson nanofluid flow and heat transfer past a non-linear stretching sheet fixed in a porous medium by incorporating heat generation and viscous dissipation influences. The transformed equation in forms of ODEs is solved with a bp4c solver and the results are shown in a graphical way. The main outcomes of the displayed results are summarized below:

• It is noted that increasing ${\lambda }_T$ and $Nb$ boosts $f^{\prime }\left(\eta \right)$, but make weaker the increasing values of $n, W, K, Pr, Nt,$ and $M$.
• The results show that there is an augmentation in $\theta \left(\eta \right)$ against increasing values of $K, Nb, M, Ec,$ and $Q$ but reverse scenario is seen for rising ${\lambda }_T, n, Pr$ and $Nt$.
• It is noted that $\varphi$ increases as $W, K, Nb, M,$ and $Ec$ increase, but the opposite trend is observed for augmenting ${\lambda }_T, n, Nt$, and $Q$.
• The graphical results indicate that $R{e}^{1/2}{C}_f$ increases for increasing $W$ and decreases for increasing $Sc$.
• It has been viewed that enhancing $W$ and $Sc$ led to a decline in $R{e}^{-1/2}Nu$.
• It has been observed that $R{e}^{-1/2}Sh$ rises for increasing $W$ and $Sc$.
• The present results are compared with existing results that show good agreement and endorse the validation of the current solution.
