Next Article in Journal
A Review on Biopolymer-Based Fibers via Electrospinning and Solution Blowing and Their Applications
Previous Article in Journal
3D Printed Hollow-Core Terahertz Fibers
Previous Article in Special Issue
Expression Analysis of Cell Wall-Related Genes in Cannabis sativa: The “Ins and Outs” of Hemp Stem Tissue Development
Article Menu
Issue 3 (September) cover image

Export Article

Open AccessArticle
Fibers 2018, 6(3), 44; https://doi.org/10.3390/fib6030044

Effect of Bitumen Emulsion and Polyester Resin Mixture on the Physico-Mechanical and Degradable Properties of Jute Fabrics

1
Department of Textile Engineering, Ahsanullah University of Science and Technology, Dhaka 1215, Bangladesh
2
Department of Textile Engineering, Mawlana Bhashani Science and Technology University, Tangail 1902, Bangladesh
3
Bangabandhu Textile Engineering College, Department of Textiles, Ministry of Textiles and Jute, Tangail 1970, Bangladesh
4
Institute of Radiation and Polymer Technology, Atomic Energy Research Establishment, Bangladesh Atomic Energy Commission, Savar, Dhaka 1349, Bangladesh
*
Author to whom correspondence should be addressed.
Received: 16 April 2018 / Revised: 12 June 2018 / Accepted: 13 June 2018 / Published: 25 June 2018
(This article belongs to the Special Issue Plant Bast Fibers)
Full-Text   |   PDF [8400 KB, uploaded 27 June 2018]   |

Abstract

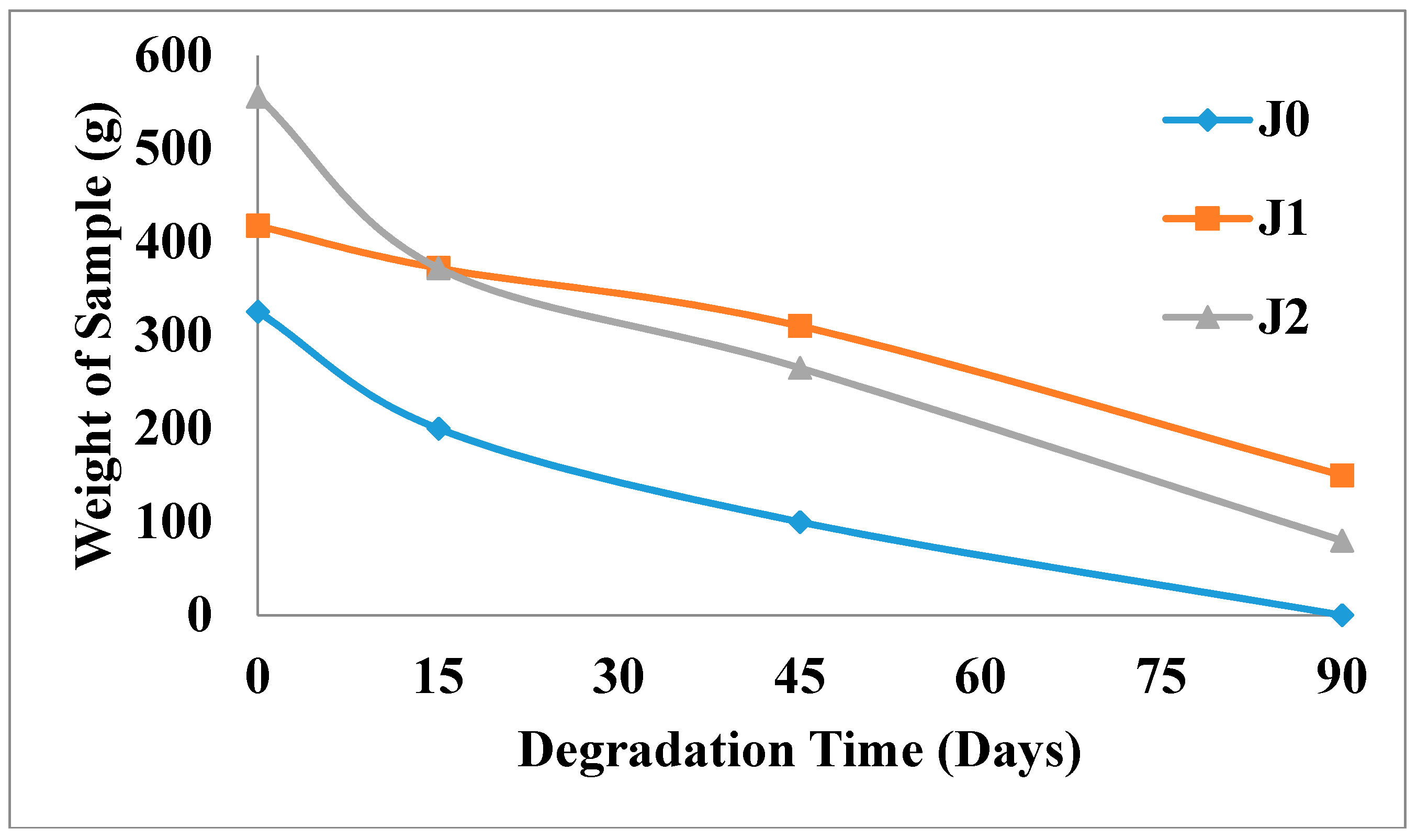

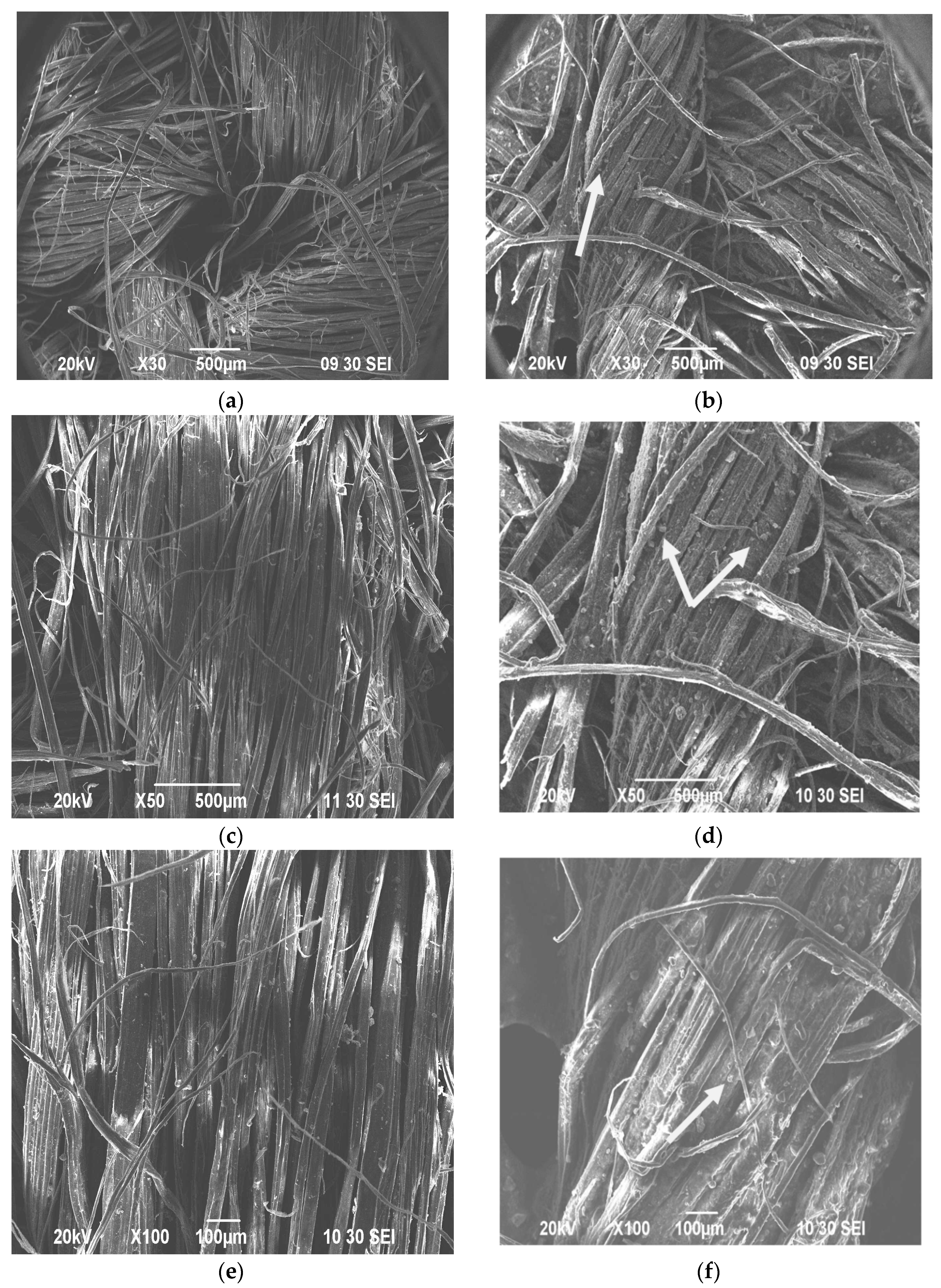

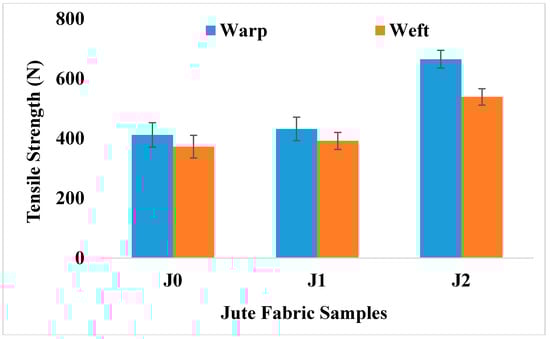

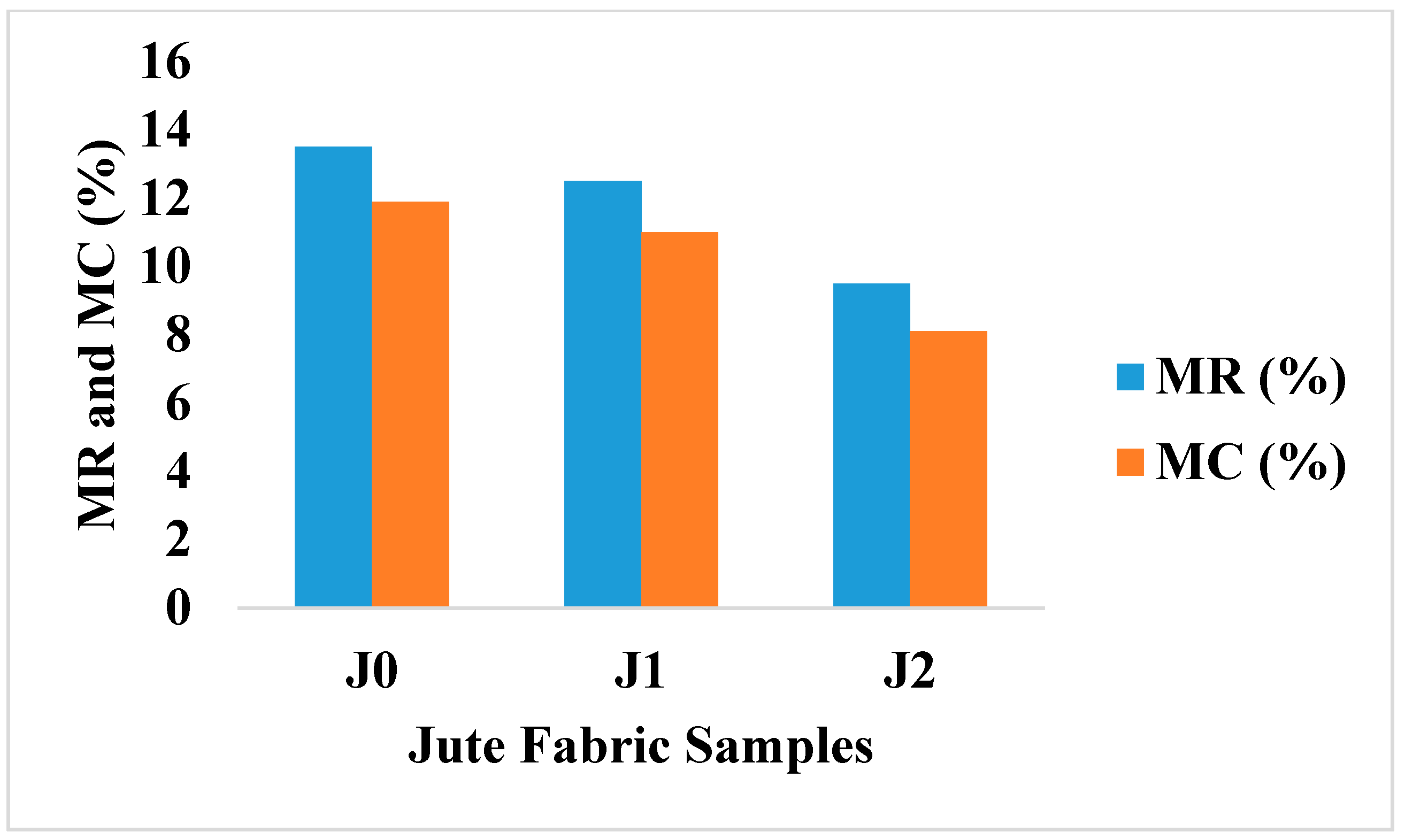

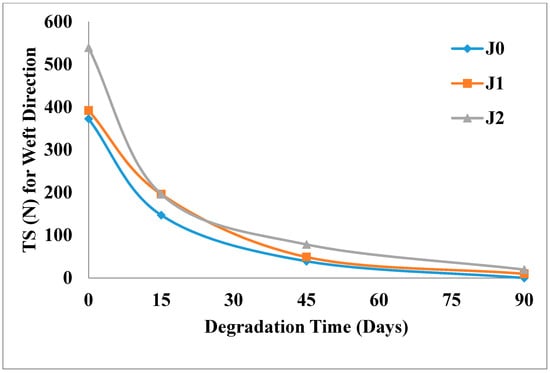

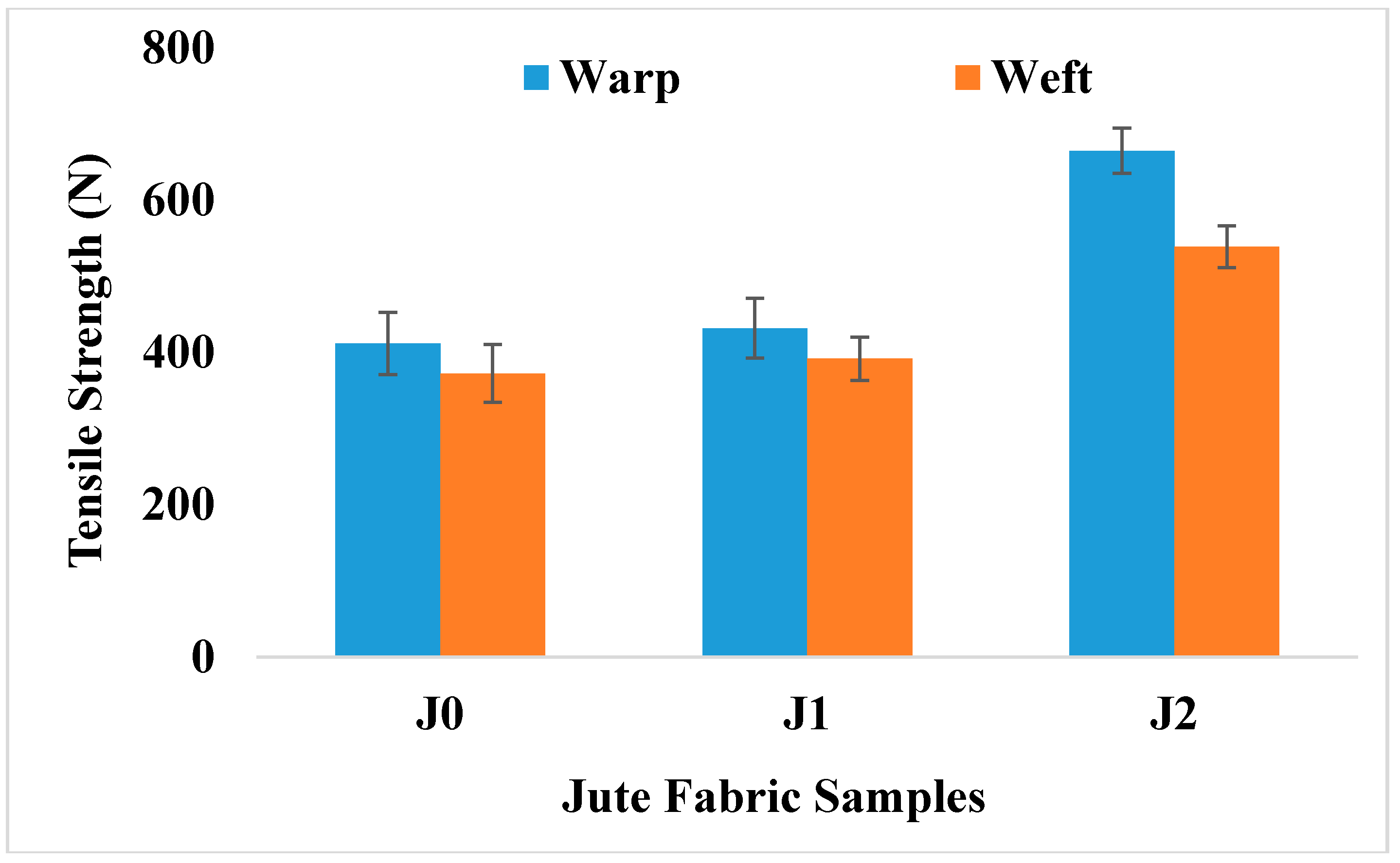

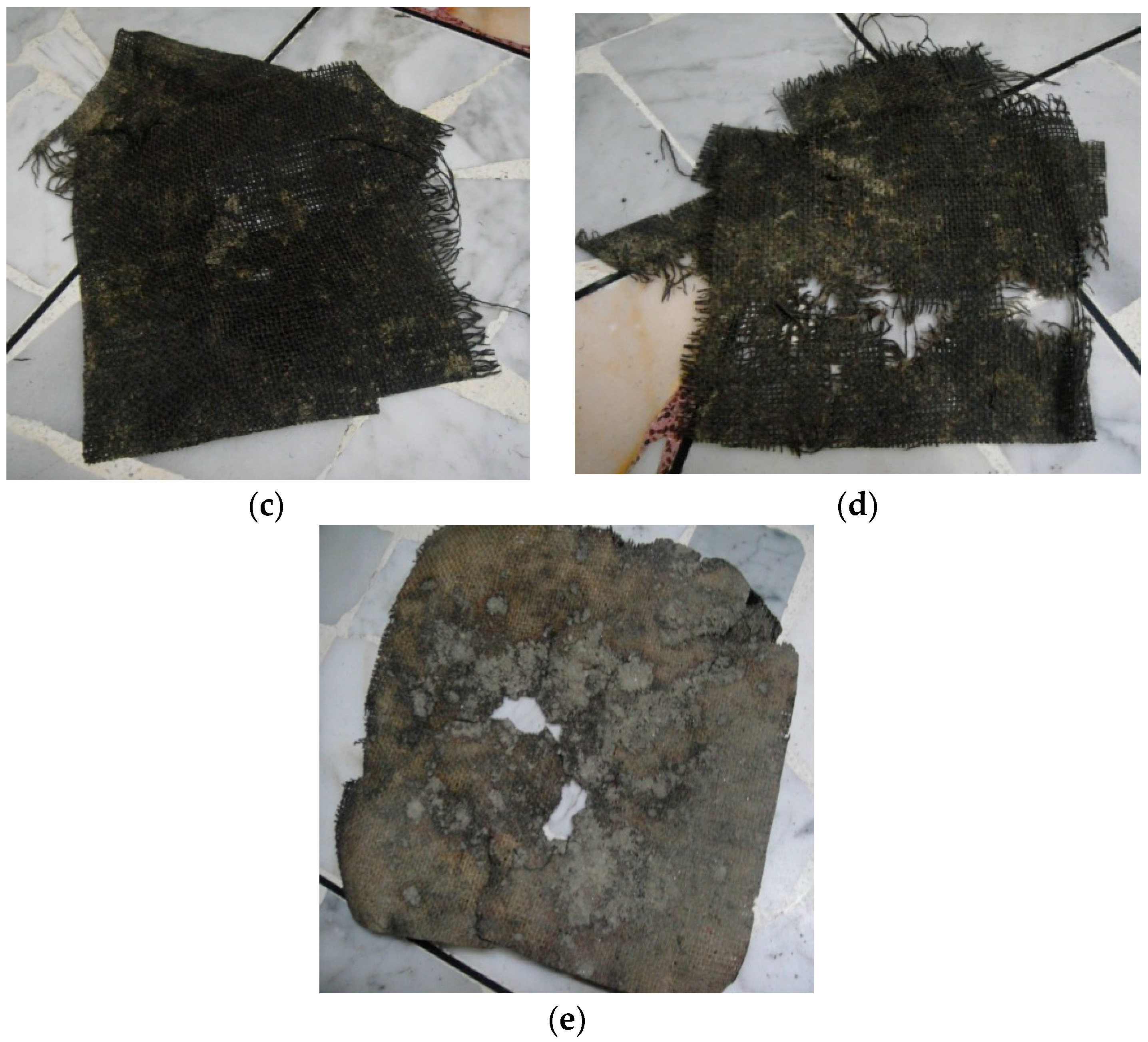

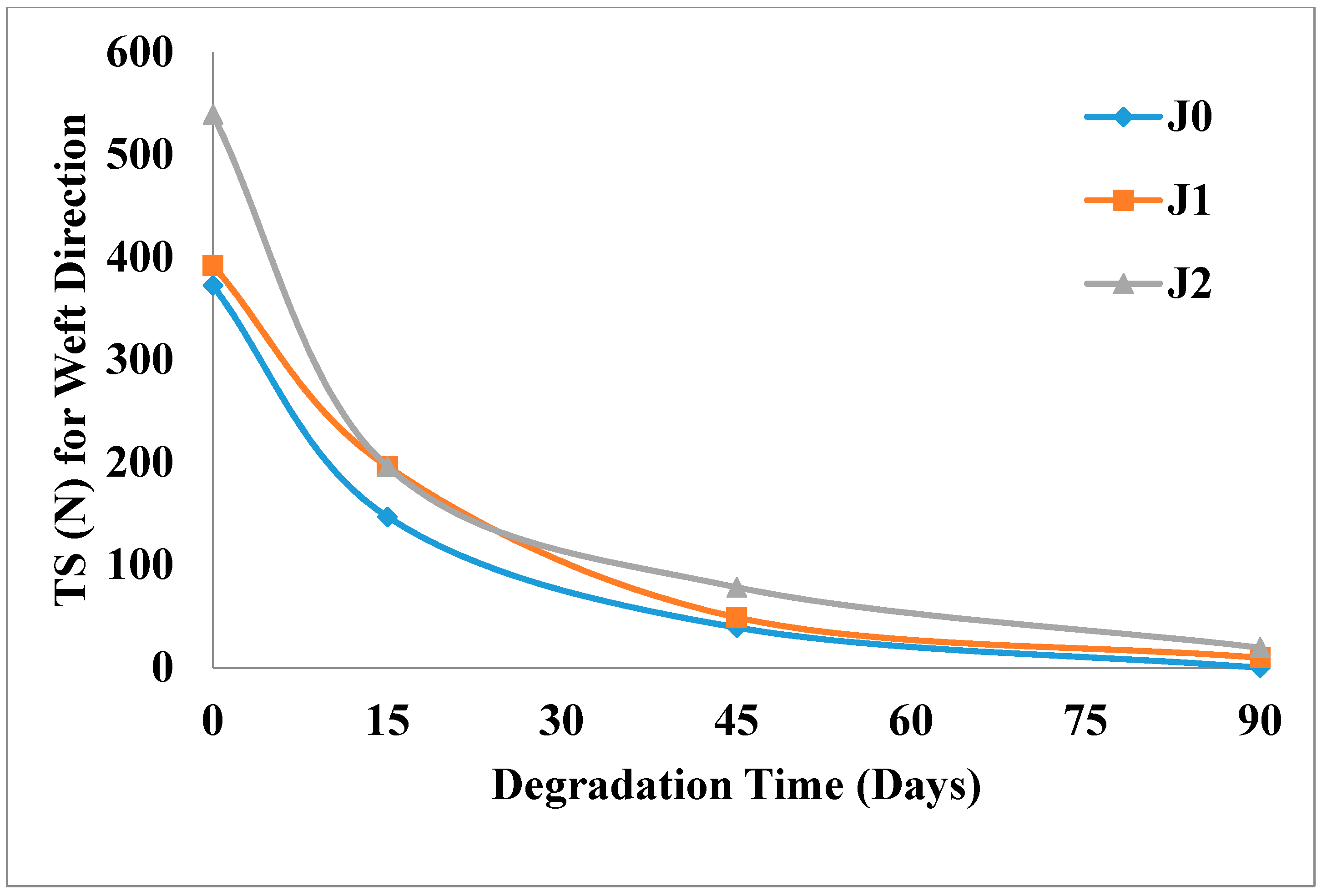

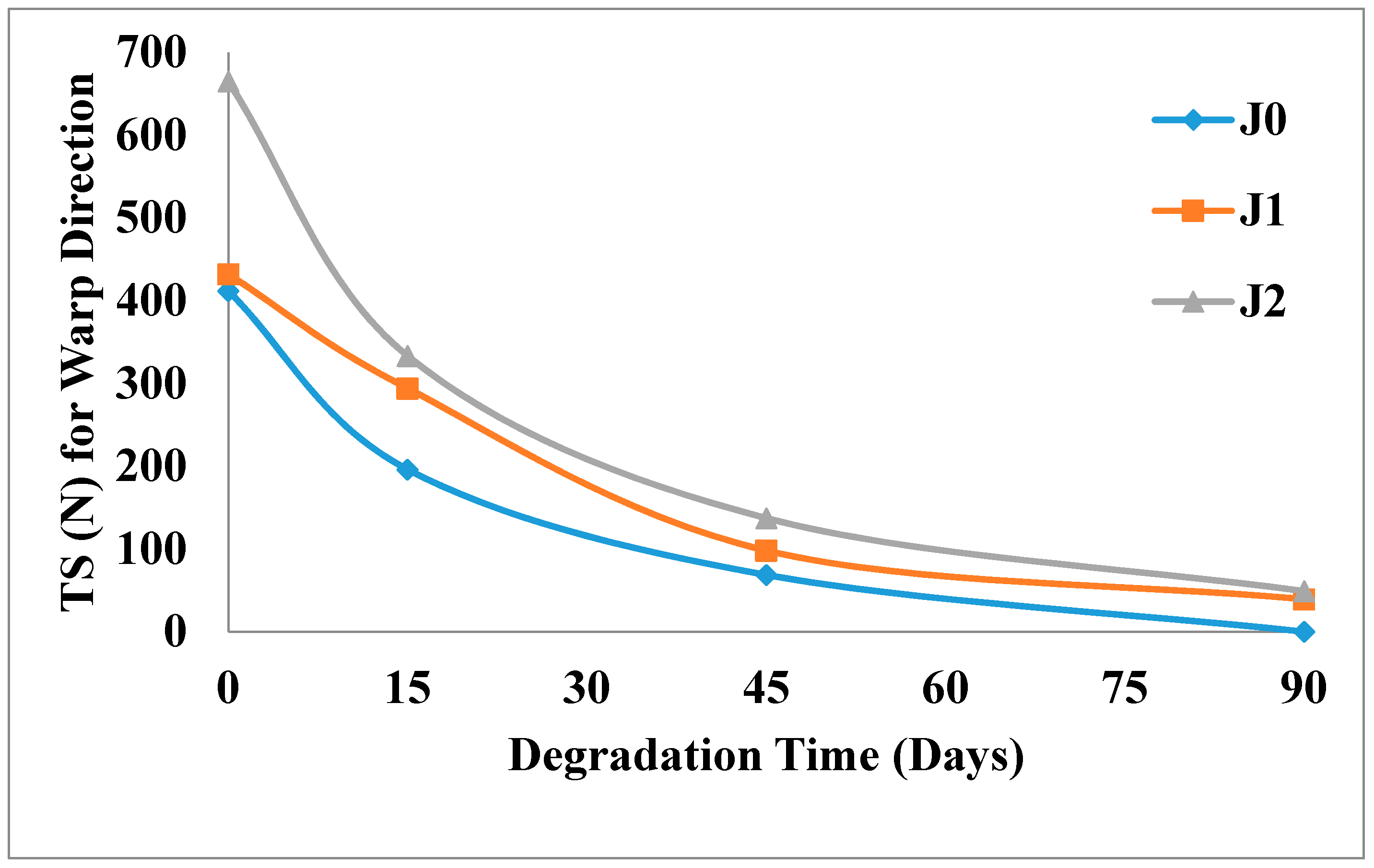

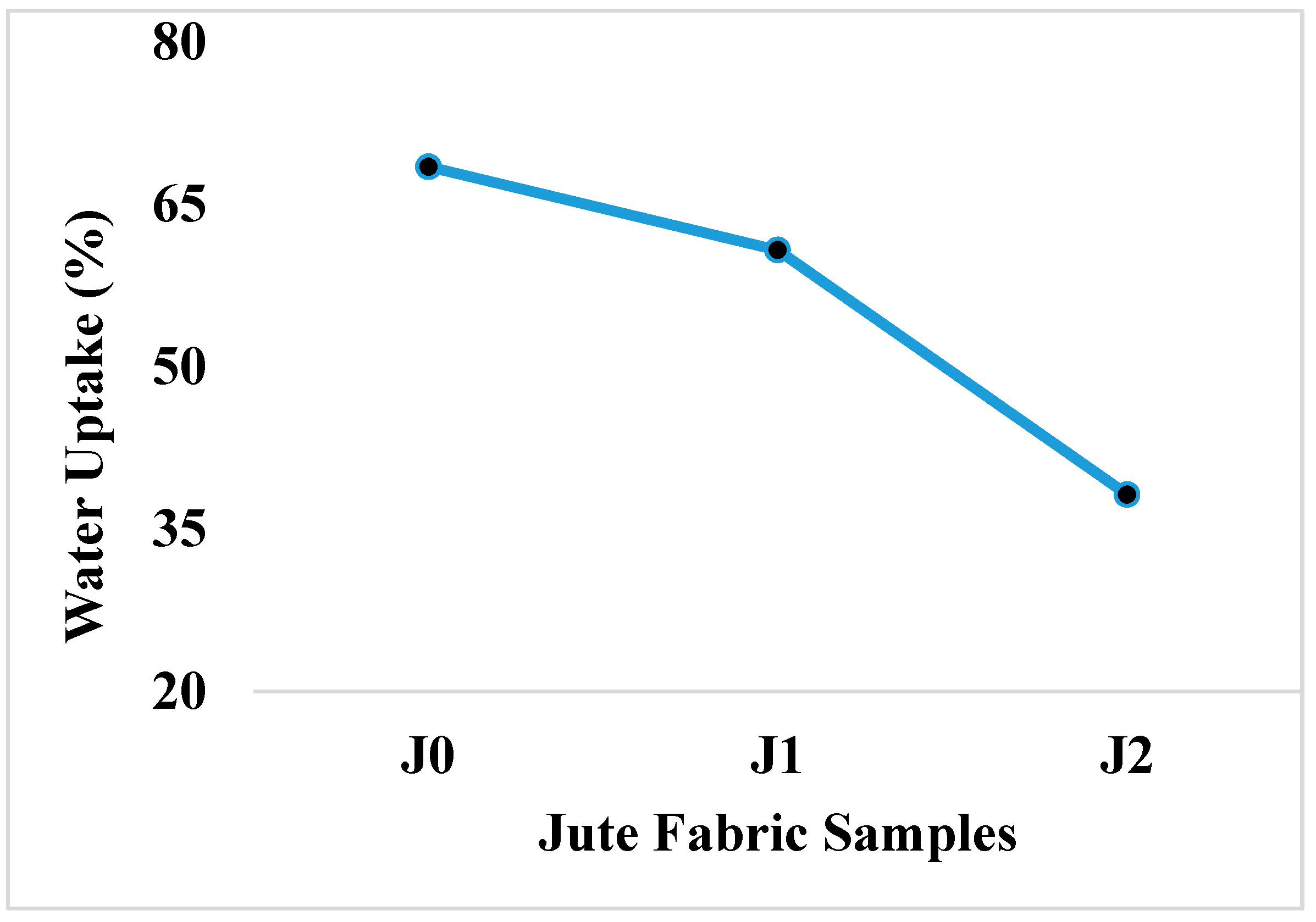

Jute fabric samples were treated, with different formulations, using various proportions of bitumen emulsion and polyester (PE) resin in combined solutions. Styrene monomer was used as solvent, methyl ethyl ketone peroxide as cross-linking agent and cobalt naphtha as curing agent. The fabric specimens were immersed in the solution for 10–15 min, then pressed by a roller and dried at room temperature for 24 h. According to the percentage of bitumen emulsion and PE resin, the jute samples were obtained as J0 (untreated or raw jute), J1 (20% bitumen emulsion +10% PE), and J2 (10% bitumen emulsion +20% PE). It was revealed that tensile strength (TS) increased with bitumen emulsion and PE resin mixture treatment on both directions of jute fabrics where J2 showed the highest improvement of TS which were 61.4% and 44.7% for warp and weft direction respectively. Tensile strength (TS) decreased for all the samples in both directions after soil degradation. After 90 days, the untreated sample was totally degraded. Treated samples exhibited better stability than untreated ones in soil medium. Weight loss by soil degradation, moisture regain, moisture content and water uptake tests of the treated and untreated jute samples were also performed. Scanning electron microscopy (SEM) analysis was conducted to analyze the fiber surfaces of raw and treated jute fibers, finding significant differences as a result of treatment. Finally, the strategy of combining bitumen emulsion and PE resin for treatment, rather than using only PE resin, was found to produce a jute fabric which was not only better in all the above respects but also would be cheaper to produce. View Full-Text
Keywords: bitumen emulsion; polyester resin; jute fabric; tensile strength; soil degradation bitumen emulsion; polyester resin; jute fabric; tensile strength; soil degradation
Figures

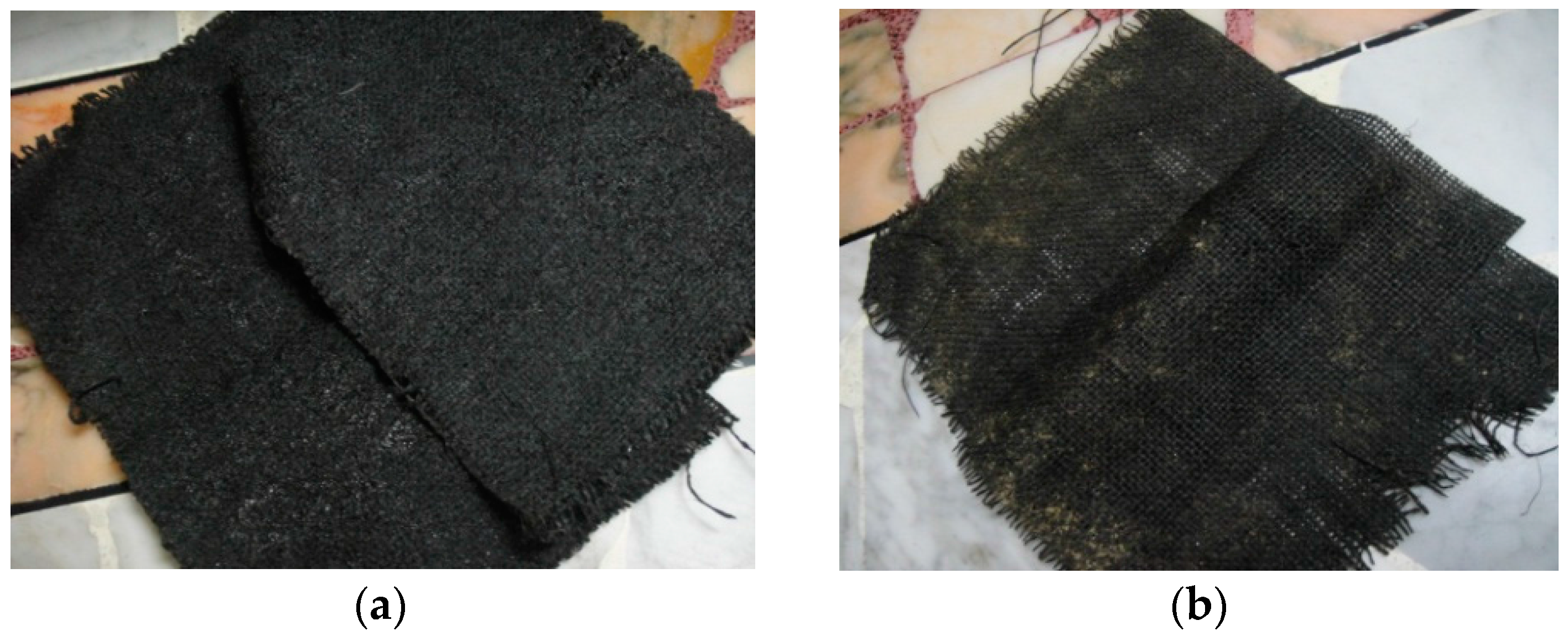

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Akter, N.; Saha, J.; Das, S.C.; Khan, M.A. Effect of Bitumen Emulsion and Polyester Resin Mixture on the Physico-Mechanical and Degradable Properties of Jute Fabrics. Fibers 2018, 6, 44.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Fibers EISSN 2079-6439 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
