Open AccessArticle

Application of Industrial XRF Coating Thickness Analyzer for Phosphate Coating Thickness on Steel

1
Baltic Scientific Instruments, Ganibudambis 26, LV-1005, Riga, Latvia
2
Euro Science, Woolim Lion’s Valley 1-Cha 815, Jungwon-Gu, Seongnam-si 462-806, Korea
*
Author to whom correspondence should be addressed.
Coatings 2018, 8(4), 126; https://doi.org/10.3390/coatings8040126
Received: 6 February 2018 / Revised: 22 March 2018 / Accepted: 26 March 2018 / Published: 30 March 2018
(This article belongs to the Special Issue Advanced Nondestructive Evaluation and Characterization of Surface)
  |
PDF [2160 KB, uploaded 3 May 2018]
  |

Abstract

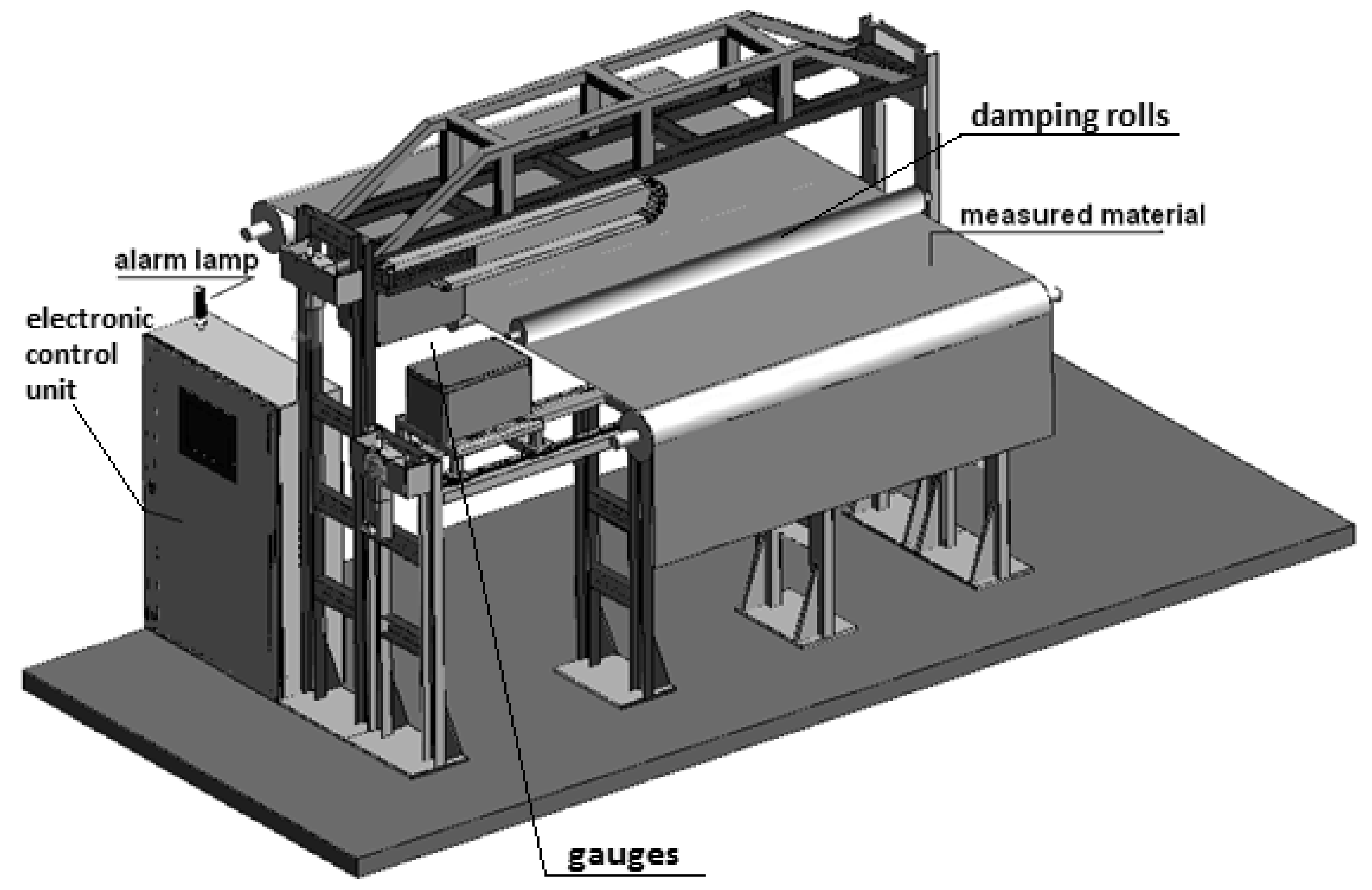

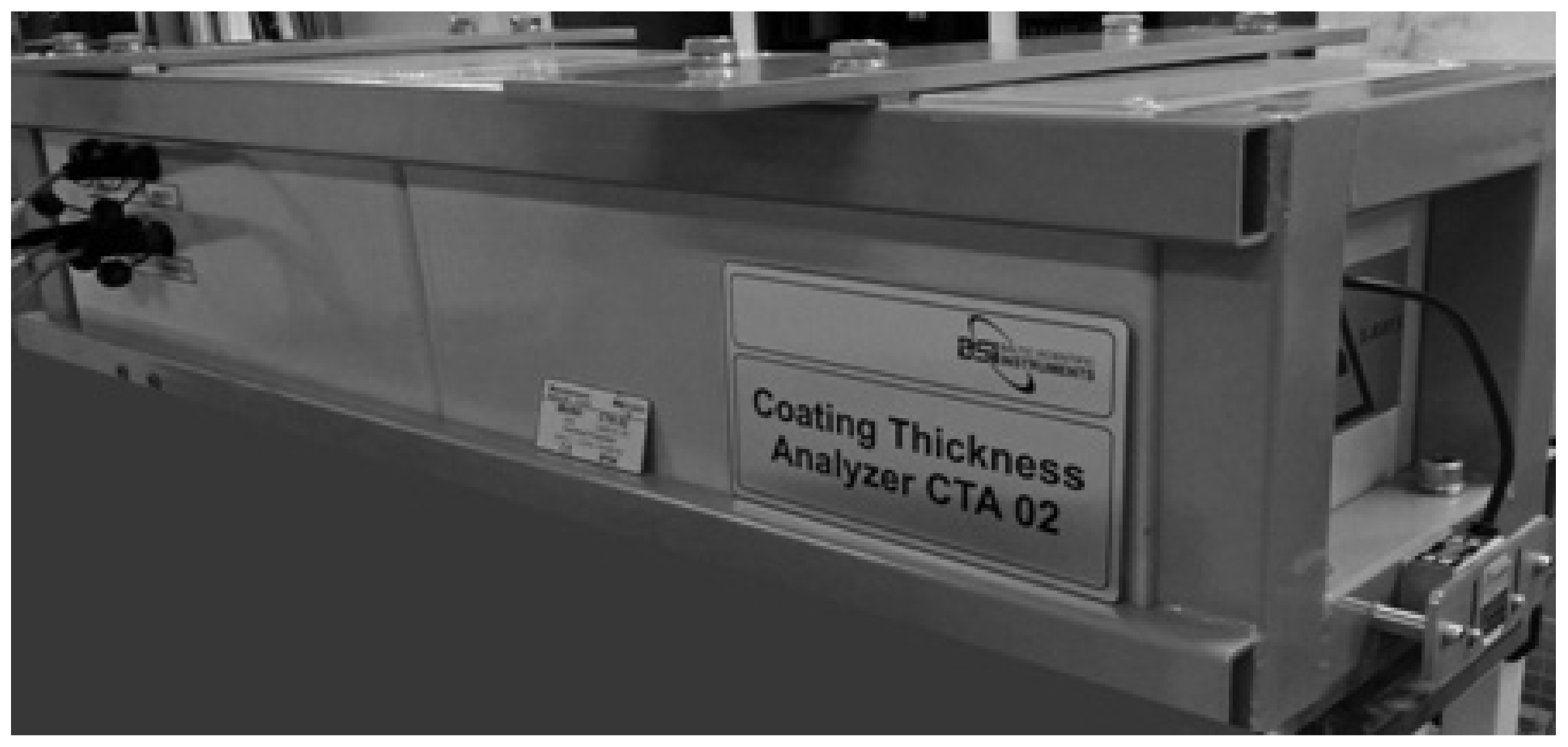

The results of industrial application of an online X-ray fluorescence coating thickness analyzer for measuring the thickness of phosphate coatings on moving steel strips are considered in the article. The target range of coating thickness to be measured is from tens to hundreds of mg/m2 in a measurement time of 10 s. The measurement accuracy observed during long-duration factory acceptance test was 10–15%. The coating thickness analyzer consists of two XRF gauges, mounted above and below the steel strip and capable of moving across the moving strip system for their suspension and relocation and electronic control unit. Fully automated software was developed to automatically and continuously (24/7) control both gauges, scanning both sides of the steel strip, and develop and test methods for measuring new coatings. It allows performing offline storage and retrieval of the measurement results, remotely controlling the analyzer components and measurement modes from a control room. The developed XRF coating thickness analyzer can also be used for real-time measurement of other types of coatings, both metallic and non-metallic. View Full-Text
Keywords: industrial on-line XRF analysis; X-ray coating thickness analyzer; industrial coating quality control and monitoring; phosphate coatings on rolled steel industrial on-line XRF analysis; X-ray coating thickness analyzer; industrial coating quality control and monitoring; phosphate coatings on rolled steel
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
