Next Article in Journal
Low Friction at the Nanoscale of Hydrogenated Fullerene-Like Carbon Films
Previous Article in Journal
CeO2 Containing Thin Films as Bioactive Coatings for Orthopaedic Implants
Open AccessArticle

Graphene Coating for Enhancing the Atom Oxygen Erosion Resistance of Kapton

1
Beijing Key Laboratory for Powder Technology Research and Development, Beihang University (BUAA), Beijing 100191, China
2
Technology and Engineering Center for Space Utilization, Chinese Academy of Sciences, Beijing 100094, China
3
State Key Laboratory of Mechanics and Control of Mechanical Structures & Key Laboratory for Intelligent Nano Materials and Devices of Ministry of Education & College of Aerospace Engineering, Nanjing University of Aeronautics and Astronautics (NUAA), Nanjing 210016, China
4
State Key Laboratory of Explosion Science and Technology, Beijing Institute of Technology, Beijing 100081, China
*
Authors to whom correspondence should be addressed.
Coatings 2020, 10(7), 644; https://doi.org/10.3390/coatings10070644
Received: 9 June 2020 / Revised: 27 June 2020 / Accepted: 29 June 2020 / Published: 1 July 2020
(This article belongs to the Section Corrosion, Wear and Erosion)
Atom oxygen (AO) can cause most spacecraft material erosion seriously. Liquid-exfoliated graphene by jet cavitation was used to coat Kapton employed on spacecraft to enhance its AO erosion resistance. The coating was prepared by vacuum filtering and transferring. After AO exposure, compared with naked Kapton, the mass loss of coated Kapton reduced to 3.73% and the erosion yield reduced to 3.67%. AO reacted with graphene and then was left in the coating. The coating was degenerated slightly, but still performed well. We believe that graphene coating could be potentially applied to increase the material’s life span on spacecraft. View Full-Text
Keywords: atom oxygen erosion resistance; Kapton; graphene coating; jet cavitation atom oxygen erosion resistance; Kapton; graphene coating; jet cavitation
Show Figures

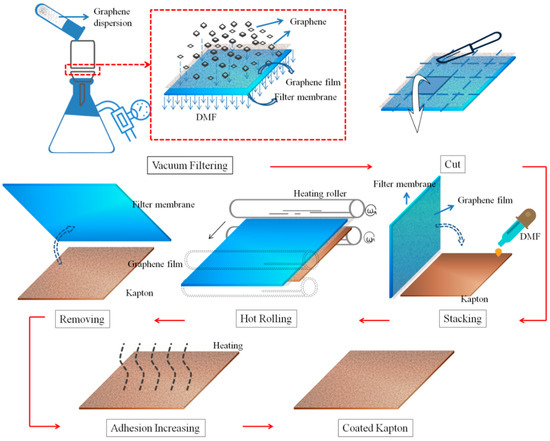

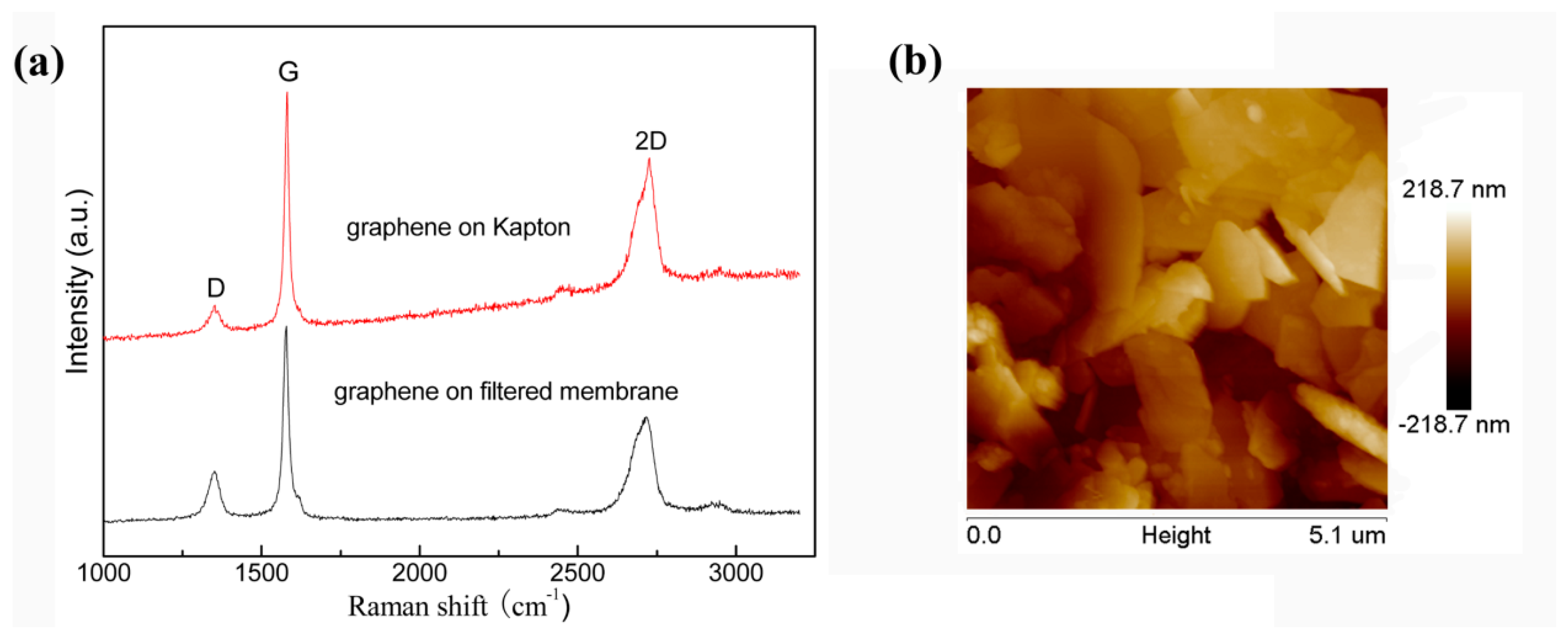

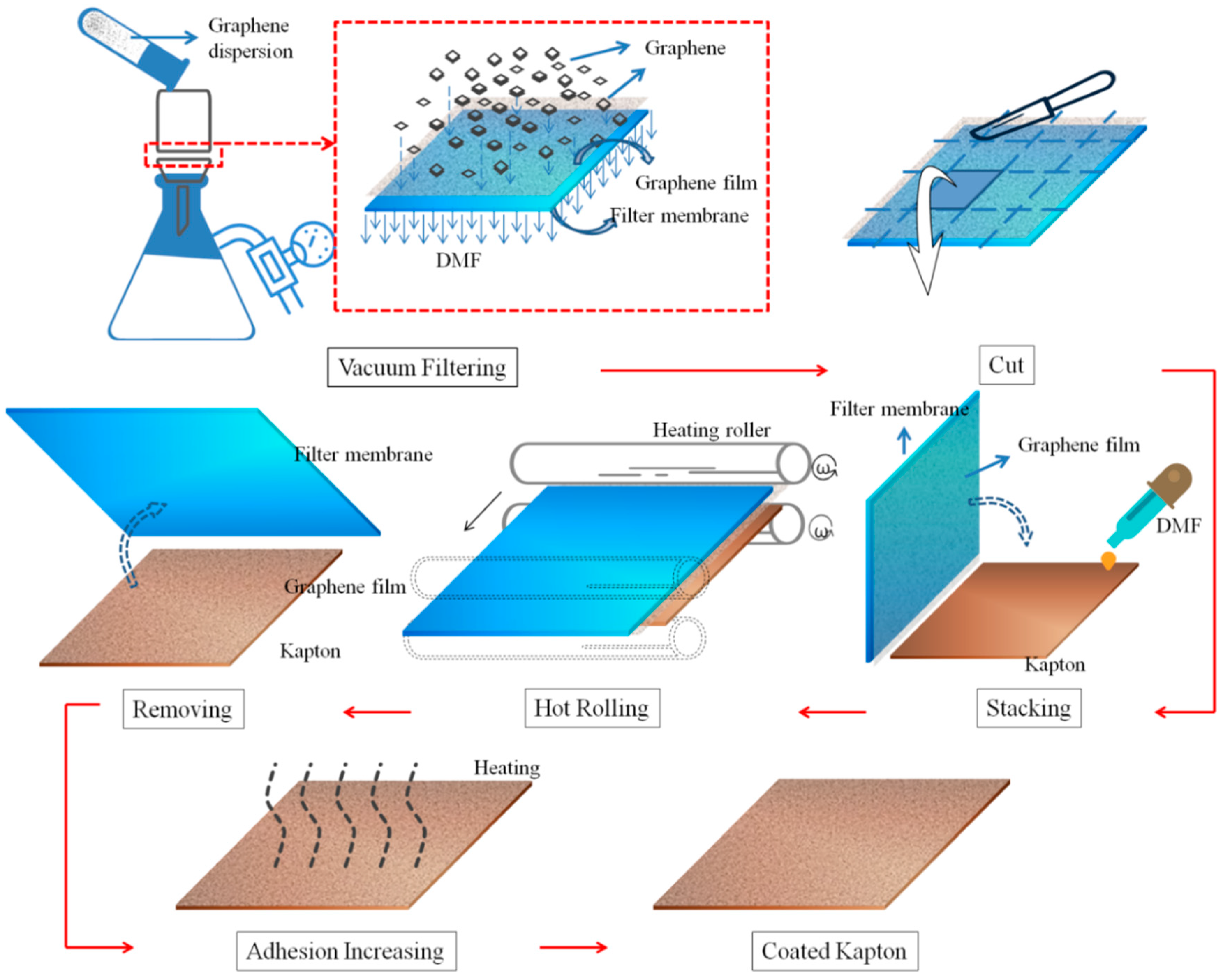

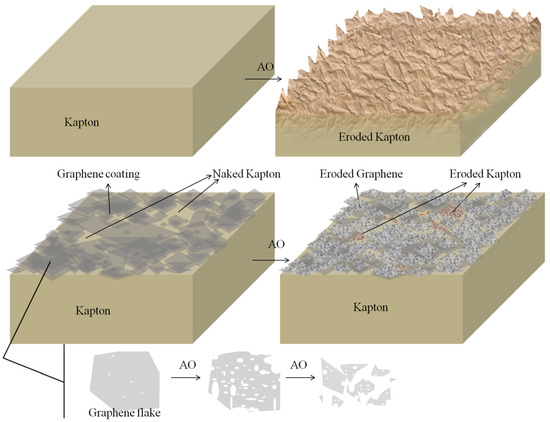

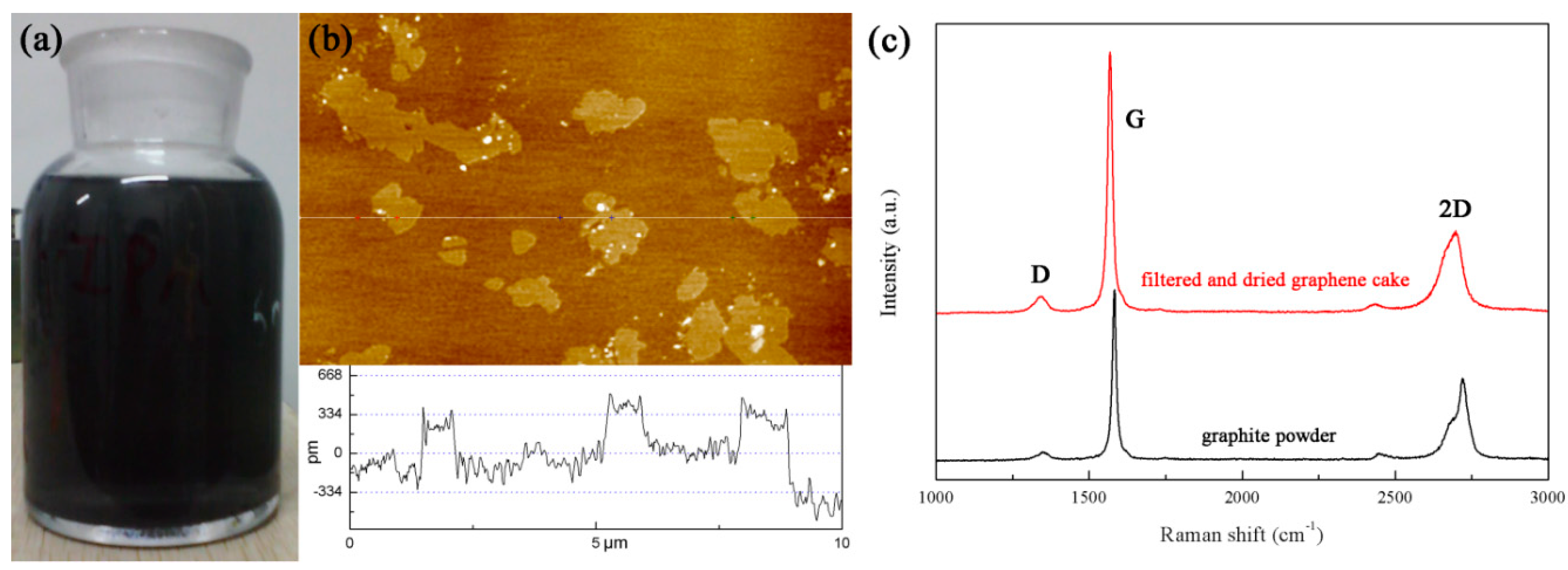

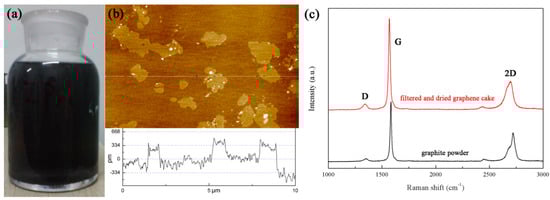

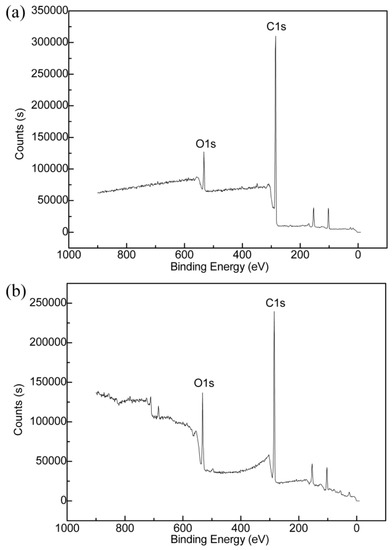

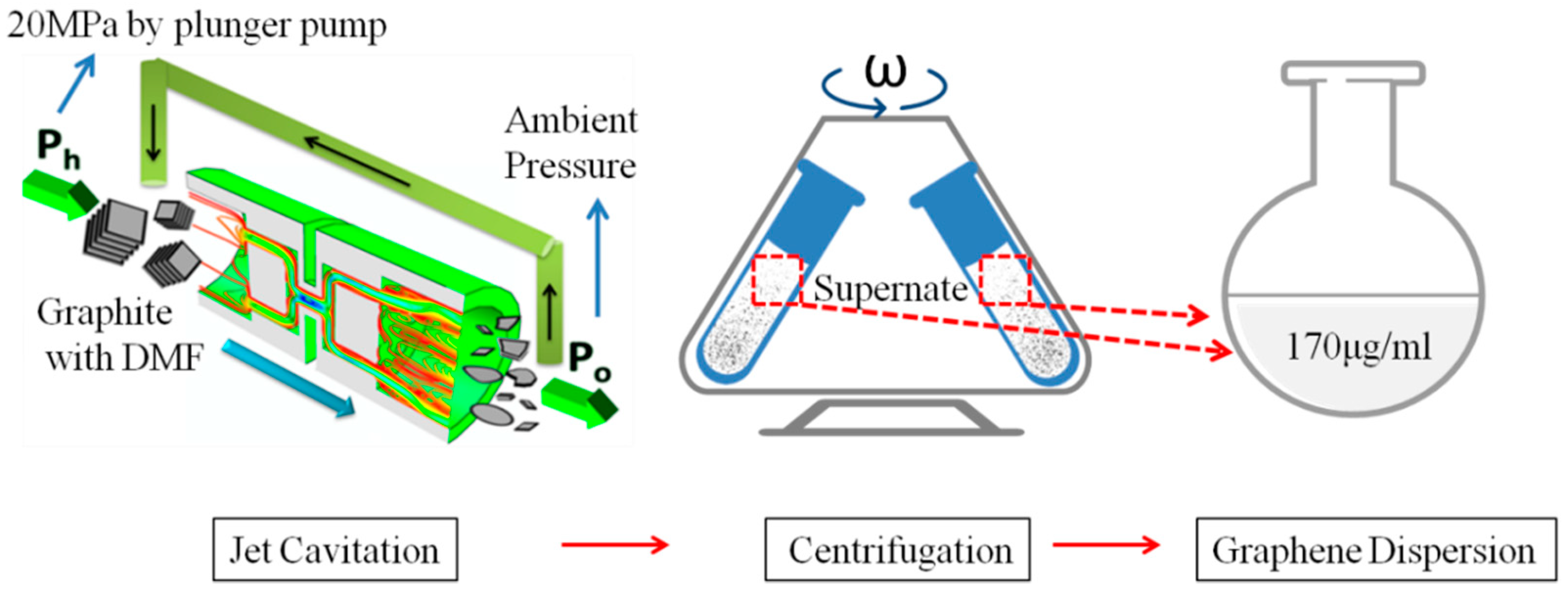

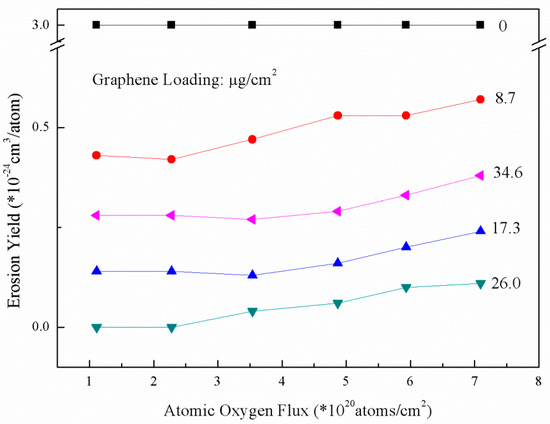

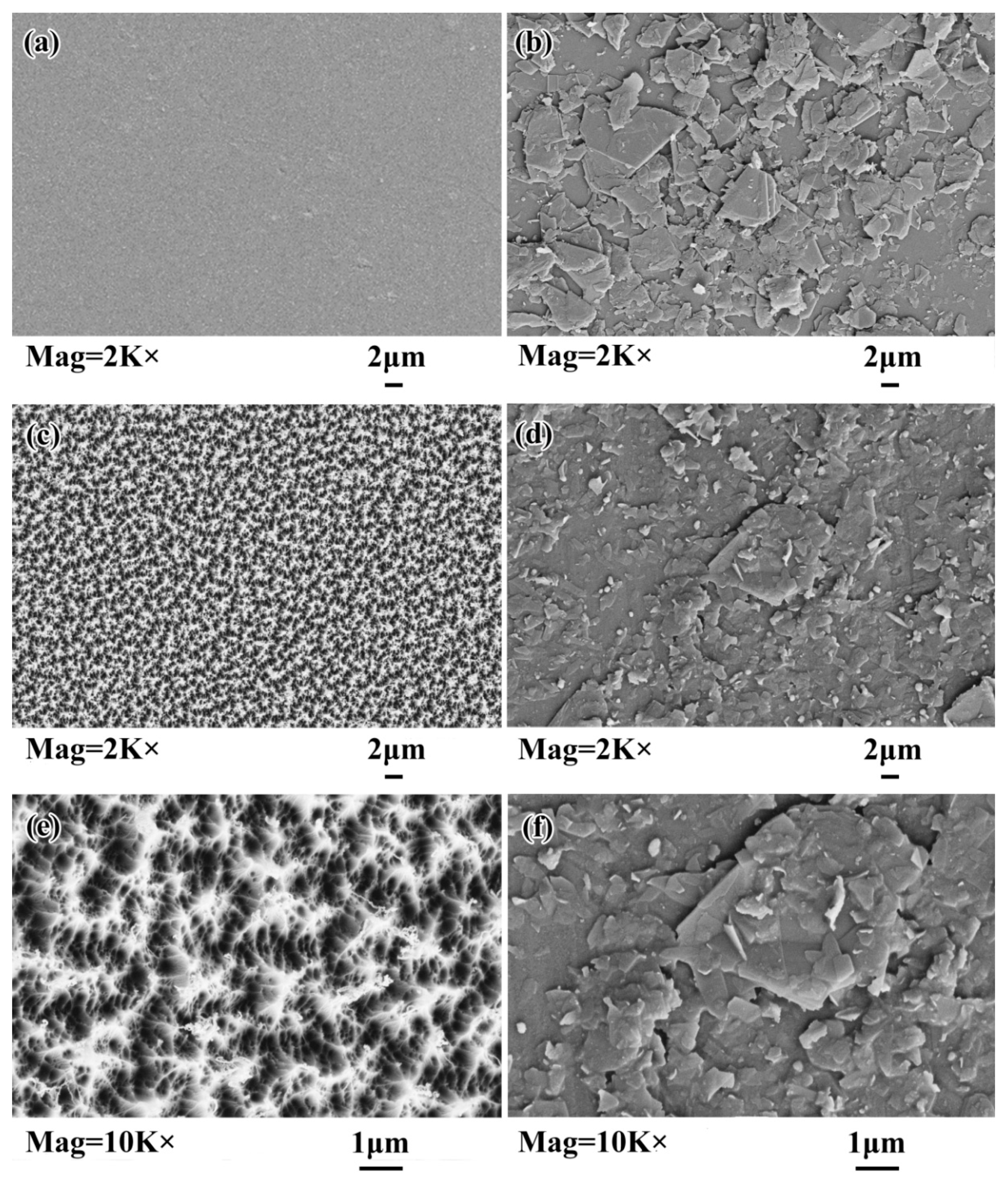

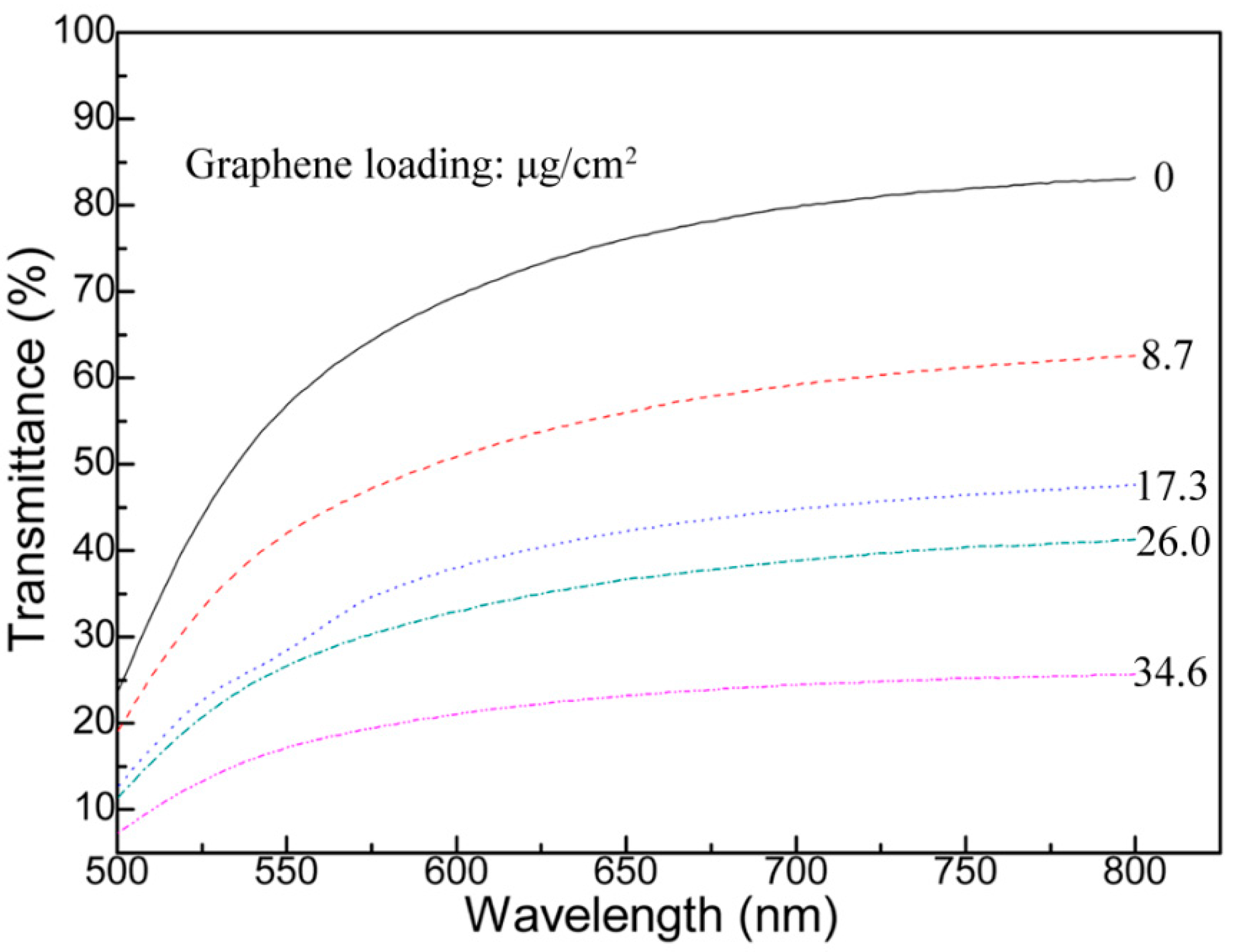

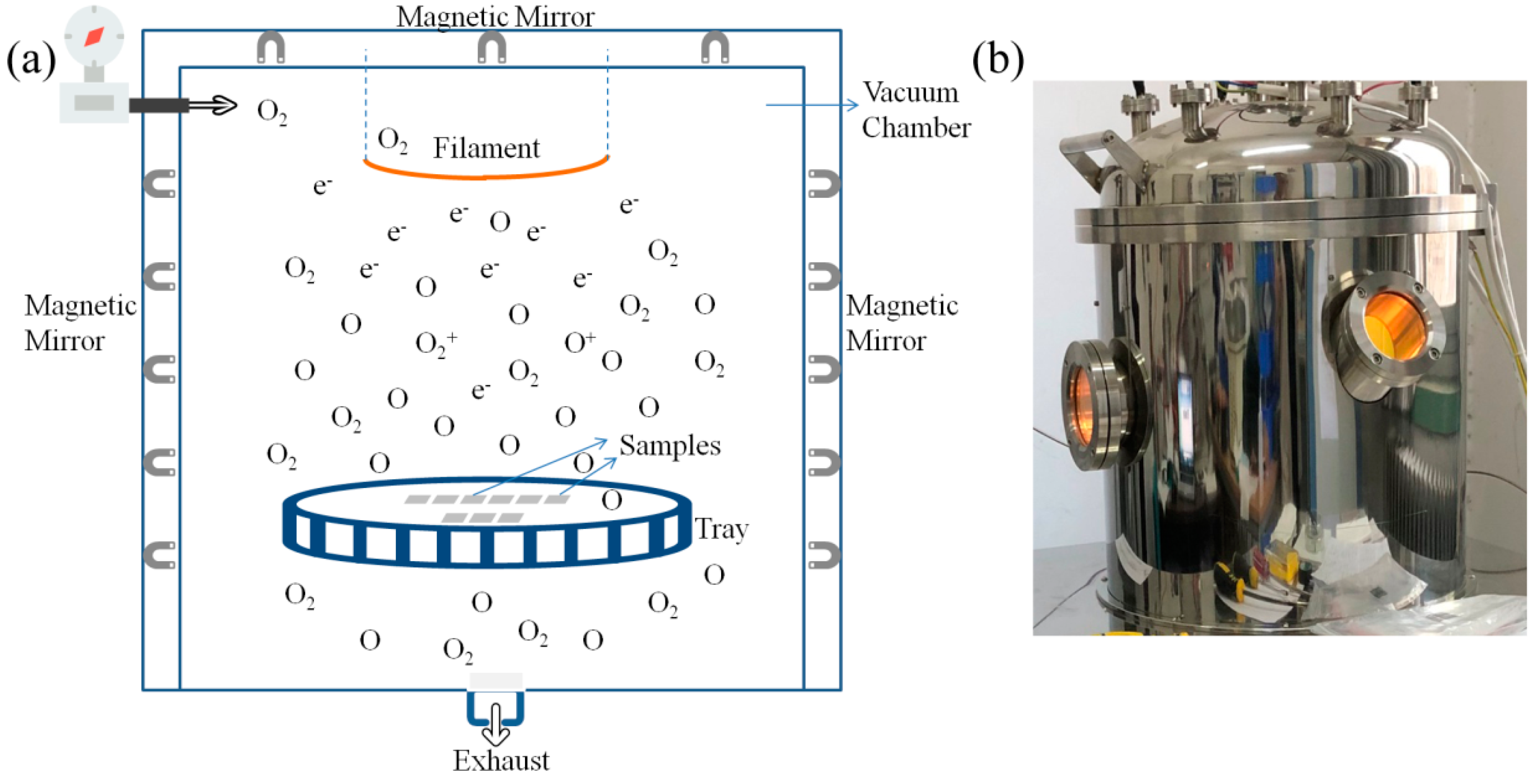

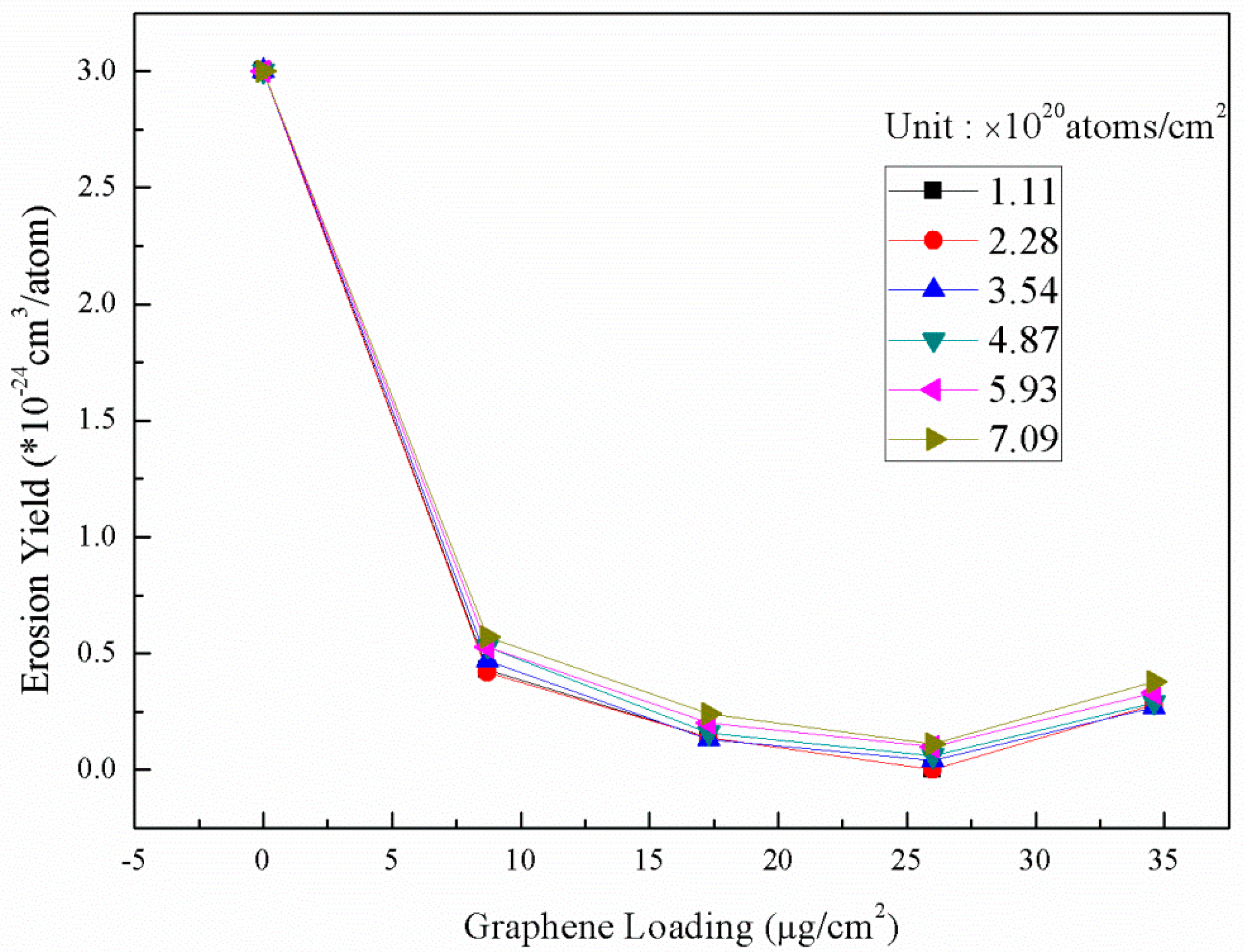

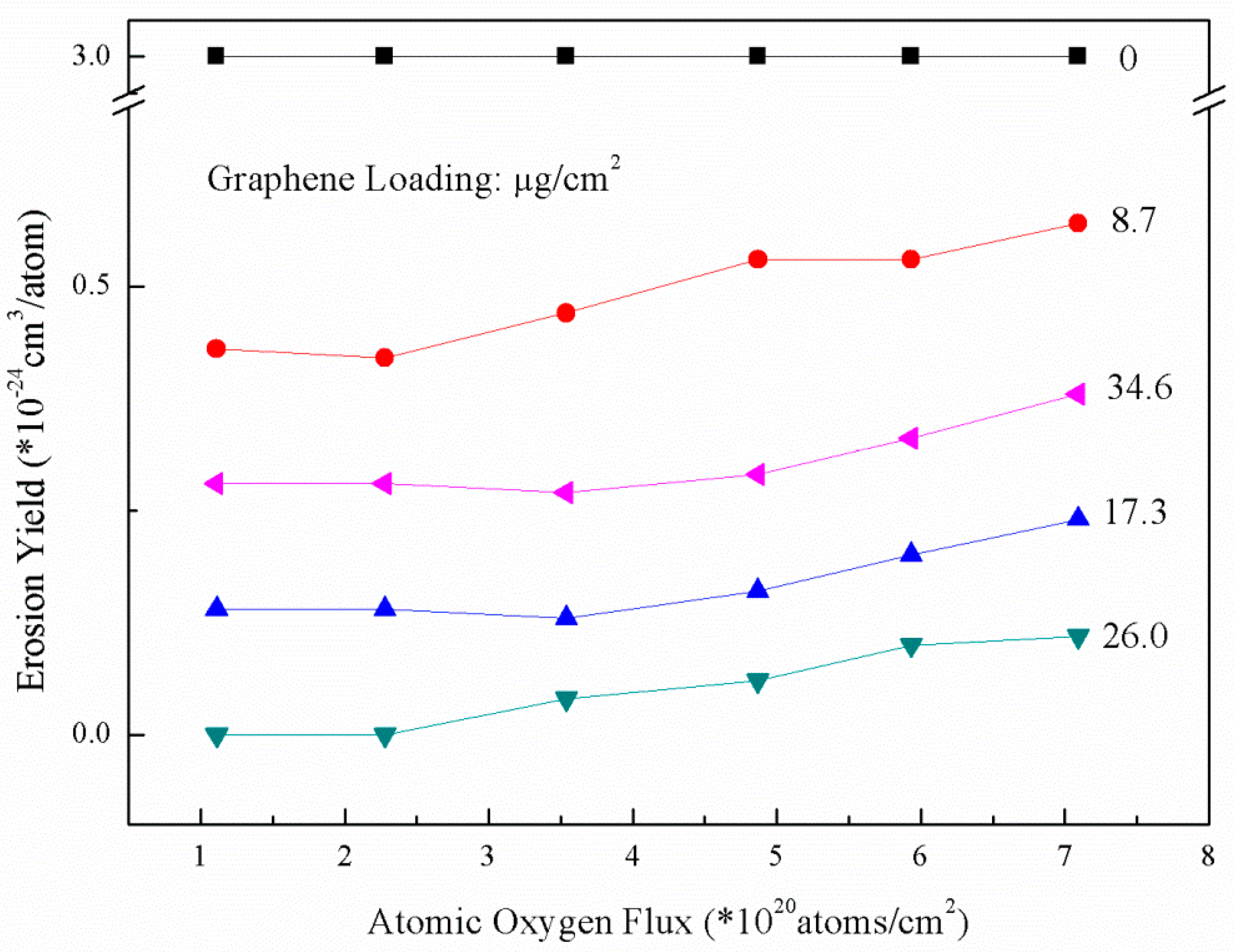

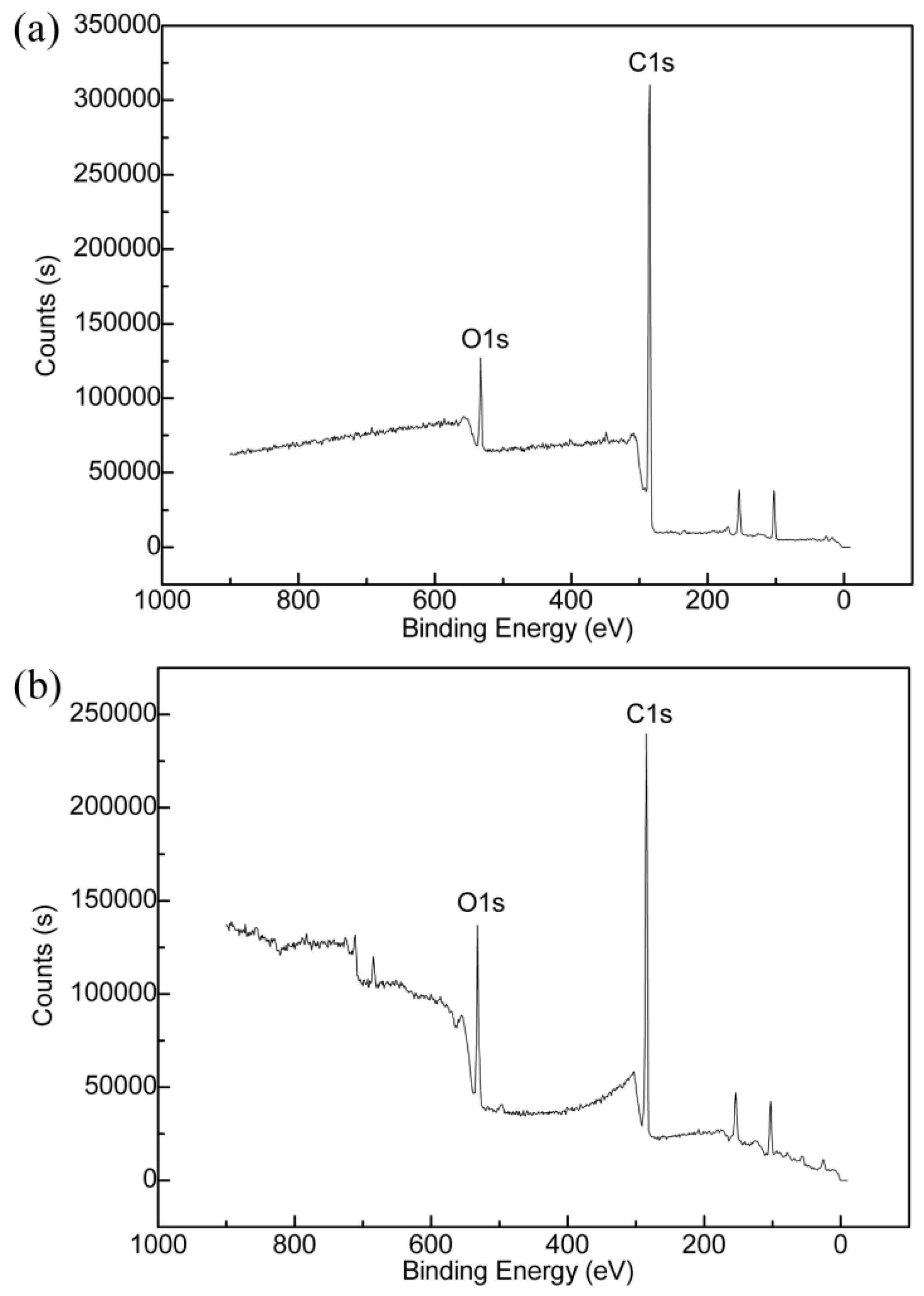

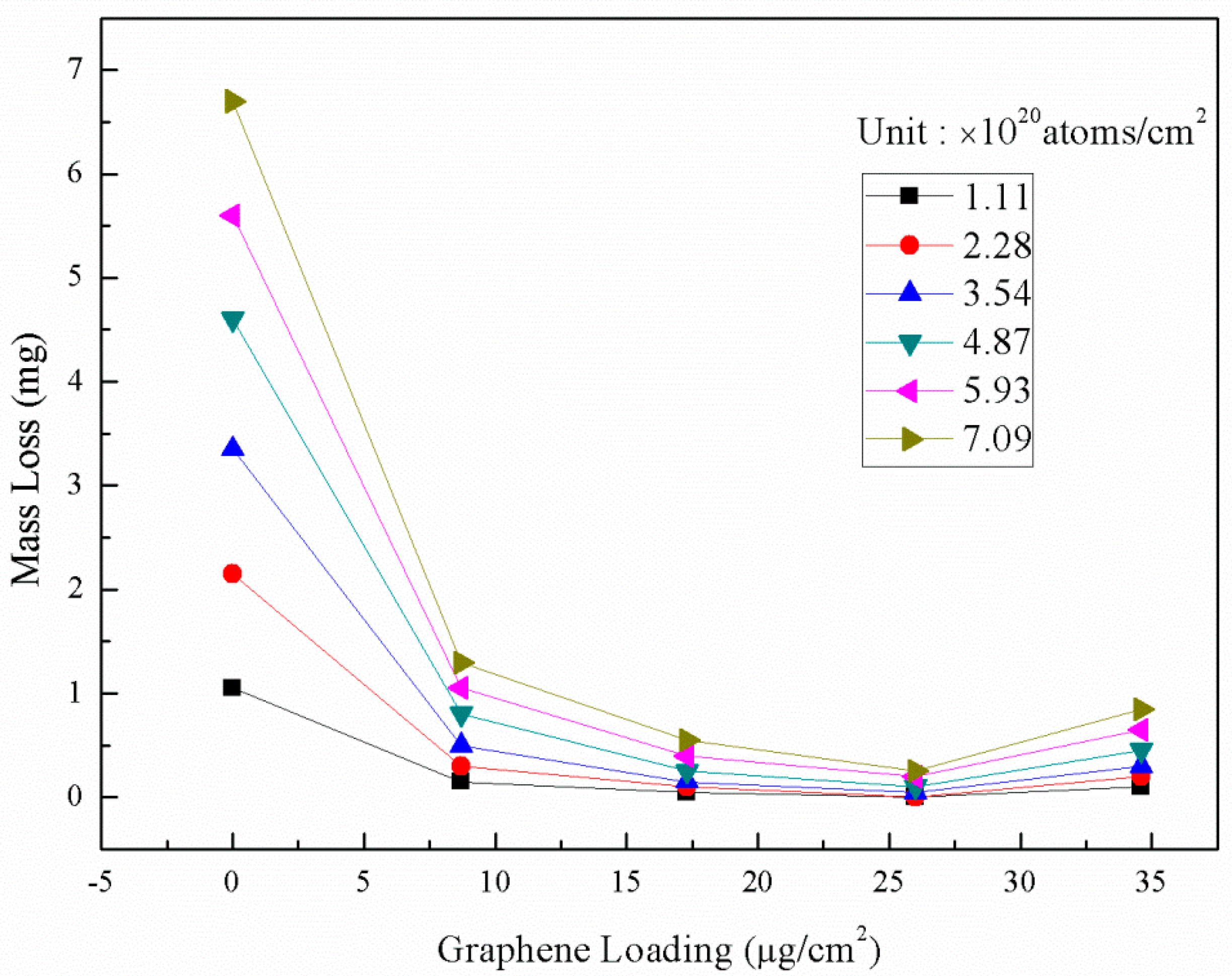

Figure 1

MDPI and ACS Style

Zhang, X.; Shen, Z.; Zhang, W.; Yi, M.; Ma, H.; Liu, L.; Liu, L.; Zhao, Y. Graphene Coating for Enhancing the Atom Oxygen Erosion Resistance of Kapton. Coatings 2020, 10, 644.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
