Open AccessArticle

Facile Route for Synthesis of Novel Flame Retardant, Reinforcement and Antibacterial Textile Fabrics Coatings

1
Fire Protection Laboratory, Chemistry Division, National Institute of Standards, Giza 12211, Egypt
2
Department of Energy Engineering, Gyeongnam National University of Science and Technology, Naedong-ro139beon-gil 8, Jinju 52849, Korea
3
Chemistry Department, Faculty of Science, Suez University, Suez 43527, Egypt
*
Authors to whom correspondence should be addressed.
Coatings 2020, 10(6), 576; https://doi.org/10.3390/coatings10060576
Received: 31 May 2020 / Revised: 14 June 2020 / Accepted: 17 June 2020 / Published: 19 June 2020
(This article belongs to the Special Issue Novel Coatings for Smart Textile Fabrics for Enhanced Functions)

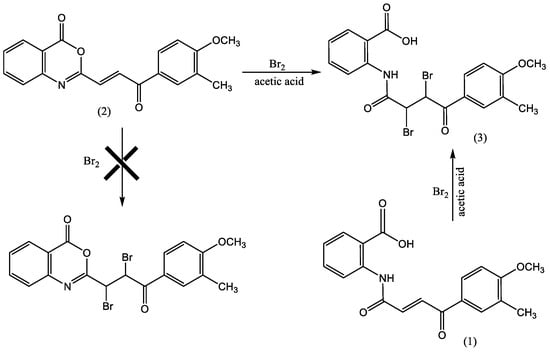

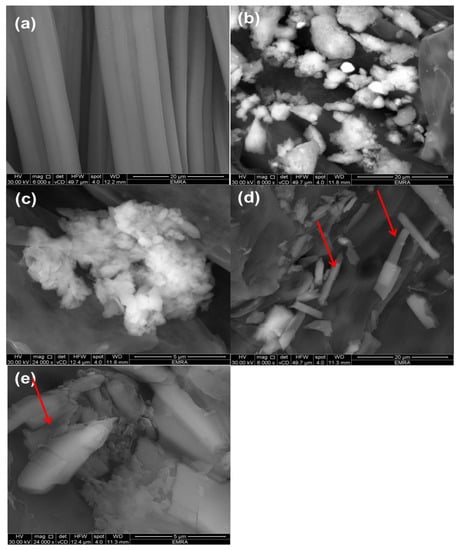

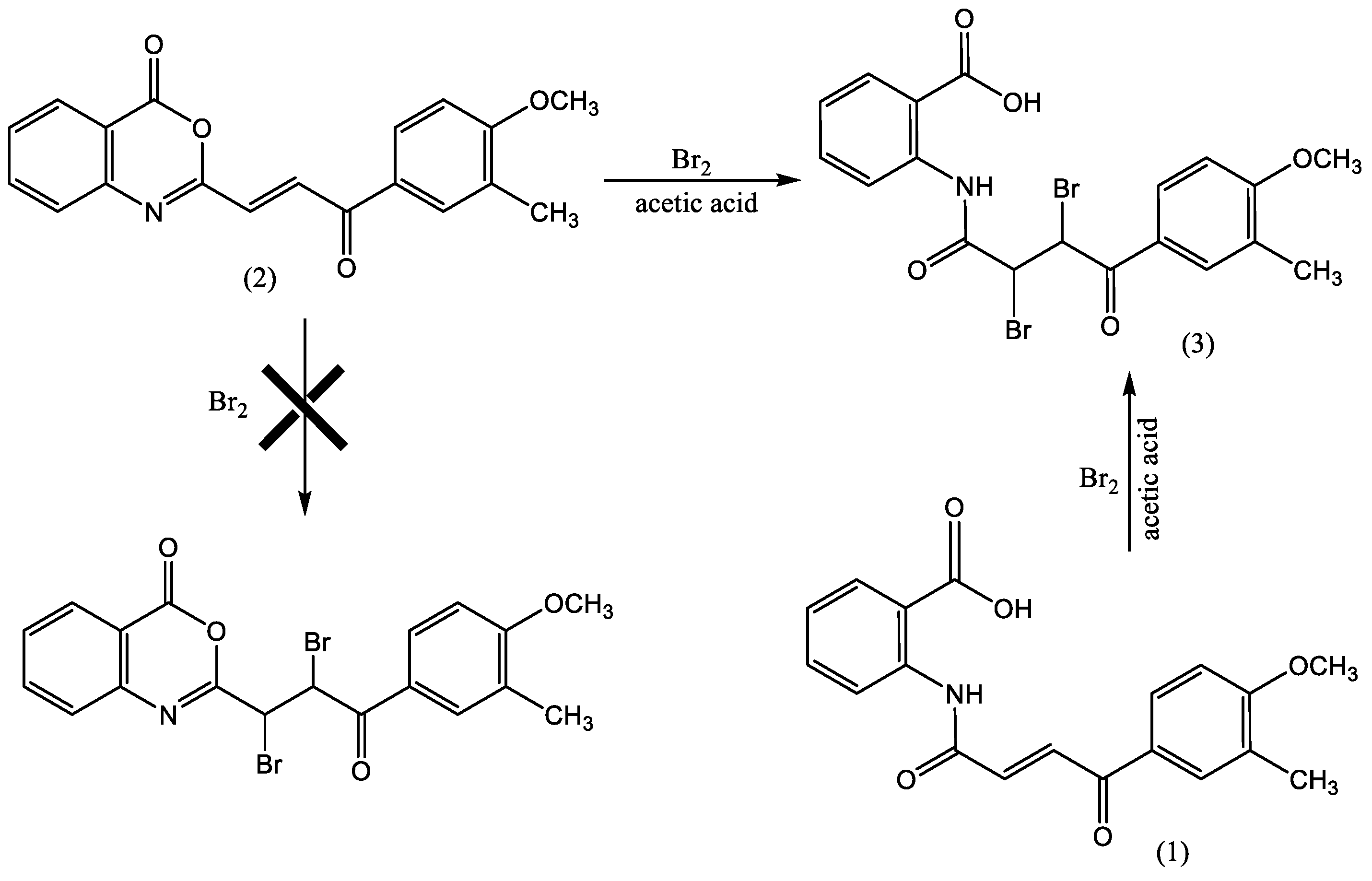

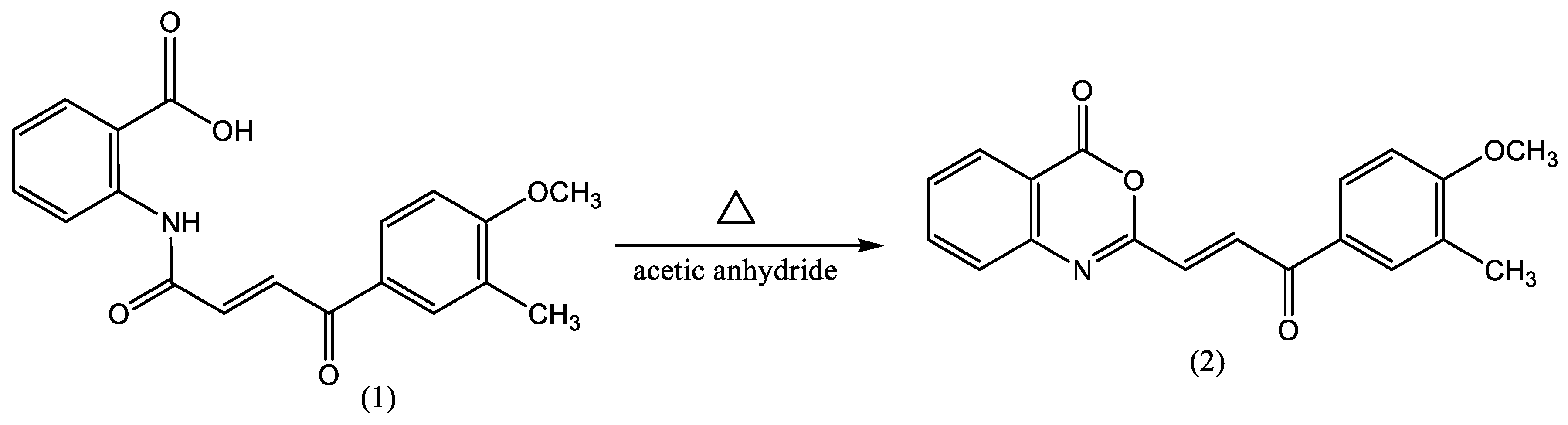

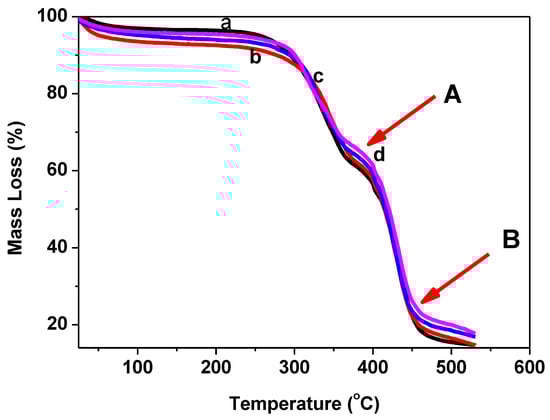

New and innovative textile fabrics coatings were facilely developed. The coating was developed based on synthesis of novel charring and antibacterial organic agent in conjunction with chitosan. N-[2,3-dibromo-4-(4-methoxy-3-methylphenyl)-4-oxobutanoyl]anthranilic acid was synthesized as organic antibacterial, reinforcement, and charring agent (OA) and then, dispersed in chitosan solution followed by coating on textile fabrics using immersion route forming new flame retardant coating layer. The developed organic molecule structure was elucidated using spectroscopic techniques. The mass loadings of developed organic agent dispersed in chitosan solution were varied between 20–60 wt.%. The coated textile fabrics have special surface morphology of fiber shape aligned on textile fibers surface. The thermal stability and charring residues of the coated textile fabrics were enhanced when compared to blank and organic agent free coated samples. Furthermore, the flammability properties were evaluated using LOI (limiting oxygen index) and UL94 tests. Therefore, the coated textile fabrics record significant enhancement in flame retardancy achieving first class flame retardant textile of zero mm/min rate of burning and 23.8% of LOI value compared to 118 mm/min. rate of burning and 18.2% for blank textile, respectively. The tensile strength of the coated textile fabrics was enhanced, achieving 51% improvement as compared to blank sample. Additionally, the developed coating layer significantly inhibited the bacterial growth, recording 18 mm of clear inhibition zone for coated sample when compared to zero for blank and chitosan coated ones. View Full-Text
Keywords: flame retardants; thermal stability; antibacterial; coatings; textile fabrics flame retardants; thermal stability; antibacterial; coatings; textile fabrics
Show Figures

Graphical abstract

MDPI and ACS Style

Attia, N.F.; Soliman, M.H.; El-Sakka, S.S. Facile Route for Synthesis of Novel Flame Retardant, Reinforcement and Antibacterial Textile Fabrics Coatings. Coatings 2020, 10, 576.
