Architectured Cu–TNTZ Bilayered Coatings Showing Bacterial Inactivation under Indoor Light and Controllable Copper Release: Effect of the Microstructure on Copper Diffusion

1
ICD-LASMIS, Université de Technologie de Troyes, Antenne de Nogent, Pôle Technologique Sud Champagne, 52800 Nogent, France
2
ICD-L2N, Université de Technologie de Troyes, 12 Rue Marie Curie, 10010 Troyes, France
3
Ecole Polytechnique Fédérale de Lausanne, EPFL-STI-IMX-LTP, 1015 Lausanne, Switzerland
*
Authors to whom correspondence should be addressed.
Coatings 2020, 10(6), 574; https://doi.org/10.3390/coatings10060574
Received: 16 May 2020 / Revised: 11 June 2020 / Accepted: 15 June 2020 / Published: 19 June 2020
(This article belongs to the Special Issue Advances in Antimicrobial Coatings)

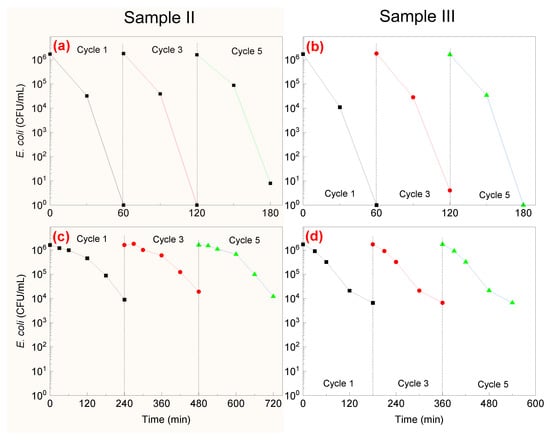

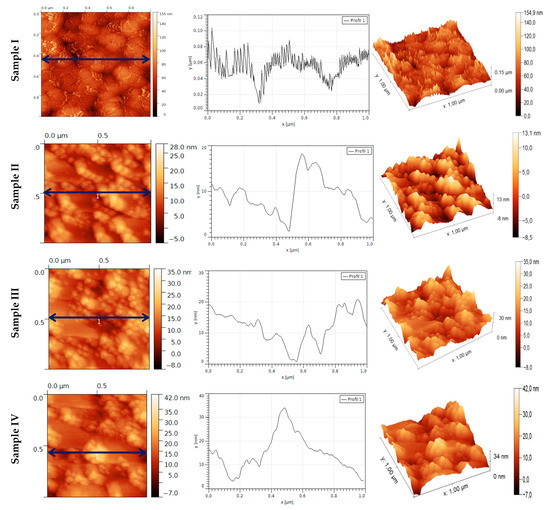

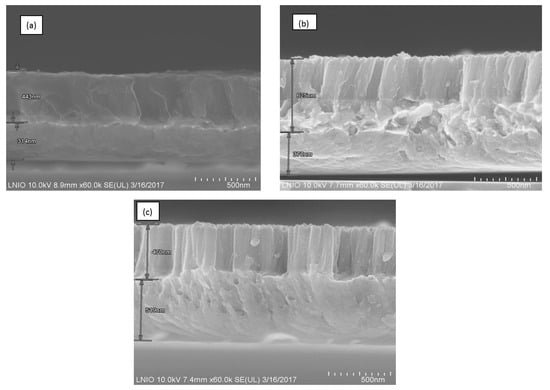

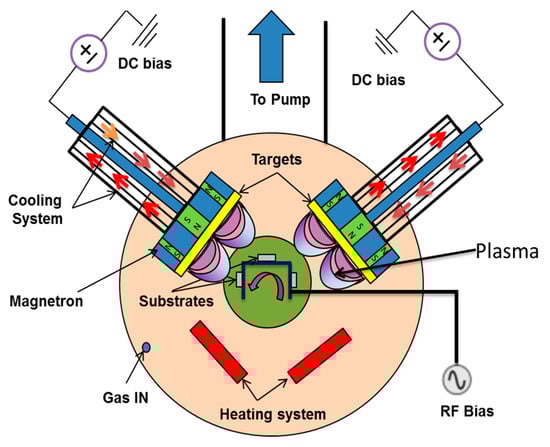

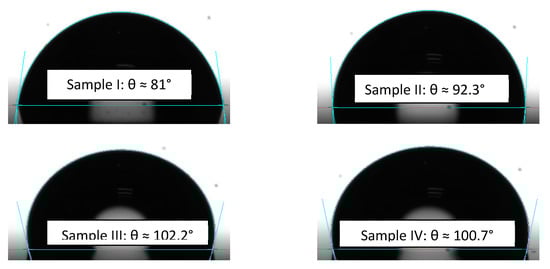

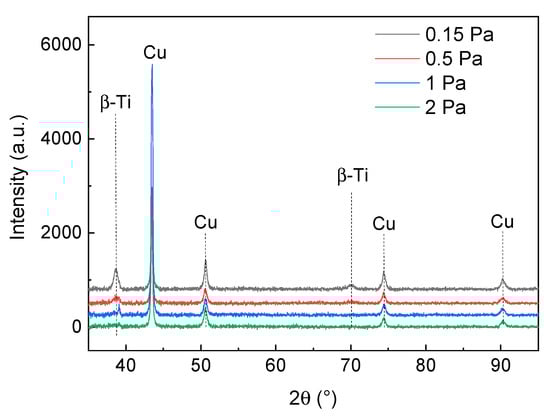

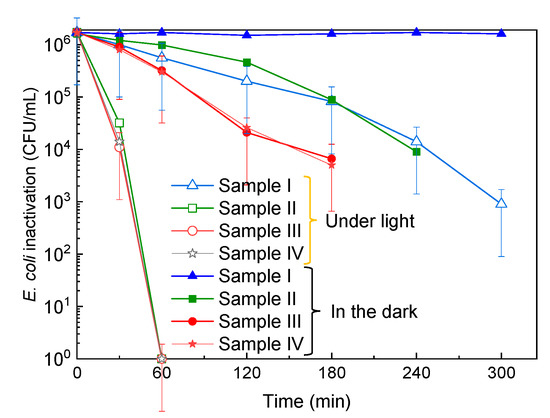

A Ti–23Nb–0.7Ta–2Zr–1.2O alloy (at %), called “gum metal”, was deposited by direct-current magnetron sputtering (DCMS) on an under layer of copper. By varying the working pressure during the deposition, columnar TNTZ (Ti–Nb–Ta–Zr) nanoarchitectures were obtained. At low working pressures, the upper layer was dense with a coarse surface (Ra = 12 nm) with a maximum height of 163 nm; however, the other samples prepared at high working pressures showed columnar architectures with voids and an average roughness of 4 nm. The prepared coatings were characterized using atomic force microscopy (AFM) for surface topography, energy dispersive X-ray spectroscopy (EDX) for atomic mapping, scanning electron microscopy (SEM) for cross-section imaging, contact angle measurements for hydrophilic/hydrophobic balance of the prepared surfaces, and X-ray diffraction (XRD) for the crystallographic structures of the prepared coatings. The morphology and the density of the prepared coatings were seen to influence the hydrophilic properties of the surface. The antibacterial activity of the prepared coatings was tested in the dark and under low-intensity indoor light. Bacterial inactivation was seen to happen in the dark from samples presenting columnar nanoarchitectures. This was attributed to the diffusion of copper ions from the under layer. To verify the copper release from the prepared samples, an inductively coupled plasma mass spectrometer (ICP-MS) was used. Additionally, the atomic depth profiling of the elements was carried out by X-ray photoelectron spectroscopy (XPS) for the as-prepared samples and for the samples used for bacterial inactivation. The low amount of copper in the bulk of the TNTZ upper layer justifies its diffusion to the surface. Recycling of the antibacterial activity was also investigated and revealed a stable activity over cycles. View Full-Text
Keywords: titanium-based thin films; copper; magnetron sputtering; super-elastic coatings; E. coli inactivation titanium-based thin films; copper; magnetron sputtering; super-elastic coatings; E. coli inactivation
