Facile Fabrication of Flower-Like BiOI/BiOCOOH p–n Heterojunctions for Highly Efficient Visible-Light-Driven Photocatalytic Removal of Harmful Antibiotics

by
Shijie Li
1,
Bing Xue
1,2,
Chunchun Wang
1,2,
Wei Jiang
1,*,
Shiwei Hu
1,*,
Yanping Liu
1,2,
Hengwei Wang
1 and
Jianshe Liu
3
1
Key Laboratory of Health Risk Factors for Seafood of Zhejiang Province, Institute of Innovation & Application, Zhejiang Ocean University, Zhoushan 316022, China
2
College of Marine Science and Technology, Zhejiang Ocean University, Zhoushan 316022, China
3
State Environmental Protection Engineering Center for Pollution Treatment and Control in Textile Industry, College of Environmental Science and Engineering, Donghua University, Shanghai 201620, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2019, 9(11), 1571; https://doi.org/10.3390/nano9111571
Submission received: 12 October 2019 / Revised: 1 November 2019 / Accepted: 4 November 2019 / Published: 6 November 2019
(This article belongs to the Special Issue Photocatalytic Nanomaterials for Pollutant Remediation)
Browse Figures
Versions Notes

Abstract

:
Novel heterojunction photocatalysts with remarkable photocatalytic capabilities and durability for degrading recalcitrant contaminants are extremely desired; however, their development still remains quite challenging. In this study, a series of flower-like BiOI/BiOCOOH p–n heterojunctions were fabricated via a controlled in situ anion-exchange process. During the process, BiOI formation and even deposition on BiOCOOH microspheres with tight interfacial contact were realized. As expected, BiOI/BiOCOOH heterojunctions revealed remarkable enhancements in photocatalytic antibiotic degradation capacities under visible light irradiation compared with pristine BiOI and BiOCOOH. The best-performing BiOI/BiOCOOH heterojunction (i.e., IBOCH-2) showed much improved photocatalytic CIP degradation efficiency of approximately 81- and 3.9-fold greater than those of bare BiOI and BiOCOOH, respectively. The eminent photocatalytic performances were due not only to the enhanced capability in harvesting photon energies in visible light regions, but also the accelerated separation of electrons and holes boosted by the p–n heterojunction. Active species trapping tests demonstrated that superoxide free radicals (•O2−) and photo-generated holes (h+) were major active species for CIP degradation. Recycling experiments verified the good durability of BIBO-2 over four runs. The facile in situ synthesis route and excellent performance endow flower-like BiOI/BiOCOOH heterojunctions with a promising potential for actual environmental remediation.

Graphical Abstract

1. Introduction

In recent decades, the widespread occurrence of pharmaceutical antibiotics in the environment has induced overwhelming concerns for human health. Thus, searching for a viable approach to efficiently eliminate these harmful antibiotics is an urgent issue. Semiconductor-based photocatalysis as an environmentally friendly and high-efficiency treatment represents a promising method to protect and remedy the environment [1,2,3,4]. Nowadays, bismuth-based semiconductors have evoked great interest for their exclusive electronic and structural characteristics [5,6,7,8,9,10,11]. Typically, by virtue of its unique layered architecture, fast charge separation, strong redox ability, and good chemical stability, n-type BiOCOOH is demonstrated to be an active photocatalyst for toxic contaminant removal [12,13]. Nevertheless, the severe recombination of photo-excited electron-hole pairs and the insufficient utilization of sunlight (merely 4% of solar energy) have substantially restrained its further application [14,15,16,17,18]. The fabrication of heterojunctions is an effective strategy to upgrade photocatalytic behavior by remarkably boosting the separation efficiency and/or substantially extending the optical absorption range. Developing novel BiOCOOH-based heterojunctions with extraordinary catalytic behavior is very imperative but still a huge challenge.
P-type bismuth oxyiodide (BiOI) has been widely applied in the photocatalytic treatment of wastewater because of its excellent light absorption characteristics (Eg = ∼1.8 eV) and high electron-hole separation rate [19,20,21,22]. To date, numerous studies have shown that the integration of BiOI with semiconductor materials can pronouncedly ameliorate the photocatalytic performance. For instance, BiOI/Bi2O2CO3 [23], BiOI/BiOCl [24], BiOI/Bi12O17Cl2 [25], BiOI/SnO2 [26], and BiOI/BN [27] all exhibited superior activity compared to the constituents. Hence, it could be a fantasy strategy to upgrade the photocatalytic performance of BiOCOOH by fabricating BiOI/BiOCOOH p–n heterojunctions. Moreover, due to the strong interaction between the architecture of the semiconductor and photocatalytic performance, it is extremely desirable and promising to fabricate 3D flower-like BiOI/BiOCOOH p–n heterojunctions that are endowed with easily recycling characteristics and remarkable photocatalytic performance.
Inspired by these intriguing ideas, flower-like BiOI/BiOCOOH p–n heterojunctions were developed via a facile route, where BiOI was in situ anchored on BiOCOOH microspheres. These heterojunctions displayed superior photocatalytic behavior for antibiotic (CIP and TC) elimination. Furthermore, the photoluminescence (PL) spectra were measured to illustrate the interfacial charge separation of BiOI/BiOCOOH. More importantly, this study could provide enlightenment for developing 3D BiOCOOH-based heterojunction photocatalysts with admirable photocatalytic performance.

2. Experiment

2.1. Reagents

All reagents of analytical grade were obtained from Chinese Sinopharm (Shanghai, China).

2.2. Fabrication of Photocatalysts

Flower-like BiOCOOH microspheres were synthesized referring to a previous route [13,28]. BiOI/BiOCOOH heterojunctions were synthesized through a controlled in situ anion-exchange method. Firstly, 2 mmol/L of BiOCOOH powder was uniformly dispersed into 70 mL of KI (X mmol/L) solution in a beaker under constant stirring for 1 h while the pH of the suspension was maintained at pH 4.5. Subsequently, the suspension was placed in a 100 mL autoclave and heated at 140 °C for 15 h. After repeatedly washing 3 times, the product was collected after dryness. For convenience, these as-fabricated BiOI/BiOCOOH heterojunctions were labeled as IBOCH-X, where X refers to the amount of KI added as either 0.1, 0.2, 0.3, or 0.5 mmol/L.

2.3. Characterization

The characterization methods are shown in the supporting information (i.e., Experimental Section).

2.4. Photocatalytic Tests

Batch tests of CIP and TC elimination were implemented under visible light illumination to assess the catalytic behavior of the as-fabricated catalysts. Visible light, with a light intensity of ∼4.89 KW/m2 measured by an optical radiometer, was produced by a 300 W Xe lamp with a 400 nm cutoff glass filter. The distance between the surface of reaction solution and the light source was about 20 cm. Then, photocatalyst powder (35 mg) was dispersed into a CIP (10 mg/L, 80 mL, pH = 6.8) or TC (15 mg/L, 80 mL, pH = 6.4) aqueous solution. During the reaction, samples were taken at 25 min intervals, and the concentration of CIP or TC was analyzed using an UV-2600 spectrophotometer. To conduct the recycling experiments, the IBOCH-2 sample collected after each round was washed thoroughly with water and dried at 70 °C overnight for the subsequent run. On account of the inevitable loss of catalysts during the recycling process, several parallel runs under identical conditions were also performed to replenish the photocatalyst and ensure that the amount of photocatalyst applied in each round was identical (35 mg). The mineralization degrees of CIP solution by IBOCH-2 were obtained by detecting the total organic carbon (TOC) on a Shimadzu TOC–LCSH/CPH analyzer.

3. Results and Discussion

3.1. Characterization

The XRD patterns of all samples are displayed in Figure 1. Pure BiOCOOH was tetragonal in structure (JCPDS No. 35-0939) [13,16]. For IBOCH-1, IBOCH-2, and IBOCH-3 heterojunctions, only the characteristic peaks of BiOCOOH were detected. As the amount of KI was further increased, besides the peaks of BiOCOOH, one diffraction peak indexed to the (004) crystal facet of tetragonal BiOI (JCPDS No. 10-0445) [8,25] was also observed, signifying the presence of the BiOI phase. Moreover, the peaks of other crystals in the XRD pattern were not observed, indicating the good purity of the samples.
Figure 2 displays SEM images of BiOCOOH and the IBOCH-2 heterojunction. It was seen that BiOCOOH microspheres were of flower-like architecture with diameters of 2.0‒4.0 μm (Figure 2a,b). After the anion-exchange treatment, the as-fabricated IBOCH-2 still exhibited a flower-like shape (Figure 2c,d). Moreover, the EDX spectrum (Figure 3) was measured to provide further evidence for the formation of the BiOI/BiOCOOH heterojunction. Apparently, Bi, O, C, and I elements co-existed in IBOCH-2, evidence of the intimate integration between BiOI and BiOCOOH.
The features of IBOCH-2 were further visualized by TEM. As noted in Figure 4a, IBOCH-2 showed a 3D flower-like structure that consisted of 2D nanosheets. The high-resolution TEM (HR-TEM) image of IBOCH-2 (Figure 4b) showed two adjacent lattice fringes with interlayer distances of 0.35 and 0.29 nm, which were associated with the (102) and (012) lattice facets of BiOCOOH and BiOI, respectively. According to the above results, the successful fabrication of BiOCOOH/BiOI heterojunctions can be confirmed.
UV–Vis spectra of the BiOI, BiOCOOH, and BiOI/BiOCOOH samples were collected to analyze their light-harvesting capabilities (Figure 5). The light-absorption verges of BiOI and BiOCOOH were around 668 (Eg = 1.80 eV) [24,25] and 370 nm (Eg = 3.40 eV) [14,15], respectively, which are in accordance with the results reported in previous studies. When BiOI was in situ grown on BiOCOOH, the absorption verges of the BiOI/BiOCOOH samples were evidently red-shifted and exhibited remarkably enhanced visible light absorption compared to BiOCOOH, signifying that the as-fabricated heterojunctions could be endowed with high VLD photocatalytic behavior. Further, the band structures of BiOI and BiOCOOH were determined according to the empirical equations
E V B   =   X   −   E 0   +   0.5 E g
E C B   =   E V B   –   E g
where EVB, ECB, E0, and X separately refer to the valence band (VB) potential, conduction band (CB) potential, electronegativity of the semiconductor, and potential energy of free electrons (~4.5 eV). Consequently, the ECB and EVB for BiOCOOH were calculated as −0.67 and 2.73 eV [16,29], while those for BiOI were determined as 0.54 and 2.34 eV [19,27].

3.2. Photocatalytic Properties

The as-fabricated photocatalysts were utilized to eliminate toxic antibiotics (CIP and TC) under visible light illumination. Figure S1 and Figure 6a present the CIP adsorption and degradation profiles over various samples. Prior to illumination, the mixture containing CIP solution (10 mg/L, 80 mL) and the as-fabricated sample (35 mg) was vigorously agitated in the dark for 30 min to reach the adsorption–desorption equilibrium.
Clearly, no noticeable removal of CIP was detected in the presence of light alone. After 125 min of irradiation, nearly no CIP was degraded by BiOCOOH as its large bandgap made BiOCOOH almost inactive under visible light [12]. Suffering from the rapid recombination rate of carriers [23,30], pure BiOI also showed unsatisfactory photocatalytic performance. Only 33.4% of CIP was removed under the same conditions. Encouragingly, compared to bare BiOI and BiOCOOH, these BiOI/BiOCOOH p–n heterojunctions demonstrated markedly superior photocatalytic behavior, which was probably due to the novel 3D hierarchical heterostructure that triggered the efficient separation of charge carriers. Moreover, the BET surface areas of the as-fabricated materials were tested. As displayed in Table S1, the BET surface areas of BiOCOOH, IBOCH-1, IBOCH-2, IBOCH-3, and IBOCH-4 were 27.35, 29.64, 26.72, 25.28, and 24.83 m2·g−1, respectively. Though the BET surface area of IBOCH-2 was not the largest among these catalysts, IBOCH-2 demonstrated the optimum catalytic behavior with a CIP degradation efficiency of 87.2% in 125 min. Clearly, the BET surface area was not a vital factor in determining the photocatalytic capability of BiOI/BiOCOOH heterojunctions. Further, the photocatalytic behavior of IBOCH-2 was superior to that of the physically mixed sample (named as mix), highlighting the premier role of a closely contacted interface in determining the activity. Furthermore, for a better understanding of the photocatalytic capability of the as-fabricated catalysts, a kinetic analysis should be performed [31,32]. The pseudo-first-order model was utilized to determine the apparent rate constant (k) of CIP degradation over different samples (Figure 6b). The linearity between ln (C0/C) and illumination time (t) was good for all the samples, signifying that the photocatalytic removal of CIP in aqueous solution could be well analyzed by pseudo-first-order reaction dynamics. Of note, the k value using IBOCH-2 was 0.0164 min−1, approximately 81- and 3.9-fold greater than using pure BiOCOOH (0.0002 min‒1) and BiOI (0.0033 min−1), respectively.
Antibiotic TC, which could induce reproductive abnormalities to people, was used to further demonstrate the excellent photocatalytic behavior of IBOCH-2. As shown in Figure S2 and Figure 7, 78.6% of TC was efficiently removed in 125 min of irradiation, illustrating that IBOCH-2 possessed the high photocatalytic behavior for the elimination of pharmaceutical antibiotics (CIP and TC).
Further, the photocatalytic behaviors of the as-fabricated photocatalysts were examined via the elimination of CIP in water under simulated solar irradiation (Figure S3). Notably, IBOCH-2 also demonstrated the most powerful photocatalytic capability, and 91.4% of CIP was eliminated in 100 min of simulated solar irradiation.
To appraise the mineralization performance of IBOCH-2, the TOC elimination efficiency was determined during the degradation of CIP (40 mg/L, 200 mL) by IBOCH-2 (150 mg). Apparently, IBOCH-2 achieved a remarkable TOC elimination efficiency of 76.2% after 6 h of illumination (Figure 8), illustrating that IBOCH-2 owned remarkable mineralization ability.
The recyclability of the photocatalyst is a premier index for the actual applications [33,34,35]. Therefore, we studied the stability of IBOCH-2 by recycling experiments (Figure 9a). Inspiringly, IBOCH-2 had no appreciable slump (merely 6.3% loss) in photocatalytic capability even after four successive runs. In addition, there were no apparent alternations in its crystalline phases, as evidenced by the XRD analysis of IBOCH-2 before and after the reaction (Figure 9b). The findings verify that IBOCH-2 possesses high activity and good stability. Further, its good stability is probably due to its unique hierarchical heterostructure, which could prevent the photocorrosion of IBOCH-2 by promoting interfacial charge transfer.

3.3. Photocatalytic Mechanism

The roles of different reactive species in the photodegradation of CIP antibiotic was studied via the trapping experiment. As shown in Figure 10, as IPA was added, no significant changes in the photocatalytic activity of IBOCH-2 were observed, suggesting that •OH exerts a secondary impact on CIP removal. However, when BQ and AO were added, the catalytic efficiencies were reduced to 43.6% and 27.1%, respectively, reflecting that superoxide free radicals (•O2−) and photo-generated hole (h+) species have a dominant contribution to the elimination of CIP. In conclusion, •O2− and h+ species primarily govern the photocatalytic elimination of CIP.
The photoluminescence (PL) spectra can reveal the recombination degree of photo-excited charge carriers, hence, the PL spectra of BiOCOOH and IBOCH-2 were measured (Figure 11). In general, the low PL intensity facilitated charge separation and, consequently, superior photocatalytic ability [30,36,37,38,39,40,41]. Compared to f BiOCOOH, IBOCH-2 exhibited a much lower PL intensity, signifying that the introduction of BiOI can effectively suppress the recombination of charge carriers through promoting the interfacial charge transfer.
On account of the abovementioned characterizations and analyses, a plausible photocatalytic mechanism of BiOI/BiOCOOH p–n heterostructures under visible light was proposed and presented in Figure 12. The VB potentials of BiOCOOH and BiOI were situated at 2.73 and 2.34 eV, respectively, while their corresponding CB potentials were −0.67 and 0.54 eV, respectively. However, when BiOCOOH and BiOI were in contact, a p–n heterostructure was created at the interface. The electrons and holes at the interfaces of the p-type and n-type semiconductors were redistributed to achieve an equilibrium of the Femi energy (EF). Accordingly, the band bending took place in the space charge area, inducing a strong internal electric field. Of note, such a powerful internal electric field is greatly beneficial to separating the photo-excited electrons and holes [42,43,44]. Simultaneously, the CB and VB positions of BiOI and BiOCOOH shifted along with the movement of EF. As a consequence, the band position of BiOI was more negative than that of BiOCOOH. Under visible light illumination, the electrons in the VB of BiOI were excited and migrated to the CB, where they rapidly flowed into the CB of BiOCOOH, leaving the photo-excited holes to remain in the VB of BiOI. Such a charge transfer pathway made the separation of photo-excited carriers more effective, contributing to the enhancement of photocatalytic performance [42,43,44]. More specifically, the electrons stored on the CB of BiOCOOH were involved in reacting with O2 to generate •O2− radicals, which can efficiently degrade antibiotics. On the other hand, the holes remaining on the VB of BiOI were capable of directly eliminating the antibiotics. Under the attack of two crucial reactive species of •O2− and h+, the antibiotics (CIP and TC) could be effectively removed over the BiOI/BiOCOOH p–n heterojunction under visible light.

4. Conclusions

In summary, the hierarchical assembly of BiOI nanosheets embedded in BiOCOOH microflowers with tightly contacted interfaces was achieved via a feasible synthesis for highly efficient pollutant degradation. The resulting BiOI/BiOCOOH heterojunction can offer plenty of charge transfer channels, which could boost the migration and separation of photogenerated charges and, finally, lead to a remarkably improved photocatalytic performance. Specifically, the BIOB-3 heterojunction achieved the highest photocatalytic capacity with an 81-fold photodegradation rate compared to that of BiOCOOH, and 4.9-fold in CIP degradation. Moreover, TOC tests and cycling experiments demonstrated the strong mineralization capability and good stability of BiOI/BiOCOOH. Therefore, heterojunctions are promising for practical wastewater treatment. This study presents a promising route to explore hierarchical heterostructure photocatalysts for environmental purification.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/9/11/1571/s1, Figure S1: The absorption profiles of CIP over as-fabricated photocatalysts in the dark. Figure S2: The absorption profiles of TC over as-fabricated IBOCH-2 in the dark. Figure S3: Photodegradation of CIP by the as-fabricated samples under simulated solar irradiation. Table S1: BET surface areas of samples

Author Contributions

Conceptualization, S.L.; Funding acquisition, S.L.; Project administration, B.X. and C.W.; Resources, W.J., S.H., Y.L., H.W. and J.L.; Supervision, W.J. and J.L.; Writing—review & editing, S.L.

Funding

This work has been financially supported by the National Natural Science Foundation of China (51708504), the Public Projects of Zhejiang Province (LGN18E080003), the Science and Technology Project of Zhoushan (2017C41006), the Fundamental Research Funds for Zhejiang Provincial Universities and Research Institutes (2019JZ00009), and the NSFC-Zhejiang Joint Fund for the Integration of Industrialization and Informatization 9u1809214).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, X.; Li, N.; Zhu, R.; Li, S.; Yu, C.; Xia, W.; Xu, S.; Chen, X. Temperature-program assisted synthesis of novel Z-scheme CuBi2O4/β-Bi2O3 composite with enhanced visible light photocatalytic performance. Nanomaterials 2018, 8, 579. [Google Scholar] [CrossRef] [PubMed]
  2. Li, X.; Xiong, J.; Xu, Y.; Feng, Z.; Huang, J. Defect-assisted surface modification enhances the visible light photocatalytic performance of g-C3N4@C-TiO2 direct Z-scheme heterojunction. Chin. J. Catal. 2019, 40, 424–443. [Google Scholar] [CrossRef]
  3. Li, X.; Xiong, J.; Gao, X.; Huang, J.; Feng, Z.; Chen, Z.; Zhu, Y. Recent advances in 3D g-C3N4 composite photocatalysts for photocatalytic water splitting, degradation of pollutants and CO2 reduction. J. Alloys Compd. 2019, 802, 196–209. [Google Scholar] [CrossRef]
  4. Ng, T.W.; Zhang, L.; Liu, J.; Huang, G.; Wang, W.; Wong, P.K. Visible-light-driven photocatalytic inactivation of Escherichia coli by magnetic Fe2O3–AgBr. Water Res. 2016, 90, 111–118. [Google Scholar] [CrossRef] [PubMed]
  5. Wang, H.; Li, S.; Zhang, L.; Chen, Z.; Hu, J.; Zou, R.; Xu, K.; Song, G.; Zhao, H.; Yang, J.; et al. Surface decoration of Bi2WO6 superstructures with Bi2O3 nanoparticles: An efficient method to improve visible-light-driven photocatalytic activity. CrystEngComm 2013, 15, 9011–9019. [Google Scholar] [CrossRef]
  6. Yu, H.; Jiang, L.; Wang, H.; Huang, B.; Yuan, X.; Huang, J.; Zhang, J.; Zeng, G. Modulation of Bi2MoO6-based materials for photocatalytic water splitting and environmental application: A critical review. Small 2019, 15, 1901008. [Google Scholar] [CrossRef]
  7. Di, J.; Chen, C.; Zhu, C.; Song, P.; Xiong, J.; Ji, M.; Zhou, J.; Fu, Q.; Xu, M.; Hao, W.; et al. Bismuth vacancy-tuned bismuth oxybromide ultrathin nanosheets toward photocatalytic CO2 reduction. ACS Appl. Mater. Interfaces 2019, 11, 30786–30792. [Google Scholar] [CrossRef]
  8. Ganose, A.M.; Cuff, M.; Butler, K.T.; Scanlon, D.O. Interplay of orbital and relativistic effects in bismuth oxyhalides: BiOF, BiOCl, BiOBr, and BiOl. Chem. Mater. 2016, 28, 1980–1984. [Google Scholar] [CrossRef]
  9. Li, S.; Hu, S.; Jiang, W.; Zhou, Y.; Liu, J.; Wang, Z. Facile synthesis of cerium oxide nanoparticles decorated flower-like bismuth molybdate for enhanced photocatalytic activity toward organic pollutant degradation. J. Colloid Interface Sci. 2018, 530, 171–178. [Google Scholar] [CrossRef]
  10. Li, S.; Hu, S.; Jiang, W.; Zhang, J.; Xu, K.; Wang, Z. In situ construction of WO3 nanoparticles decorated Bi2MoO6 microspheres for boosting photocatalytic degradation of refractory pollutants. J. Colloid Interface Sci. 2019, 556, 335–344. [Google Scholar] [CrossRef]
  11. Zhang, J.; Ma, Z. Ag3VO4/BiOIO3 heterojunction with enhanced visible-light-driven catalytic activity. J. Taiwan Inst. Chem. Eng. 2018, 88, 177–185. [Google Scholar] [CrossRef]
  12. Yang, L.; Han, Q.; Wang, X.; Zhu, J. Highly efficient removal of aqueous chromate and organic dyes by ultralong HCOOBiO nanowires. Chem. Eng. J. 2015, 262, 169–178. [Google Scholar] [CrossRef]
  13. Duan, F.; Zheng, Y.; Liu, L.; Chen, M.Q.; Xie, Y. Synthesis and photocatalytic behaviour of 3D flowerlike bismuth oxide formate architectures. Mater. Lett. 2010, 64, 1566–1569. [Google Scholar] [CrossRef]
  14. Xia, S.-H.; Dong, C.; Wei, X.-W.; Wang, J.; Wu, K.-L.; Hu, Y.; Ye, Y. Reduced graphene oxide modified flower-like BiOCOOH architectures with enhanced photocatalytic activity. Mater. Lett. 2015, 156, 36–38. [Google Scholar] [CrossRef]
  15. Xu, J.; Wang, Y.; Chen, M.; Teng, F. A novel BiOCl/BiOCOOH heterojunction photocatalyst with significantly enhanced photocatalytic activity. Mater. Lett. 2018, 222, 176–179. [Google Scholar]
  16. Li, S.; Jiang, W.; Xu, K.; Hu, S.; Liu, Y.; Zhou, Y.; Liu, J. Synthesis of flower-like AgI/BiOCOOH p-n heterojunctions with enhanced visible-light photocatalytic performance for the removal of toxic pollutants. Front. Chem. 2018, 6, 518. [Google Scholar] [CrossRef]
  17. Li, S.; Chen, J.; Liu, Y.; Xu, K.; Liu, J. In situ anion exchange strategy to construct flower-like BiOCl/BiOCOOH p-n heterojunctions for efficiently photocatalytic removal of aqueous toxic pollutants under solar irradiation. J. Alloys Compd. 2019, 781, 582–588. [Google Scholar] [CrossRef]
  18. Li, S.; Chen, J.; Jiang, W.; Liu, Y.; Ge, Y.; Liu, J. Facile construction of flower-like bismuth oxybromide/bismuth oxide formate p-n heterojunctions with significantly enhanced photocatalytic performance under visible light. J. Colloid Interface Sci. 2019, 548, 12–19. [Google Scholar] [CrossRef]
  19. Xiao, X.; Zhang, W.-D. Facile synthesis of nanostructured BiOI microspheres with high visible light-induced photocatalytic activity. J. Mater. Chem. 2010, 20, 5866–5870. [Google Scholar] [CrossRef]
  20. Wang, Y.; Deng, K.; Zhang, L. Visible light photocatalysis of BiOI and its photocatalytic activity enhancement by in situ ionic liquid modification. J. Phys. Chem. C 2011, 115, 14300–14308. [Google Scholar] [CrossRef]
  21. Wang, X.; Zhou, C.; Yin, L.; Zhang, R.; Liu, G. Iodine-deficient BiOI nanosheets with lowered valence band maximum to enable visible light photocatalytic activity. ACS Sustain. Chem. Eng. 2019, 7, 7900–7907. [Google Scholar] [CrossRef]
  22. Chen, L.; Huang, R.; Xiong, M.; Yuan, Q.; He, J.; Jia, J.; Yao, M.-Y.; Luo, S.-L.; Au, C.-T.; Yin, S.-F. Room-temperature synthesis of flower-like BiOX (X= Cl, Br, I) hierarchical structures and their visible-light photocatalytic activity. Inorg. Chem. 2013, 52, 11118–11125. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, L.; Yin, S.-F.; Luo, S.-L.; Huang, R.; Zhang, Q.; Hong, T.; Au, P.C.T. Bi2O2CO3/BiOI photocatalysts with heterojunctions highly efficient for visible-light treatment of dye-containing wastewater. Ind. Eng. Chem. Res. 2012, 51, 6760–6768. [Google Scholar] [CrossRef]
  24. Sun, L.; Xiang, L.; Zhao, X.; Jia, C.-J.; Yang, J.; Jin, Z.; Cheng, X.; Fan, W. Enhanced visible-light photocatalytic activity of BiOI/BiOCl heterojunctions: Key role of crystal facet combination. ACS Catal. 2015, 5, 3540–3551. [Google Scholar] [CrossRef]
  25. Huang, H.W.; Xiao, K.; He, Y.; Zhang, T.R.; Dong, F.; Du, X.; Zhang, Y.H. In situ assembly of BiOI@Bi12O17Cl2 p-n junction: Charge induced unique front-lateral surfaces coupling heterostructure with high exposure of BiOI {001} active facets for robust and nonselective photocatalysis. Appl. Catal. B Environ. 2016, 199, 75–86. [Google Scholar] [CrossRef]
  26. Wen, X.-J.; Niu, C.-G.; Zhang, L.; Zeng, G.-M. Fabrication of SnO2 nanopaticles/BiOI n-p heterostructure for wider spectrum visible-light photocatalytic degradation of antibiotic oxytetracycline hydrochloride. ACS Sustain. Chem. Eng. 2017, 5, 5134–5147. [Google Scholar] [CrossRef]
  27. Liu, D.; Jiang, Z.F.; Zhu, C.Z.; Qian, K.; Wu, Z.Y.; Xie, J.M. Graphene-analogue BN-modified microspherical BiOI photocatalysts driven by visible light. Dalton Trans. 2016, 45, 2505–2516. [Google Scholar] [CrossRef]
  28. Li, S.; Mo, L.; Liu, Y.; Zhang, H.; Ge, Y.; Zhou, Y. Ag2CO3 decorating BiOCOOH microspheres with enhanced full-spectrum photocatalytic activity for the degradation of toxic pollutants. Nanomaterials 2018, 8, 914. [Google Scholar] [CrossRef]
  29. Chai, B.; Wang, X. Enhanced visible light photocatalytic activity of BiOI/BiOCOOH composites synthesized via ion exchange strategy. RSC Adv. 2015, 5, 7589–7596. [Google Scholar] [CrossRef]
  30. Zhu, G.; Hojamberdiev, M.; Zhang, S.; Din, S.T.U.; Yang, W. Enhancing visible-light-induced photocatalytic activity of BiOI microspheres for NO removal by synchronous coupling with Bi metal and graphene. Appl. Surf. Sci. 2019, 467–468, 968–978. [Google Scholar] [CrossRef]
  31. Muñoz-Batista, M.J.; Kubacka, A.; Fernández-García, M. Effective enhancement of TiO2 photocatalysis by synergistic interaction of surface species: From promoters to co-catalysts. ACS Catal. 2014, 4, 4277–4288. [Google Scholar] [CrossRef]
  32. Muñoz-Batista, M.J.; Ballari, M.M.; Kubacka, A.; Alfano, O.M.; Fernández-García, M. Braiding kinetics and spectroscopy in photo-catalysis: The spectro-kinetic approach. Chem. Soc. Rev. 2019, 48, 637. [Google Scholar] [CrossRef] [PubMed]
  33. Li, S.; Hu, S.; Jiang, W.; Liu, Y.; Liu, J.; Wang, Z. Facile synthesis of flower-like Ag3VO4/Bi2WO6 heterojunction with enhanced visible-light photocatalytic activity. J. Colloid Interface Sci. 2017, 501, 156–163. [Google Scholar] [CrossRef] [PubMed]
  34. Pei, L.; Yuan, Y.; Zhong, J.; Li, T.; Yang, T.; Yan, S.; Ji, Z.; Zou, Z. Ta3N5 nanorods encapsulated into 3D hydrangea-like MoS2 for enhanced photocatalytic hydrogen evolution under visible light irradiation. Dalton Trans. 2019, 48, 13176–13183. [Google Scholar] [CrossRef] [PubMed]
  35. Pei, L.; Li, T.; Yuan, Y.; Yang, T.; Zhong, J.; Ji, Z.; Yan, S.; Zou, Z. Schottky junction effect enhanced plasmonic photocatalysis by TaON@Ni NP heterostructures. Chem. Commun. 2019, 55, 11754–11757. [Google Scholar] [CrossRef] [PubMed]
  36. Hu, J.; Chen, D.; Li, N.; Xu, Q.; Li, H.; He, J.; Lu, J. In situ fabrication of Bi2O2CO3/MoS2 on carbon nanofibers for efficient photocatalytic removal of NO under visible-light irradiation. Appl. Catal. B Environ. 2017, 217, 224–231. [Google Scholar] [CrossRef]
  37. Li, S.; Shen, X.; Liu, J.; Zhang, L. Synthesis of Ta3N5/Bi2MoO6 core-shell fiber-shaped heterojunctions as efficient and easily recyclable photocatalysts. Environ. Sci. Nano 2017, 4, 1155–1167. [Google Scholar] [CrossRef]
  38. Chang, F.; Wu, F.; Zheng, J.; Cheng, W.; Yan, W.; Deng, B.; Hu, X. In-situ establishment of binary composites a-Fe2O3/Bi12O17Cl2 with both photocatalytic and photo-Fenton features. Chemosphere 2018, 210, 257–266. [Google Scholar] [CrossRef]
  39. Chang, F.; Wang, X.; Luo, J.; Wang, J.; Xie, Y.; Deng, B.; Hu, X. Ag/Bi12O17Cl2 composite: A case study of visible-light-driven plasmonic photocatalyst. J. Mol. Catal. A Chem. 2017, 427, 45–53. [Google Scholar]
  40. Chang, F.; Zheng, J.; Wang, X.; Xua, Q.; Deng, B.; Hu, X.; Liu, X. Heterojuncted non-metal binary composites silicon carbide/g-C3N4 with enhanced photocatalytic performance. Mater. Sci. Semicond. Proc. 2018, 75, 183–192. [Google Scholar] [CrossRef]
  41. Li, S.; Hu, S.; Zhang, J.; Jiang, W.; Liu, J. Facile synthesis of Fe2O3 nanoparticles anchored on Bi2MoO6 microflowers with improved visible light photocatalytic activity. J. Colloid Interface Sci. 2017, 497, 93–101. [Google Scholar] [CrossRef] [PubMed]
  42. Li, S.; Hu, S.; Xu, K.; Jiang, W.; Liu, Y.; Leng, Z.; Liu, J. Construction of fiber-shaped silver oxide/tantalum nitride p-n heterojunctions as highly efficient visible-light-driven photocatalysts. J. Colloid Interface Sci. 2017, 504, 561–569. [Google Scholar] [CrossRef] [PubMed]
  43. Das, K.; Majhi, D.; Prakash, Y.; Mishra, B.G. Combustion synthesis, characterization and photocatalytic application of CuS/Bi4Ti3O12 p-n heterojunction materials towards efficient degradation of 2-methyl-4-chlorophenoxyacetic acid herbicide under visible light. Chem. Eng. J. 2019, 362, 588–599. [Google Scholar] [CrossRef]
  44. Wen, X.-J.; Zhang, C.; Niu, C.-G.; Zhang, L.; Zeng, G.-M.; Zhang, X.-G. Highly enhanced visible light photocatalytic activity of CeO2 through fabricating a novel p-n junction BiOBr/CeO2. Catal. Commun. 2017, 90, 51–55. [Google Scholar] [CrossRef]
Nanomaterials 09 01571 g001 550

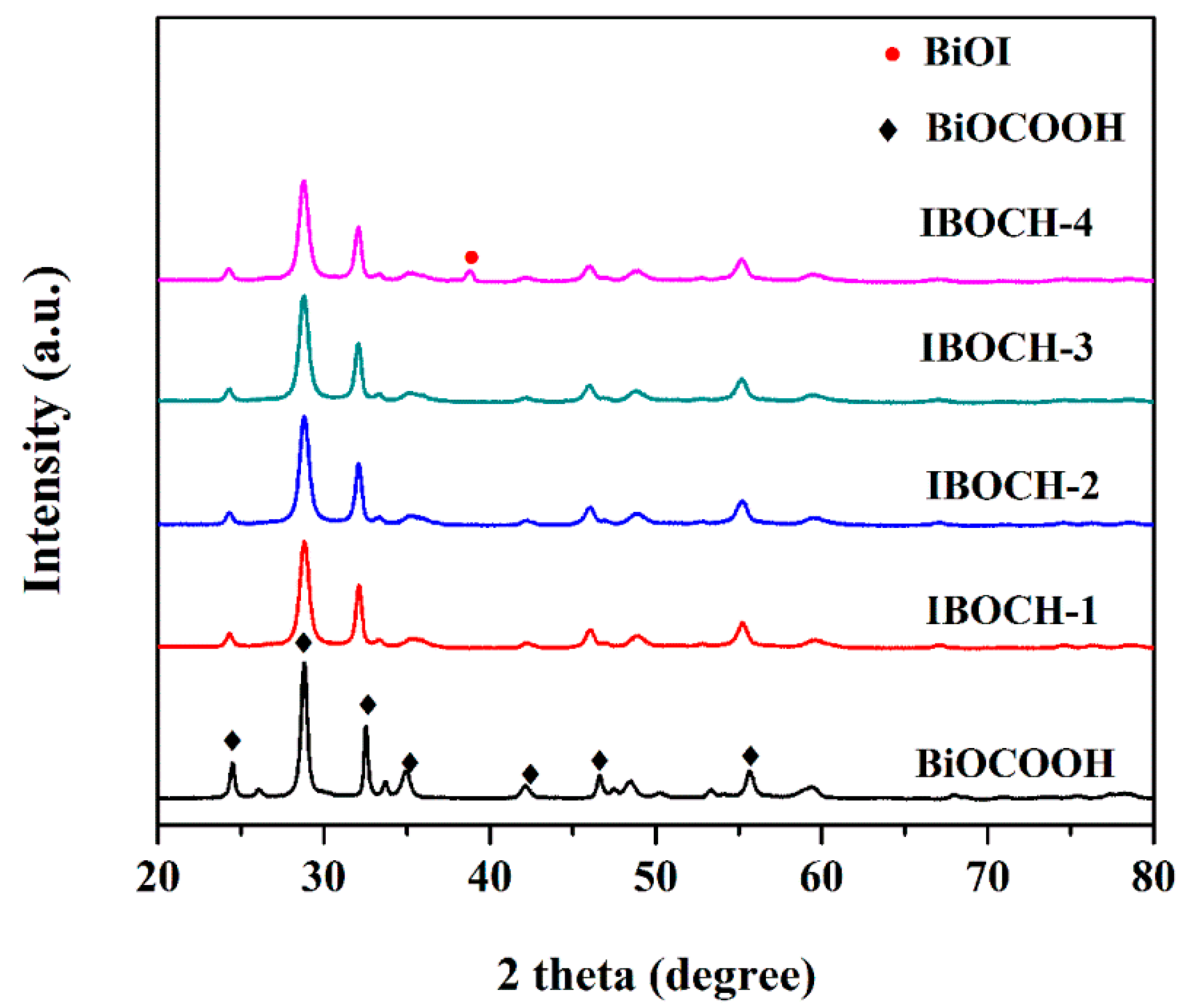

Figure 1. XRD patterns of BiOCOOH, and as-fabricated BiOI/BiOCOOH heterojunctions (IBOCH-1, IBOCH-2, IBOCH-3, and IBOCH-4).
Figure 1. XRD patterns of BiOCOOH, and as-fabricated BiOI/BiOCOOH heterojunctions (IBOCH-1, IBOCH-2, IBOCH-3, and IBOCH-4).
Nanomaterials 09 01571 g001
Nanomaterials 09 01571 g002 550
Figure 2. SEM images of (a,b) BiOCOOH and (c,d) IBOCH-2.
Figure 2. SEM images of (a,b) BiOCOOH and (c,d) IBOCH-2.
Nanomaterials 09 01571 g002
Nanomaterials 09 01571 g003 550

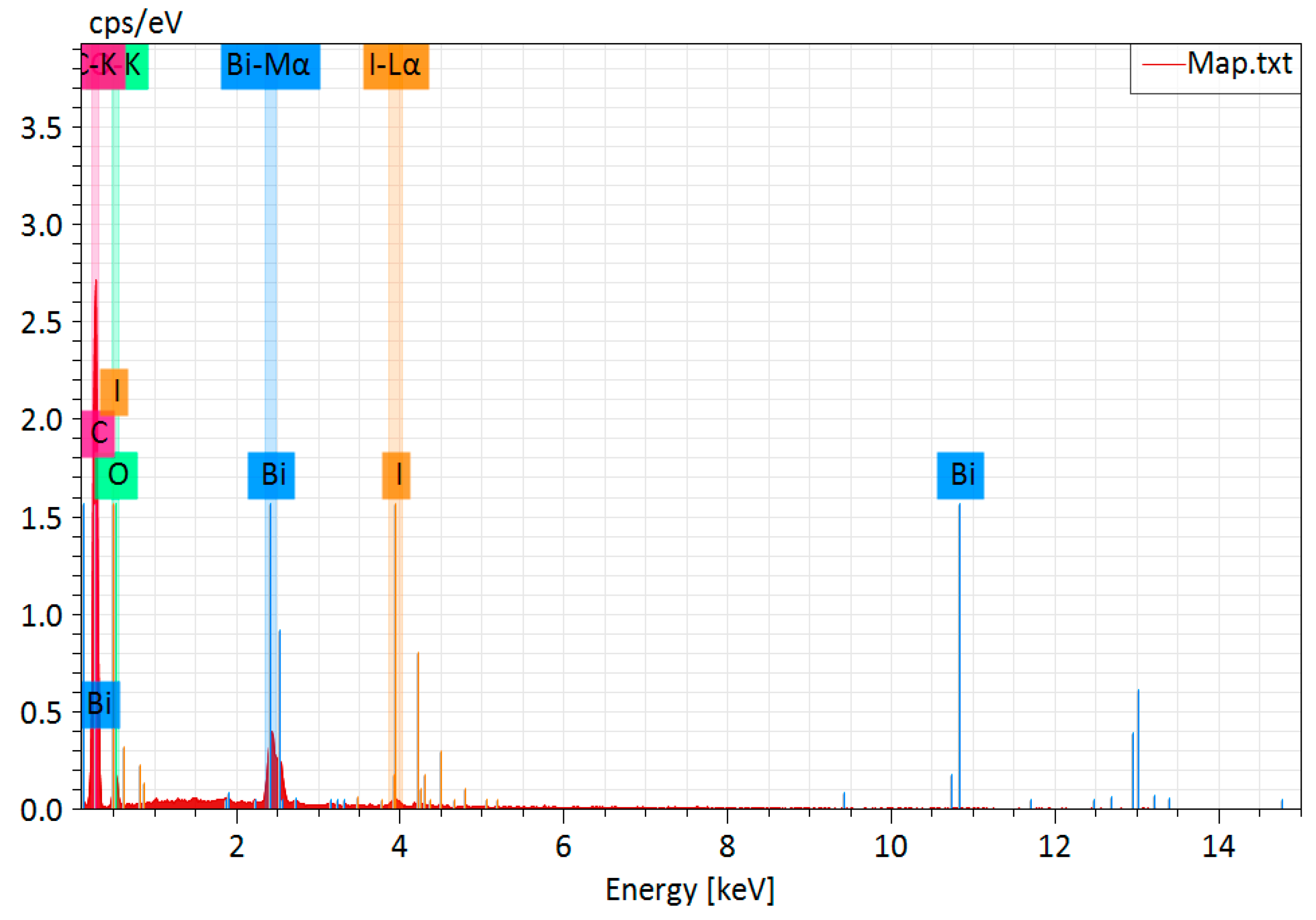

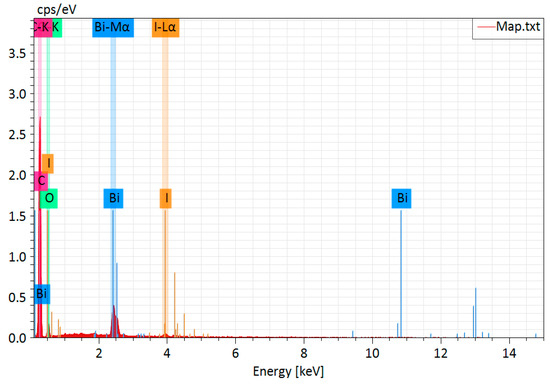

Figure 3. EDX spectrum of IBOCH-2.
Figure 3. EDX spectrum of IBOCH-2.
Nanomaterials 09 01571 g003
Nanomaterials 09 01571 g004 550
Figure 4. (a,b) TEM images of IBOCH-2.
Figure 4. (a,b) TEM images of IBOCH-2.
Nanomaterials 09 01571 g004
Nanomaterials 09 01571 g005 550

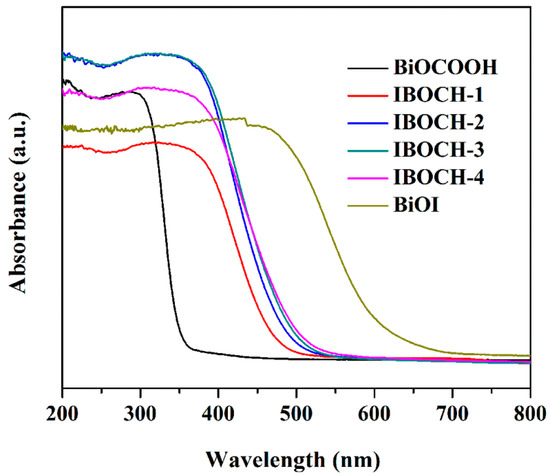

Figure 5. UV‒Vis DRS of the as-fabricated BiOCOOH, BiOI, IBOCH-1, IBOCH-2, IBOCH-3, and IBOCH-4.
Figure 5. UV‒Vis DRS of the as-fabricated BiOCOOH, BiOI, IBOCH-1, IBOCH-2, IBOCH-3, and IBOCH-4.
Nanomaterials 09 01571 g005
Nanomaterials 09 01571 g006 550

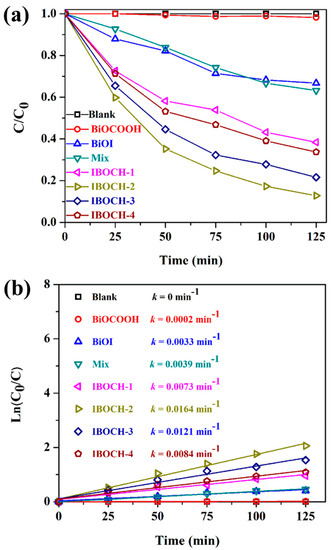

Figure 6. (a) Photodegradation of CIP by the as-fabricated samples under visible light; (b) Photodegradation kinetics of CIP.
Figure 6. (a) Photodegradation of CIP by the as-fabricated samples under visible light; (b) Photodegradation kinetics of CIP.
Nanomaterials 09 01571 g006
Nanomaterials 09 01571 g007 550

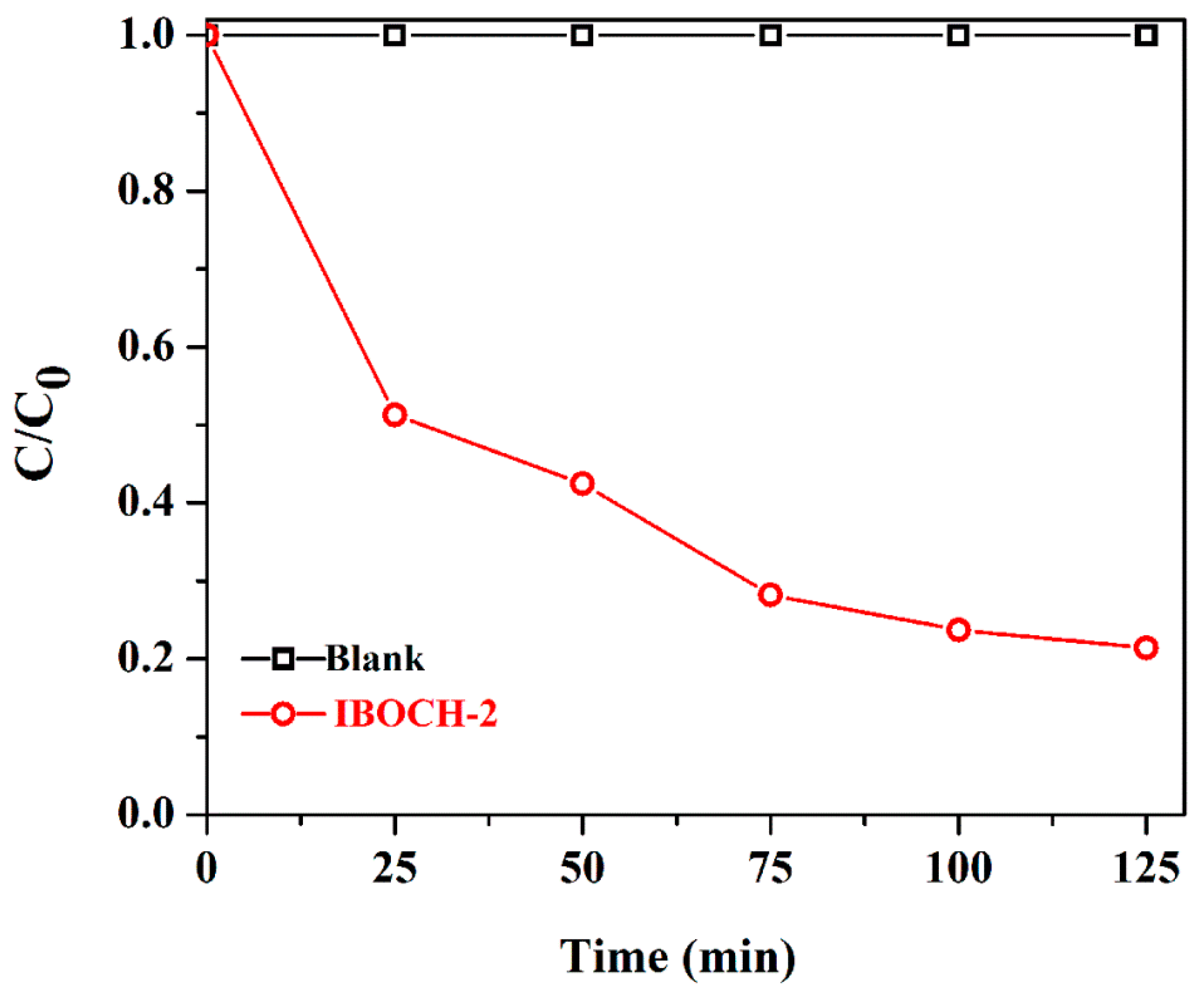

Figure 7. Photodegradation of TC by the IBOCH-2 p–n heterojunction under visible light.
Figure 7. Photodegradation of TC by the IBOCH-2 p–n heterojunction under visible light.
Nanomaterials 09 01571 g007
Nanomaterials 09 01571 g008 550

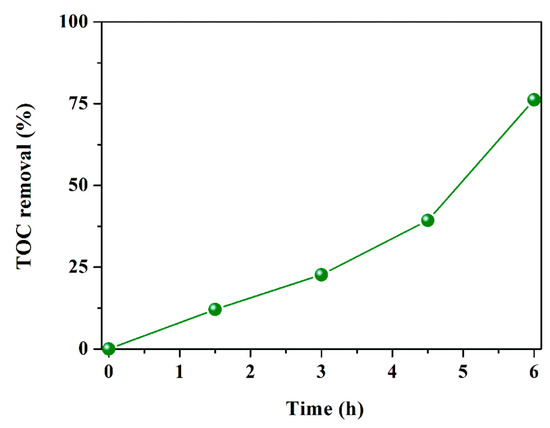

Figure 8. Total organic carbon (TOC) elimination efficiency of CIP over IBOCH-2.
Figure 8. Total organic carbon (TOC) elimination efficiency of CIP over IBOCH-2.
Nanomaterials 09 01571 g008
Nanomaterials 09 01571 g009 550

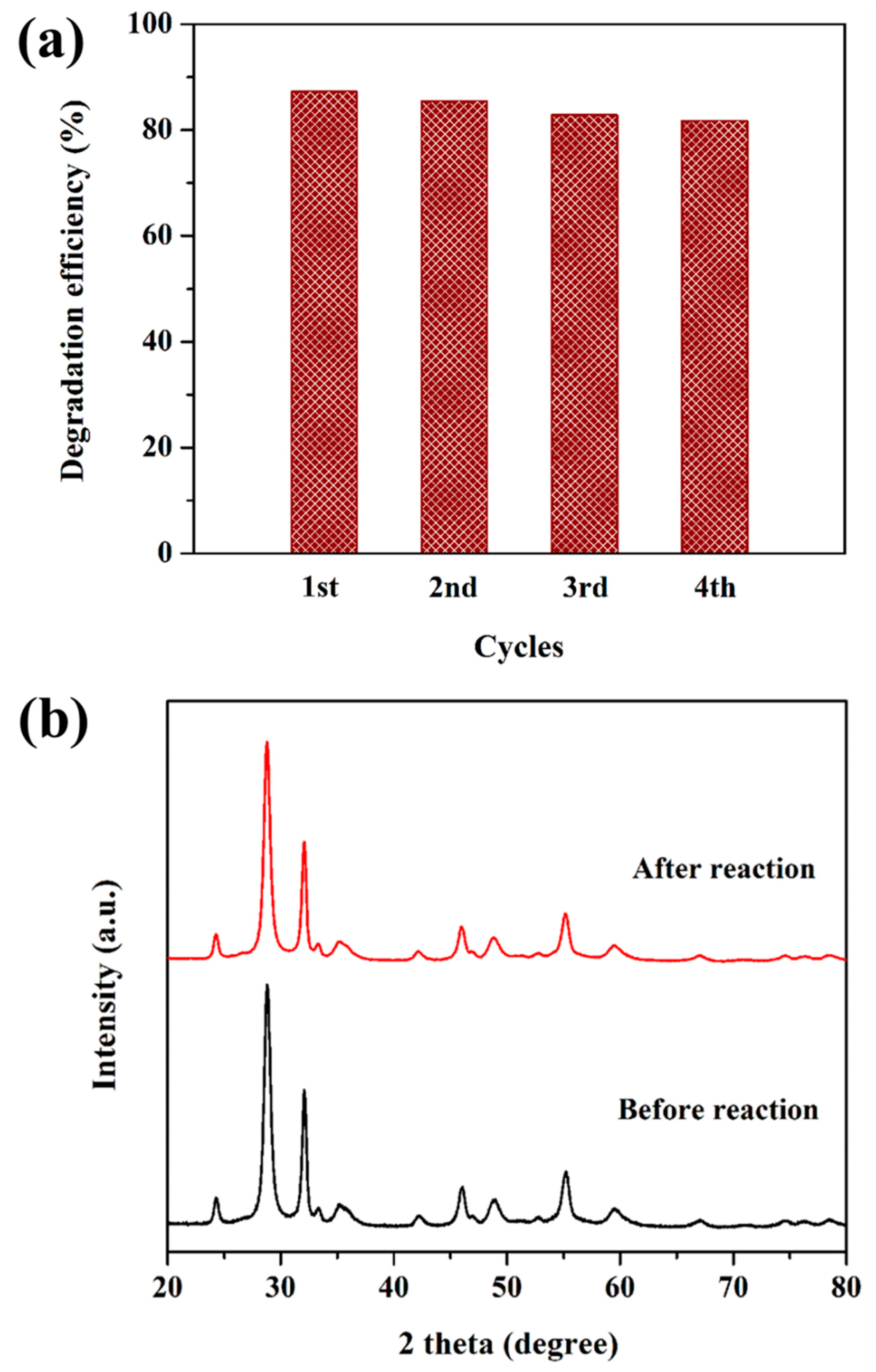

Figure 9. (a) Photocatalytic degradation of CIP for four successive runs; (b) XRD patterns of IBOCH-2 before and after the recycling test.
Figure 9. (a) Photocatalytic degradation of CIP for four successive runs; (b) XRD patterns of IBOCH-2 before and after the recycling test.
Nanomaterials 09 01571 g009
Nanomaterials 09 01571 g010 550

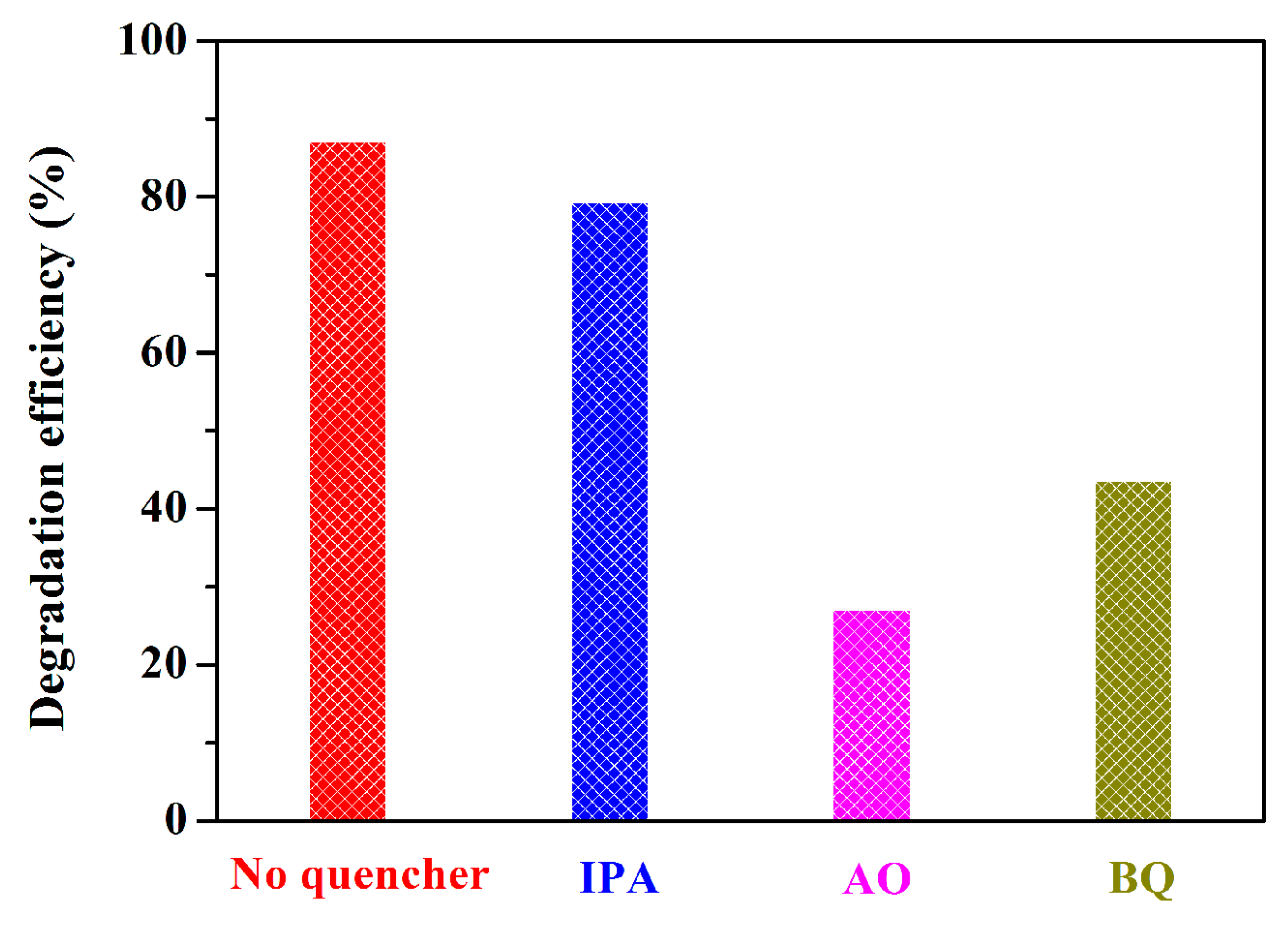

Figure 10. Influences of quenchers on the photocatalytic capability of IBOCH-2.
Figure 10. Influences of quenchers on the photocatalytic capability of IBOCH-2.
Nanomaterials 09 01571 g010
Nanomaterials 09 01571 g011 550

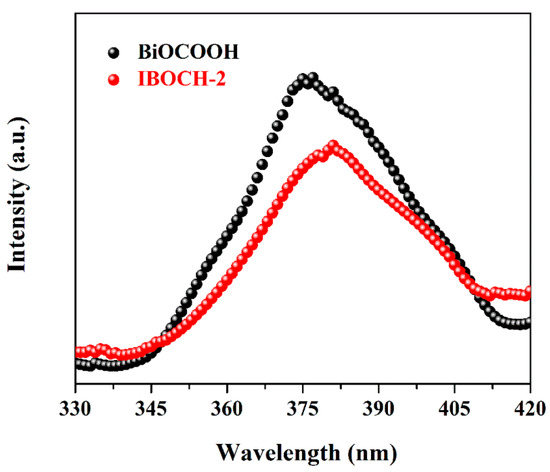

Figure 11. Photoluminescence (PL) spectra of BiOCOOH and the IBOCH-2 heterojunction.
Figure 11. Photoluminescence (PL) spectra of BiOCOOH and the IBOCH-2 heterojunction.
Nanomaterials 09 01571 g011
Nanomaterials 09 01571 g012 550

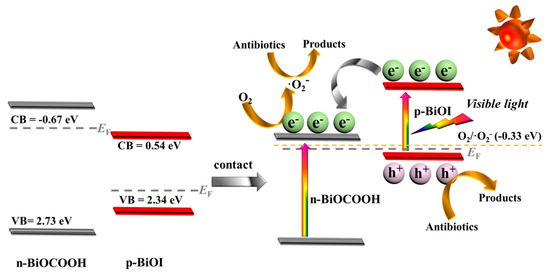

Figure 12. Proposed photocatalytic mechanism of the BiOI/BiOCOOH p–n heterojunction for the elimination of antibiotics under visible light.
Figure 12. Proposed photocatalytic mechanism of the BiOI/BiOCOOH p–n heterojunction for the elimination of antibiotics under visible light.
Nanomaterials 09 01571 g012
