Next Article in Journal
The Interference Pattern of Plasmonic and Photonic Modes Manipulated by Slit Width
Previous Article in Journal
Double Metal Oxide Electron Transport Layers for Colloidal Quantum Dot Light-Emitting Diodes
Previous Article in Special Issue
The Application of Indium [email protected] Composite Material Derived from MOF in Cathode Material of Lithium Sulfur Batteries
Open AccessCommunication

Titanium-Doped P-Type WO3 Thin Films for Liquefied Petroleum Gas Detection

1
Key Laboratory of Functional Materials of Chongqing, School of Physics & Information Technology, Chongqing Normal University, Chongqing 400047, China
2
Department of Bioengineering, University of California, Los Angeles, Los Angeles, CA 90095, USA
*
Authors to whom correspondence should be addressed.
Nanomaterials 2020, 10(4), 727; https://doi.org/10.3390/nano10040727
Received: 21 February 2020 / Revised: 21 March 2020 / Accepted: 8 April 2020 / Published: 11 April 2020

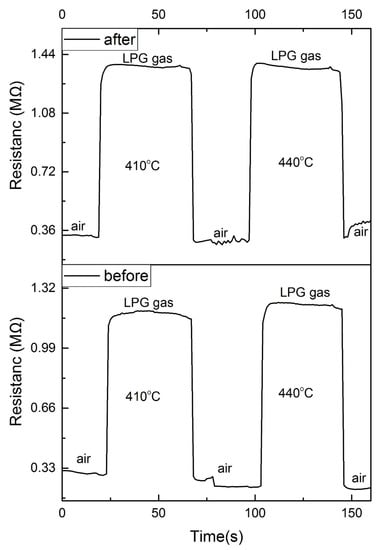

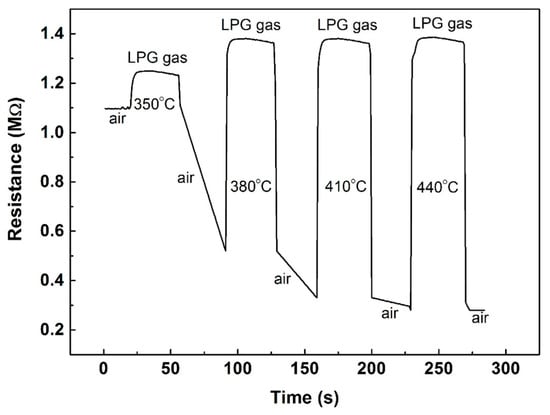

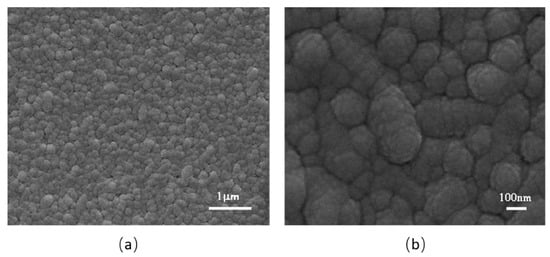

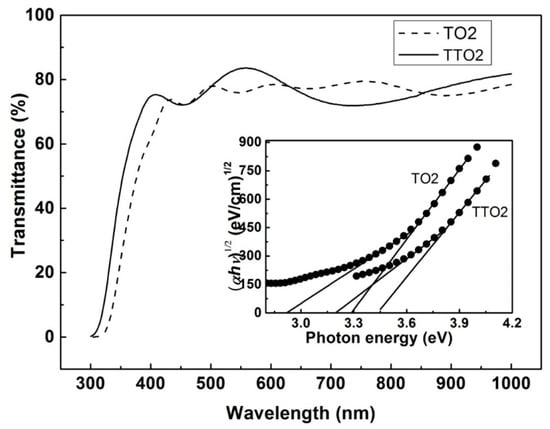

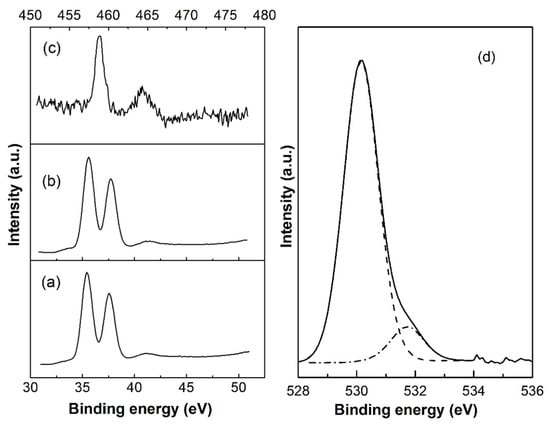

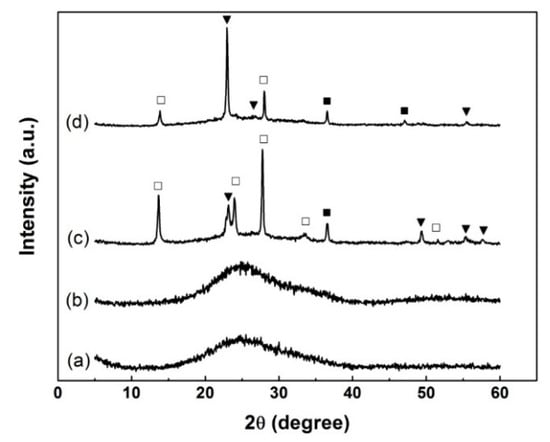

Gas sensors are an important part of smart homes in the era of the Internet of Things. In this work, we studied Ti-doped P-type WO3 thin films for liquefied petroleum gas (LPG) sensors. Ti-doped tungsten oxide films were deposited on glass substrates by direct current reactive magnetron sputtering from a W-Ti alloy target at room temperature. After annealing at 450 °C in N2 ambient for 60 min, p-type Ti-doped WO3 was achieved for the first time. The measurement of the room temperature Hall-effect shows that the film has a resistivity of 5.223 × 103 Ωcm, a hole concentration of 9.227 × 1012 cm−3, and mobility of 1.295 × 102 cm2V−1s−1. X-Ray diffraction (XRD) and X-ray photoelectron spectroscopy (XPS) analyses reveal that the substitution of W6+ with Ti4+ resulted in p-type conductance. The scanning electron microscope (SEM) images show that the films consist of densely packed nanoparticles. The transmittance of the p-type films is between 72% and 84% in the visible spectra and the optical bandgap is 3.28 eV. The resistance increased when the films were exposed to the reducing gas of liquefied petroleum gas, further confirming the p-type conduction of the films. The p-type films have a quick response and recovery behavior to LPG. View Full-Text
Keywords: WO3; p-type semiconductor; Ti-doped; LPG gas-sensing WO3; p-type semiconductor; Ti-doped; LPG gas-sensing
Show Figures

Graphical abstract

MDPI and ACS Style

He, Y.; Shi, X.; Chen, K.; Yang, X.; Chen, J. Titanium-Doped P-Type WO3 Thin Films for Liquefied Petroleum Gas Detection. Nanomaterials 2020, 10, 727.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
