The Application of 29Si NMR Spectroscopy to the Analysis of Calcium Silicate-Based Cement using Biodentine™ as an Example

1
State Key Lab of Silicate Materials for Architectures, Wuhan University of Technology, Wuhan 430070, China
2
Faculty of Engineering and Science, University of Greenwich, Chatham Maritime, Kent ME4 4TB, UK
*
Author to whom correspondence should be addressed.
J. Funct. Biomater. 2019, 10(2), 25; https://doi.org/10.3390/jfb10020025
Received: 29 April 2019 / Revised: 25 May 2019 / Accepted: 28 May 2019 / Published: 30 May 2019
(This article belongs to the Special Issue Endodontic Biomaterials)

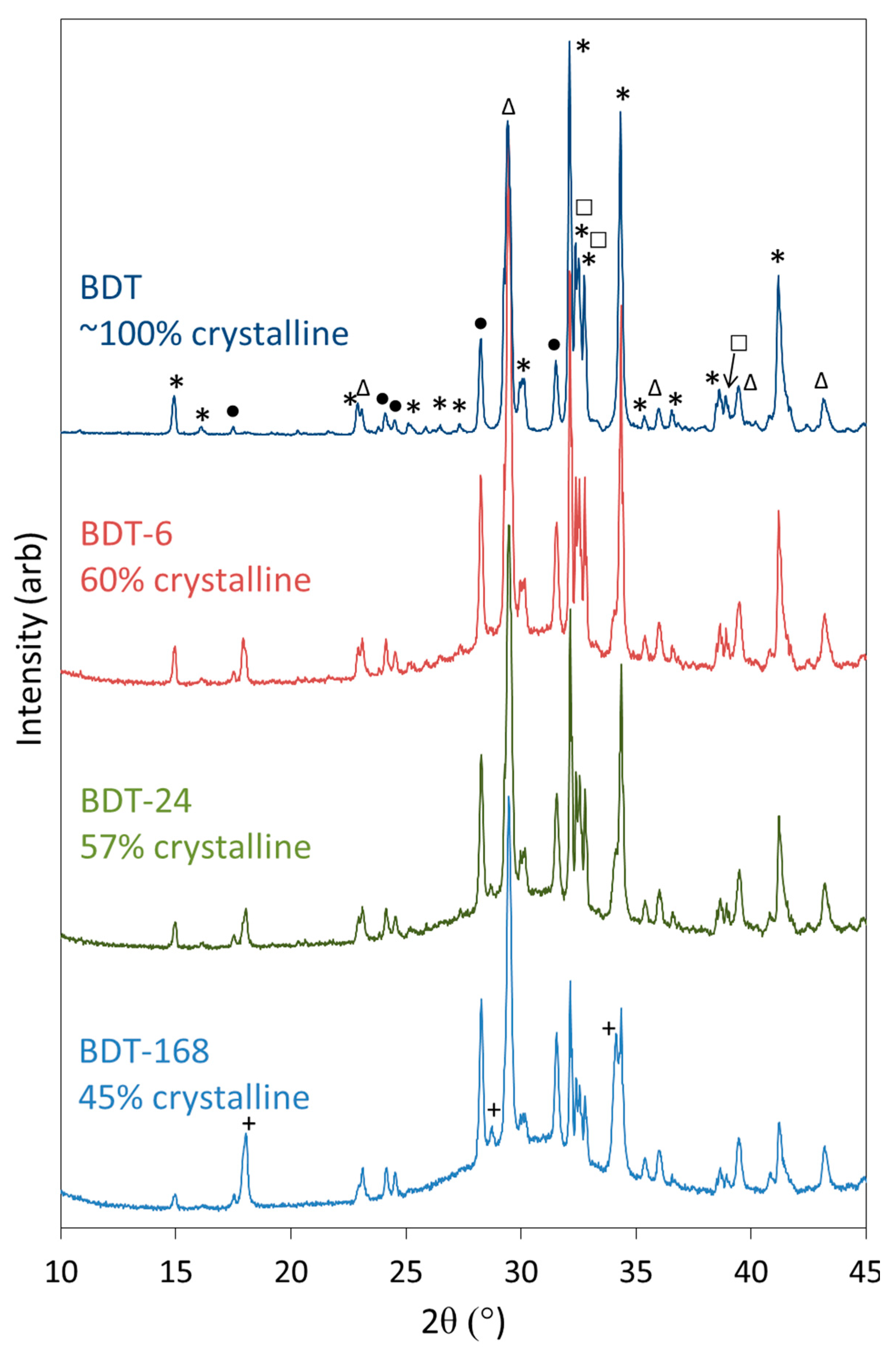

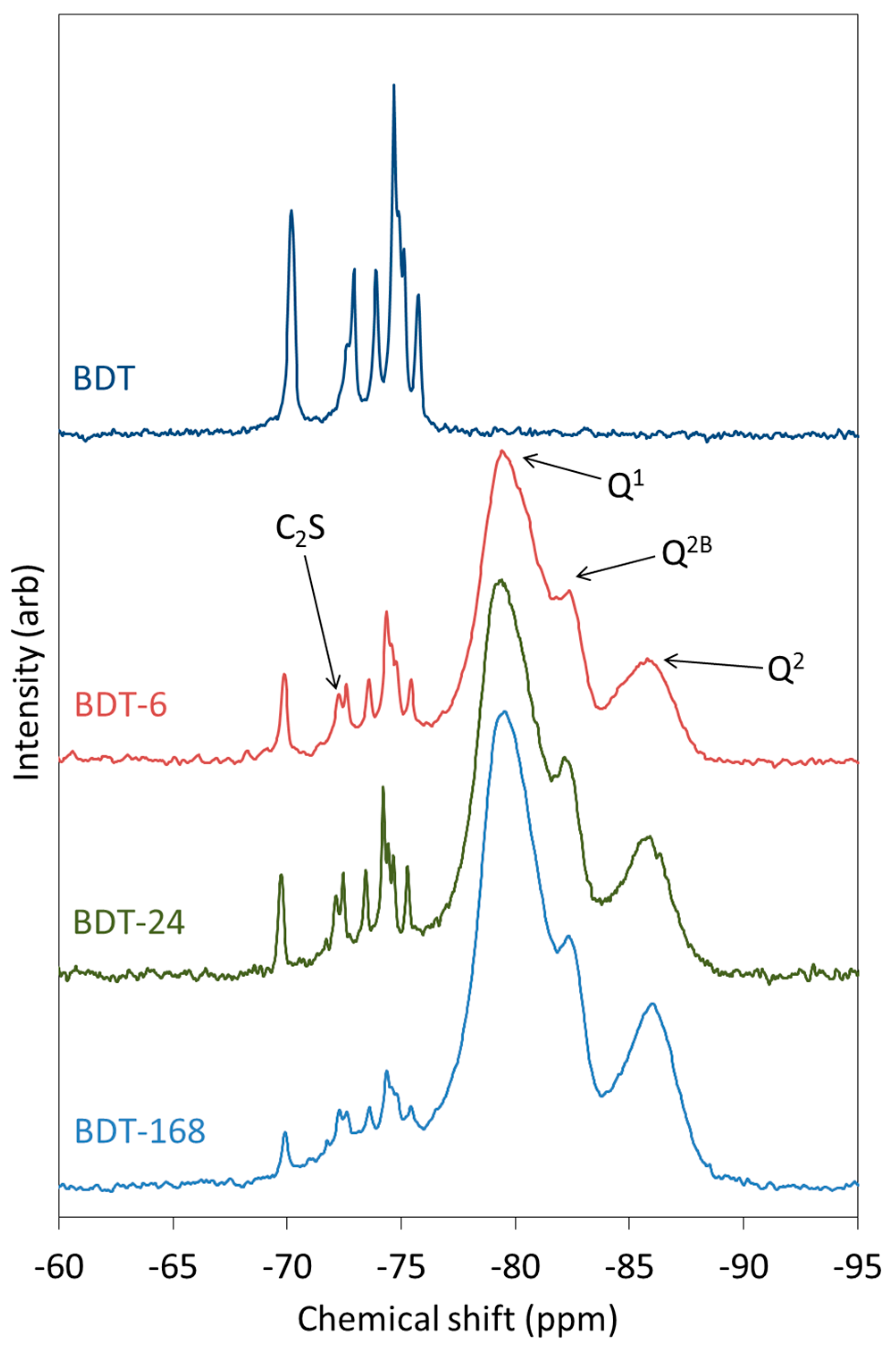

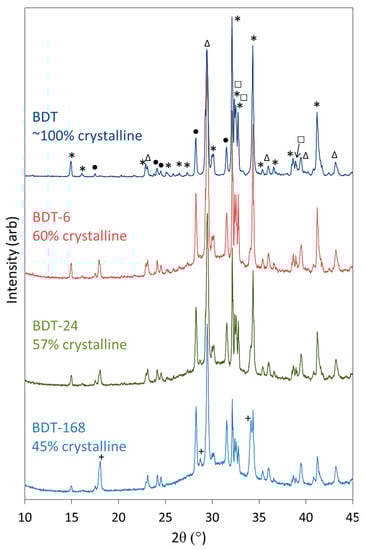

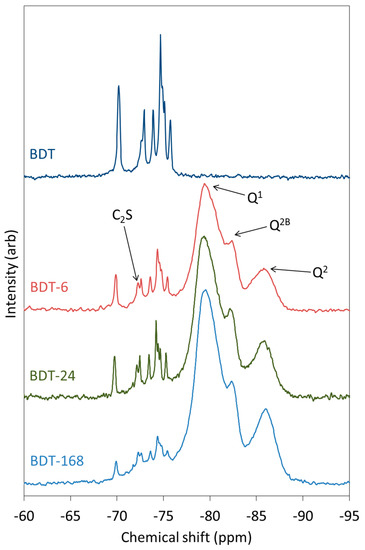

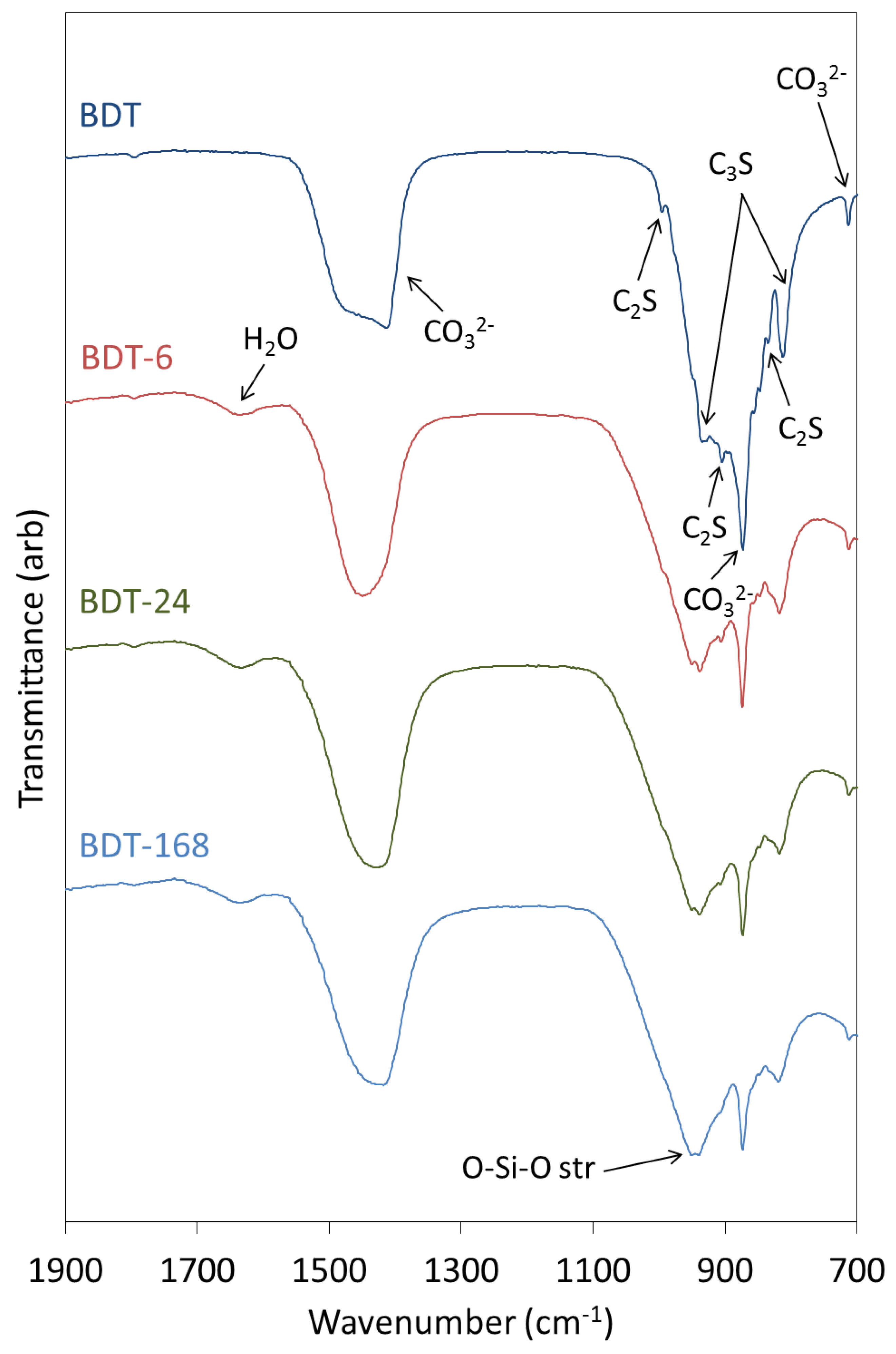

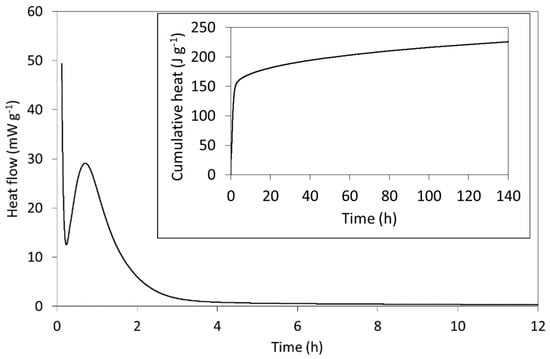

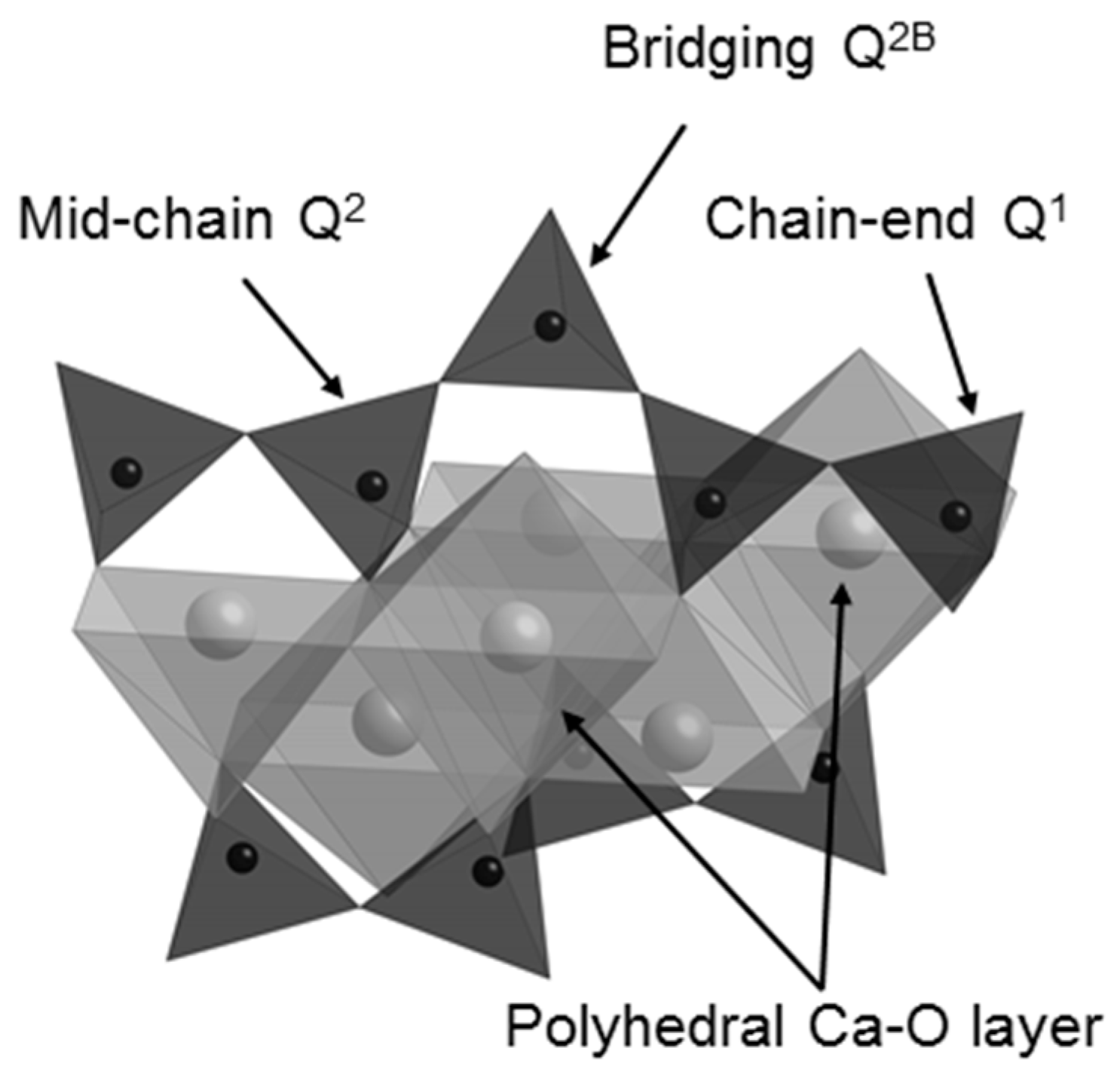

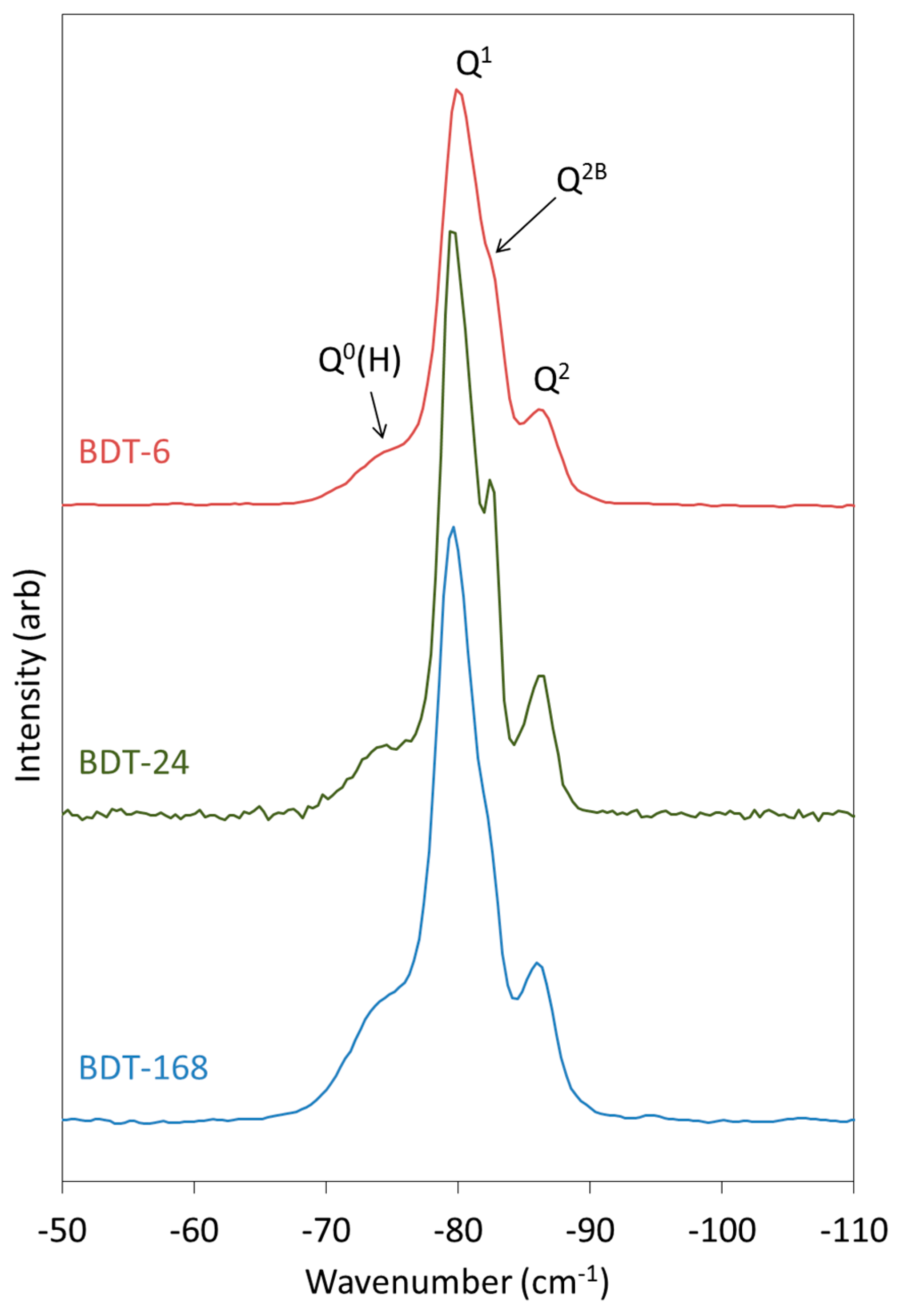

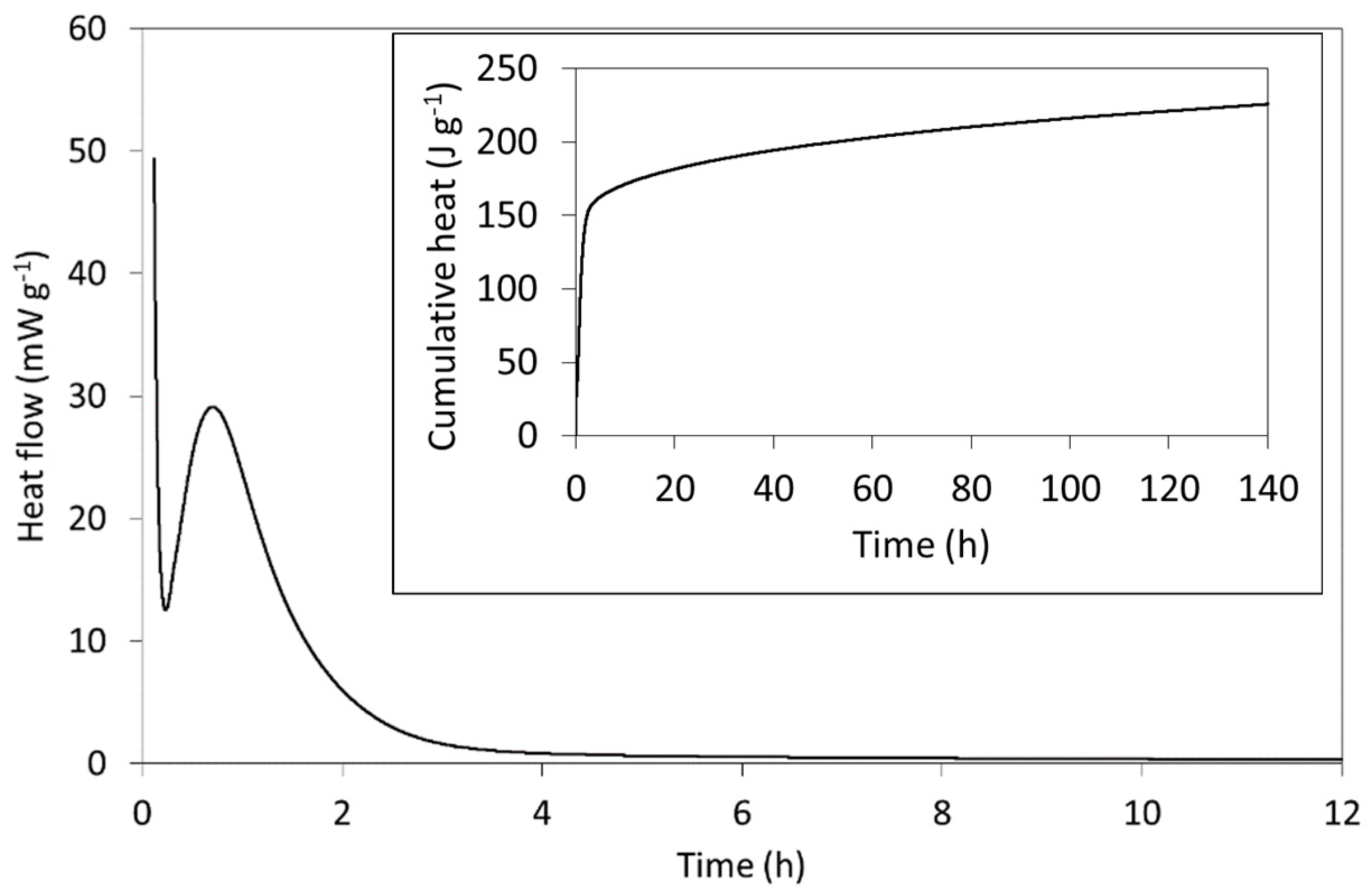

Biodentine is one of the most successful and widely studied among the second generation of calcium silicate-based endodontic cements. Despite its popularity, the setting reactions of this cement system are not currently well understood. In particular, very little is known about the formation and structure of the major calcium silicate hydrate (C-S-H) gel phase, as it is difficult to obtain information on this poorly crystalline material by the traditional techniques of powder X-ray diffraction analysis (XRD) and Fourier transform infrared spectroscopy (FTIR). In this study, the hydration reactions of Biodentine are monitored by XRD, FTIR, isothermal conduction calorimetry and, for the first time, 29Si magic angle spinning nuclear magnetic resonance spectroscopy (29Si MAS NMR) is used to investigate the structures of the anhydrous calcium silicate phases and the early C-S-H gel product. XRD analysis indicated that the anhydrous powder comprises 73.8 wt% triclinic tricalcium silicate, 4.45 wt% monoclinic β-dicalcium silicate, 16.6 wt% calcite and 5.15 wt% zirconium oxide. Calorimetry confirmed that the induction period for hydration is short, and that the setting reactions are rapid with a maximum heat evolution of 28.4 mW g−1 at 42 min. A progressive shift in the FTIR peak maximum from 905 to 995 cm−1 for the O-Si-O stretching vibrations accompanies the formation of the C-S-H gel during 1 week. The extent of hydration was determined by 29Si MAS NMR to be 87.0%, 88.8% and 93.7% at 6 h, 1 day and 1 week, respectively, which is significantly higher than that of MTA. The mean silicate chain length (MCL) of the C-S-H gel was also estimated by this technique to be 3.7 at 6 h and 1 day, and to have increased to 4.1 after 1 week. The rapid hydration kinetics of Biodentine, arising from the predominance of the tricalcium silicate phase, small particle size, and ‘filler effect’ of calcite and zirconium oxide, is a favorable characteristic of an endodontic cement, and the high values of MCL are thought to promote the durability of the cement matrix. View Full-Text
Keywords: Biodentine; calcium silicate cement; endodontic bioceramic; cement hydration; magic angle spinning nuclear magnetic resonance spectroscopy; X-ray diffraction; Fourier transform infrared spectroscopy; calorimetry; nitrogen gas sorption analysis Biodentine; calcium silicate cement; endodontic bioceramic; cement hydration; magic angle spinning nuclear magnetic resonance spectroscopy; X-ray diffraction; Fourier transform infrared spectroscopy; calorimetry; nitrogen gas sorption analysis
