Leakage Fault Diagnosis of Lifting and Lowering Hydraulic System of Wing-Assisted Ships Based on WPT-SVM

Abstract

Wing-assisted technology is an effective way to reduce emissions and promote the decarbonization of the shipping industry. The lifting and lowering of wing-sail is usually driven by hydraulic system. Leakage, as an important failure form, directly affects the safety as well as the functioning of hydraulic system. To increase the system reliability and improve the wing-assisted effect, it is essential to conduct leakage fault diagnosis of lifting and lowering hydraulic system. In this paper, an AMESim simulation model of lifting and lowering hydraulic system of a Very Large Crude Carrier (VLCC) is established to analyze the operation characteristics of the hydraulic system. The effectiveness of the model is verified by the operation data of the actual hydraulic system. On this basis, a wavelet packet transform (WPT)-based sensitive feature extracting method of leakage fault for the hydraulic system is proposed. Subsequently, a support vector machine (SVM)-based multi-classification model and diagnosis method of leakage fault are proposed. The study results show that the proposed method has an accuracy of as high as 97.5% for six leakage fault modes. It is of great significance for ensuring the reliability of the wing-sail operation and improving the utilization rate of the offshore wind resources.

1. Introduction

Maritime transportation is one of the most critical ways for global trade [1], ships contribute significantly to world trade but also emit many pollutants. In recent years, the issue of emissions from the shipping industry has received extensive attention. The International Maritime Organization (IMO) pointed out in the fourth greenhouse gas study report that the current annual emissions of greenhouse gases from the shipping industry are about 1076 million tons [2]. It is expected that CO₂ emissions will increase by about 50% by 2050 compared with 2018. IMO has issued a series of new regulations for the shipping industry to deal with the increasing shortage of energy and air pollution [3,4], including SEEMP, EEDI, EEXI and CII, which aim to reduce greenhouse gas emissions from the shipping industry [5]. Energy conservation and emission reduction have become the development requirements of the shipping industry [6]. The use of green and clean energy contributes to the sustainable development of the shipping industry [7,8]; the main engine output power can be reduced significantly by utilizing wind power for navigation assistance, as well as ship CO₂ emissions [9,10,11]. The most direct and effective way of wind-assisted navigation is sail-assisted technology. The specific forms of sail include airfoil sail (the wing) [12], rotary sail [13,14], kite sail [15], etc. Due to its better aerodynamic characteristics and stability [16], the airfoil sail is one of the most commonly used sails on large ocean-going ships.

Currently, the wing is mainly driven by the hydraulic system on ships. Internal leakage often occurs in hydraulic pumps [17], hydraulic valves [18], hydraulic cylinders, and other components of the hydraulic system. The occurrence of leakage faults is related to factors such as the deterioration of seals [19], and it is usually challenging to detect in time. When the leakage fault occurs in the lifting and lowering hydraulic system, the wing cannot be lifted or lowered as designed, which will highly reduce the service efficiency. Meanwhile, the ship’s safety will be seriously endangered if the wing cannot be lifted or lowered normally when the ship arrives/departs the port or is sailing in restricted waters. Therefore, early diagnosis of internal leakage is essential [20].

Many scholars have paid attention to fault diagnosis methods of hydraulic systems and conducted relative research. Kumar et al. [21] studied the influence of single piston leakage on pump output flow, motor torque, and power by establishing a hydraulic piston pump dynamic model. Shi et al. [22] extracted the feature subset to reflecting the fault by denoising the vibration signal of hydraulic, and obtained the fault diagnosis results through decision-making information fusion. An effective fault states detecting method for hydraulic valve internal wear is proposed by them. Qiu et al. [23] studied the relationship between the internal leakage and energy characteristics of the hydraulic cylinder pressure by computational fluid dynamics (CFD) analysis, A leakage diagnosis method was proposed by decomposing the energy features into statistics after extracting the energy features with WPT.

Machine learning methods have become popular in solving fault diagnosis problems as rapid development of computer technology, such as artificial neural networks (ANN), decision tree algorithms, and support vector machines (SVM) [24]. Panda et al. [25] studied the pattern recognition problem of hydraulic pumps under different fault degrees and used One-Against-One (OAO) technology to realize the fault multi-classification problem based on SVM. The C4.5 decision tree method was used to select time-frequency signal characteristics of hydraulic system vibration signals, and the effectiveness of SVM online condition monitoring was verified by importing the selected characteristics into SVM classification [26]. Zhang et al. [27] extracted features from the original signal by using variational mode decomposition (VMD); they obtained the appropriate classifier parameters by optimizing the mixed kernel support vector machine (MSVM), and successfully realize the classification of different levels of fault. Zhang et al. [28] proposed to combine the improved convolutional neural network (MCNN) with the SVM for the multi-source phenomenon of fault signals; the fast classification of friction faults is realized by using MCNN and SVM. Tang et al. [29] constructed a good performance diagnostic model by an adaptive convolutional neural network (CNN) with Bayesian optimization. Based on the standard LeNet-5 model, Zhu et al. [30] solved the uncertainty of manual adjustment by optimizing the CNN hyper-parameters with particle swarm optimization (PSO), and realized the wear fault diagnosis of the plunger pump. Wang et al. [31] established a general sparse dictionary based on the sparse theory, the optimal kernel function type and kernel parameters of SVM are selected by sparse coding, and the fault diagnosis classification of bearings is realized by the PSO algorithm. Lan et al. [32] extracted fault features with three methods; they verified the excellent classification performance of extreme learning machine (ELM) classifier through ELM for fault classification.

The studies on diagnosis analysis mentioned above mainly considered the conventional noise and vibration signals. However, due to its complex system structure and poor working environment, the wing needs to bear the wind alternating load during navigation when it provides assisted force for ships, it is difficult to obtain the noise and vibration signals because of the interference signals. Therefore, it is hard to achieve effective leakage fault diagnosis through vibration signals. In practical terms, only a small sample pressure signal can be obtained from the wing lifting and lowering hydraulic system, and the pressure signal is usually a high-frequency and non-smooth state. Therefore, the studies mentioned cannot effectively perform fault diagnosis for the wing lifting and lowering hydraulic system. WPT has high accuracy in decomposing the full frequency components of the pressure signal [33], and has a strong time-frequency localization decomposition ability and good performance in processing high-frequency transient signals, which lays a foundation for feature extraction and recognition of the pressure signals. SVM has an excellent performance in solving the pattern recognition problems of small samples and multi-dimensional structure [34], it also has awesome learning and generalization performance. Therefore, SVM is suitable to solving the fault diagnosis problems of the wing lifting and lowering hydraulic system. A WPT-SVM based fault diagnosis method is proposed in this paper, which can realize the leakage fault diagnosis of different critical equipment by using internal pressure signal of the wing lifting and lowering hydraulic system, ensuring the reliability of the hydraulic system.

There are two contributions of this paper: (1) a hydraulic simulation model of the wing lifting and lowering hydraulic system is established, and the model’s effectiveness is verified by the data of existing hydraulic system. The model can realize the analysis of the operating characteristics of hydraulic system; (2) a fault diagnosis method of the wing lifting and lowering hydraulic system based on WPT-SVM is proposed. The method can realize the diagnosis of different leakage fault states of the critical equipment of the hydraulic system with high accuracy, to improve the reliability of the wing lifting and lowering hydraulic system and the energy efficiency of the wing-assisted ship.

2. WPT-SVM Based Fault Diagnosis Method

Figure 1 shows the diagnosis process: Firstly, the AMESim simulation model of the wing lifting and lowering hydraulic system is established by analyzing the components of the system, the model’s effectiveness is verified by the piston displacement and pressure of the hydraulic system. Then, the leakage fault states are simulated by setting different leakage conditions.

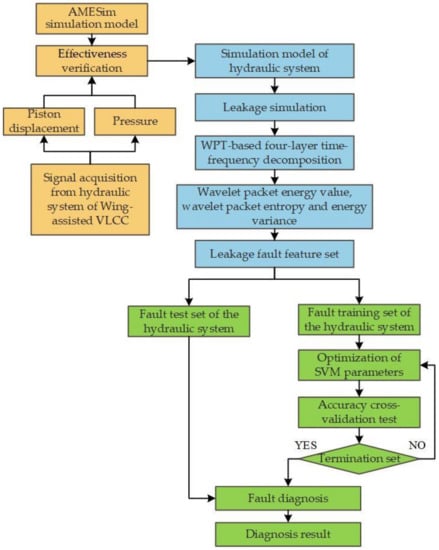

Figure 1. Fault diagnosis process of the wing hydraulic lifting and lowering hydraulic system based on WPT-SVM.

Secondly, the pressure signals of the hydraulic cylinder are decomposed to extract the leakage fault features by using WPT, and the fault feature set is established.

After that, a multi-classifier is trained by using the fault feature set based on SVM, the classifier is optimized by grid search, so that the leakage fault diagnosis classification model is obtained.

Finally, the fault diagnosis of the wing lifting and lowering hydraulic system is performed to verify the accuracy of the method with a typical hydraulic leakage fault mode case.

2.1. Modelling of the Wing Lifting and Lowering Hydraulic System

At present, wing-assisted technology has entered the stage of practical application, it is impractical to create fault artificially on the actual system to obtain the system signal in the fault state in consideration of the safety of wing equipment and ship. Therefore, a simulation model is established to analyze the operating state of the hydraulic system based on the schematic diagram, the actual equipment, and operating parameters for the wing lifting and lowering hydraulic system of a VLCC. As shown in Figure 2, the hydraulic pump provides power for the whole system, the electromagnetic directional valve controls the lifting or lowering action of the wing, the hydraulic cylinder act as the actuator, the balance valve group protects the wing from lowering abnormally due to its large mass and the influence by the ship’s listing and heeling during sailing. The safety globe valve group guarantees that the wing can be quickly lowered in case of emergency.

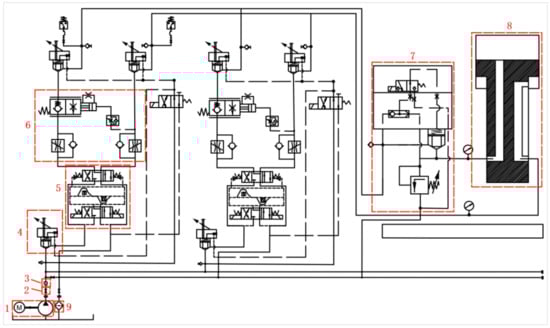

Figure 2. Schematic diagram of the wing lifting and lowering hydraulic system. 1. Hydraulic pump; 2. globe valve; 3. check valve; 4. cartridge valve; 5. electro-hydraulic re-versing valve; 6. balance valve group; 7. safety globe valve group; 8. hydraulic cylinder; 9. oil return filter.

An AMESim simulation model is established based on the component of existing hydraulic system with the power bond graph theory, as is shown in Figure 3.

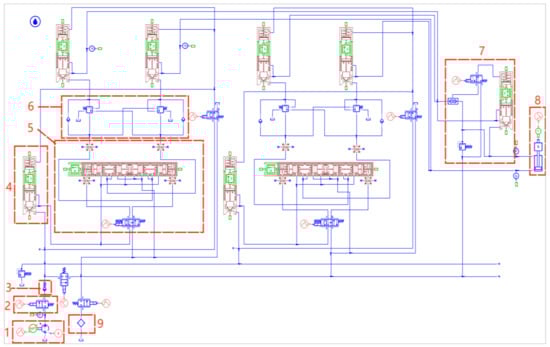

Figure 3. Simulation model of the wing lifting and lowering hydraulic system. 1. Hydraulic pump; 2. globe valve; 3. check valve; 4. cartridge valve; 5. electro-hydraulic re-versing valve; 6. balance valve group; 7. safety globe valve group; 8. hydraulic cylinder; 9. oil return filter.

The pressure sensors can be placed at the outlet of the hydraulic pump and the inlet/outlet of the hydraulic cylinder. The state performance of the hydraulic system can be simulated by adjusting the parameters of the control module, load simulation module, friction leakage module, etc.; thus, the leakage faults can be simulated.

2.2. WPT Based Fault Feature Extraction Method of the Hydraulic System

Since the hydraulic system signals contain a lot of information and noise interference [35,36], it is necessary to process all kinds of signal data to extract useful information to provide materials for the learning process of the classifier. Therefore, the hydraulic system pressure signal in time and frequency is decomposed to obtain the sensitive characteristic parameters of internal leakage.

Firstly, the stress state of the hydraulic cylinder piston is analyzed, as shown in Figure 4. The resultant force acting on the hydraulic cylinder piston in the hydraulic system is:

$$F_{wing}=p_1{A}_1-p_2{A}_2-m_{mass}g$$

(1)

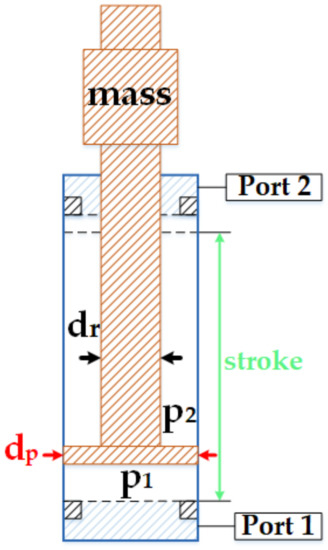

Figure 4. State analysis of hydraulic cylinder piston.

In the above formula, A₁ is the area of the hydraulic cylinder piston side, A₂ is the contact area between the hydraulic oil and the hydraulic cylinder piston rod side, m_mass is the mass of the wing and the piston, and g is the acceleration of gravity. The resultant force acting on the piston will change when the wing is lifting or lowering. F_wing ≥ 0 when the wing is lifting, F_wing ≤ 0 when wing is lowering, and F_wing = 0 when the wing stays still. The piston side pressure of the hydraulic cylinder p₁ is:

$$p_1=\frac{F_{wing}+p_2{A}_2+m_{mass}g}{A_1}$$

(2)

and the piston rod side pressure p₂ is:

$$p_2=\frac{p_1{A}_1-F_{wing}-m_{mass}g}{A_2}$$

(3)

where A₁ and A₂ can be expressed as follows:

$$A_1=\frac{\pi d_p^2}{4}$$

(4)

$$A_2=\frac{\pi \left(d_p^2-d_r^2\right)}{4}$$

(5)

where d_p is the diameter of piston head and d_r is the diameter of piston rod.

The hydraulic cylinder internal pressure signal frequency is separated and filtered based on the WPT decomposition principle. Then, the high-frequency region, which reflects the hidden details of the pressure signal and the low-frequency region, which macroscopically reflects the signal state is obtained [37]. A wavelet packet can be defined as follows:

$$L^2(\mathrm{R})=\underset{j\in \mathrm{Z}}{\oplus }{W}_j$$

(6)

where L²(R) is the space, W_j is the wavelet subspace. L²(R) can be decomposed into the direct sum of subspaces W_j according to different scale factors j to achieve multi-resolution analysis. The decomposition algorithm and the reconstruction algorithm comprise to wavelet packet decomposition data processing algorithm. Let f(t) be the signal to be processed, and $p_j^i(t)$ is ith wavelet packet node (j, i) on the 2^j decomposition scale. Equation (7) shows the wavelet packet decomposition algorithm:

$$\left\{\begin{array}{l}{p}_j^{2i-1}(t)={\displaystyle \sum _{k}H(k-2t)p_{j-1}^i(t)}\\ p_j^{2i}(t)={\displaystyle \sum _{k}G(k-2t)p_{j-1}^i(t)}\end{array}\right.$$

(7)

where t = 1, 2, …, 2^J−j; i = 1, 2, …, 2^j; J = log₂N.

The wavelet packet reconstruction algorithm is:

$$p_j^i(t)=2\left[{\displaystyle \sum _{k}H(t-2k)p_{j+1}^{2i-1}(t)}+{\displaystyle \sum _{k}G(t-2k)p_{j+1}^{2i}(t)}\right]$$

(8)

where j = J−1, J−2, …, 1, 0; i = 2^j, 2^j−1, …, 2, 1. H(t) is a low-pass filter, G(t) is a high-pass filter.

The hydraulic cylinder pressures are selected as signal processing objects, and a db6 wavelet is selected. The hydraulic cylinder pressure signal is decomposed into four layers based on WPT time-frequency decomposition technology. Sixteen wavelet packets are extracted from the four-layer decomposition results of pressure signals for analysis. The decomposition structure is shown in Figure 5.

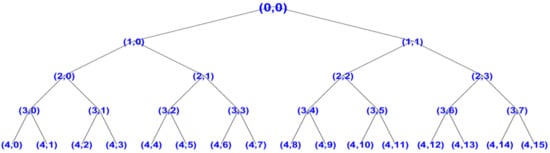

Figure 5. Four-layer wavelet packet decomposition diagram.

The sub band signal range of the hydraulic cylinder pressure signal is reconstructed after decomposition, and the energy quantization value is calculated. The reconstructed signal of the (i, j) sub band is represented by S_i,j, and S_0,0 is the hydraulic cylinder pressure signal before decomposition. The relationship between the decomposed signals of all sub bands in the fourth layer is as follows:

$$S_{0,0}=S_{4,0}+S_{4,1}+S_{4,2}+S_{4,3}+S_{4,4}+\mathrm{\dots }+S_{4,14}+S_4{}_{,15}$$

(9)

Calculating the energy of the reconstructed signals of the above sub bands, and let E_4,j be the quantized energy values of the sub band signals S_4,j (j = 0, 1, 2, …, 15), then:

$$E_{4,j}={\displaystyle {\int }_0^T{\left|S_{4,j}(t)\right|}^{2}dt={\displaystyle \sum _{k=0}^n{\left|x_{j,k}\right|}^2}}$$

(10)

where T represents the acquisition time length of the pressure signal, k (k = 0, 1, 2, …, n) represents the number of signal points in signals S_4,j, x_j,k represents the amplitude of each signal point. The quantization value of the total energy of the wavelet packet is:

$$E={\displaystyle \sum _{j=0}^{2^4-1}{E}_{4,j}}$$

(11)

E is a quantitative evaluation of the pressure signal. The energy quantization results of all sub bands are taken as elements to construct a feature vector M, which is:

$$M=\left[E_{4,0},E_{4,1},E_{4,2},E_{4,3},E_{4,4},E_{4,5},E_{4,6},E_{4,7},\mathrm{\dots },E_{4,14},E_{4,15}\right]$$

(12)

The characteristic vector M can be normalized and quantized according to the total energy E, and the processing result M′ can be expressed as:

$$E_{4,j}^{\prime }=\frac{E_{4,j}}{E}$$

(13)

$$M^{\prime }=\left[E^{\prime }{}_{4,0},E^{\prime }{}_{4,1},E^{\prime }{}_{4,2},E^{\prime }{}_{4,3},E^{\prime }{}_{4,4},E^{\prime }{}_{4,5},E^{\prime }{}_{4,6},E^{\prime }{}_{4,7},\mathrm{\dots },E^{\prime }{}_{4,14},E^{\prime }{}_{4,15}\right]$$

(14)

The energy entropy is suitable for leakage fault characteristics analyzing, which is defined as:

$$W_E=-{\displaystyle \sum _{i=1}^n{P}_i\log P_i}$$

(15)

$$P_i=\frac{E_i}{{\displaystyle \sum _{i=1}^n{E}_i}}$$

(16)

where P_i is the percentage of the ith sub band in pressure signal energy, W_E is the energy entropy of wavelet packet, E_i is the ith sub band energy. This paper also uses the variance of energy change of wavelet packet as the leakage sensitive feature. The energy variance of wavelet packet is in Equation (17):

$${\sigma }^2=\frac{1}{n}{\displaystyle \sum _{i=1}^n{(E_i-E_{mean})}^2}$$

(17)

where E_mean is the sub band energy average value, σ² is the variance of energy, n is the number of sub bands after decomposition.

WPT can analyze the hydraulic cylinder internal pressure signal, and can reflect the implied information in the signal from the aspect of signal energy distribution, which is helpful in revealing the system state information contained in the pressure signal.

2.3. Classification and Diagnosis Method of Leakage Fault Based on SVM

After the fault features are obtained, it is necessary to interpret and classify the information they represent. In the process of classification by SVM, the fault feature vector obtained by decomposing the hydraulic cylinder pressure signal is represented as X_i, which includes six types of wavelet packet features: energy quantization value, entropy, and energy variance of the pressure on piston side of the hydraulic cylinder as well as the piston rod side. Each input feature vector is matched by setting the corresponding leakage fault mode output label Y_i. When the input feature vector only corresponds to two states, these two states can be set as fault A and fault B, and the data label is Y_i = 1 or Y_i = −1 at this time. As shown in Figure 6, the best interface that can maximize the distance between the two types of samples is found in the samples to be identified, and the support vector is used to outline the best classification surface.

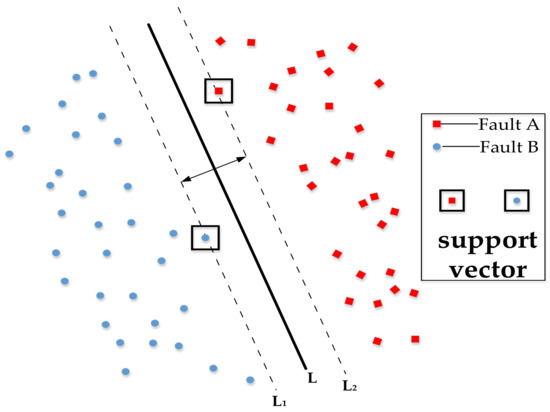

Figure 6. Optimal classification surface.

If the input vector set is L = {(X_i, Y_i)}, X_i∈R, Y_i = 1, the optimization equation for optimizing the classification hyperplane is

$$\frac{1}{2}{‖w‖}^2+C{\displaystyle \sum _{i=1}^n{\xi }_i}$$

(18)

Constrained by

$$Y_i\left[w^T\varphi (X_i)+b\right]\ge 1-{\xi }_i,{\xi }_i\ge 0, i=1,2,\mathrm{\dots },n$$

(19)

where C represents the penalty parameter, ξ_i is a non-negative relaxation variable, w is the weight vector, b is the value of deviation.

The leakage fault diagnosis of the wing lifting and lowering hydraulic system is a multi-class problem, the C-SVC classifier is established to identify the leakage fault of the system. As the fault classification of the wing lifting and lowering hydraulic system is a nonlinear problem, it is necessary to use the kernel function to solve its classification problem. As a kernel function with strong local processing, the Gaussian radial kernel function (RBF) can map samples from low dimension to high dimensions [38,39]. The RBF-kernel-function-classified hyperplane is in Equation (20):

$$\omega \phi (x)+b=0$$

(20)

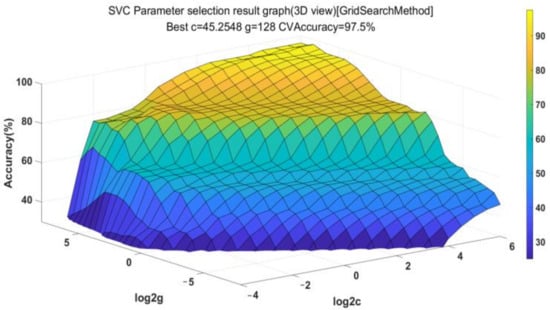

This paper selects parameters by using the grid search method, and sets the optimal penalty parameter C and gamma parameter after cross-validation. Then, the SVM multi-classification recognition model is trained by the libsvmtrain function using a sample set. The model can be exported for subsequent fault diagnosis and classification after training.

3. Case Study

3.1. Research Objects

In this paper, the VLCC “NEW ADEN” is selected as the research object, as shown in Figure 7.

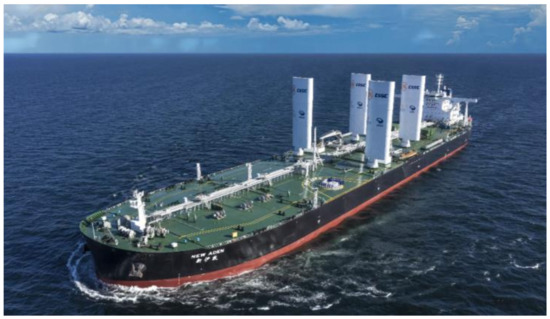

Figure 7. VLCC “NEW ADEN”.

“NEW ADEN” is equipped with four sets of large-scale wings that can automatically lift, lower and rotate according to the wind direction. The wing is made of carbon brazing composite materials, and the masts are made of carbon steel. Its shape is shown in Figure 8 (retracted state), and the weight of a single wing is 170 tons. Table 1 shows the main parameters of the wing.

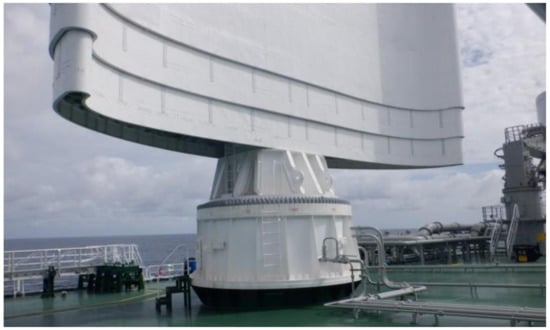

Figure 8. The wing of “NEW ADEN”.

Table 1. Main parameters of the wing.

Item	Parameter
Height	39.68 m
Width	14.80 m
Wing height	35.60 m
Mast height	37.40 m
Base height	2.268 m
Section	3
Numbers of the wing	4

“NEW ADEN” uses a hydraulic system to drive the wings to lift and lower, and it shares the same hydraulic system with deck machinery such as the winch. There are four identical sets of wing lifting and lowering hydraulic systems assembled to realize the independent lifting/lowering control of each wing. The type of hydraulic oil in the hydraulic system is L-HV46 low pour point anti-wear hydraulic oil, which has a high viscosity index and is less affected by the ambient temperature. This study takes one set of hydraulic systems as research object; Figure 9 shows the layout of the system.

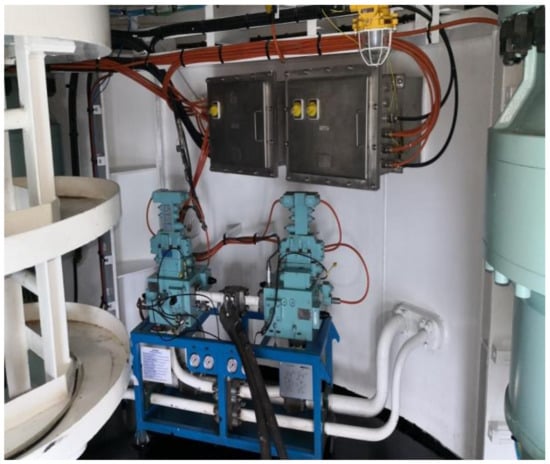

Figure 9. The hydraulic system layout.

This paper sets the parameters of the established AMESim simulation model according to the existing system, as shown in Table 2.

Table 2. Parameters of the hydraulic system.

Equipment	Pictures	Parameter	Value
Hydraulic pump		Rated speed Displacement Volumetric efficiency Mechanical efficiency	1780 r/min 100 cc/rev 98% 98%
Cartridge valve		Diameter of poppet Diameter of hole Opening for maximum area	40 mm 30 mm 5 mm
Electro-hydraulic reversing valve		Piston diameter Rod diameter Spring rate	40 mm 20 mm 20 N/mm
Balance valve group		Characteristic flow rate at maximum opening	120 L/min
Safety globe valve group		Relief valve cracking pressure Diameter of poppet Diameter of hole	25 MPa 40 mm 30 mm
Hydraulic cylinder		Piston diameter Rod diameter Length of stroke Total mass being moved	320 mm 280 mm 10.705 m 170,000 kg

3.2. Effectiveness Analysis of the Model

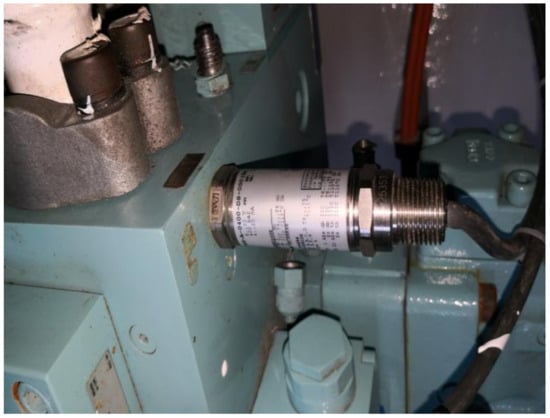

Figure 10 shows the pressure sensor of the hydraulic system, there are two pressure sensors installed to measure the pressure on hydraulic cylinder piston side and piston rod side of the hydraulic system. An altimeter is set to monitor the real-time height of the piston.

Figure 10. Pressure sensor.

The pressure and piston displacement of the hydraulic system during the lifting stroke are obtained through the pressure sensor and altimeter. As shown in Figure 11, in the actual system, the piston needs 608 s to reach the highest position after receiving the lifting signal, and then keep its height stable. When receiving the lowering signal, it needs 602 s to reach the initial height. For the model, the time required for the piston to rise to the highest position is 600 s, whereas the time needed for the piston to fall from the highest position to the zero position is also 600 s. As the response speed of the components in the flow process of the simulation model is faster than that of the actual system, there is an error of 8s between the model and the actual system in the process of lifting, so that the simulation model can complete the lifting action faster.

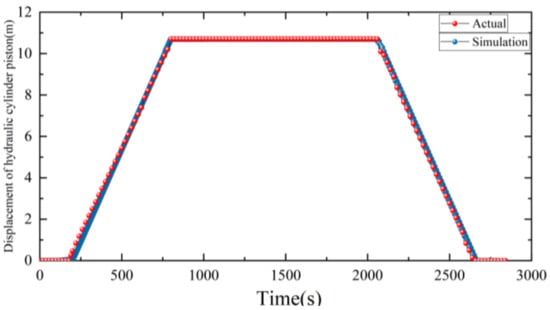

Figure 11. Piston lifting displacement.

The pressure in the lifting process of the wing is extracted for analysis. Figure 12 and Figure 13 show the comparison between the model simulation and the actual system. For actual system, after receiving the lifting signal and carrying out the lifting, the initial pressure is not zero, but gradually increases with the charging pressure, and the maximum pressure is 16.6 MPa. When the lifting command is received at 200 s, the cartridge valve and oil return circuit are opened, and the discharge of oil from the piston rod chamber causes the pressure to plummet to the range of 11.3–11.5 MPa and causes the piston to move up. The pressure on the piston side decreases as the volume of the piston chamber increase, and its initial pressure is about 1.7 MPa. Then, the pressure gradually stabilizes in the range of 0.2–0.4 MPa under the action of oil supply from the hydraulic pump. For the simulation model, the same charging process is set for 200 s, and after that, the lifting signal is input into the system. During the charging process, the maximum pressure on the piston side is 16.9 MPa, and then drops to 11.2–11.5 MPa to gradually stabilize; the pressure then decreases to 0.2–0.5 MPa from 1.6 MPa.

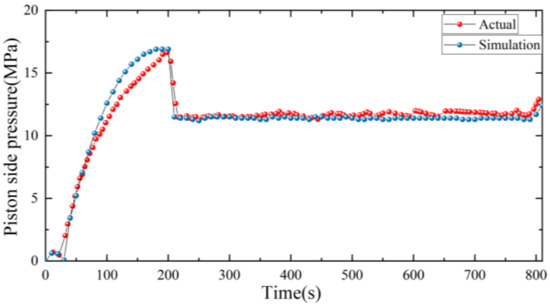

Figure 12. Piston side pressure when lifting.

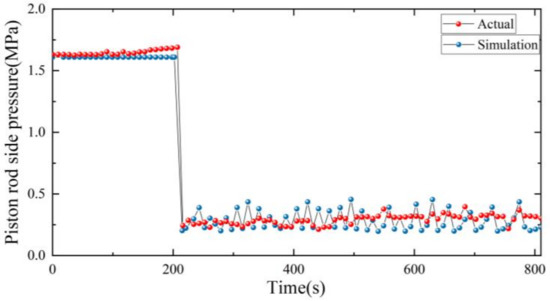

Figure 13. Piston rod side pressure when lifting.

Figure 14 and Figure 15 show the pressure comparison when lowering. For actual hydraulic system, when the lowering operation is carried out, the oil inlet and return circuits are opened, and the piston rod side pressure increases rapidly. As the piston moves down, the volume of the piston rod chamber expands, and the piston rod side pressure finally stabilizes at 3.9–4.1 MPa, in contrast, the piston side pressure decreases from 24.1 MPa under the action of oil unloading, and then the pressure finally stabilizes at 13.8–14.3 MPa due to the volume reduction. For the simulation model, it reaches stable state faster with the same setting of the actual hydraulic system.

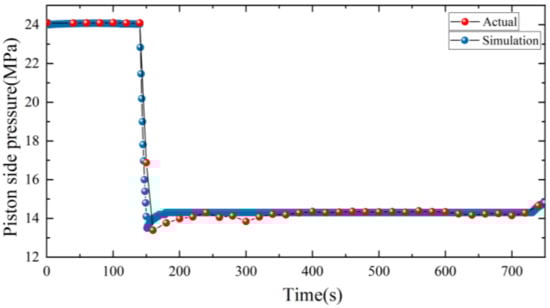

Figure 14. Piston side pressure when lowering.

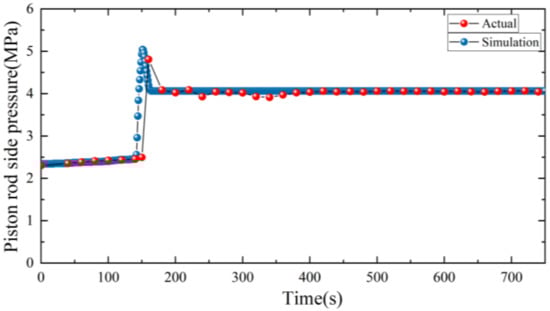

Figure 15. Piston rod side pressure when lowering.

Table 3 shows the comparison of results. It can be seen that the simulation has a high consistency with the actual hydraulic system, and can be used for fault feature analysis.

Table 3. Comparison of results.

Item	Actual	Simulation
Lifting time	608 s	600 s
Lowering time	602 s	600 s
Piston side pressure before lifting	16.6 MPa	16.9 MPa
Piston rod side pressure before lifting	1.7 MPa	1.6 MPa
Piston side pressure when lifting	11.3–11.5 MPa	11.2–11.5 MPa
Piston rod side pressure when lifting	0.2–0.4 MPa	0.2–0.5 MPa
Piston side pressure before lowering	24.1 MPa	24 MPa
Piston rod side pressure before lowering	2.5 MPa	2.5 MPa
Piston side pressure when lowering	13.8–14.3 MPa	14.3 MPa
Piston rod side pressure when lowering	3.9–4.1 MPa	4.1 MPa

3.3. Leakage Fault Analysis Based on the Established Model

This paper sets different fault signals in the reversing valve and hydraulic cylinder module to simulate the leakage.

(1)

Simulation of leakage in reversing valve

Different radial leakage clearances are set for the leakage mode of the reversing valve system in the model to simulate different degrees of leakage in the reversing valve, and labeled them as shown in Table 4.

Table 4. Leakage clearance of reversing valve.

Leakage Clearance (mm)	0.0001	0.001	0.005	0.01	0.05	0.2
Label	H1	H2	H3	H4	H5	H6

According to the simulation of the reversing valve under six different leakage clearances, Figure 16 and Figure 17 show the pressure changes of the hydraulic cylinder. When the radial clearance of the reversing valve is enlarged, the system is greatly affected in the charging stage, and it is hard to keep the pressure of rodless chamber stable, which will lead to the action lag. Regarding the piston rod chamber, the leakage of the reversing valve has no obvious influence on the pressure in it.

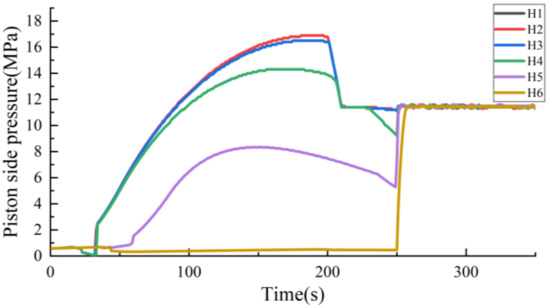

Figure 16. Piston side pressure of different leakage clearance.

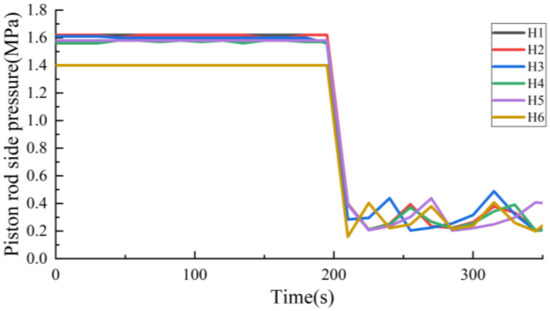

Figure 17. Piston rod side pressure of different leakage clearance.

Figure 18 shows the piston speed of different leakage clearances of reversing valve, when the leakage clearance of reversing valve is small, it has little influence on the vertical piston speed. When its radial clearance is large, it not only causes the piston speed to clearly decrease, but also causes a particular lag effect on its action.

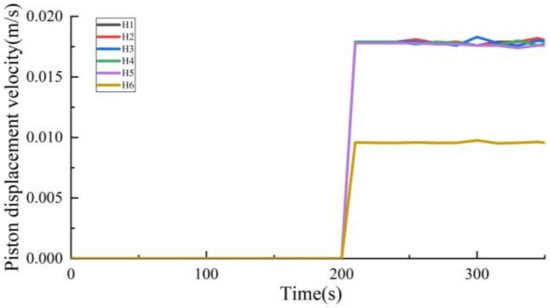

Figure 18. Piston speed of different leakage clearance.

(2)

Simulation of leakage in hydraulic cylinder

The leakage in hydraulic cylinder can be considered as leakage in annular clearance, which can be divided into concentric annular clearance and eccentric annular clearance; its schematic diagram is shown in Figure 19.

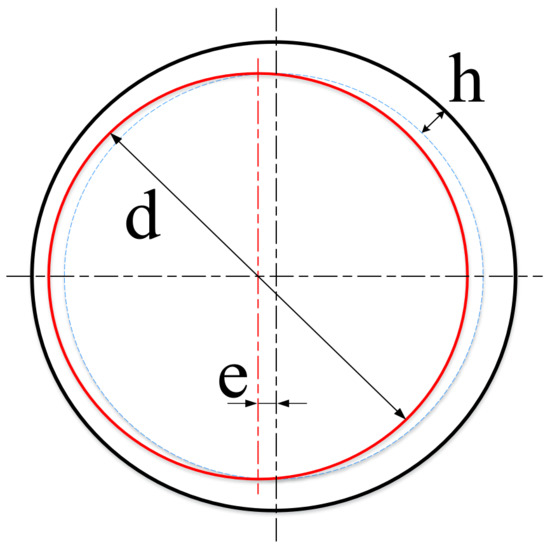

Figure 19. Radial clearance of hydraulic cylinder.

The internal leakage flowrate caused by the clearance is as follows

$$Q=(1+1.5{\epsilon }^2)\frac{\pi d{h}^3}{12\mu l}\mathrm{\Delta }p$$

(21)

where ε is the eccentricity ratio, it is the ratio of e to h, e is the eccentric distance of the piston, h is the clearance height, d is the piston diameter, △p is the pressure difference between piston side and piston rod side, µ is the dynamic viscosity of hydraulic oil, and l is the clearance length.

When ε is zero, Equation (21) can be used to calculate the internal leakage flowrate caused by concentric annular clearance. Due to the alternating load acted on the wing by wind force, the piston in the hydraulic cylinder will bear radial force, which will aggravate the wear between the piston and sleeve of the hydraulic cylinder. Meanwhile, the wear leads to the decrease in the sealing performance of the piston seal, which will enlarge the clearance between the piston and sleeve, thus causing internal leakage. Therefore, the internal leakage in hydraulic cylinder is considered to be caused by concentric annular clearance in this paper.

Table 5 shows the different degrees of internal leakage of the hydraulic cylinder in this paper.

Table 5. Leakage clearance of hydraulic cylinder.

Leakage Clearance (mm)	0.045	0.208	0.378	0.476	0.814	1.025
Label	L1	L2	L3	L4	L5	L6

Figure 20 and Figure 21 show the pressure changes of six different leakage. The pressure on the piston side will be lower than the normal value in the charging stage with the increase of the internal leakage flow, whereas the pressure on the piston rod side will increase slowly. This is caused by the oil leakage from the rodless chamber to the rod chamber, which leads to pressure changes on both sides.

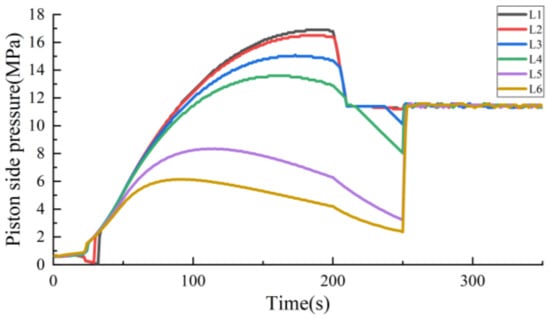

Figure 20. Piston side pressure of different leakage flow.

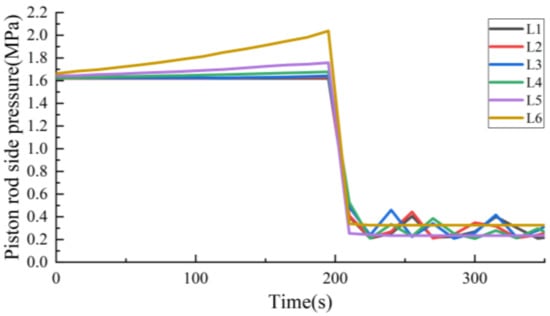

Figure 21. Piston rod side pressure of different leakage flow.

Figure 22 shows the change in the piston speed of different internal leakage flows. It can be seen that the lifting speed of the wing also decreases as the internal leakage flow increases. It is not apparent when the internal leakage flow is lower than 1.2 L/min; however, the piston speed clearly decreases when the leakage flow reaches 6 L/min.

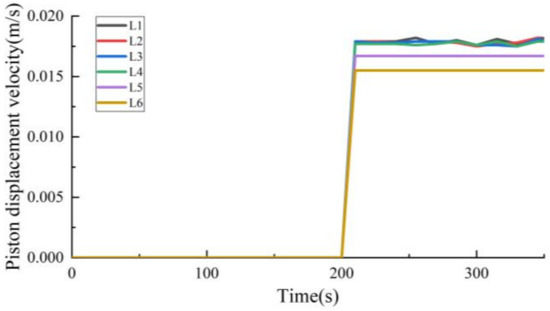

Figure 22. Piston speed of different leakage flow.

When leakage occurs in the reversing valve and the hydraulic cylinder, the pressure on both sides will change correspondingly, and that will affect the energy flow in the pressure signal. Therefore, it is feasible to find the leakage fault-sensitive characteristics contained in the pressure signal by analyzing the pressure on both sides.

3.4. Leakage Fault Characteristics

Based on the WPT fault feature extraction method proposed in Section 2.2, Figure 23 and Figure 24 show each sub band’s energy distribution of the reversing valve with six different leakage clearances.

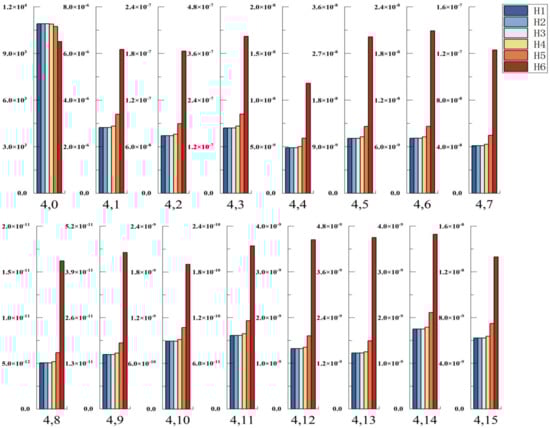

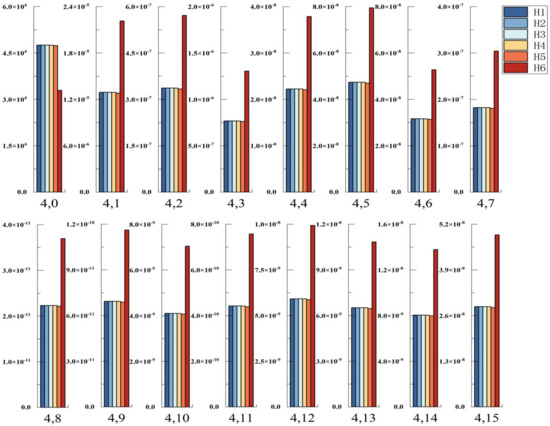

Figure 23. Characteristic energy of piston side pressure wavelet packet when reversing valve leaks.

Figure 24. Characteristic energy of piston rod side pressure wavelet packet when reversing valve leaks.

On the piston rod side, as the leakage clearance increasing in reversing valve, the S_4,0 sub band energy of rod chamber decreases, while the energy of the other sub bands gradually increases and the flow process in the rod chamber becomes disordered. On the piston side, the wavelet packet energy of all sub bands decreases when the leakage clearance is small, as the leakage clearance increase, the energy of S_4,0 sub band decreases rapidly, while the energy of other sub bands increases quickly.

Figure 25 and Figure 26 show each sub band energy distribution of the hydraulic cylinder with the six different leakage flows.

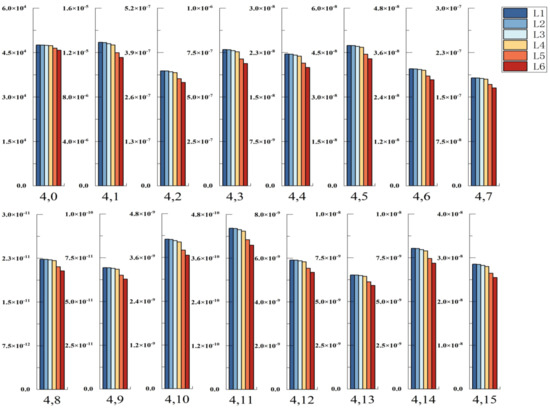

Figure 25. Characteristic energy of wavelet packet of piston side pressure when hydraulic cylinder leaks.

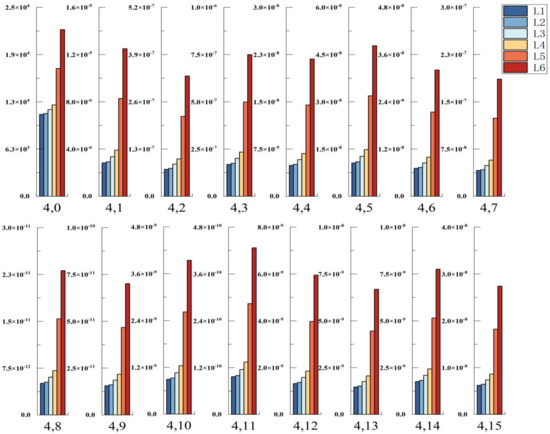

Figure 26. Characteristic energy of wavelet packet of piston rod side pressure when hydraulic cylinder leaks.

Since the percentage of S_4,0 sub band energy is much higher than other sub bands, the amplitude of S_4,0 energy change is much larger than other sub bands when the hydraulic cylinder is leaking, and the disorder of energy distribution changes at this time.

Table 6 shows the fault characteristics of wavelet packets with different leakage.

Table 6. Fault characteristics of wavelet packets.

Decomposition Object	Feature Name	Label
Four-layer decomposition of db6 wavelet packet for piston side pressure data	Wavelet packet energy quantization value	a
	Wavelet packet entropy	b
	Wavelet packet energy variance	c
Four-layer decomposition of db6 wavelet packet for piston rod lateral pressure data	Wavelet packet energy quantization value	d
	Wavelet packet entropy	e
	Wavelet packet energy variance	f

The leakage fault characteristic group X = [a, b, c, d, e, f] can be established, and the wavelet packet eigenvalues are obtained for the six groups of pressure signal collected under different clearances of the reversing valve, as shown in Table 7.

Table 7. Characteristic value of wavelet packet of reversing valve leakage.

Label	Leakage Clearance (mm)	a (×104)	b (×10−9)	c (×105)	d (×104)	e (×10−9)	f (×104)
H1	0.0001	4.7539	7.0638	5.5177	1.0908	6.7347	2.9047
H2	0.001	4.7540	7.0634	5.5179	1.0911	6.7351	2.9064
H3	0.005	4.7541	7.0634	5.5180	1.0911	6.7353	2.9065
H4	0.01	4.7542	7.0630	5.5181	1.0911	6.7304	2.9066
H5	0.05	4.7370	7.0610	5.4785	1.0733	6.9191	2.8224
H6	0.20	3.2919	16.7814	2.6457	0.9963	9.3802	2.4944

The wavelet packet eigenvalues were obtained for the six sets of pressure signal collected from hydraulic cylinders with different degrees of internal leakage, as shown in Table 8.

Table 8. Characteristic value of hydraulic cylinder leakage wavelet packet.

Label	Leakage Speed (L/min)	a (×104)	b (×10−9)	c (×105)	d (×104)	e (×10−9)	f (×104)
L1	0	4.7540	7.0638	5.5177	1.0908	6.7331	2.9047
L2	0.1	4.7505	7.0493	5.5095	1.1104	6.9776	3.0107
L3	0.6	4.7419	7.0179	5.4897	1.1554	7.5476	3.2590
L4	1.2	4.7301	6.9744	5.4624	1.2194	8.2850	3.6300
L5	6	4.6493	6.7205	5.2774	1.7046	12.3314	7.0941
L6	12	4.5781	6.5838	5.1170	2.2227	14.2546	12.0611

The results show that, when the leakage clearance of the reversing valve is small, the wavelet packet energy and energy variance show an increasing trend; in contrast, the entropy of the piston side wavelet packet shows a decreasing trend. However, when the leakage clearance of the reversing valve is enlarged, they all become smaller, which is particularly obvious in the wavelet packet energy characteristics of the piston side pressure. As for the hydraulic cylinder, with the increase of leakage in it, they all decrease in the piston side pressure, while they increase in the piston rod side pressure. This says that the oil flow at the piston rod side is more disorderly, and the energy distribution becomes complicated.

Therefore, the energy variance, quantized energy value, and energy entropy of the wavelet packet can be used as effective characteristics to reflect the leakage fault of the wing lifting and lowering hydraulic system.

3.5. Leakage Fault Diagnosis Results and Analysis

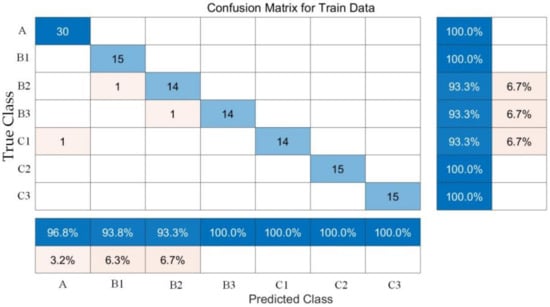

This paper set seven types of fault modes, as shown in Table 9.

Table 9. Leakage fault of hydraulic system.

Leakage Degree	Radial Clearance of Reversing Valve (mm)	Sign	Hydraulic Cylinder Leakage (L/min)	Sign
Normal	<0.02	A	<0.5	A
Slight leakage	0.02~0.05	B1	0.5~1	C1
Medium leakage	0.05~0.1	B2	1~5	C2
Severe leakage	>0.1	B3	>5	C3

To study the diagnostic recognition of the seven types of fault modes, the fault recognition feature group X by the piston side/piston rod side pressure corresponding wavelet packet energy quantization value, energy entropy, and energy variance is established. After that, ten groups fault states are randomly simulated in the range of each type of leakage degree, and the signal of the simulation result is subjected to feature extraction. In total, 80 groups of feature data sets are extracted, among which 20 groups are normal; the remaining 60 groups contain six types of fault modes. The training set is built based on these 80 groups of data, as shown in Table 10 and Table 11.

Table 10. Partial data of reversing valve leakage training set.

Number	Leakage Clearance (mm)	a (×104)	b (×10−9)	c (×105)	d (×104)	e (×10−9)	f (×104)
1	0.002	4.7540	7.0638	5.5187	1.0907	6.7331	2.9047
2	0.004	4.7541	7.0633	5.5180	1.0910	6.7309	2.9063
3	0.006	4.7541	7.0634	5.5180	1.0911	6.7315	2.9066
4	0.008	4.7540	7.0639	5.5186	1.0900	6.7336	2.9043
5	0.01	4.7542	7.0630	5.5181	1.0911	6.7304	2.9066
…	…	…	…	…	…	…	…
39	0.18	3.5436	13.3003	3.4618	1.0034	9.1823	2.5103
40	0.20	3.2919	16.7814	2.6457	0.9963	9.3802	2.4944

Table 11. Partial data of hydraulic cylinder leakage training set.

Number	Leakage Speed (L/min)	a (×104)	b (×10−9)	c (×105)	d (×104)	e (×10−9)	f (×104)
41	0	4.7540	7.0638	5.5177	1.0908	6.7331	2.9047
42	0.05	4.7517	7.0540	5.5123	1.1040	6.8963	2.9756
43	0.10	4.7505	7.0493	5.5095	1.1104	6.9776	3.0107
44	0.15	4.7492	7.0449	5.5065	1.1168	7.0594	3.0455
45	0.20	4.7480	7.0402	5.5038	1.1233	7.1401	3.0807
…	…	…	…	…	…	…	…
79	9.5	4.5953	6.6073	5.1554	2.0884	13.8831	10.6487
80	10	4.5927	6.6033	5.1496	2.1081	13.9307	10.8501

The fault diagnosis classification model is obtained based on the method in Section 2.3, and 120 sets of characteristic data sets are obtained by randomly simulating various types of fault situations. Table 12 shows the test sets of the leakage fault.

Table 12. Test set of leakage fault.

Leakage Mode	Status Label	Quantity
Normal conditions	A	30
Slight leakage of reversing valve	B1	15
Moderate leakage of reversing valve	B2	15
Serious leakage of reversing valve	B3	15
Slight leakage of hydraulic cylinder	C1	15
Moderate leakage of hydraulic cylinder	C2	15
Serious leakage of hydraulic cylinder	C3	15

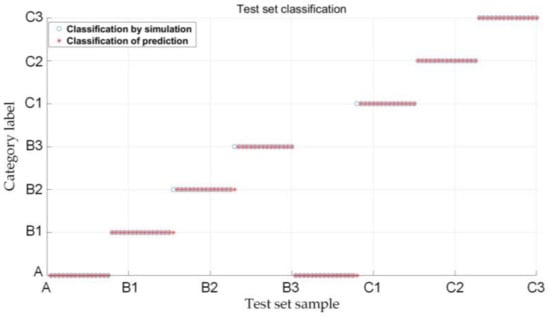

Figure 27 shows the classification results in this paper; only three fault samples are misclassified.

Figure 27. Classification results.

Figure 28 shows the classification accuracy of the kernel parameters, which is 97.5%. The fault diagnosis model established in this paper can realize high-precision diagnostic recognition.

Figure 28. Accuracy of parameter classification.

The diagnostic results and the diagnosis accuracy for each type of fault are shown in Figure 29.

Figure 29. Distribution of diagnosis results.

The accuracy of all fault modes is shown in Table 13.

Table 13. Diagnosis accuracy.

Modes	A	B1	B2	B3	C1	C2	C3	(Average)
Accuracy	100%	100%	93.3%	93.3%	93.3%	100%	100%	97.5%

The results show that the fault diagnosis model has a 93.3% and higher accuracy for different fault modes, and the average accuracy for the whole fault modes is 97.5%. Additionally, the good fault identification result only needs small sample of pressure signals.

4. Conclusions

In this paper, the WPT-SVM-based leakage fault diagnosis method of the wing lifting and lowering hydraulic system is proposed. The proposed method is capable of diagnosing reversing valve and hydraulic cylinder internal leakage faults with only a small sample of pressure signals. Firstly, the pressure signals of hydraulic cylinder piston side and piston rod side are obtained using an AMESim simulation model. The effectiveness of the model is verified by pressure and piston displacement comparisons between the simulation and the actual hydraulic systems of a VLCC. The pressure on cylinder and piston displacement comparation results between simulation model and actual hydraulic system show that the model has highly consistency with the actual hydraulic system. Then, leakage fault features of hydraulic cylinder pressure signal are extracted by WPT to establish the fault feature set. Lastly, an SVM-based classification fault diagnosis method is proposed to realize diagnosis on internal leakage of the reversing valve and hydraulic cylinder.

The case study results show that the proposed method can effectively achieve the diagnosis of different leakage faults with an accuracy of 97.5%. Meanwhile, the proposed method can achieve a high fault diagnostic accuracy even with small samples, and thus can be easily applied to the wing-assisted ships. In addition, the proposed method would play an important role to ensure the optimization effect of the energy efficiency of wing-assisted ships by improving the reliability of the lifting and lowering hydraulic system, and thus contributing to the development of green ships.

Although the proposed method can effectively achieve the diagnosis of different leakage faults, some influencing factors, such as the heat exchange with the environment, are not fully considered. Considering that the ship is sailing at different zones and in different seasons, more influencing factors, including the heat exchange with the environment, will be comprehensively considered in the further research in order to make the model and method more effective.
