Features of Electrochemical Hydrogen Pump Based on Irradiated Proton Exchange Membrane

Ivanova, Nataliya A.; Ivanov, Boris V.; Mensharapov, Ruslan M.; Spasov, Dmitry D.; Sinyakov, Matvey V.; Nagorny, Seraphim V.; Kazakov, Evgeny D.; Dmitryakov, Petr V.; Bakirov, Artem V.; Grigoriev, Sergey A.

doi:10.3390/membranes13110885

Open AccessArticle

Features of Electrochemical Hydrogen Pump Based on Irradiated Proton Exchange Membrane

by

Nataliya A. Ivanova

^1,*

,

Boris V. Ivanov

¹,

Ruslan M. Mensharapov

¹

,

Dmitry D. Spasov

^1,2

,

Matvey V. Sinyakov

^1,3,

Seraphim V. Nagorny

³

,

Evgeny D. Kazakov

¹

,

Petr V. Dmitryakov

¹,

Artem V. Bakirov

^1,4

and

Sergey A. Grigoriev

^1,2,5

¹

National Research Center “Kurchatov Institute”, 1, Akademika Kurchatova sq., 123182 Moscow, Russia

²

National Research University “Moscow Power Engineering Institute”, 14, Krasnokazarmennaya st., 111250 Moscow, Russia

³

Institute of Modern Energetics and Nanotechnology, D. Mendeleev University of Chemical Technology of Russia, 9, Miusskaya Square, 125047 Moscow, Russia

⁴

Enikolopov Institute of Synthetic Polymeric Materials of Russian Academy of Sciences, 70, Profsoyuznaya st., 117393 Moscow, Russia

⁵

HySA Infrastructure Center of Competence, Faculty of Engineering, North-West University, Potchefstroom 2531, South Africa

^*

Author to whom correspondence should be addressed.

Membranes 2023, 13(11), 885; https://doi.org/10.3390/membranes13110885

Submission received: 19 September 2023 / Revised: 16 November 2023 / Accepted: 18 November 2023 / Published: 20 November 2023

(This article belongs to the Special Issue Recent Progress in Polymer Electrolyte Membrane Fuel Cells and Water Electrolyzers)

Download

Browse Figures

Versions Notes

Abstract

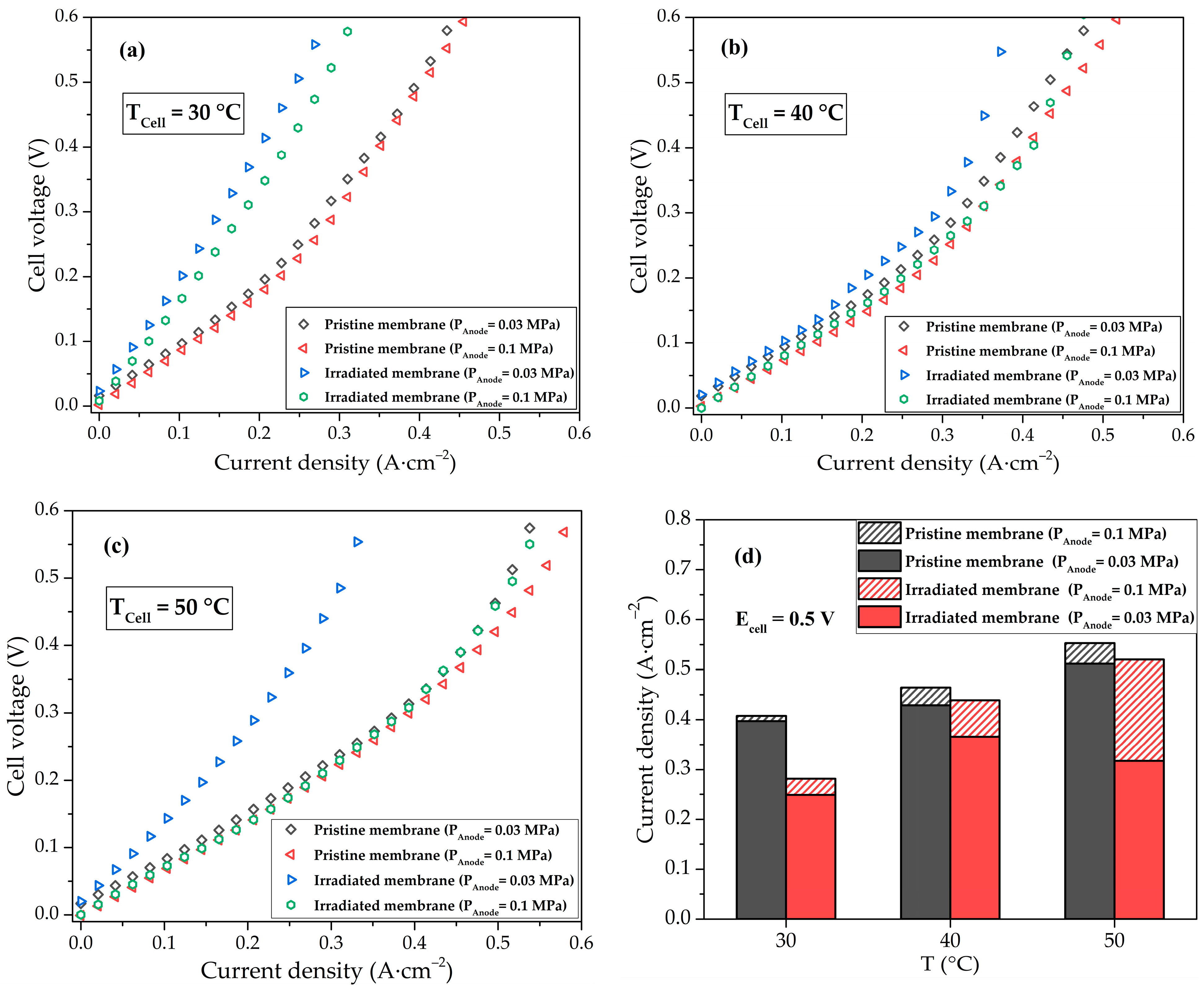

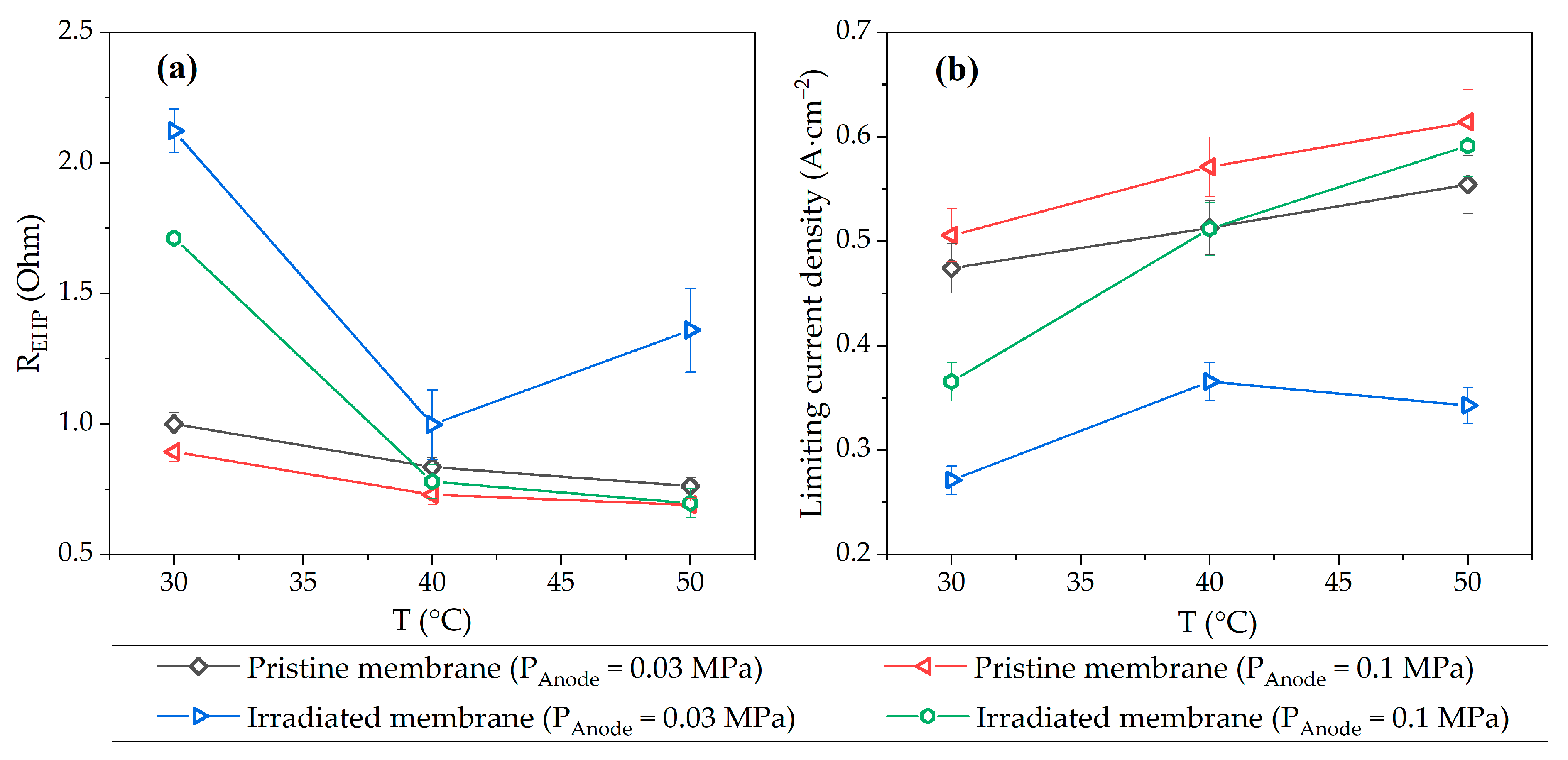

An electrochemical hydrogen pump (EHP) with a proton exchange membrane (PEM) used as part of fusion cycle systems successfully combines the processes of hydrogen extraction, purification and compression in a single device. This work comprises a novel study of the effect of ionizing radiation on the properties of the PEM as part of the EHP. Radiation exposure leads to nonspecific degradation of membranes, changes in their structure, and destruction of side and matrix chains. The findings from this work reveal that the replacement of sulfate groups in the membrane structure with carboxyl and hydrophilic groups leads to a decrease in conductivity from 0.115 to 0.103 S cm⁻¹, which is reflected in halving the device performance at a temperature of 30 °C. The shift of the ionomer peak of small-angle X-ray scattering curves from 3.1 to 4.4 nm and the absence of changes in the water uptake suggested structural changes in the PEM after the irradiation. Increasing the EHP operating temperature minimized the effect of membrane irradiation on the pump performance, but enhanced membrane drying at low pressure and 50 °C, which caused a current density drop from 0.52 to 0.32 A·cm⁻² at 0.5 V.

Keywords: proton exchange membrane; electrochemical hydrogen pump; fusion fuel cycle; irradiated ionomer; I-V curves; membrane degradation
