Study on the Dynamic Soil-Pile-Structure Interactive Behavior in Liquefiable Sand by 3D Numerical Simulation

by Sun Yong Kwon 1 and Mintaek Yoo 2,*
1
Division of Resources & Energy Assessment, Korea Environment Institute (KEI), Sejong 30147, Korea
2
Railroad Structure Research Team, Korea Railroad Research Institute (KRRI), Uiwang 16105, Korea
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(8), 2723; https://doi.org/10.3390/app10082723
Received: 1 April 2020 / Revised: 10 April 2020 / Accepted: 10 April 2020 / Published: 15 April 2020
(This article belongs to the Section Civil Engineering)

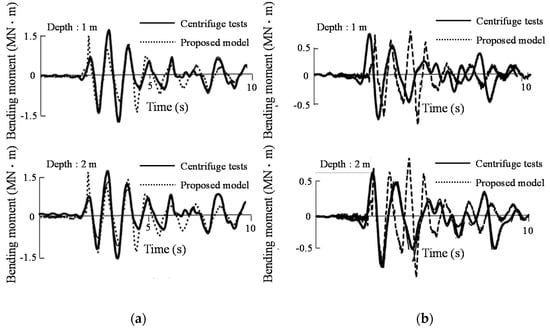

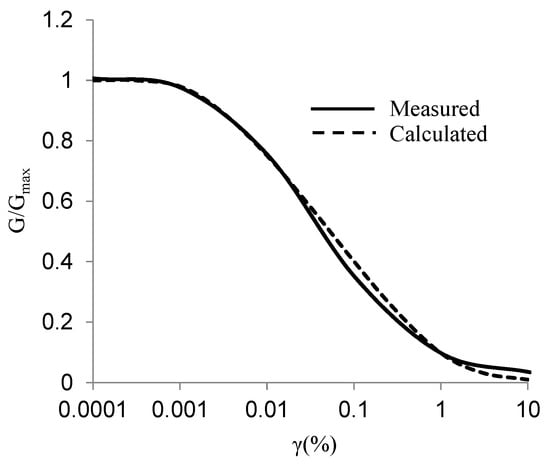

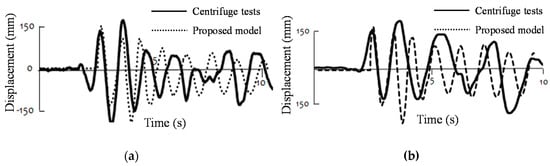

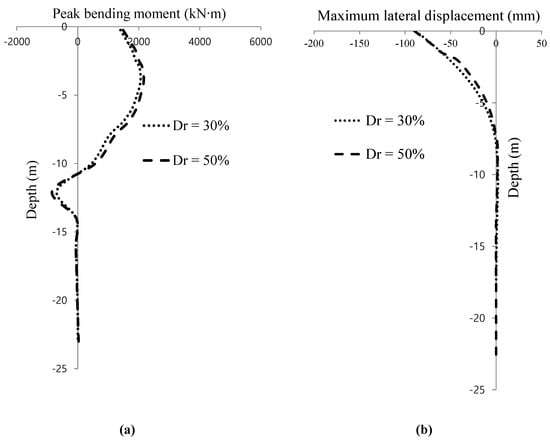

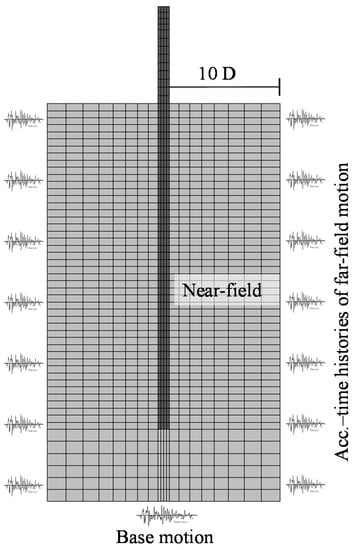

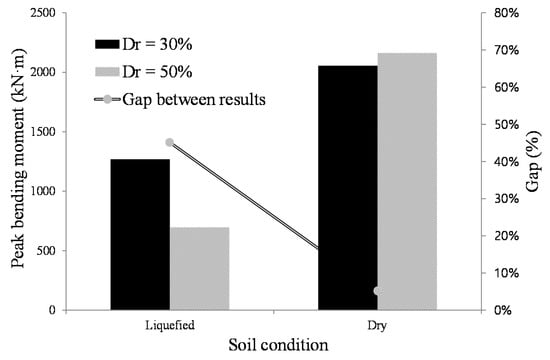

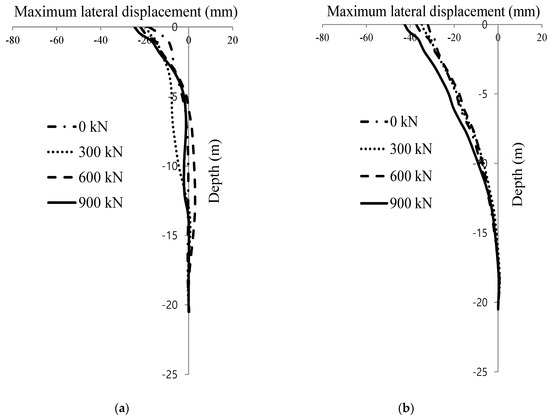

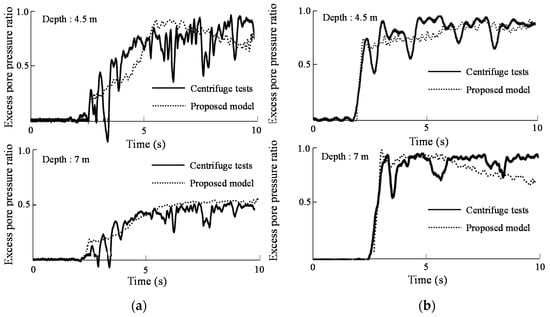

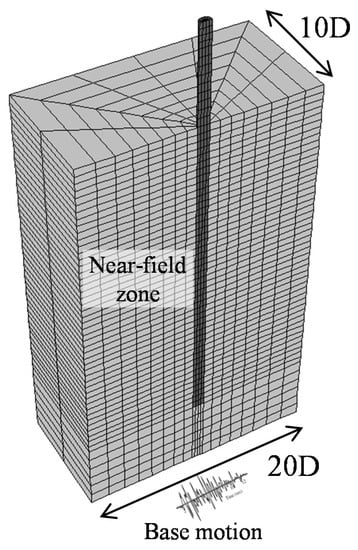

The dynamic behavior of structures in liquefiable sand exhibits more complicated characteristics, due to the development of excess pore pressure caused by cyclic loading, than that in dry sand. Therefore, it is crucial to accurately predict the soil–pile structure behavior during liquefaction to prevent damage to the structures. In this study, three-dimensional numerical modeling was performed to predict the dynamic soil–pile behavior during liquefaction. To directly simulate pore pressure generation due to soil shear deformation, the Finn liquefaction model was applied and coupled with the Mohr-Coulomb elasto-plastic model. Soil nonlinearity was considered by applying hysteretic damping, and the interface model was applied to simulate various dynamic phenomena between the soil and pile. Simplified continuum modeling was introduced to prevent reflection wave generation and increase analysis efficiency. The applicability of the proposed numerical model was validated using the experimental results. Thereafter, a parametric study was conducted to provide a better understanding of the dynamic behavior of pile foundation during liquefaction. From a series of parametric studies, several important factors that can affect the dynamic pile responses in liquefiable sand were identified. Also, the characteristics of the dynamic soil–pile structure interactive behavior, which are significantly different from each other in liquefied and dry sand, were analyzed qualitatively and quantitatively. View Full-Text
Keywords: numerical simulation; centrifuge test; liquefaction; soil–structure interaction numerical simulation; centrifuge test; liquefaction; soil–structure interaction
Show Figures

Figure 1

MDPI and ACS Style

Kwon, S.Y.; Yoo, M. Study on the Dynamic Soil-Pile-Structure Interactive Behavior in Liquefiable Sand by 3D Numerical Simulation. Appl. Sci. 2020, 10, 2723.
