Super-Gain Optical Parametric Amplification in Dielectric Micro-Resonators via BFGS Algorithm-Based Non-Linear Programming

Abstract

The goal of this paper is to show that super-gain optical parametric amplification can be achieved even in a small micro-resonator using high-intensity ultrashort pump waves, provided that the frequencies of the ultrashort pulses are tuned to maximize the intracavity magnitude of the wave to be amplified, which we call the stimulus wave. In order to accomplish this, we have performed a dispersion analysis via computational modeling of the electric polarization density in terms of the non-linear electron cloud motion and we have concurrently solved the electric polarization density and the wave equation for the electric field. Based on a series of non-linear programming-integrated finite difference time-domain simulations, we have identified the optimal pump wave frequencies that simultaneously maximize the stored electric energy density and the polarization density inside a micro-resonator by using the Broyden–Fletcher–Goldfarb–Shanno (BFGS) optimization algorithm. When the intracavity energy and the polarization density (which acts as an energy coupling coefficient) are simultaneously high, an input wave can be strongly amplified by efficiently drawing energy from a highly energized cavity. Therefore, we propose that micrometer-scale achievement of super-gain optical parametric amplification is possible in a micro-resonator via high-intensity ultrashort “pump wave” pulses, by determining the optimal frequencies that concurrently maximize the stored electric energy density and the polarization density in a dielectric interaction medium.

1. Introduction

Electromagnetic wave amplification by non-linear wave mixing has been studied for decades with most of the research focusing on the field of non-linear optics. It has been well-established that a low power input wave can be amplified via mixing with a high-intensity pump wave, in a medium that demonstrates a high degree of non-linearity. The fundamental theory of intra-cavity non-linear optical amplification is about the energy transfer from the pump wave-energized resonator to the input wave as a consequence of non-linear optical coupling [1,2,3]. The more elaborate theory of non-linear wave amplification involves a dispersion analysis that takes into account the frequency dependence of the non-linearity of the interaction medium. However, based on our in-depth investigations, a direct gain factor maximization approach via a non-linear constrained optimization algorithm is lacking. The background research about the theory of non-linear wave mixing has been mostly experimental rather than computational, especially for the purpose of optical amplification. The major reason of this tendency is that this topic is usually studied in the micrometer- or nanometer-wavelength range, but the required interaction medium length to observe a strong non-linear effect is in the millimeter or centimeter range [4]. This requires a tremendous computational cost for acquiring meaningful results, particularly for wave amplification purposes.

Another incentive for the experimental investigation of the topic is the desire to discover new materials that exhibit unusually high non-linearity under excitation. More recently, researchers focus on determining the resonance frequencies of the non-linear electrical response of commonly used materials in photonics such as graphene and gallium nitride. This approach has been mostly successful and resulted in an improvement of efficiencies in many applications in photonics. However, for the purpose of optical amplification, achieving a resonant non-linear optical response usually fails as the dielectric absorption around any non-linear resonance peak is quite strong to prevent significant amplification. Moreover, the well-established concept of optical parametric amplification yields a negligible gain factor in a few micrometers-long resonator. The required interaction medium length for high-gain optical parametric amplification is usually in the order of centimeters. Therefore, optical amplification by non-linear wave mixing is not so feasible for utilization in micro-resonators, optical transistors, micro-modulators, and many other device models in integrated photonics such as those mentioned in [5,6]. However, if one can perform super-gain optical parametric amplification in the micrometer scale, much more powerful macroscale devices can be produced for high-power applications, by engineering the individual micro-scale devices to operate in an array form to maximize optical interference, such as high-power welding machines and super-intensity lasers that are employed in particle accelerators and fusion reactors. A major scientific advancement can be in the field of optical antennas via supercontinuum generation for achieving ultra-wideband operation.

In this article, we have performed a numerical analysis that provides evidence for the high-gain amplification of a low-power stimulus wave, via intense pump waves of ultrashort duration, inside a several micrometers long micro-resonator, by maximizing the electric energy density of the pump wave in the resonator.

Since the order of amplification that can be achieved via non-linear wave mixing depends on the amount of stored electric energy density and the pump wave-initiated polarization density, which acts as a non-linear coupling coefficient, we will first present the energy storage dynamics for a resonator and we will recall the definitions of the electric polarization density and the gain factor of an amplification process. Then we will present the basic background for wave propagation in non-linear dispersive media and we will formulate our energy maximization (optimization) problem based on the partial differential equations given to express wave propagation in non-linear dispersive media. Finally, we will present two numerical experiments and analyze their results.

2. Polarization Density and the Cavity Quality (Q) Factor

The Q factor indicates the amount of the stored energy inside a resonator for a given round trip loss. A high Q value usually signifies that the resonator is low loss, i.e., has a low loss factor, which means that high energy can be trapped efficiently in the resonator. The Q factor depends on the resonator length, the reflectivities of the resonator walls, the frequency of the propagating wave, the total absorption coefficient of the interaction medium between the resonator walls, and any sort of diffraction or scattering loss that may take place inside a resonator. The Q factor of a resonator is defined as:

$$CAVITY QUALITY \left(Q\right)FACTOR=2\pi \frac{Stored energy}{Energy dissipated per round trip}=f{T}_{rt}\frac{2\pi }{\zeta }=\frac{4fL\pi }{\zeta c}.$$

(1)

$T_{rt}:Round trip time$, $f:Wave frequency$, $\zeta :Fractional power loss per round trip$ $c:Speed of light, L:Cavity length$

The electric energy density in a resonator depends on the magnitude of the electric field and the polarizability of the interaction medium. For a given resonator configuration, the stored electric energy density in a homogenous isotropic interaction medium is given as [7]:

$$W_e=Stored energy density=\frac{1}{2}ED=\frac{1}{2}E\left({\epsilon }_{\infty }E+P\right)=\frac{1}{2}{\epsilon }_{\infty }{E}^2+\frac{1}{2}EP.$$

(2)

$D:Electric flux density$, $P: Polarization density$, $E:Electric field intensity$, ${\epsilon }_{\infty }:Background \left(infinite spectral band\right)permittivity$

The electrical polarization density (P) in an interaction medium is a microscopic parameter that indicates both the volume density of electrons and the displacement of an electron with respect to the position of the nucleus [3]. For a given electron density of a medium, the more an electron is allowed to displace from its initial position (and the nucleus) the higher the polarization density becomes. It is a measure of the electrical excitability of a material by an incident electromagnetic wave [1]. Polarization density is an important parameter for energy storage in a resonator as more energy can be stored in a cavity with a highly polarizable interaction medium. This is because, as each electron displaces further from the nucleus, their potential energy becomes higher, and an abundance of electrons in the medium will lead to a higher potential energy being stored in the medium [4]. For a highly non-linear medium, the polarization density itself depends on the magnitude of the electric field [1,4]. For these reasons, we will frequently use the term polarization density in our analyses.

3. Wave Propagation in Non-Linear Dispersive Media

As previously stated, non-linear interaction takes place when a wave that propagates in a medium have a very high intensity. This degree of non-linearity inducing high intensities is usually possible with ultra-short duration pulses and can be practically generated from a mode locked laser or a Q-switched laser, which have durations on the scale of picoseconds or femtoseconds. Since such high-intensity pulses have ultra-short durations, we must perform a dispersion analysis.

Impulse response of the polarization density of many dielectric media last much longer in duration than the pulse durations of such high intensity pulses [8,9].

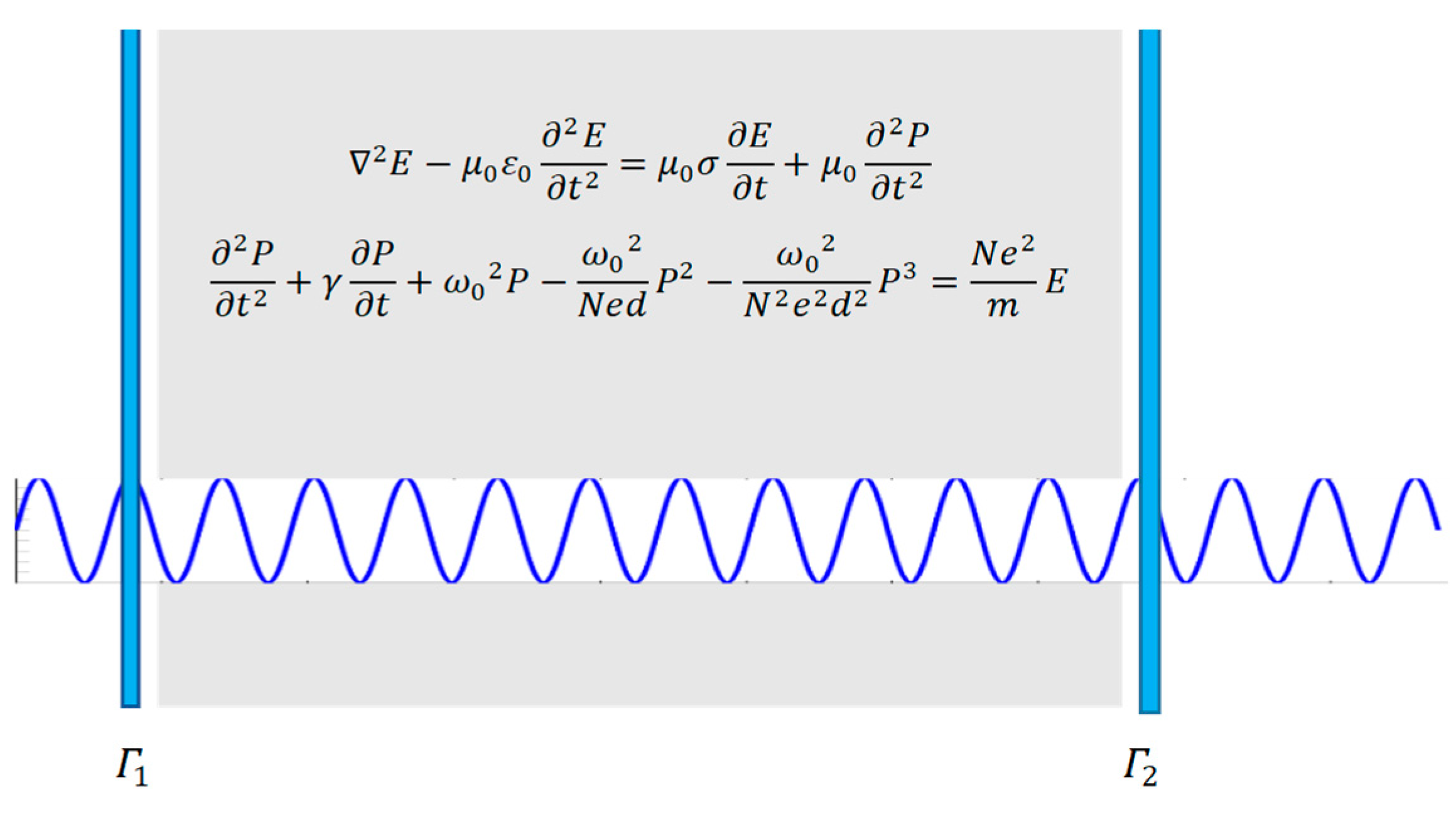

The inclusion of dispersion in the analysis means that we need to solve for the polarization density of the interaction medium separately. In fact, it is much more accurate to solve the wave equation in parallel with the non-linear electron cloud motion equation for a non-linear dispersive medium, since parameters such as the resonance frequency, damping rate, atom density, and atomic diameter have typical values for most solid media, which makes the simulation results more realistic. To determine the time variation of the electric field in a non-linear dispersive medium, we need to solve the following equations (see Figure 1) [1]:

$${\nabla }^{2}E-{\mu }_0{\epsilon }_{\infty }\frac{{\partial }^{2}E}{\partial t^2}={\mu }_0\sigma \frac{\partial E}{\partial t}+{\mu }_0\frac{{\partial }^{2}P}{\partial t^2}.$$

(3)

$$\frac{{\partial }^{2}P}{\partial t^2}+\gamma \frac{\partial P}{\partial t}+{\omega }_0{}^{2}P-\frac{{\omega }_0{}^2}{Ned}{P}^2-\frac{{\omega }_0{}^2}{N^2{e}^2{d}^2}{P}^3=\frac{N{e}^2}{m}E.$$

(4)

$P: Polarization density$, $e:Electron charge, m:Electron mass, E:Electric field \left(V/m\right)$

In Equation (4) we have accounted up to the third order of the polarization density as higher order terms are negligibly small. For a dielectric medium, the electric conductivity is almost zero $\left(\sigma \approx 0\right).$ Some typical values for solid dielectric media are [1]; $Resonance frequency: f_0=1.1\times {10}^{15}Hz$, $Damping rate: \gamma =1\times {10}^9 Hz, Electron density: N=3.5\times {10}^{28}/m^3$, $Atomic diameter :d=0.3 nanometer$

Electromagnetic wave amplification by non-linear wave mixing involves two waves, namely the low intensity stimulus (input) wave to be amplified, and the high-intensity pump wave. Let us first consider the high-intensity pump wave $E_2$ without the presence of the low intensity stimulus wave $E_1$. In this case, the pair of equations that model the propagation of $E_2$ is given as:

$${\nabla }^2\left(E_2\right)-{\mu }_0{\epsilon }_{\infty }\frac{{\partial }^2\left(E_2\right)}{\partial t^2}={\mu }_0\sigma \frac{\partial \left(E_2\right)}{\partial t}+{\mu }_0\frac{{\partial }^2{P}_2}{\partial t^2}.$$

(5a)

$$\frac{{\partial }^2{P}_2}{\partial t^2}+\gamma \frac{\partial P_2}{\partial t}+{\omega }_0{}^2\left(P_2\right)-\frac{{\omega }_0{}^2}{Ned}{\left(P_2\right)}^2-\frac{{\omega }_0{}^2}{N^2{e}^2{d}^2}{\left(P_2\right)}^3=\frac{N{e}^2}{m}\left(E_2\right)$$

(5b)

$P_2: Polarization density due to the electric field E_2$, $P_1:Polarization density due to the electric field E_1$

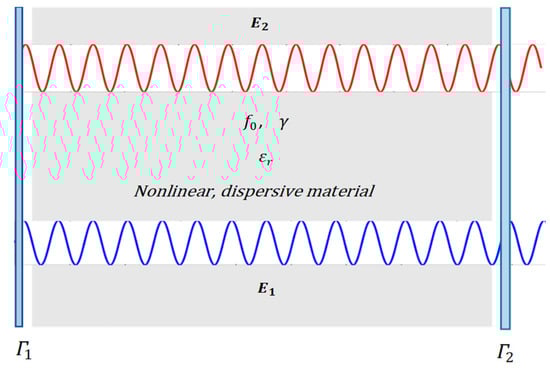

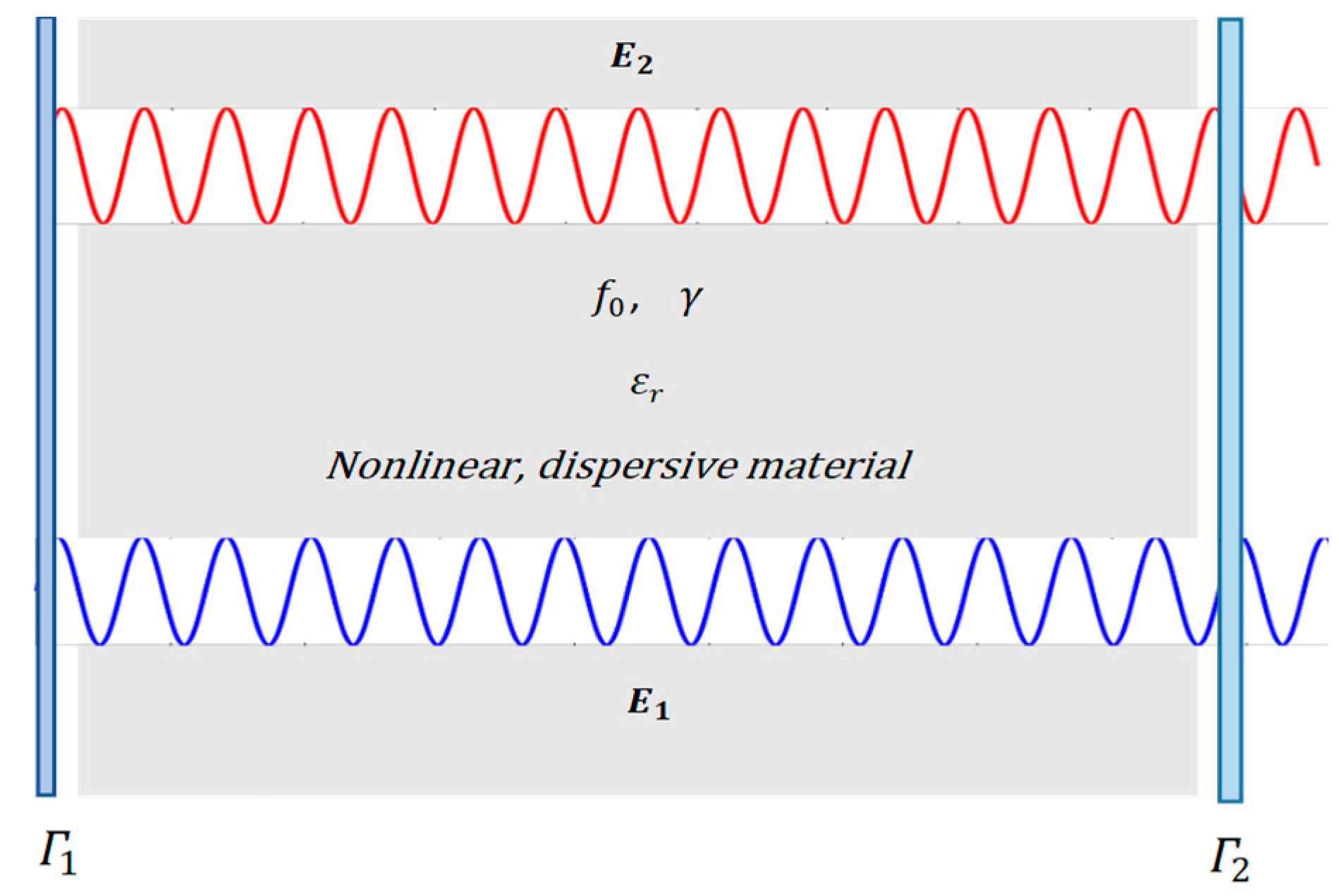

Now assume that $E_1$ and $E_2$ are simultaneously propagating in the same medium, in that case the pair of equations that describe the total electric field propagation is written as:

$${\nabla }^2\left(E_1+E_2\right)-{\mu }_0{\epsilon }_{\infty }\frac{{\partial }^2\left(E_1+E_2\right)}{\partial t^2}={\mu }_0\sigma \frac{\partial \left(E_1+E_2\right)}{\partial t}+{\mu }_0\frac{{\partial }^2\left(P_1+P_2\right)}{\partial t^2}.$$

(6a)

$$\frac{{\partial }^2\left(P_1+P_2\right)}{\partial t^2}+\gamma \frac{\partial \left(P_1+P_2\right)}{\partial t}+{\omega }_0{}^2\left(P_1+P_2\right)-\frac{{\omega }_0{}^2}{Ned}{\left(P_1+P_2\right)}^2-\frac{{\omega }_0{}^2}{N^2{e}^2{d}^2}{\left(P_1+P_2\right)}^3=\frac{N{e}^2}{m}\left(E_1+E_2\right).$$

(6b)

Our aim is to solve for the low amplitude wave $E_1$ in the presence of the high-amplitude wave $E_2$, i.e., we want to solve for the stimulus wave $E_1$ when there is an energy coupling from $E_2$. To model this problem, we subtract Equation (5a,b) from Equation (6a,b) respectively [1], which yields:

$${\nabla }^2\left(E_1\right)-{\mu }_0{\epsilon }_{\infty }\frac{{\partial }^2\left(E_1\right)}{\partial t^2}={\mu }_0\sigma \frac{\partial \left(E_1\right)}{\partial t}+{\mu }_0\frac{{\partial }^2\left(P_1\right)}{\partial t^2}.$$

(7a)

$$\frac{{\partial }^2\left(P_1\right)}{\partial t^2}+\gamma \frac{\partial \left(P_1\right)}{\partial t}+{\omega }_0{}^2\left(P_1\right)-\frac{{\omega }_0{}^2}{Ned}\left\{P_1{}^2+2P_1{P}_2\right\}-\frac{{\omega }_0{}^2}{N^2{e}^2{d}^2}\left\{P_1{}^3+3P_1{}^2{P}_2+3P_1{P}_2{}^2\right\}=\frac{N{e}^2}{m}\left(E_1\right)$$

(7b)

Equations (5a,b) and (7a,b) show that $E_2$ and $E_1$ are coupled to each other. The pump wave $E_2$ acts as a source field distribution for electromagnetic wave propagation, with the stimulus wave $E_1$ acting as the carrier distribution in reference to the model presented in [10]. Based on Equation (7a,b), we will examine if it is feasible to amplify the low-intensity electric field $E_1$, via energy coupling from the microresonator that is energized by the high-intensity electric field $E_2$(see Figure 2).

From Equation (7a), we can see that the stimulus wave $E_1$ has a source term $P_1$, which is the polarization density of the stimulus wave. The source term $P_1$ is also dependent on the source term (polarization density) of the high-intensity pump wave $P_2$. This means that in order to solve for the stimulus wave $E_1$, we need to solve for the pump wave $E_2$ as the equations for the stimulus wave and the pump wave are coupled to each other via the coupling term $P_2$. Therefore, the stimulus wave can be solved by simultaneously solving all these four equations (Equations (5a,b) and (7a,b)).

Our goal is to maximize the stimulus wave magnitude at a given stimulus wave frequency; max($\left|E_1\left(f_{st}=f^{\prime }\right)\right|$). In order to achieve this, we will make a dispersion analysis that is based on the high-intensity pump wave frequency. By sweeping the excitation frequency of the pump wave ($f_p$) in a large spectral interval that extends from the far-infrared region to the near-ultraviolet region, we can investigate the pump wave frequency dependent variation of the maximum stimulus wave magnitude for $f_{st}=f^{\prime }$, and we can select the optimal pump wave frequency value that maximizes the magnitude of the stimulus wave for $f_{st}=f^{\prime }$. Mathematically our optimization problem can be stated as:

$$Given that f_{min}<f_p<f_{max} ; \mathit{m}\mathit{a}\mathit{x} \left|E_1\left(f_{st}=f^{\prime }\right)\right| based on the following equations$$

$${\nabla }^2\left(E_2\left(f_p\right)\right)-{\mu }_0{\epsilon }_{\infty }\frac{{\partial }^2\left(E_2\left(f_p\right)\right)}{\partial t^2}={\mu }_0\sigma \frac{\partial \left(E_2\left(f_p\right)\right)}{\partial t}+{\mu }_0\frac{{\partial }^2{P}_2}{\partial t^2}$$

(8a)

$$\frac{{\partial }^2{P}_2}{\partial t^2}+\gamma \frac{\partial P_2}{\partial t}+{\omega }_0{}^2\left(P_2\right)-\frac{{\omega }_0{}^2}{Ned}{\left(P_2\right)}^2-\frac{{\omega }_0{}^2}{N^2{e}^2{d}^2}{\left(P_2\right)}^3=\frac{N{e}^2}{m}\left(E_2\left(f_p\right)\right)$$

(8b)

$${\nabla }^2\left(E_1\left(f_p\right)\right)-{\mu }_0{\epsilon }_{\infty }\frac{{\partial }^2\left(E_1\left(f_p\right)\right)}{\partial t^2}={\mu }_0\sigma \frac{\partial \left(E_1\left(f_p\right)\right)}{\partial t}+{\mu }_0\frac{{\partial }^2\left(P_1\right)}{\partial t^2}$$

(8c)

$$\frac{{\partial }^2\left(P_1\right)}{\partial t^2}+\gamma \frac{\partial \left(P_1\right)}{\partial t}+{\omega }_0{}^2\left(P_1\right)-\frac{{\omega }_0{}^2}{Ned}\left\{P_1{}^2+2P_1{P}_2\right\}-\frac{{\omega }_0{}^2}{N^2{e}^2{d}^2}\left\{P_1{}^3+3P_1{}^2{P}_2+3P_1{P}_2{}^2\right\}=\frac{N{e}^2}{m}\left(E_1\left(f_p\right)\right)$$

(8d)

where

$$E_2\left(x=x_{input},t\right)=A_p\cos \left(2\pi f_{p}t+{\psi }_p\right)\left(u\left(t\right)- u\left(t-\Delta T_p\right)\right) V/m \left(u\left(t\right):Unit step function\right)$$

$$E_1\left(x=x_{input},t\right)=A_{st}\cos \left(2\pi f_{st}t+{\psi }_{st}\right)\left(u\left(t\right)- u\left(t-\Delta T_{st}\right)\right)\frac{V}{m} , A_p\gg A_{st}, \Delta T_p\ll \Delta T_{st}$$

If we are using N ultrashort high-intensity pulse excitations to amplify the low-intensity stimulus wave,

$$E_2\left(x=x_{input},t\right)={\displaystyle \sum }_{i=1}^N{A}_i\cos \left(2\pi f_{i}t+{\psi }_i\right)\left(u\left(t\right)- u\left(t-\Delta T_i\right)\right) V/m \left(u\left(t\right):Unit step function\right)$$

$$E_1\left(x=x_{input},t\right)=A_{st}\cos \left(2\pi \left(f_{st}\right)t+{\psi }_{st}\right)\left(u\left(t\right)- u\left(t-\Delta T_{st}\right)\right) V/m$$

$$\mathrm{where} A_i\gg A_{st}, \Delta T_i\ll \Delta T_{st}, i=1,2,\dots ,N$$

Then the dispersion analysis-based optimization problem is stated as follows:

$${\mathit{f}}_{\mathit{p}}=\{ f_1 , f_2 , \dots ,f_N \}$$

$${\mathit{f}}_{\mathit{m}\mathit{i}\mathit{n}}=\{ f_{min,1} , f_{min,2} , \dots ,f_{min,N} \}, {\mathit{f}}_{\mathit{m}\mathit{a}\mathit{x}}=\{ f_{max,1} , f_{max,2} , \dots ,f_{max,N} \}$$

$$\begin{array}{ll}Given that {\mathit{f}}_{\mathit{m}\mathit{i}\mathit{n}}& <{\mathit{f}}_{\mathit{p}}\\ & <{\mathit{f}}_{\mathit{m}\mathit{a}\mathit{x}} ; \mathit{m}\mathit{a}\mathit{x} |E_1(f_{st}\\ & =f^{\prime }\left)\right| based on the following equations\end{array}$$

$${\nabla }^2\left(E_2\left({\mathit{f}}_{\mathit{p}}\right)\right)-{\mu }_0{\epsilon }_{\infty }\frac{{\partial }^2\left(E_2\left({\mathit{f}}_{\mathit{p}}\right)\right)}{\partial t^2}={\mu }_0\sigma \frac{\partial \left(E_2\left({\mathit{f}}_{\mathit{p}}\right)\right)}{\partial t}+{\mu }_0\frac{{\partial }^2{P}_2}{\partial t^2}$$

(9a)

$$\frac{{\partial }^2{P}_2}{\partial t^2}+\gamma \frac{\partial P_2}{\partial t}+{\omega }_0{}^2\left(P_2\right)-\frac{{\omega }_0{}^2}{Ned}{\left(P_2\right)}^2-\frac{{\omega }_0{}^2}{N^2{e}^2{d}^2}{\left(P_2\right)}^3=\frac{N{e}^2}{m}\left(E_2\left({\mathit{f}}_{\mathit{p}}\right)\right)$$

(9b)

$${\nabla }^2\left(E_1\left({\mathit{f}}_{\mathit{p}}\right)\right)-{\mu }_0{\epsilon }_{\infty }\frac{{\partial }^2\left(E_1\left({\mathit{f}}_{\mathit{p}}\right)\right)}{\partial t^2}={\mu }_0\sigma \frac{\partial \left(E_1\left({\mathit{f}}_{\mathit{p}}\right)\right)}{\partial t}+{\mu }_0\frac{{\partial }^2\left(P_1\right)}{\partial t^2}$$

(9c)

$$\frac{{\partial }^2\left(P_1\right)}{\partial t^2}+\gamma \frac{\partial \left(P_1\right)}{\partial t}+{\omega }_0{}^2\left(P_1\right)-\frac{{\omega }_0{}^2}{Ned}\left\{P_1{}^2+2P_1{P}_2\right\}-\frac{{\omega }_0{}^2}{N^2{e}^2{d}^2}\left\{P_1{}^3+3P_1{}^2{P}_2+3P_1{P}_2{}^2\right\}=\frac{N{e}^2}{m}\left(E_1\left({\mathit{f}}_{\mathit{p}}\right)\right)$$

(9d)

Note that in this case the pump wave comprises N ultrashort pulses instead of a single ultrashort pulse. Therefore, we have a multiparameter optimization problem.

The physics behind the efficient amplification of the stimulus wave involves the simultaneous maximization of the stored electric energy density and the polarization density originated by the pump wave in the resonator (see Figure 3). This can be explained in two steps, first we need to maximize the stored energy in the cavity in order to transfer a high amount of energy to the stimulus wave. Second, we need to maximize the polarization density of the pump wave, which acts as the energy coupling coefficient based on Equation (7b).

Even if we maximize the stored electric energy density in a resonator, if the non-linear coupling coefficient $P_2$ is not high, then we cannot efficiently transfer the accumulated energy into the stimulus wave and high-gain amplification of the stimulus wave does not occur.

In order to perform the optimization of the stimulus wave magnitude at a given stimulus wave frequency $\left(\mathit{m}\mathit{a}\mathit{x} \left|E_1\left(f_{st}=f^{\prime }\right)\right|\right)$, we need an efficient optimization algorithm. In the next section, we will use the computationally efficient quasi-Newton Broyden–Fletcher–Goldfarb–Shanno (BFGS) algorithm to perform the maximization of the stimulus wave magnitude at a desired frequency.

4. Optimization of Optical Parametric Amplification Gain Factor in a Micro-Resonator

Assume that we are using N ultrashort high power pulses to amplify the stimulus wave. These ultrashort pulses have similar pulse energies so that each of them affects the amplification performance in the same degree. The ultrashort high-power pulses are summed up to form the pump wave. At a given spatial input point, the pump wave and the stimulus wave are given as:

$$\begin{array}{ll}{E}_p\left(x=x_{input},t\right)& \\ & ={\displaystyle \sum }_{i=1}^N{A}_i\cos \left(2\pi {\nu }_{i}t+{\psi }_i\right)\left(u\left(t\right)- u\left(t-\Delta T_i\right)\right) V\\ & /m \left(u\left(t\right):Unit step function\right)\end{array}$$

$$E_{st}\left(x=x_{input},t\right)=A_{st}\cos \left(2\pi \left({\nu }_{st}\right)t+{\psi }_{st}\right)\left(u\left(t\right)- u\left(t-\Delta T_{st}\right)\right) V/m$$

$$\mathrm{where} A_i\gg A_{st}, \Delta T_i\ll \Delta T_{st}, i=1,2,\dots ,N$$

We want to tune the frequencies (${\nu }_1, {\nu }_2, \dots ,{\nu }_N)$ of these ultrashort pulses so that the gain factor is maximized. In order to do that, we use the BFGS algorithm, so that the Hessian matrix of each iteration is recursively updated. The BFGS algorithm is one of the quasi-Newton methods that are used to compute the Hessian matrix. Recursive computation reduces the computational cost of the optimization by eliminating the need to compute the second derivative at each iteration. We will use the BFGS algorithm because of its accuracy and simplicity. The most general form of the quasi-Newton method is given as [11]:

$${\mathit{x}}^{\left(\mathit{k}\right)}={\mathit{x}}^{\left(\mathit{k}-\mathbf{1}\right)}-{\alpha }_k{\left({\mathit{H}}^{\left(k-1\right)}\right)}^{-\mathbf{1}}(\nabla f\left({\mathit{x}}^{\left(k-1\right)}\right), k=1,2,3,\dots$$

(10)

$$f\left({\mathit{x}}^{\left(k-1\right)}\right):Cost function, {\mathit{x}}^{\left(\mathit{k}\right)}:Optimization parameters, {\mathit{H}}^{\left(k-1\right)}:Hessian matrix, {\alpha }_k:Step size$$

Quasi-Newton methods, like steepest descent, require only the gradient of the objective function to be supplied at each iteration. The Hessian is updated by analyzing successive gradient vectors. The whole BFGS algorithm is as described below [11].

Given a starting point $x_0$, convergence tolerance ε > 0, inverse Hessian approximation $H_0$;

$k\leftarrow 0;$

while$\nabla f_k>\epsilon$;

Compute search direction

$p_k=-$$H_k$$\nabla f_k$;

Set$x_{k+1}=x_k+{\alpha }_k p_k,$where${\alpha }_k$is computed from a line search procedure to satisfy the Wolfe conditions.

Define$s_k=x_{k+1}-$$x_k$and$y_k=$$\nabla f_{k+1}-$$\nabla f_k;$

Compute$H_{k+1}$using;

$H_{k+1}=\left(I-{\rho }_k{s}_k{y}_k{}^T\right)H_k\left(I-{\rho }_k{y}_k{s}_k{}^T\right)+{\rho }_k{s}_k{s}_k{}^T$    (BFGS)

Where    ${\rho }_k=\frac{1}{y_k{}^T{s}_k}$

$k\leftarrow k+1;$

end   (while)

The step size ${\alpha }_k$ can be computed from a line search procedure to satisfy the Wolfe conditions:

$$f(x_k+ {\alpha }_k p_k)\le f\left(x_k\right)+ c_1 {\alpha }_k\nabla f_k{}^T{p}_k$$

(11)

$$\left|\nabla f{\left(x_k+ {\alpha }_k p_k\right)}^T{p}_k\right|\le c_2\left|\nabla f_k{}^T{p}_k\right|0<c_1<c_2<1$$

(12)

Alternatively, the step size ${\alpha }_k$ can be computed from the so-called backtracking approach [11]:

Choose $\alpha >0, \rho ϵ \left(0,1\right), c ϵ \left(0,1\right)$

repeat until $f(x_k+$ $\alpha p_k)\le$ $f\left(x_k\right)+$ $c\alpha \nabla f_k{}^T{p}_k$

$\alpha \leftarrow \rho \alpha$

end

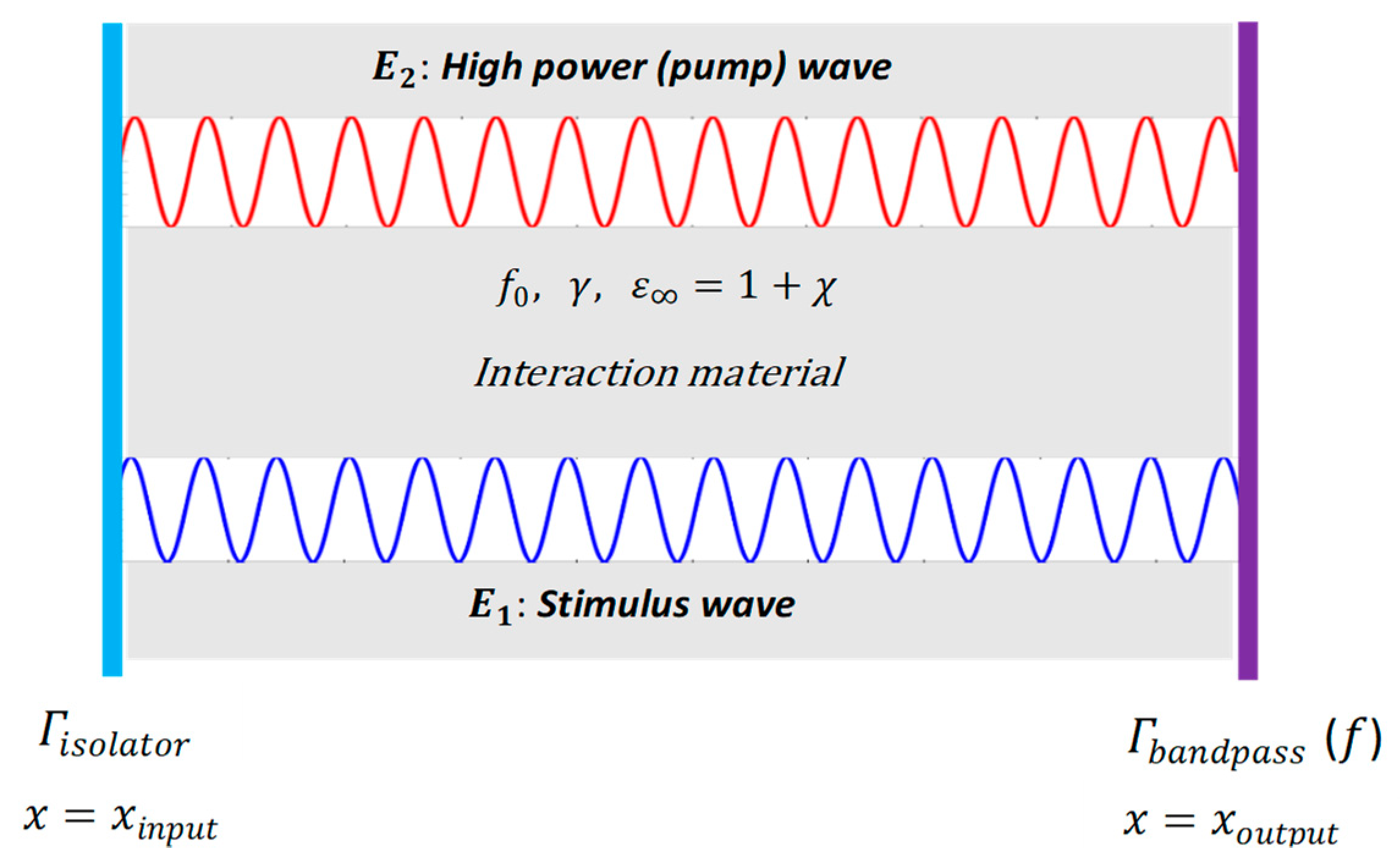

Since our problem is the amplification of a stimulus (input) wave via non-linear wave mixing with a high-power pump wave, for this problem, the optimization parameters are the frequencies of the N ultrashort pulses ${\nu }_1, {\nu }_2, \dots ,{\nu }_N$ that constitute the total pump wave. Assume that $E_1$ is the low power stimulus wave to be amplified, and $E_2$ is the high-power pump wave, which is the combination of N ultrashort pulses. The general formulation for the maximization of the stimulus wave magnitude (gain factor) is summarized as follows:

Optimization parameters: $\mathit{\nu }=\left[{\nu }_1, {\nu }_2, \dots ,{\nu }_N\right]$, Cost function to be maximized: $f=\left|E_1\left(\mathit{\nu }\right)\right|$

Constraints: $g_1\left(\mathit{\nu }\right)\le c_1$,$g_2\left(\mathit{\nu }\right)\le c_2, \dots , g_N\left(\mathit{\nu }\right)\le c_N$

Equations:

$${\nabla }^2\left(E_2\left(\mathit{\nu }\right)\right)-{\mu }_0{\epsilon }_{\infty }\frac{{\partial }^2\left(E_2\left(\mathit{\nu }\right)\right)}{\partial t^2}={\mu }_0\sigma \frac{\partial \left(E_2\left(\mathit{\nu }\right)\right)}{\partial t}+{\mu }_0\frac{d^2{P}_2}{\partial t^2}$$

(13)

$$\frac{d^2{P}_2}{d{t}^2}+\gamma \frac{d{P}_2}{dt}+{\omega }_0{}^2{P}_2-\frac{{\omega }_0{}^2{P}_2{}^2}{Ned}-\frac{{\omega }_0{}^2{P}_2{}^3}{N^2{e}^2{d}^2}=\frac{N{e}^2\left(E_2\left(\mathit{\nu }\right)\right)}{m}$$

(14)

$${\nabla }^2\left(E_1\left(\mathit{\nu }\right)\right)-{\mu }_0{\epsilon }_{\infty }\frac{{\partial }^2\left(E_1\left(\mathit{\nu }\right)\right)}{\partial t^2}={\mu }_0\sigma \frac{\partial \left(E_1\left(\mathit{\nu }\right)\right)}{\partial t}+{\mu }_0\frac{d^2\left(P_1\right)}{\partial t^2}$$

(15)

$$\frac{d^2\left(P_1\right)}{d{t}^2}+\gamma \frac{d\left(P_1\right)}{dt}+{\omega }_0{}^2\left(P_1\right)-\frac{{\omega }_0{}^2(P_1{}^2+2P_1{P}_2)}{Ned}-\frac{{\omega }_0{}^2(P_1{}^3+3P_1{}^2{P}_2+3P_1{P}_2{}^2)}{N^2{e}^2{d}^2}=\frac{N{e}^2\left(E_1\left(\mathit{\nu }\right)\right)}{m}$$

(16)

This problem is a constrained optimization problem, we can convert this problem into an unconstrained optimization problem by modifying the cost function via the addition of penalty functions. In the case of a maximization problem, these penalty functions yield a decrease in the cost function when the constraints are violated. In our case, the penalty for violating the constraints is adjusted to yield a quadratic decrease:

Augmented cost function: (penalty function method)

$$f=\left|E_1\left(\mathit{\nu }\right)\right|-L{\left\{{\sum }_{i=1}^N{\delta }_i\left(g_i\left(\mathit{\nu }\right)-c_i\right)\right\}}^q ,{\delta }_i=\left\{\begin{array}{c}0 if g_i\left(\mathit{\nu }\right)\le c_i\\ >0 if g_i\left(\mathit{\nu }\right)>c_i\end{array}\right\}$$

(17)

q: positive valued penalty exponent, L: Positive valued penalty constant, ${\delta }_i$: penalty coefficients

Optimization process:

$${\mathit{\nu }}_{k+1}={\mathit{\nu }}_k+{\alpha }_k{\mathit{p}}_k$$

$${\mathit{p}}_k=-{\mathit{H}}_k\nabla {\mathit{f}}_k$$

$${\mathit{s}}_{\mathit{k}}={\mathit{\nu }}_{\mathit{k}+\mathbf{1}}-{\mathit{\nu }}_{\mathit{k}}$$

$${\mathit{y}}_{\mathit{k}}=\nabla {\mathit{f}}_{\mathit{k}+\mathbf{1}}-\nabla {\mathit{f}}_{\mathit{k}}$$

$${\mathit{H}}_{\mathit{k}+\mathbf{1}}=\left(\mathit{I}-{\rho }_k{\mathit{s}}_{\mathit{k}}{\mathit{y}}_{\mathit{k}}{}^{\mathit{T}}\right){\mathit{H}}_{\mathit{k}}\left(\mathit{I}-{\rho }_k{\mathit{y}}_{\mathit{k}}{\mathit{s}}_{\mathit{k}}{}^{\mathit{T}}\right)+{\rho }_k{\mathit{s}}_{\mathit{k}}{\mathit{s}}_{\mathit{k}}{}^{\mathit{T}} \left(\mathrm{BFGS}\right)$$

$$\nabla \mathit{f}=\left[\begin{array}{c}\frac{f\left({\nu }_1+ϵ,{\nu }_2,\dots ,{\nu }_N\right)-f\left({\nu }_1,{\nu }_2,\dots ,{\nu }_N\right)}{ϵ}\\ \frac{f\left({\nu }_1,{\nu }_2+ϵ,\dots ,{\nu }_N\right)-f\left({\nu }_1,{\nu }_2,\dots ,{\nu }_N\right)}{ϵ}\\ .\\ .\\ .\\ \frac{f\left({\nu }_1,{\nu }_2,\dots ,{\nu }_N+ϵ\right)-f\left({\nu }_1,{\nu }_2,\dots ,{\nu }_N\right)}{ϵ}\end{array}\right] , {\rho }_k=\frac{1}{{\mathit{y}}_{\mathit{k}}{}^{\mathit{T}}{\mathit{s}}_{\mathit{k}}}$$

The convergence rate of the BFGS algorithm is super-linear, but our formulated problem is a non-linear optimization problem (non-linear programming). Therefore, the convergence is not reached immediately. Furthermore, the recursive computation of the Hessian matrix slows down the convergence rate. For these reasons, the computation of the optimum frequency values takes a great amount of time.

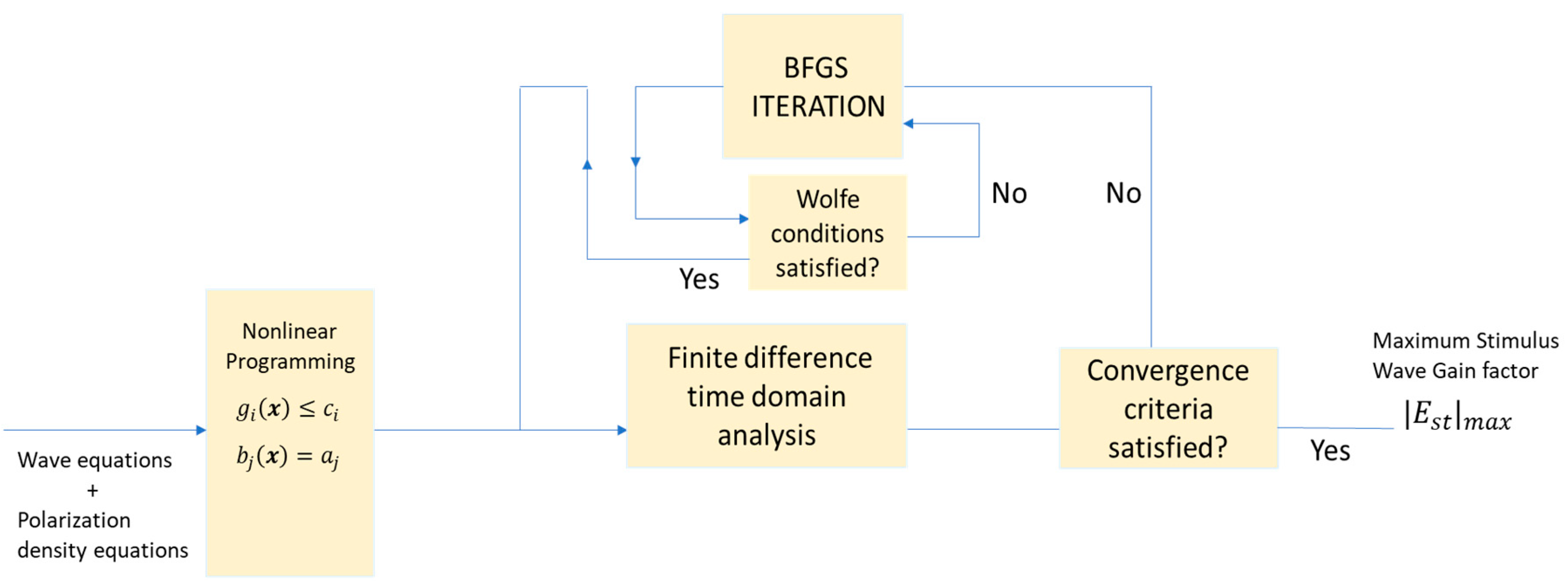

5. Finite-Difference Time-Domain Solution of the Gain Factor Optimization Problem in Optical Parametric Amplification

Equations (5a,b) and (7a,b) can be discretized using the finite-difference time-domain (FDTD) method as stated in Equations (18a,b) and (18c,d), for every iteration k of our optimization problem. Our initial goal is to discretize Equation (5a,b) in order to get $E_{2,k}\left(i,j+1\right)$ i.e., the value of $E_{2,k}$ at a certain spatial coordinate at the next time step. Since $E_{2,k}$ and $P_{2,k}$ are coupled to each other, initially we attempt to solve for $P_{2,k}\left(i,j+1\right)$ and then substitute its value into the wave equation for $E_{2,k}\left(i,j+1\right)$. These two equations are solved recursively for every time step and for all spatial points in a given one-dimensional solution domain. In order to increase the accuracy of our obtained solution, we should select $\Delta t$ and $\Delta x$ as small as we can [12,13]. Then we may proceed on the discretization of Equation (7a,b) and substitute the previously obtained value of $P_{2,k}\left(i,j\right)$ from Equation (5a,b), for the solution of $E_{1,k}\left(i,j+1\right)$ in Equation (7a,b). Finally, we update the values of the optimization parameters based on the BFGS algorithm, and we repeat the entire procedure for every iteration of the optimization process until the desired gain factor is achieved (see Figure 4).

FDTD Equations:

$$\begin{gathered} \frac{E_{2,k}\left(i+1,j\right)-2E_{2,k}\left(i,j\right)+E_{2,k}\left(i-1,j\right)}{\Delta x^2}-{\mu }_0{\epsilon }_{\infty }\left(i,j\right)\frac{E_{2,k}\left(i,j+1\right)-2E_{2,k}\left(i,j\right)+E_{2,k}\left(i,j-1\right)}{\Delta t^2}= \\ {\mu }_0\sigma \left(i,j\right)\frac{E_{2,k}\left(i,j\right)-E_{2,k}\left(i,j-1\right)}{\Delta t}+{\mu }_0\frac{P_{2,k}\left(i,j+1\right)-2P_{2,k}\left(i,j\right)+P_{2,k}\left(i,j-1\right)}{\Delta t^2} \end{gathered}$$

(18a)

$$\begin{gathered} \frac{P_{2,k}\left(i,j+1\right)-2P_{2,k}\left(i,j\right)+P_{2,k}\left(i,j-1\right)}{\Delta t^2}+\gamma \frac{P_{2,k}\left(i,j\right)-P_{2,k}\left(i,j-1\right)}{\Delta t}+4{\pi }^2{f}_0{}^2\left(P_{2,k}\left(i,j\right)\right)- \\ \frac{4{\pi }^2{f}_0{}^2}{Ned}{\left(P_{2,k}\left(i,j\right)\right)}^2-\frac{4{\pi }^2{f}_0{}^2}{N^2{e}^2{d}^2}{\left(P_{2,k}\left(i,j\right)\right)}^3=\frac{N{e}^2}{m}\left(E_{2,k}\left(i,j\right)\right). \end{gathered}$$

(18b)

$$\begin{gathered} \frac{E_{1,k}\left(i+1,j\right)-2E_{1,k}\left(i,j\right)+E_{1,k}\left(i-1,j\right)}{\Delta x^2}-{\mu }_0{\epsilon }_{\infty }\left(i,j\right)\frac{E_{1,k}\left(i,j+1\right)-2E_{1,k}\left(i,j\right)+E_{1,k}\left(i,j-1\right)}{\Delta t^2}= \\ {\mu }_0\sigma \left(i,j\right)\frac{E_{1,k}\left(i,j\right)-E_{1,k}\left(i,j-1\right)}{\Delta t}+{\mu }_0\frac{P_{1,k}\left(i,j+1\right)-2P_{1,k}\left(i,j\right)+P_{1,k}\left(i,j-1\right)}{\Delta t^2} \end{gathered}$$

(18c)

$$\begin{gathered} \frac{P_{1,k}\left(i,j+1\right)-2P_{1,k}\left(i,j\right)+P_{1,k}\left(i,j-1\right)}{\Delta t^2}+\gamma \frac{P_{1,k}\left(i,j\right)-P_{1,k}\left(i,j-1\right)}{\Delta t}+4{\pi }^2{f}_0{}^2\left(P_{1,k}\left(i,j\right)\right) \\ -\frac{4{\pi }^2{f}_0{}^2}{Ned}\left\{{\left(P_{1,k}\left(i,j\right)\right)}^2+2P_{1,k}\left(i,j\right)P_{2,k}\left(i,j\right)\right\}-\frac{4{\pi }^2{f}_0{}^2}{N^2{e}^2{d}^2}\{{\left(P_{1,k}\left(i,j\right)\right)}^3 \\ +3{\left(P_{1,k}\left(i,j\right)\right)}^2{P}_{2,k}\left(i,j\right)+3P_{1,k}\left(i,j\right){\left(P_{2,k}\left(i,j\right)\right)}^2\}=\frac{N{e}^2}{m}\left(E_{1,k}\left(i,j\right)\right). \end{gathered}$$

(18d)

x: spatial coordinate, t: time, k: iteration number, $E_k\left(x,t\right)=E_k\left(i\Delta x,j\Delta t\right) \to E_k\left(i,j\right)$$E_{2,k}:High intensity pump wave at iteration k$, $E_{1,k}:Stimulus wave at iteration k$

Constraints

$$b_1\left(\mathit{\nu }\right)=a_1{g}_1\left(\mathit{\nu }\right)\le c_1$$

$$b_2\left(\mathit{\nu }\right)=a_2 g_2\left(\mathit{\nu }\right)\le c_2$$

$$b_N\left(\mathit{\nu }\right)=a_N{g}_N\left(\mathit{\nu }\right)\le c_N$$

Cost function: $\left|E_1\left(\mathit{\nu }\right)\right|$

Augmented cost function: (penalty function method)

$$f=\left|E_1\left(\mathit{\nu }\right)\right|+L_1\left\{{\displaystyle \sum }_{i=1}^N{\delta }_i{\left(g_i\left(\mathit{\nu }\right)-c_i\right)}^2\right\}+L_2\left\{{\displaystyle \sum }_{j=1}^M{\zeta }_j{\left(b_j\left(\mathit{\nu }\right)-a_j\right)}^2\right\}$$

$${\delta }_i=\left\{\begin{array}{cc}0& if g_i\left(\mathit{\nu }\right)\le c_i\\ >0& if g_i\left(\mathit{\nu }\right)>c_i\end{array}\right\}$$

Iterations:

$${\mathit{\nu }}_{k+1}={\mathit{\nu }}_k+{\alpha }_k{\mathit{p}}_k$$

$${\mathit{p}}_k=-{\mathit{H}}_k\nabla {\mathit{f}}_k$$

$${\mathit{s}}_{\mathit{k}}={\mathit{x}}_{\mathit{k}+\mathbf{1}}-{\mathit{x}}_{\mathit{k}}$$

$${\mathit{y}}_{\mathit{k}}=\nabla {\mathit{f}}_{\mathit{k}+\mathbf{1}}-\nabla {\mathit{f}}_{\mathit{k}}$$

$${\mathit{H}}_{\mathit{k}+\mathbf{1}}=\left(\mathit{I}-{\rho }_k{\mathit{s}}_{\mathit{k}}{\mathit{y}}_{\mathit{k}}{}^{\mathit{T}}\right){\mathit{H}}_{\mathit{k}}\left(\mathit{I}-{\rho }_k{\mathit{y}}_{\mathit{k}}{\mathit{s}}_{\mathit{k}}{}^{\mathit{T}}\right)+{\rho }_k{\mathit{s}}_{\mathit{k}}{\mathit{s}}_{\mathit{k}}{}^{\mathit{T}} \left(\mathrm{BFGS}\right)$$

$${\rho }_k=\frac{1}{{\mathit{y}}_{\mathit{k}}{}^{\mathit{T}}{\mathit{s}}_{\mathit{k}}}$$

Wolfe conditions for ${\alpha }_k$: $f(x_k+$ ${\alpha }_k$ $p_k)\le$ $f\left(x_k\right)+$ $c_1$ ${\alpha }_k\nabla f_k{}^T{p}_k$

$$\left|\nabla f{\left(x_k+ {\alpha }_k p_k\right)}^T{p}_k\right|\le c_2\left|\nabla f_k{}^T{p}_k\right|\hspace{1em}\hspace{1em}0<c_1<c_2<1$$

6. Numerical Experiments

6.1. Double-Frequency Tuning for Gain Factor Optimization

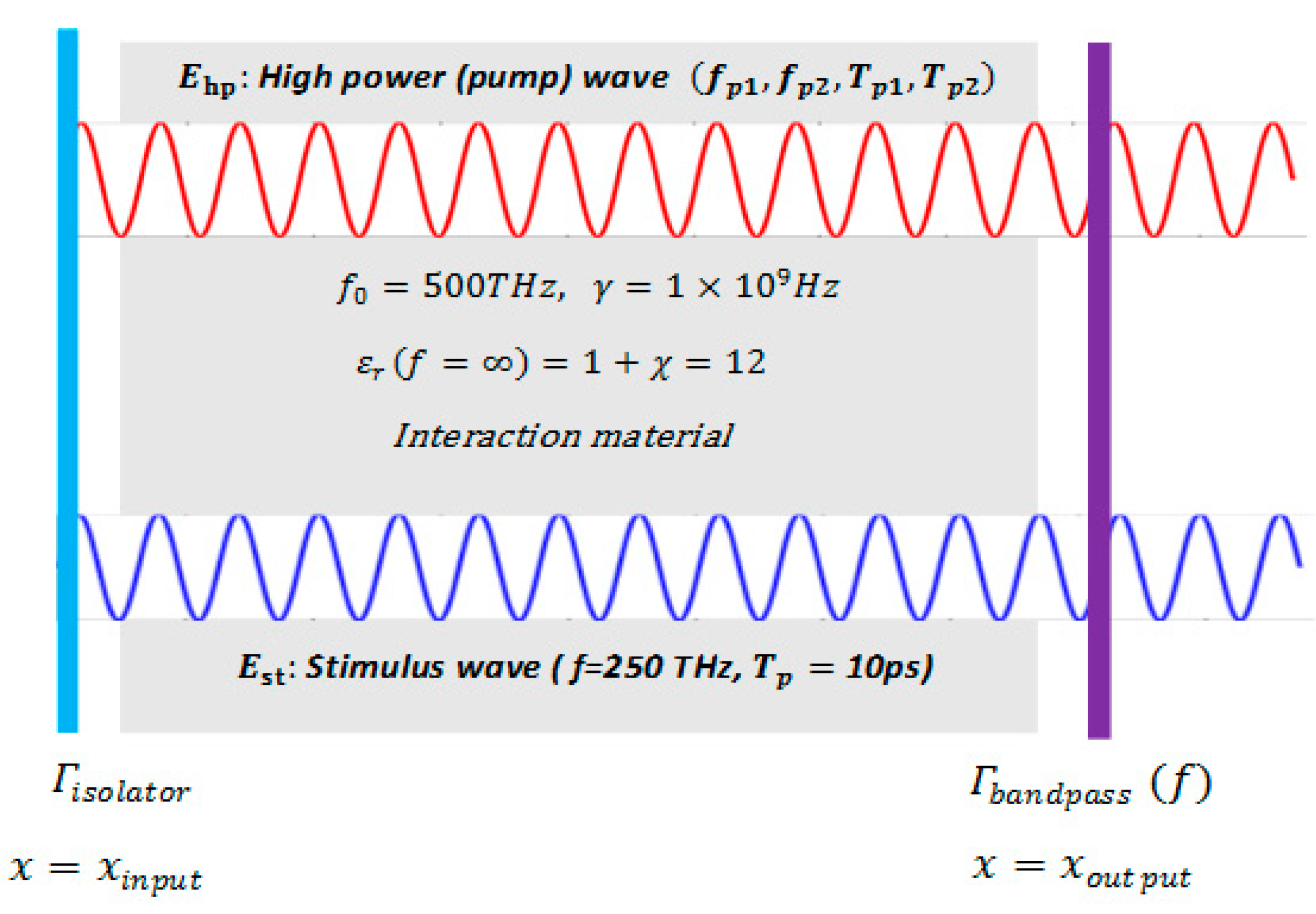

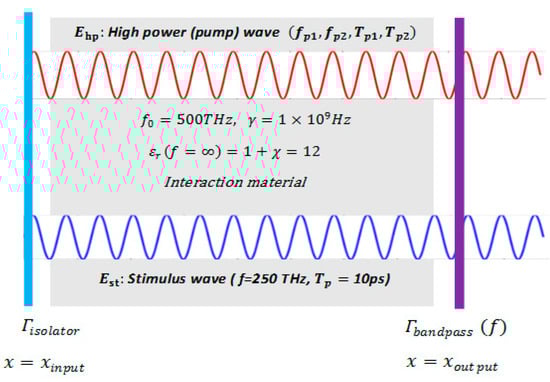

Assume that a 250 THz (${\lambda }_{free space}$ = 1.2 μm) infra-red stimulus wave $E_{st}$ and a high power pump wave $E_{hp}$ that is composed of two high-intensity ultrashort pulses (frequencies are to be determined) are propagating inside a low-loss (high Q) cavity that has two reflecting walls (see Figure 5). The wall on the left side can be thought as an optical isolator, which fully transmits from its left side and almost fully reflects from its right side. The wall on the right side represents an optical band-pass filter with a frequency-dependent reflection coefficient $\Gamma \left(f\right).$ Both waves are generated at x = 0 μm, at the time instant t = 0 s. The waves and the parameters of the gain medium are as given below:

$$\begin{gathered} E_{hp}\left(x=0\mu m,t\right)={\displaystyle \sum }_{i=1}^2{A}_i\cos \left(2\pi f_{i}t+{\psi }_i\right)\left(u\left(t\right)- u\left(t-\Delta T_i\right)\right) \\ \left(u\left(t\right):Unit step function\right) \end{gathered}$$

$$Where A_1=2\times {10}^8, A_2=1.5\times {10}^8, {\psi }_1=0, {\psi }_2=0, \Delta T_1=0.5ps, \Delta T_2=1ps$$

$$E_{st}\left(x=0\mu m,t\right)=1\times \sin \left(2\pi \left(2.5\times {10}^{14}\right)t\right) V/m, for 0\le t\le 10ps$$

$$Dielectric constant of the gain medium= {\epsilon }_{\infty }=1+\chi =12 ({\mu }_r=1)$$

$$Resonance frequency of the gain medium: f_0=500THz$$

$$Damping coefficient of the gain medium: \gamma =1\times {10}^{9}Hz$$

$$Time interval and duration of simulation: 0\le t\le 10ps$$

$$Spatial range of the gain medium:0\mu m<x<10\mu m$$

$$Right cavity wall location: x=10\mu m;Left cavity wall location: x=0\mu m$$

$$Electron density of the gain medium: N=3.5\times {10}^{28}/m^3; Atomic diameter :d=0.3 nm$$

Our problem: find the optimal pump wave pulse frequencies $f_{p1}, f_{p2}$ that maximize the magnitude of the monochromatic stimulus wave in the cavity ($\left|E_{st}\left( f_{st}=250 THz\right)\right|$), for 10 THz <$\{f_{p1},f_{p2}\}<1000THz$ (THz to UV), and for $0\mu m<x<10\mu m,0\le t\le 10ps$, such that

$${\nabla }^2{E}_{hp}\left(f_{p1}, f_{p2}\right)-{\mu }_0{\epsilon }_{\infty }\frac{{\partial }^2{E}_{hp}\left(f_{p1}, f_{p2}\right)}{\partial t^2}={\mu }_0\sigma \frac{\partial E_{hp}\left(f_{p1}, f_{p2}\right)}{\partial t}+{\mu }_0\frac{{\partial }^2{P}_{hp}}{\partial t^2}$$

$$\frac{{\partial }^2{P}_{hp}}{\partial t^2}+\gamma \frac{\partial P_{hp}}{\partial t}+{\omega }_0{}^2\left(P_{hp}\right)-\frac{{\omega }_0{}^2}{Ned}{\left(P_{hp}\right)}^2-\frac{{\omega }_0{}^2}{N^2{e}^2{d}^2}{\left(P_{hp}\right)}^3=\frac{N{e}^2}{m}{E}_{hp}\left(f_{p1}, f_{p2}\right).$$

$${\nabla }^2{E}_{st}\left(f_{p1}, f_{p2}\right)-{\mu }_0{\epsilon }_{\infty }\frac{{\partial }^2{E}_{st}\left(f_{p1}, f_{p2}\right)}{\partial t^2}={\mu }_0\sigma \frac{\partial E_{st}\left(f_{p1}, f_{p2}\right)}{\partial t}+{\mu }_0\frac{{\partial }^2{P}_{st}}{\partial t^2}$$

$$\begin{gathered} \frac{{\partial }^2\left(P_{st}\right)}{\partial t^2}+\gamma \frac{\partial \left(P_{st}\right)}{\partial t}+{\omega }_0{}^2\left(P_{st}\right)-\frac{{\omega }_0{}^2}{Ned}\left\{P_{st}{}^2+2P_{st}{P}_{hp}\right\} \\ -\frac{{\omega }_0{}^2}{N^2{e}^2{d}^2}\left\{P_{st}{}^3+3P_{st}{}^2{P}_{hp}+3P_{st}{P}_{hp}{}^2\right\}=\frac{N{e}^2}{m}{E}_{st}\left(f_{p1}, f_{p2}\right) \end{gathered}$$

Our aim is to maximize the magnitude of the stimulus wave at its original frequency $f_{st}=250THz$ (monochromatic form). This is a precaution against any degree of spectral broadening that the stimulus wave may go through while being amplified. Therefore, our cost function is chosen as (at any spatial point $x=x^{\prime }$ inside the cavity):

$$\begin{array}{ll}Q=& \left|E_{st}\left(f_{st}=250THz\right)\right|\\ & =\left|{{\displaystyle \int }}_{2.5\times {10}^{14}-\Delta f}^{2.5\times {10}^{14}+\Delta f}\left\{{{\displaystyle \int }}_0^{\Delta T}\{E_{st}\left(x=x^{\prime },t\right)e^{-i\left(2\pi \Omega \right)t}\}dt\right\}{e}^{i\left(2\pi \Omega \right)t}d\Omega \right|\end{array}$$

$where \Delta T=10ps,0\le t\le 10ps,\left(2.5\times {10}^{14}-\Delta f\right)<\Omega <\left(2.5\times {10}^{14}+\Delta f\right),\Delta f=1THz$

Initial conditions:

$$\begin{gathered} P_{hp}\left(x,0\right)=P_{hp}{}^{\prime }\left(x,0\right)=E_{hp}\left(x,0\right)=E_{hp}{}^{\prime }\left(x,0\right)=P_{st}\left(x,0\right)=P_{st}{}^{\prime }\left(x,0\right) \\ =E_{st}\left(x,0\right)=E_{st}{}^{\prime }\left(x,0\right)=0 \end{gathered}$$

Boundary and excitation conditions:

$$E_{hp}\left(x=0 \mu m,t\right)={\displaystyle \sum }_{i=1}^2{A}_i\cos \left(2\pi f_{i}t+{\psi }_i\right)\left(u\left(t\right)- u\left(t-\Delta T_i\right)\right)$$

where $A_1=2\times {10}^{14}, A_2=1.5\times {10}^{14}, {\psi }_1=0, {\psi }_2=0, \Delta T_1=0.5ns, \Delta T_2=1ns$

$$E_{st}\left(x=0\mu m,t\right)=1\times \frac{\sin \left(2\pi \left(2.5\times {10}^{14}\right)t\right) V}{m}, for 0\le t\le 10ps$$

$$E_{hp}\left(x=15\mu m,t\right)=E_{st}\left(x=15\mu m,t\right)=0 for 0<t<10ps$$

Absorbing boundary condition (perfectly matched layer):

$$\begin{gathered} \sigma \left(x\right)=\left\{\left(x-\left(L-\Delta \right)\right){\sigma }_0 , \left(L-\Delta \right)\le x<L \right\}, for L=15\mu m, \Delta =2.5\mu m, \\ {\sigma }_0=4.5\times {10}^{8}S/m \end{gathered}$$

Optical isolator condition: full reflection at $\mathrm{x}=0\mathsf{\mu }\mathrm{m}$

$$\Gamma \left(x=0\mu m,t\right)=1 \left(Reflection coefficient is equal to 1\right)$$

Optical bandpass filter condition: frequency dependent reflection at $\mathrm{x}=10\mathsf{\mu }\mathrm{m}$

$$\left|\Gamma \left(f^{\prime }\right)\right|=1-e^{-{(\frac{\left(f^{\prime }-250THz\right)}{\sqrt{2}THz})}^2}$$

Cost function to be maximized:

$$\begin{gathered} Q\left(f_{p1},f_{p2}\right)=\left|E_{st}\left( f_{st}=250THz\right)\right|-{\delta }_1{\left(f_{p1}-f_{max}\right)}^2-{\delta }_2{\left(f_{min}-f_{p1}\right)}^2 \\ -{\delta }_3{\left(f_{p2}-f_{max}\right)}^2-{\delta }_4{\left(f_{min}-f_{p2}\right)}^2 \end{gathered}$$

where

$$\begin{gathered} {\delta }_1=\left\{\begin{array}{c}0 if f_{p1}\le f_{max}\\ \frac{\left|E_{st}\left( f_{st}=250THz\right)\right|}{{10}^{27}} if f_{p1}>f_{max}\end{array}\right\}, {\delta }_2= \\ \left\{\begin{array}{c}0 if f_{p1}\ge f_{min}\\ \frac{\left|E_{st}\left( f_{st}=250THz\right)\right|}{{10}^{27}} if f_{p1}<f_{min}\end{array}\right\} \end{gathered}$$

$$\begin{gathered} {\delta }_3=\left\{\begin{array}{c}0 if f_{p2}\le f_{max}\\ \frac{\left|E_{st}\left( f_{st}=250THz\right)\right|}{{10}^{27}} if f_{p2}>f_{max}\end{array}\right\}, \\ {\delta }_4=\left\{\begin{array}{c} 0 if f_{p2}\ge f_{min}\\ \frac{\left|E_{st}\left( f_{st}=250THz\right)\right|}{{10}^{27}} if f_{p2}<f_{min}\end{array}\right\} \end{gathered}$$

Optimization algorithm (BFGS):

$$Set {\mathit{H}}_{\mathbf{1}}=\left[\begin{array}{cc}1& 0\\ 0& 1\end{array}\right], f_{p1,0}=100THz, f_{p1,1}=102THz,$$

$$f_{p2,0}=100THz, f_{p2,1}=103THz, {\alpha }_1=0.5$$

$$\nabla {\mathit{Q}}_k=\left[\begin{array}{c}\frac{Q\left(f_{p1,k}, f_{p2,k}\right)-Q\left(f_{p1,k-1}, f_{p2,k}\right)}{f_{p1,k}-f_{p1,k-1}}\\ \frac{Q\left(f_{p1,k}, f_{p2,k}\right)-Q\left(f_{p1,k}, f_{p2,k-1}\right)}{f_{p2,k}-f_{p2,k-1}}\end{array}\right]$$

$${\mathit{p}}_k=-{\mathit{H}}_k\nabla {\mathit{Q}}_k$$

$${\mathit{f}}_{p, k+1}={\mathit{f}}_{p,k}+{\alpha }_k{\mathit{p}}_k, {\mathit{f}}_{p,k}=\left[\begin{array}{c}{f}_{p1,k}\\ f_{p2,k}\end{array}\right]$$

$${\mathit{s}}_k={\mathit{f}}_{p,k+1}-{\mathit{f}}_{p,k}$$

$$\nabla {\mathit{Q}}_{k+1}=\left[\begin{array}{c}\frac{Q\left(f_{p1,k+1}, f_{p2,k}\right)-Q\left(f_{p1,k}, f_{p2,k}\right)}{f_{p1,k+1}-f_{p1,k}}\\ \frac{Q\left(f_{p1,k}, f_{p2,k+1}\right)-Q\left(f_{p1,k}, f_{p2,k}\right)}{f_{p2,k+1}-f_{p2,k}}\end{array}\right]$$

$${\mathit{y}}_k=\nabla {\mathit{Q}}_{k+1}-\nabla {\mathit{Q}}_k$$

$${\rho }_k=\frac{1}{{\mathit{y}}_k{}^T{\mathit{s}}_k}$$

$${\mathit{H}}_{k+1}=\left(\mathit{I}-{\rho }_k{\mathit{s}}_k{\mathit{y}}_k{}^T\right){\mathit{H}}_k\left(\mathit{I}-{\rho }_k{\mathit{y}}_k{\mathit{s}}_k{}^T\right)+{\rho }_k{\mathit{s}}_k{\mathit{s}}_k{}^T \left(\mathrm{BFGS}\right)$$

$$\mathit{I}:Identity matrix$$

In order to satisfy the Wolfe conditions, the step size at each iteration is chosen as:

$${\alpha }_k=C^{( \log \left|\frac{Q\left({\mathit{f}}_{\mathit{p},\mathit{k}}\right)}{Q\left({\mathit{f}}_{\mathit{p},\mathit{k}}\right)-Q\left({\mathit{f}}_{\mathit{p},\mathit{k}-\mathbf{1}}\right)}\right| ) / ( \left|\frac{Q\left({\mathit{f}}_{\mathit{p},\mathit{k}}\right)}{Q\left({\mathit{f}}_{\mathit{p},\mathit{k}}\right)-Q\left({\mathit{f}}_{\mathit{p},\mathit{k}-\mathbf{1}}\right)}\right| )}$$

(19)

where $C$ is just a constant ($1<C<1.5$) and ${\alpha }_k$ is the step size at iteration k. This formula (Equation (19)) was determined by trial and error and was found to satisfy Wolfe’s conditions automatically at each iteration. This saves us from the huge computational cost of running another iteration loop to determine the step size at each iteration of the optimization process. In this simulation C = 1.445. Based on the above formulations, the maximum stimulus wave amplitude that has been reached in the cavity (for 0 < t < 10 ps) is determined as $Gai{n}_{max}={\left|E_{st}\left( f_{st}=250THz\right)\right|}_{max}=4.67\times {10}^{8}V/m$, which corresponds to the frequencies $f_{p1}=387.2 THz,f_{p2}=319.4 THz$ (see

Table 1. BFGS algorithm-based optimization process.

${\mathit{f}}_{\mathit{p}1}$	${\mathit{f}}_{\mathit{p}2}$	$\mathit{G}\mathit{a}\mathit{i}{\mathit{n}}_{\mathit{m}\mathit{a}\mathit{x}}$	${\mathit{W}}_{\mathit{e},\mathit{p}} (\frac{\mathit{J}}{{\mathit{m}}^3})$	${\mathit{P}}_{\mathit{p}\mathit{u}\mathit{m}\mathit{p}}(\frac{\mathit{C}}{{\mathit{m}}^2})$	k (Iteration #)
100 THz	100 THz	0.84	$1.29\times {10}^7$	0.08	1
107.2 THz	115.7 THz	6.23	$1.80\times {10}^7$	0.09	4
154.9 THz	156.6 THz	4.44	$3.36\times {10}^7$	0.08	7
218.6 THz	199.5 THz	313.52	$4.48\times {10}^7$	0.10	10
198.3 THz	214.5 THz	37.16	$1.67\times {10}^7$	0.10	13
229.5 THz	243.0 THz	240.58	$5.97\times {10}^7$	0.09	16
263.1 THz	227.2 THz	646.72	$5.54\times {10}^7$	0.10	19
322.7 THz	278.9 THz	1.57$\times {10}^3$	$6.12\times {10}^7$	0.12	22
396.0 THz	299.8 THz	4.28$\times {10}^4$	$9.39\times {10}^8$	0.15	25
391.6 THz	293.4 THz	$9.16\times {10}^4$	$1.76\times {10}^8$	0.16	28
380.7 THz	311.7 THz	$3.85\times {10}^5$	$1.26\times {10}^8$	0.20	30
383.4 THz	317.2 THz	$8.11\times {10}^4$	$6.40\times {10}^7$	0.20	32
386.0 THz	318.4 THz	$6.32\times {10}^6$	$2.89\times {10}^8$	0.23	34
386.8 THz	318.8 THz	9.79$\times {10}^7$	2.63$\times {10}^8$	0.27	36
387.2 THz	319.3 THz	3.96$\times {10}^8$	2.51$\times {10}^8$	0.29	38
387.2 THz	319.4 THz	4.67$\times {10}^8$	2.95$\times {10}^8$	0.29	39

), or to the free space wavelengths ${\lambda }_{p1}=0.939 \mathsf{\mu }\mathrm{m},{\lambda }_{p2}=0.775 \mu m$ as the ultrashort pulses can be practically generated outside the resonator. In this simulation, the gain factor of the amplification is defined as:

$$\begin{array}{ll}Gai{n}_{max}& ={\left|E_{st}\left( f_{st}=250THz\right)\right|}_{max}\\ & =\frac{Amplitude of the stimulus wave at t=t_{max} for x=x^{\prime }}{Amplitude of the stimulus wave at t=0 for x=x^{\prime }}.\end{array}$$

where $x^{\prime }$ is chosen as an intra-cavity point $(x^{\prime }=5.73\mu m)$ and $t_{max}=10 picoseconds.$

$$\begin{gathered} W_{e,p}=Stored electric energy density via pump wave \\ =\frac{1}{2}{\epsilon }_{\infty }{E}_{pump}{}^2+\frac{1}{2}{E}_{pump}{P}_{pump}. \left(\frac{Joules}{m^3}\right) \end{gathered}$$

$$\begin{gathered} P_{pump}: Polarization density created by the pump wave\left(\frac{Coulomb}{m^2}\right), \\ {E}_{pump}:Pump wave electric field intensity \end{gathered}$$

$${\epsilon }_{\infty }:Background \left(infinite spectral band\right)permittivity$$

As we can see from Table 1, the optimal ultrashort pulse frequencies correspond to very high stored electric energy density and high polarization density. The stored electric energy density and the polarization density must be simultaneously high for a significant stimulus wave amplification. The stored electric energy density indicates the achievable order of stimulus wave amplification [14,15], and the polarization density acts as a coupling coefficient, which is a measure of how much stored electric energy can be coupled to the stimulus wave.

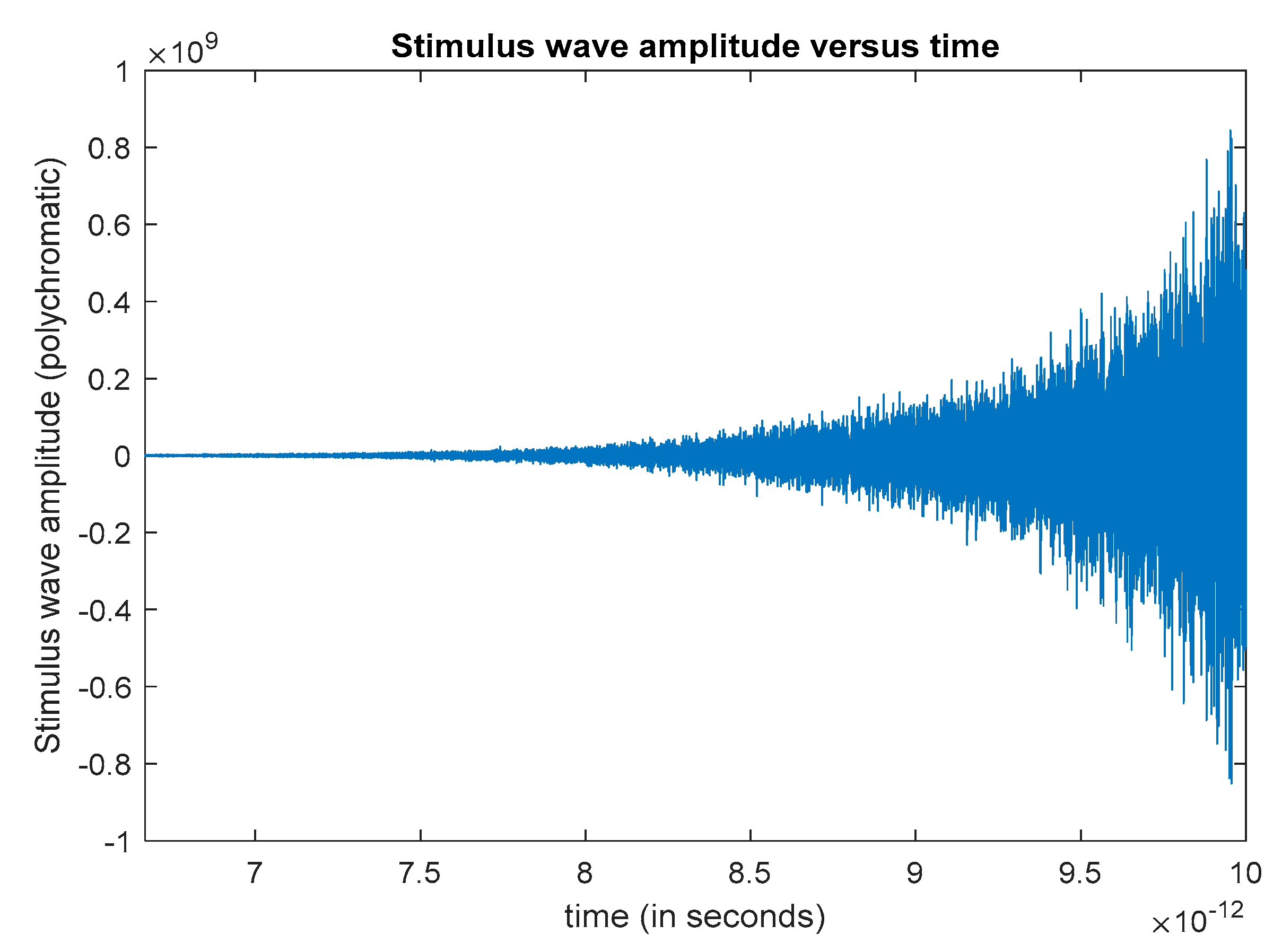

The time variation of the spectrally broadened (polychromatic) stimulus wave between t = 6.6 picoseconds and t = 10 picoseconds is shown in Figure 6. From the figure, we can see that the polychromatic stimulus wave reaches an amplitude of approximately $8\times {10}^8 V/m$.

6.2. Triple-Frequency Tuning for Gain Factor Optimization

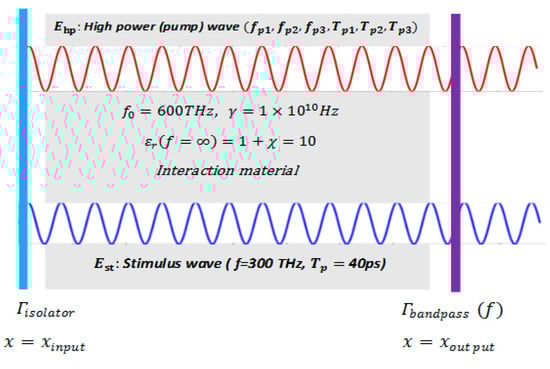

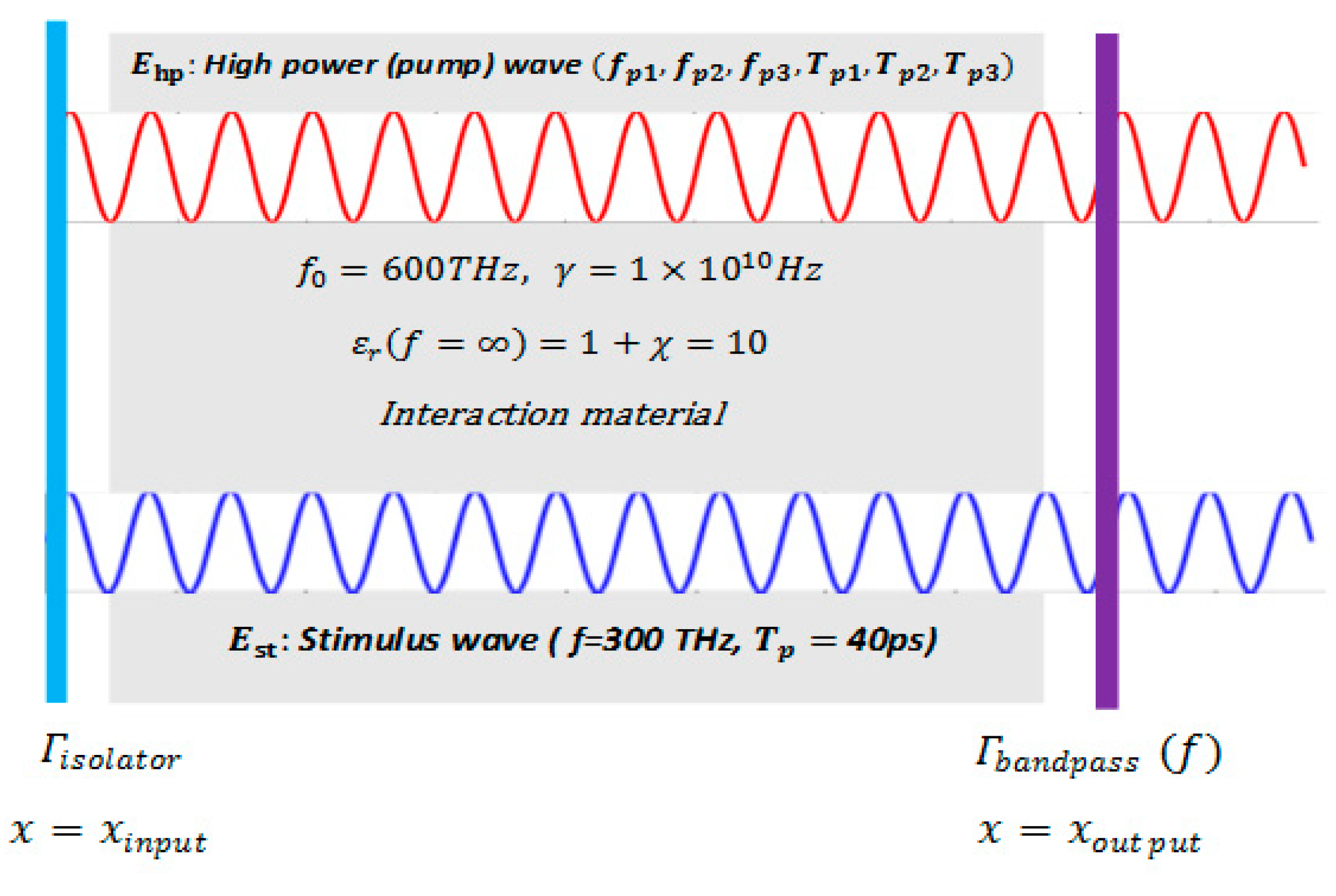

Assume that a 300 THz (${\lambda }_{free space}=$1 μm) infra-red stimulus wave $E_{st}$ and a high-power pump wave $E_{hp}$ that is composed of three ultrashort pulses (frequencies are to be determined), are generated to propagate in a micro-resonator with two reflecting walls. The wall on the left side can be thought as an optical isolator, which fully transmits from its left side and almost fully reflects from its right side. The wall on the right side represents an optical band-pass filter with a frequency-dependent reflection coefficient $\Gamma \left(f\right)$(see Figure 7). Both waves are generated at x = 0 μm and at the time instant t = 0 ps. The waves and the parameters of the gain medium are as given below:

$$\begin{gathered} E_{hp}\left(x=0\mu m,t\right)={\sum }_{i=1}^3{A}_i\cos \left(2\pi f_{i}t+{\psi }_i\right)\left(u\left(t\right)- u\left(t-\Delta T_i\right)\right) \\ \left(u\left(t\right):Unit step function\right) \end{gathered}$$

$$\mathrm{where} A_1=1.5\times {10}^8, A_2=2\times {10}^8, A_3=2.5\times {10}^8, \Delta T_1=4ps, \Delta T_2=2ps, \Delta T_2=1ps$$

$$E_{st}\left(x=0\mu m,t\right)=1\times \sin \left(2\pi \left(3\times {10}^{14}\right)t\right) V/m, for 0\le t\le 40ps$$

$$Dielectric constant of the gain medium= {\epsilon }_{\infty }=1+\chi =10 ({\mu }_r=1)$$

$$Resonance frequency of the gain medium: f_0=600THz$$

$$Damping rate of the gain medium: \gamma =1\times {10}^{10}Hz$$

$$Duration of simulation: 0\le t\le 40ps; Range of the gain medium:0\mu m<x<10\mu m$$

$$Right cavity wall location: x=10\mu m; Left cavity wall location: x=0\mu m$$

$$Electron density of the medium: N=3.5\times {10}^{28}/m^3; Atomic diameter :d=0.3 nm$$

Our problem: Find the optimal pump wave pulse frequencies $f_{p1}, f_{p2}, f_{p3}$ that maximize the magnitude of the monochromatic stimulus wave in the cavity ($\left|E_{st}\left( f_{st}=300THz\right)\right|$), for 50 THz <$\{f_{p1},f_{p2}, f_{p3}\}<500 THz$, $0\mu m<x<10\mu m,0\le t\le 40 ps$, such that

$${\nabla }^2{E}_{hp}\left(f_{p1}, f_{p2}, f_{p3}\right)-{\mu }_0{\epsilon }_{\infty }\frac{{\partial }^2{E}_{hp}\left(f_{p1}, f_{p2}, f_{p3}\right)}{\partial t^2}={\mu }_0\sigma \frac{\partial E_{hp}\left(f_{p1}, f_{p2}, f_{p3}\right)}{\partial t}+{\mu }_0\frac{{\partial }^2{P}_{hp}}{\partial t^2}$$

$$\frac{{\partial }^2{P}_{hp}}{\partial t^2}+\gamma \frac{\partial P_{hp}}{\partial t}+{\omega }_0{}^2\left(P_{hp}\right)-\frac{{\omega }_0{}^2}{Ned}{\left(P_{hp}\right)}^2-\frac{{\omega }_0{}^2}{N^2{e}^2{d}^2}{\left(P_{hp}\right)}^3=\frac{N{e}^2}{m}{E}_{hp}\left(f_{p1}, f_{p2}, f_{p3}\right).$$

$${\nabla }^2{E}_{st}\left(f_{p1}, f_{p2}, f_{p3}\right)-{\mu }_0{\epsilon }_{\infty }\frac{{\partial }^2{E}_{st}\left(f_{p1}, f_{p2}, f_{p3}\right)}{\partial t^2}={\mu }_0\sigma \frac{\partial E_{st}\left(f_{p1}, f_{p2}, f_{p3}\right)}{\partial t}+{\mu }_0\frac{{\partial }^2{P}_{st}}{\partial t^2}$$

$$\frac{{\partial }^2\left(P_{st}\right)}{\partial t^2}+\gamma \frac{\partial \left(P_{st}\right)}{\partial t}+{\omega }_0{}^2\left(P_{st}\right)-\frac{{\omega }_0{}^2}{Ned}\left\{P_{st}{}^2+2P_{st}{P}_{hp}\right\}-\frac{{\omega }_0{}^2}{N^2{e}^2{d}^2}\left\{P_{st}{}^3+3P_{st}{}^2{P}_{hp}+3P_{st}{P}_{hp}{}^2\right\}=\frac{N{e}^2}{m}{E}_{st}\left(f_{p1}, f_{p2}, f_{p3}\right)$$

It is important to emphasize that our aim is to maximize the magnitude of the stimulus wave at its original frequency $f_{st}=300 THz$ (monochromatic form). This is a precaution against any degree of spectral broadening that the stimulus wave may go through while being amplified. A plain attempt to maximize the magnitude of the stimulus wave ($\left|E_{st}\right|$) independent of the original excitation frequency ($f_{st}$), may result in an amplified stimulus wave with different frequency components. In fact, these different frequency components might be even much more dominant than the original excitation frequency of the stimulus wave. Therefore, our cost function is chosen as (at any spatial point $x=x^{\prime }$)

$$\begin{array}{ll}Q=& \left|E_{st}\left(f_{st}=300THz\right)\right|\\ & =\left|{{\displaystyle \int }}_{3\times {10}^{14}-\Delta f}^{3\times {10}^{14}+\Delta f}\left\{{{\displaystyle \int }}_0^{\Delta T}\{E_{st}\left(x=x^{\prime },t\right)e^{-i\left(2\pi \Omega \right)t}\}dt\right\}{e}^{i\left(2\pi \Omega \right)t}d\Omega \right|\end{array}$$

$$where \Delta T=40ps, 0\le t\le 40ps, \left(3\times {10}^{14}-\Delta f\right)<\Omega <\left(3\times {10}^{14}+\Delta f\right), \Delta f=0.5THz$$

Initial conditions:

$$P_{hp}\left(x,0\right)=P_{hp}{}^{\prime }\left(x,0\right)=E_{hp}\left(x,0\right)=E_{hp}{}^{\prime }\left(x,0\right)=P_{st}\left(x,0\right)=P_{st}{}^{\prime }\left(x,0\right)=E_{st}\left(x,0\right)=E_{st}{}^{\prime }\left(x,0\right)=0$$

Boundary and excitation conditions:

$$E_{hp}\left(x=0\mu m,t\right)={\displaystyle \sum }_{i=1}^3{A}_i\cos \left(2\pi f_{i}t+{\psi }_i\right)\left(u\left(t\right)- u\left(t-\Delta T_i\right)\right)$$

$$\mathrm{where} A_1=1.5\times {10}^8, A_2=2\times {10}^8, A_3=2.5\times {10}^8, \Delta T_1=4ps, \Delta T_2=2ps, \Delta T_2=1ps$$

$$\begin{array}{ll}{E}_{st}\left(x=0\mu m,t\right)& =1\times \frac{\sin \left(2\pi \left(3\times {10}^{14}\right)t\right) V}{m}, for 0\le t\\ & \le 40ps, E_{hp}\left(x=15\mu m,t\right)=E_{st}\left(x=15\mu m,t\right)=0 for 0<t\\ & <40ps\end{array}$$

Absorbing boundary condition (perfectly matched layer):

$$\sigma \left(x\right)=\left\{ \left(x-\left(L-\Delta \right)\right){\sigma }_0 , \left(L-\Delta \right)\le x<L \right\}, for L=15\mu m, \Delta =2.5\mu m, {\sigma }_0=4.5\times {10}^{8}S/m$$

Optical isolator condition: full reflection at $\mathrm{x}=0\mathsf{\mu }\mathrm{m}$; $\Gamma \left(x=0\mu m,t\right)=1\left(Reflection coefficient= 1\right)$

Optical bandpass filter condition: frequency-dependent reflection at $\mathrm{x}=10\mathsf{\mu }\mathrm{m}$;

$$\left|\Gamma \left(f^{\prime }\right)\right|=1-e^{-{(\frac{\left(f^{\prime }-300THz\right)}{\sqrt{2}THz})}^2} , for x=10\mu m, 0<t<40ps$$

Augmented cost function to be maximized:

$$\begin{array}{ll}Q\left(f_{p1},f_{p2}, f_{p3}\right)& =\left|E_{st}\left(f_{st}=300THz\right)\right|\\ & -{\displaystyle \sum }_{i=1}^3\{{\delta }_{i,1}{\left(f_{p,i}-f_{max}\right)}^2+{\delta }_{i,2}{\left(f_{min}-f_{p,i}\right)}^2\}\end{array}$$

$$\begin{gathered} {\delta }_{i,1}=\left\{\begin{array}{c}0 if f_{p,i}\le f_{max}\\ \frac{\left|E_{st}\left(f_{st}=300THz\right)\right|}{{10}^{27}} if f_{p,i}>f_{max}\end{array}\right\}, {\delta }_{i,2}= \\ \left\{\begin{array}{c}0 if f_{p,i}\ge f_{min}\\ \frac{\left|E_{st}\left(f_{st}=300THz\right)\right|}{{10}^{27}} if f_{p,i}<f_{min}\end{array}\right\} \end{gathered}$$

Optimization algorithm (BFGS):

$$Set {\mathit{H}}_{\mathbf{1}}=\left[\begin{array}{ccc}1& 0& 0\\ 0& 1& 0\\ 0& 0& 1\end{array}\right], f_{p1,0}=200THz, f_{p1,1}=205THz$$

$$f_{p2,0}=150THz, f_{p2,1}=153THz, f_{p3,0}=100THz, f_{p3,1}=102THz, {\alpha }_1=0.5$$

$$\nabla {\mathit{Q}}_k=\left[\begin{array}{c}\frac{Q\left(f_{p1,k}, f_{p2,k}, f_{p3,k}\right)-Q\left(f_{p1,k-1}, f_{p2,k}, f_{p3,k}\right)}{f_{p1,k}-f_{p1,k-1}}\\ \frac{Q\left(f_{p1,k}, f_{p2,k}, f_{p3,k}\right)-Q\left(f_{p1,k}, f_{p2,k-1}, f_{p3,k}\right)}{f_{p2,k}-f_{p2,k-1}}\\ \frac{Q\left(f_{p1,k}, f_{p2,k}, f_{p3,k}\right)-Q\left(f_{p1,k}, f_{p2,k}, f_{p3,k-1}\right)}{f_{p3,k}-f_{p3,k-1}}\end{array}\right]$$

$${\mathit{p}}_k=- {\mathit{H}}_k\nabla {\mathit{Q}}_k, {\mathit{f}}_{p, k+1}={\mathit{f}}_{p,k}+{\alpha }_k{\mathit{p}}_k, {\mathit{f}}_{p,k}=\left[\begin{array}{c}\begin{array}{c}{f}_{p1,k}\\ f_{p2,k}\end{array}\\ f_{p3,k}\end{array}\right], {\mathit{s}}_k={\mathit{f}}_{p,k+1}-{\mathit{f}}_{p,k}$$

$$\nabla {\mathit{Q}}_{k+1}=\left[\begin{array}{c}\frac{Q\left(f_{p1,k+1}, f_{p2,k}, f_{p3,k}\right)-Q\left(f_{p1,k}, f_{p2,k}, f_{p3,k}\right)}{f_{p1,k+1}-f_{p1,k}}\\ \frac{Q\left(f_{p1,k}, f_{p2,k+1}, f_{p3,k}\right)-Q\left(f_{p1,k}, f_{p2,k}, f_{p3,k}\right)}{f_{p2,k+1}-f_{p2,k}}\\ \frac{Q\left(f_{p1,k}, f_{p2}, f_{p3,k+1}\right)-Q\left(f_{p1,k}, f_{p2,k}, f_{p3,k}\right)}{f_{p3,k+1}-f_{p3,k}}\end{array}\right]$$

$${\mathit{y}}_k=\nabla {\mathit{Q}}_{k+1}-\nabla {\mathit{Q}}_k {\rho }_k=\frac{1}{{\mathit{y}}_{\mathit{k}}{}^{\mathit{T}}{\mathit{s}}_{\mathit{k}}}$$

$$BFGS update {\mathit{H}}_{k+1}=\left(\mathit{I}-{\rho }_k{\mathit{s}}_k{\mathit{y}}_k{}^T\right){\mathit{H}}_k\left(\mathit{I}-{\rho }_k{\mathit{y}}_k{\mathit{s}}_k{}^T\right)+{\rho }_k{\mathit{s}}_k{\mathit{s}}_k{}^T$$

$$\mathit{I}:Identity matrix$$

In order to satisfy the Wolfe conditions, the step size at each iteration is chosen as:

$${\alpha }_k=C^{( \log \left|\frac{Q\left({\mathit{f}}_{\mathit{p},\mathit{k}}\right)}{Q\left({\mathit{f}}_{\mathit{p},\mathit{k}}\right)-Q\left({\mathit{f}}_{\mathit{p},\mathit{k}-\mathbf{1}}\right)}\right| ) / ( \left|\frac{Q\left({\mathit{f}}_{\mathit{p},\mathit{k}}\right)}{Q\left({\mathit{f}}_{\mathit{p},\mathit{k}}\right)-Q\left({\mathit{f}}_{\mathit{p},\mathit{k}-\mathbf{1}}\right)}\right| )}$$

where $C$ is just a constant ($1<C<1.5$) and ${\alpha }_k$ is the step size at iteration k. In this simulation C = 1.45. Based on the above formulations, the maximum stimulus wave amplitude that has been reached in the cavity (for 0 < t < 40 ps) is determined as $Gai{n}_{max}={\left|E_{st}\left(f_{st}=300THz\right)\right|}_{max}=6.34\times {10}^{8}V/m$, which corresponds to the frequencies $f_{p1}=290.8THz,f_{p2}=410.6THz,f_{p3}=209.7THz$ (see

Table 2. BFGS algorithm-based optimization process.

$\mathit{G}\mathit{a}\mathit{i}{\mathit{n}}_{\mathit{m}\mathit{a}\mathit{x}}$	${\mathit{f}}_{\mathit{p}1}$	${\mathit{f}}_{\mathit{p}2}$	${\mathit{f}}_{\mathit{p}3}$	${\mathit{W}}_{\mathit{e},\mathit{p}} (\frac{\mathit{J}}{{\mathit{m}}^3})$	${\mathit{P}}_{\mathit{p}\mathit{u}\mathit{m}\mathit{p}}(\frac{\mathit{C}}{{\mathit{m}}^2})$	k (Iteration #)
2.84	200 THz	150 THz	100 THz	$1.41\times {10}^7$	0.07	1
5.47	205 THz	153Hz	102 THz	$1.32\times {10}^7$	0.09	2
4.43	216.2 THz	165.4 THz	115.1 THz	$2.13\times {10}^7$	0.06	5
9.28	239.5 THz	189.8 THz	133.5 THz	$3.76\times {10}^7$	0.08	8
57.78	297.2 THz	228.3 THz	168.8 THz	$6.61\times {10}^7$	0.09	11
129.51	296.0 THz	344.1 THz	159.2 THz	$6.18\times {10}^7$	0.10	14
396.63	284.1 THz	392.0 THz	202.5 THz	$7.98\times {10}^7$	0.10	17
3049.7	287.6 THz	399.3 THz	204.6 THz	$8.53\times {10}^7$	0.12	20
$4.2\times {10}^4$	289.6 THz	403.4 THz	206.1 THz	$1.07\times {10}^8$	0.17	23
$7.6\times {10}^5$	290.7 THz	408.7 THz	208.9 THz	$1.72\times {10}^8$	0.19	26
$1.4\times {10}^7$	291.9 THz	410.2 THz	209.4 THz	$1.49\times {10}^8$	0.23	31
$2.9\times {10}^8$	291.1 THz	410.8 THz	209.9 THz	$2.36\times {10}^8$	0.22	34
$6.3\times {10}^8$	290.8 THz	410.6 THz	209.7 THz	$2.94\times {10}^8$	0.23	36

), or to the free-space wavelengths ${\lambda }_{p1}=1.032\mathsf{\mu }\mathrm{m},{\lambda }_{p2}=0.731\mu m,{\lambda }_{p3}=1.431\mu m$ as the ultrashort pulses can be practically generated outside the resonator. In this simulation, the gain factor of the amplification is defined as:

$$\begin{array}{ll}Gai{n}_{max}& ={\left|E_{st}\left( f_{st}=300THz\right)\right|}_{max}\\ & =\frac{Amplitude of the stimulus wave at t=t_{max} for x=x^{\prime }}{Amplitude of the stimulus wave at t=0 for x=x^{\prime }}\end{array}$$

where $x^{\prime }$ is chosen as an intra-cavity point $(x^{\prime }=5\mu m)$ and $t_{max}=40picoseconds.$

$$W_{e,p}=Stored electric energy density via pump wave=\frac{1}{2}{\epsilon }_{\infty }{E}_{pump}{}^2+\frac{1}{2}{E}_{pump}{P}_{pump}. \left(\frac{Joules}{m^3}\right)$$

$$P_{pump}: Polarization density created by the pump wave\left(\frac{Coulomb}{m^2}\right)$$

$$E_{pump}:Pump wave electric field intensity, {\epsilon }_{\infty }:Background permittivity$$

As we can see from Table 2, the optimal ultrashort pulse frequencies correspond to a very high stored electric energy density and a high polarization density. If we have a look at Table 2, we can see that the stored electric energy density and the polarization density must be simultaneously high for a significant stimulus wave amplification. The stored electric energy density indicates the achievable order of stimulus wave amplification. The polarization density serves as an energy-coupling coefficient and is a measure of the stored electric energy that can be coupled to the stimulus wave.

7. Verification of Our Computational Model

Our numerical model is verified by using the experimentally validated formulas of the topics sum frequency generation via non-linear wave mixing and optical amplification via non-linear wave mixing as described in the examples below.

Example 1.

Sum frequency generation via non-linear wave mixing (frequency up-conversion)

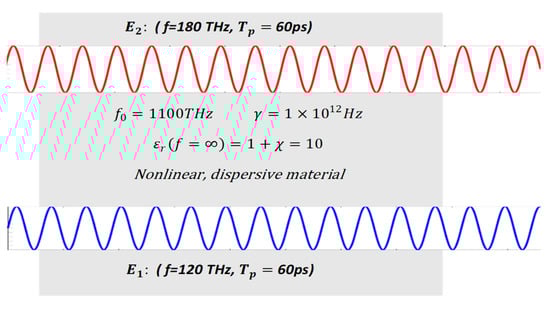

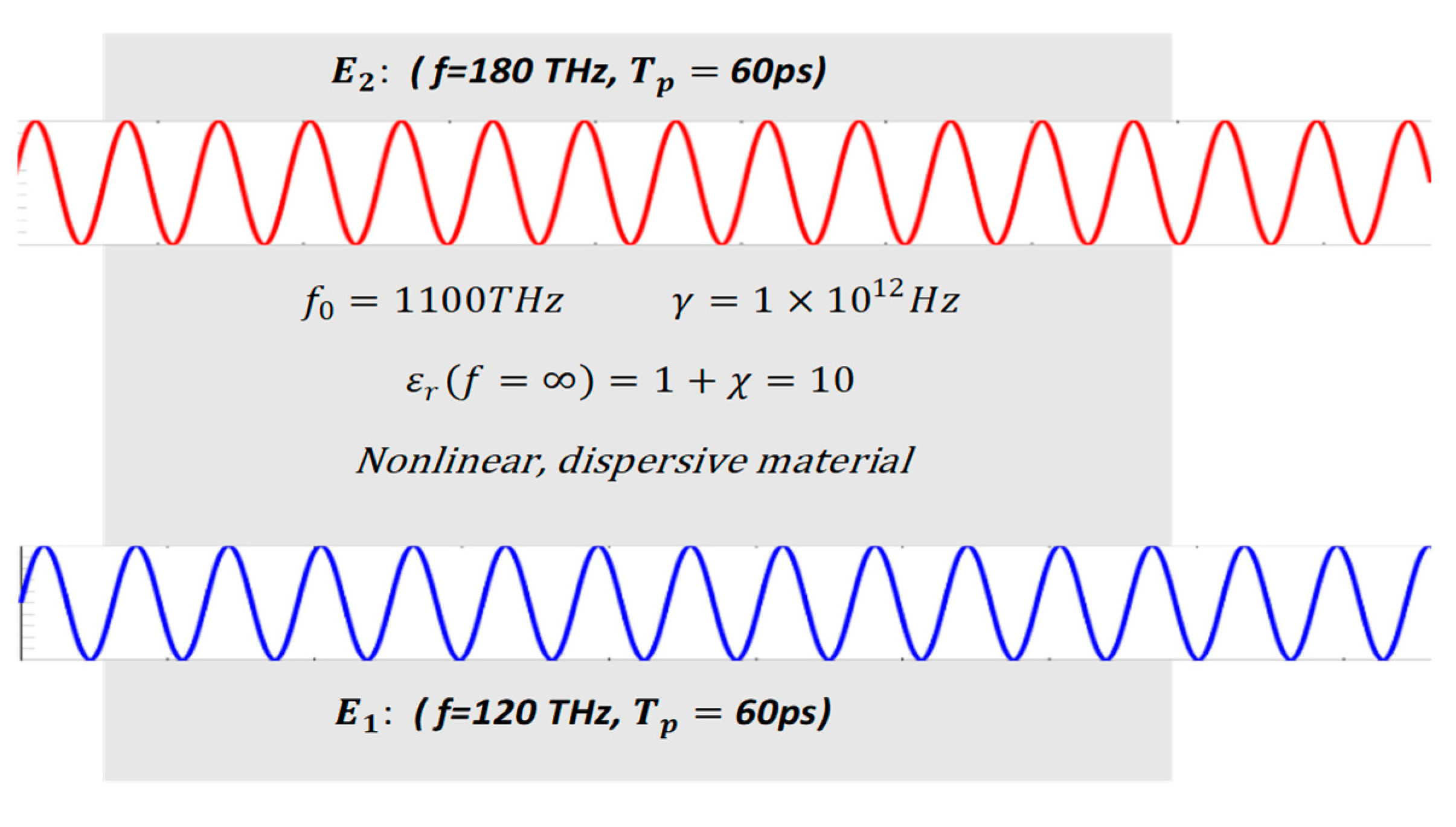

This example is about the generation of a higher frequency component$\left({\omega }_3\right)$, by mixing of two monochromatic waves with frequencies${\omega }_1$and${\omega }_2$via non-linear coupling, such that${\omega }_3={\omega }_2+{\omega }_1$.

The pump wave ${\mathit{E}}_{\mathbf{2}}$ is originated at x = 2.5 μm, with an amplitude of $A_2$ V/m and a frequency of 180 THz.

$${\mathit{E}}_{\mathbf{2}}\left(x=2.5\mu m,t\right)=A_2\times \sin \left(2\pi \left(1.8\times {10}^{14}\right)t+{\phi }_2\right) V/m$$

The input wave ${\mathit{E}}_{\mathbf{1}}$ is originated at x = 2.5 μm, with an amplitude of $A_1$ V/m and a frequency of 120 THz (see Figure 8).

$${\mathit{E}}_{\mathbf{1}}\left(x=2.5\mu m,t\right)=A_1\times \sin \left(2\pi \left(1.2\times {10}^{14}\right)t+{\phi }_1\right) V/m (assume {\phi }_1=0, {\phi }_2=0 )$$

$$Spatial and temporal simulation parameters 0\le x\le 10\mu m, 0\le t\le 60ps$$

$$Resonance frequency of the medium: f_0=1.1\times {10}^{15}Hz$$

$$Damping rate of the medium: \gamma =1\times {10}^{12}Hz$$

$$Dielectric coefficient of the medium \left({\epsilon }_{\infty }\right)=1+\chi =10 ({\mu }_r=1)$$

$$Left PML \left(left absorption layer\right) is from x=0 to x=2.25\mu m$$

$$Right PML \left(right absorption layer\right) is from x=7.75\mu m to x=10\mu m$$

The experimentally verified theoretical formula for frequency up-conversion efficiency is given as [1,4]

$$\begin{gathered} {\mathsf{\eta }}_{theoretical} =\frac{{\omega }_3}{{\omega }_2}{( \sin \sqrt{2d^2{n}^3{\omega }_3{}^2\left(cn{\epsilon }_0{A}_2{}^2\right)L^2} )}^{ 2}=\frac{{\omega }_3}{{\omega }_2}{( \sin \sqrt{2d^2{n}^4{\omega }_3{}^{2}c{\epsilon }_0{A}_2{}^2{L}^2} )}^{ 2} \\ {\omega }_2=Frequency of the pump wave , {\omega }_1=Frequency of the input wave \\ d= \mathit{Material} \mathit{non-linearity} \mathit{coefficient}, n= \mathit{Refractive} \mathit{index} \\ {A}_2=\mathit{Pump} \mathit{wave} \mathit{amplitude} A_1= \mathit{Input} \mathit{wave} \mathit{amplitude}, L= \mathit{Length} \mathit{of} \mathit{the} \mathit{non-linear} \mathit{media} \\ {\omega }_3={\omega }_1+{\omega }_2=Frequency of the upconverted wave \end{gathered}$$

(20)

Our computational model, which is based on the non-linear electron motion equation, is implemented via FDTD discretization. Coupled with the wave equation, the total wave $E=E_1+E_2$ is computed from:

$$\frac{E\left(i+1,j\right)-2E\left(i,j\right)+E\left(i-1,j\right)}{\Delta x^2}-{\mu }_0{\epsilon }_{\infty }\left(i,j\right)\frac{E\left(i,j+1\right)-2E\left(i,j\right)+E\left(i,j-1\right)}{\Delta t^2}={\mu }_0\sigma \left(i,j\right)\frac{E\left(i,j\right)-E\left(i,j-1\right)}{\Delta t}+{\mu }_0\frac{P\left(i,j+1\right)-2P\left(i,j\right)+P\left(i,j-1\right)}{\Delta t^2}.$$

(21a)

$$\frac{P\left(i,j+1\right)-2P\left(i,j\right)+P\left(i,j-1\right)}{\Delta t^2}+\gamma \frac{P\left(i,j\right)-P\left(i,j-1\right)}{\Delta t}+{\omega }_0{}^2\left(P\left(i,j\right)\right)-\frac{{\omega }_0{}^2}{Ned}{\left(P\left(i,j\right)\right)}^2-\frac{{\omega }_0{}^2}{N^2{e}^2{d}^2}{\left(P\left(i,j\right)\right)}^3=\frac{N{e}^2}{m}\left(E\left(i,j\right)\right).$$

(21b)

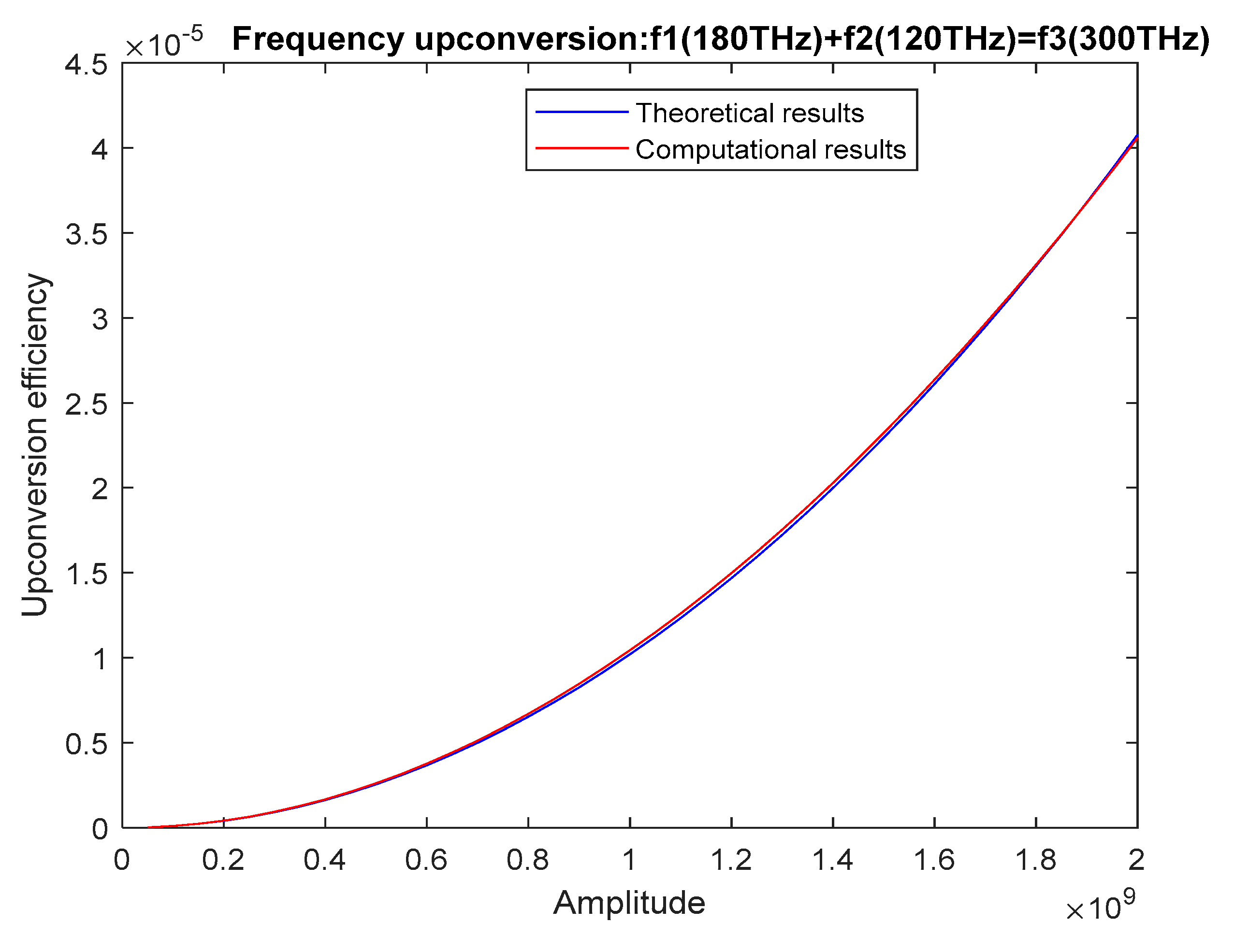

For a time interval of $0\le t\le t_{max}$, the computational formula for frequency up-conversion efficiency is:

$${\mathsf{\eta }}_{computational} =\frac{\mathrm{Intensity} \mathrm{of} \mathrm{the} {\omega }_3 \mathrm{frequency} \mathrm{component} \mathrm{of} \mathrm{the} \mathrm{total} \mathrm{wave} \mathrm{at} \mathrm{t}=t_{max}}{\mathrm{Intensity} \mathrm{of} \mathrm{the} {\omega }_2 \mathrm{frequency} \mathrm{component} \mathrm{of} \mathrm{the} \mathrm{total} \mathrm{wave} \mathrm{at} \mathrm{t}=0}$$

(22)

In this example, we have used the following values for each efficiency formula:

$${\omega }_2=\left(2\pi \times 180\right)THz,{\omega }_1=\left(2\pi \times 120\right)THz$$

L = length of the interaction media = 3.33 $\mu m$ (from x = 3.33 $\mu m$ to 6.66 $\mu m$)

${\omega }_3=frequency of the upconverted wave=2\pi \times 300THz$, n=$Refractive index=\sqrt{10}$

d = material non-linearity coefficient = $6.3\times {10}^{-22}$ (The theoretical and the computational results agree for this value of d for a sample pump wave amplitude of $A_2={10}^{9}V/m$ (see Figure 9). Our aim is to see if the results also agree for all the other pump wave amplitudes for this value of d)

$A_2$ = pump wave amplitude (varied from $5\times {10}^{7}V/mto 2\times {10}^{9}V/m$)

$A_1$ = input wave amplitude = $A_2/100$ ($A_1\ll A_2)$

Example 2.

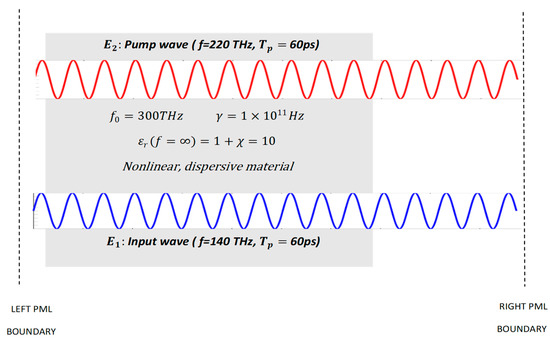

Optical amplification via non-linear wave mixing (parametric amplification).

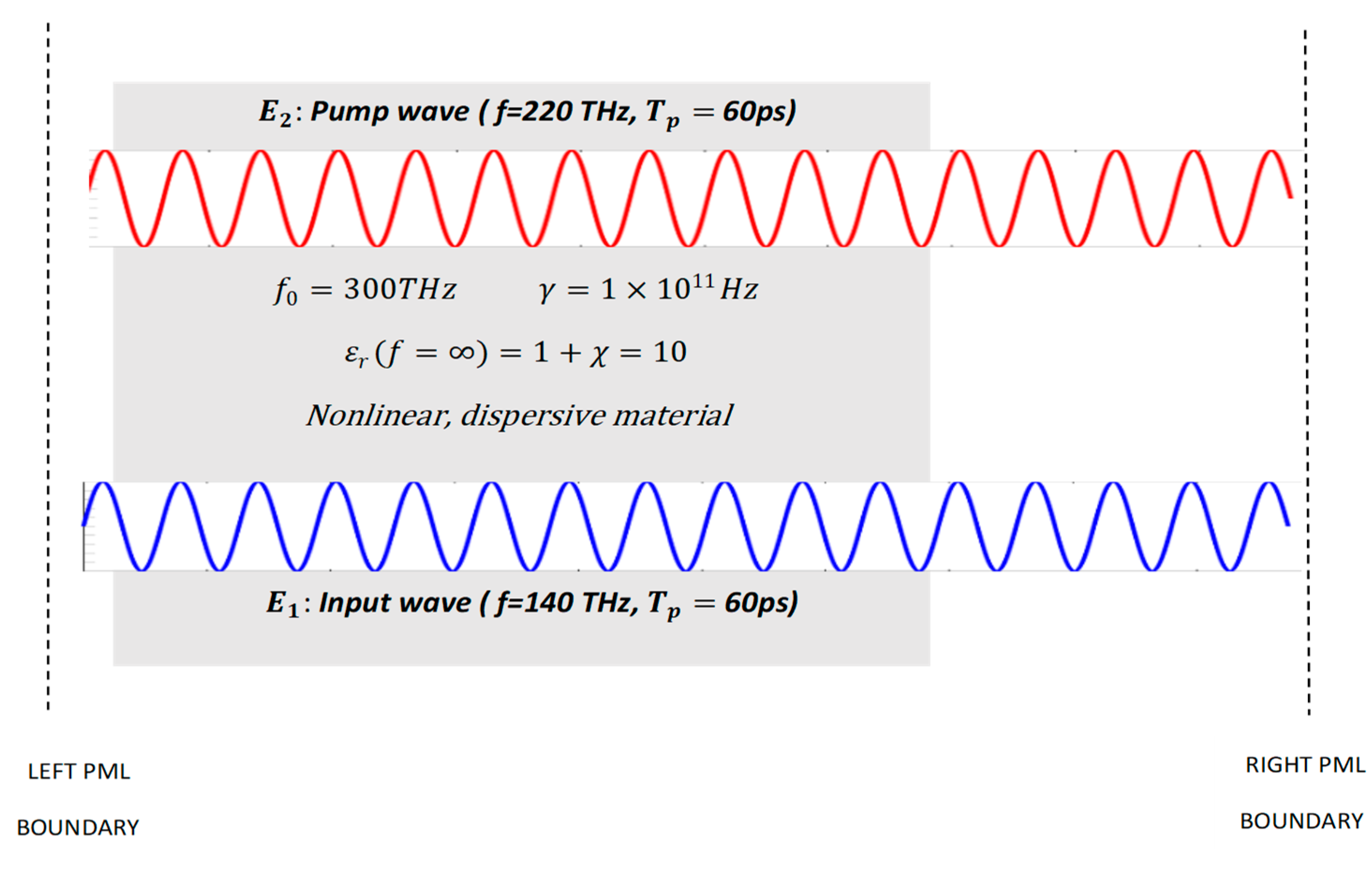

The high-intensity pump wave ${\mathit{E}}_{\mathbf{2}}$ is generated at x = 2.5 μm. It has an amplitude of $A_2$ V/m and a frequency of 220 THz.

$${\mathit{E}}_{\mathbf{2}}\left(x=2.5\mu m,t\right)=A_2\times \sin \left(2\pi \left(2.2\times {10}^{14}\right)t+{\phi }_2\right) V/m$$

The input wave ${\mathit{E}}_{\mathbf{1}}$ is generated at x = 2.5 μm. It has an amplitude of $A_1$ V/m and a frequency of 140 THz (see Figure 10)).

$${\mathit{E}}_{\mathbf{1}}\left(x=2.5\mu m,t\right)=A_1\times \sin \left(2\pi \left(1.4\times {10}^{14}\right)t+{\phi }_1\right) V/m (assume that {\phi }_1=0, {\phi }_2=0)$$

Range of independent simulation variables:$0\le x\le 13\mu m, 0\le t\le 60ps$

$Resonance frequency of the interaction medium: f_0=3\times {10}^{14}Hz$

$Damping coefficient of the interaction medium: \gamma =1\times {10}^{11}Hz$

$Dielectric constant of the interaction medium \left({\epsilon }_{\infty }\right)=1+\chi =10 ({\mu }_r=1)$

$Spatial range of the interaction medium: 4\mu m<x<9\mu m$

$Left perfectly matched layer \left(left absorption layer\right) is from x=0 to x=2.25\mu m$

$Right perfectly matched layer \left(right absorption layer\right) is from x=10.75\mu m to x=13\mu m$

Our goal is to amplify the input wave via energy coupling from the high-power pump wave. The computational results are obtained by solving (21a,b) and by computing the ratio of the spectral intensity of the input wave for $\omega ={\omega }_1$ at $\mathrm{t}=t_{max}$ to the input wave intensity for $\omega ={\omega }_1$ at $\mathrm{t}=0$:

$${ \mathsf{\eta }}_{computational} =\frac{\mathrm{Intensity} \mathrm{of} \mathrm{the} {\omega }_1 \mathrm{frequency} \mathrm{component} \mathrm{of} \mathrm{the} \mathrm{total} \mathrm{wave} \mathrm{at} \mathrm{t}=t_{max}}{\mathrm{Intensity} \mathrm{of} \mathrm{the} {\omega }_1 \mathrm{frequency} \mathrm{component} \mathrm{of} \mathrm{the} \mathrm{total} \mathrm{wave} \mathrm{at} \mathrm{t}=0}$$

(23)

The experimentally verified theoretical formula for parametric amplification, which is derived from the solution of the non-linear wave equation that is based on material non-linearity coefficient, is given as [1,4]:

$${\mathsf{\eta }}_{theoretical} ={\cos \mathrm{h}}^2\left(Ld\sqrt{{\omega }_1\left({\omega }_2-{\omega }_1\right){\eta }^3}\sqrt{0.5cn{\epsilon }_0{E}_{pump}{}^2}\right)$$

(24)

$$L:Length of the interaction medium=5\mu m, d:Nonlinearity coefficient=1.2\times {10}^{-21}C/V^2$$

$$\eta =Intrinsic impedance=119.2\Omega \left(ohm\right)$$

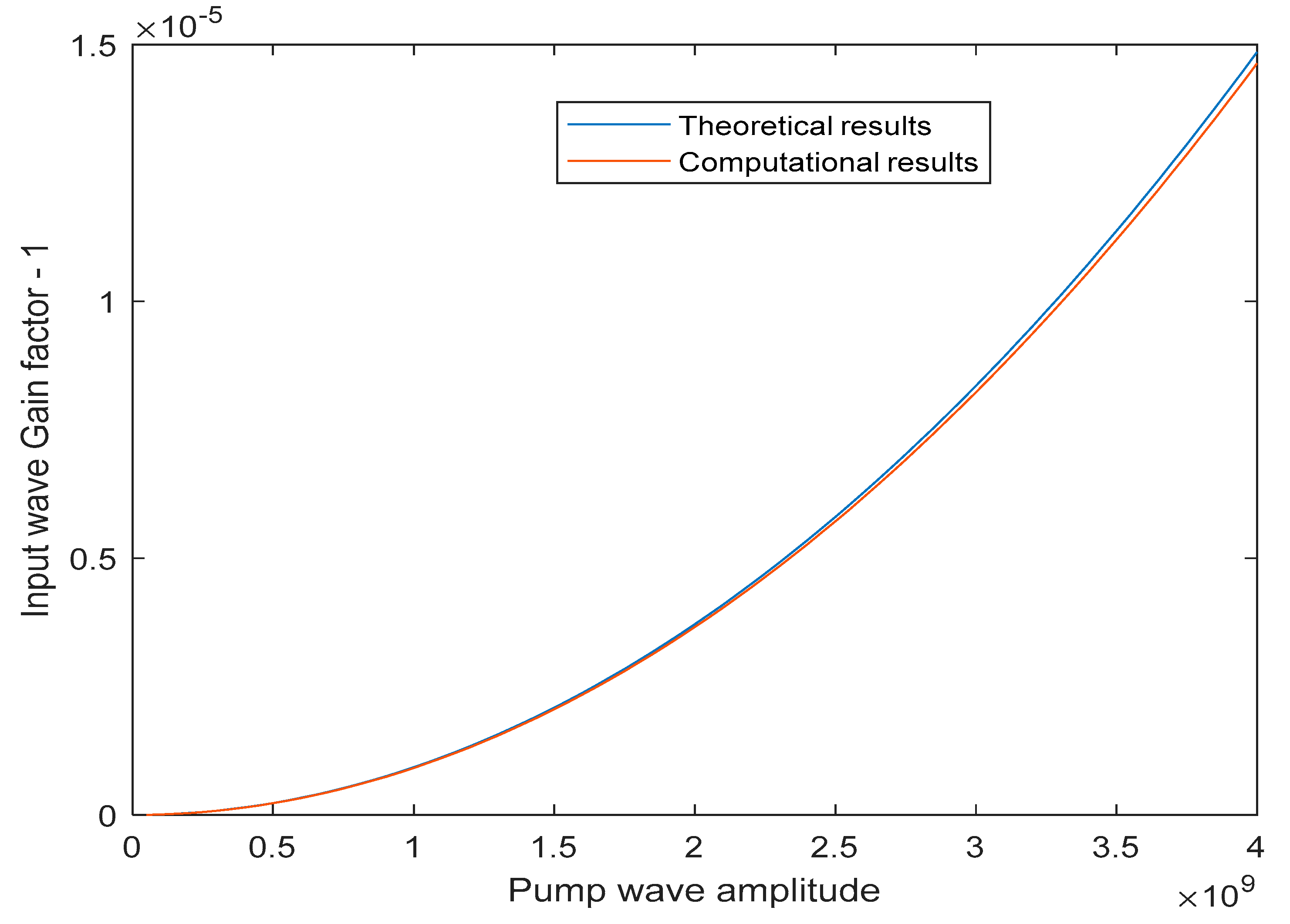

The resulting amplification of the input wave (gain factor) is plotted with respect to the pump wave amplitude based on both the theoretical and the computational formulations (see Figure 11). Notice that the gain factor increases quadratically with the pump wave amplitude. The resulting gain is quite small, as parametric amplification practically requires an interaction medium length on the order of centimeters [16,17,18,19,20], whereas in this example we have an interaction medium length of 5 μm.

8. Discussion

It is important to note that although the presented algorithm is very accurate in obtaining the highest gain factor and determining the optimal frequencies for the ultrashort pump wave pulses, the parameters of the gain medium may limit the maximum achievable gain factor. For example, in our presented numerical experiments, the background permittivity values were set as ${\epsilon }_{\infty }=10$ and ${\epsilon }_{\infty }=12$ respectively, these values correspond to the background permittivity of many solid dielectric media in the near infra-red and the visible frequency range. A very large gain factor is also achievable for smaller values of the background permittivity at the expense of a slight increase in ultrashort pump wave intensity to compensate for the decreased stored energy in the micro-resonator. Similarly, for a gain material with a higher background permittivity, the required pump wave intensity can be lowered in order to achieve the same gain factor. Another important parameter that heavily influences the gain factor is the polarization damping rate or simply the damping rate $\gamma$. A damping rate that is greater than $\gamma ={10}^{11}$ slows down the rate of amplification via non-linear wave mixing and results in a lower gain factor [21].

The frequencies of the ultrashort pump wave pulses can be practically tuned from the far IR (infrared) range to the near UV (ultraviolet) range. Commercial IR laser sources such as the Neodymium-YAG laser, or the Helium-Neon laser can be used in the near IR range and also in the visible range via frequency doubling. A visible laser light can be used in combination with a near IR laser light to generate a UV laser light via the process of sum frequency generation. A far IR laser light and even a THz laser light can be generated using two near IR laser lights of slightly different frequencies, through difference frequency generation process.

Optical amplification via non-linear wave mixing offers the advantage of wide-band amplification of a monochromatic stimulus wave, practically in a frequency interval ranging from the far IR to the near UV part of the spectrum [1,4,19]. Hence, the numerical algorithm presented in Figure 4, can be used to amplify a monochromatic stimulus wave of any frequency that lies between the far IR to the near UV part of the spectrum.

Our main aim in this article is to show that super-gain optical parametric amplification can be achieved in a simple fabry-perot type micro-resonator. For more complicated resonators including microring and microdisc resonators, the one-dimensional model presented in this article must be extended to a two-dimensional model. Our algorithm, which is presented in Figure 4, can be extended to a two-dimensional or a three-dimensional micro-resonator analysis using the technique that is presented in the article referenced in [22]. This article explains how, using FDTD, Maxwell’s 2-D and 3-D curl equations in vector form can be effectively stepped in time simultaneously with a system of auxiliary differential equations, in order to create an integrated model that is capable of accurately simulating a medium involving instantaneous non-linearity, dispersive non-linearity, and multiple linear dispersions. Concerning implementation, the Greene-Taflove algorithm given in [22] can easily be incorporated into our algorithm during the discretization of the equations via finite difference time domain method. Hence the algorithm presented in this article can be employed in the analysis of arbitrary-shaped 2-D and 3-D micro-resonators.

9. Conclusions

For high-gain stimulus wave amplification via non-linear coupling in a micro-resonator, a high stored energy and a high polarization density is required. In order to maximize the intracavity energy and the polarization density, for a given resonance frequency (${\mathrm{f}}_{0 })$, the frequencies of the high-intensity ultrashort pulses that comprise the pump wave must be tuned accordingly. This can be accomplished via a computationally cost-efficient optimization algorithm such as the quasi-Newton BFGS algorithm. The optimization algorithm must be embedded in the numerical discretization method by choosing the stimulus wave magnitude as the cost function and by modifying it according to the problem constraints.

If the optimal frequencies of the high-intensity ultrashort pulses are set, it is possible to amplify a low-intensity stimulus wave with a very large gain coefficient even inside a micrometer-scale resonator.
