Determination of the Magnetic Field Coordinates of BMM Sensors Under a Collapsed Rock Mass Array for Assessing Ore Body Contour Displacement

Abstract

This article analyzes the operating principle of the BMM sensor emitter in order to improve the accuracy of the wireless determination of the BMM sensor coordinates under a massif of destroyed rock in the context of the problem of determining the shift of rocks during gold ore mining. Using numerical simulations, FEM has been developed to develop digital models reflecting individual cases of the propagation of the magnetic field of the emitter located in various geological conditions and positions relative to the rock surface and the vertical axis. The accuracy of determining the coordinates of the radio beacon in the rock has been analyzed, and data on the deviation of the coordinates of the peaks of the magnetic field strength from the radio beacon axis have been obtained in cases of a heterogeneous composition of the rock massif, the influence of the deviation of the emitter axis angle from the vertical, the influence of the unevenness of the collapse relief, and the influence of the superposition of fields from different radiation sources. A study has been carried out to determine the direction of the radio beacon search based on the resulting vector of the emitter’s magnetic field strength.

1. Introduction

Blasting operations are a critical aspect of the mineral extraction cycle that facilitates rock fragmentation for easier ore excavation. However, they simultaneously exert significant and measurable impacts on ore grade control and variability (grade control). This occurs due to complex rock movement affecting post-blast processes [1,2]. Previous research on blast optimization [3,4,5] demonstrated that visual delineation between ore and waste becomes entirely indistinct after blasting, making grade control exceptionally challenging. While fragmentation remains the primary objective, blast-induced movement must be accounted for to improve the post-blast ore boundary definition, thereby reducing ore loss and dilution [1,6,7,8].

Quality control of valuable component extraction remains one of the most critical tasks in open-pit metal mining under conditions of heterogeneous mineral distribution in ore bodies. This task becomes particularly relevant when mining native gold, where ore grades can vary by orders of magnitude over distances of mere meters. Statistical methods with block models based on exploration drilling data are used to delineate boundaries between ore zones of different metal grades and waste material [9]. These models track the displacement of marked ore masses after drilling and blasting operations. The identified boundaries between ore and waste rock shift following bench blasting, rendering them inaccurate for guiding ore excavation lines. This rock displacement caused by blasting operations adversely affects ore–waste separation, leading to either misclassification of ore components into waste streams, resulting in valuable material losses, or incorrect delineation of ore quality boundaries, causing ore dilution. Such ore loss and dilution impose significant economic impacts on mining operations, as they directly reduce recovery rates during subsequent processing stages.

For the direct measurement of rock displacement caused by blasting in open-pit mines, various methods are implemented with varying success. These methods primarily rely on measuring rock displacement at several discrete locations within the blast area. The methods are divided into two types based on the devices used for measurement [2,10]:

-

Visual markers (sandbags, colored chains, colored pipes);

-

Remote sensing sensors.

The measuring devices are installed in surveyed locations within the rock mass prior to blasting, in special boreholes without explosives, and their new positions are determined after blasting. The vector between the pre- and post-blast positions of each sensor can be used to analyze the magnitude and direction of displacement at specific points caused by blasting. The primary drawback of visual markers is that the measuring devices may be lost beneath the crushed rock pile. For this reason, the results of the displacement of rocks after the explosion will not be available until the rock material is removed from the collapse by an excavator. This negates the meaning of rock displacement control, since after extraction, the possibility of selective transportation control is lost [11].

Unlike visual markers, remote sensing methods employ trackable sensors emitting electromagnetic signals. Such systems include transmitters in polymer casings placed in individual boreholes before blasting, with their coordinates localized after blasting using electromagnetic detectors. After obtaining the new sensor coordinates, the data are processed to determine the displacement vectors of specific points caused by blasting [12].

Detection of these sensors beneath the ore mass within the rock pile is performed along N-S- and W-E-oriented profiles. Registration occurs by detecting sensor fields at the surface using a magnetic antenna oriented strictly horizontally. Precise determination of new sensor coordinates is a critical task.

This article subsequently examines various factors introducing errors in coordinate determination for displacement sensors located within rock piles at depths up to 6 m. An assessment of coordinate determination errors will be performed using a digital model of the rock pile after blasting.

2. Materials and Methods

Determining changes in the coordinates of a rock displacement sensor involves locating its position in three-dimensional space beneath a layer of collapsed rock at depths up to 6 m. This allows the degree of sensor displacement in space to be established and rock movement to be approximated to define collapse boundaries. BMM sensors are identified using a low-frequency magnetic field at 50–80 kHz. The most suitable frequency for sensor detection is 66 kHz [13]. A low-frequency electromagnetic signal is preferred because the influence of electrophysical properties on it is significantly less than on high-frequency signals.

We conducted research on the choice of the frequency of the emitter current, and based on the experiments, the data were confirmed. Studies have shown that if frequencies below 50 kHz are used, it becomes necessary to increase the diameter of the coils and, accordingly, the size of the radiator coil. If you take a larger number of turns, then due to an increase in active resistance, the Q factor decreases and, accordingly, the magnitude of the magnetic field strength decreases. Thus, reducing the frequency leads to a need to increase the sensor size and power consumption. If we move toward a frequency above 70 kHz, the effect of surface current flow begins to appear. At frequencies close to 100 kHz, this effect turns out to be quite significant. This leads to inefficient use of the conductor cross-section and an increase in electrical resistance. The capacitance increases additionally, which leads to an increase in the loss power in the dielectric for its heating. For this reason, it is very difficult to raise the quality factor to an acceptable level. In this arrangement, it becomes necessary to use film capacitors, which are also associated with an increase in the size and weight of the sensor. Additionally, there is the problem of reducing the penetration of a high-frequency magnetic field through the rock. Thus, the most effective frequencies are in the range of 60–70 kHz, provided there is no powerful noise at the selected specific frequency.

The sensor signal is generated by a magnetic coil housed within a plastic casing [13,14,15]. The design of some rock displacement sensors includes a mechanism for orienting the transmitting antenna (coil) vertically. This effect is achieved by shifting the center of mass below the device’s central point. To reduce resistance between the device and the inner spherical housing, a gap filled with fluid (water or oil) is provided. Thus, the solenoid always orients vertically, which is critical for minimizing coordinate identification errors.

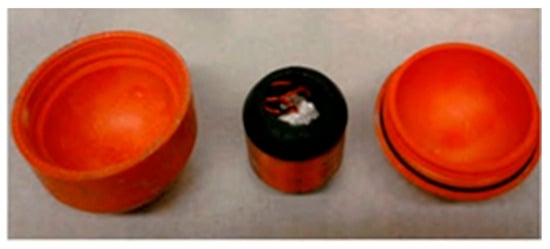

The sensor’s magnetic fields are generated by a magnetic coil (Figure 1) wound around a plastic housing containing a power cell and control board. This assembly is enclosed within a sphere or other-shaped casing immersed in a liquid medium, all housed within the sensor’s external spherical shell [16].

It should be noted that the use of a ferrite core to increase the magnetic field strength is complicated by the nature of the sensor operation in drilling and blasting operations. An explosion causes acceleration of several hundred g. Therefore, an increase in mass by several tens of grams increases the load on the housing and the entire structure to several kilograms. This creates the need to strengthen the housing and structural elements by increasing the strength several times. And the technology of monitoring the displacement of rock mass using BMM sensors is limited by the diameter of the wells and the labor intensity of their drilling. In addition, ferrite is a brittle material and often does not withstand dynamic loads. A destroyed core will lead to an unpredictable change in the magnetic field strength and a change in the vector of the magnetic field lines. Experiments have shown that to detect a magnetic field source at a great depth underground, the use of the frequency difference method is necessary and requires an accurate value of the emitter frequency with an error of no more than ± 35 Hz. Thus, in our opinion, the use of a ferrite core is not applicable to BMM sensors. The literature analysis also showed that BMM beacon designs with a ferrite core are not used in practice.

The magnetic field strength of the coil is determined by the following equation [17]:

$$H={\displaystyle \frac{I\cdot w}{l}},$$

(1)

where I is the current flowing through the coil;

w is the number of turns;

l is the coil length.

The magnetic induction parameter is determined by the following equation:

$$B={\displaystyle \frac{I\cdot w}{l}}\cdot {\mu }_0\cdot {\mu }_r,$$

(2)

where μ₀ = 4·π·10^–7 H/m is the magnetic constant;

μ_r is the relative magnetic permeability of the medium where the coil is located.

For a vertically oriented magnetic coil without a ferrite core, the induction at distance r is determined as follows [17]:

$$\left|B\right|={\displaystyle \frac{{\mu }_{0}wIS}{4\pi r^3}}\sqrt{1+{3\mathit{sin}}^2\theta }.$$

(3)

where r is the distance from the coil to the measurement point; S is the area of the coil turn; and θ is the angle between the normal n of the solenoid and the observation point P (in polar coordinates).

For detection, a receiving antenna (transponder) in the form of a magnetic loop is used, which registers the vertical magnetic field of a solenoid located inside the sensor. The general principle of distance measurement using magnetic transponders is presented through the analysis of the ratio of induction or signals from the radial and axial components of the magnetic field H or magnetic induction B, respectively. The accuracy of the method is achieved due to the fact that the attenuation dependencies of the magnetic induction vector B in space are inversely proportional to the cube of the distance and weakly depend on the absorbing properties of the rocks. In the polar coordinate system, the magnetic induction B value at a distance from the dipole can be written as follows [18]:

$$B_z={\displaystyle \frac{{\mu }_0{\rm M}}{2\pi r^3}}\mathit{cos}\theta ,$$

(4)

$$B_{\theta }={\displaystyle \frac{{\mu }_{0}M}{4\pi r^3}}\mathit{sin}\theta ,$$

(5)

B_φ = 0,

(6)

where M = w·I·S is the antenna’s magnetic moment.

The cubic dependence of the amplitude decay of the magnetic induction vector on distance results in a limited operational range of transmitters (radio beacons) and necessitates a wide dynamic range of signal amplitudes at the input of the transponder’s receiving path.

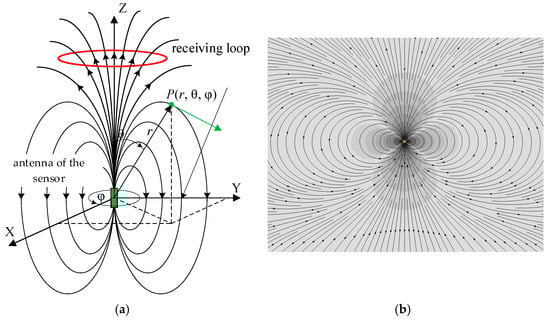

Figure 2a shows the magnetic induction lines in the near field. The magnetic induction vector B represents the vector sum of the radial (B_z) and axial (B_θ) components. Under quasi-stationary magnetic field conditions, all sources can be considered point-like. The coordinate determination scheme for the measurement point and the magnetic induction field lines of a dipole in the digital sensor model embedded in rock formations are shown in Figure 2b. The most stable magnetic field distribution is observed directly above the dipole, which is also utilized when searching for BMM sensors with vertical antenna orientation mechanisms [15,19].

The search for BMM sensors in a collapsed rock mass is performed by recording the axial component of the magnetic field. The method is based on zoning the surface of the rock collapse with a detector equipped with a loop receiving antenna. Probing is conducted along north–south- and west–east-oriented lines [19]. The coordinates of displaced sensors after a rock collapse are determined by the maximum of the axial component of the magnetic field. Modeling will allow two key parameters of the sensor search method under a rock mass to be evaluated:

-

The accuracy of coordinate determination on both flat surfaces and in models of heterogeneous rock debris piles;

-

The feasibility of an alternative method for detecting sensor fields without probing the search area via a grid using directional indications from the recorded axial and radial components.

Rock Analysis

When an electromagnetic field propagates through a continuous medium characterized by the physical properties of dielectric permittivity, magnetic permeability, and electrical conductivity, these parameters influence both the attenuation rate of its field strength with distance and the wavelength. The attenuation of the electromagnetic field in a continuous medium can be evaluated through the attenuation coefficient and wave number [20]:

$$\alpha =\sqrt{j\omega \mu \sigma },$$

(7)

$$k=\sqrt{{\displaystyle \frac{\omega \mu \sigma }{2}}}.$$

(8)

Thus, the instantaneous strength of the magnetic component of the wave incident on the air–rock interface varies according to the following law:

$${\dot{H}}_m={\dot{H}}_{\mathit{me}}{e}^{-\mathit{kz}}{e}^{-\mathit{jkz}},$$

(9)

where ${\dot{H}}_m$ is the instantaneous magnetic field strength of the electromagnetic field; ${\dot{H}}_{\mathit{me}}$ is the instantaneous magnetic field strength at the air/rock interface boundary; and z is the depth of wave penetration into the solid medium.

The physical properties of the medium also affect the wavelength of the electromagnetic field passing through it as follows:

$$\lambda =2\pi \sqrt{{\displaystyle \frac{2}{\omega \mu \sigma }}}=2\sqrt{\pi }{\displaystyle \frac{1}{\sqrt{f\mu \sigma }}}.$$

(10)

From this, it can be deduced that when propagating through rocks, the wavelength of the electromagnetic field decreases with increasing values of the rocks’ electrophysical properties.

BMM sensors are most actively used in gold deposit development, where distinguishing the gold content in ore is a critical parameter for improving the efficiency of mined raw material beneficiation. According to electrical exploration data from the Digo-Digo gold deposit (central Brazil), the specific electrical resistance of rocks with varying gold contents ranges from 20 to 7200 Ω·m, corresponding to a specific electrical conductivity of 0.05 to 1.38·10⁻⁴ S/m [21].

Gold-bearing ores are characterized by significant diversity in material and chemical composition [22]. The most common mineral in ores is quartz, with a content ranging from 10% to 90%. Additionally, ores contain iron sulfides (pyrite and marcasite), copper sulfide (chalcopyrite), as well as arsenic sulfides (arsenopyrite), lead sulfides (galena), and zinc sulfides (sphalerite). Ores contain various quantities of other non-sulfide minerals—oxides, carbonates, tourmalines, and magnetite. The host rocks for gold-bearing ores are granites, schists, and others.

If gold ore contains other non-ferrous metals in industrial concentrations, such ore is called gold-polymetallic, and its processing technology must include both gold extraction and the production of enriched non-ferrous metal concentrates. Based on the sulfide mineral content, gold-bearing ores are classified as low-sulfide (3–4% sulfides), medium-sulfide (4–10% sulfides), and sulfide (10–30% sulfides). The most frequently encountered are quartz–sulfide–gold ore deposits, which hold the greatest industrial significance. Sulfide ores typically occur as deposits, veins, and disseminated grains. In these ores, gold exists as finely dispersed and dust-like particles. Gold is extracted as a byproduct alongside copper, zinc, and pyrite concentrates. It should be noted that simple quartz ores, which are easily processed with straightforward gold extraction, have become extremely rare worldwide. Often, sulfides in ores exist in oxidized or semi-oxidized forms, leading to ore classification by the oxidation degree: primary (sulfide), partially oxidized (mixed), and oxidized. Oxidized ores contain significant quantities of iron oxides and other metal oxides. The varying mineral content in ores results in differing petrophysical properties that affect the effectiveness of determining ore displacement in rock piles after drilling and blasting operations (DBOs) using radio beacon movement monitoring.

The structure of rock masses differs significantly both vertically and horizontally within blocks intended for DBOs. Specifically, rock masses may contain lenses of rocks with substantially different metal contents, consequently possessing different physical properties affecting magnetic field propagation. For example, a rock lens with a high metal content will have higher electrical conductivity (σ). Alternatively, rock may exhibit high water saturation, containing groundwater with an elevated salt content. In this case, the rock will have significantly higher conductivity. To assess the influence of high-conductivity material lenses in rock masses or debris piles, several case studies were investigated using simulation modeling.

The magnetic permeability of rocks with a high metal content or rocks saturated with saline groundwater equals 1 S/m. This allows us to hypothesize about the influence of ore-specific conductivity on underground sensor detection errors. For modeling rock piles with varying gold contents, properties were selected within the ranges from [21], obtained through electrical exploration (

Table 1. Petrophysical properties of rocks for the model.

Name of Rocks	Electrical Conductivity σ, S/m	Relative Permittivity ε
wallrock	0.001	8
lean ore	0.005	10
medium ore	0.01	12
bucking ore	0.1	13

).

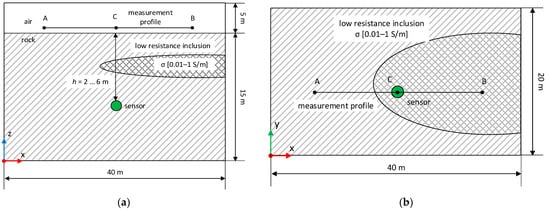

Figure 3 shows the schematic diagram of a rock block intended for drilling and blasting operations. To analyze the propagation of the magnetic field in rocks, digital models of radio beacons are used in the form of vertical magnetic dipoles in media with rock properties at depths of 2–6 m beneath a flat surface. In the homogeneous medium simulating rocks, the electrical conductivity parameter σ is varied within the range of 0.001–0.05 S/m to evaluate the influence of the medium on the magnetic field level at a sensor depth of 6 m. A low-resistance lens-shaped inclusion with a thickness of 1.5 m, located at a depth of 3 m and partially shielding the sensor field from the surface, is also added to the model. The conductivity of the layer is varied within the range of 0.01 to 1 S/m, simulating the electrical conductivity of ores with varying metal contents, as well as rocks saturated with groundwater containing high mineralization.

Our research has shown that the dielectric constant does not significantly change the magnetic field strength and practically does not affect the result. And the change in conductivity has to be taken into account, since it can vary up to 1000 times depending on the presence of flooding by saline groundwater and the presence of a large number of metallized conductive inclusions.

Figure 3 shows an example of the location of a lens of rock that differs in properties from the main massif. This case is the subject of this study.

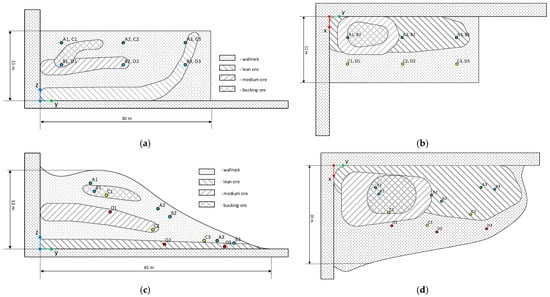

To analyze the influence of heterogeneous media on sensor coordinate measurement results, a model block of rocks and the corresponding rock debris pile (Figure 4) formed after explosion and rock collapse was created. The model contains a group of 6 sensors positioned under different environmental conditions within rock masses whose properties are shown in

Table 2. Coordinates of the positions of sensors in the rock collapse model.

Sensor Name	Coordinates, m
	X	Y
A1	6	12
B1	6.5	12.5
C1	12	14
D1	14	15
A2	6	27
B2	7	29
C2	13	26
D2	16	28
A3	5	40
B4	5.5	42
C5	10	39
D5	12	41

.

Initially, the sensors are placed over the surface area of the block in separate boreholes at least 2 m deep. In this case, a two-tier arrangement is used at two depths of 2 and 6 m, with two sensors in one borehole. This can be seen in the cross-section of the block (Figure 4a) and the plan view of the block (Figure 4b). According to the established technology, many enterprises place radio beacons evenly distributed over the surface area of the block since the movement of radio beacons does not show the exact movement of the rock, but the displacement vectors. After the explosion, a collapse is formed with a characteristic ditch along the solid walls and a gentle slope on the free side, as can be seen in the cross-section of the rock collapse (Figure 4c) and the top view of the rock collapse (Figure 4d).

The model undergoes the following tests:

-

Acquisition of the frequency response (f = 30…100 kHz) for a sensor located at 6 m depth, at a surface point directly above the sensor, for σ values ranging from 0.001 to 0.05 S/m;

-

Analysis of the maximum position of the axial magnetic field component under partial shielding by a low-resistance lens;

-

Measurement of magnetic field intensity characteristics and spatial distribution depending on depth;

-

Acquisition of vertical magnetic field distribution characteristics at the surface when rotating the magnetic dipole inside the sensor through angles α = [0°; 15°; 30°; 45°; 75°; and 90°].

The sensors are represented as magnetic dipoles within 100 mm diameter air spheres, with the coordinates specified in Table 2. Their placement simulates post-collapse positioning. The coordinate system origin in the computational model (Figure 4) is set at the corner between two intact rock walls formed after blasting operations and debris pile formation.

This computational model represents a specific case of multiple rock type distribution within a block, where materials exhibit varying metal contents and corresponding petrophysical properties. These rocks form lens-shaped structures within the debris pile. The model is designed to evaluate shielding effects on radio beacon localization accuracy, considering both surface relief variations and heterogeneity of rocks separating beacons from the debris pile surface.

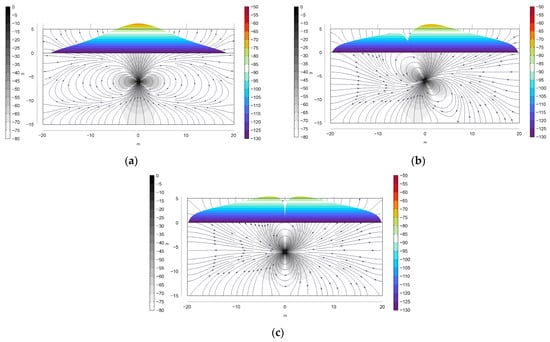

Simulating the distribution of the magnetic field in the heterogeneous environment of ore debris—both in terms of geometry and physical properties—requires substantial computational resources. To analyze these processes, the finite element method (FEM) is employed as one of the mathematical tools for numerically solving physical problems [23]. The finite element method is based on dividing the study area into mesh elements to solve the problem and approximating the derivatives of a function of one or several variables using its values at a discrete set of arguments of this function. The set of nodes forms a tetrahedral mesh into which the computational domain is partitioned as a three-dimensional model.

The simulation uses a static model. During drilling and blasting operations, the rock and sensors move and a quasi-liquid system exists for some time. However, modeling the process of searching for moving and unstable sensors cannot reflect the actual position of the sensors. Studies have shown that any deviation of the dipole axis from the vertical leads to a shift in the coordinates of the maximum signal on the collapse surface [24]. For this reason, waiting for the complete stabilization of the moving rock is necessary. In addition, in practice, it is not acceptable for people to be stationary and unstable on the ground.

In order to isolate overlapping peaks from several sources, the frequency separation method was applied during modeling. In practice, with a large number of sources, it is possible to use signal modulation.

3. Results

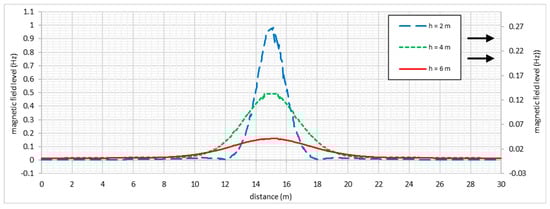

To analyze the magnetic field distribution along a profile above the surface (at 10 cm) of a model section simulating a rock mass, a 30 m-long linear profile was formed. The measurement profile was created as a segment A (−15; 0; 0.1 m)—B (15; 0; 0.1 m) passing directly above the sensor at point C (0; 0; 0.1 m). On a flat surface in a homogeneous space, the sensor coordinates are determined with high accuracy from the maximum of the axial component of the magnetic field (Figure 5). As the depth of the sensor increases, the field distribution becomes more uniform. This makes it more difficult to identify a distinct maximum, which may introduce additional errors.

To evaluate the error in determining the coordinates of the radio beacon in the presence of a low-resistance ore body or water-saturated rock of a specific shape (Figure 3), an analysis of the magnetic field shape was performed, and the coordinates of the magnetic field magnitude maxima were determined. As seen in Figure 6, the deviation of the coordinates of the magnetic field magnitude maximum does not exceed 5 cm in most cases. Thus, for rocks with industrial metal content in ores, this type of error can be neglected. Cases with a high metal content are characteristic of rich ores and rocks partially water-saturated with groundwater containing high salt concentrations. For such deposits, errors of this type may reach up to 20 cm and must be investigated individually for each specific deposit and each individual DBO blasthole block.

To determine the sensor depth, we propose using the RSSI method based on the predictable attenuation of the magnetic dipole field strength. The field strength is inversely proportional to the cube of the distance between the dipole and the measurement point. The error in determining horizontal coordinates with this method depends on the conductivity parameter, as the solid rock medium exhibits absorption properties during electromagnetic field propagation (1–3).

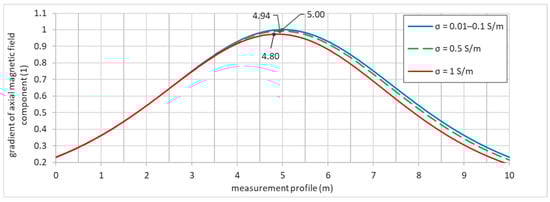

To assess the influence of coordinate measurement accuracy depending on the emitter wave frequency, a series of dependencies of magnetic field attenuation level versus distance (equal to the depth of the dipole sensor placement) were obtained from the analysis of a digital model block prior to blasting operations (Figure 7). The analysis was performed for frequencies of 30 and 100 kHz and conductivities of 0.001 and 1 S/m as limiting system parameters (Figure 7a). The plots demonstrate that frequency variation within this range does not show significant error in determining the sensor depth at such short distances. Consequently, any operating frequency within this range can be used, though 66 kHz is typically employed in practice. Conductivity changes introduce errors in distance determination via the signal level (Figure 7b). Specifically, increasing conductivity from 0.001 S/m to 0.1 S/m produces an absolute error reaching 14 cm at a 6 m distance. This may distort depth estimation results for sensor positioning.

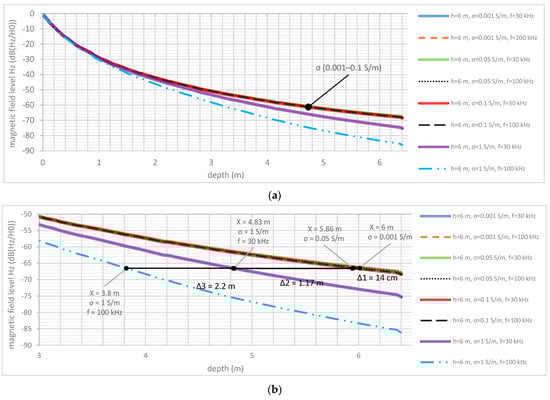

Additionally, the calculation results for rock conductivity of 1 S/m are shown here. For such cases, if there is a rock layer with conductivity of up to 1 S/m, the depth measurement data error can reach 1.17 m at a radiation frequency of 30 kHz. And the depth measurement data error can reach 2.2 m at a radiation frequency of 100 kHz. From here it is clear that a high radiation frequency is less effective. However, it is worth noting that when monitoring the displacement of radio beacons, their movement in depth is not of significant importance. Basically, horizontal displacement monitoring is performed in two coordinates.

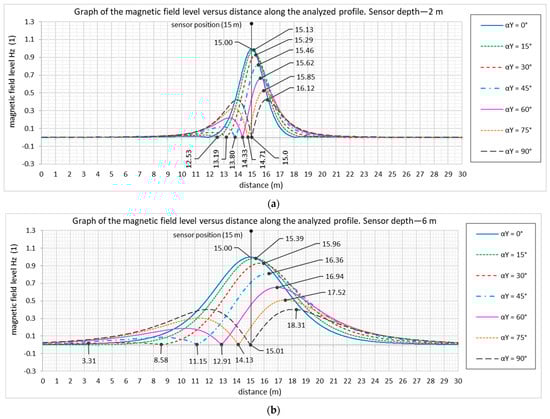

For cases where the transmitting antenna (radio beacon) is rotated relative to the vertical, as defined by the compensation mechanism of the sensor, the peak of the vertical component values of the magnetic field on the surface shifts. Figure 8 shows the distribution of the vertical component of the sensor’s magnetic field (depth h = 6 m) on the surface of the rock model. When α = 0°, the dipole is vertically oriented, and the axial component of the magnetic field also has a maximum directly above the sensor. When the antenna is rotated by 45°, the maximum values of the vertical component shift relative to the vertical Z-axis toward the X-axis. At a 90° rotation, the peaks of the magnetic field intensity in Hz are distributed in two zones with individual maxima, between which lies a minimum field level; the position of the latter corresponds to the sensor’s coordinates. When probing along the Y-axis under these conditions, the distribution of the magnetic field in Hz exhibits a different pattern.

As the obtained models show, when measuring only the vertical component and changing the position of the vertical axis of the radio beacon during the movement of rock masses, two peaks of magnetic field strength almost always arise. Consequently, determining the error in the displacement of coordinates along the horizontal surface of the magnetic strength peaks relative to the projection of the radio beacon’s coordinates onto this surface is necessary. This error Δ denotes the magnitude of the displacement of the highest peak point from the vertical line of the radio beacon’s position and can be determined by the following formula:

$$\mathrm{\Delta }={\displaystyle \frac{A}{r}}+B,$$

(11)

where A and B are coefficients depending on the rotation angle of the radio beacon axis, and r is the projection of the distance between the two peak points onto the horizontal plane. This expression is valid for cases where there are two distinct peaks of magnetic strength with different magnitudes from a single emitter.

Figure 9 graphically shows the magnitude of the displacement error of the point of maximum peak from the vertical position line of the radio beacon at different angles of deviation of the beacon’s axis from the vertical. Here, calculations were performed with finer angular discretization of the dipole axis rotation angle α for burial depths of 2 and 6 m. The figure demonstrates that the deviation of the coordinates of the maximum peak of magnetic field strength from the radio beacon increases with the rotation angle α. When the sensor is buried at a 2 m depth, this deviation can reach 1 m, while at a 6 m depth, the coordinate deviation can reach 3 m. It should also be noted that at greater burial depths, the peaks of magnetic field strength values become less pronounced, which may lead to errors in determining the coordinates of the intensity peaks.

4. Discussion

When analyzing the results, the coordinate determination errors on the ore debris pile were investigated. The models presented above for determining the magnetic field shape and calculating coordinate points for the block represent an ideal case and allow the visualization of the influence of specific factors. When modeling the debris pile, several factors inevitably arise. As seen in Figure 10, two peaks of magnetic field strength values appear for each radio beacon. This occurs because above the inclined surface, not only the central part of the magnetic field lines becomes apparent but also the lateral part. The magnitude of the vertical component maxima of the magnetic field strength from the lateral field lines of the emitter becomes comparable to that from the central field lines. For an observer detecting these field lines using a receiver, it becomes unclear which peak indicates the emitter’s location.

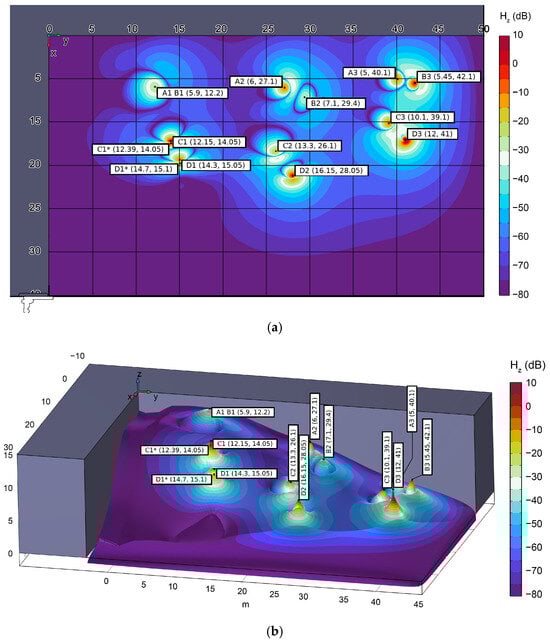

As shown in Figure 10, the field from each emitter forms a central maximum whose coordinates are close to the actual emitter coordinates in projection. Additionally, the central peak is encircled by a peak of field strength from lateral field lines. The peak from lateral field lines is always located downslope of the central peak on the debris pile (these are sensors C1* and D1*). This pattern can be observed, provided that the emitter dipole axis is strictly vertical.

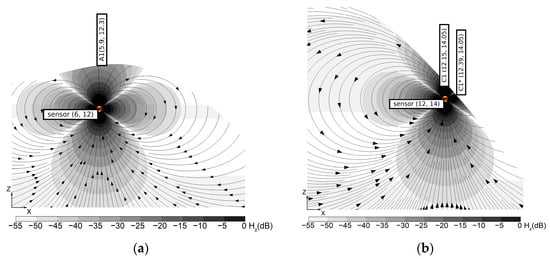

To clarify the essence of the problem, a cross-section was created (Figure 11). This shows two emitters. One is located near the summit of the debris pile (Sensor A2). The other is positioned on a steep slope (Sensor C1). Specifically for the second case (Figure 11b), two nearly equivalent peaks of magnetic field strength are typically observed. If it is known in advance that these two peaks belong to the magnetic field of a single emitter, identifying the false peak becomes straightforward. In real slope conditions, this conclusion can only be drawn from the fact that the false strength peak always lies lower on the slope. Thus, a rule for detecting false peaks must be formulated.

After detecting two peaks and confirming they belong to one emitter’s magnetic field, the coordinates of both peaks are determined. The lower peak on the slope is then identified and designated as false. The deviation of the primary peak from the true coordinates can be calculated using Formula (5). The distance r between the two peaks is determined on site as follows: the coordinates of both peaks are identified, the slope distance is measured, and its projection onto a horizontal surface is calculated. Coefficients A and B for a single drilling and blasting block depend solely on the slope surface angles relative to the horizon.

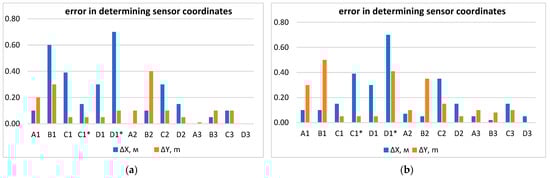

For this specific case, calculations were performed of the deviations of the coordinates of the main and false peaks of the magnetic field strength from the real coordinates of the emitter (Figure 12). In Figure 12a, the values correspond to the case where all emitters operate simultaneously. In Figure 12b, the values correspond to the case where all sensors operate separately in sequence. Values marked with an asterisk correspond to the coordinate deviations of false peaks C1* and D1*.

All calculated cases correspond to the precise vertical orientation of the emitter axes. Such orientation is achieved using a mechanism provided in the design of the radio beacons. If the system for aligning the orientation of the emitting coil in the vertical direction experiences operational issues, the vertical magnetic field shifts when the coil rotates as the sensor moves, and such a radio beacon will be detected with additional error (Figure 12b). In this case, it is not possible to identify the deviation of the emitter axis from the vertical position. Figure 12 shows that the additional error due to the superposition of magnetic fields from different emitters is significant and can reach up to 30%. Therefore, it is recommended to separate the emitters by emission frequency.

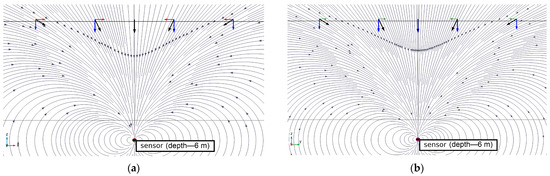

If a receiver with three orthogonally arranged coils is used to search for the radio beacon, the direction of the magnetic field intensity vector in three coordinates can be determined based on the ratio of the intensity values on the three coils. Figure 13a,b show two projections of the radio beacon magnetic field. Figure 13 shows that the normalized magnetic field vector H is obtained through the ratio of the intensity components (H_x H_y H_z). These individual components can be recorded using appropriate orthogonal magnetic coils.

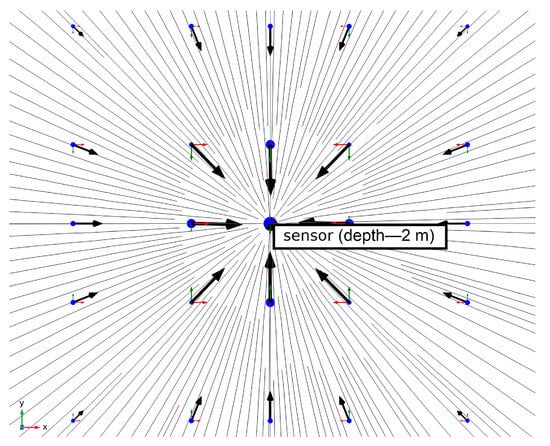

Figure 14 demonstrates that the resultant magnetic field strength vector unambiguously indicates the direction toward the radio beacon. The intersection of vectors approximately shows the location point of the radio beacon itself. However, to determine the precise coordinates of the radio beacon, applying the approaches presented above is necessary.

As an advantage of our study, it should be noted that a specific case of a rock mass with a certain structure was analyzed, including layers of rocks with different physical properties, such as electrical conductivity and dielectric constant, which affect the passage of magnetic fields. Due to the specific formulation of the problem and modeling of specific physical conditions, it became possible to determine various errors in determining the coordinates of the radiation source, excluding the use of statistical methods. As a disadvantage of this study, it can be noted that the simulated conditions may not fully correspond to real physical conditions. Also, modeling tools do not allow you to create a very accurate model of a digital twin. At the same time, the main objectives of this study were achieved. The main types of errors in the search for a radio beacon in the thickness of a rock collapse are shown. Calculations of errors have been performed for certain search conditions, which correspond to most deposits where gold-bearing ores are mined.

5. Conclusions

The studies conducted have shown that in the process of determining the coordinates of a radio beacon in a rock debris pile after blasting operations, there are error components that can be accounted for in calculations, as well as components that cannot be accounted for and can only be minimized. The unavoidable error is the coordinate inaccuracy caused by the tilt of the emitter axis. This error can be minimized through a design solution enabling the adaptive vertical orientation of the emitter’s electromagnetic coil. Such an error may reach up to 3 m, necessitating significant attention to this error type. As demonstrated by this research, the error arising from rock heterogeneity, which depends on the presence of material lenses in the debris pile with varying electrical conductivity, is not substantial in most cases. This error should only be considered when the ore contains a significant metal content or is saturated with highly mineralized groundwater. The error dependent on the debris pile’s shape and the manifestation of a lateral magnetic field peak (in addition to the central peak) from a single emitter can be accurately determined using a specialized methodology for radio beacon search, lateral peak detection, and calculation of the main peak’s deviation from the radio beacon’s vertical axis.

Research has shown that the precise determination of radio beacon coordinates requires the use of a loop-shaped receiving coil to capture the vertical component of the magnetic field strength, following the specified error-accounting rules.

For the approximate localization of the radio beacon, an additional receiver with three orthogonally positioned coils may be employed. This receiver can indicate the radio beacon’s location at the intersection point of magnetic field strength vectors.

Research on the emitter signal suggests that radio beacons should be separated by frequency or by a simulated signal, since in some cases, there is an overlap of fields and an indistinct definition of field strength peaks. The effective frequency of the emitter signal is in the range of 50–70 kHz due to increasing energy losses and a decrease in the efficiency of forming the electromagnetic signal in the thickness and on the surface of the rock collapse.
