“Pre-Earthquake” Micro-Structural Effects Induced by Shear Stress on α-Quartz in Laboratory Experiments
Previous Article in Journal
Displacements of Object Founded on Expansive Soils—A Case Study of Light Construction
Open AccessArticle

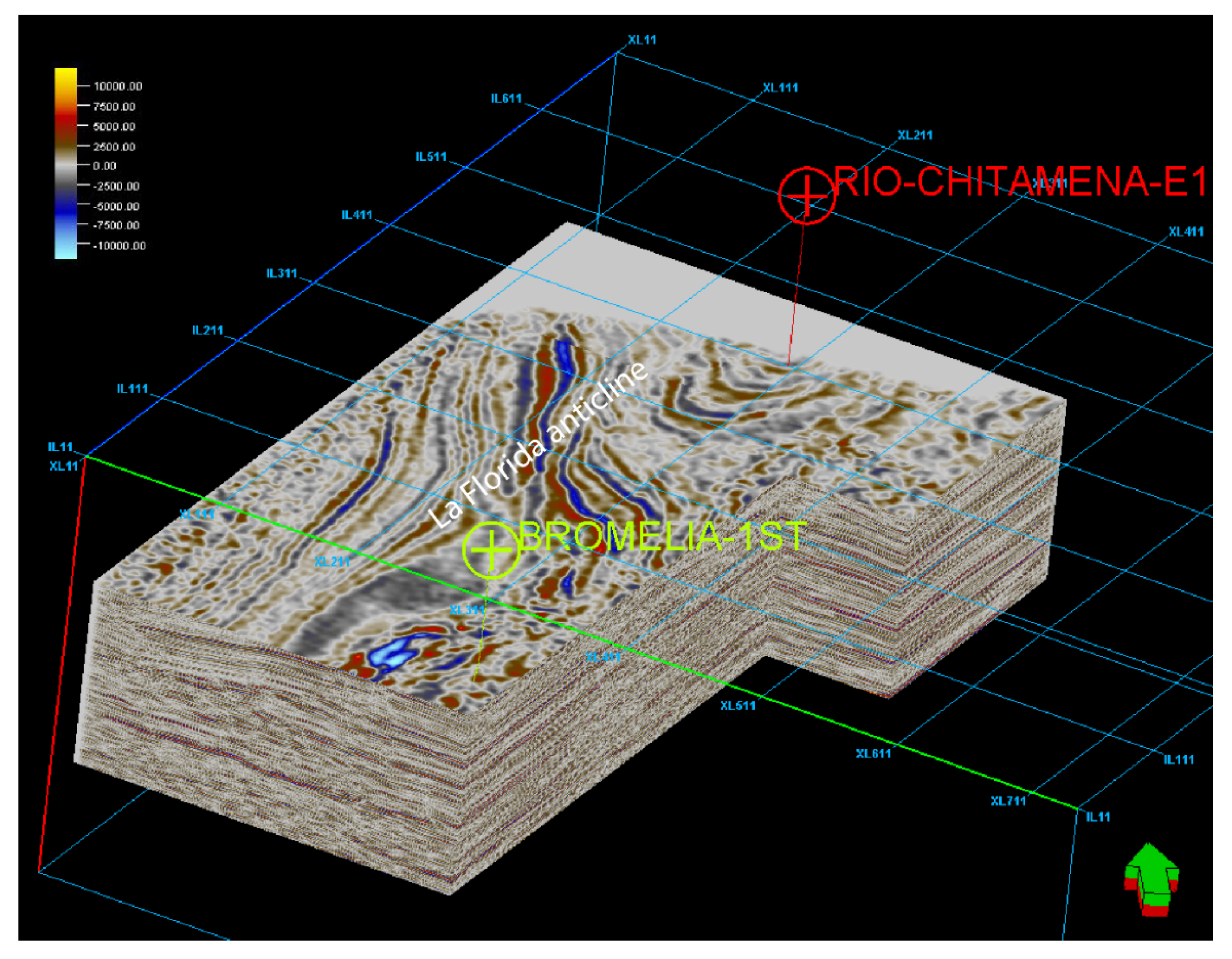

Multi-Attribute Analysis Using Coherency and Ant-Tracking Techniques for Fault and Fracture Detection in La Florida Anticline, Llanos Foothills, Colombia

1
The School of the Earth, Ocean and Environment, University of South Carolina, Columbia, SC 29208, USA
2
King Abdulaziz City for Science and Technology (KACST), Riyadh 12354, Saudi Arabia
3
Department of Earth Sciences, University of Benghazi, Benghazi, Libya
*
Author to whom correspondence should be addressed.
Geosciences 2020, 10(4), 154; https://doi.org/10.3390/geosciences10040154
Received: 2 April 2020 / Revised: 18 April 2020 / Accepted: 22 April 2020 / Published: 24 April 2020
(This article belongs to the Section Geophysics)

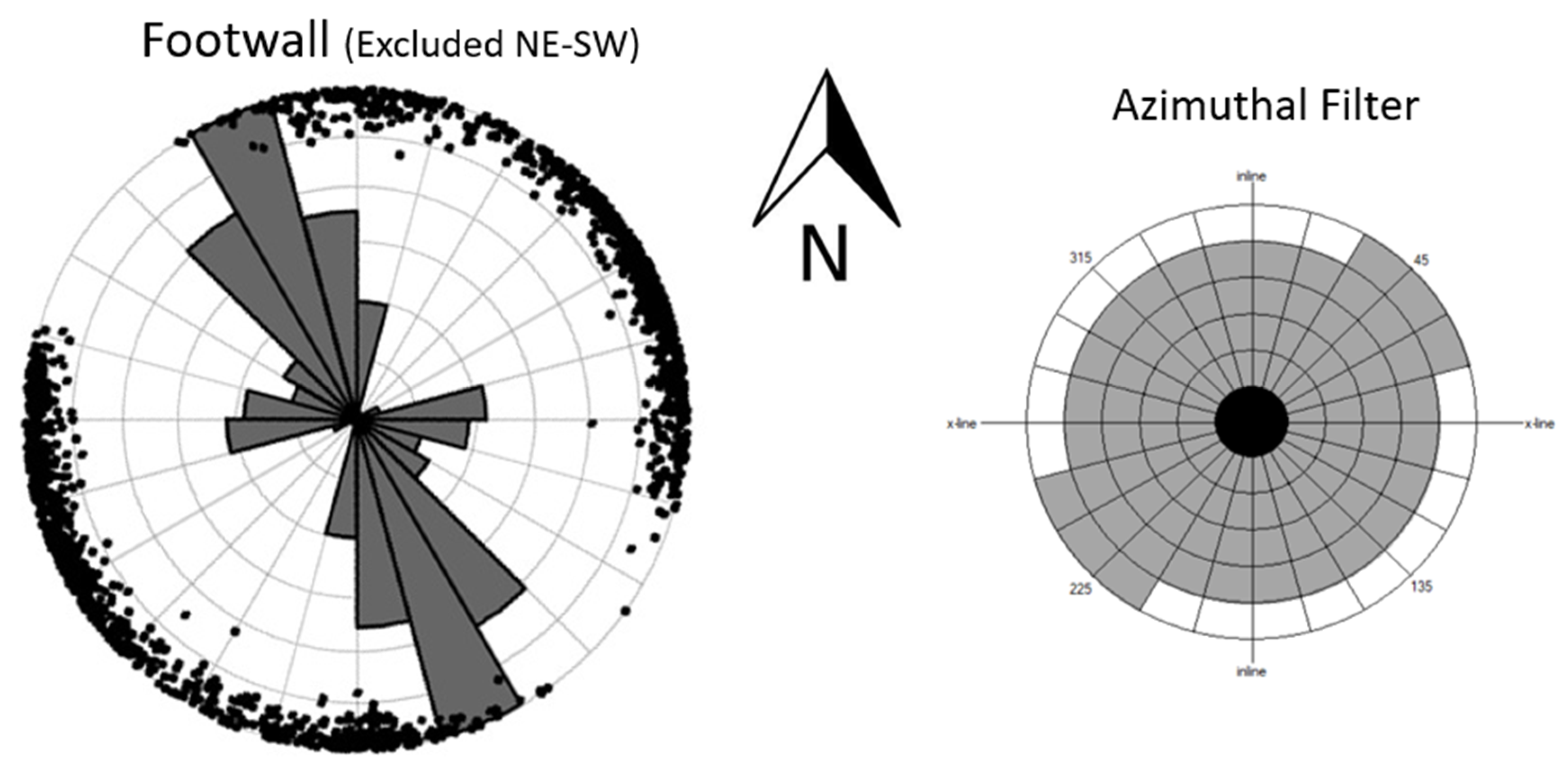

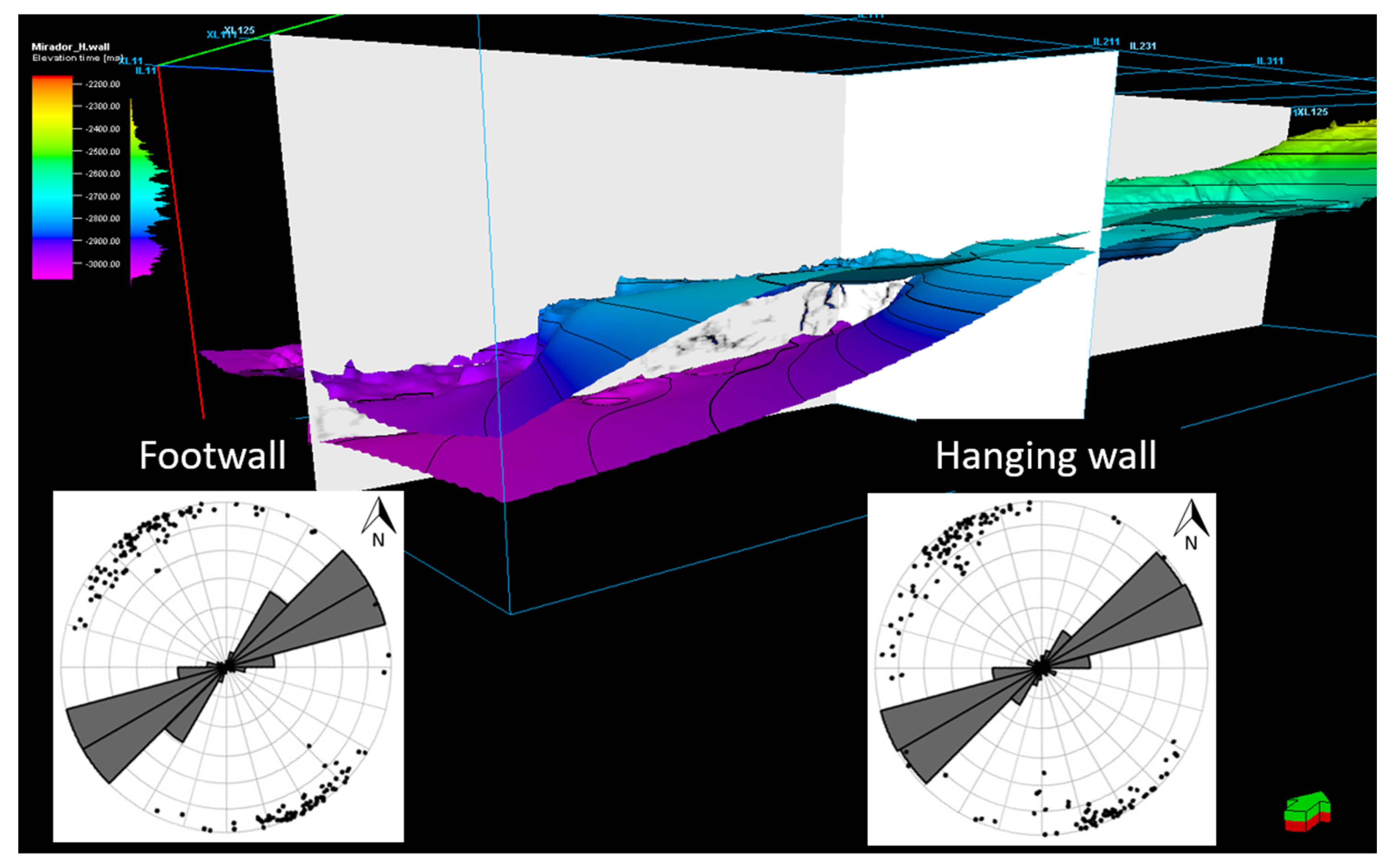

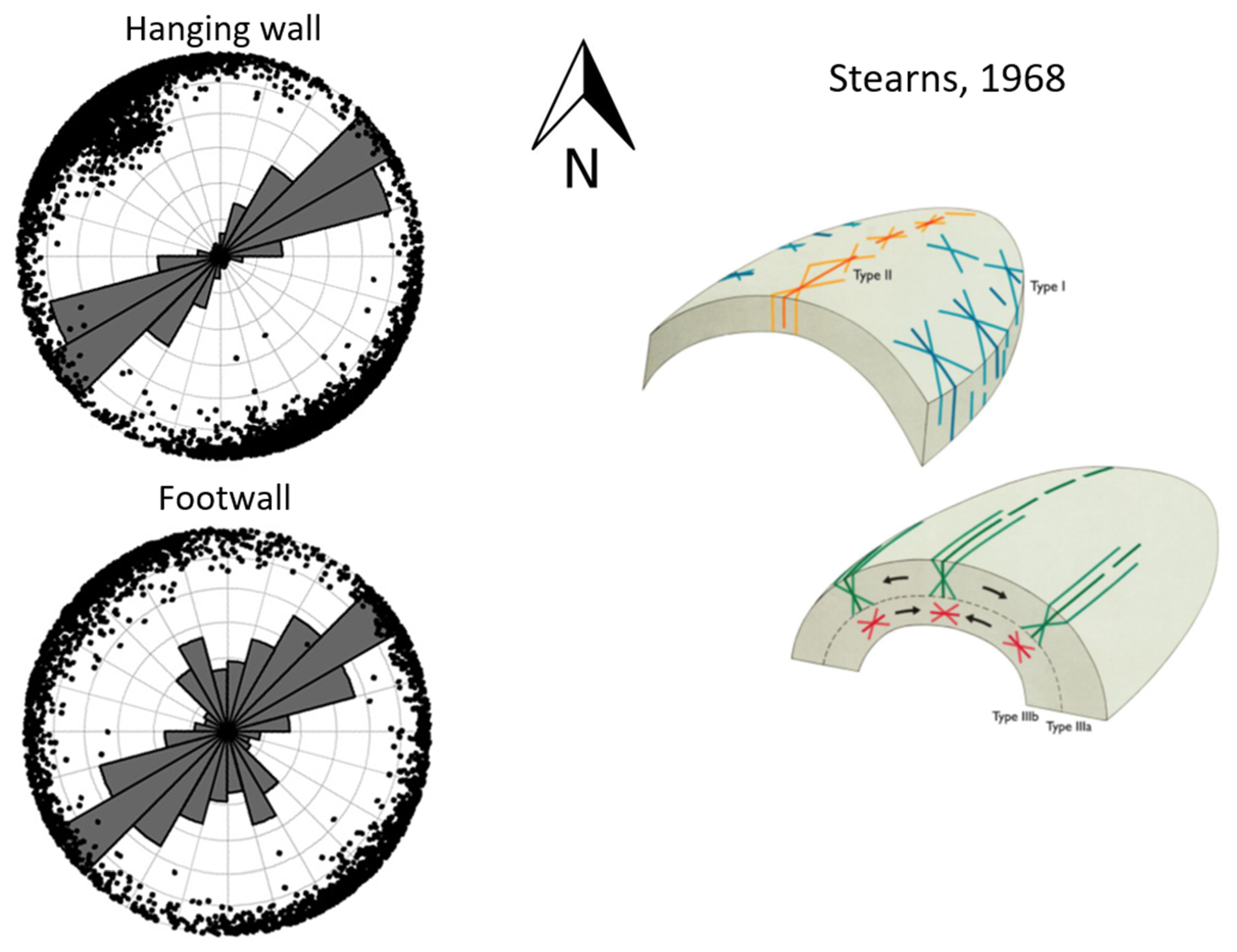

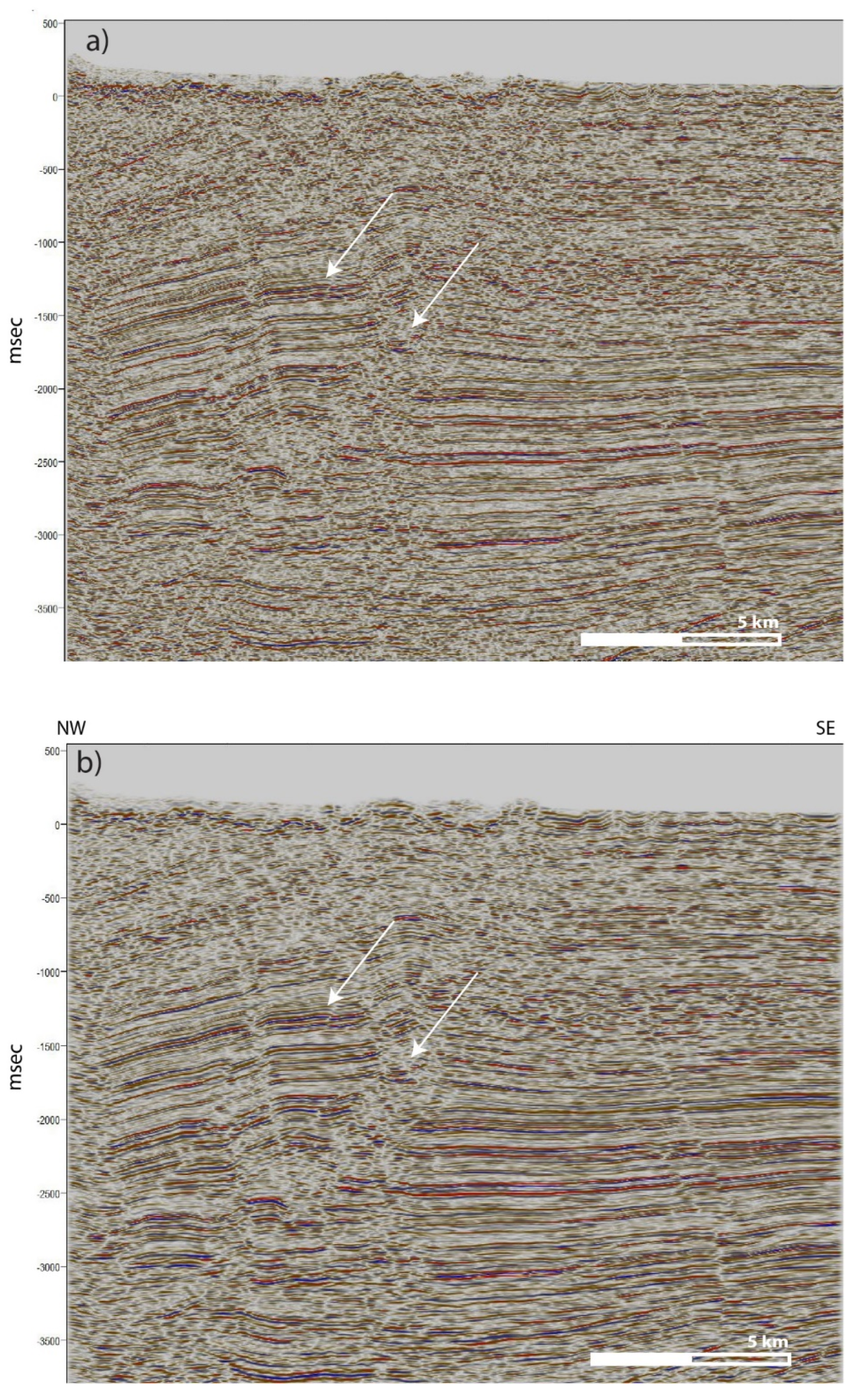

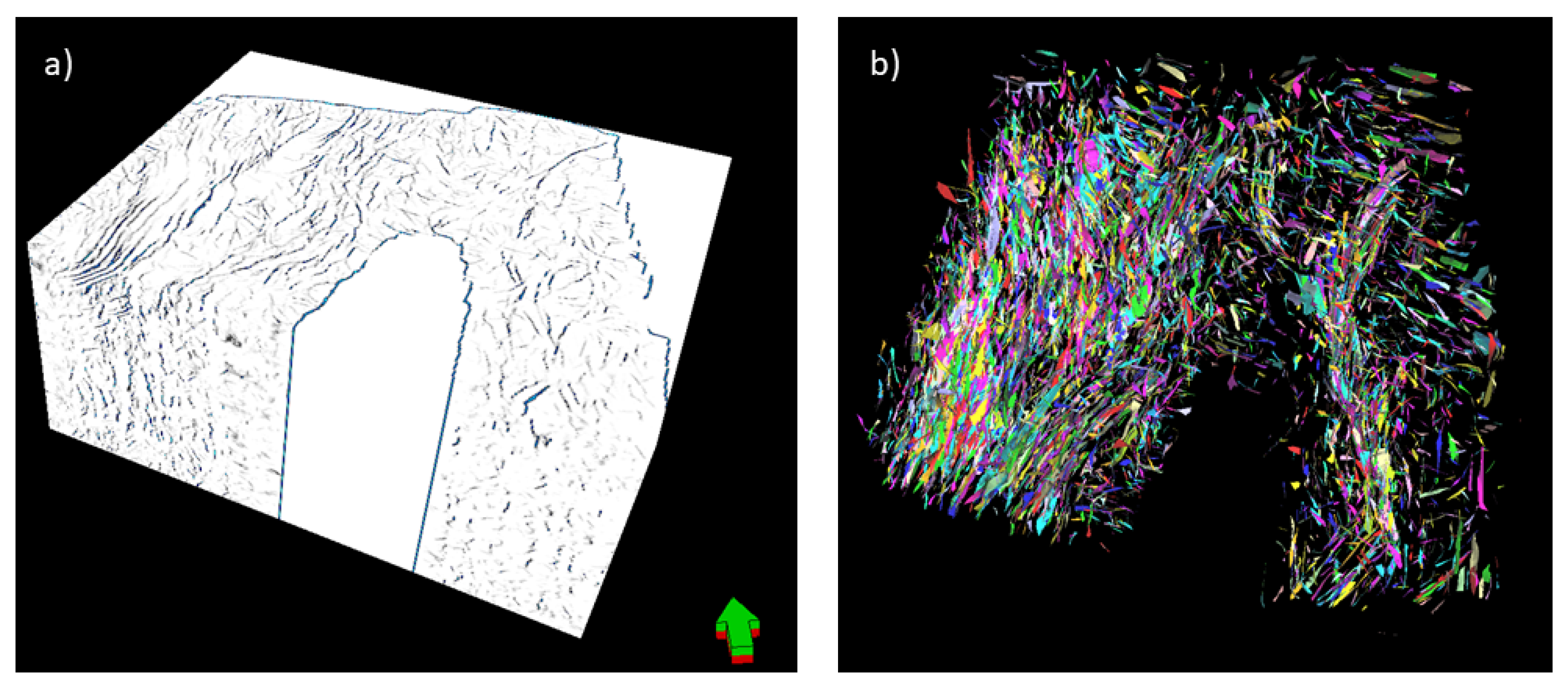

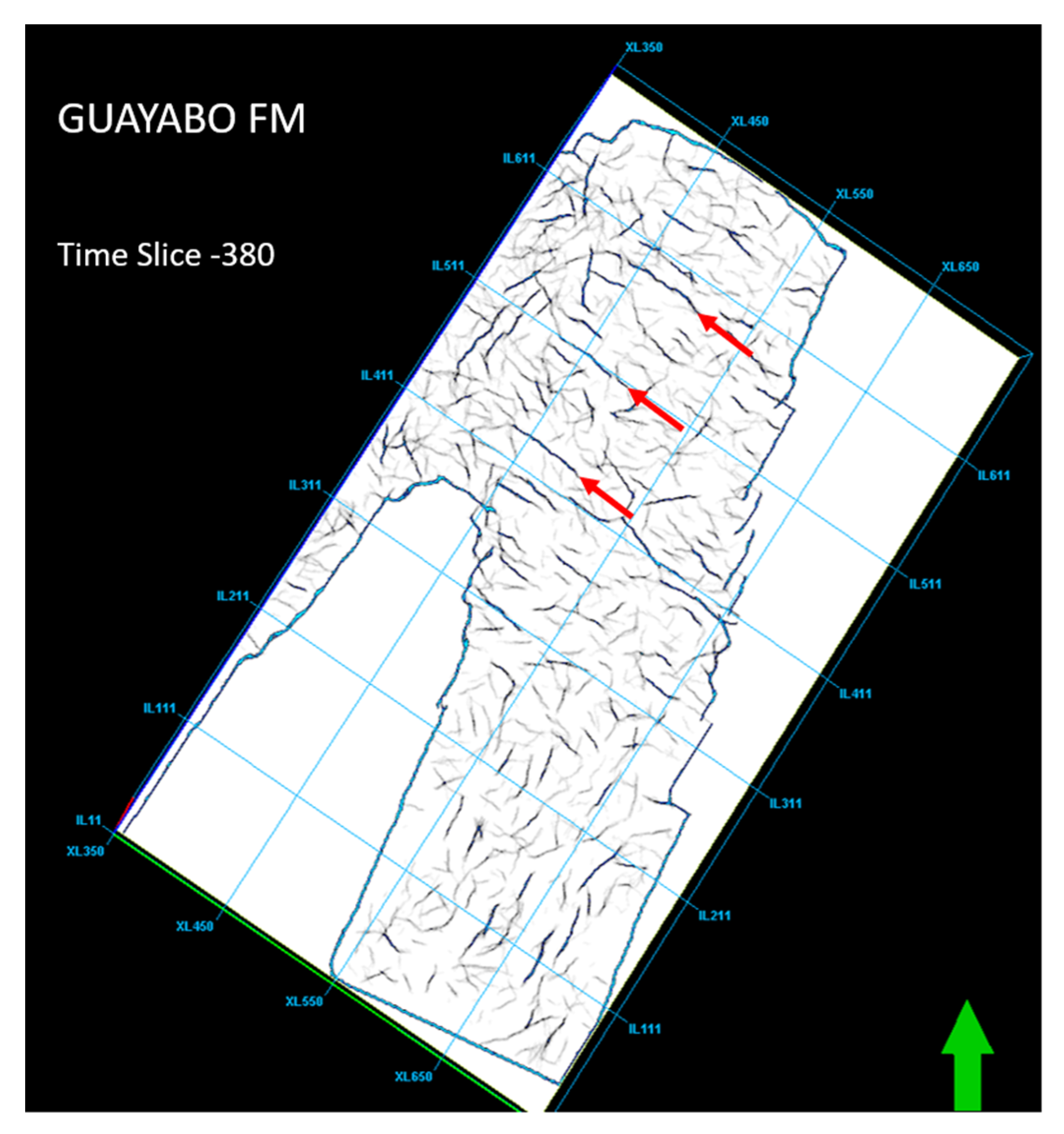

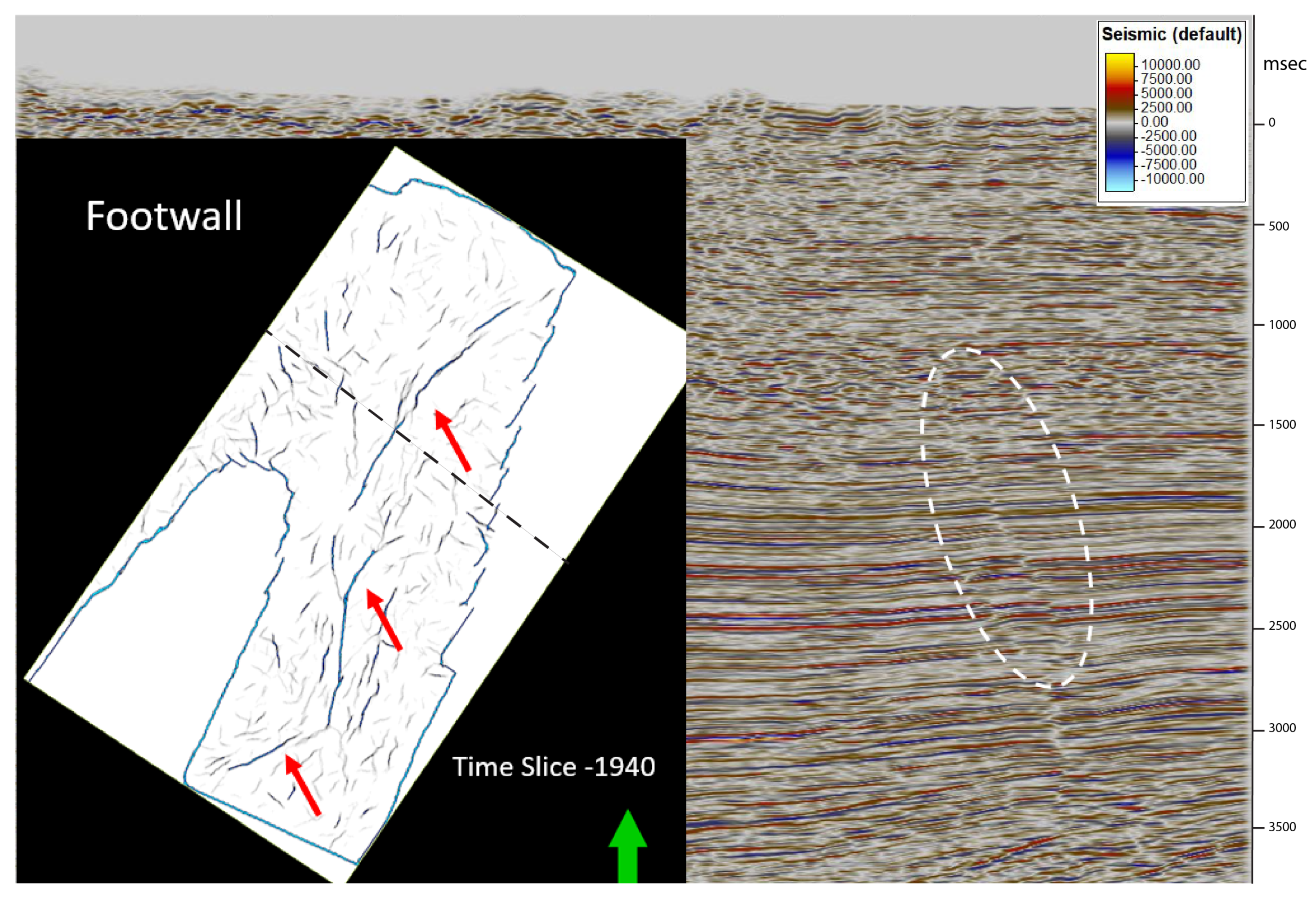

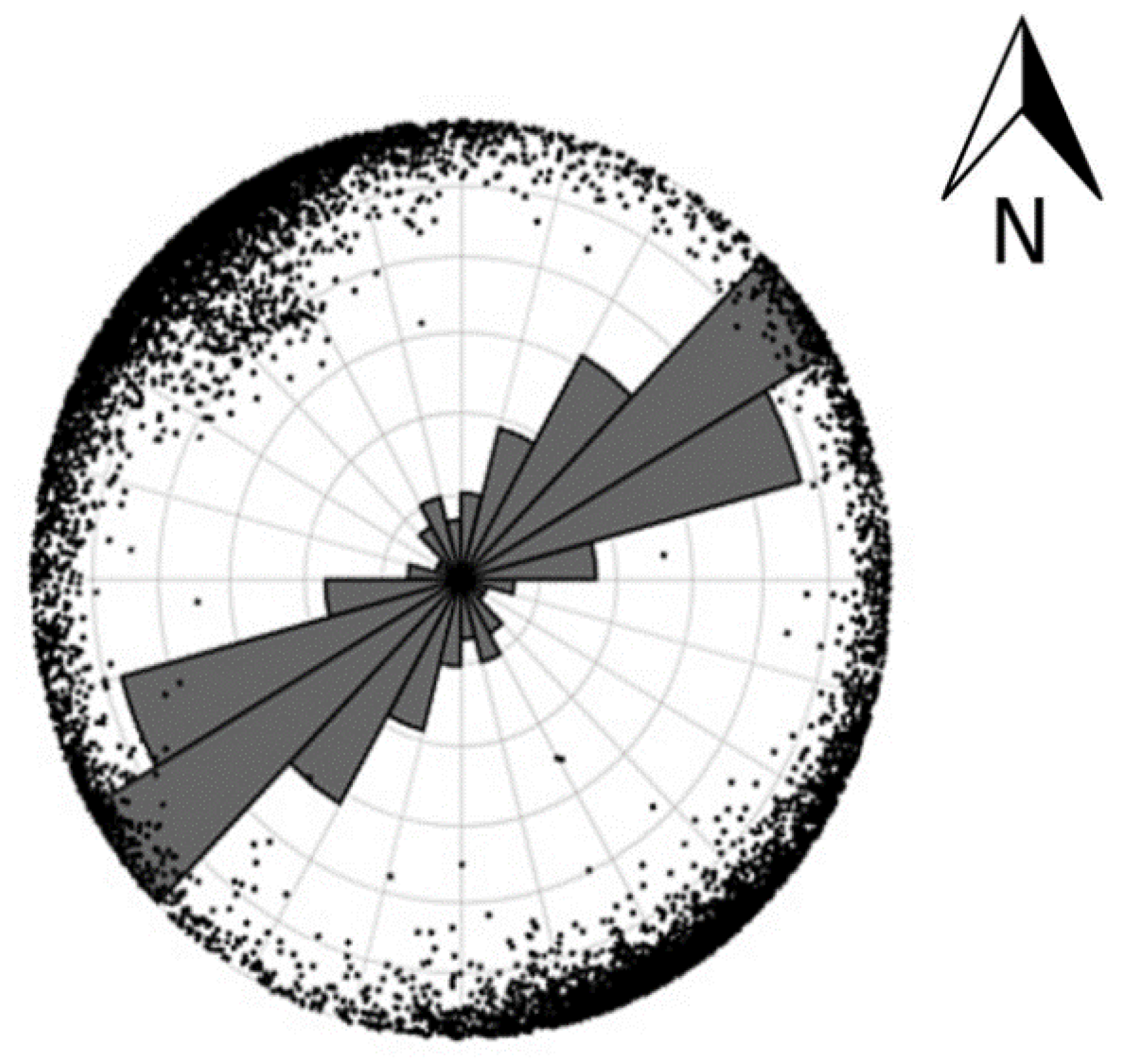

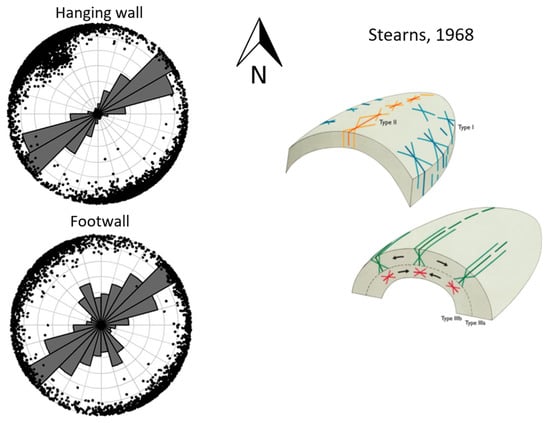

We present techniques to reduce noise and enhance seismic quality, making possible the first multi-attribute analysis of a 3D seismic volume in the Llanos Foothills (La Florida anticline) of Colombia using coherency and ant-tracking techniques for fault and fracture detection. The results could help reduce risk in models of reservoir fracture porosity and permeability. The dominant fracture strike direction in the studied seismic volume (La Florida anticline) is NE–SW (055 ± 20°), parallel to the structural strike of the adjacent Eastern Cordillera Foothills. The application of the ant-tracking technique also reveals the NE-SW fracture set for the reservoir rocks in the La Florida anticline as well as in the non-folded reservoir rocks to the SE. We compared the fracture intensity and orientation in folded rocks with the fracture intensity and orientation in non-folded rocks. Our study showed NE-SW, NW-SE, and E-W fracture orientations in the non-folded seismic volume, suggesting that regional stresses could produce these fracture sets, not just folding processes as previously proposed. The NW-SE and WNW-ESE fracture sets are only found in the Guayabo Formation (11 Ma–Present). A right–lateral strike–slip displacement on the nearby Algeciras fault system in the last 2 m.y. may have generated WNW-ESE and NW-SE Riedel-type shear fractures in the study area. View Full-Text
Keywords: Llanos foothills; La Florida anticline; attribute analysis; ant-tracking; fractures Llanos foothills; La Florida anticline; attribute analysis; ant-tracking; fractures
