Article

Both Constitutive and Infection-Responsive Secondary Metabolites Linked to Resistance against Austropuccinia psidii (Myrtle Rust) in Melaleuca quinquenervia

by
Michelle C. Moffitt
1,*,
Johanna Wong-Bajracharya
2,3,
Louise S. Shuey
4,
Robert F. Park
5,
Geoff S. Pegg
4 and
Jonathan M. Plett
2
1
School of Science, Western Sydney University, Campbelltown, NSW 2560, Australia
2
Hawkesbury Institute for the Environment, Western Sydney University, Richmond, NSW 2753, Australia
3
New South Wales Department of Primary Industries, Elizabeth Macarthur Agricultural Institute, Menangle, NSW 2568, Australia
4
Department of Agriculture and Fisheries, Queensland Government, Brisbane, QLD 4102, Australia
5
The Plant Breeding Institute, School of Life and Environmental Sciences, The University of Sydney, Sydney, NSW 2006, Australia
*
Author to whom correspondence should be addressed.
Microorganisms 2022, 10(2), 383; https://doi.org/10.3390/microorganisms10020383
Submission received: 14 December 2021 / Revised: 24 January 2022 / Accepted: 26 January 2022 / Published: 7 February 2022
(This article belongs to the Section Plant Microbe Interactions)
Browse Figures
Versions Notes

Abstract

:
Austropuccinia psidii is a fungal plant pathogen that infects species within the Myrtaceae, causing the disease myrtle rust. Myrtle rust is causing declines in populations within natural and managed ecosystems and is expected to result in species extinctions. Despite this, variation in response to A. psidii exist within some species, from complete susceptibility to resistance that prevents or limits infection by the pathogen. Untargeted metabolomics using Ultra Performance Liquid Chromatography with Ion Mobility followed by analysis using MetaboAnalyst 3.0, was used to explore the chemical defence profiles of resistant, hypersensitive and susceptible phenotypes within Melaleuca quinquenervia during the early stages of A. psidii infection. We were able to identify three separate pools of secondary metabolites: (i) metabolites classified structurally as flavonoids that were naturally higher in the leaves of resistant individuals prior to infection, (ii) organoheterocyclic and carbohydrate-related metabolites that varied with the level of host resistance post-infection, and (iii) metabolites from the terpenoid pathways that were responsive to disease progression regardless of resistance phenotype suggesting that these play a minimal role in disease resistance during the early stages of colonization of this species. Based on the classes of these secondary metabolites, our results provide an improved understanding of key pathways that could be linked more generally to rust resistance with particular application within Melaleuca.

1. Introduction

The biotrophic plant pathogen Austropuccinia psidii, causal agent of the disease commonly known as myrtle rust, has a broad host range across many species within the Myrtaceae family. In Australasia, Myrtaceae predominate in most ecosystems, with more than 2250 species recorded [1]. They are also found in biological hotspots around the globe [2,3]. As such, A. psidii infection is a threat to many fragile ecosystems characterised by a high rate of endemism [4,5,6]. Further, as many species within this family are important globally due to their value in forestry, the essential oil industry as well as for cultural foods, this rust pathogen poses a significant threat economically [5,7]. To date, 539 Myrtaceae species are known to be vulnerable to A. psidii infection worldwide, including Melaleuca quinquenervia [8]. In 2020, the Australian Department of Agriculture, Water and the Environment listed two Myrtaceae species, Rhodamnia rubescens and Rhodomyrtus psidioides as critically endangered as a direct result of A. psidii infection in the wild [9]. Species belonging to Rhodamnia, Rhodomyrtus, Gossia, Lenwebbia, Backhousia and Ristantia are also severely affected by A. psidii and localised extinction of populations may be imminent within a generation [10]. In addition to decreased survival of Myrtaceae within ecosystems heavily impacted by A. psidii, increased transparency of the canopy resulting from dieback impacts overall species richness in the understory [11] and impacts regrowth following bushfires [12,13].
M. quinquenervia is a keystone species in the coastal wetlands and floodplains of northern New South Wales and Queensland regions of Australia and are important in maintaining water quality through nutrient filtering [14,15]. M. quinquenervia is also an important source of food and habitat for local animals in these regions, including vertebrates and invertebrates, as well as epiphytic plants [1].
Myrtle rust infects new shoots (including the leaves, petiole and stem, of leaf pairs 1–3) causing branch dieback, as well as flowers and fruits leading to infertility [10,16]. Once leaves become fully developed, ontogenic resistance occurs and as such infection occurs during the actively growing season [16]. A. psidii infection begins with germination of urediniospores around 6 h after coming into contact with plant tissues, followed by the formation of appressoria within 18 h [17]. Disease symptoms become visible on young leaves 3–5 days after inoculation followed by visible urediniospore pustule formation after approximately 12 days, although this latent period in the infection cycle is temperature dependent and can be as short as 7 days or be prolonged in colder temperatures [16]. There are a range of responses to infection on new shoots within some species of Myrtaceae, from strong resistance with no macroscopic symptoms to complete susceptibility [14,18]. The susceptible phenotype displays abundant spore formation on young leaves approximately 21 days after infection. Hypersensitive individuals display localised necrotic regions on young leaves indicating a rapid resistance response. Genomic approaches have been utilised to better understand pathways and genetic architecture associated with host resistance to A. psidii [19,20,21,22,23,24]. Gene expression analysis has indicated that early recognition of the pathogen within 24 h post-infection and activation of defence responses discriminate resistant individuals of Eucalyptus grandis and Syzygium luehmannii from susceptible individuals [21,23]. Other transcriptomic studies, including in M. quinquenervia, have highlighted differential expression of genes related to brassinosteroid signalling, G-type lectin receptor-like kinases, toll/interleukin-1 family proteins, and nucleotide-binding site leucine-rich repeat proteins as being common to resistant individuals [21,22,23,24,25]. In these species, the transcriptomic response of the plant during the early stages of infection appears to be critical in determining the level of host resistance.
Recently, untargeted metabolomics has shown promise in identifying disease resistance biomarkers present in a broad range of plants, including those found early in Phytophthora infection of tomatoes [26], Phakopsora pachyrhizi infection of soybean [27], and Plasmopara viticola defence response in a resistant grape variety [28]. This technique profiles all small molecules that are present within a biological sample at a given time. These molecules can include substrates, intermediates and products of metabolic pathways, as well as signalling molecules, hormones, and secondary metabolites. The benefit of metabolomics over other omics-based strategies of identifying disease resistance markers is that no genome sequence information is required, and the method can be applied in non-model systems. One of the drawbacks of this approach is that compound reference databases are still being developed and metabolite identification can be difficult. However, given their applications in other pathosystems, it is possible that untargeted metabolomics could be used to characterise the defence response by Myrtaceae to A. psidii infection. To date, targeted metabolomics has investigated the possibility of using terpenes as resistance markers [29,30,31], while untargeted metabolomics has been used to evaluate metabolic fluxes during the early stages of A. psidii infection in E. grandis [25]. Various attributes have been investigated in pre-formed resistance to A. psidii infection in Myrtaceae species. These include cuticular waxes [32] and terpene composition in Eucalyptus sp. and M. quinquenervia [29,31], while increasing terpene concentration in older leaves may be associated with ontogenic resistance [33]. These previous studies are only just beginning to inform our understanding of the mechanisms that have evolved within the Myrtaceae that enable certain individuals/species to resist infection by A. psidii.
The broad range of applications of metabolomics demonstrates that this methodology could be used in assessing mechanisms and identifying novel biomarkers of host resistance to A. psidii. M. quinquenervia represents an ideal host species to identify these biomarkers as there are individuals described previously as susceptible, hypersensitive and resistant to A. psidii infection [34]. By evaluating the response of different M. quinquenervia resistance phenotypes to A. psidii, we aimed to determine if a set of metabolites are involved in innate resistance to the disease and to understand what metabolic pathways are altered by the colonisation process.

2. Materials and Methods

2.1. Austropuccinia psidii Inoculation of Melaleuca quinquenervia

A total of nine M. quinquenervia individuals of previously defined A. psidii infection phenotype (three each of resistant, hypersensitive and susceptible) were chosen for analysis. Plants were rated according to the disease ranking system proposed previously [14,35] and ranked as resistant (susceptibility rating 1, no visible A. psidii pustules or nectrotic legions), three hypersensitive (susceptibility rating 2, evidence of necrotic lesions but no visible A. psidii pustules) and three susceptible (susceptibility rating 5, large visible pustules) (Figure 1). Each plant was coppiced prior to infection to promote branching and the production of new leaves and subsequently inoculated with A. psidii at the Queensland Department of Agriculture and Fisheries. Spore collection and inoculation were as per Pegg et al. 2018; briefly, urediniospores, collected from infected Syzygium jambos trees, were suspended in a sterile distilled water solution to which the surfactant Tween 20 was added at a rate of two drops per 100 mL. The spore concentration in the suspension was assessed using a haemocytometer adjusted to 1 × 105 spores/mL. Plants were inoculated using a fine mist spray (29 kPa pressure), generated by a compressor driven spray gun (Iwata Studio series 1/6 hp.; Gravity spray gun RG3). The upper and lower leaf surfaces of the seedlings were sprayed, ensuring all leaves were coated with a fine mist but run-off of the spore suspension was avoided. Once inoculated, seedlings were placed into a Controlled Environment Room (CER) set at 18 °C in the dark for 24 h.
Samples of leaves were collected prior to inoculation (i.e., 0 h), 24 h, 48 h post inoculation (hpi) and 5 days post inoculation (dpi). Six replicates of young leaves of the same plastochron index (to avoid ontogenic effects) from fresh growth on each plant were collected at each time point, weighed and stored at −80 °C prior to analysis.

2.2. Leaf Metabolite Extraction

The frozen leaf samples were weighed and immediately ground into powder by bead-beating in 200 µL extraction solvent (4:4:2 methanol:acetonitrile:deionised water) twice for 30 s each. The leaf:solvent mixture was then combined with 300 µL additional extraction solvent, and then vortexed to mix for 10 s. The leaf:solvent mixture was then placed in icy water and sonicated in a sonicating water bath for 25 min. Solid cellular material was removed by centrifugation at 18,000× g for 10 min. The supernatants were collected while avoiding undissolved particles and filtered through a 0.22 µm syringe filter. The resulting metabolite extracts were stored at −80 °C until metabolite profiling was performed.

2.3. Ultra Performance Liquid Chromatography High Definition Mass Spectrometry with Ion Mobility (UPLC HDMSE) Analysis

Leaf extracts were analysed on a Waters Acquity I-Class UPLC system and a Waters Synapt G2-Si HDMS with a Waters UniSpray Ionisation source at the Western Sydney University Mass Spectrometry facility. The metabolites were separated on a Waters ACQUITY UPLC HSS T3 1.8 µm 100 × 2.1 mm Column at 35 °C. The injection volume was 2 μL. The mobile phases were A (Water + 0.1% Formic Acid) and B (Acetonitrile + 0.1% Formic Acid). The chromatographic flow rate was 0.5 mL/min with a 9 min gradient, with mobile phase A held at 99% for 1 min, decreased to 85% over 1 min, decreased to 50% over 2 min, decreased to 5% over 2 min and increased to 99% over 2 min. Leucine Enkephalin Lockspray solution (Waters, 1 ng/mL) was used as a standard.
Data acquisition was performed with ion mobility separation followed by mass fragmentation and high-resolution mass analysis. The mass range of metabolites acquired was 50–1200 m/z, the scan time was 0.2 s and the elevated energy transfer collision voltage was 20–50 eV. For this experiment, the instrument was run in positive ionisation mode with the following settings: Capillary: 0.5 kV, source temperature: 120 °C, sampling cone: 30 V, source offset: 80 V, desolvation temperature: 500 °C, desolvation gas flow: 800 L/h, cone gas flow: 20 L/h.

2.4. Statistical and Molecular Analysis

The compound measurement table containing the feature spectral information and peak intensity of all samples (including quality-control samples and solvent blanks) was exported from the Progenesis QI for metabolomics (version 2.4) and further analyses were performed using R (version 3.6.3). The data table was scaled by leaf weight and low intensity peaks (intensity < 500) were removed after blank subtraction. The data table was then imported into MetaboAnalystR (version 3.0.3) [36]. To improve the power of downstream statistical testing, features that are missing in >50% samples or near-constant across all samples were filtered based on interquartile range. Additionally, outliers were removed after visual identification using principal component analysis (PCA). The data table was log-transformed before two-way analysis of variance (ANOVA) with multiple comparisons correction (false discovery rate). The significant features with p < 0.05 were selected for further clustering analyses. Hierarchical clustering and k-means clustering were performed using R (version 3.6.3). The log-transformed data table was also used for permutational multivariate analysis of variance (PERMANOVA) with the pairwise Adonis wrapper (https://github.com/pmartinezarbizu/pairwiseAdonis accessed on 10 December 2021) based on the ‘adonis’ function of the vegan package (version 2.5-6) on R. Progenesis QI was used to structurally classify the significant metabolites identified by the two-way ANOVA and clustering analyses. Based on the identities provided by the Chemical Entities of Biological Interest (ChEBI), metabolite enrichment analysis was performed on the MetaboAnalyst web platform (https://www.metaboanalyst.ca/ accessed on 10 December 2021). Metabolomics data will be made publicly available following acceptance of the manuscript for publication.

3. Results

3.1. Metabolomic Response to Myrtle Rust Infection in M. quinquenervia

M. quinquenervia plants belonging to one of three phenotypes (resistant, hypersensitive and susceptible) were analysed for their metabolomic responses to the early stages of A. psidii infection. Six leaves of the same plastochron index were sampled prior to inoculation (0 h) and 24 h, 48 h and 5 days after inoculation (total 216 leaves). The metabolome of the leaves at each time point was analysed by LC-MS and after the removal of outliers, five biological replicates were analysed and a total of 11,276 molecular features (MFs) were identified. Analysis of the leaf metabolomes identified that the resistance phenotype of the individual, time post-inoculation and the interaction of these two factors were all significant as determined by permutational multivariate analysis of variance (PERMANOVA; Table 1). Amongst these MFs, we found 2383 MFs have significant difference in abundance under influence of time post infection, phenotype of the plants or the interaction of both (p < 0.05; Top 500 MFs abundance plotted in Figure 2A; Supplemental Table S1). The abundance of 978 and 2157 MFs were influenced by the phenotype of the plants and the time after inoculation, respectively, while 909 MFs were influenced by the interaction of phenotype by time post infection (Figure 2B).

3.2. Organoheterocyclic Compounds Significantly Enriched According to Resistance Phenotype Regardless of Time Post Infection

We further analysed the metabolomics profile of resistant, hypersensitive and susceptible phenotypes of M. quinquenervia in response to infection. Although hierarchical clustering did not clearly separate MF profiles of leaves following infection from different phenotypes, both PERMANOVA and ANOVA results support that there is significant variation in the leaf MF profiles from M. quinquenervia of different resistance phenotypes. In an effort to identify the MFs that distinguish susceptibility of M. quinquenervia to A. psidii, enrichment analysis was performed on the metabolite responses that were significantly influenced by phenotype, irrespective of time (ANOVA adjusted-p < 0.05). Based on the MFs for which structural predictions were made by Progenesis using the CHEHBI database, organoheterocyclic compounds, nucleic acids, organic acids and carbohydrates appeared to be the most enriched metabolite sets that differentiated these phenotypes following application of the pathogen (Figure 2C; Supplemental Table S2).

3.3. Few Metabolites Are Significantly Associated in a Resistance Phenotype × Time Post-Infection Manner

To establish the chemical classes that are important in differentiating the phenotypes × time, metabolite enrichment analysis was performed on 24 and 48 hpi samples. We found that only 19 MFs were unique to resistant x time, one was unique to the hypersensitive phenotype x time and three were unique to the susceptible phenotype × time interaction. Of these MFs, the identities of only seven could be structurally predicted based on mass spectrometry fragmentation patterns (Table 2). Using PubChem compound summaries, we were able to assign probable compound super/subclasses or pathways to these seven metabolites. Included in these MFs were a range of defence-related classes including fatty acyl glycosides, hormone-related MFs (e.g., sphingolipid/ceramide, phosphatidylglycerol), a compound structurally similar to quorum sensing molecules, as well as a pyrethrin.

3.4. Terpenoids Alter with Time Post-Infection but Not with Resistance Phenotype

Time post-inoculation, regardless of resistance phenotype, appears to be the most influential factor with respect to changes within the metabolome. While some of these responses may be associated with leaf aging, as we only used one timepoint for an un-infected control, these results show that A. psidii infection is able to trigger major metabolite responses in M. quinquenervia leaves. We further examined the temporal changes of these significant MFs identified with analysis of variance (ANOVA). Through hierarchical clustering analysis, we found that a majority of these significant MFs were enriched shortly after A. psidii infection (24 or 48 h after inoculation) and gradually reduced at 5 days after inoculation (Figure 2A). Based on these results, we used a k-means clustering approach for each phenotype to group the metabolites based on the pattern of temporal changes. For each phenotype, we identified two clusters of inducible metabolites at 24 and 48 h post inoculation (Figure 3A; denoted by red title). Of the 283 MFs identified within these six clusters, a majority are shared by the different phenotypes. The structural classes of these inducible MFs are terpenoids, fatty alcohols, and dipeptides, and included intermediates of phytohormone pathways (Figure 3B; Supplemental Table S3).

3.5. Pre-Infection Enrichment of Flavonoid Compounds Found in Resistant Individuals

To establish if metabolites are important in defining M. quinquenervia resistance to A. psidii before infection, uninfected leaf samples of the same plastochron index sampled at the same time were analysed by principal component analysis; no significant grouping was found according to phenotype (Figure 4A). Subsequently, PLS-DA and ANOVA analysis was applied to identify if any MFs could significantly separate the three phenotypes (Figure 4B). The heatmap of the top MFs (ranked by the ANOVA FDR value) shows that resistant individuals were characterised by lower relative abundances of the majority of the MFs identified (Figure 4C; Supplemental Table S4). To determine the chemical classes of MFs that are associated with resistance to A. psidii before infection, metabolite enrichment analysis was performed. The MFs enriched in the resistant phenotype that were structurally predicted using Progenesis included the chemical classes of flavonoids, cinnamic acids and polyketides (Figure 4D; Supplemental Table S5).

4. Discussion

Melaleuca quinquenervia is a suitable species of the Myrtaceae for improving our understanding of the mechanisms related to resistance to A. psidii as individuals within this species display a range of susceptibility from complete resistance to complete susceptibility. We sought to use an untargeted metabolomics approach to identify global changes to a broad spectrum of known and unknown metabolites following A. psidii infection and to predict the metabolic basis of infection phenotype. Our findings demonstrate that regardless of rust response phenotype, all individuals tested exhibited temporal changes in the metabolome in response to pathogen challenge. Metabolites found to be associated with pathogen defence in other plant species were found to be more enriched in resistant M. quinquenervia individuals. Furthermore, our analyses suggest that pre-existing differences in metabolic profiles in the leaves of M. quinquenervia prior to infection may serve as an addition means by which we can predict resistance phenotypes.

4.1. Melaleuca quinquenervia Synthesises MFs in Response to Pathogen Challenge That Are Independent of Infection Phenotype

Plants are universally responsive to colonisation by microbes, regardless of the degree of damage they may cause [37,38]. Following inoculation, A. psidii urediniospores germinate and form appressoria within the first 18 h [17]. Previous studies in S. luehmannii and E. grandis demonstrated that the host is very responsive transcriptomically at this stage [21,23,24]. In S. luehmannii, the greatest host response was observed 48 h after pathogen challenge, with pathways including a number of secondary metabolic pathways (e.g., flavonoid metabolic enzymes, cell wall active enzymes) [21]. Brassinosteroid signalling was also observed in E. grandis at the same time point [24]. Metabolically, Sekiya et al. (2020) found that the number of differentially regulated MFs of E. grandis during infection stayed consistent, or increased slightly in number, throughout the a range of timepoints through 24 h post inoculation, while in the wheat:Puccinia triticina pathosystem, differential enzyme responses were observed at 48 h post inoculation [39]. Similarly, in the soybean:Phakopsora pachyrhizi interaction, changes in host metabolome increased through 72 h post infection [40]. Our results show that in M. quinquenervia, a metabolomic response was triggered in all plants upon infection, with a large overlap in the MFs regulated between individual plants tested. The metabolomic changes were greatest at 24 hpi, decreasing at 48 hpi and approaching pre-infection levels by day 5. This indicates that a strong chemical defence response to the pathogen is triggered in M. quinquenervia, regardless of phenotype, and that this metabolic response was faster and greater than documented in other model systems considered here [21], while some MF responses may have been resultant of leaf age [25]. Interestingly, a range of terpenoids were among the induced metabolites that did not vary by resistance phenotype. Several studies have considered the role played by terpenoids during host interaction with biotrophic pathogens, however, a clear role of these molecules has yet to be clearly established as some terpenes are associated with disease resistance [33,41,42], while others with susceptibility [30,43,44,45]. For example, in grapevine challenged with the biotrophic oomycete Plasmopara viticola, a phenotype by time-relationship was found for terpenes in resistant cultivars only where pathogen growth and reproduction were significantly repressed in plant hosts producing higher levels of terpenoids [46]. Our results are, therefore, different from these previous studies and suggest that in M. quinquenervia terpenoids may not be the most significant class of compound associated with defence against A. psidii. Despite this, our data suggest that the host is responsive metabolically to challenge by rust infection, and that small changes to host metabolism following infection must be considered as they may be deterministic in establishing the difference in between what defines a susceptible versus resistant phenotype.

4.2. Melaleuca Disease Resistance Involves MFs That Are Both Phenotype-Specific and Responsive to Phenotype × Time

The degree to which a host responds metabolically to colonisation by a pathogenic microbe can determine the disease resistance phenotype. Similarly, an interactive effect between host phenotype and the stage of disease development (i.e., phenotype × time interactive effect; [47]) may play a role in determining the resistance phenotype in a plant. Our study found evidence for metabolites tied to the level of M. quinquenervia resistance to A. psidii that were both phenotype-specific as well as associated in a phenotype × time manner. In the former category, we found that organoheterocyclic compounds, metabolites associated with nucleic acids, organic acids and carbohydrates, were all enriched in resistant individuals regardless of time. The metabolite superclass of organoheterocyclic compounds, including subclasses such as carbazole, porphyrin, and butanolide, are almost universally associated with anti-microbial or antioxidant activities [48,49,50]. Therefore, induction of these compounds by the onset of fungal colonisation within resistant individuals is likely to enhance defence against the pathogen. Compound classes such as carbohydrates, and their putative role in host resistance or susceptibility, are more difficult to interpret. Past work with leaf rust pathogens suggests that carbohydrate rich leaves are more susceptible to infection as they are rich in growth limiting nutrients for the pathogen [51]. This hypothesis, however, is not supported by more recent work that found leaf nutritional status had no impact on the development of Melampsora laricipopulina in the leaves of Populus deltoides × P. nigra, but rather that secondary metabolism differences between leaf ages were the driver of disease outcomes [52]. As we only assayed leaves of consistent age within our analyses, it is likely that differences in carbohydrates are tied to phenotypic variation between individuals and future work will be important to understand the roles of these metabolites in host resistance.
Of the metabolites that exhibited a link to disease resistance in a phenotype by time interaction, structural-based MF prediction identified a number of metabolites putatively associated with phytohormone defence pathways, with two MFs linked to salicylic acid biosynthesis and signalling (Table 2; [53,54]. SA has been shown to have a primary role in resistance to rust pathogens including M. larici-populina:Populus [55], Puccinia triticina [39] and Uromyces spp. [56]. Recent work suggesting that SA is involved in localised repression of haustorial formation [57] would explain why we do not observe physical damage within resistant lines of M. quinquenervia. A quorum sensing molecule, methyl 3-hydroxypalmitate, was also identified as increasing in concentration with time only in resistant individuals. Quorum sensing compounds have previously been characterised as being pathogen-produced (e.g., Rolstonia solanacearum; [54]) and necessary for the progression of disease. The discovery of this MF was unanticipated because it was induced in resistant M. quinquenervia individuals without visible disease symptoms. It is possible that the compound was host-produced as other research suggests that quorum sensing-like molecules can be produced by plants to recruit biocontrol bacteria [58]. Therefore, in addition to considering the specific MFs produced in plants during disease challenge, the timing of their production must also be considered as different MFs will have roles in host immunity by affecting development of the pathogen from spore germination through to reproduction.

4.3. Basal Metabolic Processes May Contribute to Myrtle Rust Resistance

In a range of pathosystems, research has sought to predict disease resistance ratings of plant varieties based on basal metabolism in the absence of the disease-causing microbe. These research strategies are based on the hypothesis that steady states of different physical or chemical defence compounds may be naturally higher in some individuals, thereby affording them greater protection against the initial stages of disease. Physical barriers associated with cuticular waxes enriched in hexadecenoic acid relate positively to increased rust resistance in E. grandis and Eucalyptus phaeotricha [32], while elevated levels of limonene have also been associated with rust resistance [33]. We also detected consistent differences in the metabolomic profile of the individual M. quinquenervia plants prior to infection that significantly predicted disease resistance ratings. In particular, flavonoids were enriched in the resistant plants. A number of studies have highlighted that flavonoids may inhibit disease progression by inhibiting germination of fungal spores or fungal growth [59,60], while others have shown an opposing role [61,62]. Other plant studies have shown that flavonoids are important in the resistance of plants to biotic stress, for example potato leaves resistant to late blight were enriched with higher concentrations of some flavonoids [63]. In resistant E. grandis flavonoids are increased in abundance in resistant lines 24 hpi, which was further supported by increased abundance of phenylpropanoid and flavonoid biosynthetic proteins [25]. Similarly, transcriptomic analysis in Syzygium luehmannii identified elevated expression levels of the enzyme phenylalanine ammonia lyase in resistant plants, which supplies the precursor for flavonoid metabolism [21]. Therefore, while the exact flavonoids found in our work are predictions only, flavonoid molecules present within certain M. quinquenervia individuals appear to be major determinants in myrtle rust resistance.

5. Conclusions

Altogether, our research suggests that the resistance to A. psidii in M. quinquenervia is mediated in part by two separate pools of metabolites: those that are basally produced in leaves and those that are pathogen inducible. The similarity in metabolite classes found to predict myrtle rust resistance in M. quinquenervia to those found to predict resistance to biotrophic pathogens in a broad range of plants provide promise that these MFs could be resistance biomarkers that are not just relevant within Melaleuca, but also to other Myrtaceae. Further studies are required, therefore, to determine if this is the case and, where a consistent subset of biomarkers is identified, adapted to enable screening for resistant germplasm in nursery breeding programs to protect the biodiversity in this ecologically, culturally, and economically important plant family.

Supplementary Materials

The following supporting information can be downloaded at: www.mdpi.com/article/10.3390/microorganisms10020383/s1, Table S1: The top 500 molecular features that were significantly changed in abundance during the experiment, Table S2: Enriched molecular features that differentiated the phenotypes during early stages of infection with Austropuccinia psidii, Table S3: Structural prediction of molecular features enriched in Melaleuca quinquenervia leaves during the early stages of infection by Austropuccinia psidii, Table S5: Structure predictions of molecular features enriched in the resistant Melaleuca quinquenervia leaves before infection with Austropuccinia psidii.

Author Contributions

Conceptualisation and Methodology: M.C.M., J.M.P., J.W.-B., L.S.S., G.S.P., R.F.P.; Data curation and Formal analysis: J.W.-B.; Funding acquisition: M.C.M., J.M.P., R.F.P.; Investigation: J.W.-B., L.S.S., M.C.M.; Project administration–M.C.M., J.M.P.; Visualisation: J.W.-B., J.M.P.; Writing of the original draft: M.C.M., J.M.P., J.W.-B.; Writing (review and editing): M.C.M., J.M.P., J.W.-B., L.S.S., G.S.P., R.F.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Australian Plant Biosecurity Science Foundation, grant number PBSF023. Financial support to RFP from Judith and David Coffey and family is gratefully acknowledged.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Links to publicly available data will be provided upon acceptance of the manuscript for publication.

Acknowledgments

The authors would like to acknowledge the Mass Spectrometry Facility (MSF) of Western Sydney University for access to its instrumentation and staff. The authors are grateful for the assistance of Meena Mikhael at the Mass Spectrometry Facility.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Makinson, R.O. Myrtle Rust Reviewed: The Impacts of the Invasive Pathogen Austropuccinia psidii on the Australian Environment. Plant. Biosecurity Coop. Res. Cent. Canberra 2018. [Google Scholar]
  2. Flickinger, J.A.; Jestrow, B.; Oviedo Prieto, R.; Santiago-Valentín, E.; Sustache-Sustache, J.; Jiménez-Rodríguez, F.; Campbell, K.C.S.E.; Francisco-Ortega, J. A Phylogenetic Survey of Myrtaceae in the Greater Antilles with Nomenclatural Changes for Some Endemic Species. Taxon 2020, 69, 448–480. [Google Scholar] [CrossRef]
  3. Bergamin, R.S.; Seger, G.D.S.; Carlucci, M.B.; Molz, M.; Mello, R.S.P.; Martins, R.; Jarenkow, J.A.; Brack, P.; Müller, S.C.; Duarte, L.D.S. Elevational Shifts in Phylogenetic Diversity of Angiosperm Trees across the Subtropical Brazilian Atlantic Forest. Austral. Ecol. 2020, 46, 486–495. [Google Scholar] [CrossRef]
  4. Soewarto, J.; Carriconde, F.; Hugot, N.; Bocs, S.; Hamelin, C.; Maggia, L. Impact of Austropuccinia psidii in New Caledonia, a Biodiversity Hotspot. For. Pathol. 2018, 48, e12402. [Google Scholar] [CrossRef]
  5. du Plessis, E.; Granados, G.M.; Barnes, I.; Ho, W.H.; Alexander, B.J.R.; Roux, J.; McTaggart, A.R. The Pandemic Strain of Austropuccinia psidii Causes Myrtle Rust in New Zealand and Singapore. Australas. Plant. Pathol. 2019, 48, 253–256. [Google Scholar] [CrossRef]
  6. Berthon, K.A.; Fernandez Winzer, L.; Sandhu, K.; Cuddy, W.; Manea, A.; Carnegie, A.J.; Leishman, M.R. Endangered Species Face an Extra Threat: Susceptibility to the Invasive Pathogen Austropuccinia psidii (Myrtle Rust) in Australia. Australas. Plant. Pathol. 2019, 48, 385–393. [Google Scholar] [CrossRef]
  7. Carnegie, A.J.; Kathuria, A.; Pegg, G.S.; Entwistle, P.; Nagel, M.; Giblin, F.R. Impact of the Invasive Rust Puccinia psidii (Myrtle Rust) on Native Myrtaceae in Natural Ecosystems in Australia. Biol. Invasions 2016, 18, 127–144. [Google Scholar] [CrossRef] [Green Version]
  8. Fernandez Winzer, L.; Cuddy, W.; Pegg, G.S. Plant Architecture, Growth and Biomass Allocation Effects of the Invasive Pathogen Myrtle Rust (Austropuccinia psidii) on Australian Myrtaceae Species after Fire. Austral. 2020, 45, 177–186. [Google Scholar] [CrossRef]
  9. Sommerville, K.D.; Cuneo, P.; Errington, G.; Makinson, R.O.; Pederson, S.; Phillips, G.; Rollason, A.; Viler, V.; Offord, C.A. Conservation in the Wake of Myrtle Rust—A Case Study on Two Critically Endangered Australian Rainforest Plants. Pac. Conserv. Biol. 2020, 26, 218. [Google Scholar] [CrossRef] [Green Version]
  10. Fensham, R.J.; Radford-Smith, J. Unprecedented Extinction of Tree Species by Fungal Disease. Biol. Conserv. 2021, 261, 109276. [Google Scholar] [CrossRef]
  11. Fernandez-Winzer, L.; Berthon, K.A.; Entwistle, P.; Manea, A.; Winzer, N.; Pegg, G.S.; Carnegie, A.J.; Leishman, M.R. Direct and Indirect Community Effects of the Invasive Plant Pathogen Austropuccinia psidii (Myrtle Rust) in Eastern Australian Rainforests. Biol. Invasions 2020, 22, 2357–2369. [Google Scholar] [CrossRef]
  12. Pegg, G.S.; Giblin, F.R.; McTaggart, A.R.; Guymer, G.P.; Taylor, H.; Ireland, K.B.; Shivas, R.G.; Perry, S. Puccinia psidii in Queensland, Australia: Disease Symptoms, Distribution and Impact. Plant. Pathol. 2014, 63, 1005–1021. [Google Scholar] [CrossRef] [Green Version]
  13. Pegg, G.S.; Entwistle, P.; Giblin, F.R.; Carnegie, A.J. Fire and Rust—The Impact of Austropuccinia psidii (Myrtle Rust) on Regeneration of Myrtaceae in Coastal Heath Following Wildfire. South. For. 2020, 82, 280–291. [Google Scholar] [CrossRef]
  14. Pegg, G.S.; Lee, D.J.; Carnegie, A.J. Predicting Impact of Austropuccinia psidii on Populations of Broad Leaved Melaleuca Species in Australia. Australas. Plant. Pathol. 2018, 47, 421–430. [Google Scholar] [CrossRef]
  15. McJannet, D. Water Table and Transpiration Dynamics in a Seasonally Inundated Melaleuca quinquenervia forest, North Queensland, Australia. Hydrol. Process. 2008, 22, 3079–3090. [Google Scholar] [CrossRef]
  16. Beresford, R.M.; Shuey, L.S.; Pegg, G.S. Symptom Development and Latent Period of Austropuccinia psidii (Myrtle Rust) in Relation to Host Species, Temperature, and Ontogenic Resistance. Plant. Pathol. 2020, 69, 484–494. [Google Scholar] [CrossRef]
  17. Glen, M.; Alfenas, A.C.; Zauza, E.A.V.; Wingfield, M.J.; Mohammed, C. Puccinia psidii: A Threat to the Australian Environment and Economy—A Review. Australas. Plant. Pathol. 2007, 36, 1. [Google Scholar] [CrossRef]
  18. Morin, L.; Aveyard, R.; Lidbetter, J.R.; Wilson, P.G. Investigating the Host-Range of the Rust Fungus Puccinia psidii Sensu Lato across Tribes of the Family Myrtaceae Present in Australia. PLoS ONE 2012, 7, e35434. [Google Scholar] [CrossRef]
  19. Butler, J.B.; Potts, B.M.; Vaillancourt, R.E.; Lee, D.J.; Pegg, G.S.; Freeman, J.S. Independent QTL Underlie Resistance to the Native Pathogen Quambalaria pitereka and the Exotic Pathogen Austropuccinia psidii in Corymbia. Tree Genet. Genomes 2019, 15, 72. [Google Scholar] [CrossRef]
  20. Yong, W.T.L.; Ades, P.K.; Runa, F.A.; Bossinger, G.; Sandhu, K.S.; Potts, B.M.; Tibbits, J.F.G. Genome-Wide Association Study of Myrtle Rust (Austropuccinia psidii) Resistance in Eucalyptus obliqua (Subgenus Eucalyptus). Tree Genet. Genomes 2021, 17, 31. [Google Scholar] [CrossRef]
  21. Tobias, P.A.; Guest, D.I.; Külheim, C.; Park, R.F. De Novo Transcriptome Study Identifies Candidate Genes Involved in Resistance to Austropuccinia psidii (Myrtle Rust) in Syzygium luehmannii (Riberry). Phytopathology 2018, 108, 627–640. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Hsieh, J.-F.; Chuah, A.; Patel, H.R.; Sandhu, K.S.; Foley, W.J.; Külheim, C. Transcriptome Profiling of Melaleuca quinquenervia Challenged by Myrtle Rust Reveals Differences in Defense Responses Among Resistant Individuals. Phytopathology 2018, 108, 495–509. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Santos, S.A.; Vidigal, P.M.P.; Guimarães, L.M.S.; Mafia, R.G.; Templeton, M.D.; Alfenas, A.C. Transcriptome Analysis of Eucalyptus grandis Genotypes Reveals Constitutive Overexpression of Genes Related to Rust (Austropuccinia psidii) Resistance. Plant. Mol. Biol. 2020, 104, 339–357. [Google Scholar] [CrossRef]
  24. Swanepoel, S.; Oates, C.N.; Shuey, L.S.; Pegg, G.S.; Naidoo, S. Transcriptome Analysis of Eucalyptus grandis Implicates Brassinosteroid Signaling in Defense Against Myrtle Rust (Austropuccinia psidii). Front. For. Glob. Chang. 2021, 4, 200. [Google Scholar] [CrossRef]
  25. Sekiya, A.; Marques, F.G.; Leite, T.F.; Cataldi, T.R.; de Moraes, F.E.; Pinheiro, A.L.M.; Labate, M.T.V.; Labate, C.A. Network Analysis Combining Proteomics and Metabolomics Reveals New Insights Into Early Responses of During Rust Infection. Front. Plant. Sci. 2020, 11, 604849. [Google Scholar] [CrossRef]
  26. Garcia, P.G.; dos Santos, F.N.; Zanotta, S.; Eberlin, M.; Carazzone, C. Metabolomics of Solanum lycopersicum Infected with Phytophthora infestans Leads to Early Detection of Late Blight in Asymptomatic Plants. Molecules 2018, 23, 3330. [Google Scholar] [CrossRef] [Green Version]
  27. Silva, E.; da Graça, J.P.; Porto, C.; Martin do Prado, R.; Hoffmann-Campo, C.B.; Meyer, M.C.; de Oliveira Nunes, E.; Pilau, E.J. Unraveling Asian Soybean Rust Metabolomics Using Mass Spectrometry and Molecular Networking Approach. Sci. Rep. 2020, 10, 138. [Google Scholar] [CrossRef]
  28. Chitarrini, G.; Soini, E.; Riccadonna, S.; Franceschi, P.; Zulini, L.; Masuero, D.; Vecchione, A.; Stefanini, M.; Di Gaspero, G.; Mattivi, F.; et al. Identification of Biomarkers for Defense Response to Plasmopara viticola in a Resistant Grape Variety. Front. Plant. Sci. 2017, 8, 1524. [Google Scholar] [CrossRef]
  29. Yong, W.T.L.; Ades, P.K.; Goodger, J.Q.D.; Bossinger, G.; Runa, F.A.; Sandhu, K.S.; Tibbits, J.F.G. Using Essential Oil Composition to Discriminate between Myrtle Rust Phenotypes in Eucalyptus globulus and Eucalyptus obliqua. Ind. Crops Prod. 2019, 140, 111595. [Google Scholar] [CrossRef]
  30. Bustos-Segura, C.; Külheim, C.; Foley, W. Effects of Terpene Chemotypes of Melaleuca alternifolia on Two Specialist Leaf Beetles and Susceptibility to Myrtle Rust. J. Chem. Ecol. 2015, 41, 937–947. [Google Scholar] [CrossRef]
  31. Hsieh, J.-F.; Krause, S.T.; Kainer, D.; Degenhardt, J.; Foley, W.J.; Külheim, C. Characterization of Terpene Biosynthesis in Melaleuca quinquenervia and Ecological Consequences of Terpene Accumulation during Myrtle Rust Infection. Plant.-Environ. Interact. 2021, 2, 177–193. [Google Scholar] [CrossRef]
  32. Dos Santos, I.B.; Lopes, M.D.S.; Bini, A.P.; Tschoeke, B.A.P.; Verssani, B.A.W.; Figueredo, E.F.; Cataldi, T.R.; Marques, J.P.R.; Silva, L.D.; Labate, C.A.; et al. The Eucalyptus Cuticular Waxes Contribute in Preformed Defense Against Austropuccinia psidii. Front. Plant. Sci. 2019, 9, 1978. [Google Scholar] [CrossRef] [PubMed]
  33. Silva, R.R.; da Silva, A.C.; Rodella, R.A.; Marques, M.O.M.; Zanuncio, A.J.V.; Soares, M.A.; Serrão, J.E.; Zanuncio, J.C.; Furtado, E.L. Limonene, a Chemical Compound Related to the Resistance of Eucalyptus Species to Austropuccinia psidii. Plant. Dis. 2020, 104, 414–422. [Google Scholar] [CrossRef] [PubMed]
  34. Rayamajhi, M.B.; Pratt, P.D.; Center, T.D.; Wheeler, G.S. Differential Response by Melaleuca quinquenervia Trees to Attack by the Rust Fungus Puccinia psidii in Florida. Plant. Dis. 2010, 94, 1165. [Google Scholar] [CrossRef] [PubMed]
  35. Junghans, D.T.; Alfenas, A.C.; Maffia, L.A. Escala de notas para quantificação da ferrugem em Eucalyptus. Fitopatol. Bras. 2003, 28, 184–188. [Google Scholar] [CrossRef]
  36. Pang, Z.; Chong, J.; Li, S.; Xia, J. MetaboAnalystR 3.0: Toward an Optimized Workflow for Global Metabolomics. Metabolites 2020, 10, 186. [Google Scholar] [CrossRef] [PubMed]
  37. Wong, J.W.H.; Lutz, A.; Natera, S.; Wang, M.; Ng, V.; Grigoriev, I.; Martin, F.; Roessner, U.; Anderson, I.C.; Plett, J.P. The Influence of Contrasting Microbial Lifestyles on the Pre-Symbiotic Metabolite Responses of Eucalyptus grandis Roots. Front. Ecol. Environ. 2019, 7, 10. [Google Scholar] [CrossRef] [Green Version]
  38. Plett, J.M.; Plett, K.L.; Bithell, S.L.; Mitchell, C.; Moore, K.; Powell, J.R.; Anderson, I.C. Improved Phytophthora Resistance in Commercial Chickpea (Cicer arietinum) Varieties Negatively Impacts Symbiotic Gene Signalling and Symbiotic Potential in Some Varieties. Plant. Cell Environ. 2016, 39, 1858–1869. [Google Scholar] [CrossRef]
  39. Kim, M.; Lee, A.; Roh, Y.J.; Lee, H.M.; Jo, Y.; Cho, H.; Choi, D.W.; Choi, M.; Eyun, S.-I.; Choi, C.; et al. Gene Expression and Metabolomics Profiling of the Common Wheat Obtaining Leaf Rust Resistance by Salicylic or Jasmonic Acid through a Novel Detached Leaf Rust Assay. Agronomy 2020, 10, 1668. [Google Scholar] [CrossRef]
  40. Ishiga, Y.; Uppalapati, S.R.; Gill, U.S.; Huhman, D.; Tang, Y.; Mysore, K.S. Transcriptomic and Metabolomic Analyses Identify a Role for Chlorophyll Catabolism and Phytoalexin during Medicago Nonhost Resistance against Asian Soybean Rust. Sci. Rep. 2015, 5, 13061. [Google Scholar] [CrossRef] [Green Version]
  41. Potts, B.M.; Sandhu, K.S.; Wardlaw, T.; Freeman, J.; Li, H.; Tilyard, P.; Park, R.F. Evolutionary History Shapes the Susceptibility of an Island Tree Flora to an Exotic Pathogen. For. Ecol. Manag. 2016, 368, 183–193. [Google Scholar] [CrossRef]
  42. Hantao, L.W.; Toledo, B.R.; Ribeiro, F.A.D.L.; Pizetta, M.; Pierozzi, C.G.; Furtado, E.L.; Augusto, F. Comprehensive Two-Dimensional Gas Chromatography Combined to Multivariate Data Analysis for Detection of Disease-Resistant Clones of Eucalyptus. Talanta 2013, 116, 1079–1084. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Guarino, S.; Abbate, L.; Mercati, F.; Fatta Del Bosco, S.; Motisi, A.; Arif, M.A.; Cencetti, G.; Palagano, E.; Michelozzi, M. Citrus Varieties with Different Tolerance Grades to Tristeza Virus Show Dissimilar Volatile Terpene Profiles. Agronomy 2021, 11, 1120. [Google Scholar] [CrossRef]
  44. Eberl, F.; Hammerbacher, A.; Gershenzon, J.; Unsicker, S.B. Leaf Rust Infection Reduces Herbivore-Induced Volatile Emission in Black Poplar and Attracts a Generalist Herbivore. New Phytol. 2018, 220, 760–772. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Attaran, E.; Rostás, M.; Zeier, J. Pseudomonas syringae Elicits Emission of the Terpenoid (E,E)-4,8,12-Trimethyl-1,3,7,11-Tridecatetraene in Arabidopsis Leaves via Jasmonate Signaling and Expression of the Terpene Synthase TPS4. Mol. Plant. Microbe. Interact. 2008, 21, 1482–1497. [Google Scholar] [CrossRef] [Green Version]
  46. Algarra Alarcon, A.; Lazazzara, V.; Cappellin, L.; Bianchedi, P.L.; Schuhmacher, R.; Wohlfahrt, G.; Pertot, I.; Biasioli, F.; Perazzolli, M. Emission of Volatile Sesquiterpenes and Monoterpenes in Grapevine Genotypes Following Plasmopara viticola Inoculation in vitro. J. Mass Spectrom. 2015, 50, 1013–1022. [Google Scholar] [CrossRef]
  47. Piasecka, A.; Jedrzejczak-Rey, N.; Bednarek, P. Secondary Metabolites in Plant Innate Immunity: Conserved Function of Divergent Chemicals. New Phytol. 2015, 206, 948–964. [Google Scholar] [CrossRef]
  48. Zhao, Y.-L.; Huang, X.; Liu, L.-W.; Wang, P.-Y.; Long, Q.-S.; Tao, Q.-Q.; Li, Z.; Yang, S. Identification of Racemic and Chiral Carbazole Derivatives Containing an Isopropanolamine Linker as Prospective Surrogates against Plant Pathogenic Bacteria: In vitro and in vivo Assays and Quantitative Proteomics. J. Agric. Food Chem. 2019, 67, 7512–7525. [Google Scholar] [CrossRef]
  49. Ambrosini, V.; Issawi, M.; Sol, V.; Riou, C. Photodynamic Inactivation of Botrytis cinerea by an Anionic Porphyrin: An Alternative Pest Management of Grapevine. Sci. Rep. 2020, 10, 17438. [Google Scholar] [CrossRef]
  50. Shah, A.A.; Khan, W.U.; Yasin, N.A.; Akram, W.; Ahmad, A.; Abbas, M.; Ali, A.; Safdar, M.N. Butanolide Alleviated Cadmium Stress by Improving Plant Growth, Photosynthetic Parameters and Antioxidant Defense System of Brassica oleracea. Chemosphere 2020, 261, 127728. [Google Scholar] [CrossRef]
  51. Coleman, J.S. Leaf Development and Leaf Stress: Increased Susceptibility Associated with Sink-Source Transition. Tree Physiol. 1986, 2, 289–299. [Google Scholar] [CrossRef] [PubMed]
  52. Maupetit, A.; Larbat, R.; Pernaci, M.; Andrieux, A.; Guinet, C.; Boutigny, A.-L.; Fabre, B.; Frey, P.; Halkett, F. Defense Compounds Rather Than Nutrient Availability Shape Aggressiveness Trait Variation Along a Leaf Maturity Gradient in a Biotrophic Plant Pathogen. Front. Plant. Sci. 2018, 9, 1396. [Google Scholar] [CrossRef] [PubMed]
  53. Guo, C.-Y.; Wu, G.-H.; Xing, J.; Li, W.-Q.; Tang, D.-Z.; Cui, B.-M. A Mutation in a Coproporphyrinogen III Oxidase Gene Confers Growth Inhibition, Enhanced Powdery Mildew Resistance and Powdery Mildew-Induced Cell Death in Arabidopsis. Plant. Cell Rep. 2013, 32, 687–702. [Google Scholar] [CrossRef] [PubMed]
  54. Sánchez-Rangel, D.; Rivas-San Vicente, M.; de la Torre-Hernández, M.E.; Nájera-Martínez, M.; Plasencia, J. Deciphering the Link between Salicylic Acid Signaling and Sphingolipid Metabolism. Front. Plant. Sci. 2015, 6, 125. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Ullah, C.; Tsai, C.-J.; Unsicker, S.B.; Xue, L.; Reichelt, M.; Gershenzon, J.; Hammerbacher, A. Salicylic Acid Activates Poplar Defense against the Biotrophic Rust Fungus Melampsora larici-populina via Increased Biosynthesis of Catechin and Proanthocyanidins. New Phytol. 2019, 221, 960–975. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Cooper, B.; Beard, H.S.; Garrett, W.M.; Campbell, K.B. Benzothiadiazole Conditions the Bean Proteome for Immunity to Bean Rust. Mol. Plant. Microbe. Interact. 2020, 33, 600–611. [Google Scholar] [CrossRef] [PubMed]
  57. Couttolenc-Brenis, E.; Carrión, G.L.; Villain, L.; Ortega-Escalona, F.; Ramírez-Martínez, D.; Mata-Rosas, M.; Méndez-Bravo, A. Prehaustorial Local Resistance to Coffee Leaf Rust in a Mexican Cultivar Involves Expression of Salicylic Acid-Responsive Genes. PeerJ 2020, 8, e8345. [Google Scholar] [CrossRef] [Green Version]
  58. Kim, I.S.; Yang, S.Y.; Park, S.K.; Kim, Y.C. Quorum Sensing Is a Key Regulator for the Antifungal and Biocontrol Activity of Chitinase-Producing Chromobacterium Sp. C61. Mol. Plant. Pathol. 2017, 18, 134–140. [Google Scholar] [CrossRef]
  59. Padmavati, M.; Sakthivel, N.; Thara, K.V.; Reddy, A.R. Differential Sensitivity of Rice Pathogens to Growth Inhibition by Flavonoids. Phytochemistry 1997, 46, 499–502. [Google Scholar] [CrossRef]
  60. Gillmeister, M.; Ballert, S.; Raschke, A.; Geistlinger, J.; Kabrodt, K.; Baltruschat, H.; Deising, H.B.; Schellenberg, I. Polyphenols from Rheum Roots Inhibit Growth of Fungal and Oomycete Phytopathogens and Induce Plant Disease Resistance. Plant. Dis. 2019, 103, 1674–1684. [Google Scholar] [CrossRef]
  61. Bagga, S.; Straney, D. Modulation of CAMP and Phosphodiesterase Activity by Flavonoids Which Induce Spore Germination of Nectria haematococca MP VI (Fusarium solani). Physiol. Mol. Plant. Pathol. 2000, 56, 51–61. [Google Scholar] [CrossRef]
  62. Tsai, S.M.; Phillips, D.A. Flavonoids Released Naturally from Alfalfa Promote Development of Symbiotic Glomus Spores in vitro. Appl. Environ. Microbiol. 1991, 57, 1485–1488. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Yogendra, K.N.; Pushpa, D.; Mosa, K.A.; Kushalappa, A.C.; Murphy, A.; Mosquera, T. Quantitative Resistance in Potato Leaves to Late Blight Associated with Induced Hydroxycinnamic Acid Amides. Funct. Integr. Genom. 2014, 14, 285–298. [Google Scholar] [CrossRef] [PubMed]
Microorganisms 10 00383 g001 550
Figure 1. Images of A. psidii infection ratings of M. quinquenervia plants assessed in this study according to Pegg et al., 2018, based on the method developed by Junghans et al., 2003. The top row represents the adaxial view of the leaves while the bottom row represents the abaxial view. From left to right, leaf 1 represents rating (R) 1, the resistant phenotype, displaying no visible A. psidii pustules or necrotic legions. Leaf 2 represents R2, the hypersensitive phenotype, displaying necrotic legions but no visible pustules. Leaves 3–5 represent susceptibility R 3–5, displaying urediniospore pustules of increasing size. Plants demonstrating susceptibility R5 were selected for the susceptibility phenotype in this study.
Figure 1. Images of A. psidii infection ratings of M. quinquenervia plants assessed in this study according to Pegg et al., 2018, based on the method developed by Junghans et al., 2003. The top row represents the adaxial view of the leaves while the bottom row represents the abaxial view. From left to right, leaf 1 represents rating (R) 1, the resistant phenotype, displaying no visible A. psidii pustules or necrotic legions. Leaf 2 represents R2, the hypersensitive phenotype, displaying necrotic legions but no visible pustules. Leaves 3–5 represent susceptibility R 3–5, displaying urediniospore pustules of increasing size. Plants demonstrating susceptibility R5 were selected for the susceptibility phenotype in this study.
Microorganisms 10 00383 g001
Microorganisms 10 00383 g002 550

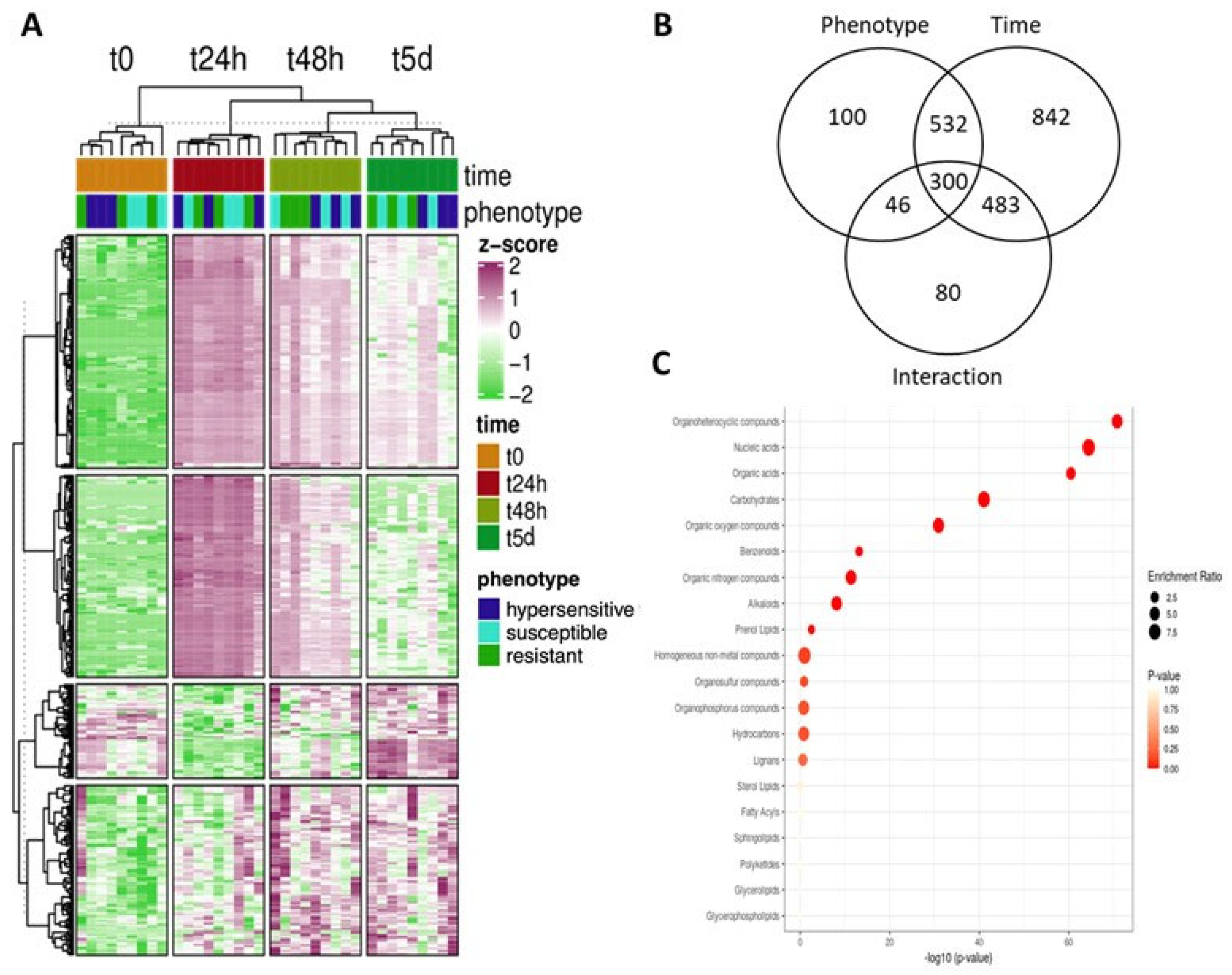

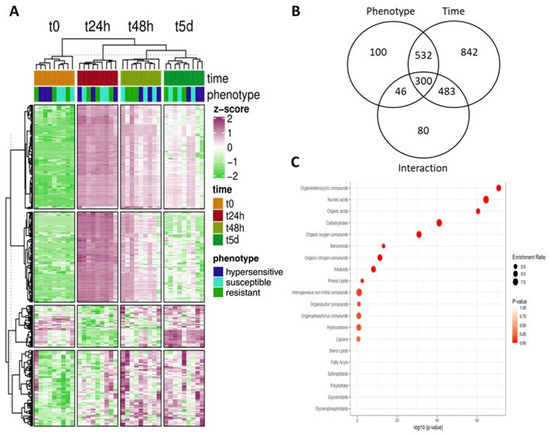

Figure 2. Austropuccinia psidii trigged changes in the abundance of molecular feature recovered from Melaleuca quinqueneriva leaves is a function of host resistance phenotype and stage of infection. (A) Heatmap showing the scaled peak intensity of the top-500 significant molecular features (MFs; ranked by adjusted p calculated with 2-way ANOVA). The heatmap is clustered by Euclidean distance and clustered with Ward’s minimum variance method for both the columns and rows. Purple and green indicate the increase and/or reduction in abundance, respectively, of each significant molecular feature (rows) of each sample (columns). (B) Venn diagram showing the number of MFs significantly changed in terms of abundance under the influence of phenotype, time post-inoculation and the interaction of both phenotype and time. Two-way ANOVA with multiple-comparison adjustment using the false discovery rate approach was performed to identify the significant metabolites (adjusted-p < 0.05) influenced by each factor and their interaction. (C) Enrichment analysis of MF classification of the significant metabolites influenced by phenotype-only (adjusted p < 0.05, two-way ANOVA with FDR adjustment). The x-axis and colour of the points indicate the significant value of the enrichment set, whereby the size of the points indicate the enrichment ratio generated by metabolite enrichment analysis.
Figure 2. Austropuccinia psidii trigged changes in the abundance of molecular feature recovered from Melaleuca quinqueneriva leaves is a function of host resistance phenotype and stage of infection. (A) Heatmap showing the scaled peak intensity of the top-500 significant molecular features (MFs; ranked by adjusted p calculated with 2-way ANOVA). The heatmap is clustered by Euclidean distance and clustered with Ward’s minimum variance method for both the columns and rows. Purple and green indicate the increase and/or reduction in abundance, respectively, of each significant molecular feature (rows) of each sample (columns). (B) Venn diagram showing the number of MFs significantly changed in terms of abundance under the influence of phenotype, time post-inoculation and the interaction of both phenotype and time. Two-way ANOVA with multiple-comparison adjustment using the false discovery rate approach was performed to identify the significant metabolites (adjusted-p < 0.05) influenced by each factor and their interaction. (C) Enrichment analysis of MF classification of the significant metabolites influenced by phenotype-only (adjusted p < 0.05, two-way ANOVA with FDR adjustment). The x-axis and colour of the points indicate the significant value of the enrichment set, whereby the size of the points indicate the enrichment ratio generated by metabolite enrichment analysis.
Microorganisms 10 00383 g002
Microorganisms 10 00383 g003 550

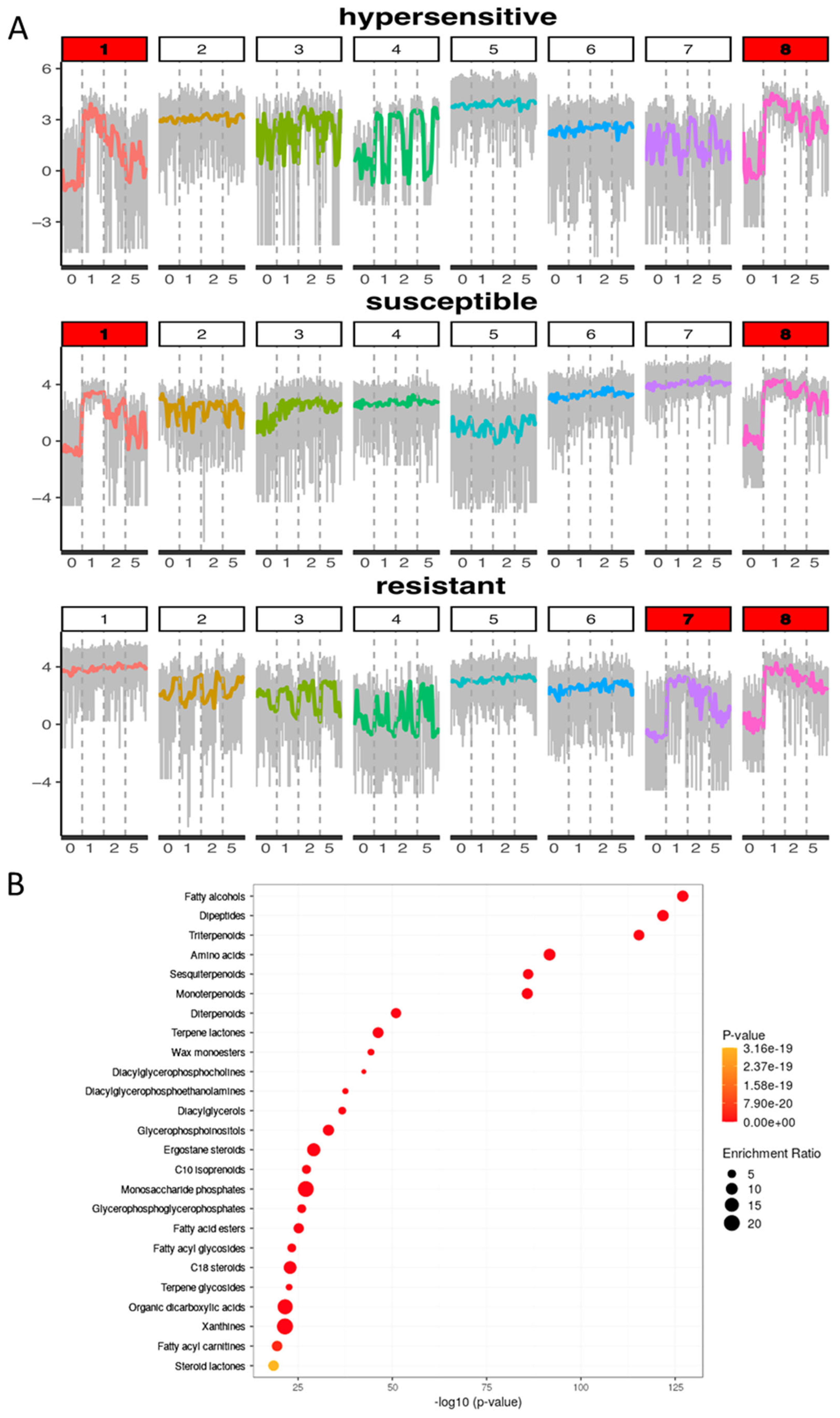

Figure 3. Enrichment of fatty alcohols, dipeptides and triterpenoids is a common response of all phenotypes in Melaleuca quinquenervia leaves 24 and 48 h after Austropuccinia psidii inoculation (A) K-means clustering separates metabolites into groups with different temporal shifts in abundance. Metabolite responses prior to infection (0), at 24 hpi (1), 48 hpi (2), and five days post infection (5). The line in each plot indicates the average log (peak intensity) of the molecular features (y-axis) across the time-series (x-axis; number of days post-inoculation). The metabolites in the key clusters highlighted in red have an increased abundance at the 24 h and 48 h after infection time points. (B) Enrichment graphic of molecular features recovered from M. quinquenervia leaves that display a time-only interaction. The x-axis and colour of the points indicate the significant value of the enrichment set, whereby the size of the points indicate the enrichment ratio generated by metabolite enrichment analysis.
Figure 3. Enrichment of fatty alcohols, dipeptides and triterpenoids is a common response of all phenotypes in Melaleuca quinquenervia leaves 24 and 48 h after Austropuccinia psidii inoculation (A) K-means clustering separates metabolites into groups with different temporal shifts in abundance. Metabolite responses prior to infection (0), at 24 hpi (1), 48 hpi (2), and five days post infection (5). The line in each plot indicates the average log (peak intensity) of the molecular features (y-axis) across the time-series (x-axis; number of days post-inoculation). The metabolites in the key clusters highlighted in red have an increased abundance at the 24 h and 48 h after infection time points. (B) Enrichment graphic of molecular features recovered from M. quinquenervia leaves that display a time-only interaction. The x-axis and colour of the points indicate the significant value of the enrichment set, whereby the size of the points indicate the enrichment ratio generated by metabolite enrichment analysis.
Microorganisms 10 00383 g003
Microorganisms 10 00383 g004 550

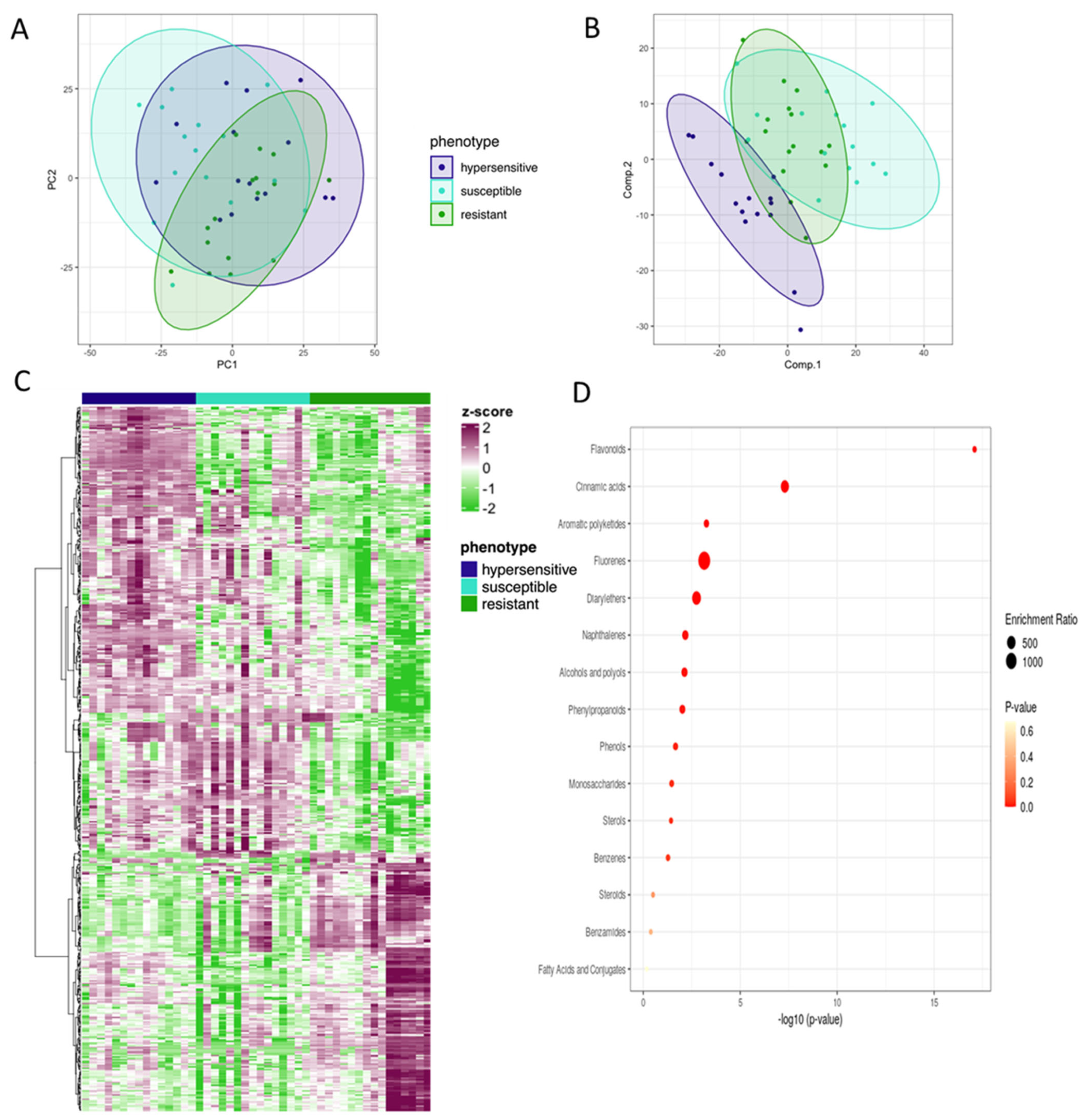

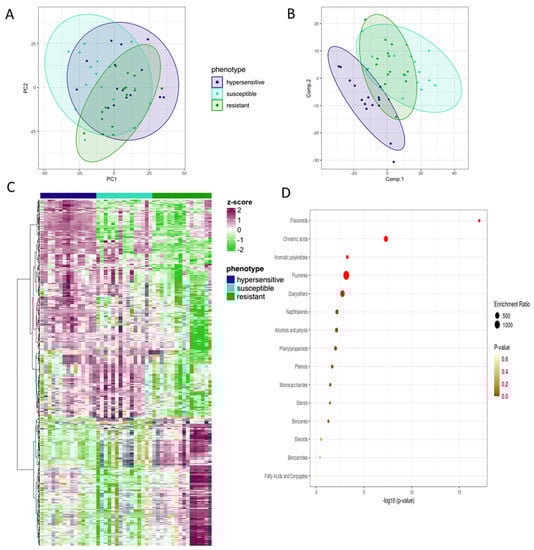

Figure 4. Leaf molecular feature abundance differentiates resistance phenotype prior to Austropuccinia psidii inoculation. (A) PCA or all samples; (B) PLS-DA of all samples; (C) Heatmap of scaled peak intensity of the significant molecular features (ranked by adjusted p calculated with 2-way ANOVA). The heatmap is clustered by Euclidean distance and clustered with Ward’s minimum variance method for both the columns and rows. Purple and green indicate the enrichment and reduction, respectively, of each significant molecular feature (rows) of each sample (columns). (D) Flavonoid compounds are the predominant chemical class of metabolites that differ between different M. quinquenervia disease phenotypes before inoculation with A. psidii. The x-axis and colour of the points indicate the significant value of the enrichment set, whereby the size of the points indicate the enrichment ratio generated by metabolite enrichment analysis.
Figure 4. Leaf molecular feature abundance differentiates resistance phenotype prior to Austropuccinia psidii inoculation. (A) PCA or all samples; (B) PLS-DA of all samples; (C) Heatmap of scaled peak intensity of the significant molecular features (ranked by adjusted p calculated with 2-way ANOVA). The heatmap is clustered by Euclidean distance and clustered with Ward’s minimum variance method for both the columns and rows. Purple and green indicate the enrichment and reduction, respectively, of each significant molecular feature (rows) of each sample (columns). (D) Flavonoid compounds are the predominant chemical class of metabolites that differ between different M. quinquenervia disease phenotypes before inoculation with A. psidii. The x-axis and colour of the points indicate the significant value of the enrichment set, whereby the size of the points indicate the enrichment ratio generated by metabolite enrichment analysis.
Microorganisms 10 00383 g004
Table
Table 1. Summary of pairwise permanova analysis.
Table 1. Summary of pairwise permanova analysis.
ComparisonFactorsDegree of FreedomR2p-Value
Hypersensitive_vs_ResistantPhenotype10.046690.001 ***
Time30.34827 0.001 ***
Phenotype × Time30.028540.015 *
Hypersensitive_vs_SusceptiblePhenotype10.028030.001 ***
Time30.374940.001 ***
Phenotype × Time30.026480.032 *
Resistant_vs_SusceptiblePhenotype10.056630.001 ***
Time30.368280.001 ***
Phenotype × Time30.036430.002 **
* p-value ≤ 0.05; ** p-value ≤ 0.01; *** p-value ≤ 0.001.
Table
Table 2. Structural prediction of molecular features enriched in the resistant phenotype 24 and 48 h post inoculation.
Table 2. Structural prediction of molecular features enriched in the resistant phenotype 24 and 48 h post inoculation.
m/zPredicted StructureSuperclass/PathwayIdentification Score
367.1960321(2R,6x)-7-Methyl-3-methylene-1,2,6,7-octanetetrol 2-glucosideFatty acyl glycoside38.7
624.5280082N-icosanoyl-15-methylhexadecasphing-4-enineSphingolipid/ceramideSA Biosynthesis35.8
791.48056521-oleoyl-2-[(3E)-hexadecenoyl]-sn-glycero-3-phosphoglycerolPhosphatidylglycerol Activation of JA signalling37.4
636.5160247methyl 3-hydroxypalmitateQuorum sensing38.4
657.2921888coproporphyrinogen III(4-)Salicylic acid pathway37.7
623.3873252lutein 5,6-epoxideCarotenoid32.4
609.8434753cis-3-(2,2-dibromovinyl)-2,2-dimethylcyclopropanecarboxylic acidPyrethrin23.8
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Moffitt, M.C.; Wong-Bajracharya, J.; Shuey, L.S.; Park, R.F.; Pegg, G.S.; Plett, J.M. Both Constitutive and Infection-Responsive Secondary Metabolites Linked to Resistance against Austropuccinia psidii (Myrtle Rust) in Melaleuca quinquenervia. Microorganisms 2022, 10, 383. https://doi.org/10.3390/microorganisms10020383

AMA Style

Moffitt MC, Wong-Bajracharya J, Shuey LS, Park RF, Pegg GS, Plett JM. Both Constitutive and Infection-Responsive Secondary Metabolites Linked to Resistance against Austropuccinia psidii (Myrtle Rust) in Melaleuca quinquenervia. Microorganisms. 2022; 10(2):383. https://doi.org/10.3390/microorganisms10020383

Chicago/Turabian Style

Moffitt, Michelle C., Johanna Wong-Bajracharya, Louise S. Shuey, Robert F. Park, Geoff S. Pegg, and Jonathan M. Plett. 2022. "Both Constitutive and Infection-Responsive Secondary Metabolites Linked to Resistance against Austropuccinia psidii (Myrtle Rust) in Melaleuca quinquenervia" Microorganisms 10, no. 2: 383. https://doi.org/10.3390/microorganisms10020383

APA Style

Moffitt, M. C., Wong-Bajracharya, J., Shuey, L. S., Park, R. F., Pegg, G. S., & Plett, J. M. (2022). Both Constitutive and Infection-Responsive Secondary Metabolites Linked to Resistance against Austropuccinia psidii (Myrtle Rust) in Melaleuca quinquenervia. Microorganisms, 10(2), 383. https://doi.org/10.3390/microorganisms10020383

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
