Next Article in Journal
Laser Powder Bed Fusion of Stainless Steel Grades: A Review
Previous Article in Journal
3D Printed Acetabular Cups for Total Hip Arthroplasty: A Review Article
Previous Article in Special Issue
Design and Parameter Identification of Wire and Arc Additively Manufactured (WAAM) Steel Bars for Use in Construction
Article Menu

Export Article

Open AccessArticle

Particle Erosion Induced Phase Transformation of Different Matrix Microstructures of Powder Bed Fusion Ti-6Al-4V Alloy Flakes

Department of Materials Science and Engineering, National Cheng Kung University, Tainan 701, Taiwan
*
Author to whom correspondence should be addressed.
Metals 2019, 9(7), 730; https://doi.org/10.3390/met9070730
Received: 9 June 2019 / Revised: 24 June 2019 / Accepted: 26 June 2019 / Published: 28 June 2019
(This article belongs to the Special Issue Additive Manufacturing of Metals)
  |
PDF [9604 KB, uploaded 28 June 2019]
  |

Abstract

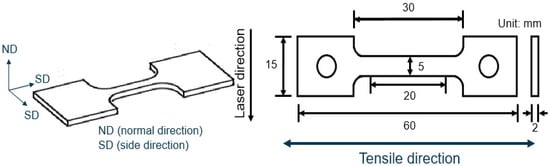

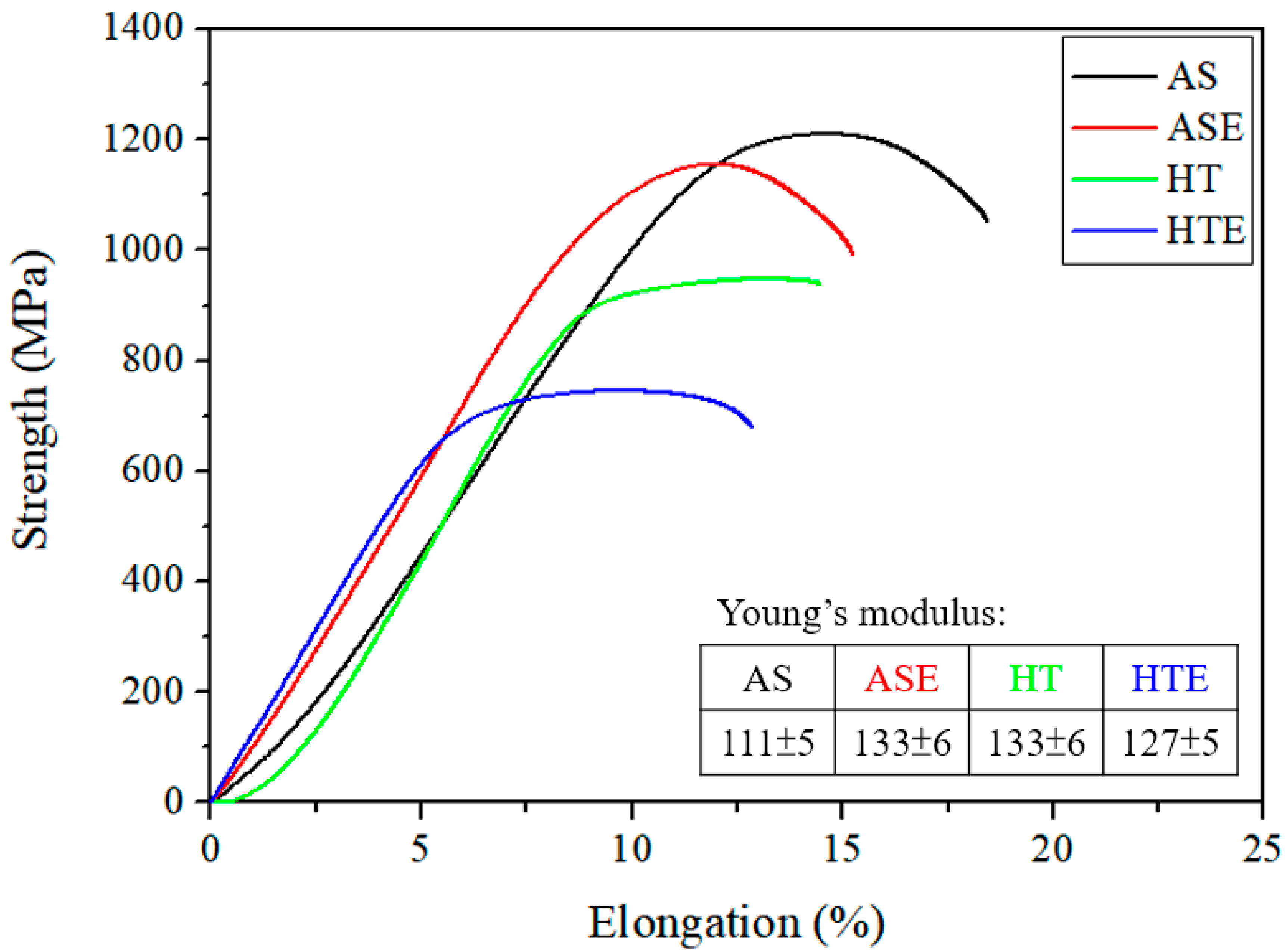

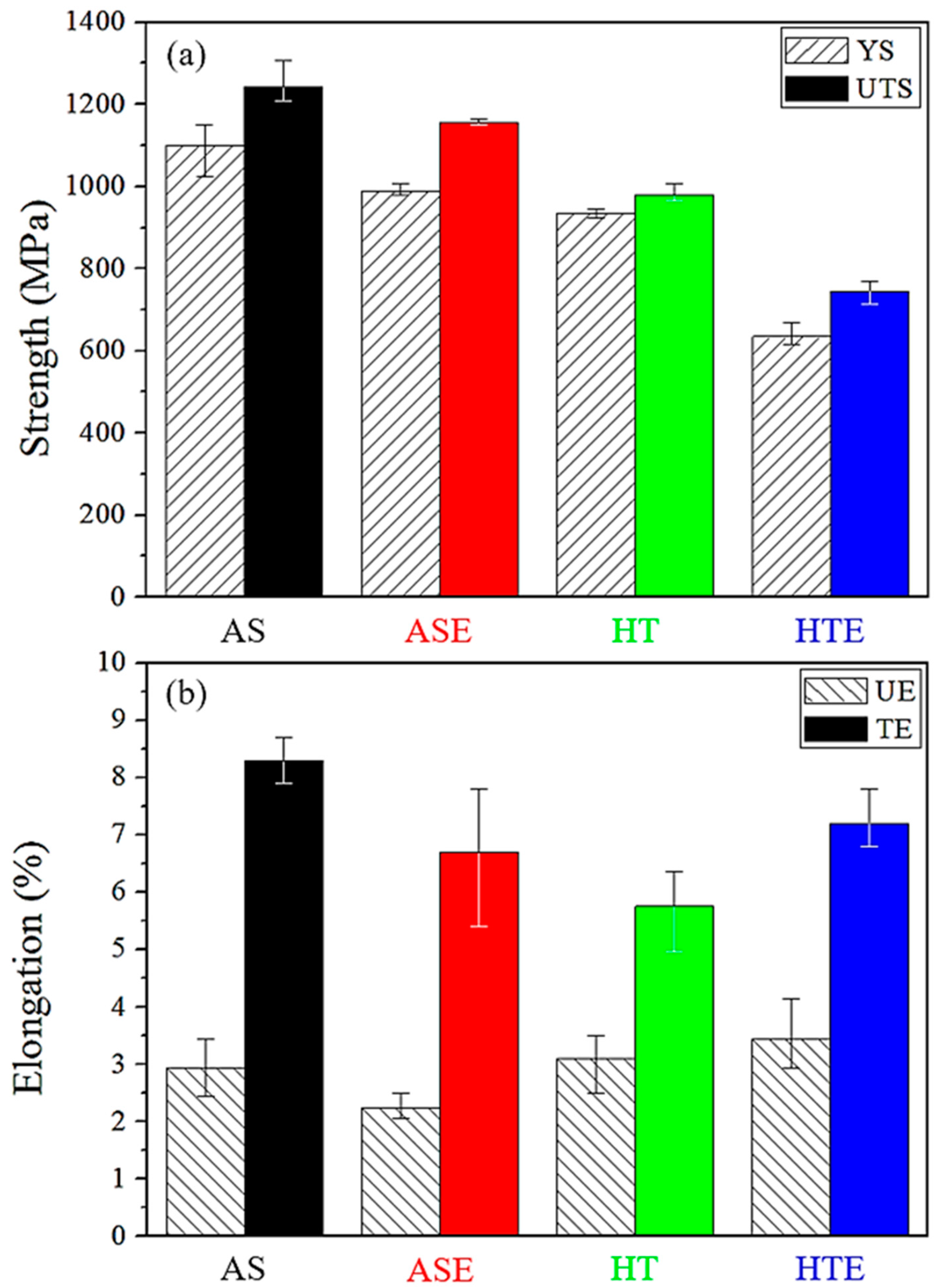

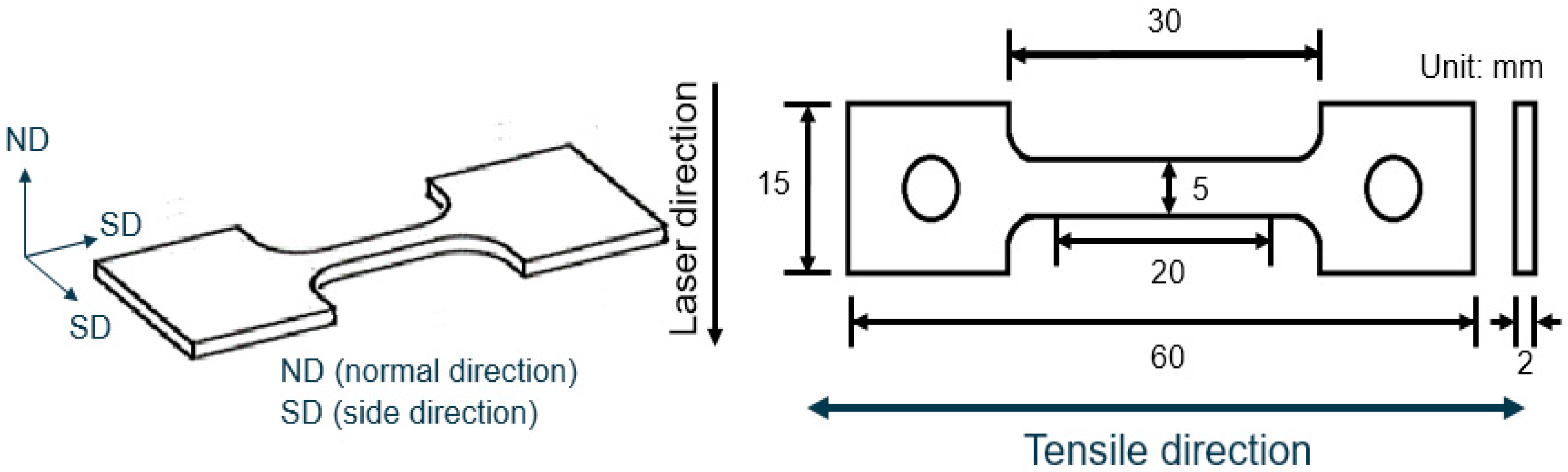

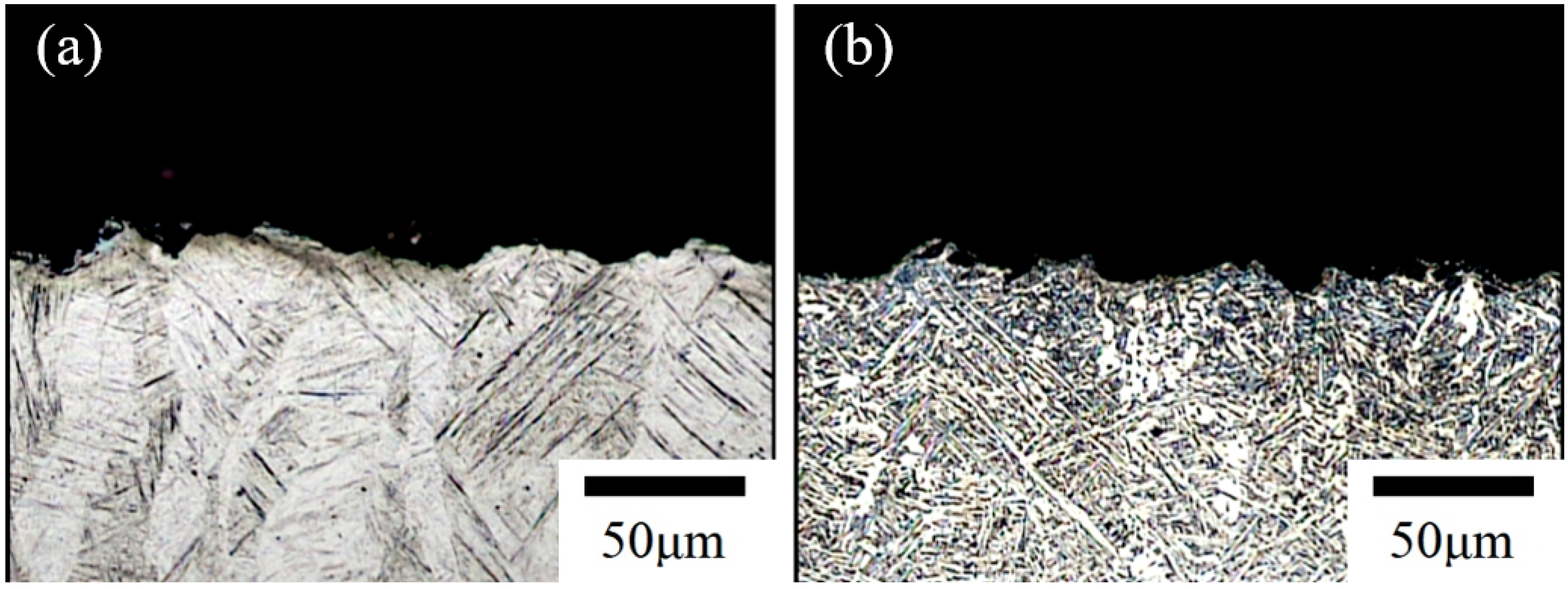

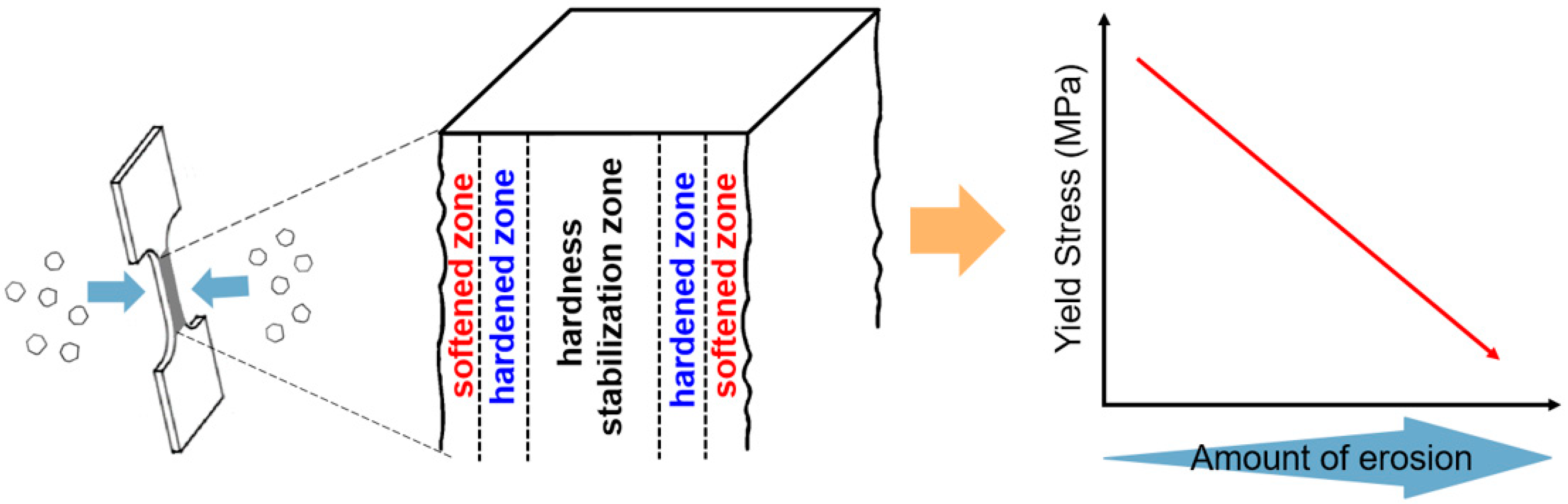

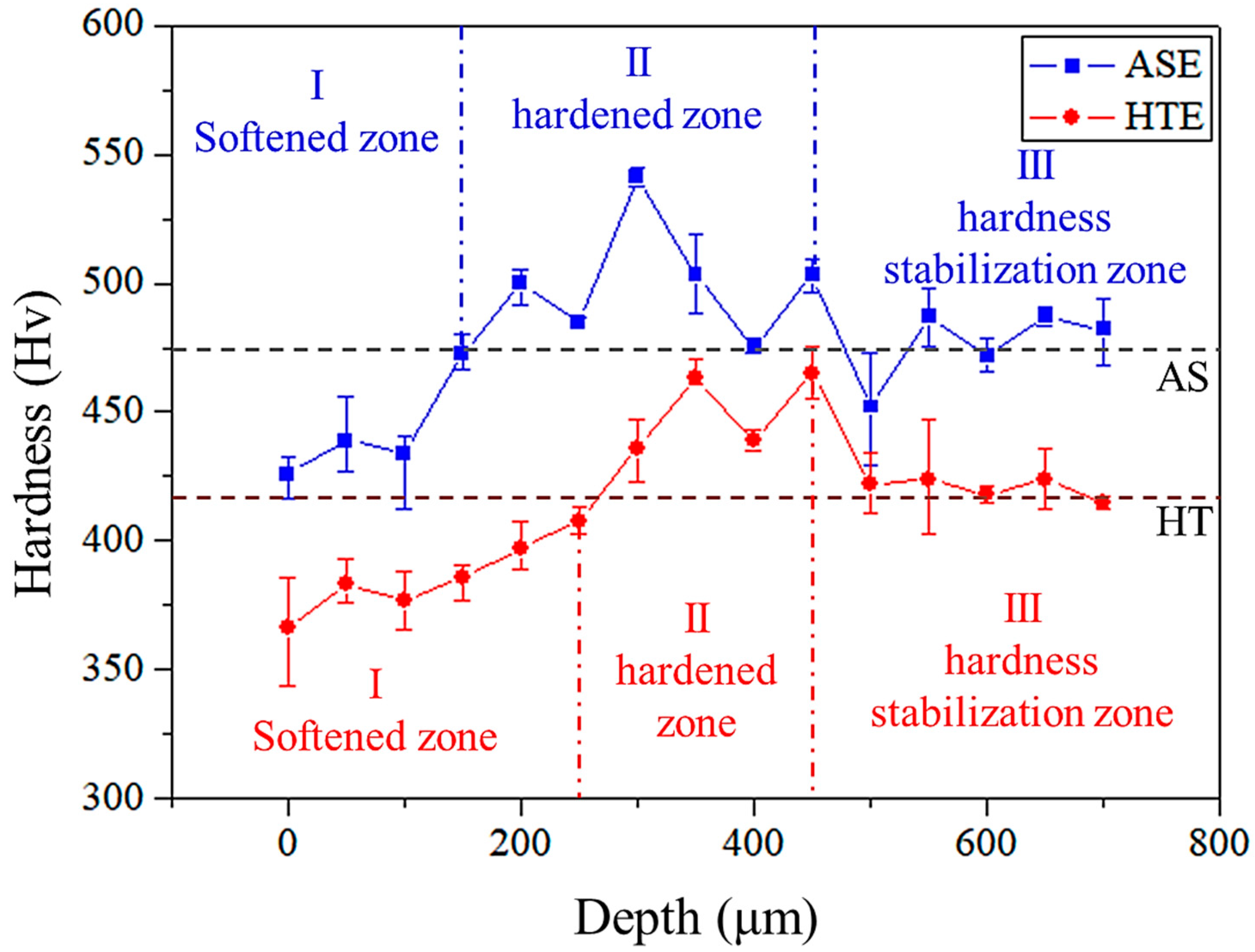

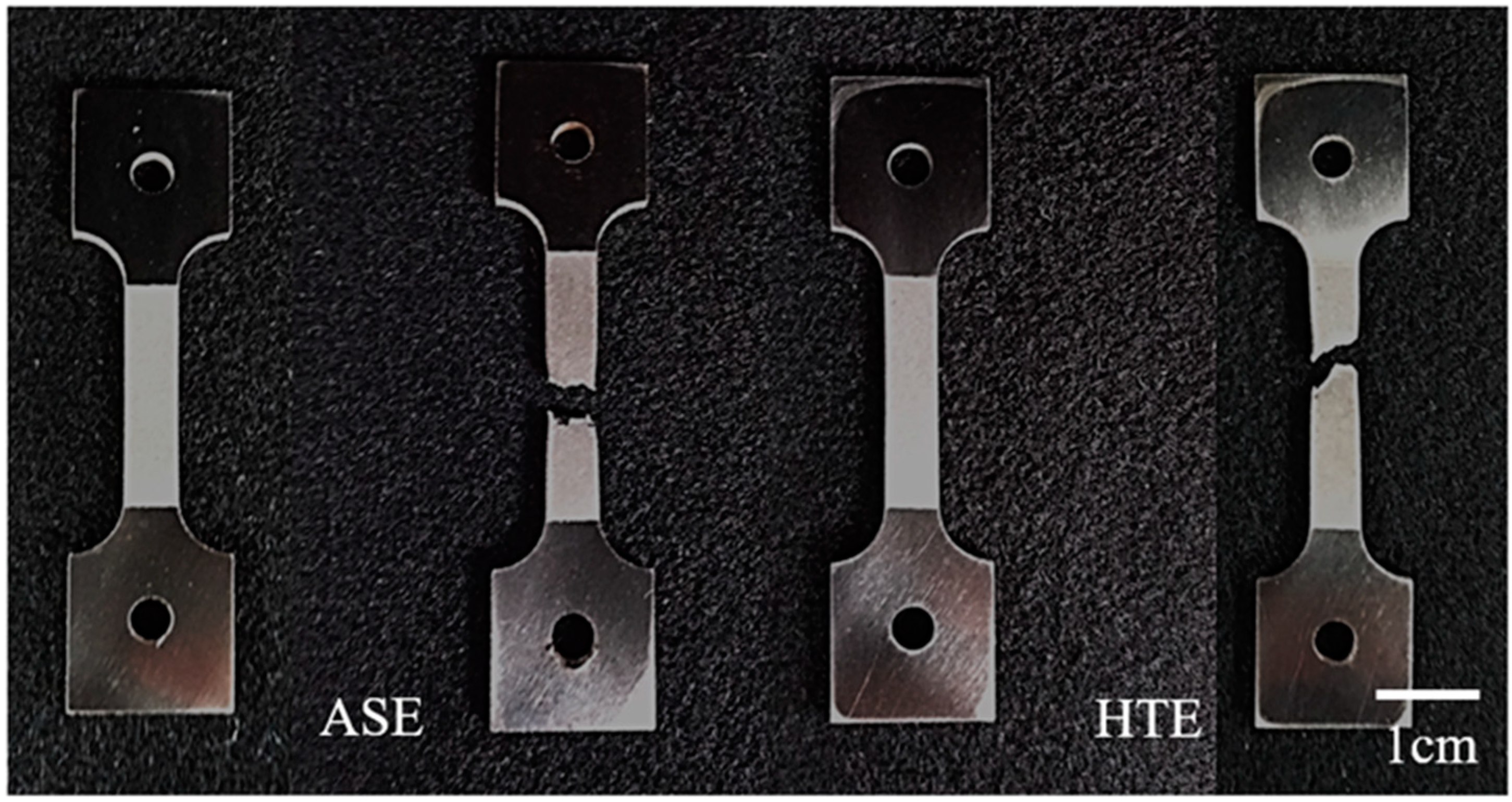

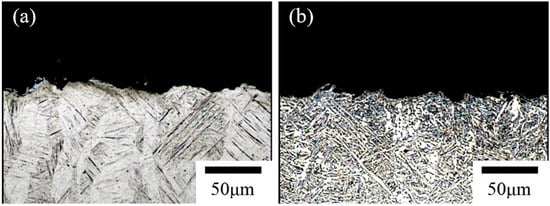

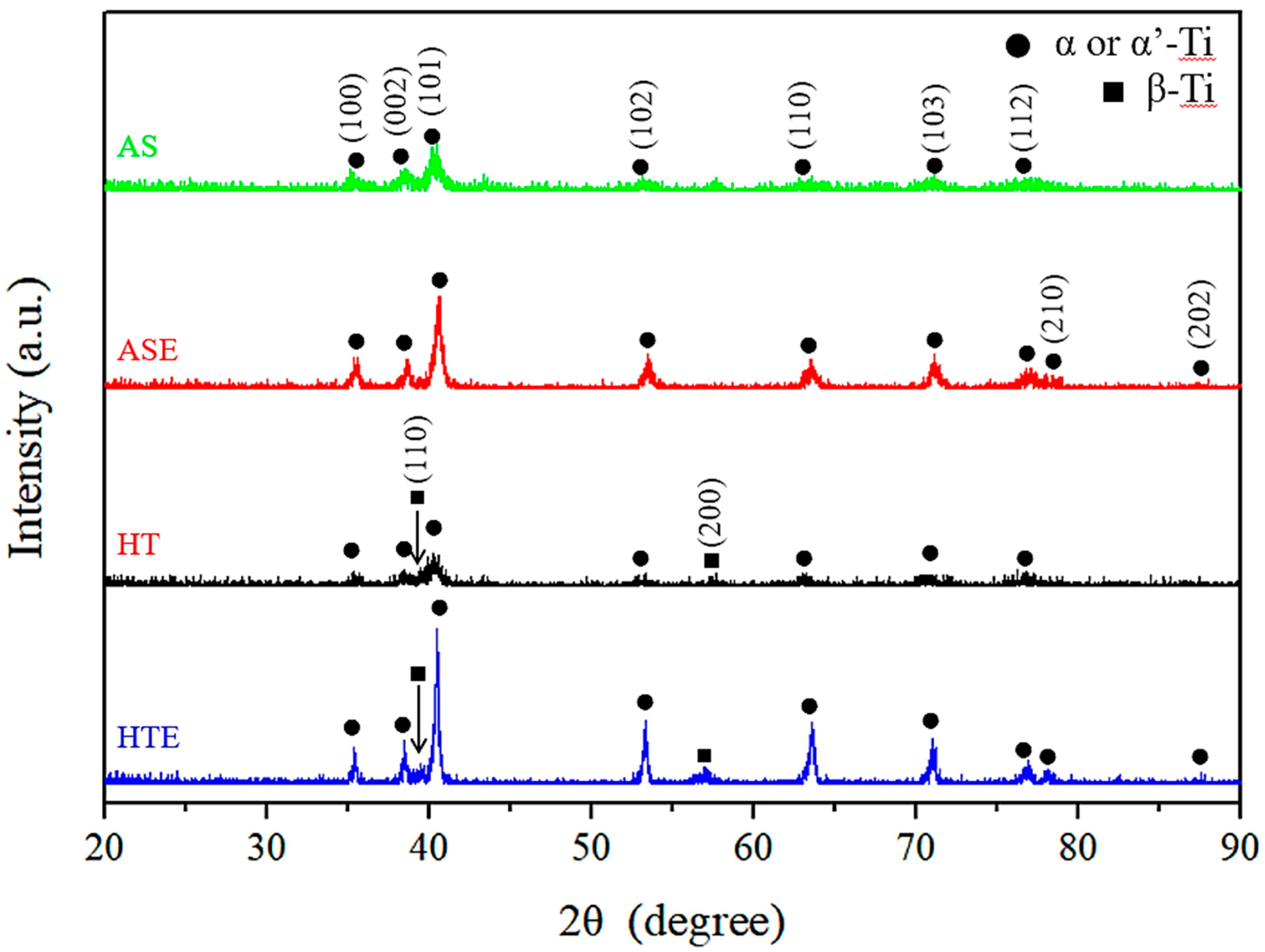

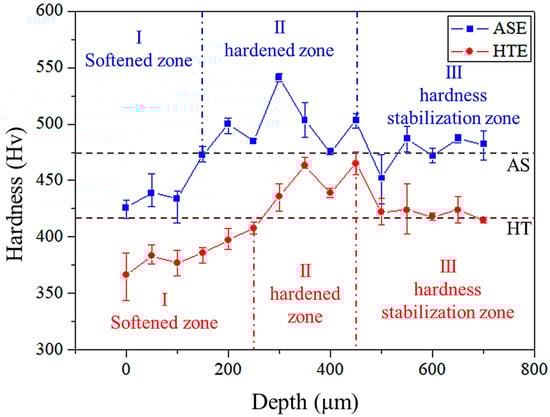

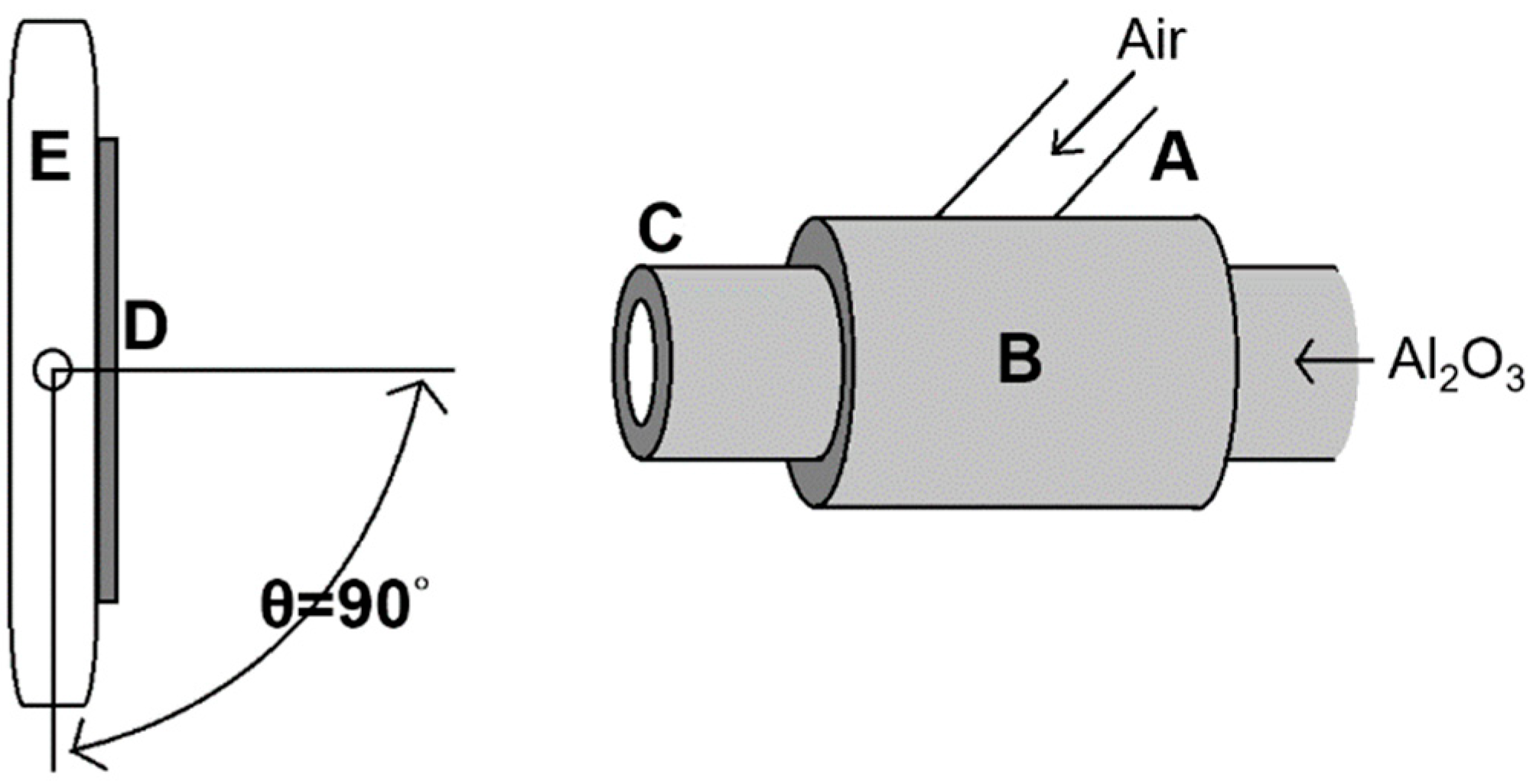

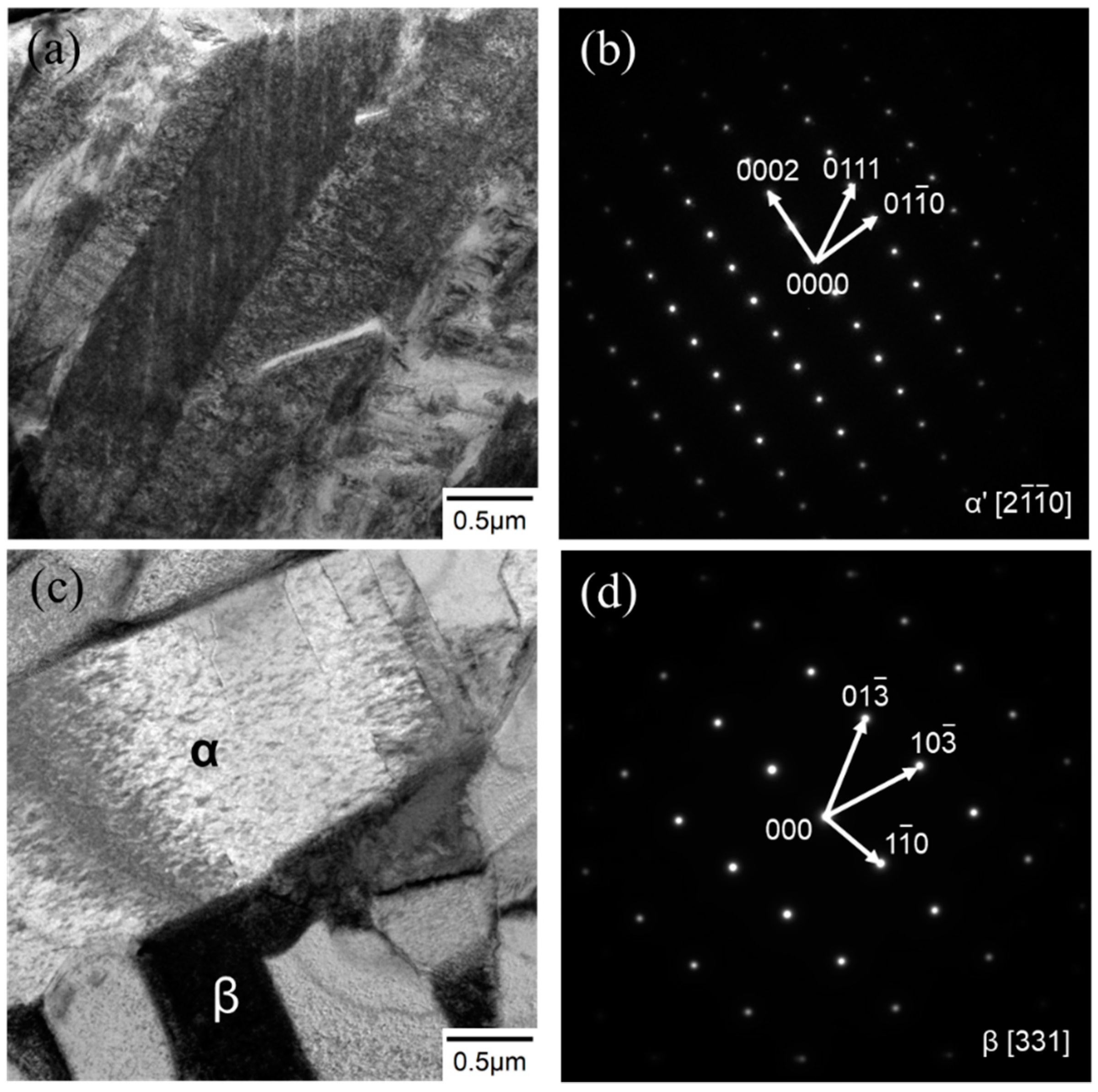

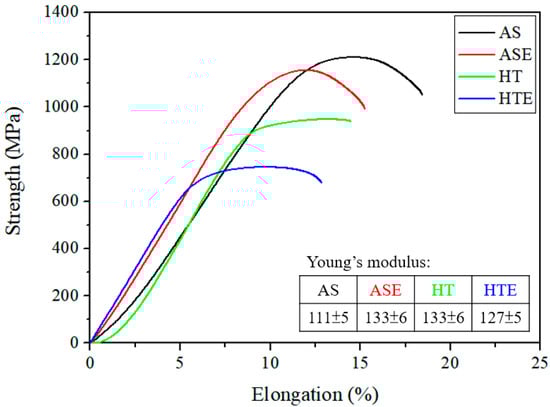

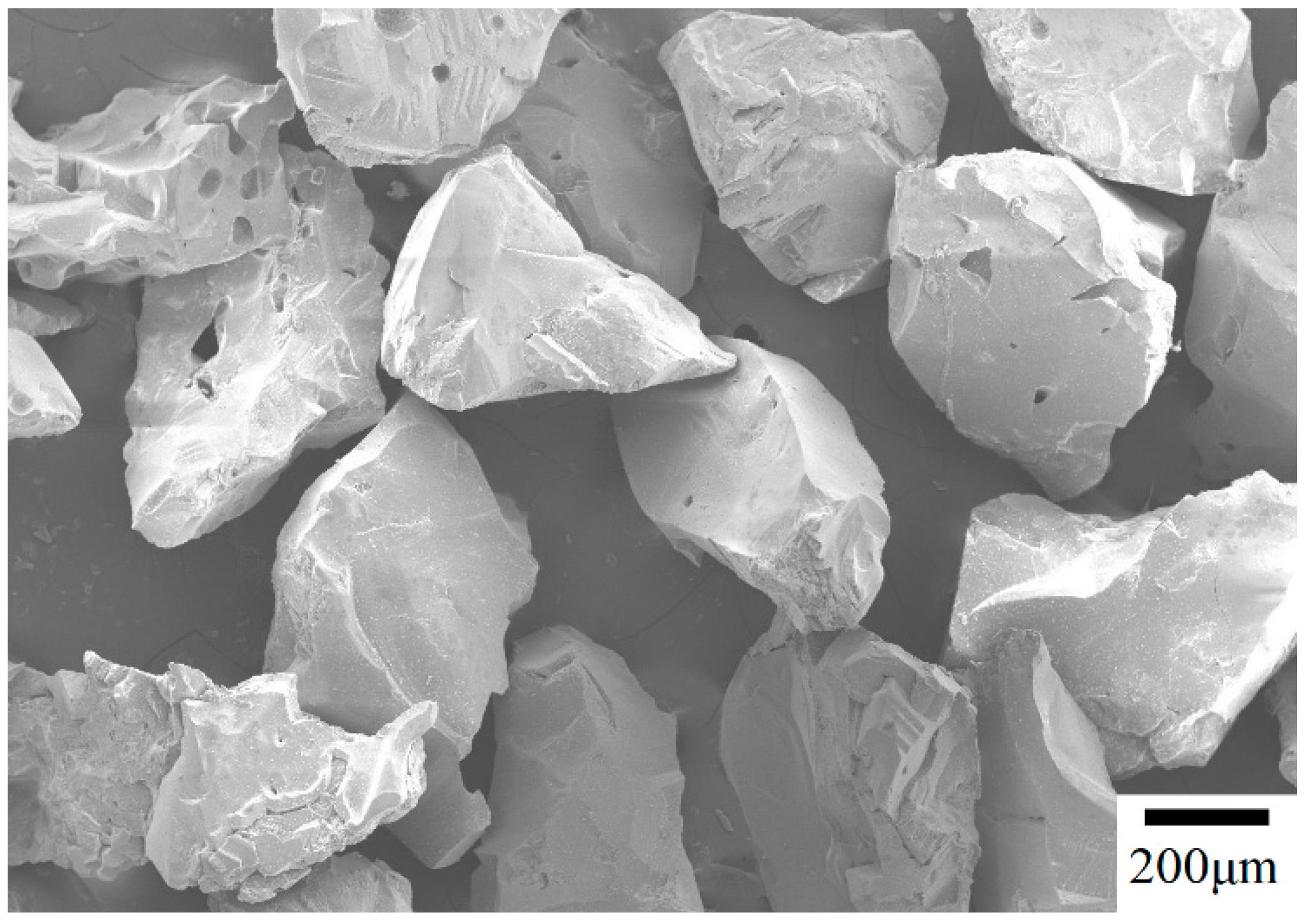

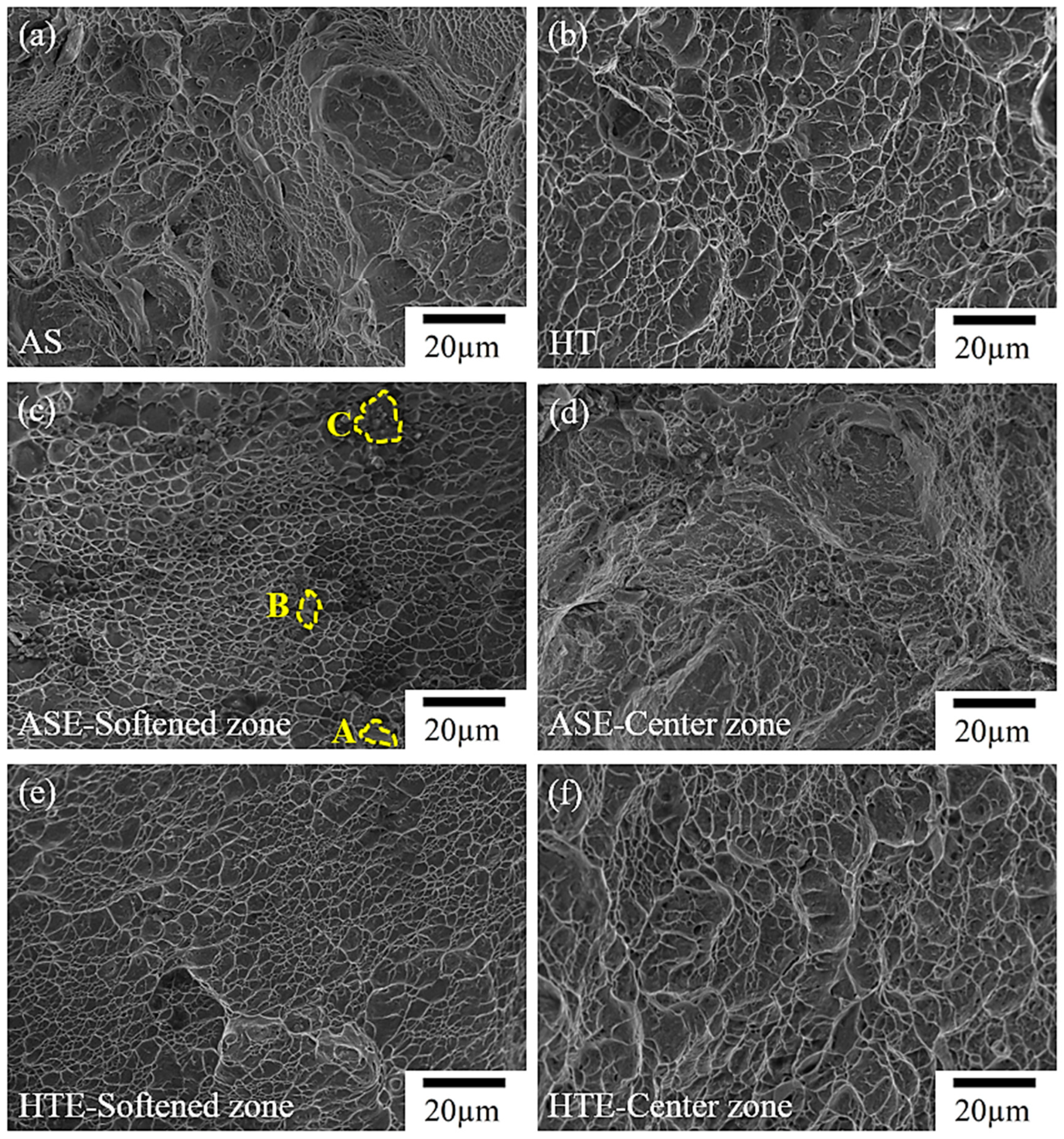

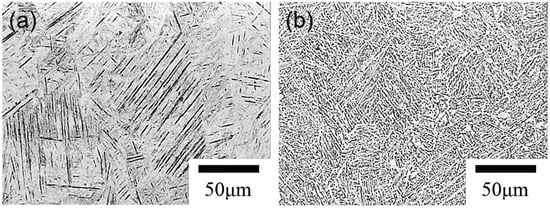

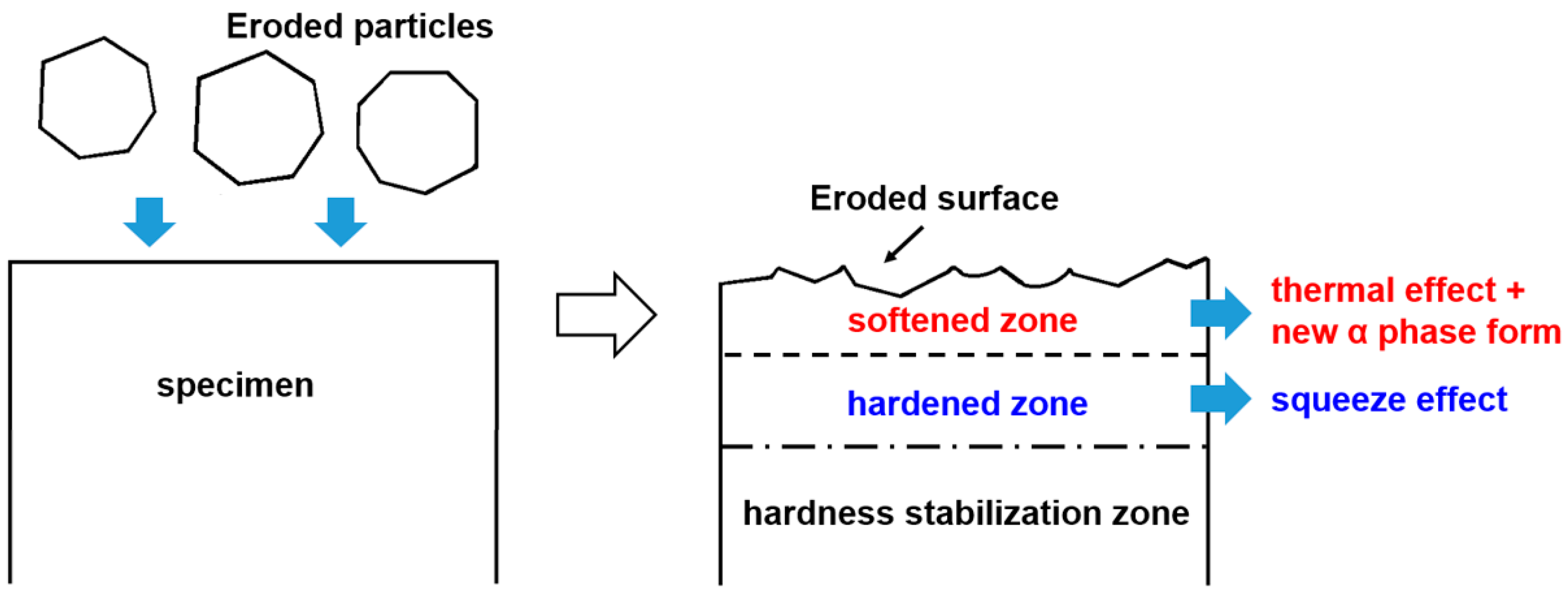

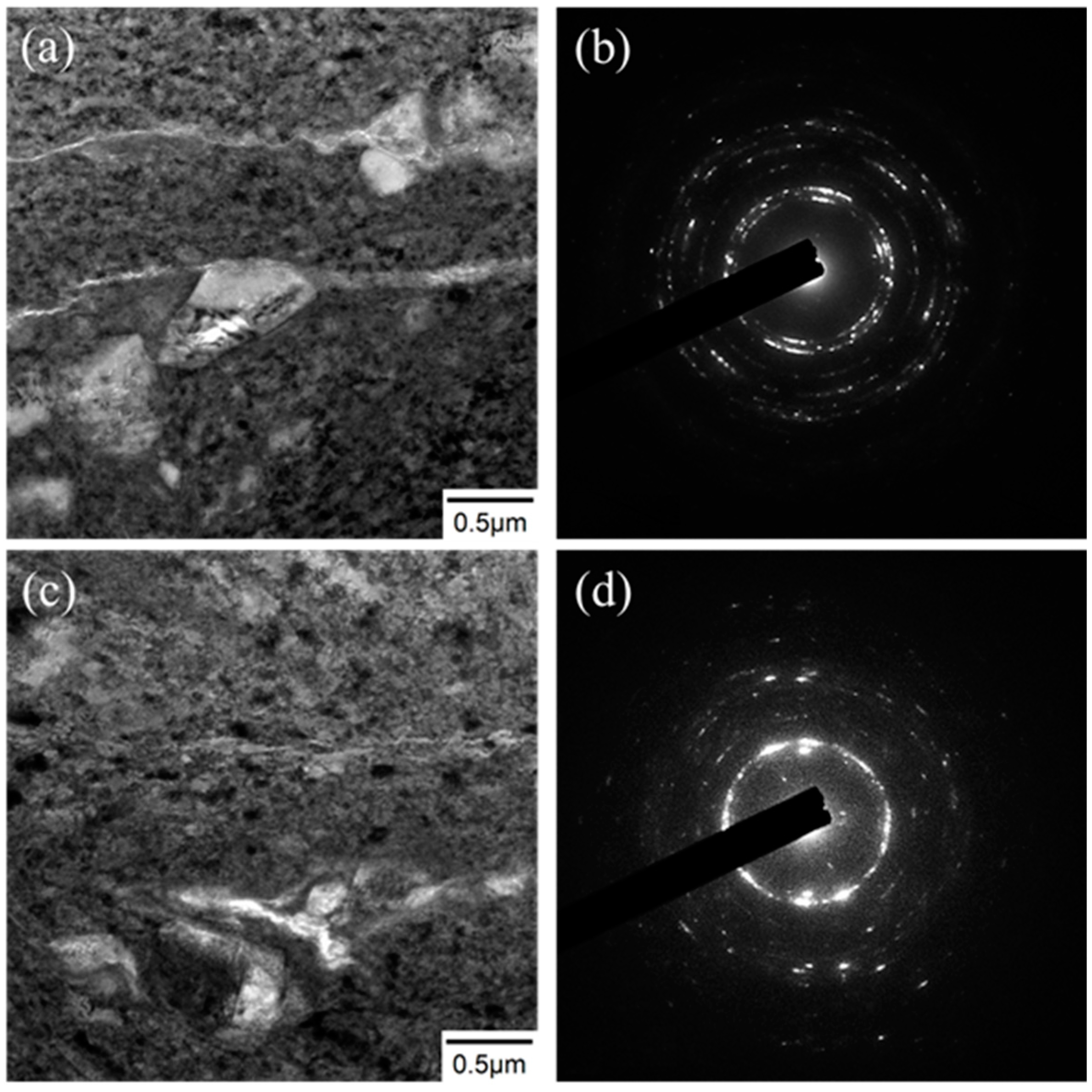

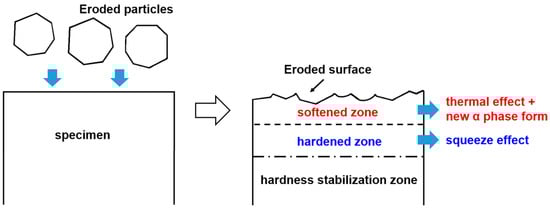

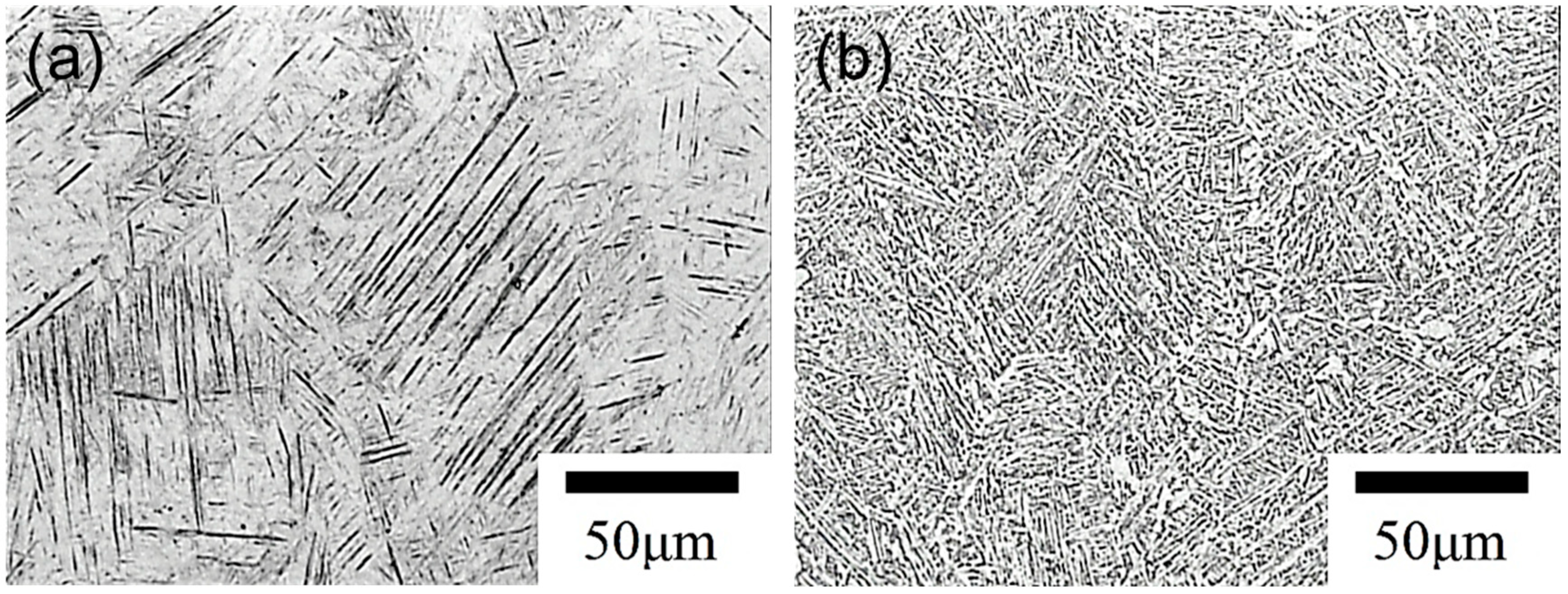

In this study, powder bed fusion Ti-6Al-4V alloy flake was subjected to heat treatment at 800 °C for 4 h for inducing the complete transformation of the α’ phase into the α+β phases. An erosion experiment with 450 µm mean particle diameter of Al2O3 particles at a 90° impact on both the as- powder bed fusion (PBF) Ti-6Al-4V and the 4-h 800 °C heat-treated specimens to clarify the particle erosion-induced phase transformation behavior and its effect on mechanical properties. Particle erosion-induced phase transformation to the α phase was observed on both the as-PBF Ti-6Al-4V and the heat-treated specimens. It brought about a sequential formation from the surface to the bottom: (1) a surface softened zone, (2) a hardened zone, and (3) a hardness stabilization zone. The as-PBF Ti-6Al-4V was positively eroded by erosion particles, decreasing strength and ductility. In the case of the heat-treated specimens, we found decreased strength yet an increased ductility. View Full-Text
Keywords: powder bed fusion (PBF); Ti-6Al-4V; erosion; phase transformation; tensile powder bed fusion (PBF); Ti-6Al-4V; erosion; phase transformation; tensile
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Zhao, J.-R.; Hung, F.-Y.; Lui, T.-S. Particle Erosion Induced Phase Transformation of Different Matrix Microstructures of Powder Bed Fusion Ti-6Al-4V Alloy Flakes. Metals 2019, 9, 730.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
