Next Article in Journal
Effects of Nb Content on the Mechanical Alloying Behavior and Sintered Microstructure of Mo-Nb-Si-B Alloys
Previous Article in Journal
Corrosion Behavior of Different Brass Alloys for Drinking Water Distribution Systems
Open AccessArticle

Improving of Mechanical Properties of Titanium Alloy VT23 due to Impact-Oscillatory Loading and the Use of Carbon Nano-Solution

1
Department of Mechanics, National University of Life and Environmental Sciences of Ukraine, HeroivOborony str.15, 03041 Kyiv, Ukraine
2
Institute for Problems of Materials Science National Academy of Sciences of Ukraine, Krzhizhanovsky str.3, Ukraine, 03142 Kyiv, Ukraine
3
Department of Engineering Technologies and Materials, Faculty of Mechanical Engineering, Technical University of Košice, Mäsiarska 74, 040 01 Košice, Slovakia
4
Department of Industrial Automation, Ternopil National Ivan Puľuj Technical University, Ruska str. 56, 46001 Ternopil, Ukraine
5
1st Surgical Clinic of Faculty of Medicine PavolJozefŠafárik University in Košice and University Hospital of L. Pasteur in Košice, 04022 Košice, Slovakia
*
Author to whom correspondence should be addressed.
Metals 2019, 9(6), 652; https://doi.org/10.3390/met9060652
Received: 9 May 2019 / Revised: 31 May 2019 / Accepted: 3 June 2019 / Published: 4 June 2019

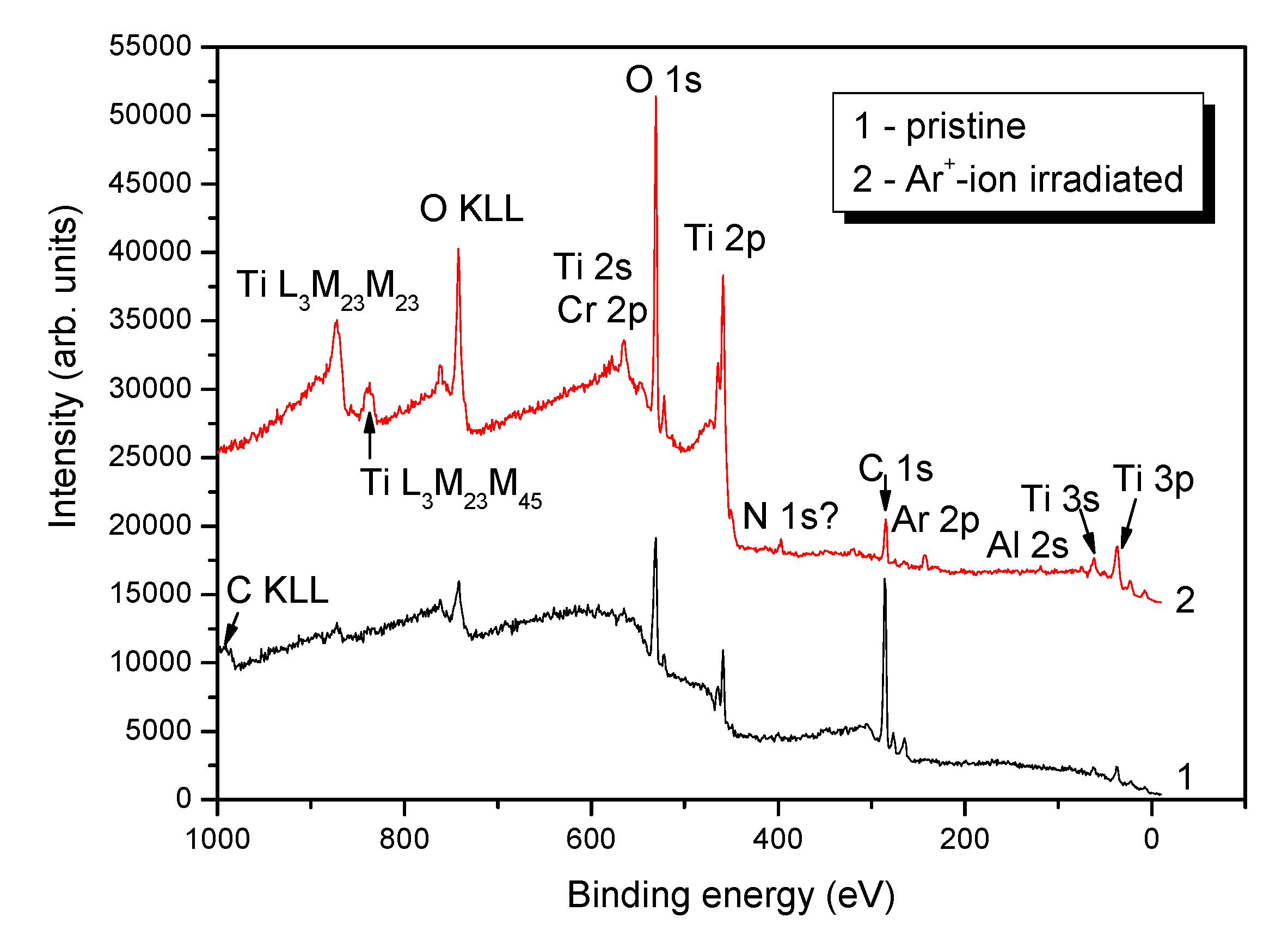

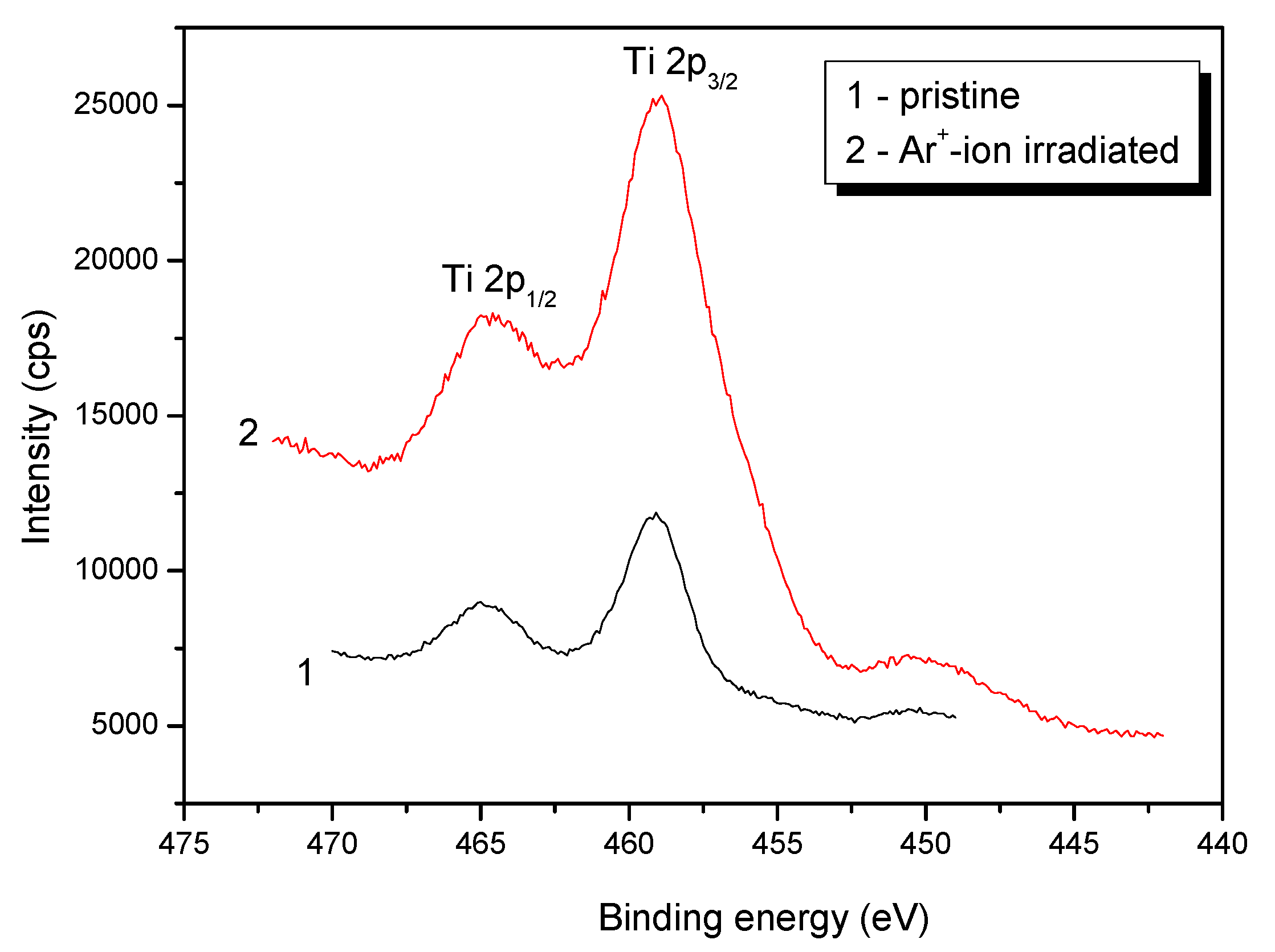

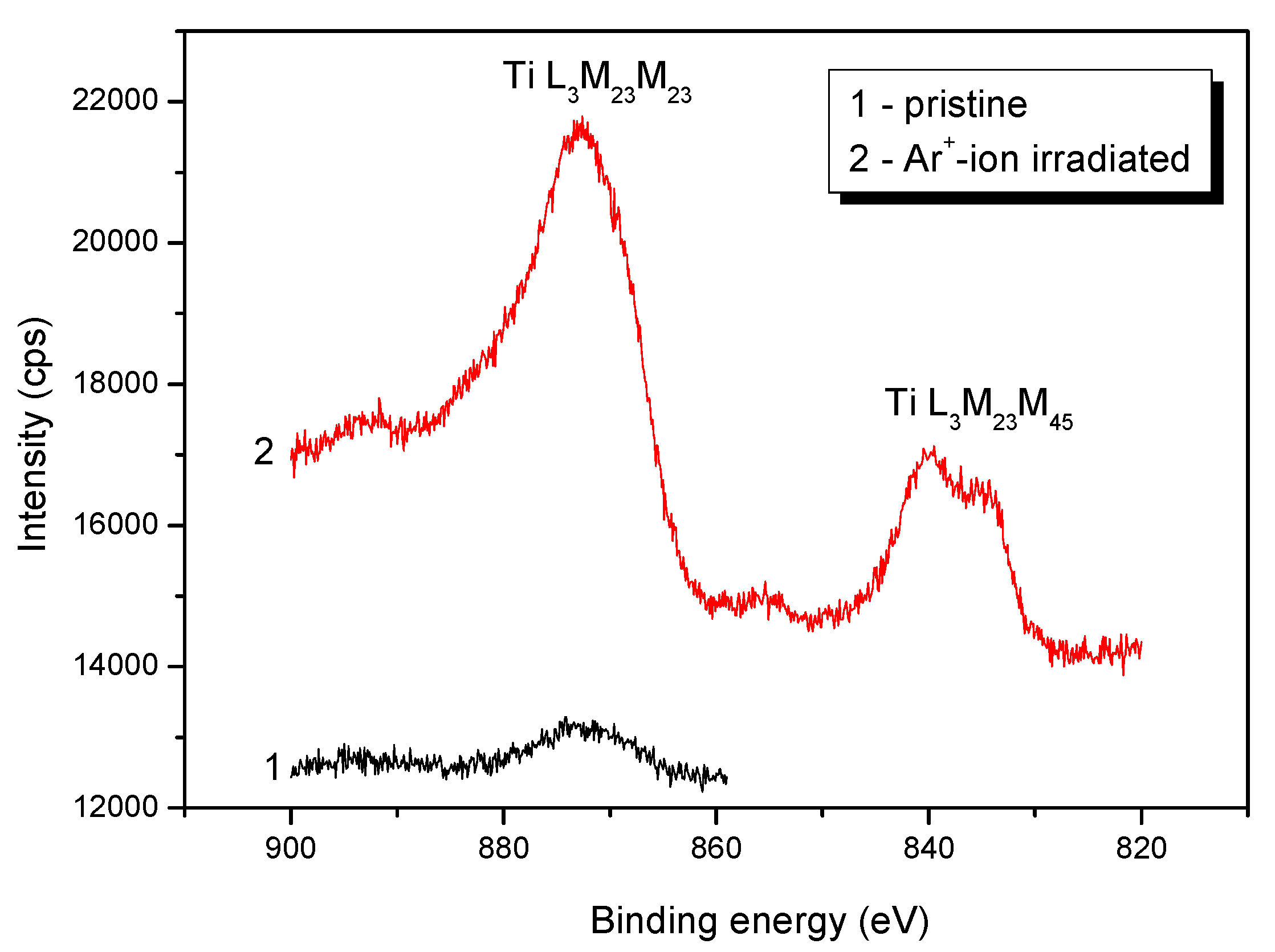

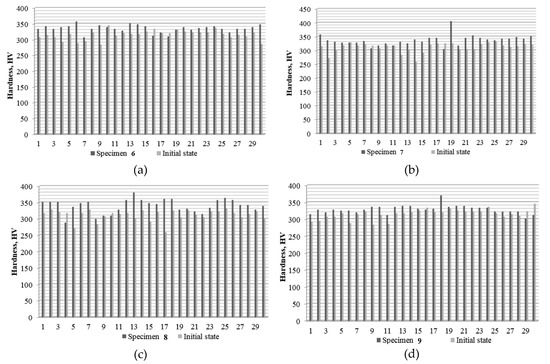

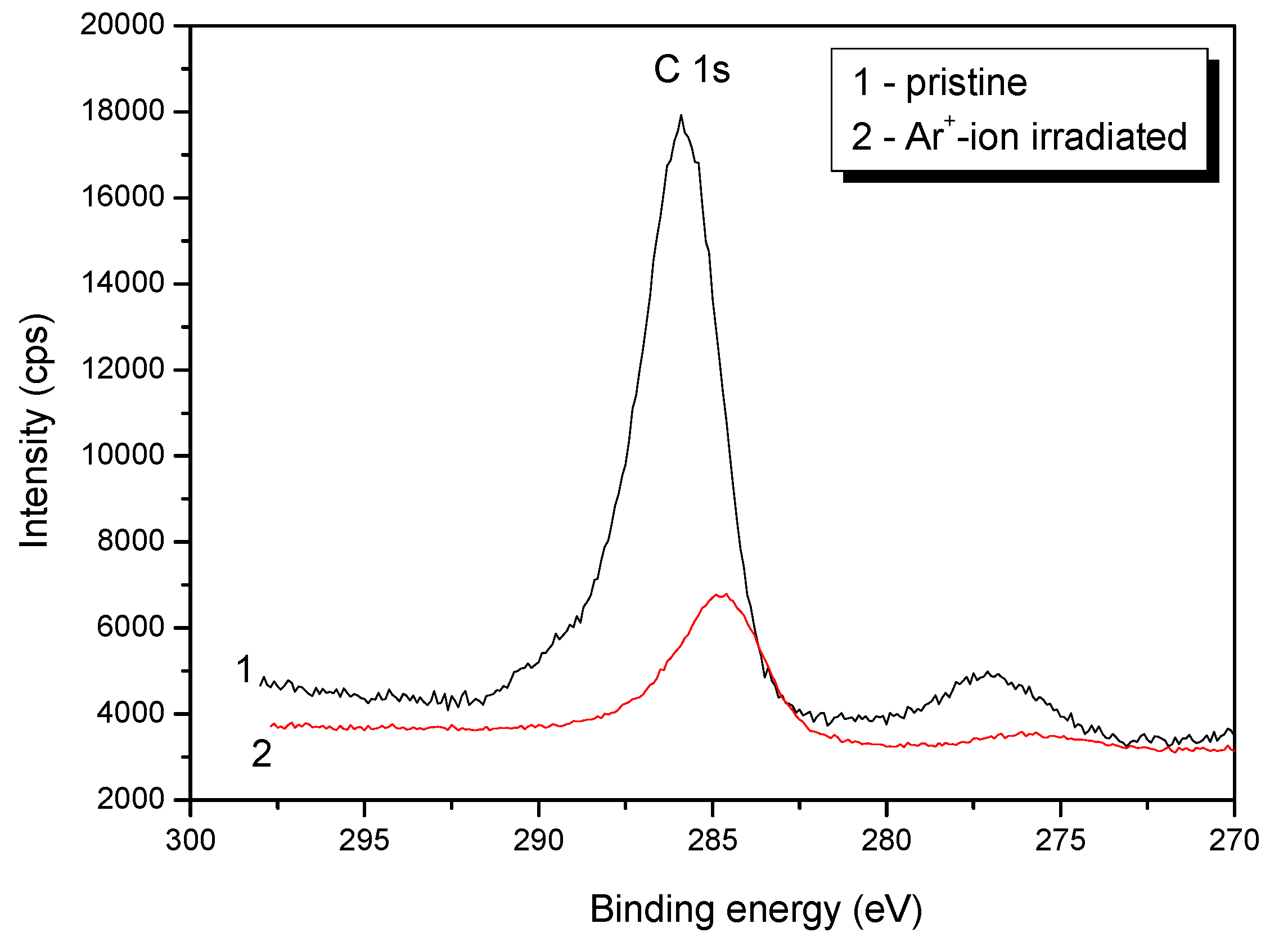

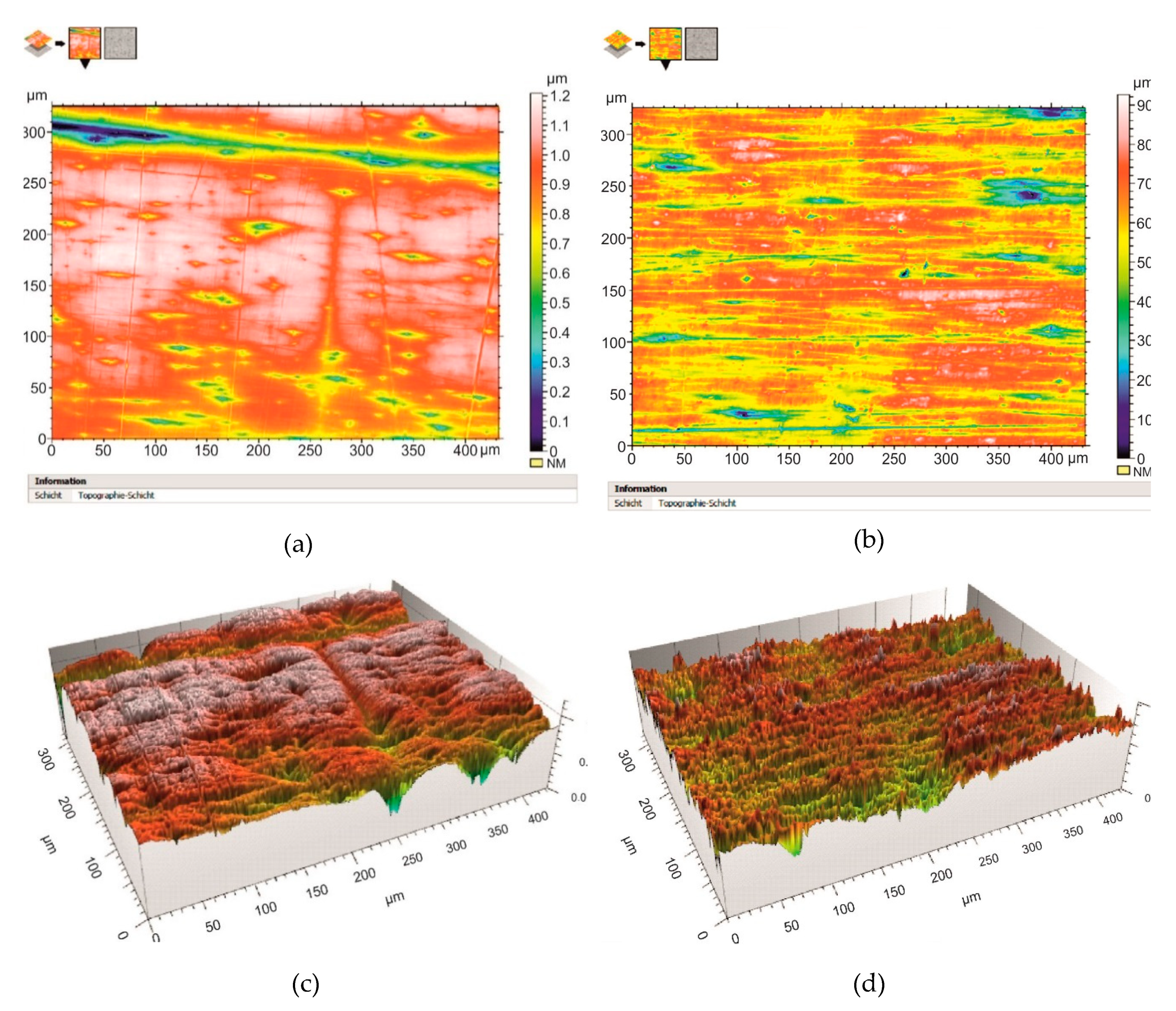

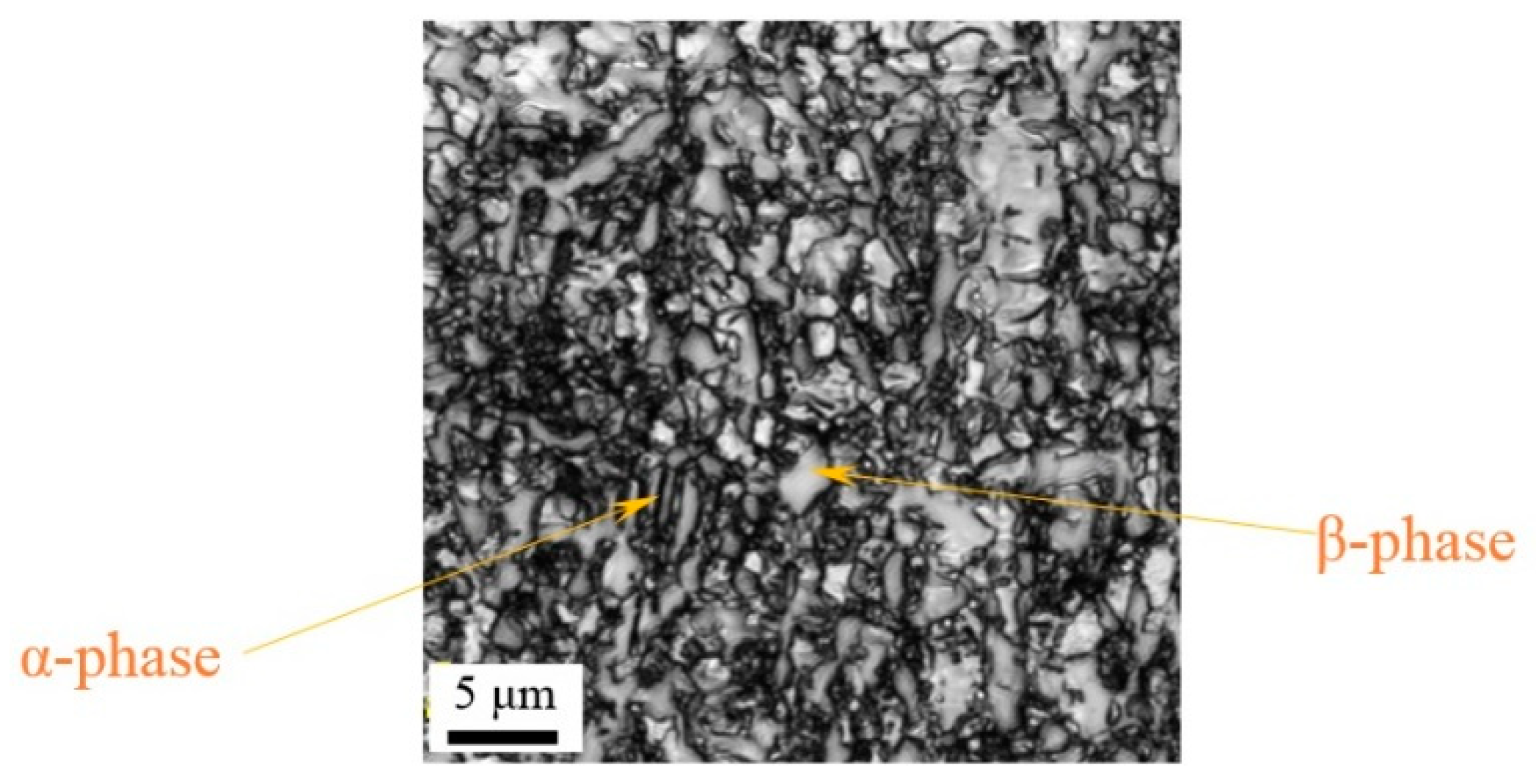

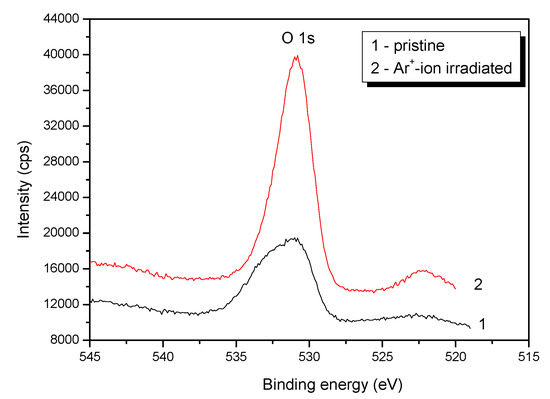

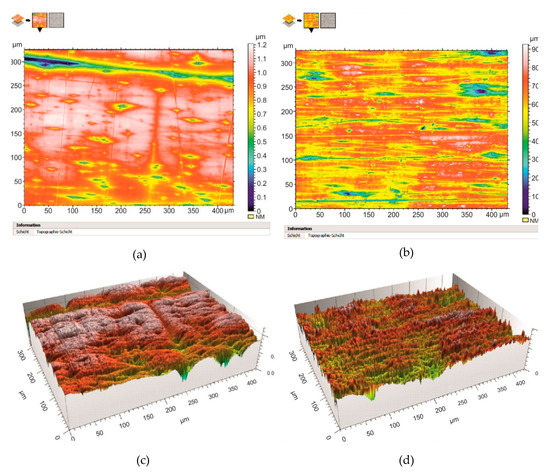

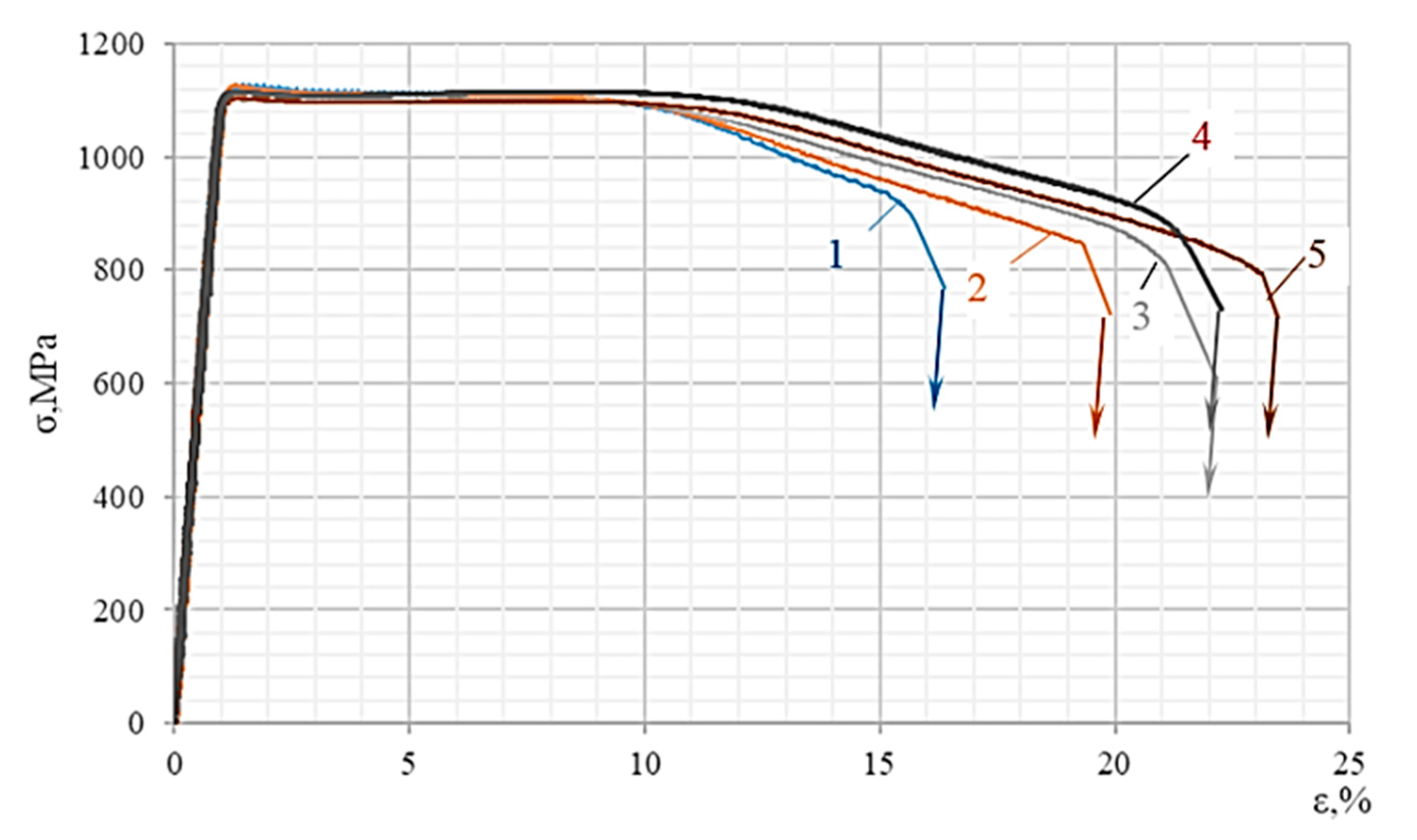

Improvement in the mechanical properties of sheet two-phase high-strength titanium alloy VT23 due to impact-oscillatory loading and the use of carbon nanosolutions at room temperature was tested experimentally. It was shown that in addition to obtaining a significant increase in the initial plastic deformation of the alloy, it is possible to strengthen the surface layers of the alloy by a factor of 8.4% at a time via the impulse introduction of energy into the alloy and the use of carbon nanosolutions. Using X-ray photoelectron spectroscopy (XPS), it was first found that strengthening of the surface layers of the titanium alloy at a given load, in line with using a carbon nanosolution, leads to the formation of a mixture of titanium oxide and titanium carbide or oxycarbide of type TiO2−xCx on the surface. View Full-Text
Keywords: impact-oscillatory loading; nanotechnology; titanium alloy; surface layers; strengthening; titanium carbide impact-oscillatory loading; nanotechnology; titanium alloy; surface layers; strengthening; titanium carbide
Show Figures

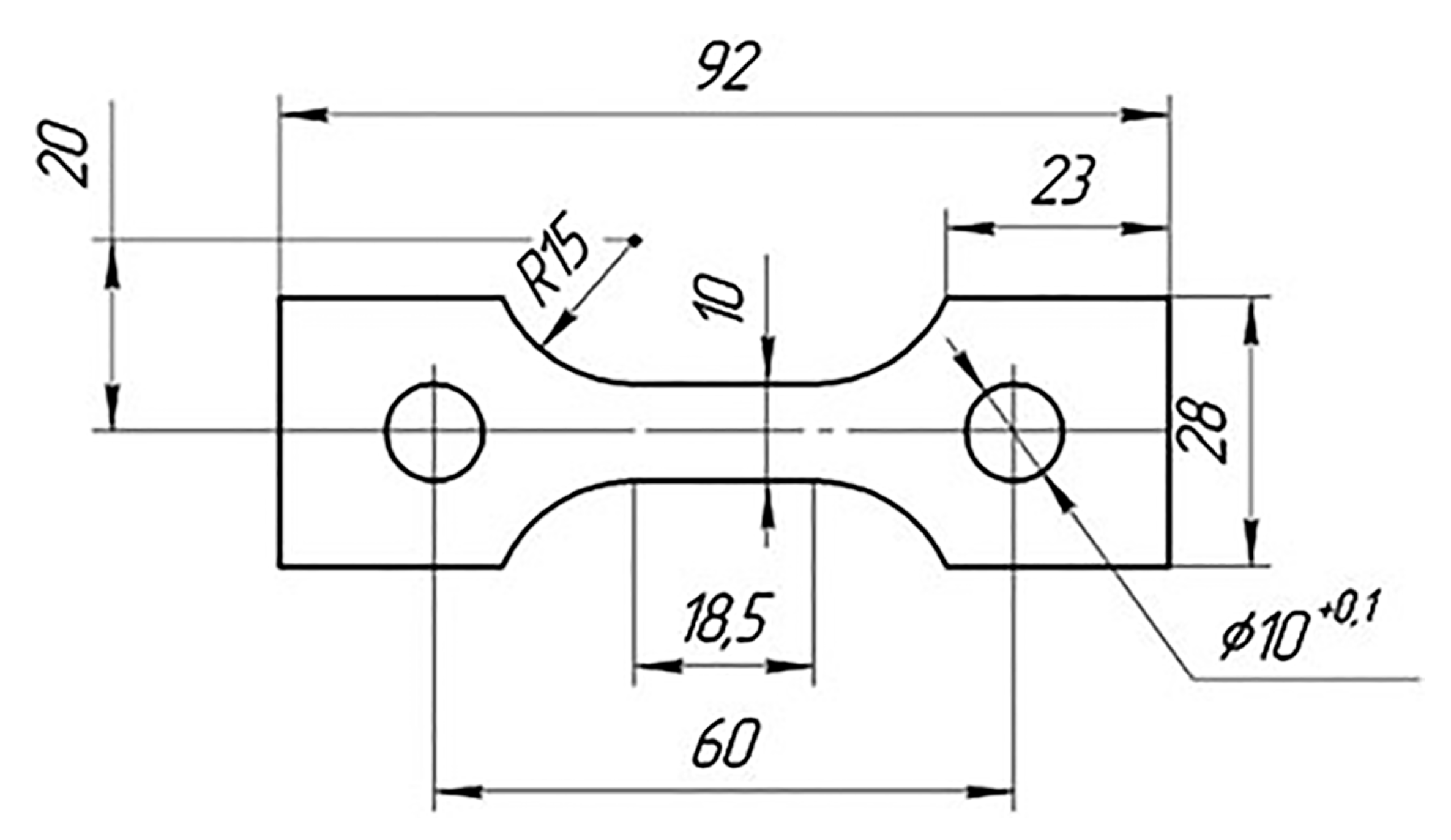

Figure 1

MDPI and ACS Style

Chausov, M.; Khyzhun, O.; Brezinová, J.; Maruschak, P.; Pylypenko, A.; Brezina, J.; Buzová, K.; Lopat’ko, K. Improving of Mechanical Properties of Titanium Alloy VT23 due to Impact-Oscillatory Loading and the Use of Carbon Nano-Solution. Metals 2019, 9, 652.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map

1
Back to TopTop
