Next Article in Journal
FAST-forge of Diffusion Bonded Dissimilar Titanium Alloys: A Novel Hybrid Processing Approach for Next Generation Near-Net Shape Components
Previous Article in Journal
Improving of Mechanical Properties of Titanium Alloy VT23 due to Impact-Oscillatory Loading and the Use of Carbon Nano-Solution
Article Menu
Issue 6 (June) cover image

Export Article

Open AccessArticle

Effects of Nb Content on the Mechanical Alloying Behavior and Sintered Microstructure of Mo-Nb-Si-B Alloys

State Key Laboratory of Solidification Processing, Northwestern Polytechnical University, Xi’an 710072, China
*
Author to whom correspondence should be addressed.
Metals 2019, 9(6), 653; https://doi.org/10.3390/met9060653
Received: 7 May 2019 / Revised: 28 May 2019 / Accepted: 1 June 2019 / Published: 4 June 2019
  |
PDF [9721 KB, uploaded 4 June 2019]
  |

Abstract

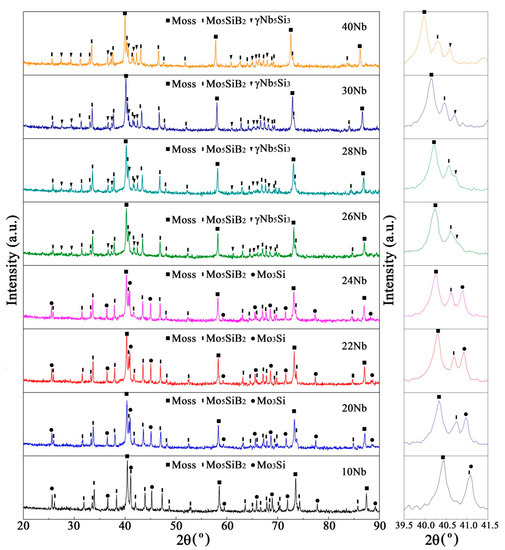

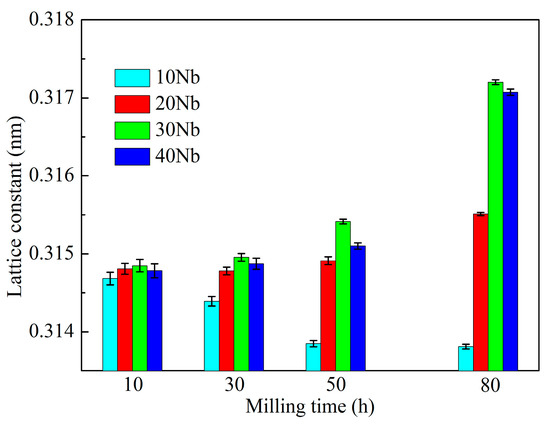

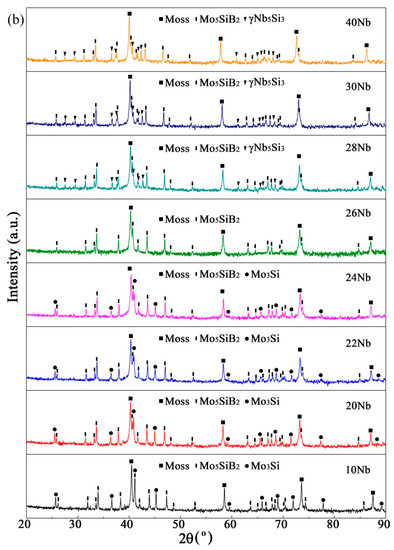

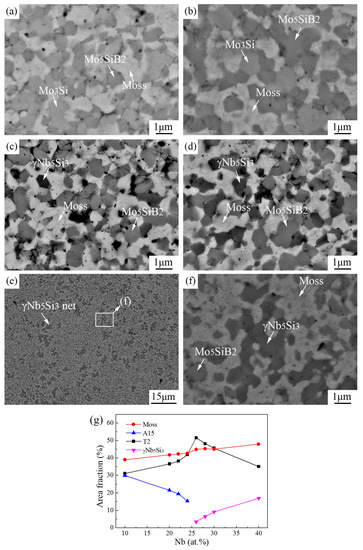

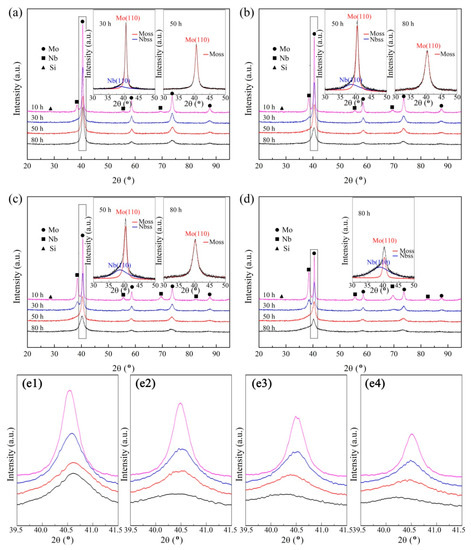

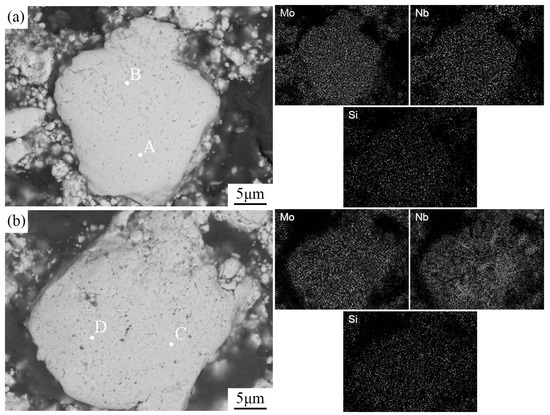

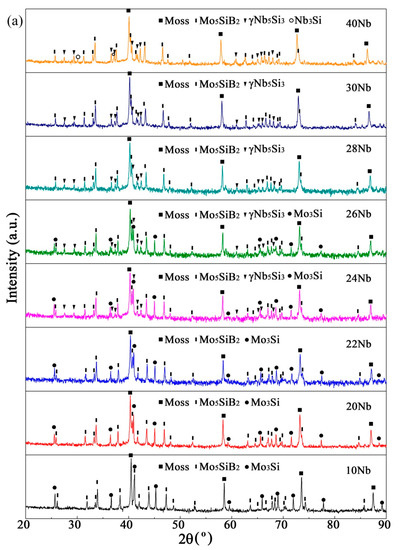

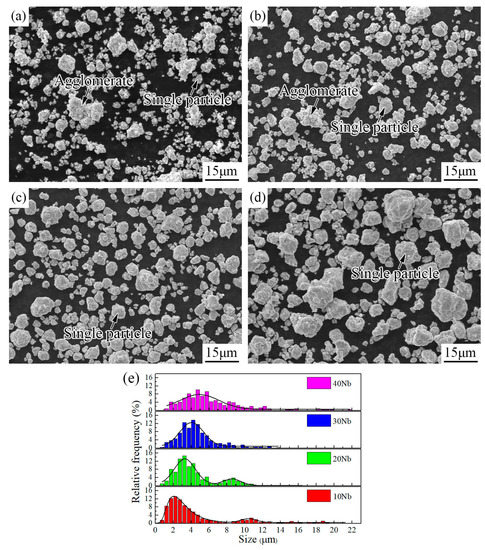

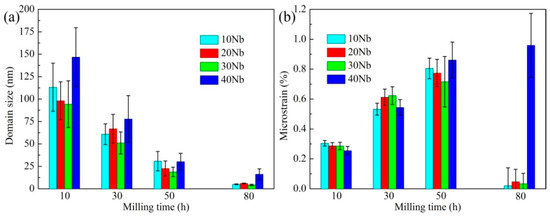

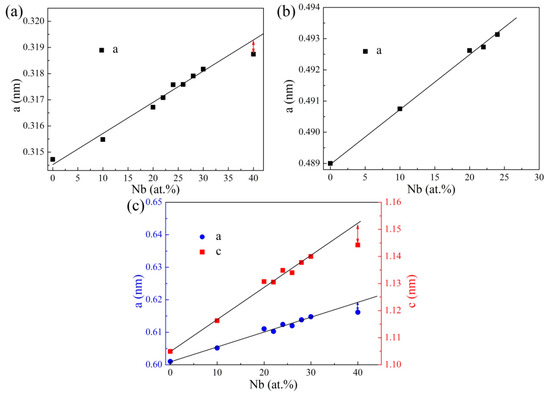

Different from conventional Mo-Si-B-based alloys consisting of Moss, Mo3Si, and Mo5SiB2, Mo3Si-free Mo-Si-B-based alloys (Moss+Mo5Si3+Mo5SiB2 or Moss+Mo5SiB2) show great potentials for more excellent oxidation resistance and elevated temperature strength. In the present work, alloying element Nb was added to Mo-12Si-10B (at.%)-based alloy to suppress the formation of the Mo3Si phase. Mo-12Si-10B-xNb (x = 10, 20, 22, 24, 26, 28, 30, and 40) bulk alloys were fabricated using mechanical alloying followed by cold pressing and then sintering at 1773 K for 2 h. Effects of Nb content on the mechanical alloying behavior and then sintered microstructure were studied. The addition of Nb with an amount less than 30 at.% accelerated the mechanical alloying process, but 40 at.% Nb addition decreased the process due to excessive cold welding and high powder volume. For the sintered bulk alloy prepared from the mechanically alloyed powders milled for 30 h, a critical Nb content between 24 and 26 at.% was found to suppress Mo3Si production and γNb5Si3 phase formed in the alloys with the addition of Nb content more than 26 at.%. Prolongation of a prior milling process could facilitate the suppression of Mo3Si and delay the formation of niobium silicides. View Full-Text
Keywords: Mo-Nb-Si-B alloy; mechanical alloying; sintering; phase constituent; Nb addition Mo-Nb-Si-B alloy; mechanical alloying; sintering; phase constituent; Nb addition
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Yang, T.; Guo, X. Effects of Nb Content on the Mechanical Alloying Behavior and Sintered Microstructure of Mo-Nb-Si-B Alloys. Metals 2019, 9, 653.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
