Next Article in Journal
Compressive Properties of Additively Manufactured Functionally Graded Kagome Lattice Structure
Previous Article in Journal
Properties of Components with Incrementally Formed Gears
Article Menu
Issue 5 (May) cover image

Export Article

Open AccessArticle

Effects of MoO3 + C on Crystallization and Radiative Heat Transfer of CaO–SiO2–B2O3-Based Glassy Fluoride-Free Mold Fluxes

1
Process Metallurgy Research Unit, University of Oulu, FI-90014 Oulu, Finland
2
University of Science and Technology Beijing, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Metals 2019, 9(5), 516; https://doi.org/10.3390/met9050516
Received: 8 April 2019 / Revised: 23 April 2019 / Accepted: 29 April 2019 / Published: 2 May 2019
  |
PDF [3686 KB, uploaded 2 May 2019]
  |

Abstract

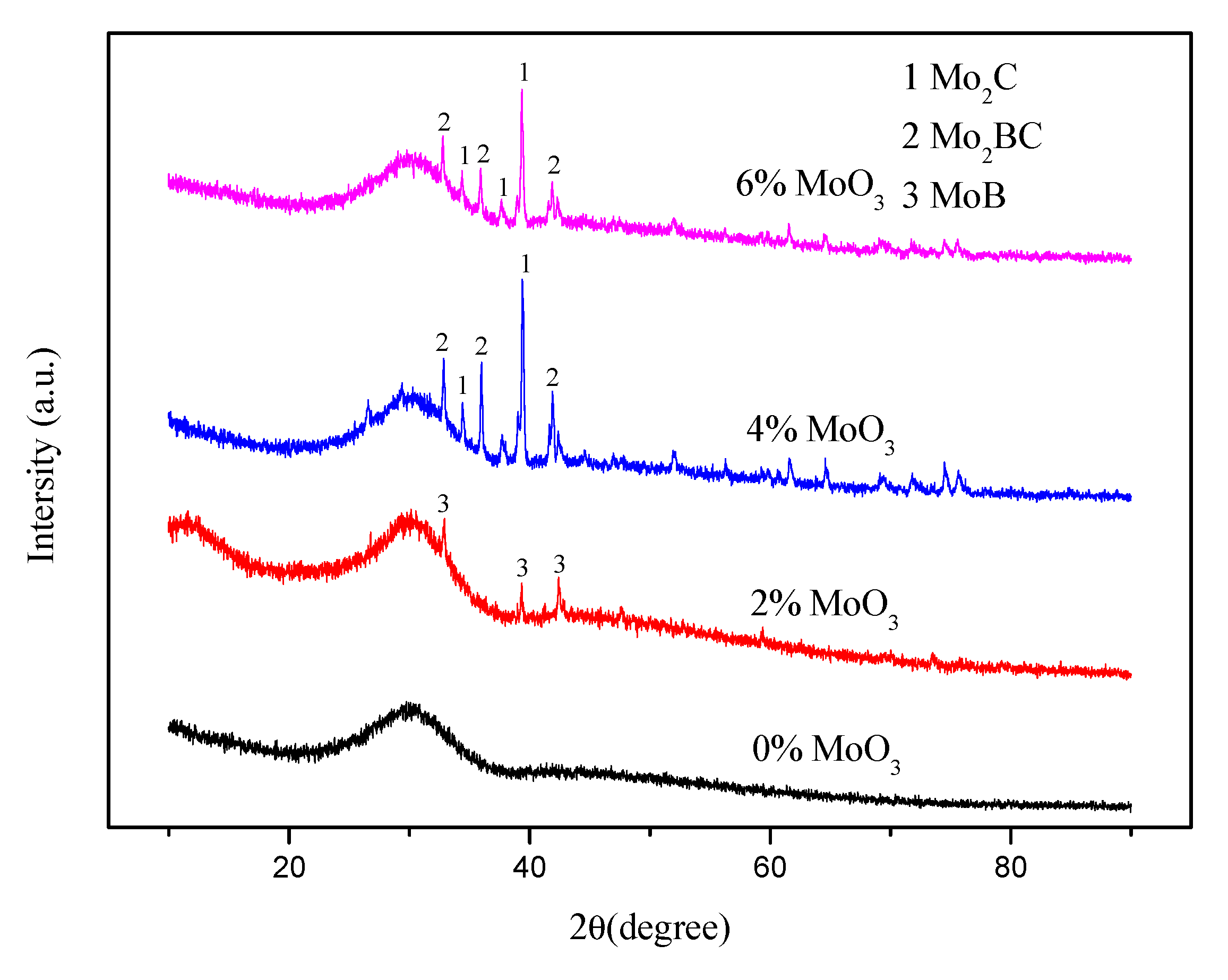

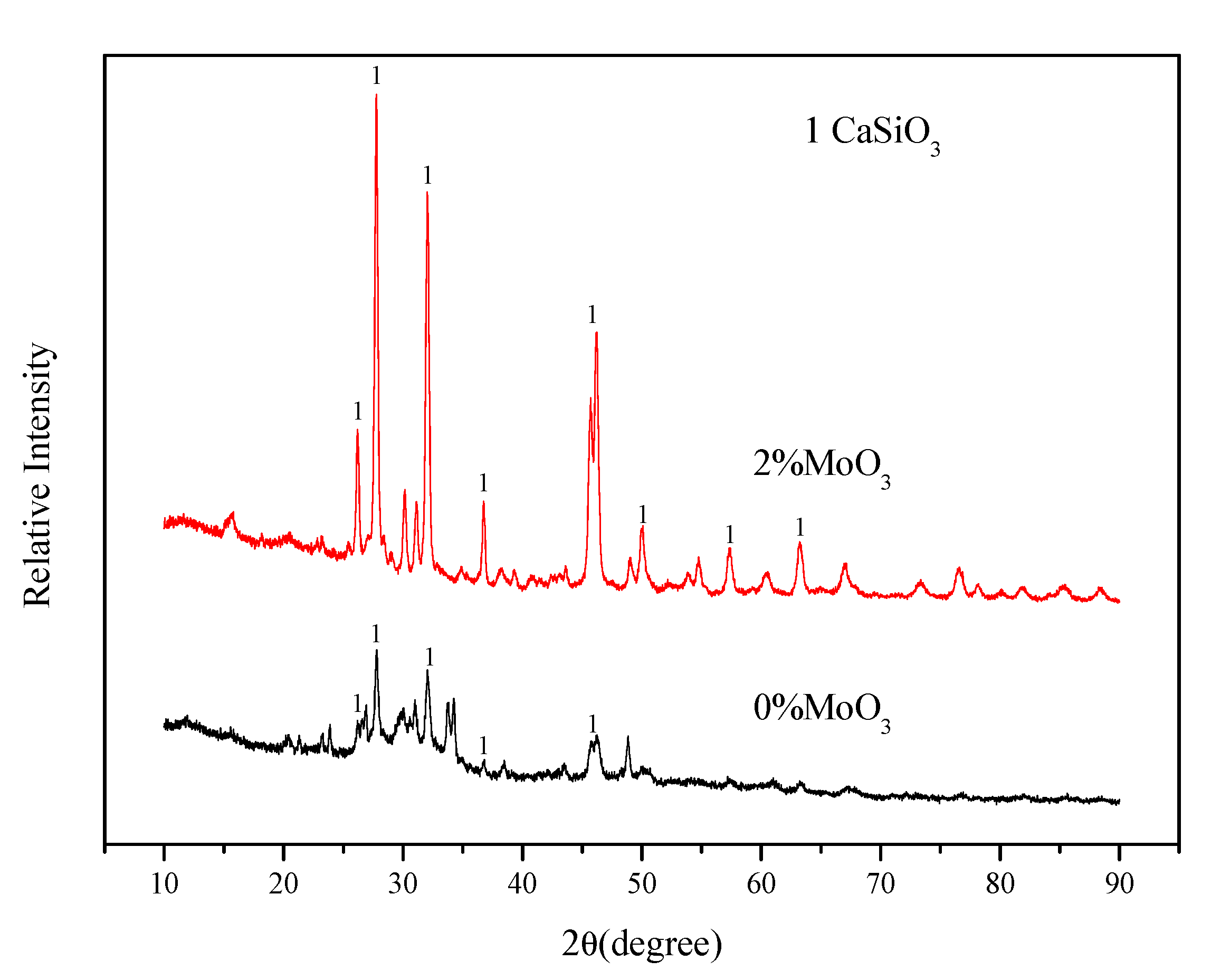

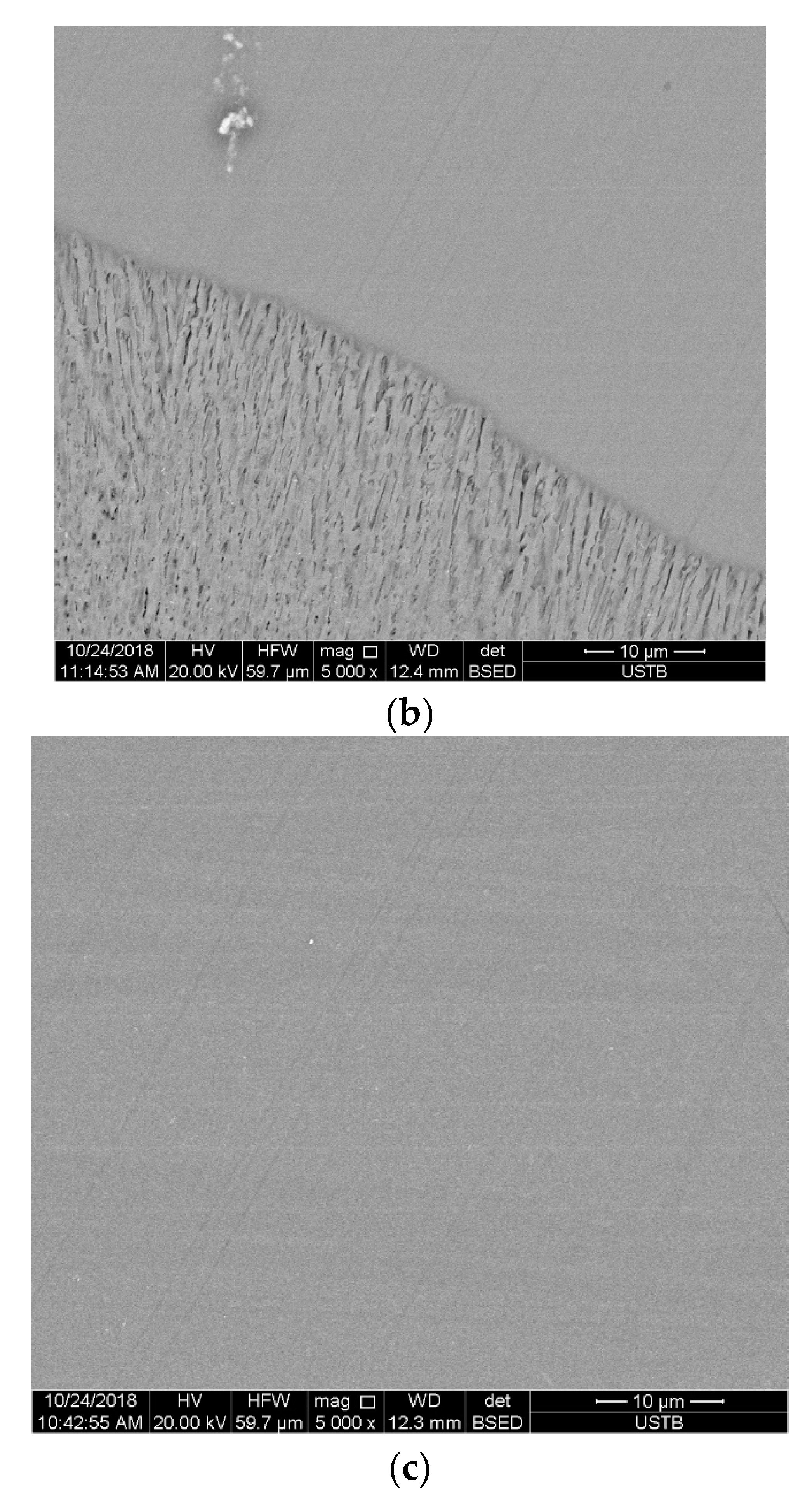

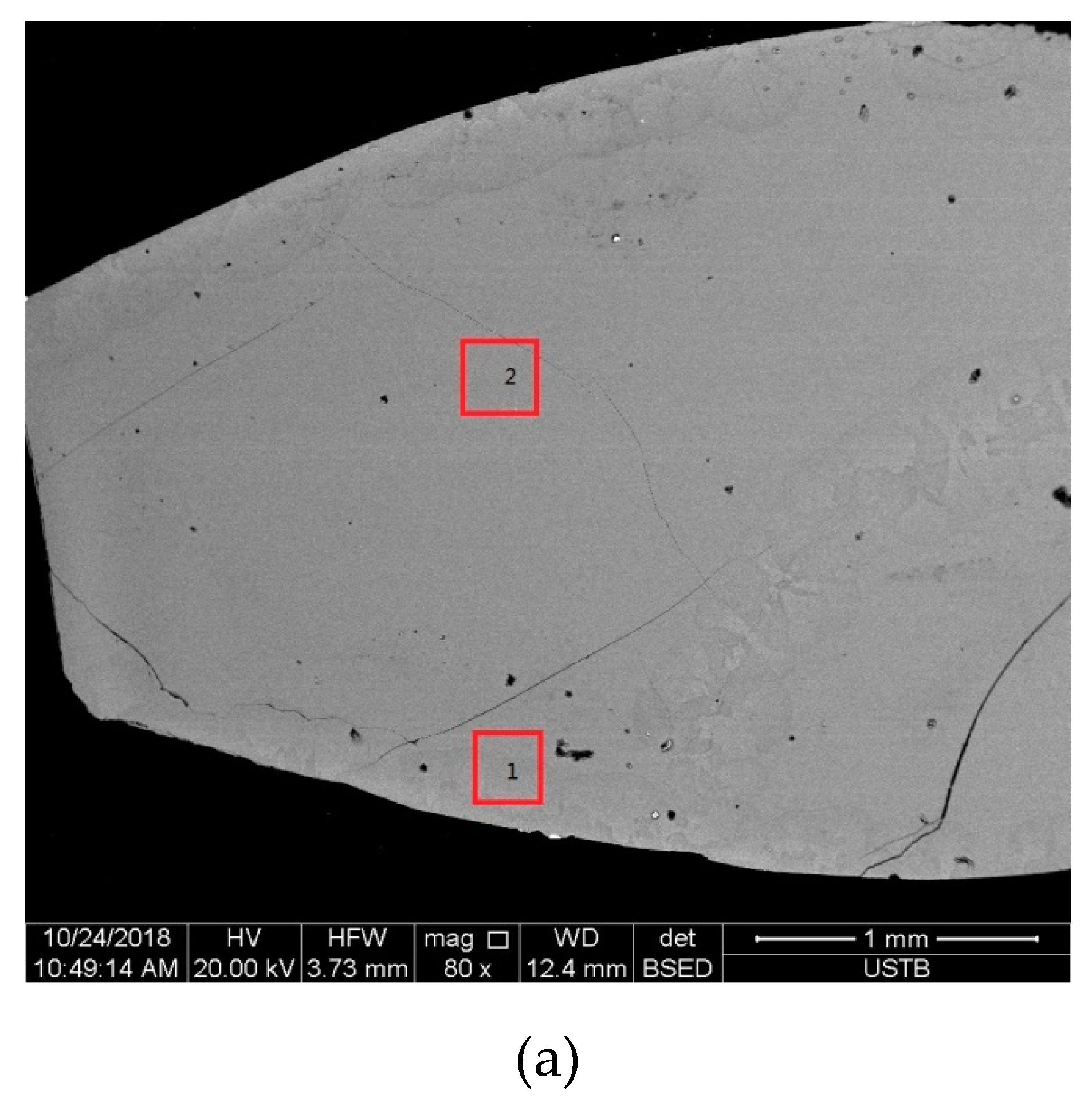

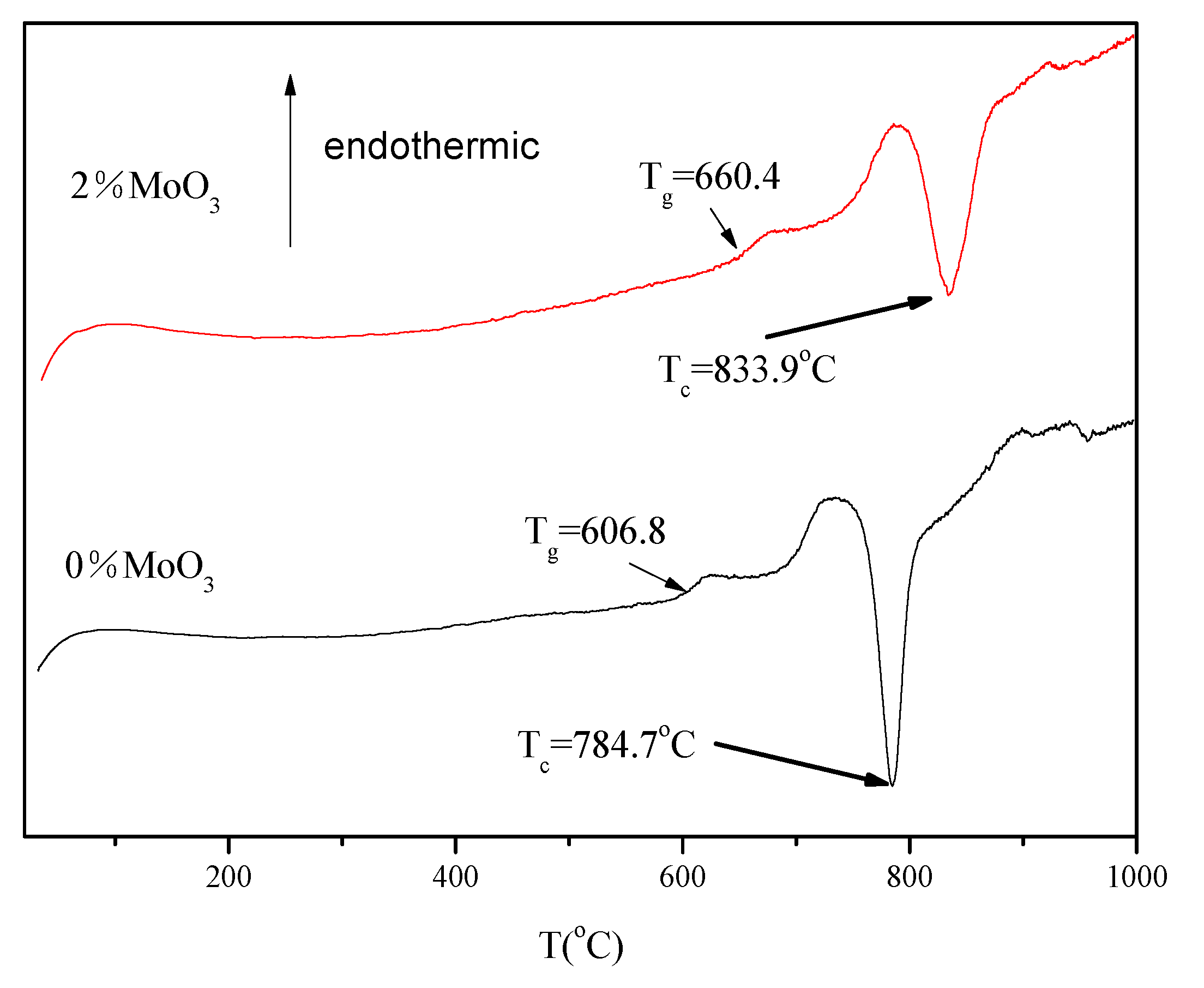

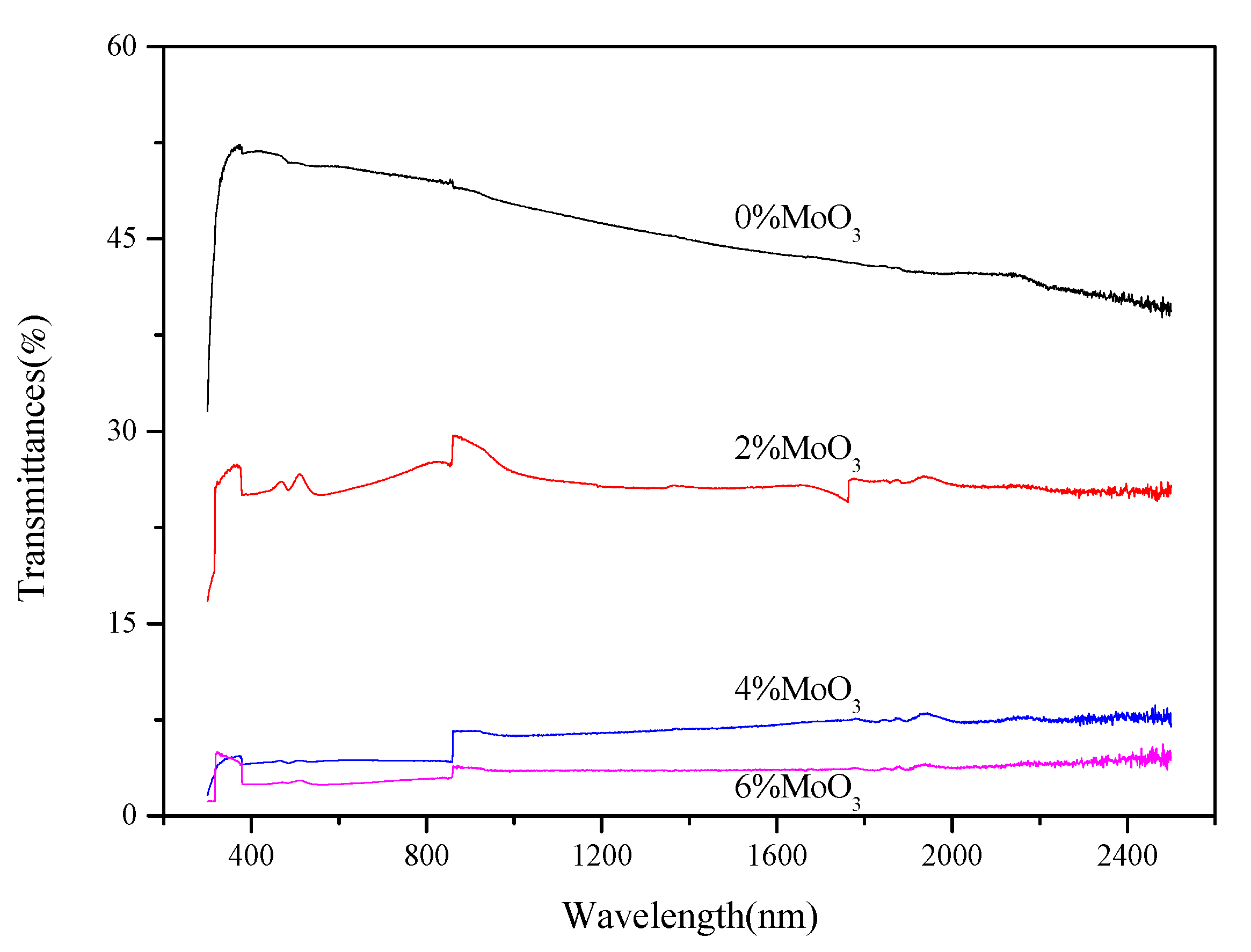

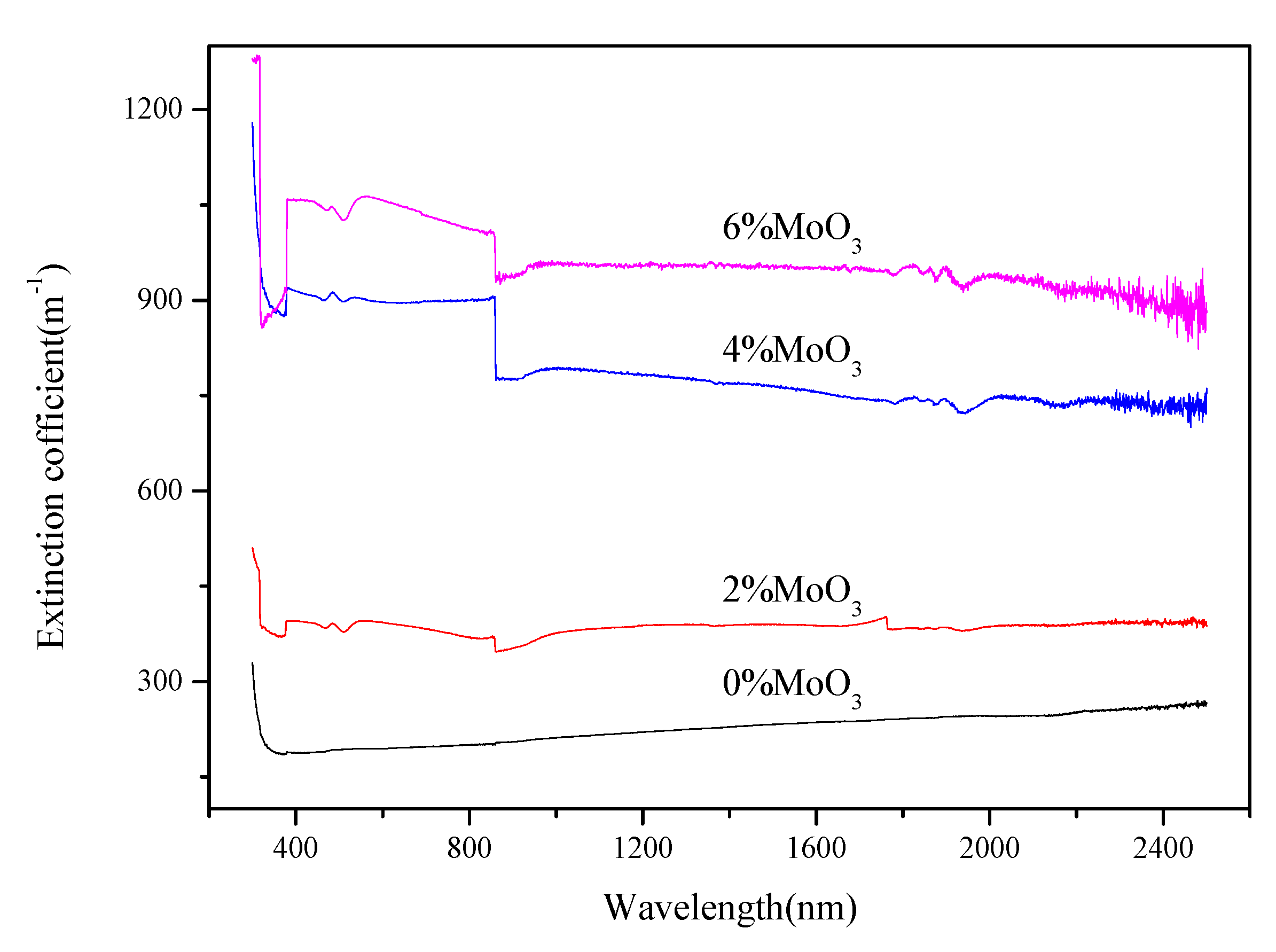

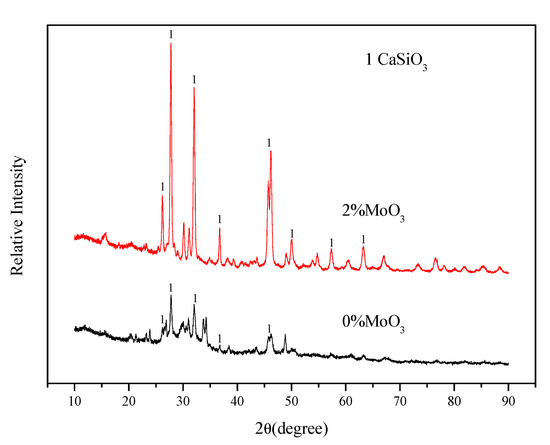

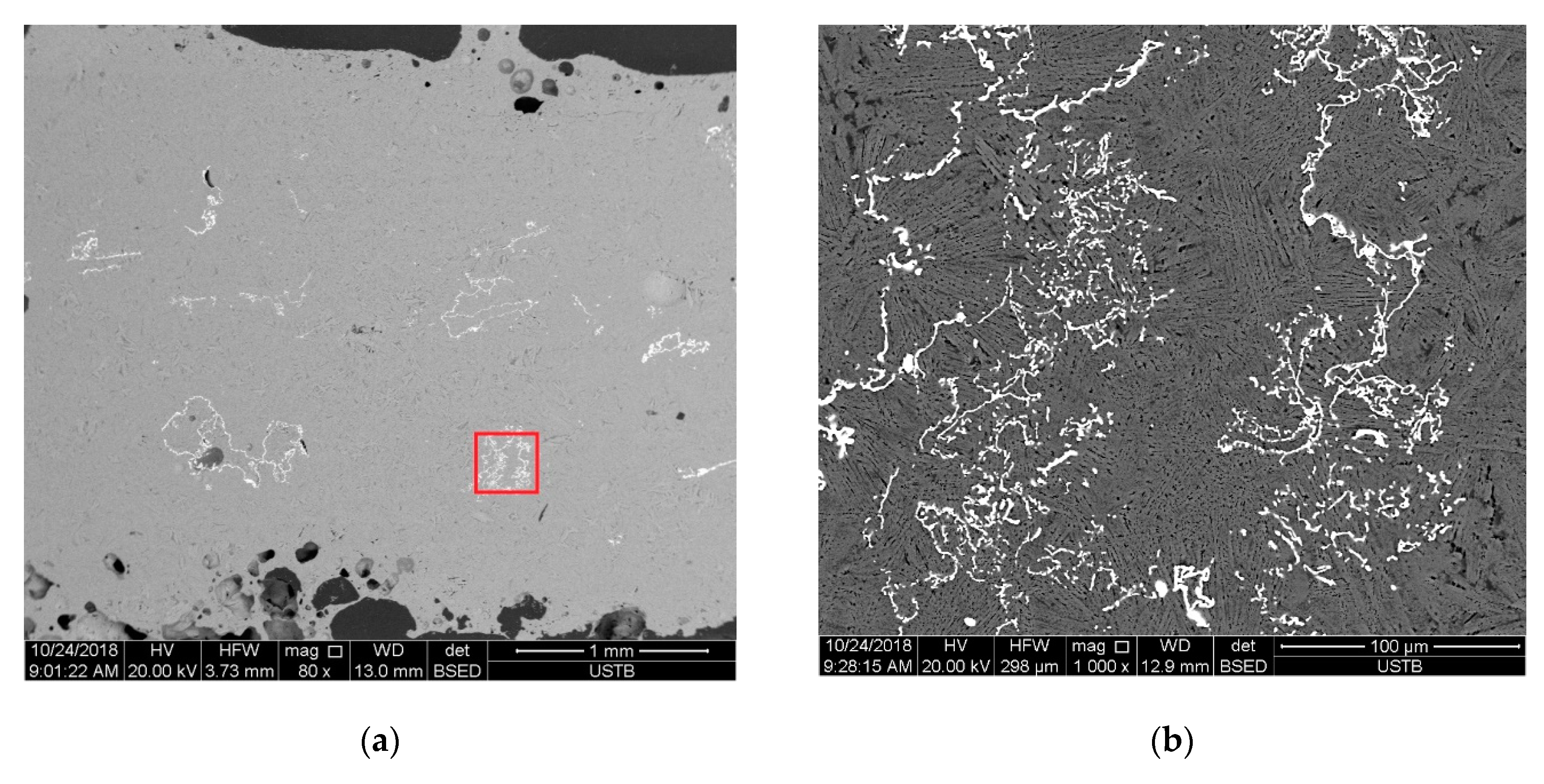

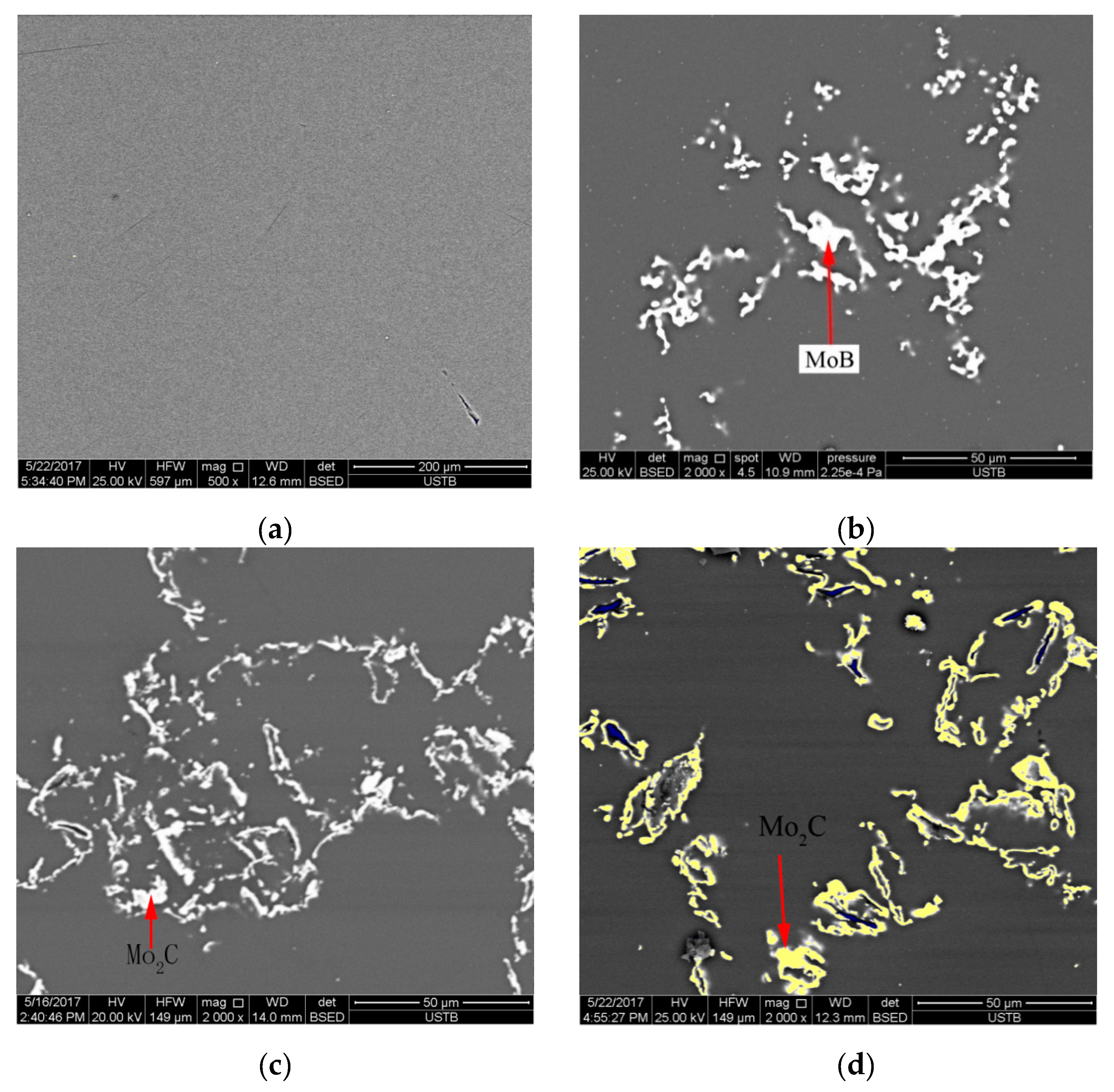

The fluorine in traditional mold fluxes could be harmful in steel-plant environments. Accordingly, fluoride-free mold fluxes have received great attention in recent years. In this work, a method to adjust the crystallization and radiative heat transfer of fluoride-free mold fluxes is proposed. MoO3 and C mixtures (mass ratio: 4:1) were added into CaO–SiO2–B2O3-based mold fluxes and produced MoB, Mo2CB and Mo2C foreign particles. The influences of foreign particles on the radiation of glassy CaO–SiO2–B2O3-based mold fluxes were investigated by measuring the transmissivity of a glassy disk for light in the wavenumber range of 300 to 2500 nm. It was found that transmissivity in all wavenumber ranges were reduced and extinction coefficients were enhanced by the scattering of foreign particles. The effect of foreign particles on crystallization (devitrification) of bulk glassy CaO–SiO2–B2O3-based mold fluxes was also investigated. The crystallization mechanism of glassy mold fluxes disks is mainly surface crystallization. The introduction of foreign particles induced heterogeneous nucleation and the crystallization mechanism of the bulk sample with MoO3% = 2% changed into bulk crystallization. View Full-Text
Keywords: fluoride-free mold fluxes; radiative heat transfer; crystallization; particles in glass fluoride-free mold fluxes; radiative heat transfer; crystallization; particles in glass
Figures

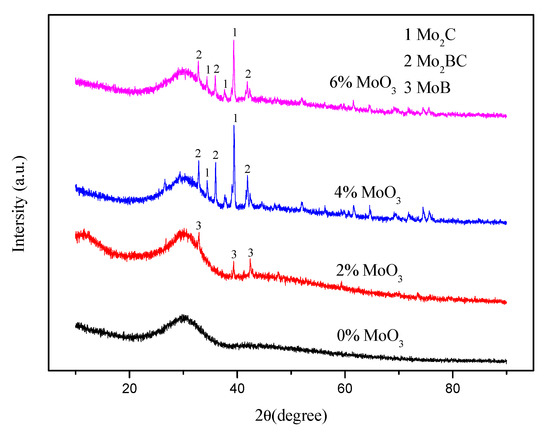

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Shu, Q.; Li, Q.; Fabritius, T. Effects of MoO3 + C on Crystallization and Radiative Heat Transfer of CaO–SiO2–B2O3-Based Glassy Fluoride-Free Mold Fluxes. Metals 2019, 9, 516.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
