Material Flow in Ultrasonic Orbital Microforming

Institute of Manufacturing Technologies, Warsaw University of Technology, Warsaw 02-524, Poland
Metals 2019, 9(4), 475; https://doi.org/10.3390/met9040475
Received: 18 March 2019 / Revised: 18 April 2019 / Accepted: 22 April 2019 / Published: 24 April 2019
(This article belongs to the Special Issue Metal Micro-forming)
  |
PDF [14876 KB, uploaded 24 April 2019]
  |     |

Abstract

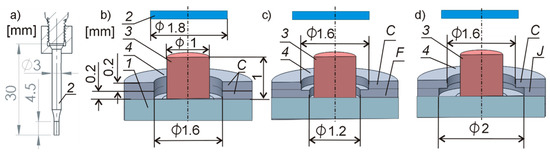

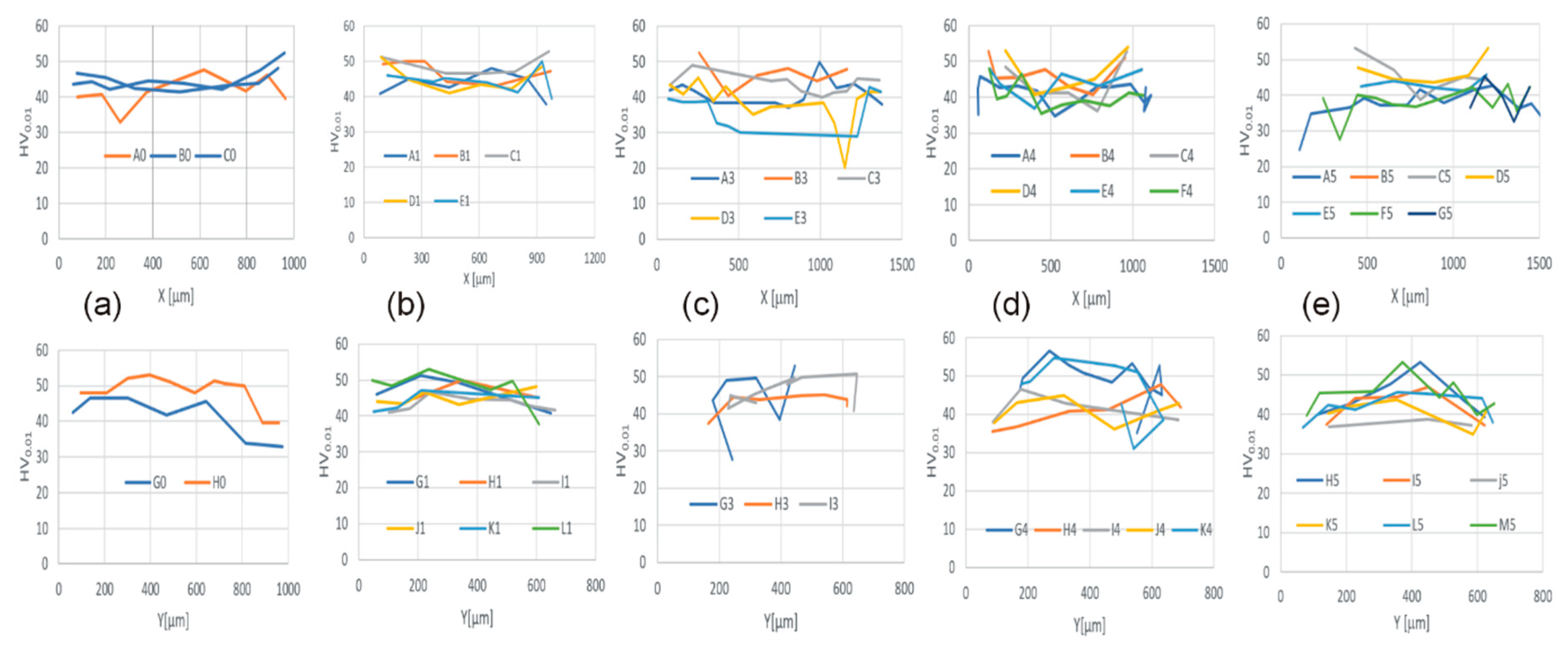

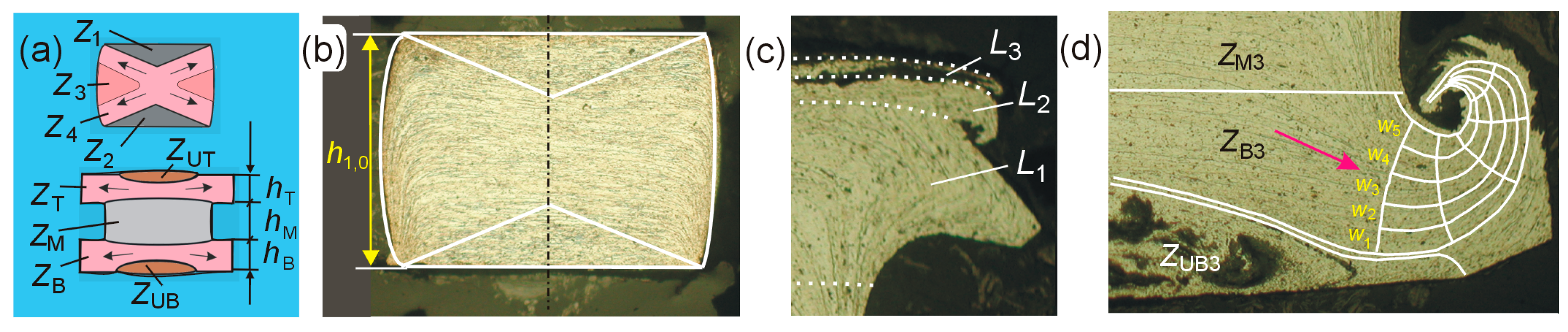

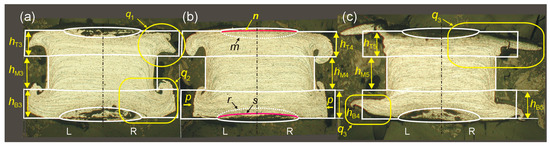

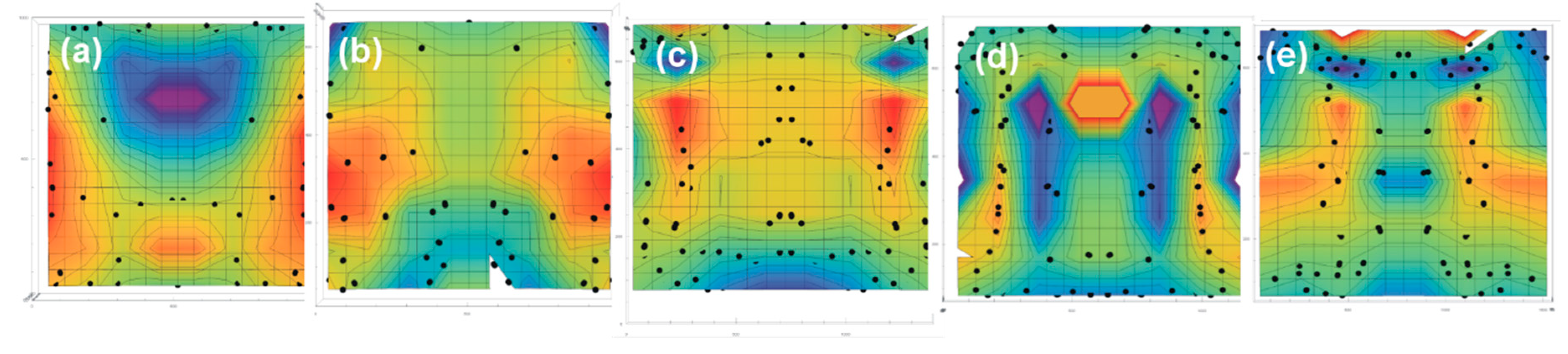

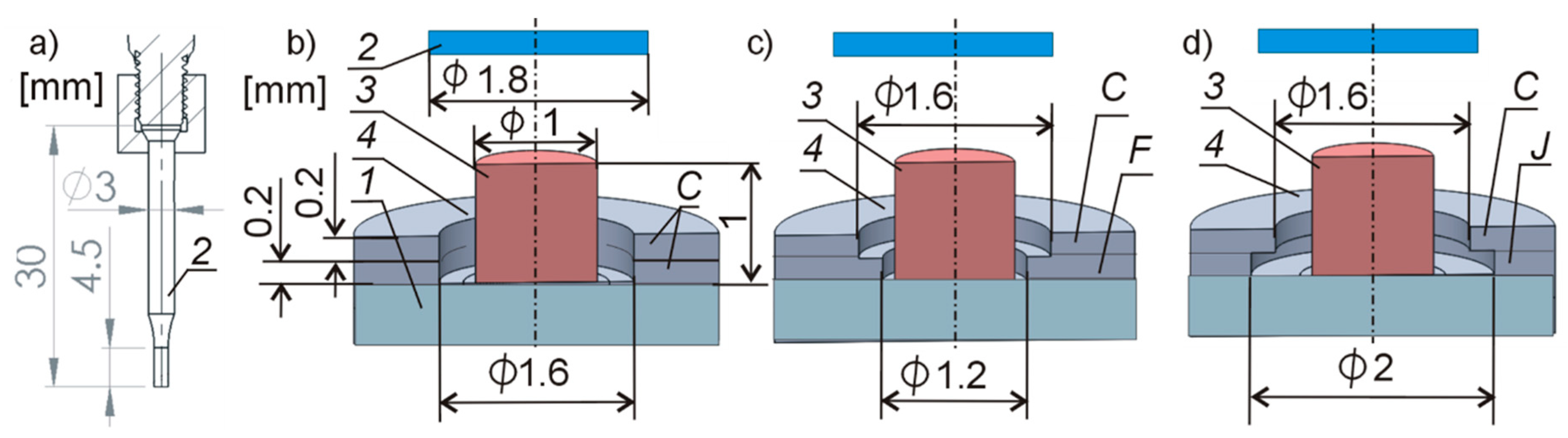

Ultrasonic orbital microforming—UOM—uses the broadly understood idea of orbital forging but uses very different laws of physics. The only shaping force in this process is the inertia force resulting from the acceleration in the rotary motion of the workpiece. Micro specimen blanked from cold rolled aluminum sheet metal was used in the applied UOM process. Only the upper and lower part of the sample is deformed that gives about 70% of volume. The rest—the middle part—remains undeformed. The final shape of the product is influenced by the shape of the inside of the die in which the UMO process is carried out. However, this effect is not a direct one. The product shape does not repeat the shape of the interior of the die. The preliminary experiments with modular micro-die have been performed on the way of controlling the shape of deformed micro-objects. The microstructure analysis has been done as well as micro-hardness distribution. View Full-Text
Keywords: microforming; ultrasonic; orbital forming microforming; ultrasonic; orbital forming
Figures

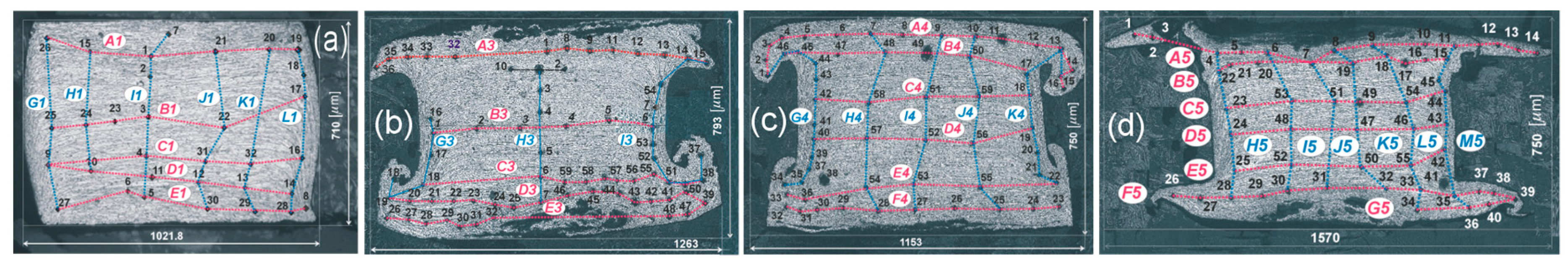

Figure 1
