Next Article in Journal
Effect of Initial Microstructures on Hot Deformation Behavior and Workability of Ti2AlNb-Based Alloy
Previous Article in Journal
Die Defects and Die Corrections in Metal Extrusion
Open AccessArticle

Thermal Stability of Ultrafine Grained Pure Copper Prepared by Large Strain Extrusion Machining

1
School of Mechanical and Automotive Engineering, South China University of Technology, Guangzhou 510641, China
2
School of Mechanical Engineering, Hubei University of Technology, Wuhan 430068, China
*
Author to whom correspondence should be addressed.
Metals 2018, 8(6), 381; https://doi.org/10.3390/met8060381
Received: 16 April 2018 / Revised: 22 May 2018 / Accepted: 23 May 2018 / Published: 25 May 2018

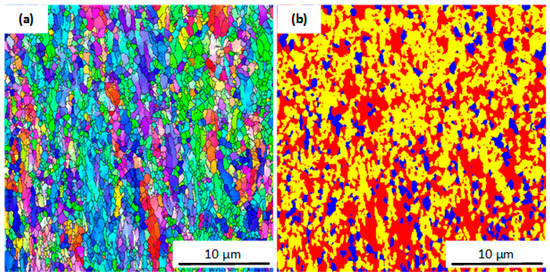

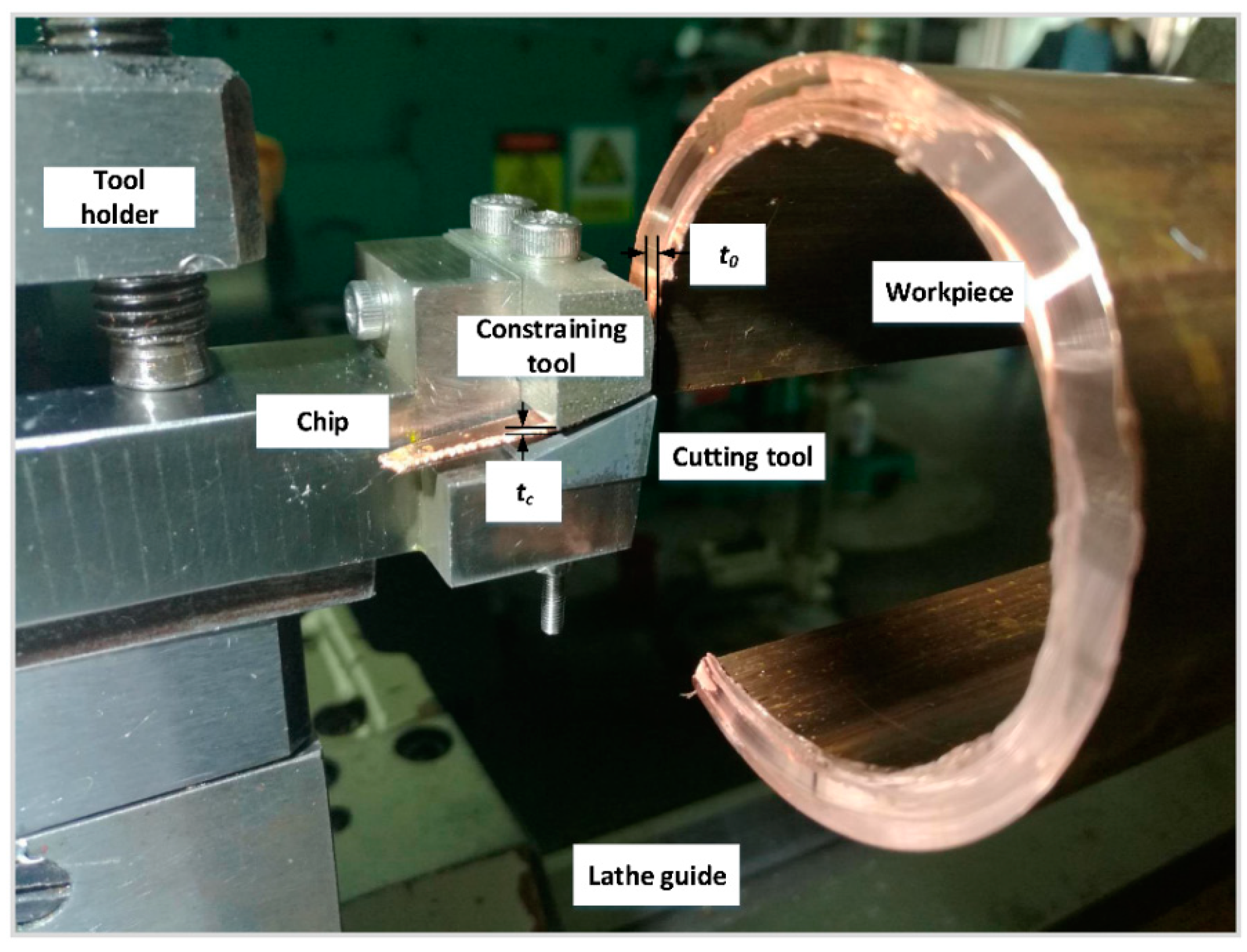

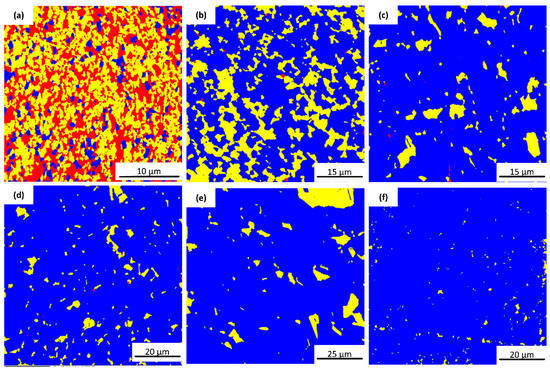

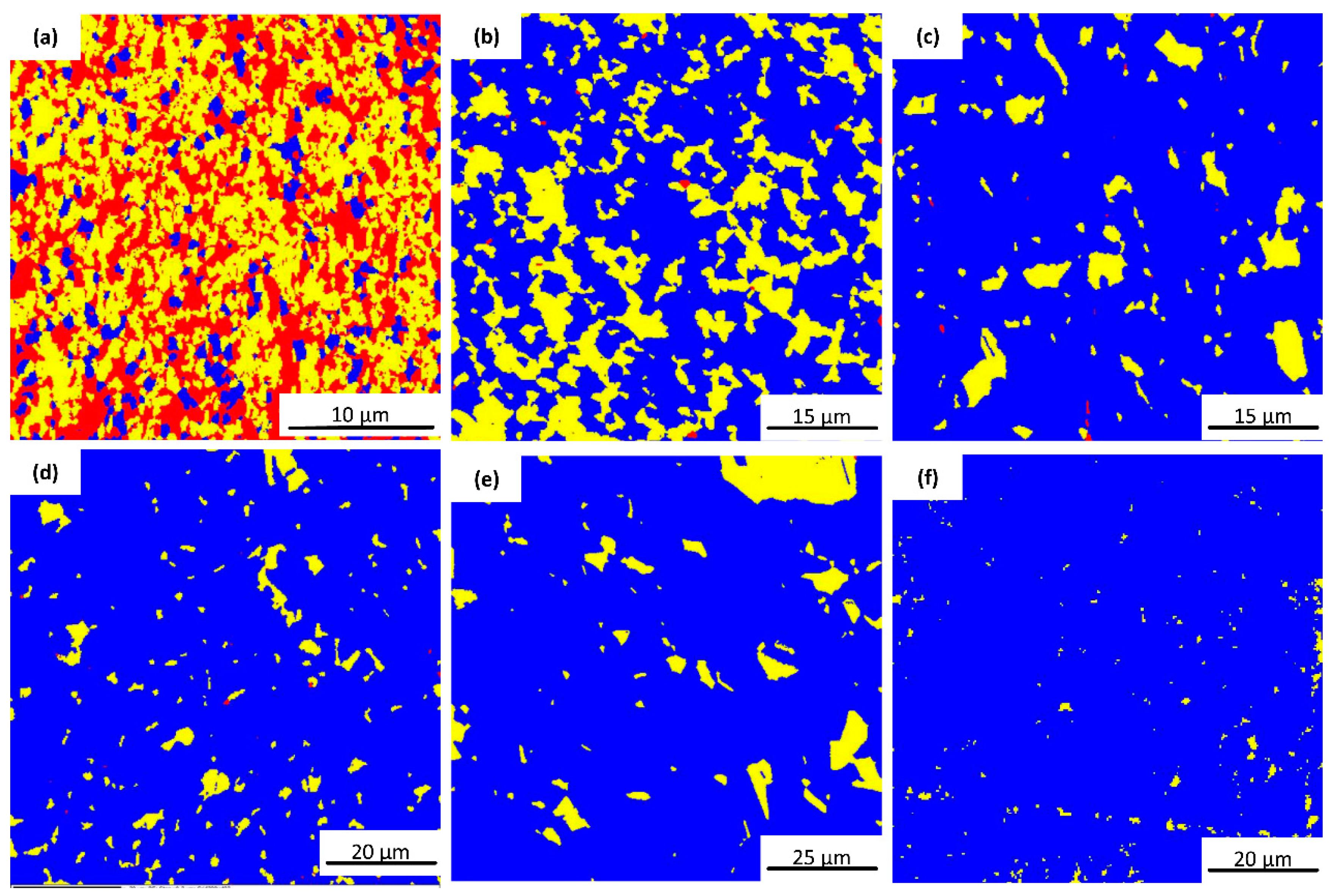

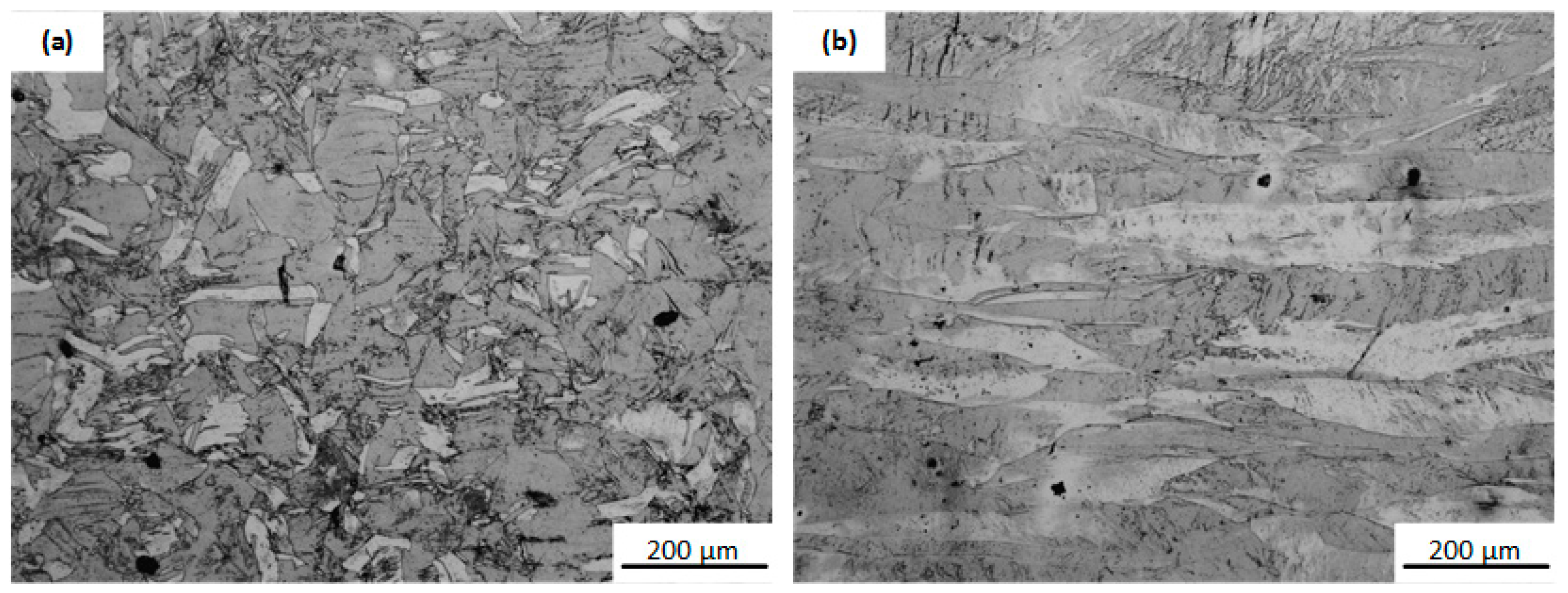

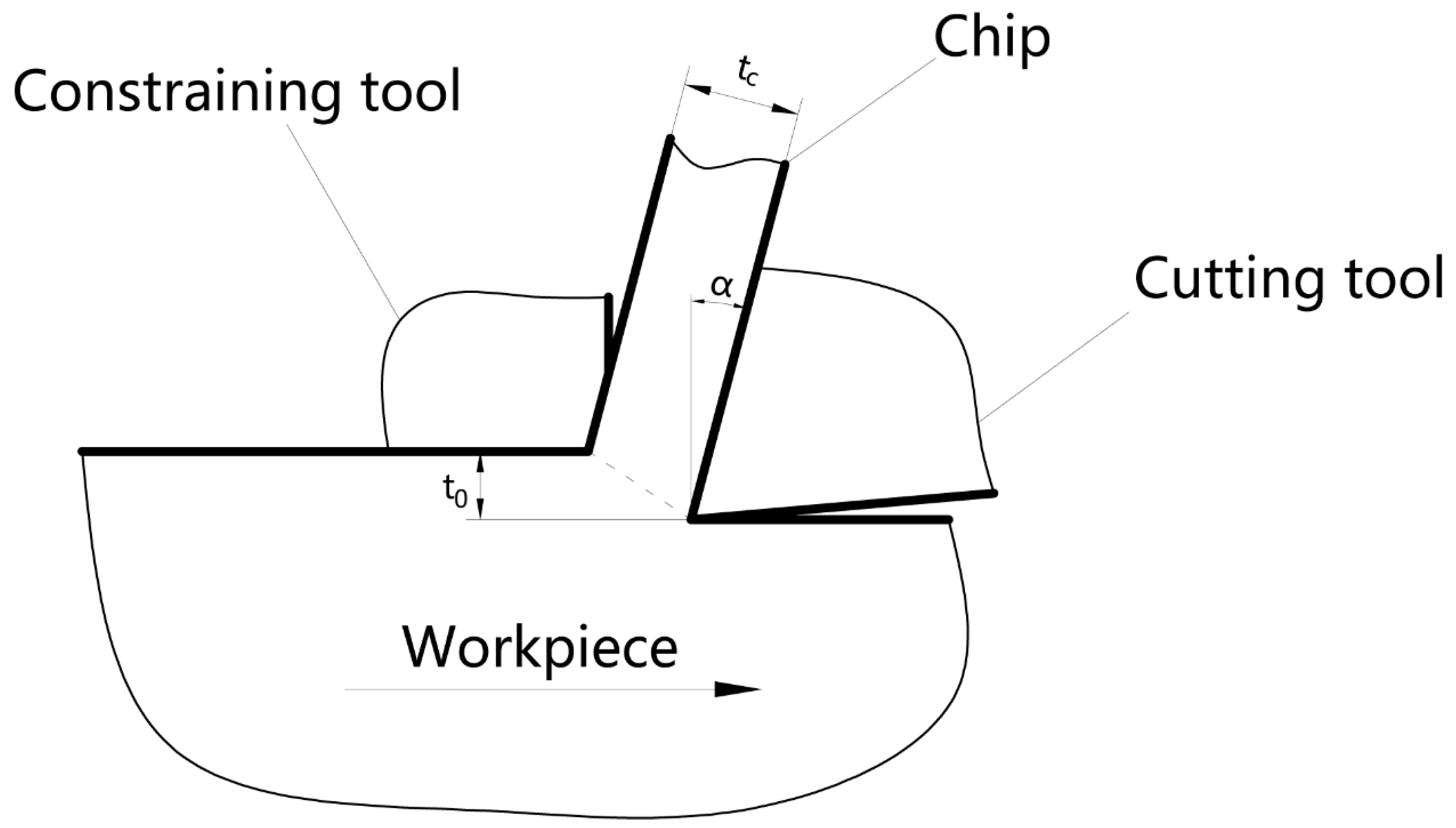

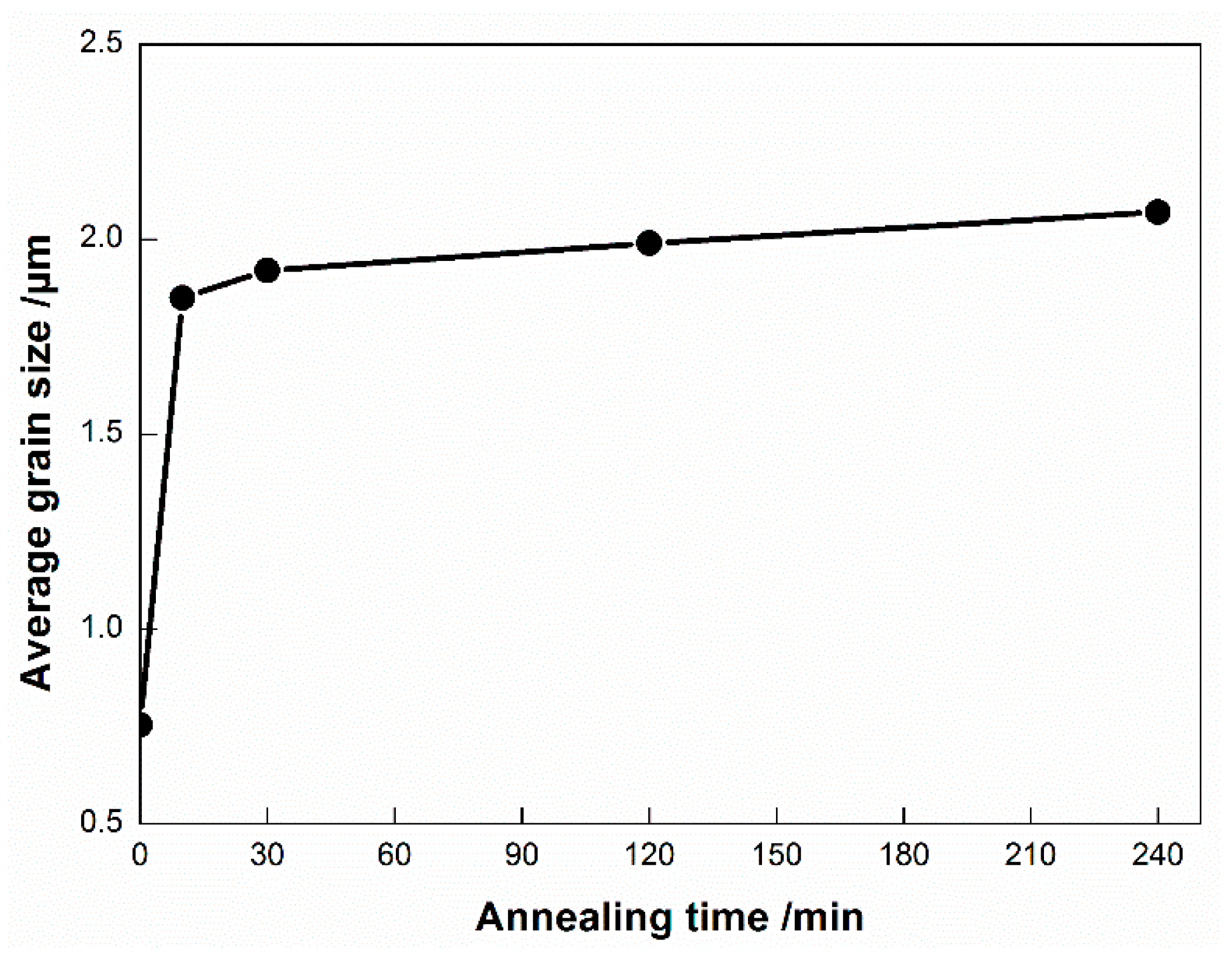

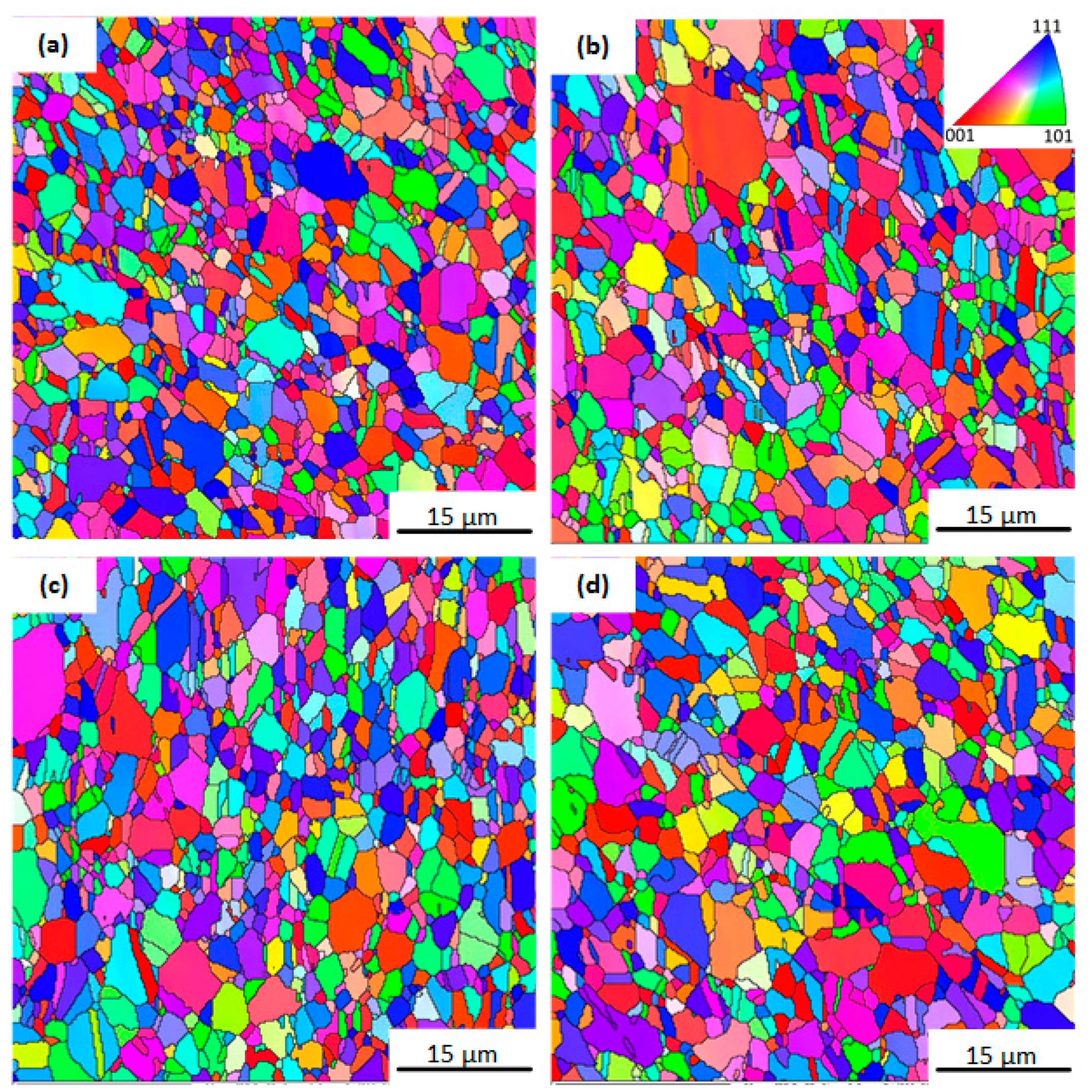

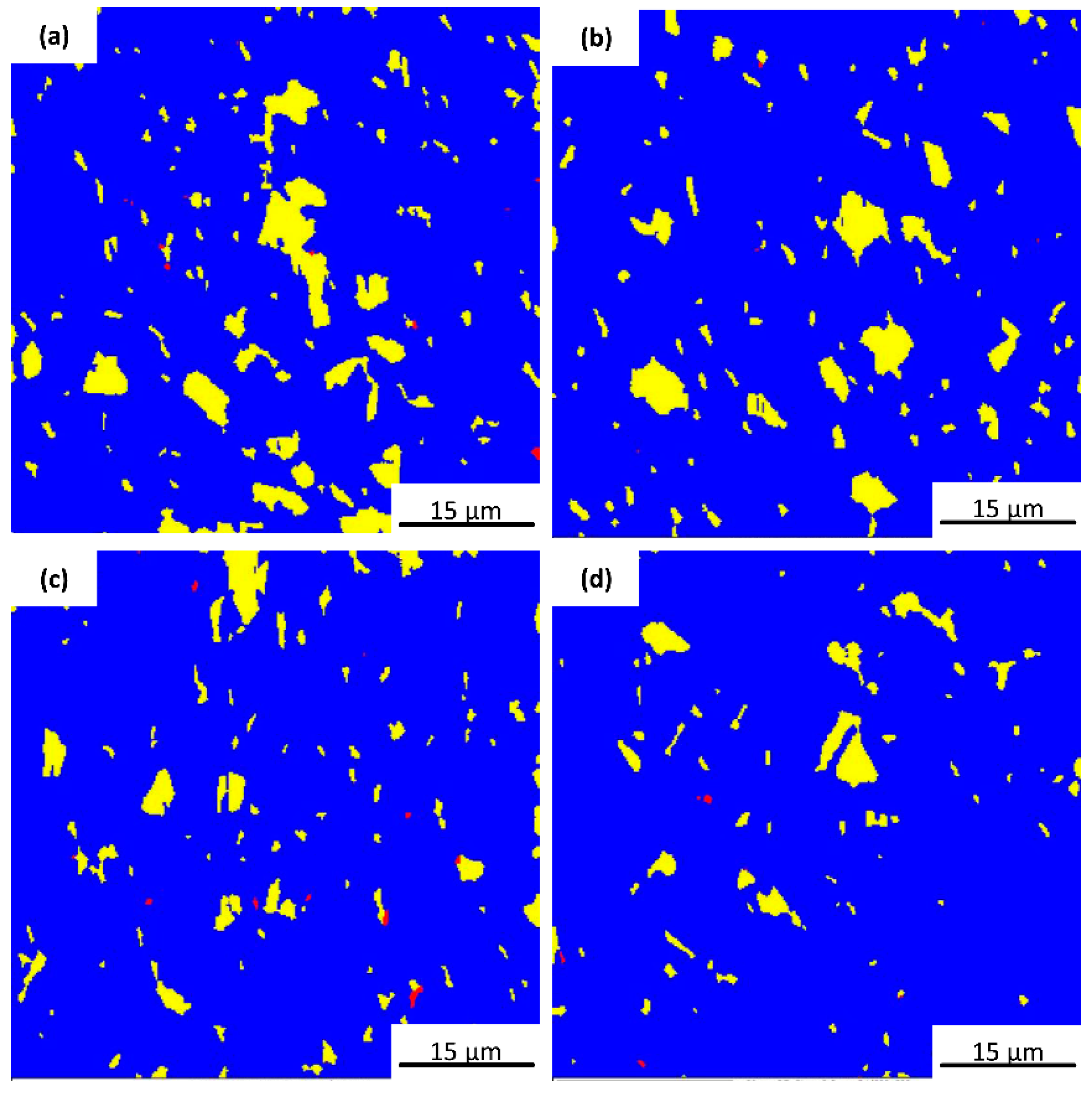

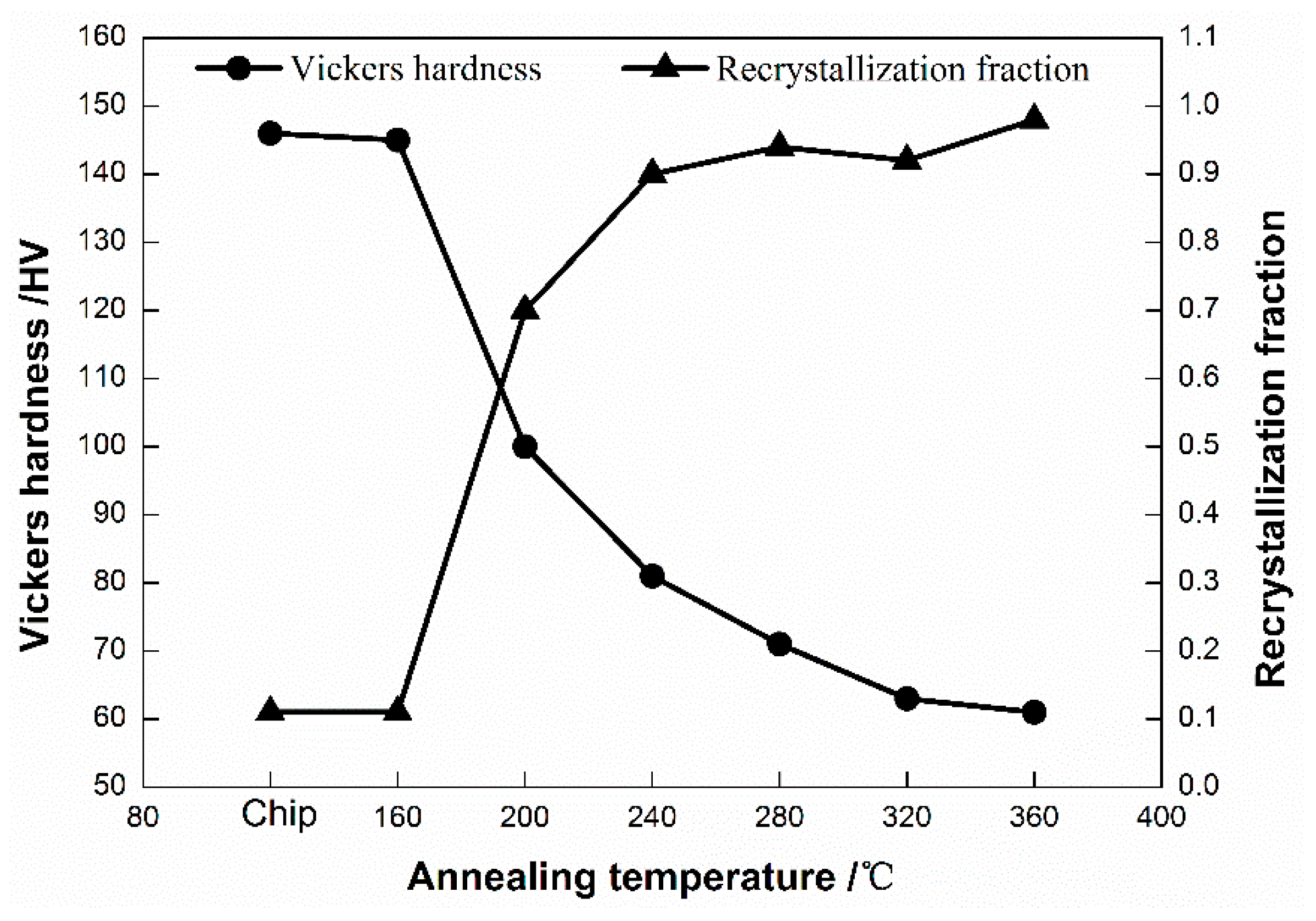

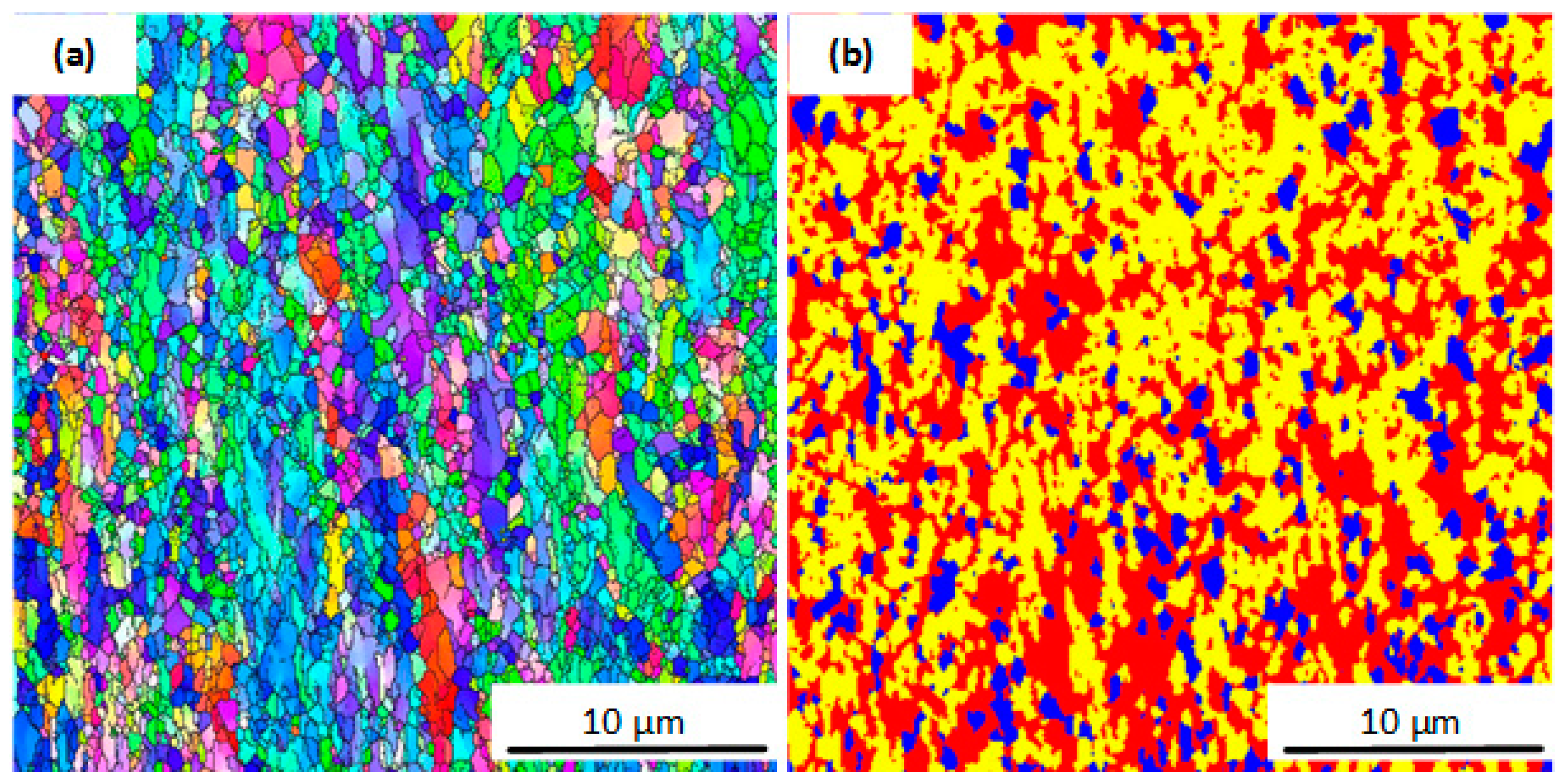

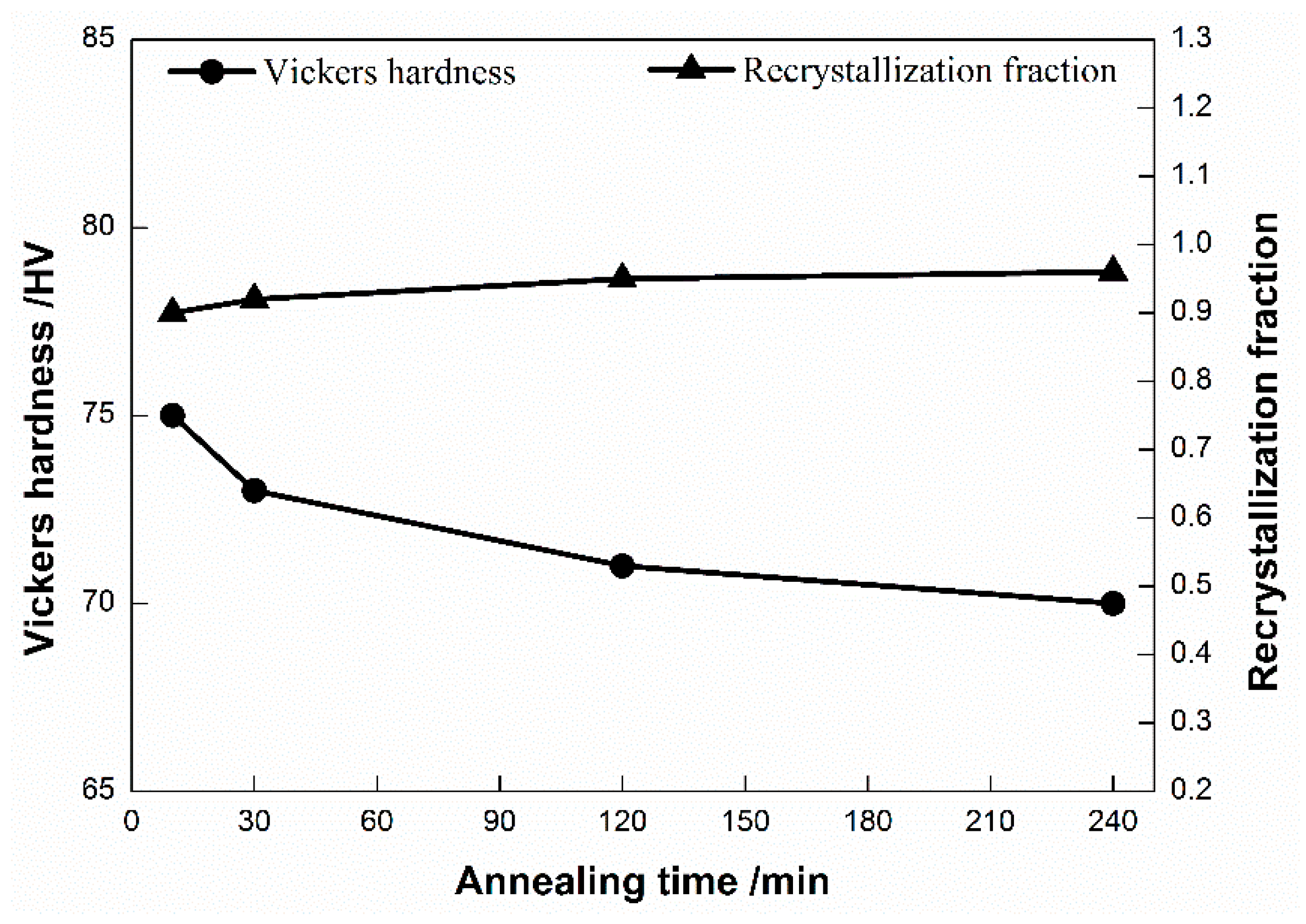

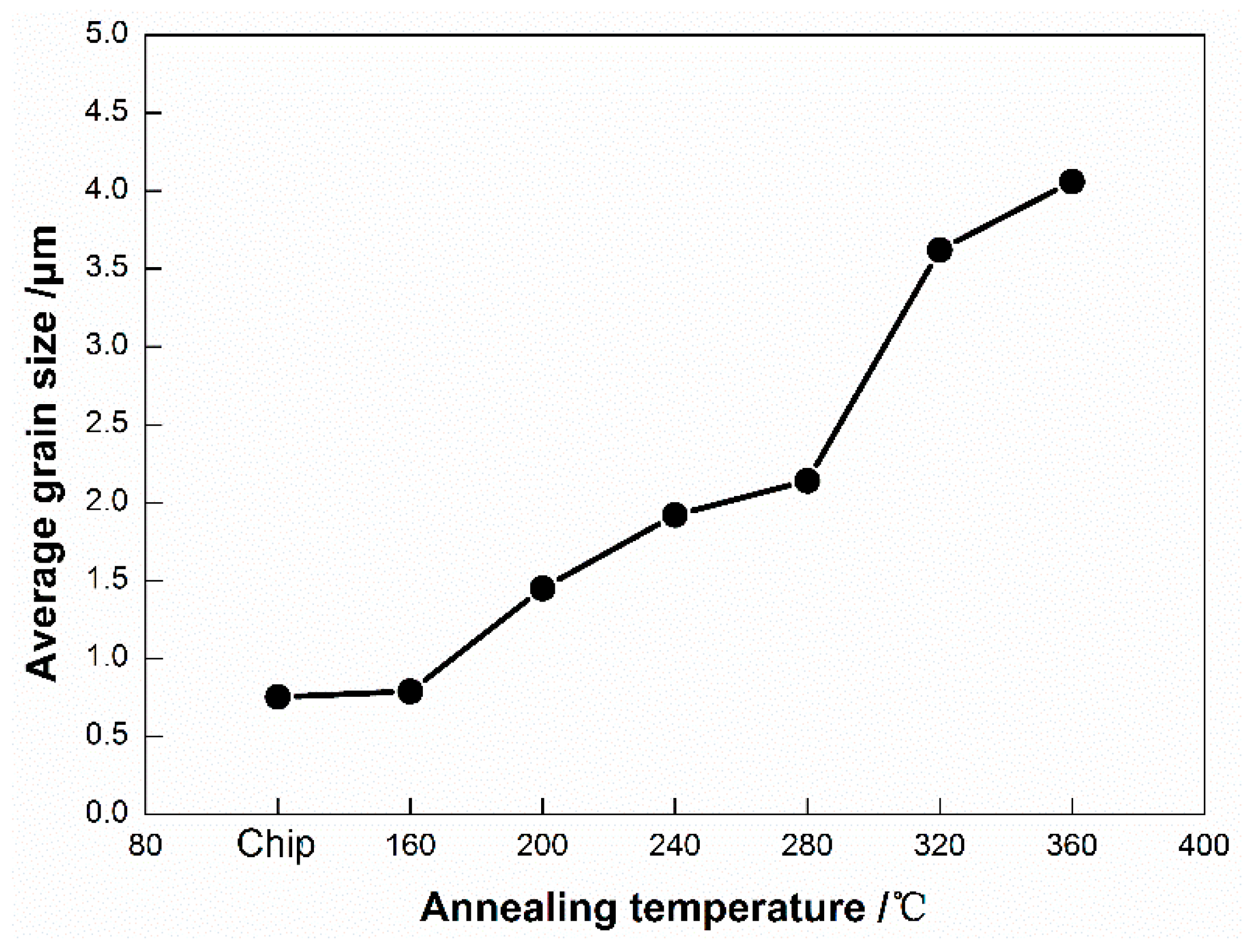

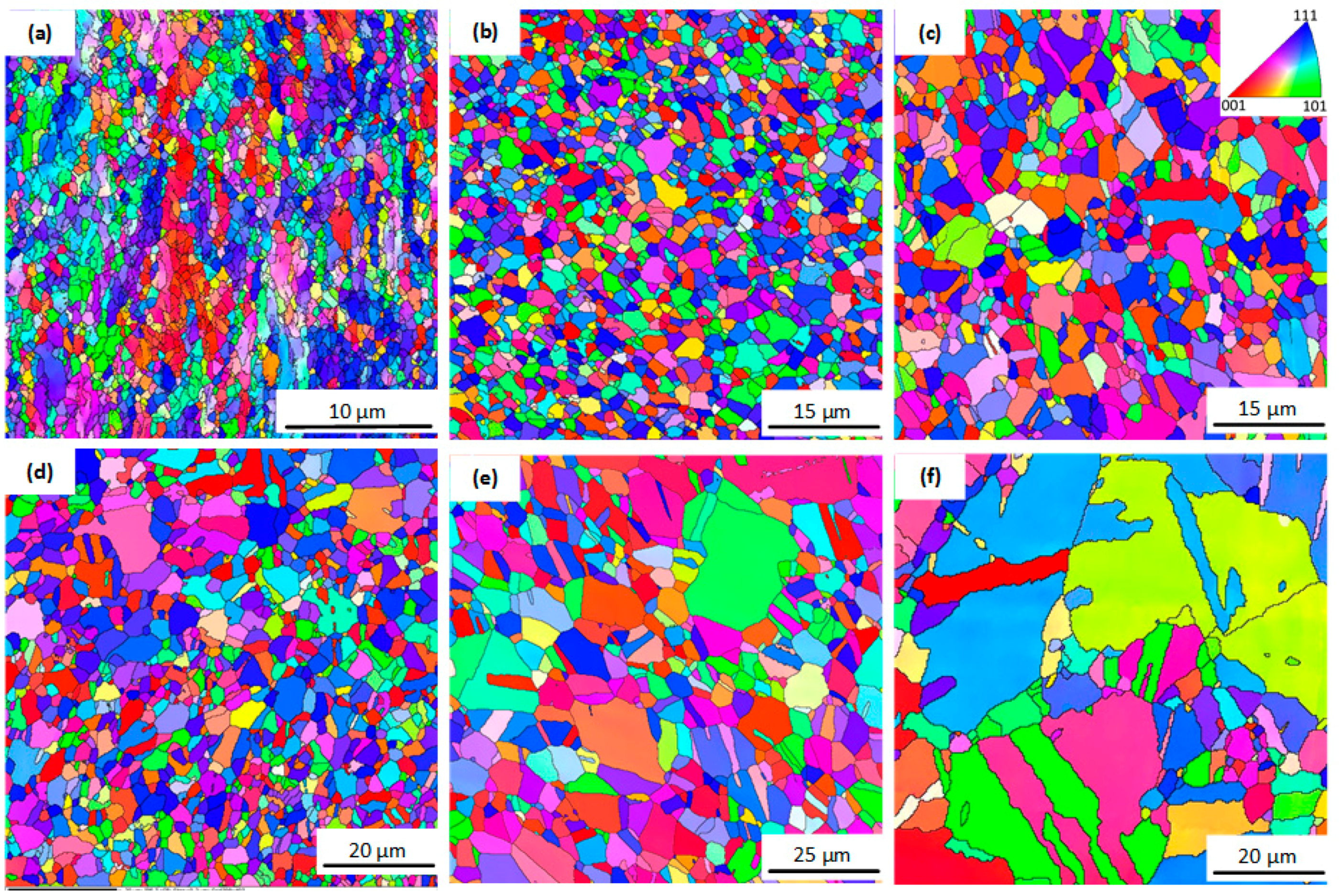

Ultrafine grained (UFG) pure copper chips with improved material strength have been successfully prepared by large strain extrusion machining (LSEM). However, the thermal stability of the UFG chips has been a key characteristic that has restricted their use in practical applications. To understand the influence of annealing temperature and annealing time on their microstructures and mechanical properties, the UFG chips were subjected to isochronous and isothermal annealing treatments as well as Vickers hardness tests in the present study. From the results, we found that the UFG chips maintain high hardness when annealing at temperatures up to 160 °C but begin to exhibit a reduction in their hardness while the annealing temperature reached above 200 °C. When annealed at 280 °C for 10–240 min, the grain size increased slightly and reached a stable value of 2 µm with an increase in annealing time and with a decrease in the hardness of the chips. These results indicated that UFG pure copper chips have good thermal stability at temperatures below 160 °C. View Full-Text
Keywords: thermal stability; large strain extrusion machining; pure copper; ultrafine grained material thermal stability; large strain extrusion machining; pure copper; ultrafine grained material
Show Figures

Figure 1

MDPI and ACS Style

Wu, B.; Chen, B.; Zou, Z.; Liao, S.; Deng, W. Thermal Stability of Ultrafine Grained Pure Copper Prepared by Large Strain Extrusion Machining. Metals 2018, 8, 381. https://doi.org/10.3390/met8060381

AMA Style

Wu B, Chen B, Zou Z, Liao S, Deng W. Thermal Stability of Ultrafine Grained Pure Copper Prepared by Large Strain Extrusion Machining. Metals. 2018; 8(6):381. https://doi.org/10.3390/met8060381

Chicago/Turabian Style

Wu, Bangxian; Chen, Bin; Zou, Zhijie; Liao, Shaofeng; Deng, Wenjun. 2018. "Thermal Stability of Ultrafine Grained Pure Copper Prepared by Large Strain Extrusion Machining" Metals 8, no. 6: 381. https://doi.org/10.3390/met8060381

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
