Study on Corrosion Characteristics of HR3C in Supercritical Carbon Dioxide

Abstract

Analyses of the oxidation characteristics of HR3C austenitic steel exposed to supercritical carbon dioxide were carried out at temperatures ranging from 600 to 650 °C under 25 MPa. It was observed that the weight gain increased with increases in temperature and time. The oxide morphology and phase were characterized using scanning electron microscopy (SEM) combined with energy-dispersive X-ray spectroscopy (EDS), and X-ray diffraction (XRD). Furthermore, the three-dimensional morphology and chemical composition of the surface oxide were inspected using a secondary ion mass spectrometer (SIMS). The majority of the oxide formed on HR3C at 600–650 °C was Cr₂O₃. Carbon enrichment occurs on the surface of the oxide scale and the oxide–substrate interface due to a carbonization reaction. The corrosion mechanism is also discussed in this paper.

1. Introduction

The power generation efficiency of a supercritical carbon dioxide (S-CO₂) Brayton cycle is higher than that of a steam cycle with the same parameters [1]. In practical S-CO₂ power cycles and coupled energy systems, corrosion products, metal ions, and fine particulates released from structural materials can influence emulsion stability, phase separation efficiency, and fouling behavior in separators and heat exchangers [2]. In Rankine cycle power generation systems, a reheat heat exchanger is often applied that includes a high-pressure path between a high-pressure inlet and a high-pressure outlet. The high-temperature environment causes severe corrosion to take place. Corrosion of high-temperature surface materials has strongly affected the safe operation of such units, and this issue has attracted significant attention from researchers.

HR3C stainless steel tubes are used as superheaters and reheater boiler tube sections in ultra-supercritical coal-fired power plants due to their relatively high creep strength [3]. A duplex scale with an outer iron-rich oxide and an inner oxide layer containing Fe, Ni, and Cr developed on ferritic–martensitic steels during high-temperature oxidation in S-CO₂ [4,5]. Rouillard et al. [5] studied the influence of pressure on the corrosion behavior of 9Cr and 12Cr ferritic–martensitic steels. Increasing CO₂ pressure is beneficial in terms of increasing the carburization rate. Cao et al. [6] compared the oxidation resistance of stainless steel and nickel-based alloys in S-CO₂ at 650 °C and 20 MPa. The lower corrosion rate of the nickel-based alloys, as compared to the stainless steel, is attributed to the formation of a chromium-rich oxide. Zhu et al. [7] carried out corrosion tests of T22 and P92 in S-CO₂ and compared the corrosion rate with data for supercritical water (SCW). The weight gain indicated that the oxidation rates of T22 and P92 in the SCW are much higher than those in the S-CO₂. Liu et al. [8] investigated the influence of O₂, SO₂, or H₂S impurities on the corrosion of T91 in S-CO₂. The carburization of the alloy in an environment containing impurities is inhibited due to the reduced carbon activity or a competitive adsorption process. Li et al. [9] found that the presence of O₂ in S-CO₂ weakened the oxidation of SS310 austenite steel and Alloy 740 due to the higher stability of the surface Cr₂O₃ layer. Quadakkers et al. [10] also reported that the addition of O₂ to S-CO₂ promoted the formation of protective chromia scale. The corrosion behavior of HR3C was investigated in S-CO₂ with 3.6 mol.% O₂ and 5.3 mol.% H₂O, and it was found that HR3C suffered from severe oxidation and carburization [11]. Moreover, the corrosion and creep behavior of different materials at different S-CO₂ temperatures were also investigated [12,13,14,15], and the corrosion mechanisms of the materials were discussed.

Due to the insufficient strength and poor corrosion resistance of carbon steel, it is not suitable as a material for the superheaters and reheaters of supercritical boilers. A more appropriate and efficient alternative material is HR3C austenitic steel, which is widely used as a structural material in ultra-supercritical power plants due to its excellent creep strength and steam oxidation resistance [16]. However, the corrosion behavior of HR3C austenite steel in high-temperature S-CO₂ is still not fully understood. This paper aims to study the corrosion properties of HR3C steel exposed to a 600–650 °C S-CO₂ environment. The microstructure of HR3C, including its surface and cross-sectional morphologies, was analyzed using scanning electron microscopy (SEM). The elemental compositions of the oxide layer and oxide component were investigated by X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), and energy-dispersive spectroscopy (EDS). To further determine the distribution of elements along the thickness direction, particularly the distribution of carbon, depth profiling and 3D imaging analysis of the oxide structure were conducted using a secondary ion mass spectrometer (SIMS).

2. Experimental Design

A commercial austenitic stainless steel, HR3C, was used in the tests. The chemical composition of the HR3C steel was provided by the manufacturers and is listed in Table 1. Specimens with the dimensions 20 mm × 10 mm × 2 mm were obtained using an electron discharge machine. The samples were polished by SiC abrasive paper from 200# to 1000#, followed by alcohol cleaning in an ultrasonic cleaner. The samples were then loaded onto a ceramic multilayer triangular bracket. The corrosion test was performed in CO₂ at 600–650 °C and 25 MPa. Figure 1 shows a schematic of this SC-CO₂ system and the 2 L autoclave. The experimental system is mainly composed of gas cylinder, metering pump, preheater, autoclave, cooling machine and counterbalance valve. The samples were positioned in the autoclave, and the flow rate was maintained at about 5 g/min by the S-CO₂ pump. The purity of the carbon dioxide used for the corrosion test was 99.998%. The concentration of oxygen, the main impurity, was 2 ppm by volume. The weight of the samples was recorded before and after the experiment using an electronic balance with a precision of 0.1 mg. In each experiment, three parallel samples were used to obtain weight gain data per oxidation time by averaging the results. In order to further analyze layer structure and composition depth distribution information, depth profiling and 3D imaging of the different elements were performed using an SIMS equipped with cesium sputtering.

Table 1. The chemical composition of HR3C (wt.%).

C	N	P	Cr	S	Nb	Mn	Ni	Si	Fe
0.06	0.24	0.012	24.63	0.001	0.49	1.24	20.29	0.39	Bal.

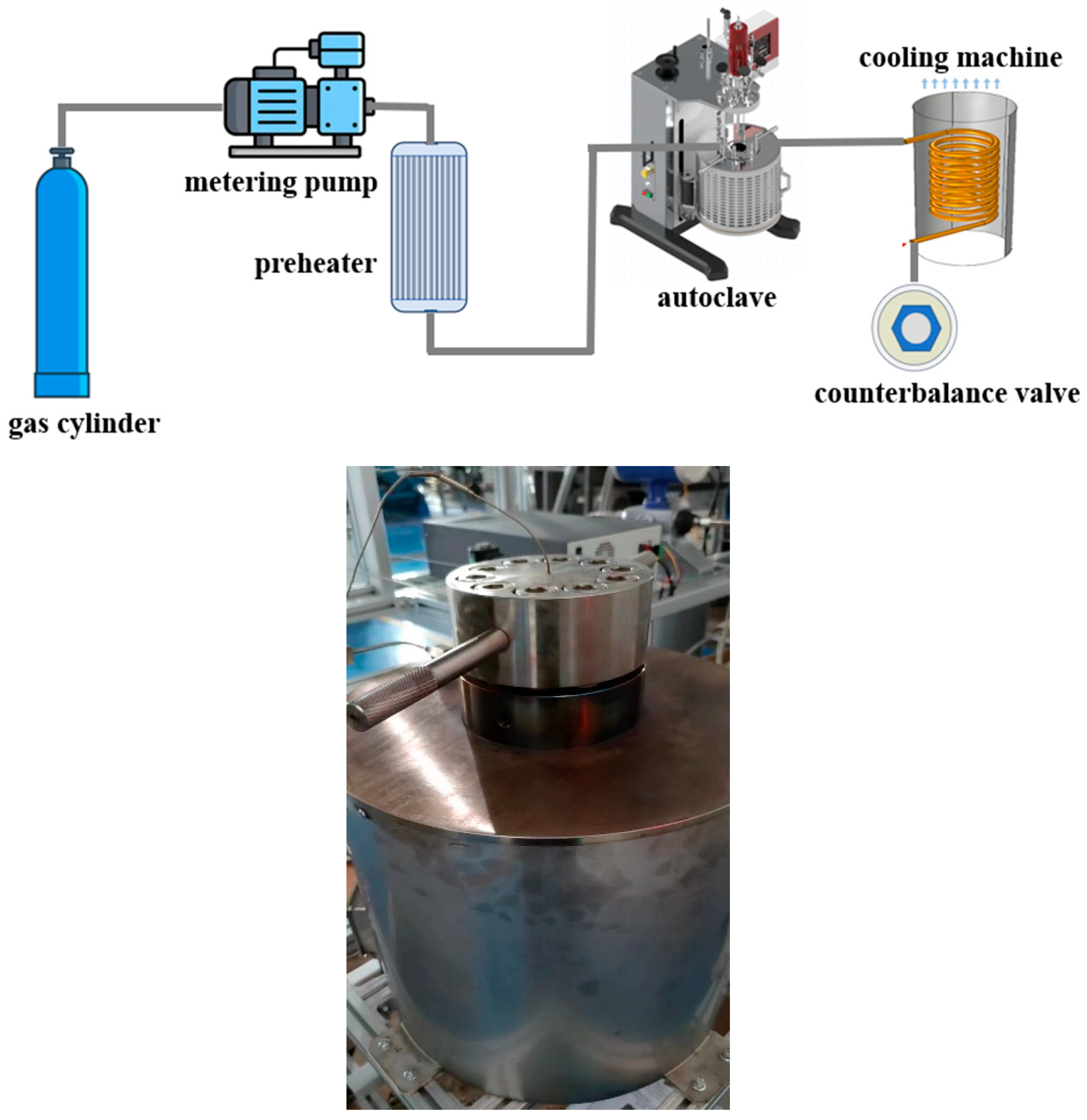

Figure 1. Schematic diagram of the corrosion test platform.

3. Results and Discussion

3.1. Weight Gain

Figure 2 shows the weight gain of HR3C exposed to 600–650 °C S−CO₂ at 25 MPa. The weight gain can be fitted using oxidation laws, as shown in the following equation:

$$∆w=k_p{t}^n$$

(1)

where $∆W$ is the weight gain of HR3C (mg dm⁻²), $k_{\mathrm{p}}$ is an oxidation rate constant (mg dm⁻² h⁻ⁿ), n is a time exponent, and t is the oxidation time (h). The time exponents are 0.527 and 0.481 for 600 and 650 °C, respectively, and are represented by a diffusion-controlled oxide growth rate. The largest weight gain was 4.583 mg dm⁻², recorded when the oxidation time was 1000 h at 650 °C. HR3C showed good corrosion resistance in S−CO₂ due to its high Cr concentration. The weight gain of HR3C in the tests is greater than that of Sanicro 25 in 600 °C S-CO₂ [14], but lower than that of 800H in 650 °C S-CO₂ [17].

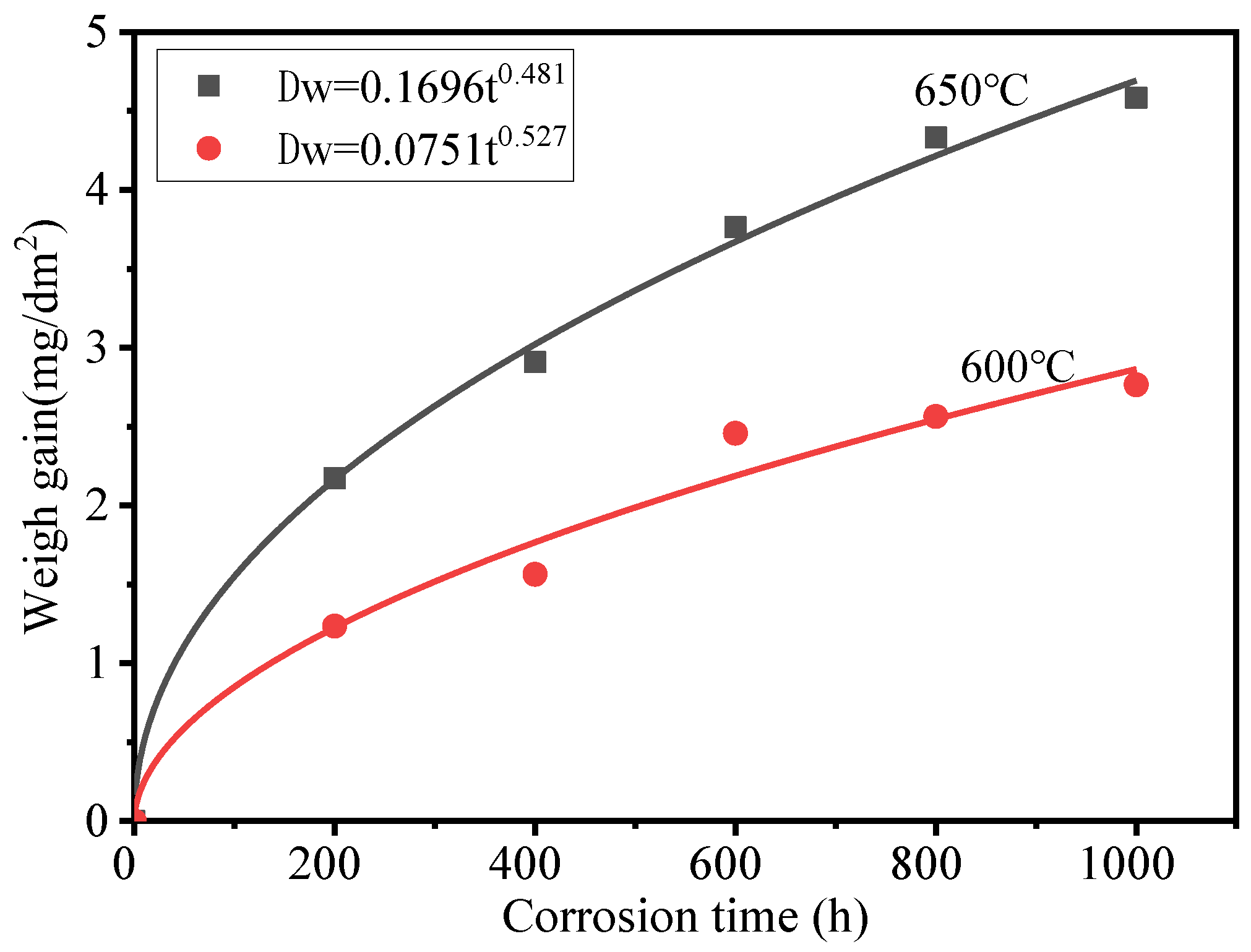

Figure 2. Weight gain of HR3C in S-CO₂ at 600–650 °C and 25 MPa.

3.2. Surface Morphology and Phase Composition

The oxides formed on austenitic steel are thin compared to those formed on the ferritic–martensitic steel. Tan [4] reported the corrosion behavior of F91 and HCM12A at 650 °C and 20.7 MPa, and found that angular oxide grains and some cracks covered the surface of ferritic–martensitic steels. F-M steels also exhibit a similar structure under supercritical water [18,19]. A needle-shaped morphology forms on the surface of 316 austenitic stainless steel exposed to S-CO₂ for short periods [6]. The surfaces of Alloy 800H samples exposed to S-CO₂ are covered by clustered oxide nodules, which tend to overlap as the exposure time increases [17]. Discontinuous oxides and numerous micrometer-sized nodular pores form on Sanicro 25 [14].

As can be observed in Figure 3, the morphology of the surface oxide is highly dependent on both temperature and time. Figure 3 shows the surface morphology of HR3C steel after different oxidation durations in 600 and 650 °C S-CO₂. As can be seen from Figure 3, a nodular oxide composed of particles of different sizes can be observed, while the other formation is a dense oxide film composed of fine particles. With increases in temperature and oxidation time, the outer nodular oxide film gradually grows along the surface, but even if the oxidation time reaches 1000 h, the nodular outer oxide film does not completely cover the whole matrix surface.

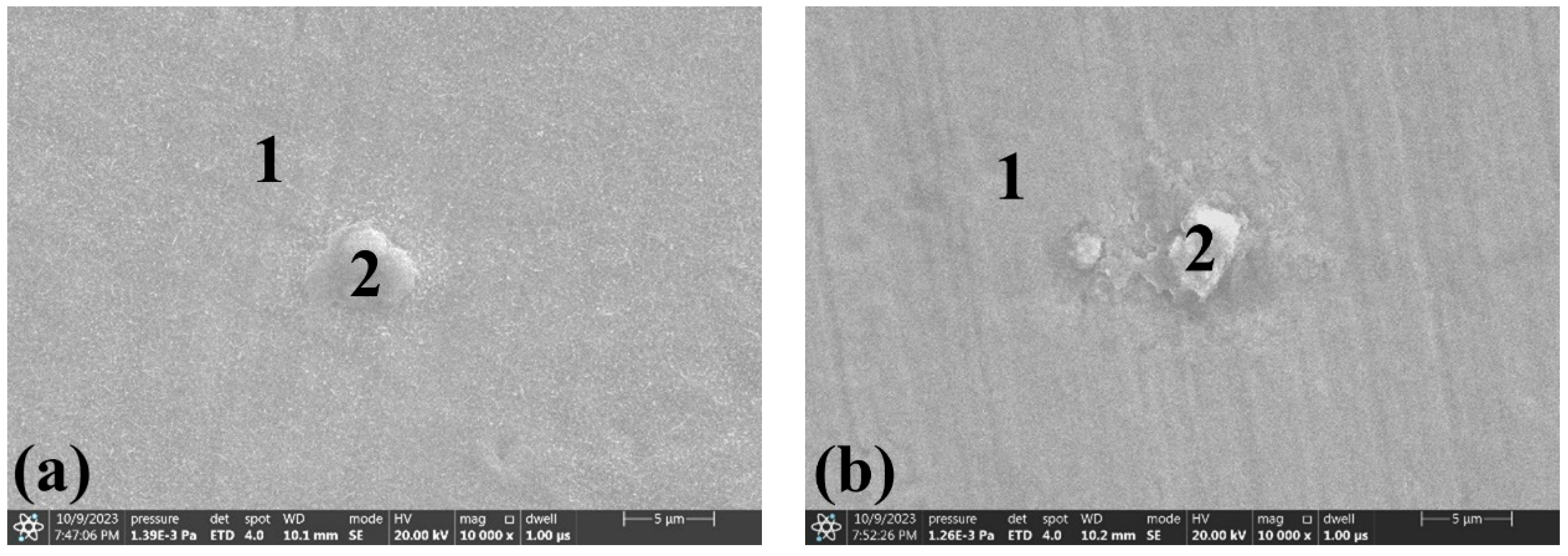

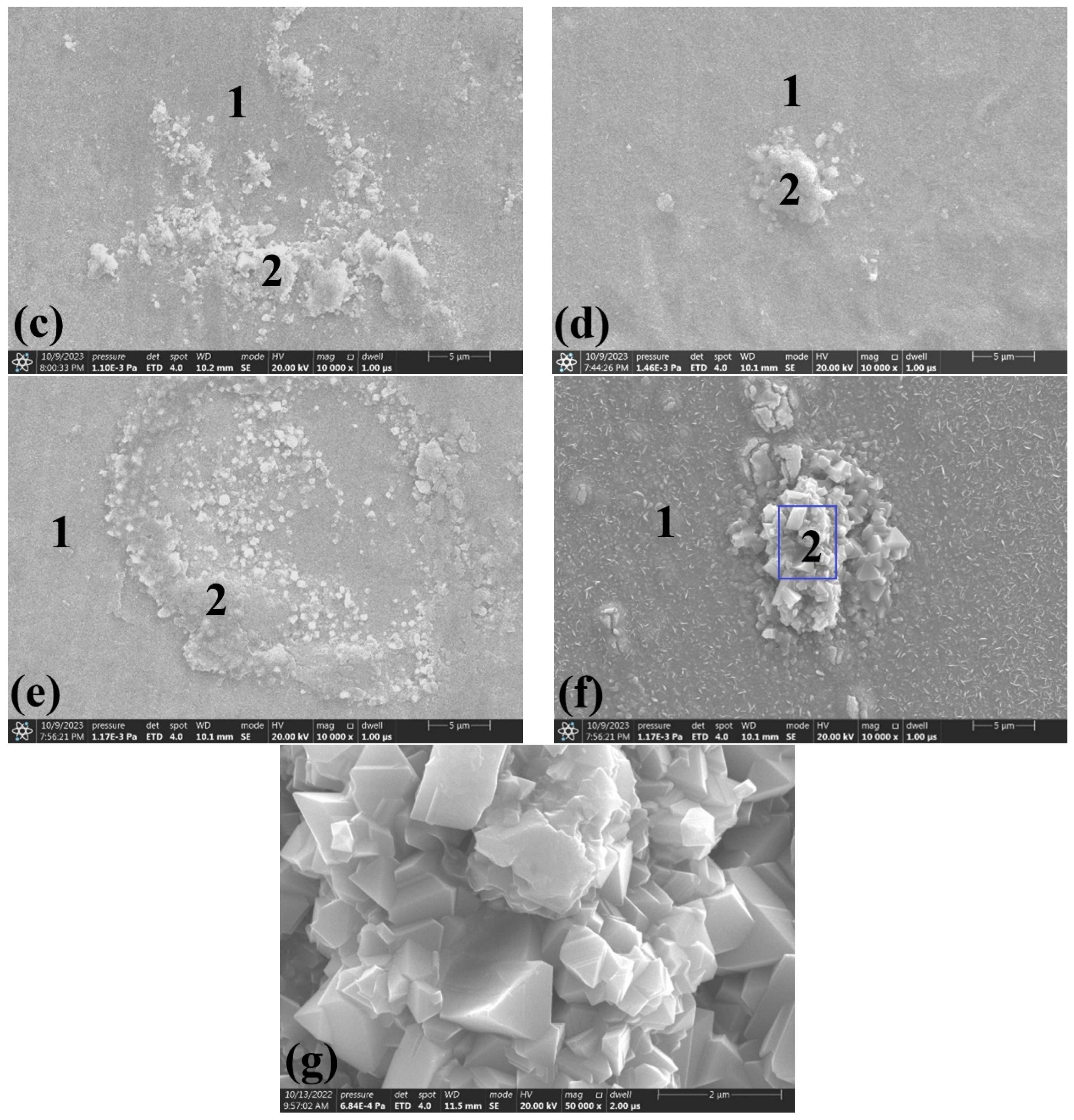

Figure 3. Surface morphological features of HR3C samples after exposure to S-CO₂ at 600–650 °C for different durations. (a) 600 °C for 200 h, (b) 600 °C for 600 h, (c) 600 °C for 1000 h, (d) 650 °C for 200 h, (e) 650 °C for 600 h, (f) 650 °C for 1000 h, and (g) higher magnification view of region in (f).

As shown in Figure 3a,d, the alloy surface is covered with uniformly small oxide particles. With prolonged oxidation time, larger oxide particles form on the metal surface (Figure 3b,e). Even larger oxide particles are observed on the alloy surface after 1000 h of oxidation (Figure 3c,f). Corresponding to the blue box shown in Figure 3f, Figure 3g presents a high-magnification morphology image of the nodular oxide formed on HR3C. From this surface morphology image, it can be observed that after 1000 h of oxidation in S-CO₂ at 650 °C, the oxide exhibits a polyhedral grain morphology and pores are noted.

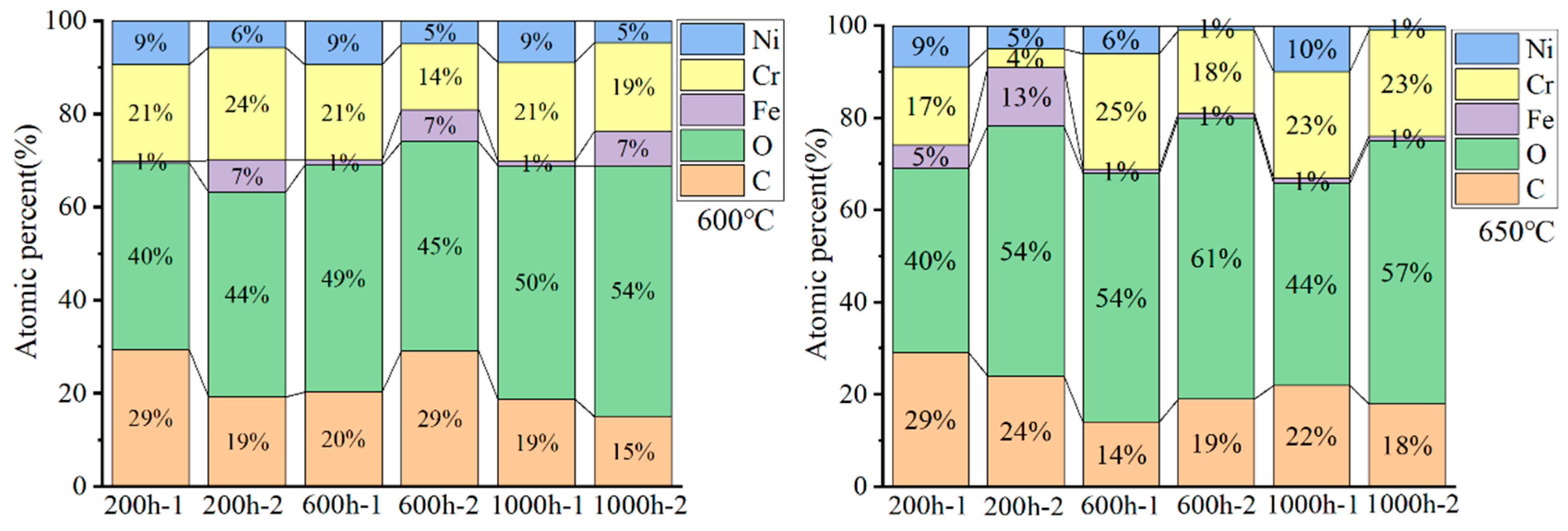

The chemical compositions of the oxides are presented in Figure 4, marked with the numbers 1 and 2. As shown in Figure 3 and Figure 4, the nodular oxides formed on HR3C steel, marked by the number two, are primarily composed of Cr, O, and C, with a low concentration of Ni and Fe. The flat oxide layer marked by the number one also is primarily composed of Cr, O, and C. The large particles in Figure 3 (location 2) exhibit a relatively low Ni content. In comparison, the Ni content is higher in the region denoted as position 1 in Figure 3, compared to that in the nodular oxides.

Figure 4. Energy-dispersive X-ray spectroscopy analysis of the surface composition of the oxide scale formed on HR3C exposed to 600–650 °C S-CO₂ for different durations (the numbers 1 and 2 represent the positions marked in Figure 3).

Figure 5 presents the XRD spectra of HR3C steel oxidized in S-CO₂ at 600 °C and 650 °C for 200 h and 1000 h. As shown in Figure 5, in the early stages of oxidation, i.e., at 200 h, the oxide phases on the alloy surface at different temperatures are not pronounced. However, at prolonged oxidation times, the characteristic peaks of the oxide phases become more prominent, indicating an increase in the oxide content. At 1000 h of oxidation, HR3C steel oxidized at 600 °C and 650 °C exhibits similar oxide types, primarily composed of Fe₂O₃, Cr₂O₃, and the spinel phases Fe₃O₄/(Fe,Cr)₃O₄. Additionally, characteristic peaks of Ni in the HR3C alloy matrix are also detected, suggesting the formation of a relatively thin oxide film on the alloy surface.

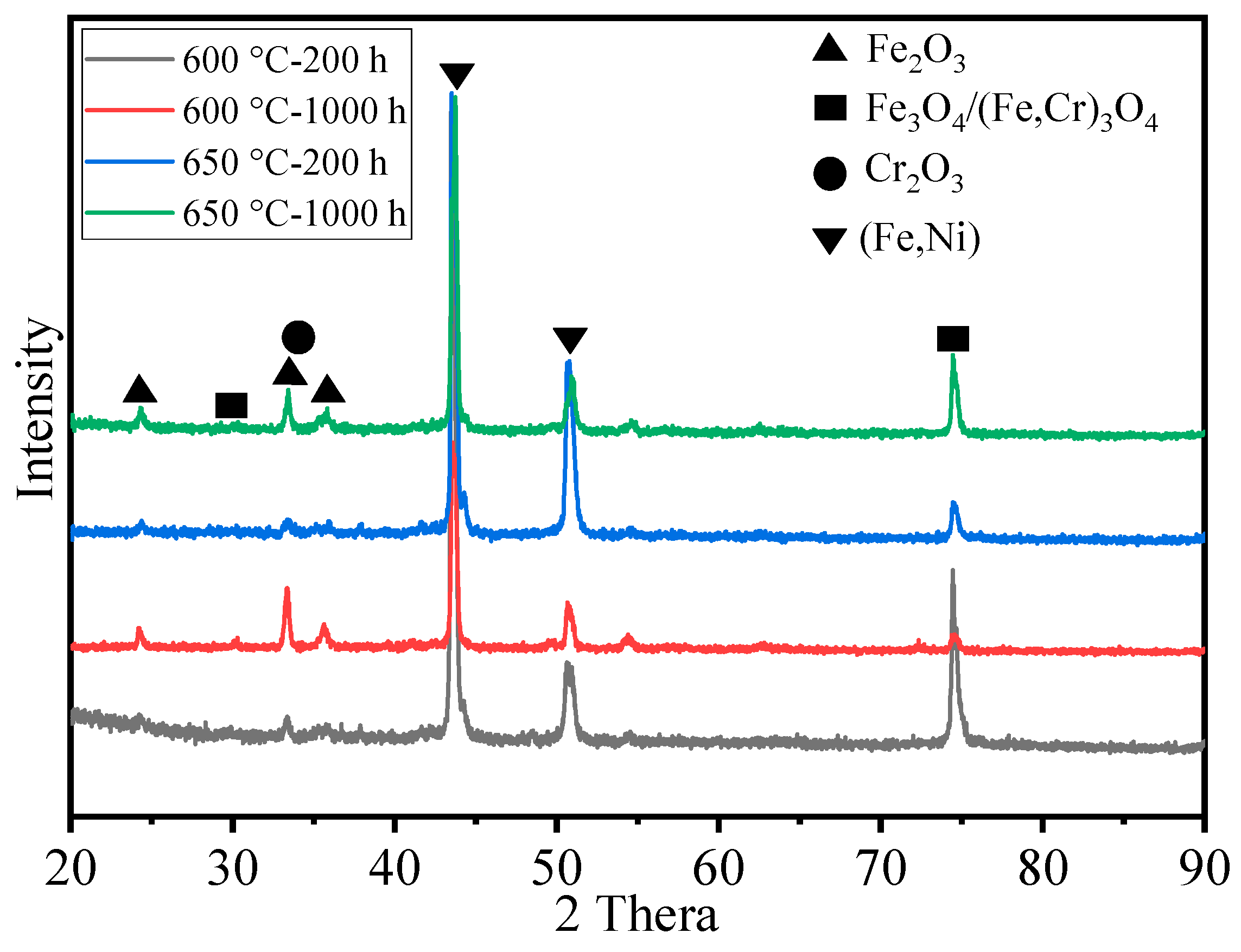

Figure 5. XRD spectra of HR3C steel after oxidation for 200 h and 1000 h in S-CO₂ at 600 °C and 650 °C.

Surface analysis of the HR3C alloy oxidized in S-CO₂ at 600 °C and 650 °C for varying durations was conducted using XPS to examine the elemental states of the oxide film components, including Fe, Cr, and O, and the results are presented in Figure 6. Figure 7 shows XPS patterns of Fe on HR3C steel after exposure to S-CO₂ at 600–650 for 200 and 1000 h. In Figure 6a and Figure 7, the peak positions of Fe are at (709.2 ± 0.3) eV and (710.2 ± 0.3) eV, corresponding to Fe²⁺ and Fe³⁺. The corresponding oxide phase may be Fe₃O₄ and Fe₂O₃. Figure 6b displays the narrow XPS scan spectra of Cr after different sputtering times. On the surface of the oxide film, the Cr peak is located at (576.6 ± 0.2) eV, corresponding to FeCr₂O₄. Figure 6c shows the O spectrum with a binding energy of (530.5 ± 0.2) eV, corresponding to O²⁻.

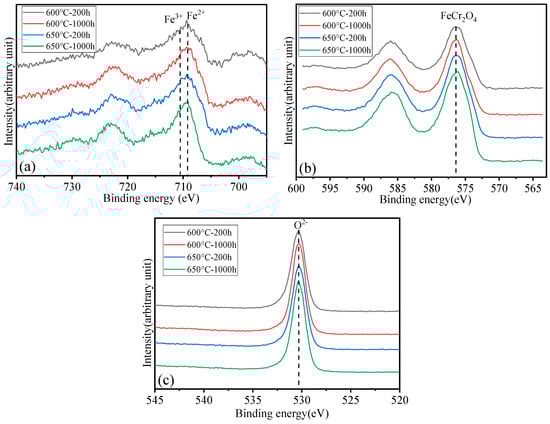

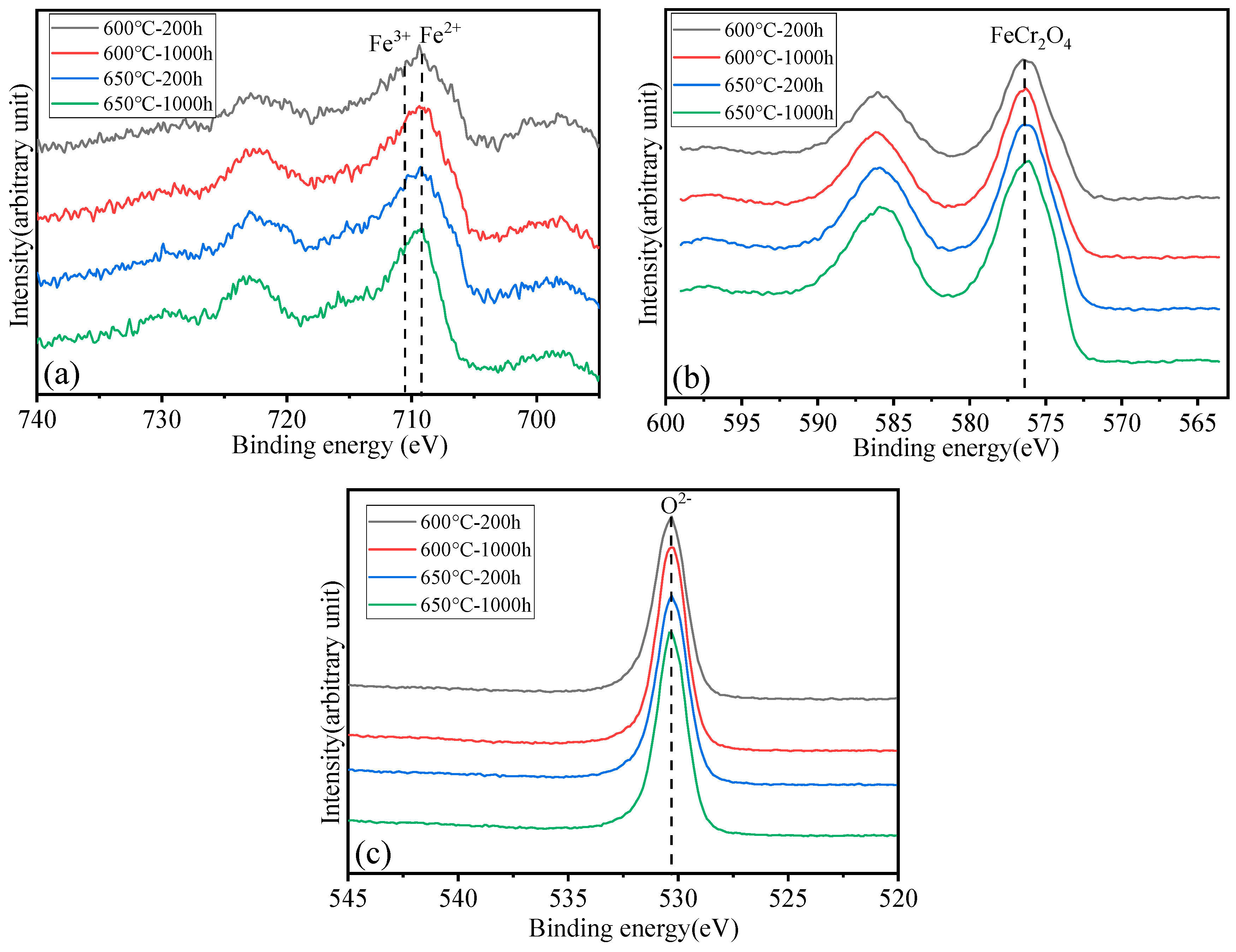

Figure 6. XPS patterns of the oxide film on HR3C steel after exposure to S-CO₂ at 600–650 °C for 200 and 1000 h. (a) Fe 2p core-level spectra, (b) Cr 2p core-level spectra, and (c) O 1s core-level spectra.

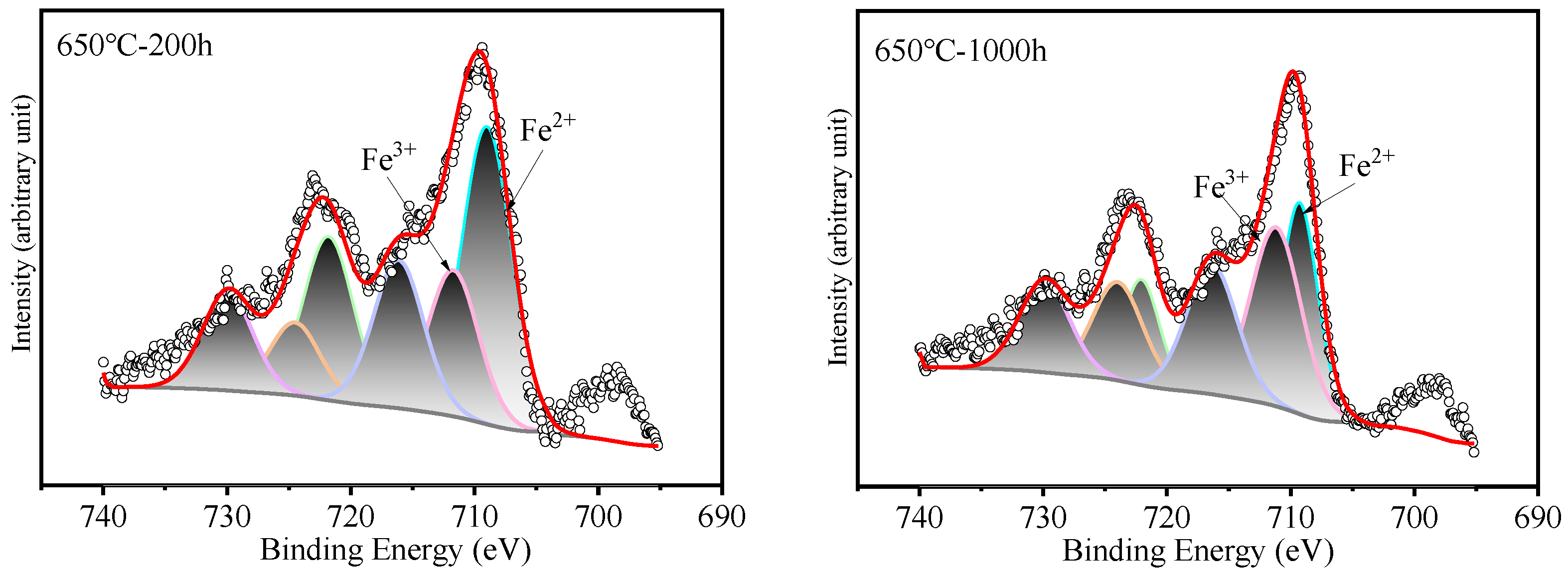

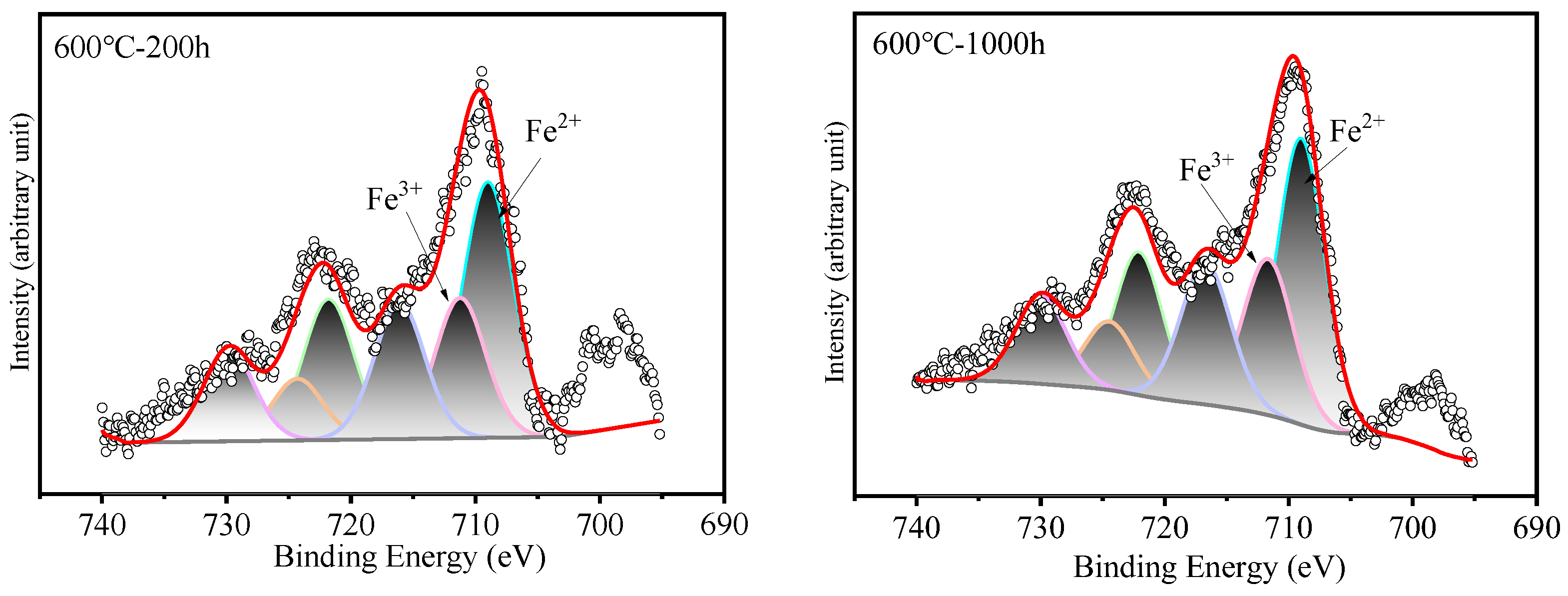

Figure 7. XPS patterns of Fe on HR3C steel after exposure to S-CO₂ at 600–650 °C for 200 and 1000 h.

3.3. Analysis of Element Distribution Characteristics

Figure 8, Figure 9, Figure 10 and Figure 11 show the element distribution obtained by selecting a 70 × 70 μm² area of the sample for scanning using Cs with a 2 keV sputtering ion beam to conduct in-depth analysis. The concentration profiles of the sample surface are indicated in Figure 8, which shows that the oxide surface is rich in Cr and O, while the content of Fe is low. C and Ni are also observed to be present in the oxide surface. Figure 9 shows the relationship between sputtering time and elemental distribution intensity. The sputtering time can be regarded as a proxy for the depth of the specimen, which means that as the sputtering time increases deeper elemental compositions of the material can be detected. It can be seen from Figure 9 that the content of O is high and remains constant for sputtering times of less than 2370 s. The oxygen content continuously decreases from the location of the line marked A to the base alloy, indicating the existence of an inward gradient of diffusion of oxygen. A small quantity of the element Fe was detected at the outermost layer, while it was absent from the oxide scale. The highest carbon content is located at the interface between the oxide and the metallic bulk and at the outermost oxide layer. The distribution of Cr in the two-dimensional diagram is relatively uniform, and the concentration of Cr has an obvious peak in the intermediate region, which indicates that chromium enrichment at a certain depth of the oxide layer is present. In HR3C, a small amount of Cr scale can be observed under the oxide, indicating an outward diffusion of Cr. Combined with the data in Figure 5, it can be concluded that the peak of Cr is related to the formation of Cr₂O₃, i.e., it is related to stable oxides that can improve the corrosion resistance of a material [20].

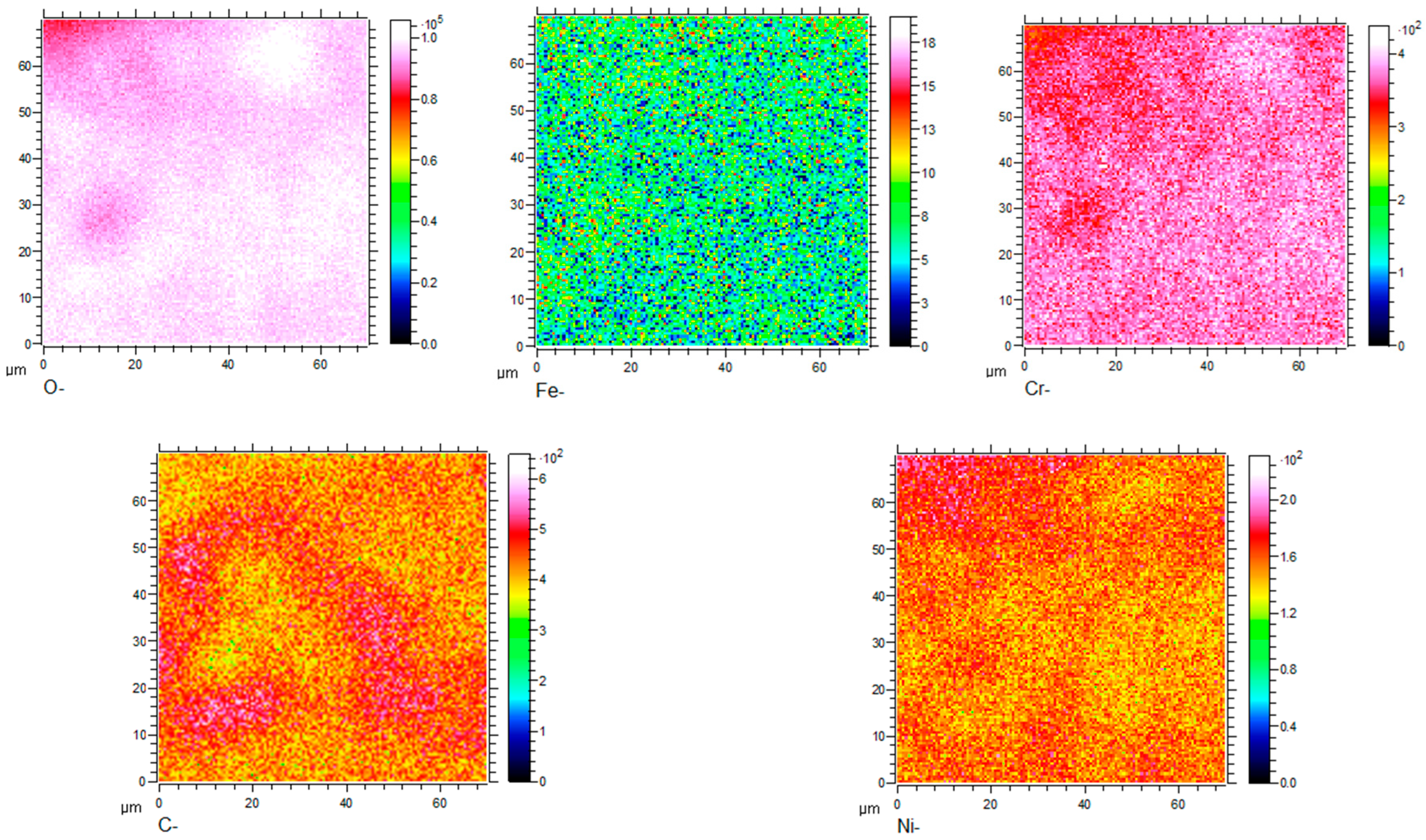

Figure 8. Two-dimensional element distribution diagram of HR3C steel after oxidation in S-CO₂ at 650 °C for 1000 h.

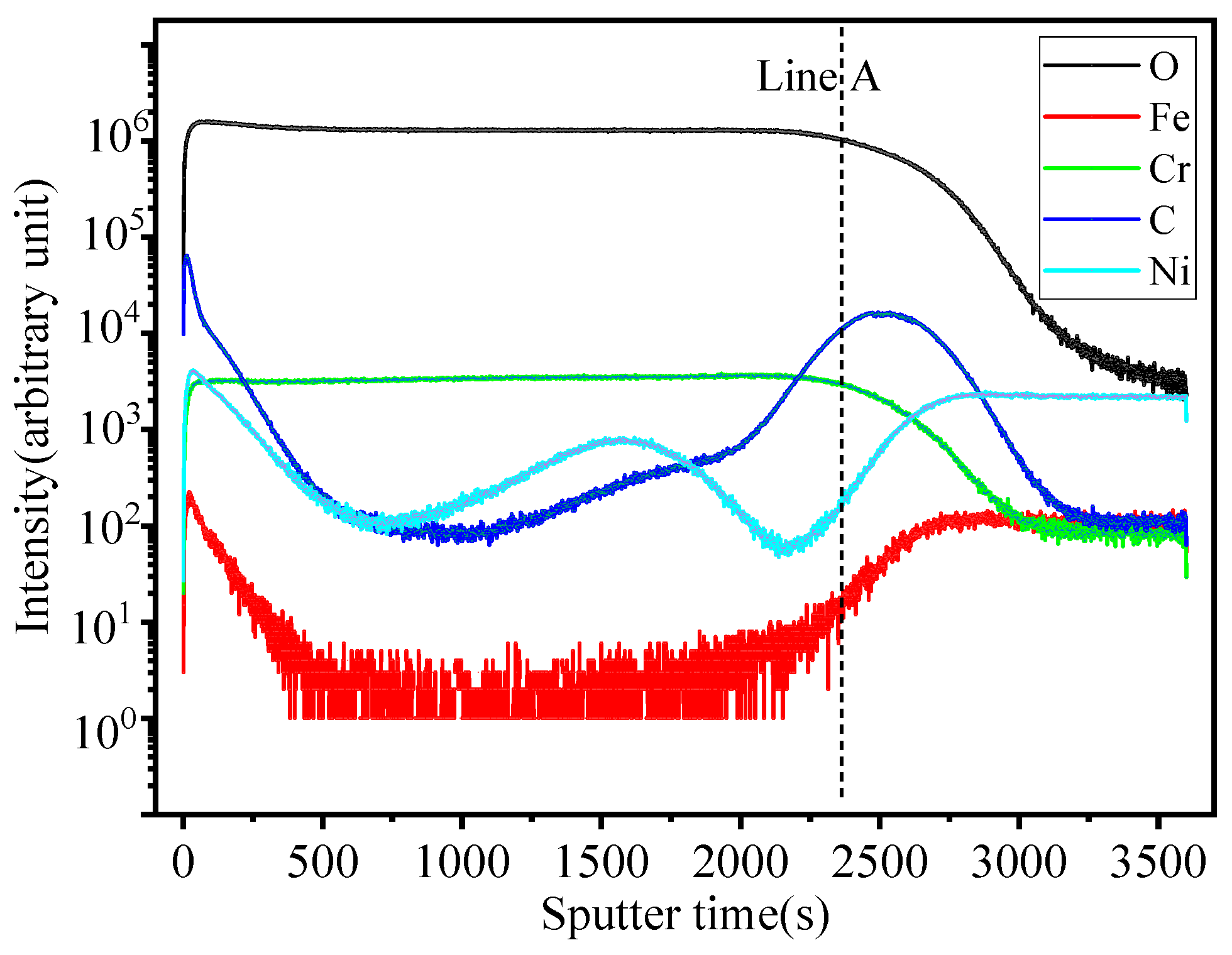

Figure 9. Elemental depth profile of HR3C steel after oxidation in S-CO₂ at 650 °C for 1000 h.

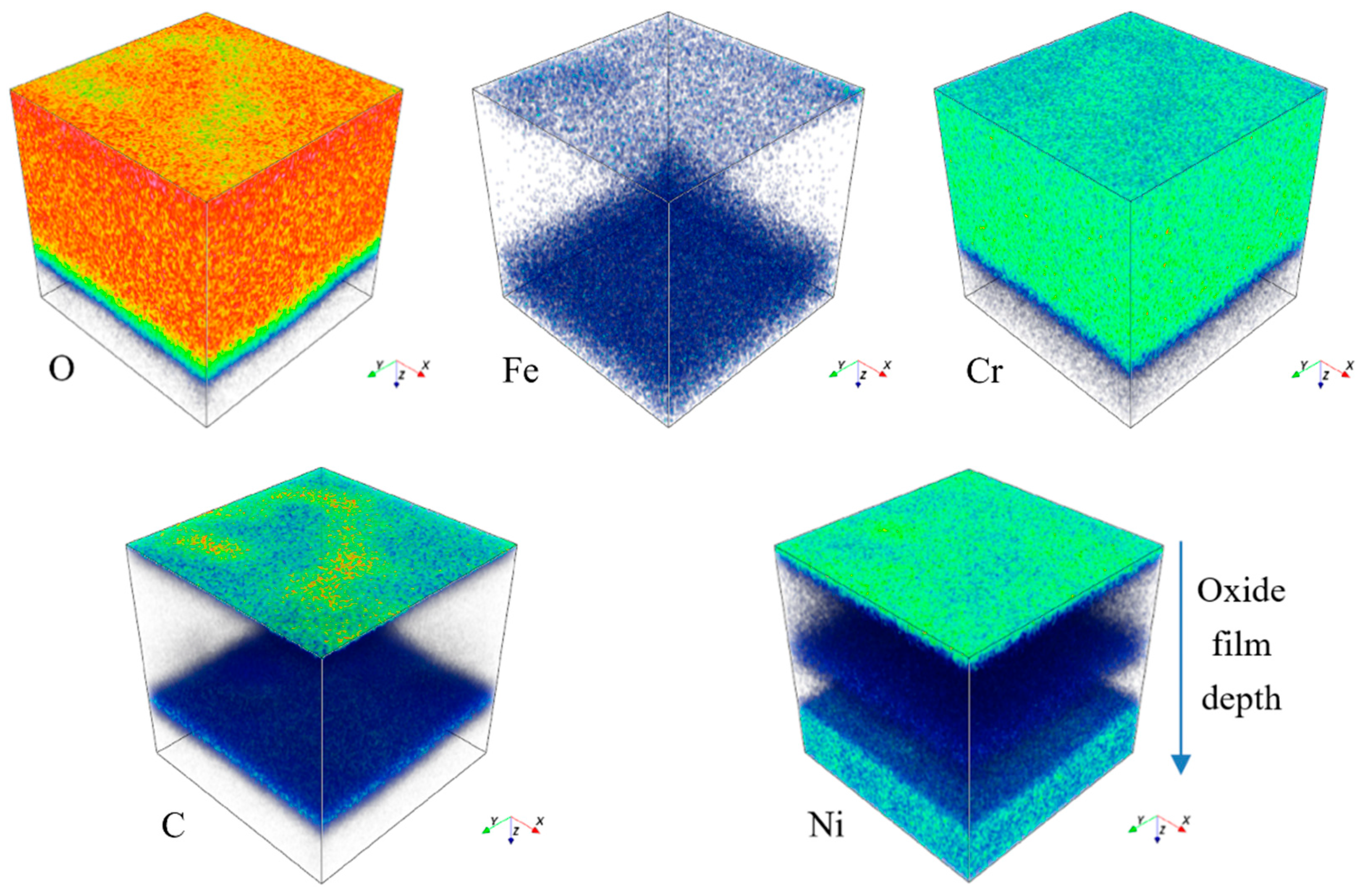

Figure 10. Three-dimensional element distribution diagram of HR3C steel after oxidation in S-CO₂ at 650 °C for 1000 h.

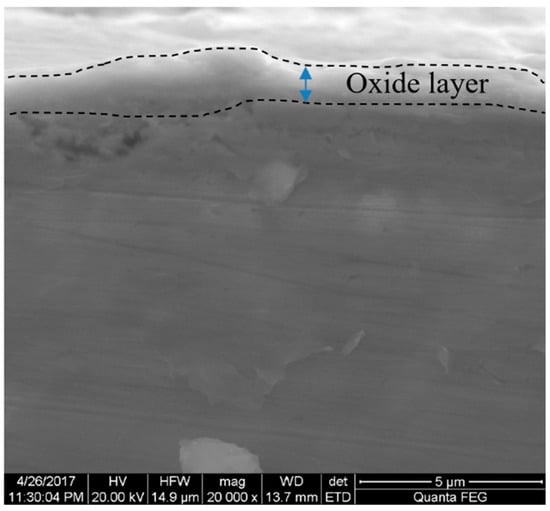

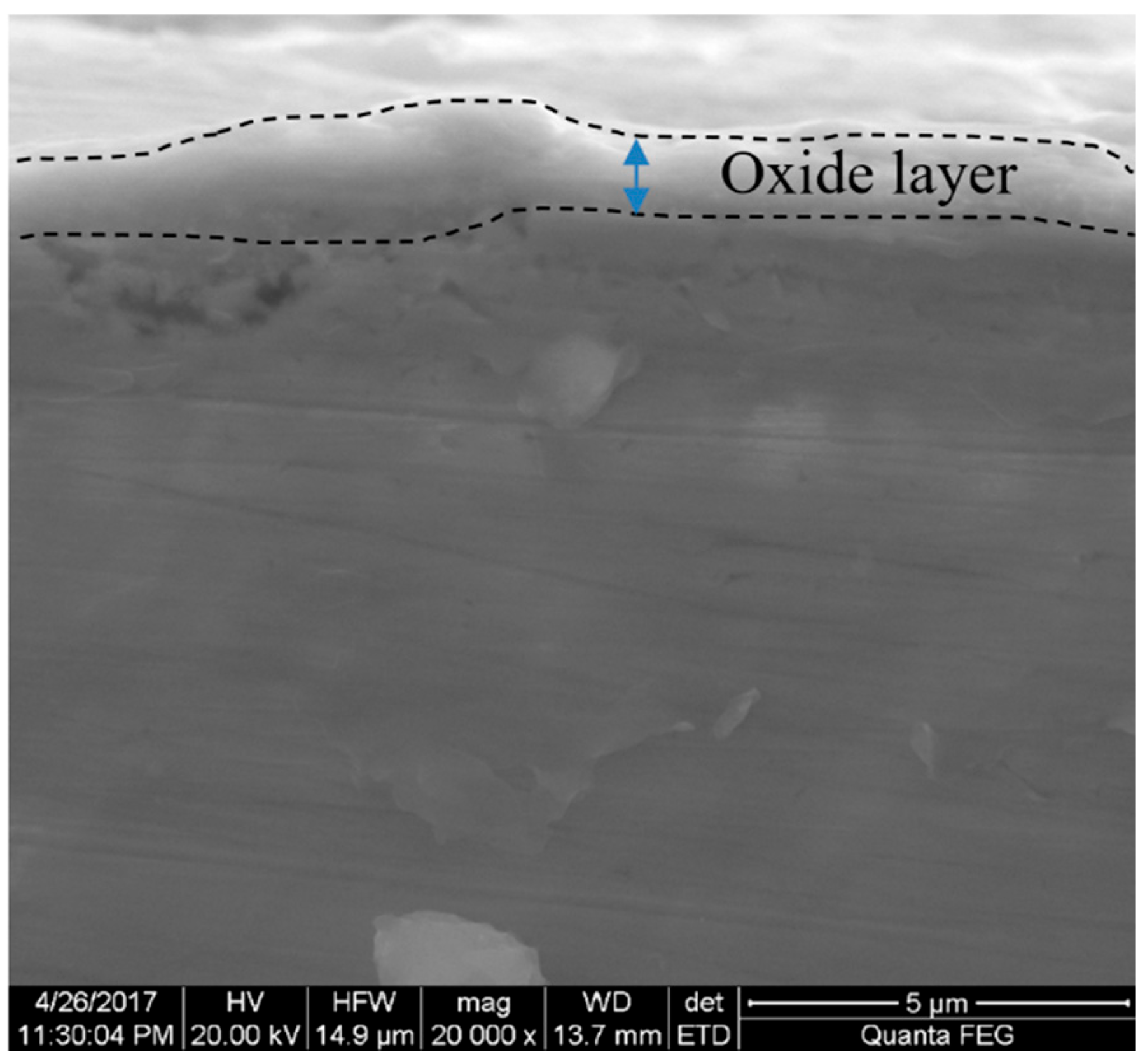

Figure 11. SEM morphology of the oxide layer formed on an HR3C steel surface exposed to S-CO₂ at 650 °C for 1000 h.

Figure 11 shows the cross-sectional micrograph of HR3C in an S-CO₂ environment for 1000 h at 650 °C. According to Figure 11, the thickness of the oxide scale developed on HR3C is about 1.2 μm. Combined with the results of XRD shown in Figure 5, it can be concluded that a relatively thin oxide film forms on the alloy’s surface. Figure 10 and Figure 12 show, respectively, the dimensional elemental distributions and cross-section mapping in the scanning area after exposure to S-CO₂ at 650 °C for 1000 h. This shows that the concentrations of O and Cr are high throughout the scale, and a transition layer can be detected that is possibly caused by inward oxygen diffusion and outward Cr diffusion. The results of XRD and elemental distribution mapping indicated that the chromium-rich oxide is mainly composed of Cr₂O₃, which provides good protection in supercritical CO₂ environments. Due to the thermodynamic stability of the lattice structure of Cr₂O₃, it can effectively prevent further oxidation. In addition, the formation of a Cr₂O₃ layer may also benefit from the higher proportion of Cr in HR3C steel and its rapid diffusion behavior at high temperatures. A number of studies in the literature indicate that Cr₂O₃ forms at the oxide–S-CO₂ interface by the outward migration of Cr cations [21,22,23]. Cr interstitial and Cr vacancies have, respectively, been found to be the dominant defects in Cr₂O₃ at low and high oxygen partial pressures. Gulsoy [24] believed that the grain boundary diffusion of Cr cations plays a role in the Cr oxidation kinetics of Alloy 617 in He-CO-CO₂ environments. These defects can provide a path for Cr diffusion. The content of Cr₂O₃ is greater, in relative terms, than that of the other oxide phases, as shown in Figure 9. HR3C’s excellent corrosion resistance in S-CO₂ environments can be attributed to a dense and continuous Cr₂O₃ oxide layer. The sufficient Cr content of the alloy is a key factor in maintaining the stability of the Cr₂O₃ layer [9].

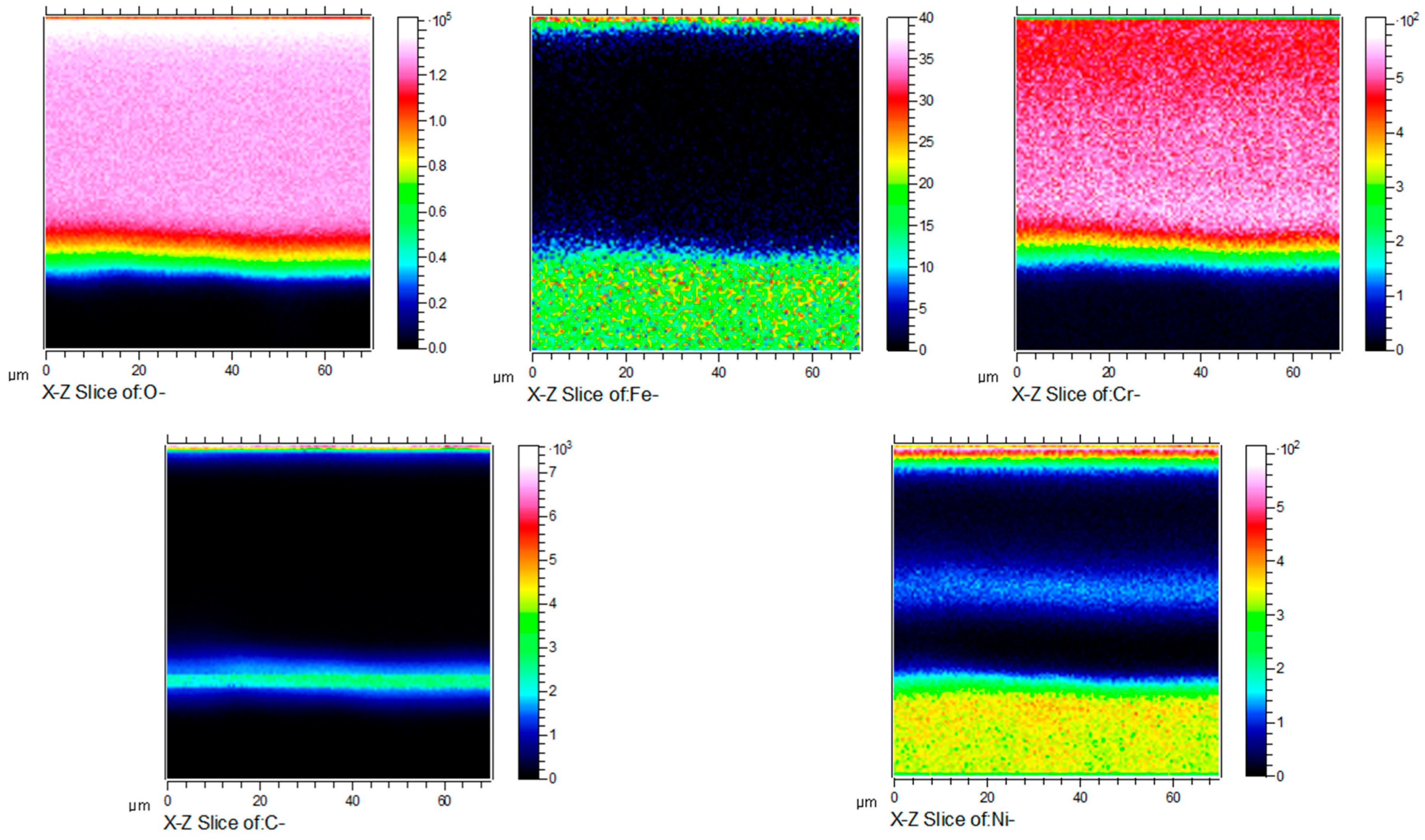

Figure 12. X-Z plane element concentration profile of HR3C steel after oxidation in S-CO₂ at 650 °C for 1000 h.

The formation of an iron-rich oxide during the corrosion of HR3C steel indicates that iron ions can diffuse outward to the oxide–S-CO₂ interface, i.e., the following reaction occurs [25,26,27]:

$$3\mathrm{F}\mathrm{e}+\mathrm{C}{\mathrm{O}}_2\left(\mathrm{g}\right)={\mathrm{F}\mathrm{e}}_3{\mathrm{O}}_4+4\mathrm{C}\mathrm{O}\left(\mathrm{g}\right)$$

(2)

$$3\mathrm{F}\mathrm{e}+3\mathrm{C}{\mathrm{O}}_2\left(\mathrm{g}\right)={\mathrm{F}\mathrm{e}}_3{\mathrm{O}}_4+\mathrm{C}+2\mathrm{C}\mathrm{O}\left(\mathrm{g}\right)$$

(3)

$${4\mathrm{F}\mathrm{e}}_3{\mathrm{O}}_4+{\mathrm{O}}_2=6{\mathrm{F}\mathrm{e}}_2{\mathrm{O}}_3$$

(4)

The formation of the protective layer is indicated by the passivation Reaction (5). Considering the formation of mixed spinels, which are more stable and adherent than pure magnetite, the Reaction (6) is given as

$$2\mathrm{C}\mathrm{r}+3\mathrm{C}{\mathrm{O}}_2={\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3+3\mathrm{C}\mathrm{O}$$

(5)

$$\left(3-x\right)\mathrm{F}\mathrm{e}+x\mathrm{C}\mathrm{r}+2\mathrm{C}{\mathrm{O}}_2={\mathrm{F}\mathrm{e}}_{\left(3-x\right)}{\mathrm{C}\mathrm{r}}_x{\mathrm{O}}_4+2\mathrm{C}\mathrm{O}$$

(6)

Based on analysis of the results of XPS, XRD, and EDS, it can further be confirmed that the iron-rich oxide in the outermost layer is formed mainly of Fe₂O₃, followed by Fe₃O₄ and (Fe,Cr)₃O₄. Theoretical calculation shows that the partial pressure of oxygen in carbon is much higher than that of Fe₂O₃ [28]. Based on the equilibrium oxygen partial pressure needed for oxide stability, both Fe oxide phases appear in the order of Fe₃O₄ followed by Fe₂O₃. However, Fe₂O₃ was not detected in high-purity carbon dioxide environments, except for when oxygen is added to the carbon dioxide. For Sanicro 25, Gui reports that the oxide scale mainly consists of Cr oxides and carbides [14]. The oxides that form on 800H and AL-6XN austenitic steel exposed to high-purity CO₂ at 650 °C are primarily composed of Cr₂O₃ and (Fe,Cr,Mn)-rich spinel oxide [4]. In this study, Fe₂O₃ was also detected, in addition to Fe₃O₄, Cr₂O₃, and (Fe,Cr)-rich spinel. The presence of Fe₂O₃ indicates that the high oxygen partial pressure at the oxide–S-CO₂ interface is due to the added oxygen. Compared with Cr, Fe cations can easily diffuse through the oxide scale to form a multi-layer oxide. Furthermore, the high solubility of Fe in Cr₂O₃ permits their outward diffusion, resulting in the formation of more Fe-rich oxides at the scale surface.

The data in Figure 9, Figure 10 and Figure 11, obtained by SIMS, clearly show that the enrichment of C occurred on the surface of the corrosion product and at the oxide film–substrate interface. It has been proposed that the diffusion of gaseous species such as CO and CO₂ takes place through the grain boundary, through cracks or pores in the scale, or through nanochannels [29,30,31,32]. The formation of carbon may occur through Reaction (7) between carbon-containing gas and metal cations at the oxide–metal interface. Carbon reacts with chromium in the austenitic matrix to form carbides, resulting in the formation of a carburized region.

$$23\mathrm{C}\mathrm{r}+6\mathrm{C}={\mathrm{C}\mathrm{r}}_{23}{\mathrm{C}}_6$$

(7)

In addition, in regions where carbide and oxide coexist, carbides are very likely oxidized to form oxide [33]. The outward cation migration may be the rate-limiting step due to the existence of a diffusion layer (as shown in Figure 9). If oxygen diffusion were the rate-limiting step, it is unlikely that a diffusion layer would form because the oxygen would not diffuse before the oxide.

4. Conclusions

This study investigated in detail the oxidation behavior of HR3C steel in S-CO₂ at 600 °C and 650 °C. Through a series of analyses, including depth profiling, two-dimensional distribution mapping, and three-dimensional visualization, it provides insight into the complex interplay between the material components and the corrosive environment. The outer layer predominantly consists of Fe₂O₃, Fe₃O₄, and (Fe,Cr)₃O₄. The impurity oxygen promotes the formation of Fe₂O₃. The inner layer is mainly composed of Cr₂O₃, which plays a key role in improving the corrosion resistance of HR3C steel. The carbon distribution indicates the outward diffusion of cations and inward diffusion of carbon-containing gas, and that the reactions occur at the intersection of the S-CO₂–corrosion product interface and the oxide–metal substrate interface.
