# Water Consumption Pattern Analysis Using Biclustering: When, Why and How

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

- overview of notorious contributions in the literature contemplating the opportunities and limitations of clustering water time series data;
- taxonomy for a structured view, principled application, and critical assessment of biclustering water consumption data;
- novel methodology for the correct application of coclustering and biclustering methods to water consumption data analysis;
- empirical validation and comprehensive discussion using a real-world case study from a WDS corresponding to a large tourist and residential resort.

#### Related Work

## 2. Background

#### 2.1. Time Clustering

**Definition 1.**

#### 2.2. Subspace Clustering

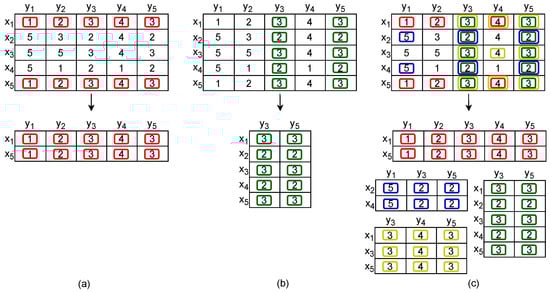

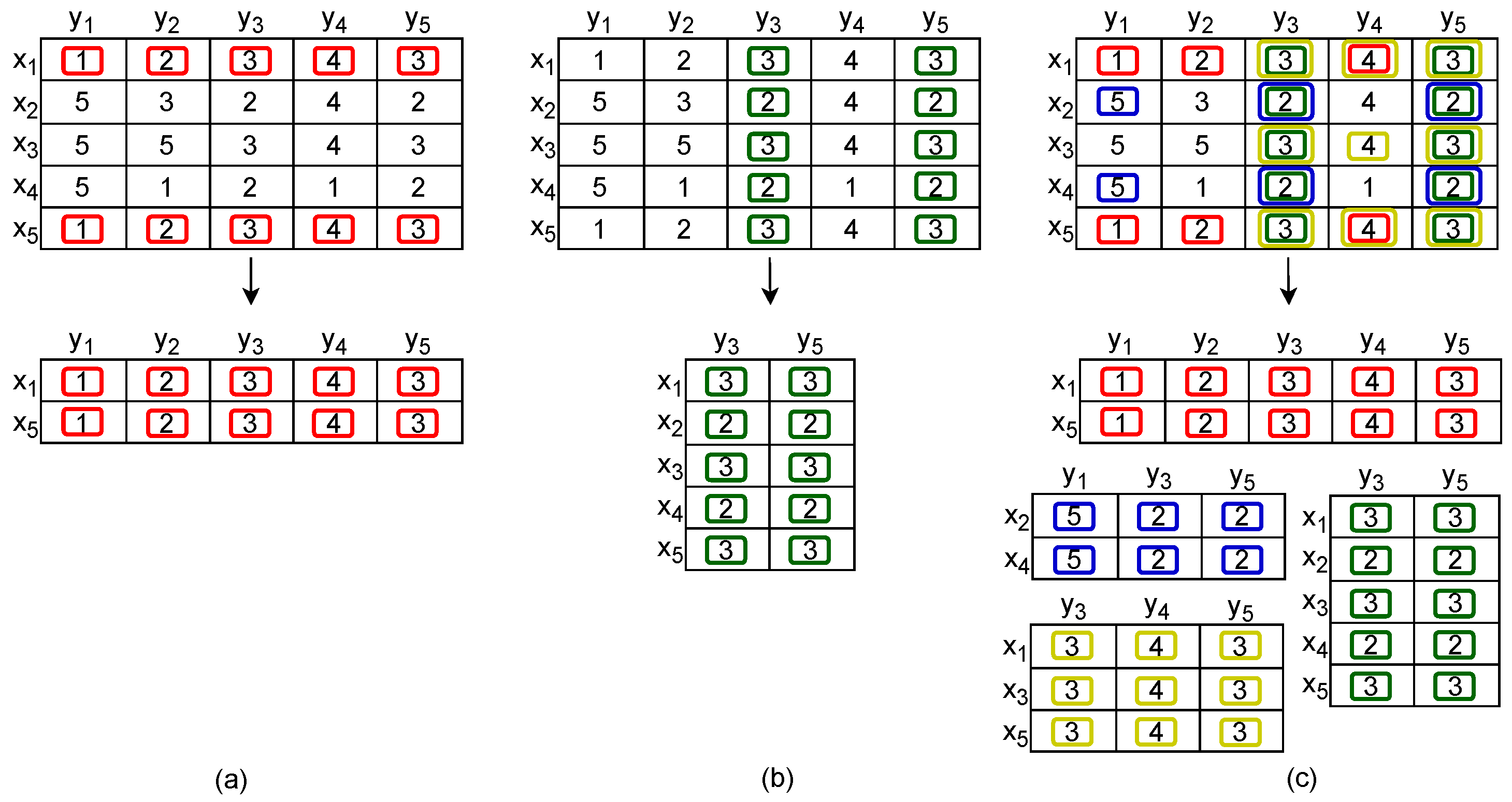

#### 2.2.1. Biclustering

**Definition 2.**

#### 2.2.2. Coclustering and Subspace Clustering Variants

**Definition 3.**

## 3. Solution: Biclustering for Water Consumption Pattern Mining

- biclustering-based paradigms on water consumption data (Section 3.1);
- biclustering settings (coherence, structure, quality, statistical significance) and their impact (Section 3.2);
- principles for guiding the development of biclustering-based pattern mining on time series water consumption data (Section 3.3).

#### 3.1. Major Subspace-Clustering Paradigms

#### 3.2. Biclustering Properties and Their Impact on the Pattern Mining Water Consumption Data

#### 3.2.1. Biclustering Coherence

**Definition 4.**

**Definition 5.**

**Definition 6.**

#### 3.2.2. Biclustering Structure

#### 3.2.3. Biclustering Quality

**Definition 7.**

#### 3.2.4. Biclustering Statistical Significance

#### 3.3. Principles for Biclustering-Based Time Series Analysis on Water Consumption Data

## 4. Case Study: Water Distribution Network of Quinta Do Lago

**RQ1. Are clustering approaches adequate for water consumption profiling from time series data? What are their major limitations?****RQ2. Does coclustering, as a more flexible clustering approach, aid the clustering analysis of water consumption data?****RQ3. Is biclustering able to retrieve novel actionable water consumption patterns? Can biclustering address the established shortcoming of clustering and co-clustering tasks?****RQ4. Which principles should be placed on the design and application of biclustering approaches for an effective descriptive and predictive analysis of water consumption profiles?**

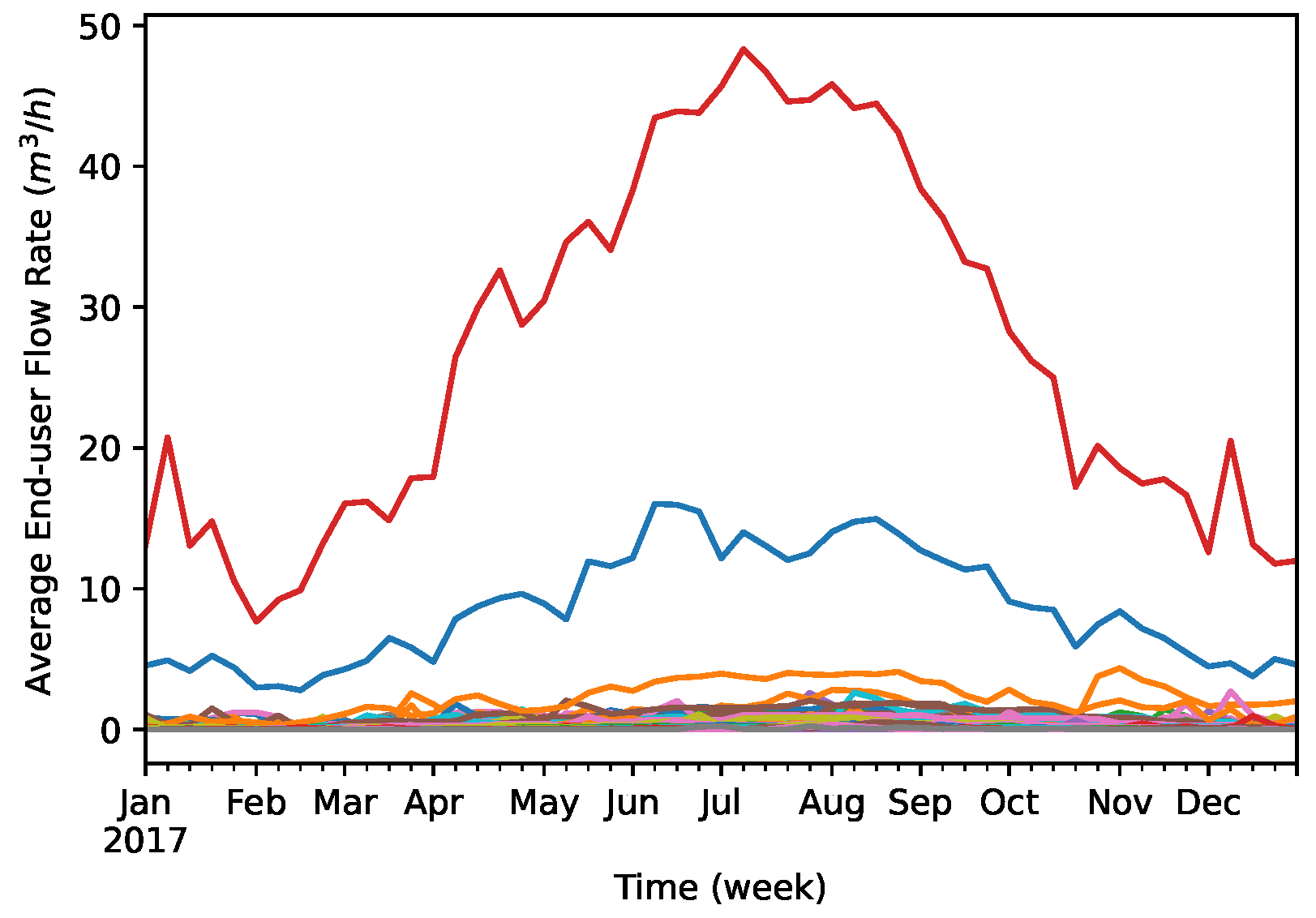

#### 4.1. Dataset

^{2}of land, varying from 2000 to 14,000 inhabitants in winter and summer, respectively, creating a relevant water demand seasonal variation. The WDN, managed by InfraQuinta, supplies 1.7 mm

^{3}/year of water mainly to domestic consumers and hotels. The consumption data was measured by a telemetry system every hour at each of the around 2170 end-users., during the entire year of 2017. Figure 7 shows and overview of Quinta do Lago’s WDN.

#### 4.2. Experimental Setting

#### 4.3. Data Preprocessing

#### 4.4. Clustering Analysis (RQ1)

- Consumption behaviour is grouped across the entire time axis, neglecting local patterns;
- Sensitive to noise and outliers requiring data transformations and cleaning procedures which are frequently not sufficient;
- Method-specific parameterization needs that considerably impact the clustering analysis, e.g., manually specifying the number of clusters in the case of K-means;
- Limited to constant relationships between time series, not considering other meaningful coherent consumption profiles explained by shifting, scaling and lagged factors.

#### 4.5. Coclustering Analysis (RQ2)

- Coclustering approaches generally disregard temporal dependencies within and across consumption signals, thus penalizing misalignments between coherent profiles as well as the inherent consumption variability along time. It further discards temporal contiguity, and as a result, water consumption patterns are generally grouped under non-sequential periods, limiting the interpretability and actionability of the gathered patterns;
- Coclustering guarantees the discovery of subspaces that can be evaluated according to a homogeneity measure, meaning that coclusters with low homogeneity can be filtered before analysis. Nevertheless, there is the need to manually specify the number of coclusters;
- Coclustering can discover groups of users with coherent consumption behavior under some periods, not limiting the search for global consumption patterns. However, coclustering assumes that each user is only associated with one consumption pattern, disregarding the possibility of associating multiple patterns with an user’s consumption profile. In addition, the partitioning of the time axis is restricting, preventing the discovery of flexibly positioned subspaces with arbitrarily-high overlaps along the time dimensions.

#### 4.6. Biclustering Analysis (RQ3)

**Constant consumption patterns**

**Noise robustness**

**Coherent patterns with consumption shifts**

**Time-lagged consumption patterns**

**Statistically significance consumption patterns**

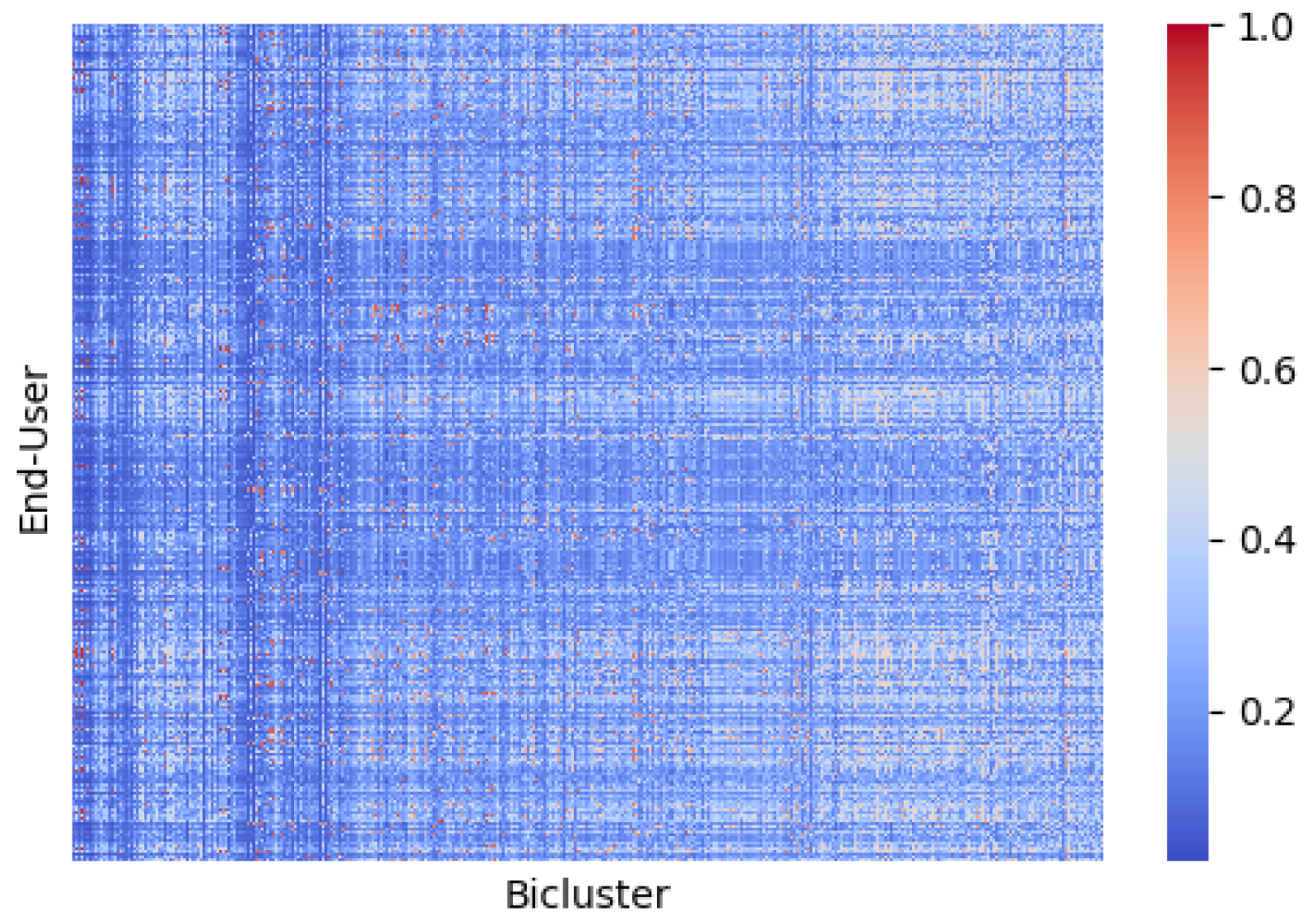

#### 4.7. Guiding Biclustering Principles for Water Consumption Tasks (RQ4)

- Detection of local consumption profiles, surpassing the limitation of traditional time clustering methods that only unveil global patterns;
- Efficient search for patterns with multiple coherence assumptions and quality, instead of only assuming constant relationships between time series;
- Retrieval of well-defined consumption patterns with solid guarantees of coherence and quality, in contrast with high variability of clustering consumption profiles;
- Flexible pattern-based search that can be customized to guide and restrict the search, preventing redundant consumption patterns and ensuring efficient searches.

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

WDS | Water distribution system |

WDN | Water distribution network |

SVM | Support vector machine |

SOM | Self-organizing map |

HAC | Hierarchical agglomerative clustering |

DTW | Dynamic time warping |

DBA | Dynamic time warping barycenter averaging |

DWT | Discrete wavelet transform |

PAA | Piecewise aggregate approximation |

PLA | Piecewise linear approximation |

SAX | Symbolic aggregate approximation |

LCSS | Longest common sub-sequence |

MODH | Modified hausdorff |

HMM | Hidden markov model |

SSE | Sum of squared error |

CD | Distance between clusters index |

IQR | Interquartile range |

CCC | Contiguous column coherent biclustering |

## References

- Cominola, A.; Giuliani, M.; Piga, D.; Castelletti, A.; Rizzoli, A.E. Benefits and challenges of using smart meters for advancing residential water demand modeling and management: A review. Environ. Model. Softw.
**2015**, 72, 198–214. [Google Scholar] [CrossRef] [Green Version] - Flath, C.; Nicolay, D.; Conte, T.; van Dinther, C.; Filipova-Neumann, L. Cluster Analysis of Smart Metering Data—An Implementation in Practice. Bus. Inf. Syst. Eng.
**2012**, 4, 31–39. [Google Scholar] [CrossRef] - Sønderlund, A.L.; Smith, J.R.; Hutton, C.J.; Kapelan, Z.; Savic, D. Effectiveness of smart meter-based consumption feedback in curbing household water use: Knowns and unknowns. J. Water Resour. Plan. Manag.
**2016**, 142, 04016060. [Google Scholar] [CrossRef] [Green Version] - Gurung, T.R.; Stewart, R.A.; Beal, C.D.; Sharma, A.K. Smart meter enabled water end-use demand data: Platform for the enhanced infrastructure planning of contemporary urban water supply networks. J. Clean. Prod.
**2015**, 87, 642–654. [Google Scholar] [CrossRef] [Green Version] - Loureiro, D.; Alegre, H.; Coelho, S.; Martins, A.; Mamade, A. A new approach to improve water loss control using smart metering data. Water Sci. Technol. Water Supply
**2014**, 14, 618–625. [Google Scholar] [CrossRef] - Laspidou, C.; Papageorgiou, E.; Kokkinos, K.; Sahu, S.; Gupta, A.; Tassiulas, L. Exploring patterns in water consumption by clustering. Procedia Eng.
**2015**, 119, 1439–1446. [Google Scholar] [CrossRef] [Green Version] - Cheifetz, N.; Noumir, Z.; Samé, A.; Sandraz, A.C.; Féliers, C.; Heim, V. Modeling and clustering water demand patterns from real-world smart meter data. Drink. Water Eng. Sci.
**2017**, 10, 75–82. [Google Scholar] [CrossRef] [Green Version] - Ioannou, A.E.; Creaco, E.F.; Laspidou, C.S. Exploring the Effectiveness of Clustering Algorithms for Capturing Water Consumption Behavior at Household Level. Sustainability
**2021**, 13, 2603. [Google Scholar] [CrossRef] - Candelieri, A. Clustering and support vector regression for water demand forecasting and anomaly detection. Water
**2017**, 9, 224. [Google Scholar] [CrossRef] - Yang, A.; Zhang, H.; Stewart, R.A.; Nguyen, K. Enhancing residential water end use pattern recognition accuracy using self-organizing maps and K-means clustering techniques: Autoflow v3.1. Water
**2018**, 10, 1221. [Google Scholar] [CrossRef] [Green Version] - Sim, K.; Gopalkrishnan, V.; Zimek, A.; Cong, G. A survey on enhanced subspace clustering. Data Min. Knowl. Discov.
**2013**, 26, 332–397. [Google Scholar] [CrossRef] - Madeira, S.C.; Oliveira, A.L. Biclustering Algorithms for Biological Data Analysis: A Survey. IEEE ACM Trans. Comput. Biol. Bioinform.
**2004**, 1, 24–45. [Google Scholar] [CrossRef] [PubMed] - Bougadis, J.; Adamowski, K.; Diduch, R. Short-term municipal water demand forecasting. Hydrol. Process. Int. J.
**2005**, 19, 137–148. [Google Scholar] [CrossRef] - Alvisi, S.; Franchini, M.; Marinelli, A. A short-term, pattern-based model for water-demand forecasting. J. Hydroinformat.
**2007**, 9, 39–50. [Google Scholar] [CrossRef] [Green Version] - Donkor, E.A.; Mazzuchi, T.A.; Soyer, R.; Alan Roberson, J. Urban water demand forecasting: Review of methods and models. J. Water Resour. Plan. Manag.
**2014**, 140, 146–159. [Google Scholar] [CrossRef] - Brentan, B.M.; Luvizotto, E., Jr.; Herrera, M.; Izquierdo, J.; Pérez-García, R. Hybrid regression model for near real-time urban water demand forecasting. J. Comput. Appl. Math.
**2017**, 309, 532–541. [Google Scholar] [CrossRef] - Divina, F.; Goméz Vela, F.A.; García Torres, M. Biclustering of smart building electric energy consumption data. Appl. Sci.
**2019**, 9, 222. [Google Scholar] [CrossRef] [Green Version] - Divina, F.; Aguilar-Ruiz, J.S. A multi-objective approach to discover biclusters in microarray data. In Proceedings of the Genetic and Evolutionary Computation Conference, GECCO 2007, London, UK, 7–11 July 2007; Lipson, H., Ed.; ACM: New York, NY, USA, 2007; pp. 385–392. [Google Scholar] [CrossRef]
- Han, J.; Kamber, M.; Pei, J. Data Mining: Concepts and Techniques, 3rd ed.; Morgan Kaufmann: Burlington, MA, USA, 2011. [Google Scholar]
- Ernst, J.; Nau, G.J.; Bar-Joseph, Z. Clustering short time series gene expression data. In Proceedings of the Thirteenth International Conference on Intelligent Systems for Molecular Biology 2005, Detroit, MI, USA, 25–29 June 2005; pp. 159–168. [Google Scholar] [CrossRef] [Green Version]
- Fu, T.C.; Chung, F.L.; Ng, V.; Luk, R. Pattern discovery from stock time series using self-organizing maps. In Workshop Notes of KDD2001 Workshop on Temporal Data Mining; Springer: New York, NY, USA, 2001; Volume 1. [Google Scholar]
- Ruiz, L.G.B.; del Carmen Pegalajar Jiménez, M.; Arcucci, R.; Molina-Solana, M. A time-series clustering methodology for knowledge extraction in energy consumption data. Expert Syst. Appl.
**2020**, 160, 113731. [Google Scholar] [CrossRef] - Saas, A.; Guitart, A.; Perianez, A. Discovering playing patterns: Time series clustering of free-to-play game data. In Proceedings of the IEEE Conference on Computational Intelligence and Games, CIG 2016, Santorini, Greece, 20–23 September 2016; pp. 1–8. [Google Scholar] [CrossRef] [Green Version]
- Aghabozorgi, S.R.; Shirkhorshidi, A.S.; Teh, Y.W. Time-series clustering—A decade review. Inf. Syst.
**2015**, 53, 16–38. [Google Scholar] [CrossRef] - Liao, T.W. Clustering of time series data—A survey. Pattern Recognit.
**2005**, 38, 1857–1874. [Google Scholar] [CrossRef] - Sakoe, H.; Chiba, S. Dynamic programming algorithm optimization for spoken word recognition. IEEE Trans. Acoust. Speech, Signal Process.
**1978**, 26, 43–49. [Google Scholar] [CrossRef] [Green Version] - Hautamäki, V.; Nykänen, P.; Fränti, P. Time-series clustering by approximate prototypes. In Proceedings of the 19th International Conference on Pattern Recognition (ICPR 2008), Tampa, FL, USA, 8–11 December 2008; IEEE Computer Society: Washington, DC, USA, 2008; pp. 1–4. [Google Scholar] [CrossRef]
- Keogh, E.J.; Lonardi, S.; Ratanamahatana, C.A. Towards parameter-free data mining. In Proceedings of the Tenth ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, Seattle, WA, USA, 22–25 August 2004; Kim, W., Kohavi, R., Gehrke, J., DuMouchel, W., Eds.; ACM: New York, NY, USA, 2004; pp. 206–215. [Google Scholar] [CrossRef] [Green Version]
- Petitjean, F.; Ketterlin, A.; Gançarski, P. A global averaging method for dynamic time warping, with applications to clustering. Pattern Recognit.
**2011**, 44, 678–693. [Google Scholar] [CrossRef] - Henriques, R.; Antunes, C.; Madeira, S.C. A structured view on pattern mining-based biclustering. Pattern Recognit.
**2015**, 48, 3941–3958. [Google Scholar] [CrossRef] - Zhang, Y.; Zha, H.; Chu, C. A Time-Series Biclustering Algorithm for Revealing Co-Regulated Genes. In Proceedings of the International Symposium on Information Technology: Coding and Computing (ITCC 2005), Las Vegas, NA, USA, 4–6 April 2005; IEEE Computer Society: Washington, DC, USA, 2005; Volume 1, pp. 32–37. [Google Scholar] [CrossRef]
- Madeira, S.C.; Oliveira, A.L. A Linear Time Biclustering Algorithm for Time Series Gene Expression Data. In Proceedings of the Lecture Notes in Computer Science, Algorithms in Bioinformatics, 5th International Workshop, WABI 2005, Mallorca, Spain, 3–6 October 2005; Casadio, R., Myers, G., Eds.; Springer: Berlin/Heidelberg, Germany, 2005; Volume 3692. [Google Scholar] [CrossRef] [Green Version]
- Madeira, S.C.; Oliveira, A.L. A polynomial time biclustering algorithm for finding approximate expression patterns in gene expression time series. Algorithms Mol. Biol.
**2009**, 4, 8. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Madeira, S.C.; Teixeira, M.C.; Sá-Correia, I.; Oliveira, A.L. Identification of Regulatory Modules in Time Series Gene Expression Data Using a Linear Time Biclustering Algorithm. IEEE ACM Trans. Comput. Biol. Bioinform.
**2010**, 7, 153–165. [Google Scholar] [CrossRef] [Green Version] - Gonçalves, J.P.; Madeira, S.C.; Oliveira, A.L. BiGGEsTS: Integrated environment for biclustering analysis of time series gene expression data. BMC Res. Notes
**2009**, 2, 1–11. [Google Scholar] [CrossRef] [Green Version] - Xue, Y.; Liao, Z.; Li, M.; Luo, J.; Hu, X.; Luo, G.; Chen, W. A New Biclustering Algorithm for Time-Series Gene Expression Data Analysis. In Proceedings of the Tenth International Conference on Computational Intelligence and Security, CIS 2014, Kunming, China, 15–16 November 2014; IEEE Computer Society: Washington, DC, USA, 2014; pp. 268–272. [Google Scholar] [CrossRef]
- Denitto, M.; Farinelli, A.; Bicego, M. Biclustering of time series data using factor graphs. In Proceedings of the Symposium on Applied Computing, SAC 2017, Marrakech, Morocco, 3–7 April 2017; Seffah, A., Penzenstadler, B., Alves, C., Peng, X., Eds.; ACM: New York, NY, USA, 2017; pp. 28–30. [Google Scholar] [CrossRef]
- Lee, J.H.; Lee, Y.R.; Jun, C.H. A biclustering method for time series analysis. Ind. Eng. Manag. Syst.
**2010**, 9, 131–140. [Google Scholar] [CrossRef] [Green Version] - Ji, L.; Tan, K.L. Identifying time-lagged gene clusters using gene expression data. Bioinformatics
**2005**, 21, 509–516. [Google Scholar] [CrossRef] - Gonçalves, J.P.; Madeira, S.C. LateBiclustering: Efficient Heuristic Algorithm for Time-Lagged Bicluster Identification. IEEE ACM Trans. Comput. Biol. Bioinform.
**2014**, 11, 801–813. [Google Scholar] [CrossRef] - Henriques, R.; Madeira, S.C. BSig: Evaluating the statistical significance of biclustering solutions. Data Min. Knowl. Discov.
**2018**, 32, 124–161. [Google Scholar] [CrossRef] - Henriques, R.; Madeira, S.C. BicPAM: Pattern-based biclustering for biomedical data analysis. Algorithms Mol. Biol.
**2014**, 9, 27. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Peeters, R. The maximum edge biclique problem is NP-complete. Discret. Appl. Math.
**2003**, 131, 651–654. [Google Scholar] [CrossRef] [Green Version] - Horta, D.; Campello, R.J.G.B. Similarity Measures for Comparing Biclusterings. IEEE ACM Trans. Comput. Biol. Bioinform.
**2014**, 11, 942–954. [Google Scholar] [CrossRef] [PubMed] - Tanay, A.; Sharan, R.; Shamir, R. Discovering statistically significant biclusters in gene expression data. In Proceedings of the Tenth International Conference on Intelligent Systems for Molecular Biology, Edmonton, AB, Canada, 3–7 August 2002; pp. 136–144. [Google Scholar]
- Gupta, N.; Aggarwal, S. MIB: Using mutual information for biclustering gene expression data. Pattern Recognit.
**2010**, 43, 2692–2697. [Google Scholar] [CrossRef] - Murali, T.M.; Kasif, S. Extracting Conserved Gene Expression Motifs from Gene Expression Data. In Proceedings of the 8th Pacific Symposium on Biocomputing, PSB 2003, Lihue, HI, USA, 3–7 January 2003; Altman, R.B., Dunker, A.K., Hunter, L., Klein, T.E., Eds.; World Scientific: Toh Tuck Link, Singapore, 2003; pp. 77–88. [Google Scholar]
- Yang, J.; Wang, H.; Wang, W.; Yu, P.S. Enhanced Biclustering on Expression Data. In Proceedings of the 3rd IEEE International Symposium on BioInformatics and BioEngineering (BIBE 2003), Bethesda, MD, USA, 10–12 March 2003; IEEE Computer Society: Washington, DC, USA, 2003; pp. 321–327. [Google Scholar] [CrossRef]
- Dhillon, I.S. Co-clustering documents and words using bipartite spectral graph partitioning. In Proceedings of the seventh ACM SIGKDD international conference on Knowledge discovery and data mining, San Francisco, CA, USA, 26–29 August 2001; Lee, D., Schkolnick, M., Provost, F.J., Srikant, R., Eds.; ACM: New York, NY, USA, 2001; pp. 269–274. [Google Scholar] [CrossRef]
- Alqadah, F.; Reddy, C.K.; Hu, J.; Alqadah, H.F. Biclustering neighborhood-based collaborative filtering method for top-n recommender systems. Knowl. Inf. Syst.
**2015**, 44, 475–491. [Google Scholar] [CrossRef] - Dolnicar, S.; Kaiser, S.; Lazarevski, K.; Leisch, F. Biclustering: Overcoming data dimensionality problems in market segmentation. J. Travel Res.
**2012**, 51, 41–49. [Google Scholar] [CrossRef] - Izenman, A.J.; Harris, P.W.; Mennis, J.; Jupin, J.; Obradovic, Z. Local spatial biclustering and prediction of urban juvenile delinquency and recidivism. Stat. Anal. Data Mining Asa Data Sci. J.
**2011**, 4, 259–275. [Google Scholar] [CrossRef] [Green Version] - Dhamodharavadhani, S.; Rathipriya, R. Biclustering Analysis of Countries Using COVID-19 Epidemiological Data. In Internet of Things; Springer: Berlin/Heidelberg, Germany, 2021; pp. 93–114. [Google Scholar]
- Kluger, Y.; Basri, R.; Chang, J.T.; Gerstein, M. Spectral biclustering of microarray data: Coclustering genes and conditions. Genome Res.
**2003**, 13, 703–716. [Google Scholar] [CrossRef] [Green Version] - Dhillon, I.S.; Mallela, S.; Modha, D.S. Information-theoretic co-clustering. In Proceedings of the Ninth ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, Washington, DC, USA, 24–27 August 2003; Getoor, L., Senator, T.E., Domingos, P.M., Faloutsos, C., Eds.; ACM: New York, NY, USA, 2003; pp. 89–98. [Google Scholar] [CrossRef]
- Henriques, R.; Madeira, S.C. Triclustering Algorithms for Three-Dimensional Data Analysis: A Comprehensive Survey. ACM Comput. Surv.
**2019**, 51, 1–43. [Google Scholar] [CrossRef] [Green Version] - Moritz, S.; Bartz-Beielstein, T. imputeTS: Time Series Missing Value Imputation in R. R J.
**2017**, 9, 207. [Google Scholar] [CrossRef] [Green Version] - Henriques, R.; Madeira, S.C. FleBiC: Learning classifiers from high-dimensional biomedical data using discriminative biclusters with non-constant patterns. Pattern Recognit.
**2021**, 115, 107900. [Google Scholar] [CrossRef] - Soares, D.; Henriques, R.; Gromicho, M.; Pinto, S.; Carvalho, M.d.; Madeira, S.C. Towards triclustering-based classification of three-way clinical data: A case study on predicting non-invasive ventilation in als. In Proceedings of the International Conference on Practical Applications of Computational Biology & Bioinformatics, L´Aquila, Italy, 17–19 June 2020; Springer: Berlin/Heidelberg, Germany, 2020; pp. 112–122. [Google Scholar]
- Soares, D.F.; Henriques, R.; Gromicho, M.; de Carvalho, M.; C Madeira, S. Prognostic Prediction in ALS: Triclustering-Based Classification of Longitudinal Data Targeting Relevant Clinical Endpoints. Available online: https://ssrn.com/abstract=4102493 (accessed on 11 May 2022).
- Gomes, S.C.; Vinga, S.; Henriques, R. Spatiotemporal Correlation Feature Spaces to Support Anomaly Detection in Water Distribution Networks. Water
**2021**, 13, 2551. [Google Scholar] [CrossRef] - Castanho, E.N.; Aidos, H.; Madeira, S.C. Biclustering fMRI time series: A comparative study. BMC Bioinform.
**2022**, 23, 192. [Google Scholar] [CrossRef] [PubMed] - Virtanen, P.; Gommers, R.; Oliphant, T.E.; Haberland, M.; Reddy, T.; Cournapeau, D.; Burovski, E.; Peterson, P.; Weckesser, W.; Bright, J.; et al. SciPy 1.0: Fundamental Algorithms for Scientific Computing in Python. Nat. Methods
**2020**, 17, 261–272. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Tavenard, R.; Faouzi, J.; Vandewiele, G.; Divo, F.; Androz, G.; Holtz, C.; Payne, M.; Yurchak, R.; Rußwurm, M.; Kolar, K.; et al. Tslearn, A Machine Learning Toolkit for Time Series Data. J. Mach. Learn. Res.
**2020**, 21, 1–6. [Google Scholar] - Keogh, E.J.; Pazzani, M.J. Scaling up dynamic time warping for datamining applications. In Proceedings of the sixth ACM SIGKDD international Conference on Knowledge Discovery and Data Mining, Boston, MA, USA, 20–23 August 2000; Ramakrishnan, R., Stolfo, S.J., Bayardo, R.J., Parsa, I., Eds.; ACM: New York, NY, USA, 2000; pp. 285–289. [Google Scholar] [CrossRef] [Green Version]
- Rousseeuw, P.J. Silhouettes: A graphical aid to the interpretation and validation of cluster analysis. J. Comput. Appl. Math.
**1987**, 20, 53–65. [Google Scholar] [CrossRef] [Green Version] - Satopaa, V.; Albrecht, J.R.; Irwin, D.E.; Raghavan, B. Finding a “Kneedle” in a Haystack: Detecting Knee Points in System Behavior. In Proceedings of the 31st IEEE International Conference on Distributed Computing Systems Workshops (ICDCS 2011 Workshops), Minneapolis, MN, USA, 20–24 June 2011; IEEE Computer Society: Washington, DC, USA, 2011; pp. 166–171. [Google Scholar] [CrossRef] [Green Version]
- Divina, F.; Pontes, B.; Giráldez, R.; Aguilar-Ruiz, J.S. An effective measure for assessing the quality of biclusters. Comput. Biol. Med.
**2012**, 42, 245–256. [Google Scholar] [CrossRef] - Henriques, R.; Madeira, S.C. BicNET: Flexible module discovery in large-scale biological networks using biclustering. Algorithms Mol. Biol.
**2016**, 11, 1–30. [Google Scholar] [CrossRef] [Green Version] - de França, F.O.; Coelho, G.P.; Zuben, F.J.V. Predicting missing values with biclustering: A coherence-based approach. Pattern Recognit.
**2013**, 46, 1255–1266. [Google Scholar] [CrossRef] - Agrawal, R.; Gehrke, J.; Gunopulos, D.; Raghavan, P. Automatic Subspace Clustering of High Dimensional Data for Data Mining Applications. In Proceedings of the SIGMOD 1998, ACM SIGMOD International Conference on Management of Data, Seattle, WA, USA, 2–4 June 1998; Haas, L.M., Tiwary, A., Eds.; ACM Press: New York, NY, USA, 1998; pp. 94–105. [Google Scholar] [CrossRef] [Green Version]
- Singh, M.; Mehrotra, M. Impact of biclustering on the performance of Biclustering based Collaborative Filtering. Expert Syst. Appl.
**2018**, 113, 443–456. [Google Scholar] [CrossRef]

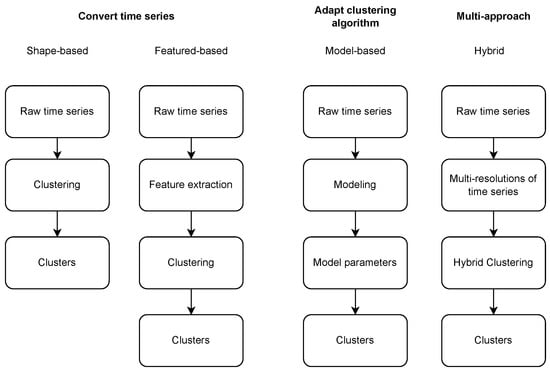

**Figure 1.**Time series clustering approaches (adapted from [24]).

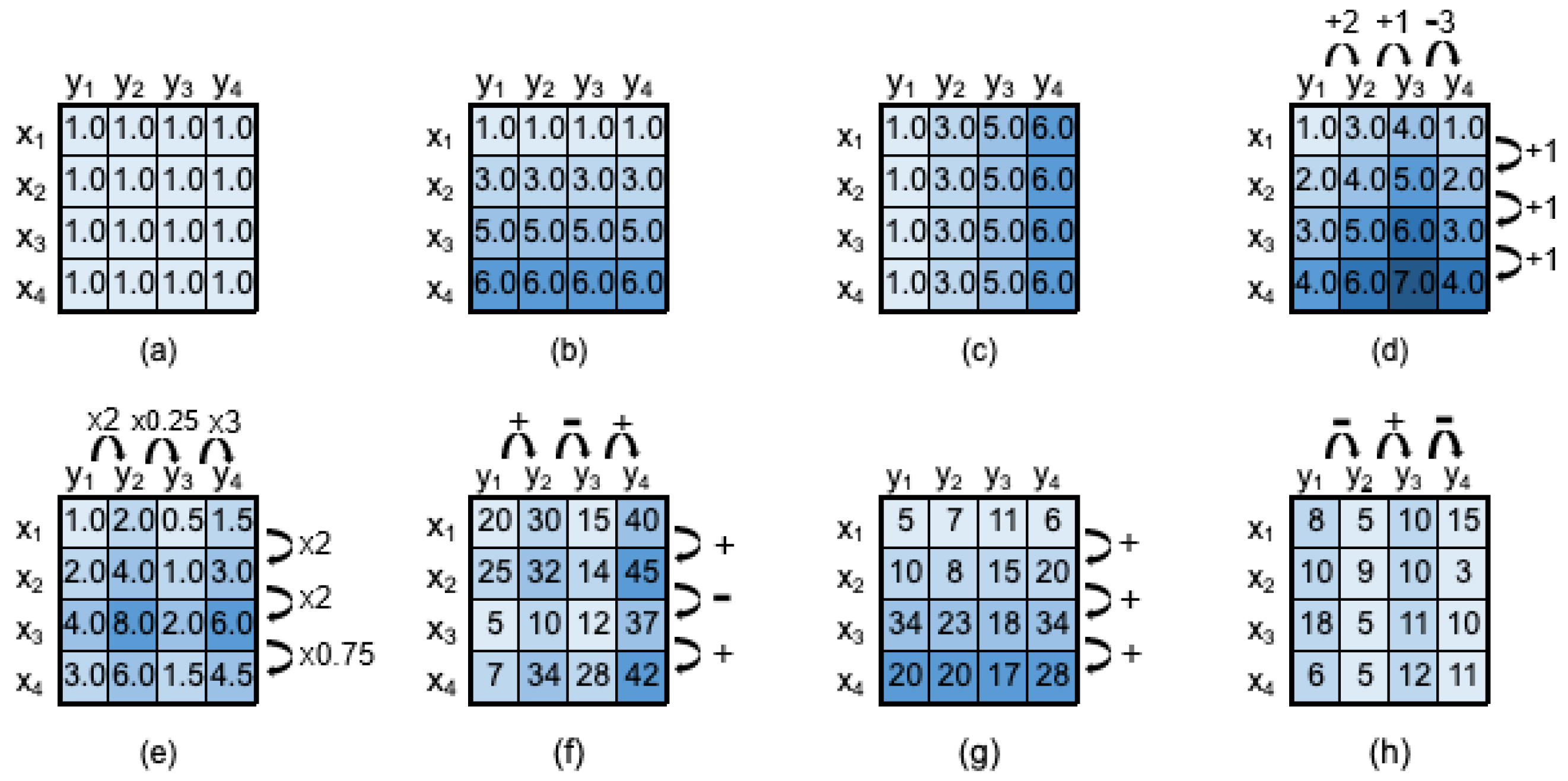

**Figure 3.**Illustrative forms e of subspace coherence: (

**a**) constant values, (

**b**) constant values on rows (pattern on columns), (

**c**) constant values on columns (pattern on rows), (

**d**) coherent values (additive model), (

**e**) coherent values (multiplicative model), (

**f**) overall coherent evolution (order-preserving model), (

**g**) coherent evolution on the rows, (

**h**) coherent evolution on the columns [12].

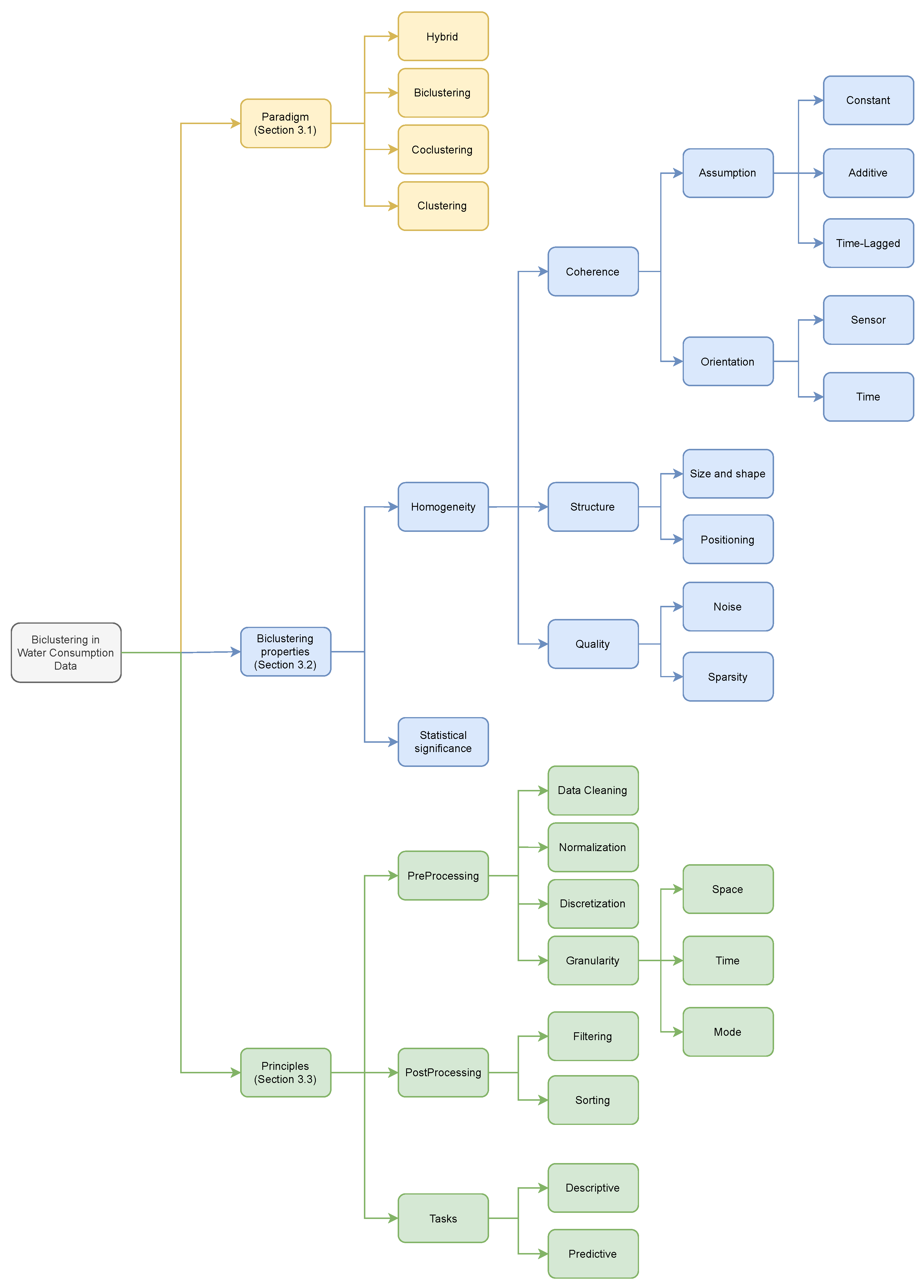

**Figure 4.**Taxonomy of Biclustering-based data analysis on water demand data: structured view on the major biclustering paradigms, biclustering aspects affecting the analysis, and principles to design and assess biclustering-based approaches.

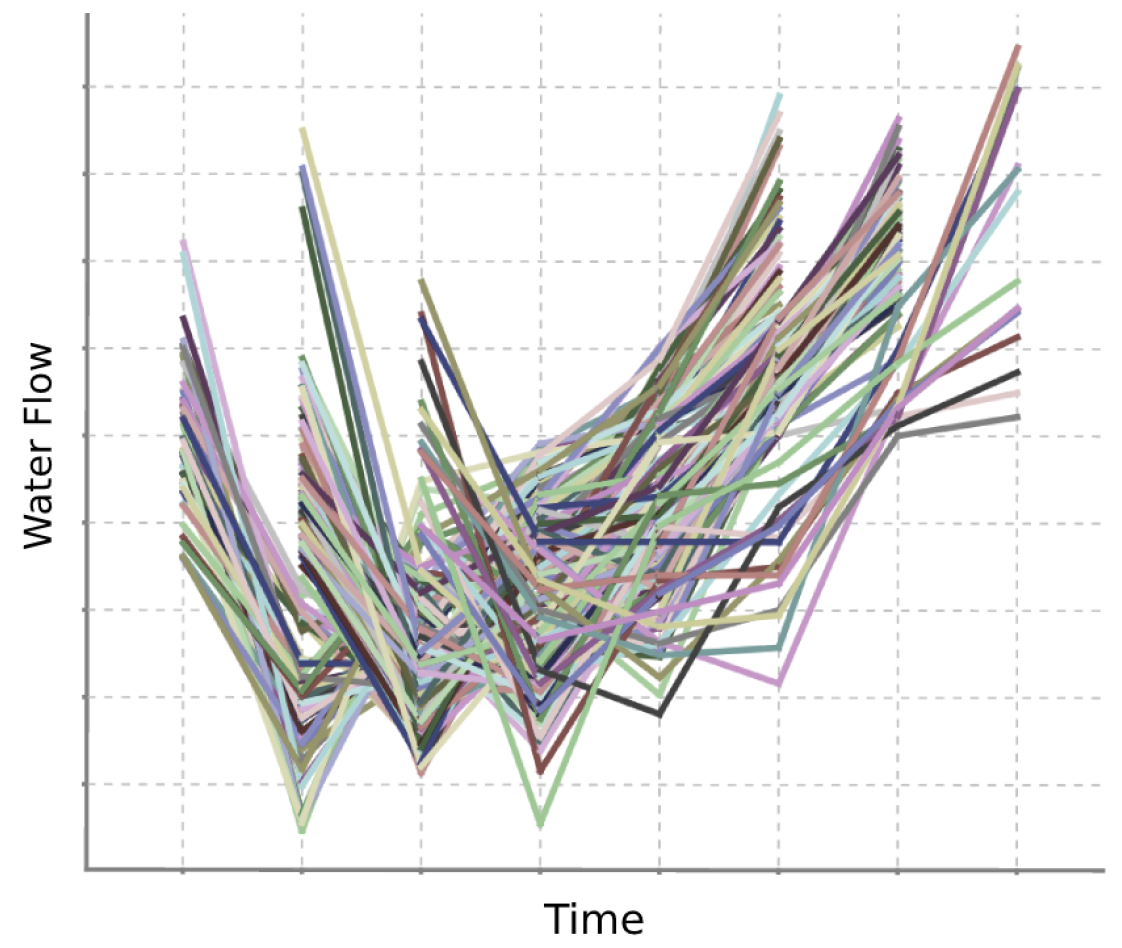

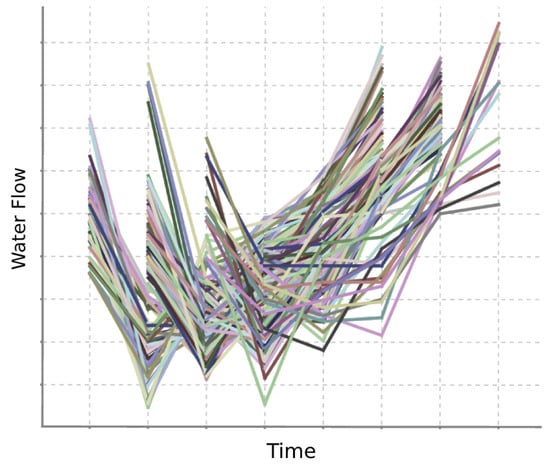

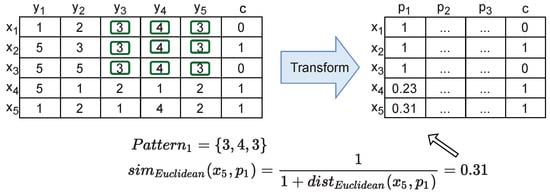

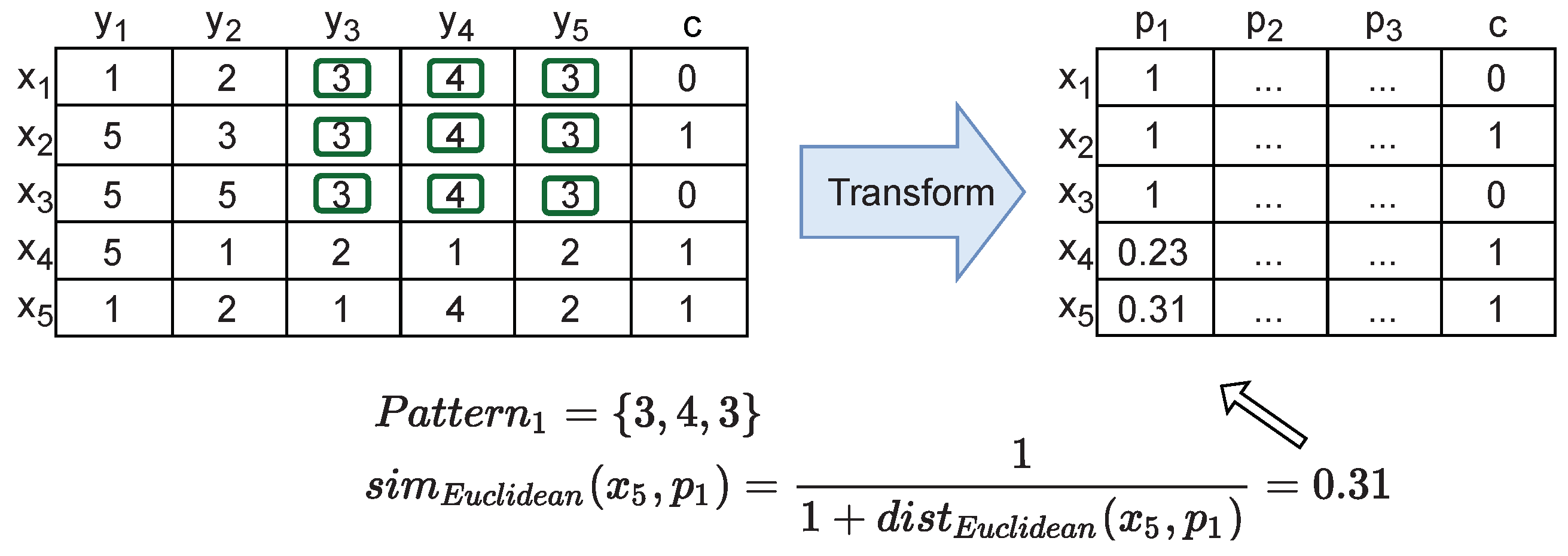

**Figure 6.**Pattern-centric transformation to map time series data onto multivariate data, obtained by comparing end-users against the found biclusters.

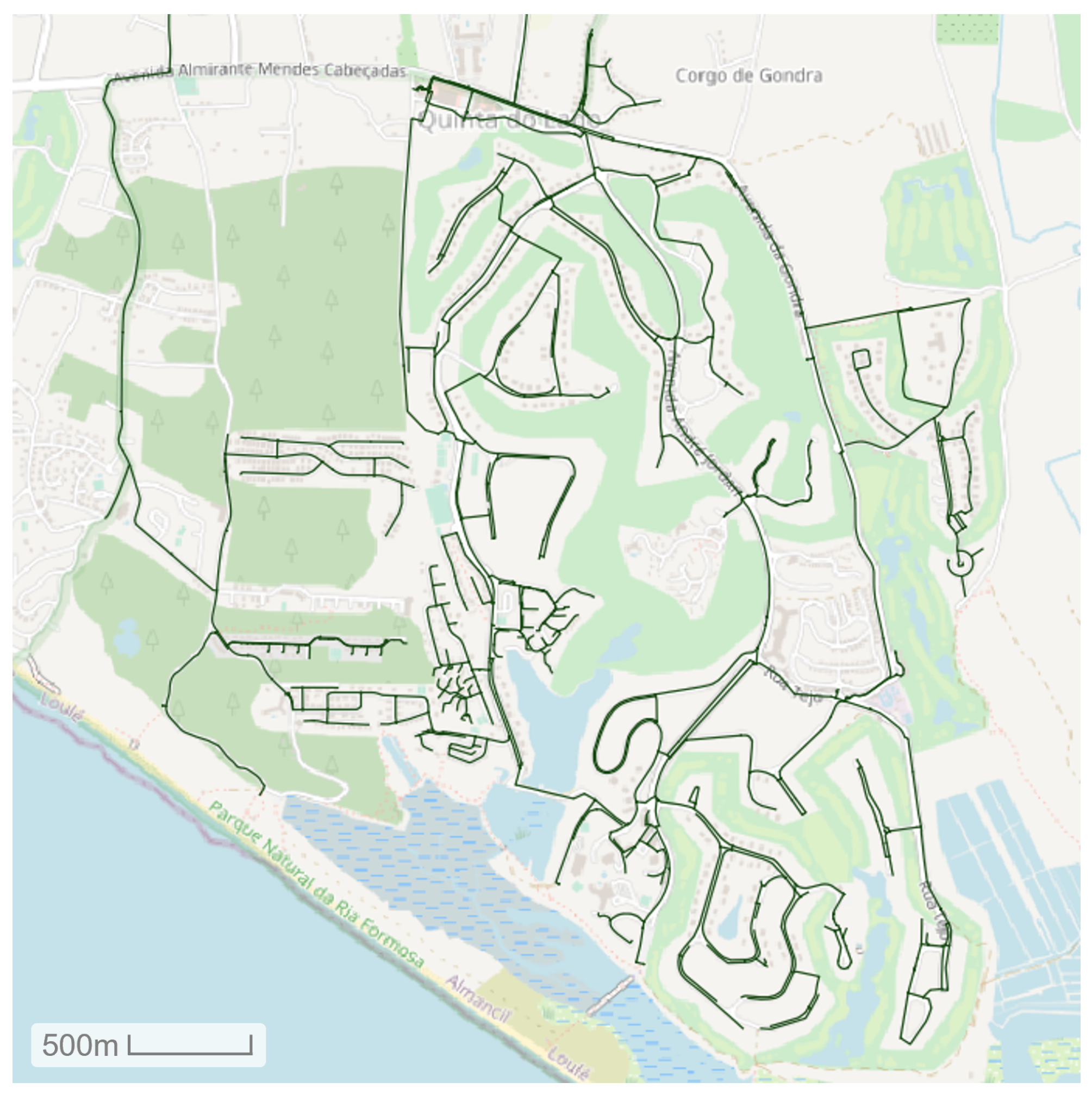

**Figure 7.**Water Distribution System of Quinta do Lago. (Adapted from [61]).

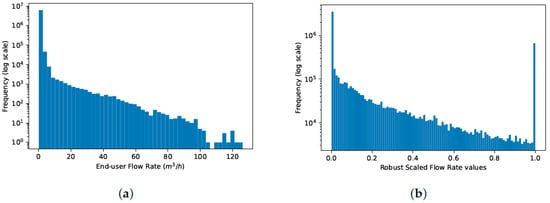

**Figure 9.**Frequency of the flow rate measurements at InfraQuinta, 2017. (

**a**) Absolute consumption values. (

**b**) Normalized consumption values.

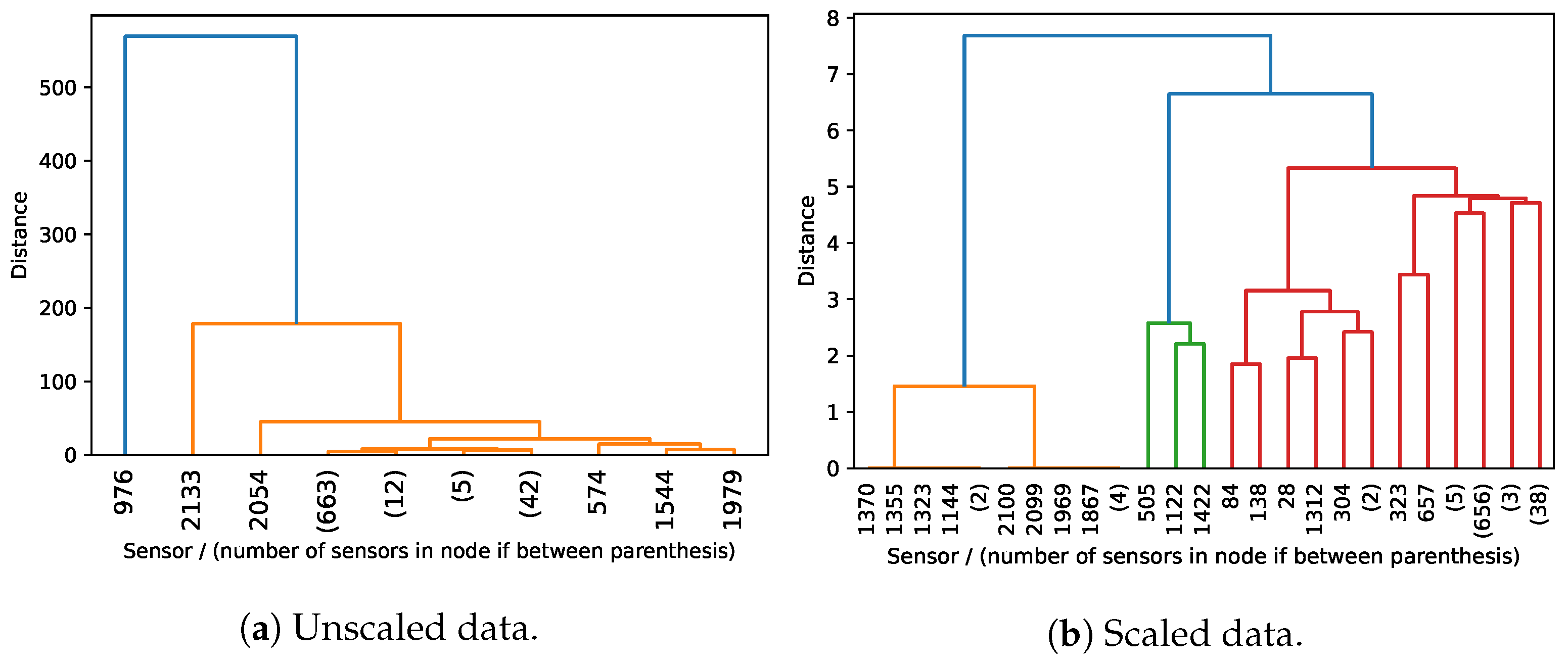

**Figure 10.**Hierarchical Clustering (Sensors Dimension) Dendrogram of daily consumption at InfraQuinta, 2017.

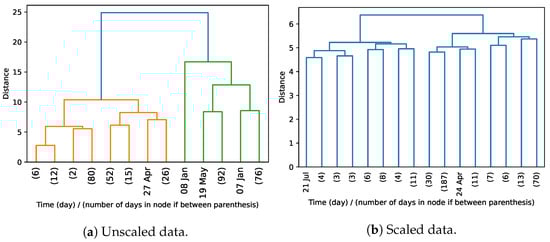

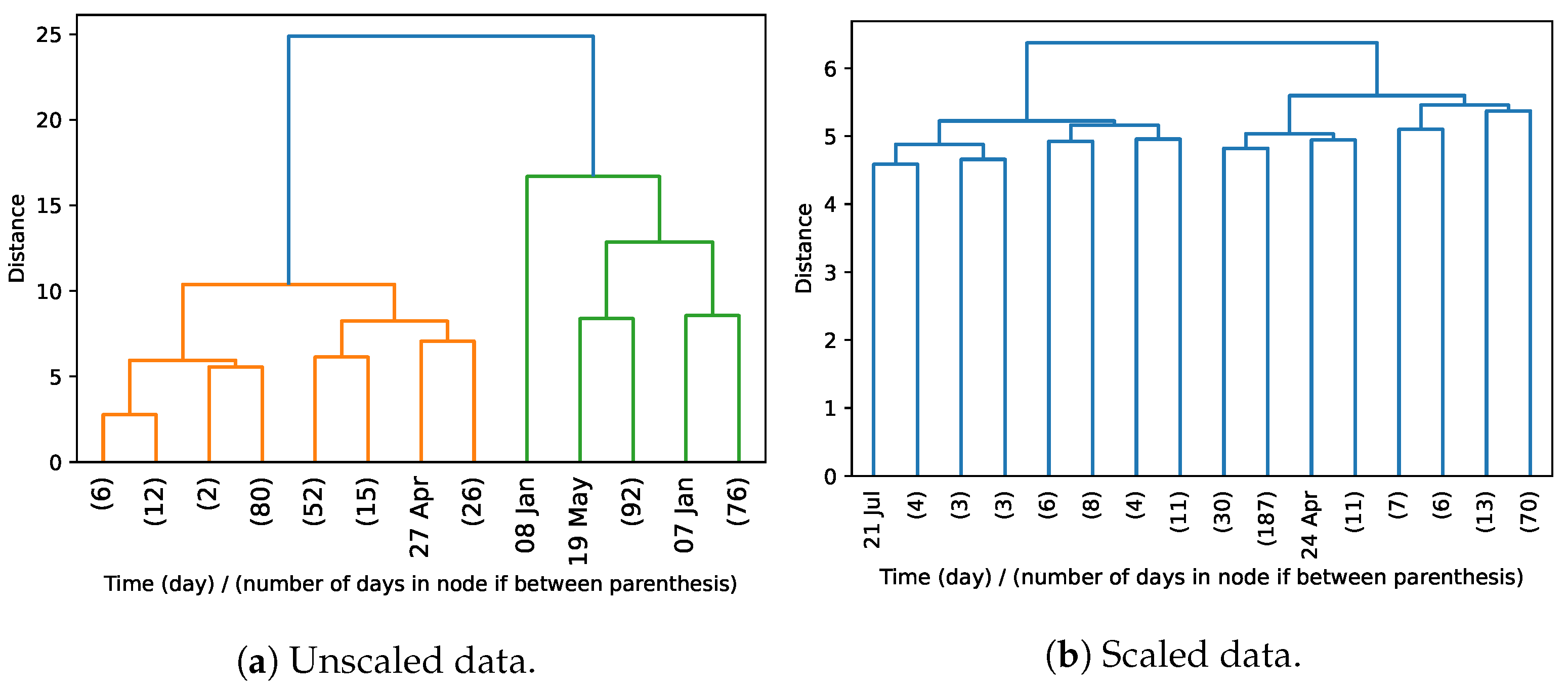

**Figure 11.**Hierarchical Clustering (Time Dimension) Dendrogram of scaled daily consumption at InfraQuinta, 2017.

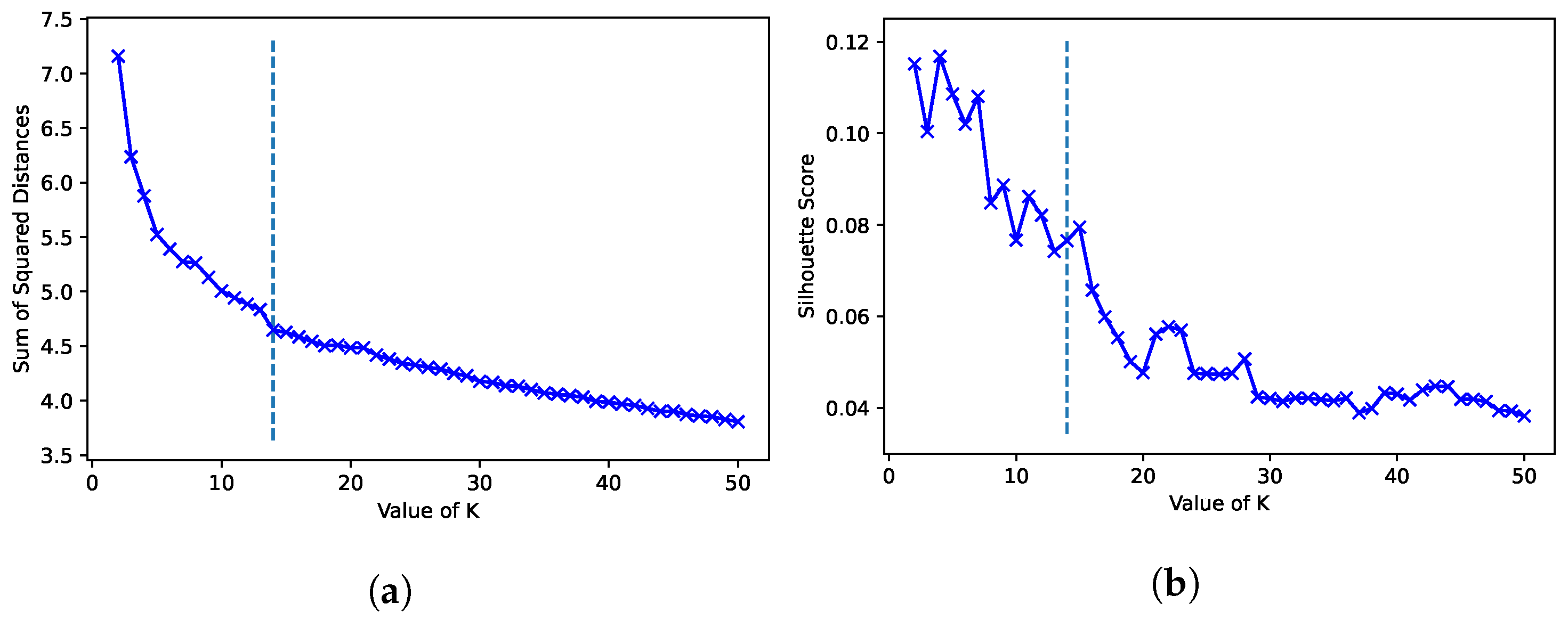

**Figure 12.**Optimal K for K-means clustering of scaled daily consumption at InfraQuinta, 2017. (

**a**) Distortions for each K (Elbow Method). (

**b**) Average silhouettes scores for each K.

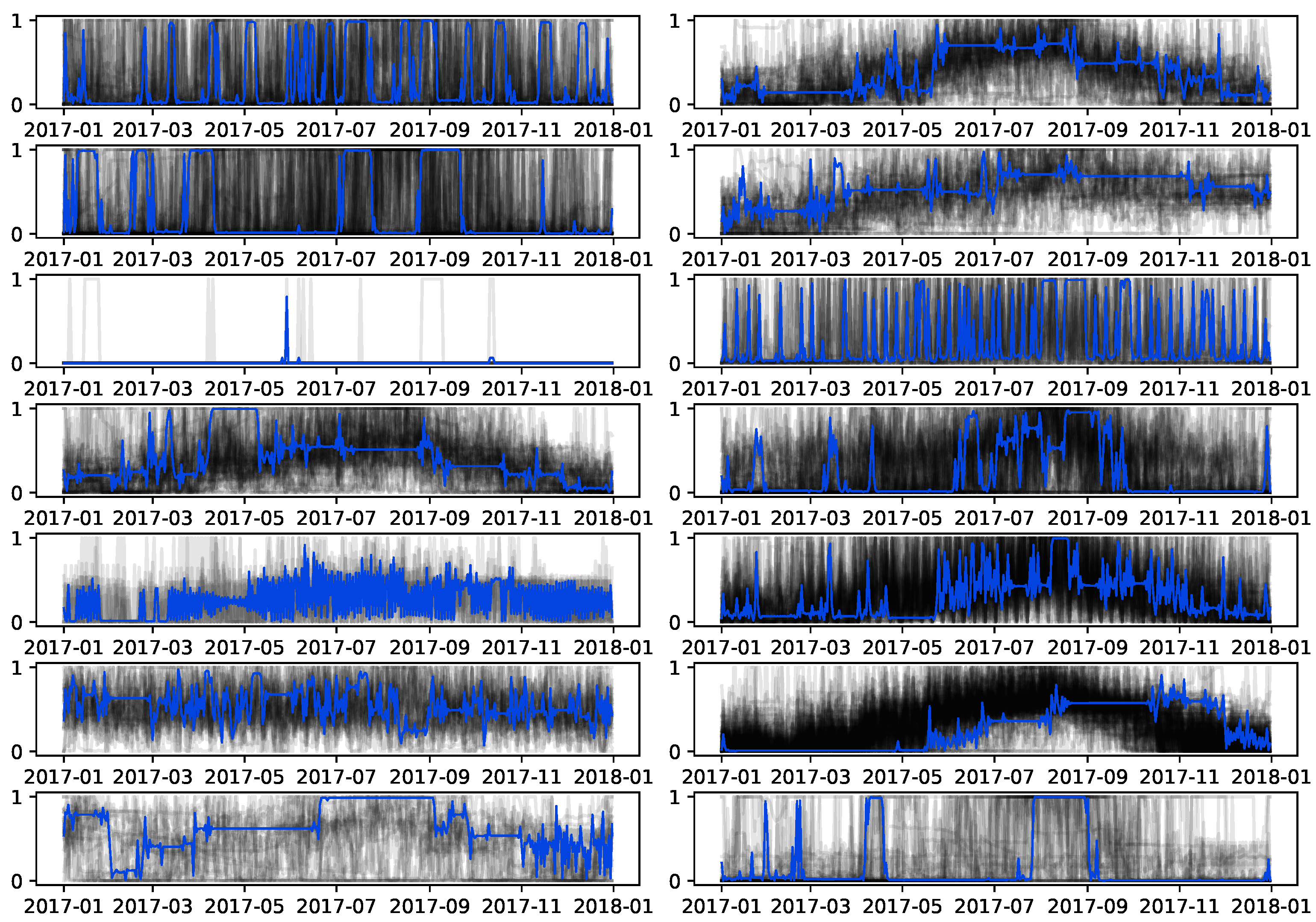

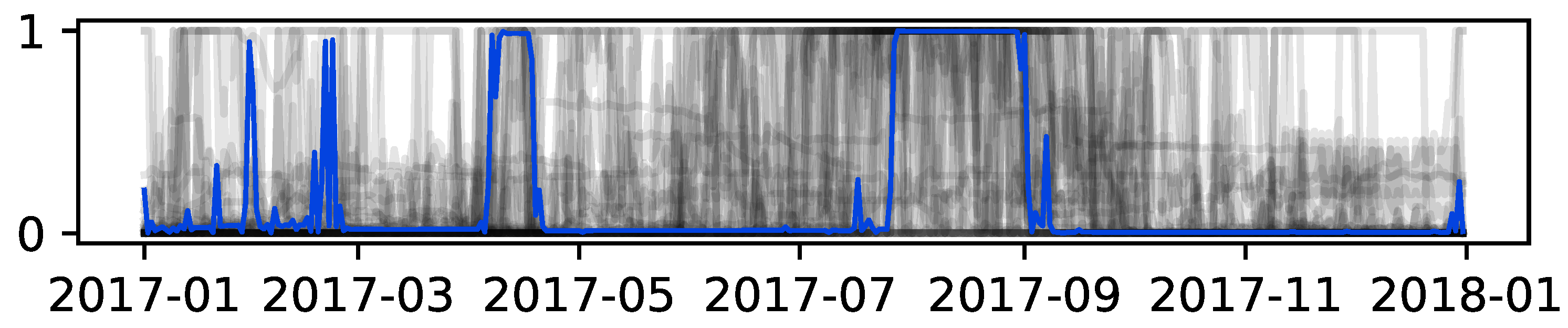

**Figure 14.**K-means 13th cluster and barycenter for the scaled daily consumption at InfraQuinta, 2017.

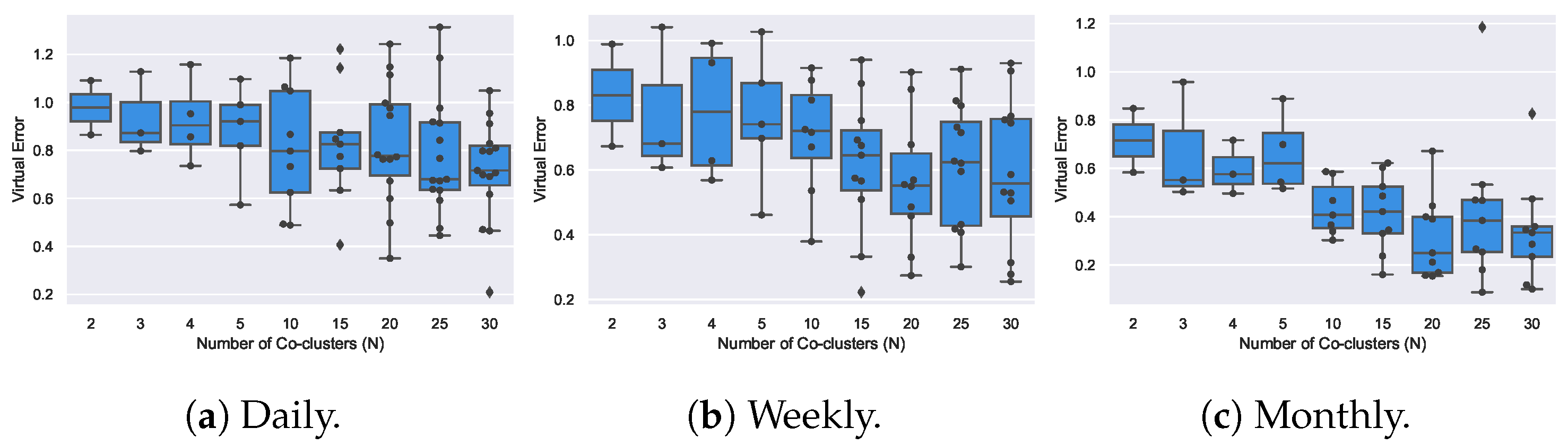

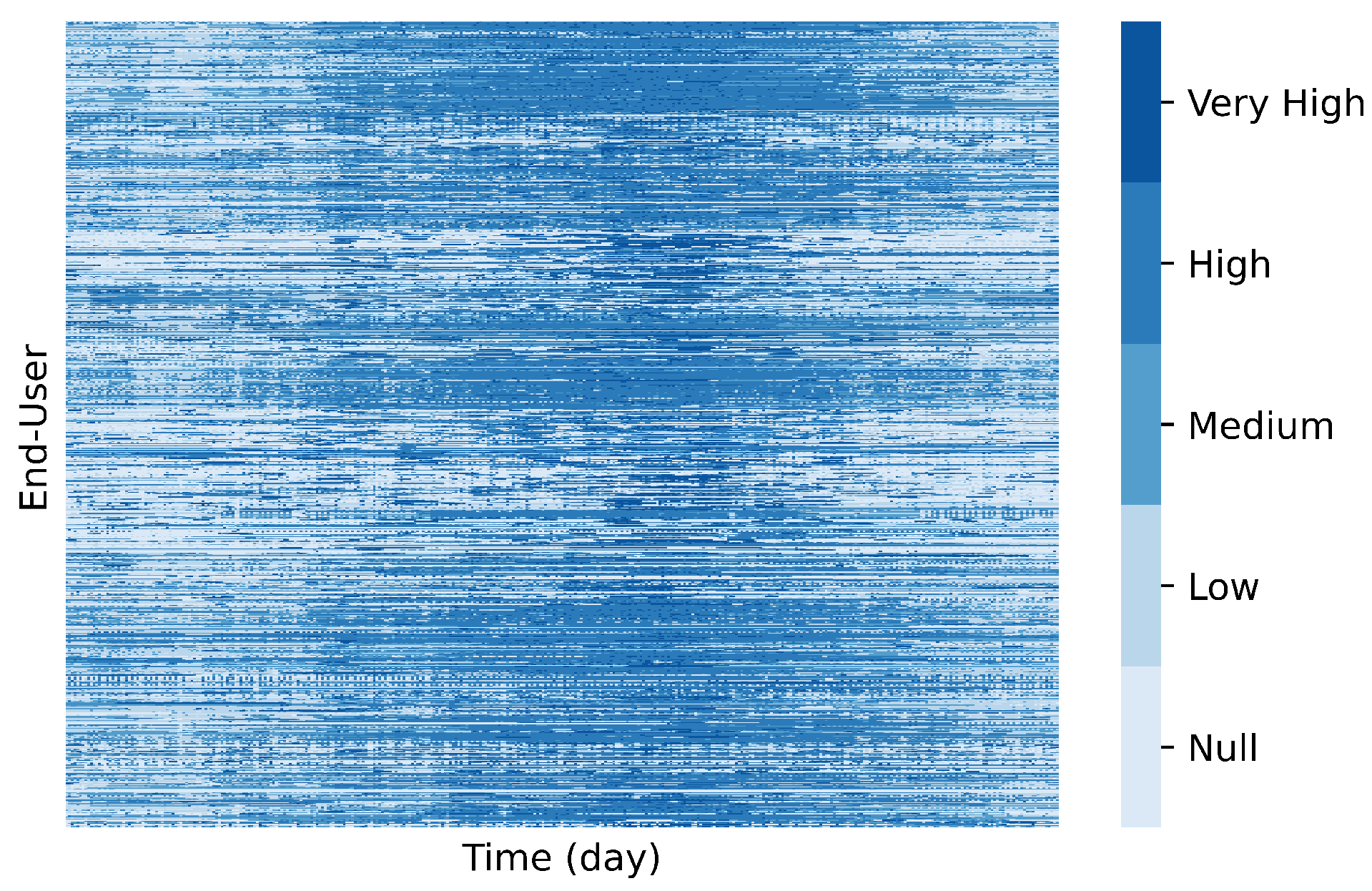

**Figure 16.**Homogeneity and number of coclusters (N) for the spectral Coclustering of scaled daily, weekly, and monthly consumption at InfraQuinta, 2017.

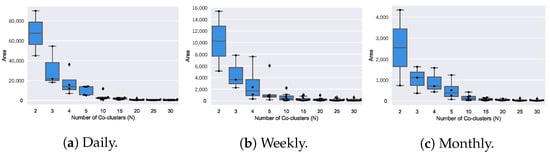

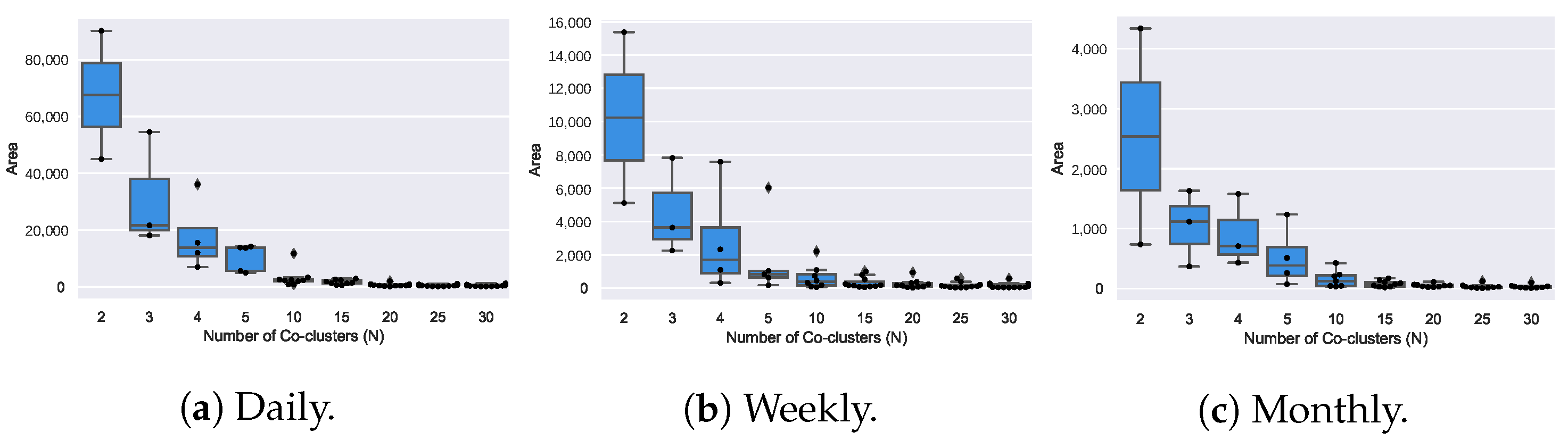

**Figure 17.**Size of coclusters and number of coclusters (N) for the spectral Coclustering of scaled daily, weekly, and monthly consumption at InfraQuinta, 2017.

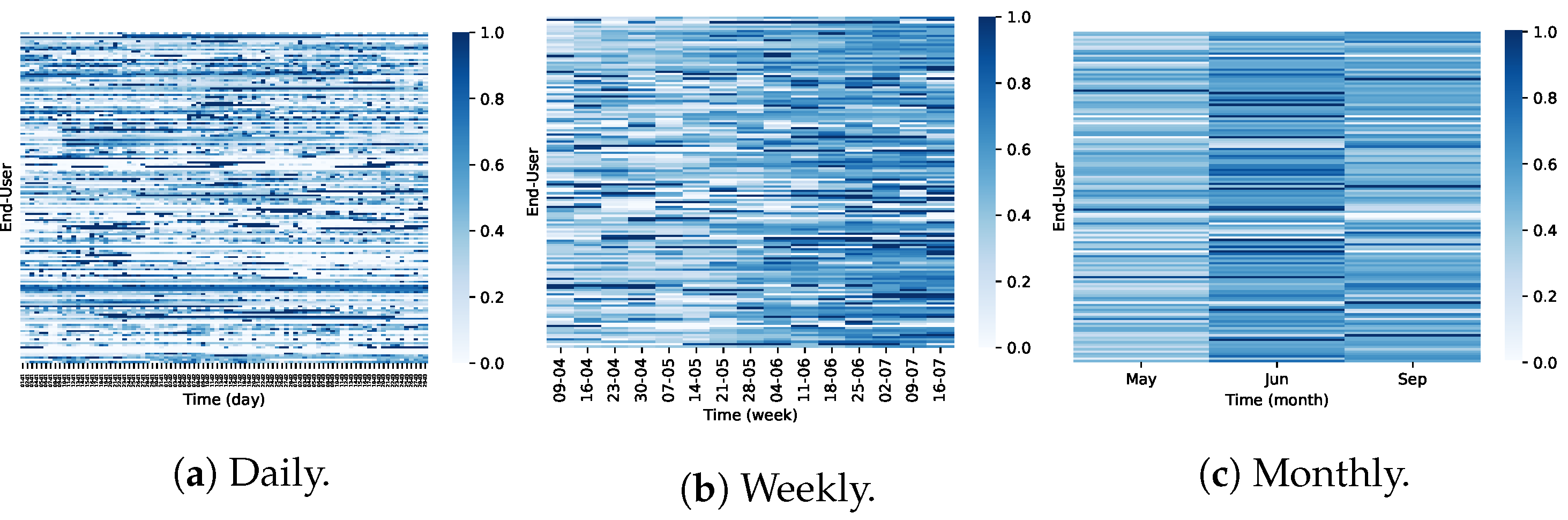

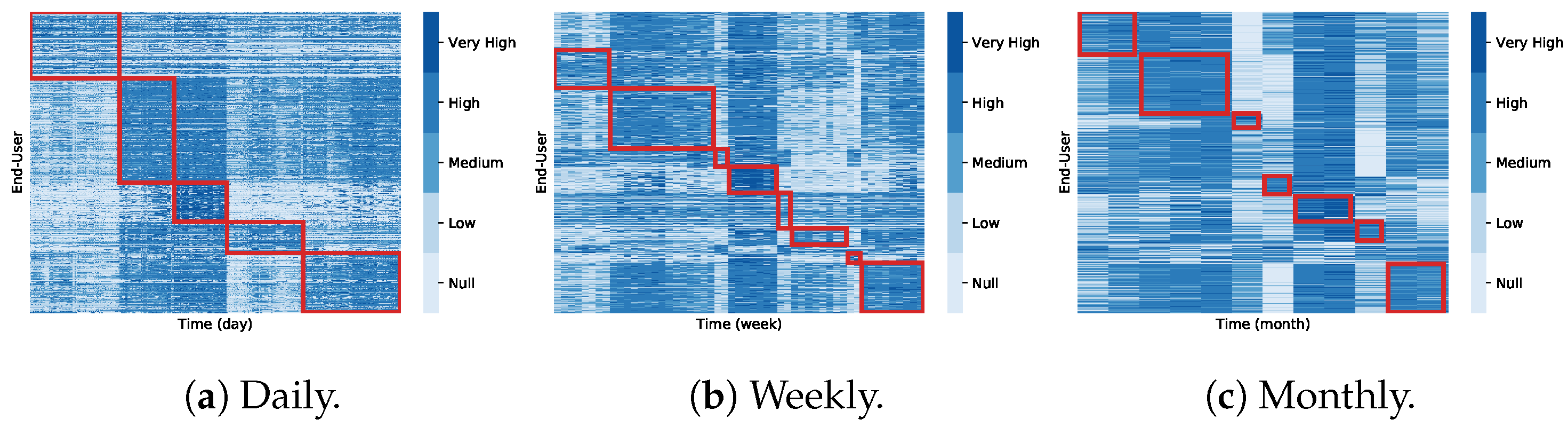

**Figure 18.**Rearranged daily, weekly, and monthly consumption data matrices to reveal the coclustering solutions ($N=5,N=10,N=10$) at InfraQuinta, 2017. Each of the identified coclusters are highlighted in red. Note that for the weekly and monthly datasets, we only highlight the valid coclusters, as the algorithm did not find coclusters for all the users.

**Figure 19.**Illustration of the selected coclusters (Cocluster 0, Cocluster 2, and Cocluster 1) found on the daily, weekly, and monthly datasets at InfraQuinta, 2017.

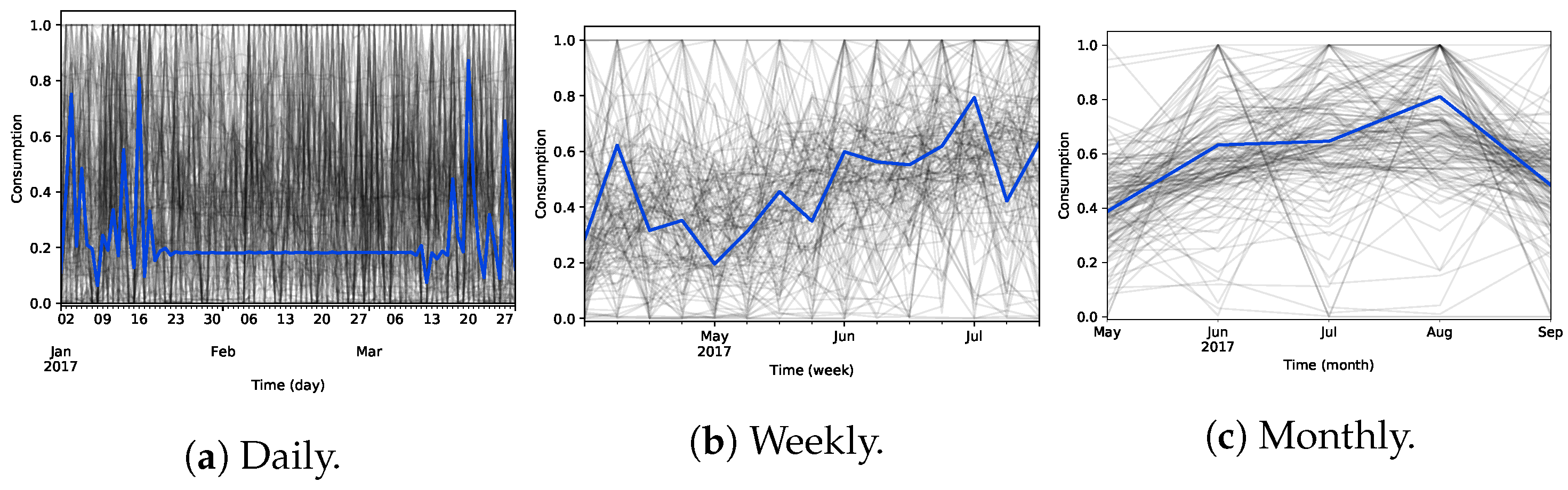

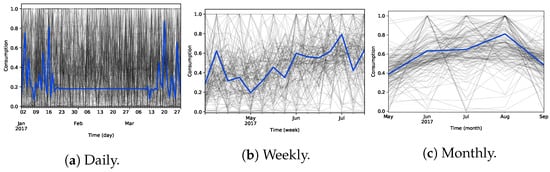

**Figure 20.**Coclusters and barycenters for the daily, weekly, and monthly dataset at InfraQuinta, 2017.

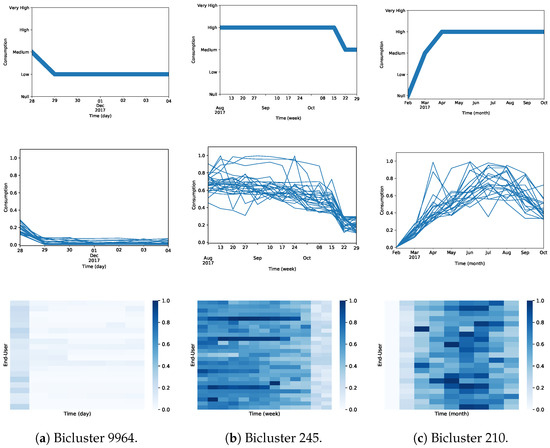

**Figure 21.**Illustration of the selected constant biclusters (Bicluster 9964, Bicluster 245, and Bicluster 210) found on the daily, weekly and monthly dataset. Consumption patterns on the first row, the user consumption scaled time series on the second row, and the scaled data heatmap on the third row.

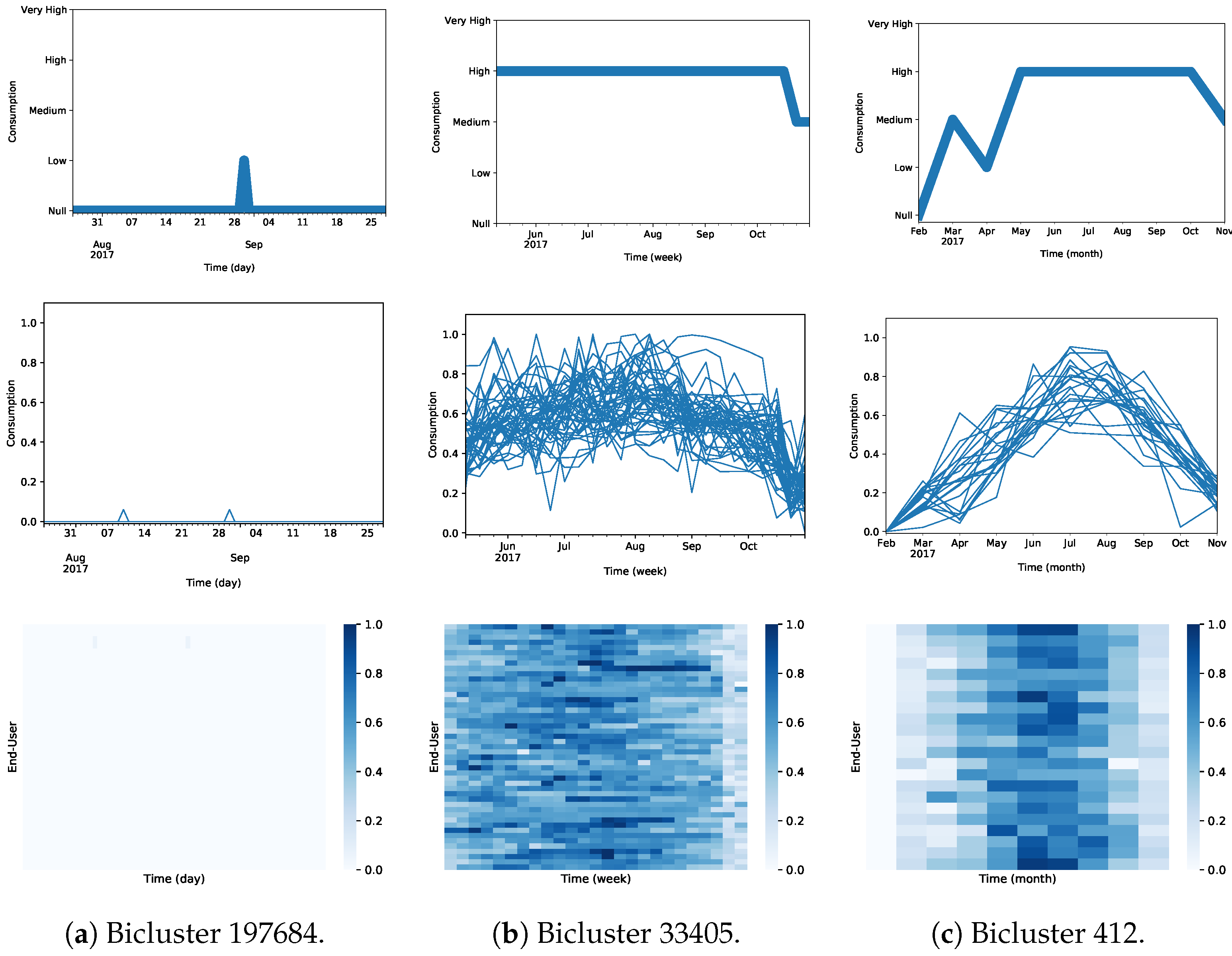

**Figure 23.**Illustration of the selected constant biclusters allowing noise (Bicluster 197684, Bicluster 33405, and Bicluster 412) found on the daily, weekly and monthly dataset. This figure shows the consumption patterns on the first row, the user consumption scaled time series on the second row, and the scaled data heatmap on the third row.

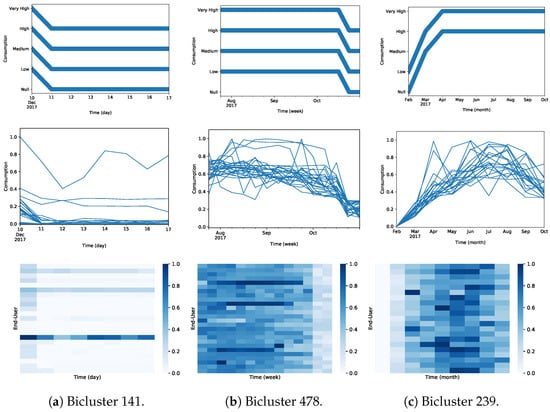

**Figure 24.**Illustration of the selected biclusters assuming shifting factors (Bicluster 141, Bicluster 478, and Bicluster 239) found on the daily, weekly and monthly dataset. This figure shows the consumption patterns on the first row, the user consumption scaled time series on the second row, and the scaled data heatmap on the third row.

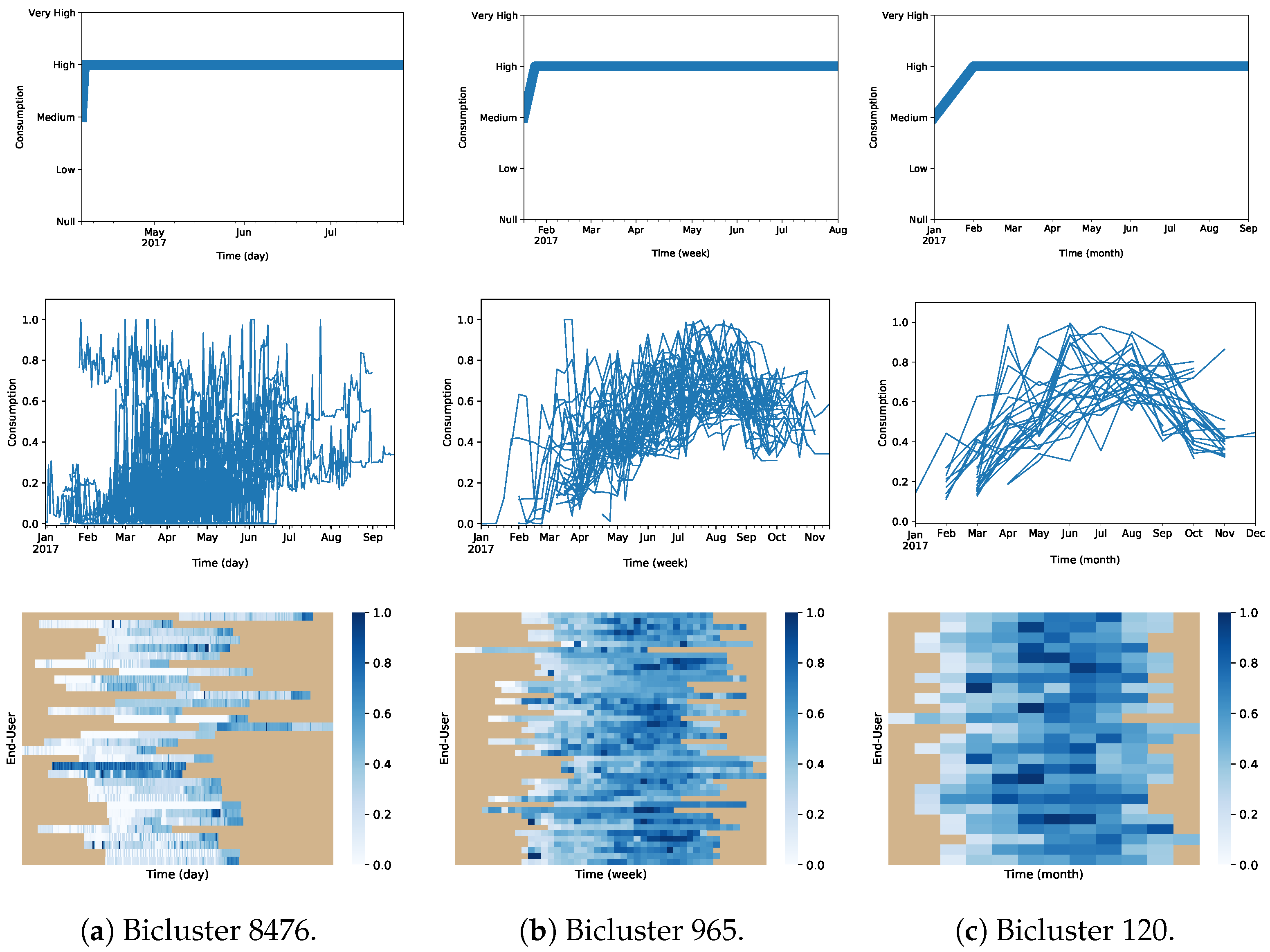

**Figure 25.**Illustration of the selected biclusters allowing time-lagged patterns (Bicluster 8476, Bicluster 965, and Bicluster 120) found on the daily, weekly and monthly dataset. This figure shows the consumption patterns on the first row, the user consumption scaled time series on the second row, and the scaled data heatmap on the third row.

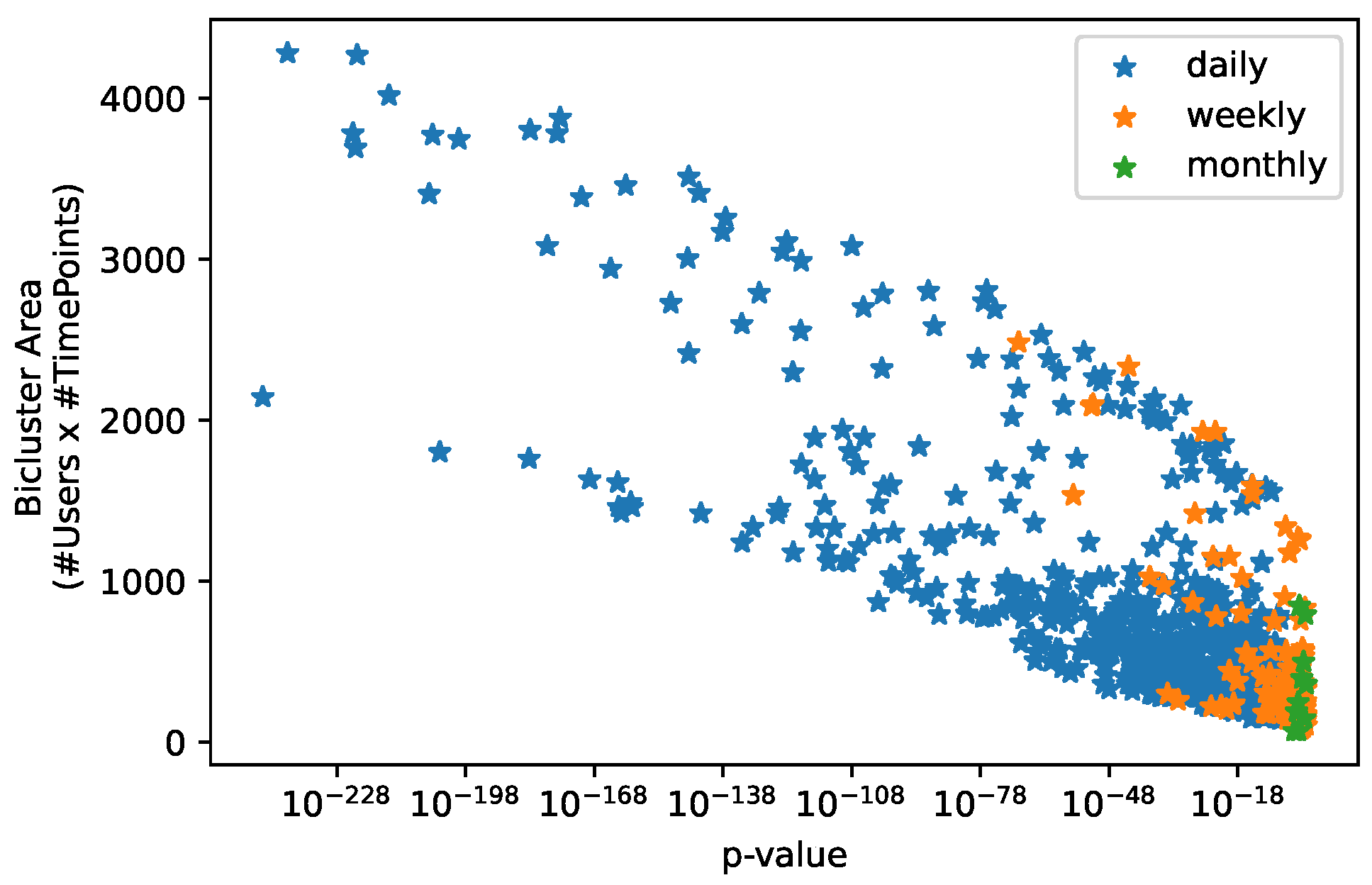

**Figure 26.**Statistical significance vs. size of biclusters found assuming constant patterns at InfraQuinta, 2017.

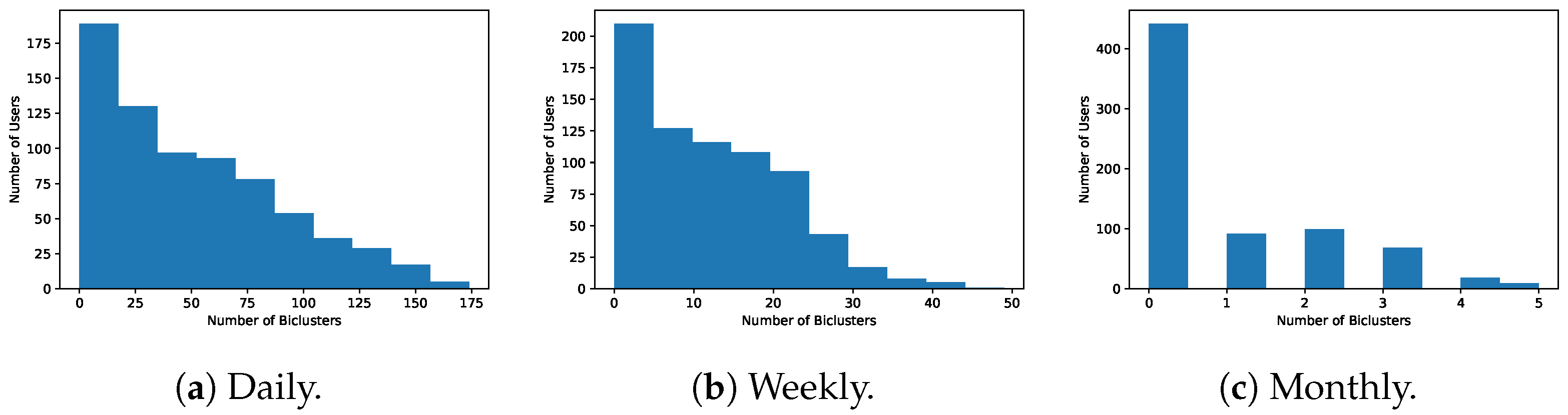

**Figure 27.**Number of patterns found for each user when combining the biclustering solutions with different pattern assumption at InfraQuinta, 2017.

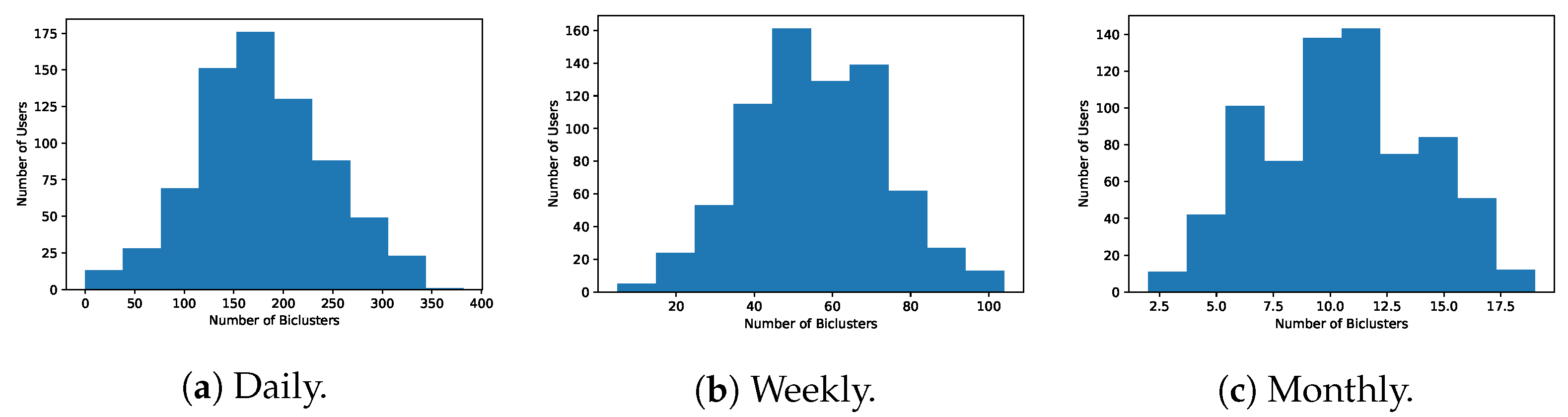

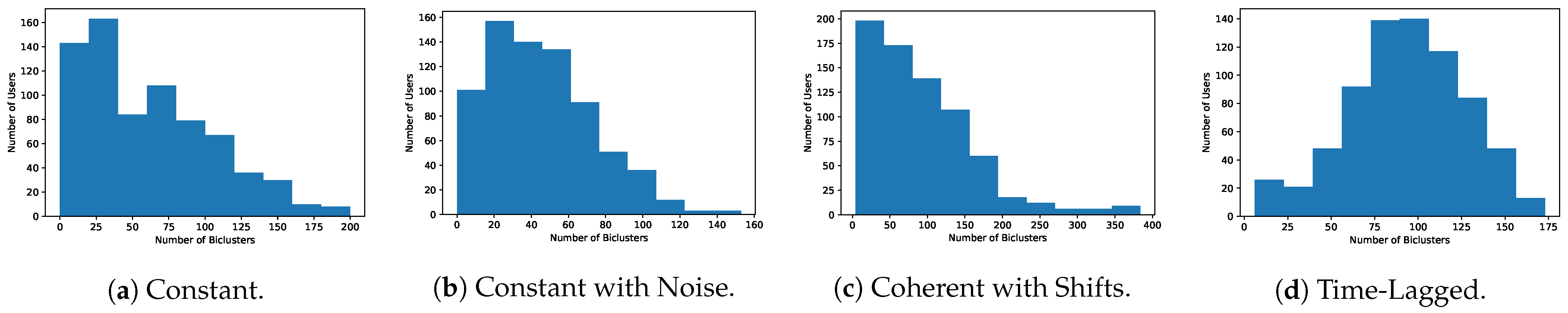

**Figure 28.**Number of patterns found for each user when combining the biclustering solutions obtained from datasets of different granularity at InfraQuinta, 2017.

Dataset | ID | #Users | #Time Points (First, Last) |
---|---|---|---|

Daily | 0 | 161 | 88 (0, 87) |

Weekly | 2 | 147 | 15 (14, 28) |

Monthly | 1 | 142 | 3 (4, 8) |

**Table 2.**Properties of the biclustering solutions found assuming constant patterns at InfraQuinta, 2017.

Solution | Post-Processed | ||||||
---|---|---|---|---|---|---|---|

Dataset | (min #Users,min #Time Points) | #bics | $\mathbf{\mu}\left|\mathit{I}\right|\pm \mathbf{\sigma}\left|\mathit{I}\right|$ | $\mathbf{\mu}\left|\mathit{J}\right|\pm \mathbf{\sigma}\left|\mathit{J}\right|$ | #bics | p-Value< 0.05 | p-Value< $1\times {10}^{-2}$ |

Daily | (20, 7) | 18,666 | 65.2 ± 43.5 | 26.0 ± 20.7 | 655 | 655 | 655 |

Weekly | (20, 4) | 1310 | 69.8 ± 65.9 | 9.4 ± 5.8 | 263 | 168 | 133 |

Monthly | (20, 3) | 221 | 50.7 ± 51.5 | 4.5 ± 1.5 | 94 | 23 | 10 |

Dataset | ID | #Users | #Time Points (First, Last) | p-Value |
---|---|---|---|---|

Daily | 9964 | 20 | 7 (331, 337) | 0.0029 |

Weekly | 245 | 27 | 13 (31, 43) | 1.09 × 10${}^{-8}$ |

Monthly | 210 | 21 | 9 (1, 9) | 5.17 × 10${}^{-5}$ |

**Table 4.**Properties of e-CCC biclustering solutions with tolerance to noise under a constant pattern assumption at InfraQuinta, 2017.

Solution | Post-Processed | ||||||
---|---|---|---|---|---|---|---|

Dataset | (min #Users,min #Time Points) | #bics | $\mathbf{\mu}\left|\mathit{I}\right|\pm \mathbf{\sigma}\left|\mathit{I}\right|$ | $\mathbf{\mu}\left|\mathit{J}\right|\pm \mathbf{\sigma}\left|\mathit{J}\right|$ | #bics | p-Value< 0.05 | p-Value1 × 10${}^{-2}$ |

Daily | (20, 7) | 786,232 | 72.3 ± 44.8 | 28.9 ± 21.7 | 2347 | 839 | 744 |

Weekly | (20, 4) | 55,073 | 70.1 ± 63.3 | 11.7 ± 6.6 | 4304 | 279 | 160 |

Monthly | (20, 3) | 6441 | 57.5 ± 59.8 | 5.6 ± 1.8 | 942 | 18 | 6 |

Dataset | ID | #Users | #Time Points (First, Last) | p-Value |
---|---|---|---|---|

Daily | 197,684 | 20 | 65 (206, 270) | 2.86 × 10${}^{-125}$ |

Weekly | 33,405 | 47 | 25 (19, 43) | 1.83 × 10${}^{-9}$ |

Monthly | 412 | 22 | 10 (1, 10) | 8.40 × 10${}^{-6}$ |

**Table 6.**Properties of the biclustering solutions found assuming shifted factors at InfraQuinta, 2017.

Solution | Post-Processed | |||||||
---|---|---|---|---|---|---|---|---|

Dataset | (min #Users,min #Time Points) | L-Shift | #bics | $\mathbf{\mu}\left|\mathit{I}\right|\pm \mathbf{\sigma}\left|\mathit{I}\right|$ | $\mathbf{\mu}\left|\mathit{J}\right|\pm \mathbf{\sigma}\left|\mathit{J}\right|$ | #bics | p-Value< 0.05 | p-Value< $1\times $ 10${}^{-2}$ |

Daily | (20, 7) | 1 | 38,933 | 87.0 ± 51.8 | 23.6 ± 16.4 | 625 | 593 | 588 |

2 | 46,308 | 111.4 ± 64.6 | 25.4 ± 17.1 | 383 | 340 | 330 | ||

3 | 32,669 | 124.6 ± 63.8 | 29.6 ± 21.9 | 367 | 332 | 323 | ||

4 | 16,033 | 114.8 ± 66.6 | 37.6 ± 26.5 | 345 | 310 | 301 | ||

Weekly | (20, 4) | 1 | 2828 | 76.7 ± 74.0 | 8.2 ± 4.8 | 404 | 193 | 178 |

2 | 2743 | 96.2 ± 90.6 | 8.3 ± 5.0 | 369 | 153 | 131 | ||

3 | 1677 | 109.4 ± 97.5 | 10.0 ± 6.7 | 360 | 144 | 123 | ||

4 | 1391 | 84.5 ± 82.13 | 10.9 ± 7.0 | 357 | 141 | 121 | ||

Monthly | (20, 3) | 1 | 372 | 56.3 ± 57.0 | 4.1 ± 1.4 | 113 | 33 | 21 |

2 | 318 | 65.2 ± 69.4 | 4.2 ± 1.4 | 108 | 27 | 18 | ||

3 | 251 | 60.3 ± 65.7 | 4.5 ± 1.5 | 108 | 30 | 21 | ||

4 | 245 | 55.4 ± 55.8 | 4.5 ± 1.6 | 108 | 30 | 21 |

Dataset | ID | #Users | #Time Points (First, Last) | p-Value |
---|---|---|---|---|

Daily | 141 | 23 | 8 (358, 364) | 0.002 |

Weekly | 478 | 26 | 14 (30, 43) | 2.27 × 10${}^{-9}$ |

Monthly | 239 | 21 | 9 (1, 9) | 5.17× 10${}^{-5}$ |

**Table 8.**Properties of the biclustering solutions found assuming unbounded time lagged patterns at InfraQuinta, 2017.

Solution | Post-Processed | ||||||
---|---|---|---|---|---|---|---|

Dataset | (min #Users,min #TimePoints) | #bics | $\mathbf{\mu}\left|\mathit{I}\right|\pm \mathbf{\sigma}\left|\mathit{I}\right|$ | $\mathbf{\mu}\left|\mathit{J}\right|\pm \mathbf{\sigma}\left|\mathit{J}\right|$ | #bics | p-Value< 0.05 | p-Value< $1\times $ 10${}^{-2}$ |

Daily | (20, 7) | 15,844 | 56.1 ± 51.3 | 26.5 ± 21.8 | 1471 | 1471 | 1471 |

Weekly | (20, 4) | 1738 | 60.6 ± 61.9 | 10.2 ± 6.3 | 393 | 393 | 393 |

Monthly | (20, 3) | 243 | 61.3 ± 66.2 | 4.8 ± 1.6 | 99 | 98 | 98 |

Dataset | ID | #Users | #Time Points (First, Last) | p-Value |
---|---|---|---|---|

Daily | 8476 | 32 | 112 | 0 * |

Weekly | 965 | 44 | 29 | 1.26× 10${}^{-121}$ |

Monthly | 120 | 25 | 9 | 1.65 × 10^{−9} |
