# Comparison of Conventional Deterministic and Entropy-Based Methods for Predicting Sediment Concentration in Debris Flow

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Conventional Deterministic Methods for Determining the Distribution of Sediment Concentration in Debris Flow

## 3. Entropy-Based Method for Determining the Distribution of Sediment Concentration in Debris Flow

#### 3.1. General Index Entropy-Based Sediment Concentration

#### 3.2. Renyi Entropy-Based Sediment Concentration

#### 3.3. Tsallis Entropy-Based Sediment Concentration

#### 3.4. Shannon Entropy-Based Sediment Concentration

## 4. Results of Comparisons and Discussion

#### 4.1. Collected Experimental Data Sets

^{3}, and the angle of internal friction, $\varphi $, was 38°. The sediment concentration in the experiment was measured over the entire depth of the flow using a camera and an imaging system via the transparent sidewall of the flume. In this experiment, the bed sediment concentration, ${c}_{b}$, was 0.59. More experimental details can be found in the work of Tsubaki et al. [18]. For the mean sediment concentration in debris flow, the observed data from the laboratory experiment by Takahashi [8] were adopted in this study to test the validity of three conventional deterministic methods (Equations (5)–(7)) and four entropy-based expressions (Equations (23), (36), (42), and (48)) due to the limited experimental data from the literature. In the experiment by Takahashi [8], where $\mathrm{tan}\varphi $ = 0.75, the density of particles, ${\rho}_{s}$, was 2600 kg/m

^{3}, and the bed sediment concentration, ${c}_{b}$, was 0.756. By tilting the board, different values of the inclination angle of the channel bed from the horizontal $\theta $ were generated for observing changes in ${c}_{D}$. More information regarding the experiment can be found in the work of Takahashi [8].

#### 4.2. Comparison Results

## 5. Concluding Remarks

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Kang, S.; Lee, S.R. Debris flow susceptibility assessment based on an empirical approach in the central region of South Korea. Geomorphology
**2018**, 308, 1–12. [Google Scholar] [CrossRef] - Wei, Z.L.; Xu, Y.P.; Sun, H.Y.; Xie, W.; Wu, G. Predicting the occurrence of channelized debris flow by an integrated cascading model: A case study of a small debris flow-prone catchment in Zhejiang Province, China. Geomorphology
**2018**, 308, 78–90. [Google Scholar] [CrossRef] - Zhang, N.; Matsushima, T. Numerical investigation of debris materials prior to debris flow hazards using satellite images. Geomorphology
**2018**, 308, 54–63. [Google Scholar] [CrossRef] - Zhang, N.; Matsushima, T. Simulation of rainfall-induced debris flow considering material entrainment. Eng. Geol.
**2016**, 214, 107–115. [Google Scholar] - Yu, B.; Yang, Y.H.; Su, Y.C.; Wang, G.F. Research on the giant debris flow hazards in Zhouqu county, Gansu Province on August 7, 2010. J. Eng. Geol.
**2010**, 4, 437–444. [Google Scholar] - Tang, C.; Rengers, N.A.; Th, WJ.; Yang, Y.H.; Wang, G.F. Triggering conditions and depositional characteristics of a disastrous debris flow event in Zhouqu city, Gansu province, northwestern China. Nat. Hazards Earth Syst. Sci.
**2011**, 11, 2903–2912. [Google Scholar] [CrossRef] - Wang, F.W.; Wu, Y.H.; Yang, H.F.; Tanida, Y.; Kamei, A. Preliminary investigation of the 20 August 2014 debris flows triggered by a severe rainstorm in Hiroshima City, Japan. Geoenviron. Disasters
**2015**, 2, 1–17. [Google Scholar] [CrossRef] - Takahashi, T. Mechanical characteristics of debris flow. J. Hydraul. Div. Am. Soc. Civ. Eng.
**1978**, 104, 1153–1169. [Google Scholar] - Kappes, M.S.; Malet, J.P.; Remaitre, A.; Horton, P.; Jaboyedoff, M.; Bell, R. Assessment of debris-flow susceptibility at medium-scale in the Barcelonnette Basin, France. Nat. Hazards Earth Syst. Sci.
**2011**, 11, 627–641. [Google Scholar] [CrossRef] - Chen, H.; Lee, C. Numerical simulation of debris flows. Can. Geotech. J.
**2000**, 37, 146–160. [Google Scholar] [CrossRef] - Rickenmann, D.; Zimmermann, M. The 1987 debris flows in Switzerland: Documentation and analysis. Geomorphology
**1993**, 8, 175–189. [Google Scholar] [CrossRef] - Lien, H.P.; Tsai, F.W. Sediment concentration distribution of debris flow. J. Hydraul. Eng.
**2003**, 129, 995–1000. [Google Scholar] [CrossRef] - Singh, V.P.; Cui, H.J. Modelling sediment concentration in debris flow by Tsallis entropy. Phys. A
**2015**, 420, 49–58. [Google Scholar] [CrossRef] - Jaeger, H.M.; Nagel, S.R. Physics of the granular state. Science
**1992**, 255, 1523–1530. [Google Scholar] [CrossRef] [PubMed] - Li, Y.; Zhou, X.J.; Su, P.C.; Kong, Y.D.; Liu, J.J. A scaling distribution for grain composition of debris flow. Geomorphology
**2013**, 192, 30–42. [Google Scholar] - Zhang, R.J. River Sediment Dynamics; China Water & Power Press: Beijing, China, 2008. [Google Scholar]
- Fei, X.J.; Shu, A.P. Movement Mechanism of Debris Flow and Disaster Prevention; Tsinghua University Press: Beijing, China, 2004. [Google Scholar]
- Tsubaki, T.; Hashimoto, H.; Suetsugi, T. Grain stresses and flow properties of debris flow. Proc. Jpn. Soc. Civ. Eng.
**1982**, 317, 79–91. (In Japanese) [Google Scholar] [CrossRef] - Ou, G.; Mizuyama, T. Predicting the average sediment concentration of debris flow. J. Jpn. Erosion Control Eng. Soc.
**1994**, 47, 9–13. (In Japanese) [Google Scholar] - Shorrocks, A.F. The class of additively decomposable inequality measures. Econometrica
**1980**, 48, 613–614. [Google Scholar] [CrossRef] - Singh, V.P.; Sivakumar, B.; Cui, H.J. Tsallis entropy theory for modelling in water engineering: A review. Entropy
**2017**, 19, 641. [Google Scholar] [CrossRef] - Jaynes, E.T. Information theory and statistical mechanics I. Phys. Rev.
**1957**, 106, 620–630. [Google Scholar] [CrossRef] - Jaynes, E.T. Information theory and statistical mechanics II. Phys. Rev.
**1957**, 108, 171–190. [Google Scholar] [CrossRef] - Jaynes, E.T. On the rationale of maximum entropy methods. Proc. IEEE
**1982**, 70, 939–952. [Google Scholar] [CrossRef] - Kumbhakar, M.; Ghoshal, K. One-dimensional velocity distribution in open channels using Renyi entropy. Stochastic. Environ. Res. Risk Assess.
**2017**, 31, 949–959. [Google Scholar] [CrossRef] - Tsallis, C. Possible generalization of Boltzmann–Gibbs statistics. J. Stat. Phys.
**1988**, 52, 479–487. [Google Scholar] [CrossRef] - Shannon, C.E. The mathematical theory of communications, I and II. Bell Syst. Tech. J.
**1948**, 27, 379–423. [Google Scholar] [CrossRef]

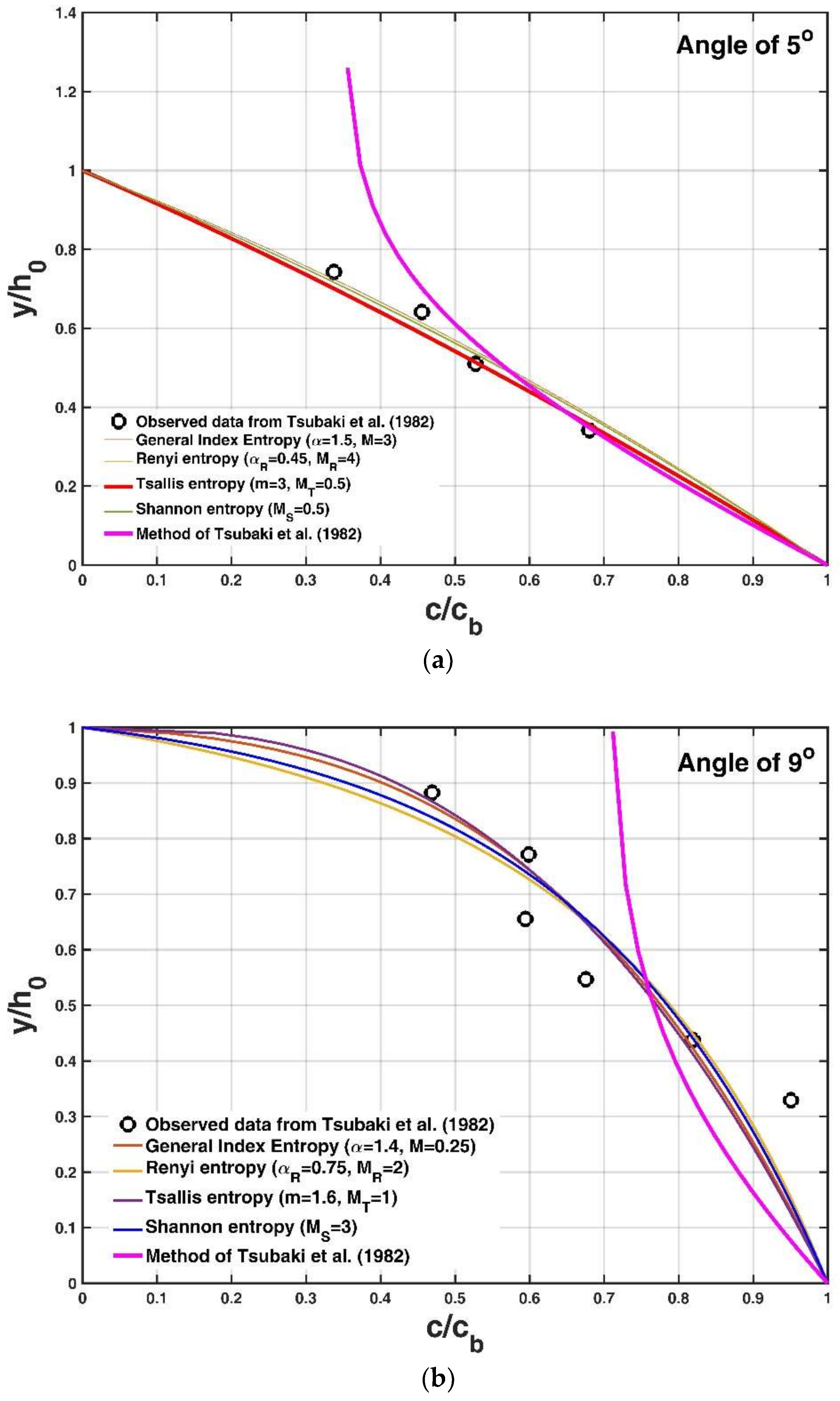

**Figure 2.**Comparison of the method of Tsubaki et al. [18] (Equation (1)), the general index entropy-based expression (Equation (22)), the Renyi entropy-based expression (Equation (35)), the Tsallis entropy-based expression (Equation (41)), and the Shannon entropy-based expression (Equation (47)) with observed data from Tsubaki et al. [18] at angles of (

**a**) 5° and (

**b**) 9°.

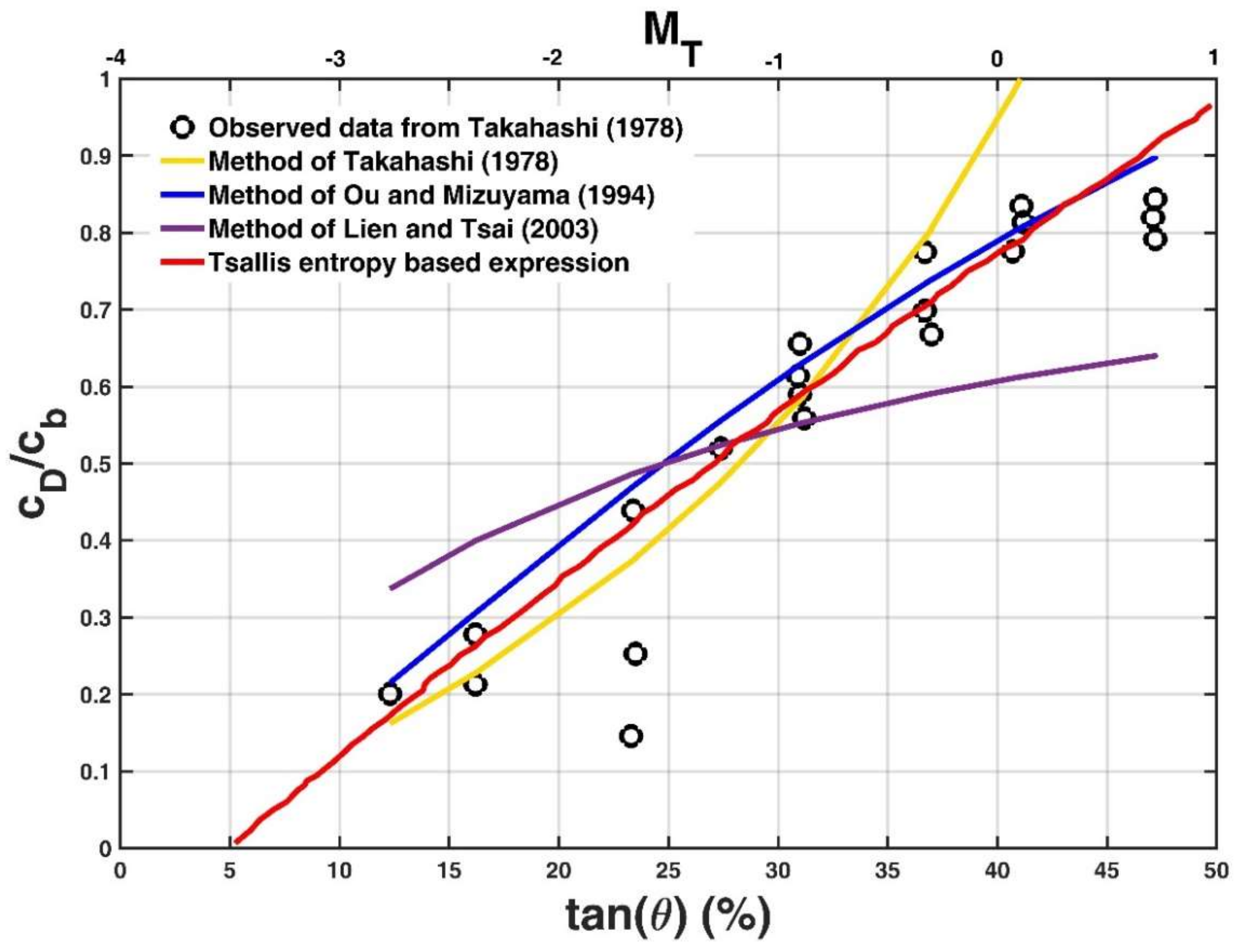

**Figure 3.**Comparison of the formulae of Takahashi [8] (Equation (5)), Ou and Mizuyama [19] (Equation (6)), and Lien and Tsai [12] (Equation (7)) and the Tsallis entropy-based expression (Equation (42)) with observed data from Takahashi [8]. Here, the general index entropy-based expression (Equation (23)), the Renyi entropy-based expression (Equation (36)), and the Shannon entropy-based expression (Equation (48)) are not shown because they did not fit the data points completely.

Name | Inclination Angle of 5° | Inclination Angle of 9° | ||
---|---|---|---|---|

Fitting Coefficient Values | Fitting Result | Fitting Coefficient Values | Fitting Result | |

$\mathit{R}$ | $\mathit{R}$ | |||

Theoretical formula of Tsubaki et al. [18] | No | 10.41 | No | - |

General index entropy-based expression | $\alpha $ = 1.5, $M$ = 3 | 5.95 | $\alpha $ = 1.4, $M$ = 0.25 | 7.70 |

Renyi entropy-based expression | ${\alpha}_{R}$ = 0.45, ${M}_{R}$ = 4 | 6.55 | ${\alpha}_{R}$ = 0.75, ${M}_{R}$ = 2 | 10.86 |

Tsallis entropy-based expression | $m$ = 3, ${M}_{T}$ = 0.5 | 7.09 | $m$ = 1.6, ${M}_{T}$ = 1 | 7.09 |

Shannon entropy-based expression | ${M}_{S}$ = 0.5 | 6.51 | ${M}_{S}$ = 3 | 9.46 |
