Synthesis of GaN Crystals by Nitrogen Pressure-Controlled Recrystallization Technique in Na Alloy Melt

Abstract

GaN crystals are synthesized by recrystallization technique in Na-Li-Ca alloy melt under different N₂ pressure. X-ray powder diffraction results confirm that the structure of crystals is GaN with wurtzite type and there still have raw powders remaining. The total mass of GaN decreases with the nitrogen pressure reduces. No GaN crystals are found in the solution under N₂ pressure of 0.4 MPa. The morphologies of the crystal are mainly prism and pyramid. The size of the crystal increases when closer to the liquid surface. Raman spectra indicates that these crystals are stress-free and crystal grown at 3.6 MPa has high structural quality or low impurity concentrations. The results reveal that the solubility and supersaturation of the solution are controlled by N₂ pressure. The principle of GaN crystal synthesis by recrystallization is discussed.

1. Introduction

GaN-based materials show important applications in light-emitting diodes, laser diodes (LDs) and high-power high frequency electronic devices [1,2,3]. However, the lack of bulk single crystal with high quality for substrate limit their performance. In order to grow GaN crystal, several methods, such as hydride vapor-phase epitaxy (HVPE), high-pressure solution growth method (HPSG), ammonothermal method and Na flux method are investigated [4,5,6]. Among them, the Na flux method is considered as a potential technology to obtain high quality GaN single crystal in industry because of mild conditions and high growth rate. In the late 1990s, Yamane et al. report that the GaN crystal growth conditions can be decreased to about 800 °C and 5 MPa by Na flux method [7,8]. Von Dollen et al. find that the average growth rate of GaN crystal can reach 50 μm/h, and the maximum growth rate can reach about 90 μm/h [9,10]. Imade et al. successfully obtain dislocation free GaN crystals when the thickness reach at centimeter level by a necking technique [11]. It is found that the dislocation density in GaN crystal will be decreased with the increase of growth thickness [12,13]. Moreover, Mori et al. successfully increase the size of GaN crystal up to 6 inches by liquid phase epitaxy (LPE) technique [14]. It is reported that the dislocation density of 2-in GaN crystal can be decreased to less than 10³ cm⁻² by combine point seed technique with LPE technique [15,16].

Although Na flux method has made lots of progress, the problems of continuity and stability limit the further growth of the crystal [17]. This is because the Ga source for crystal growth in LPE technique comes from metal Ga in solution and the growth process will be terminated when it is exhausted. Moreover, the liquid level of growth solution should not be too high for inhibit the formation of polycrystals. As the result, the growth time for GaN crystal is limited to about 200 h. In addition, the composition proportion of the solution always changes during crystal growth, which makes the process unstable. Aoki et al. report that GaN crystals can be recrystallize by cooling process and temperature gradient [18,19]. However, these experiments do not consider the effect of N₂ pressure on crystal growth. According to the Sieverts’ law, the N ion concentration in flux solution is closely related to nitrogen pressure, which is an important fact for GaN crystal growth [20]. In this paper, GaN crystals are synthesized by recrystallization technique in Na-Li-Ca alloy melt under different N₂ pressure. The structure, morphology and quality of as grown crystals are characterized. Moreover, the effect of nitrogen pressure on crystal growth and the principle of GaN synthesis by recrystallization technique is discussed.

2. Experimental

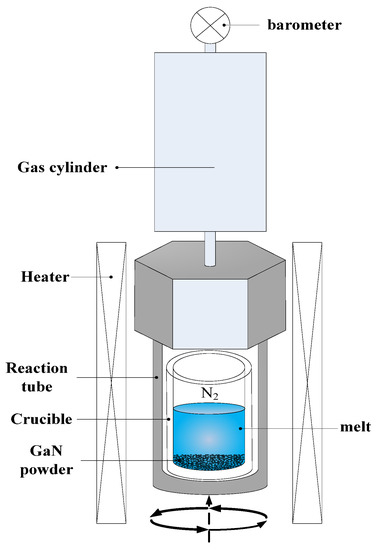

As shown in Figure 1, raw materials, Na (99.5%), Li (99.9%) and Ca (99.9%), with molar contents of 94.7 mol%, 3.2 mol% and 2.1 mol%, respectively, were put into the molybdenum crucible and mixed uniformly. GaN powders were placed at the bottom of the alloy melt. These powders were obtained by calcining Ga₂O₃ (99.99%) twice under ammonia flow at 1100 ℃ for 2.5 h. The total mass of GaN powders was about 6.05 g. The molar ratio of GaN powders to flux melt was about 16.4/83.6. Addition Li and Ca to the solution allowed the habit of the growing crystal to be easily changed to prism-shaped and increase the solubility of the solution [21,22]. This process was carried out in an Ar-filled glove box. Then the crucible was placed into a reaction tube. The gas cylinder was used to reduce the change of pressure. The temperature at the bottom of the reactor tube was heated to 855 °C over a 4 h period, and the reaction tube was in a temperature gradient of about −7.5 °C/cm. The growth temperature was maintained for 100 h. The N₂ pressure kept around 0.4 MPa, 3.6 MPa and 4.5 MPa, respectively. In order to increase the fluidity of the solution, the reaction tube was rotated back and forth at the speed of 10 rpm. The furnace was naturally cooled to room temperature after growth. Finally, the crucible was taken from the reaction tube and the cold ethanol, water and hydrochloric acid were added to it to dissolve the rests of flux separately. Pure GaN crystals were obtained after ultrasonic cleaning and drying.

The phase structures of the crystals before and after synthesis were analyzed by X-ray powder diffraction (XRD, Rigaku-MiniFlex600, Tokyo, Japan). The morphology of the raw GaN powders was observed by transmission electron microscope (TEM, FEI Talos F200X, Hillsboro, OR, USA). Scanning electron microscope (SEM, JSM-IT500A, Tokyo, Japan) was used to observe morphology of the crystals. The internal stress and crystal quality of the as-grown crystals were estimated by Raman system (Horiba- LabRam HR Evolution, Paris, France). The excitation source of the Raman spectrum was 532 nm line of He-Ne laser.

3. Results and Discussion

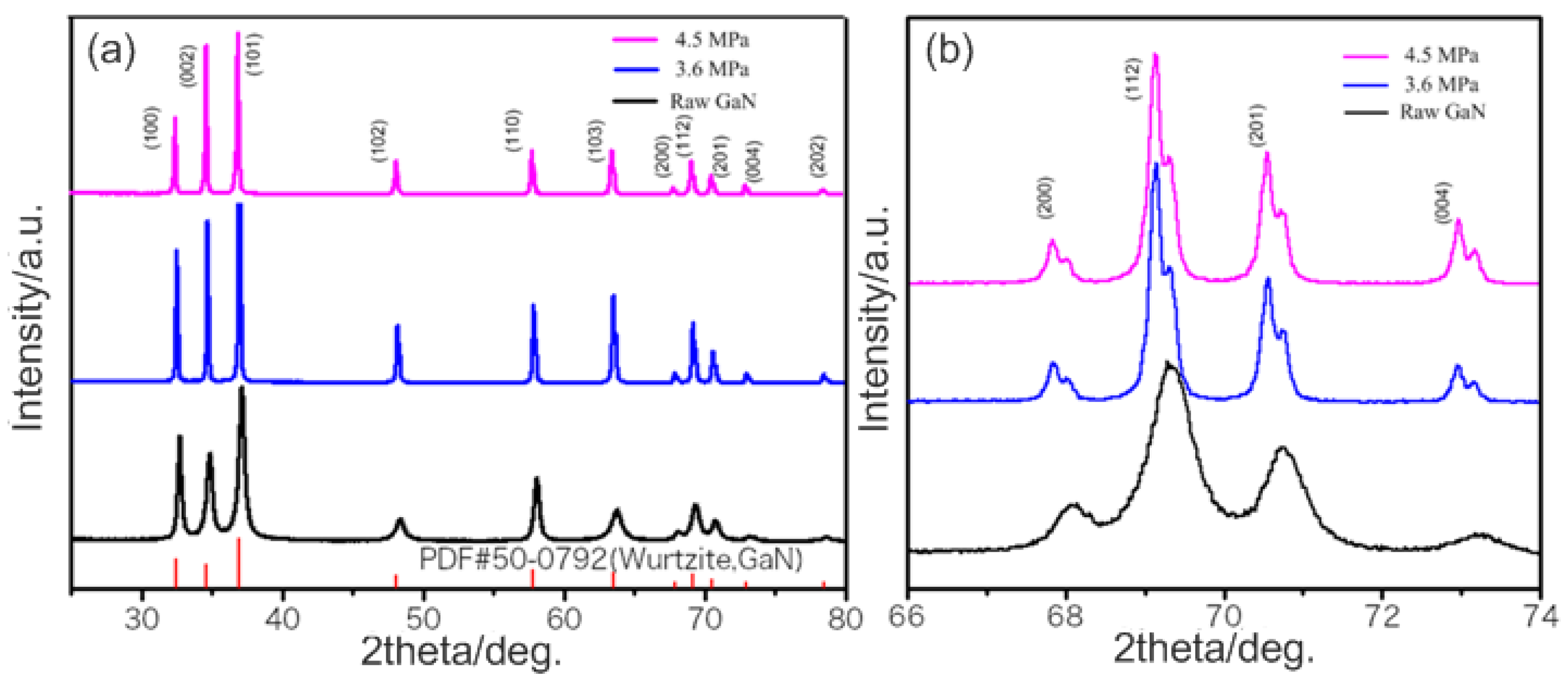

After the growth, the amount of GaN was weighed. The total mass of GaN crystals is 2.33 g and 2.50 g under 3.6 Mpa and 4.5 MPa, respectively. No GaN powder was found under 0.4 MPa. Figure 2 shows the X-ray diffraction pattern of the powders. The peaks of powder diffraction pattern are corresponding to the PDF#50-0792. It indicates that the powders are GaN crystals with wurtzite crystal structure. In addition, the relative intensity of (002) diffraction peak increased after synthesis. This result may be related to the change of crystal morphology. Moreover, there are some small peaks near the diffraction peaks, which are corresponding to the GaN powders before growth. It indicates that the GaN raw materials under pressure of 3.6 MPa and 4.5 MPa did not dissolve completely after synthesis. The XRD Datas were performed by Le Bail refinement. The refined lattice constants of GaN powder are a = 3.184 Å and c = 5.175 Å. The constants of GaN crystals grown at 3.6 MPa are a = 3.188 Å and c = 5.190 Å. The constants of GaN crystals grown at 4.5 MPa are a = 3.190 Å and c = 5.188 Å. The results indicate that the lattice constant of the crystal will change slightly under different N₂ pressure.

Figure 3 shows the TEM images of raw GaN powders and the SEM photograph of as grown GaN crystal. The size of raw GaN powders was around 100 nm. When the pressure was 3.6 MPa, the morphology of crystals was prism, and the crystal sizes near the liquid surface and inside the solution were 100 μm and 10 μm, respectively. When the pressure increased to 4.5 MPa, the morphology of the crystal near the surface was prism and pyramid, and the size was about 30 μm. The morphology of the crystal in the solution was pyramid, and the size was about 5 μm. The size of GaN crystals obtained at upper solution was larger than that inside of the solution, this may be related to the difference of supersaturation. The size of the crystal is related to the supersaturation of the solution. As the supersaturation increases, the size of the crystal increases first and then decreases. Because N₂ gas will dissolve into the solution, so the supersaturation of the upper solution will be higher than other place in the solution. In addition, the difference of crystal size under different pressure indicates that the supersaturation of the solution will be controlled by the nitrogen pressure.

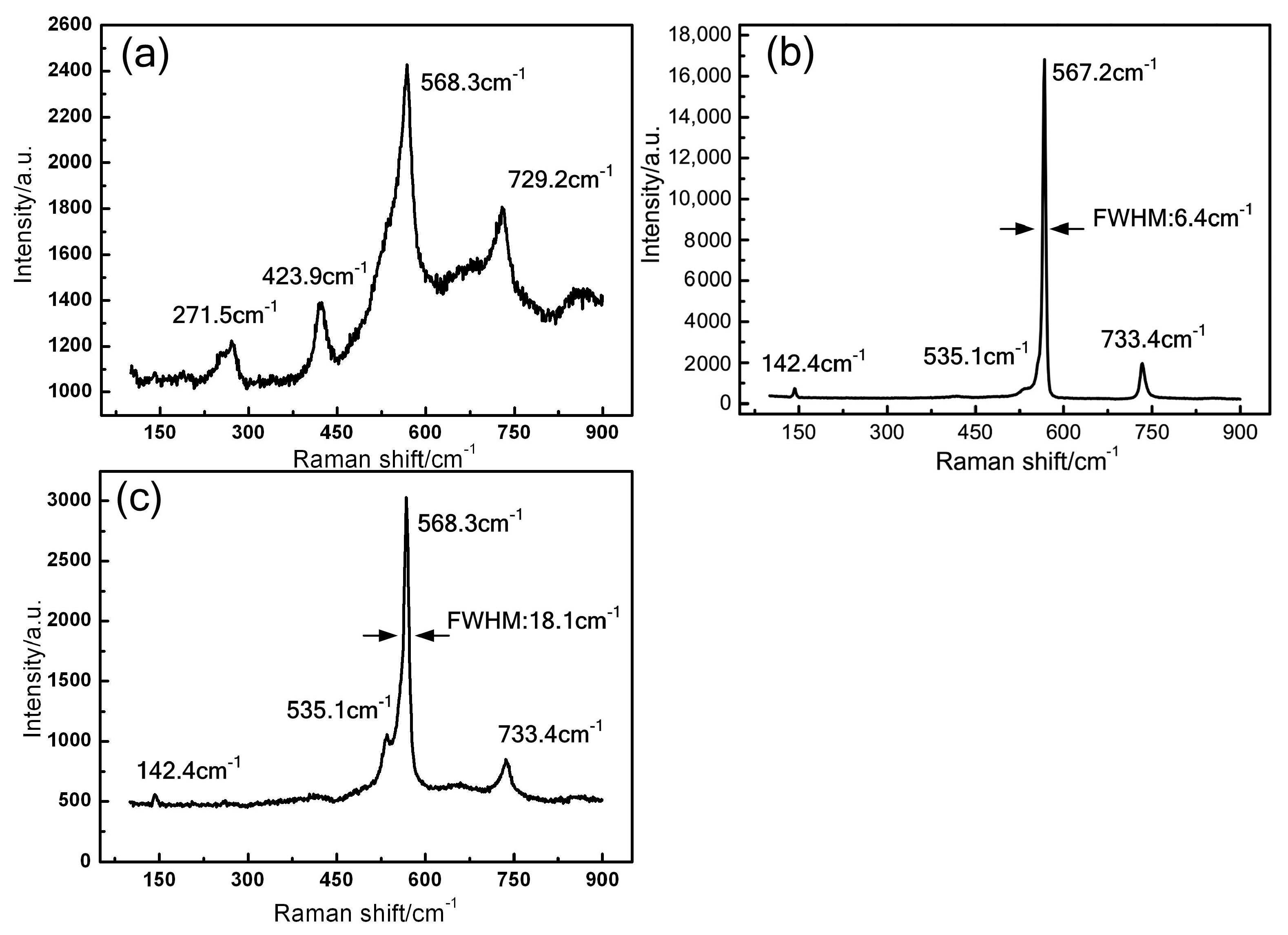

The Raman spectra of GaN raw powder and crystals obtained under different pressures are shown in Figure 4. The peaks are observed near 567 cm⁻¹ and 733 cm⁻¹ in all GaN crystals, which are in good agreement with the reported E₂ (high) and A₁(LO) phonon modes [23]. The peak position of E₂ (high) is sensitive to the internal stress of GaN crystal. The position of 567 cm⁻¹ corresponds to GaN crystal without internal stress [24]. It indicates that the crystals are nearly stress free. Moreover, the full-width at half-maximum (FWHM) values of this peak of GaN crystals grown under 3.6 MPa and 4.5 MPa are about 6.4 cm⁻¹ and 18.1 cm⁻¹, respectively. It indicates that the crystals obtained at 3.6 MPa have higher structural quality or lower impurity concentration. The peaks of 142.4 cm⁻¹ and 535.1 cm⁻¹ are found in grown GaN crystals, which are corresponding to the E₂ (low) and A₁ (TO) phonon modes, respectively [23]. The peak of 423.9 cm⁻¹ is found in the GaN powder, which are corresponding to the A₁ phonon mode. In addition, unknown peak was found at 271.5 cm⁻¹, which may be related to defects.

Table 1. Features of GaN crystals grown under different pressure.

Pressure	Total Mass/g	Size/μm	Morphology
0.4 MPa	0	-	-
3.6 MPa	2.33	10–100	Prism
4.5 MPa	2.50	5–30	Prism, Pyramid

shows the features of GaN crystals grown under different pressure. The mass of GaN decreases with the nitrogen pressure reduces, and no GaN powders are found in the solution at 0.4 MPa nitrogen pressure. Because GaN has very high thermal stability below 900 ℃ [25], the loss GaN powders are considered to be completely dissolved into the solution. Therefore, the solubility of the solution can be inferred from loss mass of GaN powders. The results indicate that the solubility of GaN will increase with the decrease of nitrogen pressure. There are two equilibrium processes in the growth of GaN crystals by traditional flux method. One is GaN crystals growth due to supersaturation, and the other is nitrogen dissolves into the solution to form N ions. Both of these processes affect the concentration of N ion in the solution. Among them, the nitrogen dissolved into the metal solution followed the Sieverts’ law [20]. It satisfies the following formula:

$$X_N=k(P_{N_2}{)}^{1/2}$$

(1)

X_N is the solubility of nitrogen; $P_{N_2}$ is the nitrogen pressure; and k is Sieverts’ constant. According to the law, the concentration of N ions in solution is related to the pressure of nitrogen. When the nitrogen pressure decreases, the concentration of N ions in the solution will decrease, which leads to dissolve more GaN in the solution. As a result, the solubility of GaN is improved. So, in the process of GaN crystal growth by recrystallization technology, it is necessary to control the nitrogen pressure to stabilize the concentration of N ions in the solution.

Kawamura et al. report that the yield of GaN can reach almost 100% in Ga-Na melt [26]. It indicates that the GaN can be grown in the Na alloy melt with Ga ion. Therefore, a stable source of Ga ions is the key factor in the growth of GaN crystals. In our experiment, the Ga source comes from GaN powders at the bottom of the solution. So, the GaN powders will dissolved into the flux solution first. After the growth, GaN crystals with larger size were obtained at the gas-liquid interface at the upper part of the solution. It indicates that the Ga ion will transfer from bottom to the upper part of the solution due to the diffusion and convection. In addition, because the solution was in a negative temperature gradient condition and the Ga source came from GaN powders, it is inferred that the concentration of Ga at the bottom will be larger than that at the upper part. On the other hand, Nitrogen under high pressure will increase the concentration of N ions to form a supersaturated solution at the upper part of the solution, and the GaN crystal are grown. During this process, Ga ions in solution will be consumed, which make GaN powders at bottom dissolve into the solution. Finally, GaN crystals can be continuously grown at upper part of the solution. The problems of continuity and stability of Na flux method can be solved by this recrystallization technique and it is expected to obtain high quality GaN single crystals.

4. Conclusions

GaN crystals were obtained by recrystallization technique in Na alloy melt under N₂ pressure of 3.6 MPa and 4.5 MPa. XRD results indicate that the samples are GaN with wurtzite type. The amount of remaining GaN crystals decrease with the nitrogen pressure reduce. The morphology of the crystal is mainly prism and pyramid. The size of the crystal increases when the position is close to the liquid surface. Raman experiments indicate that there is no stress in the GaN crystals, and GaN crystals grown at 3.6 MPa have high structural quality or low impurity concentrations. Moreover, the results revealed that the solubility and supersaturation of the solution are controlled by N₂ pressure. There are two processes in crystal growth by recrystallization technique. First, the source of Ga provides from dissolution of GaN powders, which reaches the upper part of the solution due to diffusion and convection. Second, GaN crystals are obtained in the upper part of supersaturation solution due to high concentration of N ions under nitrogen pressure.
