Open AccessArticle
Micromachines 2018, 9(11), 573; https://doi.org/10.3390/mi9110573

An Improved UU-MESFET with High Power Added Efficiency

Key Laboratory of the Ministry of Education for Wide Band-Gap Semiconductor Materials and Devices, School of Microelectronics, Xidian University, Xi’an 710071, China
*
Author to whom correspondence should be addressed.
Received: 25 September 2018 / Revised: 24 October 2018 / Accepted: 30 October 2018 / Published: 5 November 2018
(This article belongs to the Special Issue Wide Bandgap Semiconductor Based Micro/Nano Devices)
Full-Text   |   PDF [964 KB, uploaded 5 November 2018]   |

Abstract

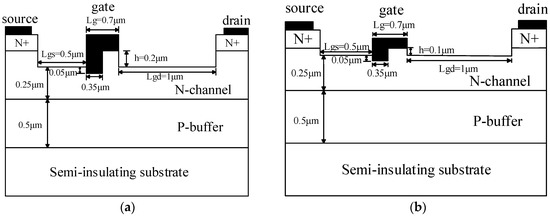

An improved ultrahigh upper gate 4H-SiC metal semiconductor field effect transistor (IUU-MESFET) is proposed in this paper. The structure is obtained by modifying the ultrahigh upper gate height h of the ultrahigh upper gate 4H-SiC metal semiconductor field effect transistor (UU-MESFET) structure, and the h is 0.1 μm and 0.2 μm for the IUU-MESFET and UU-MESFET, respectively. Compared with the UU-MESFET, the IUU-MESFET structure has a greater threshold voltage and trans-conductance, and smaller breakdown voltage and saturation drain current, and when the ultrahigh upper gate height h is 0.1 μm, the relationship between these parameters is balanced, so as to solve the contradictory relationship that these parameters cannot be improved simultaneously. Therefore, the power added efficiency (PAE) of the IUU-MESFET structure is increased from 60.16% to 70.99% compared with the UU-MESFET, and advanced by 18%. View Full-Text
Keywords: 4H-SiC; MESFET; ultrahigh upper gate height; power added efficiency 4H-SiC; MESFET; ultrahigh upper gate height; power added efficiency
Figures

Figure 1
