Article

Microstructural Evolution and Enhanced Macroscopic Properties of La-Doped TiO2-SiO2 Composite Films Under Gradient Annealing

by
Yanbo Yuan
,
Li Zhang
*,
Lei Li
,
Mengyang Wang
,
Wenjun Wang
and
Lin Wang
College of Mechanics and Aeronautics, Inner Mongolia University of Technology, Hohhot 010051, China
*
Author to whom correspondence should be addressed.
Micromachines 2026, 17(5), 617; https://doi.org/10.3390/mi17050617
Submission received: 8 April 2026 / Revised: 10 May 2026 / Accepted: 12 May 2026 / Published: 17 May 2026
(This article belongs to the Section E：Engineering and Technology)
Browse Figures
Versions Notes

Abstract

In this study, La-doped TiO2-SiO2 composite films were deposited on glass substrates by radio-frequency magnetron sputtering. The evolution of microstructure and macroscopic properties was systematically investigated across an annealing temperature range of 350–650 °C. The results show that the La-doped TiO2-SiO2 composite structure effectively suppresses abnormal grain growth and delays the anatase-to-rutile phase transition, thereby improving the films’ high-temperature structural stability. Notably, the composite film annealed at 550 °C (LS-550) exhibits the highest anatase crystallinity and forms a dense, smooth (RMS = 1.37 nm), crack-free nanocrystalline network. In terms of wettability, the improved hydrophilicity is attributed to the combined effects of La incorporation and hydrophilic silanol (Si-OH) groups in the amorphous SiO2 phase. As a result, the water contact angle of the LS-550 film decreases dramatically to 28.0°, indicating excellent hydrophilicity. Moreover, the LS-550 film demonstrates an optimal photocatalytic degradation efficiency of approximately 76% for methylene blue, significantly outperforming the pure TiO2 film. Furthermore, the enhanced mechanical performance is associated with the combined effects of the SiO2-containing amorphous phase and the finer microstructure induced by La incorporation. Consequently, the critical load (Lc) of the LS-550 film reaches 75.64 mN, significantly exceeding that of the pure TiO2 film annealed at the same temperature (61.25 mN). In summary, the composite film annealed at 550 °C concurrently achieves high crystallographic thermal stability, robust interfacial mechanical durability, excellent surface hydrophilicity, and enhanced photocatalytic activity, thereby offering practical guidance for developing TiO2-based coatings with self-cleaning potential for high-rise building curtain walls.

1. Introduction

The manual cleaning of exterior windows and curtain-wall glass in high-rise buildings entails prohibitive costs and substantial safety risks [1]. Endowing glass surfaces with self-cleaning functionality can significantly reduce the need for manual maintenance while effectively preserving their aesthetic appearance and optical transmittance [2]. In the photovoltaic sector, dust accumulation likewise severely compromises the power-generation efficiency of solar modules [3]. By reducing surface soiling and facilitating water-spreading removal of contaminants, self-cleaning coatings can help maintain the optical performance of photovoltaic cover glass [4]. Among various self-cleaning materials, titanium dioxide (TiO2) is the most widely used [5]. Its self-cleaning behavior mainly arises from two synergistic effects: first, TiO2 photocatalytically oxidizes and decomposes organic contaminants under ultraviolet (UV) irradiation [6]; second, its photoinduced superhydrophilicity allows rainwater to spread across the surface as a continuous film, thereby removing inorganic particulate matter [7]. Therefore, the development of highly efficient and durable TiO2 self-cleaning films is of great practical importance for engineering applications in building facades and photovoltaic glass [8].
From a microstructural perspective, the crystalline phase and defect structure of TiO2 largely determine its physicochemical behavior [9]. Although the anatase phase generally exhibits superior photocatalytic activity and hydrophilicity compared to rutile [10], it is highly susceptible to an irreversible transformation into rutile during high-temperature thermal treatment, inevitably leading to a deterioration in self-cleaning performance [11]. Previous studies have demonstrated that the phase-transformation kinetics of TiO2 films are strongly governed by factors such as grain size, lattice defects, internal stress, and elemental modification [12].
Magnetron sputtering has become an attractive route for TiO2 thin-film deposition due to its capability for large-area uniform coating and precise control over processing parameters [13]. Alongside sputtering-based techniques, innovative low-temperature approaches have also been developed for fabricating compact TiO2 layers. For example, UV-assisted TiBr4 chemical bath deposition has proven effective in yielding dense TiO2 films under relatively mild conditions, offering an alternative pathway for compact layer preparation [14]. In the present study, however, magnetron sputtering was specifically adopted as it facilitates the simultaneous co-introduction of La and SiO2 and allows for a systematic examination of the annealing-dependent structural evolution. By carefully tailoring the deposition parameters and annealing temperatures, the crystallographic composition and microstructural features of the TiO2 composite films can be effectively modulated [15].
In recent years, extensive efforts have been devoted to modifying TiO2 thin films through deposition-parameter optimization and elemental doping to improve their structural and photocatalytic properties [16,17]. Anita et al. reported that SiO2 doping can significantly retard the anatase-to-rutile phase transition in TiO2 powders by introducing lattice strain and reducing grain size [18]. Moreover, Mishra and Kannan experimentally demonstrated in a TiO2-SiO2 binary oxide system that the incorporation of SiO2 suppresses grain growth and constrains lattice coarsening, thereby delaying the phase transformation [19]. In the context of rare-earth doping, the incorporation of La3+ into the TiO2 lattice not only regulates grain size but also exerts a pronounced positive effect on its optoelectronic properties [20,21]. Based on first-principles calculations, previous studies have suggested that La doping can enhance the structural stability and photocatalytic activity of TiO2 by modifying the local lattice environment and promoting defect formation [22]. Likewise, experimental studies by Verma and Singh showed that La doping refines the crystallite size of TiO2, extends its optical absorption into the visible-light region, and markedly improves its photocatalytic degradation efficiency, resulting in a higher degradation rate for organic dyes than for undoped counterparts [23].
Nevertheless, although single-element doping strategies can improve specific properties, they generally fail to simultaneously optimize the high-temperature crystallographic stability, surface wettability, and mechanical durability of TiO2 films. In this context, a promising strategy is to combine the spatial confinement effect associated with the amorphous SiO2 phase with the structural modification induced by La incorporation. Through the synergistic interaction of these two effects, high-temperature grain coarsening can be effectively suppressed. At the same time, the interfacial adhesion and surface wettability of the films can be improved. However, systematic studies on the microstructural evolution of La-doped TiO2-SiO2 composite films under gradient annealing temperatures remain scarce, and the synergistic effects responsible for their enhanced hydrophilicity and film–substrate adhesion have yet to be fully clarified.
To address this gap, La-doped TiO2-SiO2 composite films were deposited on glass substrates by radio-frequency magnetron sputtering. To systematically investigate the thermally driven evolution of structure and properties, the as-deposited films were annealed at 350, 450, 550, and 650 °C, with a pure TiO2 film annealed at 550 °C used as a reference. A series of structural, optical, and mechanical analyses, including X-ray diffraction (XRD), scanning electron microscopy (SEM), energy-dispersive X-ray spectroscopy (EDS), atomic force microscopy (AFM), water contact angle measurements, and nano-scratch testing, were performed to investigate the effects of annealing temperature on the crystallographic phase evolution, surface morphology, elemental distribution, wettability, and interfacial mechanical properties of the films. Consequently, this work focuses on evaluating the combined structural and mechanical benefits of the La-doped TiO2-SiO2 composite structure on the microstructure and macroscopic performance of TiO2 films, thereby providing an experimental basis for the design of TiO2-based coatings with self-cleaning potential for high-rise building facades and photovoltaic glass encapsulation.

2. Experimental Section

2.1. Film Preparation

In this study, the composite films were deposited using a JGP-450 high-vacuum multifunctional magnetron sputtering system (Shenyang Scientific Instrument Co., Ltd., Chinese Academy of Sciences, Shenyang, China). K9 optical glass substrates with dimensions of 20 mm × 20 mm × 2 mm were used [24]. Before deposition, the substrates were ultrasonically cleaned successively in acetone and anhydrous ethanol for 15 min each, thoroughly rinsed with deionized water, dried under a stream of high-purity nitrogen, and immediately transferred to the vacuum chamber [25].
A dual-target co-sputtering strategy was employed to achieve La-doped TiO2-SiO2 composite films [26,27]. The SiO2-TiO2 composite ceramic target (60 mm in diameter and 3 mm in thickness) was fabricated by sintering high-purity TiO2 (99.99%) and SiO2 (99.99%) powders, with the SiO2 doping concentration precisely controlled in the range of 8–10% [28]. A high-purity metallic La target (99.95%) was used as the lanthanum source. The target-to-substrate distance was fixed at 80 mm for both targets [29].
Before gas introduction, the sputtering chamber was evacuated to a base pressure of 5.0 × 10−5 Pa. High-purity argon (99.999%) was then introduced at a flow rate of 35 sccm, and the working pressure was maintained at 1.0 Pa [30]. To remove surface contaminants and ensure target stability, both the SiO2-TiO2 composite target and the metallic La target were pre-sputtered for 15 min under identical conditions before deposition [31]. During film growth, radio-frequency (RF) power was applied exclusively to the SiO2-TiO2 composite target at 120 W, whereas direct-current (DC) power was supplied solely to the La target at 25 W, thereby enabling independent control of dopant incorporation. The substrates were maintained at room temperature and rotated at 20 rpm throughout the 2 h deposition process to ensure uniform film thickness and composition [32]. A schematic illustration of the deposition process is shown in Figure 1. The as-prepared films are shown in Figure 2.

2.2. Post-Deposition Annealing

The as-deposited films were thermally annealed in ambient air using an OTF-1200X tube furnace (Hefei Kejing Materials Technology Co., Ltd., Hefei, China). The annealing treatment was carried out at gradient temperatures of 350, 450, 550, and 650 °C for 2 h at a constant heating rate of 5 °C/min, followed by natural cooling to room temperature in the furnace [33]. For comparison, a pure TiO2 film was also prepared and annealed at 550 °C under the same conditions. The detailed nomenclature of the resulting samples is listed in Table 1.
This temperature gradient was selected based on the crystallization behavior and phase-transition characteristics of TiO2 during annealing. In general, 350 °C corresponds to the initial stage of the amorphous-to-anatase transformation, while 450–550 °C is considered the main crystallization range for anatase. Among these temperatures, 550 °C is commonly regarded as a critical point at which pure TiO2 begins to undergo the irreversible anatase-to-rutile transition [28]. Therefore, this annealing schedule was adopted to examine how the La-doped TiO2-SiO2 composite structure influences the formation and stability of the anatase phase and suppresses its transformation to rutile [34,35]. For comparison, a pure TiO2 film annealed at 550 °C was chosen as the reference sample, because this temperature is the most representative point for revealing the difference between pure TiO2 and the composite films. At this stage, the phase stability, grain-growth behavior, and related performance changes of pure TiO2 become more pronounced, making it suitable for evaluating the synergistic effects of La doping and SiO2 incorporation.

2.3. Characterization and Interfacial Mechanics Evaluation

The crystallographic structures of the films were characterized using an X-ray diffractometer (XRD, D/max-2500/PC, Rigaku Corporation, Tokyo, Japan) with Cu Kα radiation (λ = 0.15406 nm), operated at 40 kV and 100 mA. To enhance the diffraction signal from the films while reducing the amorphous background contribution from the glass substrate, grazing-incidence X-ray diffraction (GIXRD) was employed [36]. The measurements were performed with a fixed incidence angle of 1.5°, over a 2θ range of 5–90° at a step size of 0.02°. For quantitative analysis, the diffraction pattern of the blank K9 glass substrate was measured separately under the same GIXRD conditions and subtracted from each sample pattern. Based on the corrected patterns, the total integrated area of each sample was first determined, and the integrated areas of the anatase and rutile diffraction peaks were then calculated separately. The anatase and rutile crystallinity indices were defined as the ratios of their respective integrated peak areas to the total integrated area of the corrected pattern.
The surface morphologies of the films were examined using a field-emission scanning electron microscope (SEM, SU8010, Hitachi, Japan) operated at an accelerating voltage of 5 kV and an emission current of 10 μA. Before observation, the sample surfaces were sputter-coated with a thin layer of gold to improve electrical conductivity. An energy-dispersive X-ray spectroscopy (EDS, Oxford X-Max50, Oxford Instruments, Abingdon, High Wycombe, UK) detector integrated with the SEM was used to analyze the elemental composition and distribution at an accelerating voltage of 15 kV with an acquisition time of 120 s. Quantitative elemental analysis was performed using the ZAF correction method to determine elemental composition by weight percentage (wt.%). To further evaluate the spatial uniformity of elemental distribution on the film surface, including La, Si, Ti, and O, elemental mapping was carried out over an area of 10 μm × 10 μm at a resolution of 512 × 400 pixels [37].
The three-dimensional surface topography and nanoscale roughness of the films were characterized using an atomic force microscope (AFM, Multimode 8, Bruker, Berlin, Germany) operated in tapping mode. An RTESP silicon probe with a resonance frequency of approximately 300 kHz and a spring constant of 40 N/m was used for scanning. Measurements were performed over scan areas of 10 μm × 10 μm at a scan rate of 1.0 Hz and a resolution of 512 × 512 pixels [38]. The root-mean-square roughness (Rq) and arithmetic average roughness (Ra) were subsequently calculated using NanoScope Analysis 3.0 software.
To quantitatively evaluate the hydrophilicity of the films, the static water contact angles (WCA) on the film surfaces were measured using a JC2000D2 contact angle goniometer (Shanghai, China). All measurements were conducted at an ambient temperature of 25 °C and a relative humidity of 45%.
The photocatalytic activity of the La-doped TiO2-SiO2 composite films was evaluated via methylene blue (MB) degradation. Films were immersed in 30 mL of MB solution (10 mg·L−1) and kept in the dark for 30 min to establish adsorption–desorption equilibrium. Irradiation was provided by a 300 W xenon lamp (λ > 300 nm, 100 mW·cm−2). Aliquots were sampled at regular intervals up to 60 min, and temporal MB concentrations were determined via UV-Vis absorbance at 665 nm. Based on the initial concentration of the MB solution (C0) and the concentration after an irradiation time t (Ct), the degradation rate was calculated as follows.
D e g r a d a t i o n   r a t e % = C 0 − C t C 0 × 100 %
The interfacial adhesion strength between the composite films and the glass substrates was systematically evaluated using a Nano Indenter G200 (Agilent, Santa Clara, CA, USA). The instrument was equipped with a diamond conical indenter with a tip radius of 5 μm and a cone angle of 90°. The scratch-test parameters were set as follows: a scratch length of 500 μm, a normal load linearly increased from 0 to 100 mN, and a constant scratch velocity of 10 μm/s. To ensure precise synchronization between the load increase and the scratch displacement, the linear loading rate was maintained at 2 mN/s [39].

3. Results and Discussion

3.1. X-Ray Diffraction (XRD) Analysis

Figure 3 shows the XRD patterns of the La-doped TiO2-SiO2 composite films annealed at different temperatures. The as-deposited composite film (LS-AD) exhibits a broad amorphous halo, in which only the diffuse scattering peak from the glass substrate can be discerned, indicating the absence of a long-range ordered crystalline structure in the unannealed film [40]. After annealing at 350 °C (LS-350), weak diffraction peaks appear at 2θ ≈ 25.3°, 37.8°, 48.0°, and 62.7°, which can be indexed to the anatase (101), (004), (200), and (204) planes, respectively, marking the onset of crystallization [41]. As the annealing temperature increases to 450 °C (LS-450) and 550 °C (LS-550), these diffraction peaks become progressively sharper and more intense. The anatase (101) peak reaches its highest intensity in LS-550, indicating that anatase development is most pronounced at this temperature [21]. The quantitative XRD results listed in Table 2 show the same trend. The anatase crystallinity index increases from 28.0% for LS-350 to 45.9% for LS-450 and reaches a maximum of 49.7% for LS-550, followed by a decrease to 41.6% for LS-650. This trend is consistent with the evolution of the diffraction peaks and indicates that annealing up to 550 °C promotes the formation and ordering of the anatase phase in the composite films, whereas a further increase to 650 °C slightly weakens this effect. The slightly lower peak intensity of LS-650 compared with LS-550 may be related to dopant redistribution at grain boundaries and the associated local lattice distortion under excessive thermal input [42]. Nevertheless, no characteristic rutile peak is observed in LS-650, indicating that the composite system still maintains good phase stability at elevated temperatures.
The pure TiO2 control sample annealed at 550 °C (P-550) already shows a distinct rutile (101) diffraction peak at 2θ ≈ 36.1°. Its anatase and rutile crystallinity indices are 32.3% and 12.4%, respectively. In contrast, LS-550 exhibits a markedly higher anatase crystallinity index and no detectable rutile diffraction. Combined with the temperature-dependent evolution observed in the composite series, these results indicate that the La-doped TiO2-SiO2 composite structure delays the phase transformation of TiO2. The amorphous SiO2 phase likely limits direct intergranular contact and suppresses excessive grain coarsening during annealing [43], while La incorporation introduces local lattice distortion or related defect states that hinder atomic migration and slow the structural evolution associated with the anatase-to-rutile transformation [33,44]. Together, these effects account for the improved crystallographic stability and the better retention of the anatase phase in the composite films.

3.2. Surface Morphology (SEM) and Elemental Analysis (EDS/Mapping)

3.2.1. Surface Morphology (SEM) Analysis

Figure 4 presents the SEM micrographs of the La-doped TiO2-SiO2 composite films subjected to gradient annealing temperatures. These images illustrate the morphological evolution of the films under the combined influence of the composite structure and thermal treatment. The as-deposited film (LS-AD) exhibits a featureless surface, which is consistent with its amorphous nature. As the annealing temperature increases to 350 °C and 450 °C, uniformly distributed nanocrystallites gradually appear on the film surface. At 550 °C (LS-550), the film develops a dense, homogeneous, and crack-free nanocrystalline network, consistent with the enhanced crystallinity indicated by the XRD results. However, upon further annealing at 650 °C (LS-650), slight localized grain coalescence and coarsening are observed, which can be attributed to thermally induced structural instability due to excessive heat input [42].
In sharp contrast, the pure TiO2 control sample annealed at 550 °C (P-550) exhibits severe grain coarsening accompanied by an extensive network of reticulated microcracks. This pronounced morphological difference indicates that the La-doped TiO2-SiO2 composite structure effectively suppresses excessive grain growth and preserves film integrity during annealing. At the microscopic level, this behavior can be associated with the combined effects of La incorporation and the SiO2-containing amorphous phase on grain-boundary migration [44]. At the macroscopic level, the finer, more compact microstructure of the composite films helps alleviate stress concentrations generated during high-temperature annealing [12], thereby reducing the tendency for microcrack formation and improving the films’ compactness and structural integrity.

3.2.2. Elemental Composition and Distribution (EDS/Mapping) Analysis

Figure 5 presents the energy-dispersive X-ray spectroscopy (EDS) spectra and corresponding elemental mapping results of the as-deposited composite film (LS-AD). The EDS spectra exhibit characteristic signals from Ti, O, Si, and La, with no obvious impurity peaks. Semi-quantitative analysis indicates that the mass fraction of La is approximately 0.02%, corresponding to 0.315% relative to the Ti content [21]. These results confirm the successful incorporation of the rare-earth element La into the film matrix. The prominent Si signal, with a relatively high mass fraction of 40.15%, is mainly attributed to the combined contribution of the incorporated SiO2 phase and the underlying glass substrate. Given the strong background signal from the substrate, this semi-quantitative approach accurately reflects the relative elemental presence rather than absolute bulk concentrations. Furthermore, the elemental mapping images show that Ti, O, Si, and trace amounts of La are distributed relatively uniformly across the scanned area, with no evident local segregation or elemental agglomeration. Collectively, these findings demonstrate that the employed magnetron sputtering process enables the uniform co-deposition of multiple elements, thereby ensuring good chemical homogeneity throughout the composite film.

3.3. Atomic Force Microscopy (AFM) Analysis

Figure 6 presents the three-dimensional surface topographies of the films annealed at different temperatures, and the corresponding surface roughness data are summarized in Table 3. AFM measurements were performed to quantitatively evaluate the surface nanoroughness. The as-deposited film (LS-AD) exhibits the most pronounced surface undulations, with a root-mean-square (RMS) roughness of 4.60 nm and an arithmetic average roughness (Ra) of 3.28 nm. After thermal treatment, the surface roughness decreases markedly. Upon annealing at 350 °C (LS-350), the RMS roughness drops to 1.92 nm. As the annealing temperature further increases to 450–650 °C, the roughness remains relatively low, with RMS values of 1.25 nm, 1.37 nm, and 1.22 nm for LS-450, LS-550, and LS-650, respectively. This overall trend is consistent with the XRD results, indicating that annealing promotes structural rearrangement and facilitates the gradual transformation of the amorphous film into a denser anatase-dominant structure. Such evolution helps reduce surface irregularities and microdefects [45], thereby leading to a smoother and more compact surface morphology.
To further clarify the effect of the composite structure on surface morphology, a comparative analysis was performed between the composite and pure TiO2 films annealed at 550 °C. The results show that the pure TiO2 film (P-550) exhibits higher surface roughness, with an RMS value of 1.70 nm and an Ra value of 1.20 nm. In contrast, the composite film (LS-550) displays a smoother surface, with corresponding RMS and Ra values of 1.37 nm and 1.09 nm, respectively. This difference indicates that the La-doped TiO2-SiO2 composite structure effectively suppresses excessive surface coarsening during annealing. At elevated temperatures, grain-boundary migration in pure TiO2 proceeds more readily, making the grains more susceptible to abnormal growth and agglomeration-induced coarsening [46], which consequently increases the surface roughness of P-550. In contrast, in the composite system, the SiO2-containing amorphous phase and La incorporation help restrain grain growth [43]. As a result, the LS-550 film retains a relatively dense nanoscale surface structure while exhibiting enhanced crystallinity [42].

3.4. Contact Angle and Wettability Analysis

Figure 7 presents the static water contact angle (WCA) values of the films under different annealing temperatures. The WCA measurements clearly reveal the evolution of the films’ wettability. The as-deposited film (LS-AD) exhibits an initial WCA of approximately 66.0°. After annealing at 350 °C (LS-350), the formation of the anatase phase reduces the WCA to 58.1° [30]. Notably, at 450 °C (LS-450), the WCA increases again to 63.7°. In conjunction with the AFM results and the classical Wenzel wetting model [47], this phenomenon can be attributed to the pronounced reduction in surface nanoroughness during the early stage of crystallization, which weakens the capillary amplification effect of the surface microstructure [48]. However, as the annealing temperature further increases to 550 °C (LS-550) and 650 °C (LS-650), the WCA decreases sharply to 28.0° and 25.6°, respectively, indicating excellent hydrophilicity [49]. In contrast, the pure TiO2 control film annealed at 550 °C (P-550) maintains a relatively high WCA of 62.1°, indicating that the composite strategy effectively improves film wettability.
The excellent hydrophilicity of the composite films is associated with the combined effects of crystallographic evolution and surface chemical characteristics. First, the improved anatase crystallinity provides more hydrophilic and reactive surface sites [50]. Second, La incorporation modifies the local lattice environment and facilitates the formation of surface defect sites favorable for water adsorption [51]. In addition, the presence of the SiO2-containing amorphous phase introduces hydrophilic silanol groups (Si-OH) [52], thereby enhancing the affinity of the surface for water molecules. The combined effect of these factors accounts for the markedly improved wettability of the composite films compared with pure TiO2. The slight further decrease in WCA observed for the LS-650 sample can be attributed to thermally induced surface compositional redistribution under excessive heat input, which further influences the macroscopic wetting behavior.

3.5. Photocatalytic Activity Testing

To further evaluate the macroscopic properties of the La-doped TiO2-SiO2 composite films under different gradient annealing temperatures, their photocatalytic degradation efficiency was tested using MB as the target pollutant. A blank experiment utilizing a bare glass substrate (denoted as Blank) was also conducted under identical conditions for comparison.
As illustrated in Figure 8a, the blank sample exhibits a moderate photolysis effect under irradiation, with the MB degradation rate reaching approximately 40% after 60 min. In contrast, all film-coated samples show significantly enhanced degradation rates, unequivocally confirming the intrinsic photocatalytic activity of the prepared composite films. The pristine film (P-550) and the as-deposited film (LS-AD) demonstrate degradation efficiencies of roughly 65% and 57%, respectively. Notably, with the introduction of gradient annealing, the photocatalytic activity initially improves and then slightly declines. The LS-550 sample exhibits the most superior degradation performance, reaching nearly 76% after 60 min, outperforming LS-450 (~72%) and LS-650 (~70%).
This trend is strongly corroborated by the UV-Vis absorbance spectra of the MB solutions after 1 h of reaction, as shown in Figure 8b. The characteristic absorption peak of MB at 665 nm displays the lowest intensity for the LS-550 sample, further validating its optimal photocatalytic capability. The significantly enhanced performance at 550 °C can be attributed to the favorable microstructural evolution induced by the specific annealing temperature, where the optimized crystallinity and phase composition likely provide more surface active sites and facilitate the efficient separation of photo-generated electron–hole pairs. Conversely, the slight reduction in photocatalytic efficiency observed at 650 °C may be linked to excessive crystallite growth. While higher annealing temperatures promote crystalline perfection, the excessively grown crystallites inevitably lead to a reduction in the specific surface area, thereby decreasing the density of available surface active sites for the photocatalytic reaction.

3.6. Mechanical Property Testing

Nano-scratch testing was employed to quantitatively evaluate the interfacial adhesion of the films, with the critical load (Lc) used as the evaluation criterion [53,54]. It should be noted that all composite films evaluated in this study were deposited under consistent sputtering parameters and a fixed deposition time of 2 h. Therefore, any deviations in the initial physical thickness among the as-deposited films are expected to be negligible. Consequently, the observed variations in interfacial adhesion across different samples can be largely attributed to the microstructural evolution induced by the subsequent gradient annealing. As shown in Figure 9, which summarizes the film–substrate adhesion behavior at different annealing temperatures, the as-deposited film (LS-AD) exhibits a relatively low Lc of 30.25 mN, reflecting weak interfacial bonding in the absence of post-deposition thermal treatment. With increasing annealing temperature, the Lc gradually increases, reaching 39.59 mN for LS-350, 59.67 mN for LS-450, and ultimately peaking at 75.64 mN for LS-550. This trend indicates that moderate annealing improves film–substrate adhesion, as thermally activated interfacial diffusion and structural densification help establish a more stable interfacial state. However, upon further annealing at 650 °C (LS-650), the Lc decreases to 64.57 mN. Compared with the pure TiO2 film annealed at the same temperature (P-550, Lc = 61.25 mN), the LS-550 sample exhibits markedly superior scratch resistance. This improvement in mechanical performance can be attributed to the combined effects of La and SiO2 on the films’ microstructure and interfacial response. Pure TiO2 is prone to residual internal stress accumulation due to a mismatch in the coefficient of thermal expansion (CTE) between the film and the glass substrate, which can readily induce brittle delamination under applied shear loading [55,56]. In contrast, the composite films exhibit a denser, finer-grained microstructure, which helps relieve local stress concentrations during cooling and scratch loading. At the same time, the SiO2-containing amorphous phase contributes to interfacial compliance [57], while the grain-refinement effect associated with La incorporation improves resistance to crack initiation and propagation [58]. The subsequent decline in the interfacial adhesion of the LS-650 sample can be attributed to microstructural deterioration under excessive thermal input, thereby weakening the beneficial effect observed at 550 °C.

4. Conclusions

In this study, we systematically investigated the microstructural evolution, macroscopic properties, and related synergistic effects of La-doped TiO2-SiO2 composite films deposited by magnetron sputtering and annealed at 350, 450, 550, and 650 °C. A series of characterizations, including XRD, SEM, EDS, AFM, water contact angle measurements, and nano-scratch testing, were carried out to examine the crystallographic evolution, surface morphology, wetting behavior, and interfacial adhesion of the films. The main findings are summarized as follows:
  • Microstructural and Morphological Stability: Multiscale structural characterizations show that the La-doped TiO2-SiO2 composite structure suppresses abnormal grain growth and microcrack formation during high-temperature annealing. In addition, the composite films retain anatase-dominant characteristics over the investigated temperature range up to 650 °C, indicating improved resistance to the anatase-to-rutile transformation. Notably, the film annealed at 550 °C (LS-550) exhibits the most favorable overall balance between crystallization behavior and surface morphology, showing the highest anatase crystallinity, a dense, homogeneous, crack-free nanocrystalline network, and low surface roughness (RMS = 1.37 nm). These results demonstrate that the composite structure effectively improves the microstructural and morphological stability of TiO2 films during annealing.
  • Surface Wettability and Self-Cleaning Potential: Water contact angle (WCA) measurements show that the composite strategy, combined with moderate-to-high-temperature annealing, promotes a clear transition toward a highly hydrophilic state, with the WCA decreasing to 28.0° or below for samples annealed at 550 °C and above. Furthermore, photocatalytic degradation experiments utilizing methylene blue (MB) reveal that the composite films exhibit significantly enhanced photoactivity. Notably, the LS-550 sample demonstrates the optimal degradation efficiency of approximately 76% after 60 min of irradiation, markedly outperforming the pure TiO2 film (65%). This superior photocatalytic performance is attributed to the optimized anatase crystallinity and favorable phase composition, which provide abundant surface active sites and facilitate the efficient separation of photo-generated electron–hole pairs. The synergistic combination of excellent hydrophilicity and enhanced photocatalytic degradation efficiency endows the composite films with exceptional self-cleaning potential.
  • Interfacial Adhesion and Mechanical Durability: Nano-scratch testing shows that the La-doped TiO2-SiO2 composite structure significantly enhances film–substrate adhesion. The improved mechanical performance is attributed to the combined effects of the SiO2-containing amorphous phase and the finer microstructure induced by La incorporation, both of which help relieve stress concentrations and enhance resistance to crack initiation and propagation. As a result, the critical load (Lc) of the LS-550 sample reaches 75.64 mN, which is substantially higher than that of the pure TiO2 film annealed at the same temperature (61.25 mN), indicating superior interfacial mechanical durability.
In summary, these findings can facilitate the development of high-performance TiO2-based coatings with improved structural stability, hydrophilicity, photocatalytic activity, and interfacial durability. Among all the investigated samples, the LS-550 film exhibits the most favorable overall balance of crystallographic thermal stability, interfacial mechanical durability, surface wettability, and photocatalytic degradation performance, indicating promising application potential, particularly in dust-resistant encapsulation coatings for photovoltaic modules [59], self-cleaning glass for high-rise building facades [60], and protective coatings for outdoor optical sensors [61].

Author Contributions

Methodology, Y.Y.; Software, W.W. and L.W.; Validation, M.W., W.W. and L.W.; Formal analysis, M.W., W.W. and L.W.; Investigation, W.W.; Resources, L.L., W.W. and L.W.; Data curation, L.L. and M.W.; Writing—original draft, Y.Y.; Writing—review & editing, Y.Y., L.Z. and L.L.; Visualization, L.Z. and L.L.; Supervision, L.Z.; Project administration, L.Z.; Funding acquisition, L.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (Grant No. 12262029), the Inner Mongolia Natural Science Foundation (Grant No. 2023MS01007), and the Innovation and Entrepreneurship Training Program for Chinese College Students (No. 202510128013).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wei, Y.; Wu, Q.; Meng, H.; Zhang, Y.; Cao, C. Recent advances in photocatalytic self-cleaning performances of TiO2-based building materials. RSC Adv. 2023, 13, 20584–20597. [Google Scholar] [CrossRef]
  2. Tian, S.; Feng, Y.; Zheng, Z.; He, Z. TiO2-Based photocatalytic coatings on glass substrates for environmental applications. Coatings 2023, 13, 1472. [Google Scholar] [CrossRef]
  3. Maghami, M.R.; Hizam, H.; Gomes, C.; Radzi, M.A.; Rezadad, M.I.; Hajighorbani, S. Power loss due to soiling on solar panel: A review. Renew. Sustain. Energy Rev. 2016, 59, 1307–1316. [Google Scholar] [CrossRef]
  4. de Jesus, M.A.M.L.; Neto, J.T.d.S.; Timò, G.; Paiva, P.R.P.; Dantas, M.S.S.; Ferreira, A.d.M. Superhydrophilic self-cleaning surfaces based on TiO2 and TiO2/SiO2 composite films for photovoltaic module cover glass. Appl. Adhes. Sci. 2015, 3, 5. [Google Scholar] [CrossRef]
  5. Wang, Y.-H.; Rahman, K.H.; Wu, C.-C.; Chen, K.-C. A review on the pathways of the improved structural characteristics and photocatalytic performance of titanium dioxide (TiO2) thin films fabricated by the magnetron-sputtering technique. Catalysts 2020, 10, 598. [Google Scholar] [CrossRef]
  6. Armaković, S.J.; Savanović, M.M.; Armaković, S. Titanium dioxide as the most used photocatalyst for water purification: An overview. Catalysts 2022, 13, 26. [Google Scholar] [CrossRef]
  7. Banerjee, S.; Dionysiou, D.D.; Pillai, S.C. Self-cleaning applications of TiO2 by photo-induced hydrophilicity and photocatalysis. Appl. Catal. B Environ. 2015, 176, 396–428. [Google Scholar] [CrossRef]
  8. Midtdal, K.; Jelle, B.P. Self-cleaning glazing products: A state-of-the-art review and future research pathways. Sol. Energy Mater. Sol. Cells 2013, 109, 126–141. [Google Scholar] [CrossRef]
  9. Hanaor, D.A.H.; Sorrell, C.C. Review of the anatase to rutile phase transformation. J. Mater. Sci. 2011, 46, 855–874. [Google Scholar] [CrossRef]
  10. Wu, M.-C.; Hsiao, K.-C.; Chang, Y.-H.; Kordás, K. Core–shell heterostructures of rutile and anatase TiO2 nanofibers for photocatalytic solar energy conversion. ACS Appl. Nano Mater. 2019, 2, 1970–1979. [Google Scholar] [CrossRef]
  11. Byrne, C.; Fagan, R.; Hinder, S.; McCormack, D.E.; Pillai, S.C. New approach of modifying the anatase to rutile transition temperature in TiO2 photocatalysts. RSC Adv. 2016, 6, 95232–95238. [Google Scholar] [CrossRef]
  12. Hedrich, C.; Deduytsche, D.; Petit, R.R.; Krekeler, T.; Peng, J.; Ritter, M.; Dendooven, J.; Detavernier, C.; Blick, R.H.; Zierold, R. Tuning the crystallization temperature of titanium dioxide thin films by incorporating silicon dioxide via supercycle atomic layer deposition. Surf. Interfaces 2025, 57, 105696. [Google Scholar] [CrossRef]
  13. Simionescu, O.G.; Romanițan, C.; Tutunaru, O.; Ion, V.; Buiu, O.; Avram, A. RF Magnetron Sputtering Deposition of TiO2 Thin Films in a Small Continuous Oxygen Flow Rate. Coatings 2019, 9, 442. [Google Scholar] [CrossRef]
  14. Pylnev, M.; Santos, F.R.; Zhang, D.; Alawadhi, H.; Tabet, N. Compact TiO2 layer by UV-assisted TiBr4 chemical bath deposition for perovskite solar cells. Mater. Sci. Semicond. Process. 2023, 161, 107467. [Google Scholar] [CrossRef]
  15. Wisz, G.; Sibiński, M.; Łabuz, M.; Potera, P.; Płoch, D.; Bester, M.; Yavorskyi, R. Effect of annealing in air on the structural and optical properties and efficiency improvement of TiO2/CuxO solar cells obtained via direct-current reactive magnetron sputtering. Materials 2025, 18, 888. [Google Scholar] [CrossRef]
  16. Lai, S.; Aubry, E.; Sublemontier, O.; Briois, P. One-step synthesis of TiO2/SiO2-np nanocomposite photocatalytic multilayer films: Effect of incorporation time sequences of SiO2 nanoparticles during the TiO2 film growth. Materials 2024, 17, 1227. [Google Scholar] [CrossRef]
  17. Mulus, D.A.S.; Permana, M.D.; Deawati, Y.; Eddy, D.R. A current review of TiO2 thin films: Synthesis and modification effect on the mechanism and photocatalytic activity. Appl. Surf. Sci. Adv. 2025, 27, 100746. [Google Scholar] [CrossRef]
  18. Anita; Yadav, A.K.; Khatun, N.; Kumar, S.; Tseng, C.M.; Biring, S.; Sen, S. Size and strain dependent anatase to rutile phase transition in TiO2 due to Si incorporation. J. Mater. Sci. Mater. Electron. 2017, 28, 19017–19024. [Google Scholar] [CrossRef]
  19. Sudhakar, N.; Singh, R.K.; Mishra, S.K.; Kannan, S. Quantitative studies on the size-induced anatase to rutile phase transformation in TiO2–SiO2 binary oxides during heat treatments. RSC Adv. 2014, 4, 48820–48828. [Google Scholar] [CrossRef]
  20. Singh, K.; Harish, S.; Hayakawa, Y.; Shimomura, M. Experimental and theoretical study of oxygen vacancy induced La-doped mesoporous TiO2 for enhanced thermal stability. AIP Adv. 2023, 13, 055107. [Google Scholar] [CrossRef]
  21. Du, J.; Li, B.; Huang, J.; Zhang, W.; Peng, H.; Zou, J. Hydrophilic and photocatalytic performances of lanthanum doped titanium dioxide thin films. J. Rare Earths 2013, 31, 992–996. [Google Scholar] [CrossRef]
  22. Christhunathan, V.; Farràs, P.; Tong, M. First-principles study of electronic properties of Zn and La doped and co-doped anatase TiO2. AIP Adv. 2023, 13, 125013. [Google Scholar] [CrossRef]
  23. Verma, V.; Singh, S.V. La-doped TiO2 nanoparticles for photocatalysis: Synthesis, activity in terms of degradation of methylene blue dye and regeneration of used nanoparticles. Arab. J. Sci. Eng. 2023, 48, 16431–16443. [Google Scholar] [CrossRef]
  24. Hu, E.-T.; Yu, F.; Liu, J.; Li, Y.; Lin, P.; Zhang, Q.; Yu, K.-H.; Cai, Q.-Y.; Wei, W. Room-temperature reactive sputtering of SiO2 films for high-transmittance linear variable optical filters. Opt. Express 2025, 33, 38515–38523. [Google Scholar] [CrossRef]
  25. Chao, R.; Cai, H.; Li, H.; Xue, Y. Effect of nitrogen doping on tribological properties of Ta2O5 coatings deposited by RF magnetron sputtering. Materials 2022, 15, 8291. [Google Scholar] [CrossRef]
  26. Wang, H.; Xu, L.; Lin, H.; Shi, G.; Li, Y.; Zhang, G. Room-temperature DC magnetron co-sputtering for TiO2 thin films: Influence of Co incorporation. Ceram. Int. 2025, 51, 51495–51504. [Google Scholar] [CrossRef]
  27. Yang, J.; Hu, Y.; Jin, C.; Zhuge, L.; Wu, X. Structural and optical properties of Er-doped TiO2 thin films prepared by dual-frequency magnetron co-sputtering. Thin Solid Film. 2017, 637, 9–13. [Google Scholar] [CrossRef]
  28. Xian, L.U.O.; Zhang, L.; Huang, R. Effects of silicon doping on phase transformation mechanism of titanium dioxide. J. Mater. Eng. 2020, 48, 99–107. [Google Scholar]
  29. Yang, Y.; Hao, X.; Zhang, L.; Ding, J.; Geng, L.; Zheng, J. Precision-Tuned Magnetron Sputtering for High-Performance Metalized Copper Films. Coatings 2025, 15, 1089. [Google Scholar] [CrossRef]
  30. Ma, H.; Wang, J.; Zhang, L.; Tan, H. Photocatalytic Properties of Titanium Dioxide Nanomembranes Annealed at Different Temperatures. Electroplat. Surf. Finish. 2021. [Google Scholar] [CrossRef]
  31. Xi, Y.; Liu, L.; Zhao, J.; Qin, X.; Zhang, J.; Zhang, C.; Liu, W. Effects of oxygen flow during fabrication by magnetron sputtering on structure and performance of Zr-doped HfO2 thin films. Materials 2023, 16, 5559. [Google Scholar] [CrossRef]
  32. Bulyarskiy, S.V.; Koiva, D.A.; Gusarov, G.G.; Latipov, E.V.; Rudakov, G.A.; Svetukhin, V.V. Crystallization of amorphous titanium oxide films upon annealing in an oxygen atmosphere. Mater. Sci. Eng. B 2022, 283, 115802. [Google Scholar] [CrossRef]
  33. Zhu, X.; Qin, F.; He, L.; Jiao, Y.; Feng, W. Enhanced photocatalytic activity of anatase/rutile heterojunctions by lanthanum and tin co-doping. Int. J. Mol. Sci. 2022, 23, 11339. [Google Scholar] [CrossRef]
  34. Cui, Y.; Zhao, Y.; Zhang, G.; Zhu, M.; Song, C.; Tao, C.; Shu, T.; Shao, J. Influence of annealing temperature on the performance of TiO2/SiO2 nanolaminated films. Chin. Opt. Lett. 2021, 19, 121406. [Google Scholar] [CrossRef]
  35. Shukla, S.; Shirodkar, S.; Panda, E. Anatase to rutile transition in TiO2 thin films: Role of tantalum and oxygen. J. Alloys Compd. 2024, 1006, 176242. [Google Scholar] [CrossRef]
  36. Gasser, F.; John, S.; Smets, J.; Simbrunner, J.; Fratschko, M.; Rubio-Giménez, V.; Ameloot, R.; Steinrück, H.-G.; Resel, R. A systematic approach for quantitative orientation and phase fraction analysis of thin films through grazing-incidence X-ray diffraction. Appl. Crystallogr. 2025, 58, 1288–1298. [Google Scholar] [CrossRef] [PubMed]
  37. Villeneuve-Faure, C.; Mitronika, M.; Dan, A.P.; Boudou, L.; Ravisy, W.; Besland, M.P.; Richard-Plouet, M.; Goullet, A. Nanoscale dielectric properties of TiO2 in SiO2 nanocomposite deposited by hybrid PECVD method. Nano Express 2024, 5, 015010. [Google Scholar] [CrossRef]
  38. Steinberg, P.Y.; Borovik, P.F.; Illia, G.J.A.A.S.; Angelomé, P.C. Following thermal evolution of mesoporous TiO2: From the sol to the oxide. J. Sol-Gel Sci. Technol. 2022, 102, 151–159. [Google Scholar] [CrossRef]
  39. Wang, X.; Xu, P.; Han, R.; Ren, J.; Li, L.; Han, N.; Xing, F.; Zhu, J. A review on the mechanical properties for thin film and block structure characterized by using nanoscratch test. Nanotechnol. Rev. 2019, 8, 628–644. [Google Scholar] [CrossRef]
  40. Cao, P.; Zhang, L.; Yuan, Y. Structural and Performance Studies of Lanthanum–Nitrogen Co-Doped Titanium Dioxide Thin Films Under UV Aging. Micromachines 2025, 16, 842. [Google Scholar] [CrossRef] [PubMed]
  41. Liang, Q.; Xu, X.; Xia, H. Temperature-induced changes in the structure and properties of TiO2 films. J. Northwest Univ. Nat. Sci. Ed. 2019, 49, 580–587. [Google Scholar] [CrossRef]
  42. da Silva, A.L.; Bettini, J.; Bernardes, A.A.; Castro, R.H.; Gouvea, D. Improving TiO2 anatase nanostability via interface segregation: The role of the ionic radius. J. Phys. Chem. C 2023, 127, 1536–1547. [Google Scholar] [CrossRef]
  43. Cheepborisutikul, S.J.; Ogawa, M. Controlled phase transformation and crystal growth of titanium dioxide from anatase/silica core/shell particles. Inorg. Chem. 2023, 62, 12166–12174. [Google Scholar]
  44. Bakardjieva, S.; Mares, J.; Fajgar, R.; Zenou, V.Y.; Maleckova, M.; Chatzisymeon, E.; Bibova, H.; Jirkovsky, J. The relationship between microstructure and photocatalytic behavior in lanthanum-modified 2D TiO2 nanosheets upon annealing of a freeze-cast precursor. RSC Adv. 2019, 9, 22988–23003. [Google Scholar] [CrossRef] [PubMed]
  45. Liu, Y.; Qian, L.; Guo, C.; Jia, X.; Wang, J.; Tang, W. Natural superhydrophilic TiO2/SiO2 composite thin films deposited by radio frequency magnetron sputtering. J. Alloys Compd. 2009, 479, 532–535. [Google Scholar] [CrossRef]
  46. Valencia-Alvarado, R.; de la Piedad-Beneitez, A.; López-Callejas, R.; Rodríguez-Méndez, B.G.; Mercado-Cabrera, A.; Peña-Eguiluz, R.; E Muñoz-Castro, A.; de la Rosa-Vázquez, J.M. Sequential processes to produce N-TiO2 films through Rf plasmas. MATEC Web Conf. 2016, 67, 06075. [Google Scholar] [CrossRef]
  47. Wenzel, R.N. Resistance of solid surfaces to wetting by water. Ind. Eng. Chem. 1936, 28, 988–994. [Google Scholar] [CrossRef]
  48. Khalifa, Z.S.; Shaban, M.; Ahmed, I.A. Photocatalytic degradation of methyl orange and methylene blue dyes by engineering the surface nano-textures of TiO2 thin films deposited at different temperatures via MOCVD. Molecules 2023, 28, 1160. [Google Scholar] [CrossRef]
  49. Borras, A.; González-Elipe, A.R. Wetting properties of polycrystalline TiO2 surfaces: A scaling approach to the roughness factors. Langmuir 2010, 26, 15875–15882. [Google Scholar] [CrossRef]
  50. Liu, X.; Du, G.; Li, M. True photoreactivity origin of Ti3+-doped anatase TiO2 crystals with respectively dominated exposed {001},{101}, and {100} facets. ACS Omega 2019, 4, 14902–14912. [Google Scholar] [CrossRef]
  51. Zhang, J.; Zhao, Z.; Wang, X.; Yu, T.; Guan, J.; Yu, Z.; Li, Z.; Zou, Z. Increasing the oxygen vacancy density on the TiO2 surface by La-doping for dye-sensitized solar cells. J. Phys. Chem. C 2010, 114, 18396–18400. [Google Scholar] [CrossRef]
  52. Mueller, R.; Kammler, H.K.; Wegner, K.; Pratsinis, S.E. OH surface density of SiO2 and TiO2 by thermogravimetric analysis. Langmuir 2003, 19, 160–165. [Google Scholar] [CrossRef]
  53. Choi, Y.M.; Kang, D.; Kim, J.N.; Park, I.K. Evaluation of adhesion properties of thin film structure through surface acoustic wave dispersion simulation. Materials 2022, 15, 5637. [Google Scholar] [CrossRef] [PubMed]
  54. Tomastik, J.; Ctvrtlik, R. Nanoscratch test—A tool for evaluation of cohesive and adhesive properties of thin films and coatings. EPJ Web Conf. 2013, 48, 00027. [Google Scholar]
  55. Chen, H.-C.; Chang, C.-H.; Chen, K.-H. Optical and stress properties of ZrO2/SiO2 and TiO2/SiO2 anti-reflective coatings deposited by ion-beam-assisted deposition on a flexible substrate. Appl. Opt. 2024, 63, 8280–8287. [Google Scholar]
  56. Huff, M. Residual stresses in deposited thin-film material layers for micro-and nano-systems manufacturing. Micromachines 2022, 13, 2084. [Google Scholar] [CrossRef] [PubMed]
  57. Jia, Q.; Zhang, Y.; Wu, Z.; Zhang, P. Tribological properties of anatase TiO2 sol–gel films controlled by mutually soluble dopants. Tribol. Lett. 2007, 26, 19–24. [Google Scholar]
  58. Wang, X.; Rong, J.; Yao, Y.; Zhang, Y.; Zhong, Y.; Feng, J.; Yu, X.; Zhan, Z. La doping inhibits stress production at the grain boundaries in Ni–WC coating. J. Alloys Compd. 2018, 753, 688–694. [Google Scholar] [CrossRef]
  59. Afzal, A.; Habib, A.; Ulhasan, I.; Shahid, M.; Rehman, A. Antireflective self-cleaning TiO2 coatings for solar energy harvesting applications. Front. Mater. 2021, 8, 687059. [Google Scholar] [CrossRef]
  60. Bersch, J.D.; Flores-Colen, I.; Masuero, A.B.; Molin, D.C.C.D. Photocatalytic TiO2-based coatings for mortars on facades: A review of efficiency, durability, and sustainability. Buildings 2023, 13, 186. [Google Scholar] [CrossRef]
  61. Guldin, S.; Kohn, P.; Stefik, M.; Song, J.; Divitini, G.; Ecarla, F.; Ducati, C.; Wiesner, U.; Steiner, U. Self-cleaning antireflective optical coatings. Nano Lett. 2013, 13, 5329–5335. [Google Scholar] [CrossRef]
Micromachines 17 00617 g001

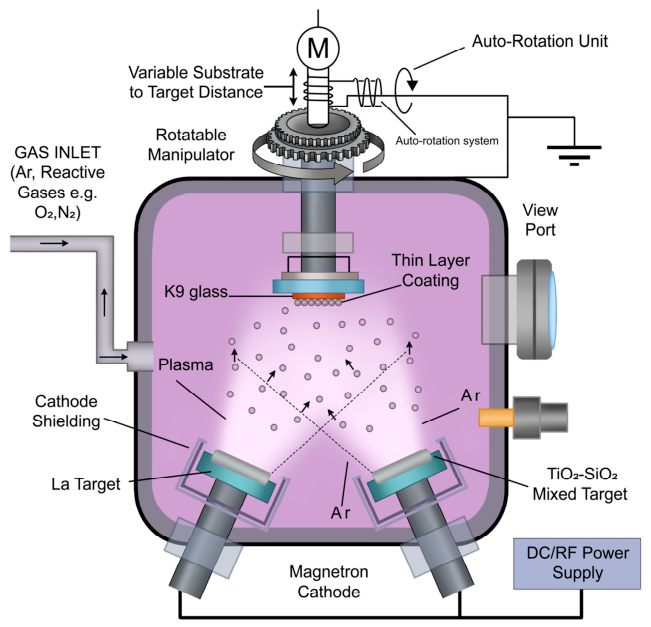

Figure 1. Schematic diagram of dual-target magnetron sputtering coating.
Figure 1. Schematic diagram of dual-target magnetron sputtering coating.
Micromachines 17 00617 g001
Micromachines 17 00617 g002

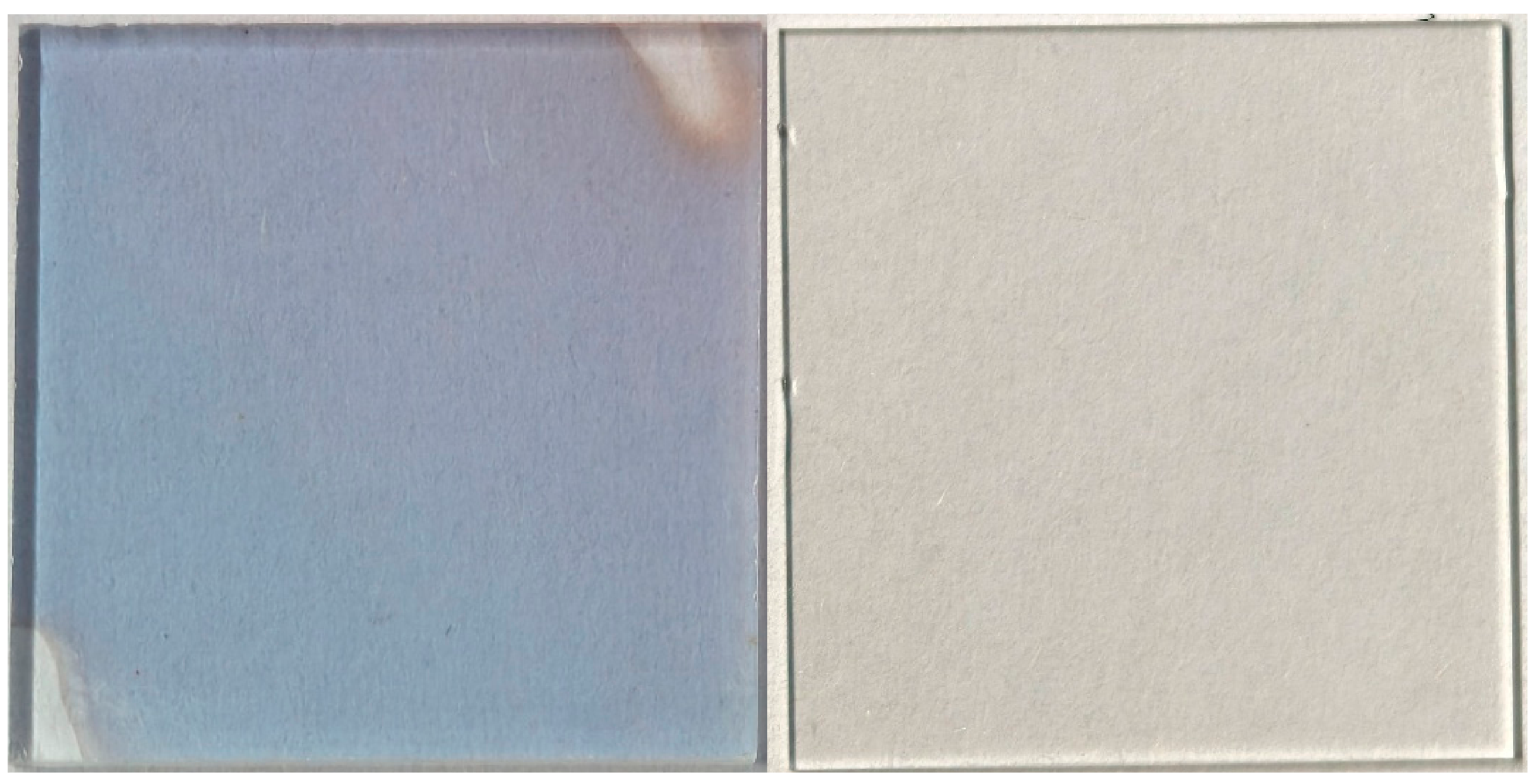

Figure 2. Pure titanium dioxide film (left) and lanthanum-doped titanium dioxide–silicon dioxide composite film (right).
Figure 2. Pure titanium dioxide film (left) and lanthanum-doped titanium dioxide–silicon dioxide composite film (right).
Micromachines 17 00617 g002
Micromachines 17 00617 g003

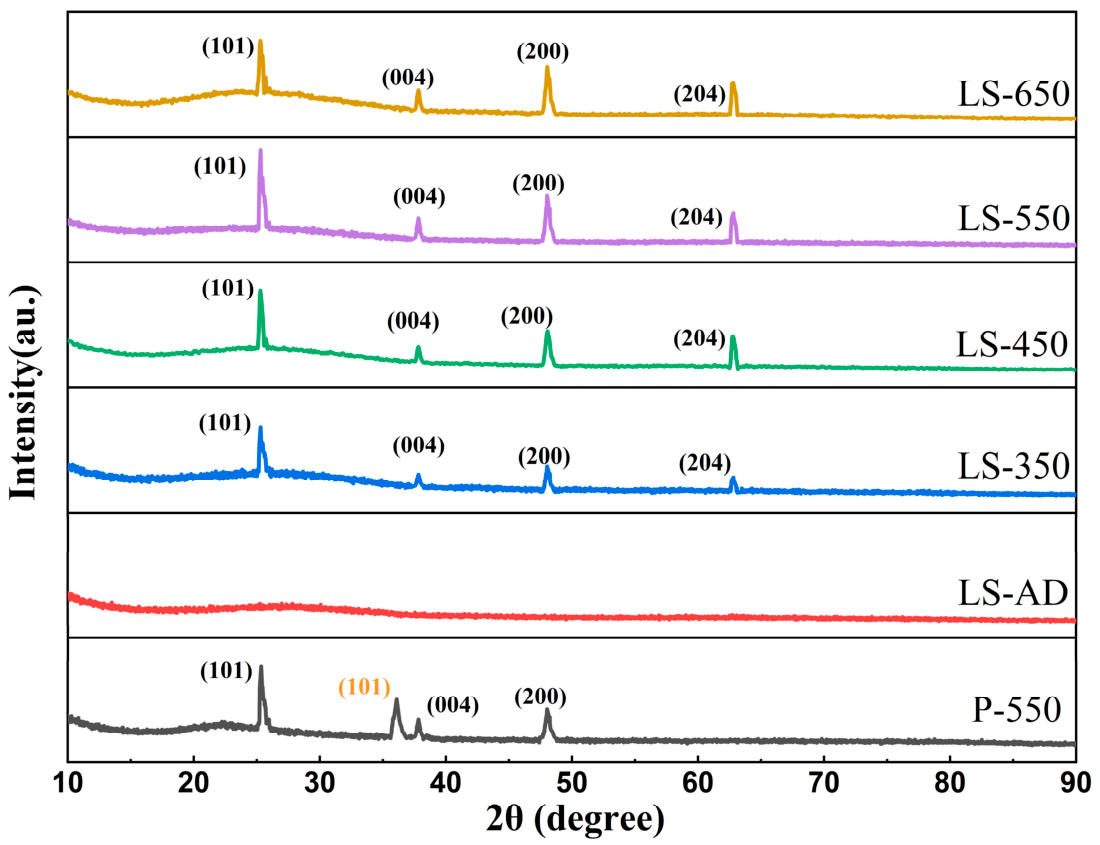

Figure 3. XRD patterns of La-doped TiO2-SiO2 composite films at different annealing temperatures.
Figure 3. XRD patterns of La-doped TiO2-SiO2 composite films at different annealing temperatures.
Micromachines 17 00617 g003
Micromachines 17 00617 g004
Figure 4. SEM images of the films at different annealing temperatures.
Figure 4. SEM images of the films at different annealing temperatures.
Micromachines 17 00617 g004
Micromachines 17 00617 g005

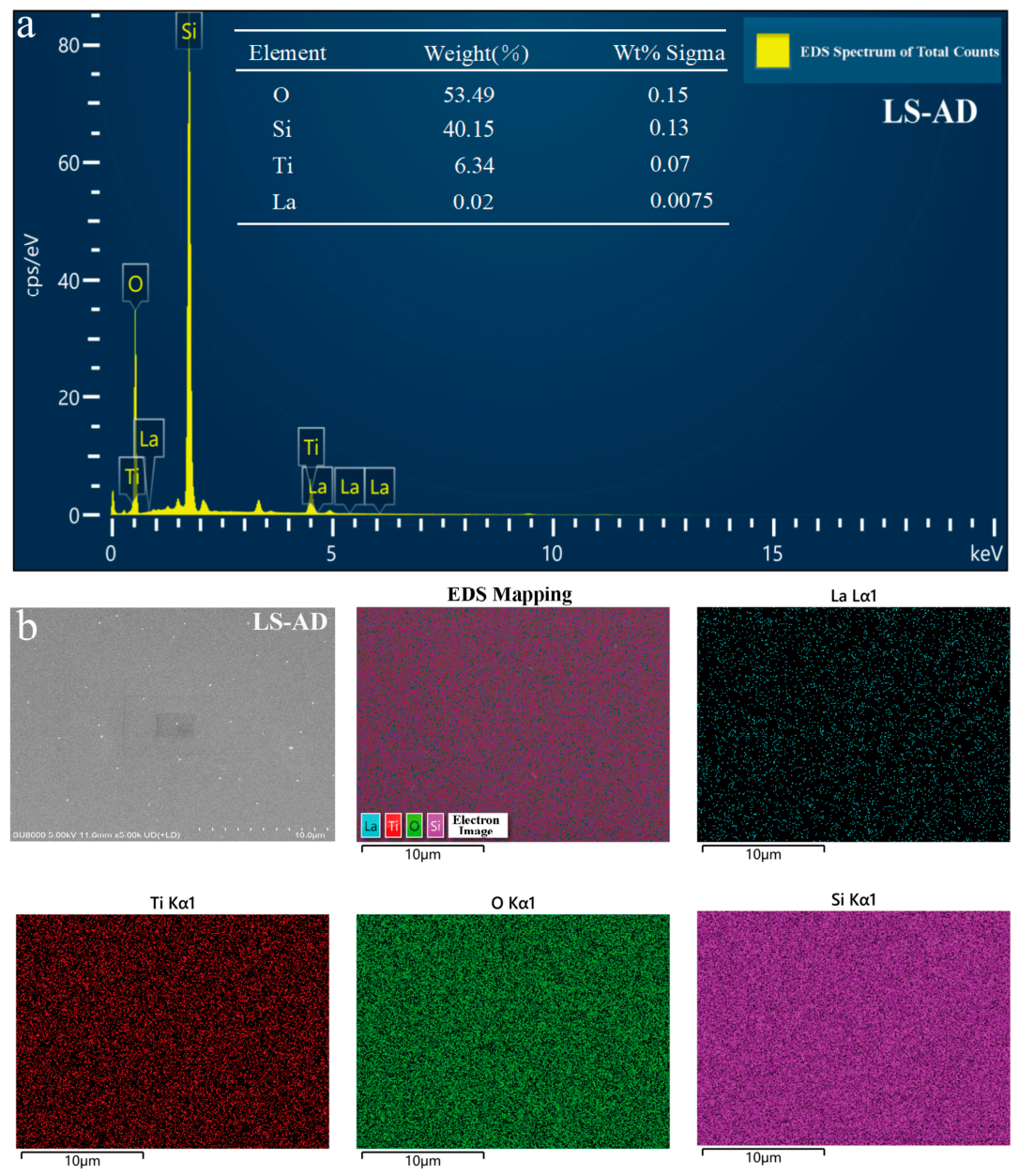

Figure 5. EDS spectra and elemental mapping of the as-deposited composite film (LS-AD). (a) EDS spectrum of the as-deposited composite film (LS-AD). (b) Elemental mapping of the as-deposited composite film (LS-AD).
Figure 5. EDS spectra and elemental mapping of the as-deposited composite film (LS-AD). (a) EDS spectrum of the as-deposited composite film (LS-AD). (b) Elemental mapping of the as-deposited composite film (LS-AD).
Micromachines 17 00617 g005
Micromachines 17 00617 g006

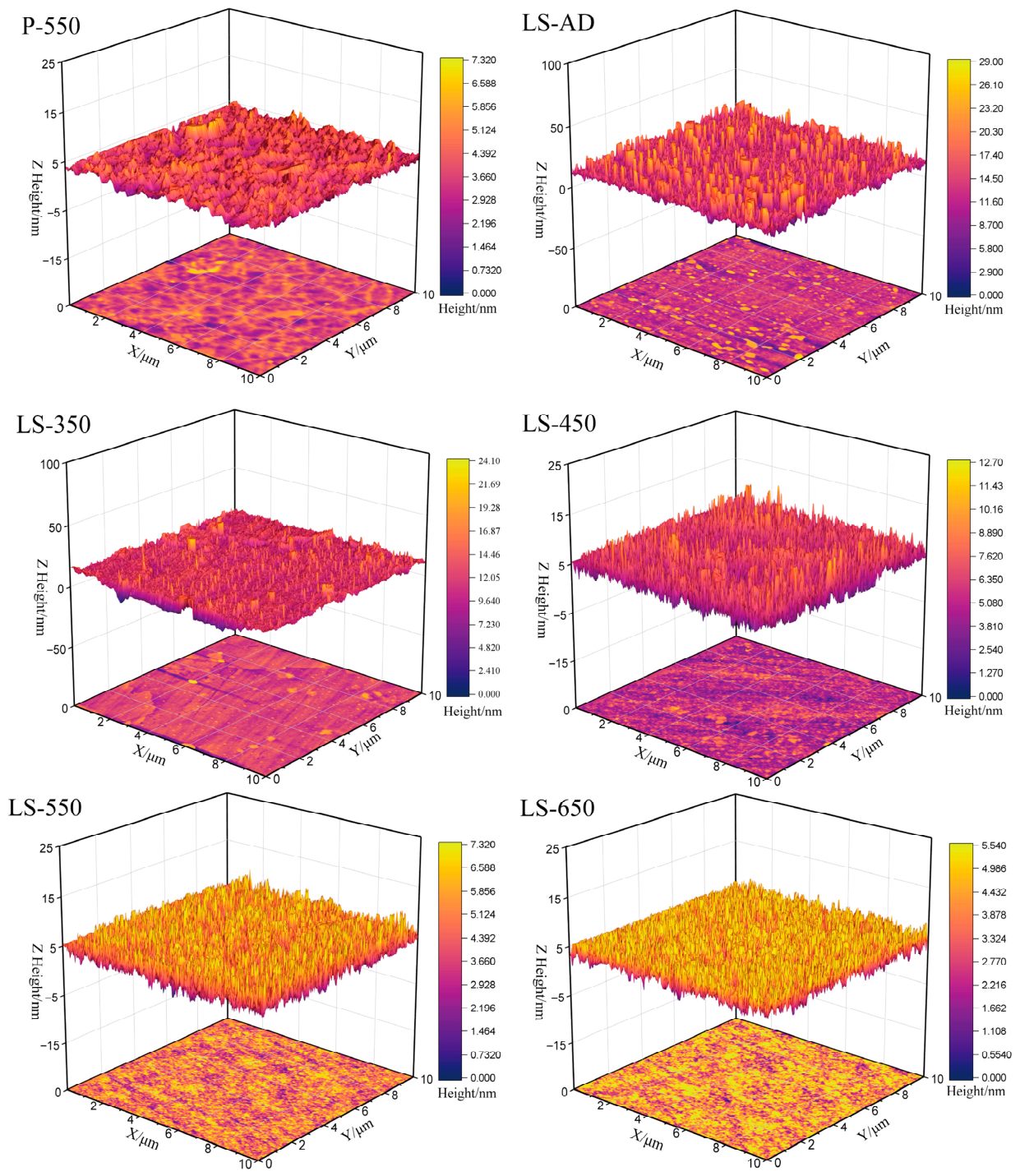

Figure 6. AFM images of the film at different annealing temperatures.
Figure 6. AFM images of the film at different annealing temperatures.
Micromachines 17 00617 g006
Micromachines 17 00617 g007

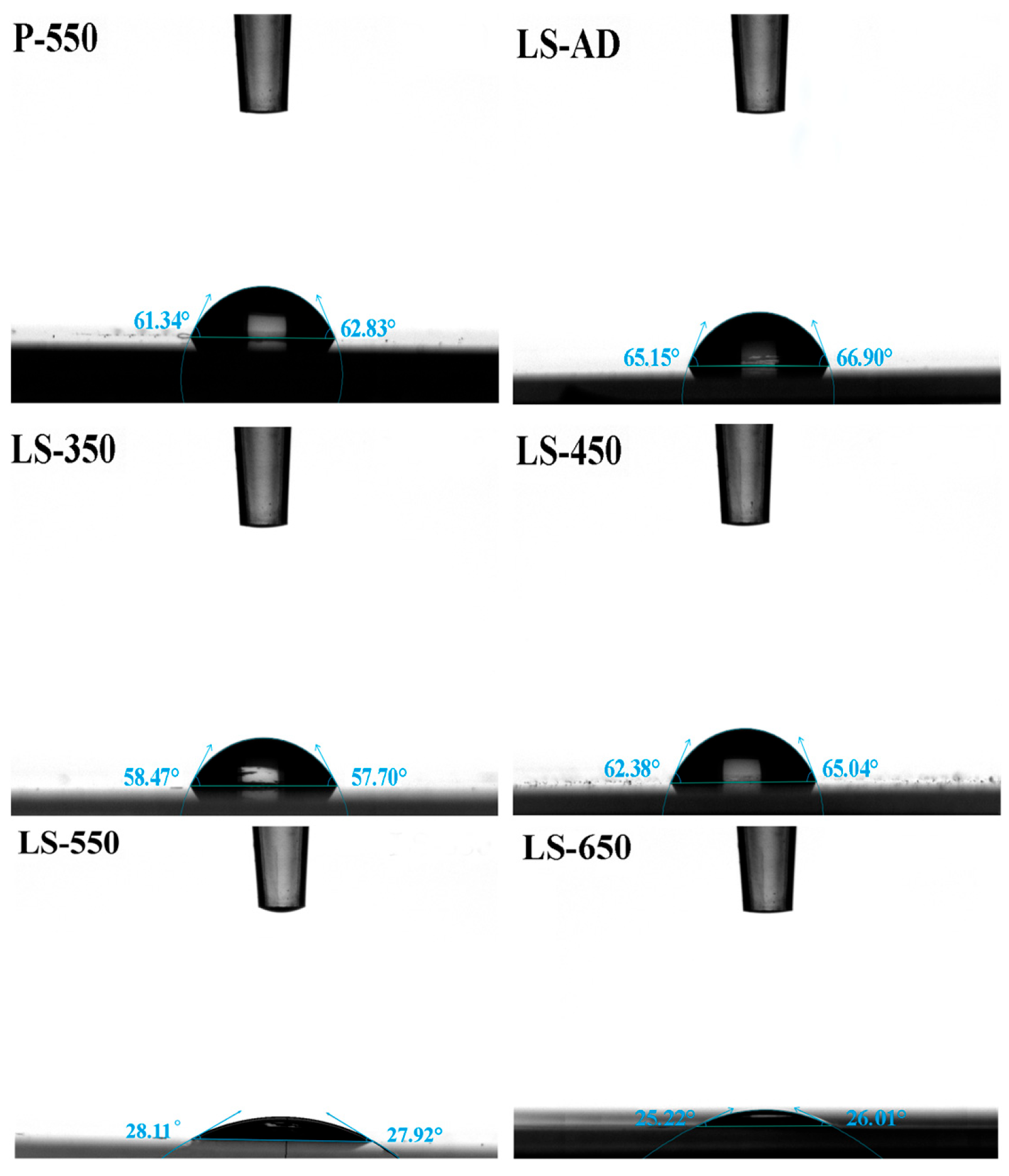

Figure 7. Contact angle profiles of films annealed at different temperatures.
Figure 7. Contact angle profiles of films annealed at different temperatures.
Micromachines 17 00617 g007
Micromachines 17 00617 g008

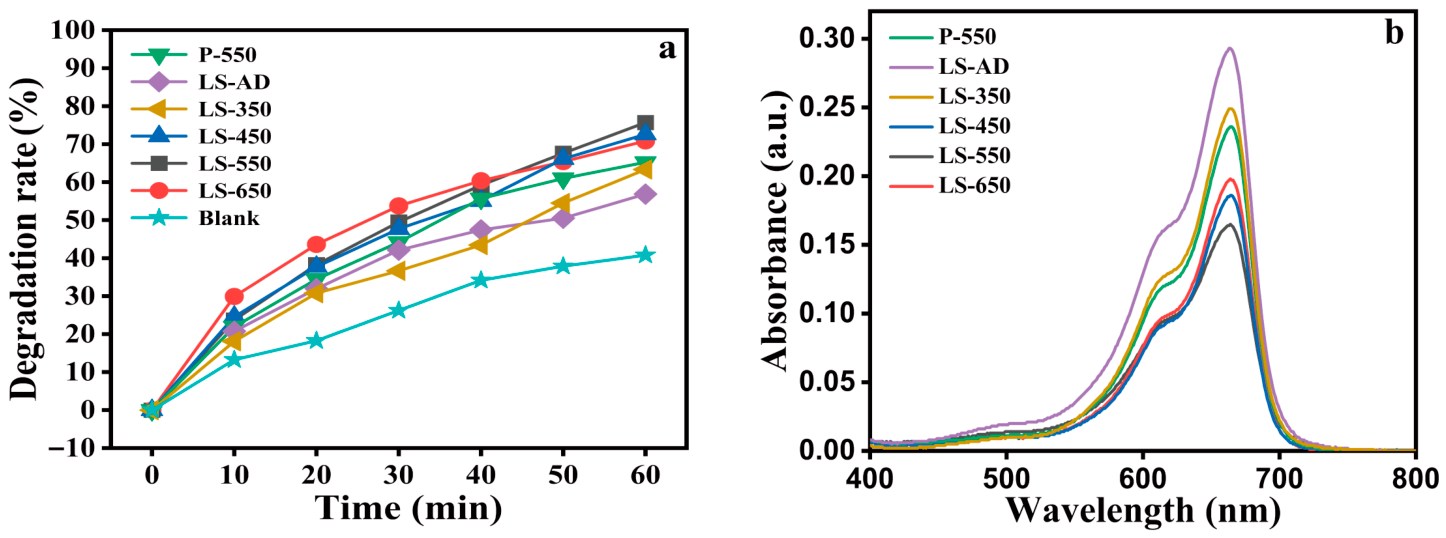

Figure 8. Photocatalytic performance of the La-doped TiO2-SiO2 composite films. Time-dependent degradation rates of methylene blue (MB) solution under full-spectrum irradiation for various annealed films and a blank glass substrate (a). UV-Vis absorbance spectra of the corresponding MB solutions after 60 min of reaction (b).
Figure 8. Photocatalytic performance of the La-doped TiO2-SiO2 composite films. Time-dependent degradation rates of methylene blue (MB) solution under full-spectrum irradiation for various annealed films and a blank glass substrate (a). UV-Vis absorbance spectra of the corresponding MB solutions after 60 min of reaction (b).
Micromachines 17 00617 g008
Micromachines 17 00617 g009

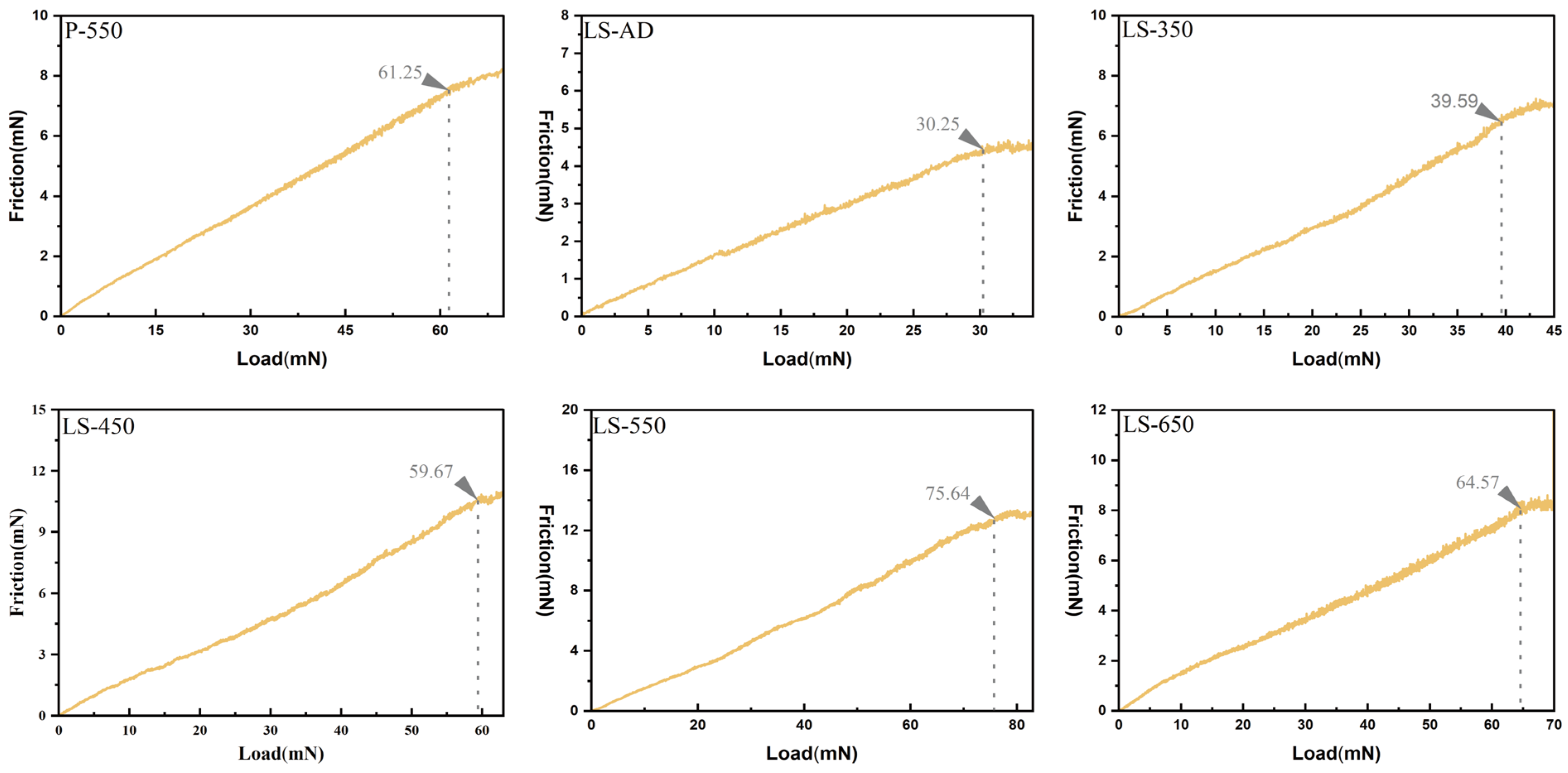

Figure 9. Adhesion strength of the film at different annealing temperatures.
Figure 9. Adhesion strength of the film at different annealing temperatures.
Micromachines 17 00617 g009
Table 1. Nomenclature of Experimental Samples.
Table 1. Nomenclature of Experimental Samples.
Labeling of SamplesComposition of the SampleAnnealing Temperature (°C)Notes
P-550TiO2550control group
LS-ADLa, SiO2As-deposited
LS-350La, SiO2350
LS-450La, SiO2450
LS-550La, SiO2550
LS-650La, SiO2650
Table 2. Quantitative XRD analysis results of the anatase and rutile phases.
Table 2. Quantitative XRD analysis results of the anatase and rutile phases.
SampleAnatase Crystallinity IndexRutile Crystallinity Index
P-55032.3%12.4%
LS-AD——
LS-35028.0%—
LS-45045.9%—
LS-55049.7%—
LS-65041.6%—
Table 3. Roughness Data Sheet.
Table 3. Roughness Data Sheet.
SampleAverage Surface Roughness (Ra/nm)Root Mean Square Roughness (RMS/nm)
P-5501.19891.7042
LS-AD3.27534.6231
LS-3501.34221.9187
LS-4501.00621.2508
LS-5501.09491.3683
LS-6500.98401.2194
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yuan, Y.; Zhang, L.; Li, L.; Wang, M.; Wang, W.; Wang, L. Microstructural Evolution and Enhanced Macroscopic Properties of La-Doped TiO2-SiO2 Composite Films Under Gradient Annealing. Micromachines 2026, 17, 617. https://doi.org/10.3390/mi17050617

AMA Style

Yuan Y, Zhang L, Li L, Wang M, Wang W, Wang L. Microstructural Evolution and Enhanced Macroscopic Properties of La-Doped TiO2-SiO2 Composite Films Under Gradient Annealing. Micromachines. 2026; 17(5):617. https://doi.org/10.3390/mi17050617

Chicago/Turabian Style

Yuan, Yanbo, Li Zhang, Lei Li, Mengyang Wang, Wenjun Wang, and Lin Wang. 2026. "Microstructural Evolution and Enhanced Macroscopic Properties of La-Doped TiO2-SiO2 Composite Films Under Gradient Annealing" Micromachines 17, no. 5: 617. https://doi.org/10.3390/mi17050617

APA Style

Yuan, Y., Zhang, L., Li, L., Wang, M., Wang, W., & Wang, L. (2026). Microstructural Evolution and Enhanced Macroscopic Properties of La-Doped TiO2-SiO2 Composite Films Under Gradient Annealing. Micromachines, 17(5), 617. https://doi.org/10.3390/mi17050617

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
