Integrated Additive Manufacturing of TGV Interconnects and High-Frequency Circuits via Bipolar-Controlled EHD Jetting

by
Dongqiao Bai
1,
Jin Huang
1,*,
Hongxiao Gong
1,*,
Jianjun Wang
1,
Yunna Pu
1,
Jiaying Zhang
1,
Peng Sun
1,
Zihan Zhu
1,
Pan Li
1,
Huagui Wang
1,
Pengbing Zhao
1 and
Chaoyu Liang
2
1
State Key Laboratory of Electromechanical Integrated Manufacturing of High-Performance Electronic Equipments, Xidian University, Xi’an 710071, China
2
School of Construction Machinery, Chang’an University, Xi’an, 710064, China
*
Authors to whom correspondence should be addressed.
Micromachines 2025, 16(8), 907; https://doi.org/10.3390/mi16080907 (registering DOI)
Submission received: 15 July 2025 / Revised: 31 July 2025 / Accepted: 1 August 2025 / Published: 2 August 2025
Versions Notes

Abstract

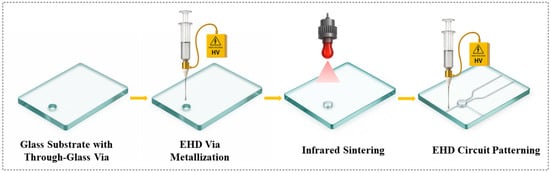

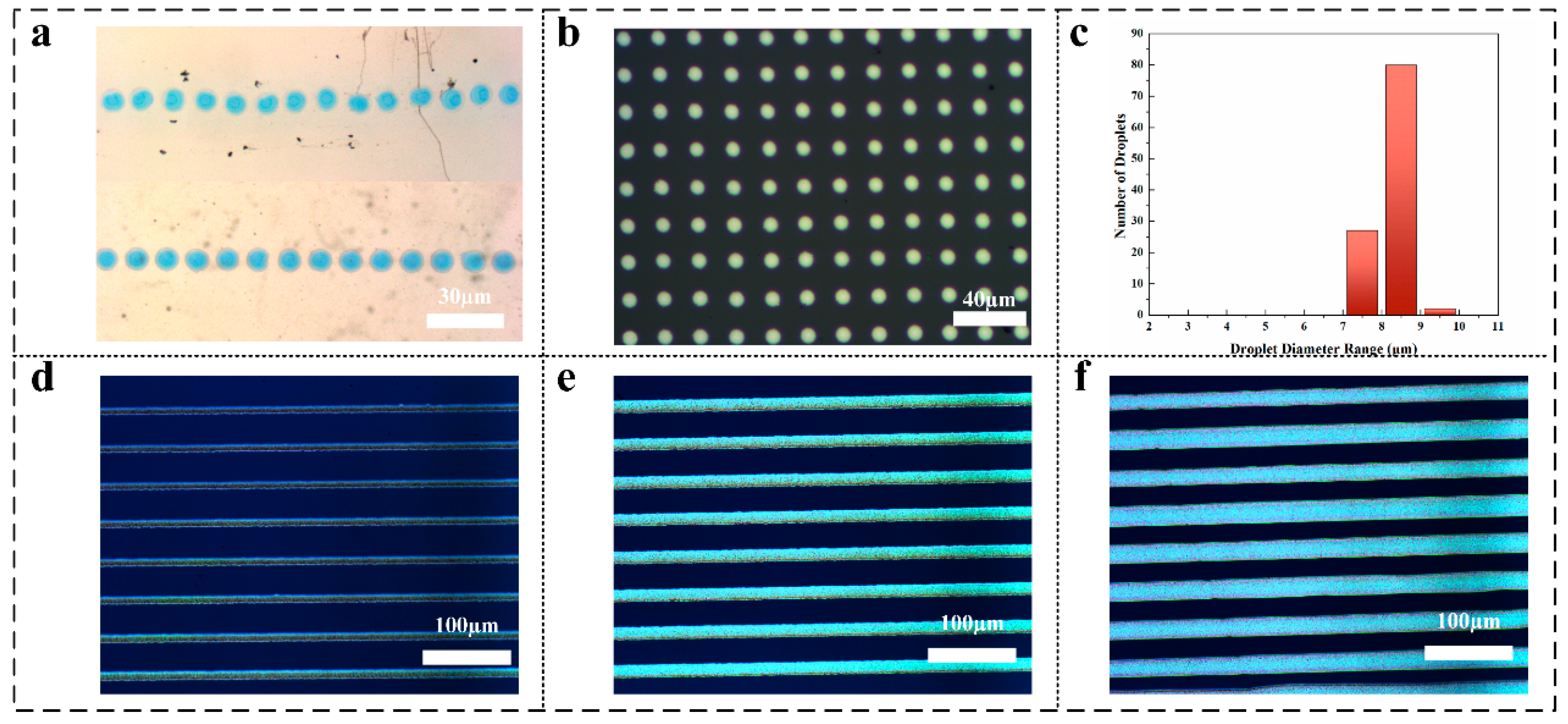

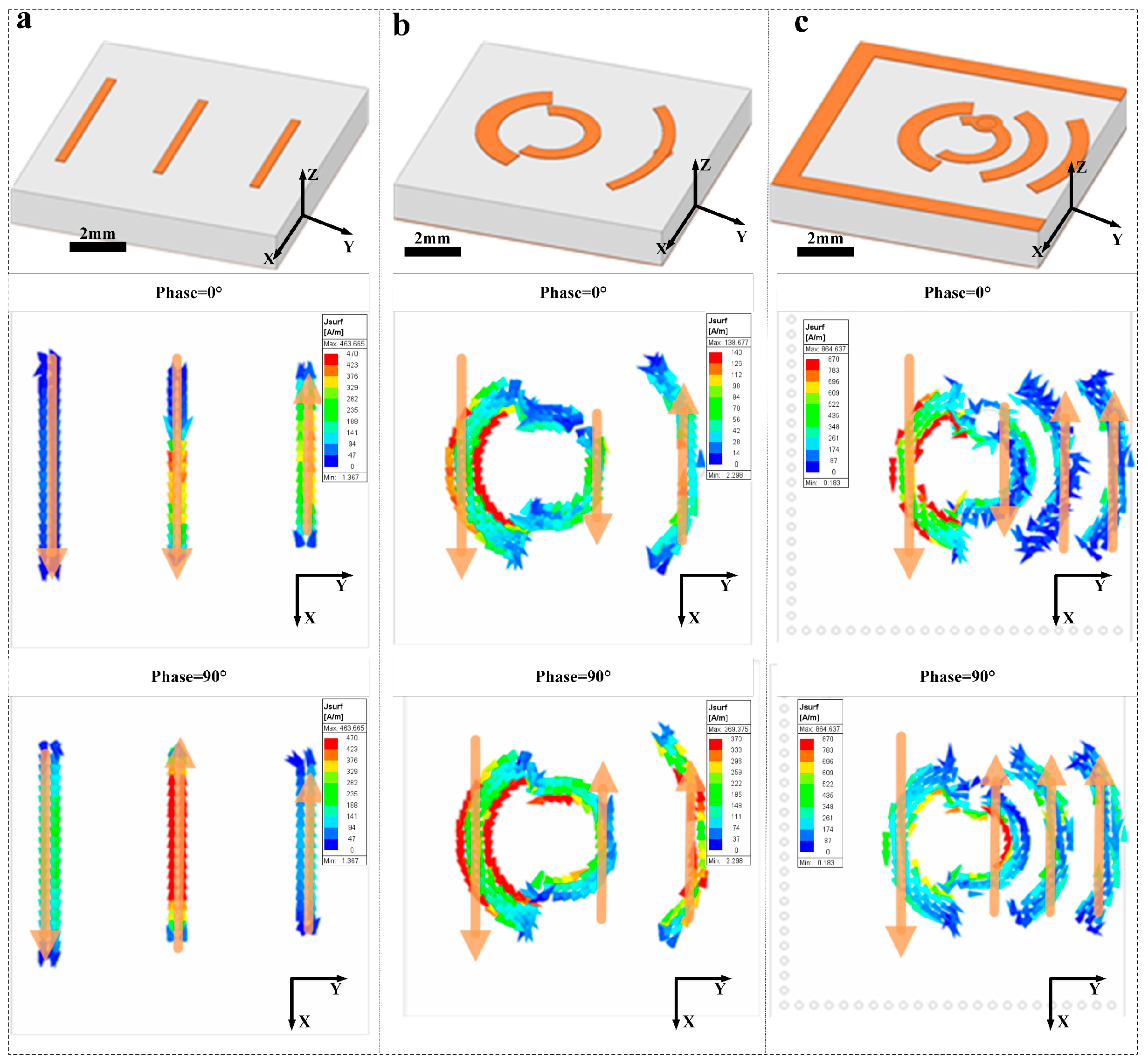

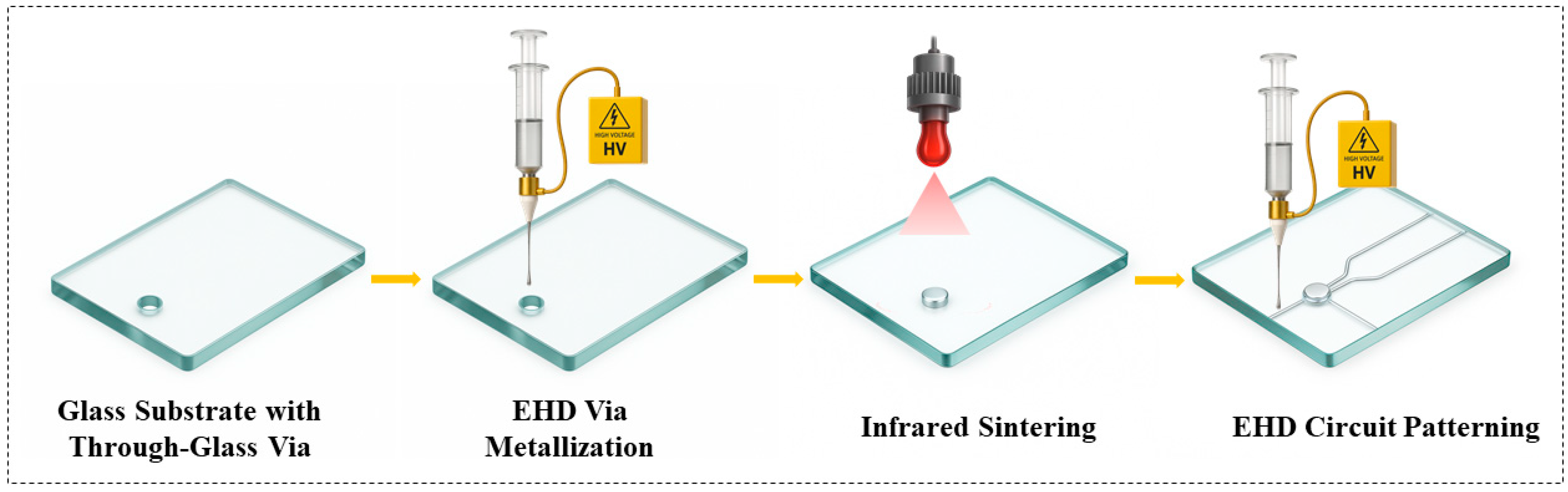

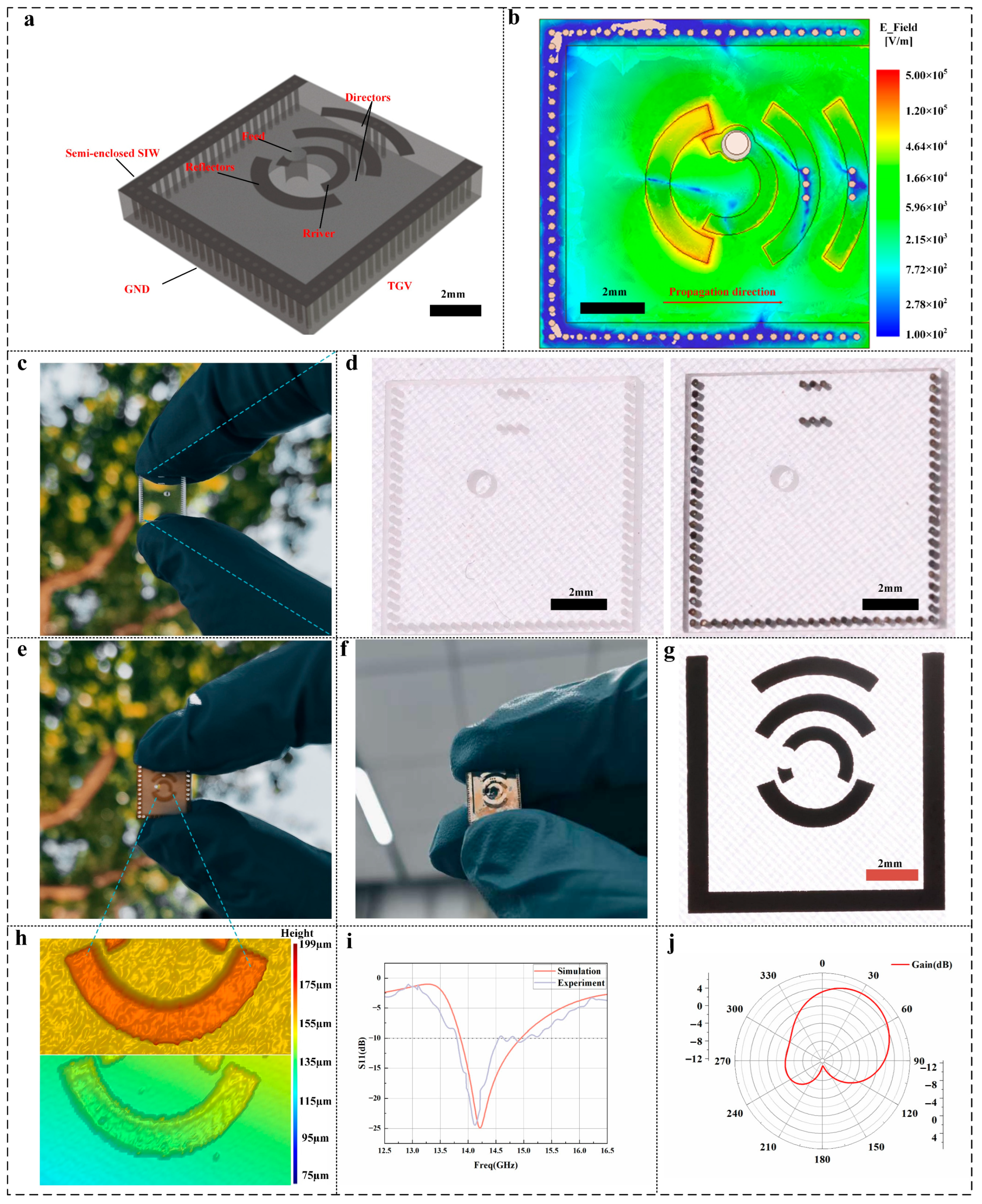

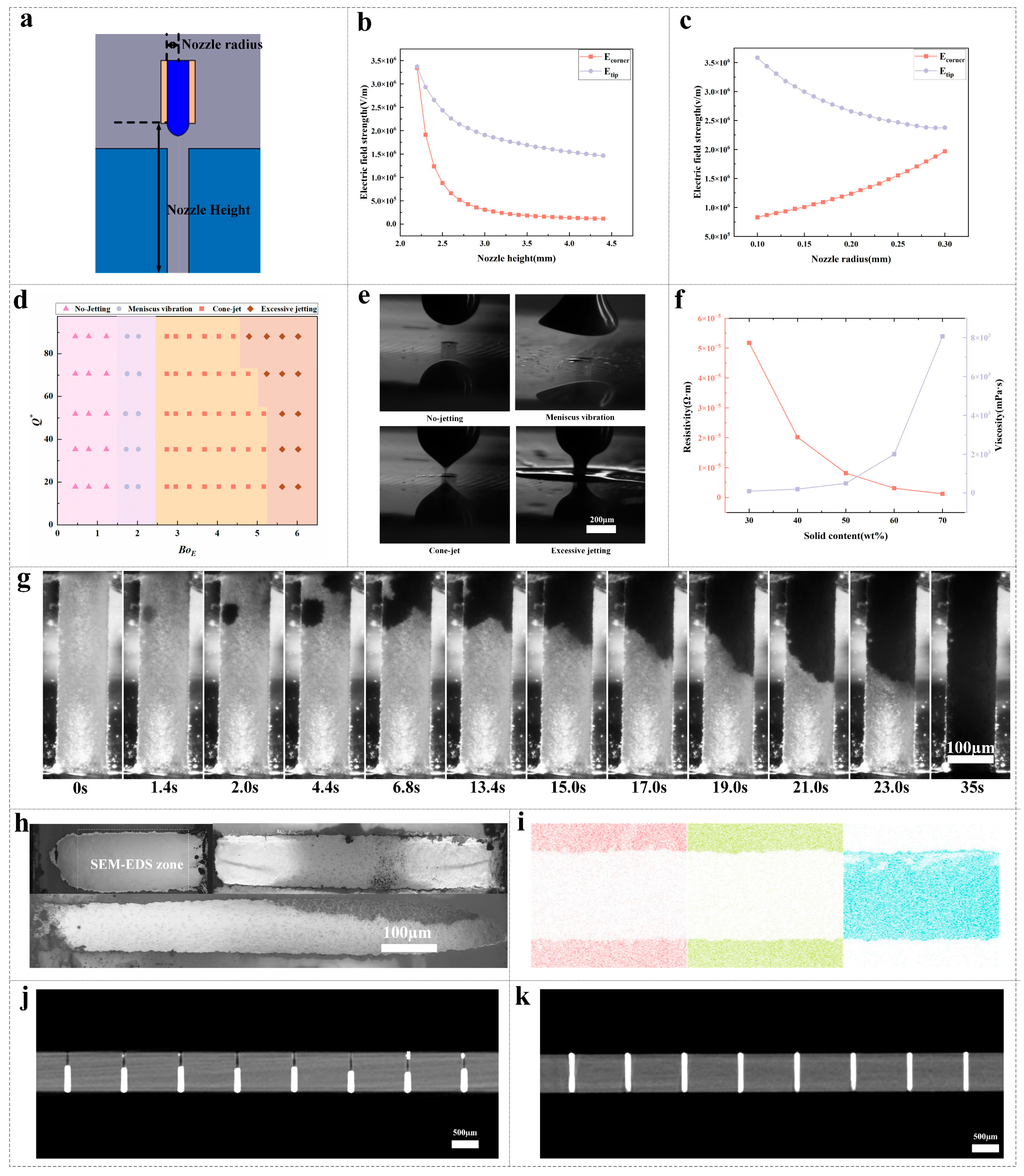

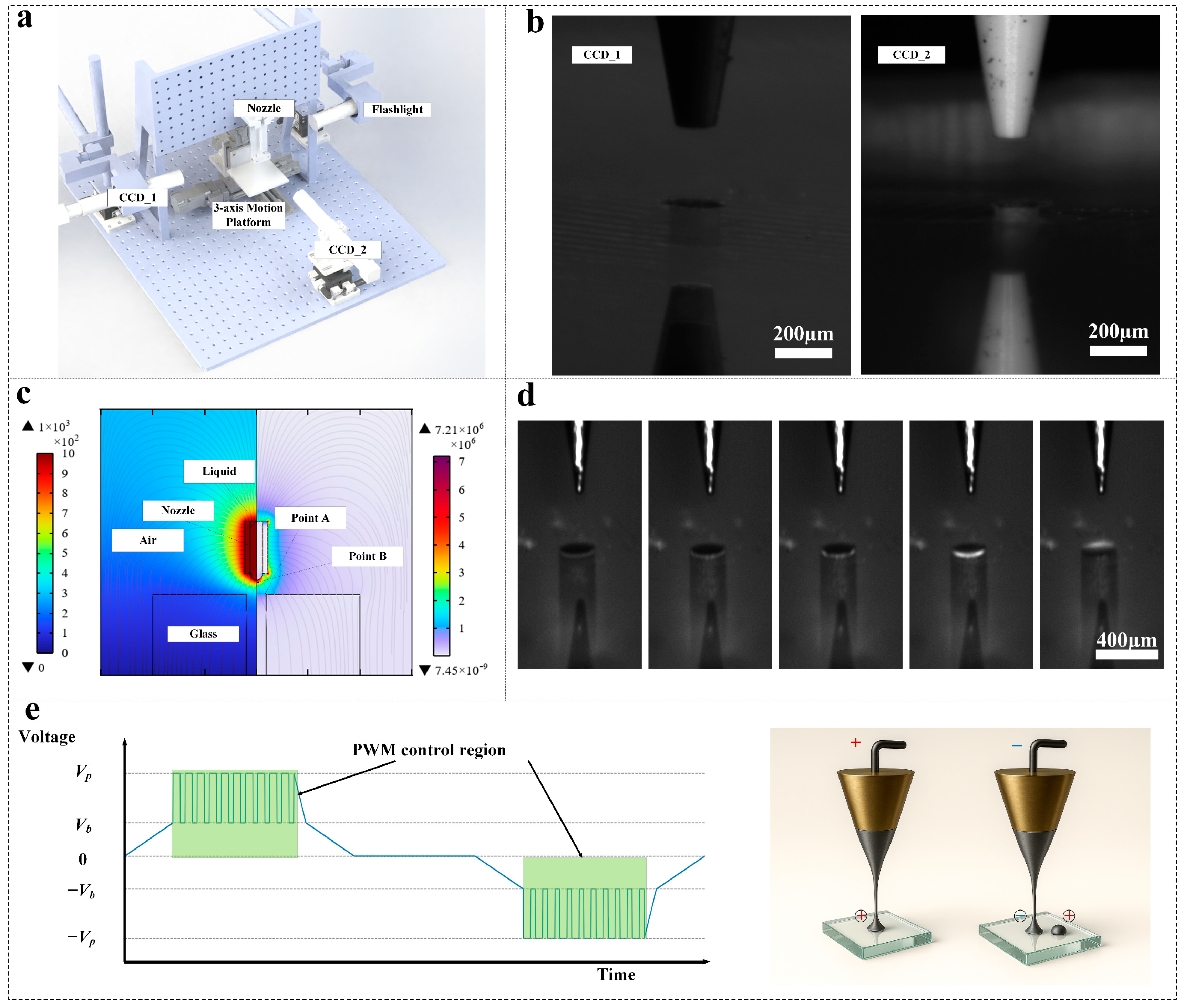

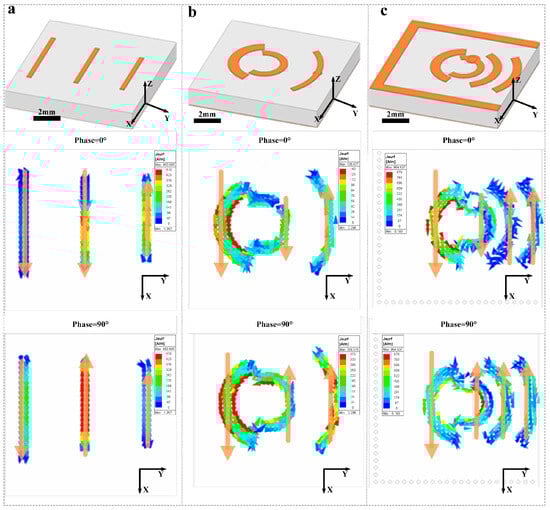

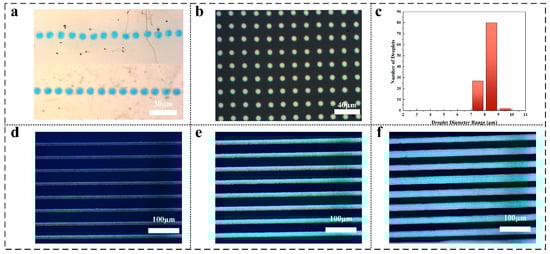

Electrohydrodynamic (EHD) printing offers mask-free, high-resolution deposition across a broad range of ink viscosities, yet combining void-free filling of high-aspect-ratio through-glass vias (TGVs) with ultrafine drop-on-demand (DOD) line printing on the same platform requires balancing conflicting requirements: for example, high field strengths to drive ink into deep and narrow vias; sufficiently high ink viscosity to prevent gravity-induced leakage; and stable meniscus dynamics to avoid satellite droplets and charge accumulation on the glass surface. By coupling electrostatic field analysis with transient level-set simulations, we establish a dimensionless regime map that delineates stable cone-jetting regime; these predictions are validated by high-speed imaging and surface profilometry. Operating within this window, the platform achieves complete, void-free filling of 200 µm × 1.52 mm TGVs and continuous 10 µm-wide traces in a single print pass. Demonstrating its capabilities, we fabricate transparent Ku-band substrate-integrated waveguide antennas on borosilicate glass: the printed vias and arc feed elements exhibit a reflection coefficient minimum of –18 dB at 14.2 GHz, a –10 dB bandwidth of 12.8–16.2 GHz, and an 8 dBi peak gain with 37° beam tilt, closely matching full-wave predictions. This physics-driven, all-in-one EHD approach provides a scalable route to high-performance, glass-integrated RF devices and transparent electronics.
Keywords: electrohydrodynamic (EHD) printing; through-glass via (TGV) filling; glass-integrated RF antenna electrohydrodynamic (EHD) printing; through-glass via (TGV) filling; glass-integrated RF antenna
