# Refining Altimeter-Derived Gravity Anomaly Model from Shipborne Gravity by Multi-Layer Perceptron Neural Network: A Case in the South China Sea

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

^{−5}m/s

^{2}) [8,9]. Even so, the altimetry waveforms can be contaminated by land and reefs, so the accuracy of altimeter-derived gravity decreases with the increasing proximity to the coastline [10,11]. The standard deviation (STD) of altimeter-measured sea surface heights increases with decreasing water depth [10]. Meanwhile, water depth in coastal areas is shallow, so the precision of altimeter-derived gravity is low in shallow waters. Gravity anomalies are related to submarine topographic undulation and crustal density variations [12,13,14]. Gravity anomalies change dramatically in areas with large topographic undulation. As gravity anomalies are derived from altimetric data in a calculation windows (tens of kilometers), the precision of altimeter-derived gravity is lower in areas with notable submarine topography [15,16,17]. The precision of modern shipborne gravity with higher resolution is approximately 1~3 mGal [18]. Moreover, coastlines and submarine topography have less effects on the accuracy of shipborne gravity than altimeter-derived gravity.

## 2. Materials and Methods

#### 2.1. Research Data

#### 2.1.1. Reference Gravity Model and Topography Model

#### 2.1.2. Shipborne Gravity

#### 2.1.3. Altimeter-Derived Gravity Anomaly Model

#### 2.2. Methodology

#### 2.2.1. Structure of MLP

#### 2.2.2. Refined Area Classification

#### 2.2.3. Training and Predicting

^{−4}. Taking overfitting of training and observation errors of shipborne gravity into account, the iteration threshold and maximum number of iterations should be determined through testing, so that the determination coefficient R

^{2}for training is approximately 0.7. Therefore, the MLP models are established by the MLP training.

## 3. Results

#### 3.1. Refining the Gravity Model by Classification

#### 3.2. Refining the Gravity Model as a Whole

#### 3.3. Analysis of the Refined Gravity Anomaly Model

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- King-Hele, D. The shape of the Earth. Science
**1976**, 192, 1293–1300. [Google Scholar] [CrossRef] [PubMed] - Rathnayake, S.; Tenzer, R. Interpretation of the lithospheric structure beneath the Indian Ocean from gravity gradient data. J. Asian Earth Sci.
**2019**, 183, 103934. [Google Scholar] [CrossRef] - Tenzer, R.; Gladkikh, V.; Novak, P.; Vajda, P. Spatial and spectral analysis of refined gravity data for modelling the crust-mantle interface and mantle-lithosphere structure. Surv. Geophys.
**2012**, 33, 817–839. [Google Scholar] [CrossRef] - Hotta, H.; Kubota, R.; Ishikawa, H.; Oshida, A.; Okada, C.; Matsuda, T.; Asakawa, E. The goal of the integrated ocean resources survey system (“INORSS”). In Next-generation Technology for Ocean Resources Exploration of “SIP”; OCEANS—MTS/IEEE Kobe Techno-Oceans Conference: Kobe, Japan; New York, NY, USA, 2018. [Google Scholar]
- Bobojc, A. Application of gravity gradients in the process of GOCE orbit determination. Acta Geophys.
**2016**, 64, 521–540. [Google Scholar] [CrossRef] [Green Version] - Sun, X.; Chen, P.; Macabiau, C.; Han, C. Low-Earth orbit determination from gravity gradient measurements. Acta Astronaut.
**2016**, 123, 350–362. [Google Scholar] [CrossRef] [Green Version] - Andersen, O.B.; Knudsen, P. The DTU17 global marine gravity field: First validation results. In Fiducial Reference Measurements for Altimetry, International Association of Geodesy Symposia; Mertikas, S., Pail, R., Eds.; Springer: Berlin/Heidelberg, Germany, 2019; Volume 150. [Google Scholar]
- Sandwell, D.T.; Harper, H.; Tozer, B.; Smith, W.H.F. Gravity field recovery from geodetic altimeter missions. Adv. Space Res.
**2019**. [Google Scholar] [CrossRef] - Sandwell, D.T.; Muller, R.D.; Smith, W.H.F.; Garcia, E.; Francis, R. New global marine gravity model from CryoSat-2 and Jason-1 reveals buried tectonic structure. Science
**2014**, 346, 65–67. [Google Scholar] [CrossRef] [PubMed] - Hwang, C.; Hsu, H.Y. Shallow-water gravity anomalies from satellite altimetry: Case studies in the east China sea and Taiwan strait. J. Chin. Inst. Eng.
**2008**, 31, 841–851. [Google Scholar] [CrossRef] - Zhang, S.; Sandwell, D.T.; Jin, T.; Li, D. Inversion of marine gravity anomalies over southeastern China seas from multi-satellite altimeter vertical deflections. J. Appl. Geophys.
**2017**, 137, 128–137. [Google Scholar] [CrossRef] [Green Version] - Sandwell, D.T.; Gille, S.T.; Orcutt, J.; Smith, W.H.F. Bathymetry from space is now possible. EOS Trans. Am. Geophys. Un.
**2003**, 84, 37–44. [Google Scholar] [CrossRef] - Kim, J.W.; von Frese, R.R.B.; Lee, B.Y.; Roman, D.R.; Doh, S.-J. Altimetry-derived gravity predictions of bathymetry by the gravity-geologic method. Pure Appl. Geophys.
**2010**, 168, 815–826. [Google Scholar] [CrossRef] - Fan, D.; Li, S.; Li, X.; Yang, J.; Wan, X. Seafloor Topography estimation from gravity anomaly and vertical gravity gradient using nonlinear iterative least square method. Remote Sens.
**2021**, 13, 64. [Google Scholar] [CrossRef] - Zaki, A.; Mansi, A.H.; Selim, M.; Rabah, M.; El-Fiky, G. Comparison of satellite altimetric gravity and global geopotential models with shipborne gravity in the Red Sea. Mar. Geodesy
**2018**, 41, 258–269. [Google Scholar] [CrossRef] - Zhu, C.; Guo, J.; Hwang, C.; Gao, J.; Yuan, J.; Liu, X. How HY-2A/GM altimeter performs in marine gravity derivation: Assessment in the South China Sea. Geophys. J. Int.
**2019**, 219, 1056–1064. [Google Scholar] [CrossRef] - Li, Z.; Liu, X.; Guo, J.; Zhu, C.; Yuan, J.; Gao, J.; Gao, Y.; Ji, B. Performance of Jason-2/GM altimeter in deriving marine gravity with the waveform derivative retracking method: A case study in the South China Sea. Arab. J. Geosci.
**2020**, 13, 939. [Google Scholar] [CrossRef] - Huang, M.; Wang, R.; Zhai, G.; Ouyang, Y. Integrated data processing for multi-satellite missions and recovery of marine gravity field. Geomat. Informat. Sci. Wuhan Univ.
**2007**, 32, 988–993. [Google Scholar] [CrossRef] [Green Version] - Wu, Y.H. Regional Gravity Field Modeling from Heterogeneous Data Sets by Using Poisson Wavelets Radial Basis Functions. Ph.D. Thesis, Wuhan University, Wuhan, China, 2016. [Google Scholar]
- Guo, J.; Liu, X.; Chen, Y.; Wang, J.; Li, C. Local normal height connection across sea with ship-borne gravimetry and GNSS techniques. Mar. Geophys. Res.
**2014**, 35, 141–148. [Google Scholar] [CrossRef] - Hwang, C.; Parsons, B. Gravity anomalies derived from Seasat, Geosat, ERS-1 and TOPEX/POSEIDON altimetry and ship gravity: A case study over the Reykjanes Ridge. Geophys. J. Int.
**1995**, 122, 551–568. [Google Scholar] [CrossRef] - Paolo, F.S.; Molina, E.C. Integrated marine gravity field in the Brazilian coast from altimeter-derived sea surface gradient and shipborne gravity. J. Geodynam.
**2010**, 50, 347–354. [Google Scholar] [CrossRef] - Wu, Y.H.; Luo, Z.C.; Zhou, B.Y. Regional gravity modeling based on heterogeneous data sets by using Poisson wavelets radial basis functions. Chin. J. Geophys.
**2016**, 59, 852–864. [Google Scholar] - Samuel, A.L. Some studies in machine learning using the game of checkers. IBM J.
**1959**, 3, 211–229. [Google Scholar] [CrossRef] - Bengio, Y.; Lecun, Y. Scaling learning algorithms towards AI. In Large-Scale Kernel Machines; Chapelle, O., Decoste, D., Eds.; MIT Press: Cambridge, UK, 2007; pp. 321–358. [Google Scholar]
- Bengio, Y.; Delalleau, O. On the expressive power of deep architectures. In Proceeding of the 14th International Conference on Discovery Science, Espoo, Finland, 5–7 October 2011; Springer: Berlin/Heidelberg, Germany, 2011; pp. 18–36. [Google Scholar]
- Widiasari, I.R.; Nugroho, L.E.; Widyawan, W. Deep learning multilayer perceptron (MLP) for flood prediction model using wireless sensor network based hydrology time series data mining. In Proceedings of the International Conference on Innovative and Creative Information Technology, Salatiga, Indonesia, 2–4 November 2017; IEEE: New York, NY, USA, 2017. [Google Scholar]
- Vafaeipour, M.; Rahbari, O.; Rosen, M.A.; Fazelpour, F.; Ansarirad, P. Application of sliding window technique for prediction of wind velocity time series. Int. J. Energy Environ. Eng.
**2014**, 5, 105. [Google Scholar] [CrossRef] [Green Version] - Voyant, C.; Nivet, M.L.; Paoli, C.; Muselli, M.; Notton, G. Meteorological time series forecasting based on MLP modelling using heterogeneous transfer functions. J. Phys. Conf. Ser.
**2015**, 574, 012064. [Google Scholar] [CrossRef] [Green Version] - Voyant, C.; Paoli, C.; Muselli, M.; Nivet, M.L. Multi-horizon solar radiation forecasting for Mediterranean locations using time series models. Renew. Sustain. Energy Rev.
**2013**, 28, 44–52. [Google Scholar] [CrossRef] [Green Version] - Guan, D.L.; Ke, X.P.; Wang, Y. Basement structures of East and South China Seas and adjacent regions from gravity inversion. J. Asian Earth Sci.
**2016**, 117, 242–255. [Google Scholar] [CrossRef] - Hwang, C.; Chang, E.T.Y. Seafloor secrets revealed. Science
**2014**, 346, 32–33. [Google Scholar] [CrossRef] [PubMed] - Pavlis, N.K.; Holmes, S.A.; Kenyon, S.C.; Factor, J.K. The development and evaluation of the Earth Gravitational Model 2008 (EGM2008). J. Geophys. Res.
**2012**, 117, B04406. [Google Scholar] [CrossRef] [Green Version] - Sandwell, D.T.; Garcia, E.; Soofi, K.; Wessel, P.; Chandler, M.; Smith, W.H.F. Toward 1-mGal accuracy in global marine gravity from CryoSat-2, Envisat, and Jason-1. Lead. Edge
**2013**, 32, 892–899. [Google Scholar] [CrossRef] [Green Version] - Amante, C.; Eakins, B.W. ETOPO1 1 arc-minute global relief model: Procedures, data sources and analysis. In NOAA Technical Memorandum NESDIS NGDC-24; National Geophysical Data Center, NOAA: Miami, FL, USA, 2009. [Google Scholar]
- Wessel, P.; Watts, A.B. On the accuracy of marine gravity measurements. J. Geophys. Res. Solid Earth
**1988**, 93, 393–413. [Google Scholar] [CrossRef] - Zhu, C.; Guo, J.; Gao, J.; Liu, X.; Hwang, C.; Yu, S.; Yuan, J.; Ji, B.; Guan, B. Marine gravity determined from multi-satellite GM/ERM altimeter data over the South China Sea: SCSGA V1.0. J. Geodesy
**2020**, 94, 50. [Google Scholar] [CrossRef] - Hwang, C. Inverse Vening Meinesz formula and deflection-geoid formula: Applications to the predictions of gravity and geoid over the South China Sea. J. Geodesy
**1998**, 72, 304–312. [Google Scholar] [CrossRef] - Shiblee, M.; Kalra, P.K.; Chandra, B. Time series prediction with multilayer perceptron (MLP): A new generalized error based approach. In International Conference on Neural Information Processing, Auckland, New Zealand, 2008; Koppen, M., Ed.; Springer: Berlin/Heidelberg, Germany, 2008; pp. 37–44. [Google Scholar]
- Bishop, C.M. Neural Networks for Pattern Recognition; Oxford University Press: Oxford, UK, 1995. [Google Scholar]
- Cagli, E.; Dumas, C.; Prouff, E. Convolutional Neural Networks with Data Augmentation Against Jitter-Based Countermeasures. In International Conference on Cryptographic Hardware and Embedded Systems, Taiwan, China, 2017; Fischer, W., Homma, N., Eds.; Springer: Berlin/Heidelberg, Germany, 2017; pp. 45–68. [Google Scholar]
- Chollet, F. Deep Learning with Python; Manning Publication Co.: New York, NY, USA, 2018. [Google Scholar]
- Kingma, D.P.; Ba, J. Adam: A method for stochastic optimization. In Proccedings of the International Conference on Learning Representations, San Diego, CA, USA, 7–9 May 2015. [Google Scholar]
- Pujol, M.-I.; Schaeffer, P.; Faugère, Y.; Raynal, M.; Dibarboure, G.; Picot, N. Gauging the improvement of recent mean sea surface models: A new approach for identifying and quantifying their errors. J. Geophys. Res. Ocean
**2018**, 123, 5889–5911. [Google Scholar] [CrossRef] - Yuan, J.; Guo, J.; Niu, Y.; Zhu, C.; Li, Z. Mean sea surface model over the sea of Japan determined from multi-satellite altimeter data and tide gauge records. Remote Sens.
**2020**, 12, 4168. [Google Scholar] [CrossRef] - CNES. Along-Track Level-2+ (L2P) SLA Product Handbook; SALP-MU-P-EA-23150-CLS, Issue1.0; CNES: Paris, France, 2017.

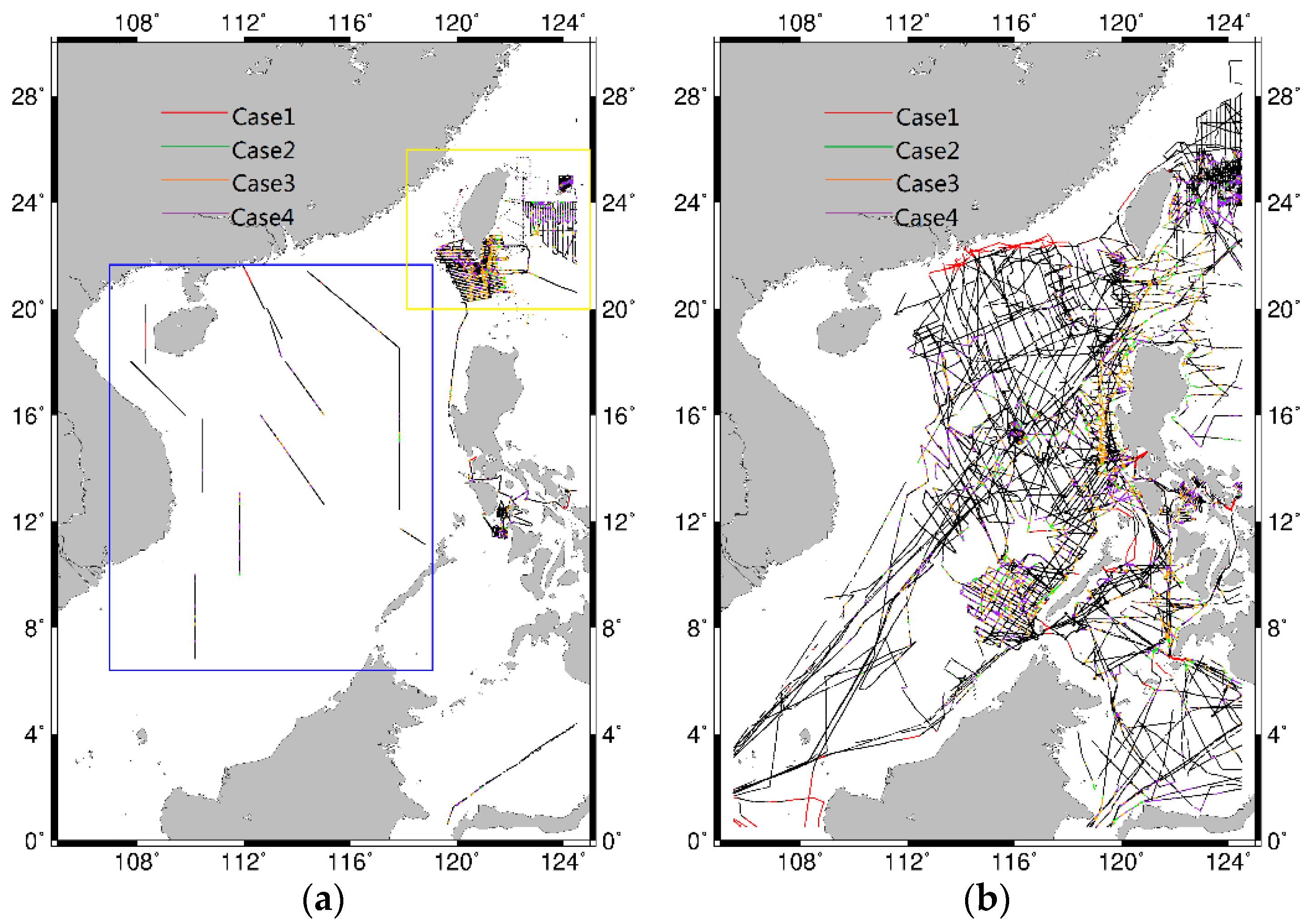

**Figure 1.**Shipborne gravity data tracks. (

**a**) Shipborne data measured since 1990, (

**b**) shipborne data measured before 1990. The tracks in the blue box are from Ministry of Natural Resources of P. R. China (MNR). The data in black are not in the refined area. The region in the yellow box is region A.

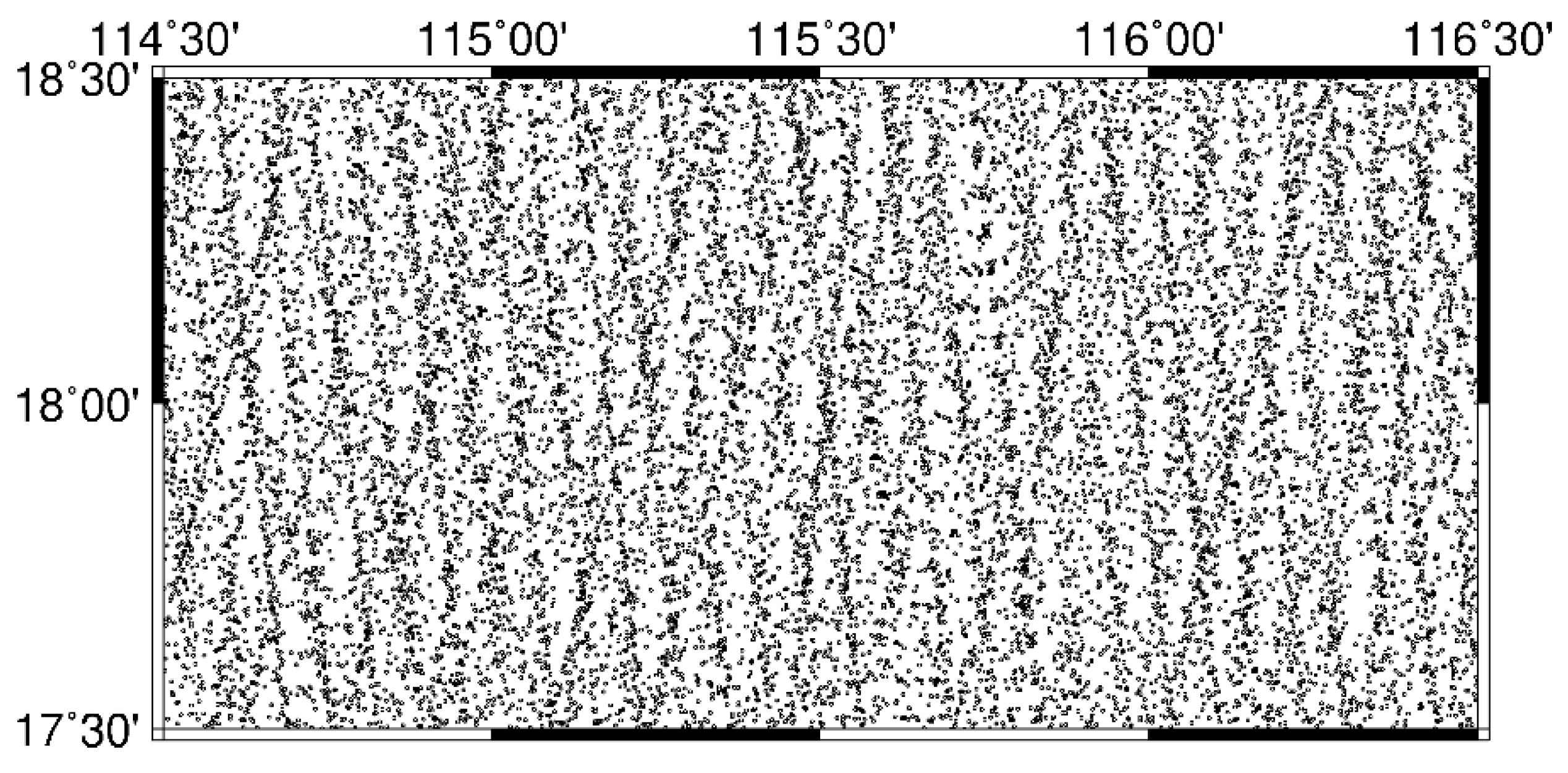

**Figure 2.**Tracks of altimetric data used to determine altimetric gravity anomaly model around the South China Sea (SCSGA) V1.0.

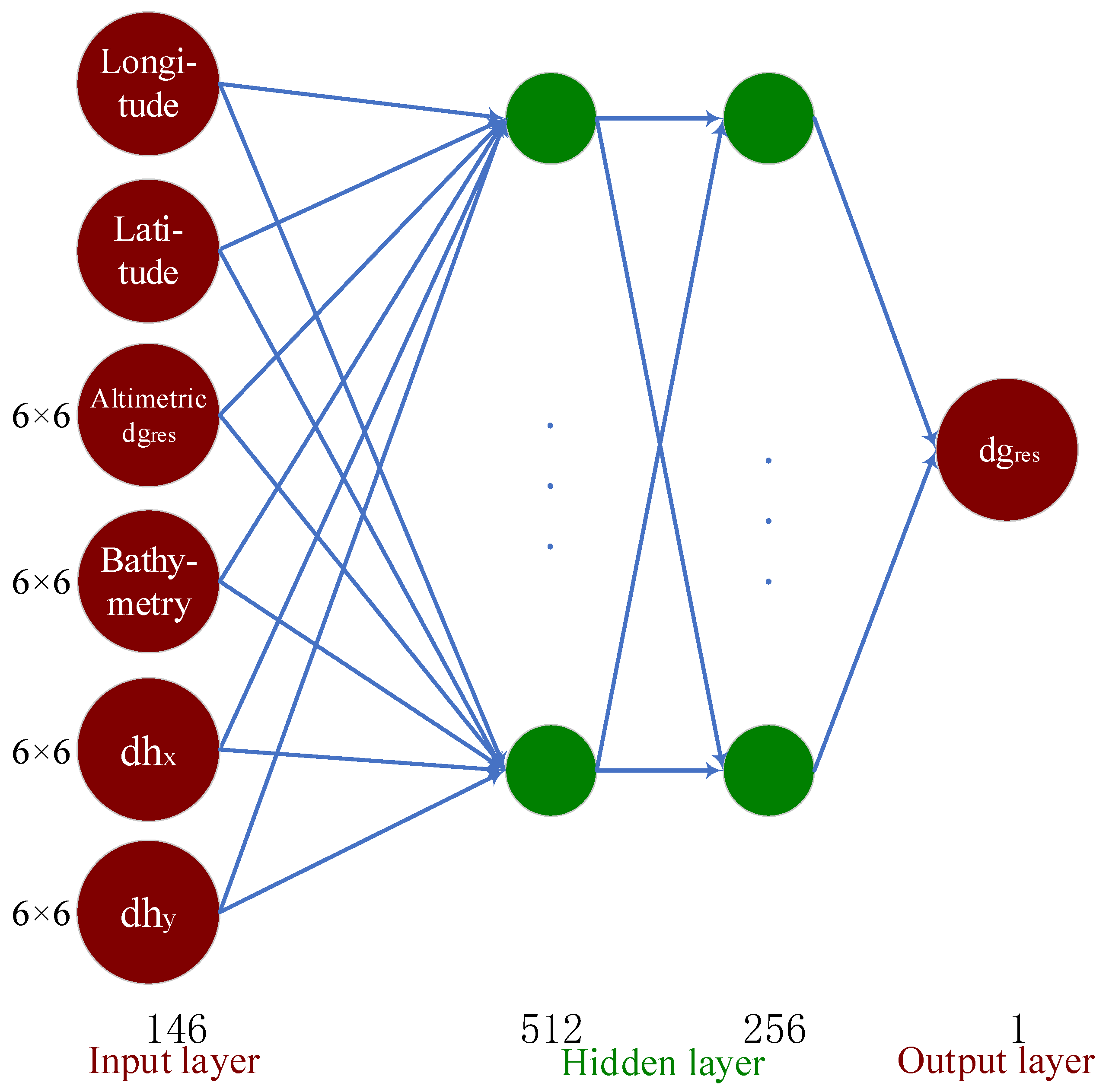

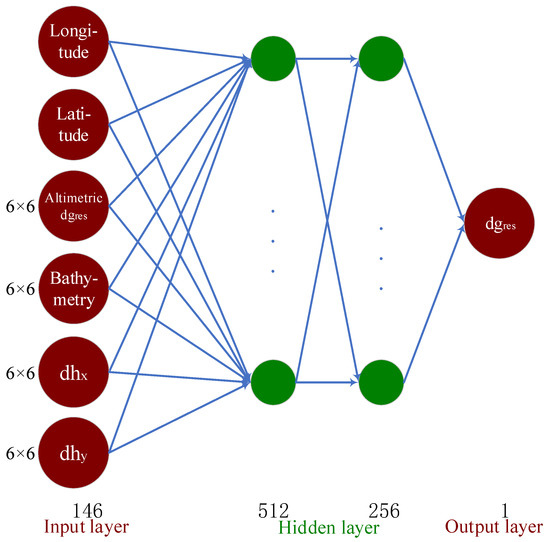

**Figure 3.**Structure of multi-layer perceptron (MLP): dh

_{x}and dh

_{y}are respectively prime vertical and meridian components of submarine topography slopes and dg

_{res}represents residual gravity anomalies.

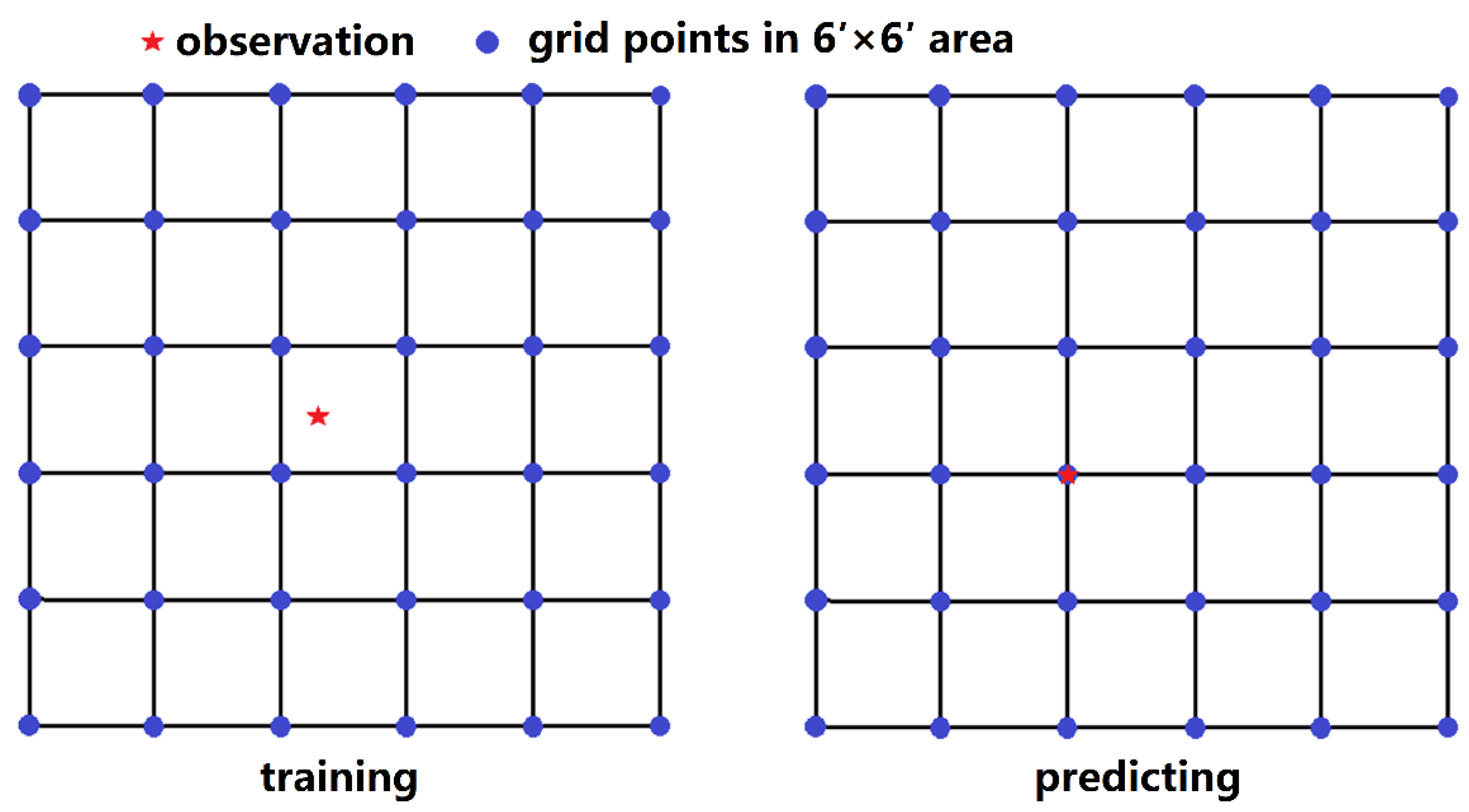

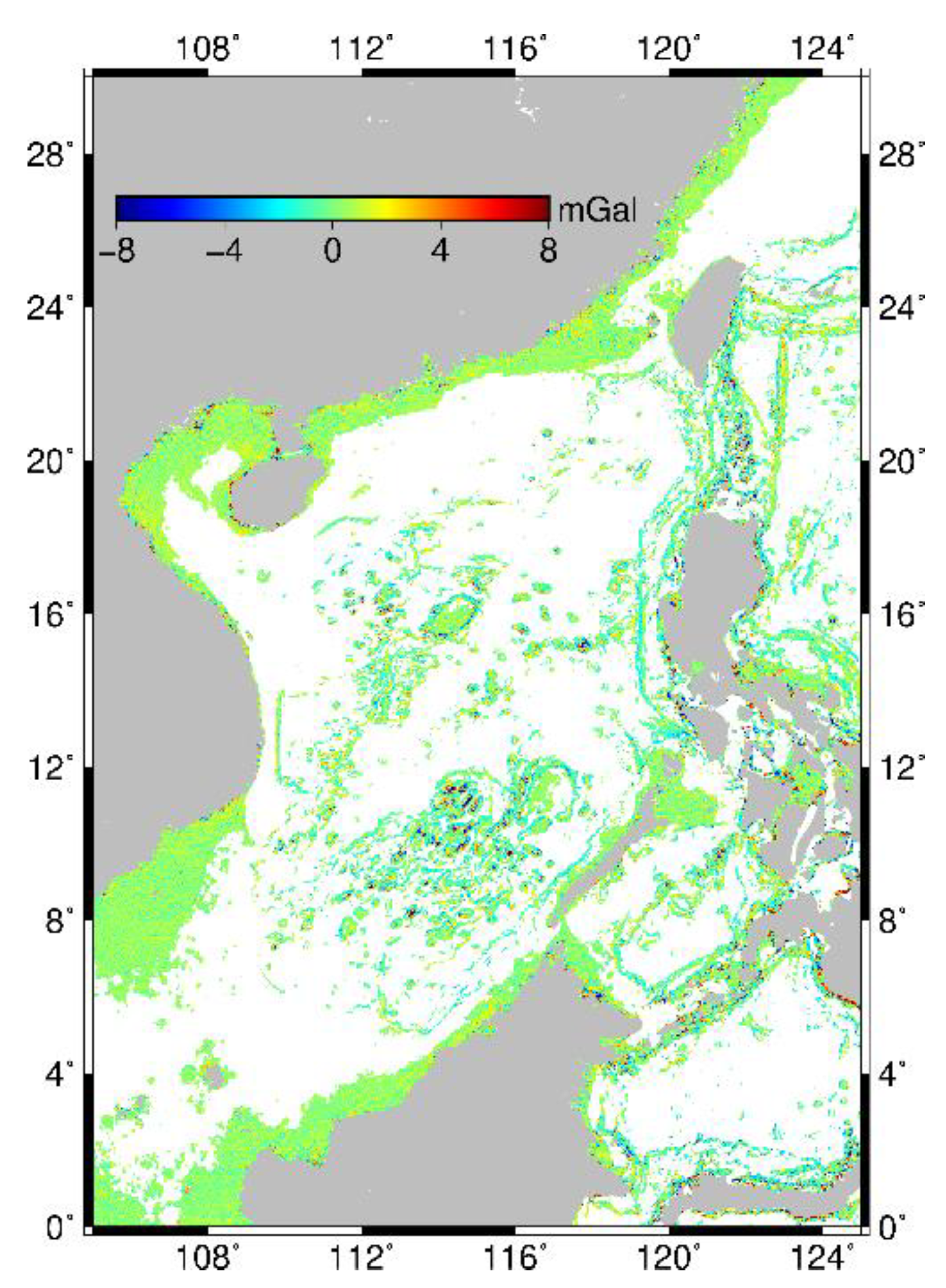

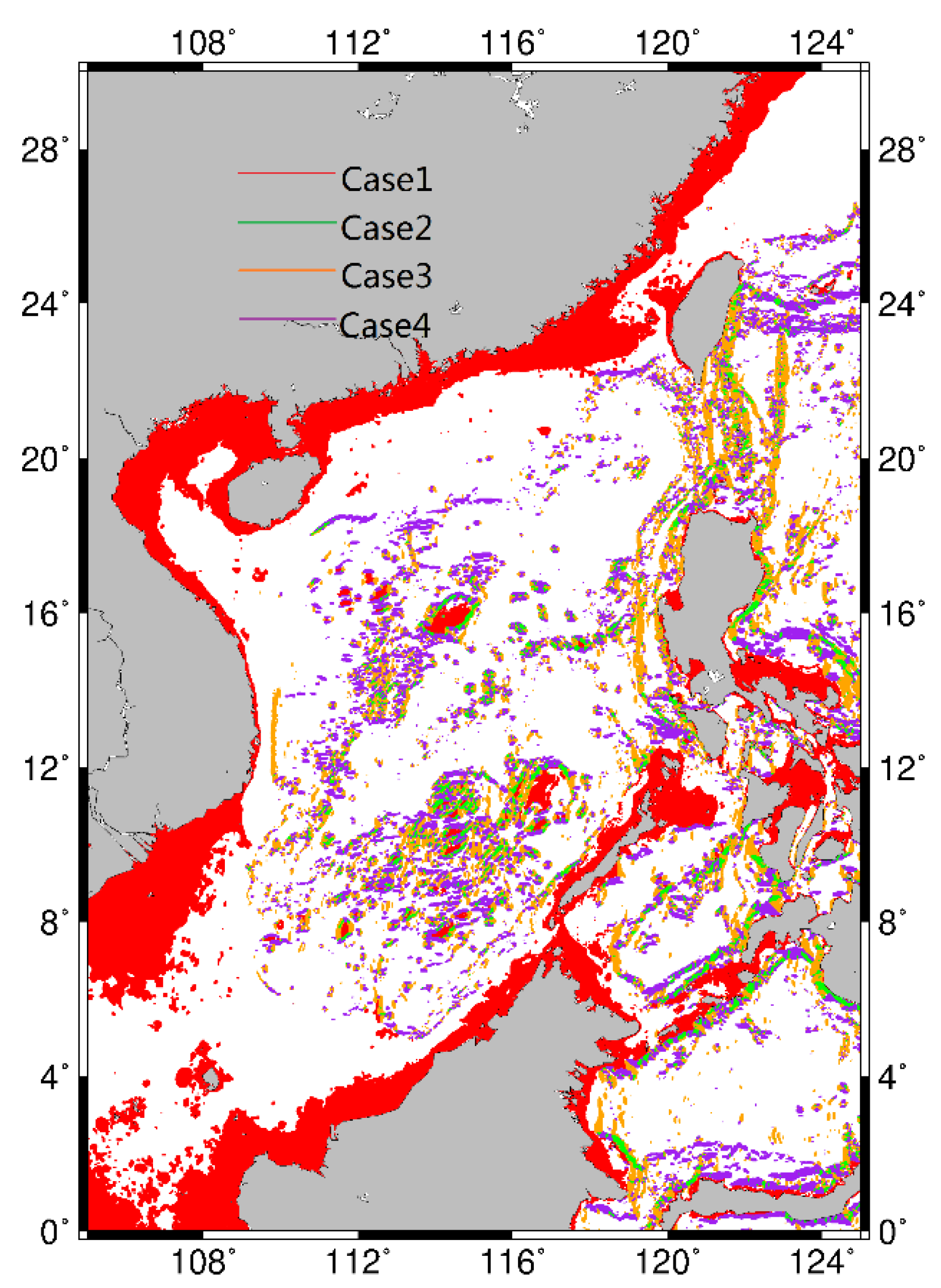

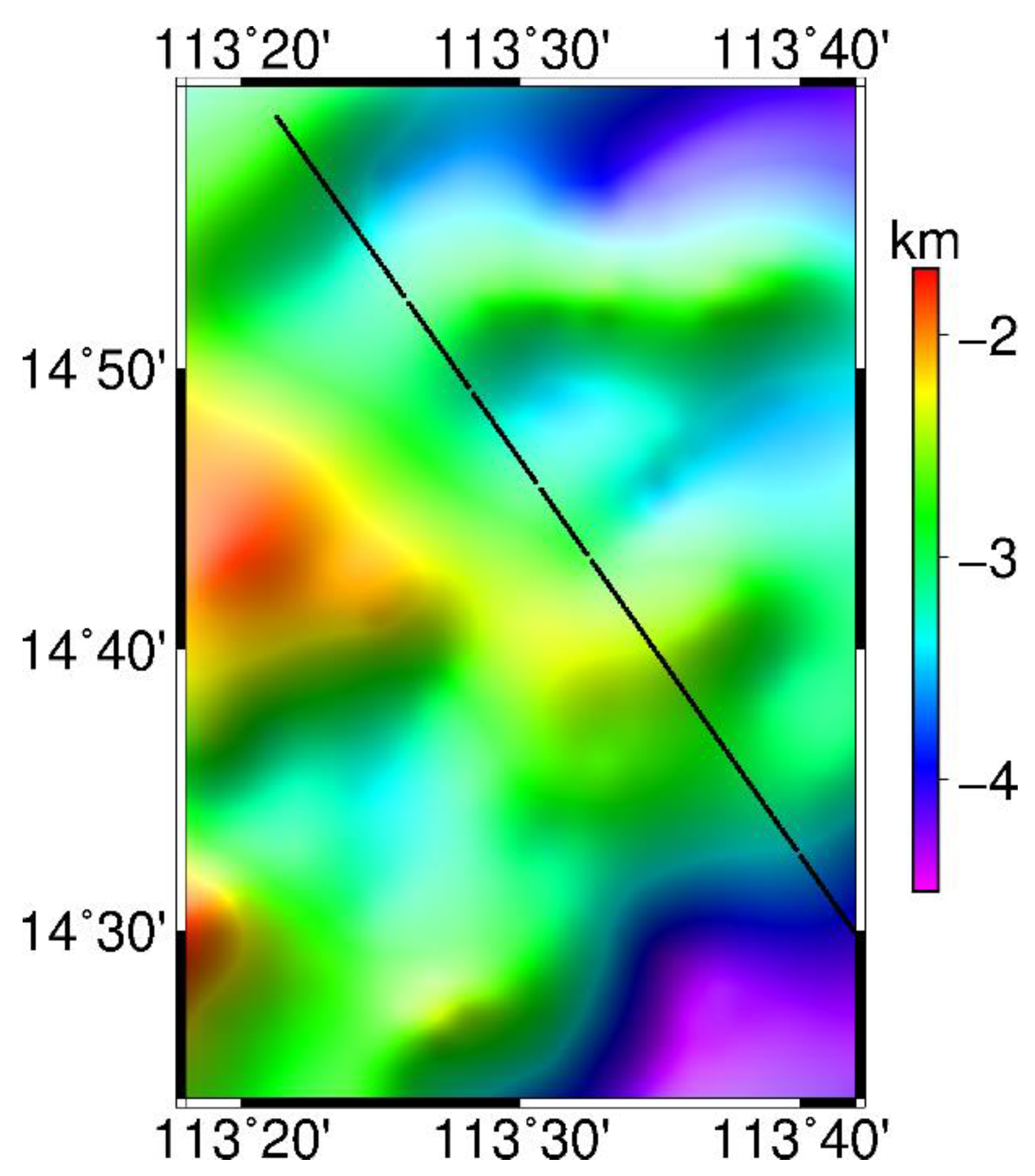

**Figure 7.**Shipborne gravity track and surrounding submarine topography for power spectral density (PSD) analysis.

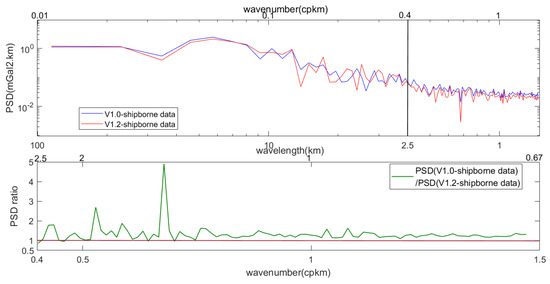

Submarine Topography Slope (m/arcmin ^{a}) | Shipborne Data before 1990 (mGal) | Shipborne Data Since 1990 (mGal) |
---|---|---|

All | 4.41 | 3.93 |

N > 50 or E > 50 ^{b} | 4.55 | 4.16 |

N > 100 or E > 100 | 4.89 | 4.17 |

N > 150 or E > 150 | 5.10 | 4.38 |

^{a}1 m/arcmin is equal to 0.54 m/km.

^{b}N: meridian component E: prime vertical component.

Satellite | Period | Inter-Track Distance at Equator (km) | Sampling Interval along Track (km) |
---|---|---|---|

ERS-1 | 94.04–95.03 | 7 | 6.6 |

Jason-1 | 12.05–13.06 | 7 | 5.8 |

Jason-2 | 17.07–19.02 | 7 | 5.8 |

HY-2A | 16.03–18.07 | 15 | 6.5 |

SARAL–AltiKa | 16.07–18.10 | 5 | 6.9 |

CryoSat-2 | 11.01–18.07 | 2.5 | 6.4 |

Bathymetry (m) | 0–10 | 10–20 | 20–30 | 30–40 | 40–50 | 50–60 | 60–70 | 70–100 |
---|---|---|---|---|---|---|---|---|

RMS (mGal) | 10.48 | 7.80 | 6.54 | 7.63 | 6.41 | 5.59 | 4.48 | 3.89 |

STD (mGal) | 9.80 | 7.74 | 6.31 | 7.59 | 6.36 | 5.53 | 4.48 | 3.84 |

**Table 4.**Differences between SCSGA V1.0 and shipborne data since 1990 in deep waters with different submarine topography slopes.

Slopes (m/arcmin) | All | E > 50 or N > 50 | E > 100 or N > 100 | E > 150 or N > 150 |
---|---|---|---|---|

RMS (mGal) | 5.36 | 5.88 | 6.28 | 6.37 |

STD (mGal) | 5.35 | 5.85 | 6.22 | 6.30 |

Category | Bathymetry 50 m | Submarine Topography Slope | Number of Samples | Number of Predicted Grid Points | |
---|---|---|---|---|---|

Prime Vertical 100 m/arcmin | Meridian 100 m/arcmin | ||||

Case1 | < | ≤ | ≤ | 795 | 245,314 |

< | > | ≤ | |||

< | ≤ | > | |||

< | > | > | |||

Case2 | ≥ | > | > | 3431 | 52,692 |

Case3 | ≥ | > | ≤ | 7612 | 74,093 |

Case4 | ≥ | ≤ | > | 5260 | 76,225 |

Layer | Variable | Vector Size | |
---|---|---|---|

Input layer | Input | (256,146) | |

Output | (256,146) | ||

Hidden layer | 1 | Input | (256,146) |

Output | (256,512) | ||

2 | Input | (256,512) | |

Output | (256,256) | ||

Output layer | Input | (256,256) | |

Output | (256,1) |

Refined Area | Case1 | Case2 | Case3 | Case4 | ||
---|---|---|---|---|---|---|

Number | 99,048 | 11,343 | 24,222 | 30,815 | 32,668 | |

V1.0- NCEI | MEAN | −0.59 | −0.06 | −0.77 | −0.80 | −0.44 |

STD | 5.78 | 5.80 | 6.16 | 5.70 | 5.54 | |

RMS | 5.81 | 5.80 | 6.21 | 5.75 | 5.55 | |

V1.1- NCEI | MEAN | −0.36 | 0.04 | −0.58 | −0.30 | −0.40 |

STD | 5.66 | 5.65 | 6.06 | 5.54 | 5.45 | |

RMS | 5.67 | 5.65 | 6.09 | 5.55 | 5.46 |

Refined Area | Case1 | Case2 | Case3 | Case4 | ||
---|---|---|---|---|---|---|

Number | 99,048 | 11,343 | 24,222 | 30,815 | 32,668 | |

V1.2- NCEI | MEAN | −0.40 | −0.38 | −0.55 | −0.40 | −0.30 |

STD | 5.65 | 5.68 | 6.04 | 5.58 | 5.40 | |

RMS | 5.67 | 5.69 | 6.06 | 5.57 | 5.41 |

**Table 9.**Differences between SCSGAV1.2 and the testing shipborne data in different regions (in mGal).

Refined Area | Case1 | Case2 | Case3 | Case4 | |||
---|---|---|---|---|---|---|---|

Region A | Number | 7626 | 189 | 1682 | 2421 | 3334 | |

V1.0- NCEI | MEAN | 0.14 | −0.85 | 0.78 | −0.44 | 0.28 | |

STD | 5.91 | 5.75 | 6.36 | 6.15 | 5.45 | ||

RMS | 5.91 | 5.81 | 6.41 | 6.16 | 5.46 | ||

V1.2- NCEI | MEAN | 0.18 | −1.50 | 0.70 | −0.22 | 0.30 | |

STD | 5.65 | 5.49 | 6.03 | 5.95 | 5.18 | ||

RMS | 5.65 | 5.69 | 6.07 | 5.95 | 5.19 | ||

Region B | Number | 91,422 | 11,154 | 22,540 | 28,394 | 29,334 | |

V1.0- NCEI | MEAN | −0.65 | −0.05 | −0.88 | −0.83 | −0.52 | |

STD | 5.76 | 5.80 | 6.13 | 5.65 | 5.54 | ||

RMS | 5.80 | 5.80 | 6.19 | 5.71 | 5.56 | ||

V1.2- NCEI | MEAN | −0.45 | −0.36 | −0.65 | −0.42 | −0.36 | |

STD | 5.65 | 5.68 | 6.03 | 5.55 | 5.43 | ||

RMS | 5.67 | 5.69 | 6.06 | 5.57 | 5.44 |

Gravity Model | Refined Area | Case1 | Case2 | Case3 | Case4 |
---|---|---|---|---|---|

SCSGA V1.0 | 5.81 | 5.80 | 6.21 | 5.75 | 5.55 |

SCSGA V1.2 | 5.67 | 5.69 | 6.06 | 5.57 | 5.41 |

M1 | 5.75 | 5.77 | 6.13 | 5.66 | 5.53 |

M2 | 5.71 | 5.73 | 6.08 | 5.64 | 5.49 |

M3 | 5.70 | 5.83 | 6.05 | 5.62 | 5.46 |

Depth (m) | MAX | MIN | MEAN | STD | RMS |

0–10 | 17.55 | −23.55 | 0.36 | 1.85 | 1.89 |

10–20 | 15.74 | −15.43 | 0.40 | 1.64 | 1.69 |

20–30 | 19.25 | −18.53 | 0.46 | 1.43 | 1.50 |

30–40 | 12.67 | −14.42 | 0.40 | 1.25 | 1.31 |

40–50 | 13.80 | −16.20 | 0.35 | 1.10 | 1.15 |

Slopes (m/arcmin) | MAX | MIN | MEAN | STD | RMS |

N > 100 or E > 100 | 20.05 | −23.78 | −0.18 | 2.01 | 2.02 |

N > 150 or E > 150 | 19.94 | −23.78 | −0.14 | 2.23 | 2.23 |

N > 200 or E > 200 | 17.52 | −23.78 | −0.11 | 2.44 | 2.44 |

N > 300 or E > 300 | 17.52 | −21.98 | −0.05 | 2.86 | 2.86 |
