# An Advanced System for the Visualisation and Prediction of Equipment Ageing

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. The Virtual Sensor of Ageing

#### 2.1. Dataset

- Thickness measurements carried out by means of ultrasonic thickness measurement (UTM) or magnetic flux leakage (MFL) techniques.
- Real-time data (e.g., acoustic emissions) coming from the diagnosis of anomalies.
- Complete information regarding the management of the ageing state according to the ageing fishbone model, which was recently adopted by the Italian Competent Authorities to satisfy the requirements of the Seveso Directive [6] regarding the control and management of the ageing of critical equipment.

#### 2.2. Models

- Ageing fishbone model for the assessment of the overall adequacy index (or simply ageing index).
- Failure frequency model for the assessment of the frequency of failure due to the equipment ageing (frequency of release).
- Probability distribution of pits model based on the extreme value theory for the assessment of the probability of the critical pit and the combination with the Bayesian inference for the assessment of the corrosion rate and the residual useful lifetime (RUL).

#### 2.2.1. Ageing Fishbone Model

_{overall}) is assessed after a score is assigned to the 12 factors, identified to be relevant for equipment ageing, in the sense that they can accelerate or slow down the phenomenon [9]. The index is the sum of the average score of accelerating factors (with a negative sign) and the average score of decelerating factors (with a positive sign).

_{k}is the score for the k-th factor, w

_{k}is the weight of the k-th factor (−1/M for accelerating factors and +1/M for decelerating factors).

#### 2.2.2. Failure Frequency Model

_{mod}is the modified frequency of failure, f

_{generic}is the generic frequency of failure from the literature, a

_{i}is the weight of factor affecting ageing, and x

_{i}is the score assigned to the factor according to [9] after normalisation to the range between −1 and 1.

#### 2.2.3. Probability Distribution of Pits Model and Combination with the Bayesian Inference

_{max}) and λ″(β|x

_{max}) are a posteriori probability distributions of α and β after a certain time, f(α|x

_{max}) and f(β|x

_{max}) are likelihood functions, and x

_{max}is the maximum corrosion value detected during the inspection.

#### 2.2.4. Interpolation Model

_{i}is the weight assigned to each measured value at the i-th location.

#### 2.3. Software

#### 2.3.1. App Desktop

#### 2.3.2. App Mobile

#### 2.4. AR Visualisation Tool

## 3. Case Study

## 4. Results

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Oztemel, E.; Gursev, S. Literature Review of Industry 4.0 and Related Technologies. J. Intell. Manuf.
**2020**, 31, 127–182. [Google Scholar] [CrossRef] - Stock, T.; Seliger, G. Opportunities of Sustainable Manufacturing in Industry 4.0. In Procedia CIRP, Proceedings of the 13th Global Conference on Sustainable Manufacturing—Decoupling Growth from Resource Use, Binh Duong, Vietnam, 16–18 September 2016; Seliger, G., Malon, J., Kohl, H., Eds.; Elsevier, B.V.: Amsterdam, The Netherlands, 2016; Volume 40, pp. 536–541. [Google Scholar]
- De Sousa Jabbour, A.B.L.; Jabbour, C.J.C.; Foropon, C.; Filho, M.G. When Titans Meet Can Industry 4.0 Revolutionise the Environmentally-Sustainable Manufacturing Wave? The Role of Critical Success Factors. Technol. Forecast. Soc. Change
**2018**, 132, 18–25. [Google Scholar] [CrossRef] - Gajek, A.; Fabiano, B.; Laurent, A.; Jensen, N. Process safety education of future employee 4.0 in Industry 4.0. J. Loss Prevent. Proc.
**2022**, 75, 104691. [Google Scholar] [CrossRef] - Sharma, R.; Jabbour, C.J.C.; Lopes de Sousa Jabbour, A.B. Sustainable Manufacturing and Industry 4.0: What We Know and What We Don’t. J. Enterp. Inf. Manag.
**2020**, 34, 230–266. [Google Scholar] [CrossRef] - EU Council. Directive 2012/18/EU on the control of major-accident hazards involving dangerous substances. Off. J. European Union
**2012**, L197, 1–37. [Google Scholar] - Horrocks, P.; Mansfield, D.; Thomson, J.; Parkerv, K.; Winter, P. Plant Ageing Study Phase 1 Report. In Health and Safety Executive Report No. RR823. 2010. Available online: https://www.hse.gov.uk/research/rrhtm/rr823.htm (accessed on 20 January 2022).
- Wintle, J.; Moore, P.; Henry, N.; Smalley, S.; Amphlett, G. Plant Ageing. Management of Equipment Containing Hazardous Fluids or Pressure. In Health and Safety Executive Report No. RR509. 2006. Available online: https://www.hse.gov.uk/research/rrhtm/rr509.htm (accessed on 20 January 2022).
- Milazzo, M.F.; Bragatto, P. A framework addressing a safe ageing management in complex industrial sites: The Italian experience in «Seveso» establishments. J. Loss Prevent. Proc.
**2019**, 58, 70–81. [Google Scholar] [CrossRef] - Milazzo, M.F.; Bragatto, P.A.; Scionti, G.; Gnoni, M.G. A safety-walk for ageing control at major-hazard establishments. Chem. Engineer. Trans.
**2019**, 77, 949–954. [Google Scholar] - Papazoglou, I.A.; Aneziris, O. On the quantification of the effects of organizational and management factors in chemical. Reliab. Eng. Syst. Safe.
**1999**, 15, 545–554. [Google Scholar] [CrossRef] - Milazzo, M.F.; Maschio, G.; Uguccioni, G. The Influence of Risk Prevention Measures on the Frequency of Failure of Piping. Int. J. Perform. Engineer.
**2010**, 6, 19–33. [Google Scholar] - Gumbel, E.J. Statistical Theory of Extreme Values and Some Practical Applications. US Department of Commerce, National Bureau of Standards. Appl. Math. Ser.
**1954**, 33, 1–51. [Google Scholar] - Shibata, T. Corrosion probability and statistical evaluation of corrosion data. In Uhlig’s Corrosion Handbook, 2nd ed.; Winston Revie, R., Ed.; John Wiley & Sons Inc.: New York, NY, USA, 2000; pp. 367–392. ISBN 0-471-15777-5. [Google Scholar]
- Milazzo, M.F.; Ancione, G.; Bragatto, P.; Proverbio, E. A probabilistic approach for the estimation of the Residual Useful Lifetime of atmospheric storage tanks in oil industry. J. Loss Prevent. Proc.
**2022**, 77, 104781. [Google Scholar] [CrossRef] - Bailey, T.C.; Gatrell, A.C. Interactive Spatial Data Analysis; Longman Scientific & Technical: Essex, UK, 1995; p. 413. [Google Scholar]
- Hengl, T.; Heuvelink, G.; Stein, A. A generic framework for spatial prediction of soil variables based on regression-kriging. Geoderma
**2004**, 120, 75–93. [Google Scholar] [CrossRef] [Green Version] - Python Software Foundation, Copyright ©2001–2022. Available online: https://www.python.org/ (accessed on 20 January 2022).
- Hunter, J.D. Matplotlib: A 2D Graphics Environment. Comput Sci Eng
**2007**, 9, 90–95. [Google Scholar] [CrossRef] - Harris, C.M. Array programming with NumPy. Nature
**2020**, 585, 357–362. [Google Scholar] [CrossRef] [PubMed] - McKinney, W. Data structures for statistical computing in python. In Proceedings of the 9th Python in Science Conference, Austin, TX, USA, 28 June–3 July 2010; Volume 445, pp. 9951–9956. [Google Scholar]
- Murphy, B.; Müller, S.; Yurchak, R. GeoStat-Framework/PyKrige: v1.6.1. Eur. Organ. Nucl. Res. CERN
**2021**. [Google Scholar] [CrossRef] - Haas, J.K. A History of the Unity Game Engine; Worcester Polytechnic Institute: Worcester, MA, USA, 2014. [Google Scholar]
- Community, B.O. Blender—A 3D Modelling and Rendering Package, Stichting Blender Foundation, Amsterdam. 2018. Available online: http://www.blender.org (accessed on 1 February 2022).
- American Petroleum Institute (API). RP 580, Risk-Based Inspection. In API Recommended Practice, 3rd ed.; American Petroleum Institute: New York, NY, USA, 2016. [Google Scholar]
- The Engineering Equipment and Materials Users Association (EEMUA). Users’ Guide to the Inspection, Maintenance and Repair of above Ground Vertical Cylindrical Steel Storage Tanks. In Standard EEMUA No. 159, 4th ed.; The Engineering Equipment and Materials Users Association: London, UK, 2014. [Google Scholar]
- Liu, X.; Sohn, Y.; Park, D. Application development with augmented reality technique using Unity 3D and Vuforia. Int. J. Appl. Eng. Res.
**2018**, 13, 15068–15071. [Google Scholar] - Linowes, J.; Babilinski, K. Augmented Reality for Developers: Build Practical Augmented Reality Applications with Unity, ARCore, ARKit, and Vuforia; Packt Publishing Ltd.: Birmingham, UK, 2017. [Google Scholar]
- Harborth, D.; Kümpers, K. Intelligence augmentation: Rethinking the future of work by leveraging human performance and abilities. Virtual Real.
**2021**, 1–22. [Google Scholar] [CrossRef] - Carruth, D.W. Virtual reality for education and workforce training. In Proceedings of the 15th International Conference on Emerging eLearning Technologies and Applications (ICETA), Starý Smokovec, Slovakia, 26–27 October 2017; pp. 1–6. [Google Scholar] [CrossRef]
- Guo, Y.; Agrawal, S.; Peeta, S.; Benedyk, I. Safety and health perceptions of location-based augmented reality gaming app and their implications. Accid. Anal. Prev.
**2021**, 161, 106354. [Google Scholar] [CrossRef] [PubMed]

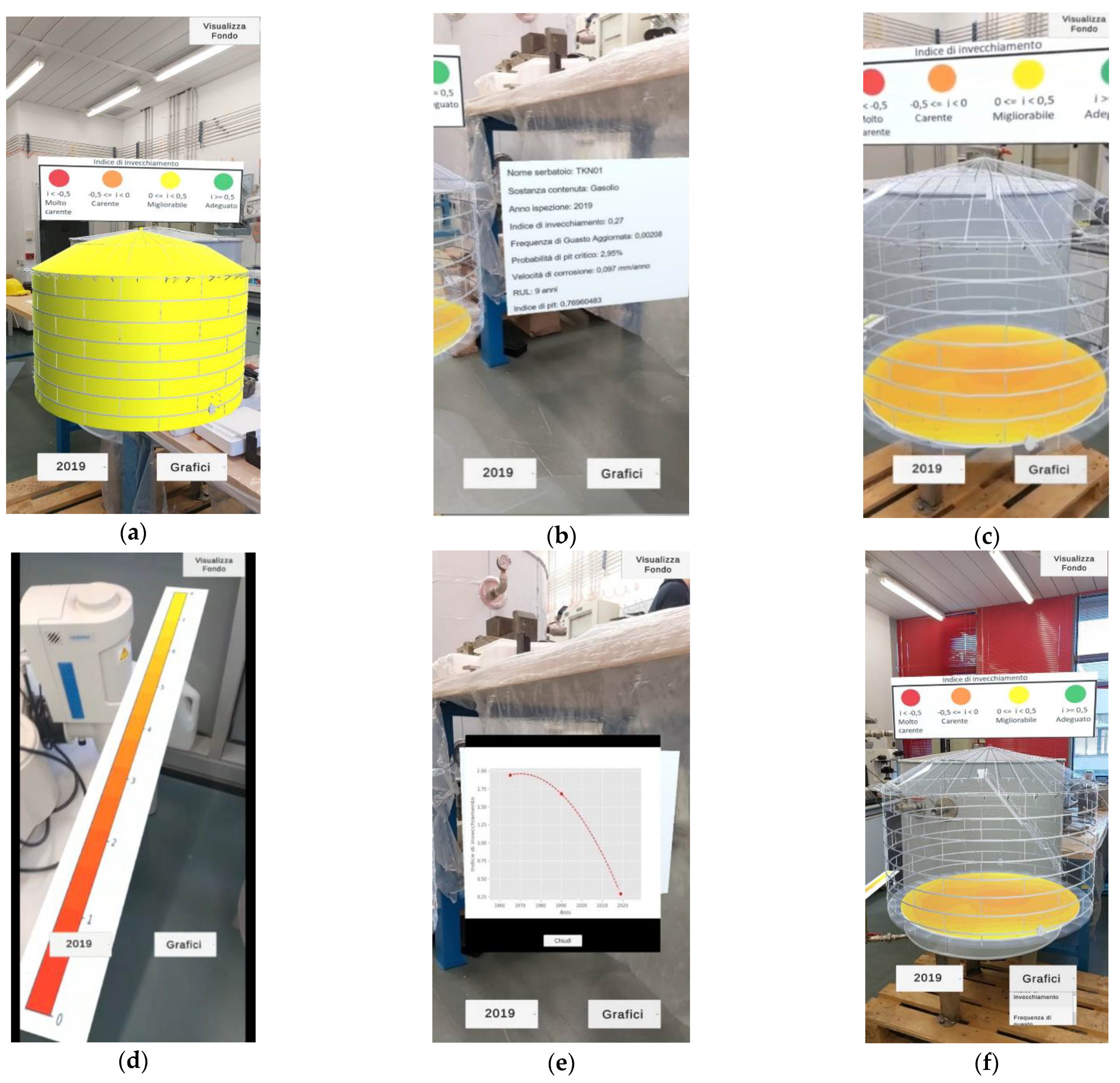

**Figure 7.**View in AR: (

**a**) overlapped 3D model, (

**b**) table box information; (

**c**) bottom thickness map; (

**d**) colour scale of the map; (

**e**) example of graph given; (

**f**) scrolling of one of the pop-up menus. Note that the notation for decimal number uses comma as the software is Italian.

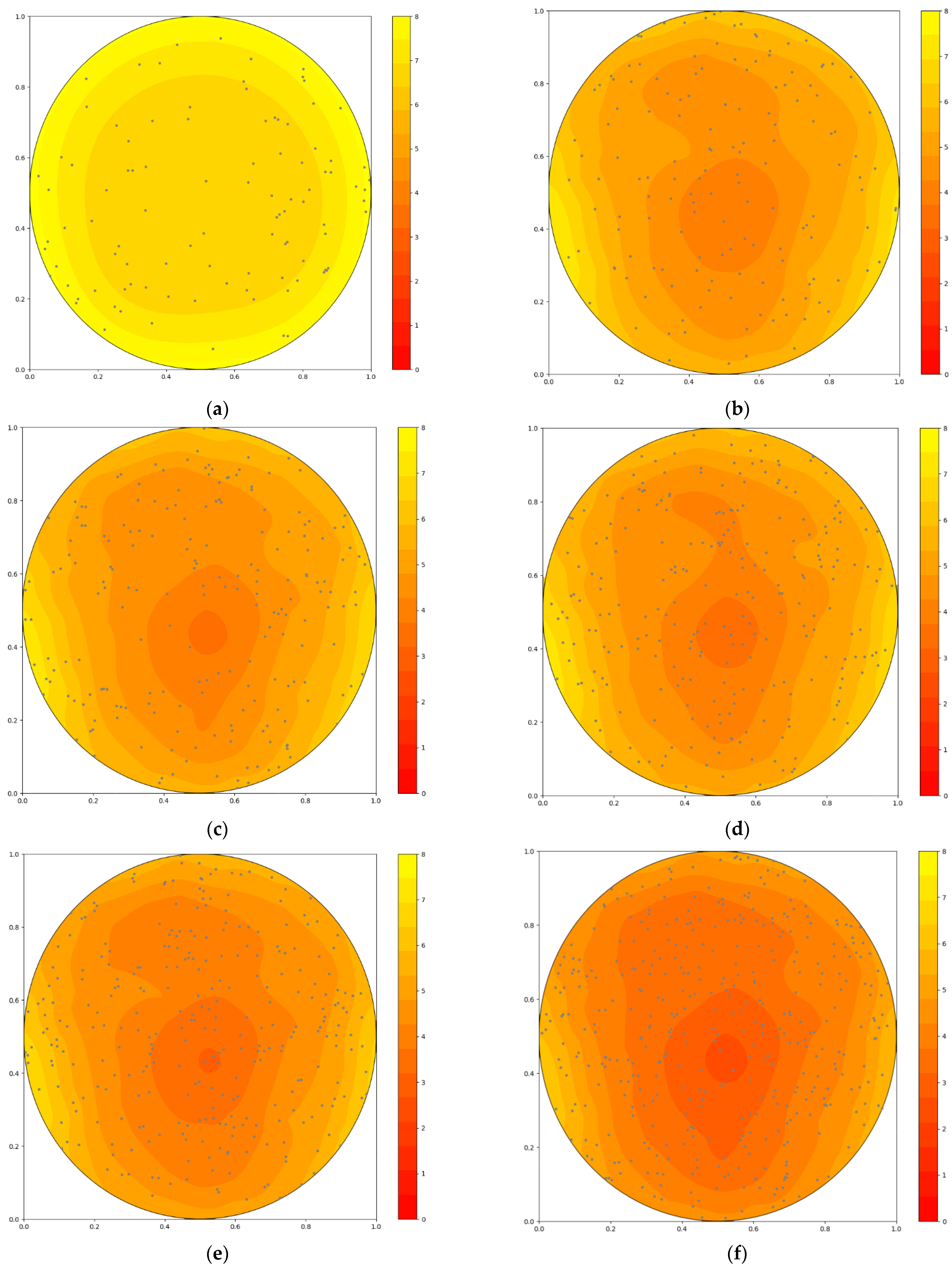

**Figure 8.**Iso-level thickness map obtained by the virtual sensor for the case study for (

**a**) the year 1990, (

**b**) the year 2019, (

**c**) +1 year, (

**d**) +2 years, (

**e**) +5 years, and (

**f**) +10 years. Note that the notation for decimal number uses comma as the software is Italian.

Year | Average Thickness (mm) | Minimum Thickness (mm) | Maximum Thickness (mm) | Standard Deviation | Technique |
---|---|---|---|---|---|

1990 | 7.15 | 6.1 | 9.2 | 0.733 | Visual inspection UTM |

2019 | 5.43 | 2.8 | 8 | 1.546 | MFL |
