Next Article in Journal
The Effect of Kinematic Conditions and Synovial Fluid Composition on the Frictional Behaviour of Materials for Artificial Joints
Next Article in Special Issue
Oxidation Resistance and Wetting Behavior of MgO-C Refractories: Effect of Carbon Content
Previous Article in Journal
Finite Element Analysis of Interaction of Laser Beam with Material in Laser Metal Powder Bed Fusion Process
Previous Article in Special Issue
High-Temperature Wettability and Interactions between Y-Containing Ni-Based Alloys and Various Oxide Ceramics
Article Menu
Issue 5 (May) cover image

Export Article

Open AccessArticle
Materials 2018, 11(5), 766;

Tunable Synthesis of SiC/SiO2 Heterojunctions via Temperature Modulation

Henan Key Laboratory of High Temperature Functional Ceramics, Zhengzhou University, 75 Daxue Road, Zhengzhou 450052, China
School of Materials Science and Engineering, Zhengzhou University, 100 Kexue Road, Zhengzhou 450000, China
Authors to whom correspondence should be addressed.
Received: 23 April 2018 / Revised: 7 May 2018 / Accepted: 7 May 2018 / Published: 10 May 2018
(This article belongs to the Special Issue High Temperature Ceramic Materials)
Full-Text   |   PDF [5444 KB, uploaded 10 May 2018]   |

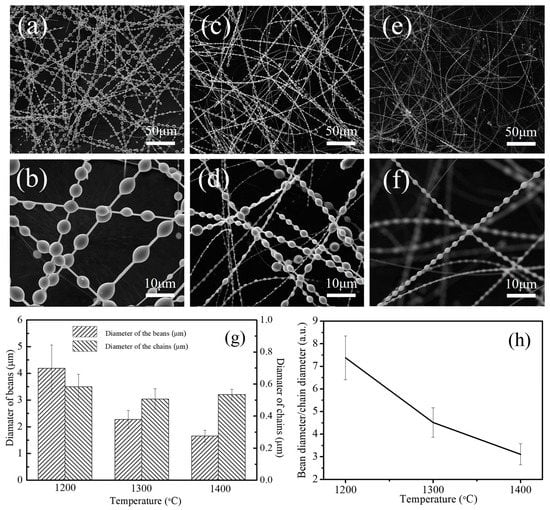

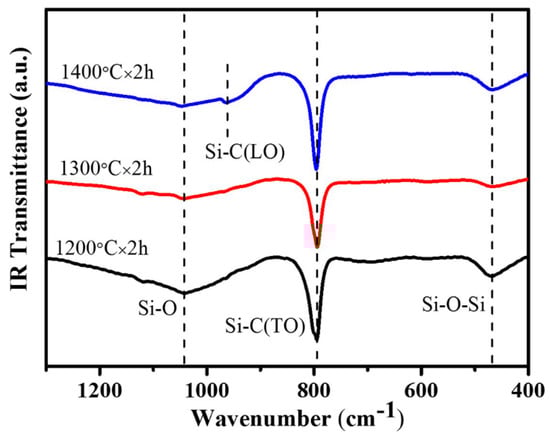

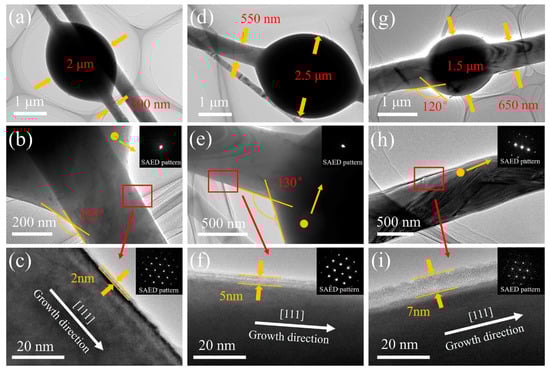

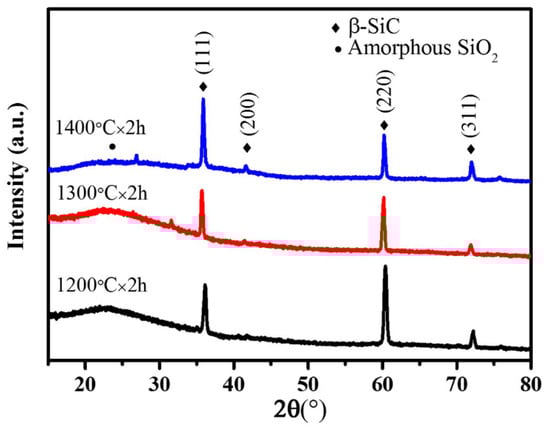

A large-scale production of necklace-like SiC/SiO2 heterojunctions was obtained by a molten salt-mediated chemical vapor reaction technique without a metallic catalyst or flowing gas. The effect of the firing temperature on the evolution of the phase composition, microstructure, and morphology of the SiC/SiO2 heterojunctions was studied. The necklace-like SiC/SiO2 nanochains, several centimeters in length, were composed of SiC/SiO2 core-shell chains and amorphous SiO2 beans. The morphologies of the as-prepared products could be tuned by adjusting the firing temperature. In fact, the diameter of the SiO2 beans decreased, whereas the diameter of the SiC fibers and the thickness of the SiO2 shell increased as the temperature increased. The growth mechanism of the necklace-like structure was controlled by the vapor-solid growth procedure and the modulation procedure via a molten salt-mediated chemical vapor reaction process. View Full-Text
Keywords: SiC/SiO2 heterojunctions; chemical vapor reaction; fiber; molten salt-mediated; photoluminescence SiC/SiO2 heterojunctions; chemical vapor reaction; fiber; molten salt-mediated; photoluminescence

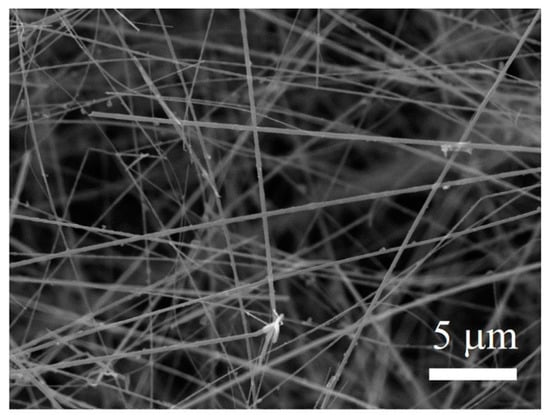

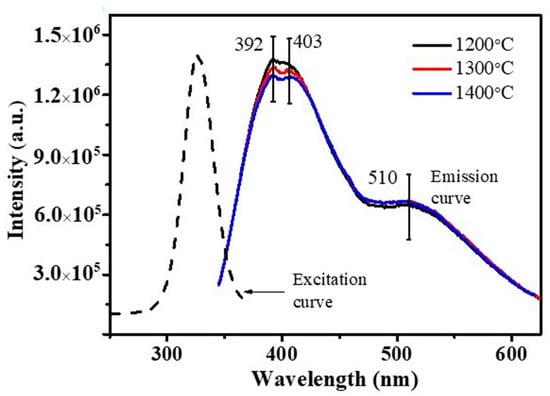

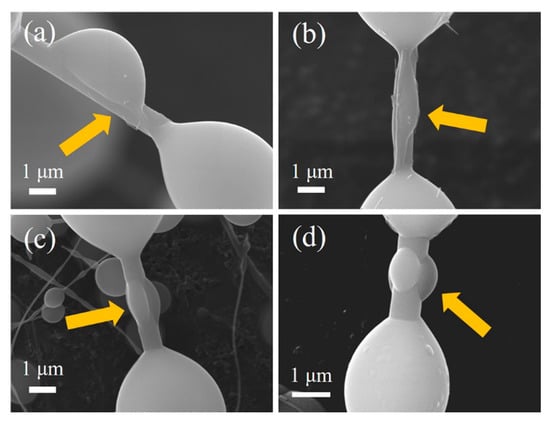

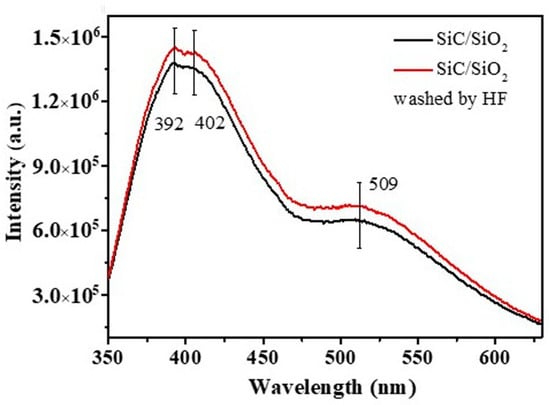

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Li, W.; Jia, Q.; Yang, D.; Liu, X. Tunable Synthesis of SiC/SiO2 Heterojunctions via Temperature Modulation. Materials 2018, 11, 766.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
