1. Introduction
During the past 70 years, the presence of human-made chemical contaminants in the environment has quickly increased. Environmental pollutants have harmful effects on human and animal health. Most of these compounds are considered as endocrine-disrupting compounds (EDCs), which can modify the synthesis, secretion, metabolism, transport and elimination of some endogenous steroid hormones, and consequently, they cause adverse health effects in the organism or its progeny [
1].
One of the most commonly used compounds in the plastics manufacturing industry is bisphenol A (BPA) (2,2-(4,4-dihydroxydiphenyl) propane), which is used as a monomer for the production of polycarbonate plastic products, epoxy resins, flame-retardants, food containers, baby bottles, compact discs, adhesives, optical lenses, thermal paper, powder paints and dental resins, among other products. BPA can leach from these and other products through high temperatures or acidic or basic changes, and as a result, routine ingestion of BPA by different organisms is presumed [
2,
3].
Exposure to nanomolar concentrations of BPA from the environment is ubiquitous and continuous via different routes. In experimental animal models, BPA has been shown to affect the brain, liver, gut, adipose tissue, pancreas, mammary gland and reproductive tract of exposed animals. In humans, similar concentration ranges have impacted malignant breast, prostate, male germ or adipocyte cell lines [
4,
5,
6,
7]. During the perinatal stage, a process called hormonal "imprinting" takes place, which is defined as a period in which natural hormones first encounter their receptors. Thus, exposure to endocrine disruptors can alter physiological processes throughout life. Furthermore, several studies have shown that endocrine disruptors not only affect the endocrine system, but also interact with the immune system, as immune cells also respond to hormone effects and express hormone receptors [
8]. In this sense, BPA exposure during early developmental stages may alter the imprinting process, affecting the production of antibodies, cytokines, and in general, the proliferation of different immune cells during adult life [
9]. Few reports have focused on the study of the effects of BPA on the immune system. For instance, BPA can influence the activation of T helper cells, favouring TH1 or TH2 polarisation [
10,
11,
12]. In line with that, our laboratory demonstrated that only a single neonatal dose of BPA in mice can also alter the immune response itself, promoting tumour development into adulthood with a concomitant increment of regulatory T lymphocytes (Tregs) infiltrating into the tumour. These effects were accompanied by the decreased expression of TNF-α and IFN-γ, as well as the M2 macrophage marker Fizz-1 in the BPA-exposed group [
13]. The above suggests that BPA exposure in early life can contribute to breast cancer development and progression through the modulation of the antitumoural immune response.
In contrast, testicular cancer is the most common solid malignancy affecting males aged from 15 to 35 years old, accounting for about 1% of all cancers diagnosed in men [
14]. Germ cell tumours (GCTs) represent 95% of testicular cancers, and two main types are pure-seminoma germ cell tumours and non-seminoma germ cell tumours [
15]. Studies have suggested that foetal exposure to environmental EDCs, with oestrogenic effects, could participate in testicular germ cell carcinogenesis, influencing the fate of germ stem cells that share molecular markers with the malignant germ cells. In vitro, it has been shown that low doses of BPA promote seminoma cell proliferation through the G-protein-coupled oestrogen receptor (GPER), a membrane G-protein-coupled receptor (GPCR) [
16]. In vivo, neonatal exposure to BPA in male mice modifies the prostate gland development, increasing the susceptibility to cancer generation through activation of epigenetic mechanisms [
17]. However, now work related to the effect of BPA on the immune response in male testicular cancer has been performed. Of note, no experimental model to study testicular cancer has not been developed before.
In this work, we developed a testicular cancer model in which offspring males of BPA-exposed pregnant females underwent an intratesticular inoculation with 4T1 cancer cells; the size and weight of testicular tumours were studied and related with both intra-tumoural and systemic immunity. To our knowledge, this is the first integrative work where testicular tumours were induced in BALB/c mice, and the effect of BPA on the immune response against intratesticular tumour growth was studied.
2. Materials and Methods
2.1. Ethics Statement
Animal care and experimental practices were conducted at the Unidad de Modelos Biológicos (UMB) of the Instituto de Investigaciones Biomédicas (IIB), Universidad Nacional Autónoma de México. All experimental procedures in the animals were approved by the Institutional Care and Animal Use Committee (CICUAL), (Authorisation number 155), according to the Mexican regulation (NOM-062-ZOO-1999), and the Guide for the Care and Use of Laboratory Animals Recommendations [National Institute of Health (NIH) of the United States of America]. Euthanasia of experimental animals was performed humanely using 5% sevoflurane (Abbot, México City, México) before cervical dislocation.
2.2. Animals
Syngeneic strain BALB/c AnN (H2-d) mice were purchased from Harlan México (Facultad de Química, UNAM, México). The animals were housed at UMB with controlled temperature (22 °C) and 12-h light-dark cycles, with water and Purina LabDiet 5015 (Purina, St. Louis, MO, USA) chow ad libitum. Females and males were placed in “concubinage” for a week and a half. The females were weighed on a digital weighing scale to monitor weight changes and verify the pregnancy status.
2.3. Preparation of BPA
BPA (purity 97% of CAS number 80-50-7) was obtained from Sigma-Aldrich (St Louis, MO, USA), and dissolved in pure corn oil (Sigma-Aldrich) at a concentration of 250 mg/kg/bw. For female administration, 50 mg of BPA was diluted in 50 µL of ethanol, and from this dilution, 50 µL was dissolved in 50 mL of water.
2.4. Perinatal BPA Exposure in Mice
BPA exposure was started once the pregnancy status of the females was confirmed (≈11th day of gestation). BPA was added to their drinking water in glass drinking fountains and placed for consumption by the animals until weaning. Water containers were changed every third day to administer a dose of 250 mg/body weight/day. The same amount of ethanol (25 µL) was added to the drinking water of the vehicle group, while control animals received just water.

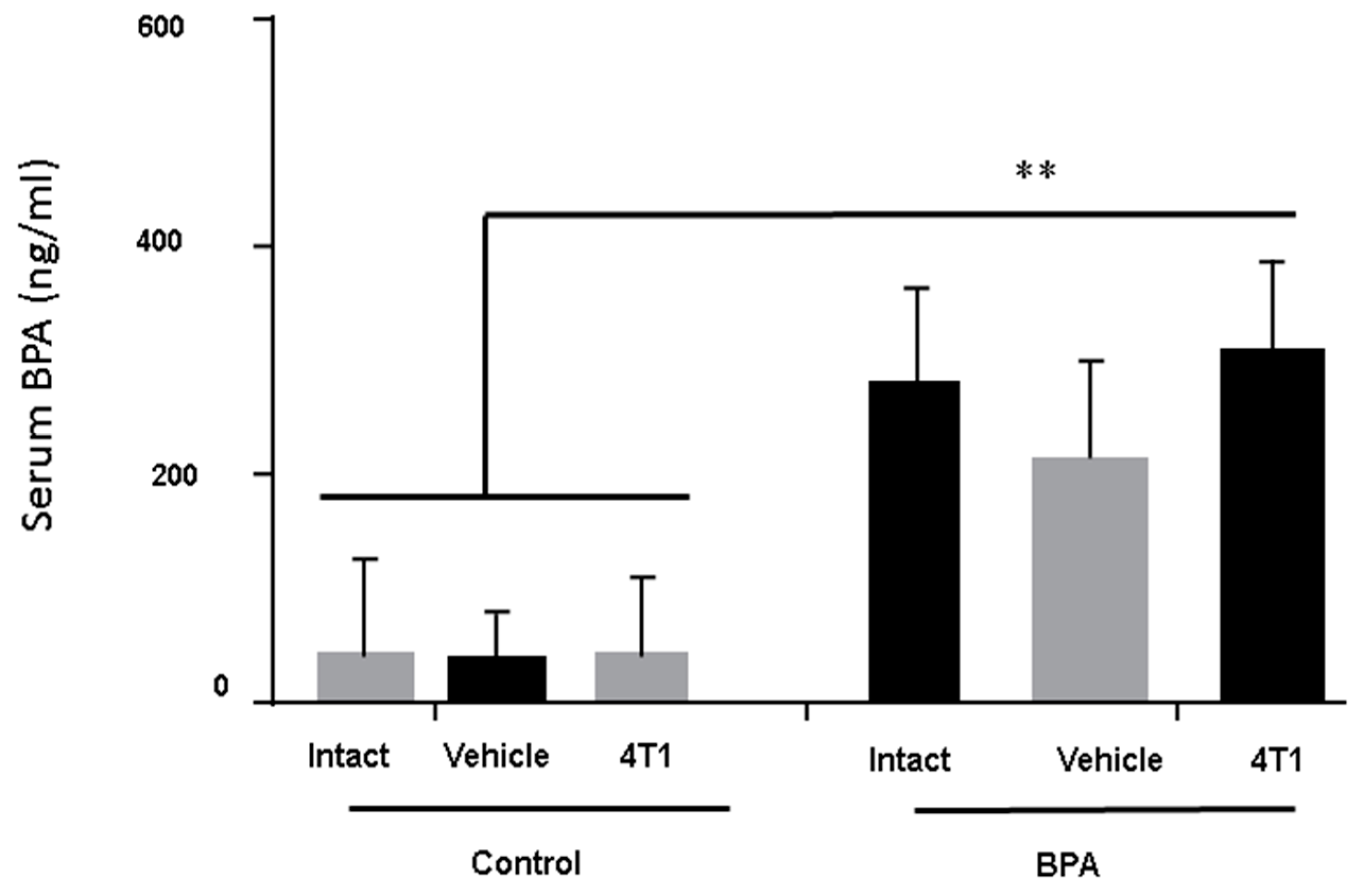

2.5. Quantification of BPA Serum Levels
After serum was obtained from the animals, we performed a simple mass organic protocol extraction from serum. The BPA serum samples were reconstituted in 500 µL of HPLC grade methanol and analysed using the Acquity series H UPLC-MS/MS system (Waters, Milford, MA, USA) with a triple quadrupole mass spectrometer Xevo TQ-S (Waters, Milford, MA, USA). Each sample was automatically injected through a Sample Manager system—FTN Acquity from Waters (Waters, Milford, MA, USA). An Acquity UPLC BEH C18 1.7 µm, 2.1 × 50 mm column was used.
2.6. Cell Culture
The 4T1 cell line (ATCC® CRL-2539) was kindly donated by Dr. Pedro Ostoa-Saloma and cultivated in RPMI 1640 medium (Sigma, St. Louis, MO, USA), supplemented with 10% FBS (ByProductos, Guadalajara, México). Subculturing was carried on at 70 to 80% confluence. After the second subculture, cells were harvested and resuspended in 0.9% saline solution in a concentration of 250,000 cells/mL for tumour inoculation.
2.7. Tumour Induction Model
At sexual maturity (8 weeks old), mice from each exposure group were randomised into secondary experimental groups: the control (with and without tumour induction), vehicle (with and without tumour induction) and BPA (with without and tumour induction) groups. 1 × 103 cells of the 4T1 cancer line were injected into the scrotum. Tumour growth was monitored for 25 days.
2.8. Flow Cytometry Analysis
The spleen, peripheral lymph nodes (PLN) and tumours were mechanically disaggregated using a 50 µm nylon mesh and washed with PBS. Spleen erythrocytes were lysed with ACK buffer (150 mM NH4Cl, 10 mM KHCO3, 0.1 mM Na2EDTA, pH 7.3) for 10 min and washed with PBS. Tumour samples were finely cut and incubated for 20 min in digestion medium [RPMI 1640, 10 U/mL DNase (Roche, Mannheim, Germany), 0.5 mg/mL type IV Collagenase (Sigma, St. Louis, MO, USA)]. Digestion was stopped by adding 50 µL of FBS and disaggregation was performed, followed by a PBS wash. The cells from all tissues were resuspended in FACS buffer (PBS, 2% FBS, 0.02% NaN3). Approximately 1 × 106 cells were incubated with anti-CD16/CD23 (TruStain®, BioLegend, San Diego CA, USA) for 30 min at 4 °C, washed and stained. For the characterisation of cellular subpopulations, the following antibodies were used: APC Cy7-coupled anti-CD3ε (145-2C11), PE-coupled anti-CD4 (GK1.5), AlexaFluor®647-coupled anti-Foxp3 (150D), PerCP-coupled anti-CD8 (53-6.7), Alexa Fluor® 647-coupled anti-F4/80 (BM8), PE-coupled anti-NKp46 (29A1.4) (all from BioLegend, San Diego, CA, USA) and VioletFluor® 450-coupled anti-CD25 (PC61.5) (Tonbo biosciences, San Diego, CA, USA). For intranuclear staining, Foxp3/Transcription Factor Staining Buffer kit (Tonbo biosciences, San Diego, CA, USA) was used, according to the manufacturer’s instructions. For detection of the oestrogen alpha receptor, rabbit polyclonal anti-ERα (H-184) (Santa Cruz Biotechnology, Dallas, TX, USA) was used, followed by DyLight® 488-coupled donkey anti-rabbit IgG (BioLegend, San Diego, CA, USA). Samples were collected using an Attune cytometer (Life Technologies, Waltham, MA, USA), with a blue and a red laser, and data were analysed using FlowJo software (Treestar Inc., Ashland, OR, USA).
2.9. Haematoxylin-Eosin Staining
The samples were placed in filter cassettes and post-frozen in 4% cold paraformaldehyde (pH 7.4) for 20 min. Tissues were included in Tissue-Tek. Tissues were frozen, and 6 µm thick sections were cut using a cryostat. Haematoxylin-eosin staining was performed through a series of consecutive steps where the samples were placed as follows: Xylol for 5 min; 100% alcohol 5 min; 95% alcohol 5 min; 70% alcohol for 5 min; washing with running water; Haematoxylin staining 10 min; alcohol/acid 5 min; washing with running water; Eosin staining 30 s; 70% alcohol 5 min; 95% alcohol 5 min, and 100% alcohol 5 min. Finally, a cover with acrylic resin was placed on top of the samples.
2.10. RT-PCR Assays
Tumour tissue samples were frozen in TRIzol
® reagent (Ambion, Carlsbad, CA, USA) immediately after collection. Total RNA was extracted with the same reagent, following the manufacturer’s protocol. Briefly, the tissue was disrupted in TRIzol
® reagent (1 mL/0.1 g tissue), and 0.2 mL of chloroform was added per each mL of reagent. After 15 min of centrifugation at 13,000 rpm, the aqueous phase was recovered. RNA was precipitated with isopropyl alcohol, washed with 75% ethanol and dissolved in RNAse-free water. The RNA concentration was measured by absorbance at 260 nm, and its integrity was verified by agarose gel electrophoresis (1.0%). Total RNA samples were reverse-transcribed, using M-MLV Reverse Transcriptase (Promega, Madison, WI, USA) and dT12–18 primer (Invitrogen, Carlsbad, CA, USA). cDNA was amplified by semi-quantitative PCR, using TaqDNA polymerase (Biotecnologías Universitarias, UNAM, México) and the
Mus musculus-specific primers (
Table 1). The relative expression percentage of each amplified gene was measured by optical density analysis (OD), using the 18S-ribosomal RNA as a constitutive control (
Table 1).
2.11. Statistical Analysis
The general experimental design considered two independent variables: neonatal exposure (Control, Vehicle of BPA) and testicular tumour induction (Control, Vehicle of BPA). For the analysis of the tumour weight and tumour cell microenvironment data, only the exposure (BPA) variable was considered, as all animals belonged to the 4T1 group. Data from two to three independent experiments were graphed as the mean ± standard deviation and analysed with the Prism 6® software (GraphPad Software Inc, La Jolla, CA, USA). The normality of data distribution was assessed with a Shapiro–Wilk test. Thereafter, a one-way ANOVA (α = 0.05) was performed, followed by a Tukey post-hoc test. Differences were considered significant with a p-value < 0.05. In data regarding oestrogen receptor expression, both independent variables were considered and therefore, a two-way ANOVA (α = 0.05) was performed, followed by a Holm–Šidák post hoc test, with the same significant difference criterion.
4. Discussion
In the last decades, the incidence of testicular cancer has increased. However, to date, little is known about the aetiology of testicular cancer, and much less, the immune control of it. The use of animal models in cancer experiments provide valuable information about the causes, development and the response of these diseases. Nevertheless, current animal models are far from simulating the testicular tumour process due to their genetic characteristics, for instance, the use of nude mice where the immune response is inhibited [
18]. Another animal model previously used, the 129/Sv strain, shares histological characteristics present in humans, but only for paediatric tumours [
19]. To our knowledge, this is the first study in which a testicular-like tumour model has been developed in a non-deficient mouse model. This represents an extremely useful strategy since the antitumoural immune response can be studied.
The present project evaluated whether BPA exposure during the perinatal stage might induce alterations of the immune response against tumour development. To do this, male adult mice, derived from pregnant female mice exposed to BPA, were inoculated in the scrotum with the 4T1 cancer cell line to develop testicular-like tumours, and the associated-immune response was evaluated. Although this tumour cell line is derived from breast tissue, the cells were administered into the reproductive tract of the male mice, then tumour cells successfully developed into tumours in a different site from its origin—allowing for the evaluation of the immune response at a systemic and tumoural level.

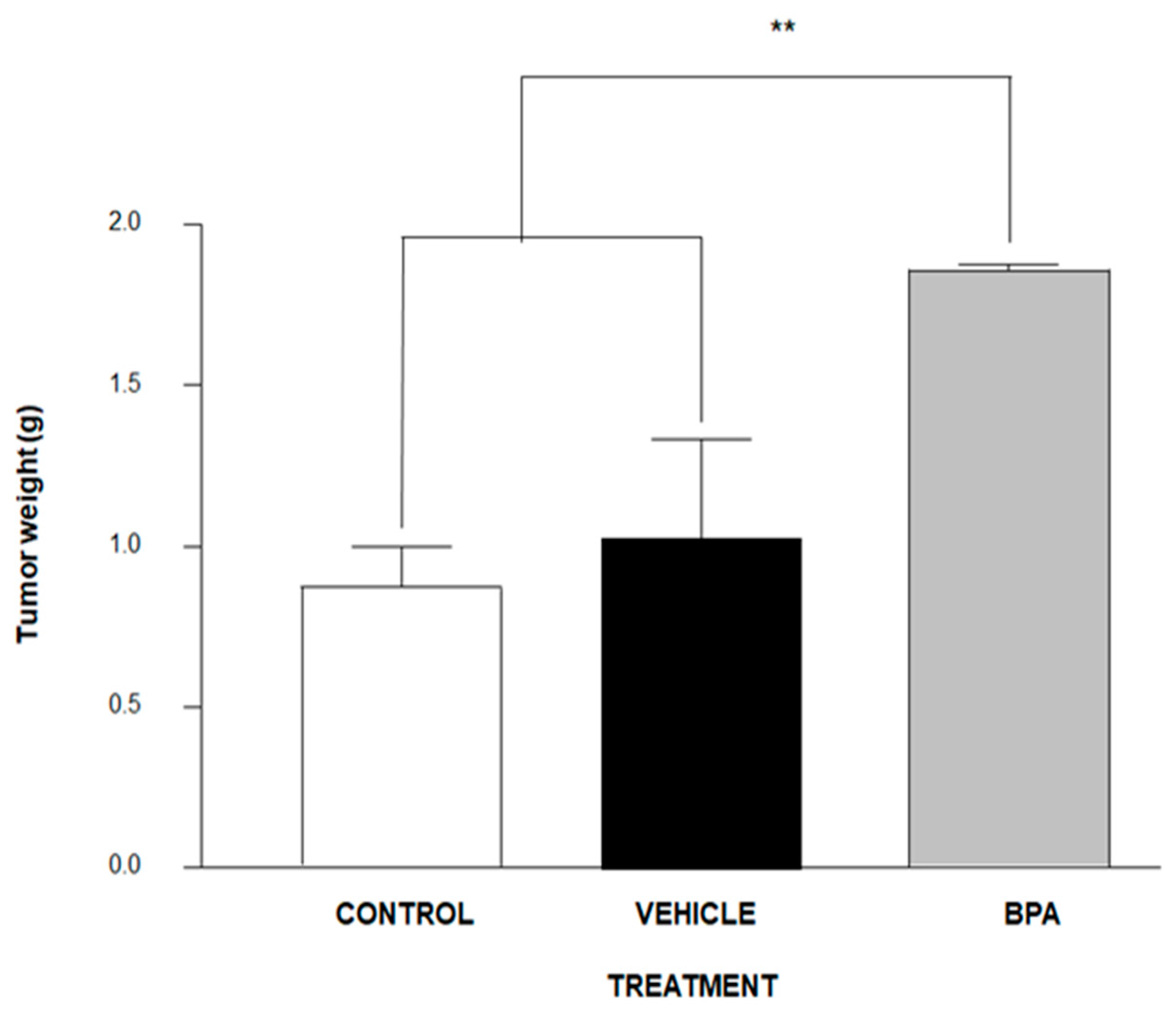

Our results clearly depict that BPA exposure favoured the growth of tumours derived in the mice scrotum, this notion is in accordance with other reports that have evaluated the effect of this compound in different types of cancer models [
20,
21]. Moreover, to evaluate whether BPA exposure could modify the structure and shape of the tumour cells, H&E stain analyses were performed. We observed that control groups and animals derived from BPA exposure presented similar tumour cell structures, with necrotic areas, as well as many hyperchromatic cell nuclei, which are common features of tumour tissues [
22]. In other words, maternal exposure to BPA did not produce significant differences in the distribution and structure of the offspring tumour cell epithelium compared to the control groups. Although this compound has been shown to alter the morphology of hyperplastic epithelial cells derived from the rat mammary gland, it is important to mention that the administration period was different in other models [
23].

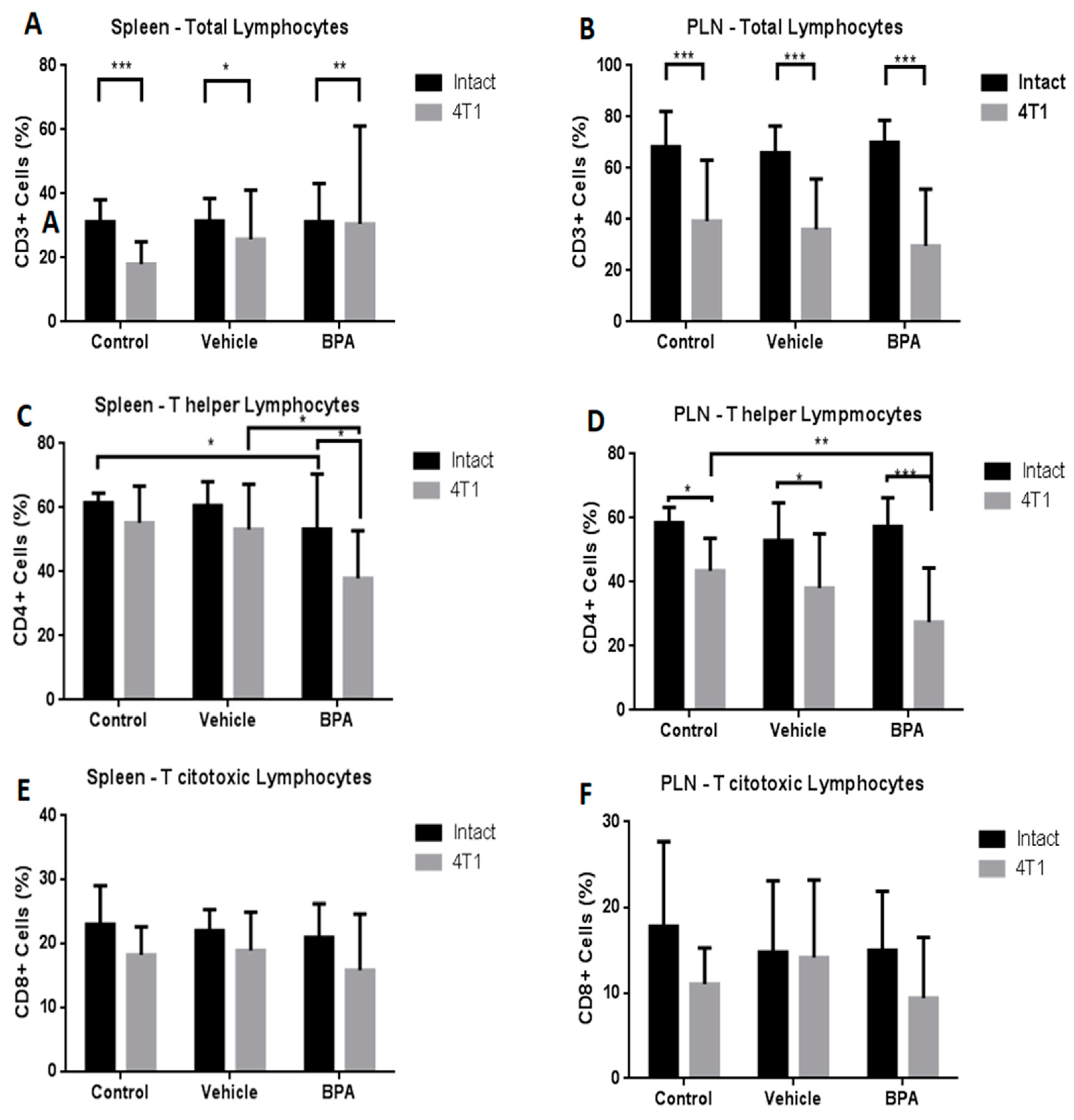

Conversely, to determine whether BPA could affect the immune response during tumour development, the percentages of different immune cells were analysed in the spleen, PLN and tumours using flow cytometry. The results showed that in the mice with tumours, the percentage of the total lymphocyte population was lower in the spleen and lymph nodes, and BPA exposure did not result in any significant changes. The decrease in the total lymphocyte population seems to be due to the antigenic tumour challenge, which is associated with an underprivileged anti-tumour response [

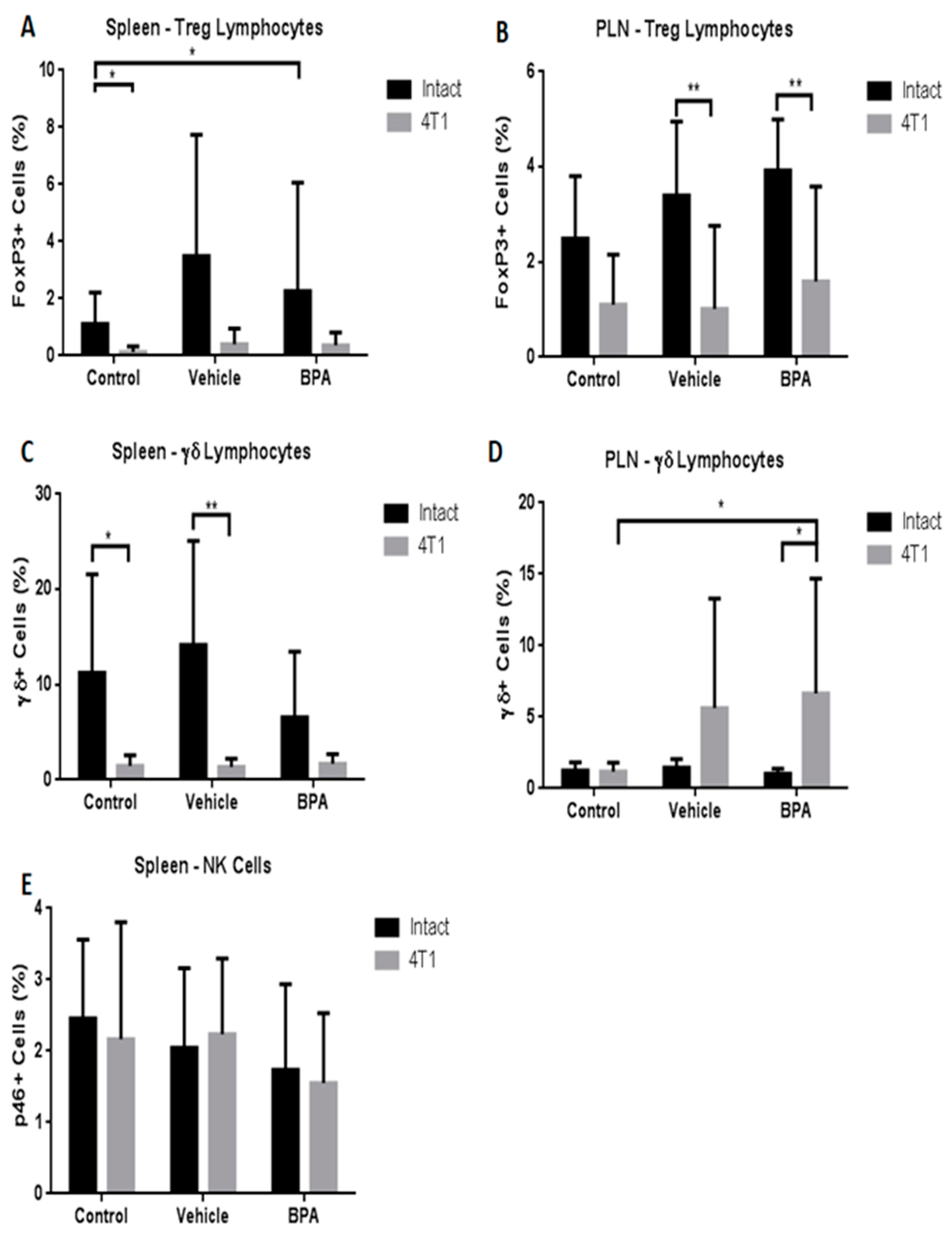

24]. This deficient immune response could be related to the significant decrease in helper T cells caused by exposure to BPA. Moreover, in the spleen of the animals with tumours, the number of regulatory T and Tγδ lymphocytes was decreased compared with the animals without tumours. In contrast, both immunoregulatory populations were significantly increased in PLN by BPA exposure. Interestingly, we did not find any of these populations in the tumour. It is known that regulatory T and Tγδ lymphocytes are considered as key players in immune tolerance as well as suppression of antitumour responses, specifically, Treg cells are associated with aggressive tumour phenotypes, and they home in on the tumours through the action of various cytokines [
25]. Perhaps in our tumour model, the increase in Treg cells in the PLN is an intermediate step for their arrival to the tumour site.
Moreover, the PD-L2 marker is an important molecule related to the alternative phenotype of macrophages, and with the suppression of T lymphocyte proliferation [

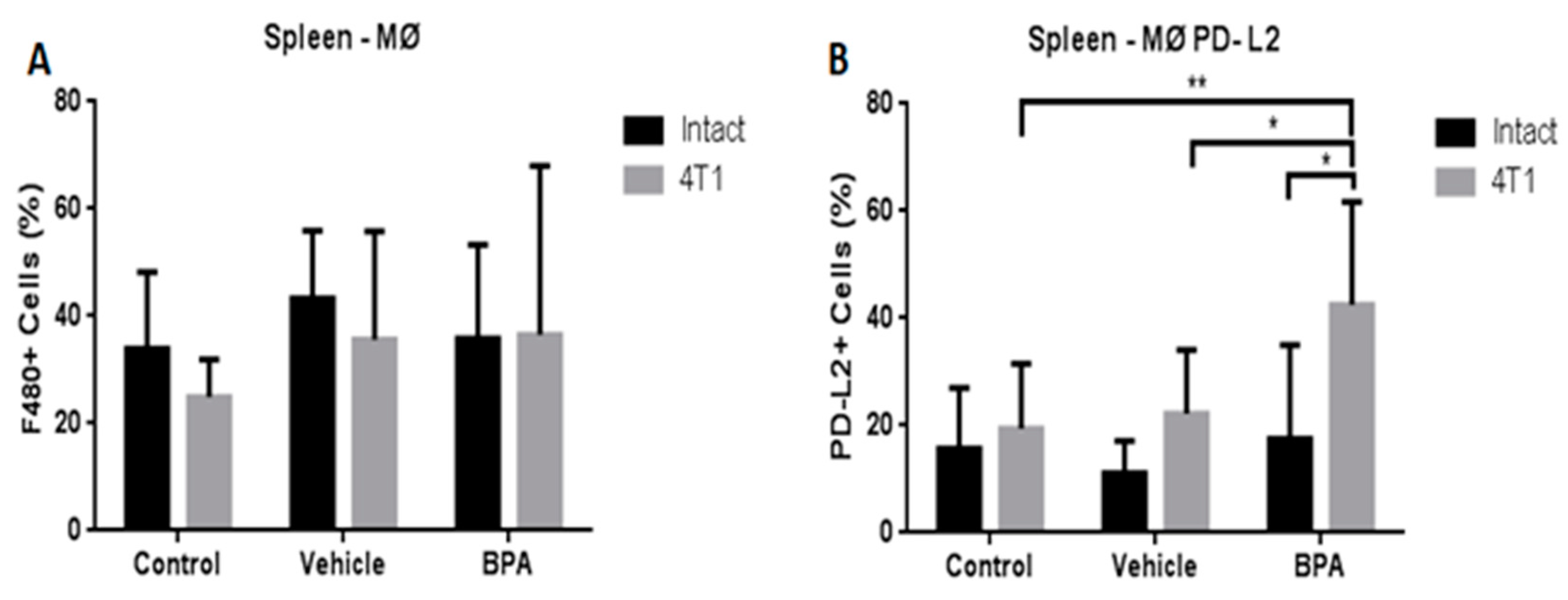

26]. Interestingly, we observed a significant increase in the percentage of PD-L2 on macrophages derived from mice exposed to BPA compared to the control groups, suggesting that in the testicular-like cancer model, macrophages expressing the PD-L2 marker govern an essential suppressive role of T cell proliferation and a pro-tumoural activity. In this work, we also observed a decrease of B lymphocytes in the spleen of animals, with tumours, that were exposed to BPA, is an important limiting factor for the decrease of their capacity to remove tumour cells. Nevertheless, deeper studies about the immune regulation by BPA are needed [
27].
Many reports have mentioned that immune cellular and molecular components, such as cytokines, have multiple roles. In fact, cytokines are considered as meaningful components of the hallmarks of cancer [
28]. In this sense, we evaluated the effect of BPA exposure on the expression of different intra-tumoural cytokines implicated in metastatic and pro or anti-inflammatory processes. The results showed that both anti-inflammatory cytokines, such as IL-4 and IL-10, were up-regulated in tumours derived from animals that had previous exposure with the EDC, while the expression of the pro-inflammatory counterpart (TNF-α and IFN-γ) was diminished. These results appear to contravene other reports where perinatal BPA exposure induces the secretion of pro-inflammatory mediators in the bone marrow-derived mast cells of 6-month-old adult mice offspring [
29]. However, we did not study the BPA effect at a systemic level in the secretion of cytokines, but rather at the tumour level, indicating that the cytokine levels may be different depending on the tissue or cell type under investigation. Correlating the importance of macrophages in our model, and the secretion of TNF-α, it was reported that macrophages originated from mice exposed orally to BPA, and activated with LPS, decreased the TNF-α secretion [
30], which is an important discovery since it is a key component in tumour cell clearance, thus exposure to BPA prevents tumour elimination.
This work is an initial exploration of how the immune response may be affected by an endocrine disruptor at the perinatal stage. Considering that experiments carried out on exposure to BPA and cells of the immune system are few, as well as different in terms of the form of exposure—prenatal, neonatal or perinatal, or even ex vivo or in vitro—as well as exposure doses, it is necessary to continue experimenting with comparable variables.
Although it has been described that cells of the immune system express oestrogen receptors, oestrogenic compounds can modulate the activity of these receptors [
31]. However, the following questions remain: (1) How does BPA work? and (2) what are the molecular and genomic factors involved in this process? BPA can affect the immune system at important stages of development.
For a better understanding of the effects of BPA, there are several points that should be analysed: (1) The effect of BPA in early or intermediate stages of the antitumoural immune response; (2) The quantification of molecules with negative costimulatory actions; (3) The quantification of factors associated with malignant and proliferative development like TGF-β and VEGF to analyse the invasive and proliferative capacity associated with exposure to perinatal BPA.
