Isolation and Structural Determination of Two Novel Phlorotannins from the Brown Alga Ecklonia kurome Okamura, and Their Radical Scavenging Activities
Abstract
:1. Introduction
2. Results
2.1. Purification of 974-A (1) and 974-B (2), and Their Molecular Formulas
2.2. Determination of the Numbers of Hydroxyl Groups in 974-A (1) and 974-B (2)

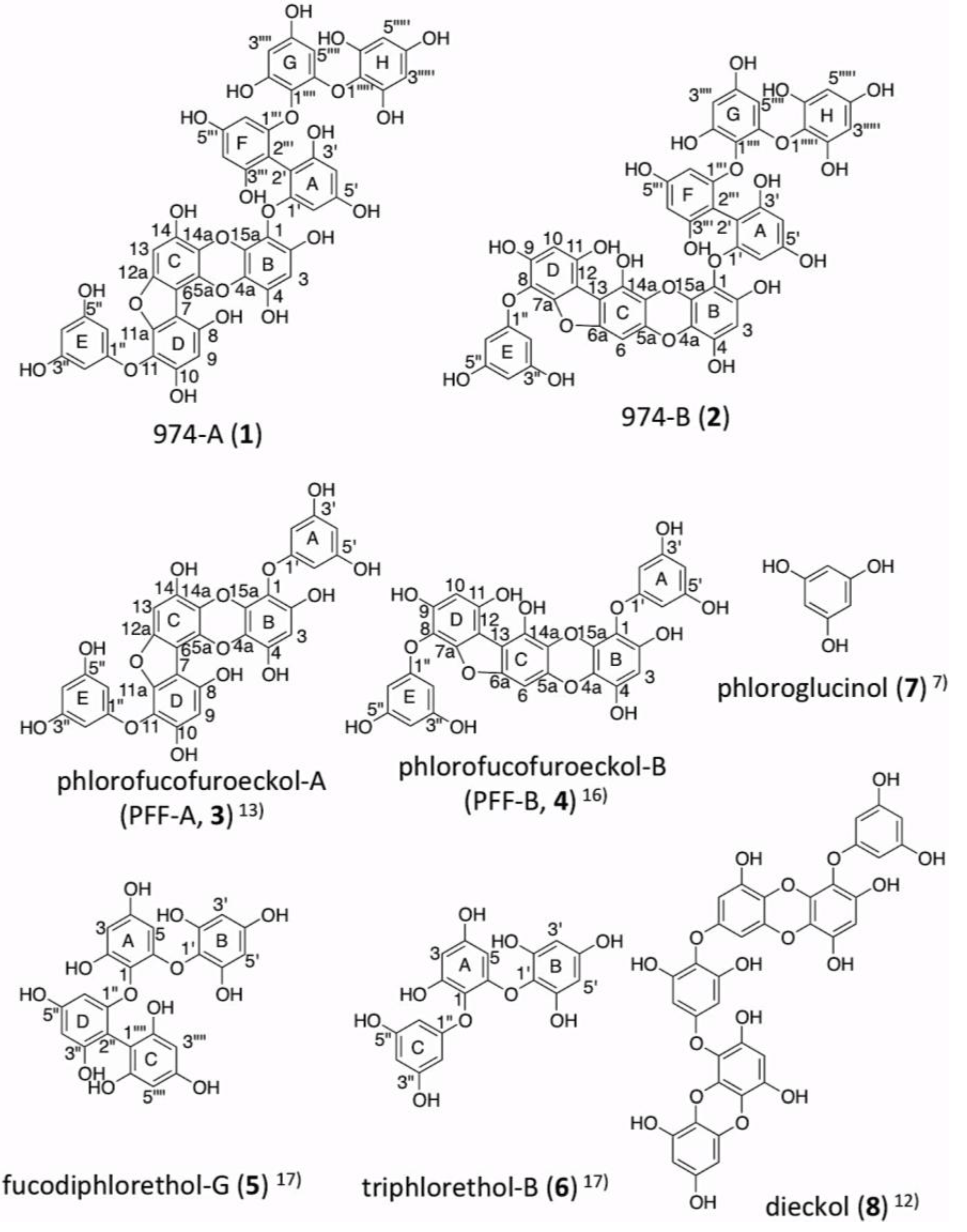

2.3. Determination of the Structure of 974-A (1)
974-A (1) | PFF-A (3) | ||||||||
---|---|---|---|---|---|---|---|---|---|
ring | position | δC | δH (mult, J) | HMBC b | δC | δH (mult, J) | ΔδC (1−3) | ||
A | 1′ | 159.1 | 161.9 | −2.8 | |||||
2′ | 102.4 | 95.4 | 5.96 (d, 2.06) | 7.0 | |||||
3′ | 156.6 | 160.2 | −3.6 | ||||||
4′ | 98.4 | 6.18 (d, 2.05) | 2′,3′,5′,6′ | 97.6 | 5.91 (t, 2.06) | 0.8 | |||
5′ | 159.6 | 160.2 | −0.6 | ||||||
6′ | 95.2 | 6.12 (d, 2.05) | 1′,2′,4′,5′ | 95.4 | 5.96 (d, 2.06) | −0.2 | |||
B | 1 | 124.2 | 124.7 | −0.5 | |||||
2 | 147.8 | 148.3 | −0.5 | ||||||
3 | 99.3 | 6.25 (s) | 1,2,4,4a,15a | 99.3 | 6.26 (s) | 0.0 | |||
4 | 144.3 | 143.9 | 0.4 | ||||||
4a | 124.9 | 125.0 | −0.1 | ||||||
15a | 138.2 | 138.4 | −0.2 | ||||||
C | 5a | 135.2 | 135.3 | −0.1 | |||||
6 | 105.2 | 105.3 | −0.1 | ||||||
12a | 153.4 | 153.2 | 0.2 | ||||||
13 | 96.1 | 6.64 (s) | 5a,6,12a,14,14a | 96.2 | 6.63 (s) | −0.1 | |||
14 | 145.8 | 146.0 | −0.2 | ||||||
14a | 127.6 | 128.1 | −0.5 | ||||||
D | 7 | 105.2 | 105.3 | −0.1 | |||||
8 | 148.2 | 148.2 | 0.0 | ||||||
9 | 99.9 | 6.40 (s) | 7,8,10,11 | 99.9 | 6.40 (s) | 0.0 | |||
10 | 151.8 | 151.7 | 0.1 | ||||||
11 | 122.3 | 122.3 | 0.0 | ||||||
11a | 151.2 | 151.2 | 0.0 | ||||||
E | 1″ | 161.8 | 161.8 | 0.0 | |||||
2″,6″ | 95.3 | 5.87 (d, 2.05) | 1″,3″,4″(H2″) | 95.3 | 5.88 (d, 2.06) | 0.0 | |||
3″,5″ | 160.2 | 160.2 | 0.0 | ||||||
4″ | 97.6 | 5.91 (t, 2.05) | 2″,3″,5″,6″ | 97.7 | 5.94 (t, 2.06) | −0.1 | |||
fucodiphlorethol G (5, part) [17] | |||||||||
ring | position | δC | δH (mult, J) | ΔδC (1–5) | |||||
F | 1′′′ | 159.7 | D | 1″ | 159.4 | 0.3 | |||
2′′′ | 102.6 | 2″ | 102.0 | 0.6 | |||||
3′′′ | 156.6 | 3″ | 159.2 | −2.6 | |||||
4′′′ | 98.7 | 6.20 (d, 2.35) | 2′′′,3′′′,5′′′,6′′′ | 4″ | 97.5 | 6.10 (d, 2.2) | 1.2 | ||
5′′′ | 159.7 | 5″ | 159.5 | 0.2 | |||||
6′′′ | 94.2 | 5.90 (d, 2.35) | 1′′′,2′′′,4′′′,5′′′ | 6″ | 94.3 | 6.03 (d, 2.2) | −0.1 | ||
G | 1″″ | 124.9 | A | 1 | 124.9 | 0.0 | |||
2″″ | 151.9 | 2 | 152.0 | −0.1 | |||||
3″″ | 97.7 | 6.04 (d, 2.64) | 1″″,2″″,4″″,5″″ | 3 | 98.0 | 6.02 c (d, 2.7) | −0.3 | ||
4″″ | 156.6 | 4 | 157.5 | −0.9 | |||||
5″″ | 94.4 | 5.73 (d, 2.65) | 1″″,3″″,4″″,6″″ | 5 | 94.5 | 5.69 c (d, 2.7) | 0.1 | ||
6″″ | 153.9 | 6 | 153.7 | 0.2 | |||||
H | 1′′′′′ | 124.2 | B | 1′ | 124.3 | −0.1 | |||
2′′′′′,6′′′′′ | 152.3 | 2′,6′ | 152.1 | 0.2 | |||||
3′′′′′,5′′′′′ | 96.4 | 5.93 (s) | 1′′′′′,2′′′′′,4′′′′′(H3′′′′′) | 3′,5′ | 96.0 | 5.91 (s) | 0.4 | ||
4′′′′′ | 156.5 | 4′ | 157.9 | −1.4 |
974-B (2) | PFF-B (4) | ||||||||
---|---|---|---|---|---|---|---|---|---|
ring | position | δC | δH (mult, J) | HMBC b | δC | δH (mult, J) | ΔδC (2–4) | ||
A | 1′ | 159.0 | 161.8 | −2.9 | |||||
2′ | 102.5 | 95.1 | 5.97 (d,205) | 7.3 | |||||
3′ | 156.9 | 159.9 | −3.1 | ||||||
4′ | 98.4 | 6.20 (d,2.05) | 2′,3′,5′,6′ | 97.2 | 5.92 (t,2.05) | 1.1 | |||
5′ | 159.6 | 159.9 | −0.4 | ||||||
6′ | 95.2 | 6.15 (d,2.05) | 1′,2′,4′,5′ | 95.1 | 5.97 (d 2.05) | 0.0 | |||
B | 1 | 124.0 | 124.3 | −0.4 | |||||
2 | 147.0 | 147.5 | −0.6 | ||||||
3 | 99.6 | 6.17 (s) | 1,2,4,4a,15a | 99.2 | 6.16 (s) | 0.3 | |||
4 | 143.9 | 143.5 | 0.3 | ||||||
4a | 125.3 | 125.2 | 0.0 | ||||||
15a | 138.0 | ND c | ND c | ||||||
C | 5a | 142.9 | 143.0 | −0.2 | |||||
6 | 92.7 | 6.69 (s) | 5a,6a,13,14,14a | 92.0 | 6.66 (s) | 0.6 | |||
6a | 152.7 | 152.3 | 0.3 | ||||||
13 | 109.9 | 109.7 | 0.1 | ||||||
14 | 138.3 | 138.2 | 0.0 | ||||||
14a | 127.4 | 127.6 | −0.3 | ||||||
D | 7a | 150.9 | 150.7 | 0.1 | |||||
8 | 122.1 | 122.2 | −0.2 | ||||||
9 | 151.6 | 151.3 | 0.2 | ||||||
10 | 99.5 | 6.38 (s) | 7a,8,9,11,12,13 | 98.9 | 6.37 (s) | 0.5 | |||
11 | 148.4 | 147.6 | 0.7 | ||||||
12 | 106.4 | 106.7 | −0.4 | ||||||
E | 1″ | 161.9 | 161.7 | 0.1 | |||||
2″,6″ | 95.3 | 5.87 (d,2.06) | 1″,3″,4″(H2″) | 94.9 | 5.87 (d,2.03) | 0.3 | |||
3″,5″ | 160.2 | 160.0 | 0.1 | ||||||
4″ | 97.6 | 5.91 (t,2.05) | 2″,3″,5″,6″ | 97.2 | 5.94 (t,2.05) | 0.3 | |||
fucodiphlorethol G (5, part) [17] | |||||||||
ring | position | δC | δH (mult, J) | ΔδC (2–5) | |||||
F | 1′′′ | 159.2 | D | 1″ | 159.4 | −0.2 | |||
2′′′ | 102.7 | 2″ | 102.0 | 0.7 | |||||
3′′′ | 157.5 | 3″ | 159.2 | −1.7 | |||||
4′′′ | 98.6 | 6.22 (d, 2.06) | 2′′′,3′′′,5′′′,6′′′ | 4″ | 97.5 | 6.10 (d, 2.2) | 1.1 | ||
5′′′ | 159.7 | 5″ | 159.5 | 0.2 | |||||
6′′′ | 94.2 | 5.89 (d, 2.05) | 1′′′,2′′′,4′′′,5′′′ | 6″ | 94.3 | 6.03 (d, 2.2) | −0.1 | ||
G | 1″″ | 124.7 | A | 1 | 124.9 | −0.2 | |||
2″″ | 152.2 | 2 | 152.0 | 0.2 | |||||
3″″ | 97.6 | 6.05 (d, 2.64) | 1″″,2″″,4″″,5″″ | 3 | 98.0 | 6.02 d (d, 2.7) | −0.4 | ||
4″″ | 156.6 | 4 | 157.5 | 0.9 | |||||
5″″ | 94.2 | 5.75 (d, 2.64) | 1″″,3″″,4″″,6″″ | 5 | 94.5 | 5.69 d (d, 2.7) | −0.3 | ||
6″″ | 153.8 | 6 | 153.7 | 0.1 | |||||
H | 1′′′′′ | 124.0 | B | 1′ | 124.3 | −0.3 | |||
2′′′′′,6′′′′′ | 152.2 | 2′,6′ | 152.1 | 0.1 | |||||
3′′′′′,5′′′′′ | 96.5 | 6.00 (s) | 1′′′′′,2′′′′′,4′′′′′(H3′′′′′) | 3′,5′ | 96.0 | 5.91 (s) | 0.5 | ||
4′′′′′ | 156.5 | 4′ | 157.9 | −1.4 |
2.4. Determination of the Structure of 974-B (2)

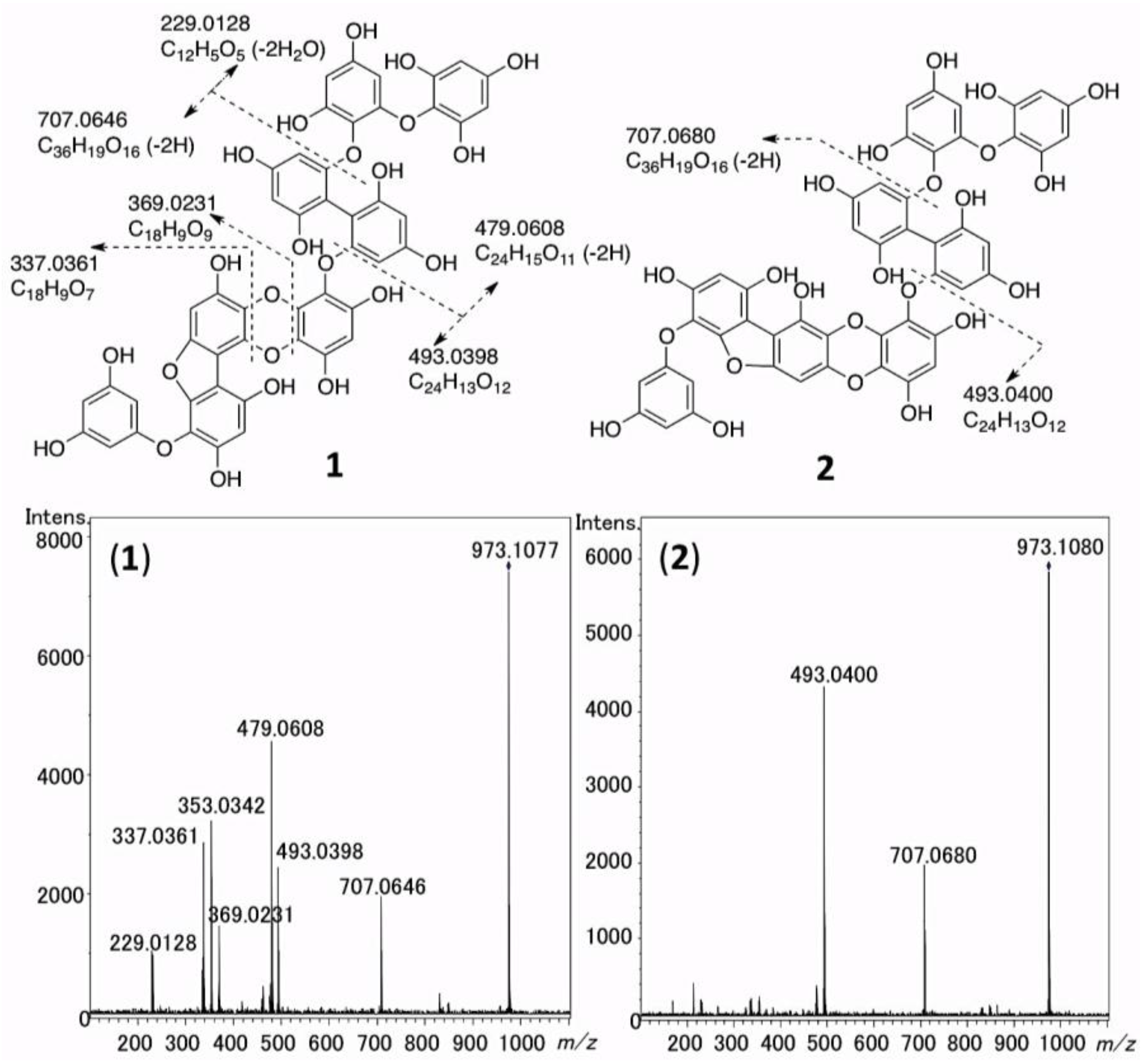

2.5. The MS/MS Fragmentation of 1 and 2

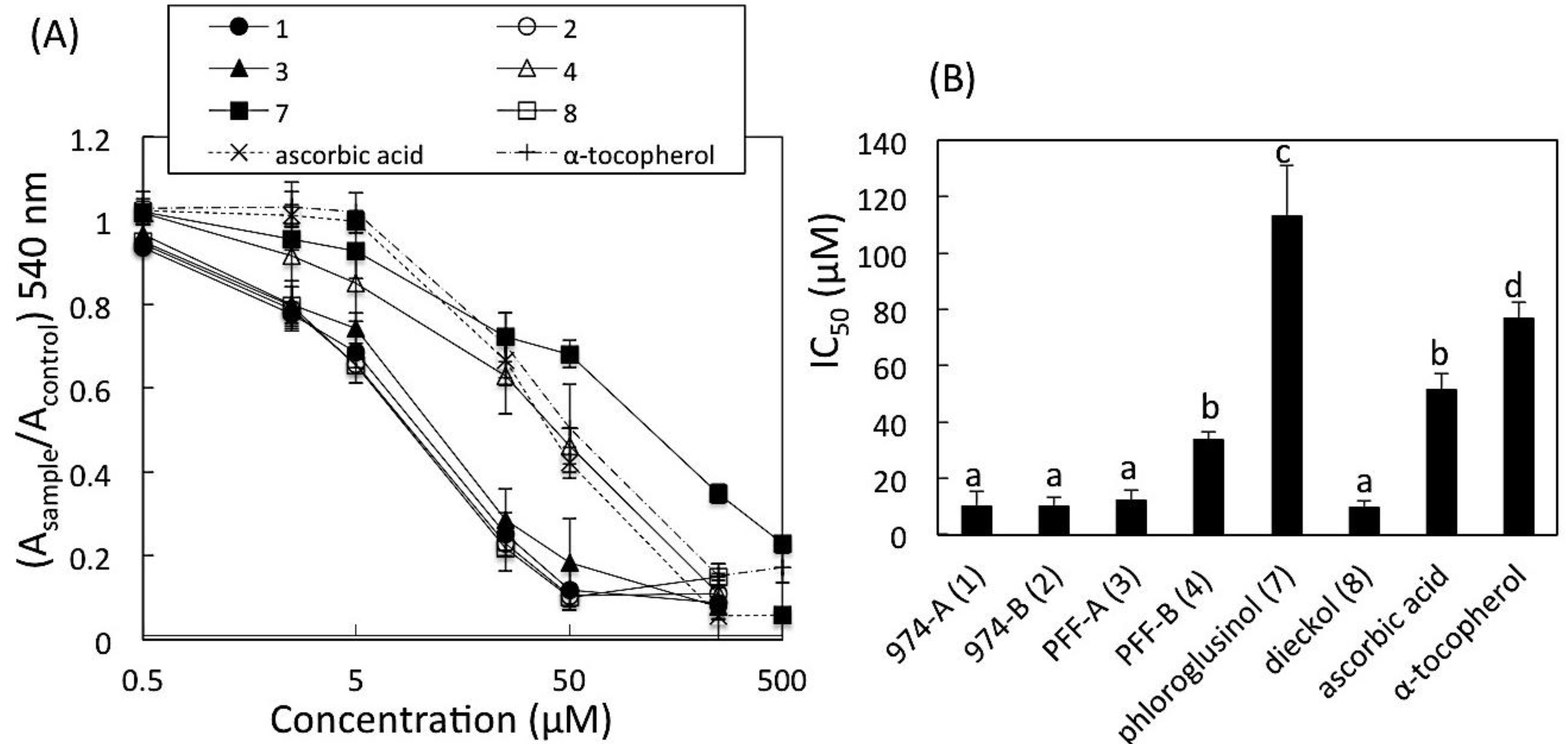

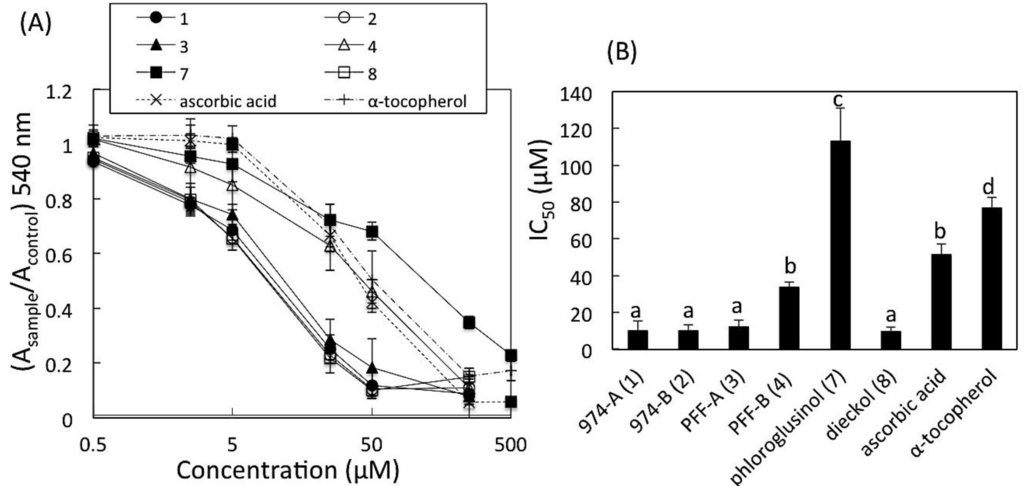

2.6. DPPH Radical Scavenging Activity

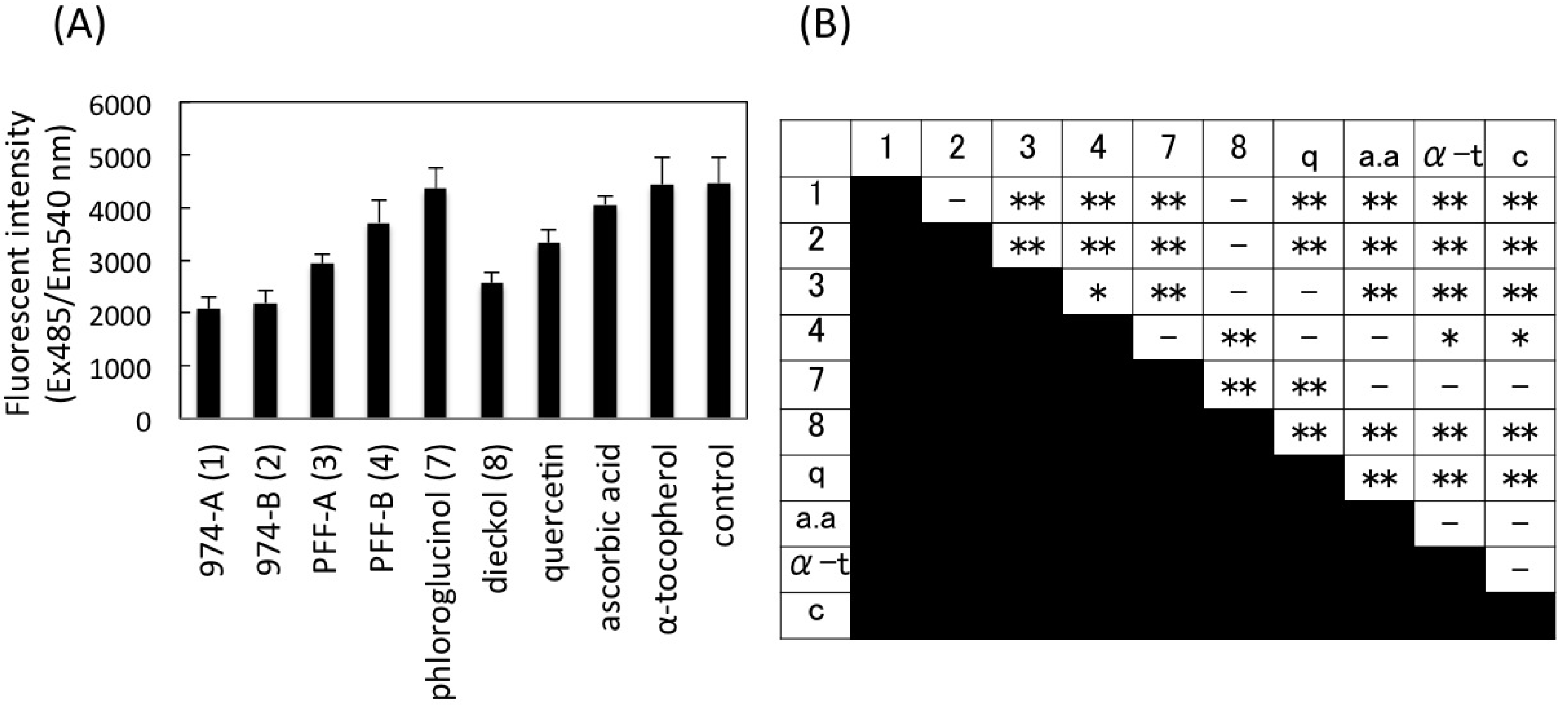

2.7. Intracellular Radical Scavenging Activity Measured Using DCFH-DA
2.8. Cell Viability
3. Discussion
4. Experimental Section
4.1. General Materials
4.2. Isolation of Phlorotannins
4.3. Acetylation of 1 and 2
4.4. HR-ESI-MS/MS Measurement
4.5. DPPH Radical Scavenging Activity
4.6. Cellular Radical Scavenging Activity Measured Using DCFH-DA
4.7. Cell Viability
5. Conclusions
Acknowledgments
Supplementary Files
References
- Singh, I.P.; Bharate, S.B. Phloroglucinol compounds of natural origin. Nat. Prod. Rep. 2006, 23, 558–591. [Google Scholar] [CrossRef]
- Lopes, G.; Sousa, C.; Silva, L.R.; Pinto, E.; Andrade, P.B.; Bernardo, J.; Mouga, T.; Valentao, P. Can phlorotannins purified extracts constitute a novel pharmacological alternative for microbial infections with associated inflammatory conditions? PLoS One 2012, 7, e31145. [Google Scholar]
- Kim, A.R.; Shin, T.S.; Lee, M.S.; Park, J.Y.; Park, K.E.; Yoon, N.Y.; Kim, J.S.; Choi, J.S.; Jang, B.C.; Byun, D.S.; et al. Isolation and identification of phlorotannins from Ecklonia stolonifera with antioxidant and anti-inflammatory properties. J. Agric. Food. Chem. 2009, 57, 3483–3489. [Google Scholar]
- Nagayama, K.; Iwamura, Y.; Shibata, T.; Hirayama, I.; Nakamura, T. Bactericidal activity of phlorotannins from the brown alga Ecklonia kurome. J. Antimicrob. Chemother. 2002, 50, 889–893. [Google Scholar] [CrossRef]
- Li, Y.; Lee, S.H.; Le, Q.T.; Kim, M.M.; Kim, S.K. Anti-allergic effects of phlorotannins on histamine release via binding inhibition between IgE and FcεRI. J. Agric. Food Chem. 2008, 56, 12073–12080. [Google Scholar] [CrossRef]
- Li, Y.; Qian, A.J.; Ryu, B.; Lee, S.H.; Kim, M.M.; Kim, S.K. Chemical components and its antioxidant properties in vitro: An edible marine brown alga, Ecklonia cava. Bioorg. Med. Chem. 2009, 17, 1963–1974. [Google Scholar] [CrossRef]
- Kwon, Y.H.; Jung, S.Y.; Kim, J.W.; Lee, S.H.; Lee, J.H.; Lee, B.Y.; Kwon, S.M. Phloroglucinol inhibits the bioactivities of endothelial progenitor cells and suppresses tumor angiogenesis in LLC-tumor-bearing mice. PLoS One 2012, 7, e33618. [Google Scholar]
- Wijesekara, I.; Kim, S.K. Angiotensin-I-converting enzyme (ACE) inhibitors from marine resources: Prospects in the pharmaceutical industry. Mar. Drugs 2010, 8, 1080–1093. [Google Scholar] [CrossRef]
- Kang, S.M.; Heo, S.J.; Kim, K.N.; Lee, S.H.; Yang, H.M.; Kim, A.D.; Jeon, Y.J. Molecular docking studies of a phlorotannin, dieckol isolated from Ecklonia cava with tyrosinase inhibitory activity. Bioorg. Med. Chem. 2012, 20, 311–316. [Google Scholar] [CrossRef]
- Xu, H.L.; Kitajima, C.; Ito, H.; Miyazaki, T.; Baba, M.; Okuyama, T.; Okada, Y. Antidiabetic effect of polyphenols from brown alga Ecklonia kurome in genetically diabetic KK-A(y) mice. Pharm. Biol. 2012, 50, 393–400. [Google Scholar] [CrossRef]
- Fukuyama, Y.; Miura, I.; Kinzyo, Z.; Mori, H.; Kido, M.; Nakayama, Y.; Takahashi, M.; Ochi, M. Eckols, novel phlorotannins with a dibenzo-p-dioxin skeleton possessing inhibitory effects on α2-macroglobulin from the brown alga Ecklonia kurome Okamura. Chem. Lett. 1985, 14, 739–742. [Google Scholar]
- Fukuyama, Y.; Kodama, M.; Miura, I.; Kinzyo, Z.; Mori, H.; Nakayama, Y.; Takahashi, M. Anti-plasmin inhibitor. V. Structures of novel dimeric eckols isolated from the brown alga Ecklonia kurome Okamura. Chem. Pharm. Bull. 1989, 37, 2438–2440. [Google Scholar] [CrossRef]
- Fukuyama, Y.; Kodama, M.; Miura, I.; Kinzyo, Z.; Mori, H.; Nakayama, Y.; Takahashi, M. Anti-plasmin inhibitor. VI. Structure of phlorofucofuroeckol A, a novel phlorotannin with both dibenzo-1,4-dioxin and dibenzofuran elements, from Ecklonia kurome Okamura. Chem. Pharm. Bull. 1990, 38, 133–135. [Google Scholar] [CrossRef]
- Kang, S.M.; Heo, S.J.; Kim, K.N.; Lee, S.H.; Jeon, Y.J. Isolation and identification of new compound, 2,7″-phloroglucinol-6,6′-bieckol from brown algae, Ecklonia cava and its antioxidant effect. J. Funct. Foods 2012, 4, 158–166. [Google Scholar] [CrossRef]
- Kang, S.M.; Lee, S.H.; Heo, S.J.; Kim, K.N.; Jeon, Y.J. Evaluation of antioxidant properties of a new compound, pyrogallol-phloroglucinol-6,6′-bieckol isolated from brown algae, Ecklonia cav. Nutr. Res. Pract. 2011, 5, 495–502. [Google Scholar] [CrossRef]
- Sugiura, Y.; Matsuda, K.; Yamada, Y.; Nishikawa, M.; Shioya, K.; Katsuzaki, H.; Imai, K.; Amano, H. Isolation of a new anti-allergic phlorotannin, phlorofucofuroeckol-B from an edible brown alga, Eisenia arbore. Biosci. Biotechnol. Boichem. 2006, 70, 2807–2811. [Google Scholar] [CrossRef]
- Ham, Y.M.; Bail, J.S.; Hyun, J.W.; Lee, N.H. Isolation of a new phlorotannin, fucodiphlorethol G, from a brown alga Ecklonia cava. Bull. Korean Chem. Soc. 2007, 28, 1595–1597. [Google Scholar] [CrossRef]
- Bass, D.A.; Parce, J.W.; Dechatelet, L.R.; Szejda, P.; Seeds, M.C.; Thomas, M. Flow cytometric studies of oxidative product formation by neutrophils: A graded response to membrane stimulation. J. Immunol. 1983, 130, 1910–1917. [Google Scholar]
- Estrella, J.L.; Kan-Sutton, C.; Gong, X.; Rajagopalan, M.; Lewis, D.E.; Hunter, R.L.; Eissa, N.T.; Jagannath, C. A novel in vitro human macrophage model to study the persistence of Mycobacterium tuberculosis using vitamin D3 and retinoic acid activated THP-1 macrophages. Front. Microbiol. 2011, 2, 67:1–67:16. [Google Scholar] [CrossRef]
- Girard-Lalancette, K.; Pichette, A.; Legault, J. Sensitive cell-based assay using DCFH oxidation for the determination of pro- and antioxidant properties of compounds and mixtures: Analysis of fruit and vegetable juices. Food Chem. 2009, 115, 720–726. [Google Scholar]
- Ishiyama, M.; Miyazono, Y.; Sasamoto, K.; Ohkura, Y.; Ueno, K. A highly water-soluble disulfonated tetrazolium salt as a chromogenic indicator for NADH as well as cell viability. Talanta 1997, 44, 1299–1305. [Google Scholar] [CrossRef]
- Gülcin, I. Antioxidant activity of food constituents: An overview. Arch. Toxicol. 2012, 86, 345–391. [Google Scholar] [CrossRef]
- Shibata, T.; Ishimaru, K.; Kawaguchi, S.; Yoshikawa, H.; Hama, Y. Antioxidant activities of phlorotannins isolated from Japanese Laminariaceae. J. Appl. Phycol. 2008, 20, 705–711. [Google Scholar] [CrossRef]
- Lee, M.S.; Shin, T.; Utsuki, T.; Choi, J.S.; Byun, D.S.; Kim, H.R. Isolation and identification of phlorotannins from Ecklonia stolonifera with antioxidant and hepatoprotective properties in tacrine-treated HepG2 cells. J. Agric. Food Chem. 2012, 60, 5340–5349. [Google Scholar] [CrossRef]
- Teng, A.; Yuan, C.; Zhang, F.; Huan, M.; Cao, W.; Li, K.; Yang, J.; Cao, D.; Zhou, S.; Mei, Q. Intestinal absorption and first-pass metabolism of polyphenol compounds in rat and their transport dynamics in Caco-2 cells. PLoS One 2012, 7, e29647. [Google Scholar]
- Kang, H.S.; Chung, H.Y.; Jung, J.H.; Son, B.W.; Choi, J.S. A new phlorotannin from the brown alga Ecklonia stolonifera. Chem. Pharm. Bull. 2003, 51, 1012–1014. [Google Scholar] [CrossRef]
- Watanabe, R.; Suzuki, T.; Oshima, Y. Preparation of calibration standards of N1-H paralytic shellfish toxin analogues by large-scale culture of cyanobacterium Anabaena circinalis (TA04). Mar. Drugs 2011, 9, 466–477. [Google Scholar] [CrossRef]
- Nanjo, F.; Goto, K.; Seto, R.; Suzuki, M.; Sakai, M.; Hara, Y. Scavenging effects of tea catechins and their derivatives on 1,1-diphenyl-2-picrylhydrazyl radical. Free Radic. Biol. Med. 1996, 21, 895–902. [Google Scholar] [CrossRef]
- Kimura, T.; Yamagishi, K.; Suzuki, M.; Shinmoto, H. DPPH assay: Relative estimation of the radical scavenging activities of agricultural products (in Japanese). Nippon Shokuhin Kagaku Kogakkaishi 2002, 49, 257–266. [Google Scholar] [CrossRef]
- Zhou, L.; Shen, L.H.; Hu, L.H.; Ge, H.; Pu, J.; Chai, D.J.; Shao, Q.; Wang, L.; Zeng, J.Z.; He, B. Retinoid X receptor agonists inhibit phorbol-12-myristate-13-acetate (PMA)-induced differentiation of monocytic THP-1 cells into macrophages. Mol. Cell. Biochem. 2010, 335, 283–289. [Google Scholar] [CrossRef]
