Pedestrian Safety in Frontal Tram Collision, Part 2: Laminated Glass as a Crucial Part of the Absorption and Deformation Zone—Its Impact Test and Analysis
Abstract

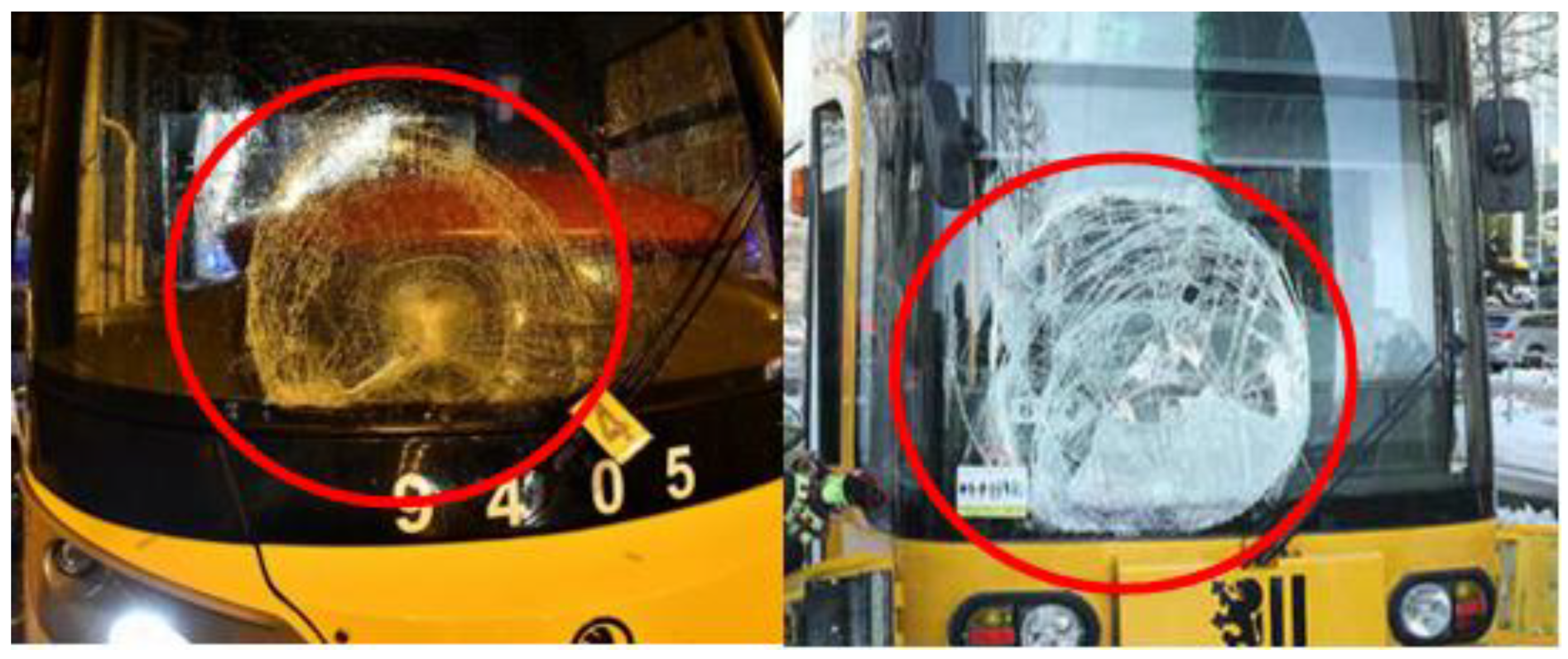

:1. Introduction

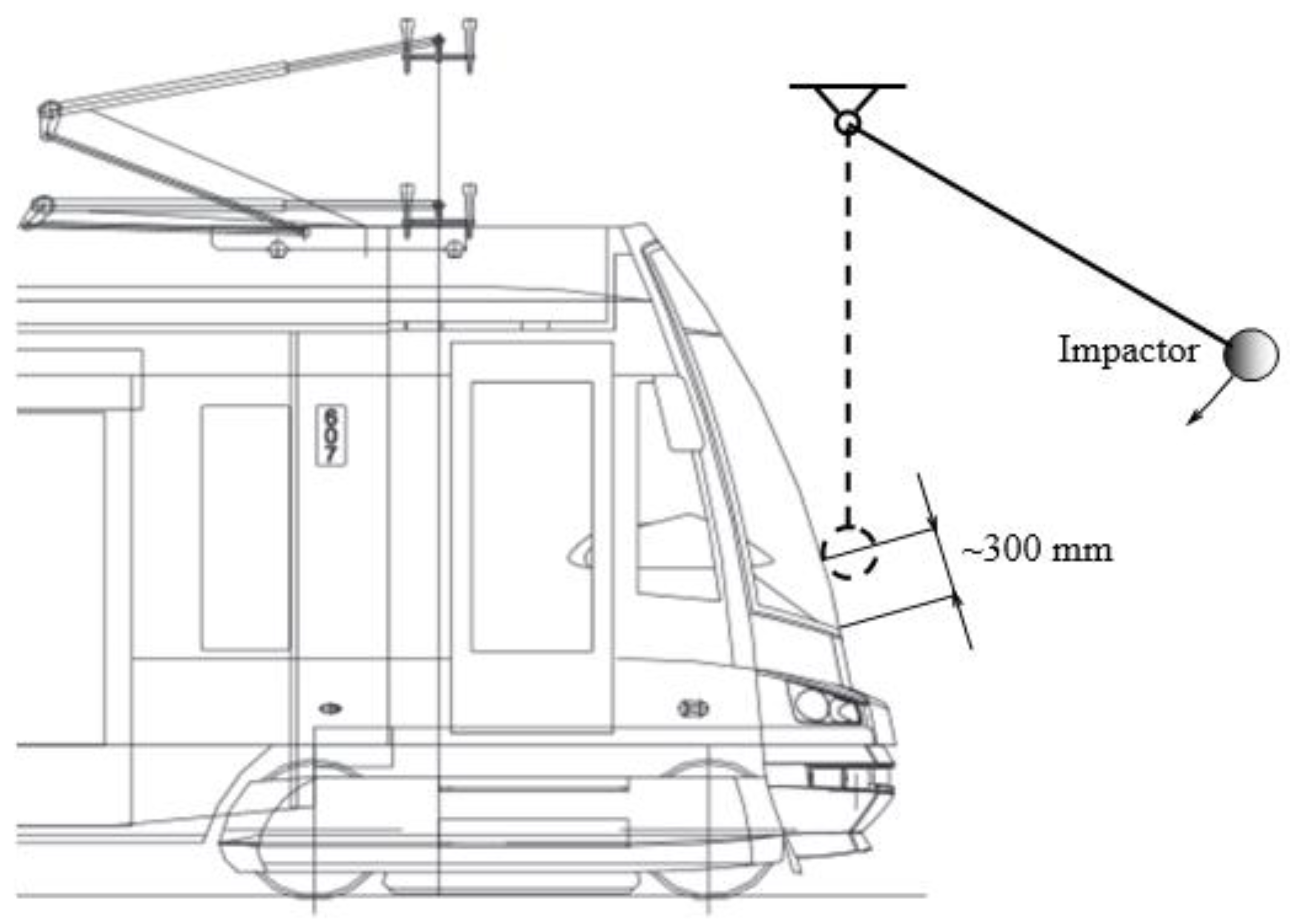

2. Experimental Data Acquisition—The Impact Test

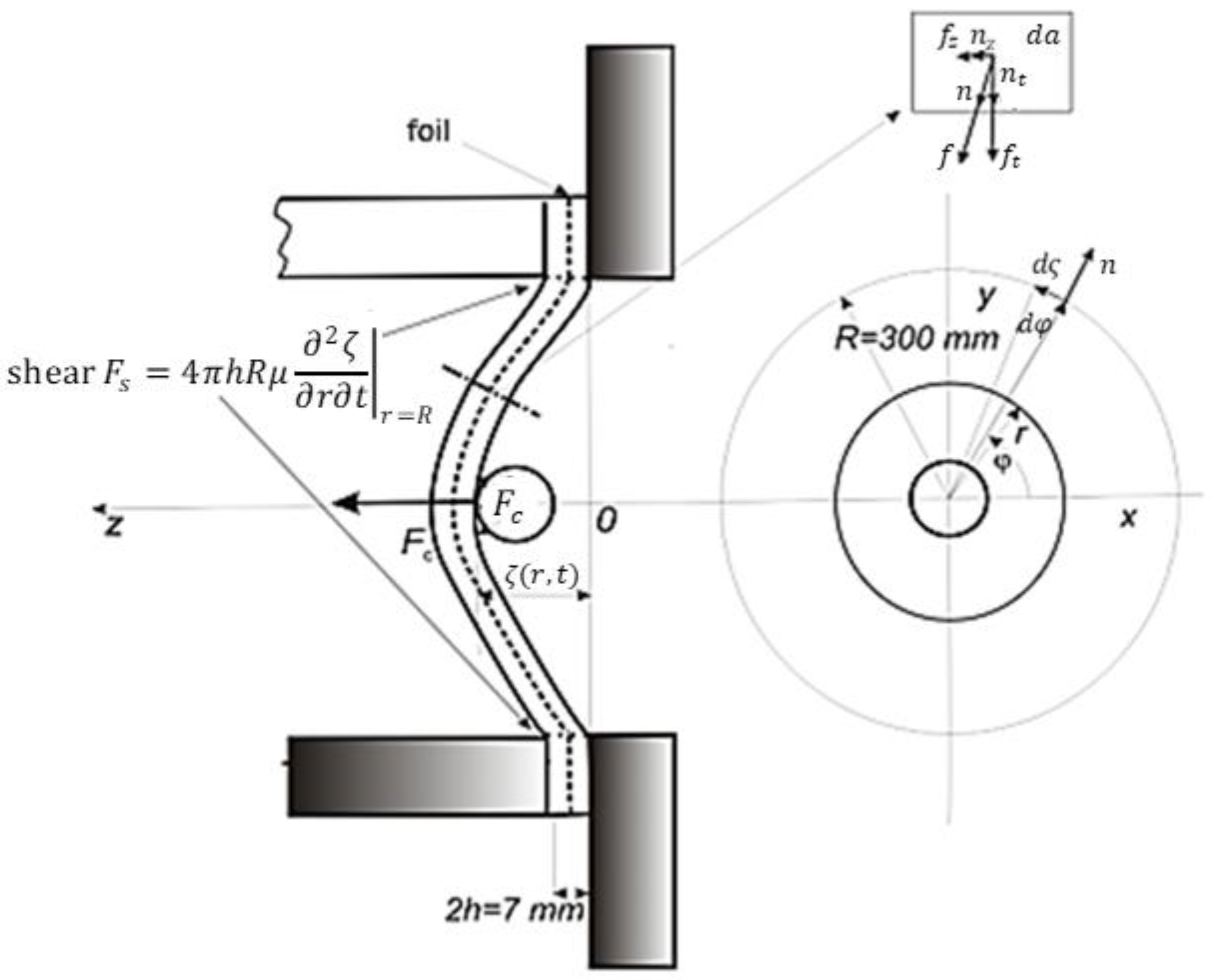

3. Simplified Model of Glass Double-Layer Deflection Plate
- (i)
- the steady part of the impact accompanied by a large deformation with subsequent damage to the glass plate (formation of cracks)
- (ii)
- the dynamic response of an elastic plate to a sudden impact characterized by the plate vibration and with the propagation of transverse waves in the plate. The result of this part is the time course of the force (acceleration) acting on the impacting body.
3.1. The Total Deformation of the Plate

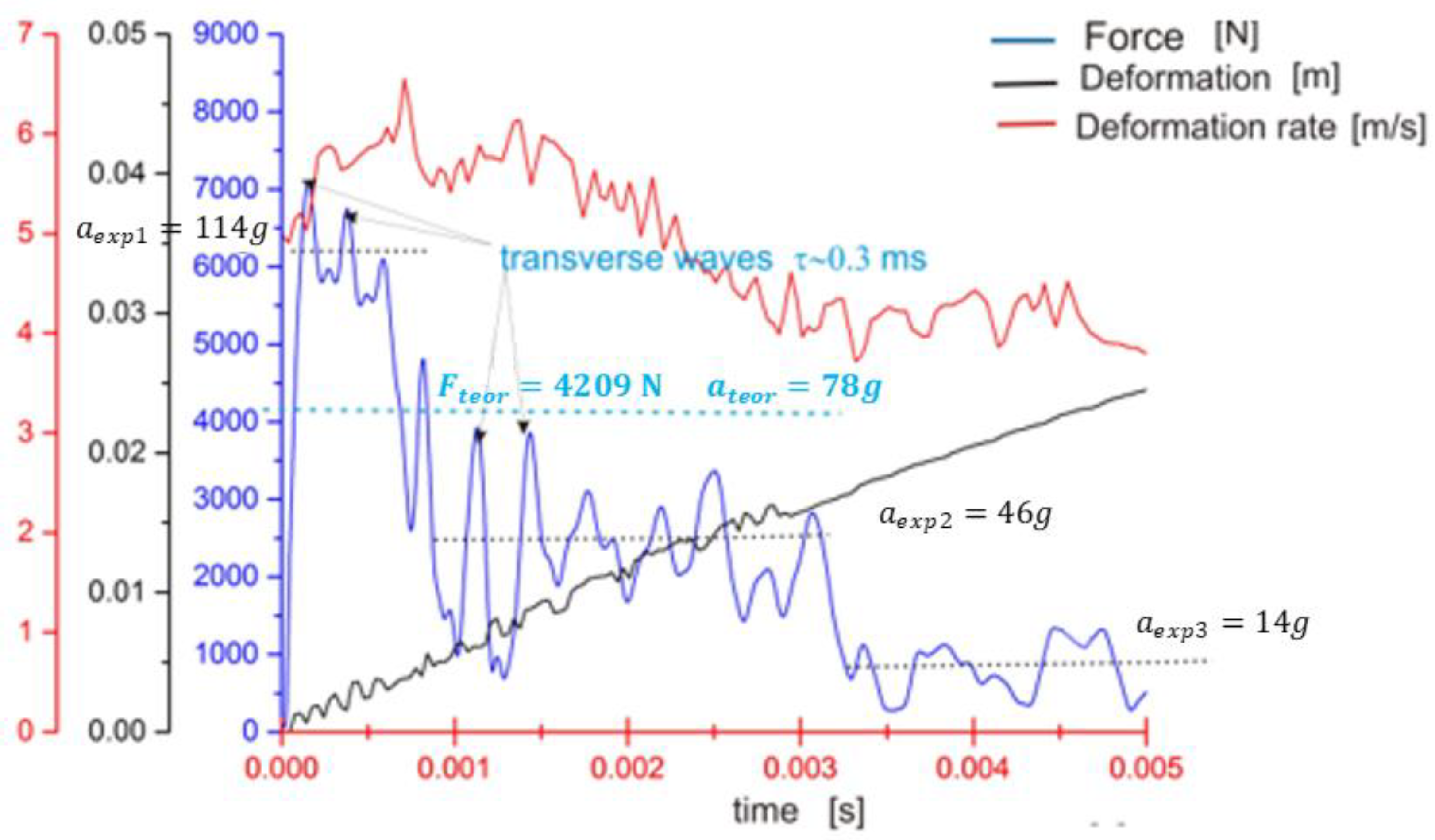

3.2. Generation of Transverse Waves on the Plate
3.2.1. Generation of Pure Transverse Elastic Waves on the Plate
3.2.2. Propagation of Transverse Waves Inside a Plate
4. Numerical Simulations
4.1. Modelling Approach

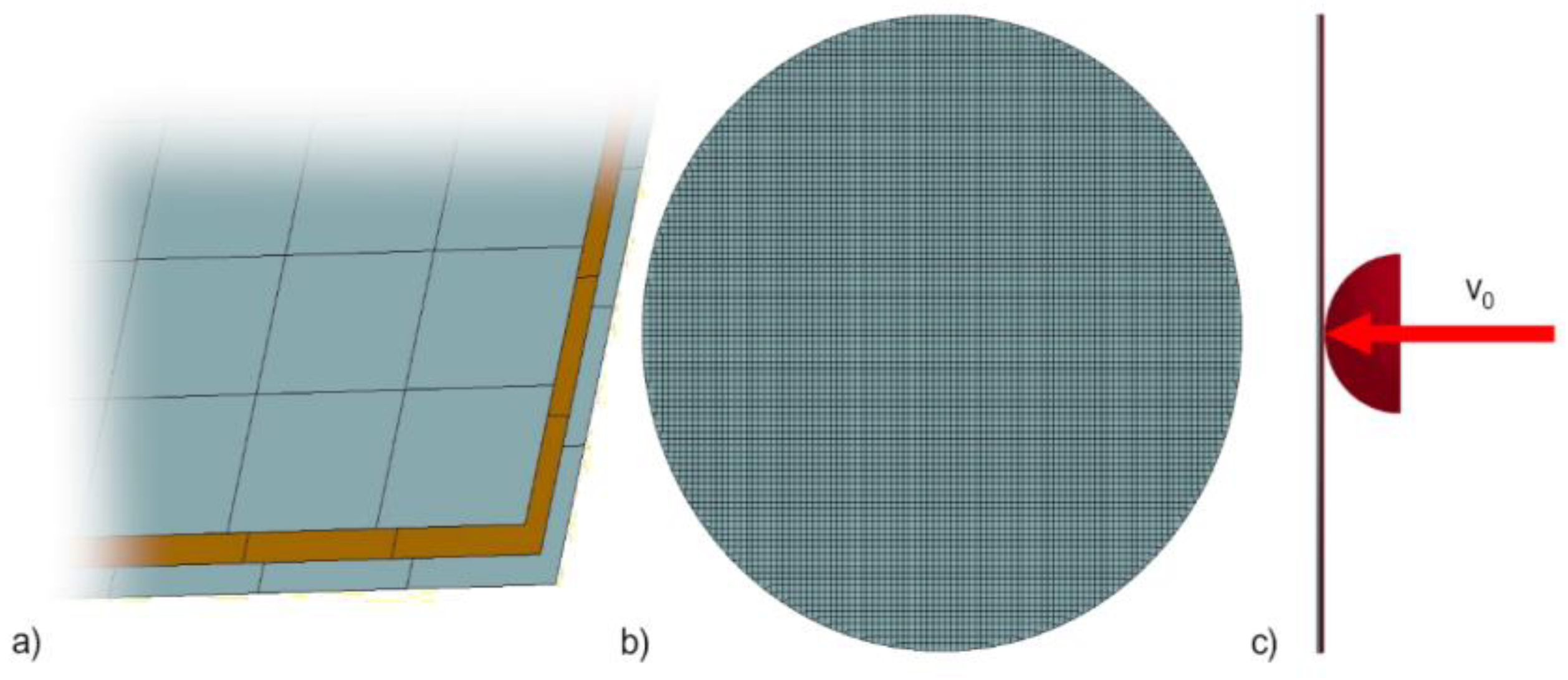

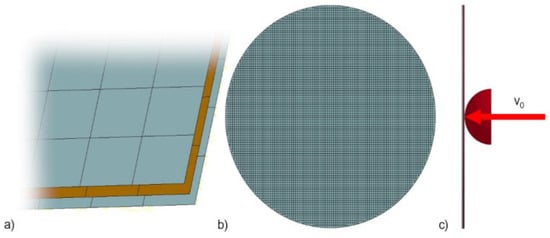

4.2. Finite Element Analysis (FEA)
- Model 1:
- Linear elastic material model with nonlocal failure criterion.
- Model 2:
- “Glass” material model with brittle, stress-state-dependent failure criterion (*MAT_GLASS).
4.3. Model 1

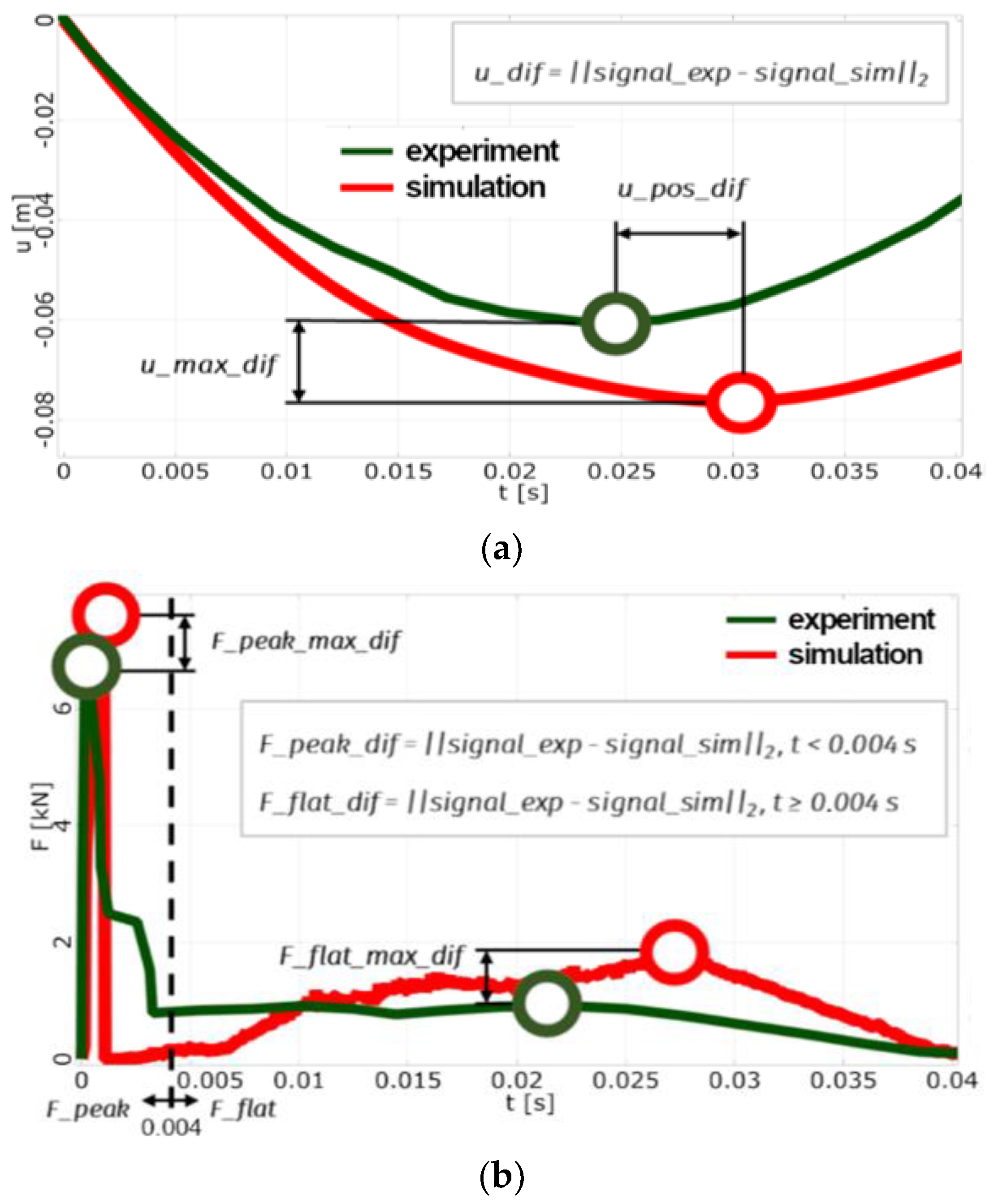

4.3.1. Sensitivity Analysis

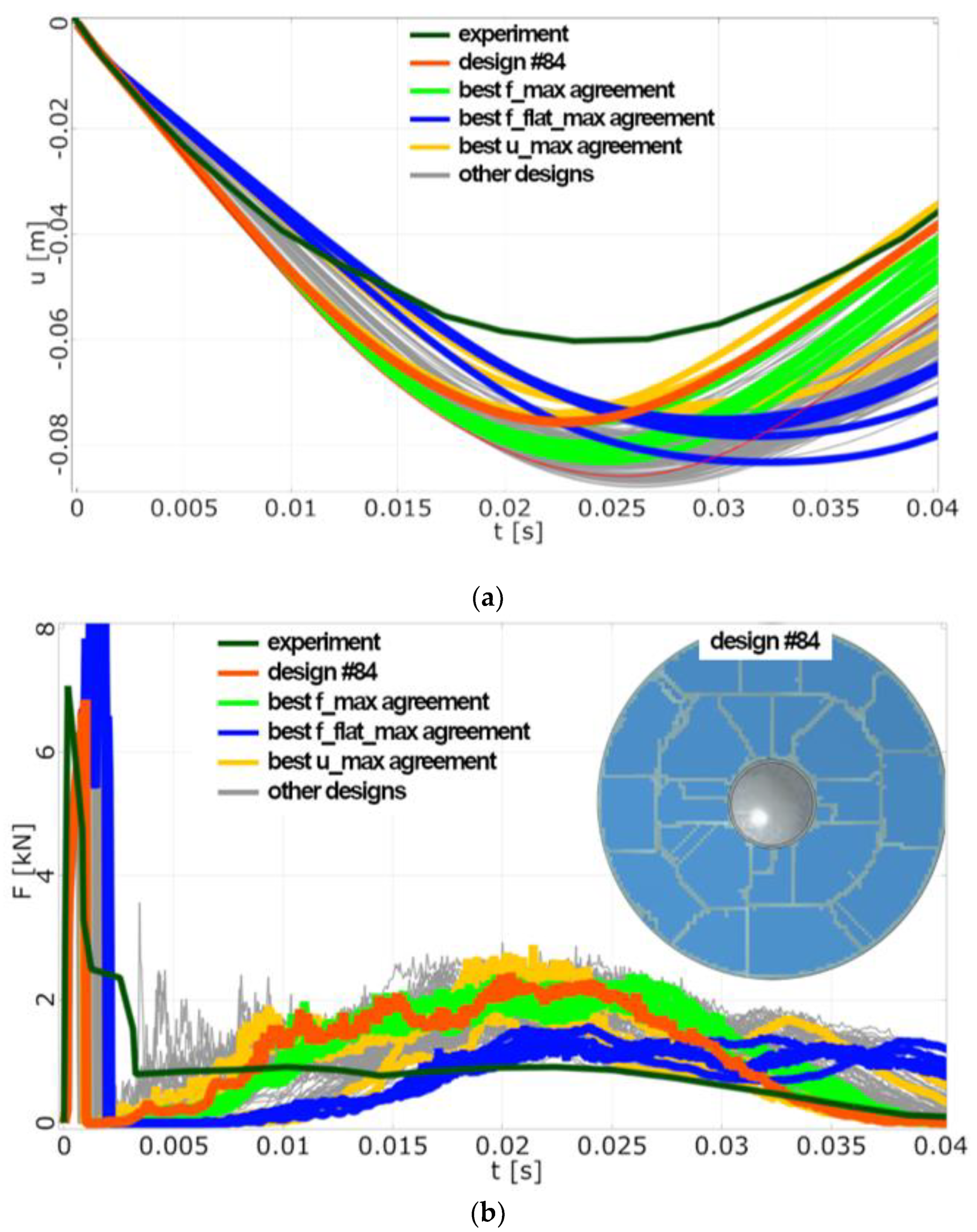

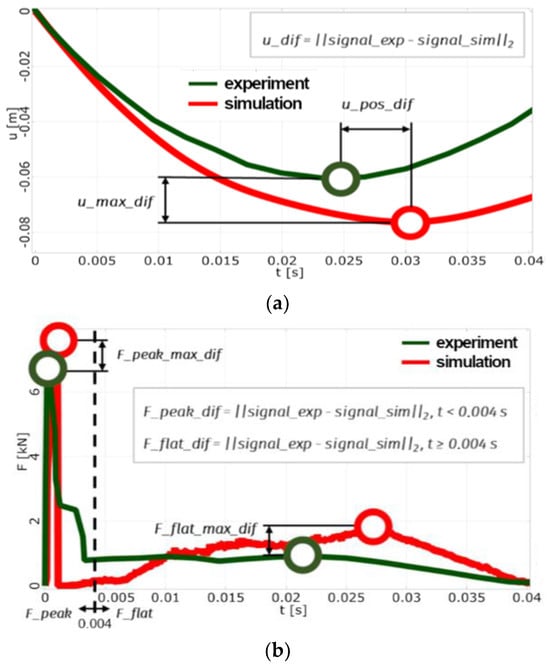

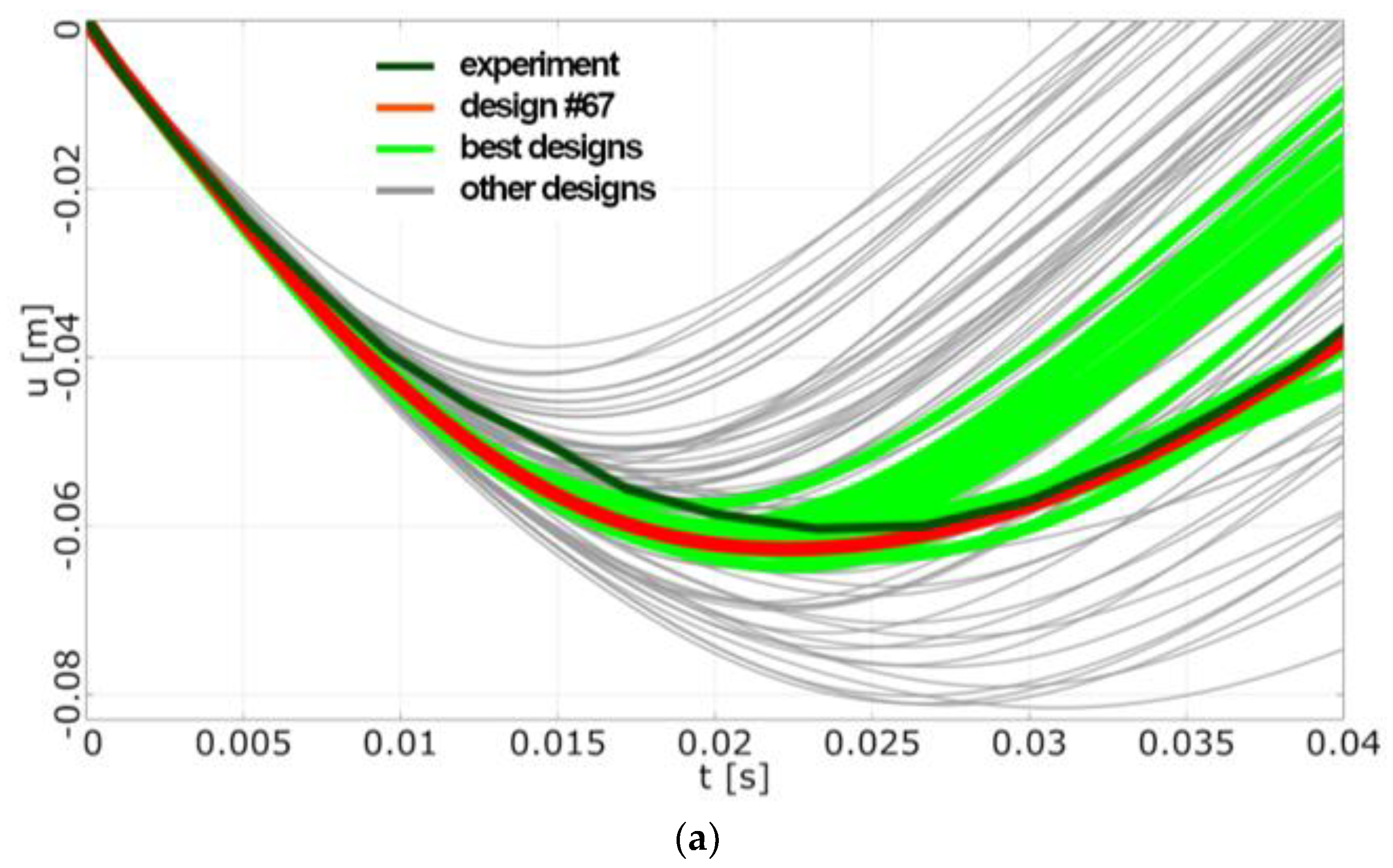

4.3.2. Optimisation Analysis
4.4. Model 2
4.4.1. Sensitivity Analysis

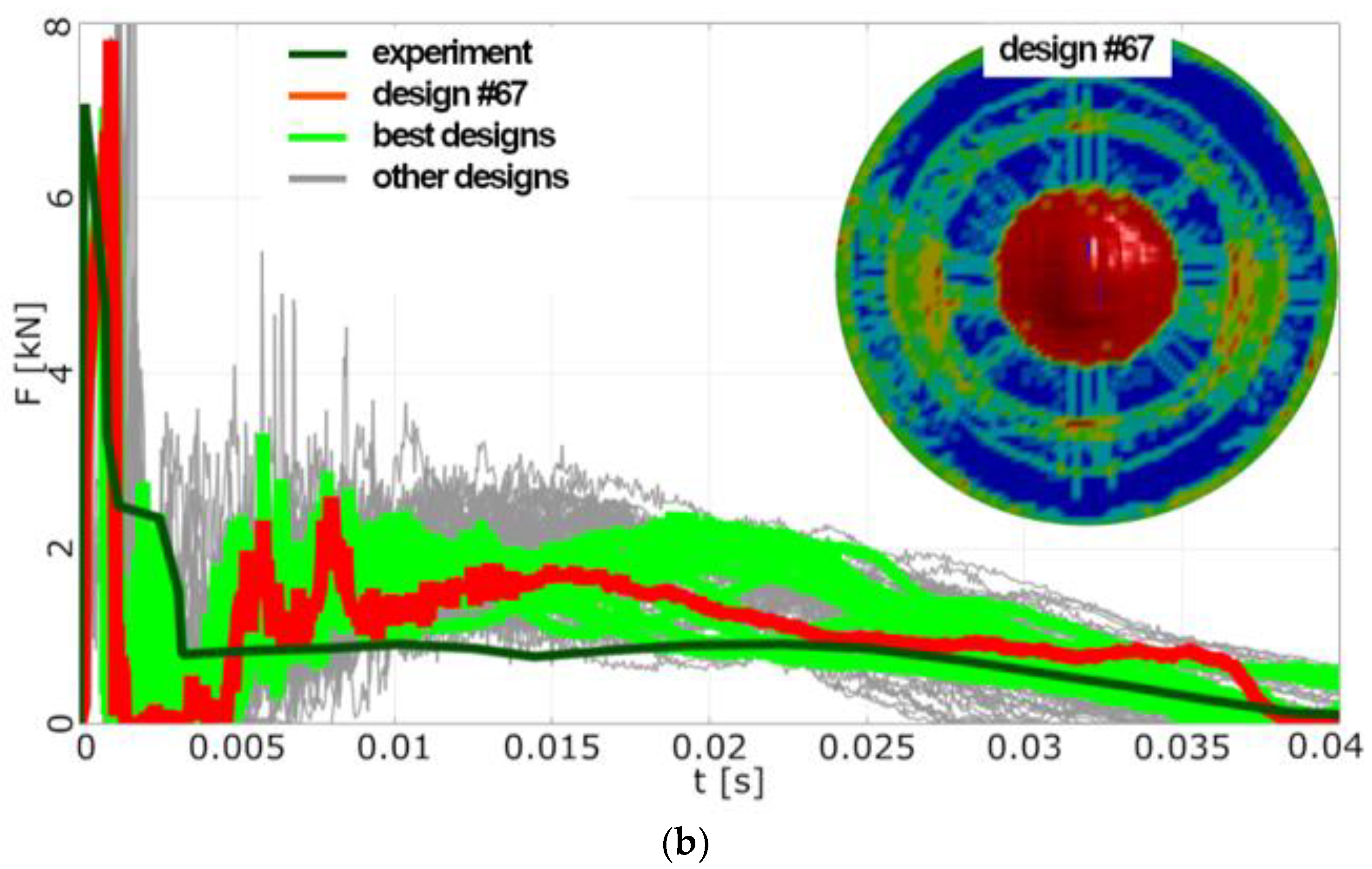

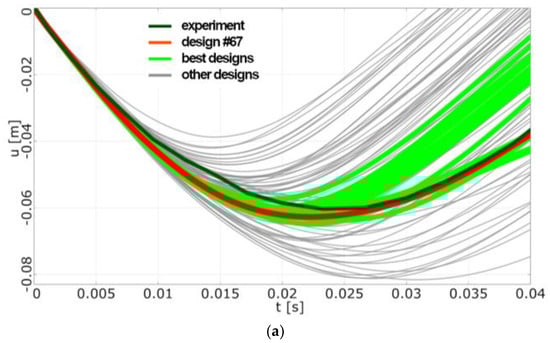

4.4.2. Optimisation Analysis
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- CEN/TC “Railway Applications”; CEN: Brussels, Belgium, 2019.
- Liu, X.; Zhang, T.; Ye, J.; Tian, X.; Zhang, W.; Yang, B.; Dai, M.; Xu, C.; Fu, F. Fast Iterative Shrinkage-Thresholding Algorithm with Continuation for Brain Injury Monitoring Imaging Based on Electrical Impedance Tomography. Sensors 2022, 22, 9934. [Google Scholar] [CrossRef] [PubMed]
- Muž Přebíhal Ječnou Ulici. Srazila Ho Tramvaj a Na Místě Zemřel (A Man Was Crossing Ječná Street. He Was Hit by a Tram and Died Immediately). DENÍK. Available online: https://prazsky.denik.cz/nehody/muz-prebihal-jecnou-ulici-zemrel-tramvaj-srazka-chodec-tragicka-nehoda-20191104.html (accessed on 8 November 2019).
- Fußgänger (32) Von Straßenbahn in Dresden Erfasst: Mann Stirbt Noch Vor Ort (Pedestrians (32) Captured by Tram in Dresden: Man Dies Immediately). Available online: https://www.tag24.de/nachrichten/dresden-strassenbahn-unfall-fussgaenger-ueberfahren-toedlich-verletzt-prohliser-allee-dvb-umleitung-962698 (accessed on 10 March 2019).
- Frej, D.; Jaśkiewicz, M. Comparison of Volunteers’ Head Displacement with Computer Simulation—Crash Test with Low Speed of 20 km/h. Sensors 2022, 22, 9720. [Google Scholar] [CrossRef] [PubMed]
- Cruz-Jaramillo, I.L.; Martínez-Sáez, L.; Torres-SanMiguel, C.R. Numerical Simulation of Mechanical Coupling for Low-Back Booster with a 6-Year-Old Child during a Crash Test. Appl. Sci. 2022, 12, 5350. [Google Scholar] [CrossRef]
- Kuwahara, A.; Hitosugi, M.; Takeda, A.; Tsujimura, S.; Miyata, Y. Comparison of the Injury Mechanism between Pregnant and Non-Pregnant Women Vehicle Passengers Using Car Crash Test Dummies. Healthcare 2022, 10, 884. [Google Scholar] [CrossRef] [PubMed]
- Jaśkiewicz, M.; Frej, D.; Tarnapowicz, D.; Poliak, M. Upper Limb Design of an Anthropometric Crash Test Dummy for Low Impact Rates. Polymers 2020, 12, 2641. [Google Scholar] [CrossRef] [PubMed]
- Jaśkiewicz, M.; Frej, D.; Matej, J.; Chaba, R. Analysis of the Head of a Simulation Crash Test Dummy with Speed Motion. Energies 2021, 14, 1476. [Google Scholar] [CrossRef]
- Guzek, M.; Jurecki, R.S.; Wach, W. Vehicle and Traffic Safety. Energies 2022, 15, 4573. [Google Scholar] [CrossRef]
- Special Issue "Road Vehicle Safety: Design and Assessment”. Available online: https://www.mdpi.com/journal/designs/special_issues/road_vehicle_safety (accessed on 15 October 2023).
- Product catalogue Škoda Transportation. Available online: https://www.skoda.cz/data/catalog/6/42/439.pdf (accessed on 8 May 2022).
- Landau, L.D.; Lifshic, E.M. Theory of Elasticity; Elsevier: Amsterdam, The Netherlands, 1984; Volume 7, ISBN 10:075062633X. [Google Scholar]
- Alter, C.; Schneider, J.; Kolling, S. Head Impact on Windscreen-Modelling and Validation. In Proceedings of the 13th LS-DYNA Forum 2014, Bamberg, Germany, 6–8 October 2014. [Google Scholar]
- Asaro, R.J.; Lubarda, V.A. Mechanics of Solids and Materials; Cambridge University Press: Cambridge, UK, 2006; ISBN 0-521-85979-4. [Google Scholar]
- Chen, S.; Zang, M.; Wang, D.; Yoshimura, S.; Yamada, T. Numerical analysis of impact failure of automotive laminated glass: A review. Compos. Part B Eng. 2017, 122, 47–60. [Google Scholar] [CrossRef]
- Timmel, M.; Kolling, S.; Osterrieder, P.; Du Bois, P.A. A finite element model for impact simulation with laminated glass. Int. J. Impact Eng. 2007, 34, 1465–1478. [Google Scholar] [CrossRef]
- Sapieta, M.; Sulka, P.; Svoboda, M. Localization of delamination in composite test specimens. MATEC Web Conf. 2018, 157, 01015. [Google Scholar] [CrossRef]
- OptiSLang User’s Manual, Version 8.1.0; Dynardo GmbH, An Ansys Company: Weimar, Germany, 2020.
- Böhm, R.; Haufe, A.; Erhart, A. A Novel Approach to Model Laminated Glass. In Proceedings of the 14th LS-DYNA Forum, Stuttgart, Germany, 14–16 May 2016. [Google Scholar]
- Yu, G.; Zheng, Y.; Feng, B.; Liu, B.; Meng, K.; Yang, X.; Chen, H.; Xu, J. Computation modeling of laminated crack glass windshields subjected to headform impact. Comput. Struct. 2017, 193, 139–154. [Google Scholar] [CrossRef]
- LS-DYNA Keyword User’s Manual II, r:13109 R1; Livermore Software Technology (LST), An Ansys Company: Livermore, CA, USA, 2020.
Quantity | Symbol | Unit | Value |
---|---|---|---|
Density | RO (ρ) | kg/m3 | 2500 |
Young’s modulus | E | GPa | 70 |
Poisson’s ratio | - | 0.23 | |
Maximum principal stress at failure | SIGP1 | GPa | 0.0793 |
Critical energy for nonlocal failure criterion | ENGCRT | J | 397 |
Critical radius for nonlocal failure criterion | RADCRT | mm | 1900 |
Xi | F_flat | F_flat_max | F_max | F_peak | u | u_pos | u_max |
---|---|---|---|---|---|---|---|
wi | 0.1 | 0.5 | 7 | 0.5 | 1 | 1 | 10 |
Quantity | Symbol | Unit | Value |
---|---|---|---|
Density | RO (ρ) | kg/m3 | 2500 |
Young’s modulus | E | GPa | 70 |
Poisson’s ratio | PR | - | 0.23 |
Flag for failure criteria | IFMOD | - | 1 |
Tensile strength | FT | 0.0609 | |
Compression strength | FC | GPa | 1 |
Damage parameter | AT | - | 0.838 |
Damage parameter | BT | - | 0.00888 |
Damage parameter | AC | - | 1 |
Damage parameter | BC | - | 1000 |
Scale factor for the tensile strength | FTSCL | - | 0.704 |
Scale factor for stiffness after failure | SFSTI | - | 0.000583 |
Scale factor for stress in case of failure | SFSTR | - | 0.0774 |
Flag for crack strain initialization | CRIN | - | 0 |
Crack strain to reactivate stress components | ECRCL | - | 0.00115 |
Number of cycles for stress reduction | NCYCR | - | 2 |
Number of failed int. points | NIPF | - | 1 |
Critical value for element deletion | EPSCR | - | −0.1 |
Critical energy for nonlocal failure criterion | ENGCRT | J | 0.0247 |
Critical radius for nonlocal failure criterion | RADCRT | mm | 1370 |
Quasi-static strain rate threshold | RATENL | mm/(mm∙ms) | 10−6 |
Smoothing factor on the effective strain rate | RFILTF | - | 0.9 |
