# A Fuzzy Fusion Rotating Machinery Fault Diagnosis Framework Based on the Enhancement Deep Convolutional Neural Networks

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Background and Related Work

#### 2.1. Signal Processing Techniques

#### 2.2. General Introduction of Conventional CNN

#### 2.3. Conventional Fusion Strategies

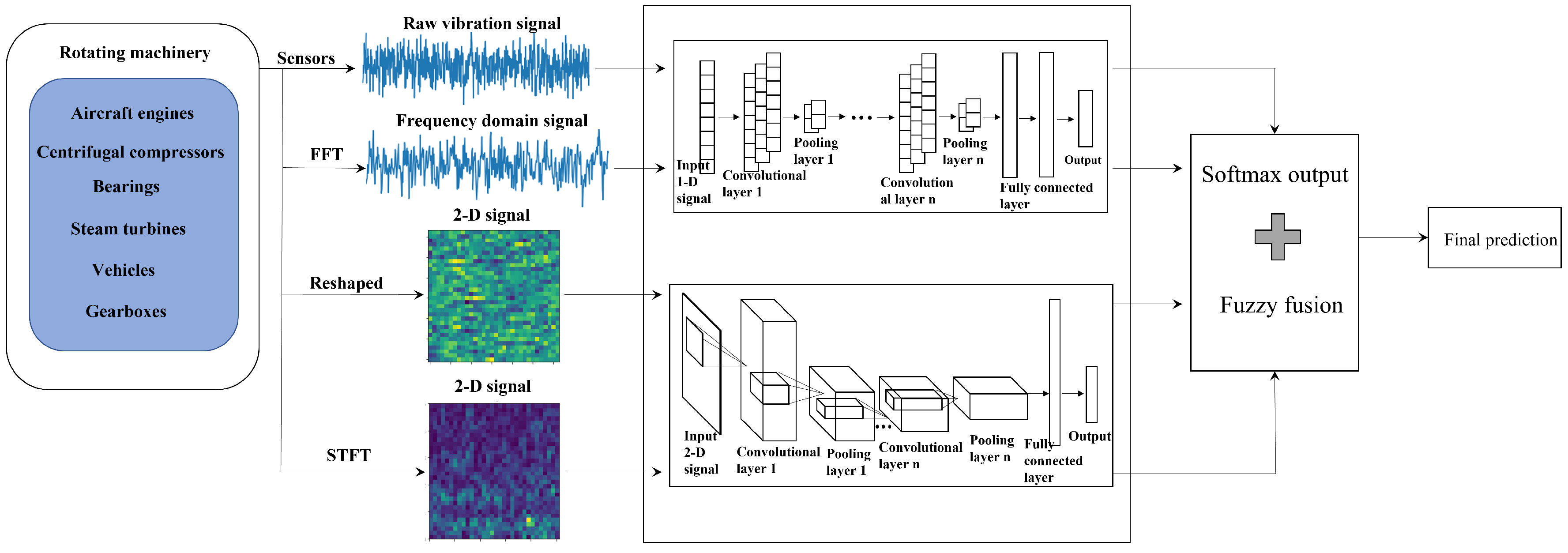

## 3. Framework of the Proposed Method

#### 3.1. Enhancement CNN Models

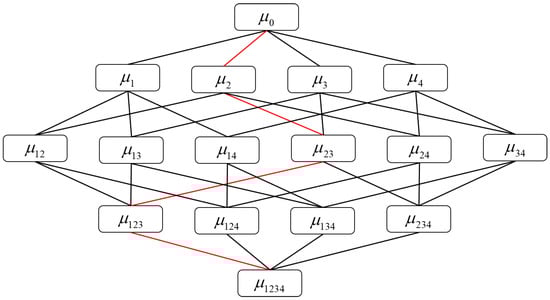

#### 3.2. Decision-Level Fuzzy Fusion Strategy

## 4. Experiments

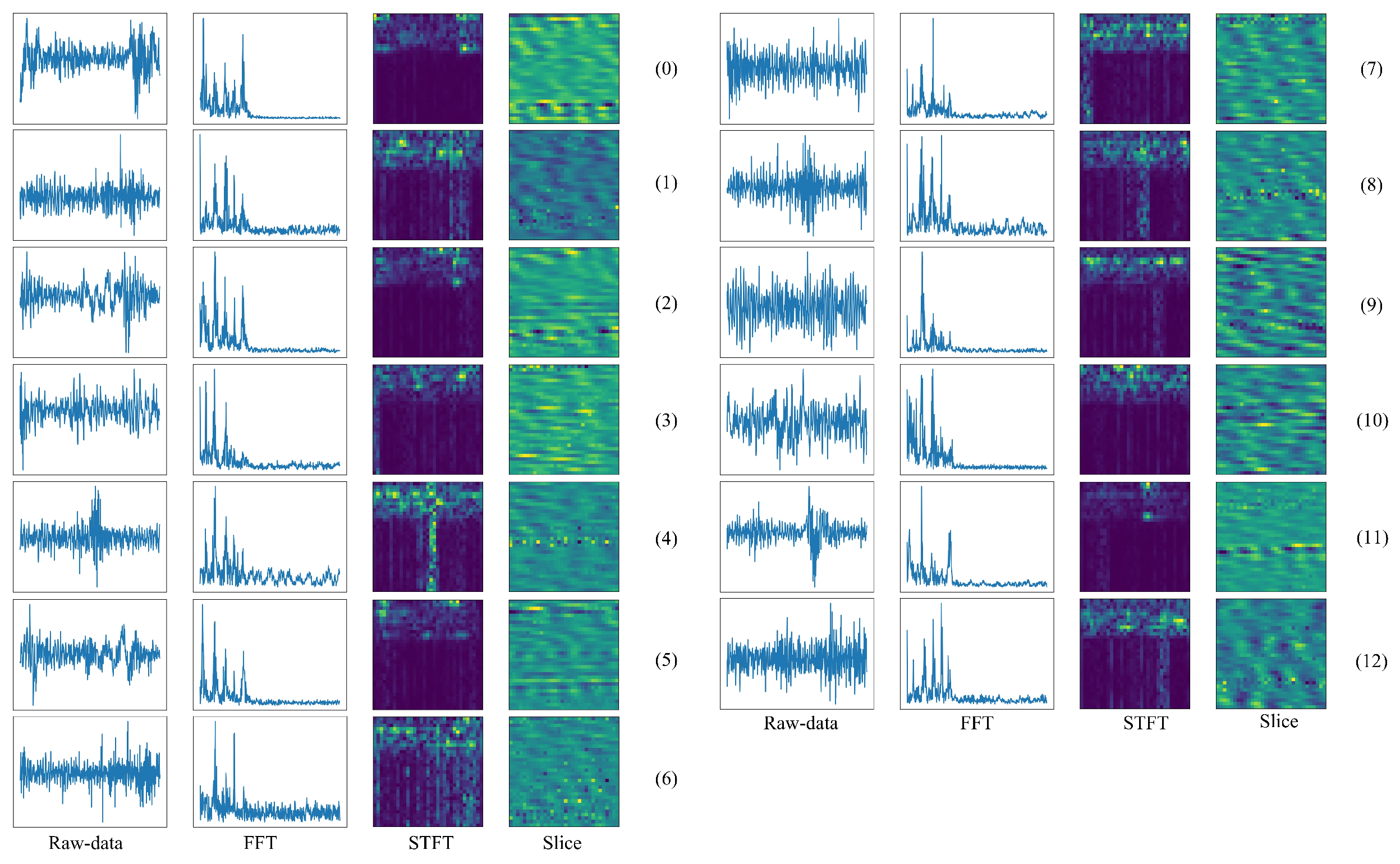

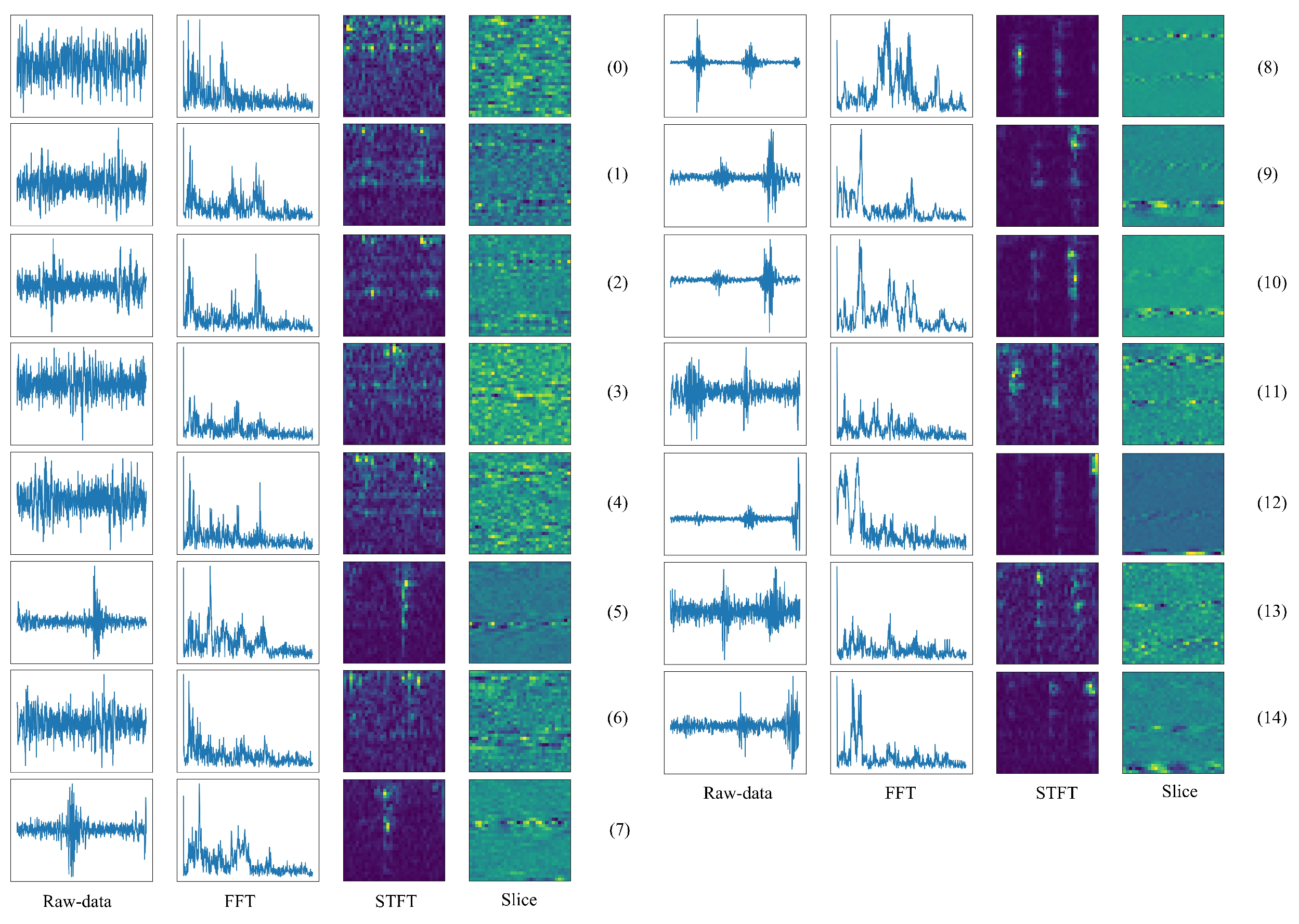

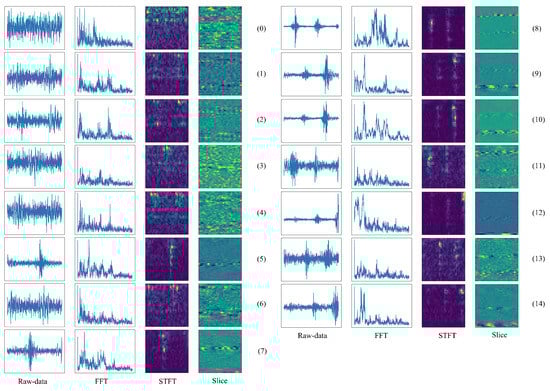

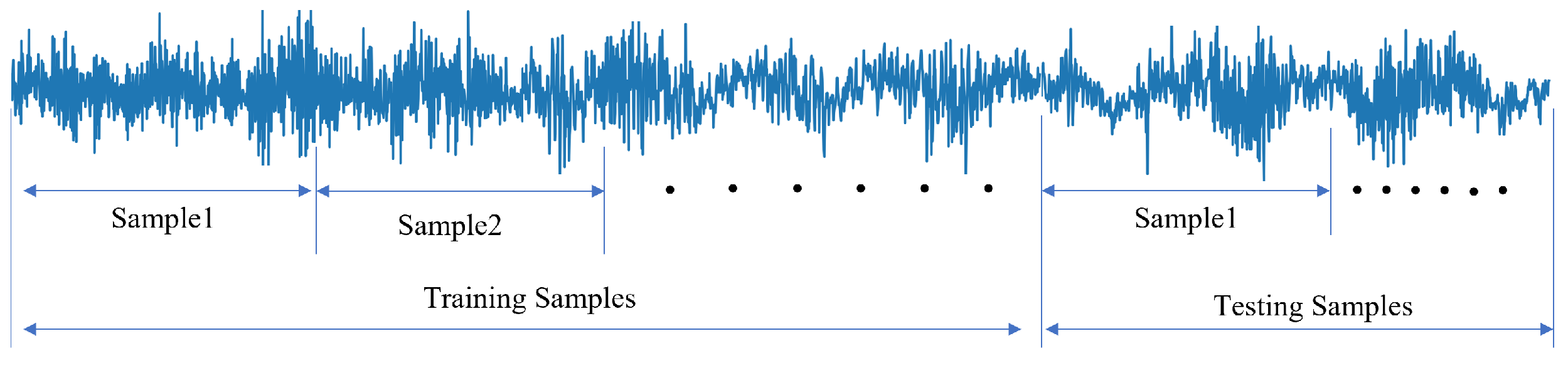

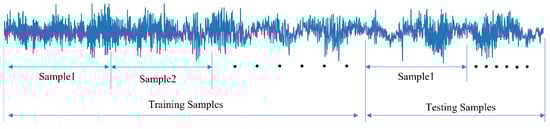

#### 4.1. Datasets

#### 4.2. Implementation

#### 4.3. Training Process Analysis

#### 4.4. Comparison of Fuzzy Fusion with Empirical Fusion

#### 4.5. Classifier Ranking and Interactive

#### 4.6. Comparison with State-of-the-Art

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Pandey, P.; Rai, A.; Mitra, M. Explainable 1-d convolutional neural network for damage detection using lamb wave. Mech. Syst. Signal Process.
**2022**, 164, 108220. [Google Scholar] [CrossRef] - Zhao, Z.; Li, T.; Wu, J.; Sun, C.; Wang, S.; Yan, R.; Chen, X. Deep learning algorithms for rotating machinery intelligent diagnosis: An open source benchmark study. ISA Trans.
**2020**, 107, 224–255. [Google Scholar] [CrossRef] [PubMed] - Zarei, J.; Tajeddini, M.A.; Karimi, H.R. Vibration analysis for bearing fault detection and classification using an intelligent filter. Mechatronics
**2014**, 24, 151–157. [Google Scholar] [CrossRef] - Ye, Z.; Yu, J. Deep morphological convolutional network for feature learning of vibration signals and its applications to gearbox fault diagnosis. Mech. Syst. Signal Process.
**2021**, 161, 107984. [Google Scholar] [CrossRef] - Zhang, D.; Chen, Y.; Guo, F.; Karimi, H.R.; Dong, H.; Xuan, Q. A new interpretable learning method for fault diagnosis of rolling bearings. IEEE Trans. Instrum. Meas.
**2020**, 70, 1–10. [Google Scholar] [CrossRef] - Shao, H.; Lin, J.; Zhang, L.; Galar, D.; Kumar, U. A novel approach of multisensory fusion to collaborative fault diagnosis in maintenance. Inf. Fusion
**2021**, 74, 65–76. [Google Scholar] [CrossRef] - Kiranyaz, S.; Ince, T.; Gabbouj, M. Real-time patient-specific ECG classification by 1-D convolutional neural networks. IEEE Trans. Biomed. Eng.
**2015**, 63, 664–675. [Google Scholar] [CrossRef] - Fawaz, H.I.; Forestier, G.; Weber, J.; Idoumghar, L.; Muller, P.A. Deep learning for time series classification: A review. Data Min. Knowl. Discov.
**2019**, 33, 917–963. [Google Scholar] [CrossRef] [Green Version] - Uçar, M.K.; Nour, M.; Hatem, S.; Kemal, P. The effect of training and testing process on machine learning in biomedical datasets. Math. Probl. Eng.
**2020**, 2020, 2836236. [Google Scholar] [CrossRef] - Yang, D.; Karimi, H.R.; Sun, K. Residual wide-kernel deep convolutional auto-encoder for intelligent rotating machinery fault diagnosis with limited samples. Neural Netw.
**2021**, 141, 133–144. [Google Scholar] [CrossRef] - Shao, S.; McAleer, S.; Yan, R.; Baldi, P. Highly accurate machine fault diagnosis using deep transfer learning. IEEE Trans. Ind. Inform.
**2018**, 15, 2446–2455. [Google Scholar] [CrossRef] - Zhao, R.; Wang, D.; Yan, R.; Mao, K.; Shen, F.; Wang, J. Machine health monitoring using local feature-based gated recurrent unit networks. IEEE Trans. Ind. Electron.
**2017**, 65, 1539–1548. [Google Scholar] [CrossRef] - Shao, S.; Wang, P.; Yan, R. Generative adversarial networks for data augmentation in machine fault diagnosis. Comput. Ind.
**2019**, 106, 85–93. [Google Scholar] [CrossRef] - Wang, Z.; Xuan, J. Intelligent fault recognition framework by using deep reinforcement learning with one dimension convolution and improved actor-critic algorithm. Adv. Eng. Inform.
**2021**, 49, 101315. [Google Scholar] [CrossRef] - Zhu, J.; Chen, N.; Peng, W. Estimation of bearing remaining useful life based on multiscale convolutional neural network. IEEE Trans. Ind. Electron.
**2018**, 66, 3208–3216. [Google Scholar] [CrossRef] - Miao, H.; Li, B.; Sun, C.; Liu, J. Joint learning of degradation assessment and rul prediction for aeroengines via dual-task deep lstm networks. IEEE Trans. Ind. Inform.
**2019**, 15, 5023–5032. [Google Scholar] [CrossRef] - Wang, H.; Xu, J.; Sun, C.; Yan, R.; Chen, X. Intelligent fault diagnosis for planetary gearbox using time-frequency representation and deep reinforcement learning. IEEE/ASME Trans. Mechatron.
**2021**. [Google Scholar] [CrossRef] - Glowacz, A. Fault diagnosis of single-phase induction motor based on acoustic signals. Mech. Syst. Signal Process.
**2019**, 117, 65–80. [Google Scholar] [CrossRef] - Liu, Y.; Guo, L.; Wang, Q.; An, G.; Guo, M.; Lian, H. Application to induction motor faults diagnosis of the amplitude recovery method combined with fft. Mech. Syst. Signal Process.
**2010**, 24, 2961–2971. [Google Scholar] [CrossRef] - Manhertz, G.; Bereczky, A. Stft spectrogram based hybrid evaluation method for rotating machine transient vibration analysis. Mech. Syst. Signal Process.
**2021**, 154, 107583. [Google Scholar] [CrossRef] - He, Z.; Shao, H.; Wang, P.; Lin, J.J.; Cheng, J.; Yang, Y. Deep transfer multi-wavelet auto-encoder for intelligent fault diagnosis of gearbox with few target training samples. Knowl.-Based Syst.
**2020**, 191, 105313. [Google Scholar] [CrossRef] - Temko, A.; Macho, D.; Nadeu, C. Fuzzy integral based information fusion for classification of highly confusable non-speech sounds. Pattern Recognit.
**2008**, 41, 1814–1823. [Google Scholar] [CrossRef] [Green Version] - Liu, X.; Ma, L.; Mathew, J. Machinery fault diagnosis based on fuzzy measure and fuzzy integral data fusion techniques. Mech. Syst. Signal Process.
**2009**, 23, 690–700. [Google Scholar] [CrossRef] - Banerjee, A.; Singh, P.K.; Sarkar, R. Fuzzy integral based cnn classifier fusion for 3D skeleton action recognition. IEEE Trans. Circuits Syst. Video Technol.
**2020**, 31, 2206–2216. [Google Scholar] [CrossRef] - Shao, H.; Jiang, H.; Lin, Y.; Li, X. A novel method for intelligent fault diagnosis of rolling bearings using ensemble deep auto-encoders. Mech. Syst. Signal Process.
**2018**, 102, 278–297. [Google Scholar] [CrossRef] - Yu, J.; Zhou, X. One-dimensional residual convolutional autoencoder based feature learning for gearbox fault diagnosis. IEEE Trans. Ind. Inform.
**2020**, 16, 6347–6358. [Google Scholar] [CrossRef] - Au, S.-K.; Zhang, F.-L. Ambient modal identification of a primary–secondary structure by fast bayesian fft method. Mech. Syst. Signal Process.
**2012**, 28, 280–296. [Google Scholar] [CrossRef] - Pawlaczyk, L.; Pucicki, D.; Serafinczuk, J. Fast and efficient approach for multi-component quantum wells analysis based on fft. Measurement
**2021**, 186, 110118. [Google Scholar] [CrossRef] - Li, L.; Cai, H.; Jiang, Q.; Ji, H. An empirical signal separation algorithm for multicomponent signals based on linear time-frequency analysis. Mech. Syst. Signal Process.
**2019**, 121, 791–809. [Google Scholar] [CrossRef] - Shao, H.; Xia, M.; Han, G.; Zhang, Y.; Wan, J. Intelligent fault diagnosis of rotor-bearing system under varying working conditions with modified transfer convolutional neural network and thermal images. IEEE Trans. Ind. Inform.
**2020**, 17, 3488–3496. [Google Scholar] [CrossRef] - Tao, D.; Cheng, J.; Yu, Z.; Yue, K.; Wang, L. Domain-weighted majority voting for crowdsourcing. IEEE Trans. Neural Netw. Learn. Syst.
**2018**, 30, 163–174. [Google Scholar] [CrossRef] - Ruta, D.; Gabrys, B. Classifier selection for majority voting. Inf. Fusion
**2005**, 6, 63–81. [Google Scholar] [CrossRef] - Stergiou, A.; Poppe, R.; Kalliatakis, G. Refining activation downsampling with softpool. arXiv
**2021**, arXiv:2101.00440. [Google Scholar] - Misra, D. Mish: A self regularized non-monotonic activation function. arXiv
**2019**, arXiv:1908.08681. [Google Scholar] - Murray, B.J.; Islam, M.A.; Pinar, A.J.; Anderson, D.T.; Scott, G.J.; Havens, T.C.; Keller, J.M. Explainable ai for the choquet integral. IEEE Trans. Emerg. Top. Comput. Intell.
**2020**, 5, 520–529. [Google Scholar] [CrossRef] - Anderson, D.T.; Scott, G.J.; Islam, M.A.; Murray, B.; Marcum, R. Fuzzy choquet integration of deep convolutional neural networks for remote sensing. In Computational Intelligence for Pattern Recognition; Springer: Berlin/Heidelberg, Germany, 2018; pp. 1–28. [Google Scholar]
- Bechhoefer, E. Machinery Failure Prevention Technology (MFPT) Datasets. 2013. Available online: https://mfpt.org/fault-data-sets (accessed on 28 September 2021).
- Lessmeier, C.; Kimotho, J.K.; Zimmer, D.; Sextro, W. Condition monitoring of bearing damage in electromechanical drive systems by using motor current signals of electric motors: A benchmark data set for data-driven classification. In Proceedings of the PHM Society European Conference, Bilbao, Spain, 5–8 July 2016; Volume 3. [Google Scholar]
- Wen, L.; Xie, X.; Li, X.; Gao, L. A new ensemble convolutional neural network with diversity regularization for fault diagnosis. J. Manuf. Syst.
**2020**. [Google Scholar] [CrossRef] - Wang, X.; Chen, A.; Zhang, L.; Gu, Y.; Xu, M.; Yan, H. Distilling the Knowledge of Multiscale Densely Connected Deep Networks in Mechanical Intelligent Diagnosis. Wirel. Commun. Mob. Comput.
**2021**, 2021, 4319074. [Google Scholar] [CrossRef] - Cheng, Y.; Lin, M.; Wu, J.; Zhu, H.; Shao, X. Intelligent fault diagnosis of rotating machinery based on continuous wavelet transform-local binary convolutional neural network. Knowl.-Based Syst.
**2021**, 216, 106796. [Google Scholar] [CrossRef] - Pandhare, V.; Singh, J.; Lee, J. Convolutional neural network based rolling-element bearing fault diagnosis for naturally occurring and progressing defects using time-frequency domain features. In Proceedings of the 2019 Prognostics and System Health Management Conference (PHM-Paris), Paris, France, 2–5 May 2019; pp. 320–326. [Google Scholar]
- Wu, J.; Zhao, Z.; Sun, C.; Yan, R.; Chen, X. Few-shot transfer learning for intelligent fault diagnosis of machine. Measurement
**2020**, 166, 108202. [Google Scholar] [CrossRef]

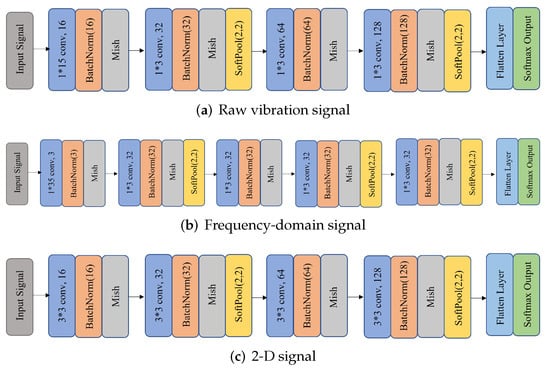

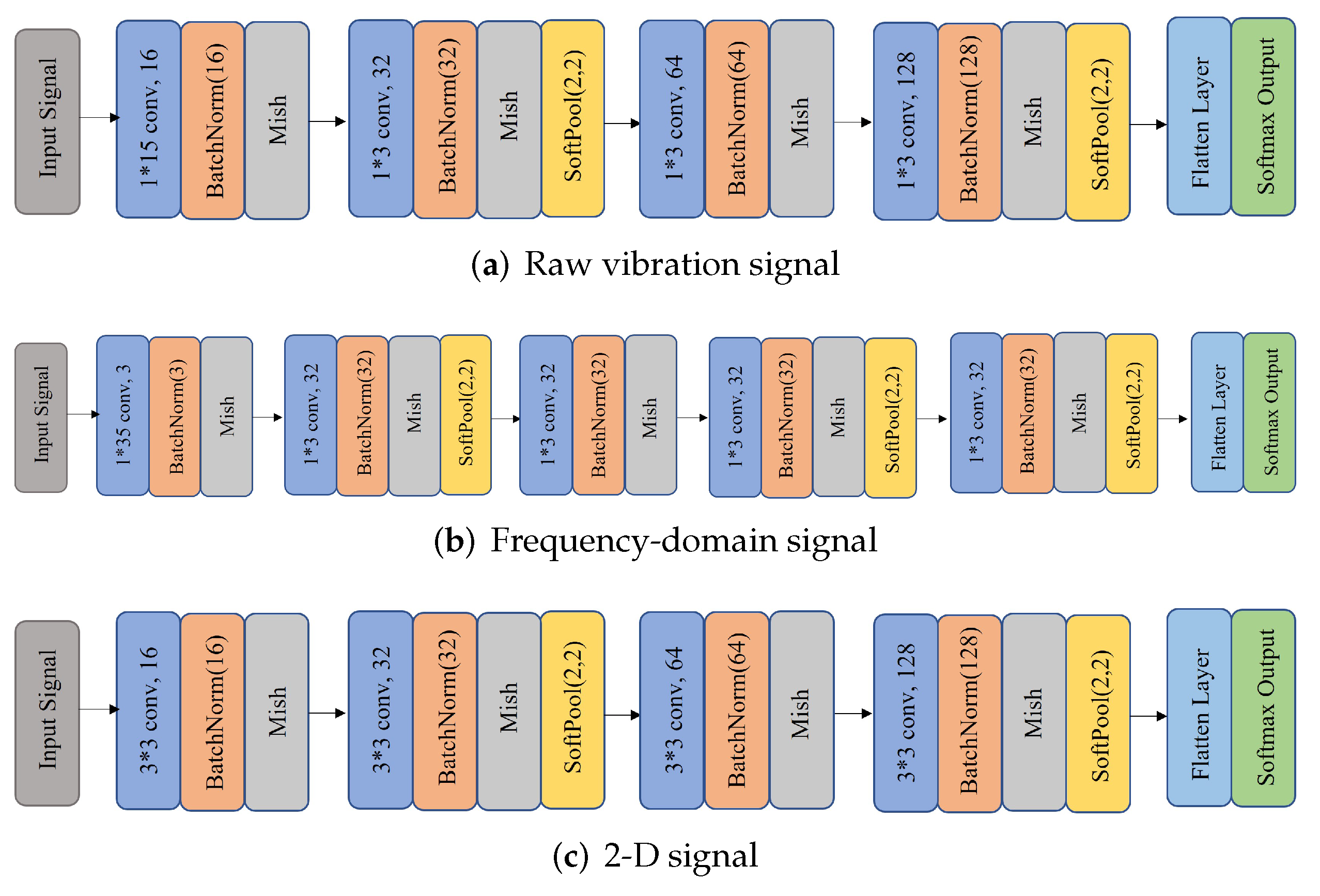

**Figure 3.**CNN structures used in the proposed method. (

**a**) the structure based on the raw vibration signal, (

**b**) the structure based on the frequency-domain signal, (

**c**) the structure based on the 2-dimensional data, including the raw vibration signal directly reshaped into 2-D signal and transformed by STFT.

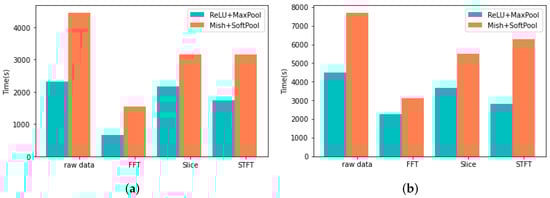

**Figure 7.**Training time of the modified CNN and conventional CNN. (

**a**) MFPT bearing dataset. (

**b**) PU bearing dataset.

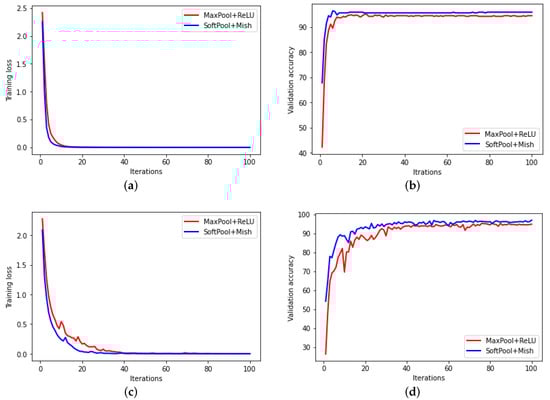

**Figure 8.**Training process of the modified CNN and conventional CNN. (

**a**) MFPT training loss. (

**b**) MFPT validation accuracy. (

**c**) PU training loss. (

**d**) PU validation accuracy.

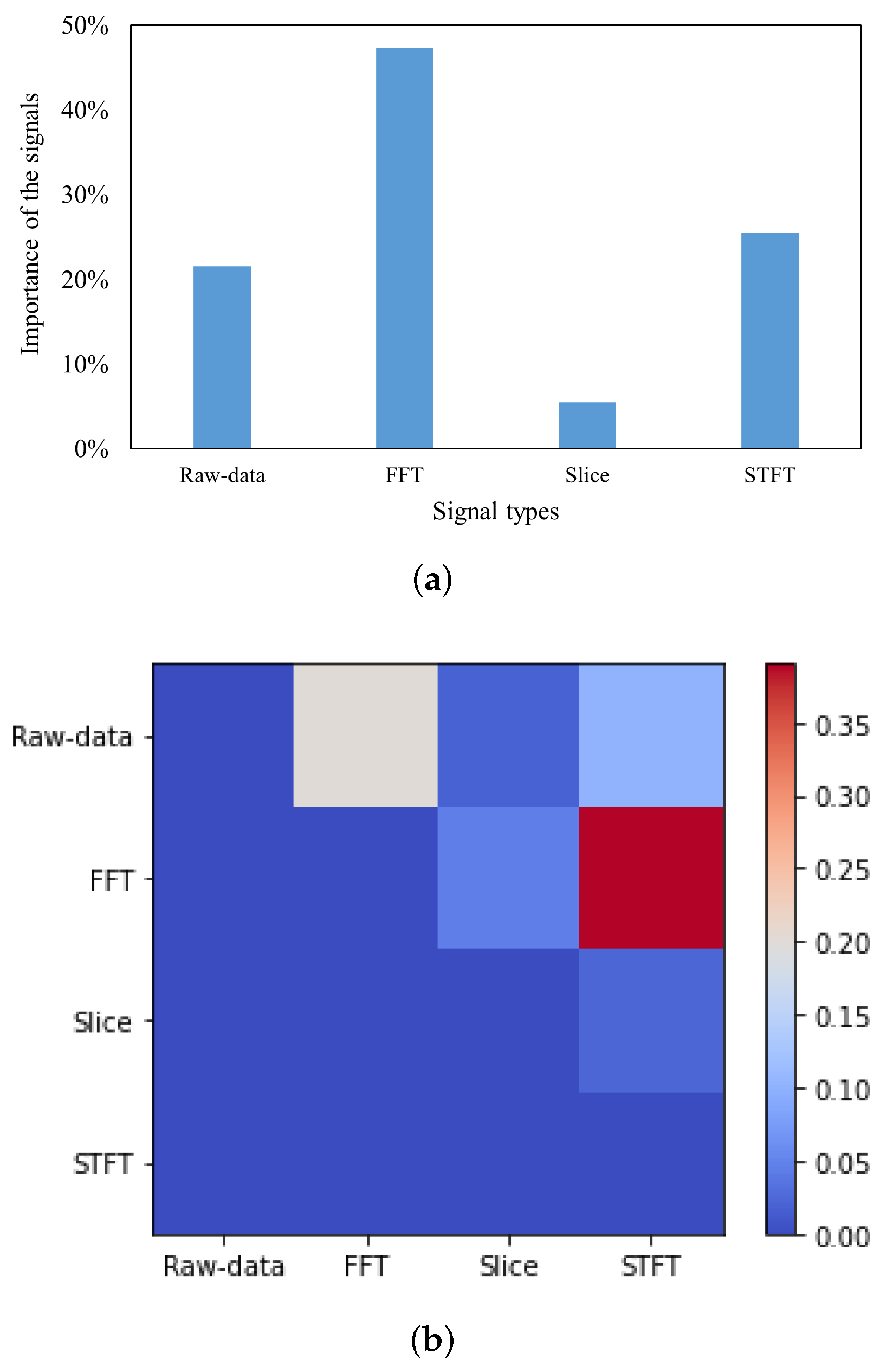

**Figure 9.**The explainable features of fuzzy fusion with MFPT bearing fault dataset. (

**a**) The contributions of each signal in fuzzy fusion. (

**b**) The interaction index among signals.

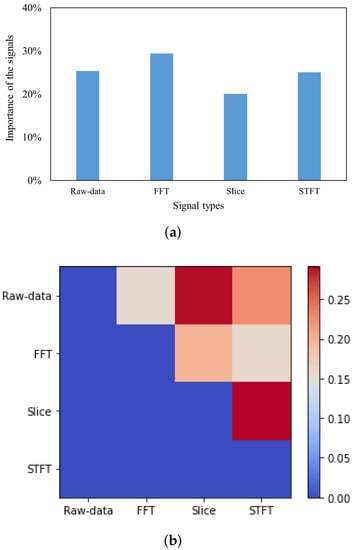

**Figure 10.**The explainable features of fuzzy fusion with PU bearing fault dataset. (

**a**) The contributions of each signal in fuzzy fusion. (

**b**) The interaction index among signals.

Feature Used | MFPT | PU | ||||||
---|---|---|---|---|---|---|---|---|

ReLU MaxPool | Mish MaxPool | ReLU SoftPool | Mish SoftPool | ReLU MaxPool | Mish MaxPool | ReLU SoftPool | Mish SoftPool | |

Raw vibration | 84.17% | 86.11% | 84.44% | 88.33% | 90.92% | 90.98% | 92.18% | 93.32% |

FFT | 94.44% | 95.56% | 96.11% | 97.50% | 96.09% | 96.70% | 96.69% | 98.62% |

Slice | 71.19% | 72.22% | 73.22% | 74.44% | 92.97% | 93.31% | 92.34% | 93.49% |

STFT | 86.16% | 89.72% | 88.56% | 90.00% | 95.24% | 95.27% | 95.49% | 96.69% |

Model | Signal | SNR | Average | |||||
---|---|---|---|---|---|---|---|---|

0 | 2 | 4 | 6 | 8 | 10 | |||

ReLU + MaxPool | Raw | 68.05% | 71.94% | 73.33% | 80.55% | 81.67% | 84.72% | 76.71% |

FFT | 82.50% | 85.83% | 89.44% | 89.44% | 90.28% | 91.94% | 88.23% | |

Slice | 41.11% | 48.61% | 52.50% | 55.83% | 61.39% | 65.00% | 54.07% | |

STFT | 64.44% | 68.33% | 69.17% | 80.55% | 81.11% | 82.22% | 74.30% | |

Mish + SoftPool | Raw | 74.17% | 78.89% | 80.27% | 84.72% | 85.55% | 87.78% | 81.89% |

FFT | 85.83% | 87.78% | 91.11% | 92.22% | 93.33% | 94.17% | 90.74% | |

Slice | 50.28% | 52.22% | 59.44% | 63.33% | 64.17% | 66.11% | 59.26% | |

STFT | 65.56% | 76.94% | 78.11% | 81.94% | 82.78% | 84.44% | 78.26% |

Model | Signal | SNR | Average | |||||
---|---|---|---|---|---|---|---|---|

0 | 2 | 4 | 6 | 8 | 10 | |||

ReLU + MaxPool | Raw | 79.49% | 81.95% | 85.66% | 87.02% | 88.08% | 88.91% | 85.19% |

FFT | 81.92% | 87.38% | 88.91% | 92.60% | 92.86% | 93.12% | 89.47% | |

Slice | 78.54% | 83.41% | 84.66% | 89.03% | 89.37% | 90.82% | 85.97% | |

STFT | 81.33% | 86.66% | 87.34% | 90.26% | 91.03% | 91.16% | 87.96% | |

Mish + SoftPool | Raw | 83.01% | 84.63% | 86.42% | 89.22% | 90.43% | 91.79% | 87.58% |

FFT | 82.48% | 89.08% | 92.01% | 92.58% | 94.34% | 95.21% | 90.95% | |

Slice | 81.23% | 86.18% | 88.98% | 91.54% | 91.34% | 92.21% | 88.58% | |

STFT | 85.43% | 87.31% | 89.52% | 90.08% | 94.18% | 95.79% | 90.39% |

Fusion Strategy | Datasets | |
---|---|---|

MFPT | PU | |

Average | 95.55% | 96.04% |

Majority Vote | 96.67% | 96.31% |

Proposed Fusion | 98.06% | 96.62% |
