Article

Characterization and Structural Insights of the Reaction Products by Direct Leaching of the Noble Metals Au, Pd and Cu with N,N′-Dimethyl-piperazine-2,3-dithione/I2 Mixtures

by
Angela Serpe
1,2,*,
Luca Pilia
3,
Davide Balestri
4,
Luciano Marchiò
4,* and
Paola Deplano
5,*
1
Department of Civil and Environmental Engineering and Architecture, INSTM Unit, University of Cagliari, Via Marengo 2, 09123 Cagliari, Italy
2
Environmental Geology and Geoengineering Institute of the National Research Council (IGAG-CNR), Via Marengo 2, 09123 Cagliari, Italy
3
Department of Mechanical, Chemical and Materials Engineering, University of Cagliari, Via Marengo 2, 09123 Cagliari, Italy
4
Department of Chemical, Life and Environmental Sustainability Sciences, University of Parma, 43124 Parma, Italy
5
Department of Chemical and Soil Sciences, University of Cagliari, Monserrato, 09042 Cagliari, Italy
*
Authors to whom correspondence should be addressed.
Molecules 2021, 26(16), 4721; https://doi.org/10.3390/molecules26164721
Submission received: 18 May 2021 / Revised: 28 July 2021 / Accepted: 1 August 2021 / Published: 4 August 2021
(This article belongs to the Special Issue Recovery and Optical Application of Noble Metals Compound)
Browse Figures
Versions Notes

Abstract

:
In the context of new efficient and safe leaching agents for noble metals, this paper describes the capability of the Me2pipdt/I2 mixture (where Me2pipdt = N,N′-dimethyl-piperazine-2,3-dithione) in organic solutions to quantitatively dissolve Au, Pd, and Cu metal powders in mild conditions (room temperature and pressure) and short times (within 1 h in the reported conditions). A focus on the structural insights of the obtained coordination compounds is shown, namely [AuI2(Me2pipdt)]I3 (1), [Pd(Me2pipdt)2]I2 (2a) and [Cu(Me2pipdt)2]I3 (3), where the metals are found, respectively, in 3+, 2+ and 1+ oxidation states, and of [Cu(Me2pipdt)2]BF4 (4) and [Cu(Me2dazdt)2]I3 (5) (Me2dazdt = N,N′-dimethyl-perhydrodizepine-2,3-dithione) compared with 3. Au(III) and Pd(II) (d8 configuration) form square–planar complexes, whereas Cu(I) (d10) forms tetrahedral complexes. Density functional theory calculations performed on the cationic species of 1–5 help to highlight the nature of the bonding in the different complexes. Finally, the valorization of the noble metals-rich leachates is assessed. Specifically, gold metal is quantitatively recovered from the solution besides the ligands, showing the potential of these systems to promote metal recycling processes.

Graphical Abstract

1. Introduction

Increasing attention is currently devoted towards effective and sustainable agents for noble metal (NM) recovery from secondary sources, due to the scarcity of accessible natural reserves of these metals which represent crucial elements for a great number of industrial applications (high-tech equipment, jewelry, catalysis, etc.) [1,2,3]. In this context, stimulated by world-wide regulations aiming for a more respectful approach towards the environment and natural resources, several classes of organic ligands have been investigated in the last three decades as potential alternatives to the harmful and polluting cyanides and aqua-regia lixiviants conventionally employed at industrial level for the hydrometallurgical reclamation of NMs [4,5,6,7,8,9]. Among them, thiourea and thiourea derivatives have long been recognized as versatile and effective complexing agents, finding application in a variety of fields. Due to their peculiar affinity towards soft metal ions (accordingly to the Hard–Soft Acid and Base Lewis theory), they have been demonstrated to be suitable candidates as NM leaching agents when in the presence of appropriate oxidizing agents. For example, thiourea acidic solutions in the presence of Fe3+ ions (as well as H2O2 and O3), has proved to be employable, including at the industrial level, for both chemical extraction of gold from ores and for chemical etching of gold and gold alloys [10,11,12]. More recently thiourea leaching has been employed in NM recovery from waste printed circuit boards [13,14]. Numerous advantages are related to the use of thiourea-based leaching systems, namely efficiency, low environmental impact, cheap reagents, mild experimental conditions, even if some criticisms are still presently preventing their wide-spread use in industrial applications: first of all, the high loss of non-recyclable reagents due to low selectivity and ligand degradation and oxidation. Beside thiourea, other thiourea derivatives namely dithioxamides (DTOs), demonstrated their powerful action as NM leaching agents when in the presence of oxidizing agents like soft halogen/interhalogens [15]. Despite the similarity with thiourea, they demonstrated stability to oxidation and reduction phenomena limiting degradation and increasing the recyclability of the ligand. Furthermore, DTO may give chelation through S-donor atoms and, when d8 soft metal ions are formed, provide their preferred square –planar geometry. Several examples of NM leaching processes based on the use of organic solutions of cyclic ad acyclic DTO combined with iodine (and IBr), have been reported in the literature [16,17,18,19,20,21,22,23,24] and patented for industrial application in the effective and sustainable recovery of NMs contained in WEEE (waste electrical and electronic equipment) [20] and in end-of-life three way catalysts [23]. These reagents, with combined complexing and oxidizing properties, demonstrated high efficiency and very low environmental impact, even if they are mostly not available on the market. A variety of NMs complexes were obtained and isolated from the leaching reaction depending on the metal and the DTO-ligand/halogen mixture employed [15]. Indeed, DTOs have demonstrated their versatility due to the possible configurations and electronic distributions they can assume when chelating the metal, giving the formed complexes peculiar properties. More specifically, as shown in Scheme 1, in acyclic DTO molecules with NR2 substituents in the α-dithione moiety, a twisted conformer (a) about the central C–C bond is favored, while a planar one (b) is hindered for steric reasons [25].
When these molecules work as S,S-chelating ligands to a metal, planarity inside the thioamide system is generally preserved, while planarity inside the M(S2C2)2 pentatomic ring is rarely observed. Reaching planarity will make DTO comparable with α-dithiones (see Scheme 2), the readily reducible ligand systems in the so-called class of dithiolene complexes able to undergo reversible redox processes which involve the filling of the four frontier orbitals of π-symmetry (the first two occupied in dithioketone, the third in ene-1,2-dithiolate) [26].
It has been established that electron-withdrawing substituents (CN) decrease the energy of these orbitals making difficult for the ene-1,2-dithiolates to undergo oxidation to reach the dithione form (A). On the contrary, electron-donating NR2 substituents increase the energy of these frontier orbitals making the reduction of DTO difficult, hence limiting the access to the reduced forms B and C. In summary, steric and electronic factors hinder the ability of DTO ligands in various complexes to behave as dithiolenes.
Here we will describe the capability of the Me2pipdt/I2 system in organic solutions, where Me2pipdt is the hexatomic cyclic DTO N,N′-dimethyl-piperazine-2,3-dithione (Scheme 1), to work as a powerful leaching agent towards Au, Pd, and Cu powders in mild conditions and short times. [AuIIII2Me2pipdt]I3 (1), [PdII(Me2pipdt)2]I6 (2) and [CuI(Me2pipdt)2]I3 (3) coordination compounds were isolated in satisfactory yields as the main leaching products. The coordination behavior of the ligand is invariably S,S bidentate, but 1 and 2 comprise square–planar d8 metal Au(III) and Pd(II) complexes, while 3 involves a tetrahedrally coordinated d10-Cu(I) [27,28]. Additional results have shown that the 1+ oxidation state and the tetrahedral geometry are the preferred ones for copper complexes with these ligands. Indeed [Cu(Me2pipdt)2]BF4 (4), bearing the same cation of 3, is obtained also when Me2pipdt was allowed to react with a copper(II) salt in the presence of NH4BF4. [Cu(Me2dazdt)2]I3 (5), the corresponding salt of 3 where the ligand consists in a hepta-atomic cyclic DTO, is similarly obtained by using as leaching mixture N,N′-dimethyl-perhydrodiazepine-2,3-dithione (Me2dazdt, Scheme 1)/I2. Detailed inspection of structural features of 1–5, including the packing mode at the solid state, will be presented here with the view to provide information on bonding inside the cations and anions and interactions at supramolecular level, which may affect the formation of the different complexes and the effectiveness of noble metal dissolution [29]. Density functional theory (DFT) calculations, combined with experimental results, will help in elucidating the structure/bonding relationship. Lastly, a short overview on perspectives for using the obtained leaching products is discussed.

2. Results and Discussion

2.1. Leaching Behavior and Characterization of the Leaching Products

As shown in Scheme 3, by reacting Me2pipdt/I2 mixtures with Au, Pd and Cu as metal powders in organic solvents (such as THF and CH3CN) under stirring at room temperature, almost clear solutions were obtained with a quantitative leaching of the metals in short times (within 1 h in the described conditions). Leaching experiments were performed at least three times for each metal on different amounts of metal powder and the yields of dissolution were found invariably quantitative in the reported times. [AuI2(Me2pipdt)]I3 (1), [Pd(Me2pipdt)2]I6 (2) and [Cu(Me2pipdt)2]I3 (3) were isolated as crystals in satisfactory yields (from 50% to almost quantitative) and fully characterized as detailed in Section 3.1.
When [Me2pipdtH]I3 salt [15] was used as the leaching agent, the same products were obtained. However, the use of Me2pipdt/I2 mixtures in the appropriate ratios improves time- and cost-effectiveness, since intermediate steps can be skipped out. X-ray crystal structure were solved for 1 and 3. Well-formed crystals of 2 suitable for X-ray diffractometric studies, were obtained after several recrystallization experiments in form of 2a compound, a salt of the same cationic complex where the counter-ions are iodides.
To better highlight the factors affecting the formation of the copper(I) complex in 3, an attempt to prepare the corresponding Cu(II) complex [Cu(Me2pipdt)2]2+ in the form of BF4− salt, avoiding the presence of the reducing I− ions, was made. Accordingly, copper(II) chloride was reacted with Me2pipdt in a 1:2 molar ratio (in THF, under reflux in Ar atmosphere) in the presence of NH4BF4. The solution turned from light- to dark-green to purple, and the reaction went off in around 1 h. Following slow evaporation of THF and EtOH addition, crystals characterized as [Cu(Me2pipdt)2]BF4 (4) were obtained. It can be assumed that a copper(II) cationic complex is formed in solution (the green intermediate observed in this reaction) and that it undergoes spontaneous reduction to the more stable copper(I) complex, as earlier observed for similar compounds [27,28]. Copper(I) complexes with thione donors are not uncommon and those coordinated to biologically relevant ligands such as N,N′-dimethylimidazole-thione or others, are of interest to elucidate how coordination to sulfur and selenium inhibits copper-mediated oxidative damage. It has been shown that, when bound to Cu+, thione (and selone) ligands protect Cu+ from oxidation [30,31].
For comparison purposes, the leaching reaction of copper metal was also performed in the same experimental conditions by employing the Me2dazdt·2I2 adduct, in the 2:1 molar ratio with the metal powder. Copper metal was quantitatively dissolved in a short time at room temperature and the final product [Cu(Me2dazdt)2]I3 (5) was crystallized in an almost quantitative yield and fully characterized.

2.2. Molecular Structures

Figure 1, Figure 2, Figure 3, Figure 4 and Figure 5 report the molecular structures of the obtained complexes (see Table S1 for the crystallographic data). The structures can be divided into two groups, one comprising d8 metal ions such as Au(III) and Pd(II), and the second group with a d10 cation, Cu(I). Indeed, despite the coordination behavior of the ligand is invariably S,S bidentate, with the former group square–planar complexes are formed, whereas in the latter group the complex geometry is tetrahedral.
In the gold complex [Au(Me2pipdt)I2]I3 (1), the Au-I bond distances are 0.3 Å longer than the Au-S ones, as expected for the larger dimension of the iodine anion with respect to the sulfur atom (Figure 1, Table 1).
In 1, the crystal packing shows interesting features related to the presence of iodine atoms and the non-homogeneous distribution of the electron density on the I3− molecular surface. Indeed, the iodine atom is prone to give rise to halogen bonds according to the high polarizability of its electron density. Specifically, when the iodine atom is bound to electron-withdrawing moieties, a portion of positive charge forms on the opposite side of the σ-bond (known as σ-hole), together with a portion of negative charge in a region perpendicular to the σ-bond (negative corona) [32,33]. Interestingly, this non-homogeneous distribution of the electron density is also present in the I3− anion, with the σ-hole and negative corona present on the terminal iodine atoms [34,35,36]. Accordingly, the crystal packing of [Au(Me2pipdt)I2]I3 shows the terminal I(3) atom of I3− anion interacting with both I(1) and I(2) in a slightly asymmetric bifurcated interaction. The distances between I(3) and I(1) or I(2), approximately 3.7 Å, are significantly shorter than the sum of the Van der Waals radii of the iodine atoms (3.96 Å). The Au-I(1)/I(2)-I(3) angles are greater than 165° and in agreement with a σ-hole on I(1) and I(2) interacting with a negative corona on I(3) (Figure S1). On the opposite, the terminal I(5) interacts with the gold atom of a symmetry related molecule by virtue of its negative corona, Figure S2.
The crystal structure of the d8-metal [Pd(Me2pipdt)2](I)2 (2a) is shown in Figure 2 and the corresponding bond distances and angles are presented in Table 1. The asymmetric unit comprises half-complex cation and an iodide anion, whereas the overall molecular structure is represented by a square–planar cation and two iodide anions. The spherical charge distribution on I−, in contrast to the non-isotropic charge distribution on I3−, implies that I− is mainly involved in weak CH···I hydrogen bonds (HBs) (Figure 2) [37]. Additional weak CH···S HBs between symmetry related molecules contribute to the crystal packing, Figure S3.
The three Cu(I) complexes are characterized by a distorted tetrahedral geometry (Figure 3, Figure 4 and Figure 5). In order to better describe the structural features, it is useful to employ the τ4 and τ4′ geometry indices index, which have different values according to a specific ideal geometry: (i) τ4 = τ4′ = 0 for square–planar systems; (ii) τ4 = τ4′ = 1 for a tetrahedral geometry; and iii) τ4 = 0.43 and τ4′ = 0.24 for a seesaw geometry [38,39]. The values of τ4 and τ4′ are greater than 0.6 for all the copper complexes (Table 2) and the distortion from the ideal tetrahedral geometry that may be adopted by Cu(I), can be ascribed to the presence of bidentate ligands that form five membered chelate rings, with bite angles close to 90° (Table 3). Moreover, [Cu(Me2dazdt)2]I3 exhibits the greatest τ4 and τ4′ values of the three complexes, hence it appears to adopt a more regular tetrahedral geometry. The reason for this behavior can be explained by considering that the two thioamido groups of the Me2dazdt ligand present a dihedral angle of more than 50°, whereas the same angle for the Me2pipdt ligand is approximately around 20° (range 9.1–27.8°), as pointed out by Tables S2 and S3 and Figure 6.
This implies that the intra-molecular sulfur–sulfur distance for Me2dazdt is approximately 0.15 Å greater than that found in the Me2pipdt ligand. Consistently, the bite angle is significantly greater in [Cu(Me2dazdt)2]I3 than in the other two Cu(I) complexes. Obviously, the presence of the seven membered ring in the Me2dazdt molecular framework, confers to this ligand a higher degree of conformational flexibility and the ligand is presumably able to adapt to the stereo-electronic requirement of the metal ion. Additionally, for the Cu(I) complexes, the crystal packing features heavily depend on the counter-anion. Specifically, the tetrahedral shape of BF4− allows for interactions with the surrounding molecules distributed over a wider 3D surface than the linear I3− anion. Another notable difference between BF4− and I3− is the higher polarizability of the iodine atoms, which can influence the non-uniform distribution of the electron density over the molecular surface (vide supra). The packing of [Cu(Me2pipdt)2]BF4 is mainly dominated by CH···F interactions occurring between the anions and the aliphatic CH2 or CH3 groups of the ligand. On the other hand, in [Cu(Me2dazdt)2]I3 and [Cu(Me2pipdt)2]I3, the packing is also influenced by the features of the I3− anion, which can give rise to halogen–halogen and weak hydrogen bond interactions. More specifically, in [Cu(Me2pipdt)2]I3 the central iodide atom of I3− interacts with the CH2 groups of the ethylene bridge. The terminal atom I(3) interacts also with a CH2 group, but the H···I(3)-I(2) angle is approximately 155° and far from linear, since this interaction most-probably involves the diffuse negative corona on I(3). According to the geometry of the interaction between two symmetry-related I3− anions, there seems to be a very weak type I halogen interaction [40]. Indeed, the angles I(2)-I(1)···I(3) and I(2)-I(3)···I(1) are 130 and 128°, respectively, but the I(1)···I(3) distance of 4.09 Å is slightly greater than the sum of the iodine Van der Waals radii. The crystal packing of [Cu(Me2dazdt)2]I3 shows the presence of a halogen bond (type II halogen contact) between an I3− that, with the terminal iodine atom I(16), interacts with the central iodine atom I(25) of a second I3−. As pointed out before, according to the electron density distribution on I3−, the terminal iodine is characterized by the presence of a σ-hole (a less negative region than the rest of the molecule, since it possesses a net negative charge) [35] and it can give rise to a halogen bond. Consistently, the I(16)···I(25) distance of 3.82 Å is significantly smaller than the Van der Waals radii sum of the two iodines. Additional interactions between the two cationic molecules of the asymmetric unit involve the CH2 and CH3 and the electron rich sulfur atoms, Figures S4 and S5.
A last structural aspect is related to the analysis of bond distances within the thioamido groups. Indeed, given the nature of these ligands, different resonance forms related to the thione or to the thiolate limit structures, may be written. Restricting the analysis to the Cu(I) complexes, the C=S distances are in the narrow range of 1.70–1.67 Å, with the mean value around 1.68 Å. The C–N distances are in the 1.33–1.29 Å (mean value 1.32 Å), hence the NCS system can be mostly described with a thione-like structure. The bond distance between the carbon atoms linking the thioamido groups is usually greater than 1.50 Å, pointing to a single bond character and with no electron delocalization between the two thioamido moieties within a ligand.

2.3. Vibrational and Electronic Spectral Features

Vibrational spectroscopic data are consistent with structural findings (Table S4 and Figures S6–S9). Specifically, a shift to higher frequency of the ν(CN) vibration is observed for 1–5 (1 > 2 > 3 ~ 4 ~ 5) due to the increase of the CN double bond character of the thioamide moiety on sulfur coordination. In the region typical of interiodine vibrations [41], the Raman spectra of 2, 3 and 5 show the presence of peaks typical of I3− at approximately 110 cm−1 (vs) and 140 cm−1 (m). These peaks are assigned respectively to the Raman-active symmetrical and to the antisymmetrical stretching which becomes Raman-active for asymmetrical I3− units. Differently, in the case of 1, no strong peak near 110 cm−1 is observed in the spectrum. This reflects the peculiar features of this triiodide, where one of the terminal atoms interacts with both iodine atoms coordinated to the metal, while the other interacts with gold of a symmetry related molecule. These interactions, which may be limited to the solid state, seem partially active in solution, where absorbances of the typical peaks of triiodides at 290 and 360 nm are approximately one half lower than predictable for 1, differently to what was observed for 2, 3 and 5. This may suggest that triiodide undergoes equilibrium reactions where iodine and coordinated iodides likely compete to interact with iodide. As far as the electronic spectra of [Pd(Me2pipdt)2]I6 (2) are concerned, in addition to the typical absorptions of triiodides at 290 and 360 nm, two peaks at 420(sh) nm and 450 nm appear in the visible region. These peaks have been formerly assigned to transitions between (HOMO-1)-LUMO and HOMO-LUMO frontier orbitals [42], determined by approximate extended Hückel calculations (CACAO software) [43]. In these π-type orbitals, the contribution of the metal to the empty orbitals is negligible, while in the populated ones it is high (highest for Pd in the Ni-triad) and affects their energy [44]. DFT calculations provide further support to these findings (see DFT Calculations section).
In the electronic spectra of [Cu(Me2pipdt)2]I3 (3), in addition to the triiodide related peaks, a peak appears at 530 nm. This peak can be assigned to a metal-to-ligand charge-transfer transition, according to recent studies on this class of complexes [28].

2.4. DFT Calculations

In order to further investigate the electronic structures of the cationic part of salts 1–3 and 5 (1′–3′ and 5′), density functional theory (DFT) calculations were performed using B3LYP as functional. The gas phase optimized geometries reported in Figure S10 are in reasonably good agreement with those obtained by X-ray measurements. A comparison between experimental and calculated bond distances and angles is reported in Tables S5 and S6. In the case of 1, calculated Au-I and C-S bond distances are in close agreement with the found ones, while the Au-S or M-S ones are slightly overestimated, as typically found with DFT functionals [45,46]. The calculated bite angles are a few degrees smaller than those measured.

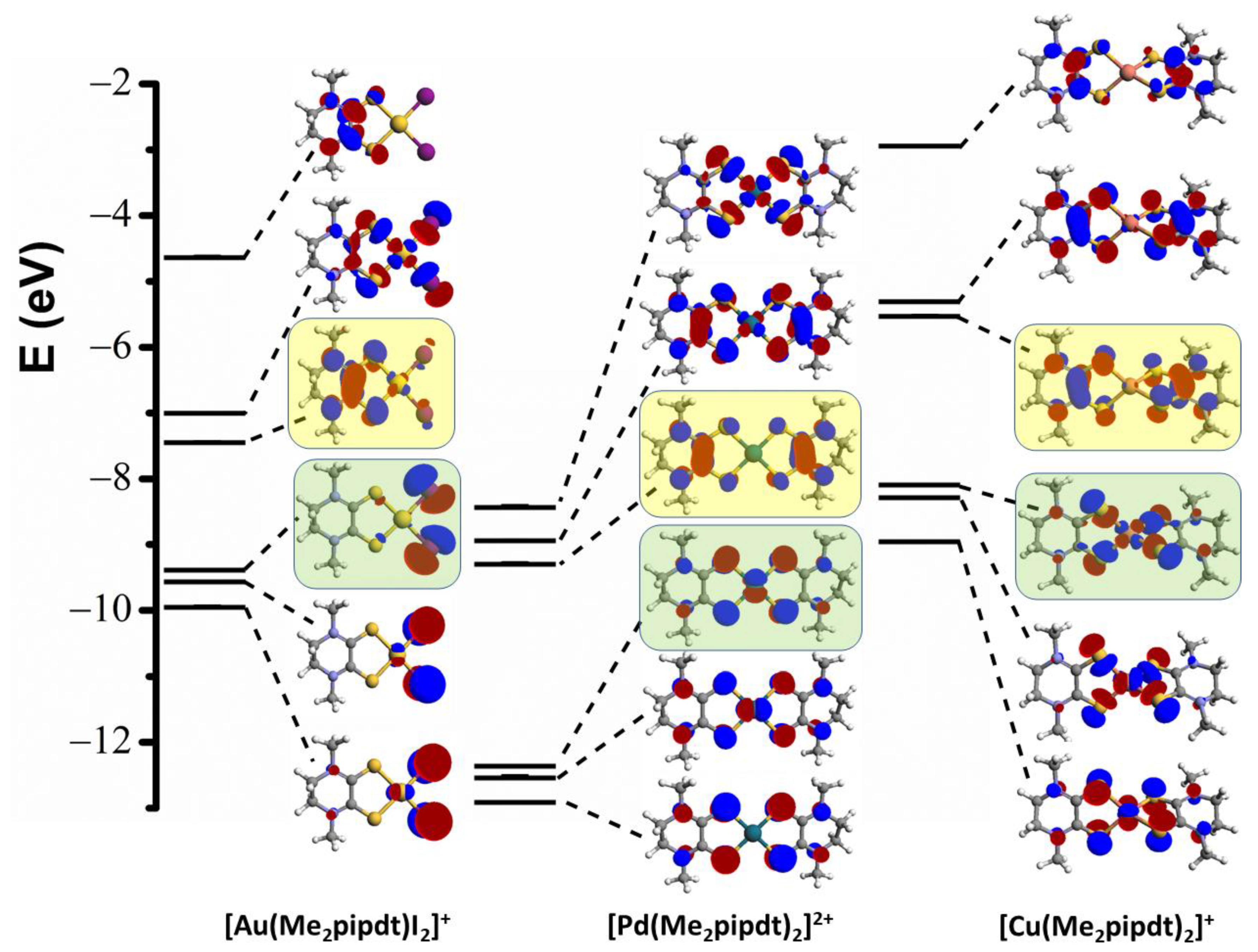

In Figure 7, shapes and energies diagrams of molecular orbitals of the complexes 1′–3′ are reported.
The nature and the energy of the frontier orbitals is markedly different in the three cases. In complex 1′, the highest occupied molecular orbital (HOMO) is almost completely composed of p iodide orbitals; the same depiction can be also used for HOMO-1 and HOMO-2 MOs which, in addition, present small contributions from gold 5d orbitals, due to its high effective nuclear charge which stabilizes the d-metal orbitals with respect to the ligand orbitals, preventing significant mixing between them. The lowest unoccupied molecular orbital (LUMO) is predominantly pipdt-ligand-based with small gold and iodide contribution in π-antibonding combination, while the LUMO+1 is a combination of pipdt-ligand-based and iodide with d-Au orbitals, in σ-antibonding interaction. Complex 2′ presents frontier orbitals (FOs) with lower energies compared to the corresponding ones of 1′. This lowering is relatable to the Pd(II) lower nuclear effective charge which allows a significant metal contribution to the π-electron system of the two Me2pipdt ligands. The related sequence of frontier π-MOs can be taken as typical of dicationic dithiolenic systems. The HOMO is formed by the out-of-plane interactions between a dπ Pd orbital and a π-ligand orbital with mainly sulfur p character. The lowest unoccupied molecular orbitals are mainly formed by ligands orbitals with C–C π, C–S π*, and C–N π* character, in the out-of-phase (LUMO) and the in-phase (LUMO+1) combinations between them, with negligible contribution from the metal. Electrochemical data on salts of [Pd(R2pipdt)2]2+ [24], showing four reversible redox steps relatable to a stepwise reduction from the dication to the dianion, further support that 2′ can be taken as a rare example of a dicationic dithiolene. In the copper(I) complex 3′, the tetrahedral geometry allows for a bonding interaction between the sulfur p and metal d orbitals. These results are in agreement with those previously reported by P. Basu et al. [27,28], on a study of Cu(I) (see Figure S11) and Cu(II) complexes with the same or similar ligands (Me2pipdt and iPr2pipdt). In addition to crystals of [Cu(iPr2pipdt)2][PF6] and [Cu(Me2pipdt)2][PF6], these authors succeed in isolating crystals of a Cu(II) derivative: [Cu(iPr2pipdt)2][BF4]2. In agreement with our findings, but with longer times, the spontaneous reduction of Cu(II) to Cu(I) complexes in solution, even under inert atmosphere conditions, was observed. As predictable the Cu(I) complexes have a distorted tetrahedral geometry, whereas the Cu(II) complex exhibits a square–planar geometry. Computational studies on [Cu(iPr2pipdt)2][PF6]n, n = 1 and 2, have also been performed and the sequence of molecular orbitals and orbital diagram for 3′, shown in Figure 7, is in agreement with that reported for [Cu(iPr2pipdt)2]+. Notably, the sequence of the frontiers orbitals suggests that, on reduction, the change from the square–planar Cu(II) paramagnetic complex [Cu(iPr2pipdt)2]2+ to the tetrahedral Cu(I) derivative [Cu(iPr2pipdt)2]+, turns the σ-antibonding interaction in a partial-bonding overlap between the sulphur p and metal d orbitals, as also observed in 3 and 5. As discussed in the Molecular Structures section, the distortion from the ideal tetrahedral geometry observed in 3, 4 and [Cu(iPr2pipdt)2]+ can be ascribed to the constrains of R2pipdt ligands that form six membered chelate rings. Instead the seven membered ring in Me2dazdt confers to this ligand a higher degree of conformational flexibility, allowing [Cu(Me2dazdt)2]+ to adopt a more regular tetrahedral geometry with more effective metal–sulfur interactions. A comparison between the MOs of complexes 3′ and 5′ (see Figure S12) shows similar electronic structures, although there is a difference in the order of MOs with HOMO and HOMO-1 swapped.
Cyclic voltammetry results on [Cu(R2pipdt)2]+ derivatives, previously reported [27,28], show the presence of a reversible Cu(II/I) couple at ca. 100 mV, but no reversible ligand based peaks. Thus, the loss of planarity on metal reduction seems to further support that in the [Cu(R2pipdt)2]2+/[Cu(R2pipdt)2]+ system the dithiolenic nature of complexes cannot be invoked, differently to the case of [Pd(R2pipdt)2]2+ (2′).

2.5. Recovery of Metals from the Leachate

As described above, Me2pipdt/I2 mixtures have been demonstrated to be effective agents for gold, palladium and copper dissolution, working through a one-pot reaction in very mild conditions.
In the specific case, the triad of metals here described is typically contained in the metal mixtures deriving from waste electric and electronic equipment like printed circuit boards where copper represents the most abundant non-ferrous metal (80%) and palladium and gold are present in low but significant amounts (0.01–0.1%). For practical purposes, an unselective leaching based on the use of the effective but relatively expensive Me2pipdt/I2 mixture does not seem convenient since it would also require further separation and concentration steps for achieving a selective metal recovery. Instead, a stepwise process which includes a preliminary selective leaching of copper (and other base metals still present in the mixture) by a cheaper more conventional reagent, such as NH3 in an oxidizing environment, or others [47,48,49], may add effectiveness and sustainability to the process, which still remains cost-effective for Au and Pd. Accordingly, experiments to recover the metal, Au or Pd, from the corresponding leachates were performed. Specifically, conventional cementation experiments were performed by dissolving 1 and 2 in a small amount of CH3CN and reacting with an excess of Mg flakes under stirring at room temperature. Despite a reaction seeming to occur in both cases, only the reaction of 1, were gold metal and MgI2 collected from the bottom of the flask while Me2pipdt was recovered from solution at the end of the process, to be fully recycled as detailed in the Section 3.2.
On the other hand, the above described treatment with Mg does not work with 2, as previously observed for the corresponding [Pd(Me2dazdt)2]I6 salt [29], to recover palladium metal and the ligand. This seems to be associated with the dithiolenic nature of these complexes, which is preserved even following reduction. Indeed, cyclic voltammetry of these compounds shows the presence of four reversible reduction waves corresponding to the reduction of the complex starting from 2+ and lasting to 2- [42], which can be related to the stepwise electron addition to LUMO and LUMO+1, in agreement with DFT calculation findings (see Figure 7). The different behavior of gold and palladium complexes under reducing conditions, may add selectivity to a recovery process where both metals are leached together. Indeed, gold(III) can be selectively reduced to gold(0) while 2 remains in solution.
Despite the fact that an alternative thermal degradation of 2 to recover palladium metal can be performed, it seems more appealing in terms both of economic and environmental aspects, to investigate the use of compound 2 in high valuable applicative fields such as homogeneous catalysis, where this class of compounds has already demonstrated their promising properties [50].

3. Materials and Methods

Reagents and solvents were purchased from Sigma-Aldrich and used without further purification. Metal powders were purchased as follows: Au (Alfa Aesar, 0.5–0.8 μm, 99.99%); Pd (Alfa Aesar, −200 mesh, 99.95%) and Cu (Carlo Erba, ≥98%).
Complexes were prepared in several solvents (e.g., THF, CH3CN) by a twofold approach: (1) using a solution of the ligand (Me2pipdt or Me2dazdt) in the presence of the appropriate amount of I2; or (2) starting from a solution of the solid-state isolated charge-transfer compound obtained by reacting the ligand with iodine (namely [Me2pipdtH]I3 and Me2dazdt·2I2, respectively), obtaining almost the same results. Approach (2) using THF as solvent will be detailed for brevity reasons.
CHN-analysis was performed on a Carlo Erba CHNS elemental analyzer model EA1108. MIR spectra (4000–200 cm−1) were recorded on the crude sample with a Jasco FT-IR6300A spectrometer equipped with a ATR PRO ONE (diamond crystal) and, for compound 1, on KBr pellets with a Perkin Elmer model 983 spectrometer in the 4000–400 cm−1 spectral range. FIR spectra (300–50 cm−1) were recorded on polyethylene pellets with a Bruker IFS55 FT-spectrometer. FT-Raman spectra were recorded on solid sample in a capillary tube, resolution ±4 cm−1, power 50 mW, Bruker model RFS100/S FT-spectrometer, operating with an excitation frequency of 1064 nm, Nd:YAG laser, and an Indium–Gallium–Arsenide detector. Electronic spectra were recorded by a Varian Cary 5 Spectrophotometer, on 1.0 × 10−4 M CH3CN solutions of the compounds contained in a 0.1 cm silica cell at room temperature. 1H and 13C-deptq135 NMR experiments and 2D 1H-13C HSQC were performed on a Brüker Avance 400 MHz instruments at 298 K. Chemical shifts are quoted in ppm relative to tetramethylsilane, using the solvent residual peak of DMSO-d6 (δH 2.50, δC 39.51) CD3CN (δH 1.94, δC 1.39 and 118.69) as a reference standard. The 13C- deptq135 spectra were phased according to: Cquat/CH2 up and CH/CH3 down.

3.1. Synthesis of Reagents and Products

[Me2pipdtH]I3 and [Me2dazdt·2I2] were prepared according to refs. [16,24], respectively.
[AuI2(Me2pipdt)]I3 (1). Au powder (17.7 mg, 0.0900 mmol) was reacted with a THF solution of [Me2pipdtH]I3 (0.100 g, 0.180 mmol in 0.100 L) under stirring at room temperature. The solution darkened from red-brown to brown and a fast precipitation occurred during the formation of the complex. In about 1 h the metal powder disappeared. Dark-brown well-shaped crystals of 3, suitable for X-ray studies, were precipitated with a 70% yield (63.3 mg, 0.063 mmol), from THF/Et2O, and were washed with Et2O. Analysis found: C% 8.34; H% 1.05; N% 3.01; S% 6.81; Calcd. for AuC6H10N2S2I5 (1005.758): C% 8.20; H% 1.15; N% 3.19; S% 7.30. MIR (on KBr pellets, cm−1): 2970vw, 2930vw, 1552vs(νCN), 1405w, 1385m, 1365s, 1285mw, 1265w, 1140m, 1090w, 1015w, 535w, 420vw. Raman (cm−1): 2968vw, 2902vw, 1555mw, 1431vw, 1402vw, 1364m, 1283vw, 1140vw, 530vw, 428vw, 392m, 325vw, 197ms, 162s, 150vs, 139-sh, 101ms, 76ms. UV-Vis (in CH3CN) [λ = nm (ε = dm3 mol−1 cm−1)]: 217(24,000), 234-sh, 295(34,000), 352(10,000), 503(2500). 1H-NMR (400 MHz, CD3CN): δ, 3.71 (s, 3H, CH3), 4.15 (s, 2H, CH2). 13C-NMR (100 MHz, CD3CN): δ, 47.00 (CH3), 52.64 (CH2) ppm.
[Pd(Me2pipdt)2](I3)2 (2). Pd powder (9.59 mg, 0.0900 mmol) was reacted with a THF solution of [Me2pipdtH]I3 (0.100 g, 0.180 mmol in 0.100 L) under stirring at room temperature. The solution darkened rapidly from red-orange to dark-brown with the formation of the complex. After about 2 h the palladium powder disappeared. Red-brown crystals of 1 (52.7 mg, 0.045 mmol) were obtained from THF/Et2O and washed with Et2O (50% yield). Analysis found: C% 12.09; H% 1.57; N% 4.54; S% 10.35; Calcd. for PdC12H20N4S4I6 (1168.67): C% 11.85; H% 1.66; N% 4.61; S% 10.54. MIR (on KBr pellets, cm−1): 2970w, 2902w, 1538vs (νCN), 1426m, 1393s, 1359vs, 1268s, 1258s, 1205w, 1185vw, 1141m, 1135w, 1115m, 890m, 813m, 665m, 599m, 539s, 454vs, 430m. Raman (cm−1): 2959w, 2910w, 2845vw, 1549mw, 1444w, 1396w, 1367m, 1291vw, 1265mw, 1149w, 544w, 430vw, 388w-br, 147s, 133s, 109vs. UV-Vis (in CH3CN) [λ = nm (ε = dm3 mol−1 cm−1)]: 290 (117,000), 361(48,000) 2 I3−, 425-sh, 450(18,000). Well-shaped crystals, suitable for single-crystal X-Ray diffraction measurements, were obtained after several recrystallization attempts by dissolution/crystallization processes in THF/Et2O, obtaining the corresponding [Pd(Me2pipdt)2]I2 complex. 1H-NMR (400 MHz, DMSO-d6): δ, 3.66 (s, 3H, CH3), 4.19 (s, 2H, CH2); 13C-NMR (100 MHz, DMSO-d6): δ, 44.86 (CH3), 50.92 (CH2), 181.69 (C=S) ppm.
[Cu(Me2pipdt)2]I3 (3). Cu powder (5.73 mg, 0.0900 mmol) was reacted with a THF solution of [Me2pipdtH]I3 (0.100 g, 0.180 mmol in 0.100 L) under stirring at room temperature. The solution darkened readily from red-brown to dark-red. Purple well-shaped crystals of 2, suitable for X-ray studies, were obtained in an almost quantitative yield (70.9 mg, 0.0996 mmol) from THF/Et2O, and washed with Et2O. Analysis found: C% 18.36; H% 2.57; N% 7.03; S% 16.49; Calcd. for CuC12H20N4S4I3 (792.83): C% 18.18; H% 2.54; N% 7.07; S% 16.18. MIR (on KBr pellets, cm−1): 2960vw, 2912w, 2854vw, 1512vs (νCN), 1462w-br, 1425w, 1397s, 1348vs, 1281mw, 1262vs, 1197mw, 1158w, 1129m, 1096m, 1030w, 1015w, 897s, 815w, 677m, 594w, 541s, 467s, 412w. FIR (on polythene pellets, cm−1): 225w, 200w, 140vs, 117mw, 82mw, 73-sh. Raman: the sample showed fluorescence. However, intense peaks at 130s and 113vs cm−1 were present. UV-Vis (in CH3CN) [λ = nm (ε = dm3 mol−1 cm−1)]: 225(28,000), 292(62,000), 362(22,000) I3−, 530(11,000). 1H-NMR (400 MHz, DMSO-d6): δ, 3.59 (s, 3H, CH3), 3.98 (s, 2H, CH2); 13C-NMR (100 MHz, DMSO-d6): δ, 47.59 (CH3), 49.56 (CH2), 182.01 (C=S), ppm.
[Cu(Me2pipdt)2]BF4 (4). 0.2 g of Me2pipdt and 0.08 g of CuCl2 were dissolved in 100 mL of THF and reacted under reflux in Ar atmosphere and magnetic bar stirring with an excess of NH4BF4. In these conditions, the solution turned from light to dark green, then to purple when the reaction went off in around 1 h. Crystalline product 4 was recovered by the cold solution after addition of EtOH (in 1:1 ratio in volume with THF) and slow evaporation of THF by heating the mixture under stirring, and fully characterized. Analysis found: C% 29.38; H% 4.14; N% 11.50; S% 25.42; Calcd. for CuC12H20N4S4BF4 (498.905): C% 28.89; H% 4.04; N% 11.23; S% 25.71. MIR (ATR, cm−1): 3008vw, 2981vw, 2936w, 2909w, 1511vs (νCN), 1447w, 1432w, 1406m, 1391-sh, 1347vs, 1283m, 1266m, 1204w, 1157vw, 1126w, 1086m, 1027vs, 898m, 876-sh, 812w, 686m, 597w, 541s, 519m, 445w. 1H-NMR (400 MHz, DMSO-d6): δ, 3.59 (s, 3H, CH3), 3.98 (s, 2H, CH2); 13C-NMR (100 MHz, DMSO-d6): δ, 47.12 (CH3), 49.09 (CH2), 181.54 (C=S), ppm.
[Cu(Me2dazdt)2]I3 (5). Cu powder (4.57 mg, 0.0720 mmol) was reacted with a THF solution of Me2dazdt·2I2 (0.100 g, 0.144 mmol in 0.100 L) under stirring at room temperature. The solution darkened rapidly from red-orange to red-brown with the formation of the complex. Red-brown needle crystals of 5 (59.0 mg, 0.0719 mmol) were crystallized, in an almost quantitative yield, from THF/Et2O, and were washed with Et2O. Analysis found: C% 20.60; H% 3.03; N% 6.62; S% 15.38; Calcd. For CuC14H24N4S4I3 (820.884): C% 20.48; H% 2.95; N% 6.82; S% 15.63. MIR (on KBr pellets, cm−1): 2960-sh, 2922w, 1513vs (νCN), 1451mw, 1435w, 1394s, 1356m, 1331w, 1279s, 1254m, 1183w, 1102m, 1074w, 1025w, 967w, 887vw, 827m, 745w, 691vw, 612m, 582w, 532m, 449vw. FIR (on polythene pellets, cm−1): 140s, 106m. Raman (cm−1): 2954vw, 2929w, 2892vw, 1530w, 1457vw, 1399mw, 1358vw, 1258mw, 1211w, 1122vw, 891vw, 619vw, 444mw, 409mw, 292mw, 164s, 151m, 135w, 111vs, 82mw-sh, 75mw-sh. UV-Vis (in CH3CN) [λ = nm (ε = dm3 mol−1 cm−1)]: 237(39,000), 293(70,000), 363(35,000) I3−. 1H-NMR (400 MHz, DMSO-d6): δ, 2.20 (m, 2H, CH2), 3.46 (br s, 8H, CH2 and CH3), 3.75 (br m, 2H, CH2); 13C-NMR (100 MHz, DMSO-d6): δ, 27.27 (CH2), 42.26 (CH3), 52.10 (CH2), ppm.

3.2. Procedure for Gold and Reagents Recovery from Complex 1

28 mg of complex 1 were dissolved in 40mL of CH3CN at room temperature. To this solution an excess of shiny Mg flakes was added and stirred. After few minutes, the solution color turned from orange-brown to yellow and Mg flakes darkened for a dark powder deposition on the surface. This reaction was also accompanied by a precipitation of whitish needle crystals supposed to be MgI2. Mg flakes were separated by the solution (containing the white precipitate) and dissolved by diluted HCl, leaving a black powder unreacted, supposed gold metal. The black powder was, then, treated for gold identification and quantification by dissolution with few mL of aqua regia (forming a yellow solution), HNO3 removal by heating under the fume hood and gold reduction to gold(0) by addition of Na2SO3 (up to persistent smell of SO3), obtaining gold powder in a >90% yield. The yellow solution containing the whitish precipitated was dried, then the solid residue washed by water for extracting soluble MgI2. The solid residue was redissolved in CH3CN and characterized by UV-Vis spectrophotometry which showed the typical spectrum of the free ligand. MgI2 was identified as follows: the iodide by quantitative precipitation of AgI by addition of an excess of AgNO3 into the water solution; and the Mg2+ through elemental analysis by Atomic Absorption Spectroscopy. In terms of complete recycling of the reagents for applicative purposes, iodine can be recycled by the I− water solution by adding 30% H2O2, heating under stirring and I2 vapors frosting to crystalline I2 on the surface of a cold finger.

3.3. X-ray Measurements

Single crystal Data for complexes 1, 2a, 3, 4, and 5, were collected at 220K with a Bruker D8 diffractometer equipped with a Photon II detector, using a MoKα microfocus radiation source (λ = 0.71073). The intensity data were integrated from several series of exposure frames covering the sphere of reciprocal space. Data reductions were performed with APEX3 [51] or with CrysAlysPro [52]. Absorption corrections were applied using the program SADABS [53]. The structures were solved with the program SHELXT [54]. Fourier analysis and refinement were performed by the full-matrix least-squares methods based on F2 using SHELXL-2014 [55], using Olex2 [56]. All the non-H atoms were refined with anisotropic displacement parameters. In [Cu(Me2pipdt)2]BF4 both of the BF4− anions of the asymmetric unit were modelled over two distinct sites (with 0.83/0.17 and 0.86/0.14 site occupancy factors, respectively). The crystals of [Cu(Me2dazdt)2]I3 were non-merohedrally twinned, and the best data set could be obtained by using only one major crystalline domain and a narrow integration box to minimize reflection overlaps. CCDC 2084168-2084172 contains the Supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: deposit@ccdc.cam.ac.uk).

3.4. DFT Calculations

Ground-state electronic structure calculations of [AuI2(Me2pipdt)]+ (1′), [Pd(Me2pipdt)2]2+ (2′), [Cu(Me2pipdt)2]+ (3′) and [Cu(Me2dazdt)2]+ (5′) were performed at DFT [57] level employing the GAUSSIAN 16 [58] software package. The Becke three-parameters exchange functional with Lee–Yang–Parr correlation functional (B3LYP) [59,60] was used. The ground state geometries were obtained in the gas phase by full geometry optimization without any symmetry constraints. The basis sets employed were 6-31+G** [61] (for C, H, N and S), LANL2DZ [62] (Cu) and Def2TZVPP [63] (Au, Pd and I) with pseudopotentials on Pd, Au and I atoms. All structures were input starting from the crystallographic data. The optimized molecular structures and the orbital isosurfaces were visualized using ArgusLab 4.0 [64].

4. Conclusions

In conclusion, the reported reactions show once more the combined action of DTO–diiodine mixture represents a valuable method for leaching noble metals in a surprisingly mild and effective way. The obtained products may be used to provide elemental metal [47,48,49], as here demonstrated for gold, or also as valuable candidates for applications in catalysis [50]. Furthermore, the structure and bonding description of compounds 1–5 sheds light on the role of the DTO-ligands in favoring the oxidation state and coordination of these metals. The found structure–property relationship may provide a useful contribution to studies on related applicative fields spanning from biochemistry to catalysis [50,65]. Focusing on the applicative purposes of these smart reactants, due to the cost related to their synthesis and precursors, their use at the practical level should be restricted to cases of selective leaching of limited amounts of these high value metals and/or when the organic ligand can be recycled besides the metal. Otherwise, the cost of the ligands would make the method uneconomic for application purposes at a large scale. Instead, high added value is ensured when the leaching products are suitable for applications as they are, avoiding the recovery process.

Supplementary Materials

The following are available online, Table S1: Crystallographic data for compounds 1–5; Tables S2 and S3: Dihedral angles for compounds 1–5; Table S4: Vibrational peaks for 1, 2, 3, 5; Tables S5 and S6: Found vs. calculated bond distances and angles for 1′, 2′, 3′, 5′; Figure S1: Electrostatic potential map for 1′; Figures S2-S5: Crystal packing of complexes 1–5. Figures S6-S9: Vibrational spectroscopy characterization of 1, 2, 3, 5; Figure S10: Gas-phase DFT optimized geometries for 1′, 2′, 3′, 5′; Figure S11: DFT MO for 3′; Figure S12: DFT MO for 3′ and 5′; Figures S13–S23: 1H and 13C-NMR spectra for 1–5.

Author Contributions

Conceptualization, A.S. and P.D.; Formal analysis, L.P. and L.M.; Investigation, A.S. and D.B.; Supervision, P.D.; Writing—original draft, A.S., L.P., L.M. and P.D.; Writing—review & editing, A.S., L.P., L.M. and P.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article or Supplementary Materials.

Acknowledgments

The authors kindly acknowledge E. F. Trogu and all the students and collaborators who have cooperated over the years on this topic at University of Cagliari. This work benefited from the equipment and framework of the COMP-HUB Initiative, funded by the “Departments of Excellence” program of the Italian Ministry for Education, University and Research (MIUR, 2018–2022). Chiesi Farmaceutici SpA is acknowledged for the support of the D8 Venture X-ray equipment. Francesca Mocci, University of Cagliari, is kindly acknowledged for providing the computing facility.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rao, M.D.; Singh, K.K.; Morrison, C.A.; Love, J.B. Challenges and opportunities in the recovery of gold from electronic waste. RSC Adv. 2020, 10, 4300–4309. [Google Scholar] [CrossRef] [Green Version]
  2. Kumar, A.; Holuszko, M.; Espinosa, D.C.R. E-waste: An overview on generation, collection, legislation and recycling practices. Resour. Conserv. Recycl. 2017, 122, 32–42. [Google Scholar] [CrossRef]
  3. Lu, Y.; Xu, Z. Precious metal recovery from waste printed circuit boards: A review for current status and perspectives. Resour. Conserv. Recycl. 2016, 113, 28–39. [Google Scholar] [CrossRef]
  4. Akcil, A.; Erust, C.; Gahan, C.S.; Ozgun, M.; Sahin, M.; Tuncuk, A. Precious Metal Recovery from waste printed circuit boards using cyanide and non-cyanide lixiviant. A review. Waste Manag. 2015, 45, 258–271. [Google Scholar] [CrossRef] [PubMed]
  5. Birich, A.; Raslan, S.; Friedrich, M.B. Screening of Non-cyanide Leaching Reagents for Gold Recovery from Waste Electric and Electronic Equipment. J. Sustain. Metall. 2018. [Google Scholar] [CrossRef]
  6. Lia, H.; Eksteena, J.; Orabya, E. Hydrometallurgical recovery of metals from waste printed circuit boards (WPCBs): Current status and perspectives—A review. Resour. Conserv. Recycl. 2018, 139, 122–139. [Google Scholar] [CrossRef]
  7. Nelson, J.J.M.; Schelter, E.J. Sustainable Inorganic Chemistry: Metal Separations for Recycling. Inorg. Chem. 2019, 58, 979–990. [Google Scholar] [CrossRef]
  8. Räisänen, M.; Heliövaara, E.; Al-Qaisi, F.; Muuronen, M.; Eronen, A.; Liljeqvist, H.; Nieger, M.; Kemell, M.; Moslova, K.; Hämäläinen, J.; et al. Pyridinethiol-Assisted Dissolution of Elemental Gold in Organic Solutions. Angew. Chem. Int. Ed. 2018, 57, 17104–17109. [Google Scholar] [CrossRef] [PubMed]
  9. Serpe, A. Green chemistry for precious metals recovery from WEEE. In Waste Electrical and Electronic Equipment Recycling: Aqueous Recovery Methods; Vegliò, F., Birloaga, I., Eds.; Elsevier Ltd.: Duxford, UK, 2018; Chapter 11; pp. 271–332. [Google Scholar]
  10. Groenewald, T. The dissolution of gold in acidic solutions of thiourea. Hydrometallurgy 1976, 1, 277–290. [Google Scholar] [CrossRef]
  11. Ubaldini, S.; Fornari, P.; Massidda, R.; Abbruzzese, C. An innovative thiourea gold leaching process. Hydrometallurgy 1998, 48, 113–124. [Google Scholar] [CrossRef]
  12. Gönen, N. Leaching of finely disseminated gold ore with cyanide and thiourea solutions. Hydrometallurgy 2003, 69, 169–176. [Google Scholar] [CrossRef]
  13. Behnamfard, A.; Salarirad, M.M.; Veglio, F. Process development for recovery of copper and precious metals from waste printed circuit boards with emphasize on palladium and gold leaching and precipitation. Waste Manag. 2013, 33, 2354–2363. [Google Scholar] [CrossRef] [PubMed]
  14. Ippolito, N.M.; Birloaga, I.; Ferella, F.; Centofanti, M.; Vegliò, F. Preliminary Study on Gold Recovery from High Grade E-Wasteby Thiourea Leaching and Electrowinning. Minerals 2021, 11, 235. [Google Scholar] [CrossRef]
  15. Serpe, A.; Artizzu, F.; Mercuri, M.L.; Pilia, L.; Deplano, P. Charge transfer complexes of dithioxamides with dihalogens as powerful reagents in the dissolution of noble metals. Coord. Chem. Rev. 2008, 252, 1200–1212. [Google Scholar] [CrossRef]
  16. Bigoli, F.; Deplano, P.; Mercuri, M.L.; Pellinghelli, M.A.; Pintus, G.; Serpe, A.; Trogu, E.F. A powerful new oxidation agent towards metallic gold powder: N,N′-dimethylperhydrodiàzepine-2,3-dithione (D) bis(diiodine). Synthesis and X-ray structure of [AuDI2]I3. Chem. Commun. 1998, 21, 2351–2352. [Google Scholar] [CrossRef]
  17. Serpe, A.; Rigoldi, A.; Marras, C.; Artizzu, F.; Mercuri, M.L.; Deplano, P. Chameleon behaviour of iodine in recovering noble-metals from WEEE: Towards sustainability and “zero” waste. Green Chem. 2015, 17, 2208–2216. [Google Scholar] [CrossRef] [Green Version]
  18. Serpe, A.; Artizzu, F.; Espa, D.; Rigoldi, A.; Mercuri, M.L.; Deplano, P. From trash to resource: A green approach to noble-metals dissolution and recovery. Green Process. Synth. 2014, 3, 141–146. [Google Scholar] [CrossRef] [Green Version]
  19. Serpe, A.; Marchiò, L.; Artizzu, F.; Mercuri, M.L.; Deplano, P. Effective one-step gold dissolution using environmentally friendly low-cost reagents. Chem. Eur. J. 2013, 19, 10111–10114. [Google Scholar] [CrossRef]
  20. Deplano, P.; Mercuri, M.L.; Pilia, L.; Serpe, A.; Vanzi, M. Process for Recovering Noble Metals from Electric and Electronic Wastes. Patent EP196493, 13 February 2008. [Google Scholar]
  21. Serpe, A.; Artizzu, F.; Marchiò, L.; Mercuri, M.L.; Pilia, L.; Deplano, P. Argentophilic interactions in mono-, di-, and polymeric Ag(I) complexes with N,N′-dimethyl-piperazine-2,3-dithione and iodide. Cryst. Growth Des. 2011, 11, 1278–1286. [Google Scholar] [CrossRef]
  22. Serpe, A.; Bigoli, F.; Cabras, M.C.; Fornasiero, P.; Graziani, M.; Mercuri, M.L.; Montini, T.; Pilia, L.; Trogu, E.F.; Deplano, P. Pd-Dissolution through a mild and effective one-step reaction and its application for Pd-recovery from spent catalytic converters. Chem. Commun. 2005, 1040–1042. [Google Scholar] [CrossRef]
  23. Deplano, P.; Fornasiero, P.; Graziani, M.; Mercuri, M.L.; Serpe, A.; Trogu, E.F. Method for the Recovery of Palladium. Patent EP1743044, 12 April 2005. [Google Scholar]
  24. Bigoli, F.; Deplano, P.; Mercuri, M.L.; Pellinghelli, M.A.; Pintus, G.; Serpe, A.; Trogu, E.F. N,N′-Dimethylpiperazinium-2,3-dithione Triiodide, [Me2Pipdt]I3, as a Powerful New Oxidation Agent toward Metallic Platinum. Synthesis and X-ray Structures of the Reagent and the Product [Pt(Me2Pipdt)2](I3)2. J. Am. Chem. Soc. 2001, 123, 1788–1789. [Google Scholar] [CrossRef] [PubMed]
  25. tom Dieck, H.; Form, M. C-N Twisted Ethanedithioamides in Electron-Rich Complexes. Angew. Chem. Int. Ed. 1975, 14, 250–251. [Google Scholar] [CrossRef]
  26. Steifel, E.I. (Ed.) Dithiolene Chemistry: Synthesis, Properties and Applications. In Progress in Inorganic Chemistry; John Wiley&Sons, Inc.: Hoboken, NJ, USA, 2004; Volume 52. [Google Scholar]
  27. Colston, K.J.; Dille, S.A.; Mogesa, B.; Astashkin, A.V.; Brant, J.A.; Zeller, M.; Basu, P. Design, Synthesis, and Structure of Copper Dithione Complexes: Redox-Dependent Charge Transfer. Eur. J. Inorg. Chem. 2019, 4939–4948. [Google Scholar] [CrossRef]
  28. Basu, P.; Colston, K.J.; Moges, B. Dithione, the antipodal redox partner of ene-1,2-dithiol ligands and their metal complexes. Coord. Chem. Rev. 2020, 409, 213211. [Google Scholar] [CrossRef]
  29. Cuscusa, M.; Rigoldi, A.; Artizzu, F.; Cammi, R.; Fornasiero, P.; Deplano, P.; Marchio, L.; Serpe, A. Ionic couple-driven palladium leaching by organic triiodide solutions. ACS Sustain. Chem. Eng. 2017, 5, 4359–4370. [Google Scholar] [CrossRef]
  30. Zimmerman, M.T.; Bayse, C.A.; Ramoutar, R.R.; Brumaghim, J.L. Sulfur and selenium antioxidants: Challenging radical scavenging mechanisms and developing structure–activity relationships based on metal binding. J. Inorg. Biochem. 2015, 145, 30–40. [Google Scholar] [CrossRef] [PubMed]
  31. Kimani, M.M.; Bayse, C.A.; Stadelman, B.S.; Brumaghim, J.L. Oxidation of Biologically Relevant Chalcogenones and Their Cu(I) Complexes: Insight into Selenium and Sulfur Antioxidant Activity. Inorg. Chem. 2013, 52, 11685–11687. [Google Scholar] [CrossRef]
  32. Cavallo, G.; Metrangolo, P.; Milani, R.; Pilati, T.; Priimagi, A.; Resnati, G.; Terraneo, G. The Halogen Bond. Chem. Rev. 2016, 116, 2478–2601. [Google Scholar] [CrossRef] [Green Version]
  33. Politzer, P.; Murray, J.S.; Clark, T. Halogen bonding and other σ-hole interactions: A perspective. Phys. Chem. Chem. Phys. 2013, 15, 11178–11189. [Google Scholar] [CrossRef]
  34. Clark, T.; Murray, J.S.; Politzer, P. The σ-Hole Coulombic Interpretation of Trihalide Anion Formation. ChemPhysChem 2018, 19, 3044–3049. [Google Scholar] [CrossRef]
  35. Groenewald, F.; Esterhuysen, C.; Dillen, J. Electrostatic surface potential analysis of the I3- ion in the gas phase, the condensed phase and a novel extrapolation to the solid state. J. Comput. Theor. Chem. 2016, 1090, 225–233. [Google Scholar] [CrossRef]
  36. Bartashevich, E.V.; Yushina, I.D.; Stash, A.I.; Tsirelson, V.G. The σ-Hole Coulombic Interpretation of Trihalide Anion Formation Halogen Bonding and Other Iodine Interactions in Crystals of Dihydrothiazolo(oxazino)quinolinium Oligoiodides from the Electron-Density Viewpoint. Cryst. Growth Des. 2014, 14, 5674–5684. [Google Scholar] [CrossRef]
  37. Desiraju, G.R.; Steiner, T. The Weak Hydrogen Bond in Structural Chemistry and Biology; OUP: Chichester, UK, 1999. [Google Scholar]
  38. Yang, L.; Powell, D.R.; Houser, R.P. Structural variation in copper(i) complexes with pyridylmethylamide ligands: Structural analysis with a new four-coordinate geometry index, τ4. Dalton Trans. 2007, 9, 955–964. [Google Scholar] [CrossRef] [PubMed]
  39. Rosiak, D.; Okuniewski, A.; Chojnacki, J. Novel complexes possessing Hg–(Cl, Br, I)⋯OC halogen bonding and unusual Hg2S2(Br/I)4 kernel. The usefulness of τ4′ structural parameter. Polyhedron 2018, 146, 35–41. [Google Scholar] [CrossRef]
  40. Metrangolo, P.; Resnati, G. Type II halogen···halogen contacts are halogen bonds. IUCrJ 2014, 1, 5–7. [Google Scholar] [CrossRef] [PubMed]
  41. Deplano, P.; Ferraro, J.R.; Mercuri, M.L.; Trogu, E.F. Structural and Raman spectroscopic studies as complementary tools in elucidating the nature of the bonding in polyiodides and in donor-I2 adducts. Coord. Chem. Rev. 1999, 188, 71–95. [Google Scholar] [CrossRef]
  42. Bigoli, F.; Deplano, P.; Mercuri, M.L.; Pellinghelli, M.A.; Pilia, L.; Pintus, G.; Serpe, A.; Trogu, E.F. Ion Pair Charge-Transfer Complexes between Anionic and Cationic Metal-Dithiolenes [M(II)] = Pd, Pt]. Inorg. Chem. 2002, 41, 5241–5248. [Google Scholar] [CrossRef] [PubMed]
  43. Mealli, C.; Proserpio, D. MO Theory Made Visible. J. Chem. Educ. 1990, 67, 399–402. [Google Scholar] [CrossRef]
  44. Espa, D.; Pilia, L.; Marchiò, L.; Mercuri, M.L.; Serpe, A.; Sessini, E.; Deplano, P. Near-infrared pigments based on ion-pair charge transfer salts of dicationic and dianionic metal–dithiolene [M(II) = Pd, Pt] complexes. Dalton Trans. 2013, 42, 12429–12439. [Google Scholar] [CrossRef]
  45. Kokatam, S.; Ray, K.; Pap, J.; Bill, E.; Geiger, W.E.; LeSuer, R.J.; Rieger, P.H.; Weyhermuller, T.; Neese, F.; Wieghardt, K. Molecular and Electronic Structure of Square-Planar Gold Complexes Containing Two 1,2-Di(4-tert-butylphenyl)ethylene-1,2-dithiolato Ligands: [Au(2L)2]1+/0/1-/2-. A Combined Experimental and Computational Study. Inorg. Chem. 2007, 46, 1100–1111. [Google Scholar] [CrossRef]
  46. Herebian, D.; Wieghardt, K.E.; Neese, F. Analysis and Interpretation of Metal-Radical Coupling in a Series of Square Planar Nickel Complexes: Correlated Ab Initio and Density Functional Investigation of [Ni(LISQ)2] (LISQ)3,5-di-tert-butyl-o-diiminobenzosemiquinonate(1-). J. Am. Chem. Soc. 2003, 125, 10997. [Google Scholar] [CrossRef]
  47. Luda, M.P. Recycling of Printed Circuit Boards, Integrated Waste Management—Volume II; Kumar, S., Ed.; InTech: Rijeka, Croatia, 2011; ISBN 978-953-307-447-4. Available online: http://www.intechopen.com/books/integrated-waste-management-volume-ii/recycling-of-printed-circuit-boards (accessed on 3 August 2021).
  48. Sethurajan, M.; van Hullebusch, E.D.; Fontana, D.; Akcil, A.; Deveci, H.; Batinic, B.; Leal, J.P.; Gasche, T.A.; Kucuker, M.A.; Kuchta, K.; et al. Recent advances on hydrometallurgical recovery of critical and precious elements from end of life electronic wastes—A review. Crit. Rev. Environ. Sci. Technol. 2019, 49, 212–275. [Google Scholar] [CrossRef] [Green Version]
  49. Rigoldi, A.; Trogu, E.F.; Marcheselli, G.C.; Artizzu, F.; Picone, N.; Colledani, M.; Deplano, P.; Serpe, A. Advances in Recovering Noble Metals from Waste Printed Circuit Boards (WPCBs). ACS Sustain. Chem. Eng. 2019, 7, 1308–1317. [Google Scholar] [CrossRef]
  50. Jantan, K.A.; Kwok, C.Y.; Chan, K.W.; Marchiò, L.; White, A.J.P.; Deplano, P.; Serpe, A.; Wilton-Ely, J.D.E.T. From recovered metal waste to high-performance palladium catalysts. Green Chem. 2017, 19, 5846–5853. [Google Scholar] [CrossRef] [Green Version]
  51. Bruker. APEX3 Software; Bruker AXS Inc.: Madison, WI, USA, 2012. [Google Scholar]
  52. Agilent. CrysAlis PRO; Agilent Technologies Ltd.: Yarnton, UK, 2014. [Google Scholar]
  53. Krause, L.; Herbst-Irmer, R.; Sheldrick, G.M.; Stalke, D. [SADABS-2016/2]—Bruker AXS area detector scaling and absorption correction. J. Appl. Cryst. 2015, 48, 3–10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Sheldrick, G.M. SHELXT—Integrated Space-Group and Crystal-Structure Determination. Acta Crystallogr. Sect. A Found. Crystallogr. 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Sheldrick, G.M. Crystal Structure Refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  56. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  57. Parr, R.G.; Yang, W. Density Functional Theory of Atoms and Molecules; Oxford University Press: Oxford, UK, 1989. [Google Scholar]
  58. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 09, Revision A.02; Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  59. Becke, D. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Green Version]
  60. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef] [Green Version]
  61. Hariharan, P.C.; Pople, J.A. The influence of polarization functions on molecular orbital hydrogenation energies. Theoret. Chim. Acta 1973, 28, 213–222. [Google Scholar] [CrossRef]
  62. Hay, P.J.; Wadt, W.R. Ab initio effective core potentials for molecular calculations—Potentials for the transition-metal atoms Sc to Hg. J. Chem. Phys. 1985, 82, 270–283. [Google Scholar] [CrossRef]
  63. Weigend, F.; Ahlrichs, R. Balanced basis sets of split valence, triple zeta valence and quadruple zeta valence quality for H to Rn: Design and assessment of accuracy. Phys. Chem. Chem. Phys. 2005, 7, 3297–3305. [Google Scholar] [CrossRef] [PubMed]
  64. Thompson, M.A. ArgusLab 4.0.1; Planaria Software LLC: Seattle, WA, USA. Available online: http://www.arguslab.com/arguslab.com/ArgusLab.html/ (accessed on 3 August 2021).
  65. Donnelly, J.M.; Lermyte, F.; Wolny, J.A.; Walker, M.; Breeze, B.G.; Needham, R.J.; Müller, C.S.; O’Connor, P.B.; Schünemann, V.; Collingwood, J.F.; et al. Cu(III)–bis-thiolato complex forms an unusual mono-thiolato Cu(III)–peroxido adduct. Chem. Commun. 2021, 57, 69–72. [Google Scholar] [CrossRef] [PubMed]
Molecules 26 04721 sch001 550

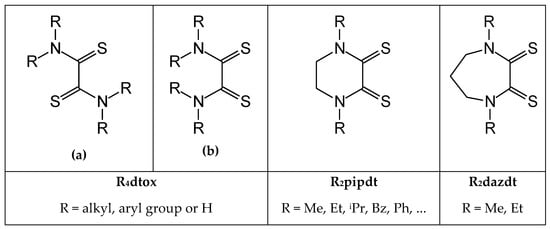

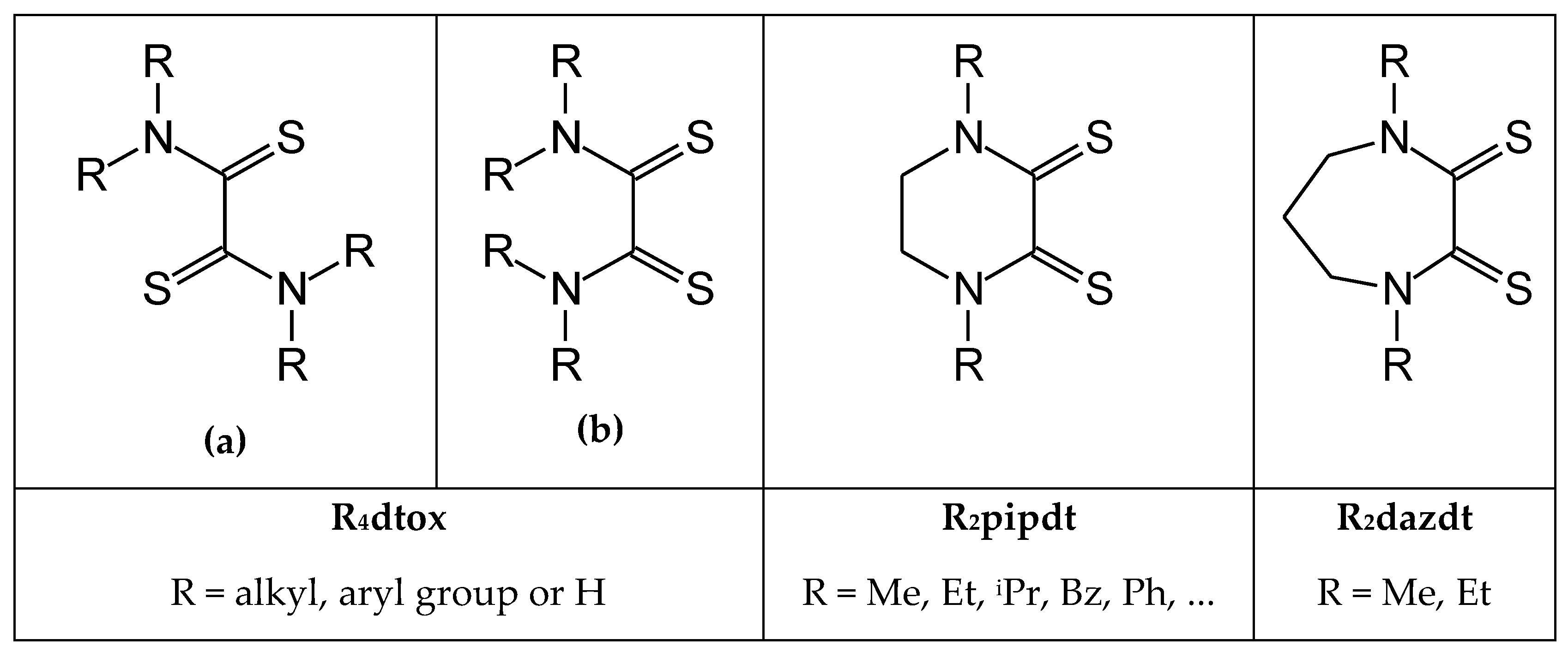

Scheme 1. Acyclic and cyclic hexa- and hepta-atomic dithiooxamides.
Scheme 1. Acyclic and cyclic hexa- and hepta-atomic dithiooxamides.
Molecules 26 04721 sch001
Molecules 26 04721 sch002 550

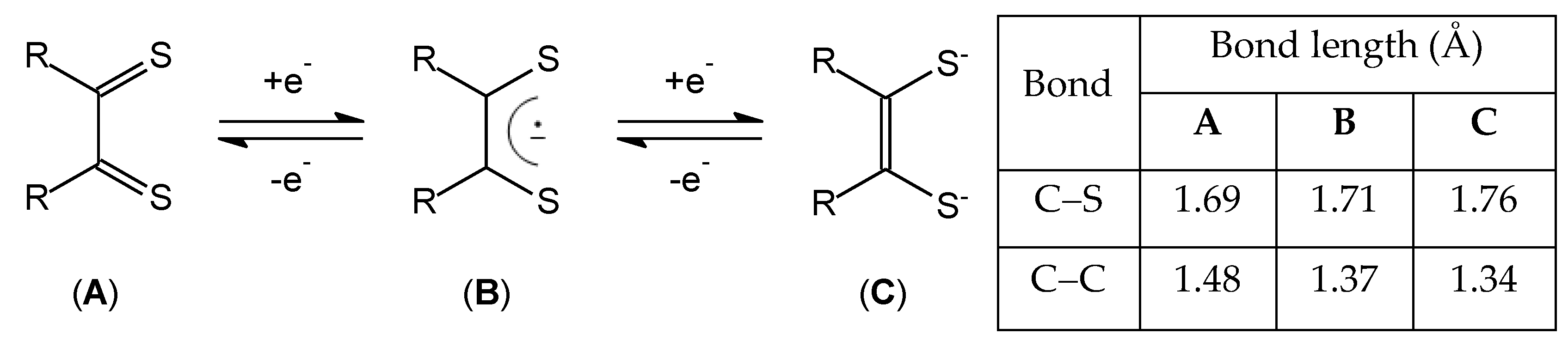

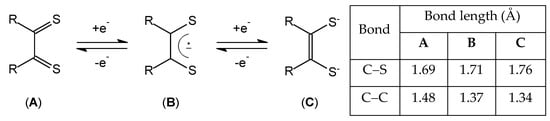

Scheme 2. Reversible redox processes of α-dithiones and typical bond distances on the C2S2 moiety [26].
Scheme 2. Reversible redox processes of α-dithiones and typical bond distances on the C2S2 moiety [26].
Molecules 26 04721 sch002
Molecules 26 04721 sch003 550

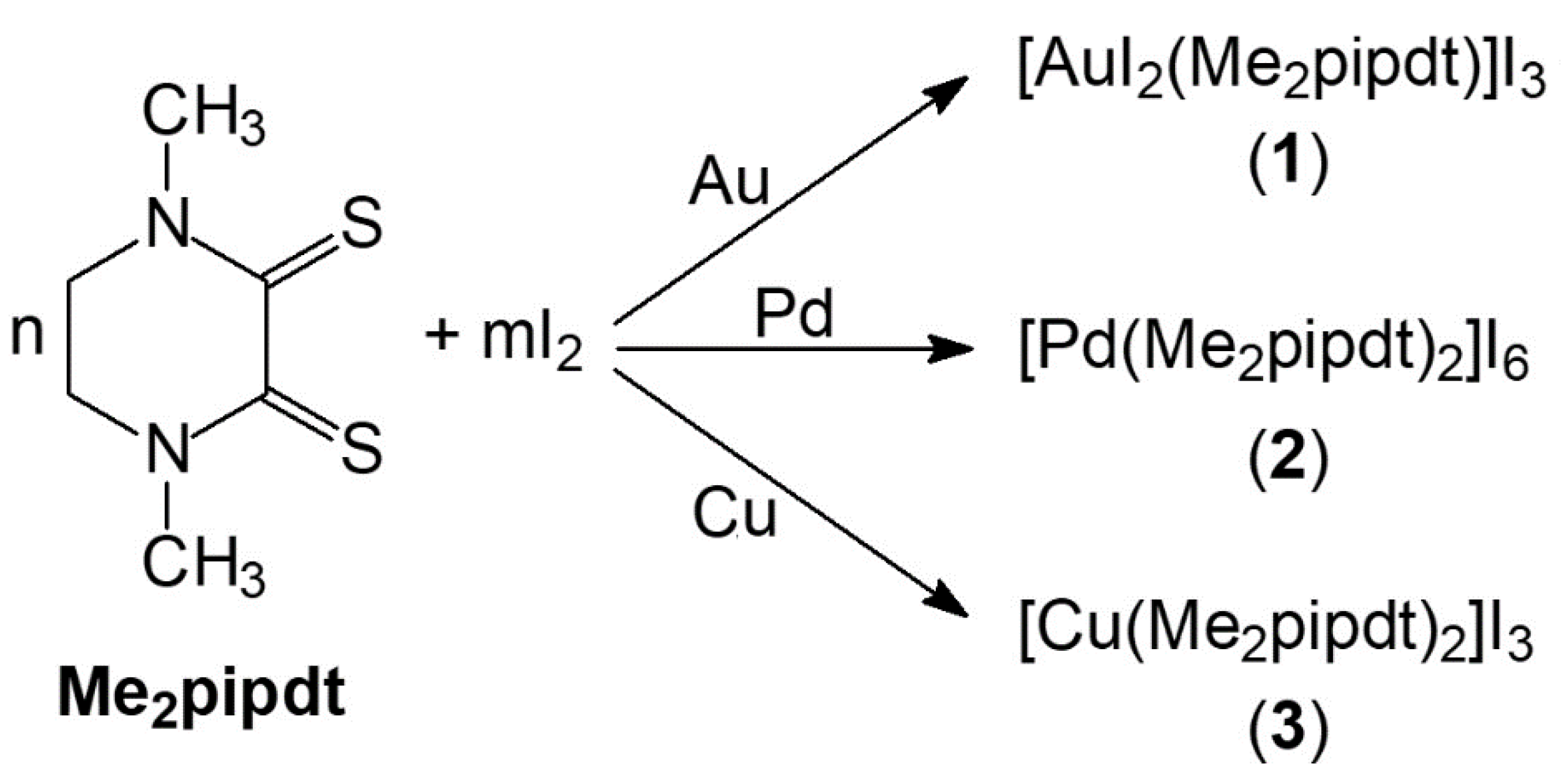

Scheme 3. Reaction scheme for gold, palladium and copper powder dissolution by Me2pipdt/I2 mixtures. Reaction conditions: THF or CH3CN as solvent; room temperature; stirring. Complete leaching time: 1 h; Stoichiometry of product crystallization: (1) n = 1, m = 2.5; (2) n = 2, m = 3; (3) n = 2, m = 1.5.
Scheme 3. Reaction scheme for gold, palladium and copper powder dissolution by Me2pipdt/I2 mixtures. Reaction conditions: THF or CH3CN as solvent; room temperature; stirring. Complete leaching time: 1 h; Stoichiometry of product crystallization: (1) n = 1, m = 2.5; (2) n = 2, m = 3; (3) n = 2, m = 1.5.
Molecules 26 04721 sch003
Molecules 26 04721 g001 550

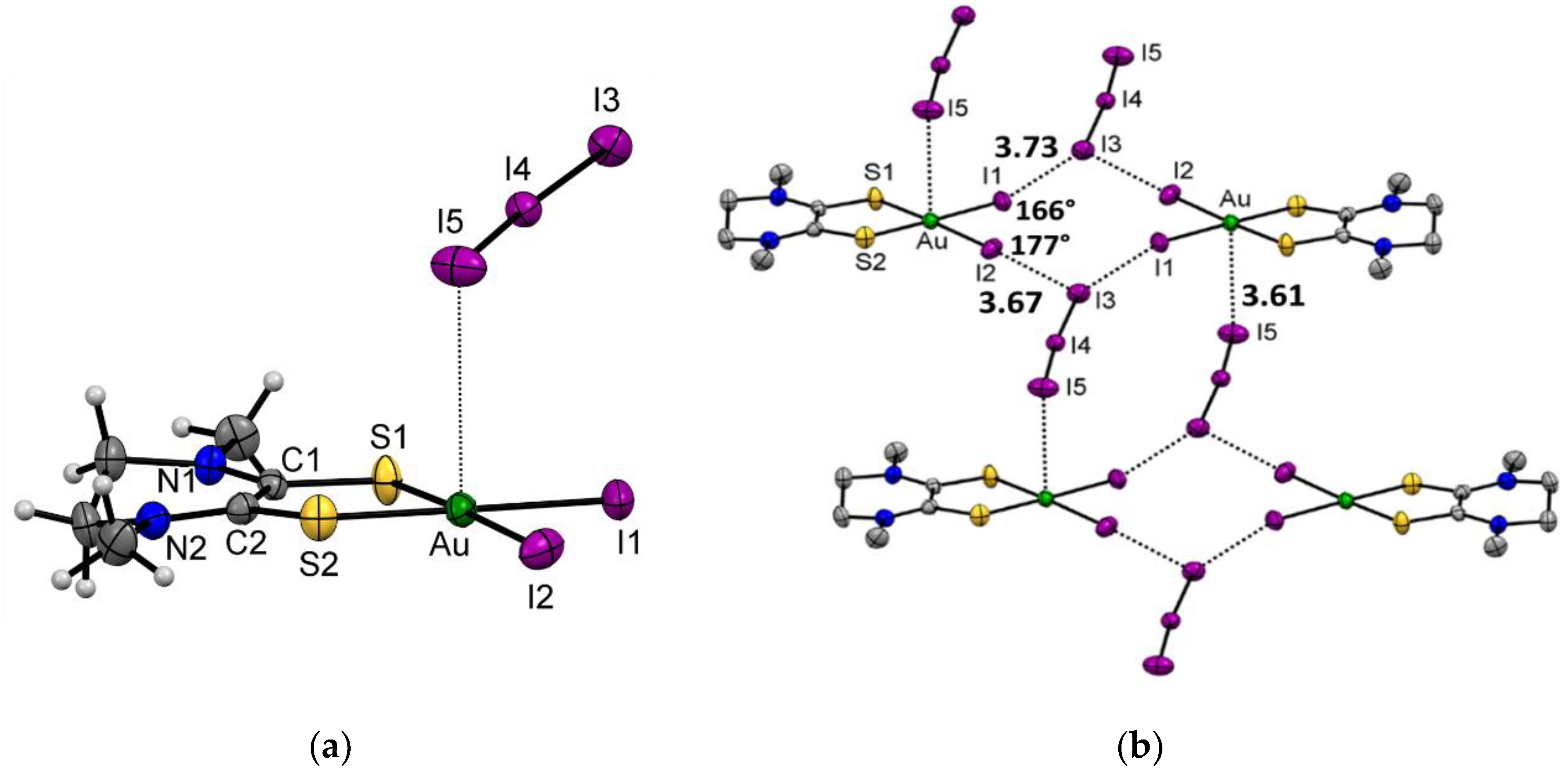

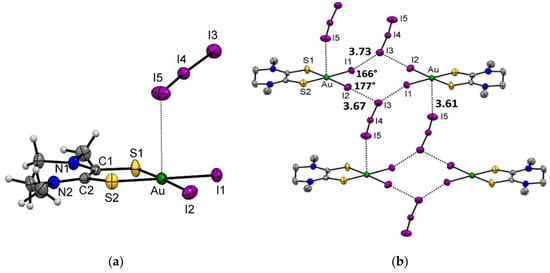

Figure 1. (a) Molecular structure of complex [Au(Me2pipdt)I2]I3 (1) with thermal ellipsoids plotted at the 50% probability level. (b) Portion of the crystal packing, showing intermolecular interactions as dashed bonds. Selected interaction distances (Å) and angles are indicated.
Figure 1. (a) Molecular structure of complex [Au(Me2pipdt)I2]I3 (1) with thermal ellipsoids plotted at the 50% probability level. (b) Portion of the crystal packing, showing intermolecular interactions as dashed bonds. Selected interaction distances (Å) and angles are indicated.
Molecules 26 04721 g001
Molecules 26 04721 g002 550

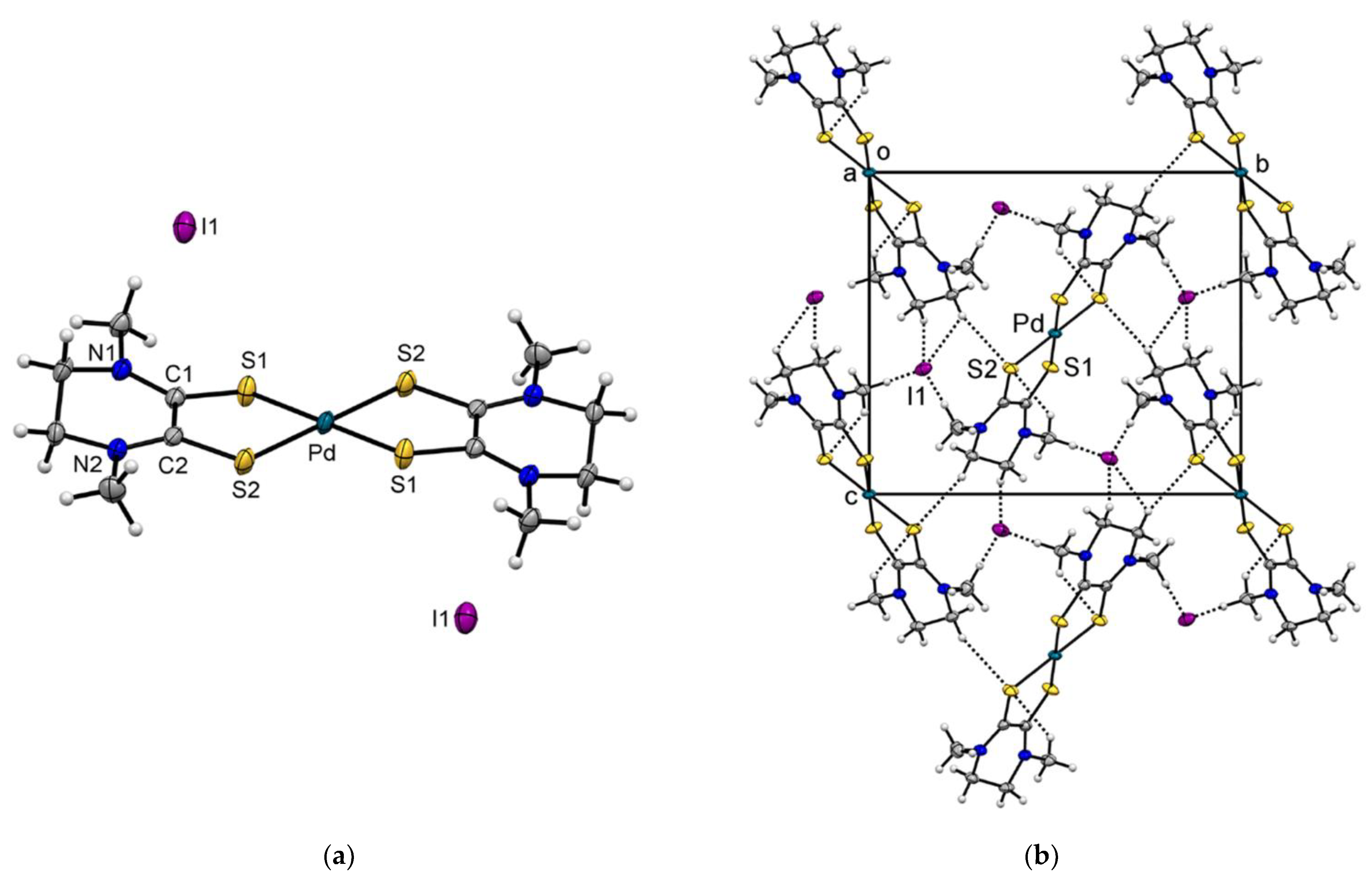

Figure 2. (a) Molecular structure of complex [Pd(Me2pipdt)2](I)2 (2a) with thermal ellipsoids plotted at the 50% probability level. (b) Portion of the crystal packing, showing intermolecular interactions as dashed bonds.
Figure 2. (a) Molecular structure of complex [Pd(Me2pipdt)2](I)2 (2a) with thermal ellipsoids plotted at the 50% probability level. (b) Portion of the crystal packing, showing intermolecular interactions as dashed bonds.
Molecules 26 04721 g002
Molecules 26 04721 g003 550

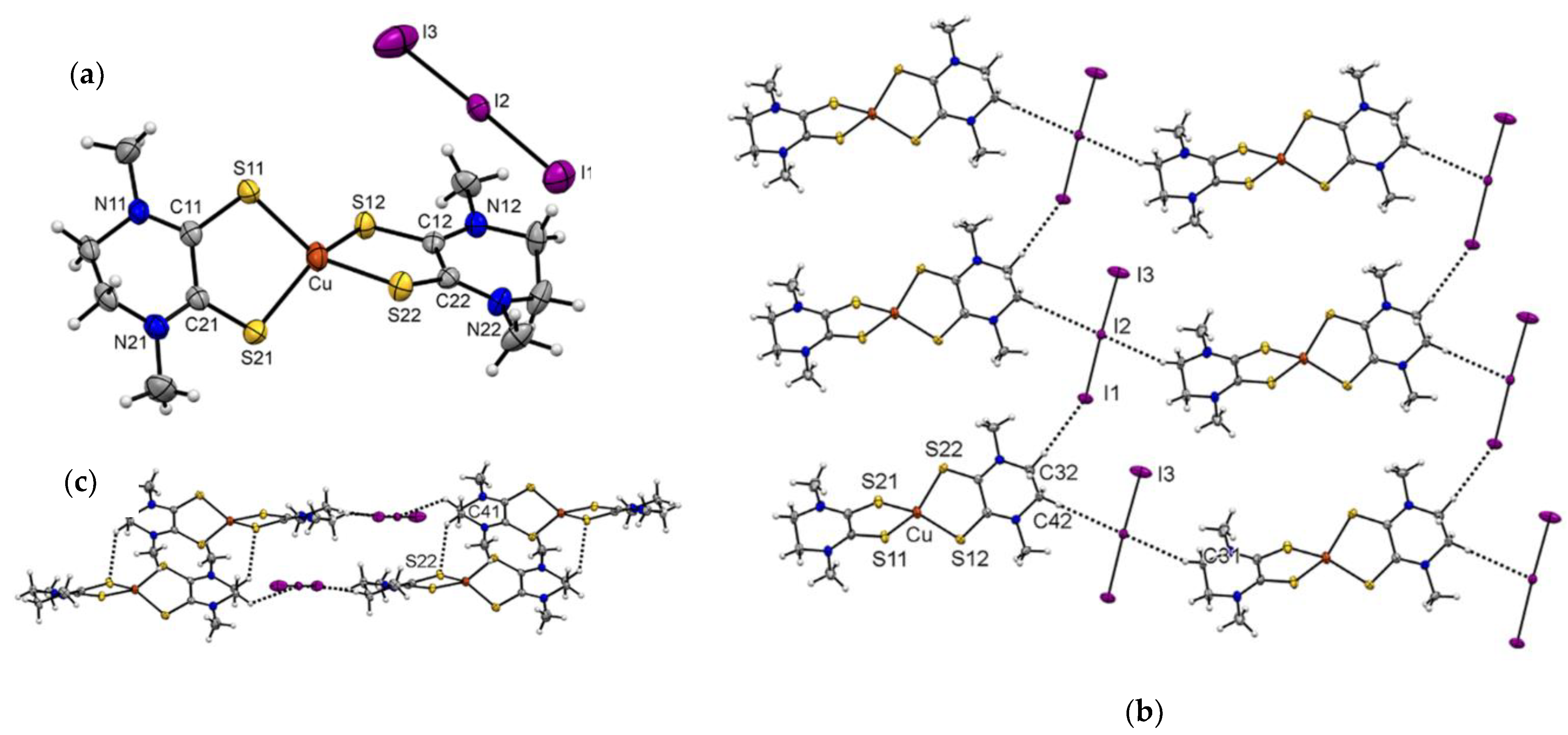

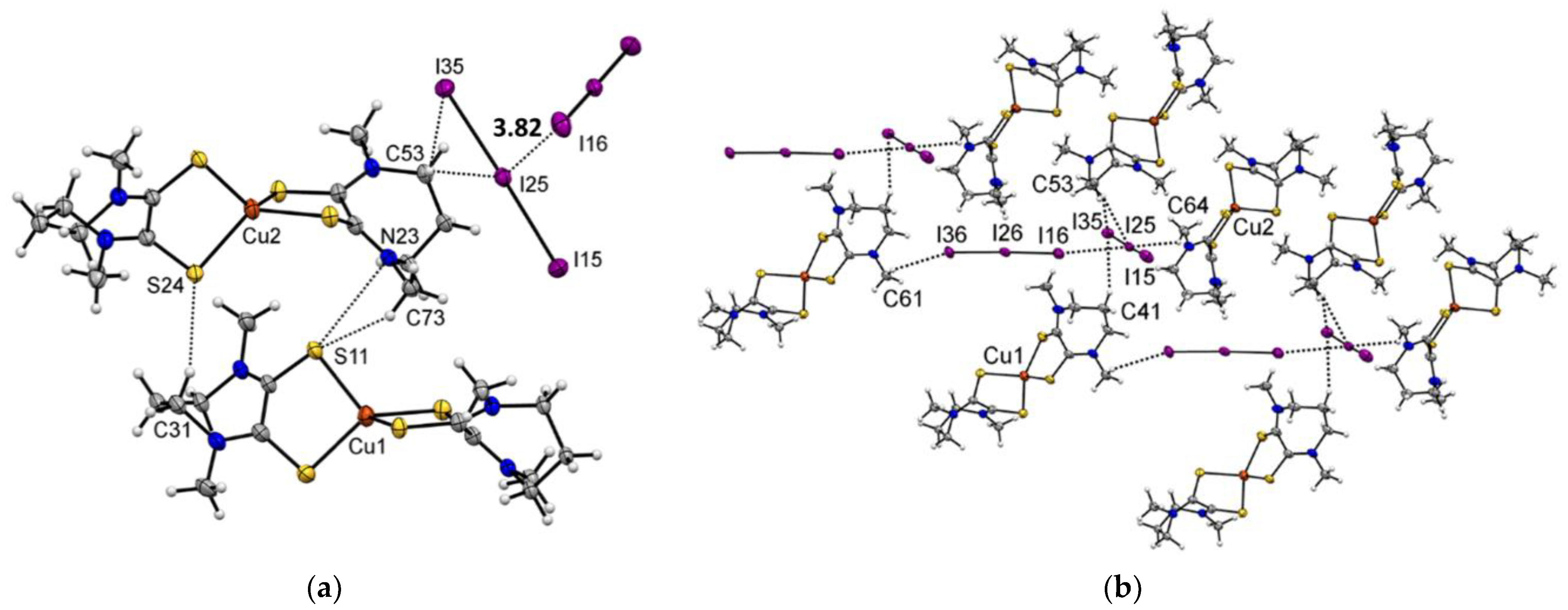

Figure 3. (a) Molecular structure of complex [Cu(Me2pipdt)2]I3 (3) with thermal ellipsoids plotted at the 50% probability level. (b,c) Portions of the crystal packing, showing intermolecular interactions as dashed bonds.
Figure 3. (a) Molecular structure of complex [Cu(Me2pipdt)2]I3 (3) with thermal ellipsoids plotted at the 50% probability level. (b,c) Portions of the crystal packing, showing intermolecular interactions as dashed bonds.
Molecules 26 04721 g003
Molecules 26 04721 g004 550

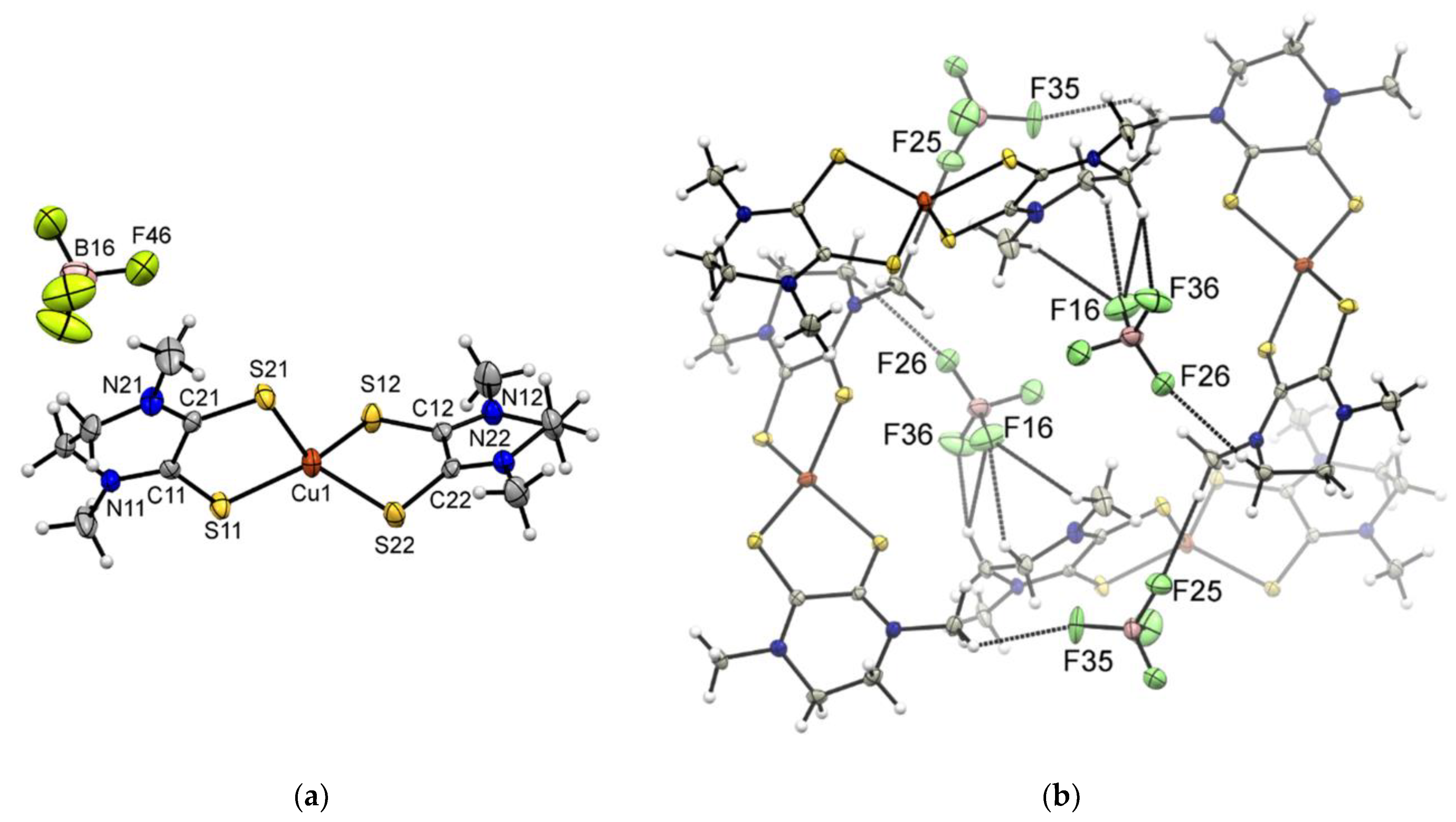

Figure 4. (a) Molecular structure of complex [Cu(Me2pipdt)2]BF4 (4) with thermal ellipsoids plotted at the 50% probability level. One molecular entity of the two comprising the asymmetric unit is reported for clarity. (b) Portion of the crystal packing, showing intermolecular interactions as dashed bonds.
Figure 4. (a) Molecular structure of complex [Cu(Me2pipdt)2]BF4 (4) with thermal ellipsoids plotted at the 50% probability level. One molecular entity of the two comprising the asymmetric unit is reported for clarity. (b) Portion of the crystal packing, showing intermolecular interactions as dashed bonds.
Molecules 26 04721 g004
Molecules 26 04721 g005 550
Figure 5. (a) Molecular structure of complex [Cu(Me2dazdt)2]I3 (5) with thermal ellipsoids plotted at the 50% probability level. (b) Portion of the crystal packing. Intermolecular interactions are depicted as dashed bonds. Halogen bond interaction is reported in Å.
Figure 5. (a) Molecular structure of complex [Cu(Me2dazdt)2]I3 (5) with thermal ellipsoids plotted at the 50% probability level. (b) Portion of the crystal packing. Intermolecular interactions are depicted as dashed bonds. Halogen bond interaction is reported in Å.
Molecules 26 04721 g005
Molecules 26 04721 g006 550

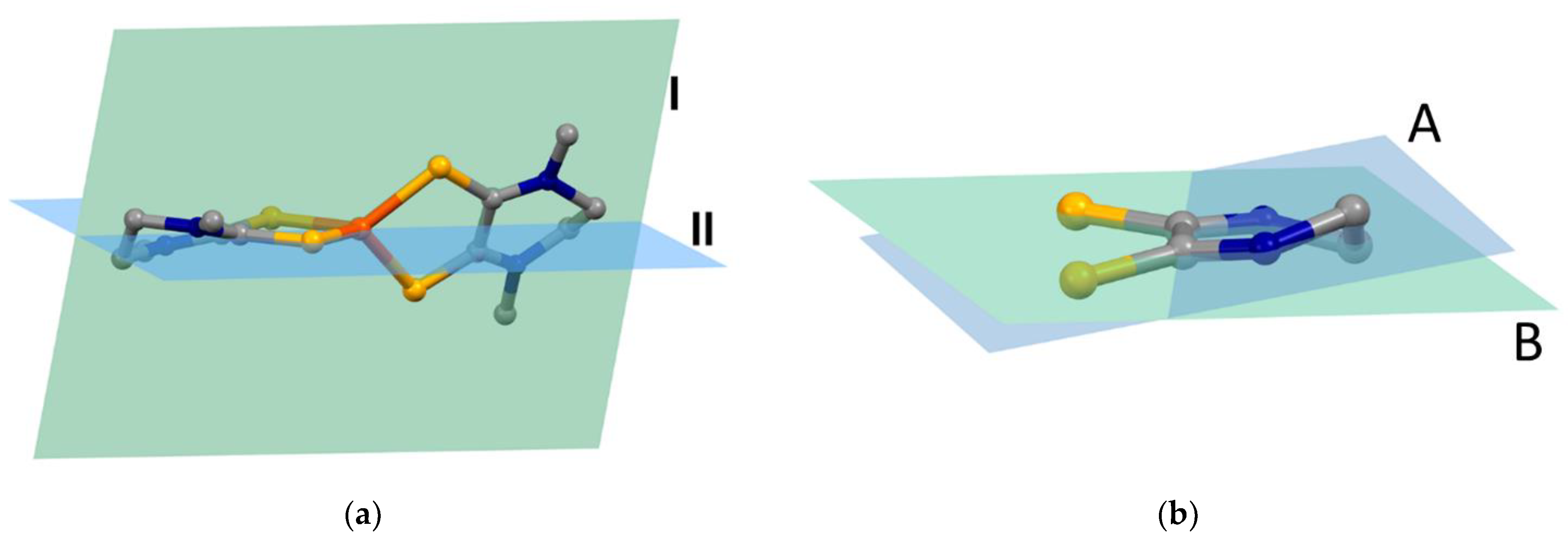

Figure 6. Depiction of the molecular planes used to calculate the dihedral angle between the S,S-chelate ligands (a) and between the thioamido groups (b). See also Tables S2 and S3.
Figure 6. Depiction of the molecular planes used to calculate the dihedral angle between the S,S-chelate ligands (a) and between the thioamido groups (b). See also Tables S2 and S3.
Molecules 26 04721 g006
Molecules 26 04721 g007 550
Figure 7. DFT calculated molecular orbitals and orbital diagram for cationic complexes 1′, 2′ and 3′. Starting from the upper part, the figure depicts all the MO ranging from the LUMO+2 to the HOMO-2; for each complex, HOMO and LUMO are highlighted in pale green and yellow colors, respectively (isovalue = 0.04).
Figure 7. DFT calculated molecular orbitals and orbital diagram for cationic complexes 1′, 2′ and 3′. Starting from the upper part, the figure depicts all the MO ranging from the LUMO+2 to the HOMO-2; for each complex, HOMO and LUMO are highlighted in pale green and yellow colors, respectively (isovalue = 0.04).
Molecules 26 04721 g007
Table
Table 1. Selection of bond distances (Å) and angles (°) for compounds [Au(Me2pipdt)I2]I3 (1) and [Pd(Me2pipdt)2](I)2 (2a).
Table 1. Selection of bond distances (Å) and angles (°) for compounds [Au(Me2pipdt)I2]I3 (1) and [Pd(Me2pipdt)2](I)2 (2a).
[Au(Me2pipdt)I2]I3 (1)[Pd(Me2pipdt)2](I)2 (2a)
Au-S(1)2.316(2)Pd-S(1)2.2952(5)
Au-S(2)2.319(2)Pd-S(2)2.2826(5)
Au-I(1)2.6113(4)C(1)-S(1)1.700(2)
Au-I(2)2.6139(5)S(2)-C(2)1.701(2)
C(1)-S(1)1.694(5)C(1)-N(1)1.313(2)
C(2)-S(2)1.699(6)C(2)-N(2)1.307(2)
C(1)-N(1)1.311(7)C(1)-C(2)1.500(3)
C(2)-N(2)1.319(7)
C(1)-C(2)1.493(7)
I(3)-I(4)3.0419(5)
I(4)-I(5)2.8293(6)
S(1)-Au-S(2)89.97(5)S(1)-Pd-S(2)88.58(2)
Table
Table 2. Values of τ4 and τ4′ indices with coordination angles β and α (β > α).
Table 2. Values of τ4 and τ4′ indices with coordination angles β and α (β > α).
Complexβατ4τ4′
[Au(Me2pipdt)I2]I3177.72177.520.030.03
[Pd(Me2pipdt)2](I)21801800.000.00
[Cu(Me2pipdt)2]I3133.81132.670.660.66
[Cu(Me2pipdt)2]BF4 *125.39116.230.840.81
126.9125.090.770.76
[Cu(Me2dazdt)2]I3 *113.8111.110.960.95
124.23122.80.800.80
* two complex molecules are present in the asymmetric unit.
Table
Table 3. Selection of bond distances (Å) and angles (°) for compounds [Cu(Me2pipdt)2]I3 (3), [Cu(Me2pipdt)2]BF4 (4) and [Cu(Me2dazdt)2]I3 (5).
Table 3. Selection of bond distances (Å) and angles (°) for compounds [Cu(Me2pipdt)2]I3 (3), [Cu(Me2pipdt)2]BF4 (4) and [Cu(Me2dazdt)2]I3 (5).
[Cu(Me2pipdt)2]I3(3)[Cu(Me2pipdt)2]BF4(4)[Cu(Me2dazdt)2]I3(5)
Cu-S(11)2.272(2)Cu(1)-S(11)2.260(1)Cu(1)-S(11)2.342(4)
Cu-S(21)2.295(2)Cu(1)-S(21)2.300(1)Cu(1)-S(21)2.344(4)
C(11)-S(11)1.689(5)C(11)-S(11)1.683(4)C(11)-S(11)1.69(1)
C(21)-S(21)1.679(6)C(21)-S(21)1.682(3)C(21)-S(21)1.69(2)
C(11)-N(11)1.323(7)C(11)-N(11)1.320(4)C(11)-N(11)1.29(2)
C(21)-N(21)1.322(7)C(21)-N(21)1.319(4)C(21)-N(21)1.34(2)
C(11)-C(21)1.515(8)C(11)-C(21)1.520(5)C(11)-C(21)1.49(2)
Cu-S(12)2.276(2)Cu(1)-S(12)2.274(1)Cu(1)-S(12)2.309(4)
Cu-S(22)2.283(2)Cu(1)-S(22)2.302(1)Cu(1)-S(22)2.338(4)
C(12)-S(12)1.679(5)C(12)-S(12)1.681(3)C(12)-S(12)1.69(1)
C(22)-S(22)1.670(5)C(22)-S(22)1.687(3)C(22)-S(22)1.69(1)
C(12)-N(12)1.313(7)C(12)-N(12)1.326(4)C(12)-N(12)1.29(2)
C(22)-N(22)1.318(7)C(22)-N(22)1.312(4)C(22)-N(22)1.31(2)
C(12)-C(22)1.523(8)C(12)-C(22)1.520(5)C(12)-C(22)1.52(2)
S(11)-Cu-S(21)91.71(6)S(11)-Cu(1)-S(21)91.16(4)S(11)-Cu(1)-S(21)93.1(1)
S(12)-Cu-S(22)91.24(5)S(12)-Cu(1)-S(22)90.99(4)S(12)-Cu(1)-S(22)93.6(1)
Cu(2)-S(13)2.279(1)Cu(2)-S(13)2.312(4)
Cu(2)-S(23)2.298(1)Cu(2)-S(23)2.335(4)
C(13)-S(13)1.682(4)C(13)-S(13)1.68(1)
C(23)-S(23)1.673(3)C(23)-S(23)1.70(1)
C(13)-N(13)1.320(4)C(13)-N(13)1.33(2)
C(23)-N(23)1.318(4)C(23)-N(23)1.32(2)
C(13)-C(23)1.518(5)C(13)-C(23)1.52(2)
Cu(2)-S(14)2.268(1)Cu(2)-S(14)2.301(4)
Cu(2)-S(24)2.277(1)Cu(2)-S(24)2.361(4)
C(14)-S(14)1.680(3)C(14)-S(14)1.67(1)
C(24)-S(24)1.678(3)C(24)-S(24)1.68(1)
C(14)-N(14)1.319(4)C(14)-N(14)1.33(2)
C(24)-N(24)1.320(4)C(24)-N(24)1.32(2)
C(14)-C(24)1.519(5)C(14)-C(24)1.51(2)
S(13)-Cu(2)-S(23)91.73(4)S(13)-Cu(2)-S(23)94.4(1)
S(14)-Cu(2)-S(24)92.20(4)S(14)-Cu(2)-S(24)92.9(1)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Serpe, A.; Pilia, L.; Balestri, D.; Marchiò, L.; Deplano, P. Characterization and Structural Insights of the Reaction Products by Direct Leaching of the Noble Metals Au, Pd and Cu with N,N′-Dimethyl-piperazine-2,3-dithione/I2 Mixtures. Molecules 2021, 26, 4721. https://doi.org/10.3390/molecules26164721

AMA Style

Serpe A, Pilia L, Balestri D, Marchiò L, Deplano P. Characterization and Structural Insights of the Reaction Products by Direct Leaching of the Noble Metals Au, Pd and Cu with N,N′-Dimethyl-piperazine-2,3-dithione/I2 Mixtures. Molecules. 2021; 26(16):4721. https://doi.org/10.3390/molecules26164721

Chicago/Turabian Style

Serpe, Angela, Luca Pilia, Davide Balestri, Luciano Marchiò, and Paola Deplano. 2021. "Characterization and Structural Insights of the Reaction Products by Direct Leaching of the Noble Metals Au, Pd and Cu with N,N′-Dimethyl-piperazine-2,3-dithione/I2 Mixtures" Molecules 26, no. 16: 4721. https://doi.org/10.3390/molecules26164721

APA Style

Serpe, A., Pilia, L., Balestri, D., Marchiò, L., & Deplano, P. (2021). Characterization and Structural Insights of the Reaction Products by Direct Leaching of the Noble Metals Au, Pd and Cu with N,N′-Dimethyl-piperazine-2,3-dithione/I2 Mixtures. Molecules, 26(16), 4721. https://doi.org/10.3390/molecules26164721

Article Metrics

Back to TopTop
