# Wavelet-Based Multi-Scale Entropy Analysis of Complex Rainfall Time Series

## Abstract

**:**

## 1. Introduction

## 2. Wavelet Transform

#### 2.1. Introduction of Wavelet Transform

_{2}of the number of values in the input. This limitation is inappropriate for a hydrological time series, especially during the short duration of typhoon events in Taiwan.

#### 2.2. Redundant Wavelet Transform

## 3. Multi-Scale Entropy Analysis

#### 3.1. Sample Entropy

#### 3.2. Multi-Scale Entropy

## 4. Application and Analysis

**Figure 1.**The locations of the four rainfall stations [16].

## 5. Results and Discussion

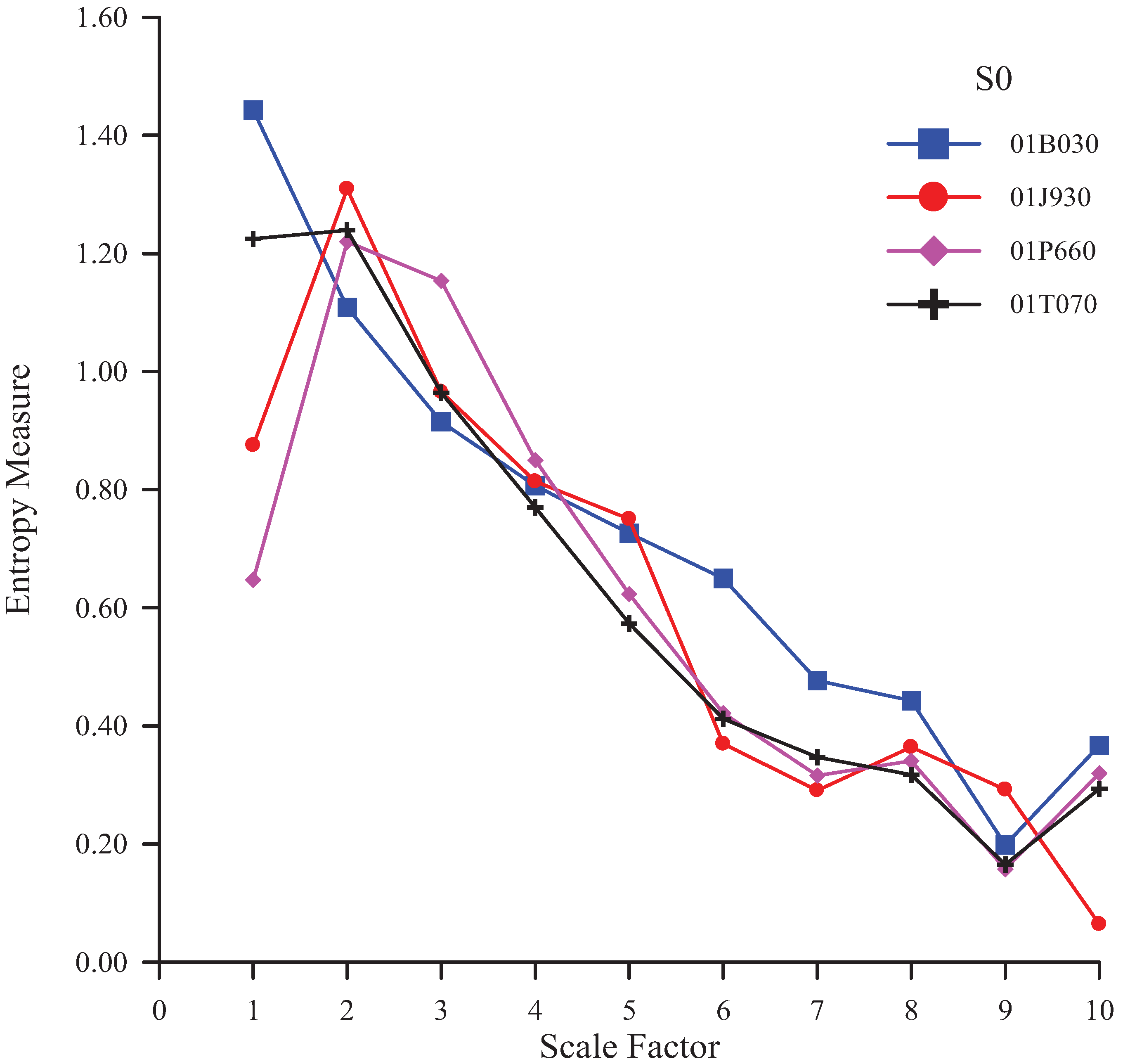

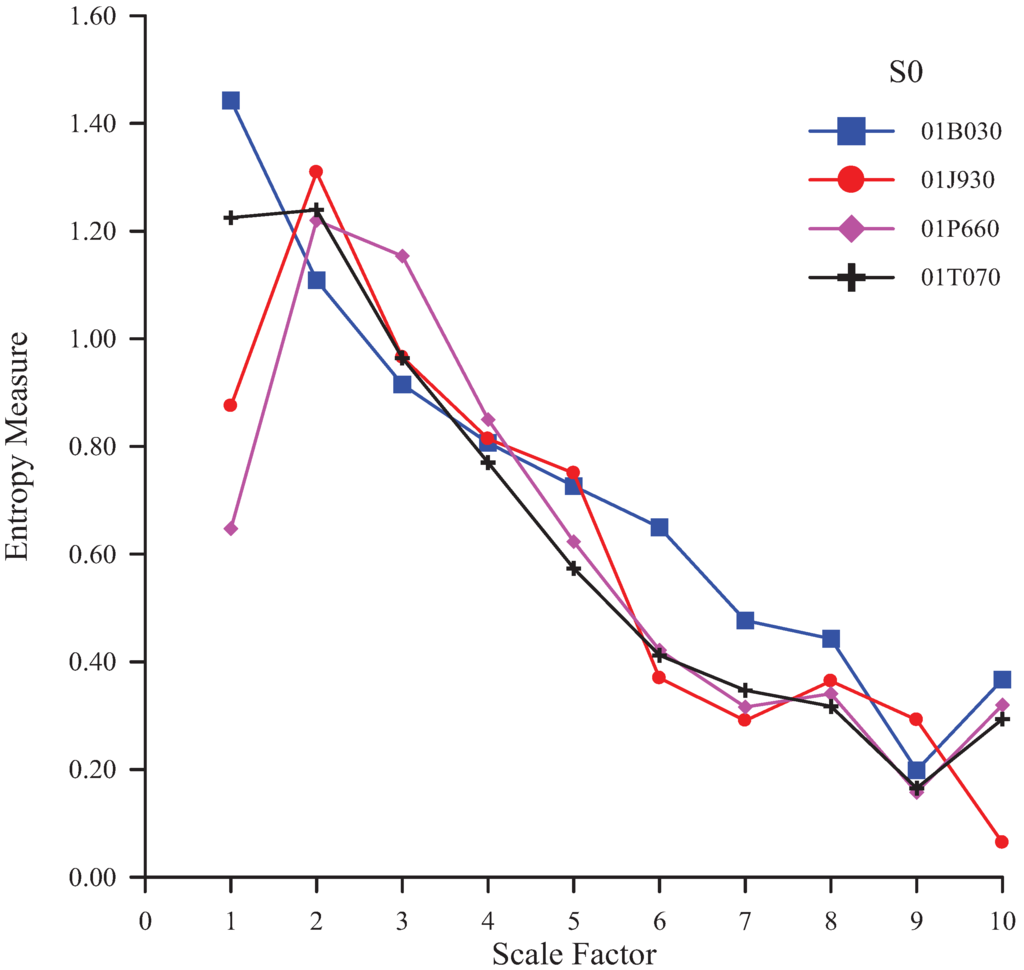

**Table 1.**The entropy measures of the original signal (S0) at various scale factors for four stations.

Scale Factor | 01B030 | 01J930 | 01P660 | 01T070 |
---|---|---|---|---|

1 | 1.44280 | 0.87499 | 0.64722 | 1.22523 |

2 | 1.10868 | 1.30938 | 1.21979 | 1.23958 |

3 | 0.91505 | 0.96548 | 1.15350 | 0.96414 |

4 | 0.80653 | 0.81377 | 0.85012 | 0.76989 |

5 | 0.72637 | 0.75014 | 0.62295 | 0.57343 |

6 | 0.64986 | 0.36981 | 0.42154 | 0.41224 |

7 | 0.47673 | 0.29079 | 0.31590 | 0.34716 |

8 | 0.44270 | 0.36412 | 0.34077 | 0.31724 |

9 | 0.19843 | 0.29225 | 0.15761 | 0.16510 |

10 | 0.36687 | 0.06402 | 0.31995 | 0.29353 |

Average | 0.71340 | 0.60948 | 0.60494 | 0.63075 |

**Table 2.**The standard normal variate of different MSE curves for four stations (m = 2 and r = 0.15SD).

S0 | S1 | S2 | S3 | S4 | S5 | Suggested Level | |
---|---|---|---|---|---|---|---|

01B030 | −3.846 | −3.309 | −3.309 | −0.447 | 2.952 | 3.488 | 3 |

01J930 | −3.309 | −2.773 | −2.952 | −1.699 | 2.952 | 4.025 | 3 |

01P660 | −2.952 | −2.415 | −2.952 | −2.415 | −0.626 | 4.025 | 4 |

01T070 | −3.667 | −3.667 | −3.130 | −2.415 | 1.342 | 2.952 | 4 |

**Table 3.**The standard normal variate of different MSE curves at four stations when removing 25% of the time series.

S0 | S1 | S2 | S3 | S4 | S5 | Suggested Level | |
---|---|---|---|---|---|---|---|

01B030 | −3.488 | −3.667 | −3.130 | −2.057 | 3.130 | 3.130 | 3 |

01J930 | −3.130 | −3.309 | −2.773 | −1.521 | 3.488 | 4.025 | 3 |

01P660 | −2.773 | −2.594 | −2.773 | −2.415 | 0.626 | 2.594 | 4 |

01T070 | −3.667 | −3.130 | −3.667 | −2.415 | 2.594 | 2.236 | 3 |

S0 | S1 | S2 | S3 | S4 | S5 | Suggested Level | |
---|---|---|---|---|---|---|---|

01B030 | −3.488 | −3.488 | −2.415 | 0.268 | 3.667 | 3.846 | 3 |

01J930 | −1.163 | −1.342 | 0.089 | 0.805 | 2.594 | 4.025 | 3 |

01P660 | −0.268 | −0.089 | 0.805 | 0.447 | 1.521 | 3.846 | 4 |

01T070 | −2.952 | −2.415 | −1.699 | −1.878 | 1.699 | 4.025 | 4 |

**Table 5.**The standard normal variate of different MSE curves at the four stations (m = 2 and r = 0.20SD).

S0 | S1 | S2 | S3 | S4 | S5 | Suggested Level | |
---|---|---|---|---|---|---|---|

01B030 | −3.846 | −3.130 | −2.057 | 0.805 | 3.309 | 3.846 | 3 |

01J930 | −2.952 | −2.594 | −0.805 | 0.089 | 4.025 | 4.025 | 3 |

01P660 | −2.594 | −2.236 | −1.878 | −1.342 | 2.594 | 3.846 | 3 |

01T070 | −3.488 | −3.309 | −2.952 | −0.626 | 2.594 | 3.846 | 3 |

**Table 6.**The standard normal variate of different MSE curves at the four stations (m = 3 and r = 0.25SD).

S0 | S1 | S2 | S3 | S4 | S5 | Suggested Level | |
---|---|---|---|---|---|---|---|

01B030 | −3.667 | −2.415 | −3.309 | −0.626 | 3.488 | 3.667 | 3 |

01J930 | −2.952 | −2.952 | −2.952 | −1.699 | 4.025 | 4.025 | 3 |

01P660 | −3.130 | −2.773 | −2.594 | −2.594 | 1.699 | 3.846 | 4 |

01T070 | −2.952 | −3.488 | −3.309 | −2.236 | 0.984 | 4.025 | 4 |

## 6. Conclusions

## Acknowledgments

## References

- Labat, D. Recent advances in wavelet analyses: Part 1. A review of concepts. J. Hydrol.
**2005**, 314, 275–288. [Google Scholar] [CrossRef] - Partal, T.; Kişi, Ö. Wavelet and neuro-fuzzy conjunction model for precipitation forecasting. J. Hydrol.
**2007**, 342, 199–212. [Google Scholar] [CrossRef] - Sang, Y.F.; Wang, D.; Wu, J.C.; Zhu, Q.P.; Wang, L. The relation between periods’ identification and noises in hydrologic series data. J. Hydrol.
**2009**, 368, 165–177. [Google Scholar] [CrossRef] - Mishra, A.K.; Özger, M.; Singh, V.P. An entropy-based investigation into the variability of precipitation. J. Hydrol.
**2009**, 370, 139–154. [Google Scholar] [CrossRef] - Brunsell, N.A. A multiscale information theory approach to assess spatial-temporal variability of daily precipitation. J. Hydrol.
**2010**, 385, 165–172. [Google Scholar] [CrossRef] - Richman, J.S.; Moorman, J.R. Physiological time-series analysis using approximate entropy and sample entropy. Am. J. Physiol. Heart Circ. Physiol.
**2000**, 278, H2039–H2049. [Google Scholar] [PubMed] - Costa, M.; Goldberger, A.L.; Peng, C.K. Multiscale entropy analysis of complex physiologic time series. Phys. Rev. Lett.
**2002**, 89, 068102. [Google Scholar] [CrossRef] [PubMed] - Mallat, S.G. A theory for multiresolution signal decomposition: The wavelet representation. IEEE Trans. Patt. Anal. Machine Intell.
**1989**, 11(7), 674–693. [Google Scholar] [CrossRef] - Aussem, A.; Murtagh, F. Web traffic demand forecasting using wavelet-based multiscale decomposition. Int. J. Intell. Syst.
**2001**, 16, 215–236. [Google Scholar] [CrossRef] - Chibani, Y.; Houacine, A. Redundant versus orthogonal wavelet decomposition for multisensor image fusion. Pattern Recogn.
**2003**, 36, 879–887. [Google Scholar] [CrossRef] - Lee, X.B.; Zheng, J.; Lee, H.Q. Combination forecasting using ANN based on wavelet transform series (In Chinese). J. Hydraul. Eng.
**1999**, 2, 1–4. [Google Scholar] - Bijaoui, A.; Rué, F. A multiscale vision model adapted to the astronomical images. Signal Process.
**1995**, 46(3), 345–362. [Google Scholar] [CrossRef] - Cai, R.; Bian, C.H.; Ning, X.B. Multiscale entropy analysis of complex physiological time series (In Chinese). Beijing Biomed. Eng.
**2007**, 26(5), 543–547. [Google Scholar] - Giakoumakis, S.G.; Baloutsos, G. Investigation of trend in hydrological time series of the Evinos River basin. J. Hydrolog. Sci.
**1997**, 42(1), 81–88. [Google Scholar] [CrossRef] - Durate, M.; Sternad, D. Complexity of human postural control in young and older adults during prolonged standing. Exp. Brain Res.
**2008**, 191, 265–276. [Google Scholar] [CrossRef] [PubMed] - Song, S.R. HotSpot—volcanoes online. Available online: http://volcano.gl.ntu.edu.tw/worldwide/taiwan_digitalmap.htm (accessed on 24 October 2010).

© 2011 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
