Search Results (1,401)

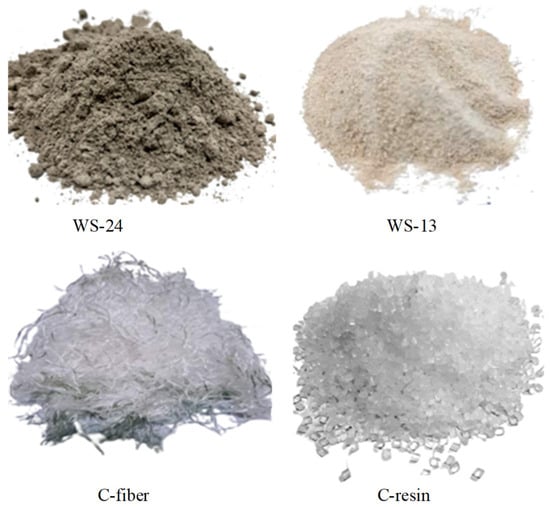

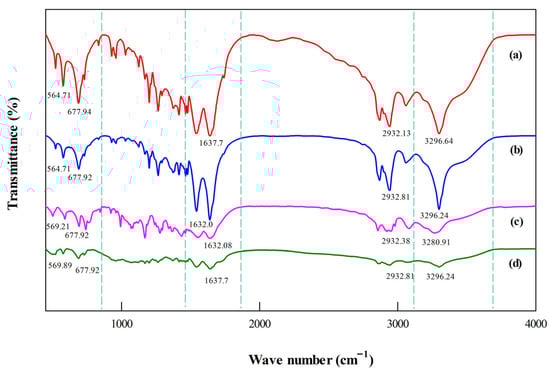

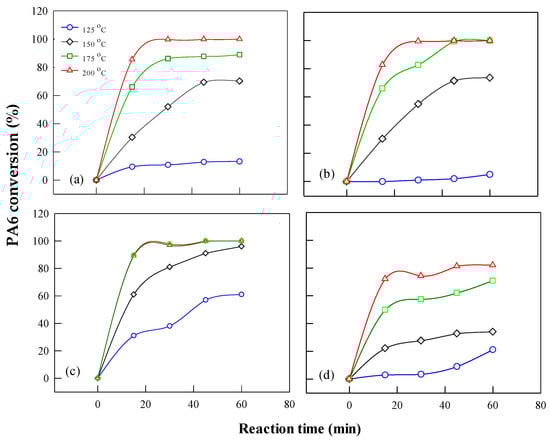

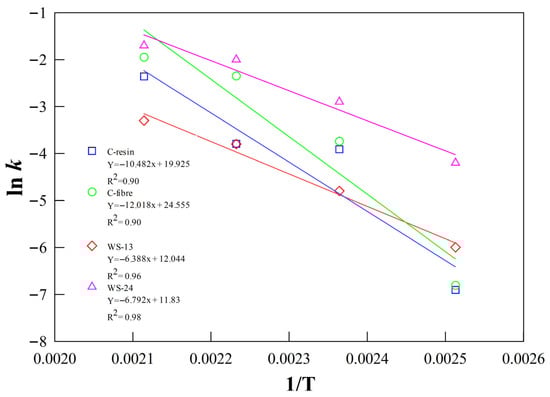

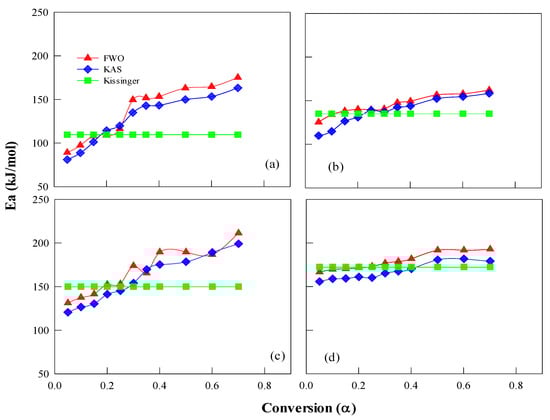

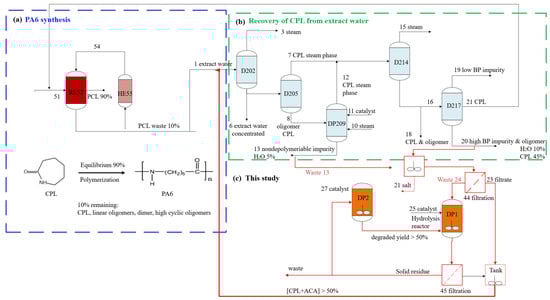

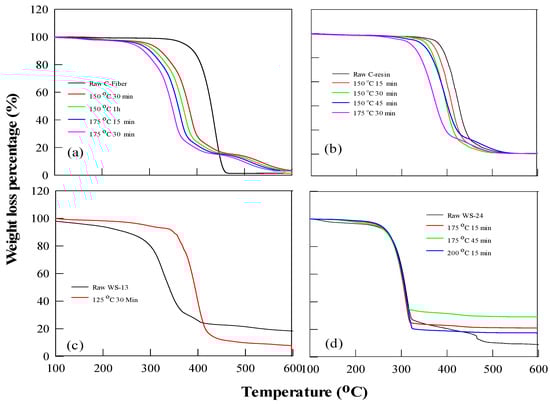

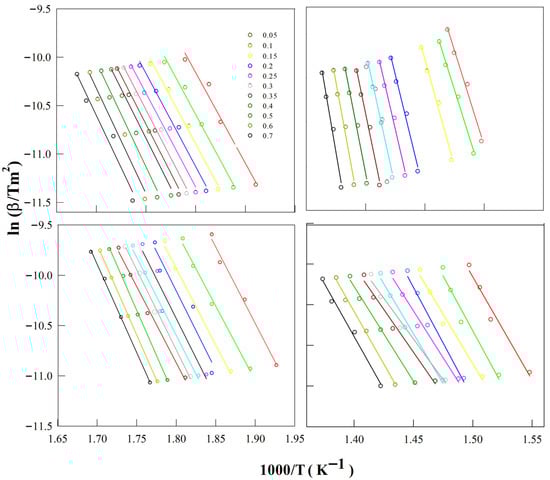

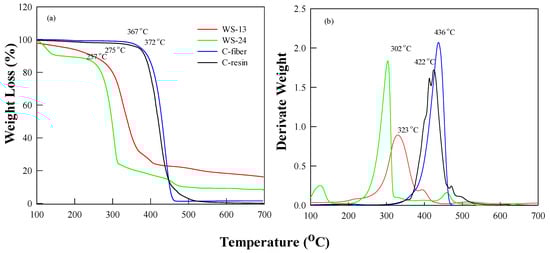

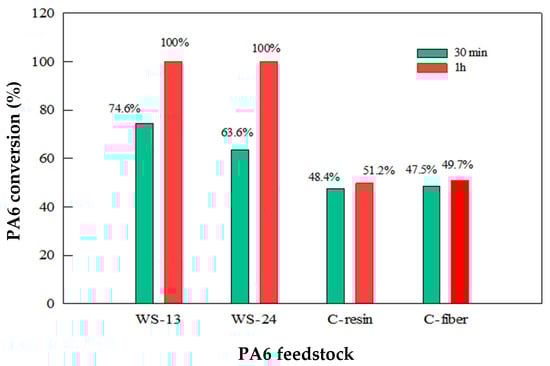

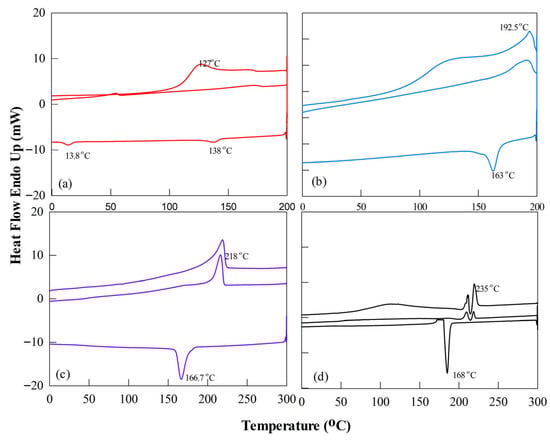

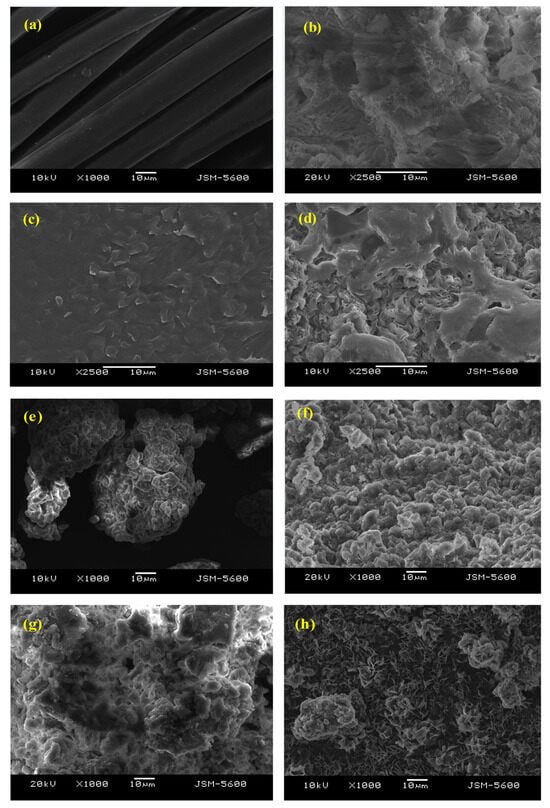

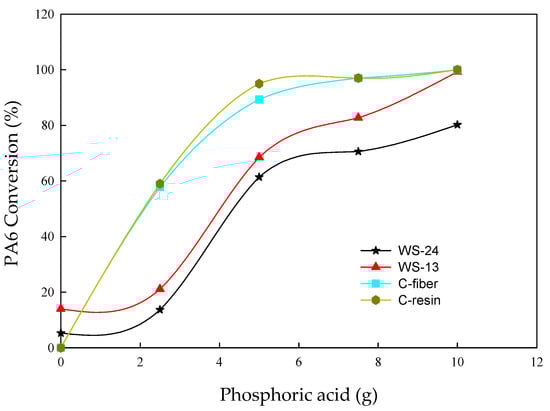

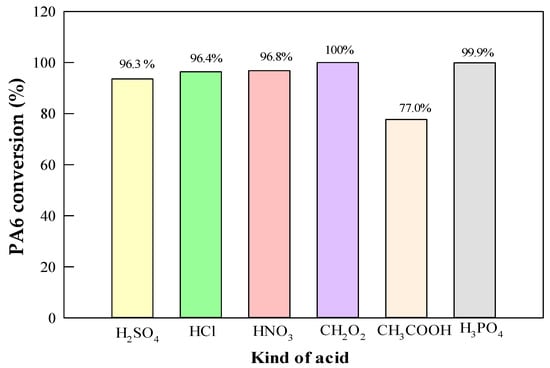

Efficient recycling of polyamide 6 (PA6) requires selective depolymerization routes that recover monomers under moderate conditions. This study investigates microwave-assisted acid hydrolysis of four PA6 waste streams, two oligomer-rich residues (WS-13, WS-24), an industrial fiber (C-fiber), and a commercial resin (C-resin) to elucidate degradation kinetics, activation energies, and product yields. Thermogravimetric analysis revealed multi-step solid-state decomposition, while microwave hydrolysis (125–200 °C, 15–60 min, 400 W) demonstrated strong dependence on acid type. HCl achieved complete conversion, whereas phosphoric and formic acids exceeded 95%. Kinetic analysis under H₃PO₄ followed pseudo-first-order behavior, with rate constants (0.015–0.141 min⁻¹ at 200 °C) and activation energies reflecting feedstock structure: 53.1 kJ mol⁻¹ (WS-13), 56.5 kJ mol⁻¹ (WS-24), 87.1 kJ mol⁻¹ (C-resin), and 99.9 kJ mol⁻¹ (C-fiber). Monomer yields varied by substrate: WS-13 achieved 62.4% at 200 °C and 45 min (ACA 46%, CPL 16%), WS-24 yielded 62.0% (primarily ACA), C-fiber reached 69.7% (ACA-dominant), and C-resin produced 53.8%. These results show that oligomer-rich wastes are kinetically favored for rapid hydrolysis at lower energy cost, while C-fiber maximizes aminocaproic acid recovery. Overall, microwave-assisted hydrolysis provides a selective, energy-efficient pathway for PA6 circularity, offering design parameters for reactor operation and process optimization. Full article

This study presents a comprehensive morphological and structural analysis of carbon materials produced via simple thermal methane pyrolysis conducted under laboratory conditions in a quartz reactor without the use of catalysts. The process, carried out at 1000 °C, achieved moderate methane conversion (36.5%), process efficiency (36.1%), and very high selectivity (98.9%) towards hydrogen production, highlighting its potential as a CO₂-free hydrogen generation method. Distinct carbon morphologies were observed depending on the formation areas within the reactor: a predominant flake-like silver carbon formed on reactor walls at temperatures between 600 and 980 °C (accounting for 91% of the solid product) and a minor powdery carbon formed near 980–1000 °C (9% of the solids). The powdery carbon exhibited a high specific surface area (125.3 m²/g), substantial mesoporosity (60%), and porous spherical aggregates, indicating an amorphous structure. In contrast, flake-like carbon demonstrated a low surface area (1.99 m²/g), high structural order confirmed by Raman spectroscopy, and superior thermal stability, making it suitable for advanced applications requiring mechanical robustness. Additionally, polycyclic aromatic hydrocarbons were detected in cooler zones of the reactor, suggesting side reactions in low-temperature areas. The study underscores the impact of temperature zones on carbon structure and properties, emphasizing the importance of precise thermal control to tailor carbon materials for diverse industrial applications while producing clean hydrogen. Full article

JP-10 (exo-tetrahydrodicyclopentadiene) is a high-energy-density hydrocarbon broadly used in advanced aerospace propulsion as a regenerative cooling fluid; in this study, we aimed to clarify how fuel pressure affects its thermal degradation (oxidative and pyrolytic) in near-isothermal flowing reactor. Experiments were performed under oxidative conditions (wall temperature 623.15 K, p = 0.708–6.816 MPa) and pyrolytic conditions (wall temperature 793.15 K, p = 2.706–7.165 MPa); carbon deposits were quantified by LECO analysis, oxidation activity was assessed by temperature-programmed oxidation (TPO), and morphology was performed by FESEM and EDS. Results show that oxidative coking is minimal (5.37–14.95 μg·cm²) and largely insensitive to pressure in the liquid phase (1.882–6.816 MPa), whereas at 0.708 MPa (gas/phase-change conditions), deposition increases, implicating phase and local heat-transfer effects. Under oxidative conditions, deposits are predominantly amorphous carbon with a disordered structure, formed at relatively low temperatures, with only a few fiber-like metal sulfides identified by EDS. In contrast, under pyrolysis conditions, the deposits are predominantly carbon nanotubes, exhibiting well-defined tubular morphology formed at elevated temperatures via metal-catalyzed growth. The pyrolysis coking yield is substantially higher (66.88–221.89 μg·cm⁻²) and increases with pressure. The findings imply that the pressure influences the coking of JP-10 via phase state under oxidative conditions and residence time under pyrolytic conditions, while basic morphologies of coke deposits remain similar; operationally, maintaining the working pressure higher than the saturated vapor pressure can mitigate oxidation coking associated with phase transitions, and minimizing residence time can mitigate pyrolytic coking. Full article

Ferritic/martensitic (F/M) steel is a candidate material for key structures in fourth-generation nuclear energy systems (such as fusion reactors and fast reactors). Irradiation hardening behavior is a core index to evaluate the material’s stable performance in a high-neutron-irradiation environment. In this study, based on 2048 composition and property data, a correlation model between key elements and their interactions and irradiation hardening in F/M steel was constructed using a Bayesian optimization neural network, which realized quantitative prediction of the effect of composition on hardening behavior. Studies have shown that the addition of about 9.0% Cr, about 0.8% Si, Mo content higher than about 0.25%, and the addition of Ti, Mn can effectively suppress the irradiation hardening of F/M steel, while the addition of N, Ta, and C will aggravate its irradiation hardening, and the addition of W and V has little effect on the irradiation hardening of F/M steel. There is an interaction between the two elements. C-Cr has a strong synergistic mechanism, which will cause serious hardening when the content is higher than 0.05% and the Cr content is higher than 10%. Cr-Si has a strong antagonistic mechanism, which can achieve the comprehensive irradiation hardening effect in the 9Cr-0.8Si combination. N-Mn needs N controlled lower than 0.01%. Mo-W needs to control Mo content higher than 0.5% to alleviate irradiation hardening. There is a weak synergistic effect in Si-V; when the content is between 0.3% and 0.8% and the V content is between 0.2% and 0.3%, it can assist in optimizing the composition of F/M steel. Through the optimization of multi-element combination, the composition of F/M steel with lower irradiation hardening can be designed. Full article

Fungal mycelial pellets (MPs) exhibit high biomass-loading capacity; however, their application in wastewater treatment is constrained by structural fragility and the risk of environmental dispersion. To overcome these limitations, a dual-crosslinked polyvinyl alcohol–alginate gel (10% PVA, 2% sodium alginate) embedding strategy was developed and stabilized using 2% CaCl₂ and saturated boric acid. This encapsulation enhanced the tensile strength of MPs by 499% (310.4 vs. 62.1 kPa) and improved their settling velocity by 2.3-fold (1.12 vs. 0.49 cm/s), which was critical for stability under turbulent bioreactor conditions. Following encapsulation, the specific oxygen uptake rates (SOURs) of three fungal strains (F557, Y3, and F507) decreased by 30.3%, 54.8%, and 48.3%, respectively, while maintaining metabolic functionality. SEM revealed tight adhesion between the gel layer and both surface and internal hyphae, with the preservation of porous channels conducive to microbial colonization. In sequential-batch reactors treating sulfamethoxazole (SMX)-contaminated wastewater, gel-encapsulated MPs combined with acclimated sludge consistently achieved 72–75% SMX removal efficiency over six cycles, outperforming uncoated MPs (efficiency decreased from 81.2% to 58.7%) and pure gel–sludge composites (34–39%). The gel coating inhibited hyphal dispersion by over 90% and resisted mechanical disintegration under 24 h agitation. This approach offers a scalable and environmentally sustainable means of enhancing MPs’ operational stability in continuous-flow systems while mitigating fungal dissemination risks. Full article

Catalytic upgrading of vacuum residue (VR) is critical for enhancing fuel yield and reducing waste in petroleum refining. This study explores VR cracking over a novel cerium-loaded acidified metakaolinite catalyst (MKA800–20%Ce) prepared via calcination at 800 °C, acid leaching, and wet impregnation with 20 wt.% Ce. The catalyst was characterized using FTIR, BET, XRD, TGA, and GC–MS to assess structural, textural, and thermal properties. Catalytic cracking was carried out in a fixed-bed batch reactor at 350 °C, 400 °C, and 450 °C. The MKA800@Ce20% catalyst showed excellent thermal stability and surface activity, especially at higher temperatures. At 450 °C, the catalyst yielded approximately 11.72 g of total liquid product per 20 g of VR (representing a ~61% yield), with ~3.81 g of coke (~19.1%) and the rest as gaseous products (~19.2%). GC-MS analysis revealed enhanced production of light naphtha (LN), heavy naphtha (HN), and kerosene in the 400–450 °C range, with a clear temperature-dependent shift in product distribution. Structural analysis confirmed that cerium incorporation enhanced surface acidity, redox activity, and thermal stability, promoting deeper cracking and better product selectivity. Kinetics were investigated using an eight-lump first-order model comprising 28 reactions, with kinetic parameters optimized through a genetic algorithm implemented in MATLAB. The model demonstrated strong predictive accuracy taking into account the mean relative error (MRE = 9.64%) and the mean absolute error (MAE = 0.015) [MAE: It is the absolute difference between experimental and predicted values; MAE is dimensionless (reported simply as a number, not %. MRE is relative to the experimental value; it is usually expressed as a percentage (%)] across multiple operating conditions. The above findings highlight the potential of Ce-modified kaolinite-based catalysts for efficient atmospheric pressure VR upgrading and provide validated kinetic parameters for process optimization. Full article

Swine manure poses significant challenges for anaerobic digestion due to its low carbon-to-nitrogen (C/N) ratio and elevated ammonia concentrations, both of which restrict methane generation. This study investigated the impact of integrating low-intensity ultrasound with co-digestion of piggery wastewater and food waste leachate. Laboratory-scale upflow anaerobic sludge blanket (UASB) reactors were employed under four operational conditions to evaluate anaerobic digestion performance, track shifts in microbial community structure, and assess the abundance of antibiotic resistance genes (ARGs). Co-digestion significantly enhanced methane production, yielding 1.3–3.2 times more than manure alone, while low-intensity ultrasound further increased methane yields by approximately 36–44% at high loading rates. Moreover, coupling low-intensity ultrasound with co-digestion led to the most rapid recovery following an overloading shock. Unexpectedly, ultrasound treatment alone increased the expression of certain ARGs (tetG, sul1, ermB) and the Integrase gene (intI1), while co-digestion led to a reduction in these genetic markers. These findings clearly indicate that the concurrent application of co-digestion and low-intensity ultrasound achieved the highest methane yield, the fastest recovery after organic overloading, and greater suppression of specific ARGs. Full article

Nuclear fuel cladding serves as the primary barrier to the release of radioactive fission products and is subjected to high-temperature and high-pressure environments during both normal reactor operation and accident scenarios such as loss of coolant accidents (LOCAs). Predicting the burst behavior of cladding is essential for ensuring structural integrity, especially under varying heating rates—an aspect inadequately addressed in existing empirical models. In this study, a finite element-based damage model is developed to simulate the ballooning and burst behavior of Zircaloy-4 cladding. The model incorporates creep deformation, stress triaxiality, and time-dependent damage accumulation. Material behavior is characterized using experimentally determined creep constants and the model is calibrated against burst test data from the literature. A new heating-rate-dependent burst correlation is proposed based on model outputs. The results indicate that increasing the heating rate raises the burst temperature due to reduced exposure time in the temperature regime where creep damage accumulates significantly. The model accurately reproduces burst behavior across a wide range of internal pressures (1–10 MPa) and heating rates (5–100 °C/s). The newly developed correlation improves predictive capability in accident analysis tools and can be directly implemented into safety analysis codes for Indian pressurized heavy water reactors (PHWRs), contributing to enhanced reactor safety evaluations. Full article

The High Temperature Gas-cooled Reactor (HTGR) is characterized by a high output temperature and inherent safety due to its fuel design. However, the double heterogeneity of the reactor component structure poses a challenge in thermal analyses, where fuel temperature is a key safety parameter. In this paper, a methodology for coupled thermal and neutron calculations with power discretization is developed to accurately reflect the spatial phenomena occurring in the moderator. The method is based on the point generation of power in the thermal model, and these points are determined based on the location of the fuel in the neutron model. The multi-physics interface capabilities of the Serpent code were used to investigate several configurations of the thermal model mesh and its alignment with the fuel. The impact of the radial discretization of power density was further analyzed in detail. The study revealed that the highest accuracy was achieved when the thermal model mesh was aligned with the TRi-structural ISO-tropic (TRISO) fuel particle size, and the TRISO particle arrangement was centered relative to the mesh cells. Moreover, it was found that due to the power–temperature feedback phenomena, the power is shifted outwards within a range of 1% of the relative power density. Full article

Achieving ultra-low-sulfur diesel is a crucial objective in modern fuel refining, driven by increasingly stringent environmental regulations. This study presents the development of a highly efficient oxidative–adsorptive desulfurization process utilizing a nanocatalyst synthesized from biowaste eggshell-extracted calcite. The oxidation reaction was conducted in a digital basket reactor (DBR), an advanced reactor system designed to enhance mass transfer and catalytic efficiency. To further augment the catalyst’s performance, the calcite was modified with eco-friendly MnO₂, while activated carbon was employed as an adsorbent to effectively capture oxidized sulfur compounds, ensuring compliance with ultra-low-sulfur fuel standards. The synthesized nanocatalyst underwent comprehensive physicochemical characterization using SEM, EDX, BET, and FTIR, confirming its high surface area, structural integrity, and superior catalytic activity. The MnO₂/P–calcite catalyst achieved a sulfur removal efficiency of 96.5% at 90 °C, 80 min, and 600 rpm, demonstrating excellent oxidative–adsorptive performance for real diesel fuel. The integration of this innovative nanocatalyst with the DBR system presents a sustainable, cost-effective, and industrially viable approach for deep desulfurization, offering significant advancements in clean fuel production and environmental sustainability. Full article

This study addresses critical bottlenecks in photocatalytic water treatment technologies, including difficulties in recovering traditional powdered catalysts, low mass transfer efficiency in immobilized reactors, and limited structural diversity. By integrating topology optimization with 3D printing technology, we designed and fabricated five types of triply periodic minimal surface photocatalytic reactors (TPMS-PCRs) with hierarchical porous structures—Fischer-Radin-Dunn (FRD), Neovius (N), Diamond (D), I-graph Wrapped Package (IWP) and Gyroid (G). Using fused deposition modeling (FDM), these TPMS configurations were manufactured from polylactic acid (PLA), 1.5 wt% TiO₂/PLA, and 2.5 wt% TiO₂/PLA. The catalytic degradation performance of these structurally distinct reactors for organic pollutants varied significantly. Notably, the FRD-type TPMS-PCR loaded with 2.5 wt% TiO₂ achieved a methylene blue (MB) degradation rate of 93.4% within 2.5 h under rotational flow conditions, compared to 87.5% under horizontal flow conditions. Full article

Microplastics (MPs) represent a persistent class of emerging contaminants, of which significant amounts can be found in sewage sludge. In this study, the effect of hydrothermal carbonization (HTC) temperature on MPs and the properties of digested sewage sludge (DSS) was evaluated. The HTC process was carried out at temperatures of 200, 210, and 220 °C for 2 h in a batch reactor, and the solid products were subjected to (i) mass balance and fuel properties and (ii) microplastic occurrence analysis using Confocal Raman Microspectroscopy and Scanning Electron Microscopy. In digested sludge, 2700 ± 475 MP particles/100 g d.m. were detected, mostly fragments with ~350 ± 100 fibers. Hydrocharcontained only black and brown fragments in the following amounts: 4175 ± 575 (200 °C), 4450 ± 700 (210 °C), and 1450 ± 590 (220 °C), respectively, after 2 h. The microplastic removal rate was 54% for the highest temperature. Polystyrene (PS) was identified in untreated sludge, while only PE was detected after HTC at 200–210 °C, and no MPs were identifiable at 220 °C. The surfaces of post-MPs exhibited progressive degradation with increasing HTC temperature. The results confirm that HTC lowers the content and alters the physicochemical properties of microplastics, reducing their thermal stability and degrading their structure, while simultaneously improving the fuel properties of hydrochars by increasing the calorific value and carbon content. Full article

The degradation of the electronic properties of semiconductor materials and electronic devices under neutron irradiation is a critical issue for the development of electronic systems intended for use in nuclear and thermonuclear energy facilities. This study presents a methodology for real-time measurement of the electrical parameters of semiconductor structures during neutron irradiation in a high-flux reactor environment. A specially designed irradiation fixture with an electrical measurement system was developed and implemented at the WWR-K research reactor. The system enables simultaneous measurement of electrical conductivity and the Hall effect, with automatic temperature control and remote data acquisition. The sealed fixture, equipped with radiation-resistant wiring and a temperature control, allows for continuous measurement of remote material properties at neutron fluences exceeding 10¹⁸ cm⁻², eliminating the limitations associated with post-irradiation handling of radioactive samples. The technique was successfully applied to the two different InGaAs-based heterostructures, revealing distinct mechanisms of radiation-induced modification: degradation of mobility and carrier concentration in the InGaAs quantum well structure on GaAs substrate, and transmutation-induced doping effects in the heterostructure on InP substrate. The developed methodology provides a reliable platform for evaluating radiation resistance and optimizing materials for magnetic sensors and electronic components designed for high-radiation environments. Full article

This work employed peach stones as the precursor material for producing activated carbon (AC-PS). AC-PS was impregnated with H₃PO₄ and carbonized using a pyrolysis reactor under a reducing atmosphere. The surface area, average pore size, and total pore volume of AC-PS were determined using the BET method. Morphological characteristics of AC-PS were observed through scanning electron microscopy (SEM), the surface composition was identified by energy dispersive spectroscopy (EDS), and X-ray diffraction (XRD) analyses were conducted to determine the crystalline structure of carbon. The thermal stability of AC-PS and its interactions with lead and cadmium were analyzed by thermogravimetric analyses (TGA/DTG) and infrared spectra (FTIR), respectively. The Elovich model described the adsorption kinetics of both lead and cadmium, and the Weber and Morris model indicated intraparticle diffusion as the controlling mechanism of the adsorption process. The equilibrium study showed that the Freundlich model was adequate for both ions, with adsorption capacities increasing with temperature, reaching around 150 mg g⁻¹ for lead and 80 mg g⁻¹ for cadmium at 45 °C. Economic analysis indicated costs of $0.25 g⁻¹ and $0.51 g⁻¹ for the removal of lead and cadmium from the contaminated water, respectively. Full article

The pursuit of compact and efficient fusion energy systems necessitates innovative structural concepts capable of withstanding extreme operational conditions. This study presents a preliminary structural evaluation and stress assessment of a bucked-and-wedged configuration for the EU DEMO tokamak, targeting a peak magnetic field of 16.5 T. The proposed concept leverages mutual wedging of the Toroidal Field (TF) coils and their interaction with the Central Solenoid (CS) to optimize stress distribution in the inner legs, a critical region in high-field fusion reactors. To address the significant tangential forces arising during plasma operation, the design integrates outer inter-coil structures and shear pins to enhance mechanical stability. A hybrid simulation approach—coupling 3D electromagnetic and structural finite element analyses—is employed to assess stress behavior and structural integrity under both in-plane and out-of-plane loading conditions. The results contribute to the optimization study of high-field fusion reactor components and offer insights into viable mechanical design strategies for next-generation nuclear energy systems. Full article
