Search Results (13)

The new mineral achyrophanite (K,Na)₃(Fe³⁺,Ti,Al,Mg)₅O₂(AsO₄)₅ was found in high-temperature sublimates of the Arsenatnaya fumarole at the Second scoria cone of the Northern Breakthrough of the Great Tolbachik Fissure Eruption, Tolbachik volcano, Kamchatka, Russia. It is associated with aphthitalite-group sulfates, hematite, alluaudite-group arsenates (badalovite, calciojohillerite, johillerite, nickenichite, hatertite, and khrenovite), ozerovaite, pansnerite, arsenatrotitanite, yurmarinite, svabite, tilasite, katiarsite, yurgensonite, As-bearing sanidine, anhydrite, rutile, cassiterite, and pseudobrookite. Achyrophanite occurs as long-prismatic to acicular or, rarer, tabular crystals up to 0.02 × 0.2 × 1.5 mm, which form parallel, radiating, bush-like, or chaotic aggregates up to 3 mm across. It is transparent, straw-yellow to golden yellow, with strong vitreous luster. The mineral is brittle, with (001) perfect cleavage. D_calc is 3.814 g cm^–3. Achyrophanite is optically biaxial (+), α = 1.823(7), β = 1.840(7), γ = 1.895(7) (589 nm), 2V (meas.) = 60(10)°. Chemical composition (wt.%, electron microprobe) is: Na₂O 3.68, K₂O 9.32, CaO 0.38, MgO 1.37, MnO 0.08, CuO 0.82, ZnO 0.48, Al₂O₃ 2.09, Fe₂O₃ 20.42, SiO₂ 0.12, TiO₂ 7.35, P₂O₅ 0.14, V₂O₅ 0.33, As₂O₅ 51.88, SO₃ 1.04, and total 99.40. The empirical formula calculated based on 22 O apfu is Na_1.29K_2.15Ca_0.07Mg_0.34Mn_0.01Cu_0.11Zn_0.06Al_0.44Fe³⁺_2.77Ti_1.00Si_0.02P_0.02S_0.14V_0.04As_4.90O₂₂. Achyrophanite is orthorhombic, space group P222₁, a = 6.5824(2), b = 13.2488(4), c = 10.7613(3) Å, V = 938.48(5) ų and Z = 2. The strongest reflections of the PXRD pattern [d,Å(I)(hkl)] are 5.615(59)(101), 4.174(42)(022), 3.669(31)(130), 3.148(33)(103), 2.852(43)(141), 2.814(100)(042, 202), 2.689(29)(004), and 2.237(28)(152). The crystal structure of achyrophanite (solved from single-crystal XRD data, R = 4.47%) is unique. It is based on the octahedral-tetrahedral M-T-O pseudo-framework (M = Fe³⁺ with admixed Ti, Al, Mg, Na; T = As⁵⁺). Large-cation A sites (A = K, Na) are located in the channels of the pseudo-framework. The achyrophanite structure can be described as stuffed, with the defect heteropolyhedral pseudo-framework derivative of the orthorhombic Fe³⁺AsO₄ archetype. The mineral is named from the Greek άχυρον, straw, and φαίνομαι, to appear, in allusion to its typical straw-yellow color and long prismatic habit of crystals. Full article

Lunar regolith is the preferred material for lunar base construction using in situ resource utilization technology. The TiO₂ variations in lunar regolith collected from different locations significantly impact its suitability as a construction material. Therefore, it is crucial to investigate the effects of TiO₂ on the properties of lunar regolith. This study aims to evaluate the influence of TiO₂ content and sintering temperature on phase transformation, microstructure, and macroscopic properties (e.g., the shrinkage rate, mechanical properties, and relative density) of lunar regolith simulant samples (CUG-1A). The flexural strength and relative density of the sample with a TiO₂ content of 6 wt% sintered at 1100 °C reached 136.66 ± 4.92 MPa and 91.06%, which were 65% and 12.28% higher than those of the sample not doped with TiO₂, respectively. The experiment demonstrated that the doped TiO₂ not only reacted with Fe to form pseudobrookite (Fe₂TiO₅) but also effectively reduced the viscosity of the glass phase during heat treatment. As the sintering temperature increased, the particles underwent a gradual melting process, leading to a higher proportion of the liquid phase. The higher liquid-phase content had a positive impact on the diffusion of mass transfer, causing the voids and gaps between particles to shrink. This shrinkage resulted in greater density and, ultimately, improved the mechanical properties of the material. Full article

Our nanomineralogical investigation of melt inclusions in corundum xenocrysts from the Mt. Carmel area, Israel has revealed seven IMA-approved new minerals since 2021. We report here four new oxide minerals and one new alloy mineral. Magnéliite (Ti³⁺₂Ti⁴⁺₂O₇; IMA 2021-111) occurs as subhedral crystals, ~4 μm in size, with alabandite, zirconolite, Ti,Al,Zr-oxide, and hibonite in corundum Grain 767-1. Magnéliite has an empirical formula (Ti³⁺_1.66Al_0.13Ti⁴⁺_0.15Mg_0.10Ca_0.01Sc_0.01)_Σ2.06 (Ti⁴⁺_1.93Zr_0.08)_Σ2.01O₇ and the triclinic P$\overline{1}$ Ti₄O₇-type structure with the cell parameters: a = 5.60(1) Å, b = 7.13(1) Å, c = 12.47(1) Å, α = 95.1(1)°, β = 95.2(1)°, γ = 108.7(1)°, V = 466(2) ų, Z = 4. Ziroite (ZrO₂; IMA 2022-013) occurs as irregular crystals, ~1–4 μm in size, with baddeleyite, hibonite, and Ti,Al,Zr-oxide in corundum Grain 479-1a. Ziroite has an empirical formula (Zr_0.72Ti⁴⁺_0.26Mg_0.02Al_0.02Hf_0.01)_Σ1.03O₂ and the tetragonal P4₂/nmc zirconia(HT)-type structure with the cell parameters: a = 3.60(1) Å, c = 5.18(1) Å, V = 67.1(3) ų, Z = 2. Sassite (Ti³⁺₂Ti⁴⁺O₅; IMA 2022-014) occurs as subhedral-euhedral crystals, ~4–16 μm in size, with Ti,Al,Zr-oxide, mullite, osbornite, baddeleyite, alabandite, and glass in corundum Grain 1125C1. Sassite has an empirical formula (Ti³⁺_1.35Al_0.49Ti⁴⁺_0.08Mg_0.07)_Σ1.99(Ti⁴⁺_0.93Zr_0.06Si_0.01)_Σ1.00O₅ and the orthorhombic Cmcm pseudobrookite-type structure with the cell parameters: a = 3.80(1) Å, b = 9.85(1) Å, c = 9.99(1) Å, V = 374(1) ų, Z = 4. Mizraite-(Ce) (Ce(Al₁₁Mg)O₁₉; IMA 2022-027) occurs as euhedral crystals, <1–14 μm in size, with Ce-silicate, Ti-sulfide, Ti,Al,Zr-oxide, ziroite, and thorianite in corundum Grain 198-8. Mizraite-(Ce) has an empirical formula (Ce_0.76Ca_0.10La_0.07Nd_0.01)_Σ0.94(Al_10.43Mg_0.84Ti³⁺_0.60Si_0.09Zr_0.04)_Σ12.00O₁₉ and the hexagonal P6₃/mmc magnetoplumbite-type structure with the cell parameters: a = 5.61(1) Å, c = 22.29(1) Å, V = 608(2) ų, Z = 2. Yeite (TiSi; IMA 2022-079) occurs as irregular-subhedral crystals, 1.2–3.5 μm in size, along with wenjiite (Ti₅Si₃) and zhiqinite (TiSi₂) in Ti-Si alloy inclusions in corundum Grain 198c. Yeite has an empirical formula (Ti_0.995Mn_0.003V_0.001Cr_0.001)(Si_0.996P_0.004) and the orthorhombic Pnma FeB-type structure with the cell parameters: a = 6.55(1) Å, b = 3.64(1) Å, c = 4.99(1) Å, V = 119.0(4) ų, Z = 4. The five minerals are high-temperature oxide or alloy phases, formed in melt pockets in corundum xenocrysts derived from the upper mantle beneath Mt. Carmel. Full article

In this work, a complete beneficiation technical route combining physical and chemical methods, namely a roasting-flotation-leaching scheme, is proposed to produce a qualified grade Ti-concentrate from altered Vanadium titanomagnetite (VTM) ore. Based on the character of the ore sample, it is recommended to recover the Ti-bearing minerals, ilmenite and anatase, as composite mineral. Pretreatment experiments indicate that the oxidation roasting (800 °C) and acid washing methods increase the flotation indexes significantly. Flotation condition tests show that the optimal conditions are a grinding fineness of −0.045 mm 83%, sulfuric acid dosage of 2000 g/t, water glass dosage of 1500 g/t, oxalic acid dosage of 200 g/t, and EM328 dosage of 1500 g/t. An open flotation circuit test obtains a flotation concentrate with a TiO₂ grade and recovery of 38.30% and 25.99%, respectively. A leaching exploration test shows that the TiO₂ grade of the flotation concentrate can be improved to 53.90%. XRD analyses reveal that the ilmenite in the VTM ore is converted into anatase and rutile during the roasting process at 600–800 °C, but pseudobrookite begins to form at 900 °C. Compared to the flotation concentrate, it is confirmed that the content of Ti-bearing minerals is increased significantly in the leaching residue. Full article

In order to pursue the goal of low-carbon ironmaking, a new type of humic acid (HA)-based binder was applied to the preparation of oxidized pellets from vanadium-bearing titanomagnetite (VTM) in this work. Effects of the HA binder (or with limestone) on the balling, preheating, and roasting behaviors of VTM were comparatively studied with bentonite. The embedded features of each mineral phase in sintered pellets, especially the crystallization and growth state of hematite grains, were deeply investigated by XRD, optical microscopy, and SEM–EDS measures. The binder dosage can be cut down by 50% when HA was used instead of bentonite. Fine hematite grains in HA pellets evolved into plump interlocking grains with ~5% of limestone addition. Pseudobrookite and magnesioferrite spinel phase formed at the optimal sintering temperature of 1250 °C, which could hinder the crystallization of hematite and affect the strength of final pellets. Full article

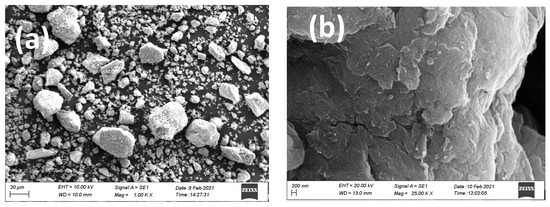

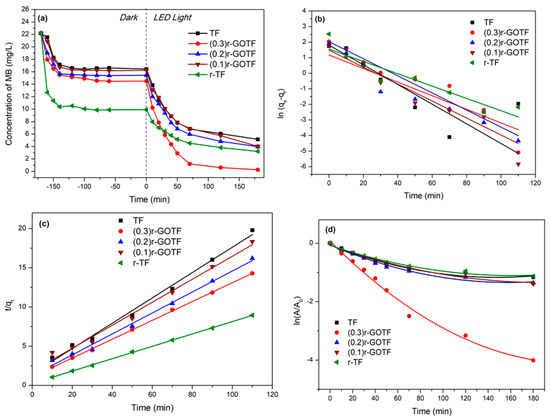

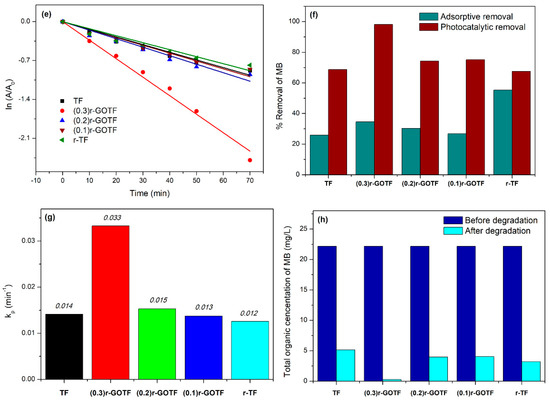

Hematite (α-Fe₂O₃) and pseudobrookite (Fe₂TiO₅) suffer from poor charge transport and a high recombination effect under visible light irradiation. This study investigates the design and production of a 2D graphene-like r-GO/GO coupled α-Fe₂O₃/Fe₂TiO₅ heterojunction composite with better charge separation. It uses a simple sonochemical and hydrothermal approach followed by L-ascorbic acid chemical reduction pathway. The advantageous band offset of the α-Fe₂O₃/Fe₂TiO₅ (TF) nanocomposite between α-Fe₂O₃ and Fe₂TiO₅ forms a Type-II heterojunction at the Fe₂O₃/Fe₂TiO₅ interface, which efficiently promotes electron-hole separation. Importantly, very corrosive acid leachate resulting from the hydrochloric acid leaching of ilmenite sand, was successfully exploited to fabricate α-Fe₂O₃/Fe₂TiO₅ heterojunction. In this paper, a straightforward synthesis strategy was employed to create 2D graphene-like reduced graphene oxide (r-GO) from Ceylon graphite. The two-step process comprises oxidation of graphite to graphene oxide (GO) using the improved Hummer’s method, followed by controlled reduction of GO to r-GO using L-ascorbic acid. Before the reduction of GO to the r-GO, the surface of TF heterojunction was coupled with GO and was allowed for the controlled L-ascorbic acid reduction to yield r-GO/GO/α-Fe₂O₃/Fe₂TiO₅ nanocomposite. Under visible light illumination, the photocatalytic performance of the 30% GO/TF loaded composite material greatly improved (1240 Wcm⁻²). Field emission scanning electron microscopy (FE-SEM) and high-resolution transmission electron microscopy (HR-TEM) examined the morphological characteristics of fabricated composites. X-ray photoelectron spectroscopy (XPS), Raman, X-ray diffraction (XRD), X-ray fluorescence (XRF), and diffuse reflectance spectroscopy (DRS) served to analyze the structural features of the produced composites. Full article

The upgradation of the ilmenite ore, using a pyrometallurgy method, is performed using a carbothermic reduction of the ilmenite. A high titania slag is obtained which is used as a feedstock for the TiO₂ pigment production. The slag is cooled after tapping in big molds and can take ten days to cool. This cooling method has remained the same since the inception of ilmenite smelting and recently rapid cooling through granulation has been utilized. The work presented in this paper focuses on the microstructural study of the slags that were prepared using different techniques and cooled at different cooling rates. Various analytical techniques, such as X-ray powder diffraction (XRD), scanning electron microscopy (SEM), inductively coupled plasma-optical emission spectroscopy (ICP-OES), and X-ray photoelectron spectroscopy (XPS) were used to exhibit the similarity of these synthetic slags to the properties of high titania ilmenite slag. The slag consisted mostly of pseudo-brookite phase with a M₃O₅ stoichiometry and smaller amounts of silicate and rutile phase. A glassy phase of silica was observed and most of the impurities were found to be present in the silicate phase. These silica phases were observed to be separate from the pseudo-brookite phase and along the phase boundaries. Micro-cracking of the slag surface, which is the characteristic of the M₃O₅ phase formed in the ilmenite slag, were observed under the SEM analysis. The XPS analysis revealed that faster cooling does result in lower amount of oxidation but the difference in the TiO₂ and Ti₂O₃ composition can have larger impact on oxidation than the cooling speed. Full article

The alkaline electrolytic production of iron is gaining interest due to the absence of CO₂ emissions and significantly lower electrical energy consumption when compared with traditional steelmaking. The possibility of using an iron-bearing pseudobrookite mineral, Fe₂TiO₅, is explored for the first time as an alternative feedstock for the electrochemical reduction process. To assess relevant impacts of the presence of titanium, similar electroreduction processes were also performed for Fe₂TiO₅·Fe₂O₃ and Fe₂O₃. The electroreduction was attempted using dense and porous ceramic cathodes. Potentiostatic studies at the cathodic potentials of −1.15–−1.30 V vs. an Hg|HgO|NaOH reference electrode and a galvanostatic approach at 1 A/cm² were used together with electroreduction from ceramic suspensions, obtained by grinding the porous ceramics. The complete electroreduction to Fe⁰ was only possible at high cathodic polarizations (−1.30 V), compromising the current efficiencies of the electrochemical process due to the hydrogen evolution reaction impact. Microstructural evolution and phase composition studies are discussed, providing trends on the role of titanium and corresponding electrochemical mechanisms. Although the obtained results suggest that pseudobrookite is not a feasible material to be used alone as feedstock for the electrolytic iron production, it can be considered with other iron oxide materials and/or ores to promote electroreduction. Full article

The oxidation roasting of vanadium–titanium magnetite (VTM) pellets with a new composite binder was investigated using a pilot-scale straight-grate. The evolution of the chemical and phase composition, the compressive strength, and the metallurgical properties of the fired VTM pellets were investigated. Under a preheating temperature of 950 ${}^{\circ }$C, a preheating time of 18 min, a firing temperature of 1300 ${}^{\circ }$C, and a firing time of 10 min, the compressive strength of the fired pellets was as high as 2344 N per pellet. The fired pellets mainly consisted of hematite, pseudobrookite, spinel and olivine. The total iron content of the fired pellets was 0.97% higher using 0.75 wt% humic acid (HA) binder instead of 1.5 wt% bentonite binder. These properties are beneficial for the production efficiency and energy efficiency of their subsequent use in blast furnaces. Moreover, both the softening interval and the softening melting interval of the HA binder pellets were narrower than those of the bentonite binder pellets, conducive to the smooth and successful smelting of the VTM pellets in a blast furnace. Full article

A high titania slag that is used as a feedstock for TiO₂ manufacturing is obtained by ilmenite smelting (FeO.TiO₂). The composition of the slag obtained by smelting is dependent on the composition of the mineral used for slag preparation, i.e., ilmenite in our study. At the laboratory scale, ilmenite slags are mostly obtained by using ilmenite as the raw material. An easy and simple way would be to prepare the synthetic slag using the individual components and heating them to high temperature in a furnace. The titania slag has a high oxidizing nature and requires an inert atmosphere to prevent oxidation of the slag as well as the molybdenum crucible. This paper describes the preparation of synthetic ilmenite slag using an induction furnace and the study of the composition and the phases formed in the slag. X-ray powder diffraction (XRD), scanning electron microscopy (SEM), and inductively coupled plasma-optical emission spectroscopy (ICP-OES) were used as analytical techniques for studying the slag. A comparison between obtained synthetic slag and industrial ilmenite slag was performed to test the possibility of preparing slags in the laboratory as per the required composition. The slags show similar phase formation as obtained in industrial ilmenite slags, which means that the synthetic slags are identical to the industrial slags. Full article

A new mineral, dioskouriite, CaCu₄Cl₆(OH)₄∙4H₂O, represented by two polytypes, monoclinic (2M) and orthorhombic (2O), which occur together, was found in moderately hot zones of two active fumaroles, Glavnaya Tenoritovaya and Arsenatnaya, at the Second scoria cone of the Northern Breakthrough of the Great Tolbachik Fissure Eruption, Tolbachik volcano, Kamchatka, Russia. Dioskouriite seems to be a product of the interactions involving high-temperature sublimate minerals, fumarolic gas and atmospheric water vapor at temperatures not higher than 150 °C. It is associated with avdoninite, belloite, chlorothionite, eriochalcite, sylvite, halite, carnallite, mitscherlichite, chrysothallite, sanguite, romanorlovite, feodosiyite, mellizinkalite, flinteite, kainite, gypsum, sellaite and earlier hematite, tenorite and chalcocyanite in Glavnaya Tenoritovaya and with avdoninite and earlier hematite, tenorite, fluorophlogopite, diopside, clinoenstatite, sanidine, halite, aphthitalite-group sulfates, anhydrite, pseudobrookite, powellite and baryte in Arsenatnaya. Dioskouriite forms tabular, lamellar or flattened prismatic, typically sword-like crystals up to 0.01 mm × 0.04 mm × 0.1 mm combined in groups or crusts up to 1 × 2 mm² in area. The mineral is transparent, bright green with vitreous luster. It is brittle; cleavage is distinct. The Mohs hardness is ca. 3. D_meas is 2.75(1) and D_calc is 2.765 for dioskouriite-2O and 2.820 g cm⁻³ for dioskouriite-2M. Dioskouriite-2O is optically biaxial (+), α = 1.695(4), β = 1.715(8), γ = 1.750(6) and 2V_meas. = 70(10)°. The Raman spectrum is reported. The chemical composition (wt%, electron microprobe data, H₂O calculated by total difference; dioskouriite-2O/dioskouriite-2M) is: K₂O 0.03/0.21; MgO 0.08/0.47; CaO 8.99/8.60; CuO 49.24/49.06; Cl 32.53/32.66; H₂O(calc.) 16.48/16.38; -O=Cl −7.35/−7.38; total 100/100. The empirical formulae based on 14 O + Cl apfu are: dioskouriite-2O: Ca_1.04(Cu_4.02Mg_0.01)_Σ4.03[Cl_5.96(OH)_3.90O_0.14]_Σ10∙4H₂O; dioskouriite-2M: (Ca_1.00K_0.03)_Σ4.03(Cu_4.01Mg_0.08)_Σ4.09[Cl_5.99(OH)_3.83O_0.18]_Σ10∙4H₂O. Dioskouriite-2M has the space group P2₁/c, a = 7.2792(8), b = 10.3000(7), c = 20.758(2) Å, β = 100.238(11)°, V = 1531.6(2) ų and Z = 4; dioskouriite-2O: P2₁2₁2₁, a = 7.3193(7), b = 10.3710(10), c = 20.560(3) Å, V = 1560.6(3) ų and Z = 4. The crystal structure (solved from single-crystal XRD data, R = 0.104 and 0.081 for dioskouriite-2M and -2O, respectively) is unique. The structures of both polytypes are based upon identical BAB layers parallel to (001) and composed from Cu²⁺-centered polyhedra. The core of each layer is formed by a sheet A of edge-sharing mixed-ligand octahedra centered by Cu(1), Cu(2), Cu(3), Cu(5) and Cu(6) atoms, whereas distorted Cu(4)(OH)₂Cl₃ tetragonal pyramids are attached to the A sheet on both sides, along with the Ca(OH)₂(H₂O)₄Cl₂ eight-cornered polyhedra, which provide the linkage of the two adjacent layers via long Ca−Cl bonds. The Cu(4) and Ca polyhedra form the B sheet. The difference between the 2M and 2O polytypes arises as a result of different stacking of layers along the c axis. The cation array of the layer corresponds to the capped kagomé lattice that is also observed in several other natural Cu hydroxychlorides: atacamite, clinoatacamite, bobkingite and avdoninite. The mineral is named after Dioskouri, the famous inseparable twin brothers of ancient Greek mythology, Castor and Polydeuces, the same in face but different in exercises and achievements; the name is given in allusion to the existence of two polytypes that are indistinguishable in appearance but different in symmetry, unit cell configuration and XRD pattern. Full article

The kinetics of the sulfuric acid leaching of altered ilmenite, mechanisms, and process intensification methods were studied. The effect of changing the chemical composition during grinding was determined. The content of ilmenite and pseudorutile decreased from 5.3% to 3.1% and from 90.2% to 63.1%, respectively. Rutile increased from 4.5% to 28.7%, while a pseudobrookite new phase appeared in the amount of 5.1% after 2 h of grinding. It was found that the modification of raw material by sulfuric acid led to the increase of the decomposition rate, and at the same time, decreased when the ore was utilized due to an increase of insoluble TiO₂ content. Isothermal conditions were evaluated with H₂SO₄ concentration varying from 50 to 96%. The data obtained were described with the approximation of the contracting sphere model. It was shown for the first time that H₂SO₄ > 85 wt% causes a sharp constant decrease of titanium. Correlating these phenomena allows for the consideration of H₂SO₄·H₂O as reagents, rather than H₂SO₄ molecules. It was experimentally proven that at a temperature above 190 °C, the Ti leaching degree dropped, which is explained by the formation of polymerized TiOSO₄. Finally, it was shown that adding NaF reduced the activation energy to 45 kJ/mol. Full article

This paper is the first description of natural copper-rich oxide spinels. They were found in deposits of oxidizing-type fumaroles related to the Tolbachik volcano, Kamchatka, Russia. This mineralization is represented by nine species with the following maximum contents of CuO (wt.%, given in parentheses): a new mineral thermaerogenite, ideally CuAl₂O₄ (26.9), cuprospinel, ideally CuFe³⁺₂O₄ (28.6), gahnite (21.4), magnesioferrite (14.7), spinel (10.9), magnesiochromite (9.0), franklinite (7.9), chromite (5.9), and zincochromite (4.8). Cuprospinel, formerly known only as a phase of anthropogenic origin, turned out to be the Cu-richest natural spinel-type oxide [sample with the composition (Cu_0.831Zn_0.100Mg_0.043Ni_0.022)_Σ0.996(Fe³⁺_1.725Al_0.219Mn³⁺_0.048Ti_0.008)_Σ2.000O₄ from Tolbachik]. Aluminum and Fe³⁺-dominant spinels (thermaerogenite, gahnite, spinel, cuprospinel, franklinite, and magnesioferrite) were deposited directly from hot gas as volcanic sublimates. The most probable temperature interval of their crystallization is 600–800 °C. They are associated with each other and with tenorite, hematite, orthoclase, fluorophlogopite, langbeinite, calciolangbeinite, aphthitalite, anhydrite, fluoborite, sylvite, halite, pseudobrookite, urusovite, johillerite, ericlaxmanite, tilasite, etc. Cu-bearing spinels are among the latest minerals of this assemblage: they occur in cavities and overgrow even alkaline sulfates. Cu-enriched varieties of chrome-spinels (magnesiochromite, chromite, and zincochromite) were likely formed in the course of the metasomatic replacement of a magmatic chrome-spinel in micro-xenoliths of ultrabasic rock under the influence of volcanic gases. The new mineral thermaerogenite, ideally CuAl₂O₄, was found in the Arsenatnaya fumarole at the Second scoria cone of the Northern Breakthrough of the Great Tolbachik Fissure Eruption. It forms octahedral crystals up to 0.02 mm typically combined in open-work clusters up to 1 mm across. Thermaerogenite is semitransparent to transparent, with a strong vitreous lustre. Its colour is brown, yellow-brown, red-brown, brown-yellow or brown-red. The mineral is brittle, with the conchoidal fracture, cleavage is none observed. D(calc.) is 4.87 g/cm³. The chemical composition of the holotype (wt.%, electron microprobe) is: CuO 25.01, ZnO 17.45, Al₂O₃ 39.43, Cr₂O₃ 0.27, Fe₂O₃ 17.96, total 100.12 wt.%. The empirical formula calculated on the basis of 4 O apfu is: (Cu_0.619Zn_0.422)_Σ1.041(Al_1.523Fe³⁺_0.443Cr_0.007)_Σ1.973O₄. The mineral is cubic, Fd-3m, a = 8.093(9) Å, V = 530.1(10) ų. Thermaerogenite forms a continuous isomorphous series with gahnite. The strongest lines of the powder X-ray diffraction pattern of thermaerogenite [d, Å (I, %) (hkl)] are: 2.873 (65) (220), 2.451 (100) (311), 2.033 (10) (400), 1.660 (16) (422), 1.565 (28) (511) and 1.438 (30) (440). Full article
